Powering interactive data analysis require massive architecture, and Know-How to build a fast real-time computing system. BigQuery solves this problem by enabling super-fast, SQL-like queries against petabytes of data using the processing power of Google’s infrastructure. We will cover its core features, creating tables, columns, views, working with partitions, clustering for cost optimizations, streaming inserts, User Defined Functions, and several use cases for everydaay developer: funnel analytics, behavioral analytics, exploring unstructured data.
The other part will be about BigQuery ML, which enables users to create and execute machine learning models in BigQuery using standard SQL queries. BigQuery ML democratizes machine learning by enabling SQL practitioners to build models using existing SQL tools and skills. BigQuery ML increases development speed by eliminating the need to move data.
Alluxio Monthly Webinar | Cloud-Native Model Training on Distributed Data
Supercharge your data analytics with BigQuery
1. Supercharge your data analytics with
Márton Kodok / @martonkodok
Google Developer Expert at REEA.net
September 2019 - Tbilisi, Georgia
2. ● Among the Top3 romanians on Stackoverflow 135k reputation
● Google Developer Expert on Cloud technologies
● Crafting Web/Mobile backends at REEA.net
● BigQuery + Redis and database engine expert
Slideshare: martonkodok
Twitter: @martonkodok
StackOverflow: pentium10
GitHub: pentium10
Supercharge your data analytics with BigQuery @martonkodok
About me
3. Crafting a solution for building high-performance,
petabyte scale data analytics, serverless
reporting system on Google Cloud Platform
Goal today
Supercharge your data analytics with BigQuery @martonkodok

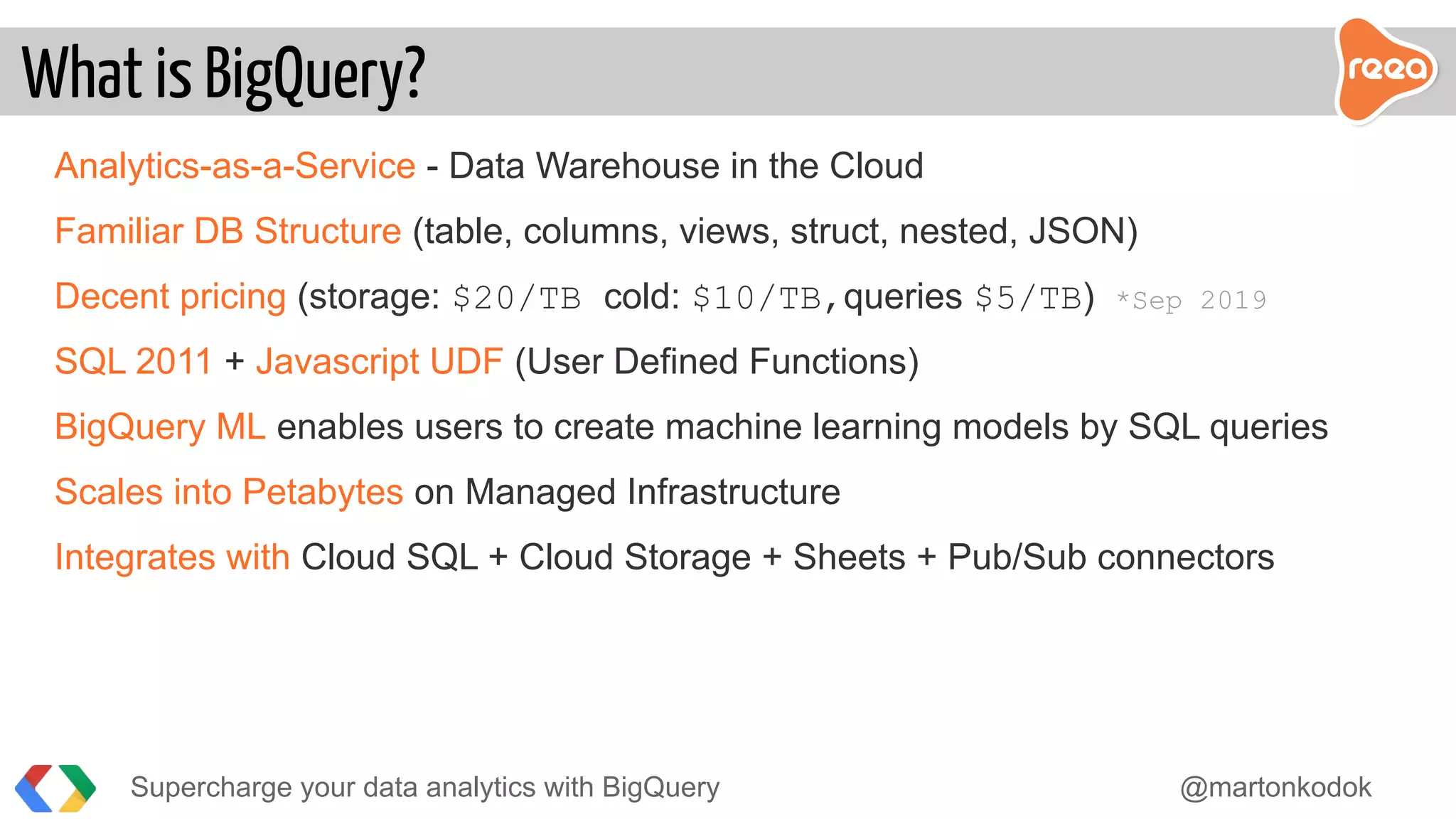

5. Analytics-as-a-Service - Data Warehouse in the Cloud
Familiar DB Structure (table, columns, views, struct, nested, JSON)
Decent pricing (storage: $20/TB cold: $10/TB,queries $5/TB) *Sep 2019
SQL 2011 + Javascript UDF (User Defined Functions)
BigQuery ML enables users to create machine learning models by SQL queries
Scales into Petabytes on Managed Infrastructure
Integrates with Cloud SQL + Cloud Storage + Sheets + Pub/Sub connectors
What is BigQuery?
Supercharge your data analytics with BigQuery @martonkodok

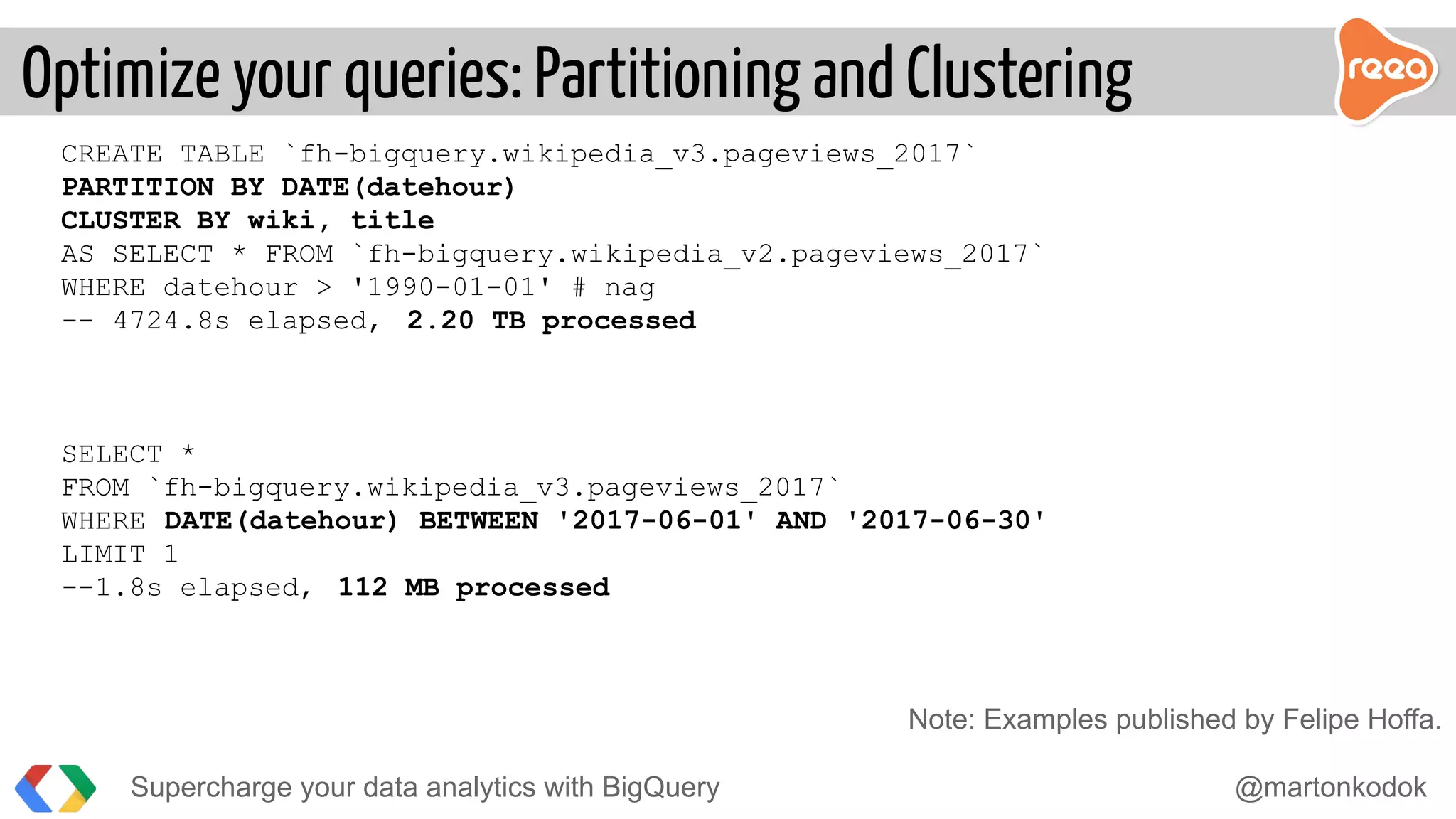

7. CREATE TABLE `fh-bigquery.wikipedia_v3.pageviews_2017`
PARTITION BY DATE(datehour)
CLUSTER BY wiki, title
AS SELECT * FROM `fh-bigquery.wikipedia_v2.pageviews_2017`
WHERE datehour > '1990-01-01' # nag
-- 4724.8s elapsed, 2.20 TB processed
SELECT *
FROM `fh-bigquery.wikipedia_v3.pageviews_2017`
WHERE DATE(datehour) BETWEEN '2017-06-01' AND '2017-06-30'
LIMIT 1
--1.8s elapsed, 112 MB processed
Note: Examples published by Felipe Hoffa.
Supercharge your data analytics with BigQuery @martonkodok
Optimize your queries: Partitioning and Clustering

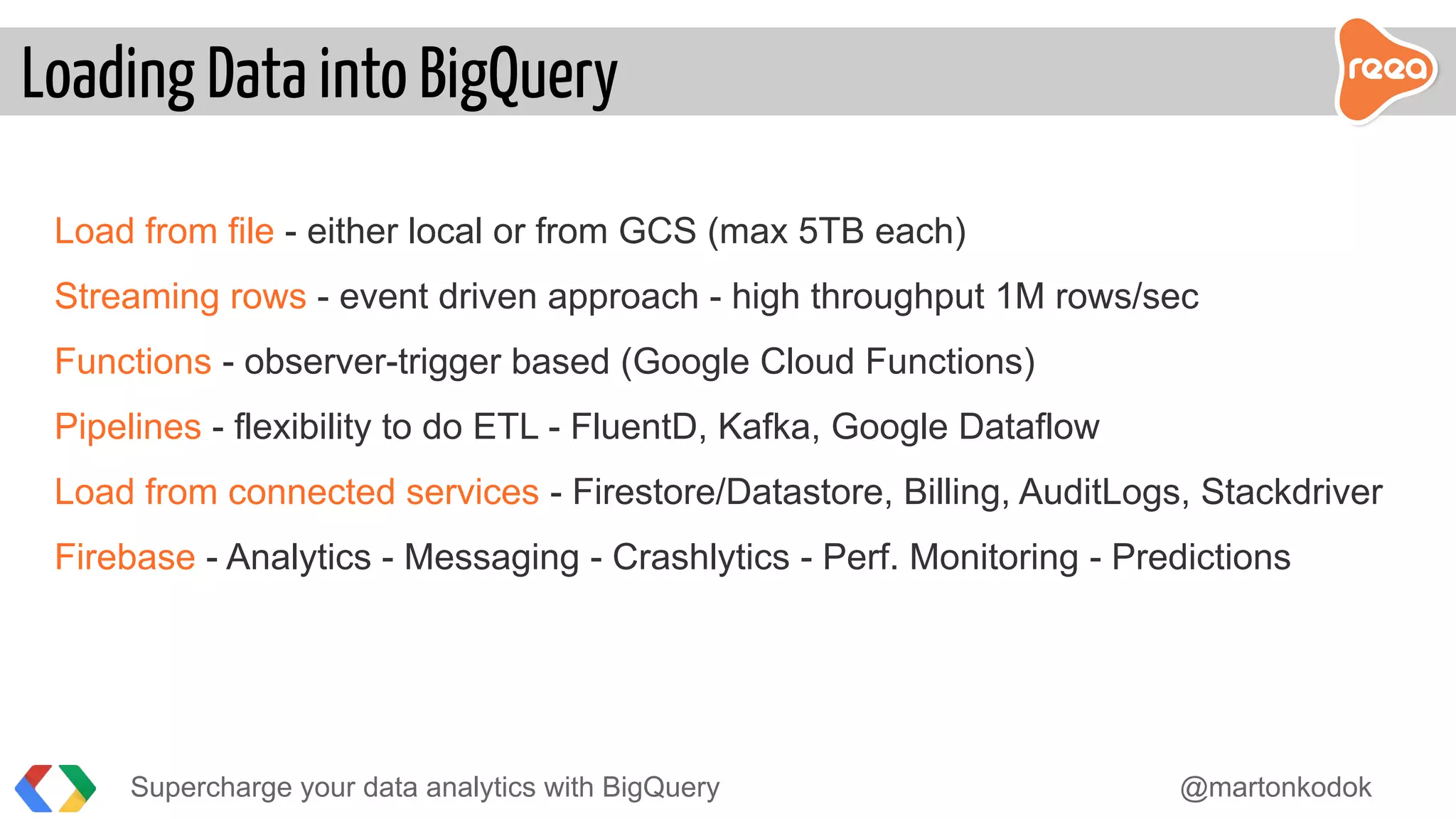

8. Load from file - either local or from GCS (max 5TB each)
Streaming rows - event driven approach - high throughput 1M rows/sec
Functions - observer-trigger based (Google Cloud Functions)
Pipelines - flexibility to do ETL - FluentD, Kafka, Google Dataflow
Load from connected services - Firestore/Datastore, Billing, AuditLogs, Stackdriver
Firebase - Analytics - Messaging - Crashlytics - Perf. Monitoring - Predictions
Loading Data into BigQuery
Supercharge your data analytics with BigQuery @martonkodok

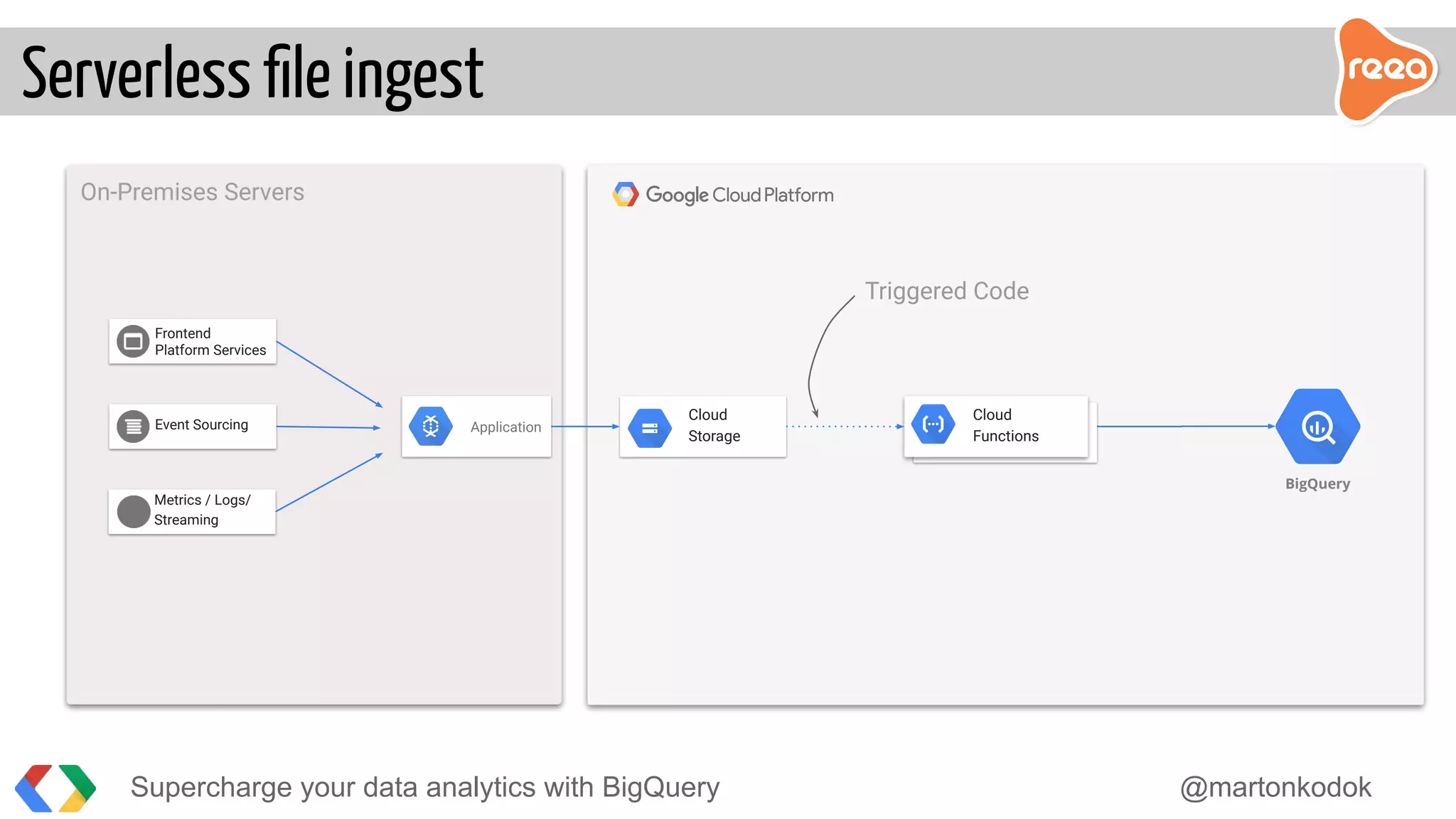

9. Serverless file ingest
BigQuery
On-Premises Servers
ApplicationEvent Sourcing
Frontend
Platform Services
Metrics / Logs/
Streaming
Cloud
Storage
Cloud
Functions
Triggered Code
Supercharge your data analytics with BigQuery @martonkodok

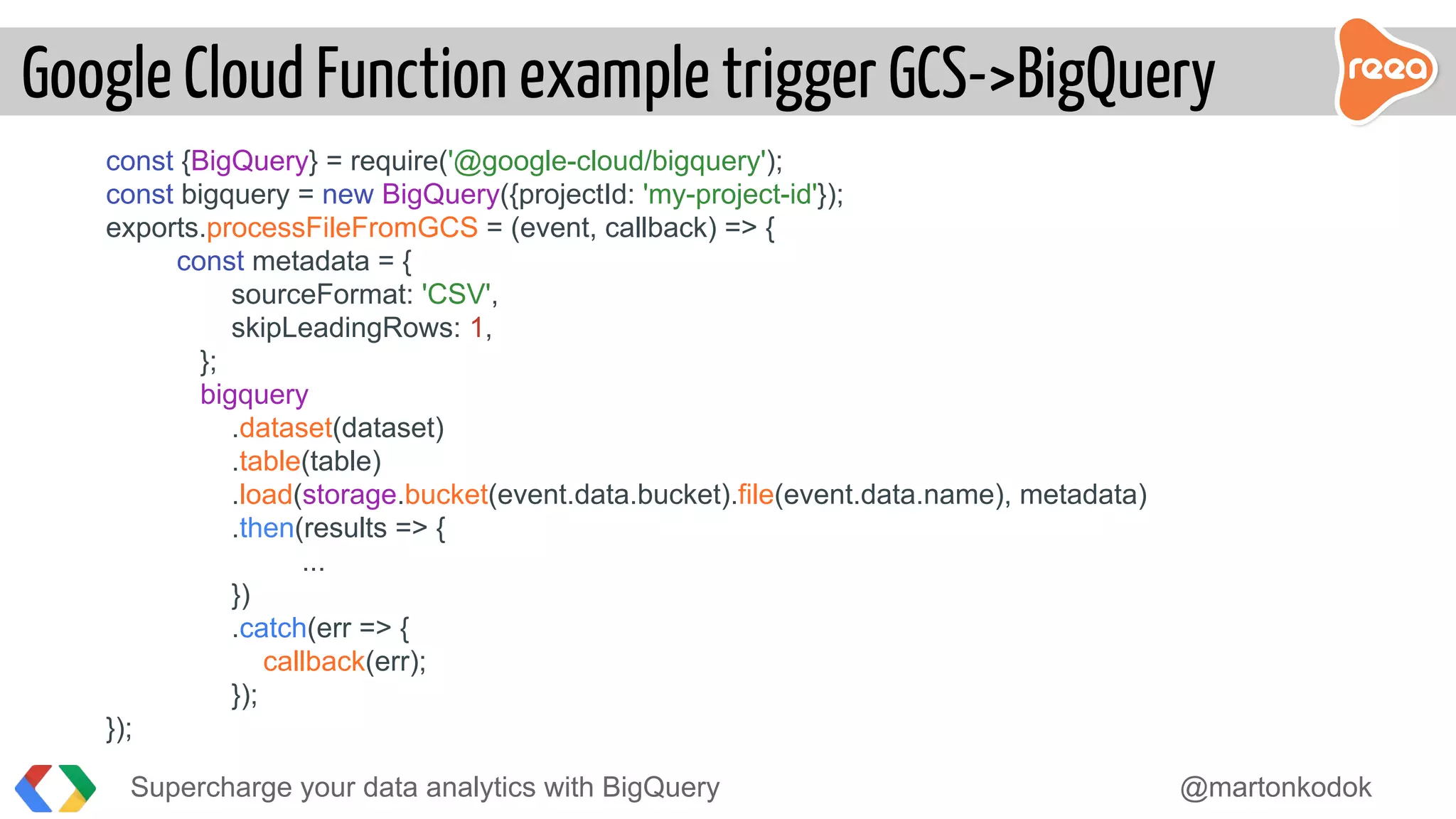

10. const {BigQuery} = require('@google-cloud/bigquery');
const bigquery = new BigQuery({projectId: 'my-project-id'});
exports.processFileFromGCS = (event, callback) => {
const metadata = {
sourceFormat: 'CSV',
skipLeadingRows: 1,
};
bigquery
.dataset(dataset)
.table(table)
.load(storage.bucket(event.data.bucket).file(event.data.name), metadata)
.then(results => {
...
})
.catch(err => {
callback(err);
});
});
Supercharge your data analytics with BigQuery @martonkodok
Google Cloud Function example trigger GCS->BigQuery

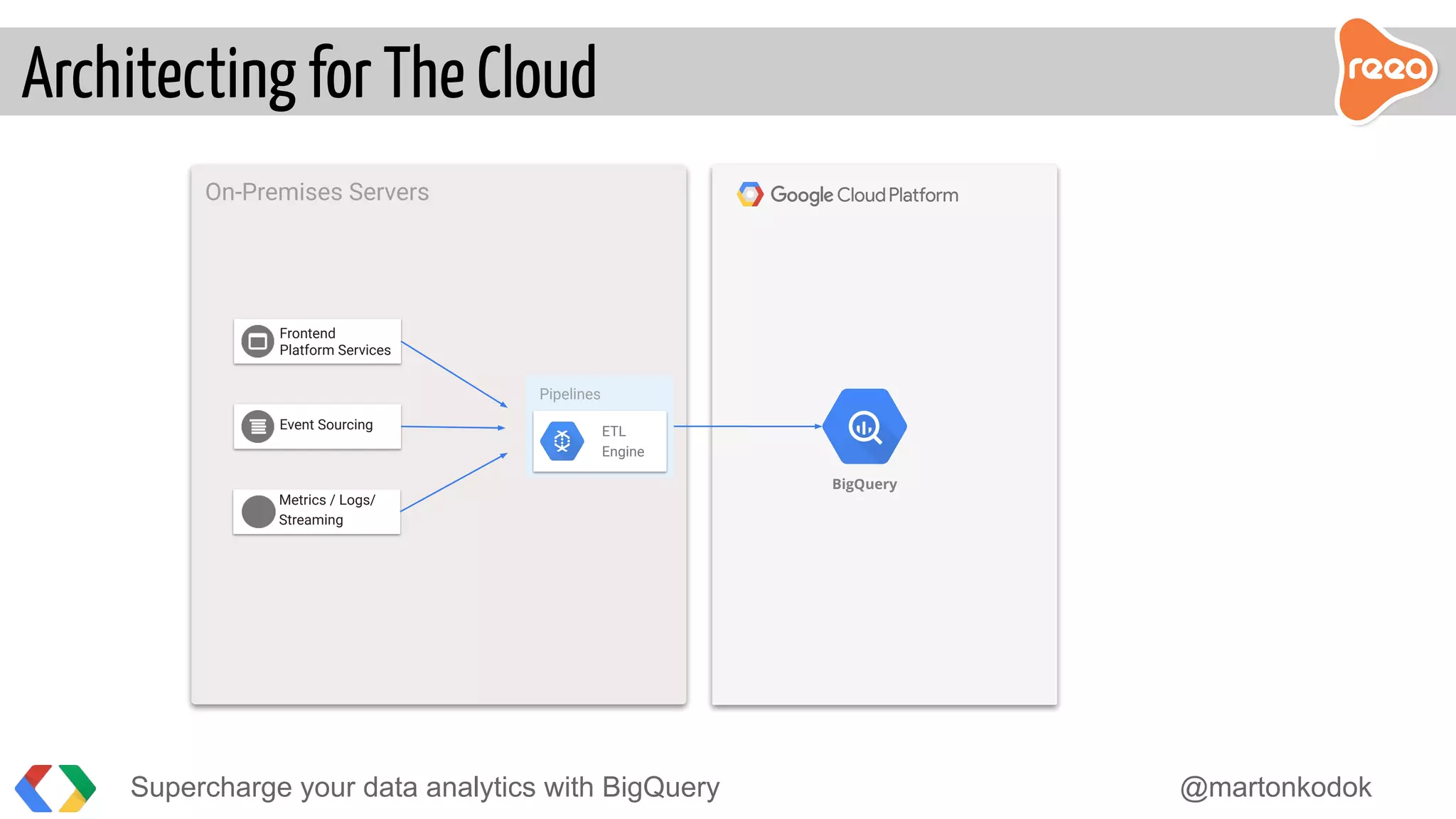

11. Architecting for The Cloud
BigQuery
On-Premises Servers
Pipelines
ETL
Engine
Event Sourcing
Frontend
Platform Services
Metrics / Logs/
Streaming
Supercharge your data analytics with BigQuery @martonkodok
12. “ We have our app outside of GCP.
How can we use the benefits of BigQuery?
Supercharge your data analytics with BigQuery @martonkodok

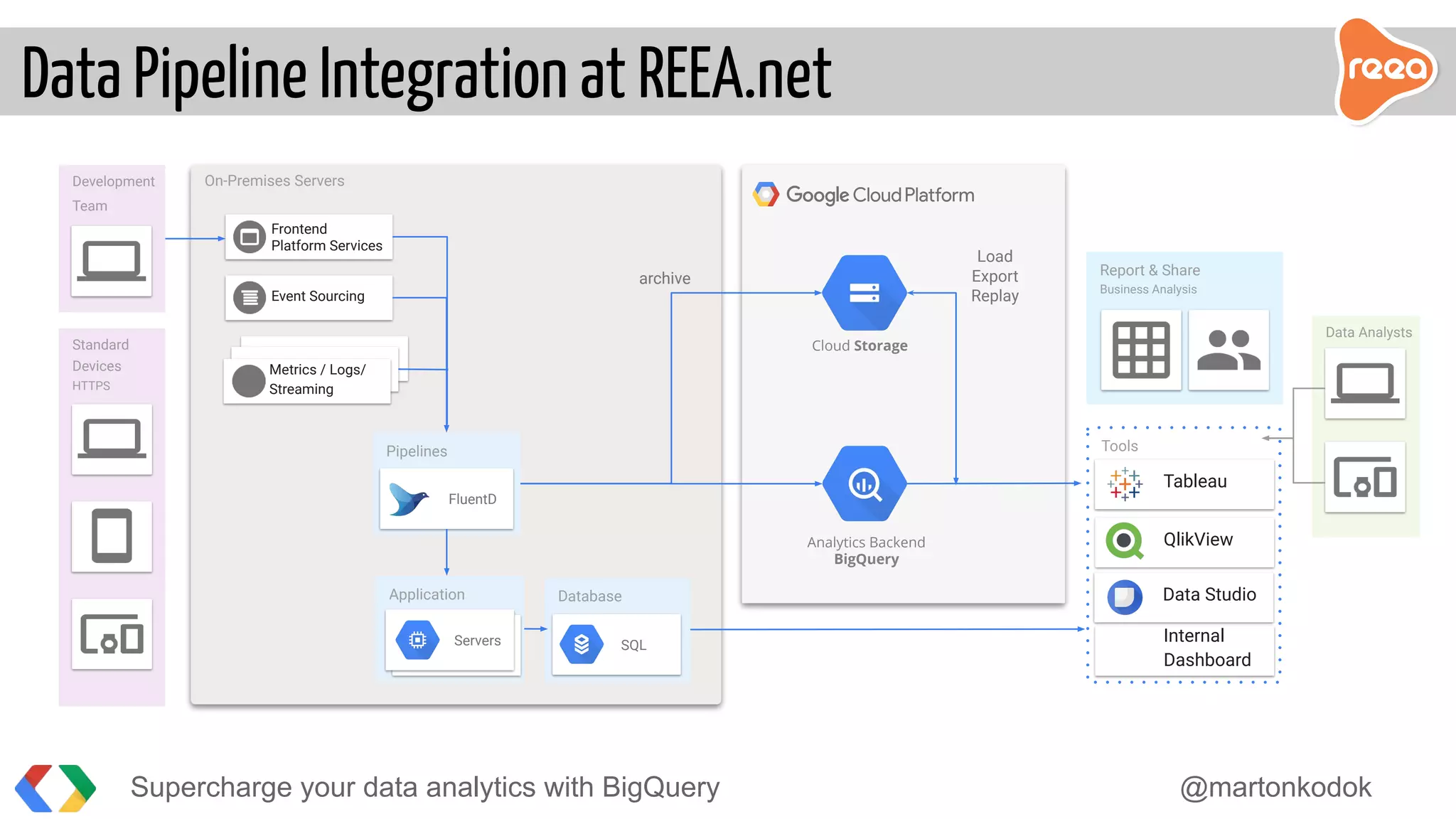

13. Data Pipeline Integration at REEA.net
Analytics Backend
BigQuery
On-Premises Servers
Pipelines
FluentD
Event Sourcing
Frontend
Platform Services
Metrics / Logs/
Streaming
Development
Team
Data Analysts
Report & Share
Business Analysis
Tools
Tableau
QlikView
Data Studio
Internal
Dashboard
Database
SQL
Application
ServersServers
Cloud Storage
archive
Load
Export
Replay
Standard
Devices
HTTPS
Supercharge your data analytics with BigQuery @martonkodok

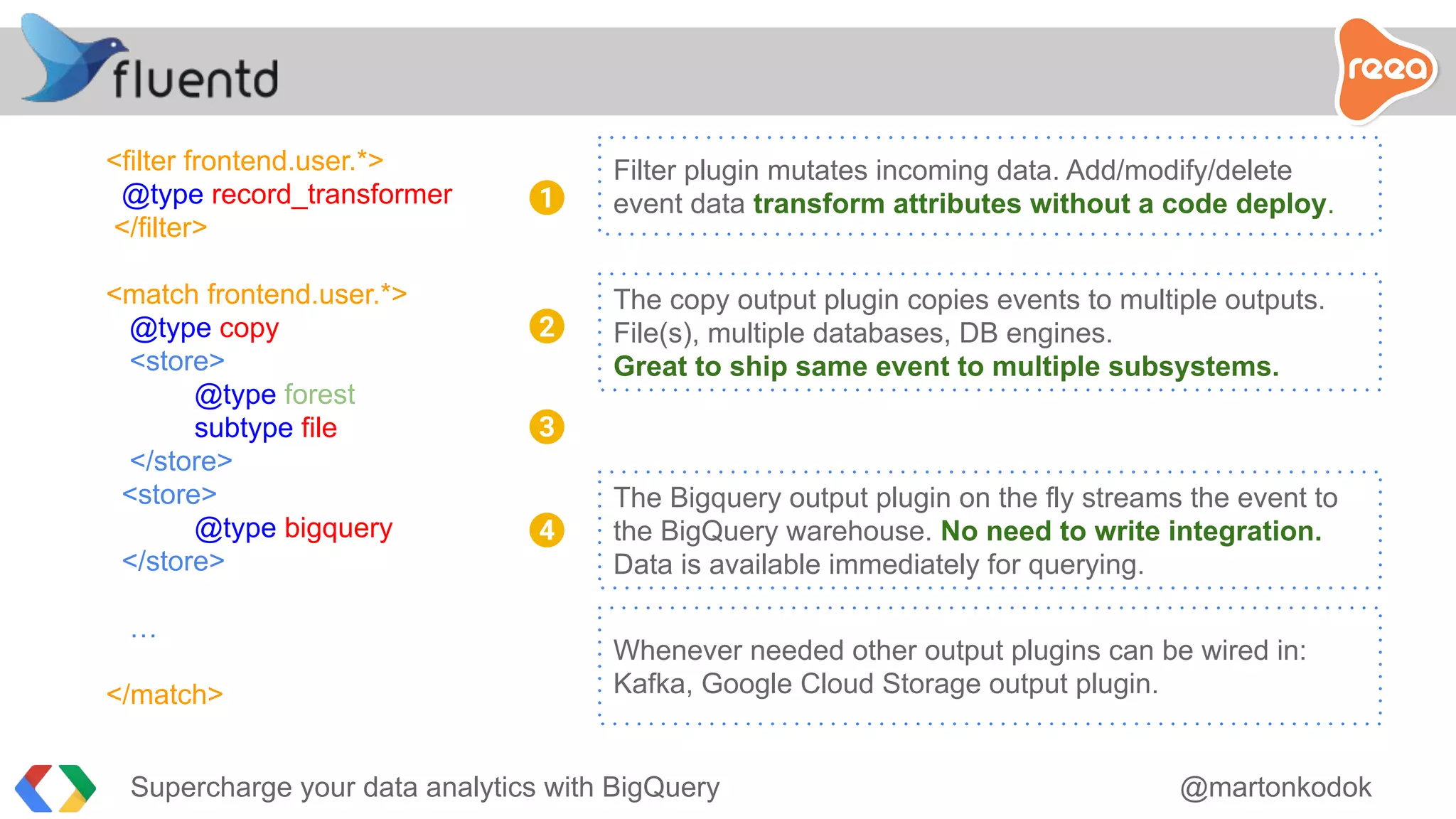

14. <filter frontend.user.*>
@type record_transformer
</filter>
<match frontend.user.*>
@type copy
<store>
@type forest
subtype file
</store>
<store>
@type bigquery
</store>
…
</match>
Filter plugin mutates incoming data. Add/modify/delete
event data transform attributes without a code deploy.1
2
3
4
The copy output plugin copies events to multiple outputs.
File(s), multiple databases, DB engines.
Great to ship same event to multiple subsystems.
The Bigquery output plugin on the fly streams the event to
the BigQuery warehouse. No need to write integration.
Data is available immediately for querying.
Whenever needed other output plugins can be wired in:
Kafka, Google Cloud Storage output plugin.
Supercharge your data analytics with BigQuery @martonkodok

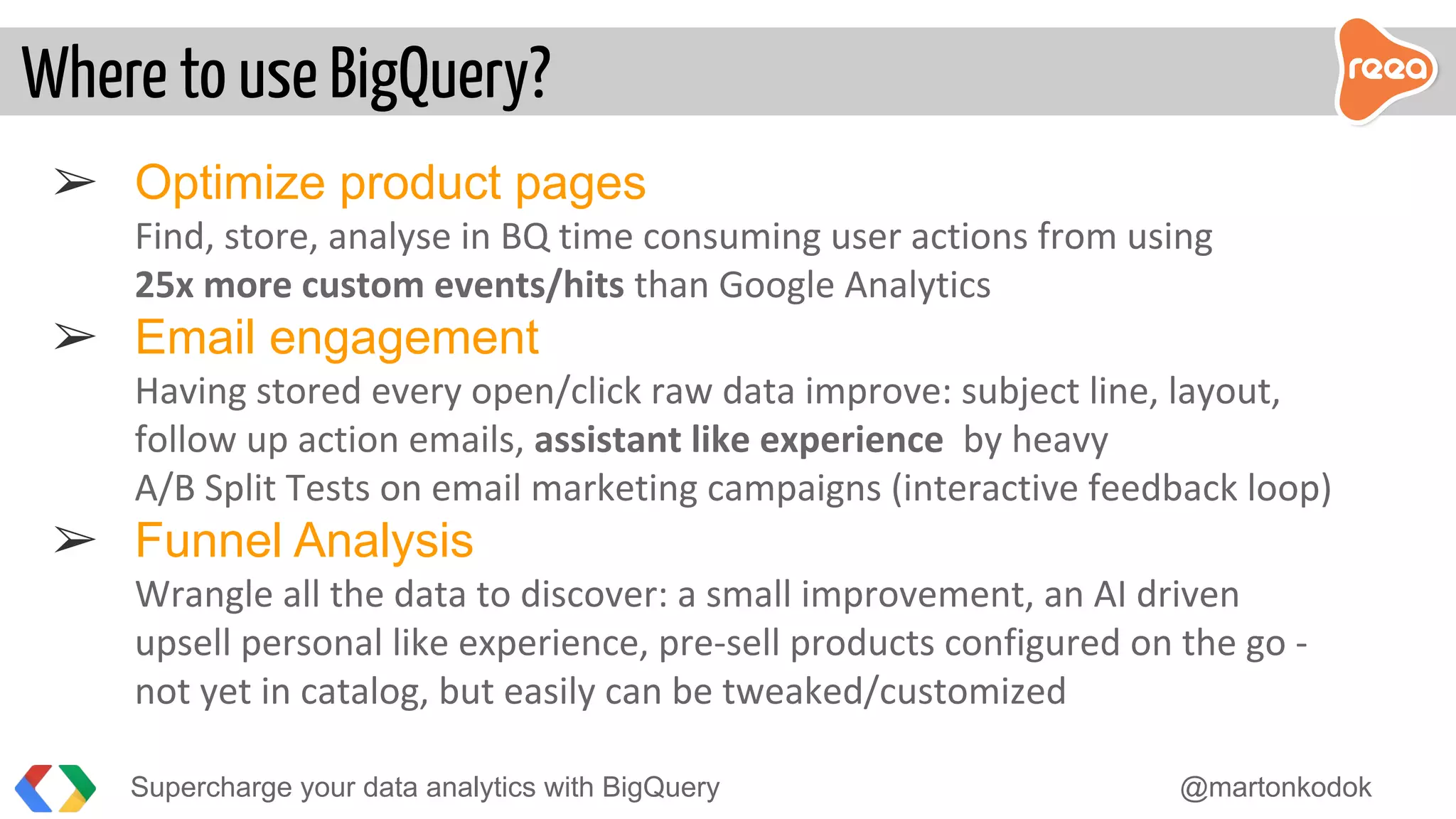

15. ➢ Optimize product pages
Find, store, analyse in BQ time consuming user actions from using
25x more custom events/hits than Google Analytics
➢ Email engagement
Having stored every open/click raw data improve: subject line, layout,
follow up action emails, assistant like experience by heavy
A/B Split Tests on email marketing campaigns (interactive feedback loop)
➢ Funnel Analysis
Wrangle all the data to discover: a small improvement, an AI driven
upsell personal like experience, pre-sell products configured on the go -
not yet in catalog, but easily can be tweaked/customized
Where to use BigQuery?
Supercharge your data analytics with BigQuery @martonkodok

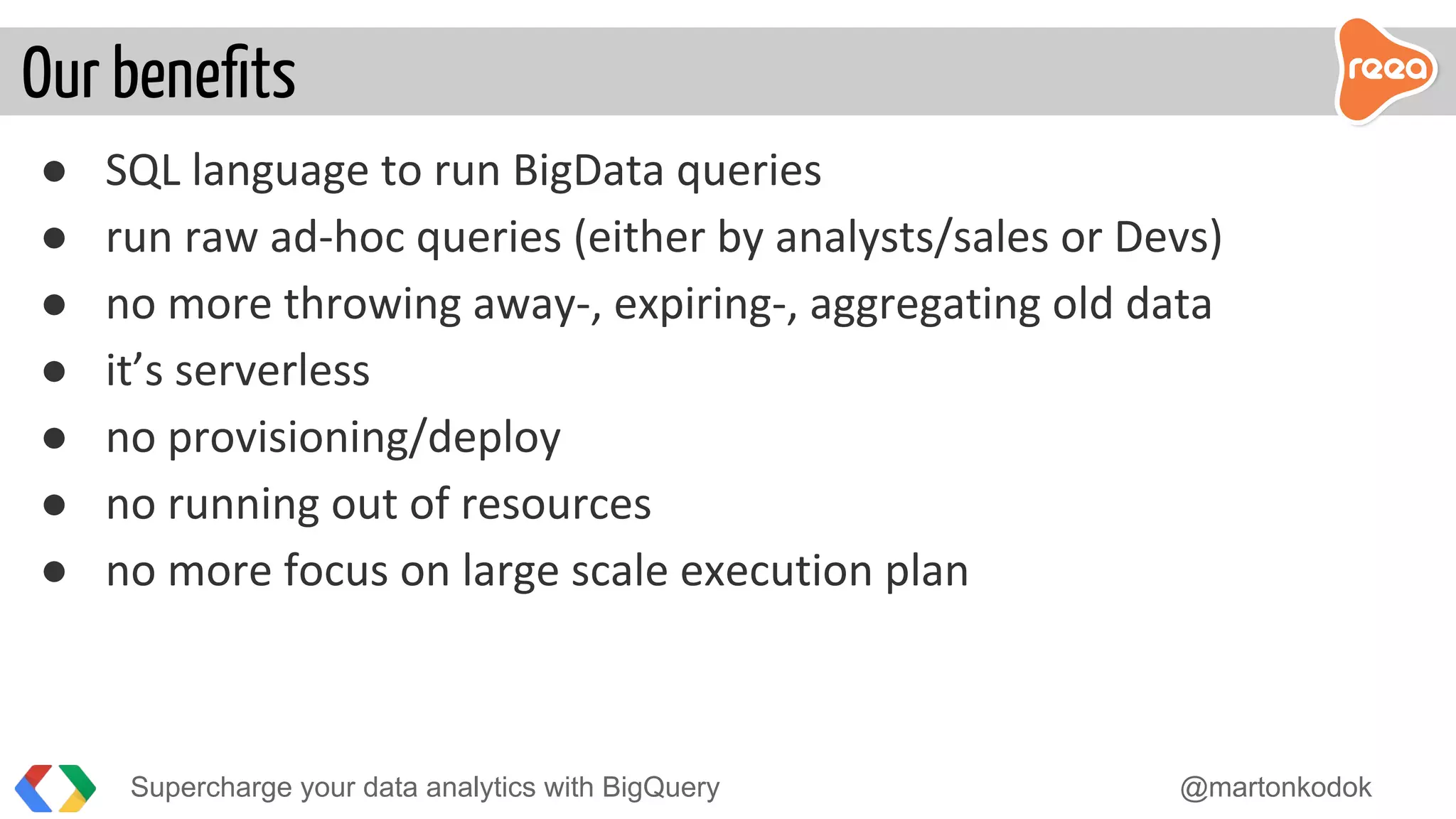

16. ● SQL language to run BigData queries
● run raw ad-hoc queries (either by analysts/sales or Devs)
● no more throwing away-, expiring-, aggregating old data
● it’s serverless
● no provisioning/deploy
● no running out of resources
● no more focus on large scale execution plan
Our benefits
Supercharge your data analytics with BigQuery @martonkodok

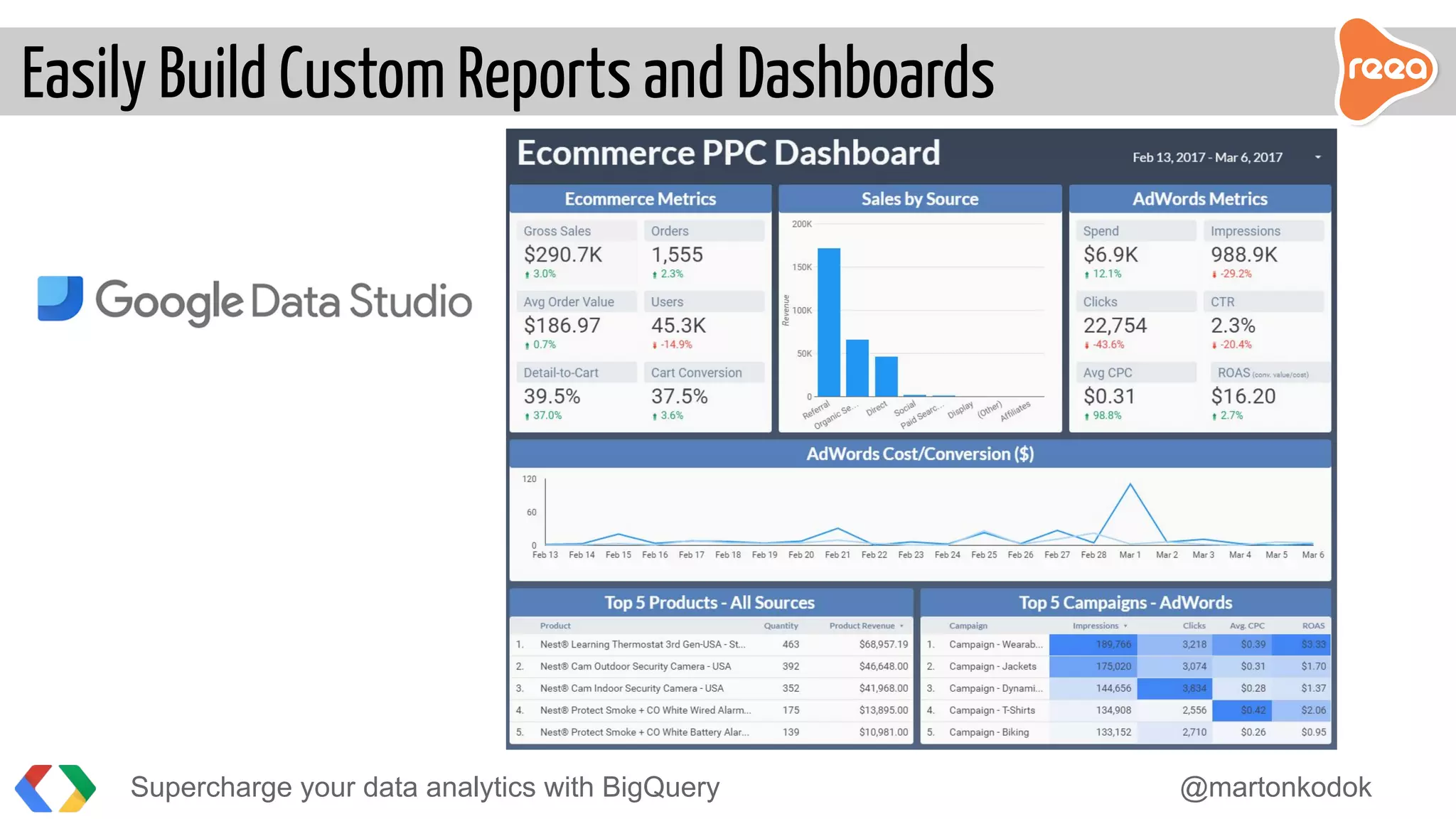

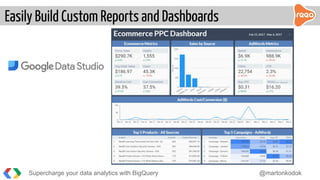

17. Easily Build Custom Reports and Dashboards
Supercharge your data analytics with BigQuery @martonkodok
19. Supercharge your data analytics with BigQuery @martonkodok

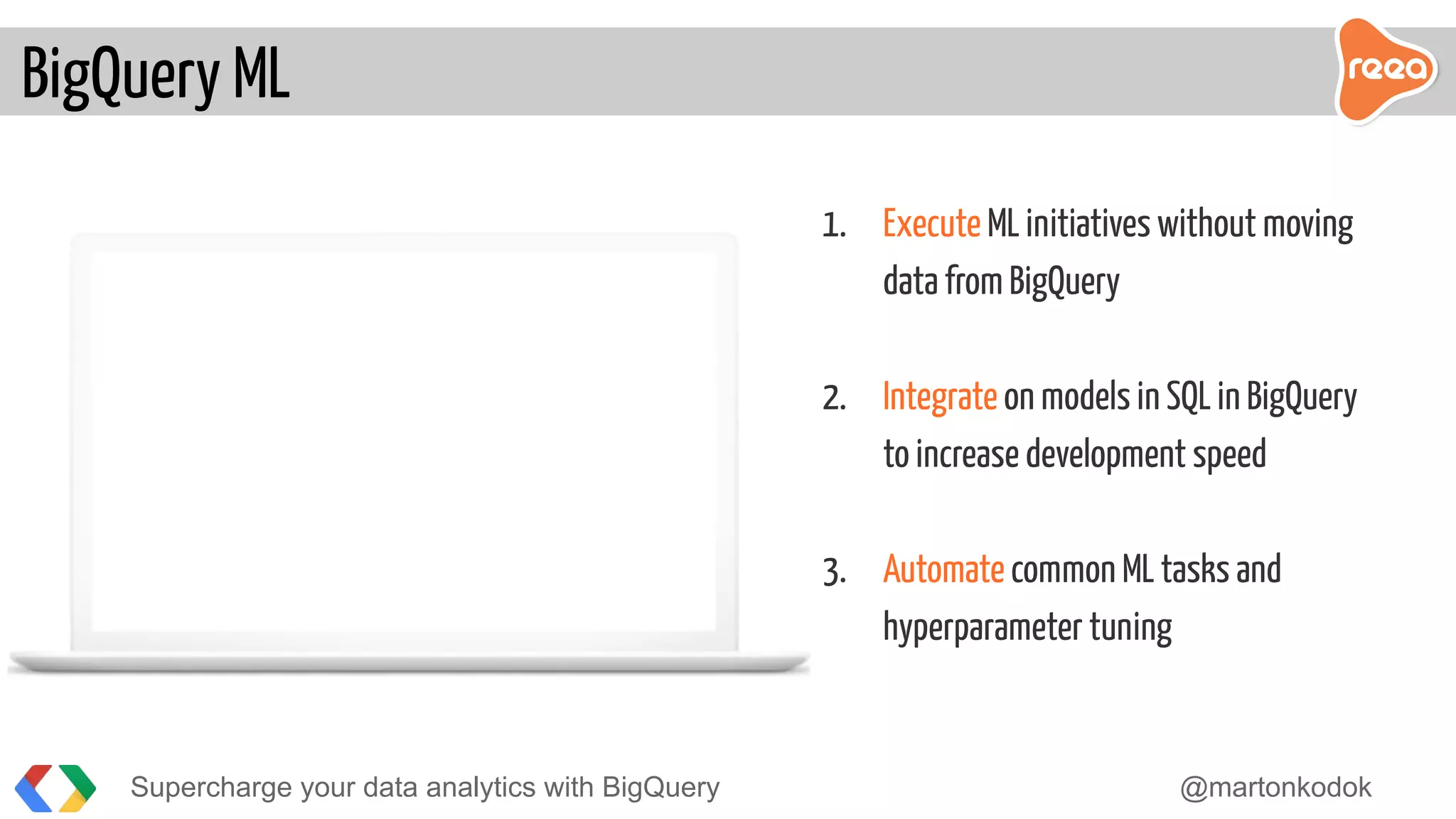

BigQuery ML
1. Execute ML initiatives without moving
data from BigQuery
2. Integrate on models in SQL in BigQuery
to increase development speed
3. Automate common ML tasks and
hyperparameter tuning

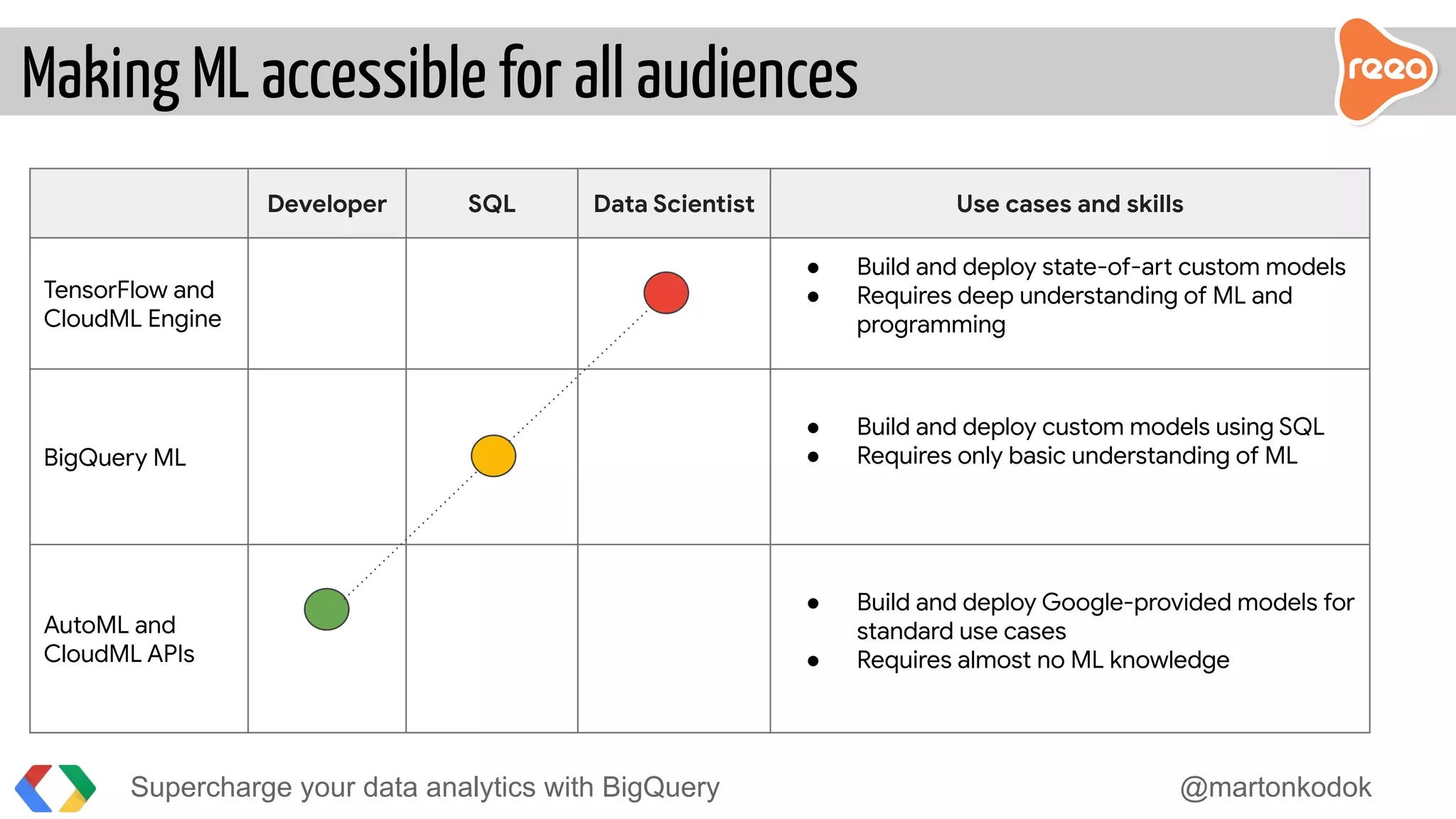

20. Developer SQL Data Scientist Use cases and skills
TensorFlow and
CloudML Engine
● Build and deploy state-of-art custom models
● Requires deep understanding of ML and
programming
BigQuery ML
● Build and deploy custom models using SQL
● Requires only basic understanding of ML
AutoML and
CloudML APIs
● Build and deploy Google-provided models for
standard use cases
● Requires almost no ML knowledge
Supercharge your data analytics with BigQuery @martonkodok
Making ML accessible for all audiences

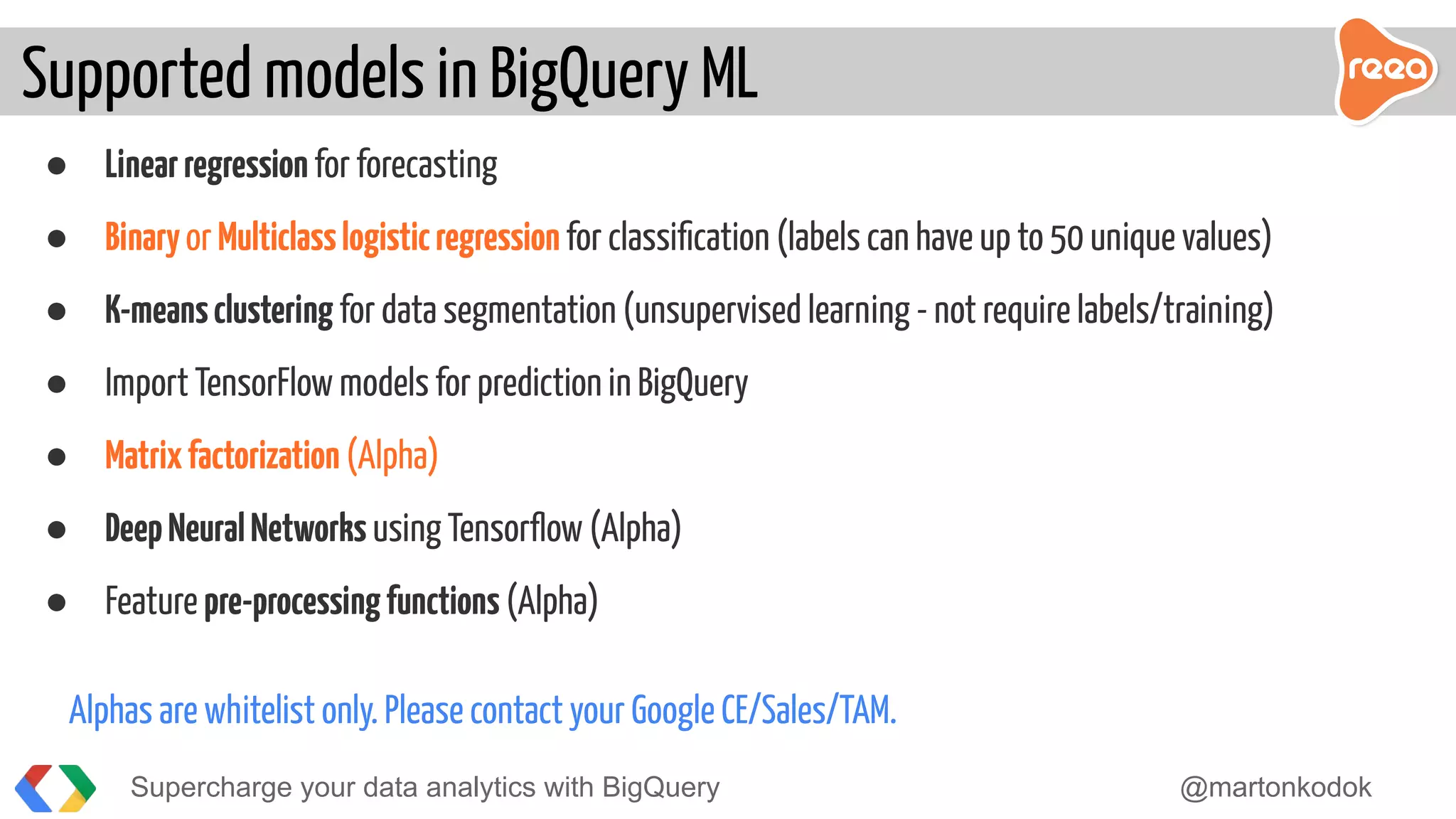

21. ● Linearregression for forecasting
● Binaryor Multiclasslogisticregression for classification (labels can have up to 50 unique values)
● K-meansclustering for data segmentation (unsupervised learning - not require labels/training)
● Import TensorFlow models for prediction in BigQuery
● Matrixfactorization (Alpha)
● DeepNeuralNetworks using Tensorflow (Alpha)
● Feature pre-processingfunctions (Alpha)
Alphas are whitelist only. Please contact your Google CE/Sales/TAM.
Supported models in BigQuery ML
Supercharge your data analytics with BigQuery @martonkodok

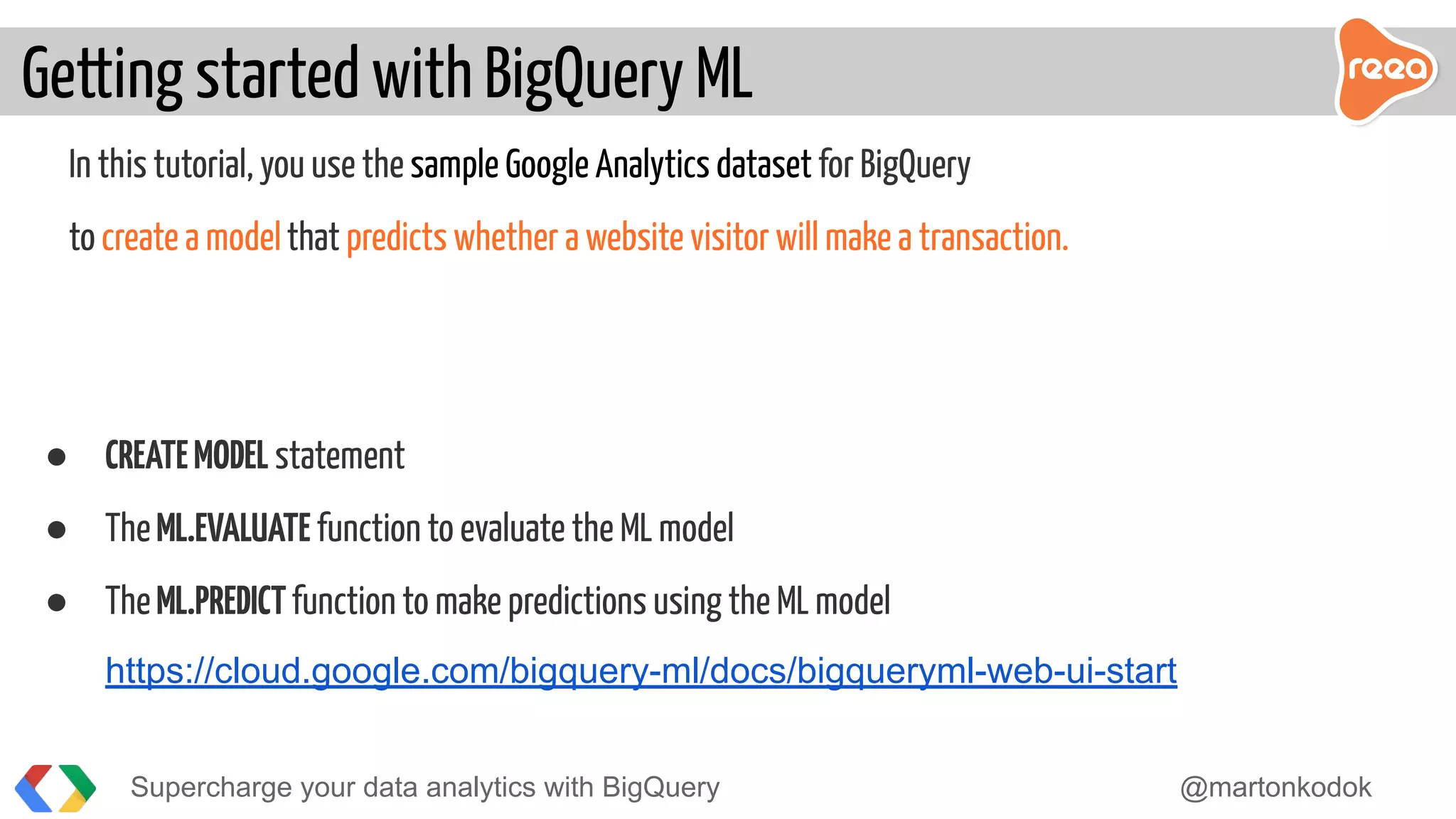

22. In this tutorial, you use the sample Google Analytics dataset for BigQuery
to create a modelthat predicts whether a website visitor will make a transaction.
● CREATEMODEL statement
● TheML.EVALUATE function to evaluate the ML model

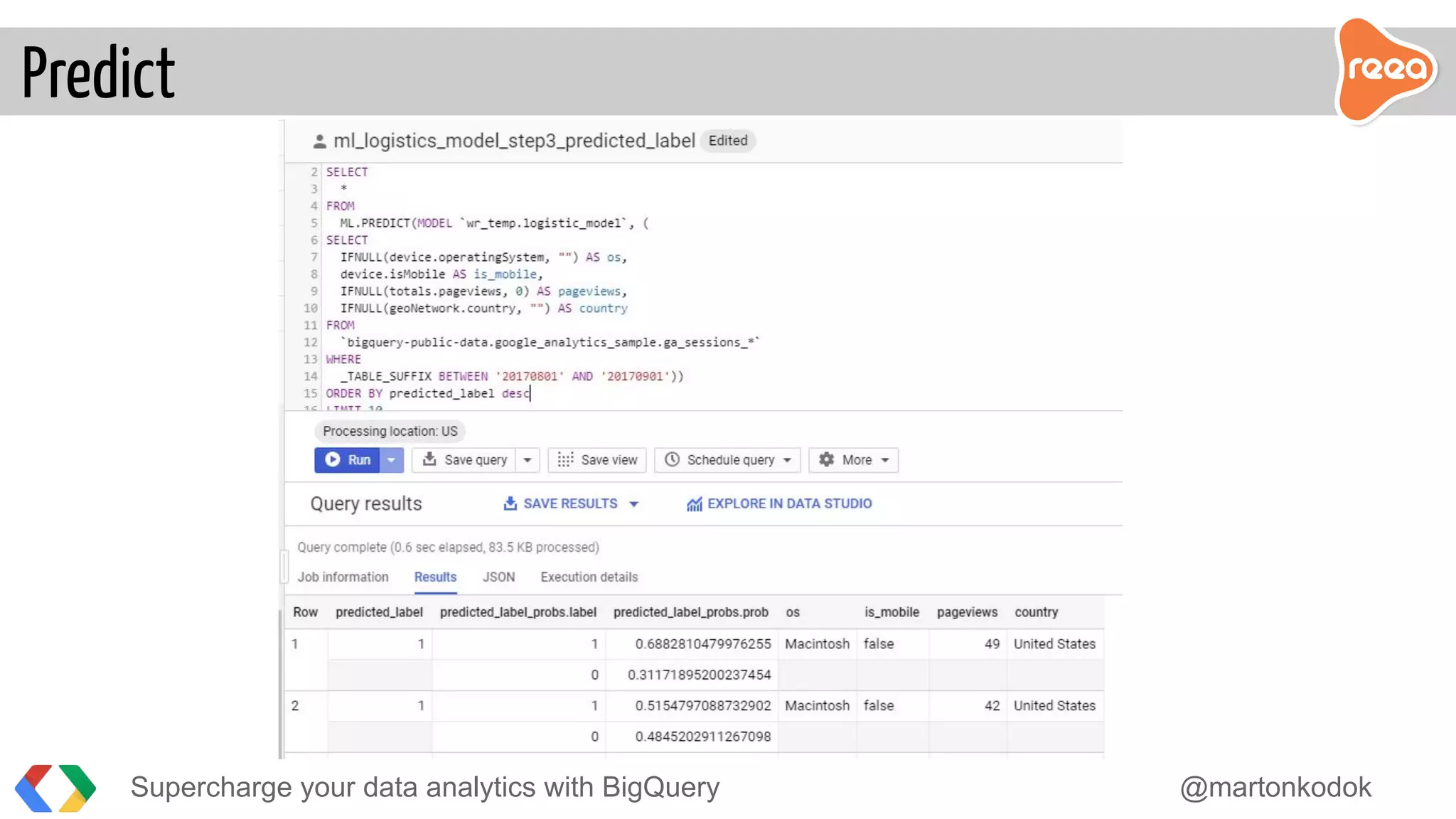

● TheML.PREDICTfunction to make predictions using the ML model
https://cloud.google.com/bigquery-ml/docs/bigqueryml-web-ui-start
Getting started with BigQuery ML
Supercharge your data analytics with BigQuery @martonkodok

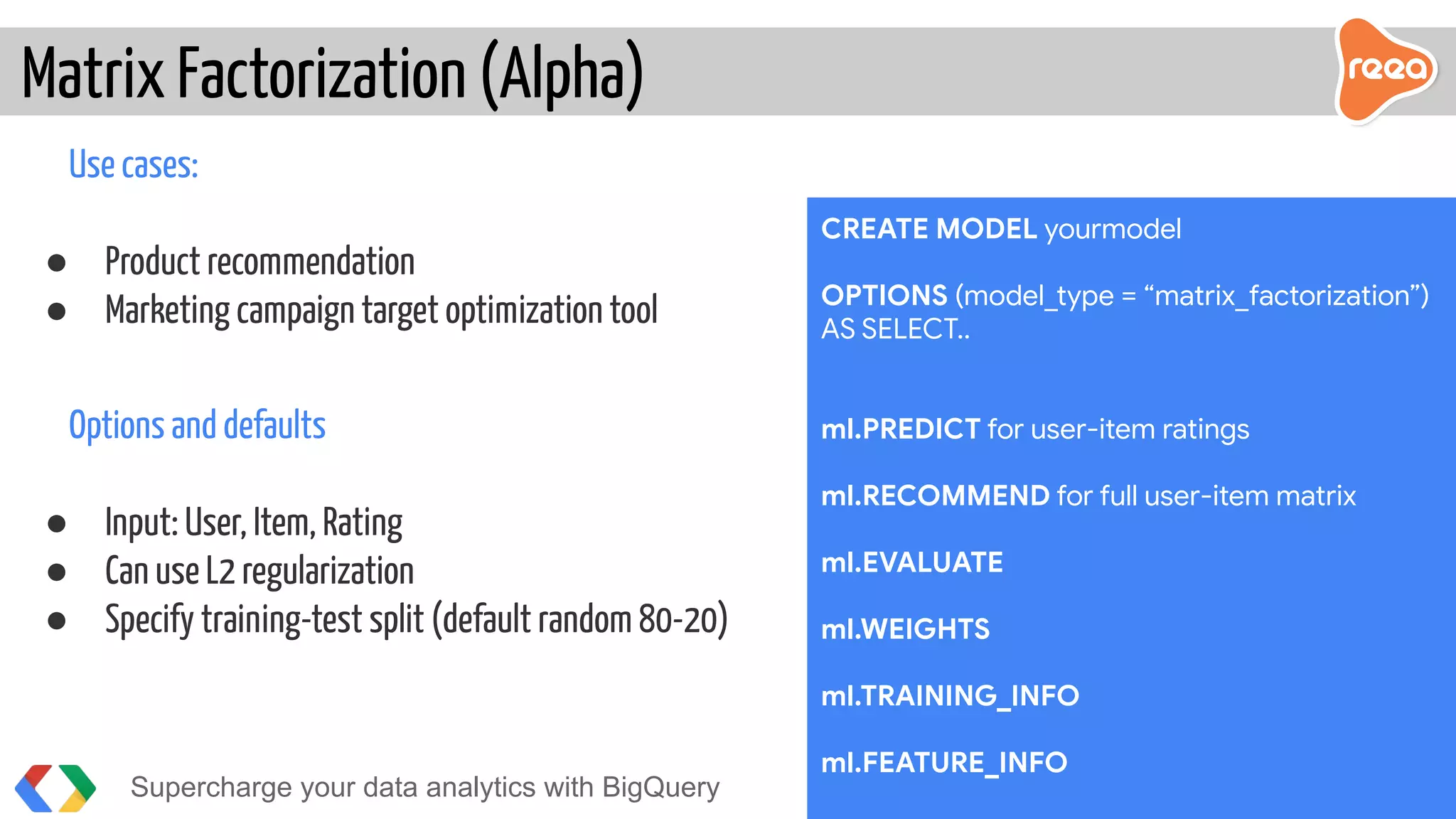

25. Use cases:
● Product recommendation
● Marketing campaign target optimization tool
Options and defaults
● Input: User, Item, Rating
● Can use L2 regularization
● Specify training-test split (default random 80-20)
Matrix Factorization (Alpha)
Supercharge your data analytics with BigQuery @martonkodok
CREATE MODEL yourmodel
OPTIONS (model_type = “matrix_factorization”)
AS SELECT..
ml.PREDICT for user-item ratings
ml.RECOMMEND for full user-item matrix
ml.EVALUATE
ml.WEIGHTS
ml.TRAINING_INFO
ml.FEATURE_INFO

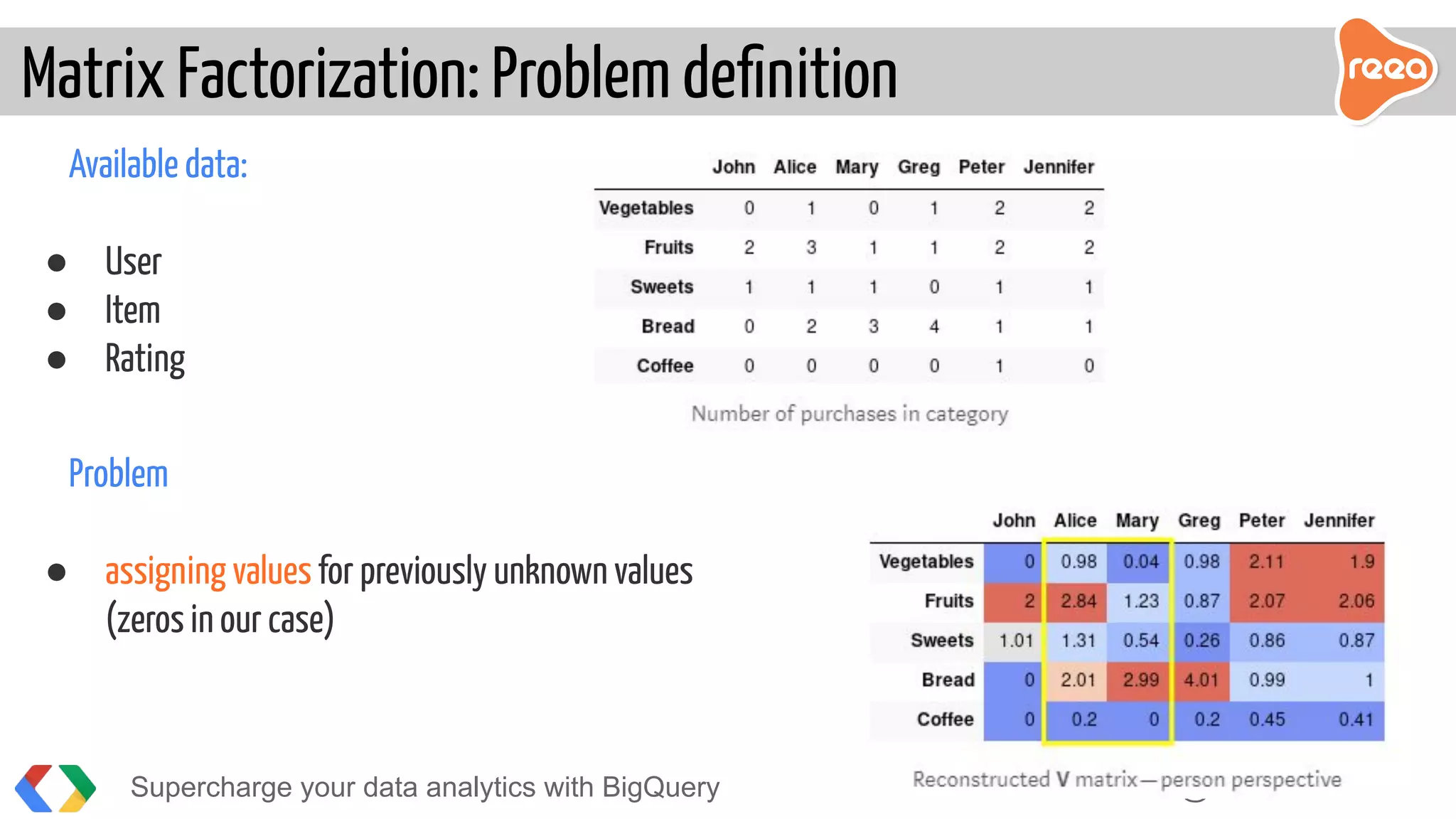

26. Available data:
● User
● Item
● Rating
Problem
● assigning values for previously unknown values
(zeros in our case)
Matrix Factorization: Problem definition
Supercharge your data analytics with BigQuery @martonkodok

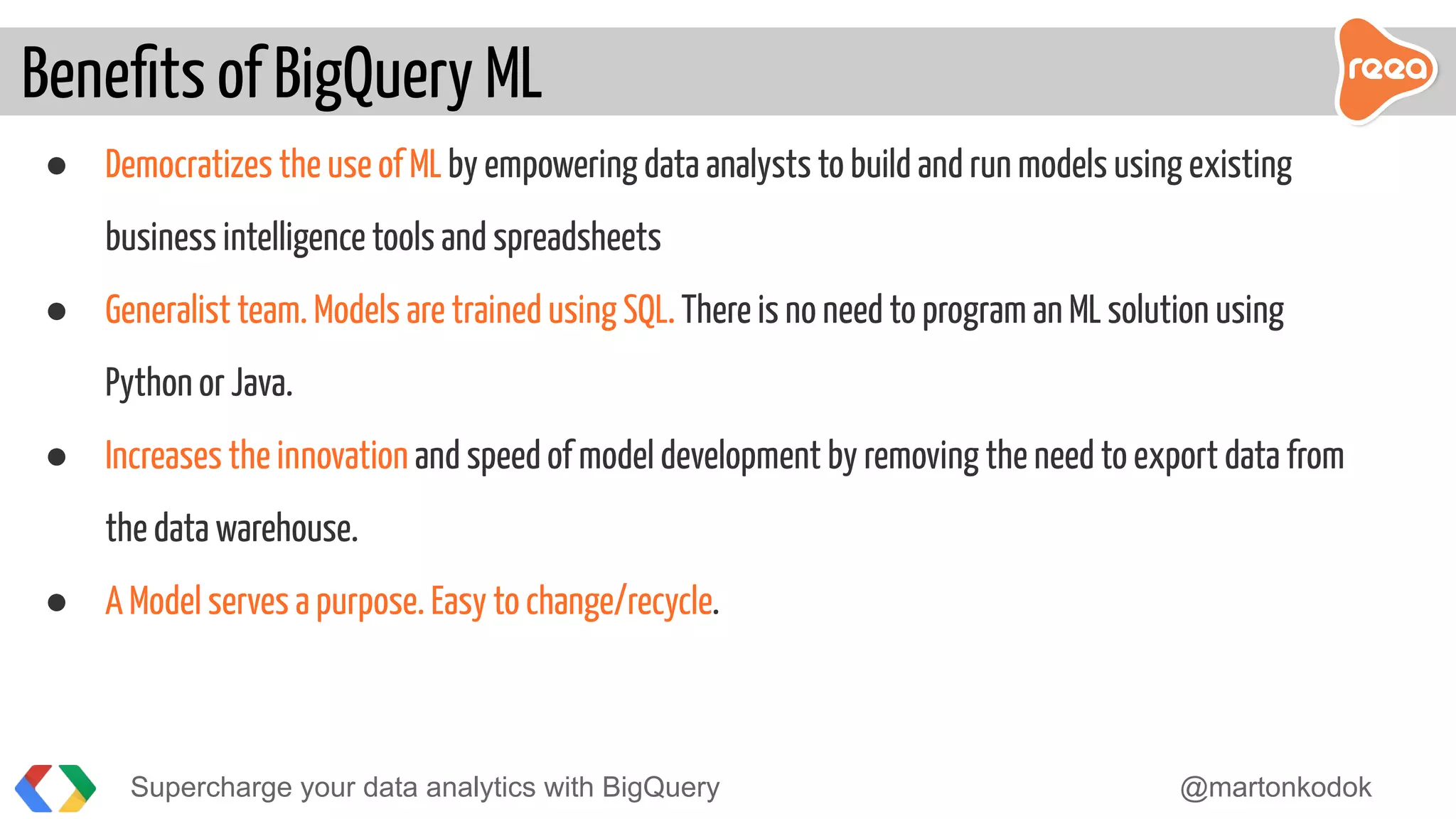

28. ● Democratizes the use of ML by empowering data analysts to build and run models using existing
business intelligence tools and spreadsheets
● Generalist team. Models are trained using SQL. There is no need to program an ML solution using
Python or Java.
● Increases the innovation and speed of model development by removing the need to export data from
the data warehouse.
● A Model serves a purpose. Easy to change/recycle.
Benefits of BigQuery ML
Supercharge your data analytics with BigQuery @martonkodok

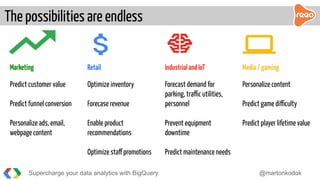

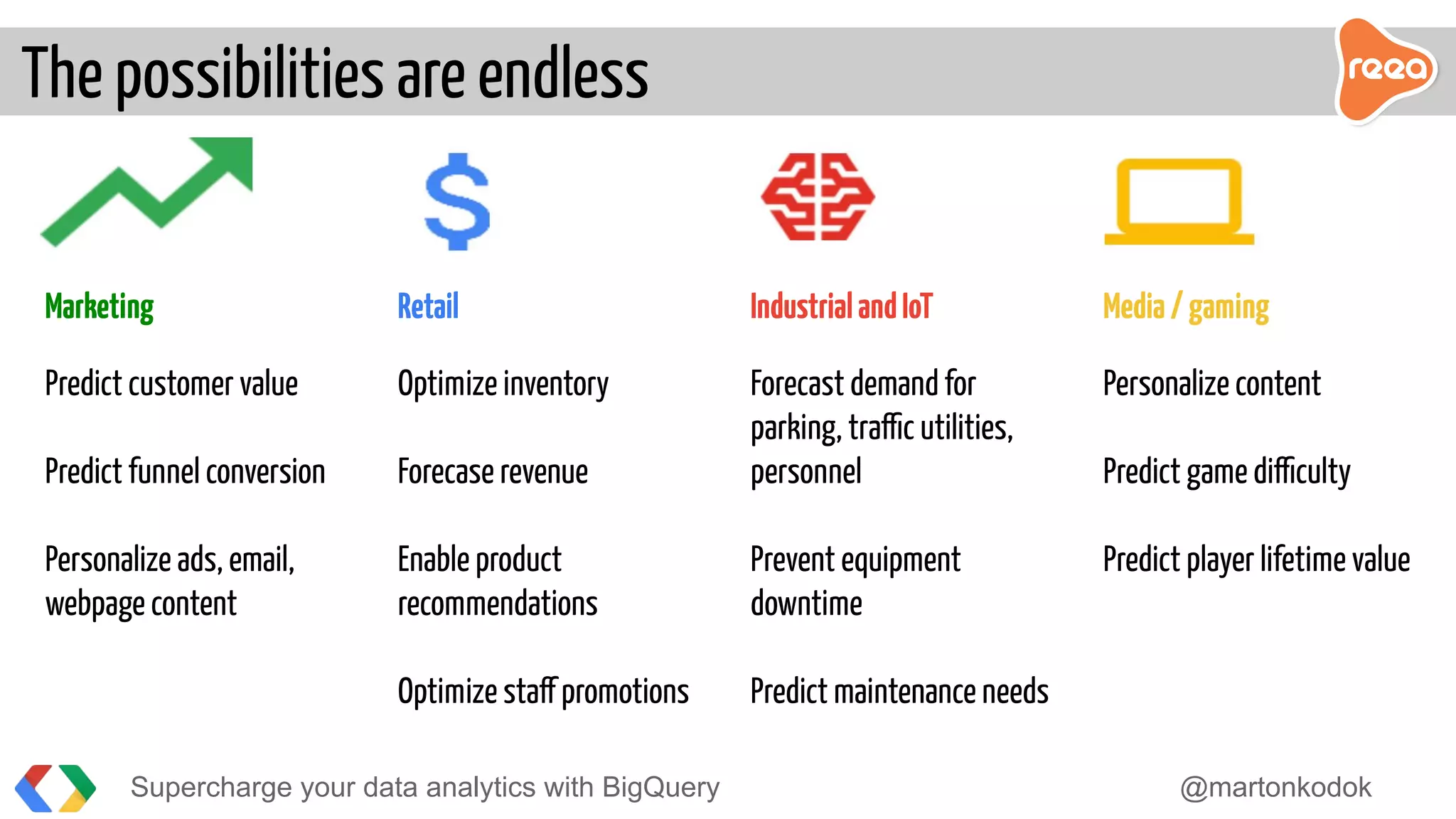

29. The possibilities are endless
Supercharge your data analytics with BigQuery @martonkodok
Marketing Retail IndustrialandIoT Media/gaming
Predict customer value
Predict funnel conversion
Personalize ads, email,
webpage content
Optimize inventory
Forecase revenue
Enable product
recommendations
Optimize staff promotions
Forecast demand for
parking, traffic utilities,
personnel
Prevent equipment
downtime
Predict maintenance needs
Personalize content
Predict game difficulty
Predict player lifetime value
30. დიდი მადლობა
Thank you.
Slides available on: slideshare.net/martonkodok
Reea.net - Integrated web solutions driven by creativity to deliver projects.
