eLine Technology's Product Catalog

800.683.6835 | www.eLineTechnology.com | Sales@el-usa.com
Surveillance Systems
Traditional Analog

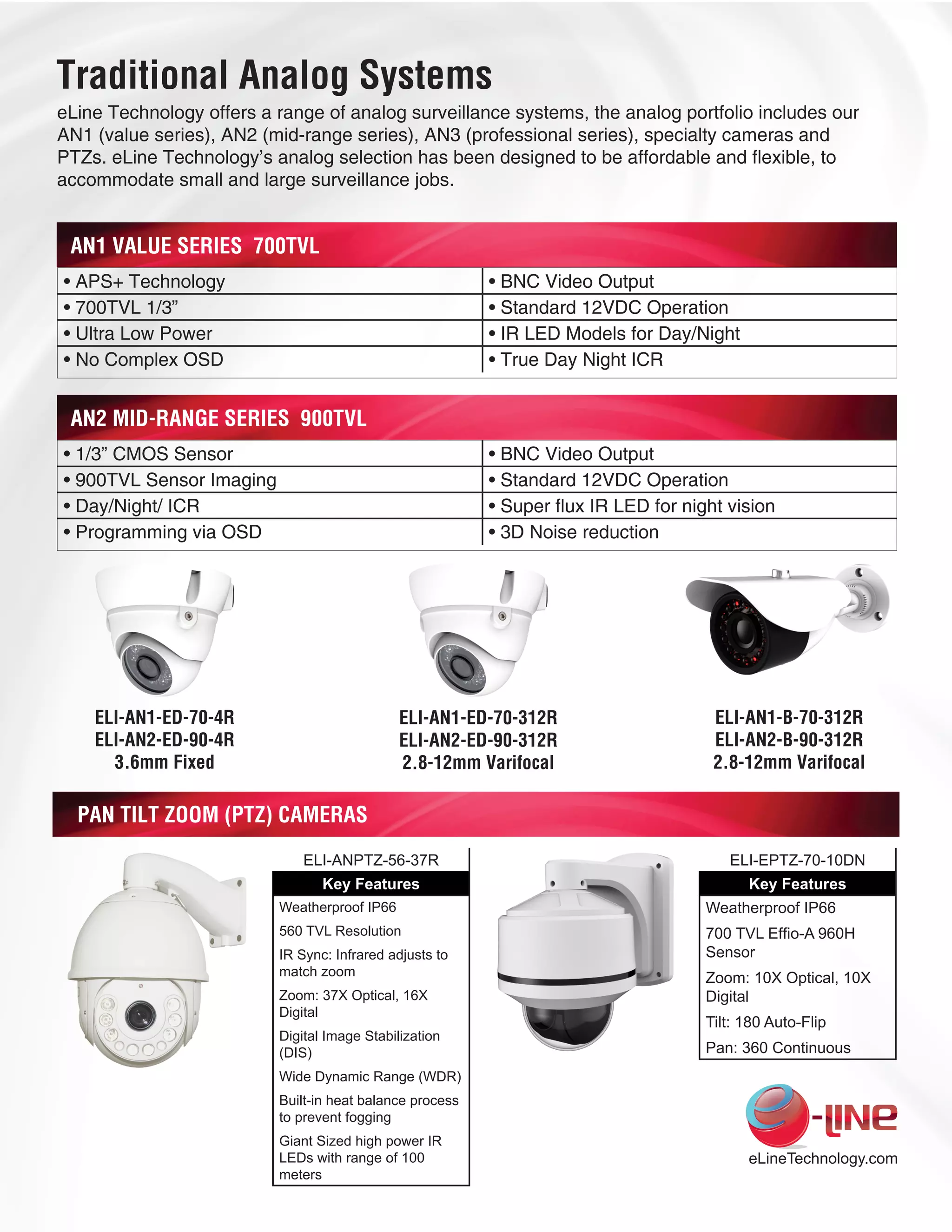

Traditional Analog Systems
eLine Technology offers a range of analog surveillance systems, the analog portfolio includes our
AN1 (value series), AN2 (mid-range series), AN3 (professional series), specialty cameras and
PTZs. eLine Technology’s analog selection has been designed to be affordable and flexible, to
accommodate small and large surveillance jobs.
AN1 VALUE SERIES 700TVL
• APS+ Technology • BNC Video Output
• 700TVL 1/3” • Standard 12VDC Operation
• Ultra Low Power • IR LED Models for Day/Night
• No Complex OSD • True Day Night ICR
ELI-AN1-B-70-312R
ELI-AN2-B-90-312R
2.8-12mm Varifocal
ELI-AN1-ED-70-312R
ELI-AN2-ED-90-312R
2.8-12mm Varifocal
ELI-AN1-ED-70-4R
ELI-AN2-ED-90-4R
3.6mm Fixed
AN2 MID-RANGE SERIES 900TVL
• 1/3” CMOS Sensor • BNC Video Output
• 900TVL Sensor Imaging • Standard 12VDC Operation
• Day/Night/ ICR • Super flux IR LED for night vision
• Programming via OSD • 3D Noise reduction
eLineTechnology.com
PAN TILT ZOOM (PTZ) CAMERAS
ELI-ANPTZ-56-37R
Key Features
Weatherproof IP66
560 TVL Resolution
IR Sync: Infrared adjusts to
match zoom
Zoom: 37X Optical, 16X
Digital
Digital Image Stabilization
(DIS)
Wide Dynamic Range (WDR)
Built-in heat balance process
to prevent fogging
Giant Sized high power IR
LEDs with range of 100
meters
ELI-EPTZ-70-10DN
Key Features
Weatherproof IP66
700 TVL Effio-A 960H
Sensor
Zoom: 10X Optical, 10X
Digital
Tilt: 180 Auto-Flip
Pan: 360 Continuous

AN3 PRO SERIES WITH ADVANCED FEATURE OPTIONS
eLineTechnology.comSpecifications are subject to change without notice*
eLine Technology’s AN3 professional series uses high level CCD sensors and chipsets to bring high
quality video and advance features to the analog portfolio. Effio Technology has powerful IR compen-
sation to balance light levels in order to provide a balanced visuals.
ELI-AN3-FB-70
Key Featuresls
● Lens: Board Mount fittings
● (ATR-EX)
● (2D/3DNR)
EFFIO-A
ELI-AN3-B-70-312R
Key Features
● 2.8~12mm Varifocal Lens
● (ATR-EX)
● (2D/3DNR)
EFFIO-V
ELI-AN3-ED-70-312R
Key Features
● (ATR-EX)
● (2DNR)
EFFIO-V
ELI-AN3-VD-70-312R
Key Features
● (ATR-EX)
● (2D/3DNR)
EFFIO-V
EFFIO Feature Key
Effio-A
Low light with
Sence Up
Effio-V
Double Scan
true WDR
ELI-AN3-D-70-312
Key Features
● (ATR-EX)
● (2D/3DNR)
EFFIO-A
ELI-AN3-B-70-312R
Key Features
● 2.8-12mm Varifocal for IR
● (ATR-EX)
● (2D/3DNR)
Super Flux IR LEDs
EFFIO-V
ELI-AN3-B-70-650RSL
IR LED Model Details
● 2.8-12mm Varifocal for IR
● (ATR-EX)
● (2D/3DNR)
Super low LUX 0.00006
EFFIO-V
Starlight Cameras
SPECIALTY COVERT CAMERAS
ELI-SFM-60-2
600TVL
1.5mm Lens
Fits Standard
single gang
junction box
ELI-CVTPIR-60-4IR
600TVL
3.7mm Lens
Covert Camera
inside Motion
Detector with IR
Night Vision
ELI-AN3-PB-4P
960H
Pinhole Lens
Specialty Covert
Pinhole Board
Camera in 960H

DIGITAL VIDEO RECORDERS
Rev 12/1/14
SPECIALTY CAMERAS
Choose between eLine Technology’s Eco DVR series and Pro DRV Series. eLine Technology’s
digital video recorders range from 4ch, 8ch, 16ch up to 32ch for small and large install options. Video
management software features include Intuitive CMS, Enterprise CMS, remote monitoring features
from web browsers, mobile apps for cell phones and tablets.
Multiview Cameras
ELI-MDMV2-56
Key Features
● Dome has a processor
that combines video from all
cameras into
selected display modes, and
then sends display over one
cable.
● 560 TVL Resolution
● Wide Lens and Telephoto
Lens
2 Camera Dome
ELI-MDMV3-56
Key Features
cameras into
cable.
● Wide Lens and Telephoto
Lens
3 Camera Dome
ELI-VDMV3-56
Key Features
cameras into
cable.
● Weatherproof IP66
● (2) 2.4mm Wide Lens and
(1) 12mm Telephoto Lens
3 Camera Vandal Dome
ELI-ANS-VD-70-312RZ
Key Featuresls
● Weatherproof IP66
with Motor Zoom
● Auto Focus
● Low Light Illumination
● Noise Reduction (DNR)
● Privacy Masks
● IR LED: 5 x 36 pieces,
15M Range
● On Screen Display (OSD)
Auto Iris
Vandal Dome
Pro3 Series
• Intuitive CMS - Search by Time or Event, Up to 4
Motion Areas with 5 Sensitivity Levels, SPOT Sequence
• 960H Real Time Resolution
• Multiplex Operation
• Up to 16 Audio In, Up to 16 Alarm In, Supports PTZ
and Intercom
4, 8, or 16 Channel Models
ECO3 Series
• Enterprise level CMS with E-MAP, easier to use
Smart Search, scheduled backups, Alarm In/Out
• 960H Real Time Resolution
• H.264 Compression
• Easy to Use Smart Search
8,16 or 32 Channel Models

1080p Over Coaxial Cable
HDCVI technology allows for long distance HD transmissions using either coaxial, cat5 or cat6
cabling. HDCVI is the cost effective solution when looking for high definition 1080p surveillance and
is ideal for those who are looking to upgrade their analog systems to HD. HDCVI has transmissions
distances up to 1000ft and eLine Technology offers both fixed and motorized zoom camera options.
Specifications are subject to change without notice*
1080P CVI CAMERAS
Resolution Digital: 1920x1080p (1080p/30fps)
Lens 3.6mm
IR Range 82ft (25m)
Fixed Lens Camera Options
ELI-ACVI-B21-4R
Motorized Zoom Camera Options
ELI-ACVI-B21-312MR
Lens 2.8mm~12mm Motorized Zoom Lens
IR Range 114ft (35m)
Fixed Lens Camera Options
Lens 3.6mm
IR Range 82ft (25m)
ELI-ACVI-ED21-4R
Motorized Zoom Camera Options
ELI-ACVI-ED21-312MR
Lens 2.8mm~12mm Motorized Zoom Lens
IR Range 114ft (35m)
Why Choose HDCVI?
Cost Effective:
HDCVI technology inherits the same installation methods that conventional analog systems use. Which means that HDCVI
systems help to decrease overhead costs when upgrading from a tradtional analog system to HDCVI.
1080p Imagery:
High definition surveillance can help maintain a safe environment, minimizing false liability claims, prevent vandalism and
reduce damage to valuable property.
User Friendly Interface:
eLine technology’s HDCVI cameras are simple to use easy to install and are extremely user friendly. With fixed and
motorized zoom lens cameras to choose from. The HDCVI systems adopt an intuitive and easy to use interface with a 3
level menu style which is compatible with mobile devices and desktop computers.

SEE THE DIFFERENCE
eLineTechnology.com
ANALOG CAMERA AFTER HDCVI Upgrade
Upgrading traditional analog systems to HDCVI provides users wider fields of view, clear 1080p
video images. With high definition video the users have the ability to zoom in to capture details
that were not previously visible using the original traditional analog system.
HDCVI BENEFITS
• The same system application solution as analog
• 1080P supported
• Video with very little loss or delay
• Coaxial cable transmission up to 1000ft
• UTP transmission technology, over 5 kinds of cables
• Composite video transmission tech. video, audio, data transmitted in one cable
Technology Analog HDSDI IP HDCVI
Resolution D1, 960H 720p, 1080p
720p to 5mp and
above
720p, 1080p
Cable Type Coaxial Coaxial Ethernet Cable Coaxial
Playback performance Without Delay Without Delay
<300ms
( with reliable
network)
Without Delay
Image Quality Average Lossless Can have CODEC loss Lossless
Transmission
Distance
>1000ft <330ft <330ft 100ft to 1600ft
Data supplied Video Video & Audio
Video, audio, data
and More
Video, Audio and
Data
R&D complexity Simple Less Complex More Complex Less Complex
Cost Affordable High Mid- High Affordable
Market Majority Few Rapid Growth Rapid Growth
Installation Simple Technology Required Can be Complex Simple

VIDEO MANAGEMENT SOFTWARE
Rev 12/1/14
HDCVI DVRS
eLine Technology’s HDCVI DVR series incorporates powerful HDCVI Technology for 1080P
Cameras. These DVRs bring high resolution recording and playback with an affordable cost. The
HDCVI DVR series from eLine Technology provides users with 4, 8 and 16 channel options. These
systems include software that enables easy p2p setup options and enables remote monitoring via a
web browser and mobile apps for mobile devices.
HDCVI not only provides affordable 1080p transmissions over coaxial cable but, it is also easy to
install and one of the reasons why is because HDCVI DVRs from eLine Technology utilize peer-to-
peer (p2p) networking that allows the user to bypass port forwarding. You can easily monitor remotely
using the HDCVI mobile apps or from a web browser using the HDCVI p2p website.
• Mobile apps and web Browser Interface
• QR code Scan for mobile setup
• Alarm motion dection schedule record & backup
• Simple Networking DDNS, p2p, UPnP
• Email, FTP Integration
• Advance setup Options
• Multiple Alarm Outputs (16ch Only)
Available in 4, 8 & 16 channel
HDCVI web monitoring
http://www.hdcvip2p.com/

SIP NETWORK
SURVEILLANCE SYSTEMS
www.eLineTechnology.com
SIP Network

SIP-Series Surveillance
eLine Technology’s SIP-Series of IP cameras and NVRs provides superior quality and reliability. eLine Technology’s
wide selection of body styles, features, and image resolutions provide the flexibility to customize and optimize your
surveillance system to fit your company’s specific goals. A 2MP IP cameras field of view is about four times greater than
a traditional analog system. The SIP-series is built with preformace with dual streaming, and high profile H.264, models
range from 720p to 5 mega pixel resolutions. With true ICR day/night operation.
BODY STYLES
SIP-B21-312R
Superflux 8pc
Wide Angle 2
Distance (ft) 65-82
Ask about Model Options
ELI-SIP-EB21-4R
Superflux -
Wide Angle 2
Distance (ft) 33-49
ELI-SIP-EB21
Key Features
Min. Illumination 0.1Lux
Day/Night ICR filter
Compression H.264
ELI-SIP-MVD21-4R
Superflux 1pc
Wide Angle -
Distance (ft) 20
ELI-SIP-VD21-312R
Superflux 12pcs
Wide Angle -
Distance (ft) 33-49
ELI-SIP-D21-312
Indoor Only
Min. Illumination 0.1Lux
Day/Night ICR filter
Compression H.264
ELI-SIP-ED21-312R
Superflux 15pcs
Wide Angle -
Distance (ft) 82-98
ELI-SIP-PPTZ-21-22XR
Superflux (HP) 12pcs
Zoom 22X Optical
Distance (ft) 325
Ask about PTZ Options
Image Quality
• Choose from 4 HD options
• Reliable WDR sensor
• Full 30 fps 1080p
• Noise reduction technology
• W.D.R Options
• Future Proof Technology
Edge Storage
• Cameras with internal
Micro SD Card Slots for
maximum of 64GB storage
• Increases stability while
decreasing network
bandwidth issues
Easy Install
• Zero configuration UPNP
enables auto search when
the camera connects to PC
or iPAD
• uPnP discovery wizard
connects NVRs & Cameras
• Search tools to find and
set IP address
Reliability
• Three layer watch dog
system well designed
radiating structure
• Embedded software
• Based on a Linux platform
for stability and reliability.
eLine Technology’s SIP series cameras embraces compliance and compatibility with Onvif
*specifications subject to change without notice

RESOLUTION OPTIONS
ADVANCED FEATURE OPTIONS
W.D.R
The Wide Dynamic
Range function
adjusts exposure in
areas of the frame to
maintain optimum
detail in both dark
and light areas
providing optimum
visablitiy wherever
the camera is placed.
Available is select SIP models.* OFF ON
VGA
480 Pixels
5
6
640 Pixels 43
1280 Pixels 43
720 Pixels
5
720P
6
720 Pixels 43
576 Pixels
5
6
4 CIF
1920 Pixels 43
1080 Pixels
5
6
1080p / 2.1 MegaPixel
2048 Pixels 43 3 MegaPixel
1536 Pixels
5
6
1920 Pixels
5
6
2048 Pixels
5
6
Main Stream Resolutions & Frame Rates
1280x720 pixels for 720p @ 30fps 2048x1536 pixels for 3mp @ 20fps
1920x1080 pixels for 2mp @ 30fps 2592x1920 pixels for 5mp @ 10fps
Heavy Duty
Corner
Corner Pole Adapter Plate Wall Pendant Ceiling Universal
Junction Box
Mounting Hardware Options
Fisheye
A fisheye lens gives
a wide overview of
highly popluated and
high traffic areas. One
fisheye lens is able
to provide extra-
wide coverage and a
180 degree view for
one camera vs using
mutiple IP cameras.
Available is select SIP models.*
eLineTechnology.com
Audio Options
Enable audio or add
two-way audio to
allow communication
between users and
SIP cameras
Alarm Output
Alarm devices can be
setup to trigger alarm
signals, this allows
integration with
burglar and home
automation systems.

VIDEO MANAGEMENT SOFTWARE
Rev 12/1/14
SIP NVRS
4channel Desktop NVR with POE
1HDD: 2TB Max
4channel NVR with POE
2HDD: 4TB Max
8channel NVR with POE
2HDD: 4TB Max
16 and 32 channel NVR
4HDD: 16TB Max
With your choice of 4, 8, 16 and 32 channel NVRs eLine Technology’s line of SIP-NVRs has the flexibility to accommodate
for small and large installations. All SIP-NVR models support the same software experience and provide a user friendly
interface. The automatic setup process streamlines installation, each device supports mouse control, USB backup and
provides support for SIP-cameras as well as other Onvif compliant cameras for freedom and flexibility.
Key Features
• High Profile H.264 Compression
• HD output HDMI orVGA up to 1080p/720p
• 1080p 30fps
• 4/8 channel PoE = Direct connect to camera
• Embedded InView GUI with full mouse control
• Easy to use GUI, low learning curve for users
• Multi-NVR system setup - manage up to 256 NVRs
• Smart Search
• Easy Export and Remote Saving
• ONVIF Standard Compliant
SIP Video Management software is a avalible for on site viewing as
well as for off site monitoring via a mobile device or web browser.
eLine Technology’s “SIP NVR” manages systems connected to an NVR
and the “SIPView” mobile app is used for IPcamers with edge storage.

flexible
intelligent
solid
video management software
eLineTechnology.com

Flexible Layouts
Interac ve 3D Map
Mul streaming and Recompression
Flexible layouts allow for op mal placement of different sizes
and formats of cameras on the screen. Create a layout of
absolutely any format. Start with one of the standard layouts.
Add rows and columns. Then resize the windows by clicking
and dragging.
The interac ve 3D map displays the viewing windows on top of
site blueprints (uploaded in standard raster formats) or you can
integrate with Google Maps. On the map, you can indicate the
loca on of the cameras as well as mark sensors and detectors.
Click a video window to immediately see where the relevant
camera is located. Click a camera icon to see which window is
displaying the feed.
The map icons also manage devices: arming and disarming
cameras, switching sensors on/off, and monitoring status.
When integra ng with Google Maps, site layouts can be taken
from Google Maps imagery. The map is downloaded from the
internet during map configura on.
eyStream will select the appropriate stream from a
mul streaming camera to match the display size. If the
camera is transmi ng only one high defini on video stream,
the video can be recompressed on the server and then
transmi ed to the client at a resolu on appropriate for the
display. This makes for an efficient use of bandwidth and
reduces unnecessary data usage.
Experience unprecedented
flexibility and freedom of
configuration

Video Analy cs
eyStream has an interac ve configura on mode for its
detec on tools. In the frame, the user sets areas, lines,
and other parameters. Then the user clicks “Apply” and
sees right away how the detec on tool is func oning. All
the events which trigger the tool are shown immediately.
This lets you see at a glance whether the detec on tool is
working correctly.
A er the tool is configured, there is an easy-to-use
graphical interface for selec ng the system reac on when
the tool is triggered. These responses include wri ng
video from the camera, sending an text message or
email, playing a sound, or applying presets to rotate a PTZ
camera.
Forensic Search Engine
Time Compressor
eyStream’s Time Compressor allows the user to set a
me range for video footage to get a short video clip
of all moving objects in the scene. Objects and events
captured at different mes are displayed simultaneously
in a condensed “video synopsis.” When you spot an object
of interest, click to jump to playback of the corresponding
video fragment.
Imagine a “Google” for
surveillance video... a search
engine that constantly indexes
informa on in your video archive
and generates an index with
metadata for quick search. That’s
what eyStream’s Forensic Search
module does.
Metadata is a summary of
everything that happens in
the video frame. Object type,
loca on, size, direc on of
mo on, speed, color, etc. are all
described by metadata. And the
best thing is that this happens
without any preconfigura on on
your part.
To find video footage, just
use Forensic Search’s easy to
use visual interface to narrow
down your search. In just a few
seconds, you will have links to
video footage that fit your query.

O en, the main bo leneck on VMS performance is the file
system. Data fragmenta on builds with me. Slow hard
disk access negates the performance of even the fastest
CPUs. Solid Store resolves the issue of fragmenta on
altogether, ensuring read and write mes close to bare-
metal speeds. Another benefit is that our file system
reduces wear and tear on hard disks, thus increasing their
service life.
Effec vely, in Solid Store, damage to any data block on the
disk causes only that par cular block to be inaccessible,
not the en re video archive. This helps maximize video
storage reliability, which is absolutely crucial to video
surveillance systems.
Solid Store
Micro-Module Architecture
If an error occurs in a certain micro-module, only that one
is relaunched, without affec ng the func on of the system
overall. This micro-module architecture allows for a VMS
that is more stable than anything else on the market.
Stability and reliability
• Unlimited number of cameras, servers and remote
clients
• Support for approximately 1,000 IP camera models
• Flat pricing - easy to budget and save
• Free upgrades
• Zero maintenance fees
• Free support
• Free 2-channel demo version
Core So ware
Time
Compressor
Video
Analy cs
Forensic
Search
Core X
Logic X X
Demo X X X
Add-on Modules
Forensic Search
License Plate Recogni on
Retail POS
Access Control
ATM
Facial Recogni on
NVR with eyStream Installed
Entry Level Cube NVR
i3 8GB 3HDD Solid State
Mid Level Tower NVR
i7 8GB 4HDD Solid State
Enterprise Level Rack-Mount NVR
Dual Xeon 32GB 8HDD Solid State
Available from authorized distributors and
dealers of eLine Technology products.
Contact us at
800.683.6835
eLineTechnology.com
for sales near you

eLine Technology's Product Catalog

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (20)

Similar to eLine Technology's Product Catalog

Similar to eLine Technology's Product Catalog (20)

Recently uploaded

Recently uploaded (20)

eLine Technology's Product Catalog
