The document describes various CCTV monitor solutions offered by Monitor Solutions, organized into different product series. It provides specifications for numerous CCTV monitor models of varying screen sizes ranging from 9.7 inches to 55 inches. The monitors are classified into different series based on their features, such as economy LED/LCD models, premium full HD models, IP input monitors, analog test monitors, and public view monitors. It also includes specifications for video wall packages and video wall processors.

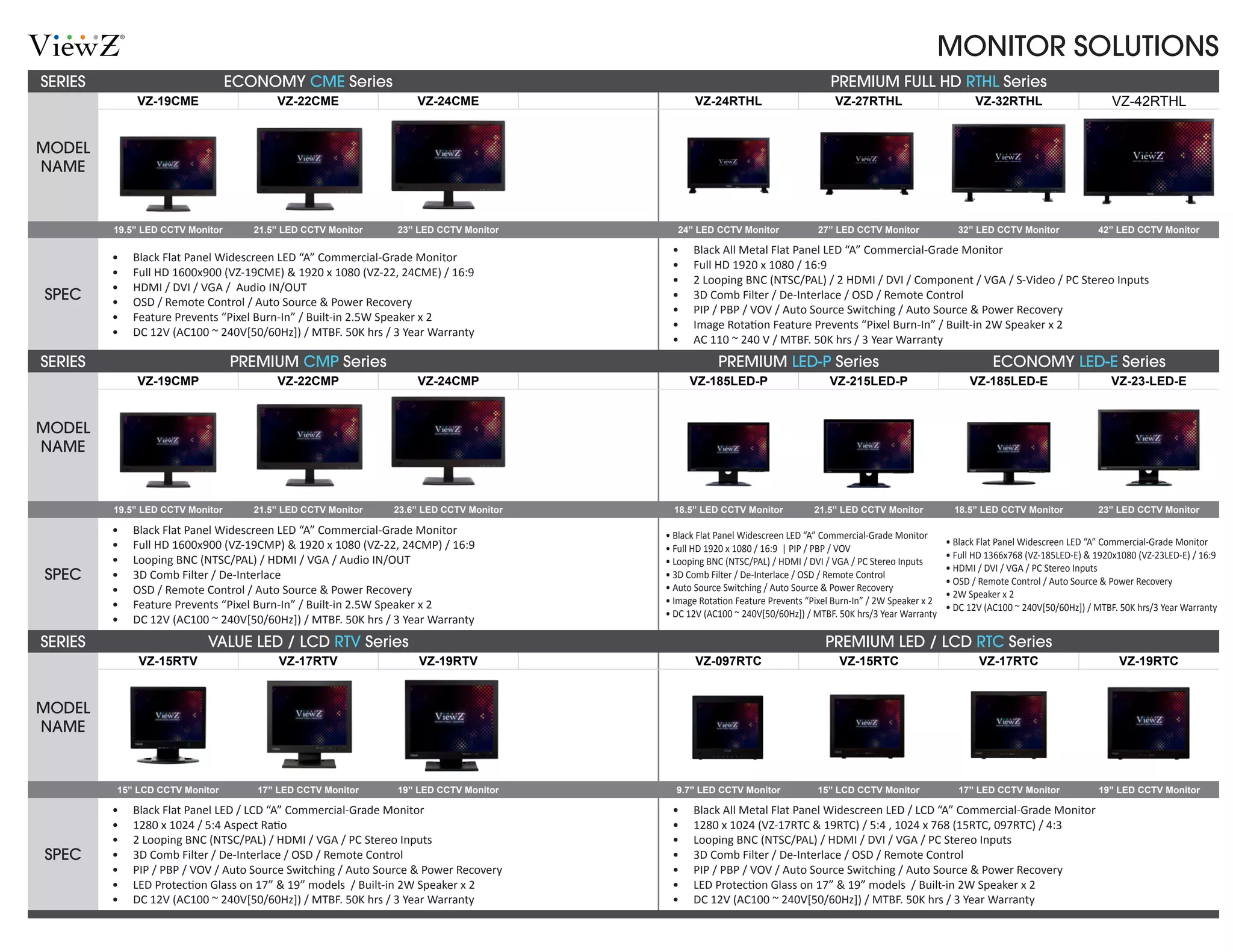

1. MONITOR SOLUTIONS
ECONOMY CME Series
PREMIUM CMP Series
VALUE LED / LCD RTV Series
VZ-19CME
VZ-19CMP
VZ-15RTV
19.5” LED CCTV Monitor
19.5” LED CCTV Monitor
15” LCD CCTV Monitor
VZ-22CME
VZ-22CMP
VZ-17RTV
21.5” LED CCTV Monitor
21.5” LED CCTV Monitor
17” LED CCTV Monitor
VZ-24CME
VZ-24CMP
VZ-19RTV
23” LED CCTV Monitor
23.6” LED CCTV Monitor
19” LED CCTV Monitor
VZ-24RTHL
VZ-185LED-P
24” LED CCTV Monitor
18.5” LED CCTV Monitor
VZ-27RTHL
VZ-215LED-P
27” LED CCTV Monitor
21.5” LED CCTV Monitor
15” LCD CCTV Monitor
VZ-32RTHL
VZ-185LED-E
32” LED CCTV Monitor
18.5” LED CCTV Monitor
VZ-42RTHL
VZ-23-LED-E
VZ-19RTC
42” LED CCTV Monitor
23” LED CCTV Monitor
19” LED CCTV Monitor
PREMIUM FULL HD RTHL Series
PREMIUM LED-P Series ECONOMY LED-E Series
• Black All Metal Flat Panel LED “A” Commercial-Grade Monitor
• Full HD 1920 x 1080 / 16:9
• 2 Looping BNC (NTSC/PAL) / 2 HDMI / DVI / Component / VGA / S-Video / PC Stereo Inputs
• 3D Comb Filter / De-Interlace / OSD / Remote Control
• PIP / PBP / VOV / Auto Source Switching / Auto Source & Power Recovery
• Image Rotation Feature Prevents “Pixel Burn-In” / Built-in 2W Speaker x 2
• AC 110 ~ 240 V / MTBF. 50K hrs / 3 Year Warranty
• Black Flat Panel Widescreen LED “A” Commercial-Grade Monitor
• Full HD 1920 x 1080 / 16:9 | PIP / PBP / VOV
• Looping BNC (NTSC/PAL) / HDMI / DVI / VGA / PC Stereo Inputs
• 3D Comb Filter / De-Interlace / OSD / Remote Control
• Auto Source Switching / Auto Source & Power Recovery
• Image Rotation Feature Prevents “Pixel Burn-In” / 2W Speaker x 2
• DC 12V (AC100 ~ 240V[50/60Hz]) / MTBF. 50K hrs/3 Year Warranty
• Black Flat Panel Widescreen LED “A” Commercial-Grade Monitor
• Full HD 1366x768 (VZ-185LED-E) & 1920x1080 (VZ-23LED-E) / 16:9
• HDMI / DVI / VGA / PC Stereo Inputs
• OSD / Remote Control / Auto Source & Power Recovery
• 2W Speaker x 2
• DC 12V (AC100 ~ 240V[50/60Hz]) / MTBF. 50K hrs/3 Year Warranty
• Black Flat Panel Widescreen LED “A” Commercial-Grade Monitor
• Full HD 1600x900 (VZ-19CME) & 1920 x 1080 (VZ-22, 24CME) / 16:9
• HDMI / DVI / VGA / Audio IN/OUT
• OSD / Remote Control / Auto Source & Power Recovery
• Feature Prevents “Pixel Burn-In” / Built-in 2.5W Speaker x 2
• DC 12V (AC100 ~ 240V[50/60Hz]) / MTBF. 50K hrs / 3 Year Warranty
SPEC
SPEC
SPEC
MODEL
NAME
MODEL
NAME
MODEL
NAME
SERIES
SERIES
SERIES
• Black Flat Panel Widescreen LED “A” Commercial-Grade Monitor
• Full HD 1600x900 (VZ-19CMP) & 1920 x 1080 (VZ-22, 24CMP) / 16:9
• Looping BNC (NTSC/PAL) / HDMI / VGA / Audio IN/OUT
• 3D Comb Filter / De-Interlace
• OSD / Remote Control / Auto Source & Power Recovery
• Feature Prevents “Pixel Burn-In” / Built-in 2.5W Speaker x 2
• DC 12V (AC100 ~ 240V[50/60Hz]) / MTBF. 50K hrs / 3 Year Warranty
• Black Flat Panel LED / LCD “A” Commercial-Grade Monitor
• 1280 x 1024 / 5:4 Aspect Ratio
• 2 Looping BNC (NTSC/PAL) / HDMI / VGA / PC Stereo Inputs
• 3D Comb Filter / De-Interlace / OSD / Remote Control
• PIP / PBP / VOV / Auto Source Switching / Auto Source & Power Recovery
• LED Protection Glass on 17” & 19” models / Built-in 2W Speaker x 2
• DC 12V (AC100 ~ 240V[50/60Hz]) / MTBF. 50K hrs / 3 Year Warranty
VZ-097RTC
9.7” LED CCTV Monitor
VZ-17RTCVZ-15RTC
PREMIUM LED / LCD RTC Series
• Black All Metal Flat Panel Widescreen LED / LCD “A” Commercial-Grade Monitor
• 1280 x 1024 (VZ-17RTC & 19RTC) / 5:4 , 1024 x 768 (15RTC, 097RTC) / 4:3
• Looping BNC (NTSC/PAL) / HDMI / DVI / VGA / PC Stereo Inputs
• 3D Comb Filter / De-Interlace / OSD / Remote Control
• PIP / PBP / VOV / Auto Source Switching / Auto Source & Power Recovery
• LED Protection Glass on 17” & 19” models / Built-in 2W Speaker x 2
• DC 12V (AC100 ~ 240V[50/60Hz]) / MTBF. 50K hrs / 3 Year Warranty
17” LED CCTV Monitor

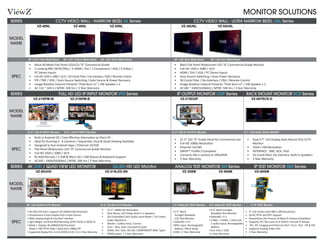

2. MONITOR SOLUTIONS
CCTV VIDEO WALL - NARROW BEZEL NL Series
FULL HD LED IP INPUT MONITOR IPM Series
4K UHD / QUAD VIEW LED MONITOR 3G-SDI HD LED Monitor
VZ-40NL
VZ-215IPM-W
VZ-50UHD
40” LCD 11mm Metal Bezel
21.5” LED IP INPUT Monitor
50” LED QUAD CCTV Monitor
VZ-46NL
VZ-215IPM-B
46” LED 12.5mm Metal Bezel
21.5” LED IP INPUT Monitor
VZ-55NL
VZ-215LED-SN
55” LED 18mm Metal Bezel
21.5” 3G-SDI CCTV Monitor
VZ-46UNL
VZ-215D2IP
46” LED 3mm Metal Bezel
21.5” LED IP OUTPUT Monitor
VZ-55UNL
55” LED 3mm Metal Bezel
VZ-097RCR-D
9.7” LED DUAL RACK MOUNT
CCTV VIDEO WALL - ULTRA NARROW BEZEL UNL Series
IP OUTPUT MONITOR D2IP Series RACK MOUNT MONITOR RCR Series
• Black Flat Panel Widescreen LED “A” Commercial-Grade Monitor
• Full HD 1920 x 1080 / 16:9
• HDMI / DVI / VGA / PC Stereo Inputs
• Auto Source Switching / Auto Power Recovery
• 3D Comb Filter / De-Interlace / OSD / Remote Control
• Image Rotation Feature Prevents “Pixel Burn-In” / 2W Speaker x 2
• AC100 ~ 240V[50/60Hz] / MTBF. 50K hrs / 3 Year Warranty
• 21.5” LED “A” Grade Panel for Commercial Use
• Full HD 1080p Resolution
• Ethernet 10/100
• ONVIF™ Profile S Compliant
• Connects like a camera to VMS/NVR
• 3 Year Warranty
• Dual 9.7” LED Display Rack Mount (5U) CCTV
Monitor
• 1024 x 768 Resolution
• INTERFACE : BNC, RCA, VGA
• 2D Comb-filter, De-interlace, Built-in Speakers
• 3 Year Warranty
• Black All Metal Flat Panel LED/LCD “A” Commercial-Grade
• 2 Looping BNC (NTSC/PAL) / 2 HDMI / DVI / 2 Component / VGA / S-Video /
PC Stereo Inputs
• Full HD 1920 x 1080 / 16:9 | 3D Comb Filter / De-Interlace / OSD / Remote Control
• PIP / PBP / VOV / Auto Source Switching / Auto Source & Power Recovery
• Image Rotation Feature Prevents “Pixel Burn-In” / 2W Speaker x 2
• AC 110 ~ 240 V / MTBF. 50K hrs / 3 Year Warranty
• Built-in Android OS / Cost Effective Alternative to Client PC
• Ideal for Running 4 - 6 Cameras / Sequential, Dual & Quad Viewing Available
• Designed to Run Android Apps / Ethernet 10/100
• Flat Panel Widescreen LED “A” Commercial-Grade Monitor
• Full HD 1920 x 1080 / 16:9
• RJ-45(Ethernet) / 2 USB & Micro SD / USB Mouse & Keyboard Support
• AC100 ~ 240V[50/60Hz] / MTBF. 50K hrs / 3 Year Warranty
• 4K UHD LED Panel / Supports 4K (3840X2160) Resolution
• Simultaneous 4 Input Display from 4 Input Sources
• Wide Viewing Angle & V-by-One® Interface
• Light Weight, Universal Wall Mounting, QFHD 24/30 or 50/60 Hz
• Mode 1: Displays 4K (3840X2160) Resolution
Mode 2: PBP, PIP & Triple / Quad (Each 1080p) PIP
• Supported Display Port (1.2) & HDMI (2.0 & 1.4) / 2 Year Warranty
• 21.5” 1080p HD Resolution
• Blue Mono, H/V Delay, Built-in 2 Speakers
• SDI Embedded 16ch Audio Level Meter / 2ch Select
Audio Waveform
• Marker / Safety Area / Corner
• Scan - Zero, Over and pixel to pixel
• HDMI, DVI, VGA, HD-SDI, COMPONENT (BNC Type)
• DPMS Select / 2 Year Warranty
VZ-35SM
3.5” ANALOG TEST Monitor
VZ-56SM
5.6” ANALOG TEST Monitor
VZ-40ISM
4” IP TEST Monitor
ANALOG TEST MONITOR SM Series IP TEST MONITOR ISM Series
• 3.5” Black
Sunlight Readable
LCD Test Monitor
• 320x240 / 4:3
• BNC Input, Rechargeable
Battery / Wrist Strap
• OSD / 2 Year Warranty
• 5.6” Black Sunlight
Readable Test Monitor
• 640x480 / 4:3
• 2 BNC, 1 HDMI, 1 VGA and
1 audio Input, Rechargeable
Battery
• Sun Visor / OSD
• 2 Year Warranty
• 4” LED Screen with 800 x 480 Resolution
• Onvif, RTSP and RTP Support
• Streamlines the Process of New IP Camera Installation
• Supports IPC Test such as IP (DHCP, manual IP Setup),
• IPC, IPC Imaging and Ethernet Test / P.o.E. Test - PD & PSE
• Supports Analog Video Test
• 2 Year Warranty
SPEC
SPEC
SPEC
MODEL
NAME
MODEL
NAME
MODEL
NAME
SERIES
SERIES
SERIES

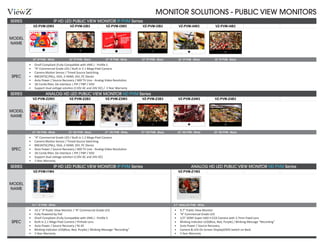

3. MONITOR SOLUTIONS - PUBLIC VIEW MONITORS
IP HD LED PUBLIC VIEW MONITOR IP PVM Series
ANALOG HD LED PUBLIC VIEW MONITOR HD PVM Series
IP HD LED PUBLIC VIEW MONITOR IP PVM Series
VZ-PVM-I2W3
VZ-PVM-Z2W3
VZ-PVM-I1W4
23” IP PVM - White
23” HD PVM - White
10.1” IP PVM - White
VZ-PVM-I2B3
VZ-PVM-Z2B3
23” IP PVM - Black
23” HD PVM - Black
VZ-PVM-I3W3 VZ-PVM-I3B3
VZ-PVM-Z3W3 VZ-PVM-Z3B3
27” IP PVM - White 27” IP PVM - Black
27” HD PVM - White 27” HD PVM - Black
VZ-PVM-I4W3
VZ-PVM-Z4W3
VZ-PVM-Z1W2
32” IP PVM - White
32” HD PVM - White
9.7” ANALOG PVM - White
VZ-PVM-I4B3
VZ-PVM-Z4B3
32” IP PVM - Black
32” HD PVM - Black
ANALOG HD LED PUBLIC VIEW MONITOR HD PVM Series
• 9.7” Public View Monitor
• “A“ Commercial Grade LED
• 1/3” SONY Super HAD II CCD Camera with 3.7mm Fixed Lens
• Blinking Indicator LED(Blue, Red, Purple) / Blinking Message “Recording”
• Auto Power / Source Recovery
• Camera & LED On Screen Display(OSD) Switch on Back
• 3 Year Warranty
• Onvif Compliant (Fully Compatible with VMS ) - Profile S
• “A“ Commercial Grade LED / Built in 2.1 Mega Pixel Camera
• Camera Motion Sensor / Timed Source Switching
• BNC(NTSC/PAL), VGA, 2 HDMI, DVI, PC Stereo
• Auto Power / Source Recovery / 600 TV Line - Analog Video Resolution
• 3D Comb-filter, De-interlace | PIP / PBP / VOV
• Support dual voltage solution (110V AC and 24V DC) / 3 Year Warranty
• “A“ Commercial Grade LED / Built in 1.3 Mega Pixel Camera
• Camera Motion Sensor / Timed Source Switching
• BNC(NTSC/PAL), VGA, 2 HDMI, DVI, PC Stereo
• Auto Power / Source Recovery / 600 TV Line - Analog Video Resolution
• 3D Comb-filter, De-interlace | PIP / PBP / VOV
• Support dual voltage solution (110V AC and 24V DC)
• 3 Year Warranty
• 10.1” IP Public View Monitor / “A“ Commercial Grade LED
• Fully Powered by PoE
• Onvif Compliant (Fully Compatible with VMS ) - Profile S
• Built in 2.1 Mega Pixel Camera / Pinhole Lens
• Auto Power / Source Recovery / RJ-45
• Blinking Indicator LED(Blue, Red, Purple) / Blinking Message “Recording”
• 3 Year Warranty
SPEC
SPEC
SPEC
MODEL
NAME
MODEL
NAME
MODEL
NAME
SERIES
SERIES
SERIES

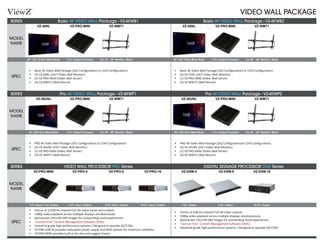

4. VIDEO WALL PACKAGE
Basic 4K VIDEO WALL Package - VZ-4KWB1
Pro 4K VIDEO WALL Package - VZ-4KWP1 Pro 4K VIDEO WALL Package - VZ-4KWP2
VIDEO WALL PROCESSOR PRO Series
VZ-46NL
VZ-46UNL
VZ-PRO-MINI
46” LED 12.5mm Metal Bezel
46” LED 3mm Metal Bezel
1 Ch. Input / 4 Ch. Output
VZ-PRO-MINI
VZ-PRO-MINI
VZ-PRO-4
4 Ch. Output Processor
4 Ch. Output Processor
4 Ch. Input / Output
VZ-WM71
VZ-WM71
VZ-PRO-8 VZ-PRO-16
For 40” - 65” Monitor / Black
For 40” - 65” Monitor / Black
8 Ch. Input / Output 16 Ch. Input / Output
VZ-55NL
VZ-55UNL
VZ-DSM-4
55” LED 18mm Metal Bezel
55” LED 3mm Metal Bezel
4 Ch. Output
VZ-PRO-MINI VZ-WM71
VZ-PRO-MINI
VZ-DSM-8
4 Ch. Output Processor
4 Ch. Output Processor
8 Ch. Output
VZ-WM71
VZ-DSM-16
For 40” - 65” Monitor / Black
For 40” - 65” Monitor / Black
16 Ch. Output
Basic 4K VIDEO WALL Package - VZ-4KWB2
DIGITAL SIGNAGE PROCESSOR DSM Series
• Basic 4K Video Wall Package (2X2 Configuration) or (1X4 Configuration)
• (4) VZ-55NL (24/7 Video Wall Monitor)
• (1) VZ-PRO-MINI (Video Wall Server)
• (4) VZ-WM71 (Wall Mount)
• PRO 4K Video Wall Package (2X2 Configuration)or (1X4 Configuration)
• (4) VZ-55UNL (24/7 Video Wall Monitor)
• (1) VZ-PRO-MINI (Video Wall Server)
• (4) VZ-WM71 (Wall Mount)
• Choice of 4/8/16-channel Full HD video outputs
• 1080p video playback across multiple displays simultaneously
• Spectacular Ultra HD (4K) images for outstanding visual experiences
• “License Free” Content Management Software (CMS)
• Industrial grade high-performance systems / Designed to operate 24/7/365
• Basic 4K Video Wall Package (2X2 Configuration) or (1X4 Configuration)
• (4) VZ-46NL (24/7 Video Wall Monitor)
• (1) VZ-PRO-MINI (Video Wall Server)
• (4) VZ-WM71 (Wall Mount)
• PRO 4K Video Wall Package (2X2 Configuration) or (1X4 Configuration)
• (4) VZ-46UNL (24/7 Video Wall Monitor)
• (1) VZ-PRO-MINI (Video Wall Server)
• (4) VZ-WM71 (Wall Mount)
• Choice of 1/4/8/16-channel Full HD video inputs and outputs
• 1080p video playback across multiple displays simultaneously
• Spectacular Ultra HD (4K) images for outstanding visual experiences
• “License Free” Content Management Software (CMS)
• Industrial grade high-performance systems / Designed to operate 24/7/365
• VZ-PRO-4/8/16 provides redundant power supply and RAID options for maximum reliability
• VZ-PRO-MINI provides built-in fan-less and rugged chassis
SPEC
SPEC
SPEC
MODEL
NAME
MODEL
NAME
MODEL
NAME
SERIES
SERIES
SERIES

5. SECURITY / PRO AUDIO / VIDEO MOUNTING SOLUTIONS
TELESCOPIC CEILING MOUNT CM Series
VESA CEILING MOUNT KIT VZ-CMKIT Series
WALL MOUNT XM Series
VZ-CM06W
VZ-CMKIT-01
VZ-XM46
For 23” - 32” Monitor / White
For 23” - 42” Monitor / Black
46” UNL & NL Monitor / Black
VZ-CM06B
VZ-CMKIT-02
VZ-XM55
For 23” - 32” Monitor / Black
For 23” - 42” Monitor / Black
55” UNL & NL Monitor / Black
VZ-CM18W
VZ-CMKIT-04
For 23” - 32” Monitor / White
For 37” - 70” Monitor / Black
VZ-CM6B18
VZ-CM-P15
For 23” - 32” Monitor / Black
Extension Column / Black
VZ-CMK03 VZ-CM-V1 VZ-CM-V3
VZ-CM-P36
VZ-AP200
For 26” - 40” Monitor / Black
Telescopic Extension Column
For 24” - 32” Monitor / Black
VZ-CM-T
VZ-AP200-S1
Tilt Ceiling Plate
For 24” - 32” Monitor / Black
VZ-CM-C
For 23” - 42” Monitor / Black For 37” - 70” Monitor / Black
Extension Column Connector
CEILING MOUNT CMK Series VESA CEILING MOUNT KIT VZ-CMKIT
WALL MOUNT AP Series
• Installation ranging from 3’ to 6’
• 15° tilt adjustment
• 360° pan rotation
• VESA 75 x 75, 100 x 100 and 200 x 200mm
• Weight Capacity 36.82 lbs / 16.7kg
• Installation ranging from 6’ to 18’
• 15° tilt adjustment
• 360° pan rotation
• VESA 75 x 75, 100 x 100 and 200 x 200mm
• Weight Capacity 36.82 lbs / 16.7kg
• Built-in lateral shift
• Mounts to studs at 16 in. and 18 in. spacing
• +12° tilt adjustment
• Universal Mount 100x100 ~ 490x360 (Max) mm
• Weight Capacity 160 lbs / 72.57kg
• +5° ~ -12° tilt (VZ-CM-V1)
• ±80° tilt (VZ-CM-T)
• 360° pan rotation
• VESA 75x75,100x100,
200x100 and 200x200mm
• Weight Capacity 110 lbs
/ 50 kg
• Multi-monitor stacking
• Straight scissor-style ext.
• Spring-loaded release
• Open design, custom spacer
• Unversal / VESA
Min.200x200~Max.600x400
• Weight Capacity 160 lbs
/ 72 kg
• +5° ~ -12° tilt
• 360° pan rotation
• VESA 75x75,100x100,
200x100 and 200x200mm
• Weight Capacity 110 lbs
/ 50 kg
• Installation Range 35.43”
• +5° ~ -12° tilt (VZ-CM-V1)
• ±80° tilt (VZ-CM-T)
• 360° pan rotation
• VESA 75x75,100x100,
200x100 and 200x200mm
• Weight Capacity 110 lbs
/ 50 kg
• Multi-monitor stacking
• Straight scissor-style ext.
• Spring-loaded release
• Open design, custom spacer
• Unversal / VESA
Min.200x200~Max.600x400
• Weight Capacity 160 lbs
/ 72 kg
• +5° ~ -12° tilt
• ±80° tilt
• Level +5° ~ - 5°
• 360° pan rotation
• VESA 200x200mm
• Univ. 200x200~800x400 mm
• Weight Capacity 110 lbs
/ 50 kg
• Installation Range 35.43”
• +5° ~ -12° tilt (VZ-CM-V1)
• Level +5° ~ - 5°
• 360° pan rotation
• Universal 200x200~800x400
mm
• Weight Capacity 110 lbs
/ 50 kg
• 1.5” NPT Standard Pipe
• For VZ-CM-V1, CM-V3,
CM-C & CM-T
• Adjustable length Min.8.7”
~ Max. 14.55”
• Weight Capacity 110 lbs
/ 50 kg
• 1.5” NPT Standard Pipe
• Installation Range 35.43”
• For VZ-CM-V1, CM-V3,
CM-C & CM-T
• Weight Capacity 110 lbs
/ 50 kg
• 1.5” NPT Standard Pipe
• Installation Range 35.43”
• For VZ-CM-P15 & CM-P36
• ±80° tilt capability
• 360° pan rotation
• Weight Capacity 110 lbs
/ 50 kg
• 1.5” NPT Standard Pipe
• Installation Range 35.43”
• For VZ-CM-P15 & CM-P36
• Weight Capacity 110 lbs
/ 50 kg
SPEC
SPEC
SPEC
MODEL
NAME
MODEL
NAME
MODEL
NAME
SERIES
SERIES
SERIES
• Wall Mount Adapter Plate
• VESA 50x50,75x75,100x100,
200x100 and 200x200mm
• Weight Capacity 66 lbs /
30 kg
• Wall Mount Adapter Plate
• VESA 50x50,75x75,100x100,
200x100 and 200x200mm
• Weight Capacity 50 lbs /
22.7 kg

6. SECURITY / PRO AUDIO / VIDEO MOUNTING SOLUTIONS
WALL MOUNT AM Series
CUSTOM FABRICATED MOUNT FM Series
CUSTOM FABRICATED MOUNT FM Series
VZ-AM01
For 10” - 24” Monitor / Black
VZ-AM02
For 27” - 32” Monitor / Black
VZ-AM03
For 40” - 46” Monitor / Black
VZ-WM05
For 10” - 24” Monitor / Black
VZ-WM11 VZ-WM50 VZ-WM71
For 10” - 24” Monitor / Black For 27” - 32” Monitor / Black For 40” - 65” Monitor / Black
WALL MOUNT WM Series
• +70° ~ -70° tilt adjustment
• 180° swivel
• VESA 75x75 and 100x100
• Weight Capacity 33 lbs /
15 kg
• +15° ~ -15° tilt adjustment
• 180° swivel
• 360° landscape to portrait
rotate
• VESA 75x75, 100x100,
200x100 & 200x200
• Weight Capacity 44 lbs /
20 kg
• +15° ~ -15° tilt adjustment
• 120° rotation
• 4.92” ~ 20.27” extension
• VESA, Univ. Min.200x200 ~
Max.800x400
• Weight Capacity 132 lbs
/ 60 kg
• 15mm low profile
• VESA 50x50, 75x75 &
100x100
• Weight Capacity 66 lbs /
30 kg
• +45° ~ -45° tilt adjustment
• 180° swivel
• 4.92” ~ 20.27” extension
• VESA 75x75 & 100x100
• Weight Capacity 33 lbs /
15 kg
• +10° ~ 0° tilt adjustment
• 1.77” low profile
• VESA Min.200x200 ~ Max.
400x200
• Universal Mounting
• Weight Capacity 162 lbs /
74.5 kg
• +10° ~ 0° tilt adjustment
• 1.77” low profile
• VESA Min.200x200 ~ Max.
800x800
• Universal Mounting
• Weight Capacity 165 lbs
/ 75 kg
• Free Standing Mounts
• Free Standing Mounts
• Curved Mounts
SPEC
SPEC
SPEC
MODEL
NAME
MODEL
NAME
MODEL
NAME
SERIES
SERIES
SERIES
• Free Standing Mounts
• Various Cladding Options
• Free Standing Mounts
• Angled Mounts
• Wall Mounts
