Linovision offers a comprehensive range of IP cameras, DVRs, NVRs, and related technology, emphasizing high-quality products and customization options. Located in Hangzhou, China, the company collaborates with major manufacturers like Hikvision and Dahua to ensure competitive performance and rapid delivery. Their catalog features various models with advanced specifications including waterproof, vandal-proof capabilities, and intelligent video analysis.

1. PRODUCT CATALOG
Think IP Camera Think Linovision
Version 2014 Aug

2. About Linovision
In the last 8 years, we are proud of designing and manufacturing a complete line of IP cameras, as well as DVRs, NVRs, IP Speed Domes, PC based DVRs, management software, PoE switches, etc.
With headquarters in the city of Hangzhou (China), we are working closely with several world-leading manufacturers here, like Hikvision, Dahua, etc.
Our Core Competence includes:
Excellent product quality as you can expect from other big brands;
Capable of hardware/software customization according to your specific requirements;
Faster response and speed delivery;
We insist on win-win cooperation, most of our partners are growing together with us in the last 5 years.

3. IPC-V Series
IPC-H Series
HDCVI System
IP Speed Dome
Special IPC
DVR
NVR 9000
NVR 8000
Video Wall System
Video Door Phone
DVR Card
Software
PoE Switch

4. IPC-V Series
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
Model
Type
Resolution
IR
Lens
Water Proof
Vandal Proof
WDR
WiFi
Audio
Alarm
SD Card
IPC-VI854FWD-E
3 MP
Not included
√
Optional
√
√
√
IPC-V8280VF-EIZ
5 MP
√
4-9mm motorized
√
DWDR
√
√
√
IPC-V8254F-EI
3 MP
√
2.7-12mm vari-focal
√
DWDR
√
√
√
IPC-V8254F-EIZ
3 MP
√
3-9mm vari-focal
√
DWDR
√
√
√
IPC-VI8254FWD-E
3 MP
√
2.7-12mm vari-focal
√
√
√
√
√
IPC-V8362-EI
3 MP
√
3.6mm
√
DWDR
IPC-V8342-EI
1.3 MP
√
3.6mm
√
DWDR
IPC-VEC8242-EI
1.3 MP
√
6mm
√
DWDR
IPC-V780VF-EIZ
5 MP
√
4-9mm motorized
√
√
DWDR
√
√
√
IPC-VI754FWD-EI
3 MP
√
2.7-12mm vari-focal
√
√
√
√
√
√
IPC-V754F-EI
3 MP
√
2.7-12mm vari-focal
√
√
DWDR
√
√
√
IPC-V754F-EIZ
3 MP
√
3-9mm vari-focal
√
√
DWDR
√
√
√
IPC-V7462-EI
3 MP
√
3.6mm
√
√
DWDR
IPC-V7442-EI
1.3 MP
√
2.8mm
√
√
DWDR
IPC-V7163F-EPT
3 MP
3.6mm
√
√
DWDR
√
√
IPC-V7143F-EPT
1.3 MP
3.6mm
√
√
DWDR
√
√
IPC-V7143F-E
1.3 MP
2.8mm
√
√
DWDR
√
IPC-V7342-EI
1.3 MP
√
2.8mm
√
√
DWDR
√

5. IPC-VI854FWD-E
3MP Smart IP Box camera
•1/3" 3 Megapixel progressive scan CMOS
•Support H.264/MJPEG dual codec
• Max 25/30fps@3MP(2048x1536)
• Ultra 3D DNR
• Ultra Defog, ROI, EIS
• Auto back focus
• 100/1000M Base-T Ethernet
• Free CMS, free mobile phone APPs
3MP IP camera with intelligent Video Analysis
IPC-VI754FWD-EI
3MP Smart IP Dome camera
IPC-VI8254FWD-EI
3MP Smart IP IR Bullet camera
•1/3" 3 Megapixel progressive scan CMOS
•Support H.264/MJPEG dual codec
• Max 25/30fps@3MP(2048x1536)
• Ultra 3D DNR
• Ultra Defog, ROI, EIS
• Auto back focus
• Smart IR technology
• Micro SD memory, IP66, PoE
• Free CMS, free mobile phone APPs
•1/3" 3 Megapixel progressive scan CMOS
•Support H.264/MJPEG dual codec
• Max 25/30fps@3MP(2048x1536)
• Ultra 3D DNR
• Ultra Defog, ROI, EIS
• Auto back focus
• Smart IR technology
• Micro SD memory, IP66, IK10, PoE
• Free CMS, free mobile phone APPs
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
Smart design and IVS functions
IPC-V Series
WDR
Intrusion detection
Face Detection
Region of Interest
Audio detection
Smart IR
Smart focus
Corridor Mode

6. IPC-V8280VF-EIZ
5MP CMOS Full HD Water-proof IR Bullet Network Camera
• 1/2.5” 5 MP progressive scan Aptina CMOS
• H.264 & MJPEG dual-stream encoding
• Max 12fps@5M(2536×1920)
• Day/Night(ICR), 3DNR, Micro SD, IR LEDs
• Motorized Lens: 4~9mm
•IP66,DC 12V, PoE
IPC-V780VF-EIZ
5MP CMOS Full HD Vandal-proof IR Dome Network Camera
• 1/2.5” 5 MP Aptina CMOS
• H.264 & MJPEG dual-stream encoding
• Max 12fps@5M(2536×1920)
• Day/Night(ICR), 3DNR, Micro SD, IR LEDs
• Motorized Lens: 4~9mm
•IP66, DC12V, PoE
IPC-V754F-EI(Z)
3MP CMOS Full HD dome camera IR Network Camera
IPC-V8254F-EI(Z)
3MP CMOS HD Waterproof IR Network Camera
• 1/3” 3MP progressive scan Aptina CMOS
• H.264 & MJPEG dual-stream encoding
• Max 20fps@3M(2052×1536)
• DWDR, Day/Night(ICR), 3DNR, Auto iris
• 2.7 ~12mm varifocal lens (-EI)
• 3 ~9mm varifocal motorized lens(-EIZ)
• Max. IR LEDs length 20m
• 1/3” 3MP progressive scan Aptina CMOS
• Max 20fps@3M(2048×1536)
• DWDR, Day/Night(ICR), 3DNR, Auto iris
• 2.7 ~12mm varifocal lens (-EI)
• 3 ~9mm varifocal motorized lens(-EIZ)
• Max. IR LEDs length 30m
IPC-V8362-EI
3MP CMOS HD Small IR Bullet Network Camera
• 1/3” 3MP progressive scan Aptina CMOS
• H.264 & MJPEG dual-stream encoding
• Max 20fps@3M(2048×1536)
• DWDR, Day/Night(ICR), 3DNR, IR 30m
• Lens: 3.6mm
•IP66, DC 12V, PoE
IPC-V7462-EI
3MP CMOS HD Vandal-proof IR Dome Network Camera
• 1/3” 3MP progressive scan Aptina CMOS
• H.264 & MJPEG dual-stream encoding
• Max 20fps@3M(2048×1536)
• DWDR, Day/Night(ICR), 3DNR, IR 20m
• Lens: 3.6mm
•IP66, IK 10, DC 12V, PoE
5MP IPC - Professional
3MP IPC - Professional
3MP IPC - Professional
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
3MP IPC - Value
IPC-V Series

7. IPC-V7442-EI
1.3MP CMOS Full HD dome IR Network Camera
• 1/3” 1.3P progressive scan Aptina CMOS
• H.264 & MJPEG dual-stream encoding
• 25/30fps @1.3M(1280×960)&720(1280×720)
• DWDR, Day/Night(ICR), 3DNR
• 3.6mm fixed lens (2.8mm, 6mm optional)
• Max. IR LEDs length 30m
• IK10, IP66, PoE
IPC-V8342-EI
1.3MP CMOS HD Network IR Bullet Camera
• 1/3” 1.3MP progressive scan Aptina CMOS
• H.264&MJPEG dual-stream encoding
• 25/30fps @ 1.3M(1280×960)
•DWDR, Day/Night(ICR), 3DNR
• 3.6mm fixed lens (6mm,8mm optional)
• Max. IR LEDs Length 30m
• IP66, PoE
IPC-V7163F-EPT
3MP Full HD Vandal-roof PT Mini Dome Network Camera
• 1/3” 3MP progressive scan Aptina CMOS
• H.264 & MJPEG dual-stream encoding
• Max 20fps@3M(2048×1536)
• Lens: 3.6mm fixed lens
• Max 100°/s preset speed, ±180°Pan, 90°Tilt
• D&N(ICR), 3DDNR, Micro SD
• IP66, IK10, DC12V, PoE
IPC-V7143F-EPT
1.3MP Full HD Vandal-roof PT Mini Dome Network Camera
• 1/3” 1.3MP progressive scan Aptina CMOS
• H.264 & MJPEG dual-stream encoding
• Max 25/30fps@1.3M(1280x960)
• Lens: 3.6mm fixed lens
• Max 100°/s preset speed, ±180°Pan, 90°Tilt
• D&N(ICR), 3DDNR, Micro SD
• IP66, IK10, DC12V, PoE
IPC-V7143F-E
1.3MP CMOS Full HD dome camera Network Camera
• 1/3” 1.3 MP progressive scan Aptina CMOS
• H.264 & MJPEG dual-stream encoding
• Max 25/30fps@1.3M(1280×960)
• Day/Night(ICR), 3DNR, Auto iris
• Built-in 2.8mm/3.6mm/6mm lens
• Micro SD memory, IP66, IK10, PoE
IPC-VEC8242-EI
1.3MP CMOS Full HD Waterproof IR Network Camera
• 1/3” 1.3 MP Aptina CMOS image sensor
• High-performance TI DaVinci series DSP
• Max 25/30fps @720P(1280×720) resolution
• H.264&MJPEG Dual encoding streams
• Lens: 6mm (3.6mm/8mm optional)
• Max. IR Distance: 20m
• IP66, DC12V, PoE
1.3MP IPC - Value
3MP IPC - Value
1.3MP IPC - Value
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
IPC-V Series

8. Model
Type
Resolution
IR
Vari-focal Lens
Audio
Water Proof
Vandal Proof
DWDR
WiFi
SD Card
IPC-H3030-EI
3 MP
√
√
√
IPC-H3013-EI
1.3 MP
√
√
√
IPC-H3130-EI
3 MP
√
√
√
√
IPC-H3113-EI
1.3 MP
√
√
√
√
IPC-H3230-EI5
3 MP
√
√
√
IPC-H3213-EI5
1.3 MP
√
√
√
IPC-H3330-EI
3 MP
√
√
√
IPC-H3313-EI
1.3 MP
√
√
√
IPC-H3630VF-EIA
3 MP
√
√
√
√
√
√
IPC-H3613VF-EIA
1.3 MP
√
√
√
√
√
√
IPC-H3730VF-EIA
3 MP
√
√
√
√
√
√
√
IPC-H3713VF-EIA
1.3 MP
√
√
√
√
√
√
√
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
Seamless working with Hikvision and 3rd party CMS platform
Mobile App
(iVMS 4500)
Customization
(Model, logo, CMS)
Powerful CMS platform
Professional WEB Client
Perfect integration
IPC-H Series

9. IPC-H3630VF-EIA 3MP Varifocal Full HD Waterproof Network IR Bullet Camera
• 1/3” 3MP progressive scan CMOS
• H.264/MJPEG dual-stream encoding
• Max 15fps@3M(2048x1536), 25/30fps@1080P
• Lens: 2.8~12mm/F1.4,
• DWDR, D&N(ICR)
• IP66, DC12V, PoE, Micro 64GB SD card
• IR Distance: 30m
IPC-H3030-EI
3MP Full HD Waterproof Network Mini IR Bullet Camera
• 1/3” 3MP progressive scan CMOS • H.264/MJPEG dual-stream encoding • Max 15fps@3M(2048x1536), 25/30fps@1080P • Lens: 6mm(4mm, 12mm optional) • DWDR, D&N(ICR) • IP66, DC12V, PoE • IR Distance: 30m
IPC-H3230-EI5
3MP Full HD Waterproof Network IR Bullet Camera
• 1/3” 3MP progressive scan CMOS • H.264/MJPEG dual-stream encoding • Max 20fps@3M(2048x1536), 25/30fps@1080P • Lens: 6mm(4mm, 12mm optional) • DWDR, D&N(ICR) • IP66, DC12V, PoE • IR Distance: 50m
IPC-H3730VF-EIA
3MP Varifocal Full HD Vandal proof Network IR Dome Camera
• 1/3” 3MP progressive scan CMOS • H.264/MJPEG dual-stream encoding • Max 15fps@3M(2048x1536), 25/30fps@1080P • Lens: 2.8~12mm/F1.4, • DWDR, D&N(ICR) • IP66, DC12V, PoE, Micro 64BG SD card • IR Distance: 20m
IPC-H3330-EI 3MP Full HD Waterproof Network IR Dome Camera
• 1/3” 3MP progressive scan CMOS
• H.264/MJPEG dual-stream encoding
• Max 20fps@3M(2048x1536), 25/30fps@1080P
• Lens: 4mm(2.8mm, 6mm, 12mm optional)
• DWDR, D&N(ICR)
• IP66, DC12V, PoE
• IR Distance: 30m
IPC-H3130-EI
3MP Full HD Vandal proof Network Mini IR Dome Camera
• 1/3” 3MP progressive scan CMOS • H.264/MJPEG dual-stream encoding • Max 15fps@3M(2048x1536), 25/30fps@1080P • Lens: 4mm(2.8mm, 6mm, 12mm optional) • DWDR, D&N(ICR), Auto Iris • IP66, DC12V, PoE • IR Distance: 30m
3MP IPC - Professional
3MP IPC - Professional
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
IPC-H Series

10. IPC-H3613VF-EIA 1.3MP Varifocal Full HD Waterproof Network IR Bullet Camera
• 1/3” 1.3MP progressive scan CMOS • H.264/MJPEG dual-stream encoding • Max 25/30fps@1280x960, 25/30fps@720P • Lens: 2.8~12mm/F1.4, • DWDR, D&N(ICR) • IP66, DC12V, PoE, Micro 64BG SD card • IR Distance: 30m
IPC-H3013-EI
1.3MP Full HD Waterproof Network Mini IR Bullet Camera
• 1/3” 1.3MP progressive scan CMOS
• H.264/MJPEG dual-stream encoding
• Max 25/30fps@1280x960, 25/30fps@720P
• Lens: 4mm(6mm, 12mm optional)
• DWDR, D&N(ICR)
• IP66, DC12V, PoE
• IR Distance: 30m
IPC-H3213-EI5 1.3MP Full HD Waterproof Network IR Bullet Camera
• 1/3” 1.3MP progressive scan CMOS
• H.264/MJPEG dual-stream encoding
• Max 25/30fps@1280x960, 25/30fps@720P
• Lens: 6mm(4mm, 12mm optional)
• DWDR, D&N(ICR)
• IP66, DC12V, PoE
• IR Distance: 50m
IPC-H3713VF-EIA 1.3MP Varifocal Full HD Vandal proof Network IR Dome Camera
• 1/3” 1.3MP progressive scan CMOS
• H.264/MJPEG dual-stream encoding
• Max 25/30fps@1280x960, 25/30fps@720P
• Lens: 2.8~12mm/F1.4,
• DWDR, D&N(ICR)
• IP66, DC12V, PoE, Micro 64BG SD card
• IR Distance: 20m
IPC-H3313-EI 1.3MP Full HD Waterproof Network IR Dome Camera
• 1/3” 1.3MP progressive scan CMOS • H.264/MJPEG dual-stream encoding • Max 25/30fps@1280x960, 25/30fps@720P • Lens: 4mm(2.8mm, 6mm, 12mm optional) • DWDR, D&N(ICR) • IP66, DC12V, PoE • IR Distance: 30m
IPC-H3113-EI
1.3MP Full HD Vandal proof Network Mini IR Dome Camera
1.3MP IPC - Professional
1.3MP IPC - Value
• 1/3” 1.3MP progressive scan CMOS
• H.264/MJPEG dual-stream encoding
• Max 25/30fps@1280x960, 25/30fps@720P
• Lens: 4mm(2.8mm, 6mm, 12mm optional)
• DWDR, D&N(ICR)
• IP66, DC12V, PoE
• IR Distance: 30m
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
1.3MP IPC - Value
IPC-H Series

11. Model
Type
IPC Input
PoE Port
Recording Bit-rate
Playback Bit-rate
Max. Record Resolution
Video Output
Alarm
HDD port
eSATA
Size
HDMI
VGA
TV
NVR-9004C-P4
4
4
80Mbps
32Mbps
2MP
√
√
1
Smart 1U
NVR-9008C-P8
8
8
80Mbps
32Mbps
2MP
√
√
1
Smart 1U
NVR-9004B-P4
4
4
80Mbps
32Mbps
2MP
√
√
1
Mini 1U
NVR-9016B-P8
16
8
80Mbps
32Mbps
2MP
√
√
1
Mini 1U
NVR-9404A
4
128Mbps
32Mbps
5MP
√
√
√
2
1U
NVR-9408A
8
128Mbps
32Mbps
5MP
√
√
√
2
1U
NVR-9416A
16
128Mbps
32Mbps
5MP
√
√
√
2
1U
NVR-9404A-P4
4
4
128Mbps
32Mbps
5MP
√
√
√
2
1U
NVR-9408A-P8
8
8
128Mbps
32Mbps
5MP
√
√
√
2
1U
NVR-9416A-P8
16
8
128Mbps
32Mbps
5MP
√
√
√
2
1U
NVR-9408L-P8
8
8
128Mbps
32Mbps
5MP
√
√
√
√
4
√
1.5U
NVR-9416L-P16
16
16
128Mbps
32Mbps
5MP
√
√
√
√
4
√
1.5U
NVR-9432S
32
128Mbps
32Mbps
5MP
√
√
√
√
8
√
2U
NVR-9416S-P16
16
16
128Mbps
32Mbps
5MP
√
√
√
√
8
√
2U
NVR-9164S-LCD
128
384Mbps
36Mbps
8MP
√
√
√
16
√
3U
NVR-95256S-HD
256
512Mbps
64Mbps
8MP
√
√
√
24
√
4U
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
NVR-9000 Series

12. Product Model: NVR-9004C-P4/9008C-P8: 4/8ch IP camera inputs, Max 80Mbps recording rate, Support max 5MP resolution, support HDMI, VGA, USB2.0, 1 HDDs and 4/8 POE ports.
NVR-9004C-P4/9008C-P8
Mini 1U Home Use PoE NVR
1080P
PoE
1080P
PoE
NVR-9004B-P4/9016B-P8
Mini 1U Home Use PoE NVR
Product Model: NVR-9004B-P4/9016B-P8 : 4/16ch IP camera inputs, Max 80Mbps recording rate, Support max 5MP resolution, support HDMI, VGA, USB2.0, 1 HDDs and 4/16 POE ports.
NVR-9404A/ 9408A/ 9416A 1U Professional NVR
Product Model:
NVR-9404A/9408A/9416A : 4/8/16ch IP camera inputs, max 5MP resolution, max 128Mbps record rate, support HDMI, VGA, USB2.0, USB3.0 and 2 HDDs
5MP
Value Level
Professional Level
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
NVR-9000 Series
5MP
NVR-9404A-P4/ 9408A-P8/ 9416A-P8 1U Professional PoE NVR
Product Model: NVR-9404A-P4/ 9416A-P8/ 9408A-P8 : 4/8/16ch IP camera inputs, max 5MP resolution, max 128Mbps record rate, support HDMI, VGA, USB2.0, USB3.0 and 2 HDDs, 4/8/8 PoE, plug-and-play operation
PoE

13. 5MP
NVR-9416L-P16 1.5U 16ch Professional PoE NVR
16 channels PoE NVR with 1080P realtime live view,16 PoE ports, up to 5MP recording resolution, 4 HDD, 16 alarm, audio, 1 HDMI, 1 VGA, 1 BNC, 1.5U case
PoE
Professional Level
Professional Level
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
NVR-9000 Series
5MP
NVR-9432S
2 U 32ch Professional NVR
32 channels NVR with 1080P realtime live view, up to 5MP resolution, 8 HDD, 16 alarm, audio, 1 HDMI, 1 VGA, 1 BNC, 2U case
PoE
5MP
NVR-9416S-P16
2U 16ch Professional PoE NVR
16 channels PoE NVR with 1080P realtime live view, 16 PoE ports, up to 5MP resolution, 4 HDD, 16 alarm, audio, 1 HDMI, 1 VGA, 1 BNC, 1.5U case
PoE
5MP
NVR-9408L-P8
1.5U 8ch Professional PoE NVR
8 channels PoE NVR with 1080P realtime live view,8 PoE ports, up to 5MP recording resolution, 4 HDD, 16 alarm, audio, 1 HDMI, 1 VGA, 1 BNC, 1.5U case
PoE

14. Super NVR
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
NVR-9000 Series
NVR-9164S(-LCD) 3U 16 HDD Super NVR
128 channel IP camera inputs, 64ch@1080p/128ch@720p/128ch@D1, 4 x 10/100/1000M Ethernet ports; 2 x HDMI; up to 16x hot-swap HDD, RAID 0/1/5; 1 x eSATA, 4 x USB 2.0. built-in LCD screen (NVR-9164S-LCD) Optional redundant power supply Optional 4xHDMI extension module.
NVR-95256S-(R)HD
4U 24 HDD Super NVR
Product Model:
NVR-95256S-(R)HD: 256ch IP camera inputs, max 8MP resolution, Max 512Mbps incoming bandwidth, support RAID, 2 x HDMI, VGA, USB2.0, USB3.0 and 24 HDDs.
Built-in LCD screen.
*R: Redundant power supply module adopted
Optional 4xHDMI extension module
Outstanding Features:
Max 128 channel IP cameras input with 1080P realtime live view
Max 384Mbps incoming bandwidth
Up to 64ch@1080P, 128ch@720P, 128ch@D1 realtime recording
Up to 6-screen output: 6 HDMI sync output/1 VGA+5 HDMI sync output (Default: 2 HDMI or 1 HDMI +1 VGA)
Support 16 hot-swap SATA HDDs to better its scalability and flexibility
Support RAID 0/1/5
Outstanding Features:
Max 256channel IP cameras connection
Max 512Mbps incoming bandwidth
Up to 128ch@1080P, 256ch@720Prealtime recording
2 HDMI / 1 HDMI +1 VGA (Optional: 6 HDMI sync output/1 VGA+5 HDMI sync output)
Support 24 hot-swap HDDs
Support RAID0/1/5
Support N+Mhot standby
Support iSCSI &Mini SAS to expand storage space

15. Model
Type
Video Input
No.
PoE
2-Way Talk
Video Output
Alarm
HDD
eSATA
Size
HDMI
VGA
TV
NVR-8004
4
√
√
√
(√)
√
1
Mini 1U
NVR-8108
8
√
√
√
(√)
√
2
1U
NVR-8116
16
√
√
√
(√)
√
2
1U
NVR-8104-P4
4
√
√
√
√
(√)
√
2
1U
NVR-8108-P8
8
√
√
√
√
(√)
√
2
1U
NVR-8116-P8
16
√
√
√
√
(√)
√
2
1U
NVR-8216-T
16
√
√
√
√
√
4
√
1.5U
NVR-8216-P16
16
√
√
√
√
√
√
4
√
1.5U
NVR-8232-T
32
√
√
√
√
√
4
√
1.5U
NVR-8232-P16
32
√
√
√
√
√
√
4
√
1.5U
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
Seamless working with all Hikvision IP cameras
Mobile App
(iVMS 4500)
Customization
(Model, logo, CMS)
Powerful CMS platform
Professional WEB Client
Perfect integration
NVR-8000 Series

16. Professional Level
Professional Level
NVR-8004: 4ch IPC inputs, max 5MP recording resolution; max 20Mbps incoming bandwidth, HDMI, VGA, 1 HDD. NVR-8108: 8ch IPC inputs, max 5MP recording resolution; max 40Mbps incoming bandwidth, HDMI, VGA, 2 HDDs. NVR-8116: 16ch IPC inputs, max 5MP recording resolution; max 80Mbps incoming bandwidth, HDMI, VGA, 2HDDs.
NVR-8000/8100 Series
5MP
NVR-8104-P4: 4ch IPC inputs, max 5MP recording resolution; HDMI, VGA, 2 HDDs, 4 POE ports.
NVR-8108-P4: 8ch IPC inputs, max 5MP recording resolution; HDMI, VGA, 2 HDDs, 4 POE ports.
NVR-8116-P8: 16ch IPC inputs, max 5MP recording resolution; HDMI, VGA, 2HDDs, 8 POE ports.
NVR-8100-Px Series
5MP
PoE
NVR-8216-T: 16ch IPC inputs, max 5MP recording resolution; max 80Mbps incoming bandwidth, HDMI, VGA, 4 HDDs.
NVR-8232-T: 32ch IPC inputs, max 5MP recording resolution; max 160Mbps incoming bandwidth, HDMI, VGA, 4 HDD.
NVR-8200-T Series
5MP
NVR-8216-P16: 16ch IPC inputs, max 5MP recording resolution; max 80Mbps incoming bandwidth, HDMI, VGA, 4 HDDs, 16 POE ports.
NVR-8232-P16: 32ch IPC inputs, max 5MP recording resolution; max 160Mbps incoming bandwidth, HDMI, VGA, 4 HDDs, 16 POE ports.
NVR-8200-P16 Series
5MP
PoE
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
NVR-8000 Series

17. Model
Type
Resolution
Optical Zoom
Size
IR
PoE
Water Proof
WDR
IVS
(Auto-tracking)
iPTZ-65220
2 MP
20x
6"
√
√
iPTZ-65230
2 MP
30x
6"
√
√
PTZ-HD65320
3 MP
20x
6"
√
√
PTZ-HD6372C
2 MP
30x
6"
√
PTZ-HD6372
2 MP
20x
6"
√
iPTZ-6AW220
2 MP
20x
6"
√
√
√
iPTZ-6AW230
2 MP
30x
6"
√
√
√
PTZ-HD6972C
2 MP
30x
6"
√
√
PTZ-HD6972
2 MP
20x
6"
√
√
PTZ-HD6A320
3 MP
20x
6"
√
√
√
PTZ-HD59120S
1.3 MP
20x
5"
√
√
PTZ-HD59212S
2 MP
12x
5"
√
√
PTZ-HD59220S
2 MP
20x
5"
√
√
PTZ-HD59230S
2 MP
30x
5"
√
√
PTZ-HD4212AF-E
2 MP
12x
4"
√
√
PTZ-HD4212BF-E
2 MP
12x
4"
√
√
PTZ-HD4212CF-E
2 MP
12x
4"
√
√
PTZ-HD3282F-E
2 MP
3x
3"
√
√
PTZ-HD7982
2 MP
30x
>7”
√
√
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
IP Speed Dome

18. iPTZ-6AW220/230 2MP Full HD 20x/30x Network IR PTZ Dome Camera
• H.264 & MJPEG dual-stream encoding
•Max 60fps@720P, 30fps@1080P
•4.7~94/4.3~129mm 20/30x optical zoom
•Defog, DWDR, D&N(ICR), Ultra DNR, EIS, Auto iris, Auto focus
•Support Auto tracking and IVS
•IP66, Micro SD card, IR LEDs up to 150m, built-in wiper
iPTZ-65220/230
2MP Full HD 20x/30x Network Auto-Tracking PTZ Dome Camera
• H.264 & MJPEG Three-stream encoding
•Max 60fps@720P, 30fps@1080P
•4.7~94/4.3~129mm 20/30x optical zoom
•Defog, DWDR, D&N(ICR), Ultra DNR, EIS, Auto iris, Auto focus
•Support Auto tracking and IVS
• IP67, Micro SD card
PTZ-HD6372/C
2MP Full HD 30x Network PTZ Dome Camera
•H.264/MJPEG dual-stream encoding
•Max 25/30fps@1080P/720P
•4.7~94/4.3~129mm 20/30x optical zoom
•DWDR, D&N(ICR), Ultra DNR, Auto iris, Auto focus
•IP66, Micro SD card
•Max 300 °/s pan speed
2 Megapixel IVS Auto-Tracking
PTZ-HD65320
3MP Full HD 20x Network PTZ Dome Camera
•Max. 15fps@3Mp, 25/30fps@1080p resolution
•Max 400 °/s pan speed, 360° endless pan rotation
•Built-in 7/2 alarm in/out
•Support intelligent 3D positioning with DH- SD protocol
•Micro SD memory, IP67, easy installation
PTZ-HD6A320 3MP Full HD Network IR PTZ Dome Camera
•Powerful 20x optical zoom
•Max. 15fps@3Mp, 25/30fps@1080p resolution
•Built-in 7/2 alarm in/out
•Micro SD memory, IP66
•IR Distance up to 150m
3 Megapixels
2 Megapixels
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
IP Speed Dome
PTZ-HD4212A/B/CF-E
2MP Mini Network PTZ Dome Camera
•H.264/MJPEG dual-stream encoding
•Max 25/30fps@1080P, 50/60fps@720P
•5.1~61.2mm 12x optical zoom
•DWDR, D&N(ICR), DNR(2D&3D) , Auto Iris, Auto focus, AWB, AGC, BLC
•IP66, PoE, Micro SD card
•Max 300 °/s pan speed

19. PTZ-HD6972/C 2MP Full HD 30x Network IR PTZ Dome
• H.264/MJPEG dual-stream encoding • Max 25/30fps@1080P/720P • 4.7~94/4.3~129mm 20/30x optical zoom • DWDR, D&N(ICR), Ultra DNR, Auto iris, Auto focus • IP66, Micro SD card • IR Distance up to 100m
PTZ-HD59212S/220S/230S 2MP Full HD 12x/20x/30x Network IR PTZ Dome
• H.264/MJPEG dual-stream encoding • Max 25/30fps@1080P, 50/60fps@720P • 5.1~61.2/4.7~94/4.3~129mm 12x/20x/30x optical zoom • DWDR, D&N(ICR), Ultra DNR, Auto iris, Auto focus • IP66, Micro SD card • IR Distance up to 100m
PTZ-HD3282F-E
2MP Full HD 3x Network PTZ Dome Camera
• H.264/MJPEG dual-stream encoding • Max 25/30fps@1080P • 3~9mm 3x optical zoom • DWDR, D&N(ICR), DNR(2D&3D), Auto iris, Auto focus, AWB, AGC, BLC • IP66, PoE, Micro SD card • Max 80 °/s pan speed
2 Megapixels
2MP High Speed Positioning System
1.3M-PTZ
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
IP Speed Dome
PTZ-HD6971 1.3MP HD Network IR PTZ Dome Camera
• H.264/MJPEG dual-stream encoding • Max 25/30fps@1.3M/720P • 4.7~94mm 20x optical zoom • DWDR, D&N(ICR), Ultra DNR, Auto iris, Auto focus • IP66, Micro SD card • IR Distance up to 100m
PTZ-HD59120S
1.3MP HD Network IR PTZ Dome Camera
• H.264/MJPEG dual-stream encoding • Max 25/30fps@1.3M/720P • 4.7~94mm 20x optical zoom • DWDR, D&N(ICR), Ultra DNR, Auto iris, Auto focus • IP66, Micro SD card • IR Distance up to 100m
PTZ-HD7982
2MP HD Network IR PTZ Dome Camera
•1080P Full and 720P HD excellent image quality
•Powerful 30x optical zoom
•Support intelligent 3D positioning
•IR Distance up to 200m
•IP66

20. Model
Type
Video Input
Analog
Hybrid
Audio Input
Video Output
Alarm
HDD
eSATA
Size
D1
960H
HDMI
VGA
TV
Spot
DVR-7704HFI
4
√
1
√
√
√
1
Mini 1U
DVR-7708HFI
8
√
1
√
√
√
1
Mini 1U
DVR-7716HFI
16
√
1
√
√
√
1
Mini 1U
DVR-9204HFI-A
4
√
4
√
√
√
√
√
2
1U
DVR-9208HFI-A
8
√
4
√
√
√
√
√
2
1U
DVR-9216HFI-A
16
√
4
√
√
√
√
√
2
1U
DVR-9104HFI-AE
4
√
√
4
√
√
√
√
√
2
1U
DVR-9108HFI-AE
8
√
√
8
√
√
√
√
√
2
1U
DVR-9116HFI-AE
16
√
√
4
√
√
√
√
√
2
1U
DVR-9204HFI-S
4
√
4
√
√
√
√
√
8
√
2U
DVR-9208HFI-S
8
√
8
√
√
√
√
√
8
√
2U
DVR-9216HFI-S
16
√
16
√
√
√
√
√
8
√
2U
DVR-9124HFI-S
24
√
16
√
√
√
√
√
8
√
2U
DVR-9132HFI-S
32
√
16
√
√
√
√
√
8
√
2U
DVR-9104HFI-SE
4
√
√
4
√
√
√
√
√
8
√
2U
DVR-9108HFI-SE
8
√
√
8
√
√
√
√
√
8
√
2U
DVR-9116HFI-SE
16
√
√
16
√
√
√
√
√
8
√
2U
DVR-9204HFI-H4
4+4
√
√
√
4
√
√
√
√
√
8
√
2U
DVR-9208HFI-H8
8+8
√
√
√
8
√
√
√
√
√
8
√
2U
DVR-9216HFI-H16
16+16
√
√
√
16
√
√
√
√
√
8
√
2U
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
DVR

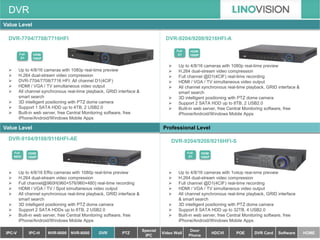

21. Value Level
Value Level
Up to 4/8/16 cameras with 1080p real-time preview
H.264 dual-stream video compression
DVR-7704/7708/7716 HFI: All channel D1(4CIF)
HDMI / VGA / TV simultaneous video output
All channel synchronous real-time playback, GRID interface & smart search
3D intelligent positioning with PTZ dome camera
Support 1 SATA HDD up to 4TB, 2 USB2.0
Built-in web server, free Central Monitoring software, free iPhone/Android/Windows Mobile Apps
DVR-7704/7708/7716HFI
Full D1
HDMI
1080P
Up to 4/8/16 cameras with 1080p real-time preview
H.264 dual-stream video compression
Full channel @D1(4CIF) real-time recording
HDMI / VGA / TV simultaneous video output
All channel synchronous real-time playback, GRID interface & smart search
3D intelligent positioning with PTZ dome camera
Support 2 SATA HDD up to 8TB, 2 USB2.0
Built-in web server, free Central Monitoring software, free iPhone/Android/Windows Mobile Apps
DVR-9204/9208/9216HFI-A
Full D1
HDMI 1080P
Up to 4/8/16 Effio cameras with 1080p real-time preview
H.264 dual-stream video compression
Full channel@960H(960×576/960×480) real-time recording
HDMI / VGA / TV / Spot simultaneous video output
All channel synchronous real-time playback, GRID interface & smart search
3D intelligent positioning with PTZ dome camera
Support 2 SATA HDDs up to 8TB, 2 USB2.0
Built-in web server, free Central Monitoring software, free iPhone/Android/Windows Mobile Apps
DVR-9104/9108/9116HFI-AE
Full 960H
HDMI
1080P
Up to 4/8/16 cameras with 1080p real-time preview
H.264 dual-stream video compression
Full channel @D1(4CIF) real-time recording
HDMI / VGA / TV simultaneous video output
All channel synchronous real-time playback, GRID interface & smart search
3D intelligent positioning with PTZ dome camera
Support 8 SATA HDD up to 32TB, 4 USB2.0
Built-in web server, free Central Monitoring software, free iPhone/Android/Windows Mobile Apps
DVR-9204/9208/9216HFI-S
Full D1
HDMI 1080P
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
DVR
Professional Level

22. Professional Level
Professional Level
Up to 24/32 cameras with 1080p real-time preview
H.264 dual-stream video compression
Full channel@D1(4CIF) real-time recording
HDMI / VGA / TV/ Spot simultaneous video output
16 channel synchronous real-time playback, GRID interface & smart search
3D intelligent positioning with PTZ dome camera
Support 8 SATA HDDs up to 32TB, 1 eSATA up to 16TB, 4 USB2.0
Built-in web server, free Central Monitoring software, free iPhone/Android/Windows Mobile Apps
2U Full D1 Series DVR
Full D1
HDMI 1080P
Up to 4/8/16 Effio cameras with 1080p real-time preview
H.264 dual-stream video compression
Full channel@960H(960×576/960×480) real-time recording
HDMI / VGA / TV / Spot simultaneous video output
All channel synchronous real-time playback, GRID interface & smart search
3D intelligent positioning with PTZ dome camera
Support 8 SATA HDDs up to 32TB, 1 eSATA up to 16TB, 4 USB2.0
Built-in web server, free Central Monitoring software, free iPhone/Android/Windows Mobile Apps
2U Full 960H Series DVR
Full 960H
HDMI
1080P
Up to 8/16/32 channel with 1080P real-time live view
IP: 16/8/4 channel @D1, 8/4/2 channel @720P, 4/2/1 channel @1080P real-time recording
Analog: 4/8/16 channel @960H(960*576/960*480) real-time recording
Support 8 SATA HDDs up to 24TB, 1 eSATA up to 12TB, 4 USB2.0
Built-in web server, free Central Monitoring software, free iPhone/Android/Windows Mobile Apps, and professional NVR+ recording software.
DVR-9204/9208/9216HFI-H4
Full 960H
HDMI 1080P
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
DVR

23. Technology Advantage
Feature1: One signal includes three types of signals together
Features3: Long transmission distance
75-3 coaxial cable: 720P-500m, 1080P-300m
75-5 coaxial cable: 720P-700m, 1080P-450m
Features2: Video transmission without any video quality loss.
Real-time preview without any delay
Present vivid video without any video quality loss.
Maximum 500+ transmission distance.
The shining new 720p and 1080p HD camera.
HD video transmission, no video quality loss, no delay.
Transmit video signal, audio signal and dual-way data communication signal over one cable.
Introduction
Features
Connection Diagram
Linovision HDCVI (High Definition Composite Video Interface) is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.
Seamless upgrade from traditional analog system.
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
HDCVI Solution

24. Comparison Table
HDCVI
HD-SDI
Traditional CVBS
IP-CAM
Resolution
1.0Mp/2.0Mp (720P/1080P)
1.0Mp/2.0Mp (720P/1080P)
Max 0.5Mp(960H)
Unlimited
Image Quality
HD, Lossless
HD, Lossless
SD, Lossless
HD, Lossy
Coaxial Control
Support
Need Additional Device.
Need Additional Device.
Support
Coaxial Audio
Support
Support
Not support
Support
Delay
No Delay
No Delay
No Delay
Network Delay
Cable
SYV75-3 Coaxial
SYV75-5 Coaxial
SYV75-3 Coaxial
Cat 5e
Transmission Distance
(No Hub)
500m
100m
More than 300m
100m
Construction
Simple
Simple
Simple
Complicated
Anti-jamming
Strong
Weak
Strong
Very Strong
Reliability
High
Low
High
Low
Cost
Low
High
Low
Medium
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
HDCVI Solution

25. IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
HDCVI DVR
HCVR-5104/5108H 4/8ch HD All Channel 720P HDCVI DVR
•up to 4/8 cameras with 1080p realtime preview
•H.264 dual-stream video compression
•HCVR5104/5108H: All channel 720P
•HDMI / VGA simultaneous video output
•4 channel synchronous realtime playback, GRID interface & smart search
•3D intelligent positioning with Dahua PTZ dome camera
•Support 1 SATA HDD up to 4TB, 2 USB2.0
720P HDCVI DVR
HCVR-5208/5216/24L 8/16/24ch HD 720P HDCVI DVR
•Up to 4/8/16 /24cameras with 1080p realtime preview
•H.264 dual-stream video compression
•HCVR5404/5408/5416L: All channel 720P
•HDMI / VGA/BNC simultaneous video output
•4/8 channel synchronous realtime playback, GRID interface & smart search
•3D intelligent positioning with Dahua PTZ dome camera
•Support 4 SATA HDD up to 16TB, 1 eSATA up to 16TB,3 USB2.0
HCVR-5832S 32ch HD 720P HDCVI DVR
•Up to 32 cameras with 1080p realtime preview
•HCVR5824/5832S: All channel 720P
•2HDMI/VGA/TV simultaneous video output
•16 channel synchronous realtime playback, GRID interface & smart search
•Support 8 SATA HDDs up to 32TB, 1 eSATA up to 16TB,4 USB2.0
720P HDCVI DVR

26. IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
HDCVI DVR
1080P HDCVI DVR
HCVR7804S/7808S/7816S
4/8/16ch Tribrid (HDCVI & Analog & IP) DVR
•Tribrid: Each channel supports HDCVI/Analog/IP Video input
•2 x DMI/VGA/TV simultaneous video output
•Max 1080P recording resolution.
•4/8 channel synchronous playback, GRID interface & smart search
•Support 8 SATA HDDs up to 32TB, 1 eSATA up to 16TB
HCVR-7204/7208A 4/8ch HD 720P HDCVI DVR
•4/8ch 1080P full realtime recording
•H.264 Dual-stream encoding
•HDMI / VGA / BNC simultaneous video output
•4/8ch synchronous realtime playback, GRID interface & smart search
•Support 2 SATA HDD up to 8TB, 2 USB2.0
•Web viewer, CMS & Mobile Apps

27. IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
HDCVI Camera
HAC-HFW1100R-VF 720P CMOS HDCVI Camera (Bullet IR)
•1/2.9" 1Megapixel CMOS
•25/30fps@720P
•High speed, long distance real-time transmission
•Day/Night(ICR), AWB, AGC, BLC, 2D- DNR
•2.7~12mm vari-focal lens
•Max. IR LEDs length 30m, Smart IR IP66, DC12V
HAC-HDBW1100RP-VF 720P Vandal-proof IR HDCVI (Dome IR)
•1/2.9" 1Megapixel CMOS
•25/30fps@720P
•High speed, long distance real-time transmission
•Day/Night(ICR), AWB, AGC, BLC, 2D- DNR
•2.7~12mm vari-focal lens
•Max. IR LEDs length 30m, Smart IR
•IP66, IK10, DC12V
HAC-HDW1100C 720P HDCVI Mini Dome Camera
•1/2.9" 1Megapixel CMOS
•25/30fps@720P
•High speed, long distance real-time transmission
•3.6mm fixed lens (2.8mm, 6mm, 8mm optional)
•Max. IR LEDs length 20m, Smart IR
•DC12V
HAC-HDW1100R 720P HDCVI Mini Dome Camera
•1/2.9" 1Megapixel CMOS
•25/30fps@720P
•High speed, long distance real-time transmission
•Day/Night(ICR), AWB, AGC, BLC
•3.6mm fixed lens (6mm optional)
•Max. IR LEDs length 20m, Smart IR
•DC12V
720P Resolution
720P Resolution
HAC-HFW1100R 720P CMOS HDCVI Camera (Bullet IR)
•1/2.9" 1Megapixel CMOS
•25/30fps@720P
•High speed, long distance real-time
•Transmission
•Day/Night(ICR), AWB, AGC, BLC, 2D- DNR
•6mm fixed lens (3.6mm optional)
•Max. IR LEDs length 20m, Smart IR
•IP66, DC12V

28. 1080P Resolution
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
HDCVI Camera
HAC-HFW2200S 1080P CMOS HDCVI Camera (Bullet IR)
•1/3" 2 Megapixel CMOS
•25/30fps@1080P, 25/30/50/60fps@720P, IR 20m
•6mm lens (2.8 mm, 3.6mm, 8mm optional)
•IP66, DC12V
•OSD Menu, control over coaxial cable
•Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
HAC-HDW2200S 1080P CMOS HDCVI Camera (Dome IR)
•1/3" 2 Megapixel CMOS
•25/30fps@1080P, 25/30/50/60fps@720P, IR 20m
•3.6mm lens (2.8mm, 6mm, 8mm optional)
•IP66, DC12V
•OSD Menu, control over coaxial cable
•Day/Night(ICR), AWB, AGC, BLC, 3D-DNR

29. Introduction
Fish-eye cameras are featured with 360°panoramic view, widely used in surveillance scenes, like store, school gate, sub-way, bus, crossroad, patrol car, open market, parking lot, etc. Linovision provides several types of fish-eye cameras for different installations.
Moreover, Linovision provide unique PC based NVR software – NVR+ that working with these fish-eye cameras, and it supports 8 de-warping options in both preview and playback.
Product types
IPC-FE010(W) 1.3MP, indoor
IPC-FE010-I(B) 1.3MP, Indoor, IR
IPC-FE011-I Special for BUS
Installation option: Ceiling-mount, wall-mount, desktop
8 De-warping options
1 x pano, 2 x 180°view
1 x pano, 3 x 90°view
1 x pano, 4 x 90°view
2 x 180°view
1 x 360°, 6 x 90°view
1 x pano, 8 x 90°view
1 x pano, 1 x 90°view
1 x pano, 4 x 90°view
Note: Each de-warped partition supports Pan/Tilt/Zoom operations
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
Special IPC – Fish-eye camera
DS-2CD6332FWD-I(V)(S)
3MP WDR Fisheye

30. IPC-P007A 1.3MP WDR Pinhole Covert Network Camera, 1280 x 960 high resolution. On-board storage, up to 64GB, Cylindrical sensor unit
IPC-P007B 1.3MP WDR Pinhole Covert Network Camera, 1280 x 960 high resolution. On-board storage, up to 64GB, L- shaped sensor unit
Split design of sensor unit and recording unit, easier deployment
1280 x 960 superior image quality
120dB WDR
ROI codec
On-board storage, up to 64GB
Triple video streams
Intelligent video analysis functions
Audio/Alarm IO
Free mobile phone APP (iOS and Android).
Capable of WiFi access when connecting to a WiFI router.
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
Special IPC – Pin-hole Covert IP camera
Key Features

31. Main Spec of 46" Professional Display units: - Each display unit's resolution： 1920×1080 - Physical Seam：5.7mm - Luminance(Standard) ：450 cd/㎡
-View Angle(Horizontal/Vertical)：178/178
-Response Time： 8ms Main Spec of Image controller: - 3U 19’’ Standard industry box - Support split/merge/splice/roam - Support control of external D1, VGA & DVI video matrix Key components:
•4 x 46" Display units, model LCD-L460UTS-E;
•1 x Image controller, model Videowall-M30.
2 x 2 Video Wall Kit
Main Spec of Image controller: - 3U 19’’ Standard industry box - Support split/merge/splice/roam - Support control of external D1, VGA & DVI video matrix Key components :
•6 x 46" Display units, model LCD-L460UTS-E;
•1 x Image controller, model Videowall-M30.
2 x 3 Video Wall Kit
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
Video Wall

32. Main Spec of Image controller: - 3U 19’’ Standard industry box - Support split/merge/splice/roam - Support control of external D1, VGA & DVI video matrix Key components:
•8 x 46" Display units, model LCD-L460UTS-E;
•1 x Image controller, model Videowall-M30.
2 x 4 Video Wall Kit
Main Spec of Image controller: - 3U 19’’ Standard industry box - Support split/merge/splice/roam - Support control of external D1, VGA & DVI video matrix Key components:
•9 x 46" Display units, model LCD-L460UTS-E;
•1 x Image controller, model Videowall-M30.
3 x 3 Video Wall Kit
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
Video Wall

33. Villa Outdoor Station
Indoor Monitor
Kit - VTKA-VTO5110B-VTH1500B This 7 Inch LCD Screen Video Door-phone Kit including's:
•1pcs DH-VTO5110B: Villa Outdoor Station unit, with CMOS night vision camera;
•1pcs DH-VTH1500B: Indoor Monitor unit, with 7 inch LCD Touch Screen;
•Complete set of power supply.
Villa Outdoor Station
Indoor Monitor
Kit - VTKB-VTO5000C-VTH1500AH This 7 Inch LCD Screen Video Door-phone Kit including's:
•1pcs DH-VTO5000C: Villa Outdoor Station unit, with CMOS night vision camera;
•1pcs DH-VTH1500AH: Indoor Monitor unit, with 7 inch LCD Touch Screen;
•Complete set of power supply.
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
Video Door Phone

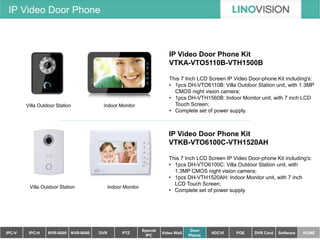

34. Villa Outdoor Station
Indoor Monitor
IP Video Door Phone Kit VTKA-VTO5110B-VTH1500B This 7 Inch LCD Screen IP Video Door-phone Kit including's:
•1pcs DH-VTO6110B: Villa Outdoor Station unit, with 1.3MP CMOS night vision camera;
•1pcs DH-VTH1560B: Indoor Monitor unit, with 7 inch LCD Touch Screen;
•Complete set of power supply.
Villa Outdoor Station
Indoor Monitor
IP Video Door Phone Kit VTKB-VTO6100C-VTH1520AH This 7 Inch LCD Screen IP Video Door-phone Kit including's:
•1pcs DH-VTO6100C: Villa Outdoor Station unit, with 1.3MP CMOS night vision camera;
•1pcs DH-VTH1520AH: Indoor Monitor unit, with 7 inch LCD Touch Screen;
•Complete set of power supply.
IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
IP Video Door Phone

35. IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
PoE Switch
Model
POE-Injector01
POE-Switch0504
POE-Switch0504AT
POE-Switch0908
Description
1 port injector
4 ports POE switch with one Uplink
4 ports POE switch with one Uplink
8 ports POE switch with one Uplink
Standard
IEEE802.3af
IEEE802.3af
IEEE802.3at
IEEE802.3af
Power per POE port
15.4W
15.4W
25.5W
15.4W
Bandwidth per port
10M/100M
10M/100M
10M/100M
10M/100M
Data transmission
100 meters
100 meters
100 meters
100 meters
Model
POE-GSwitch0808
POE-Switch2624
POE-GSwitch2824
Description
8ports gigabit POE switch
24 ports POE switch with 2 GE Uplink
24 ports POE switch with 2 GE Uplink and 2 SFP ports
Standard
IEEE802.3af
IEEE802.3af
IEEE802.3af
Power per POE port
15.4W
15.4W
15.4W
Bandwidth per port
10M/100M/1000M
10M/100M
10M/100M/1000M
Data transmission
100 meters
100 meters
100 meters

36. IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
DVR Card
Professional Level
Professional Level
VEC-6104HDI 4ch HD-SDI Full HD Cost-effective PCI-E Compression card
· 4ch video&audio · H.264 & Dual-stream encoding · 1080p/1080i/720p HD-SDI video input · 4 channels @ 1080p realtime recording · 1ch HDMI 1080p Matrix output · Window/Linux , PCI-E · Hybrid DVR software provided
VEC-5316HFVI-E 16 Channel 960H Compression Card
VEC-5208/16HFVI 8/16ch Full D1 Compression Card
VEC-5208/16HFVI-E 8/16ch Full D1 PCI-E Compression Card
· 16ch video&audio
· H.264 & Dual-stream encoding · All channels @ 960H realtime recording
· 1ch HDMI 1080p Matrix output
· Window/Linux , PCI-E
· Hybrid DVR software provided
· 8/16ch video&audio · H.264 & Dual-stream encoding · All channels @ D1(4CIF) realtime recording · 1/2ch TV Matrix output · Window/Linux , PCI · Hybrid DVR software provided
· 8/16ch video&audio · H.264 & Dual-stream encoding · All channels @ D1(4CIF) realtime recording · 1/2ch Matrix output · Window/Linux , PCI-E · Hybrid DVR software provided

37. IPC-V
IPC-H
NVR-9000
NVR-8000
DVR
PTZ
Special IPC
Video Wall
Door Phone
HDCVI
POE
DVR Card
Software
HOME
Software
NVR+ Software Designed for professional Video/Audio recording
 Up to 64 IP channels
 Support Megapixels resolution recording
 Multiple monitors display
 Intuitive GUI operation
 Flexible schedule recording
 Intelligent recordings search
 Instantly playback
 POS/ATM system integration
 Alarm I/O integration
 Instant response on alarm events
 Fish-eye camera integration (new)
 Mobile live view
 Website video integration
 Powerful NVR+ Client/CMS management
VMS+ Software Designed for professional Video management
 Live View video from DVR and/or IP cameras
 Multiple-channels time-line Remote Playback video from DVR and/or IP cameras
 Online device search easily
 Record video from DVR and/or IP cameras
 Multiple-channels time-line local playback
 Remote device configuration for DVR/IP cameras
 E-map view
 Log management
 System local configuration
 Customized service is available.
 Unlimited devices management, for the FREE Version, support 8 devices or 32 channels.
* Running on OS Platform: Windows XP/Vista/7/8

38. Linovision Technologies Co., Ltd. Building A West, ZJU National Science Park, No. 525 Xixi Road, Hangzhou City, 310013, China Tel: +86-571-8670 8175 Email: sales@linovision.com www.linovision.com
Think IP Camera Think Linovision
