This graph shows the linear relationship between voltage and current in an electrical circuit. It demonstrates Ohm's law, where voltage divided by current equals resistance. The straight line on the graph indicates the resistance remains constant as voltage and current values change throughout the circuit.

1. Deeann
Gragh showing the link between voltage
and Current in an electrical circuit
1.8
1.6
1.4
1.2
Voltage (V)
1.0
0.8
0.6
0.4
0.2
0.0
0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0
Current (A)

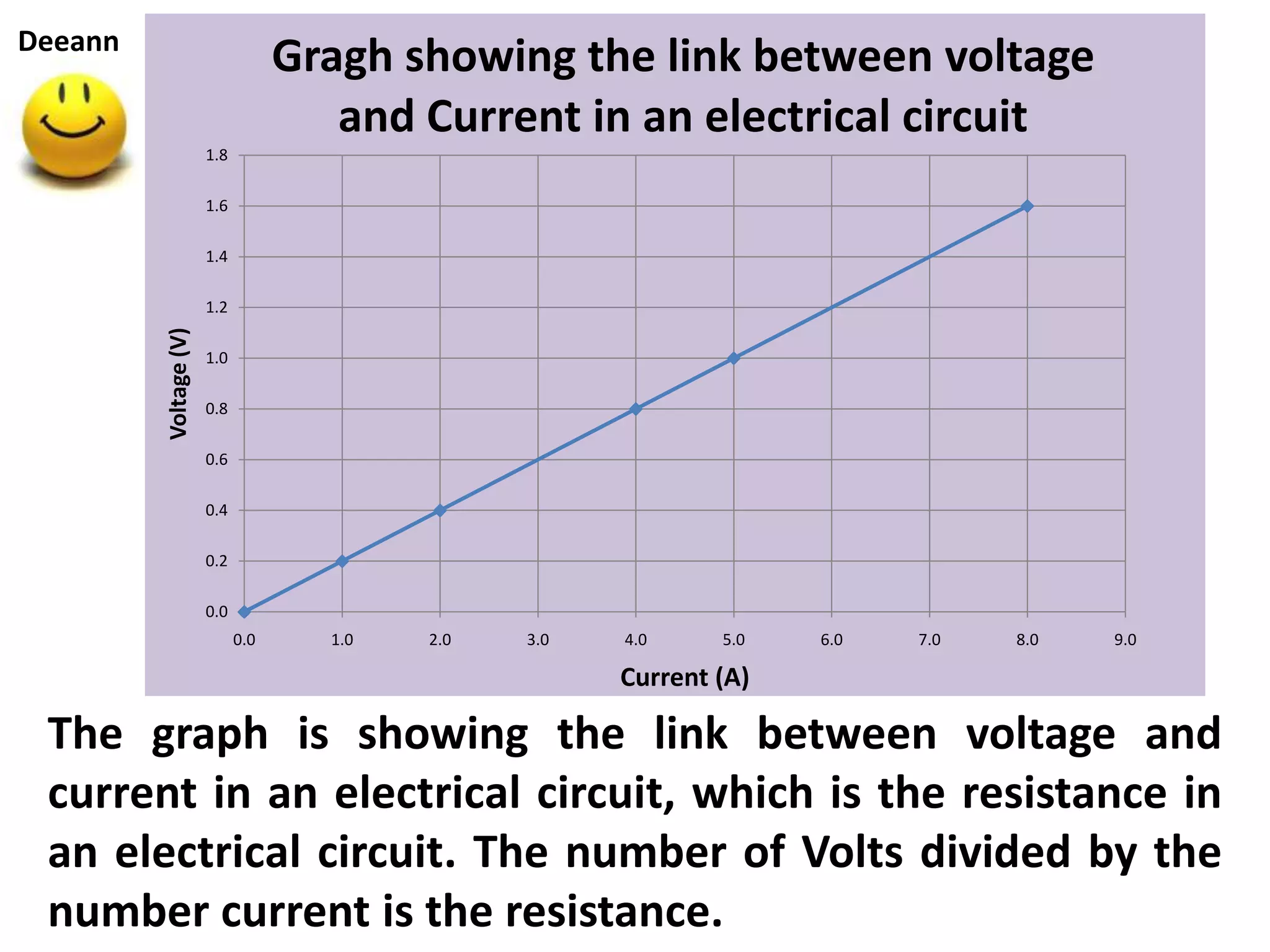

The graph is showing the link between voltage and
current in an electrical circuit, which is the resistance in
an electrical circuit. The number of Volts divided by the
number current is the resistance.

2. Marika Graph showing the link between Voltage and Current
1.8
1.6
1.4
1.2
Voltage (V)
1.0
0.8
0.6
0.4
0.2
0.0
0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0
Current (A)

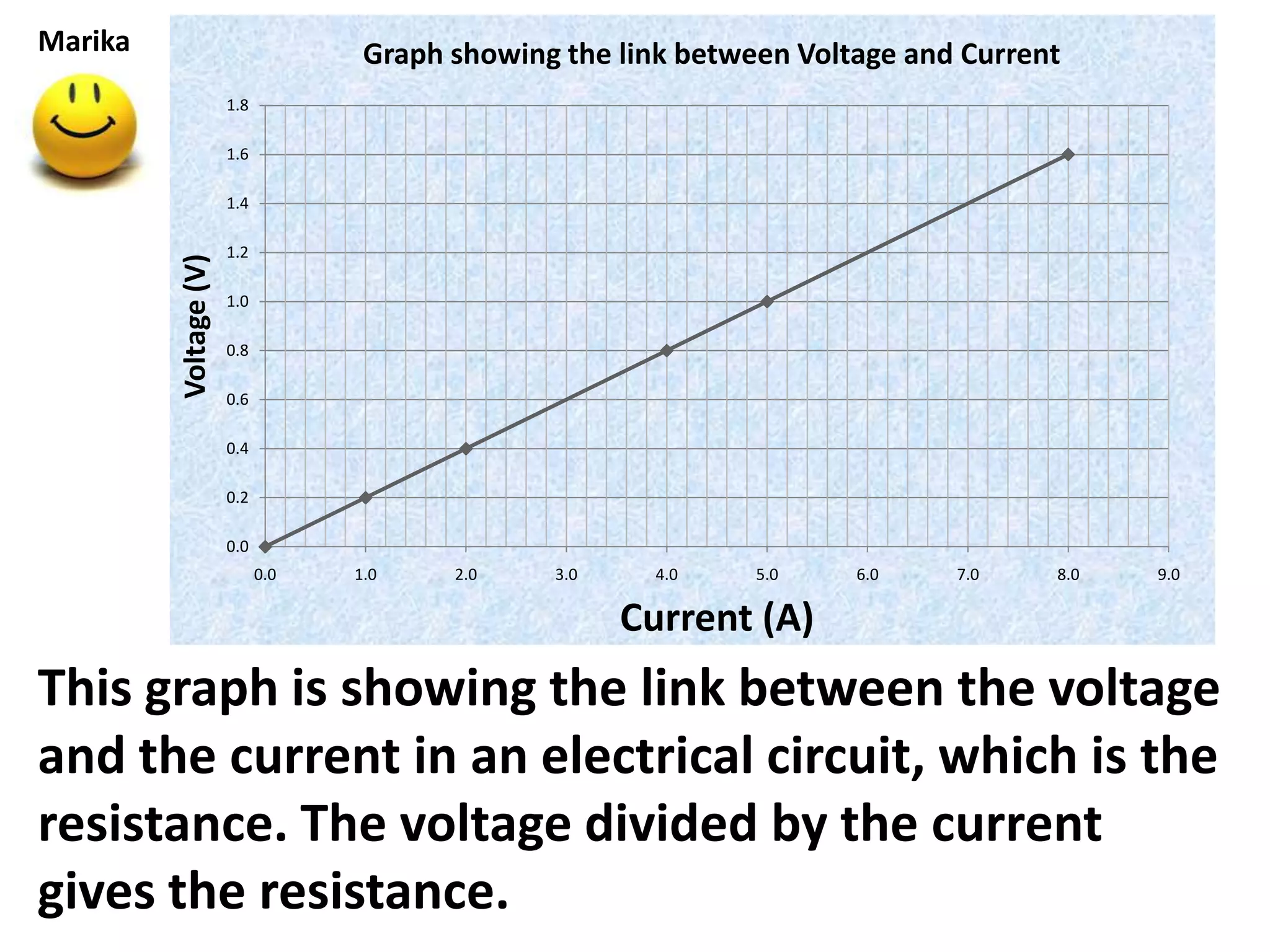

This graph is showing the link between the voltage
and the current in an electrical circuit, which is the
resistance. The voltage divided by the current
gives the resistance.

3. Jade A Graph showing the link between voltage and current in an electrical
circuit.
1.8
1.6
1.4
1.2
Voltage
1.0
0.8
0.6
0.4
0.2
0.0
0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0
Current

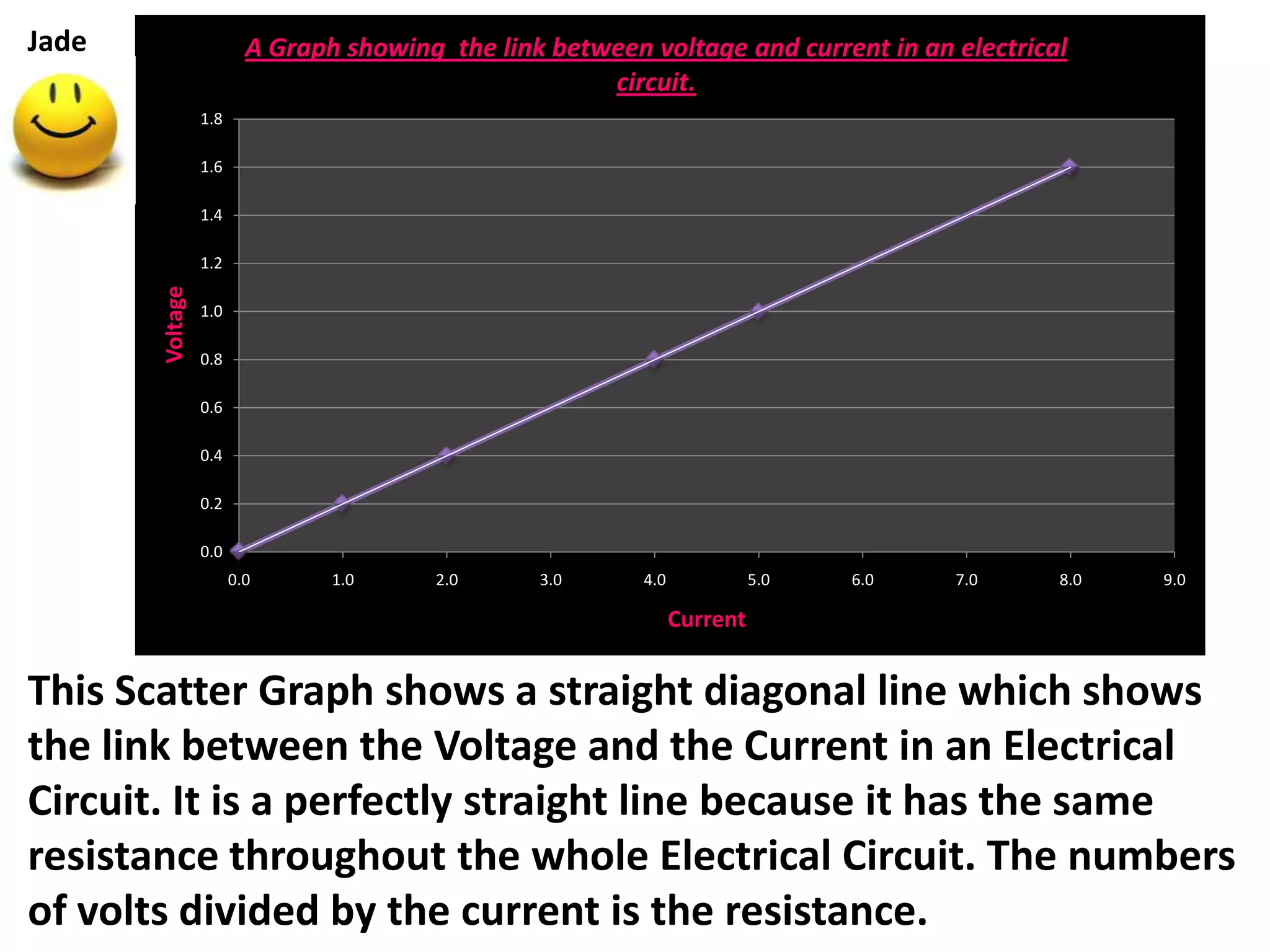

This Scatter Graph shows a straight diagonal line which shows
the link between the Voltage and the Current in an Electrical
Circuit. It is a perfectly straight line because it has the same
resistance throughout the whole Electrical Circuit. The numbers
of volts divided by the current is the resistance.

4. Thomas
A graph showing the relationship between Volts and Amps
1.8
1.6
1.4
1.2
V
o 1.0
l 0.8
t
0.6
s
0.4
0.2
0.0
0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0
Current

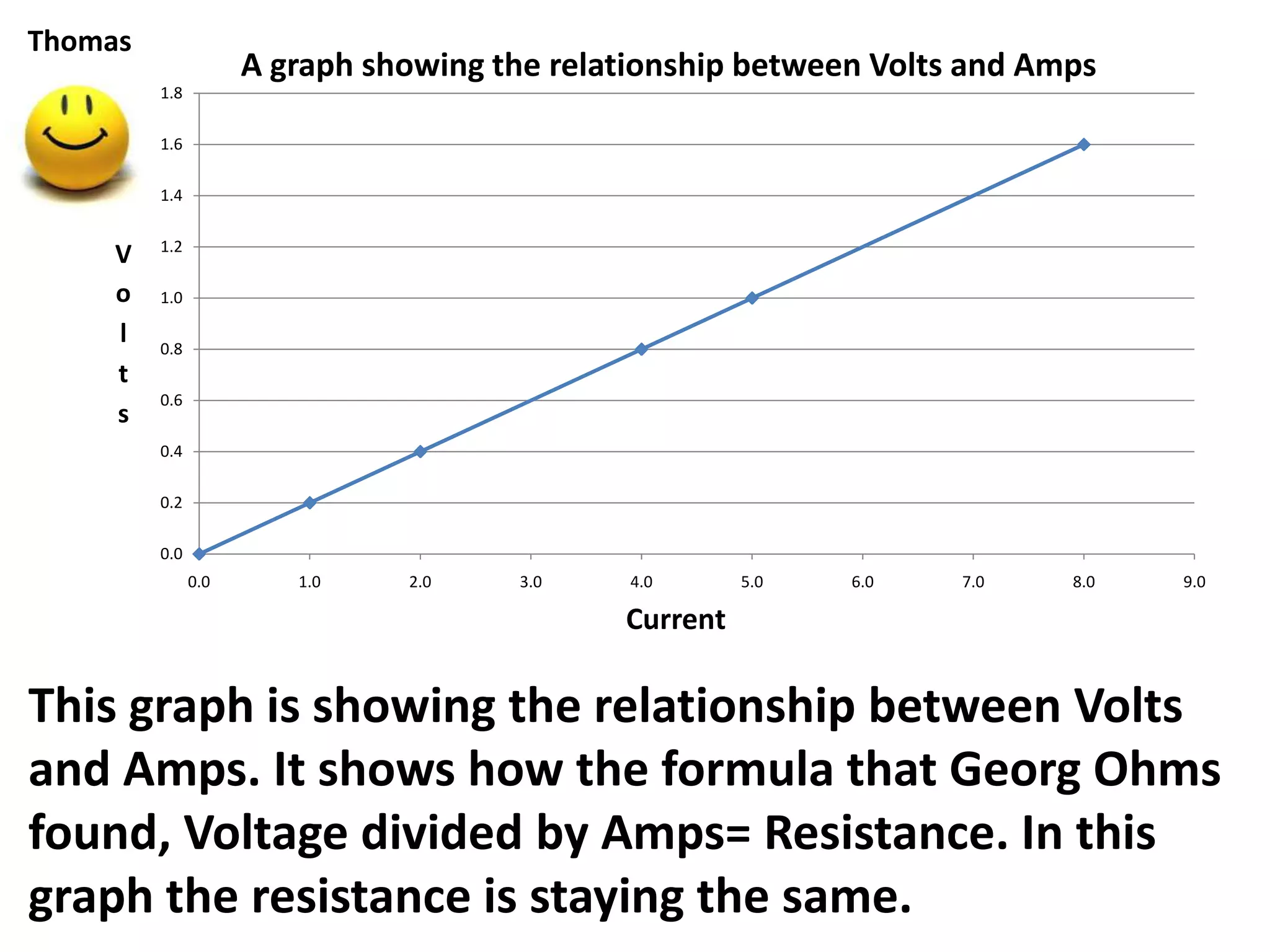

This graph is showing the relationship between Volts
and Amps. It shows how the formula that Georg Ohms
found, Voltage divided by Amps= Resistance. In this
graph the resistance is staying the same.

5. Payton The link between Voltage and Current in an electrical circuit:
1.8
1.6
1.4
1.2
I (A) V (V) 1.0
0.0 0.0
1.0 0.2 0.8
2.0 0.4
4.0 0.8 0.6
5.0 1.0
8.0 1.6 0.4
0.2
0.0
0.0 1.0 2.0 3.0 Current
4.0 5.0 6.0 7.0 8.0 9.0

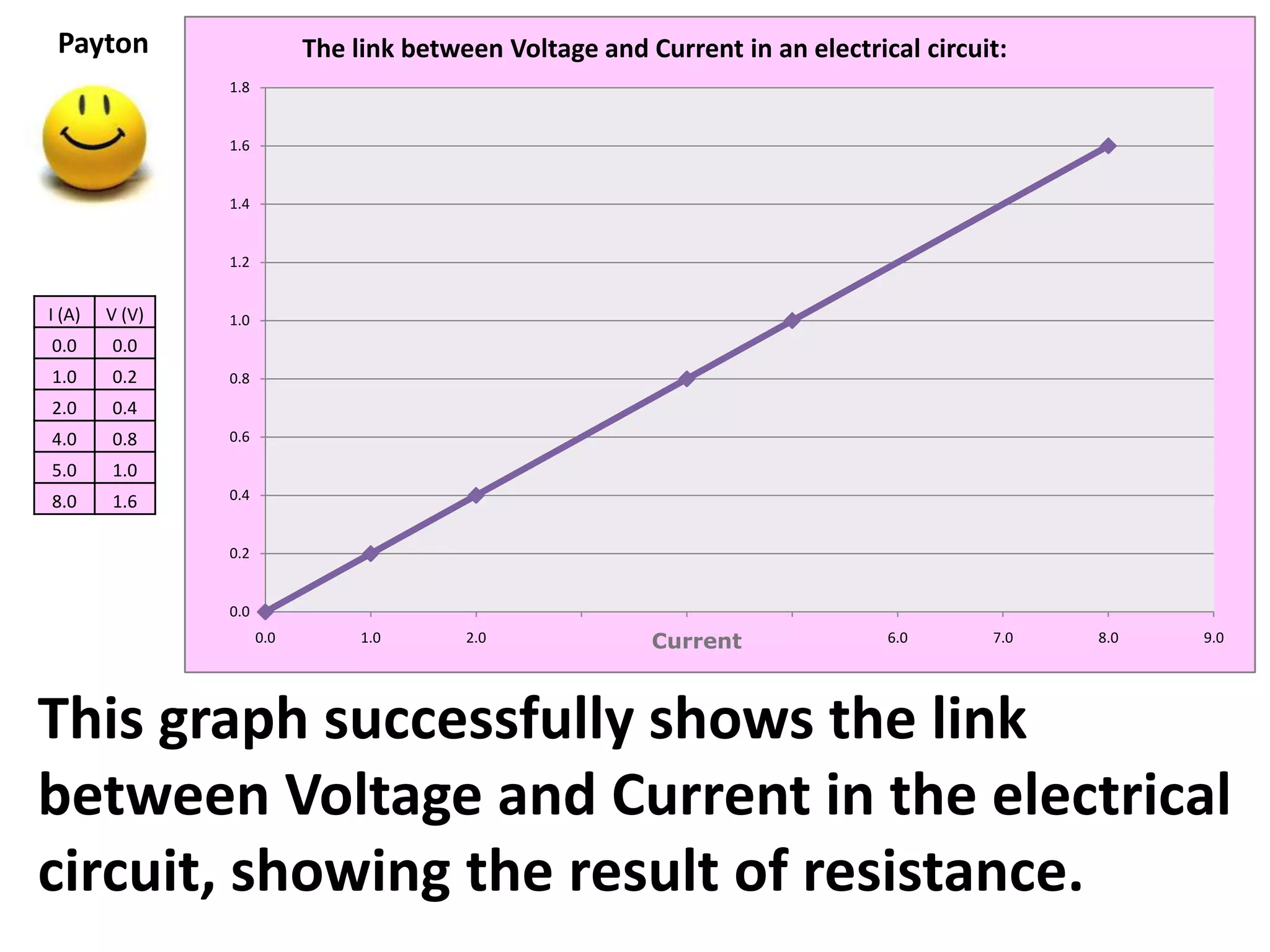

This graph successfully shows the link
between Voltage and Current in the electrical
circuit, showing the result of resistance.
