The document discusses the performance of the Open Data Plane (ODP) with IPSec offload on the NXP LS2088A platform. It highlights a demo that showcases bi-directional traffic forwarding with IPSec tunneling, achieving 20 Gbps throughput using 64 ESP AES128/SHA256-128 tunnels on 8 ARM cores, which is approximately 11 times the throughput of the native Linux IP stack. The document emphasizes the efficiency and enhanced performance of the IPSec application in this specific hardware setup.

1. OpenDataPlane (ODP) IPsec offload
performance
LS2088A
ODP for NXP
OFP IPSEC patch
IPSEC Application
LS2088A
ODP-DPAA2
OFP IPSEC patch
IPSEC Application
Traffic
Generator
Controller
Clear text
IPsec
Control network
Clear text

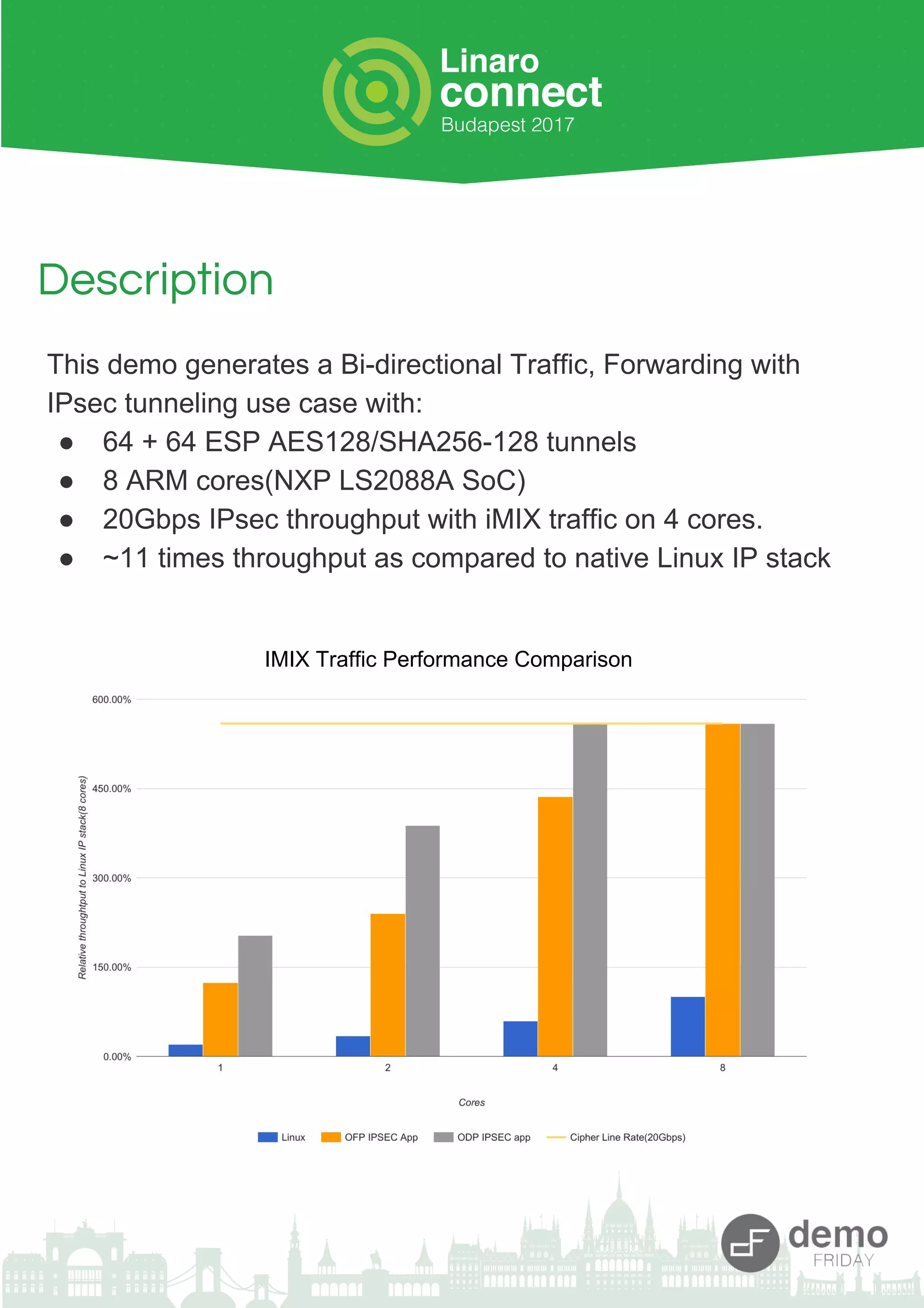

2. Description
This demo generates a Bi-directional Traffic, Forwarding with
IPsec tunneling use case with:
● 64 + 64 ESP AES128/SHA256-128 tunnels
● 8 ARM cores(NXP LS2088A SoC)
● 20Gbps IPsec throughput with iMIX traffic on 4 cores.
● ~11 times throughput as compared to native Linux IP stack
IMIX Traffic Performance Comparison
