NVK : EnGenius WIFI Solution for High Density
This document discusses WiFi network solutions for convention centers, hotels, and other large venues. It addresses challenges in providing coverage for a large number of users and devices across a wide area while maintaining quality of service. It promotes the iBSG3.5 authentication, billing and monitoring system to manage access and traffic, along with dual-band EnGenius access points and FiberHome switches to provide reliable connectivity. Configuration tips are provided to optimize performance such as defining optimal access point placement and numbers, enabling 5GHz bands, and applying session and speed limits.
More Related Content
Similar to NVK : EnGenius WIFI Solution for High Density
NVK : EnGenius WIFI Solution for High Density
- 1. NVK INTELLIGENT WIFINETWORKS For Convention Center Training Center And Internet Consuming Event

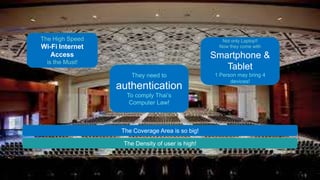

- 2. IN THE BIGHALL The High Speed Wi-Fi Internet Access Not only Laptop!! Now they come with Smartphone & Tablet is the Must! They need to authentication To comply Thai’s Computer Law! The Coverage Area is so big! The Density of user is high! 1 Person may bring 4 devices!

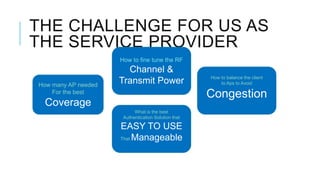

- 3. THE CHALLENGE FORUS AS THE SERVICE PROVIDER How to fine tune the RF How many AP needed For the best Channel & Transmit Power How to balance the client to Aps to Avoid Congestion Coverage What is the best Authentication Solution that EASY TO USE That Manageable
- 4. IWIFI FOR HOTEL– MULTISERVICE READY - Multi-SSID up to 8 x 2 SSIDs - Encryption type for each SSID - Authentication for each SSID - Secured for Hotel Intranet usage 2.4GHz 5GHz FiberHome L2 Gigabit POE S/W Internet 5GHz 802.3at POE 2.4GHz Optical Fiber Network Access Server (AAA Server) 5GHz Bridge to UTP 5GHz IP-TV Server 5GHz 2.4GHz Optical Fiber FiberHome L3 Core Switch FiberHome L2 Fast-E POE S/W 2.4GHz 5GHz 2.4GHz 802.3af POE Hotel Infra Hotel IP-CCTV FiberHome L2 Gigabit POE S/W 802.3at POE Hotel PMS Hotel POS, Intranet Usage Tagged VLAN (UTP) UTP 5GHz Guest’s Smart Device Guest’s Laptop Hotel/Guest’s Wireless IP-Phone IP-VOD in Guest’s Room

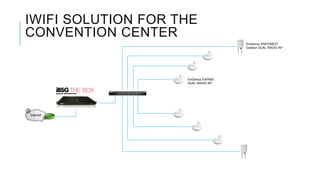

- 5. IWIFI SOLUTION FORTHE CONVENTION CENTER EnGenius ENH700EXT Outdoor DUAL RADIO AP EnGenius EAP600 DUAL RADIO AP Internet

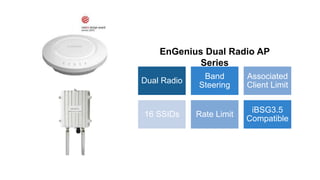

- 6. EnGenius Dual RadioAP Series Dual Radio Band Steering Associated Client Limit 16 SSIDs Rate Limit iBSG3.5 Compatible

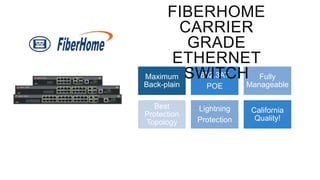

- 7.

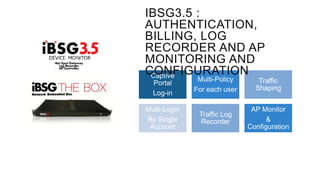

- 8. IBSG3.5 : AUTHENTICATION, BILLING, LOG RECORDERAND AP MONITORING AND CONFIGURATION Captive Portal Log-in Multi-Login By Single Account Multi-Policy For each user Traffic Shaping Traffic Log Recorder AP Monitor & Configuration
- 9. Configuration Tips Calculate expected user Define Optimum Numberof AP & Location Enable 5GHz Lowest TX Power Limit Associated Client per AP Limit Associating Rate

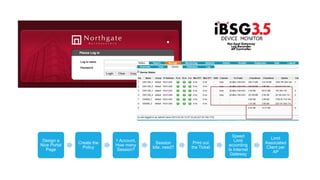

- 10. Design a Nice Portal Page Createthe Policy 1 Account, How many Session? Session Idle, need? Print out the Ticket Speed Limit according to Internet Gateway Limit Associated Client per AP
