1. Connecting Content
Management Apps with
CMIS
#nuxeoCMIS

2. Jeff Potts
Founder
Metaversant
@jeffpotts01
Josh Fletcher
Solutions Architect
Nuxeo
@jfletcher_nuxeo
Presenters:
#nuxeoCMIS

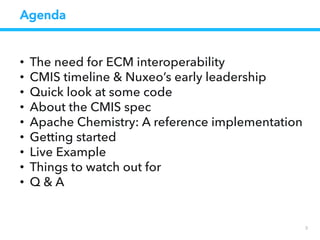

3. Agenda
3
• The need for ECM interoperability
• CMIS timeline & Nuxeo’s early leadership
• Quick look at some code
• About the CMIS spec
• Apache Chemistry: A reference implementation
• Getting started
• Live Example
• Things to watch out for
• Q & A

4. The Year Was 1992

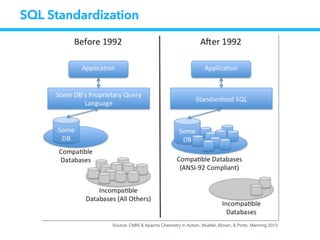

5. SQL Standardization
Source: CMIS & Apache Chemistry in Action, Mueller, Brown, & Potts, Manning 2013

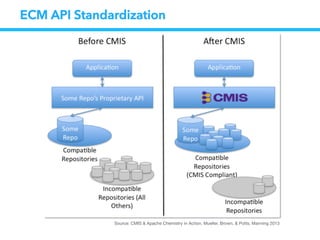

6. ECM API Standardization
Source: CMIS & Apache Chemistry in Action, Mueller, Brown, & Potts, Manning 2013

7. Content Management Interoperability Services
• Domain Model
• Document, Folder, Relationship, Item, Type,
Secondary Type (Aspect), ACL
• Services
• Query Language
• Subset of SQL
• Bindings
• Browser (JSON)
• Atom Pub (XML)
• Web Services
#nuxeoCMIS

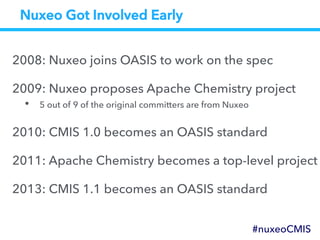

8. Nuxeo Got Involved Early
2008: Nuxeo joins OASIS to work on the spec
2009: Nuxeo proposes Apache Chemistry project
• 5 out of 9 of the original committers are from Nuxeo
2011: Apache Chemistry becomes a top-level project
2013: CMIS 1.1 becomes an OASIS standard
2010: CMIS 1.0 becomes an OASIS standard
#nuxeoCMIS

9. Major ECM Vendor Support

10. CMIS Addresses Interoperability
72% of enterprises have more than one
ECM repository…25% have three or more
“State of the ECM Industry,” AIIM, 2011
#nuxeoCMIS

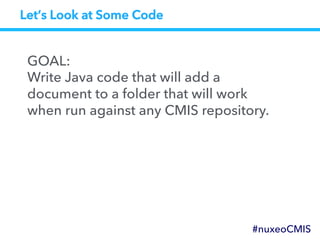

11. Let’s Look at Some Code
GOAL:
Write Java code that will add a
document to a folder that will work
when run against any CMIS repository.
#nuxeoCMIS

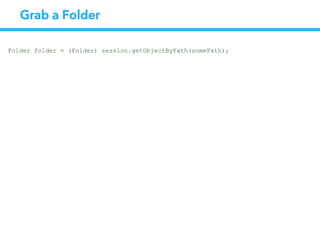

12. Grab a Folder
Folder folder = (Folder) session.getObjectByPath(somePath);

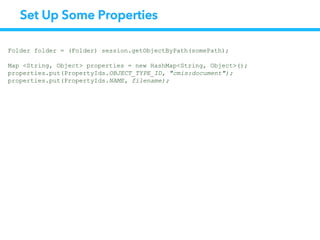

13. Set Up Some Properties
Folder folder = (Folder) session.getObjectByPath(somePath);
Map <String, Object> properties = new HashMap<String, Object>();
properties.put(PropertyIds.OBJECT_TYPE_ID, "cmis:document");
properties.put(PropertyIds.NAME, filename);

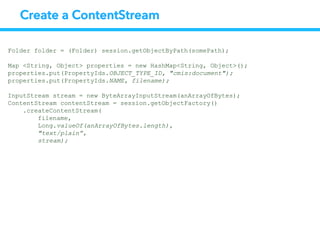

14. Create a ContentStream
Folder folder = (Folder) session.getObjectByPath(somePath);
Map <String, Object> properties = new HashMap<String, Object>();
properties.put(PropertyIds.OBJECT_TYPE_ID, "cmis:document");
properties.put(PropertyIds.NAME, filename);
InputStream stream = new ByteArrayInputStream(anArrayOfBytes);
ContentStream contentStream = session.getObjectFactory()
.createContentStream(
filename,
Long.valueOf(anArrayOfBytes.length),
"text/plain”,
stream);

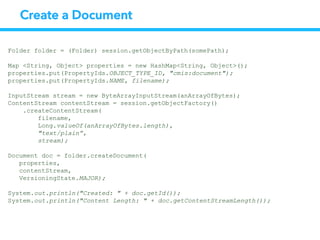

15. Create a Document
Folder folder = (Folder) session.getObjectByPath(somePath);
Map <String, Object> properties = new HashMap<String, Object>();
properties.put(PropertyIds.OBJECT_TYPE_ID, "cmis:document");
properties.put(PropertyIds.NAME, filename);
InputStream stream = new ByteArrayInputStream(anArrayOfBytes);
ContentStream contentStream = session.getObjectFactory()
.createContentStream(
filename,
Long.valueOf(anArrayOfBytes.length),
"text/plain”,
stream);
Document doc = folder.createDocument(
properties,
contentStream,
VersioningState.MAJOR);
System.out.println("Created: " + doc.getId());
System.out.println("Content Length: " + doc.getContentStreamLength());

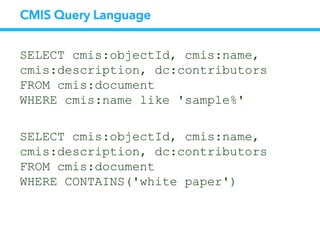

16. CMIS Query Language
SELECT cmis:objectId, cmis:name,
cmis:description, dc:contributors
FROM cmis:document
WHERE cmis:name like 'sample%'
SELECT cmis:objectId, cmis:name,
cmis:description, dc:contributors
FROM cmis:document
WHERE CONTAINS('white paper')

17. Read the Spec
CMIS Specification Home Page
https://www.oasis-open.org/committees/tc_home.php?wg_abbrev=cmis
Current Version: CMIS 1.1
Approved: December, 2012
#nuxeoCMIS

18. CMIS Reference Implementation
Source: http://chemistry.apache.org
TM
#nuxeoCMIS

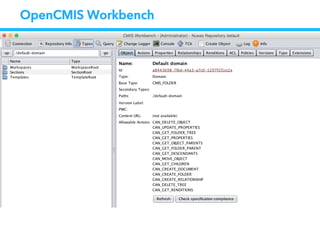

19. OpenCMIS Workbench

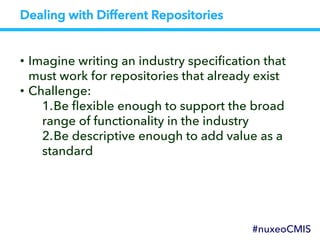

20. Dealing with Different Repositories
• Imagine writing an industry specification that
must work for repositories that already exist
• Challenge:
1. Be flexible enough to support the broad
range of functionality in the industry
2. Be descriptive enough to add value as a
standard
#nuxeoCMIS

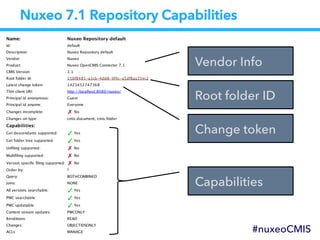

21. Nuxeo 7.1 Repository Capabilities
Vendor Info
Capabilities
Root folder ID
Change token
#nuxeoCMIS

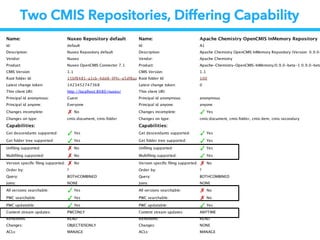

22. Two CMIS Repositories, Differing Capability

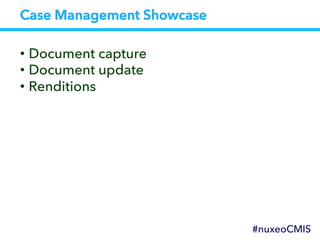

23. Case Management Showcase
• Document capture
• Document update
• Renditions
#nuxeoCMIS

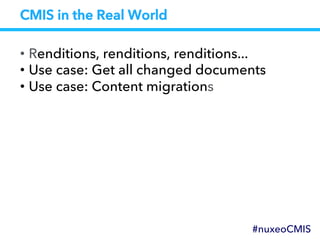

24. CMIS in the Real World
• Renditions, renditions, renditions...
• Use case: Get all changed documents
• Use case: Content migrations
#nuxeoCMIS

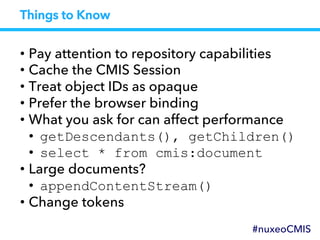

25. Things to Know
• Pay attention to repository capabilities
• Cache the CMIS Session
• Treat object IDs as opaque
• Prefer the browser binding
• What you ask for can affect performance
• getDescendants(), getChildren()
• select * from cmis:document
• Large documents?
• appendContentStream()
• Change tokens
#nuxeoCMIS

26. Questions?
http://manning.com/mueller/

27. Thank You!
Jeff Potts
Founder
Metaversant
@jeffpotts01
Josh Fletcher
Solutions Architect
Nuxeo
@jfletcher_nuxeo
#nuxeoCMIS
