1. Diesel & Motor Engineering PLC
Representing the Best Engineered Brands

2. NOVEC 1230 Fire Suppression Systems at
Waterfront Integrated Resort Project.

3. What is NOVEC 1230 … ?
NOVEC 1230 is one of the leading clean agents used for fire
suppression. Clean agent fire suppression systems can put out fires
safely without damaging electronic equipment or machinery.

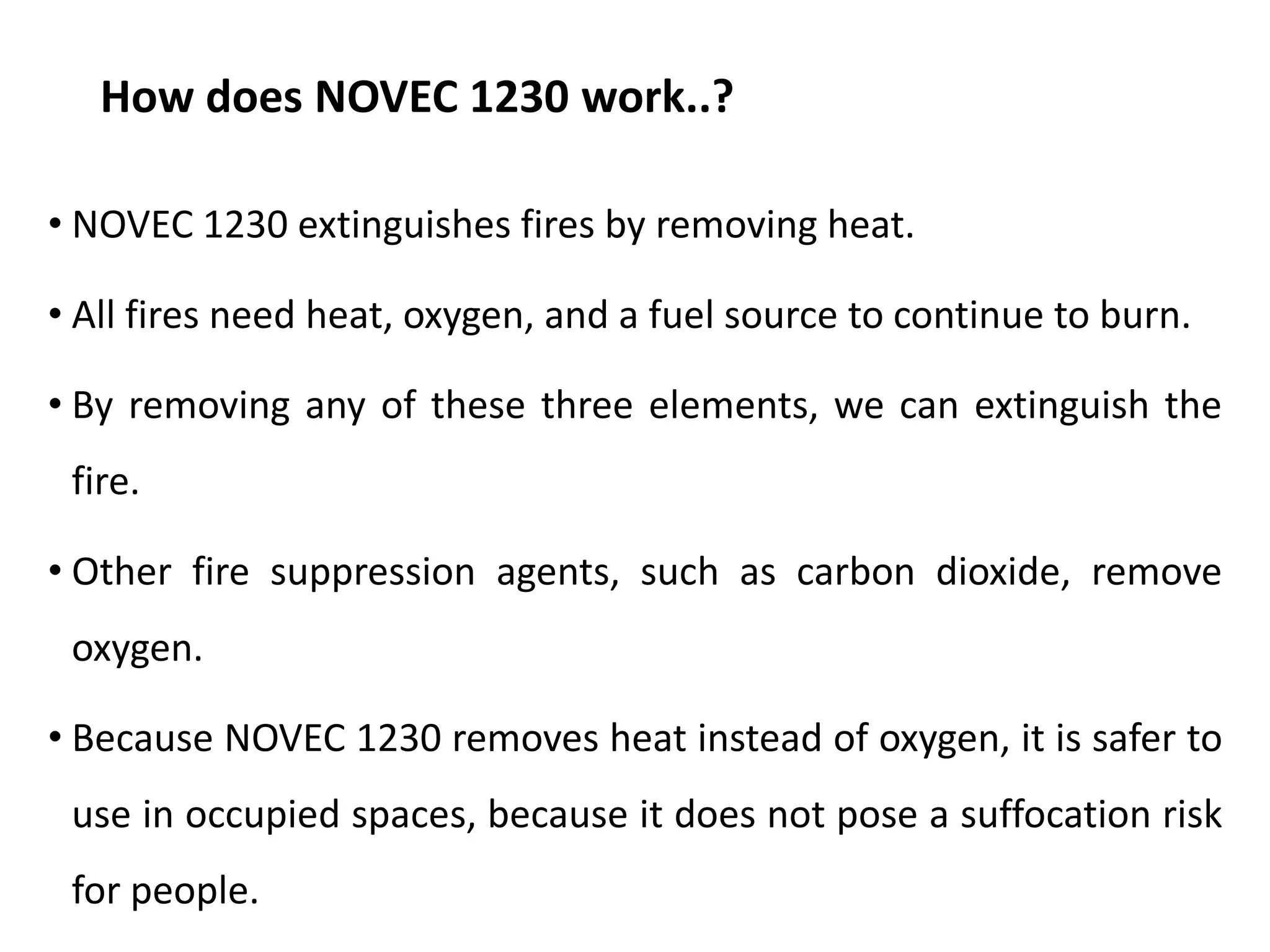

4. How does NOVEC 1230 work..?
• NOVEC 1230 extinguishes fires by removing heat.
• All fires need heat, oxygen, and a fuel source to continue to burn.
• By removing any of these three elements, we can extinguish the
fire.
• Other fire suppression agents, such as carbon dioxide, remove
oxygen.
• Because NOVEC 1230 removes heat instead of oxygen, it is safer to
use in occupied spaces, because it does not pose a suffocation risk
for people.

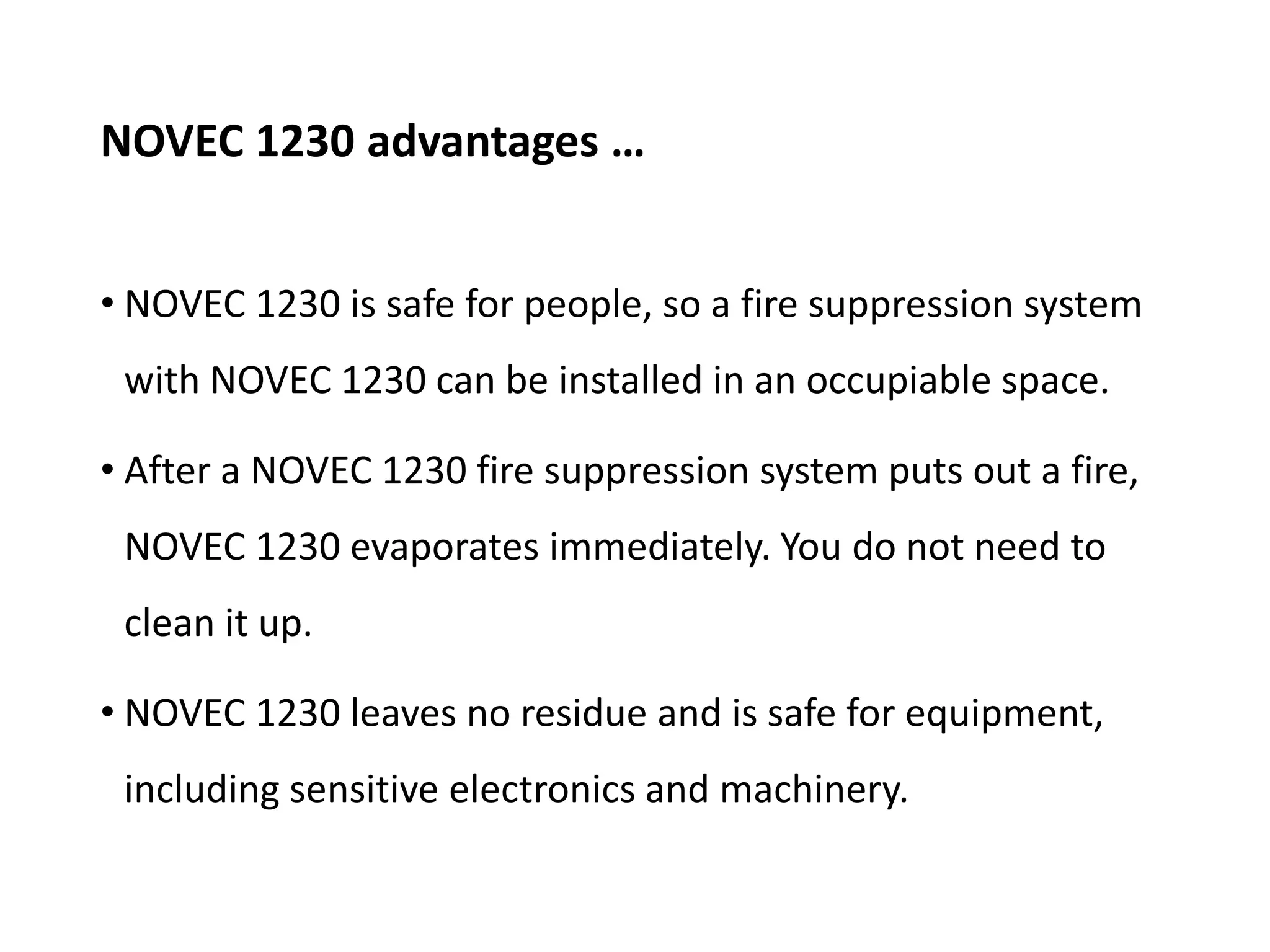

5. NOVEC 1230 advantages …
• NOVEC 1230 is safe for people, so a fire suppression system
with NOVEC 1230 can be installed in an occupiable space.
• After a NOVEC 1230 fire suppression system puts out a fire,
NOVEC 1230 evaporates immediately. You do not need to
clean it up.
• NOVEC 1230 leaves no residue and is safe for equipment,
including sensitive electronics and machinery.

6. Which gas is used in the NOVEC 1230 system?
• NOVEC 1230 is the brand name for the chemical compound
FK-5-1-12, manufactured by 3M.
• Fire suppression systems marketed as NOVEC 1230 systems
contain FK-5-1-12, which is stored as a liquid and discharges
as a gas when the system activates.

7. Is NOVEC 1230 dangerous..?
• Relative to most fire suppression chemicals, NOVEC 1230 is not
dangerous.
• Unlike carbon dioxide, NOVEC 1230 is considered safe to use in
occupied spaces.
• That means if NOVEC 1230 is released inside of a room with
people in it, there is no suffocation risk or other serious health
impacts.

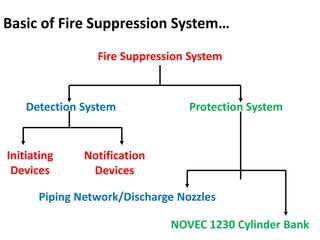

8. Basic of Fire Suppression System…
Fire Suppression System
Detection System Protection System
Initiating
Devices
Notification
Devices
Piping Network/Discharge Nozzles
NOVEC 1230 Cylinder Bank

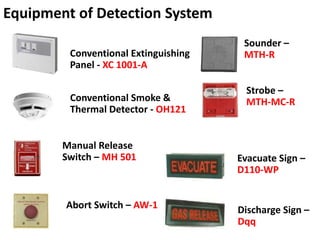

9. Equipment of Detection System
Conventional Extinguishing
Panel - XC 1001-A
Conventional Smoke &
Thermal Detector - OH121
Manual Release
Switch – MH 501
Abort Switch – AW-1
Sounder –
MTH-R
Strobe –
MTH-MC-R
Evacuate Sign –
D110-WP
Discharge Sign –
Dqq

10. Equipment of Protection System

11. NOVEC 1230 Fire Suppression System
Building No-6
Level - 01 Substation Room Level - 05 Server Room
BUILDING MAIN FIRE ALARM CONTROL PANEL

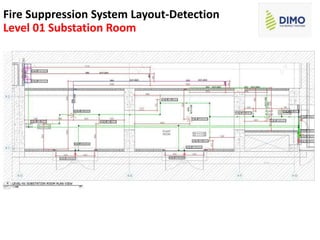

12. Fire Suppression System Layout-Detection
Level 01 Substation Room

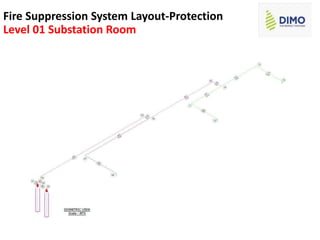

13. Fire Suppression System Layout-Protection
Level 01 Substation Room

14. Schematic of Fire Suppression System

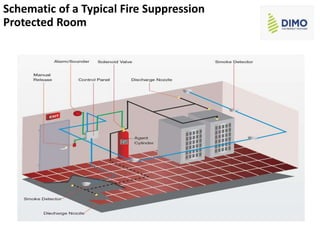

15. Schematic of a Typical Fire Suppression
Protected Room

16. Extinguishing Control Panel in Normal Condition
Pressure Switch
Solenoid Actuator Circuit
Zone-02
Zone-01
Manual Release Abort

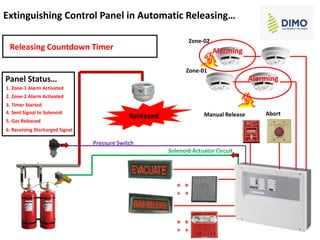

17. Extinguishing Control Panel in Automatic Releasing…
Pressure Switch
Solenoid Actuator Circuit
Zone-02
Zone-01
Manual Release Abort
Alarming
Alarming
Releasing Countdown Timer 60
50
40
30
20
10
00
Released
00
Panel Status…
1. Zone-1 Alarm Activated
2. Zone-2 Alarm Activated
3. Timer Started
4. Sent Signal to Solenoid
5. Gas Released
6. Receiving Discharged Signal

18. Function of the Manual Release Switch
Manual Release: The manual release allows personnel to bypass
the normal process described above and activate
the system and release the clean agent manually.

19. 00
Extinguishing Control Panel in Remote Releasing…
Pressure Switch
Solenoid Actuator Circuit
Zone-02
Zone-01
Manual Release Abort
Releasing Countdown Timer
Released
Panel Status…
1. Remote Release Activated
2. Timer Started
3. Sent Signal to Solenoid
4. Gas Released
5. Receiving Discharged Signal
10
20
30
30

20. Function of the Abort Switch
The Abort Switch is used to momentarily interrupt the release circuit
signal when the control unit is in the alarm condition. As long as
the abort pushbutton is held in, the fire suppression system will not
release.

21. 00
Extinguishing Control Panel in Abort Operation…
Pressure Switch
Solenoid Actuator Circuit
Zone-02
Zone-01
Manual Release Abort
Releasing Countdown Timer 10
20
30
30
Aborted

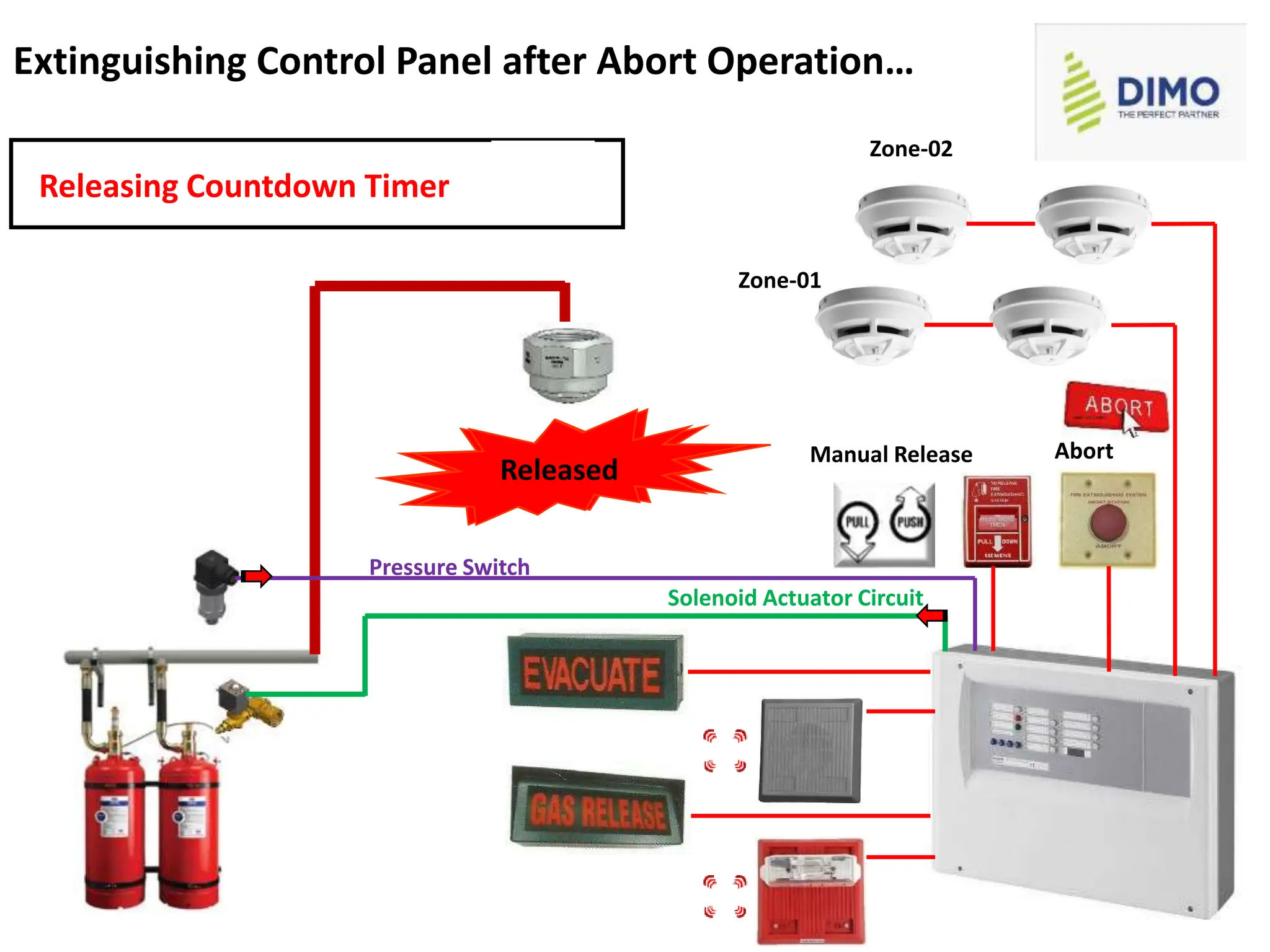

22. 00
Extinguishing Control Panel after Abort Operation…
Pressure Switch
Solenoid Actuator Circuit
Zone-02
Zone-01
Manual Release Abort
Releasing Countdown Timer 10
20
30
30
Unaborted
Released

23. MANUAL ABORT OPERATION

24. PANEL IN NORMAL CONDITION
Zone 1
Zone 2
Solenoid output
Pressure
Switch
Pressure Switch signal

25. ONE ZONE IN ALARM ACTIVATION
Zone 1
Zone 2
Solenoid output
Pressure
Switch
Pressure Switch signal

26. SECOND ZONE IN ALARM CONDITION
Zone 1
Zone 2
Solenoid output
Pressure
Switch
Pressure Switch signal

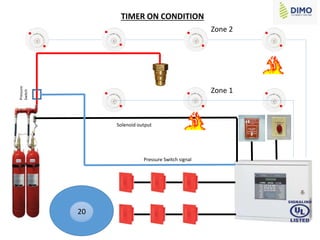

27. TIMER ON CONDITION
Zone 1
Zone 2
Solenoid output
Pressure
Switch
Pressure Switch signal
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

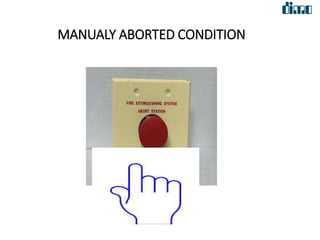

28. MANUALY ABORTED CONDITION

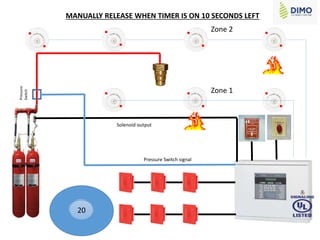

29. MANUALLY RELEASE WHEN TIMER IS ON 10 SECONDS LEFT
Zone 1
Zone 2
Solenoid output
Pressure
Switch
Pressure Switch signal
10
11
12
13
14
15
16
17
18
19
20

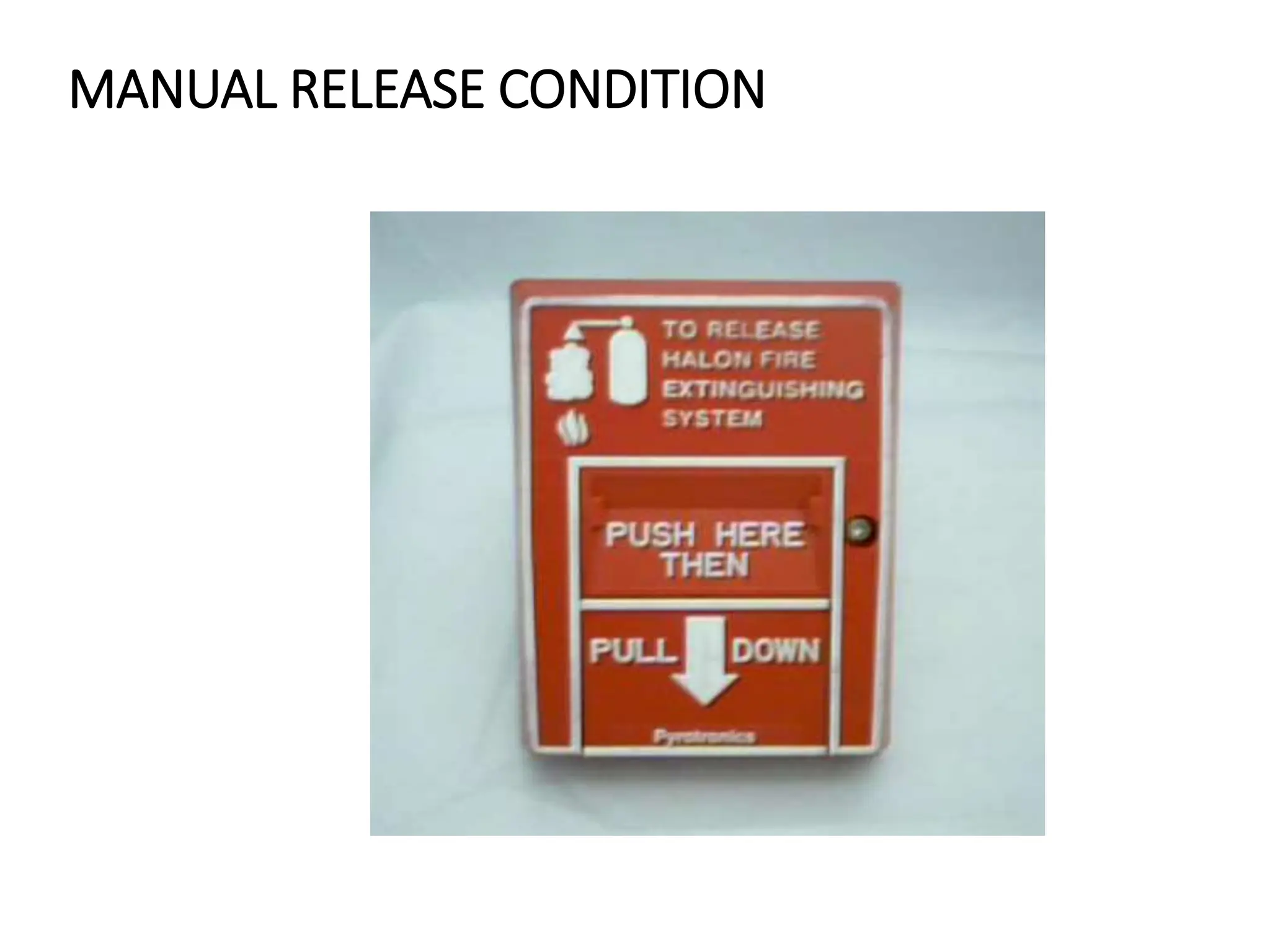

30. MANUAL RELEASE CONDITION

31. PANEL IN NORMAL CONDITION
Zone 1
Zone 2
Solenoid output
Pressure
Switch
Pressure Switch signal

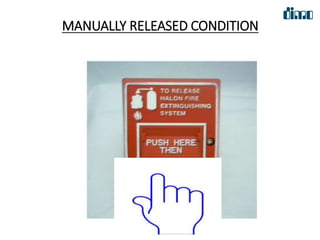

32. MANUALLY RELEASED CONDITION

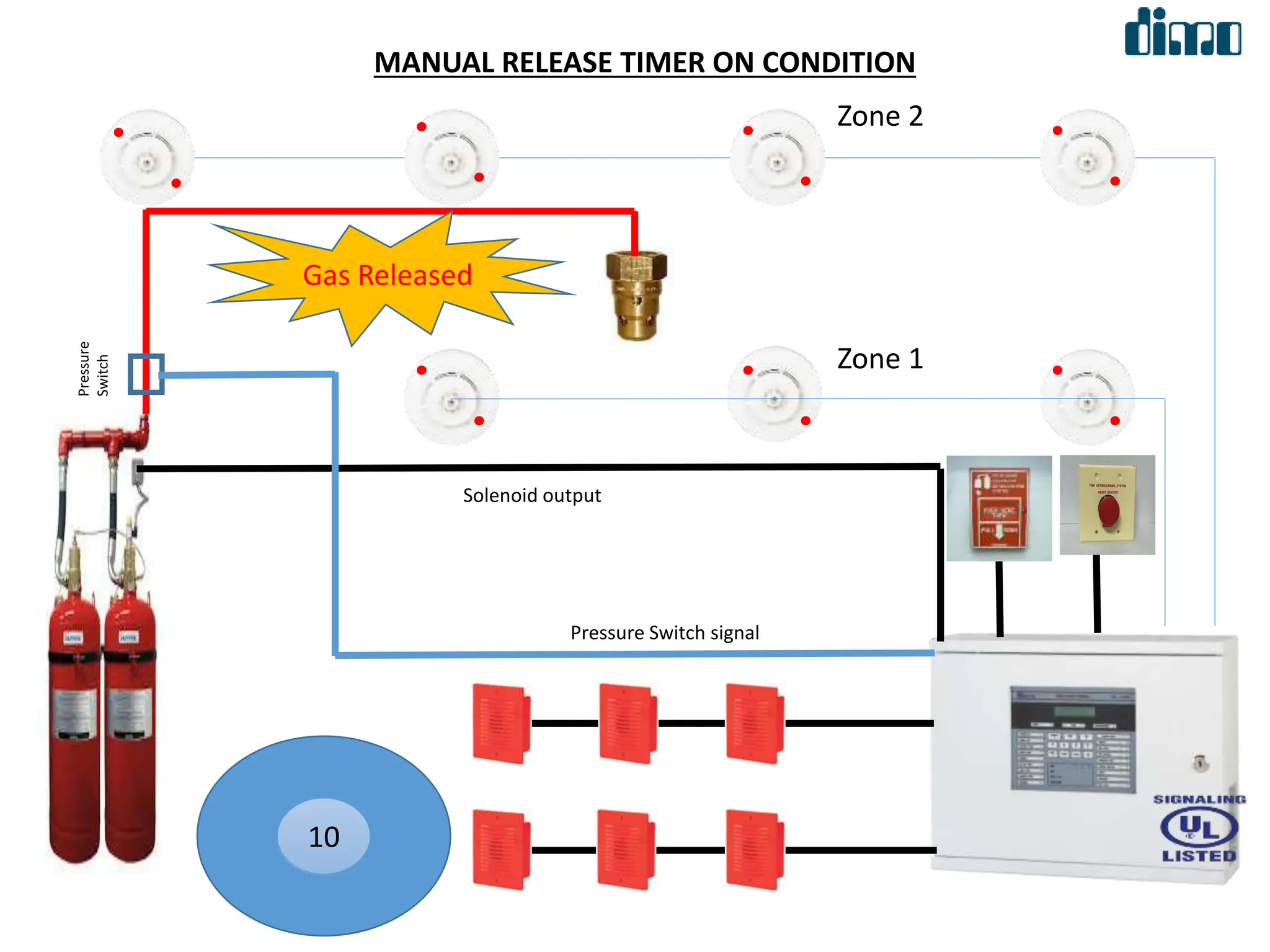

33. MANUAL RELEASE TIMER ON CONDITION
Zone 1
Zone 2
Solenoid output
Pressure
Switch
Pressure Switch signal
1
2
3
4
5
6
7
8
9
10
Gas Released

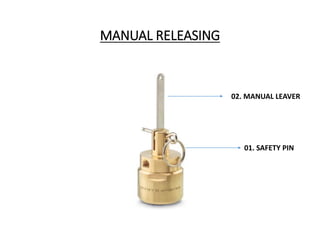

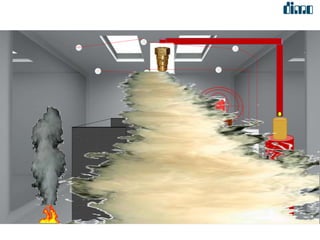

35. MANUAL RELEASING
02. MANUAL LEAVER
01. SAFETY PIN
