- 1. Reconnoiter: Large-scale trending and fault-detection / another product built from pain Sunday, August 1, 2010
- 2. Goals • make checks cheap: 10000+ checks on cheap hardware • centralized configuration management. • decentralized configuration manipulation. • decouple data collections from • visualization/trending • fault-detection • make life suck just a little less. Sunday, August 1, 2010

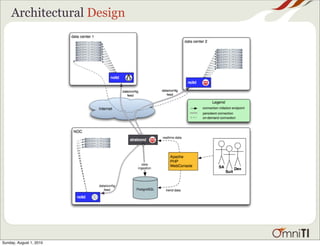

- 3.

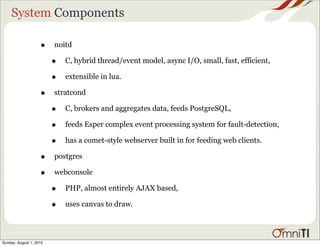

- 4. System Components • noitd • C, hybrid thread/event model, async I/O, small, fast, efficient, • extensible in lua. • stratcond • C, brokers and aggregates data, feeds PostgreSQL, • feeds Esper complex event processing system for fault-detection, • has a comet-style webserver built in for feeding web clients. • postgres • webconsole • PHP, almost entirely AJAX based, • uses canvas to draw. Sunday, August 1, 2010

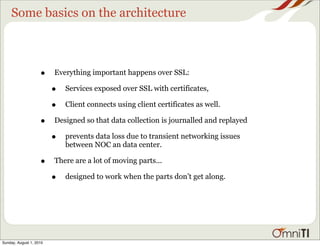

- 5. Some basics onthe architecture • Everything important happens over SSL: • Services exposed over SSL with certificates, • Client connects using client certificates as well. • Designed so that data collection is journalled and replayed • prevents data loss due to transient networking issues between NOC an data center. • There are a lot of moving parts... • designed to work when the parts don’t get along. Sunday, August 1, 2010

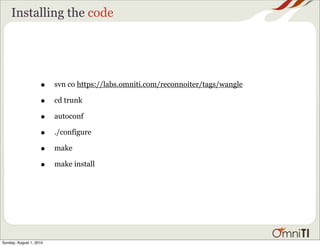

- 6. Installing the code • svn co https://labs.omniti.com/reconnoiter/tags/wangle • cd trunk • autoconf • ./configure • make • make install Sunday, August 1, 2010
- 7. Installing the database • createdb reconnoiter • createlang -d reconnoiter plpgsql • createuser reconnoiter • createuser stratcon • createuser prism • psql -U postgres reconnoiter • BEGIN; • i sql/reconnoiter_ddl_dump.sql • COMMIT; • install the crontab in sql/crontab Sunday, August 1, 2010

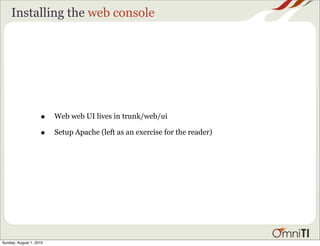

- 8. Installing the webconsole • Web web UI lives in trunk/web/ui • Setup Apache (left as an exercise for the reader) Sunday, August 1, 2010
- 9. SSL is underneatheverything • Setup SSL certs: • Need a CA (even if a dummy CA) • need a cert (signed) for each noitd server • need a client cert (signed) for the stratcond server • need a web cert (signed) for the stratcond server (future**) • More details by running make test and looking into the • test-noit.conf • test-stratcon.conf Sunday, August 1, 2010

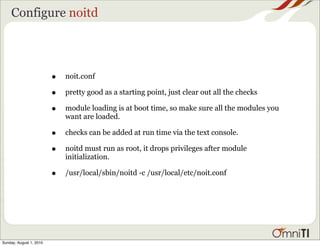

- 10. Configure noitd • noit.conf • pretty good as a starting point, just clear out all the checks • module loading is at boot time, so make sure all the modules you want are loaded. • checks can be added at run time via the text console. • noitd must run as root, it drops privileges after module initialization. • /usr/local/sbin/noitd -c /usr/local/etc/noit.conf Sunday, August 1, 2010
- 11. Configure stratcond • stratcon.conf • pretty good as a starting point, just clear out all the noit addresses • each noit in the field requires a line in the stratcon.conf file: • <noit address="10.225.209.25" port="43191" /> • database passwords must be configured • hostname and document_domain must be configured • /usr/local/sbin/stratcond -c /usr/local/etc/stratcon.conf Sunday, August 1, 2010

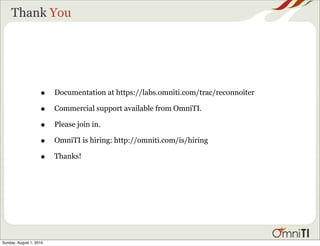

- 12. Thank You • Documentation at https://labs.omniti.com/trac/reconnoiter • Commercial support available from OmniTI. • Please join in. • OmniTI is hiring: http://omniti.com/is/hiring • Thanks! Sunday, August 1, 2010
