Linux High Availability

      Kris Buytaert

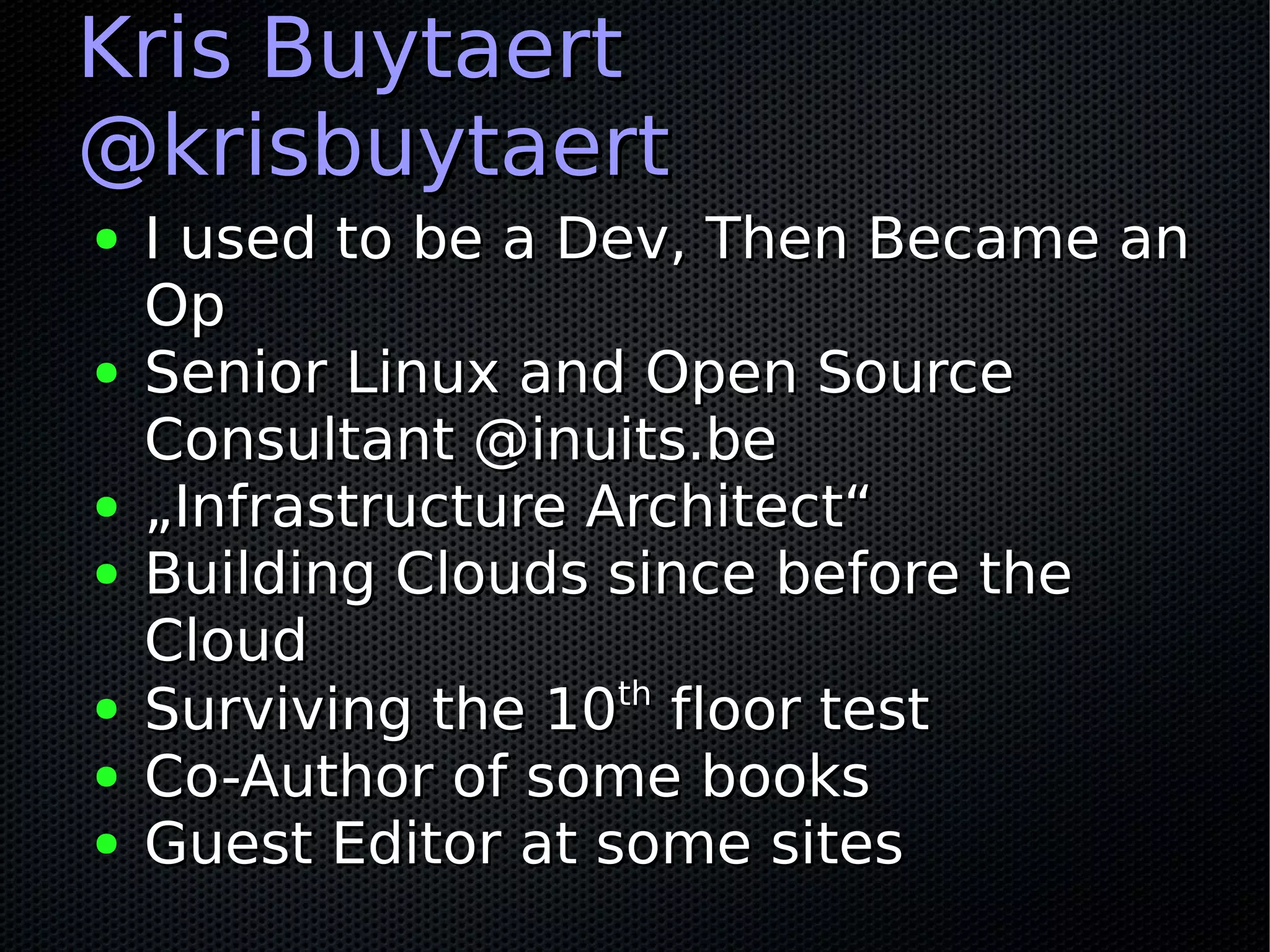

Kris Buytaert
@krisbuytaert
●   I used to be a Dev, Then Became an
    Op
●   Senior Linux and Open Source
    Consultant @inuits.be
●   „Infrastructure Architect“
●   Building Clouds since before the
    Cloud
●   Surviving the 10th floor test
●   Co-Author of some books
●   Guest Editor at some sites

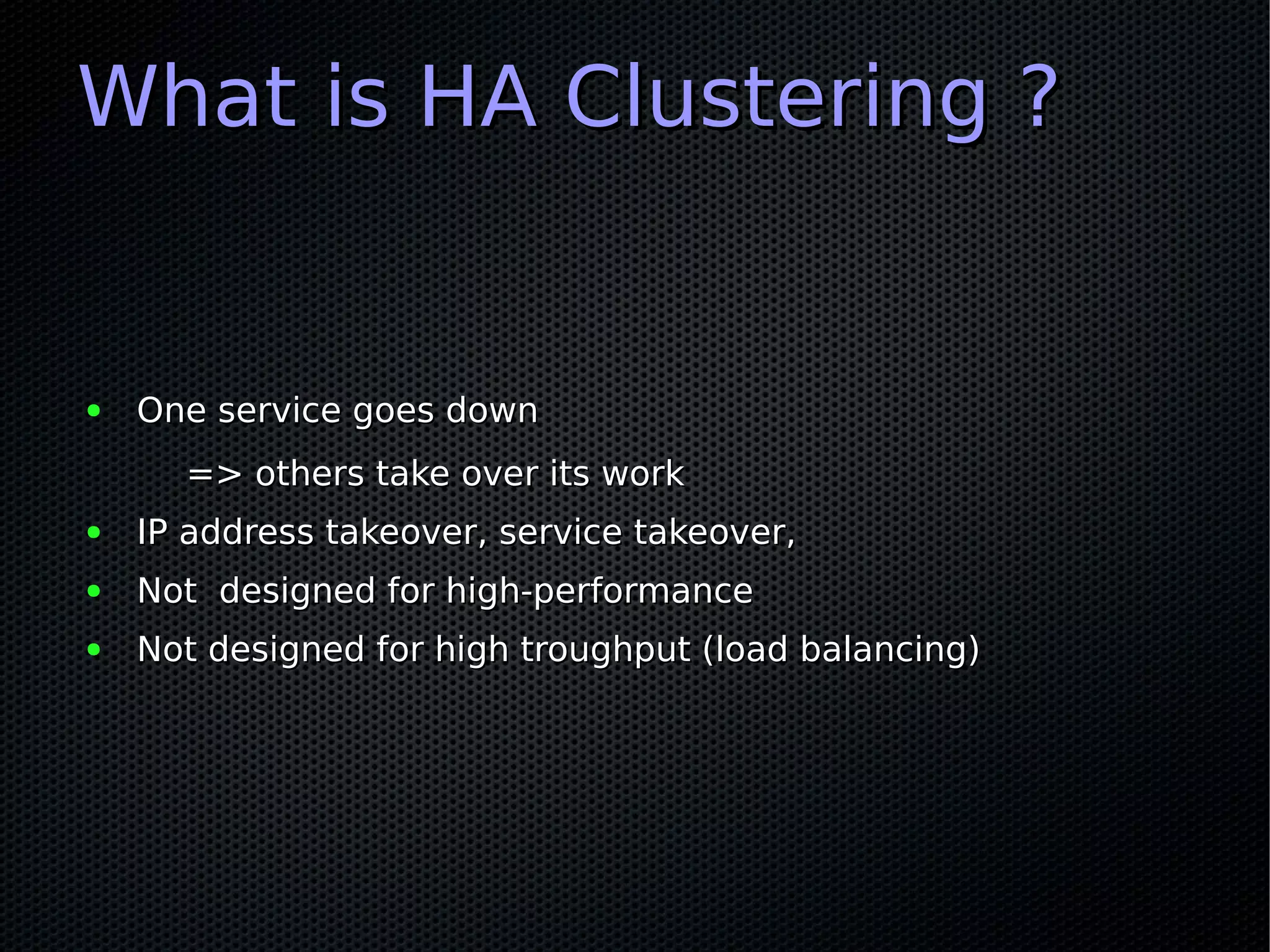

What is HA Clustering ?


●   One service goes down
      => others take over its work
●   IP address takeover, service takeover,
●   Not designed for high-performance
●   Not designed for high troughput (load balancing)

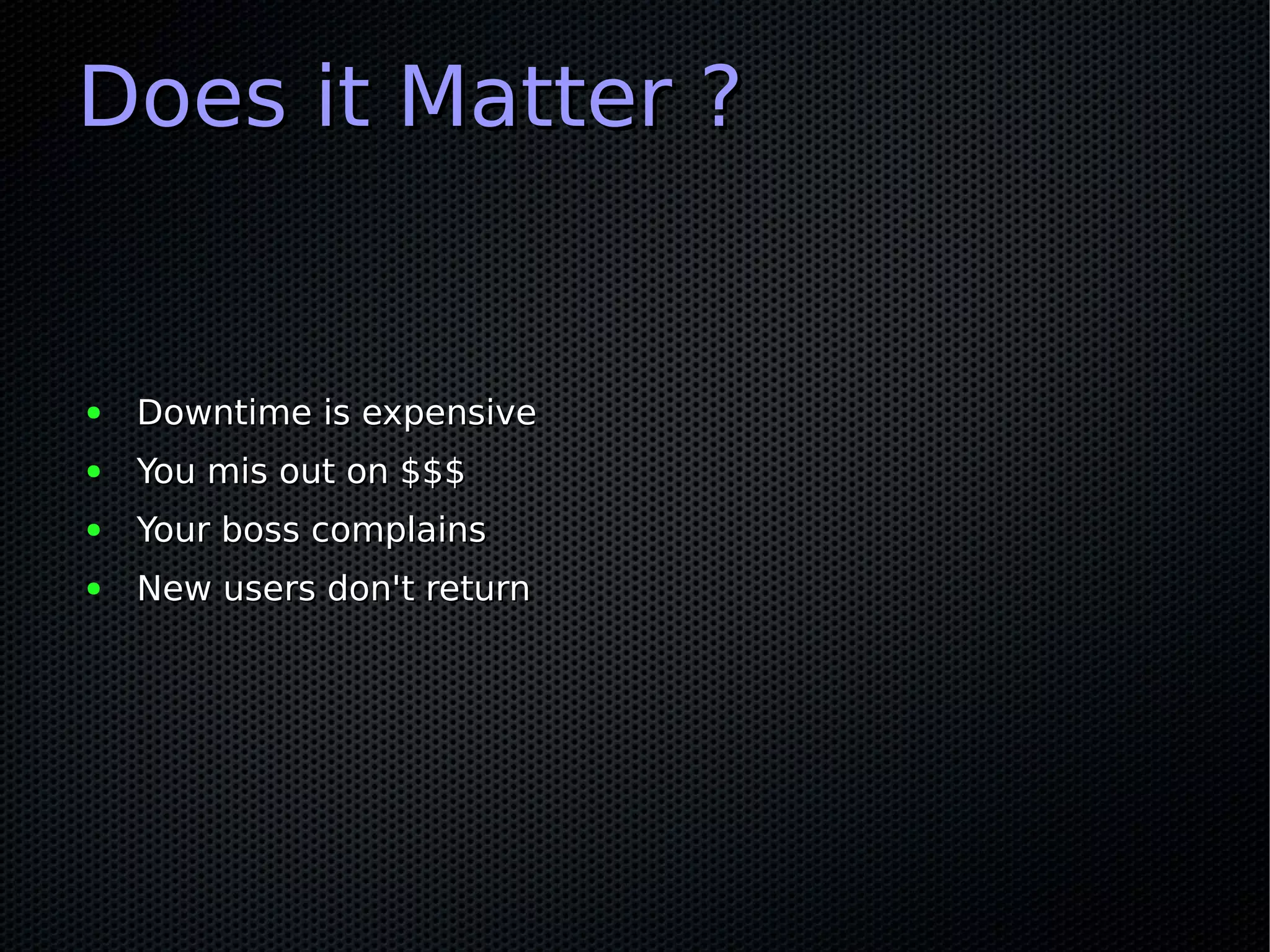

Does it Matter ?


●   Downtime is expensive
●   You mis out on $$$
●   Your boss complains
●   New users don't return

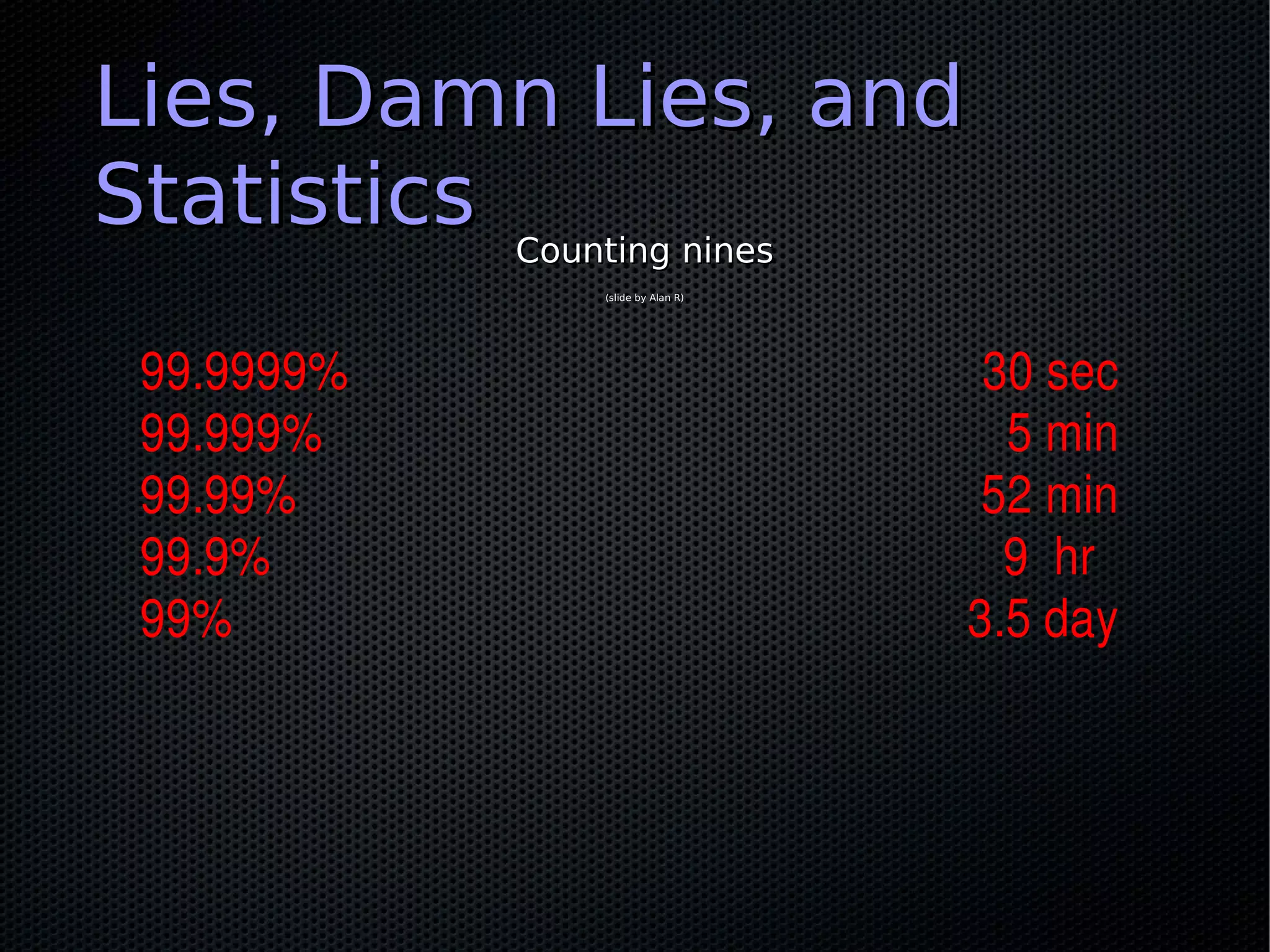

Lies, Damn Lies, and
Statistics Counting nines
              (slide by Alan R)




 99.9999%                          30 sec
 99.999%                            5 min
 99.99%                            52 min
 99.9%                              9  hr
 99%                              3.5 day

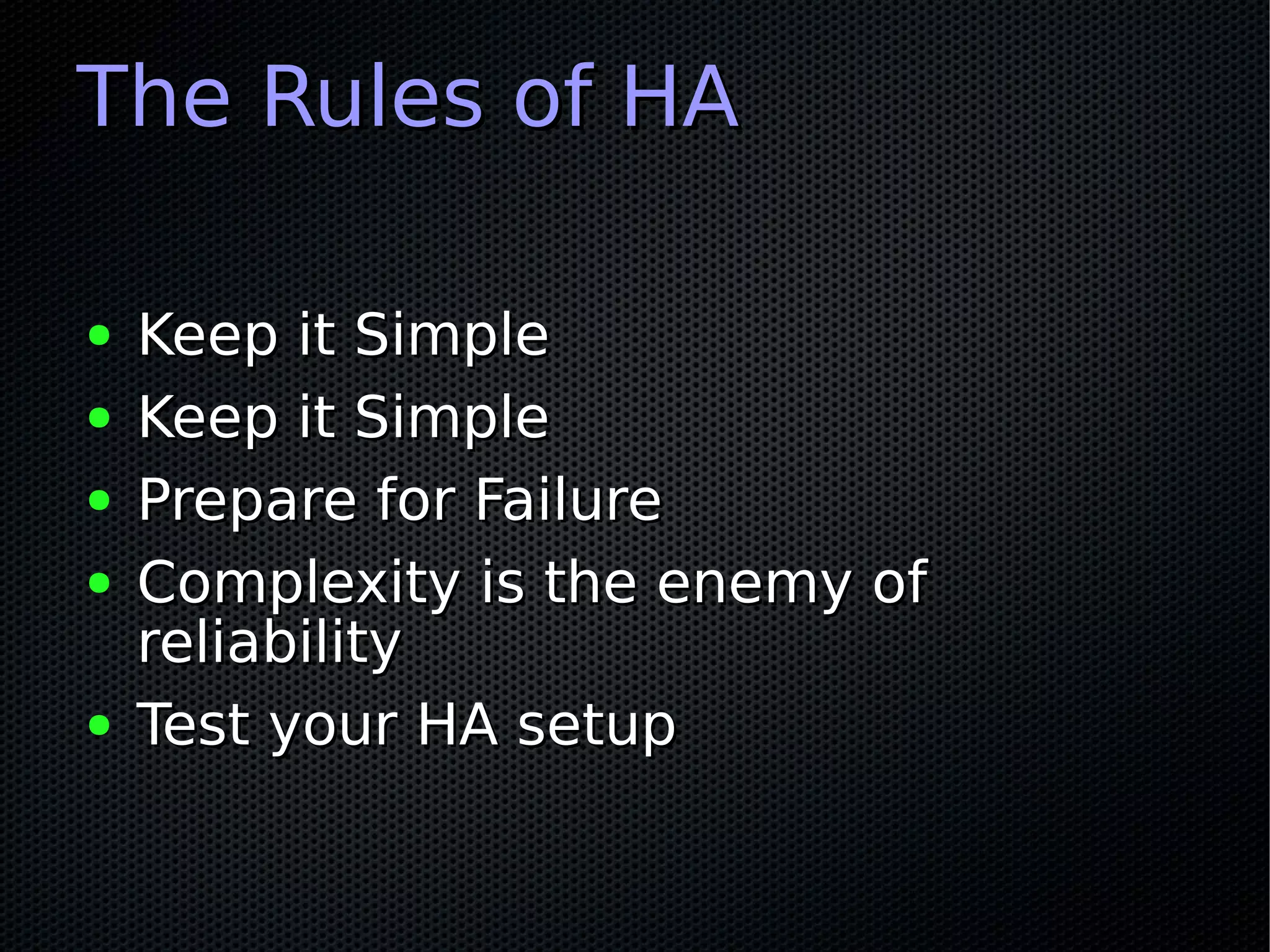

The Rules of HA

●   Keep it Simple
●   Keep it Simple
●   Prepare for Failure
●   Complexity is the enemy of
    reliability
●   Test your HA setup

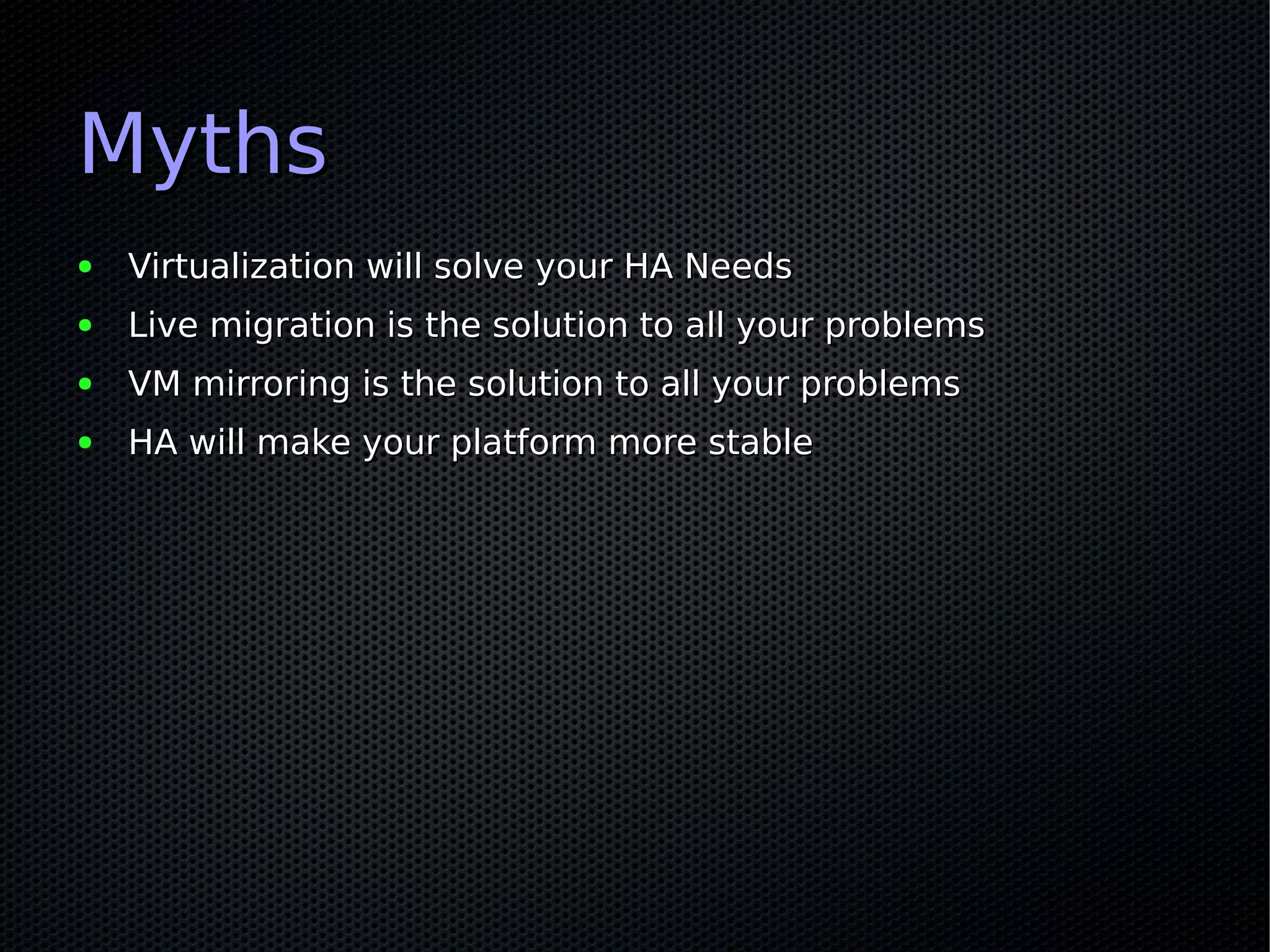

Myths
●   Virtualization will solve your HA Needs
●   Live migration is the solution to all your problems
●   VM mirroring is the solution to all your problems
●   HA will make your platform more stable

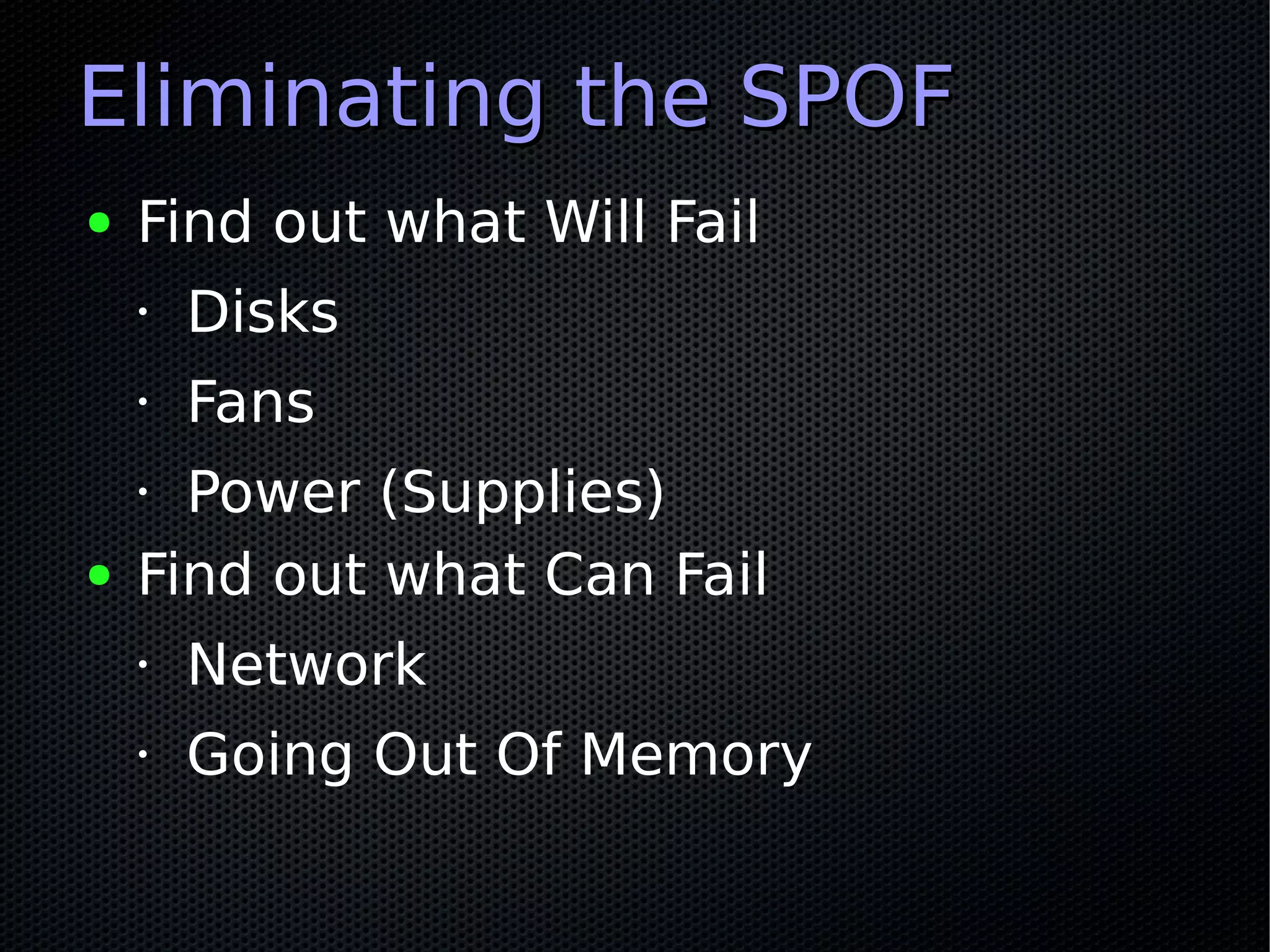

Eliminating the SPOF
●   Find out what Will Fail
    •   Disks
    •   Fans
    • Power (Supplies)
●   Find out what Can Fail
    •   Network
    •   Going Out Of Memory

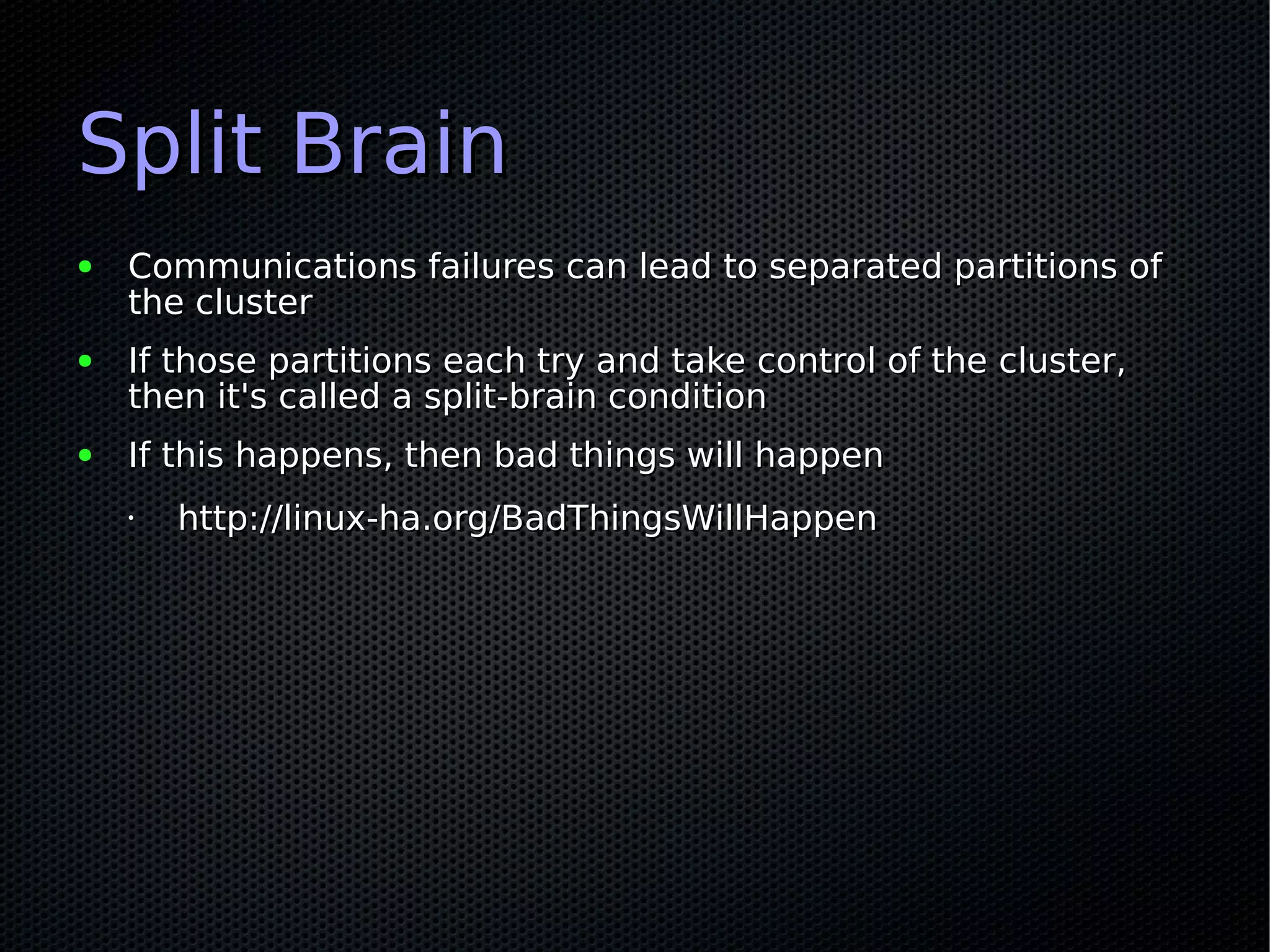

Split Brain
●   Communications failures can lead to separated partitions of
    the cluster
●   If those partitions each try and take control of the cluster,
    then it's called a split-brain condition
●   If this happens, then bad things will happen
    •   http://linux-ha.org/BadThingsWillHappen

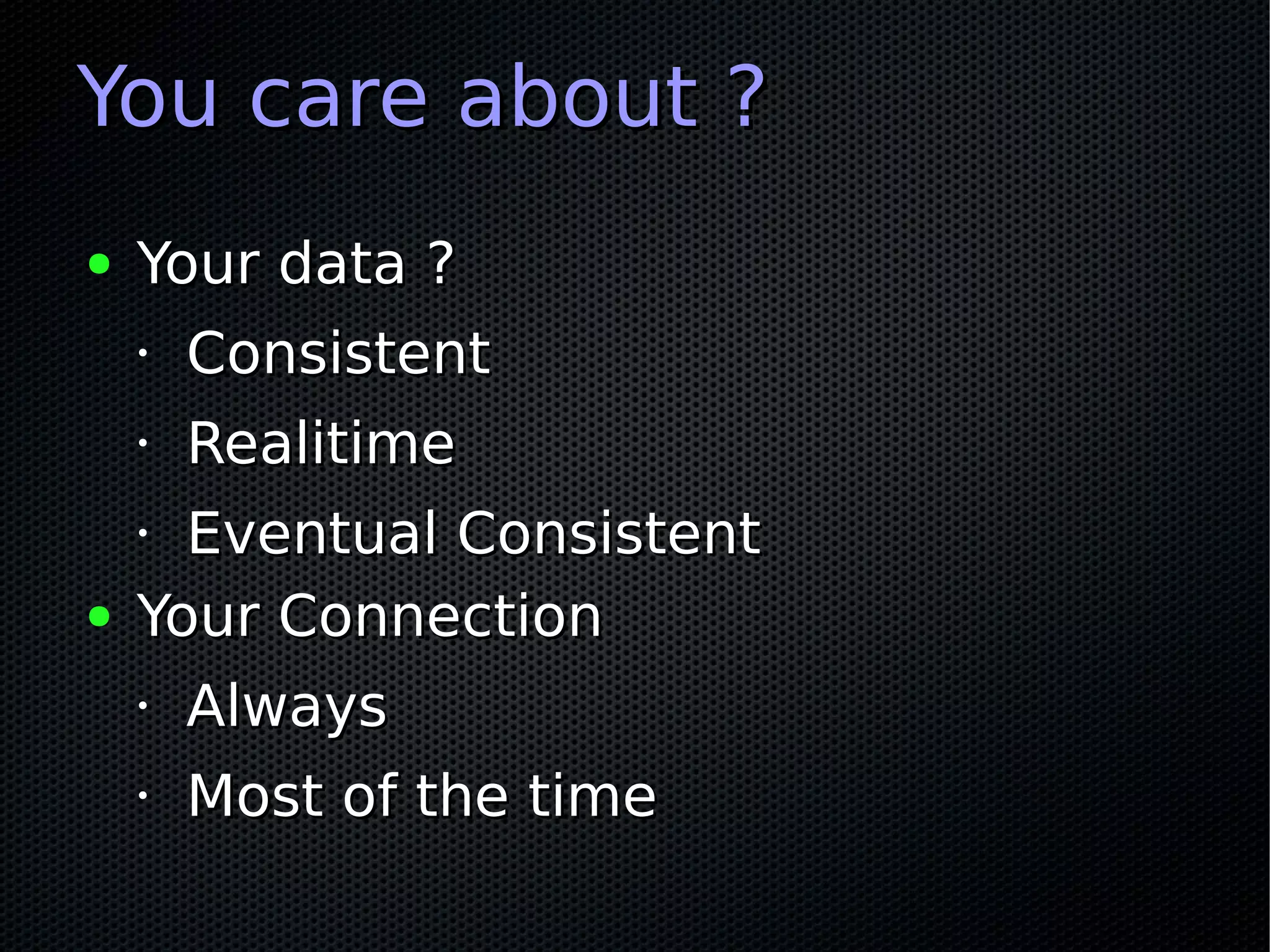

You care about ?
●   Your data ?
    •   Consistent
    •   Realitime
    • Eventual Consistent
●   Your Connection
    •   Always
    •   Most of the time

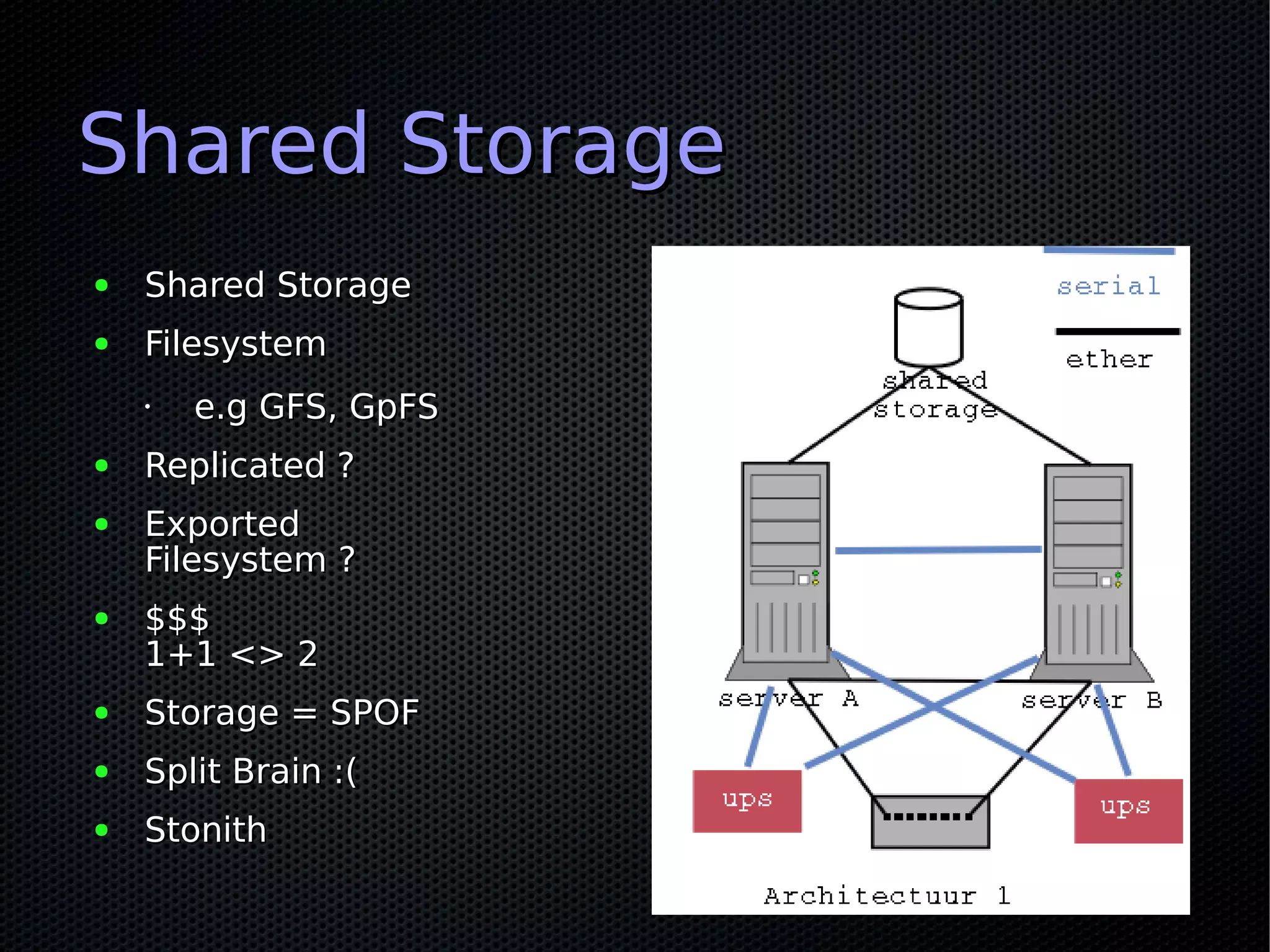

Shared Storage
●   Shared Storage
●   Filesystem
    •   e.g GFS, GpFS
●   Replicated ?
●   Exported
    Filesystem ?
●   $$$
    1+1 <> 2
●   Storage = SPOF
●   Split Brain :(
●   Stonith

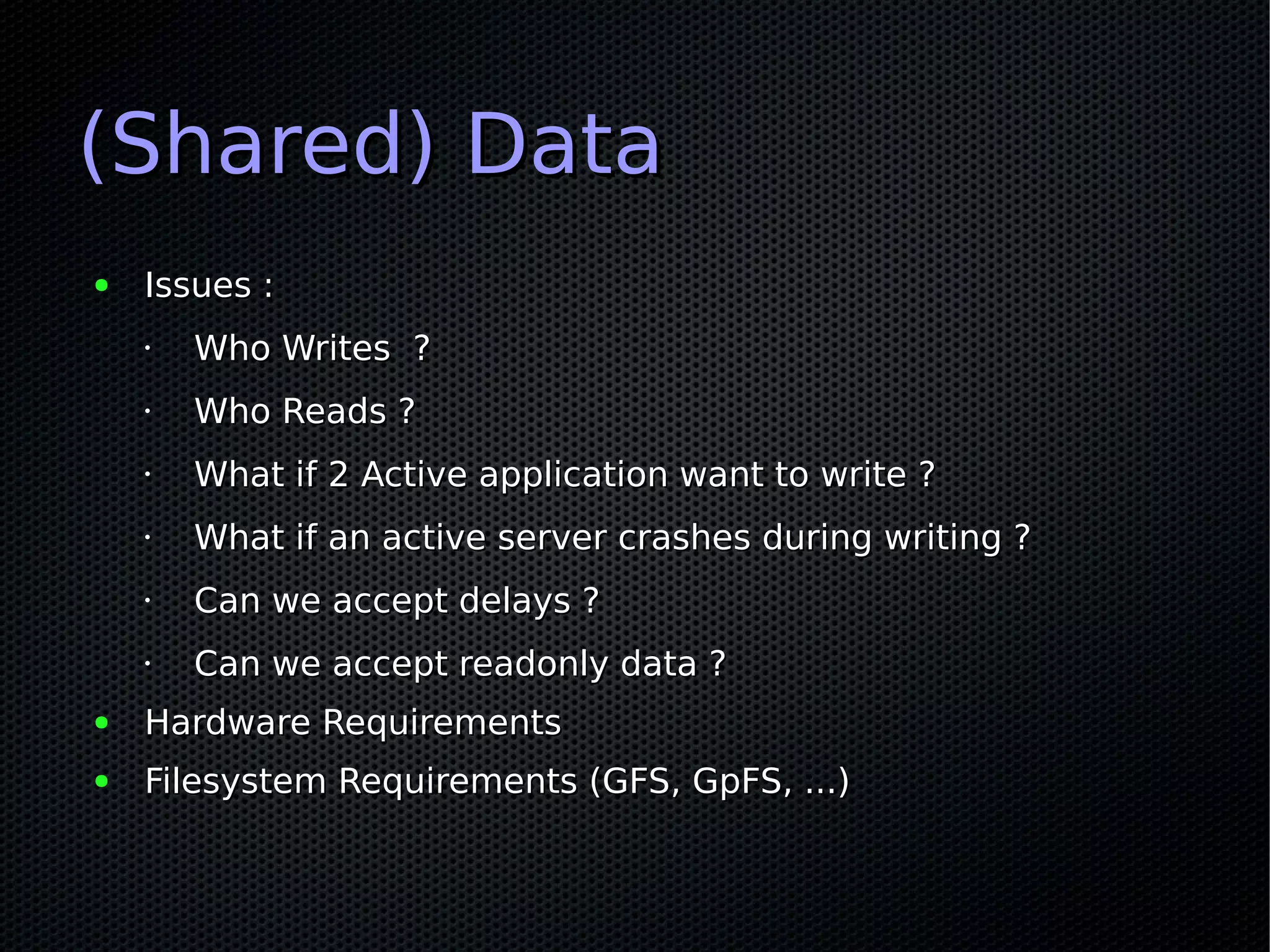

(Shared) Data
●   Issues :
    •   Who Writes ?
    •   Who Reads ?
    •   What if 2 Active application want to write ?
    •   What if an active server crashes during writing ?
    •   Can we accept delays ?
    •   Can we accept readonly data ?
●   Hardware Requirements
●   Filesystem Requirements (GFS, GpFS, ...)

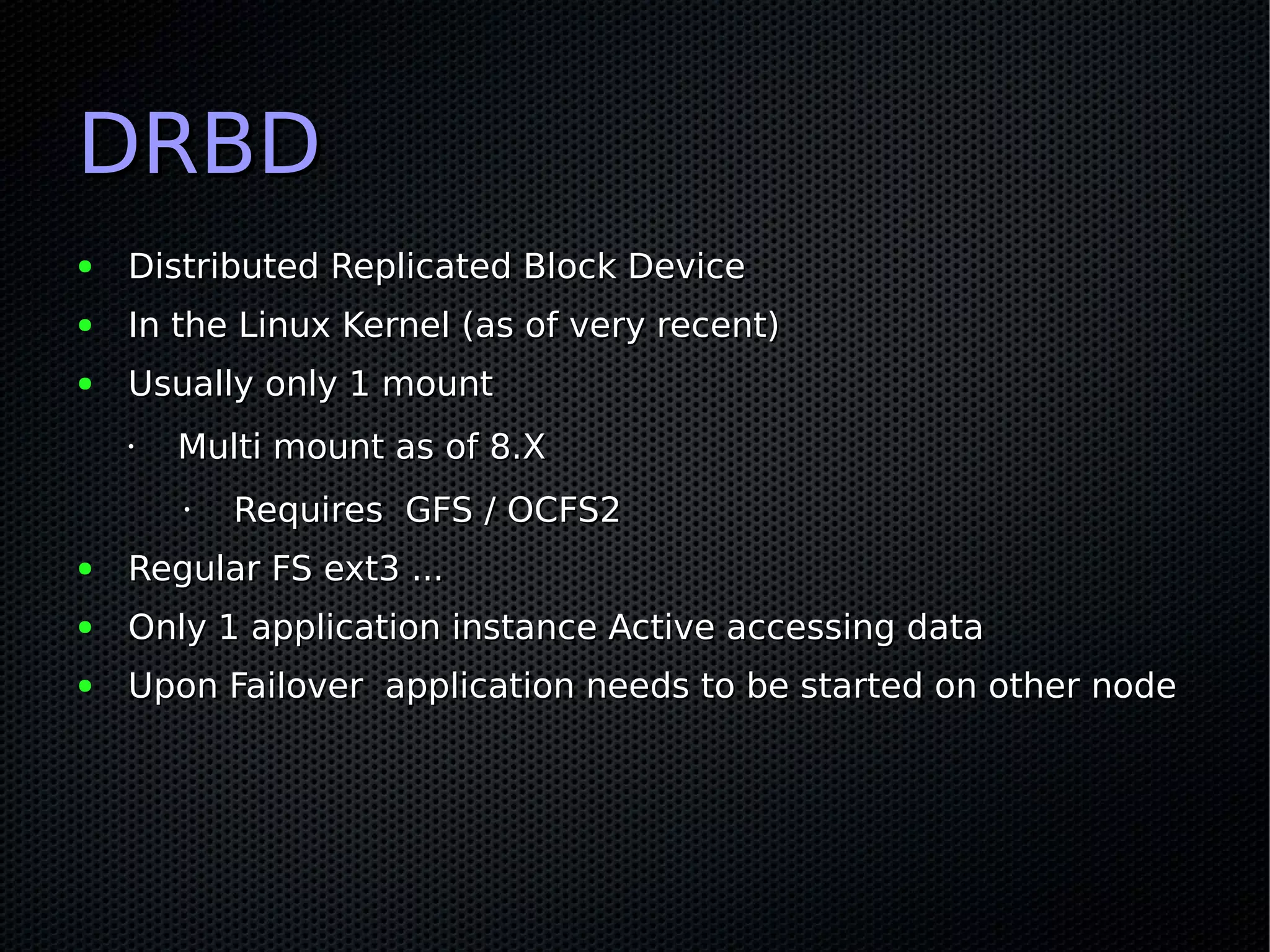

DRBD
●   Distributed Replicated Block Device
●   In the Linux Kernel (as of very recent)
●   Usually only 1 mount
    •   Multi mount as of 8.X
        •   Requires GFS / OCFS2
●   Regular FS ext3 ...
●   Only 1 application instance Active accessing data
●   Upon Failover application needs to be started on other node

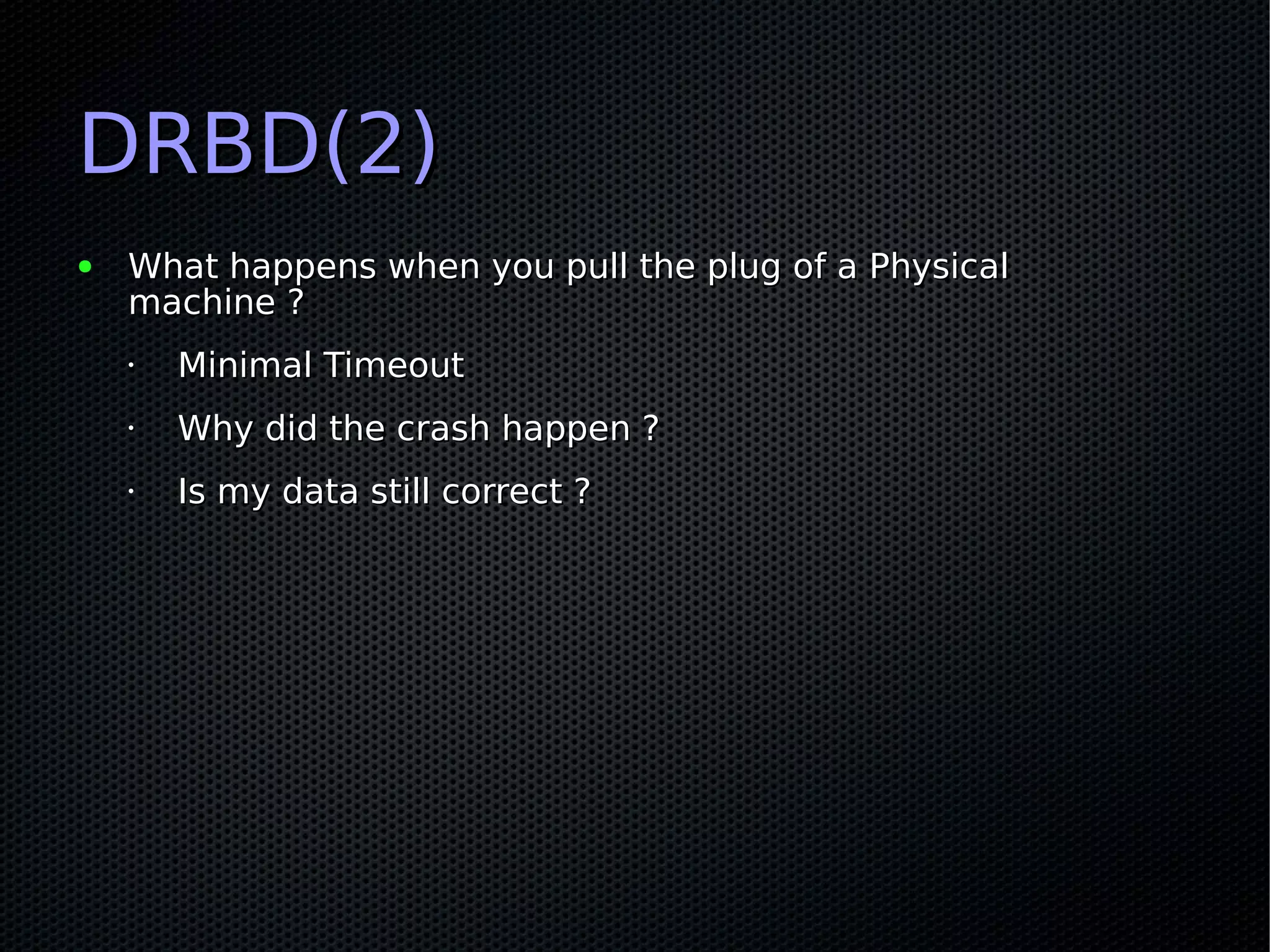

DRBD(2)
●   What happens when you pull the plug of a Physical
    machine ?
    •   Minimal Timeout
    •   Why did the crash happen ?
    •   Is my data still correct ?
Alternatives to DRBD
●   GlusterFS looked promising
    •   “Friends don't let Friends use Gluster”
    •   Consistency problems
    •   Stability Problems
    •   Maybe later
●   MogileFS
    •   Not posix
    •   App needs to implement the API
●   Ceph
    •   ?

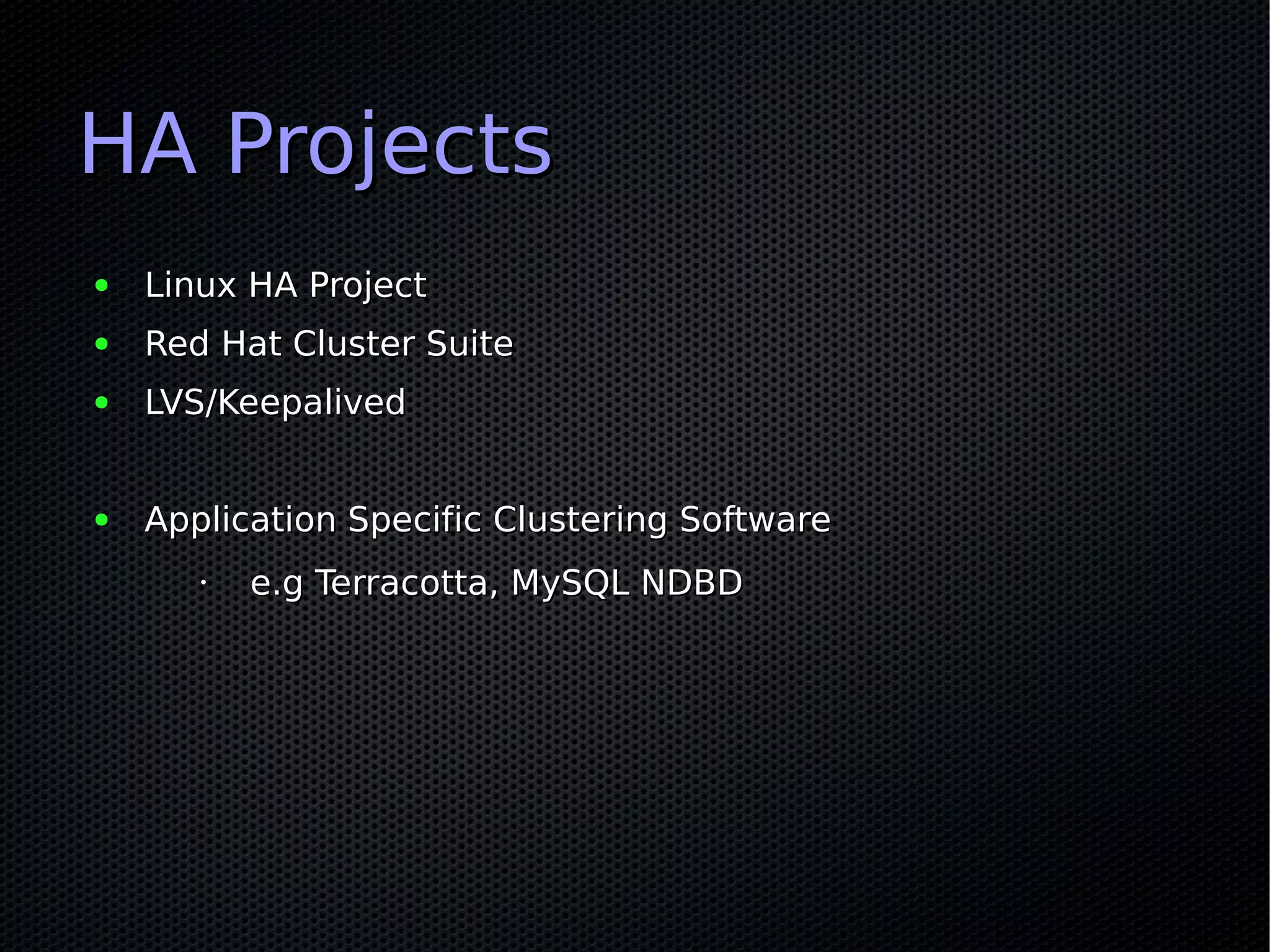

HA Projects
●   Linux HA Project
●   Red Hat Cluster Suite
●   LVS/Keepalived


●   Application Specific Clustering Software
       •   e.g Terracotta, MySQL NDBD

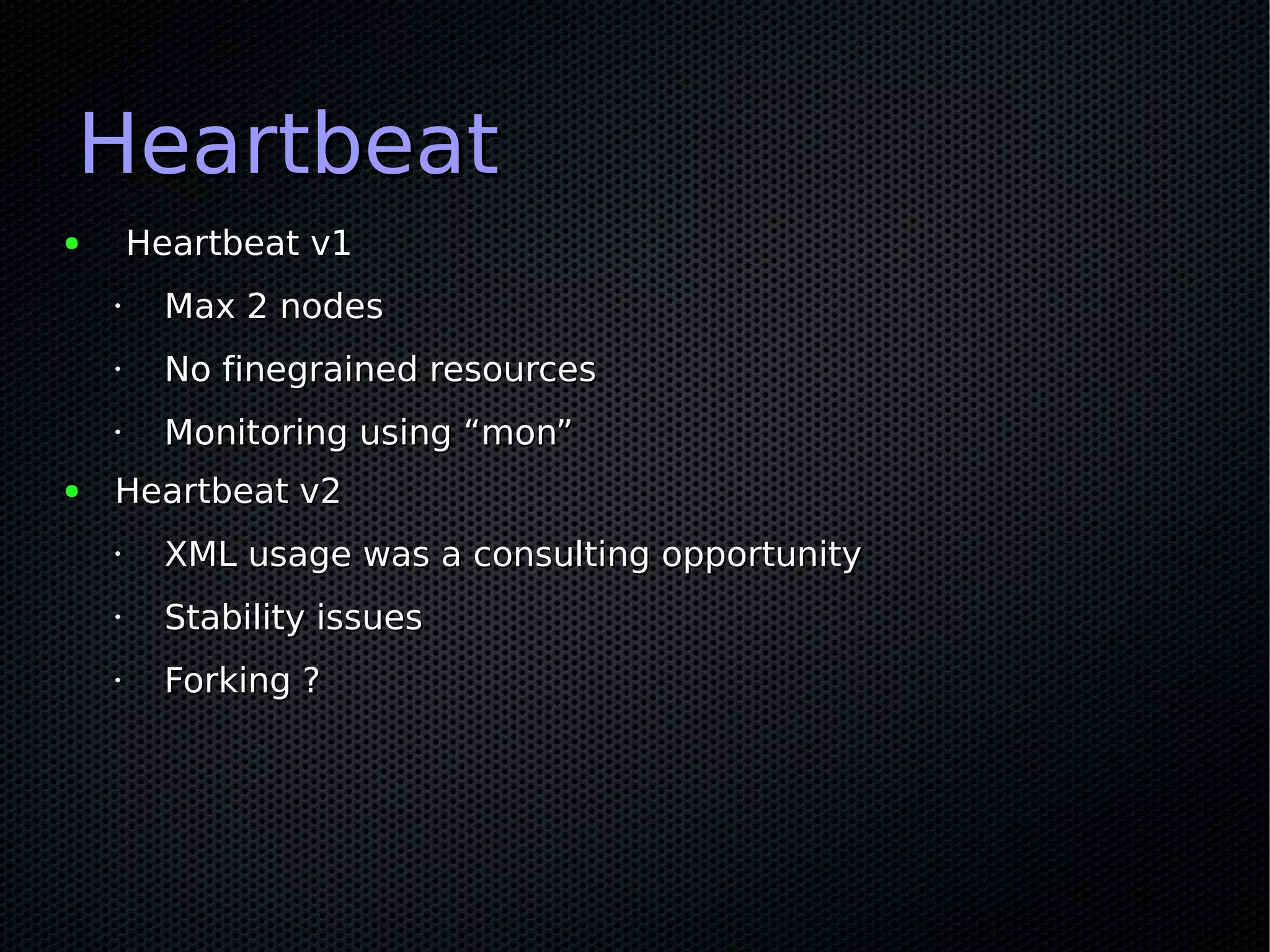

Heartbeat
●       Heartbeat v1
    •     Max 2 nodes
    •     No finegrained resources
    •     Monitoring using “mon”
●   Heartbeat v2
    •     XML usage was a consulting opportunity
    •     Stability issues
    •     Forking ?

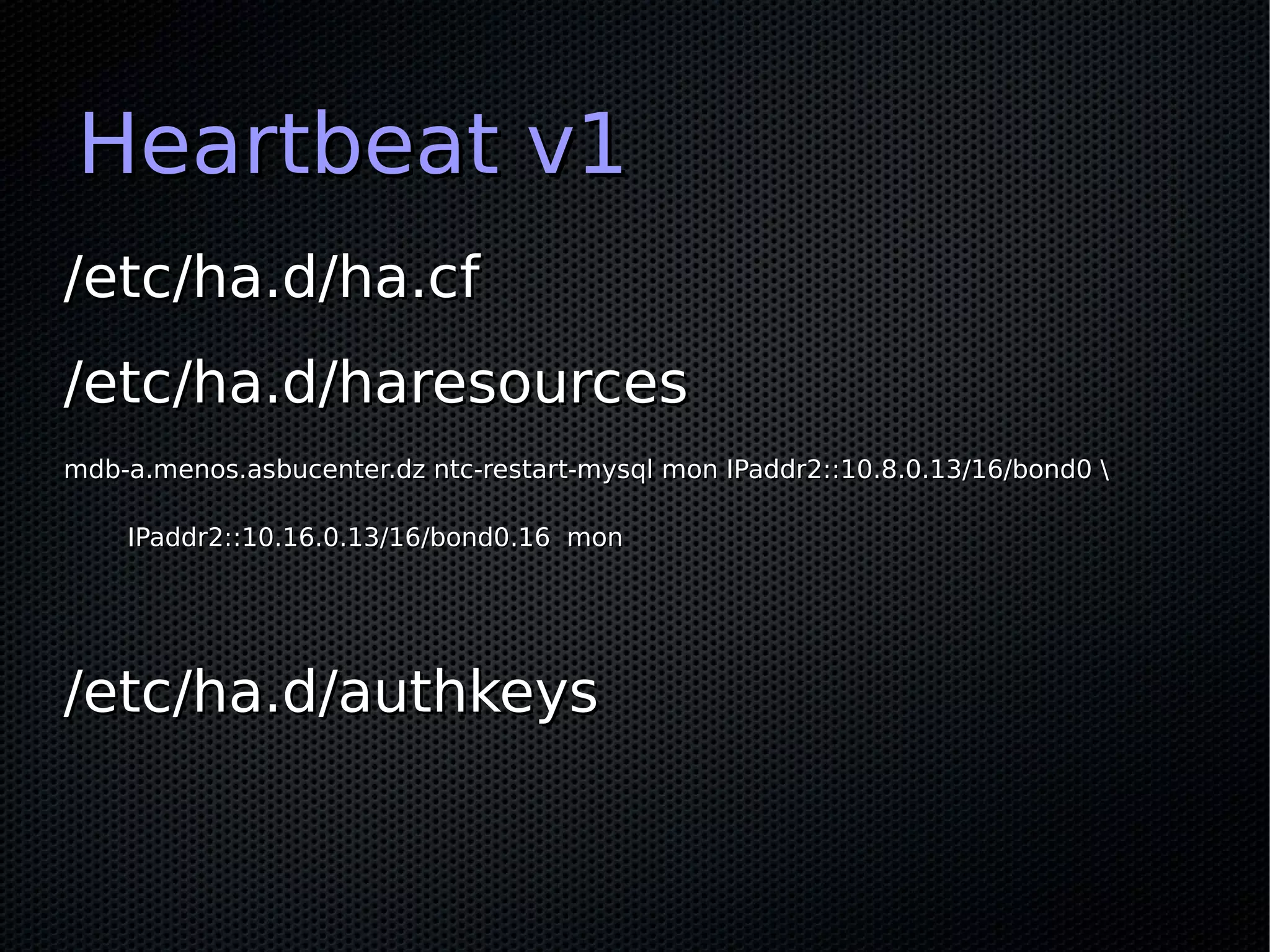

Heartbeat v1
/etc/ha.d/ha.cf
/etc/ha.d/haresources
mdb-a.menos.asbucenter.dz ntc-restart-mysql mon IPaddr2::10.8.0.13/16/bond0

    IPaddr2::10.16.0.13/16/bond0.16 mon




/etc/ha.d/authkeys

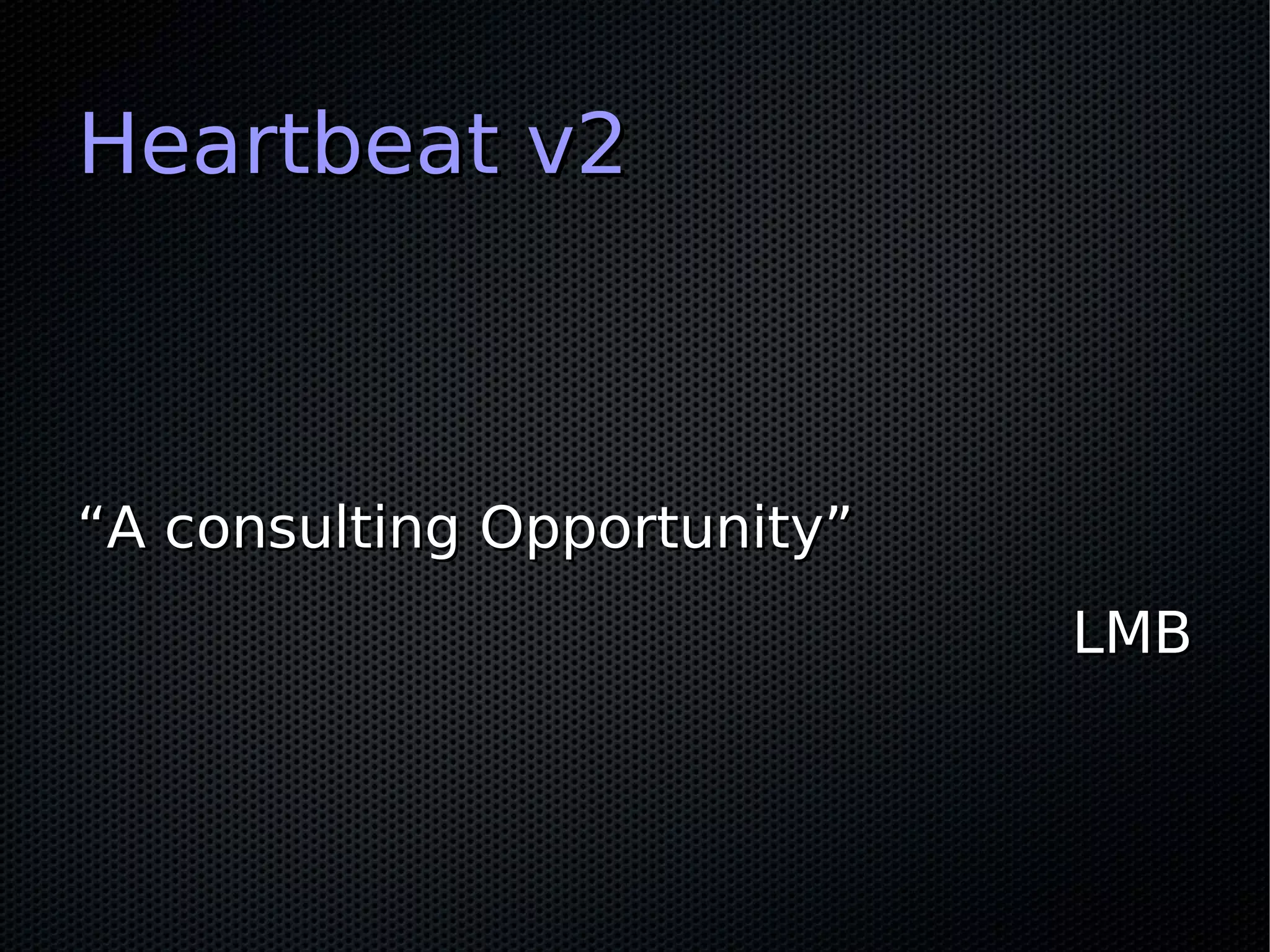

Heartbeat v2



“A consulting Opportunity”
                             LMB
Clone Resource
Clones in v2 were buggy
Resources were started on 2 nodes
Stopped again on “1”

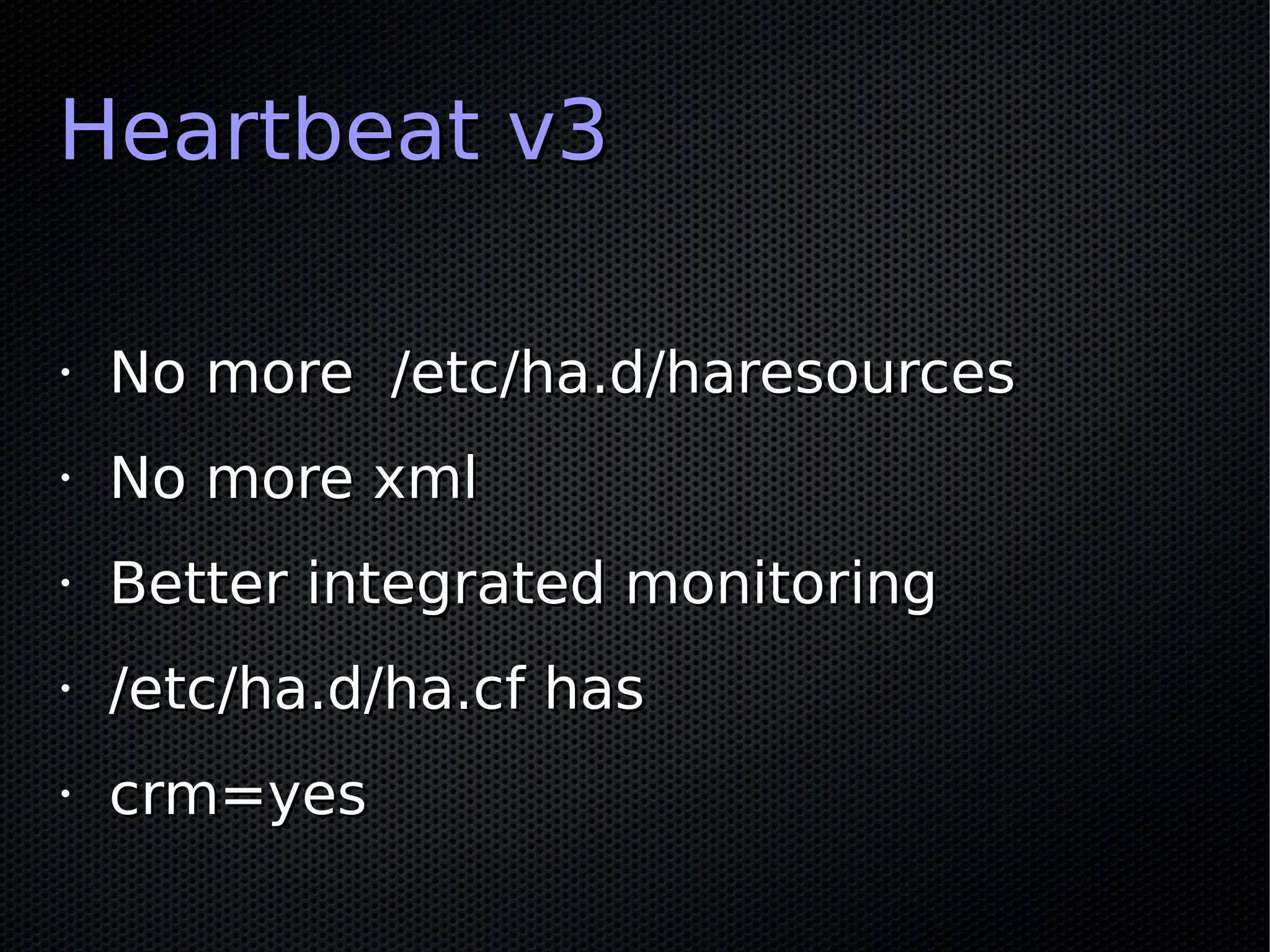

Heartbeat v3

•   No more /etc/ha.d/haresources
•   No more xml
•   Better integrated monitoring
•   /etc/ha.d/ha.cf has
•   crm=yes

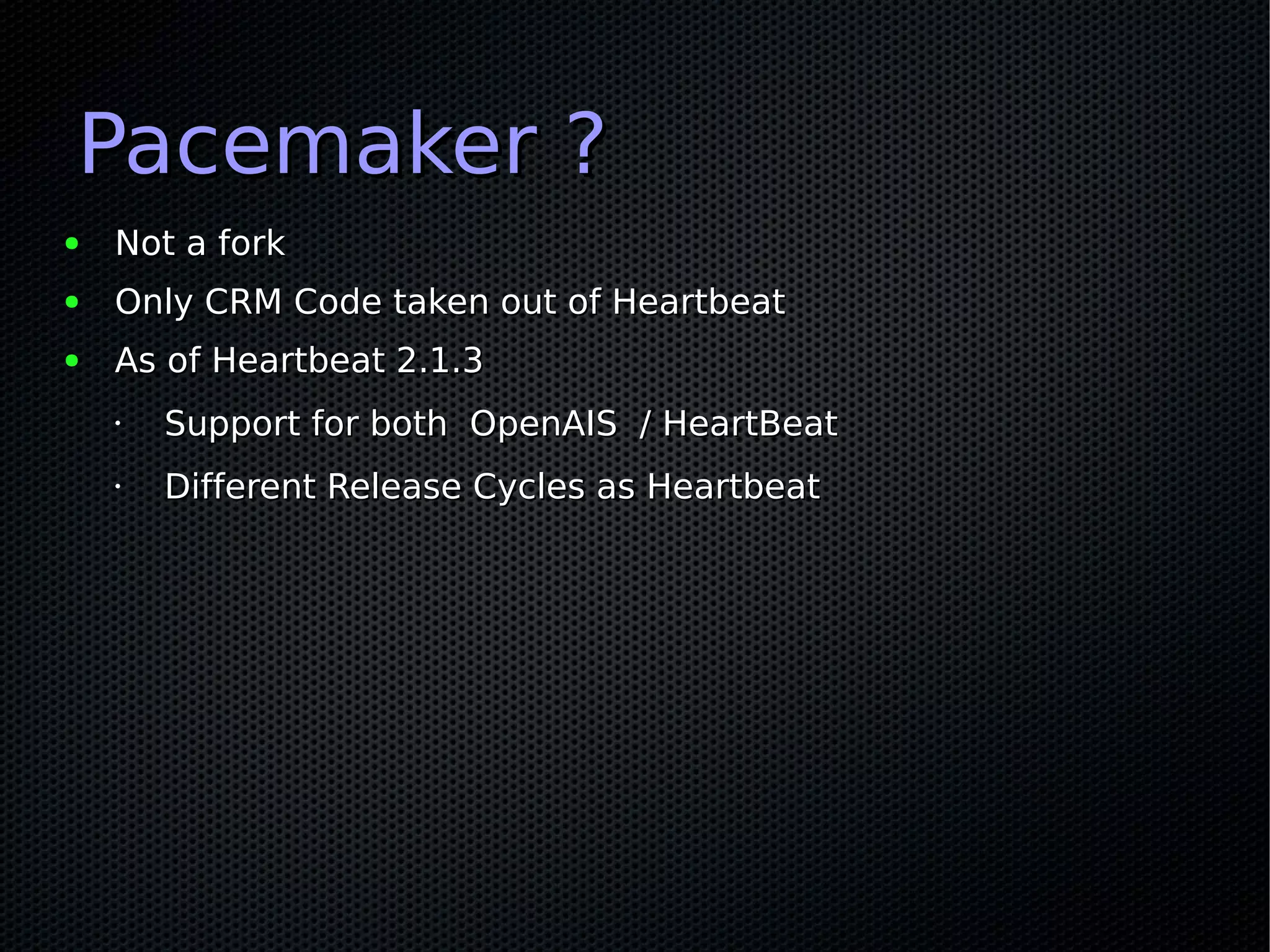

Pacemaker ?
●   Not a fork
●   Only CRM Code taken out of Heartbeat
●   As of Heartbeat 2.1.3
    •   Support for both OpenAIS / HeartBeat
    •   Different Release Cycles as Heartbeat

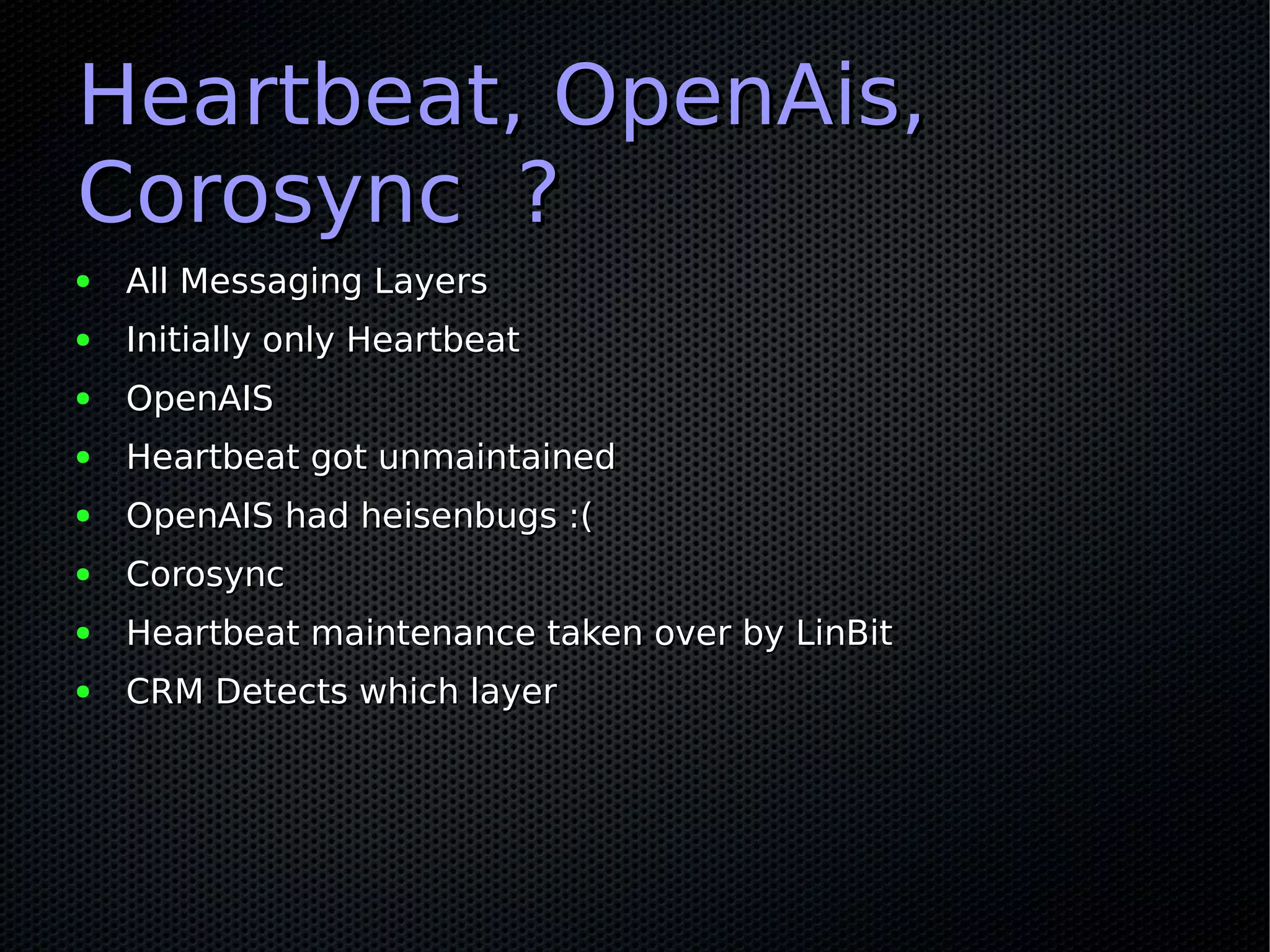

Heartbeat, OpenAis,
Corosync ?
●   All Messaging Layers
●   Initially only Heartbeat
●   OpenAIS
●   Heartbeat got unmaintained
●   OpenAIS had heisenbugs :(
●   Corosync
●   Heartbeat maintenance taken over by LinBit
●   CRM Detects which layer

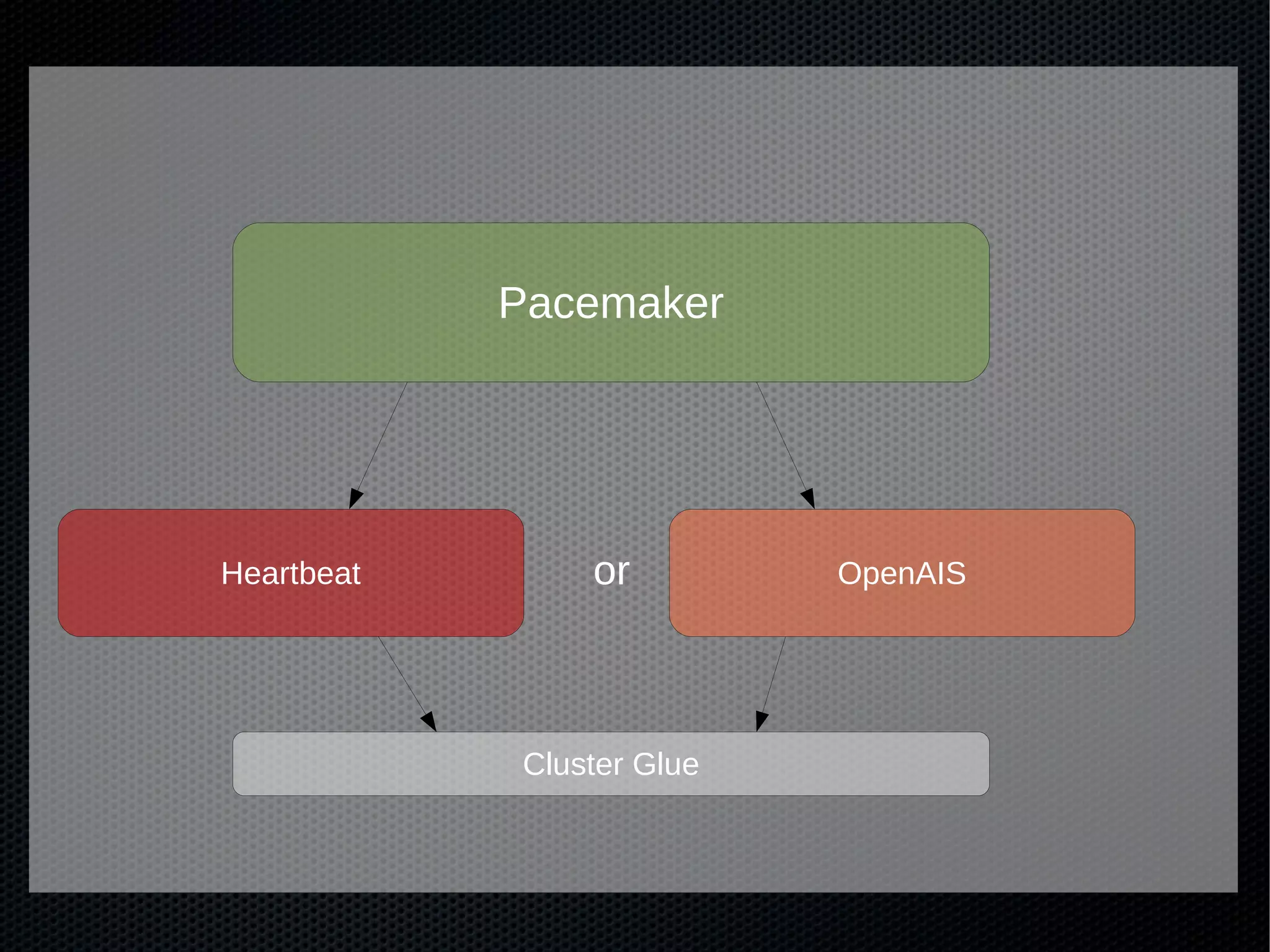

Pacemaker




Heartbeat       or         OpenAIS




            Cluster Glue
●   Stonithd : The Heartbeat fencing

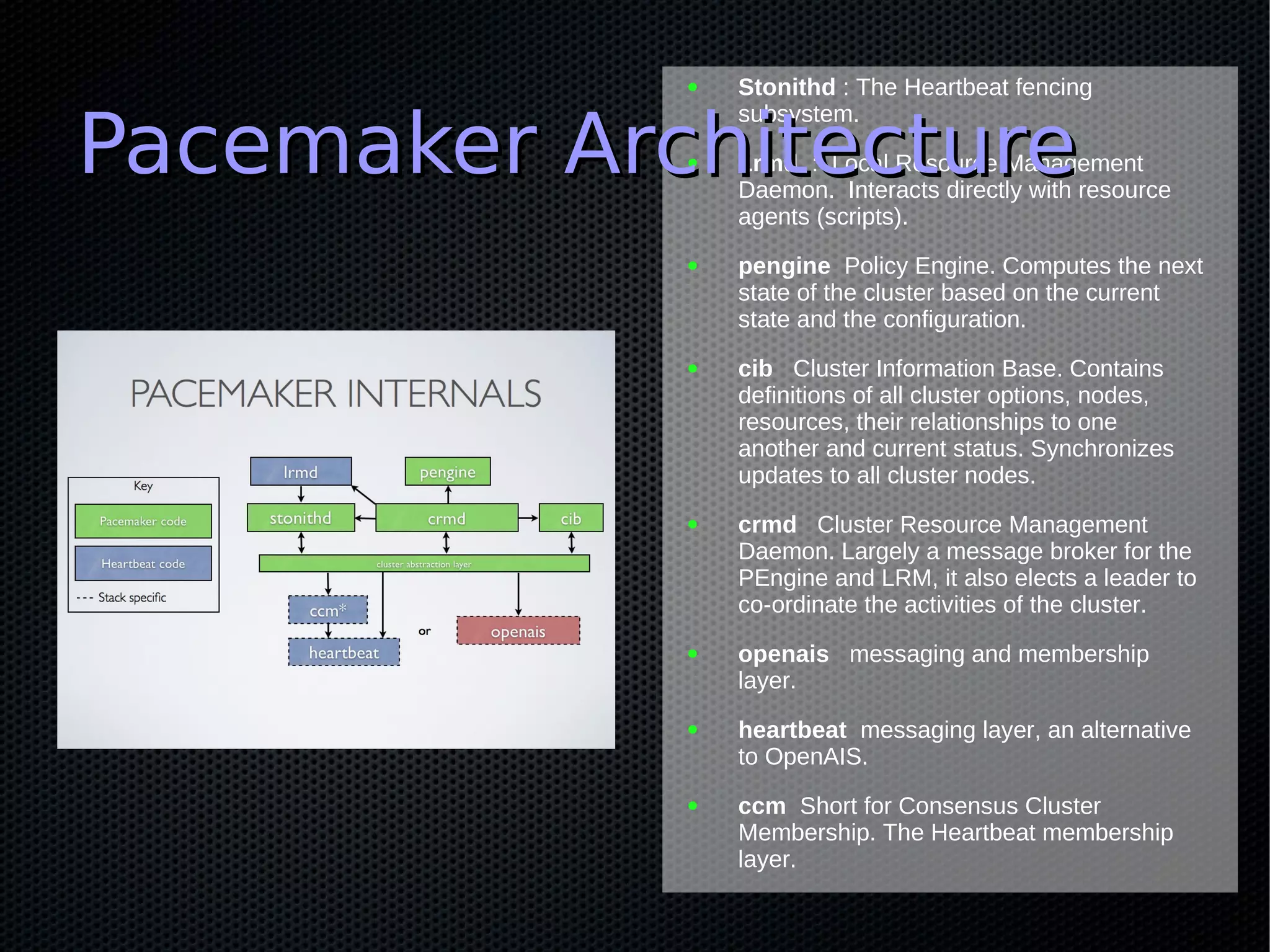

Pacemaker Architecture
                 subsystem.
             ●   Lrmd : Local Resource Management
                 Daemon. Interacts directly with resource
                 agents (scripts).
             ●   pengine Policy Engine. Computes the next
                 state of the cluster based on the current
                 state and the configuration.
             ●   cib Cluster Information Base. Contains
                 definitions of all cluster options, nodes,
                 resources, their relationships to one
                 another and current status. Synchronizes
                 updates to all cluster nodes.
             ●   crmd Cluster Resource Management
                 Daemon. Largely a message broker for the
                 PEngine and LRM, it also elects a leader to
                 co-ordinate the activities of the cluster.
             ●   openais messaging and membership
                 layer.
             ●   heartbeat messaging layer, an alternative
                 to OpenAIS.
             ●   ccm Short for Consensus Cluster
                 Membership. The Heartbeat membership
                 layer.

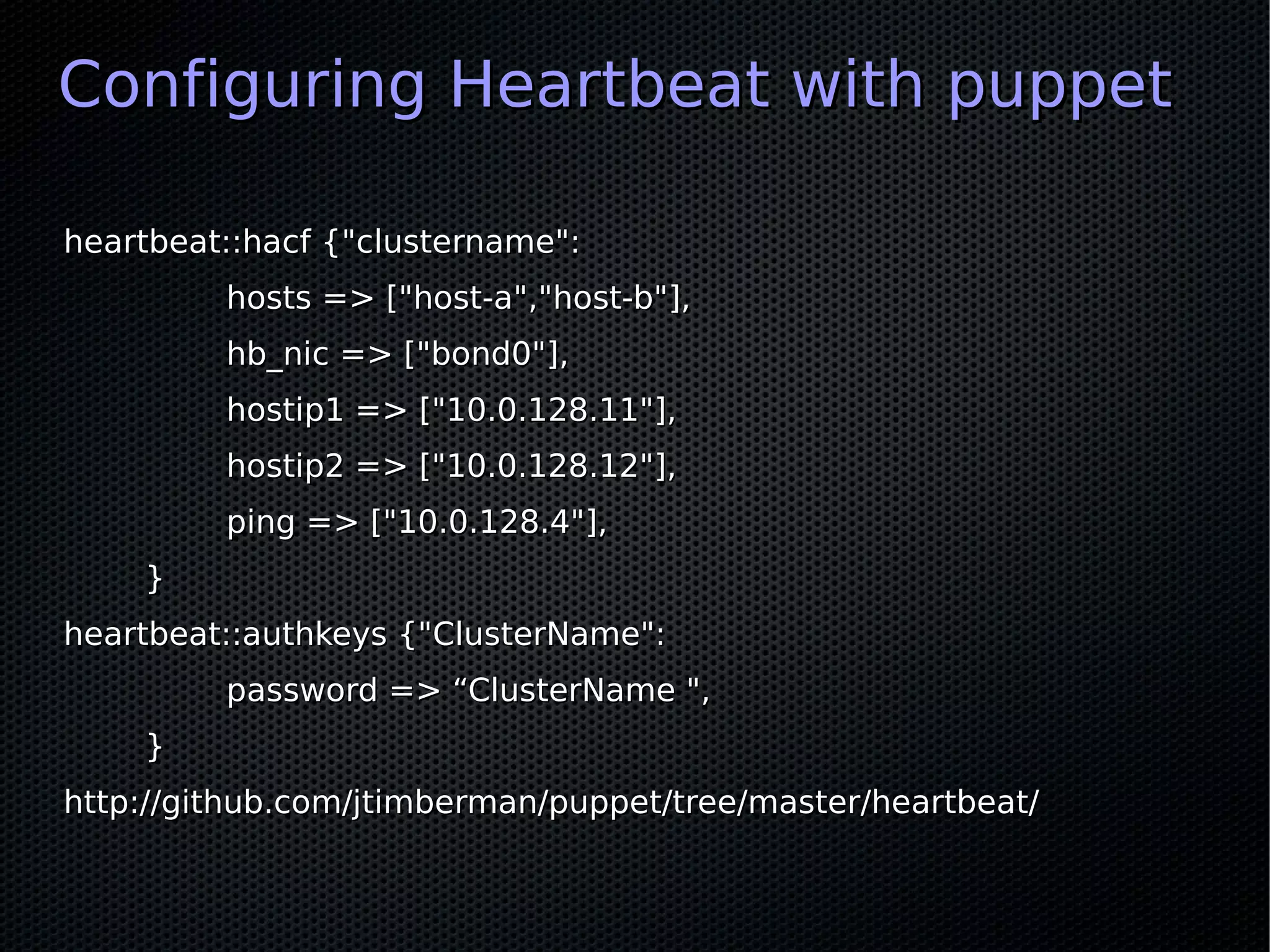

Configuring Heartbeat with puppet

heartbeat::hacf {"clustername":
         hosts => ["host-a","host-b"],
         hb_nic => ["bond0"],
         hostip1 => ["10.0.128.11"],
         hostip2 => ["10.0.128.12"],
         ping => ["10.0.128.4"],
    }
heartbeat::authkeys {"ClusterName":
         password => “ClusterName ",
    }
http://github.com/jtimberman/puppet/tree/master/heartbeat/

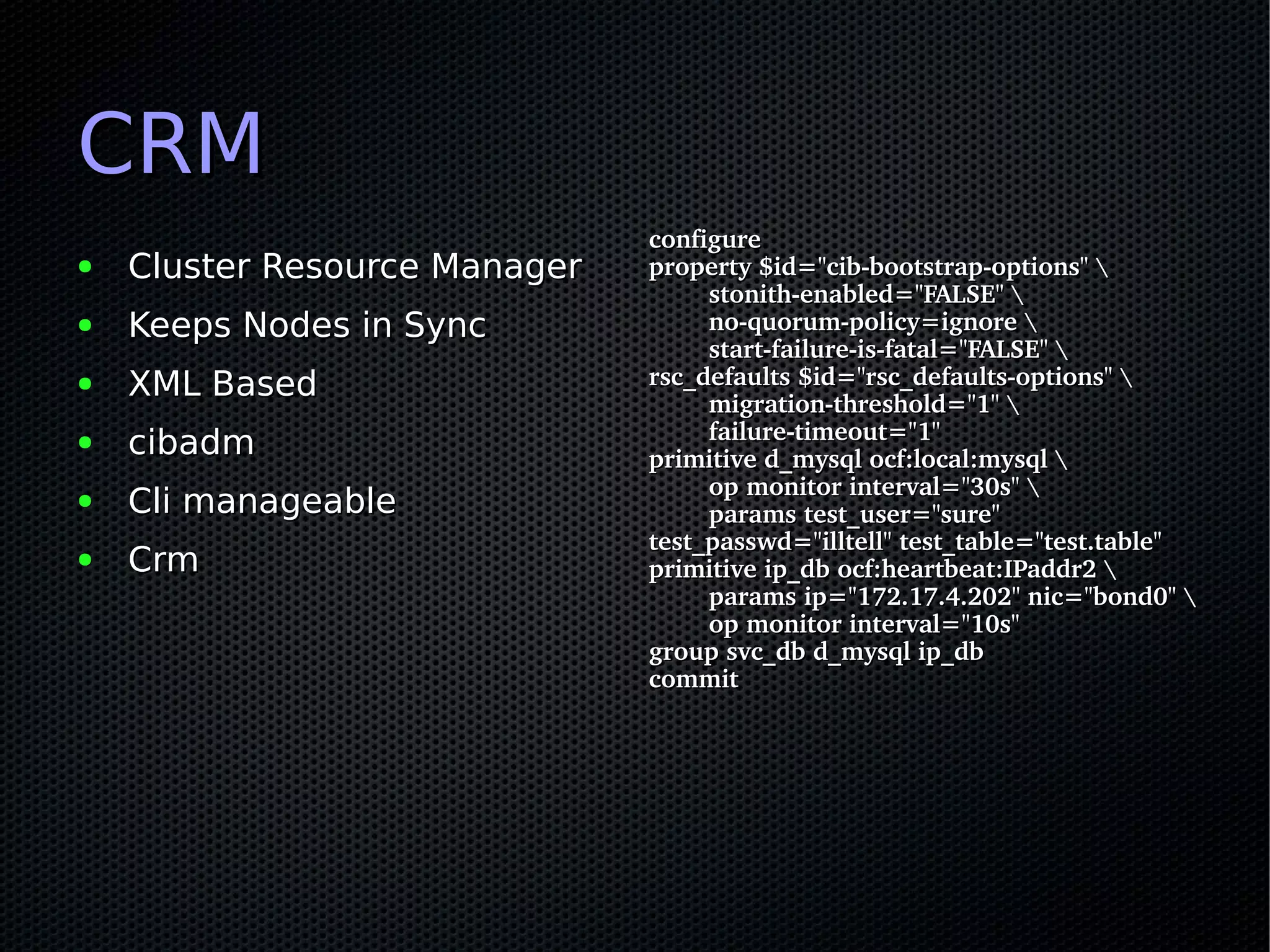

CRM
                               configure
●   Cluster Resource Manager   property $id="cib­bootstrap­options"
                                       stonith­enabled="FALSE"
●   Keeps Nodes in Sync                no­quorum­policy=ignore
                                       start­failure­is­fatal="FALSE"
●   XML Based                  rsc_defaults $id="rsc_defaults­options"
                                       migration­threshold="1"
                                       failure­timeout="1"
●   cibadm                     primitive d_mysql ocf:local:mysql
                                       op monitor interval="30s"
●   Cli manageable                     params test_user="sure"
                               test_passwd="illtell" test_table="test.table"
●   Crm                        primitive ip_db ocf:heartbeat:IPaddr2
                                       params ip="172.17.4.202" nic="bond0"
                                       op monitor interval="10s"
                               group svc_db d_mysql ip_db
                               commit

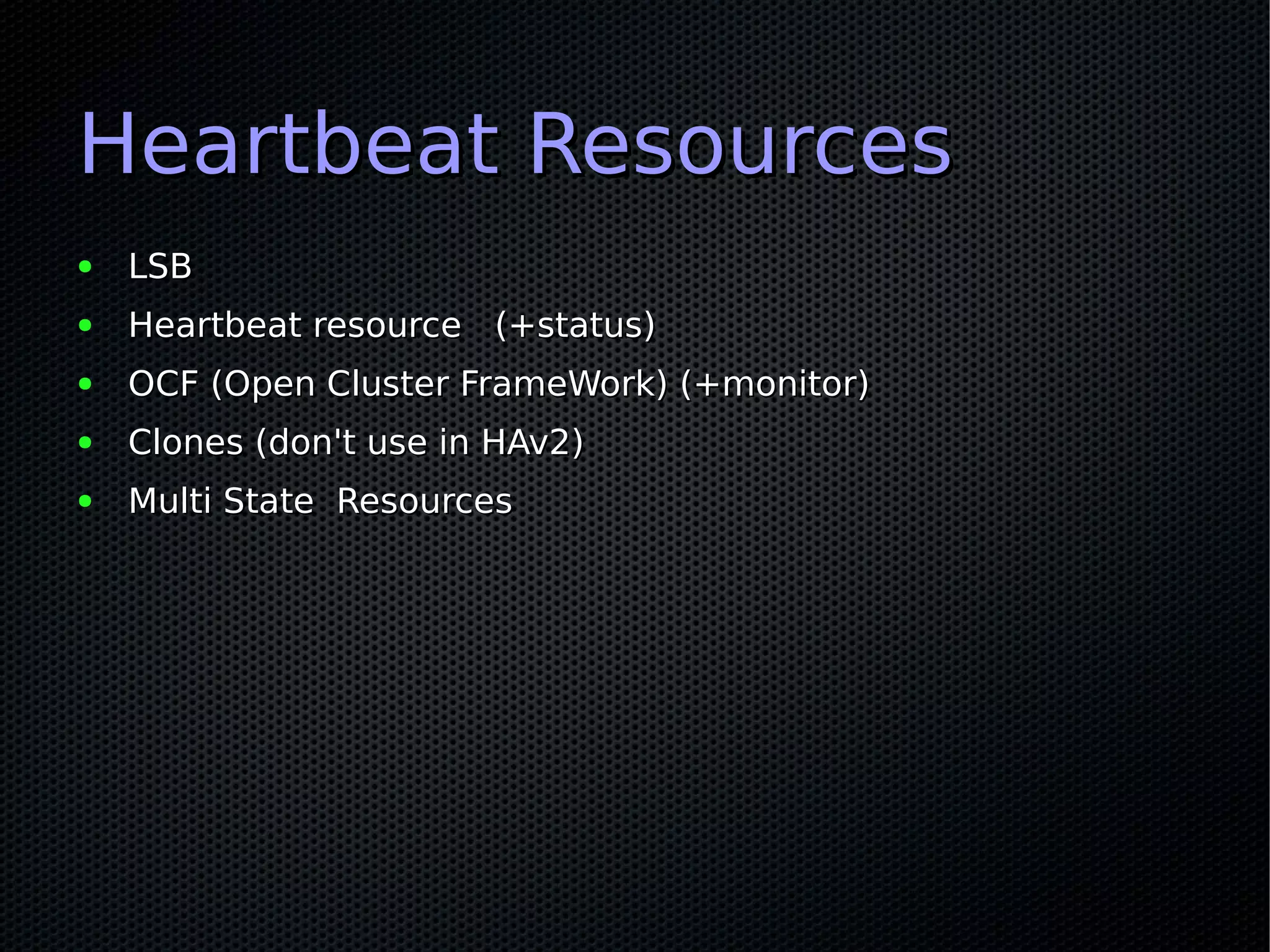

Heartbeat Resources
●   LSB
●   Heartbeat resource (+status)
●   OCF (Open Cluster FrameWork) (+monitor)
●   Clones (don't use in HAv2)
●   Multi State Resources

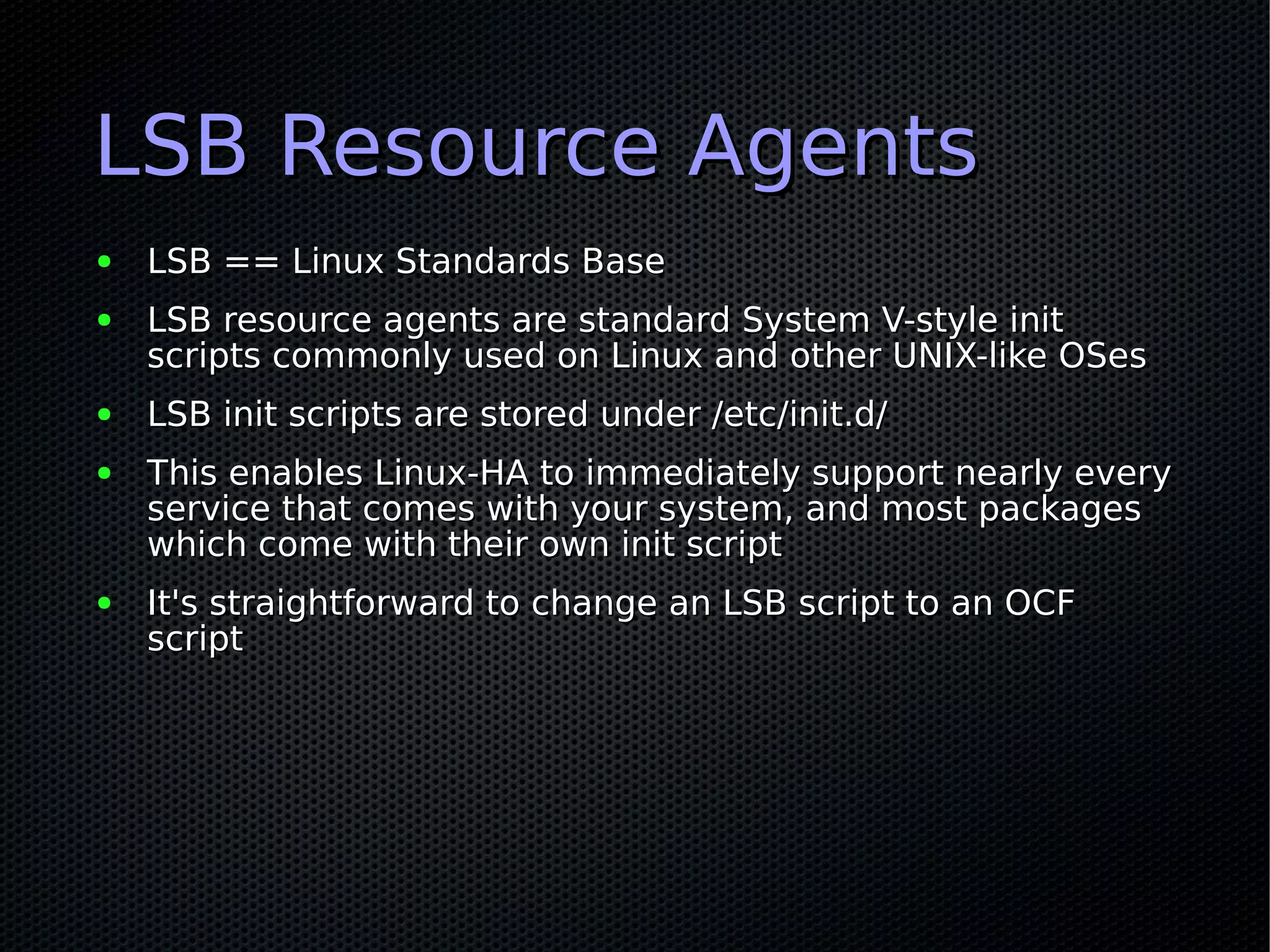

LSB Resource Agents
●   LSB == Linux Standards Base
●   LSB resource agents are standard System V-style init
    scripts commonly used on Linux and other UNIX-like OSes
●   LSB init scripts are stored under /etc/init.d/
●   This enables Linux-HA to immediately support nearly every
    service that comes with your system, and most packages
    which come with their own init script
●   It's straightforward to change an LSB script to an OCF
    script

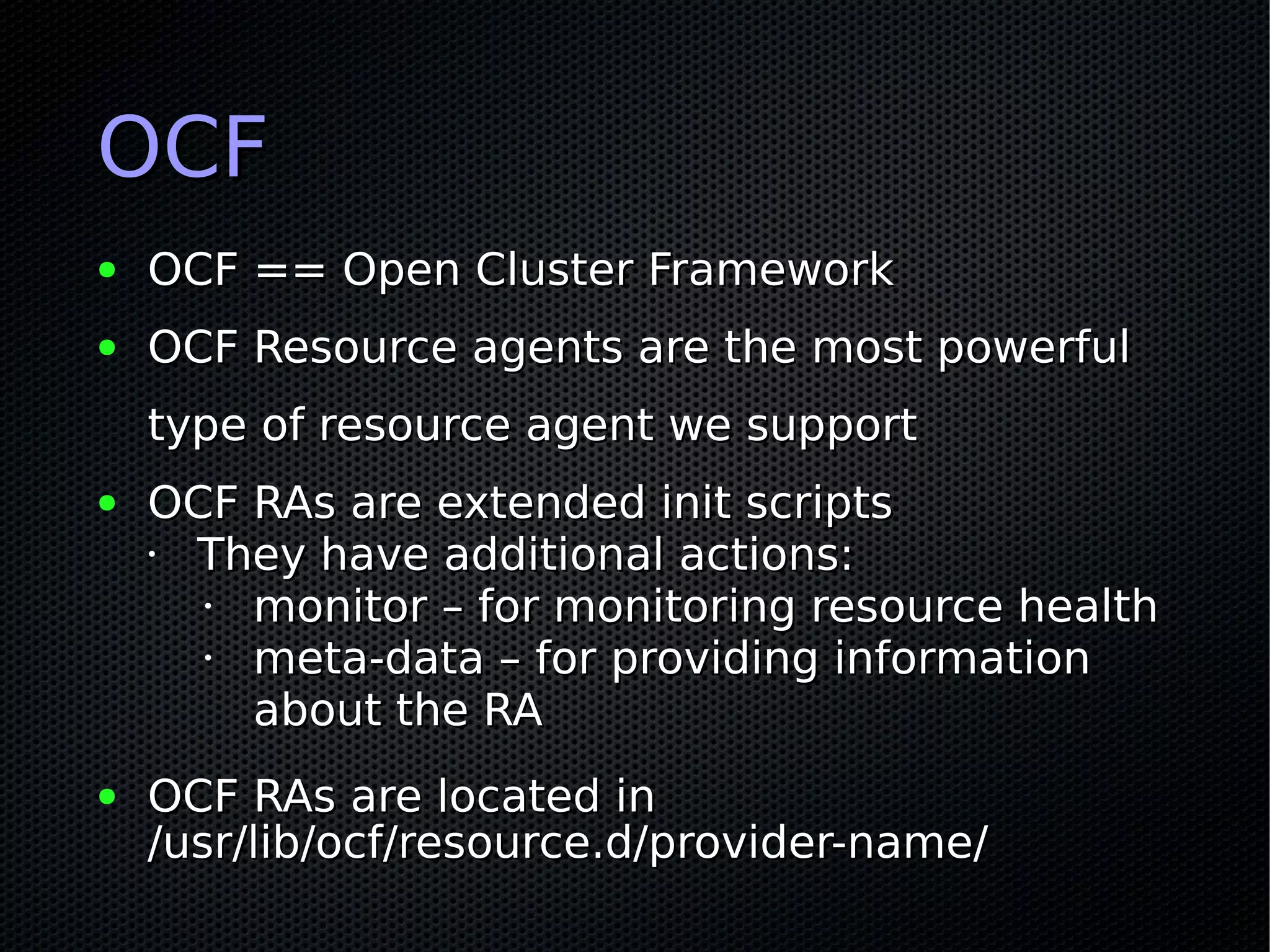

OCF
●   OCF == Open Cluster Framework
●   OCF Resource agents are the most powerful
    type of resource agent we support
●   OCF RAs are extended init scripts
    • They have additional actions:
      • monitor – for monitoring resource health
      • meta-data – for providing information
        about the RA
●   OCF RAs are located in
    /usr/lib/ocf/resource.d/provider-name/

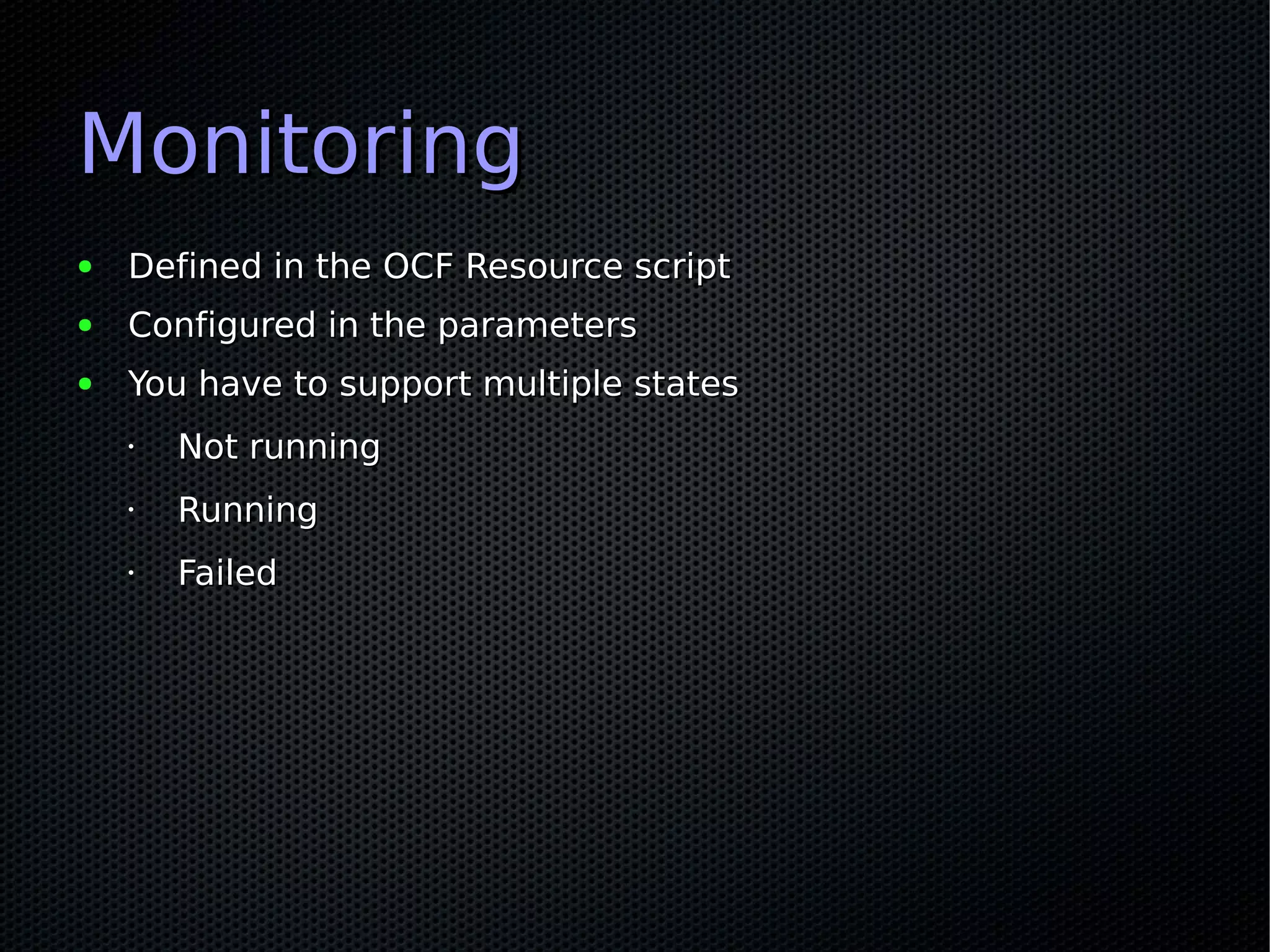

Monitoring
●   Defined in the OCF Resource script
●   Configured in the parameters
●   You have to support multiple states
    •   Not running
    •   Running
    •   Failed

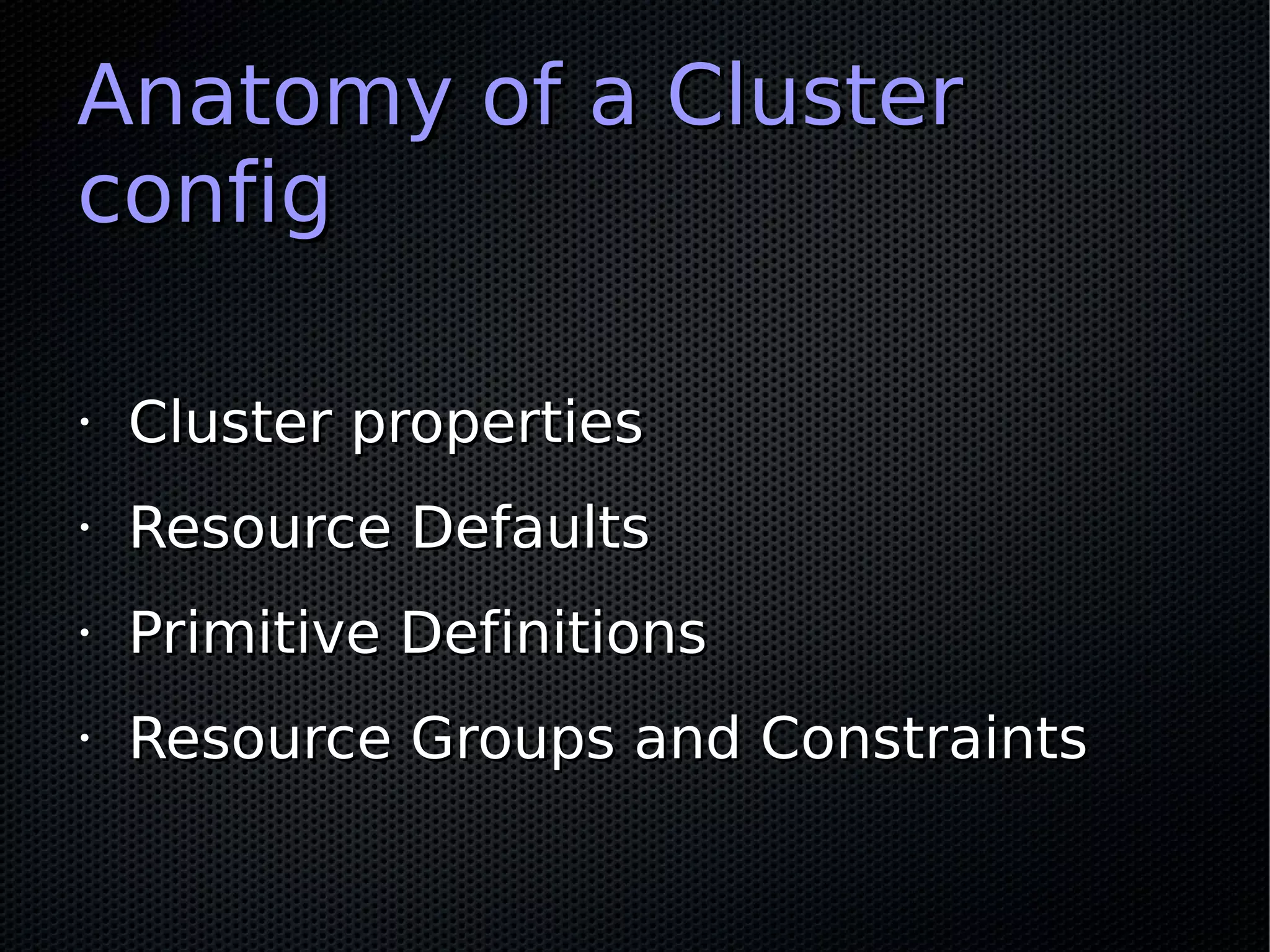

Anatomy of a Cluster
config

•   Cluster properties
•   Resource Defaults
•   Primitive Definitions
•   Resource Groups and Constraints

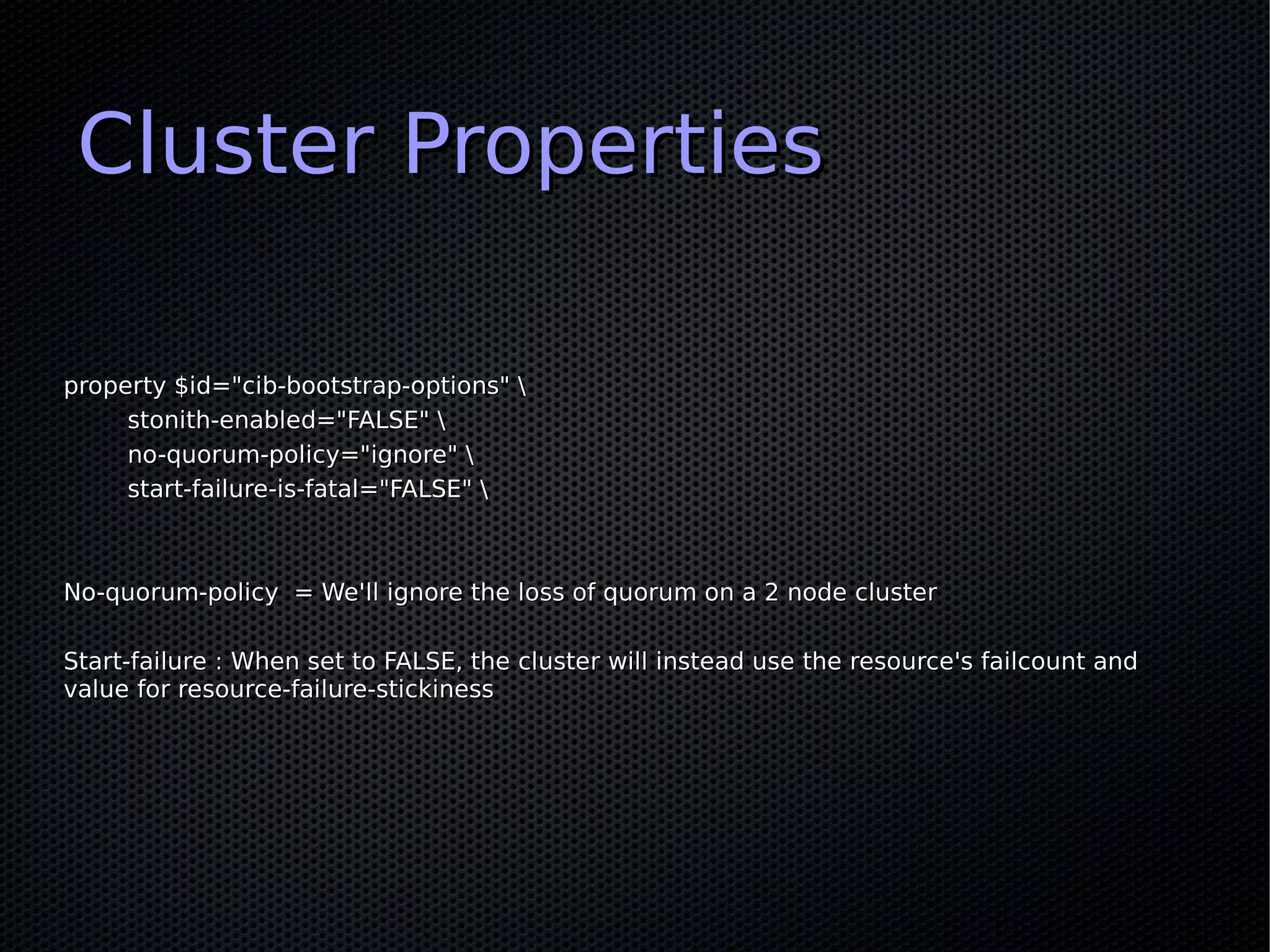

Cluster Properties

property $id="cib-bootstrap-options"
     stonith-enabled="FALSE"
     no-quorum-policy="ignore"
     start-failure-is-fatal="FALSE"



No-quorum-policy = We'll ignore the loss of quorum on a 2 node cluster

Start-failure : When set to FALSE, the cluster will instead use the resource's failcount and
value for resource-failure-stickiness

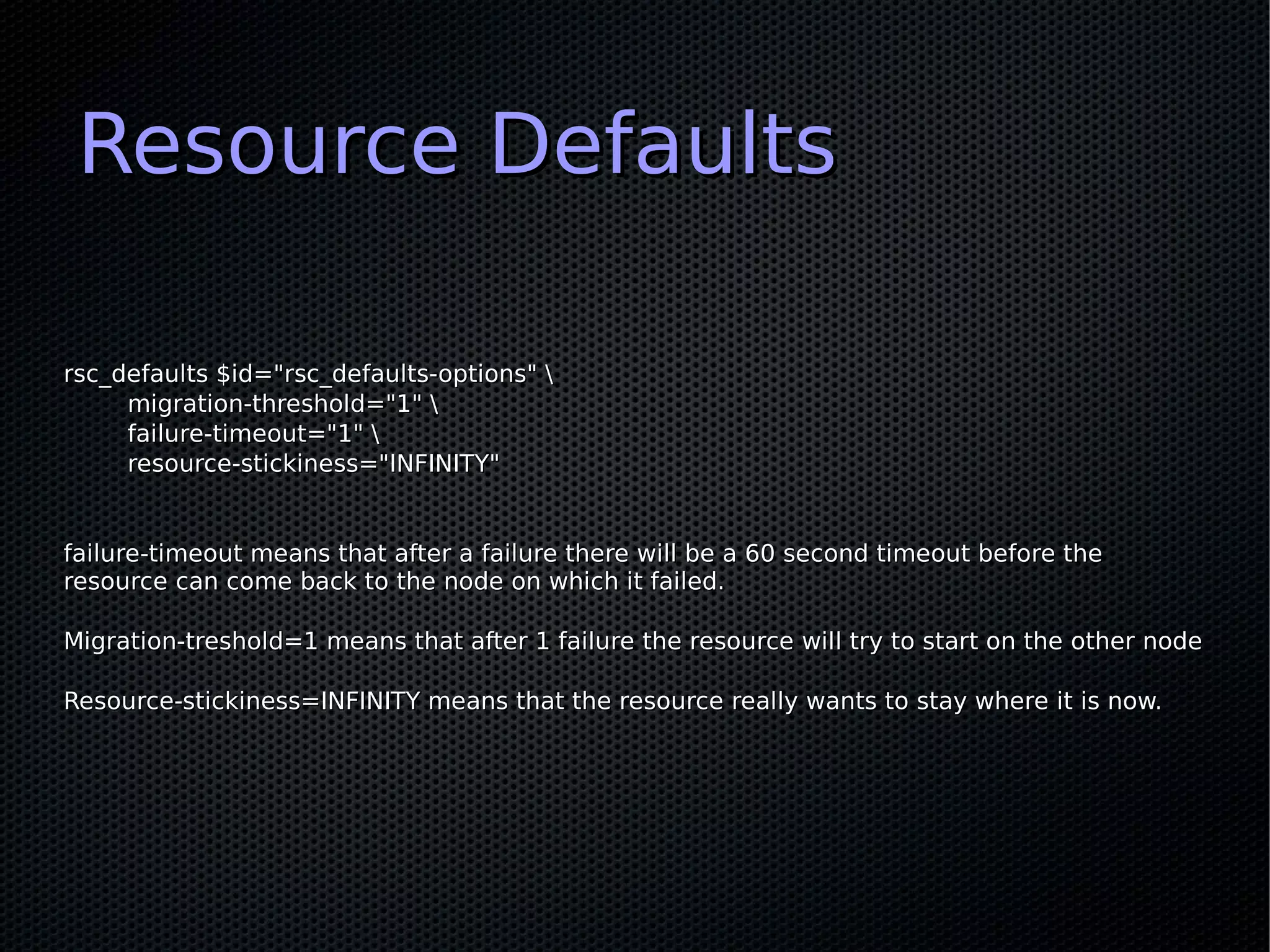

Resource Defaults

rsc_defaults $id="rsc_defaults-options"
     migration-threshold="1"
     failure-timeout="1"
     resource-stickiness="INFINITY"


failure-timeout means that after a failure there will be a 60 second timeout before the
resource can come back to the node on which it failed.

Migration-treshold=1 means that after 1 failure the resource will try to start on the other node

Resource-stickiness=INFINITY means that the resource really wants to stay where it is now.

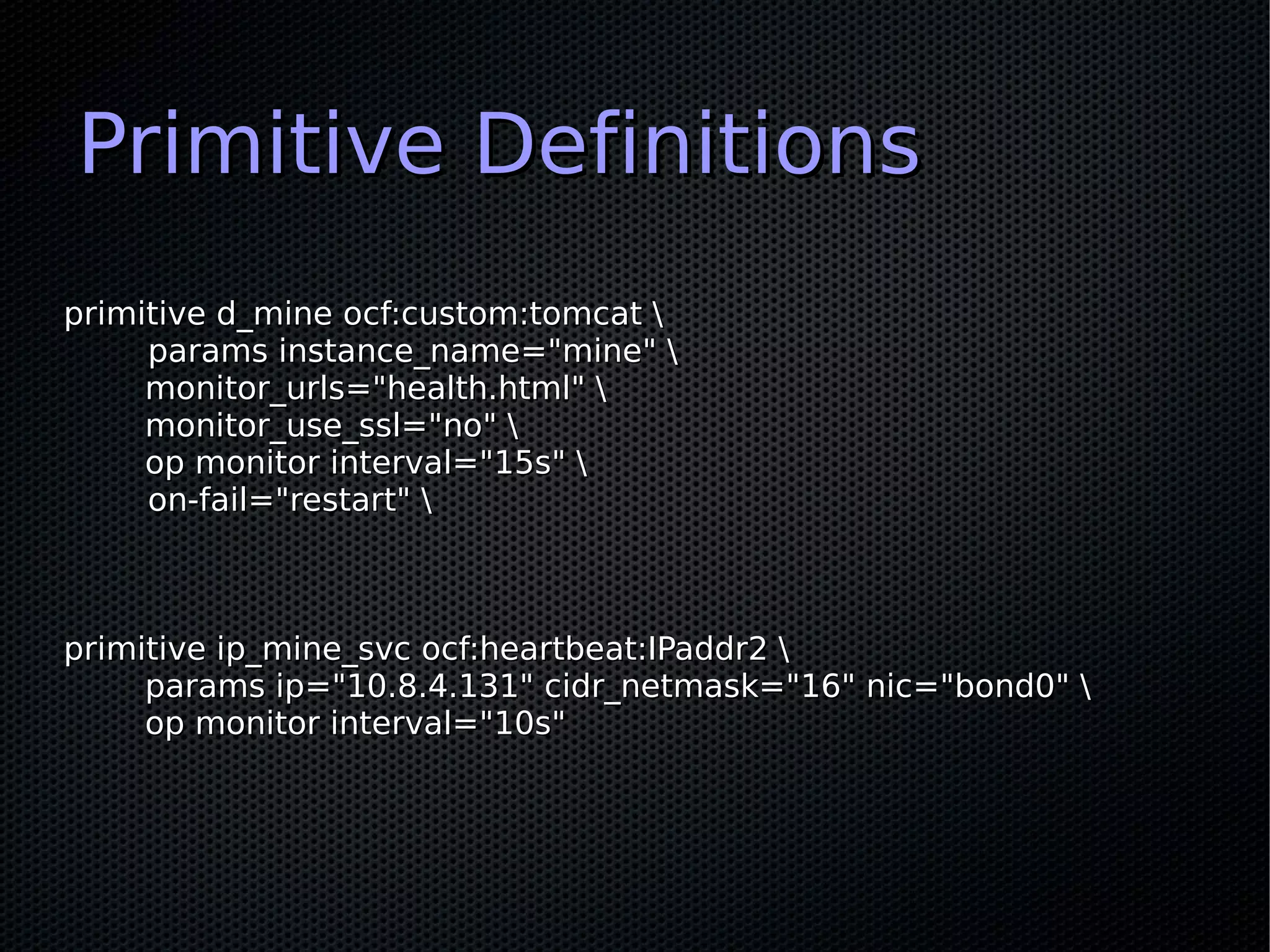

Primitive Definitions
primitive d_mine ocf:custom:tomcat
     params instance_name="mine"
     monitor_urls="health.html"
     monitor_use_ssl="no"
     op monitor interval="15s"
     on-fail="restart"



primitive ip_mine_svc ocf:heartbeat:IPaddr2
     params ip="10.8.4.131" cidr_netmask="16" nic="bond0"
     op monitor interval="10s"

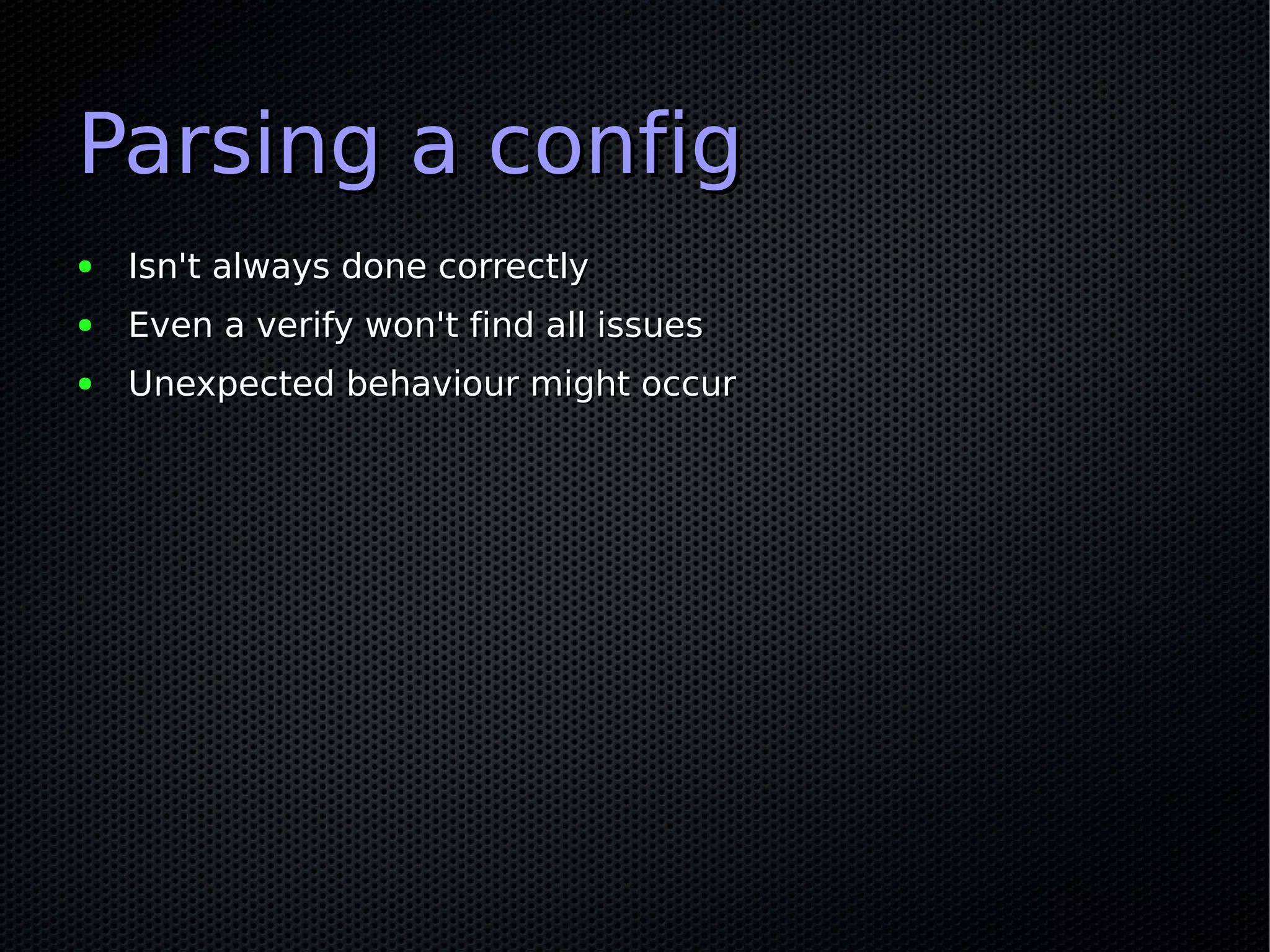

Parsing a config
●   Isn't always done correctly
●   Even a verify won't find all issues
●   Unexpected behaviour might occur

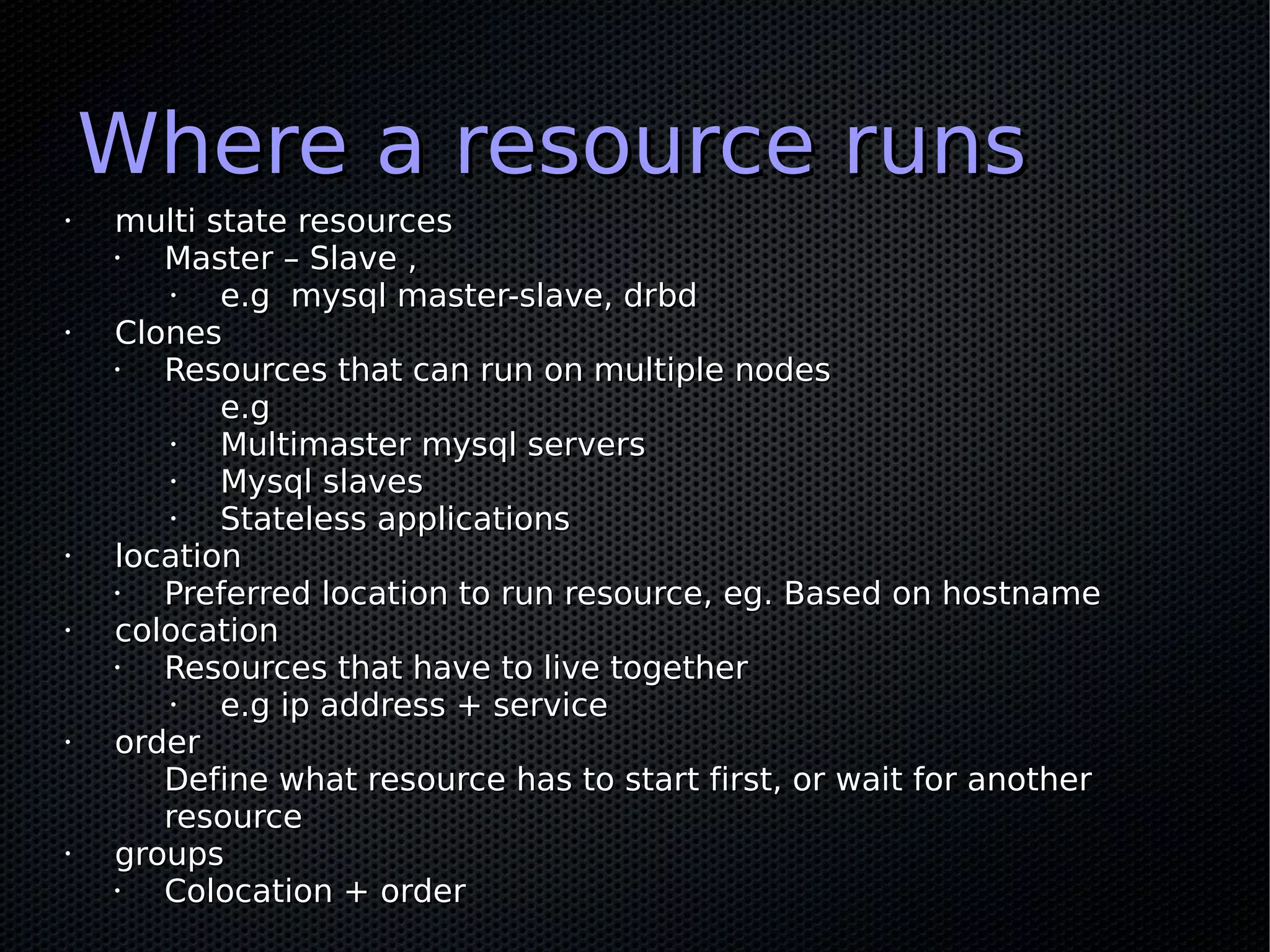

Where a resource runs
•   multi state resources
    •  Master – Slave ,
       •   e.g mysql master-slave, drbd
•   Clones
    •  Resources that can run on multiple nodes
           e.g
       •   Multimaster mysql servers
       •   Mysql slaves
       •   Stateless applications
•   location
    •  Preferred location to run resource, eg. Based on hostname
•   colocation
    •  Resources that have to live together
       •   e.g ip address + service
•   order
       Define what resource has to start first, or wait for another
       resource
•   groups
    •  Colocation + order

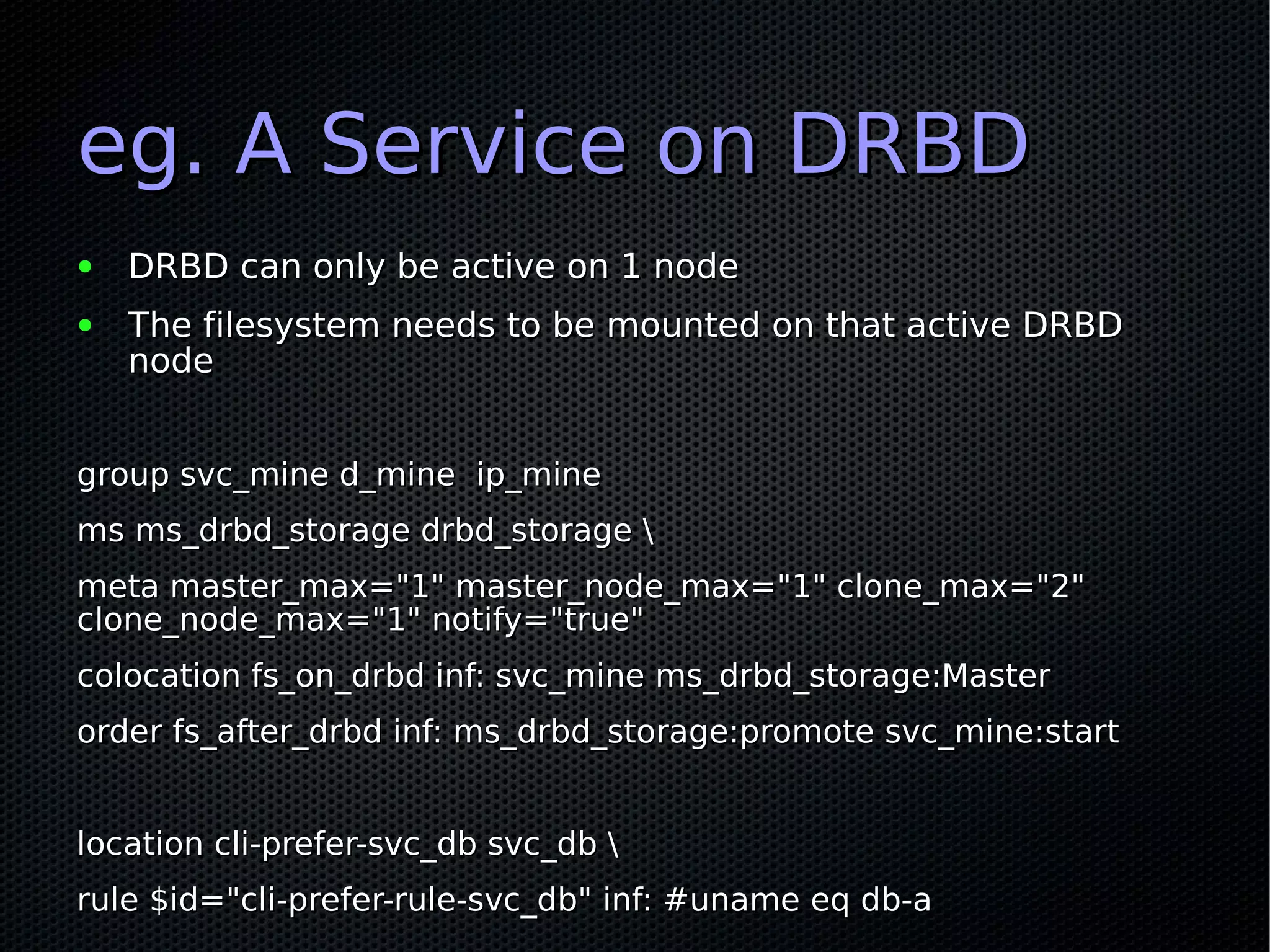

eg. A Service on DRBD
●   DRBD can only be active on 1 node
●   The filesystem needs to be mounted on that active DRBD
    node


group svc_mine d_mine ip_mine
ms ms_drbd_storage drbd_storage
meta master_max="1" master_node_max="1" clone_max="2"
clone_node_max="1" notify="true"
colocation fs_on_drbd inf: svc_mine ms_drbd_storage:Master
order fs_after_drbd inf: ms_drbd_storage:promote svc_mine:start


location cli-prefer-svc_db svc_db
rule $id="cli-prefer-rule-svc_db" inf: #uname eq db-a

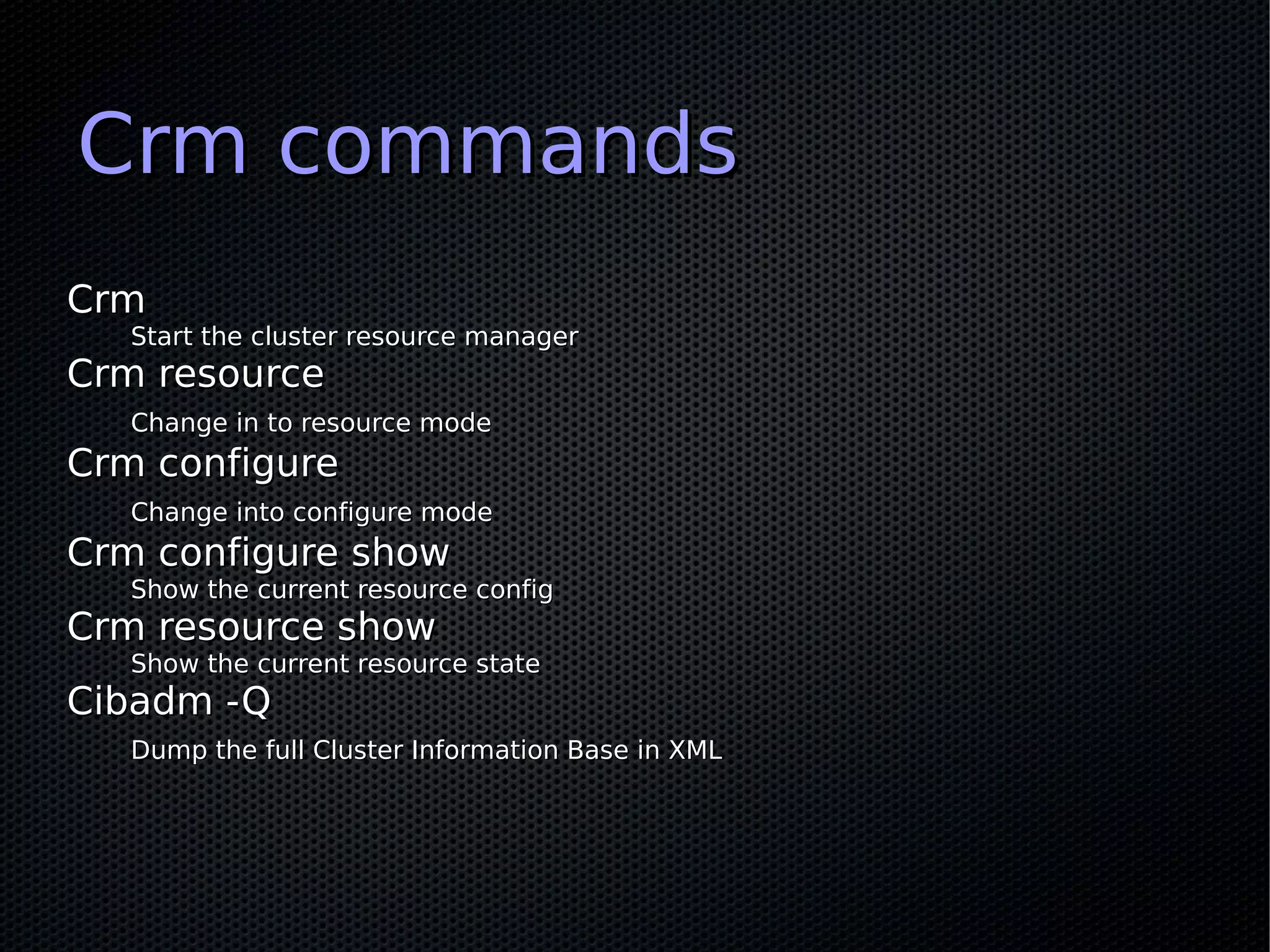

Crm commands
Crm
   Start the cluster resource manager
Crm resource
   Change in to resource mode
Crm configure
   Change into configure mode
Crm configure show
   Show the current resource config
Crm resource show
   Show the current resource state
Cibadm -Q
   Dump the full Cluster Information Base in XML

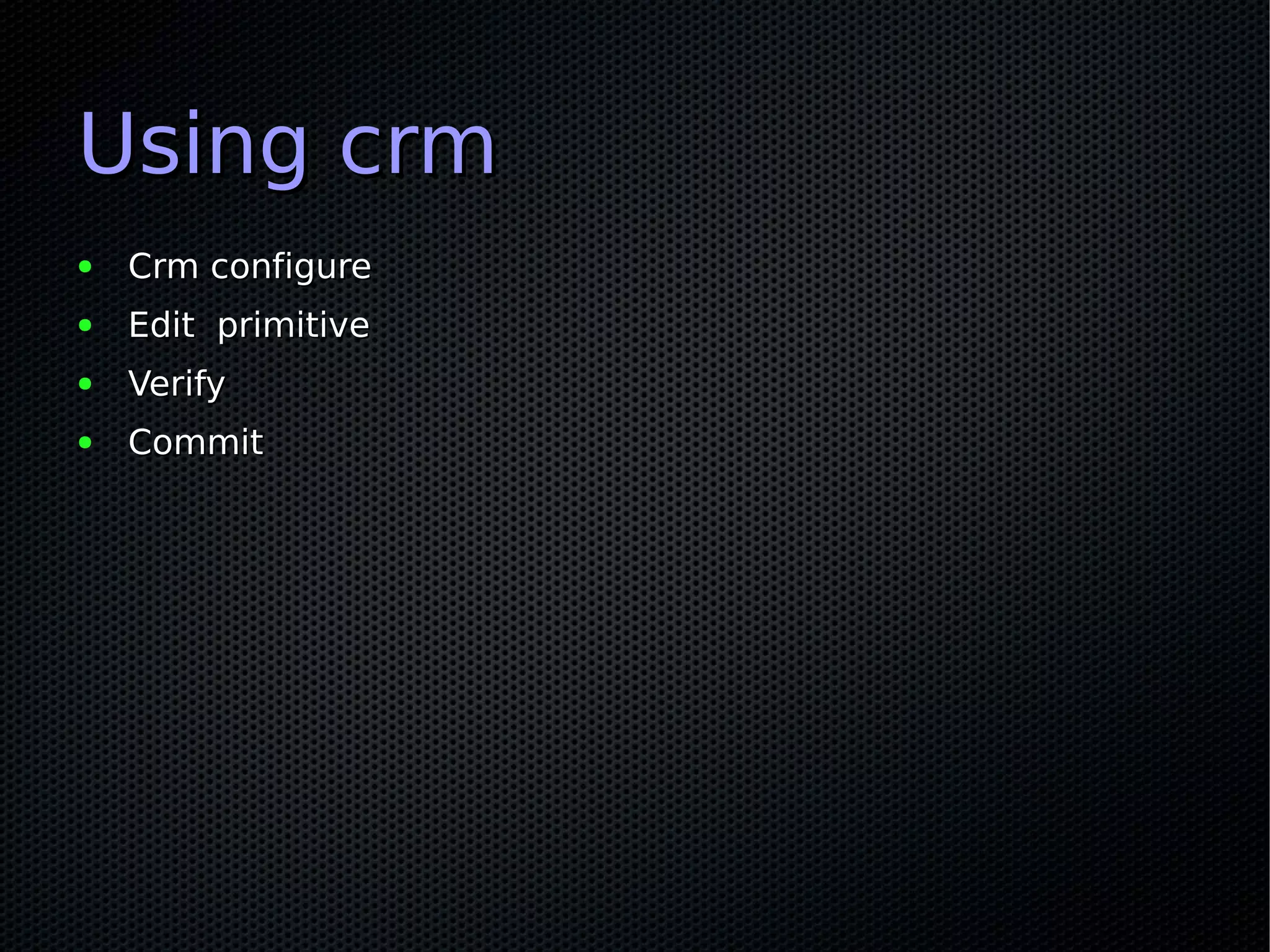

Using crm
●   Crm configure
●   Edit primitive
●   Verify
●   Commit

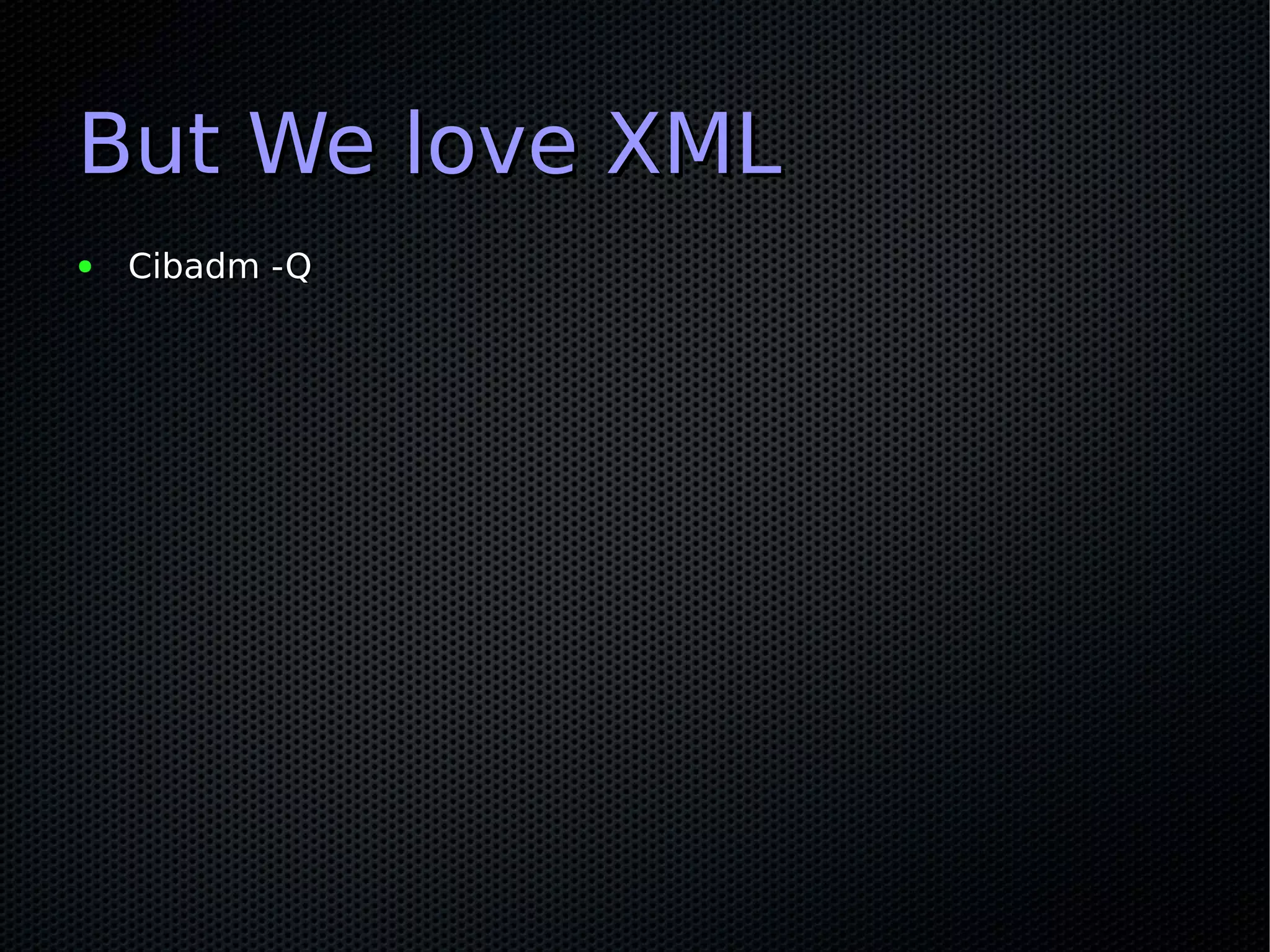

But We love XML
●   Cibadm -Q

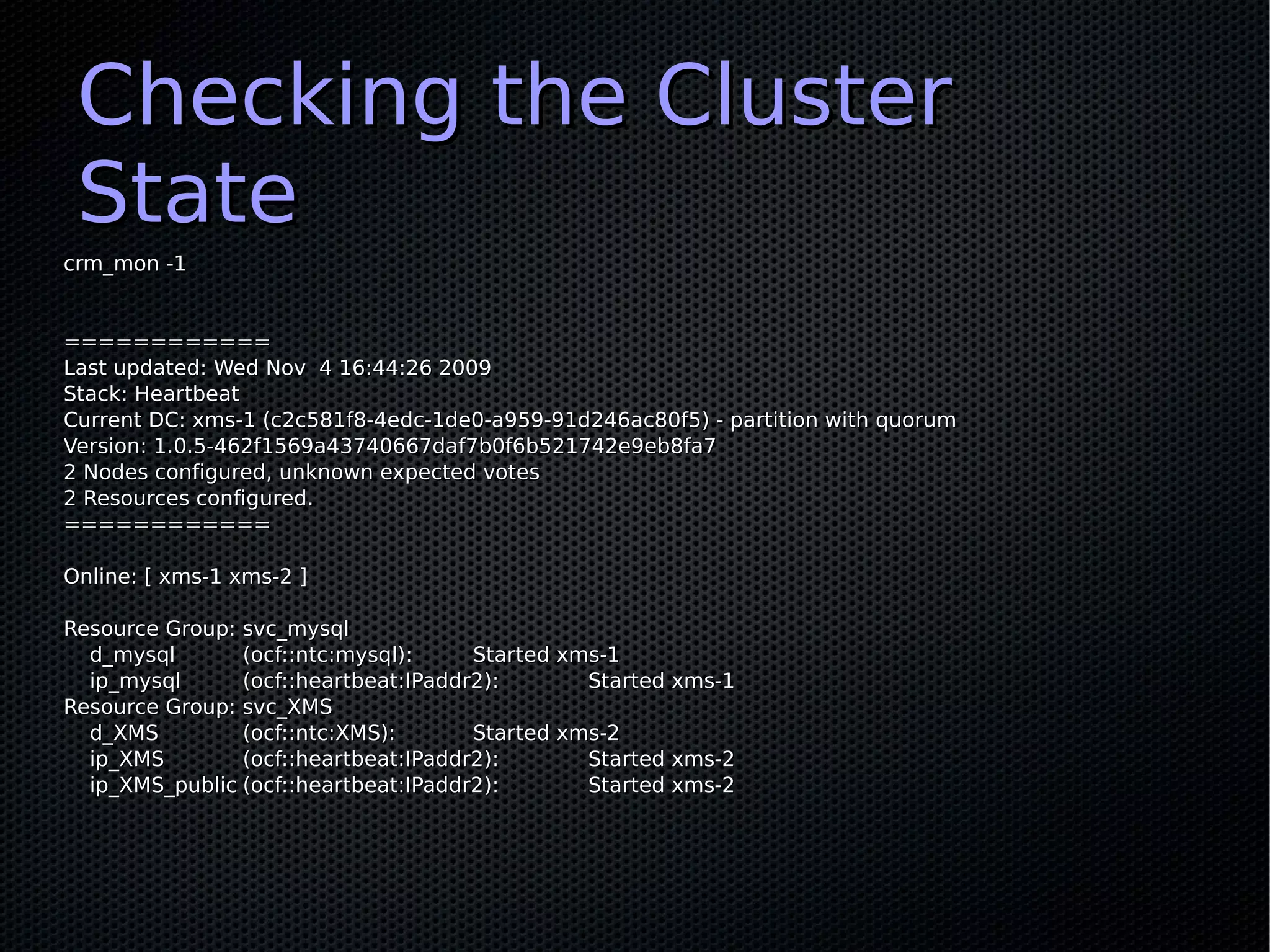

Checking the Cluster
 State
crm_mon -1


============
Last updated: Wed Nov 4 16:44:26 2009
Stack: Heartbeat
Current DC: xms-1 (c2c581f8-4edc-1de0-a959-91d246ac80f5) - partition with quorum
Version: 1.0.5-462f1569a43740667daf7b0f6b521742e9eb8fa7
2 Nodes configured, unknown expected votes
2 Resources configured.
============

Online: [ xms-1 xms-2 ]

Resource Group: svc_mysql
  d_mysql       (ocf::ntc:mysql):     Started xms-1
  ip_mysql      (ocf::heartbeat:IPaddr2):       Started xms-1
Resource Group: svc_XMS
  d_XMS         (ocf::ntc:XMS):       Started xms-2
  ip_XMS        (ocf::heartbeat:IPaddr2):       Started xms-2
  ip_XMS_public (ocf::heartbeat:IPaddr2):       Started xms-2

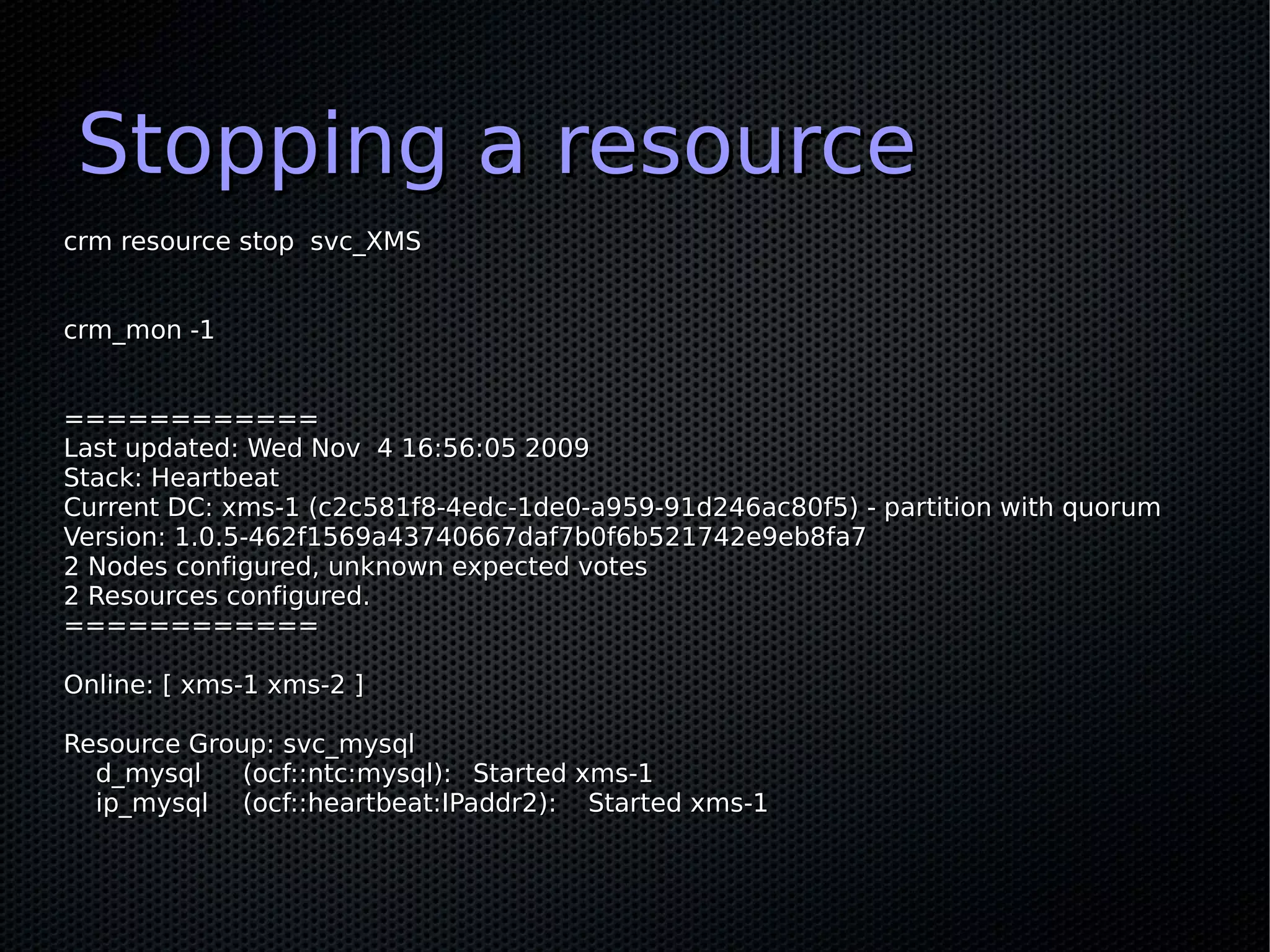

Stopping a resource
crm resource stop svc_XMS


crm_mon -1


============
Last updated: Wed Nov 4 16:56:05 2009
Stack: Heartbeat
Current DC: xms-1 (c2c581f8-4edc-1de0-a959-91d246ac80f5) - partition with quorum
Version: 1.0.5-462f1569a43740667daf7b0f6b521742e9eb8fa7
2 Nodes configured, unknown expected votes
2 Resources configured.
============

Online: [ xms-1 xms-2 ]

Resource Group: svc_mysql
  d_mysql    (ocf::ntc:mysql): Started xms-1
  ip_mysql (ocf::heartbeat:IPaddr2): Started xms-1

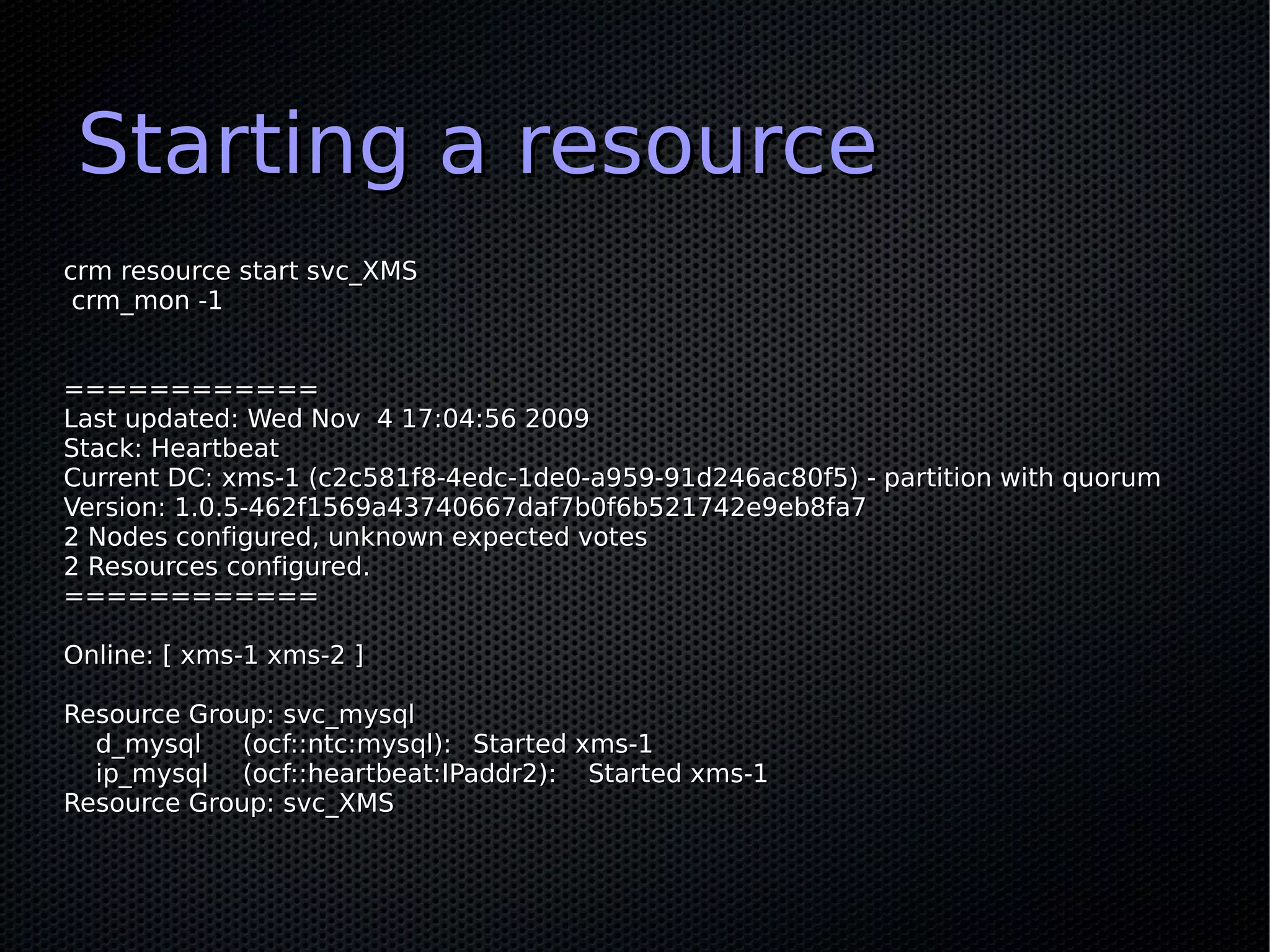

Starting a resource
crm resource start svc_XMS
 crm_mon -1


============
Last updated: Wed Nov 4 17:04:56 2009
Stack: Heartbeat
Current DC: xms-1 (c2c581f8-4edc-1de0-a959-91d246ac80f5) - partition with quorum
Version: 1.0.5-462f1569a43740667daf7b0f6b521742e9eb8fa7
2 Nodes configured, unknown expected votes
2 Resources configured.
============

Online: [ xms-1 xms-2 ]

Resource Group: svc_mysql
  d_mysql    (ocf::ntc:mysql): Started xms-1
  ip_mysql (ocf::heartbeat:IPaddr2): Started xms-1
Resource Group: svc_XMS

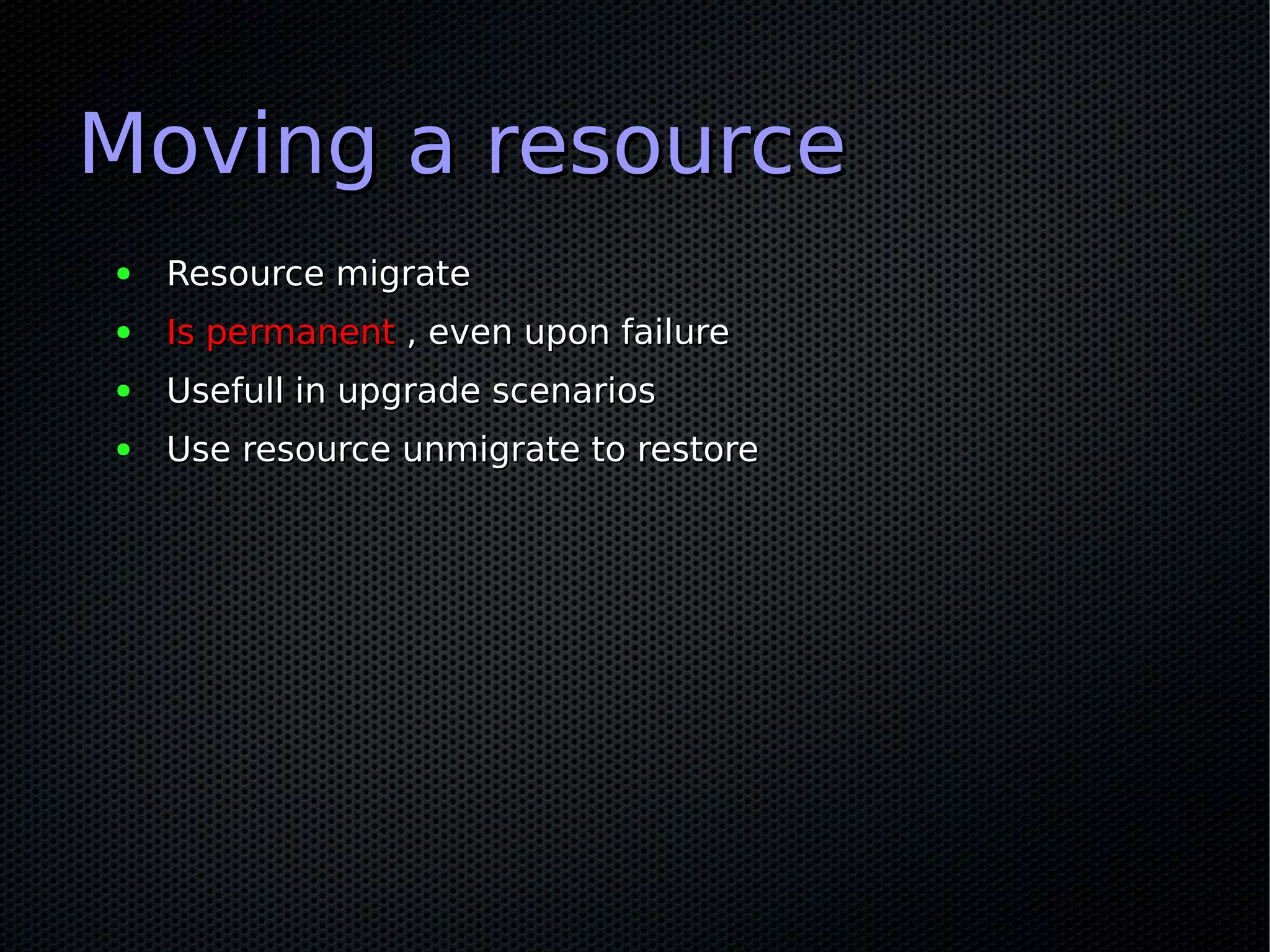

Moving a resource
●   Resource migrate
●   Is permanent , even upon failure
●   Usefull in upgrade scenarios
●   Use resource unmigrate to restore

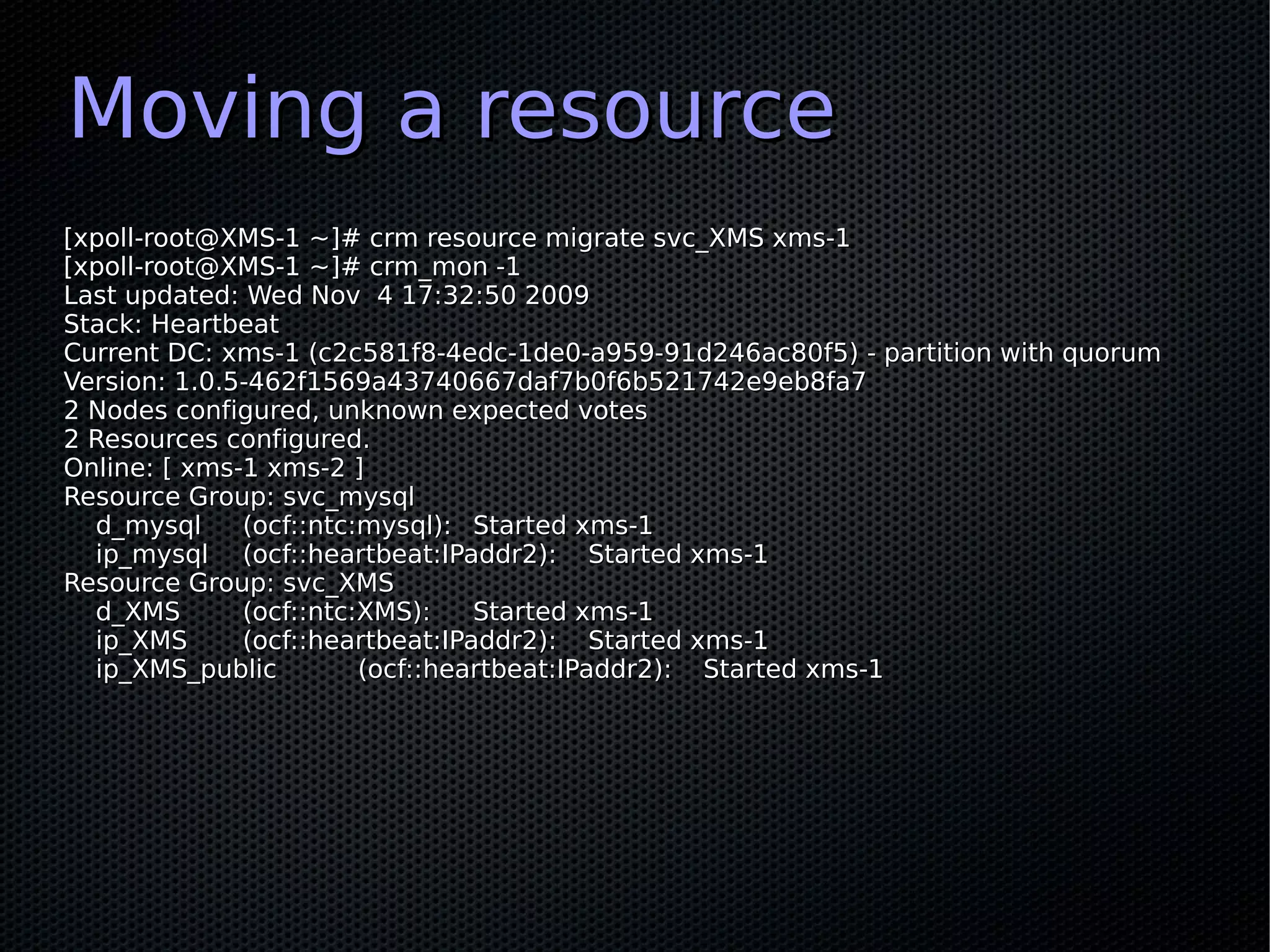

Moving a resource
[xpoll-root@XMS-1 ~]# crm resource migrate svc_XMS xms-1
[xpoll-root@XMS-1 ~]# crm_mon -1
Last updated: Wed Nov 4 17:32:50 2009
Stack: Heartbeat
Current DC: xms-1 (c2c581f8-4edc-1de0-a959-91d246ac80f5) - partition with quorum
Version: 1.0.5-462f1569a43740667daf7b0f6b521742e9eb8fa7
2 Nodes configured, unknown expected votes
2 Resources configured.
Online: [ xms-1 xms-2 ]
Resource Group: svc_mysql
  d_mysql     (ocf::ntc:mysql): Started xms-1
  ip_mysql (ocf::heartbeat:IPaddr2): Started xms-1
Resource Group: svc_XMS
  d_XMS       (ocf::ntc:XMS):    Started xms-1
  ip_XMS      (ocf::heartbeat:IPaddr2): Started xms-1
  ip_XMS_public         (ocf::heartbeat:IPaddr2): Started xms-1

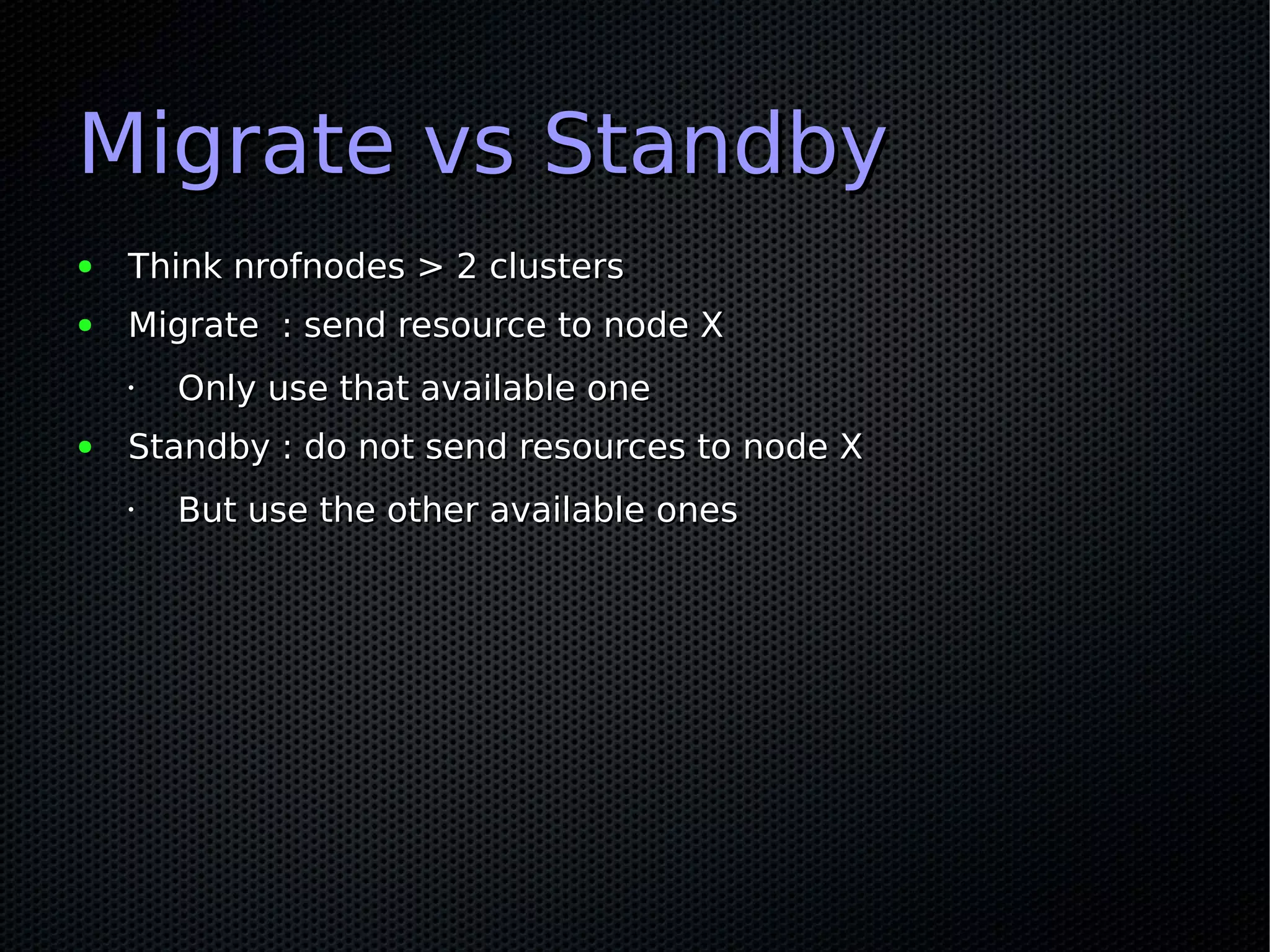

Migrate vs Standby
●   Think nrofnodes > 2 clusters
●   Migrate : send resource to node X
    •   Only use that available one
●   Standby : do not send resources to node X
    •   But use the other available ones

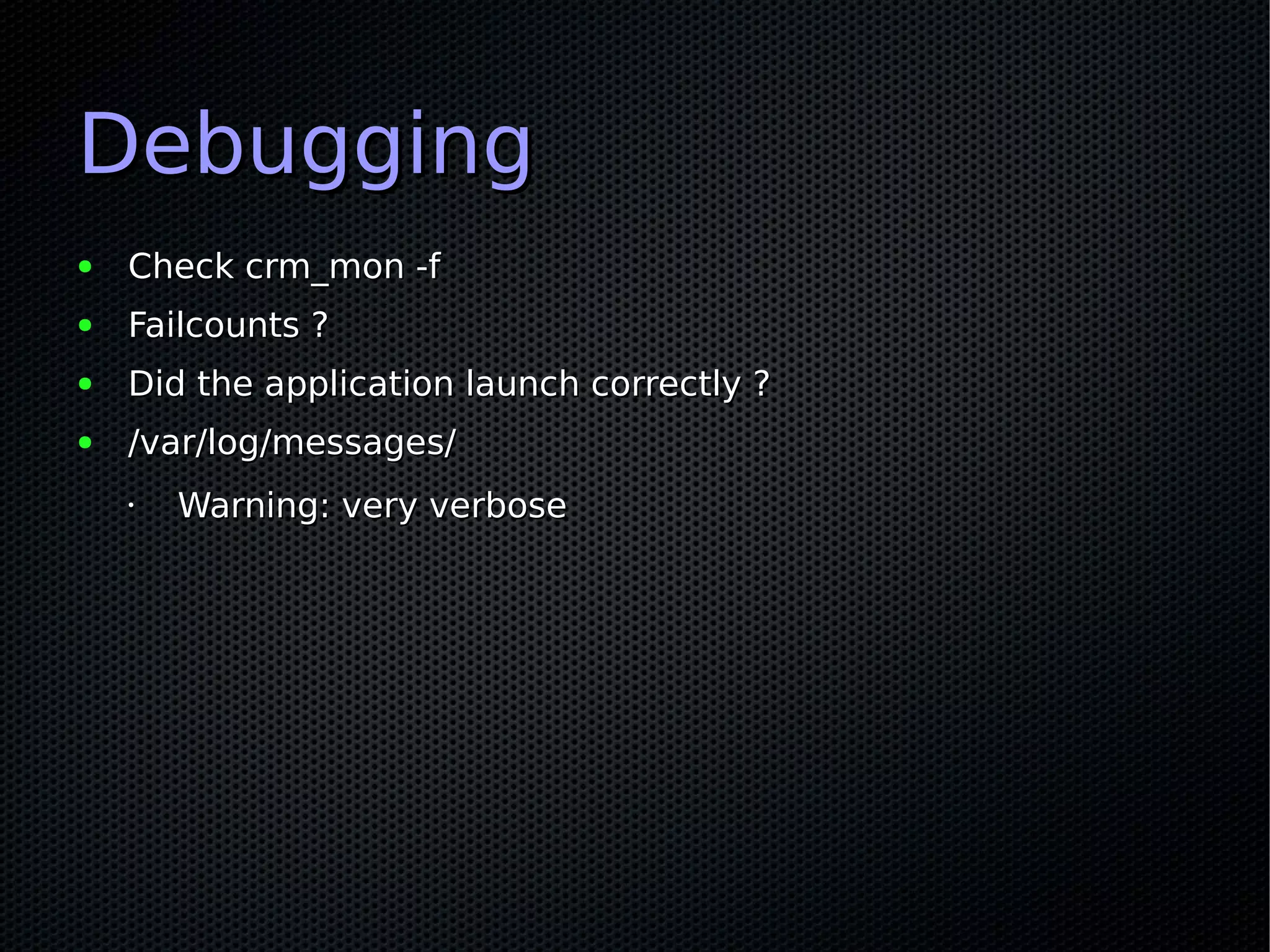

Debugging
●   Check crm_mon -f
●   Failcounts ?
●   Did the application launch correctly ?
●   /var/log/messages/
    •   Warning: very verbose

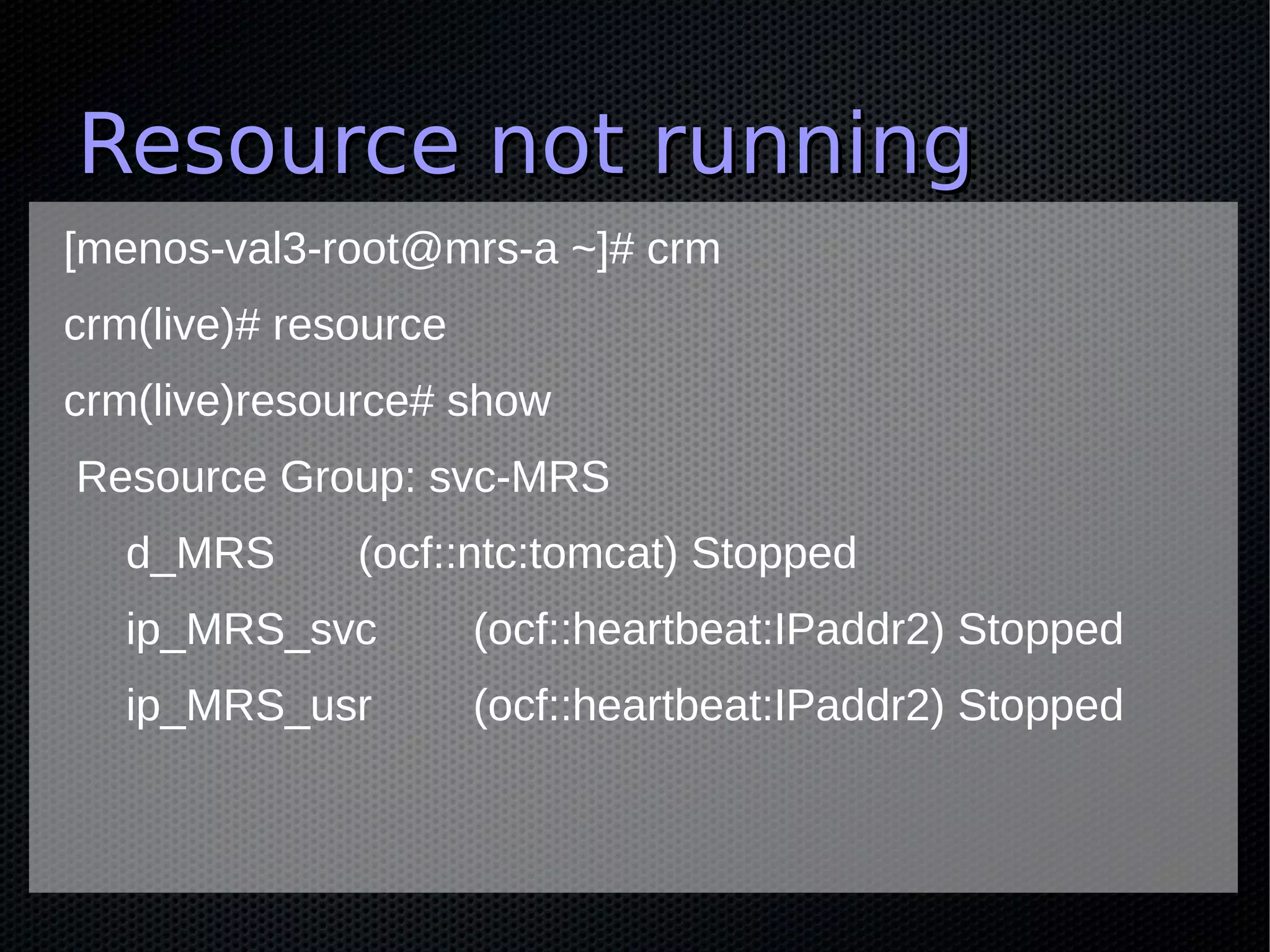

Resource not running
[menos-val3-root@mrs-a ~]# crm
crm(live)# resource
crm(live)resource# show
Resource Group: svc-MRS
   d_MRS      (ocf::ntc:tomcat) Stopped
   ip_MRS_svc         (ocf::heartbeat:IPaddr2) Stopped
   ip_MRS_usr         (ocf::heartbeat:IPaddr2) Stopped

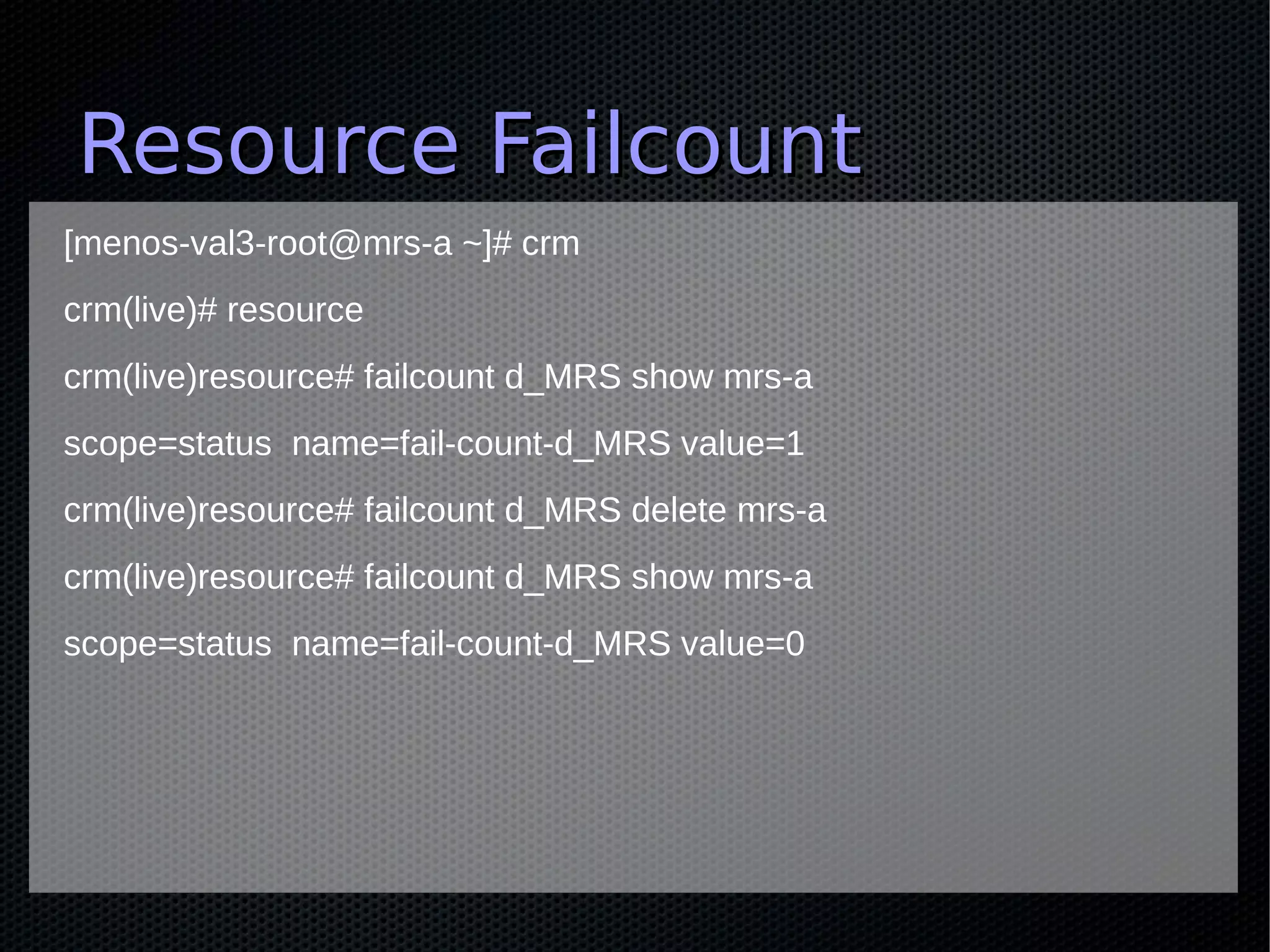

Resource Failcount
[menos-val3-root@mrs-a ~]# crm
crm(live)# resource
crm(live)resource# failcount d_MRS show mrs-a
scope=status name=fail-count-d_MRS value=1
crm(live)resource# failcount d_MRS delete mrs-a
crm(live)resource# failcount d_MRS show mrs-a
scope=status name=fail-count-d_MRS value=0
Resource Failcount
[menos-val3-root@mrs-a ~]# crm
crm(live)# resource
crm(live)resource# failcount d_MRS show mrs-a
scope=status name=fail-count-d_MRS value=1
crm(live)resource# failcount d_MRS delete mrs-a
crm(live)resource# failcount d_MRS show mrs-a
scope=status name=fail-count-d_MRS value=0
Resource Failcount
[menos-val3-root@mrs-a ~]# crm
crm(live)# resource
crm(live)resource# failcount d_MRS show mrs-a
scope=status name=fail-count-d_MRS value=1
crm(live)resource# failcount d_MRS delete mrs-a
crm(live)resource# failcount d_MRS show mrs-a
scope=status name=fail-count-d_MRS value=0

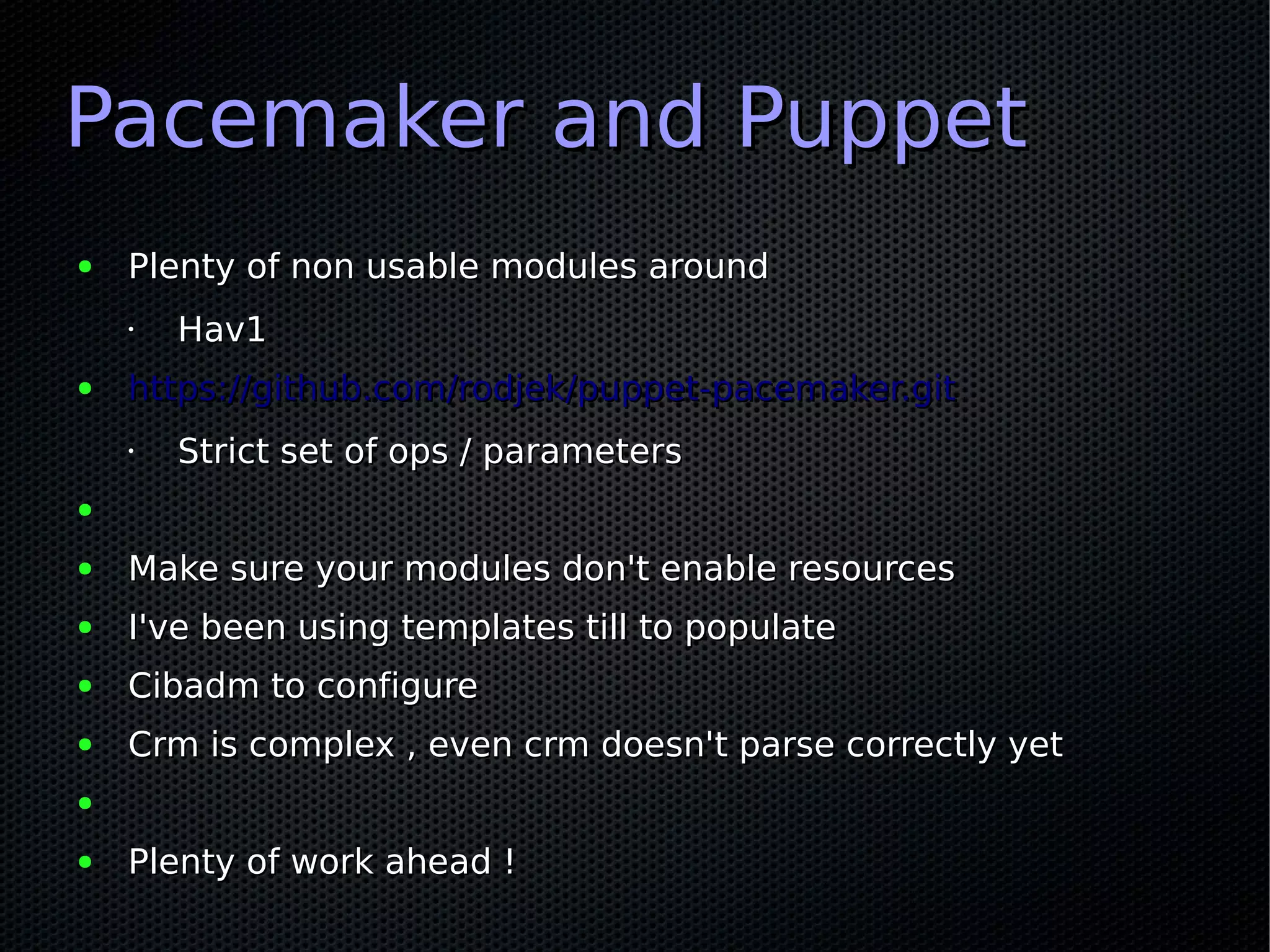

Pacemaker and Puppet
●   Plenty of non usable modules around
    •   Hav1
●   https://github.com/rodjek/puppet-pacemaker.git
    •   Strict set of ops / parameters
●

●   Make sure your modules don't enable resources
●   I've been using templates till to populate
●   Cibadm to configure
●   Crm is complex , even crm doesn't parse correctly yet
●

●   Plenty of work ahead !

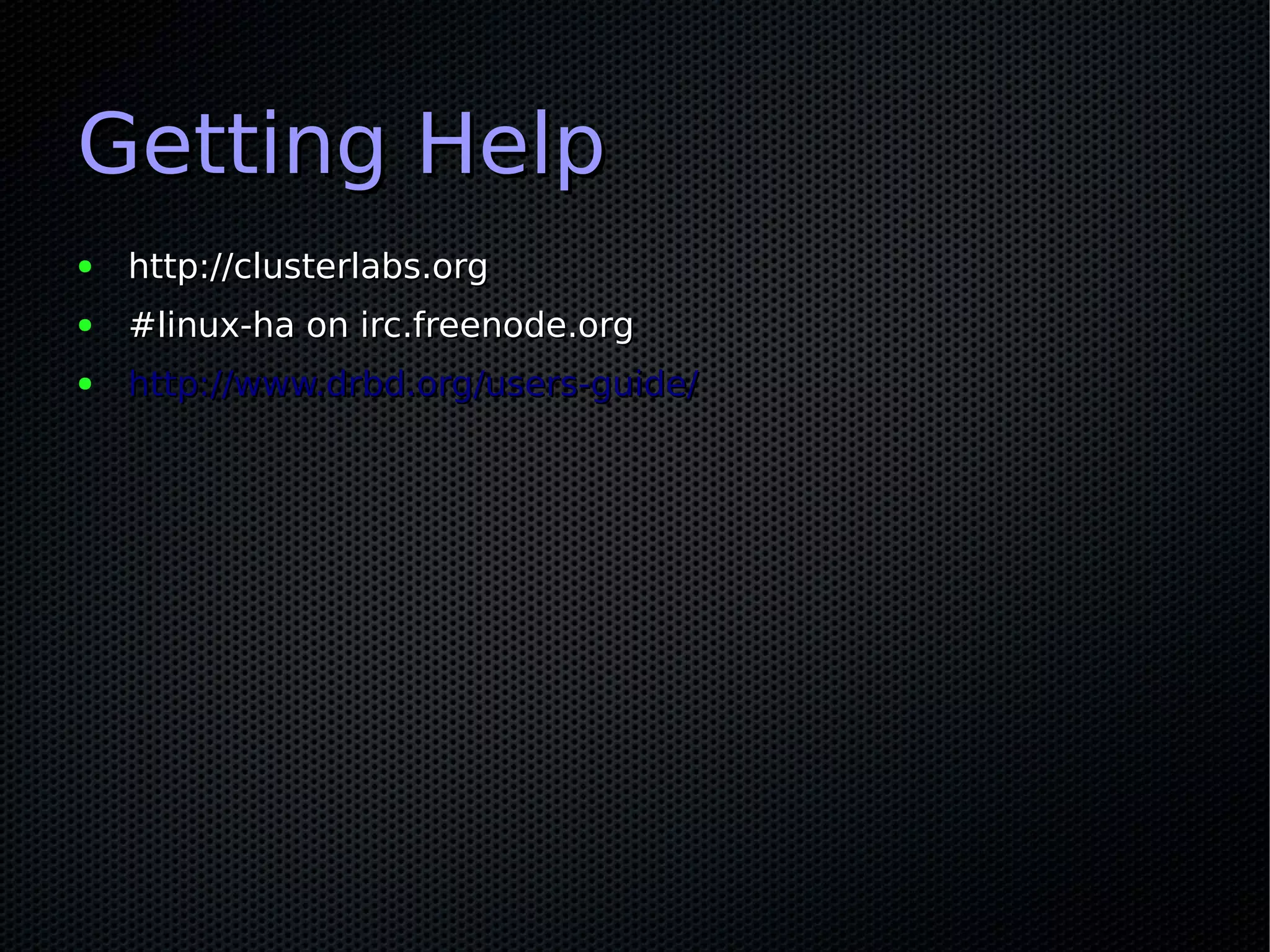

Getting Help
●   http://clusterlabs.org
●   #linux-ha on irc.freenode.org
●   http://www.drbd.org/users-guide/
Contact :
Kris Buytaert
Kris.Buytaert@inuits.be

Further Reading
@krisbuytaert
http://www.krisbuytaert.be/blog/
http://www.inuits.be/
http://www.virtualizati
on.com/
http://www.oreillygmt.com/
                       Inuits          Esquimaux
                       't Hemeltje     Kheops Business
                       Gemeentepark 2  Center
                       2930 Brasschaat Avenque Georges
                       891.514.231     Lemaître 54
                                       6041 Gosselies
                       +32 473 441 636 889.780.406

More Related Content

What's hot

Introduction to Storm
Introduction to Storm Introduction to Storm
Introduction to Storm
Chandler Huang

Ceph Block Devices: A Deep Dive
Ceph Block Devices:  A Deep DiveCeph Block Devices:  A Deep Dive
Ceph Block Devices: A Deep Dive
Red_Hat_Storage

Introduction and Overview of Apache Kafka, TriHUG July 23, 2013
Introduction and Overview of Apache Kafka, TriHUG July 23, 2013Introduction and Overview of Apache Kafka, TriHUG July 23, 2013
Introduction and Overview of Apache Kafka, TriHUG July 23, 2013
mumrah

High Availability With DRBD & Heartbeat
High Availability With DRBD & HeartbeatHigh Availability With DRBD & Heartbeat
High Availability With DRBD & Heartbeat
Chris Barber

Common issues with Apache Kafka® Producer
Common issues with Apache Kafka® ProducerCommon issues with Apache Kafka® Producer
Common issues with Apache Kafka® Producer
confluent

Introduction to NGINX web server
Introduction to NGINX web serverIntroduction to NGINX web server
Introduction to NGINX web server
Md Waresul Islam

Linux-HA with Pacemaker
Linux-HA with PacemakerLinux-HA with Pacemaker
Linux-HA with Pacemaker
Kris Buytaert

Distributed applications using Hazelcast
Distributed applications using HazelcastDistributed applications using Hazelcast
Distributed applications using Hazelcast
Taras Matyashovsky

IntelON 2021 Processor Benchmarking
IntelON 2021 Processor BenchmarkingIntelON 2021 Processor Benchmarking
IntelON 2021 Processor Benchmarking
Brendan Gregg

GraalVM Overview Compact version
GraalVM Overview Compact versionGraalVM Overview Compact version
GraalVM Overview Compact version
scalaconfjp

Boosting I/O Performance with KVM io_uring
Boosting I/O Performance with KVM io_uringBoosting I/O Performance with KVM io_uring
Boosting I/O Performance with KVM io_uring
ShapeBlue

Ansible
AnsibleAnsible
Ansible
Knoldus Inc.

RocksDB Performance and Reliability Practices
RocksDB Performance and Reliability PracticesRocksDB Performance and Reliability Practices
RocksDB Performance and Reliability Practices
Yoshinori Matsunobu

Rhel cluster basics 1
Rhel cluster basics   1Rhel cluster basics   1
Rhel cluster basics 1
Manoj Singh

Apache Kafka
Apache KafkaApache Kafka
Apache Kafka
emreakis

Apache Spark Architecture
Apache Spark ArchitectureApache Spark Architecture
Apache Spark Architecture
Alexey Grishchenko

The State of HBase Replication
The State of HBase ReplicationThe State of HBase Replication
The State of HBase Replication
HBaseCon

Kernel Recipes 2019 - Faster IO through io_uring
Kernel Recipes 2019 - Faster IO through io_uringKernel Recipes 2019 - Faster IO through io_uring
Kernel Recipes 2019 - Faster IO through io_uring
Anne Nicolas

High Availability for OpenStack
High Availability for OpenStackHigh Availability for OpenStack
High Availability for OpenStack
Kamesh Pemmaraju

Stability Patterns for Microservices
Stability Patterns for MicroservicesStability Patterns for Microservices
Stability Patterns for Microservices
pflueras


What's hot (20)

Introduction to Storm
Introduction to Storm Introduction to Storm
Introduction to Storm

Ceph Block Devices: A Deep Dive
Ceph Block Devices:  A Deep DiveCeph Block Devices:  A Deep Dive
Ceph Block Devices: A Deep Dive

Introduction and Overview of Apache Kafka, TriHUG July 23, 2013
Introduction and Overview of Apache Kafka, TriHUG July 23, 2013Introduction and Overview of Apache Kafka, TriHUG July 23, 2013
Introduction and Overview of Apache Kafka, TriHUG July 23, 2013

High Availability With DRBD & Heartbeat
High Availability With DRBD & HeartbeatHigh Availability With DRBD & Heartbeat
High Availability With DRBD & Heartbeat

Common issues with Apache Kafka® Producer
Common issues with Apache Kafka® ProducerCommon issues with Apache Kafka® Producer
Common issues with Apache Kafka® Producer

Introduction to NGINX web server
Introduction to NGINX web serverIntroduction to NGINX web server
Introduction to NGINX web server

Linux-HA with Pacemaker
Linux-HA with PacemakerLinux-HA with Pacemaker
Linux-HA with Pacemaker

Distributed applications using Hazelcast
Distributed applications using HazelcastDistributed applications using Hazelcast
Distributed applications using Hazelcast

IntelON 2021 Processor Benchmarking
IntelON 2021 Processor BenchmarkingIntelON 2021 Processor Benchmarking
IntelON 2021 Processor Benchmarking

GraalVM Overview Compact version
GraalVM Overview Compact versionGraalVM Overview Compact version
GraalVM Overview Compact version

Boosting I/O Performance with KVM io_uring
Boosting I/O Performance with KVM io_uringBoosting I/O Performance with KVM io_uring
Boosting I/O Performance with KVM io_uring

Ansible
AnsibleAnsible
Ansible

RocksDB Performance and Reliability Practices
RocksDB Performance and Reliability PracticesRocksDB Performance and Reliability Practices
RocksDB Performance and Reliability Practices

Rhel cluster basics 1
Rhel cluster basics   1Rhel cluster basics   1
Rhel cluster basics 1

Apache Kafka
Apache KafkaApache Kafka
Apache Kafka

Apache Spark Architecture
Apache Spark ArchitectureApache Spark Architecture
Apache Spark Architecture

The State of HBase Replication
The State of HBase ReplicationThe State of HBase Replication
The State of HBase Replication

Kernel Recipes 2019 - Faster IO through io_uring
Kernel Recipes 2019 - Faster IO through io_uringKernel Recipes 2019 - Faster IO through io_uring
Kernel Recipes 2019 - Faster IO through io_uring

High Availability for OpenStack
High Availability for OpenStackHigh Availability for OpenStack
High Availability for OpenStack

Stability Patterns for Microservices
Stability Patterns for MicroservicesStability Patterns for Microservices
Stability Patterns for Microservices


Similar to Linux-HA with Pacemaker

MySQL HA with Pacemaker
MySQL HA with  PacemakerMySQL HA with  Pacemaker
MySQL HA with Pacemaker
Kris Buytaert

Buytaert kris my_sql-pacemaker
Buytaert kris my_sql-pacemakerBuytaert kris my_sql-pacemaker
Buytaert kris my_sql-pacemaker
kuchinskaya

Strata - 03/31/2012
Strata - 03/31/2012Strata - 03/31/2012
Strata - 03/31/2012
Ceph Community

Lightweight Virtualization with Linux Containers and Docker | YaC 2013
Lightweight Virtualization with Linux Containers and Docker | YaC 2013Lightweight Virtualization with Linux Containers and Docker | YaC 2013
Lightweight Virtualization with Linux Containers and Docker | YaC 2013
dotCloud

Lightweight Virtualization with Linux Containers and Docker I YaC 2013
Lightweight Virtualization with Linux Containers and Docker I YaC 2013Lightweight Virtualization with Linux Containers and Docker I YaC 2013
Lightweight Virtualization with Linux Containers and Docker I YaC 2013
Docker, Inc.

Scale 10x 01:22:12
Scale 10x 01:22:12Scale 10x 01:22:12
Scale 10x 01:22:12
Ceph Community

Scientific Computing - Hardware
Scientific Computing - HardwareScientific Computing - Hardware
Scientific Computing - Hardware
jalle6

Considerations when implementing_ha_in_dmf
Considerations when implementing_ha_in_dmfConsiderations when implementing_ha_in_dmf
Considerations when implementing_ha_in_dmf
hik_lhz

brief introduction of drbd in SLE12SP2
brief introduction of drbd in SLE12SP2brief introduction of drbd in SLE12SP2
brief introduction of drbd in SLE12SP2
Nick Wang

Practice and challenges from building IaaS
Practice and challenges from building IaaSPractice and challenges from building IaaS
Practice and challenges from building IaaS
Shawn Zhu

The Accidental DBA
The Accidental DBAThe Accidental DBA
The Accidental DBA
PostgreSQL Experts, Inc.

Open stack HA - Theory to Reality
Open stack HA -  Theory to RealityOpen stack HA -  Theory to Reality
Open stack HA - Theory to Reality
Sriram Subramanian

Migrating to XtraDB Cluster
Migrating to XtraDB ClusterMigrating to XtraDB Cluster
Migrating to XtraDB Cluster
percona2013

Malware analysis
Malware analysisMalware analysis
Malware analysis
xabean

Preventing and Resolving MySQL Downtime
Preventing and Resolving MySQL DowntimePreventing and Resolving MySQL Downtime
Preventing and Resolving MySQL Downtime
Jervin Real

Deployment Strategies (Mongo Austin)
Deployment Strategies (Mongo Austin)Deployment Strategies (Mongo Austin)
Deployment Strategies (Mongo Austin)
MongoDB

Deployment Strategy
Deployment StrategyDeployment Strategy
Deployment Strategy
MongoDB

Deployment Strategies
Deployment StrategiesDeployment Strategies
Deployment Strategies
MongoDB

Scalable Architecture 101
Scalable Architecture 101Scalable Architecture 101
Scalable Architecture 101
ConFoo

UKOUG 2011: Practical MySQL Tuning
UKOUG 2011: Practical MySQL TuningUKOUG 2011: Practical MySQL Tuning
UKOUG 2011: Practical MySQL Tuning
FromDual GmbH


Similar to Linux-HA with Pacemaker (20)

MySQL HA with Pacemaker
MySQL HA with  PacemakerMySQL HA with  Pacemaker
MySQL HA with Pacemaker

Buytaert kris my_sql-pacemaker
Buytaert kris my_sql-pacemakerBuytaert kris my_sql-pacemaker
Buytaert kris my_sql-pacemaker

Strata - 03/31/2012
Strata - 03/31/2012Strata - 03/31/2012
Strata - 03/31/2012

Lightweight Virtualization with Linux Containers and Docker | YaC 2013
Lightweight Virtualization with Linux Containers and Docker | YaC 2013Lightweight Virtualization with Linux Containers and Docker | YaC 2013
Lightweight Virtualization with Linux Containers and Docker | YaC 2013

Lightweight Virtualization with Linux Containers and Docker I YaC 2013
Lightweight Virtualization with Linux Containers and Docker I YaC 2013Lightweight Virtualization with Linux Containers and Docker I YaC 2013
Lightweight Virtualization with Linux Containers and Docker I YaC 2013

Scale 10x 01:22:12
Scale 10x 01:22:12Scale 10x 01:22:12
Scale 10x 01:22:12

Scientific Computing - Hardware
Scientific Computing - HardwareScientific Computing - Hardware
Scientific Computing - Hardware

Considerations when implementing_ha_in_dmf
Considerations when implementing_ha_in_dmfConsiderations when implementing_ha_in_dmf
Considerations when implementing_ha_in_dmf

brief introduction of drbd in SLE12SP2
brief introduction of drbd in SLE12SP2brief introduction of drbd in SLE12SP2
brief introduction of drbd in SLE12SP2

Practice and challenges from building IaaS
Practice and challenges from building IaaSPractice and challenges from building IaaS
Practice and challenges from building IaaS

The Accidental DBA
The Accidental DBAThe Accidental DBA
The Accidental DBA

Open stack HA - Theory to Reality
Open stack HA -  Theory to RealityOpen stack HA -  Theory to Reality
Open stack HA - Theory to Reality

Migrating to XtraDB Cluster
Migrating to XtraDB ClusterMigrating to XtraDB Cluster
Migrating to XtraDB Cluster

Malware analysis
Malware analysisMalware analysis
Malware analysis

Preventing and Resolving MySQL Downtime
Preventing and Resolving MySQL DowntimePreventing and Resolving MySQL Downtime
Preventing and Resolving MySQL Downtime

Deployment Strategies (Mongo Austin)
Deployment Strategies (Mongo Austin)Deployment Strategies (Mongo Austin)
Deployment Strategies (Mongo Austin)

Deployment Strategy
Deployment StrategyDeployment Strategy
Deployment Strategy

Deployment Strategies
Deployment StrategiesDeployment Strategies
Deployment Strategies

Scalable Architecture 101
Scalable Architecture 101Scalable Architecture 101
Scalable Architecture 101

UKOUG 2011: Practical MySQL Tuning
UKOUG 2011: Practical MySQL TuningUKOUG 2011: Practical MySQL Tuning
UKOUG 2011: Practical MySQL Tuning


More from Kris Buytaert

Years of (not) learning , from devops to devoops
Years of (not) learning , from devops to devoopsYears of (not) learning , from devops to devoops
Years of (not) learning , from devops to devoops
Kris Buytaert

Observability will not fix your Broken Monitoring ,Ignite
Observability will not fix your Broken Monitoring ,IgniteObservability will not fix your Broken Monitoring ,Ignite
Observability will not fix your Broken Monitoring ,Ignite
Kris Buytaert

Infrastructure as Code Patterns
Infrastructure as Code PatternsInfrastructure as Code Patterns
Infrastructure as Code Patterns
Kris Buytaert

From devoops to devops 13 years of (not) learning
From devoops to devops 13 years of (not) learningFrom devoops to devops 13 years of (not) learning
From devoops to devops 13 years of (not) learning
Kris Buytaert

Pipeline all the Dashboards as Code
Pipeline all the Dashboards as CodePipeline all the Dashboards as Code
Pipeline all the Dashboards as Code
Kris Buytaert

Help , My Datacenter is on fire
Help , My Datacenter is on fireHelp , My Datacenter is on fire
Help , My Datacenter is on fire
Kris Buytaert

GitOps , done Right
GitOps , done RightGitOps , done Right
GitOps , done Right
Kris Buytaert

Devops is Dead, Long live Devops
Devops is Dead, Long live DevopsDevops is Dead, Long live Devops
Devops is Dead, Long live Devops
Kris Buytaert

10 years of #devopsdays, but what have we really learned ?
10 years of #devopsdays, but what have we really learned ? 10 years of #devopsdays, but what have we really learned ?
10 years of #devopsdays, but what have we really learned ?
Kris Buytaert

Continuous Infrastructure First
Continuous Infrastructure FirstContinuous Infrastructure First
Continuous Infrastructure First
Kris Buytaert

Is there a Future for devops ?
Is there a Future for devops   ? Is there a Future for devops   ?
Is there a Future for devops ?
Kris Buytaert

10 Years of #devopsdays weirdness
10 Years of #devopsdays weirdness10 Years of #devopsdays weirdness
10 Years of #devopsdays weirdness
Kris Buytaert

ADDO 2019: Looking back at over 10 years of Devops
ADDO 2019:    Looking back at over 10 years of DevopsADDO 2019:    Looking back at over 10 years of Devops
ADDO 2019: Looking back at over 10 years of Devops
Kris Buytaert

Can we fix dev-oops ?
Can we fix dev-oops ?Can we fix dev-oops ?
Can we fix dev-oops ?
Kris Buytaert

Continuous Infrastructure First Ignite Edition
Continuous Infrastructure First  Ignite EditionContinuous Infrastructure First  Ignite Edition
Continuous Infrastructure First Ignite Edition
Kris Buytaert

Continuous Infrastructure First
Continuous Infrastructure FirstContinuous Infrastructure First
Continuous Infrastructure First
Kris Buytaert

Open Source Monitoring in 2019
Open Source Monitoring in 2019 Open Source Monitoring in 2019
Open Source Monitoring in 2019
Kris Buytaert

Migrating to Puppet 5
Migrating to Puppet 5Migrating to Puppet 5
Migrating to Puppet 5
Kris Buytaert

Repositories as Code
Repositories as CodeRepositories as Code
Repositories as Code
Kris Buytaert

Devops is a Security Requirement
Devops is a Security RequirementDevops is a Security Requirement
Devops is a Security Requirement
Kris Buytaert


More from Kris Buytaert (20)

Years of (not) learning , from devops to devoops
Years of (not) learning , from devops to devoopsYears of (not) learning , from devops to devoops
Years of (not) learning , from devops to devoops

Observability will not fix your Broken Monitoring ,Ignite
Observability will not fix your Broken Monitoring ,IgniteObservability will not fix your Broken Monitoring ,Ignite
Observability will not fix your Broken Monitoring ,Ignite

Infrastructure as Code Patterns
Infrastructure as Code PatternsInfrastructure as Code Patterns
Infrastructure as Code Patterns

From devoops to devops 13 years of (not) learning
From devoops to devops 13 years of (not) learningFrom devoops to devops 13 years of (not) learning
From devoops to devops 13 years of (not) learning

Pipeline all the Dashboards as Code
Pipeline all the Dashboards as CodePipeline all the Dashboards as Code
Pipeline all the Dashboards as Code

Help , My Datacenter is on fire
Help , My Datacenter is on fireHelp , My Datacenter is on fire
Help , My Datacenter is on fire

GitOps , done Right
GitOps , done RightGitOps , done Right
GitOps , done Right

Devops is Dead, Long live Devops
Devops is Dead, Long live DevopsDevops is Dead, Long live Devops
Devops is Dead, Long live Devops

10 years of #devopsdays, but what have we really learned ?
10 years of #devopsdays, but what have we really learned ? 10 years of #devopsdays, but what have we really learned ?
10 years of #devopsdays, but what have we really learned ?

Continuous Infrastructure First
Continuous Infrastructure FirstContinuous Infrastructure First
Continuous Infrastructure First

Is there a Future for devops ?
Is there a Future for devops   ? Is there a Future for devops   ?
Is there a Future for devops ?

10 Years of #devopsdays weirdness
10 Years of #devopsdays weirdness10 Years of #devopsdays weirdness
10 Years of #devopsdays weirdness

ADDO 2019: Looking back at over 10 years of Devops
ADDO 2019:    Looking back at over 10 years of DevopsADDO 2019:    Looking back at over 10 years of Devops
ADDO 2019: Looking back at over 10 years of Devops

Can we fix dev-oops ?
Can we fix dev-oops ?Can we fix dev-oops ?
Can we fix dev-oops ?

Continuous Infrastructure First Ignite Edition
Continuous Infrastructure First  Ignite EditionContinuous Infrastructure First  Ignite Edition
Continuous Infrastructure First Ignite Edition

Continuous Infrastructure First
Continuous Infrastructure FirstContinuous Infrastructure First
Continuous Infrastructure First

Open Source Monitoring in 2019
Open Source Monitoring in 2019 Open Source Monitoring in 2019
Open Source Monitoring in 2019

Migrating to Puppet 5
Migrating to Puppet 5Migrating to Puppet 5
Migrating to Puppet 5

Repositories as Code
Repositories as CodeRepositories as Code
Repositories as Code

Devops is a Security Requirement
Devops is a Security RequirementDevops is a Security Requirement
Devops is a Security Requirement


Recently uploaded

Digital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying AheadDigital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying Ahead
Wask

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf
Tosin Akinosho

Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
saastr

Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...
Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...
Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...
Tatiana Kojar

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
Chart Kalyan

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides
Zilliz

Building Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and MilvusBuilding Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and Milvus
Zilliz

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024
Jason Packer

June Patch Tuesday
June Patch TuesdayJune Patch Tuesday
June Patch Tuesday
Ivanti

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
panagenda

Trusted Execution Environment for Decentralized Process Mining
Trusted Execution Environment for Decentralized Process MiningTrusted Execution Environment for Decentralized Process Mining
Trusted Execution Environment for Decentralized Process Mining
LucaBarbaro3

GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)
Javier Junquera

WeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation TechniquesWeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation Techniques
Postman

Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
saastr

Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with SlackLet's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
shyamraj55

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey
TrustArc

JavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green MasterplanJavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green Masterplan
Miro Wengner

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf
ssuserfac0301

Skybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoptionSkybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoption
Tatiana Kojar

“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
Edge AI and Vision Alliance


Recently uploaded (20)

Digital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying AheadDigital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying Ahead

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf

Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...

Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...
Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...
Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides

Building Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and MilvusBuilding Production Ready Search Pipelines with Spark and Milvus
Building Production Ready Search Pipelines with Spark and Milvus

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024

June Patch Tuesday
June Patch TuesdayJune Patch Tuesday
June Patch Tuesday

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU

Trusted Execution Environment for Decentralized Process Mining
Trusted Execution Environment for Decentralized Process MiningTrusted Execution Environment for Decentralized Process Mining
Trusted Execution Environment for Decentralized Process Mining

GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)GNSS spoofing via SDR (Criptored Talks 2024)
GNSS spoofing via SDR (Criptored Talks 2024)

WeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation TechniquesWeTestAthens: Postman's AI & Automation Techniques
WeTestAthens: Postman's AI & Automation Techniques

Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...

Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with SlackLet's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey

JavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green MasterplanJavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green Masterplan

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf

Skybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoptionSkybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoption

“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...


Linux-HA with Pacemaker

  • 1. Linux High Availability Kris Buytaert
  • 2. Kris Buytaert @krisbuytaert ● I used to be a Dev, Then Became an Op ● Senior Linux and Open Source Consultant @inuits.be ● „Infrastructure Architect“ ● Building Clouds since before the Cloud ● Surviving the 10th floor test ● Co-Author of some books ● Guest Editor at some sites
  • 3. What is HA Clustering ? ● One service goes down => others take over its work ● IP address takeover, service takeover, ● Not designed for high-performance ● Not designed for high troughput (load balancing)
  • 4. Does it Matter ? ● Downtime is expensive ● You mis out on $$$ ● Your boss complains ● New users don't return
  • 5. Lies, Damn Lies, and Statistics Counting nines (slide by Alan R) 99.9999% 30 sec 99.999% 5 min 99.99% 52 min 99.9% 9  hr   99% 3.5 day
  • 6. The Rules of HA ● Keep it Simple ● Keep it Simple ● Prepare for Failure ● Complexity is the enemy of reliability ● Test your HA setup
  • 7. Myths ● Virtualization will solve your HA Needs ● Live migration is the solution to all your problems ● VM mirroring is the solution to all your problems ● HA will make your platform more stable
  • 8. Eliminating the SPOF ● Find out what Will Fail • Disks • Fans • Power (Supplies) ● Find out what Can Fail • Network • Going Out Of Memory
  • 9. Split Brain ● Communications failures can lead to separated partitions of the cluster ● If those partitions each try and take control of the cluster, then it's called a split-brain condition ● If this happens, then bad things will happen • http://linux-ha.org/BadThingsWillHappen
  • 10. You care about ? ● Your data ? • Consistent • Realitime • Eventual Consistent ● Your Connection • Always • Most of the time
  • 11. Shared Storage ● Shared Storage ● Filesystem • e.g GFS, GpFS ● Replicated ? ● Exported Filesystem ? ● $$$ 1+1 <> 2 ● Storage = SPOF ● Split Brain :( ● Stonith
  • 12. (Shared) Data ● Issues : • Who Writes ? • Who Reads ? • What if 2 Active application want to write ? • What if an active server crashes during writing ? • Can we accept delays ? • Can we accept readonly data ? ● Hardware Requirements ● Filesystem Requirements (GFS, GpFS, ...)
  • 13. DRBD ● Distributed Replicated Block Device ● In the Linux Kernel (as of very recent) ● Usually only 1 mount • Multi mount as of 8.X • Requires GFS / OCFS2 ● Regular FS ext3 ... ● Only 1 application instance Active accessing data ● Upon Failover application needs to be started on other node
  • 14. DRBD(2) ● What happens when you pull the plug of a Physical machine ? • Minimal Timeout • Why did the crash happen ? • Is my data still correct ?
  • 15. Alternatives to DRBD ● GlusterFS looked promising • “Friends don't let Friends use Gluster” • Consistency problems • Stability Problems • Maybe later ● MogileFS • Not posix • App needs to implement the API ● Ceph • ?
  • 16. HA Projects ● Linux HA Project ● Red Hat Cluster Suite ● LVS/Keepalived ● Application Specific Clustering Software • e.g Terracotta, MySQL NDBD
  • 17. Heartbeat ● Heartbeat v1 • Max 2 nodes • No finegrained resources • Monitoring using “mon” ● Heartbeat v2 • XML usage was a consulting opportunity • Stability issues • Forking ?
  • 18. Heartbeat v1 /etc/ha.d/ha.cf /etc/ha.d/haresources mdb-a.menos.asbucenter.dz ntc-restart-mysql mon IPaddr2::10.8.0.13/16/bond0 IPaddr2::10.16.0.13/16/bond0.16 mon /etc/ha.d/authkeys
  • 19. Heartbeat v2 “A consulting Opportunity” LMB
  • 20. Clone Resource Clones in v2 were buggy Resources were started on 2 nodes Stopped again on “1”
  • 21. Heartbeat v3 • No more /etc/ha.d/haresources • No more xml • Better integrated monitoring • /etc/ha.d/ha.cf has • crm=yes
  • 22. Pacemaker ? ● Not a fork ● Only CRM Code taken out of Heartbeat ● As of Heartbeat 2.1.3 • Support for both OpenAIS / HeartBeat • Different Release Cycles as Heartbeat
  • 23. Heartbeat, OpenAis, Corosync ? ● All Messaging Layers ● Initially only Heartbeat ● OpenAIS ● Heartbeat got unmaintained ● OpenAIS had heisenbugs :( ● Corosync ● Heartbeat maintenance taken over by LinBit ● CRM Detects which layer
  • 24. Pacemaker Heartbeat or OpenAIS Cluster Glue
  • 25. Stonithd : The Heartbeat fencing Pacemaker Architecture subsystem. ● Lrmd : Local Resource Management Daemon. Interacts directly with resource agents (scripts). ● pengine Policy Engine. Computes the next state of the cluster based on the current state and the configuration. ● cib Cluster Information Base. Contains definitions of all cluster options, nodes, resources, their relationships to one another and current status. Synchronizes updates to all cluster nodes. ● crmd Cluster Resource Management Daemon. Largely a message broker for the PEngine and LRM, it also elects a leader to co-ordinate the activities of the cluster. ● openais messaging and membership layer. ● heartbeat messaging layer, an alternative to OpenAIS. ● ccm Short for Consensus Cluster Membership. The Heartbeat membership layer.
  • 26. Configuring Heartbeat with puppet heartbeat::hacf {"clustername": hosts => ["host-a","host-b"], hb_nic => ["bond0"], hostip1 => ["10.0.128.11"], hostip2 => ["10.0.128.12"], ping => ["10.0.128.4"], } heartbeat::authkeys {"ClusterName": password => “ClusterName ", } http://github.com/jtimberman/puppet/tree/master/heartbeat/
  • 27. CRM configure ● Cluster Resource Manager property $id="cib­bootstrap­options"          stonith­enabled="FALSE"  ● Keeps Nodes in Sync         no­quorum­policy=ignore          start­failure­is­fatal="FALSE"  ● XML Based rsc_defaults $id="rsc_defaults­options"          migration­threshold="1"          failure­timeout="1" ● cibadm primitive d_mysql ocf:local:mysql          op monitor interval="30s"  ● Cli manageable         params test_user="sure"  test_passwd="illtell" test_table="test.table" ● Crm primitive ip_db ocf:heartbeat:IPaddr2          params ip="172.17.4.202" nic="bond0"          op monitor interval="10s" group svc_db d_mysql ip_db commit
  • 28. Heartbeat Resources ● LSB ● Heartbeat resource (+status) ● OCF (Open Cluster FrameWork) (+monitor) ● Clones (don't use in HAv2) ● Multi State Resources
  • 29. LSB Resource Agents ● LSB == Linux Standards Base ● LSB resource agents are standard System V-style init scripts commonly used on Linux and other UNIX-like OSes ● LSB init scripts are stored under /etc/init.d/ ● This enables Linux-HA to immediately support nearly every service that comes with your system, and most packages which come with their own init script ● It's straightforward to change an LSB script to an OCF script
  • 30. OCF ● OCF == Open Cluster Framework ● OCF Resource agents are the most powerful type of resource agent we support ● OCF RAs are extended init scripts • They have additional actions: • monitor – for monitoring resource health • meta-data – for providing information about the RA ● OCF RAs are located in /usr/lib/ocf/resource.d/provider-name/
  • 31. Monitoring ● Defined in the OCF Resource script ● Configured in the parameters ● You have to support multiple states • Not running • Running • Failed
  • 32. Anatomy of a Cluster config • Cluster properties • Resource Defaults • Primitive Definitions • Resource Groups and Constraints
  • 33. Cluster Properties property $id="cib-bootstrap-options" stonith-enabled="FALSE" no-quorum-policy="ignore" start-failure-is-fatal="FALSE" No-quorum-policy = We'll ignore the loss of quorum on a 2 node cluster Start-failure : When set to FALSE, the cluster will instead use the resource's failcount and value for resource-failure-stickiness
  • 34. Resource Defaults rsc_defaults $id="rsc_defaults-options" migration-threshold="1" failure-timeout="1" resource-stickiness="INFINITY" failure-timeout means that after a failure there will be a 60 second timeout before the resource can come back to the node on which it failed. Migration-treshold=1 means that after 1 failure the resource will try to start on the other node Resource-stickiness=INFINITY means that the resource really wants to stay where it is now.
  • 35. Primitive Definitions primitive d_mine ocf:custom:tomcat params instance_name="mine" monitor_urls="health.html" monitor_use_ssl="no" op monitor interval="15s" on-fail="restart" primitive ip_mine_svc ocf:heartbeat:IPaddr2 params ip="10.8.4.131" cidr_netmask="16" nic="bond0" op monitor interval="10s"
  • 36. Parsing a config ● Isn't always done correctly ● Even a verify won't find all issues ● Unexpected behaviour might occur
  • 37. Where a resource runs • multi state resources • Master – Slave , • e.g mysql master-slave, drbd • Clones • Resources that can run on multiple nodes e.g • Multimaster mysql servers • Mysql slaves • Stateless applications • location • Preferred location to run resource, eg. Based on hostname • colocation • Resources that have to live together • e.g ip address + service • order Define what resource has to start first, or wait for another resource • groups • Colocation + order
  • 38. eg. A Service on DRBD ● DRBD can only be active on 1 node ● The filesystem needs to be mounted on that active DRBD node group svc_mine d_mine ip_mine ms ms_drbd_storage drbd_storage meta master_max="1" master_node_max="1" clone_max="2" clone_node_max="1" notify="true" colocation fs_on_drbd inf: svc_mine ms_drbd_storage:Master order fs_after_drbd inf: ms_drbd_storage:promote svc_mine:start location cli-prefer-svc_db svc_db rule $id="cli-prefer-rule-svc_db" inf: #uname eq db-a
  • 39. Crm commands Crm Start the cluster resource manager Crm resource Change in to resource mode Crm configure Change into configure mode Crm configure show Show the current resource config Crm resource show Show the current resource state Cibadm -Q Dump the full Cluster Information Base in XML
  • 40. Using crm ● Crm configure ● Edit primitive ● Verify ● Commit
  • 41. But We love XML ● Cibadm -Q
  • 42. Checking the Cluster State crm_mon -1 ============ Last updated: Wed Nov 4 16:44:26 2009 Stack: Heartbeat Current DC: xms-1 (c2c581f8-4edc-1de0-a959-91d246ac80f5) - partition with quorum Version: 1.0.5-462f1569a43740667daf7b0f6b521742e9eb8fa7 2 Nodes configured, unknown expected votes 2 Resources configured. ============ Online: [ xms-1 xms-2 ] Resource Group: svc_mysql d_mysql (ocf::ntc:mysql): Started xms-1 ip_mysql (ocf::heartbeat:IPaddr2): Started xms-1 Resource Group: svc_XMS d_XMS (ocf::ntc:XMS): Started xms-2 ip_XMS (ocf::heartbeat:IPaddr2): Started xms-2 ip_XMS_public (ocf::heartbeat:IPaddr2): Started xms-2
  • 43. Stopping a resource crm resource stop svc_XMS crm_mon -1 ============ Last updated: Wed Nov 4 16:56:05 2009 Stack: Heartbeat Current DC: xms-1 (c2c581f8-4edc-1de0-a959-91d246ac80f5) - partition with quorum Version: 1.0.5-462f1569a43740667daf7b0f6b521742e9eb8fa7 2 Nodes configured, unknown expected votes 2 Resources configured. ============ Online: [ xms-1 xms-2 ] Resource Group: svc_mysql d_mysql (ocf::ntc:mysql): Started xms-1 ip_mysql (ocf::heartbeat:IPaddr2): Started xms-1
  • 44. Starting a resource crm resource start svc_XMS crm_mon -1 ============ Last updated: Wed Nov 4 17:04:56 2009 Stack: Heartbeat Current DC: xms-1 (c2c581f8-4edc-1de0-a959-91d246ac80f5) - partition with quorum Version: 1.0.5-462f1569a43740667daf7b0f6b521742e9eb8fa7 2 Nodes configured, unknown expected votes 2 Resources configured. ============ Online: [ xms-1 xms-2 ] Resource Group: svc_mysql d_mysql (ocf::ntc:mysql): Started xms-1 ip_mysql (ocf::heartbeat:IPaddr2): Started xms-1 Resource Group: svc_XMS
  • 45. Moving a resource ● Resource migrate ● Is permanent , even upon failure ● Usefull in upgrade scenarios ● Use resource unmigrate to restore
  • 46. Moving a resource [xpoll-root@XMS-1 ~]# crm resource migrate svc_XMS xms-1 [xpoll-root@XMS-1 ~]# crm_mon -1 Last updated: Wed Nov 4 17:32:50 2009 Stack: Heartbeat Current DC: xms-1 (c2c581f8-4edc-1de0-a959-91d246ac80f5) - partition with quorum Version: 1.0.5-462f1569a43740667daf7b0f6b521742e9eb8fa7 2 Nodes configured, unknown expected votes 2 Resources configured. Online: [ xms-1 xms-2 ] Resource Group: svc_mysql d_mysql (ocf::ntc:mysql): Started xms-1 ip_mysql (ocf::heartbeat:IPaddr2): Started xms-1 Resource Group: svc_XMS d_XMS (ocf::ntc:XMS): Started xms-1 ip_XMS (ocf::heartbeat:IPaddr2): Started xms-1 ip_XMS_public (ocf::heartbeat:IPaddr2): Started xms-1
  • 47. Migrate vs Standby ● Think nrofnodes > 2 clusters ● Migrate : send resource to node X • Only use that available one ● Standby : do not send resources to node X • But use the other available ones
  • 48. Debugging ● Check crm_mon -f ● Failcounts ? ● Did the application launch correctly ? ● /var/log/messages/ • Warning: very verbose
  • 49. Resource not running [menos-val3-root@mrs-a ~]# crm crm(live)# resource crm(live)resource# show Resource Group: svc-MRS d_MRS (ocf::ntc:tomcat) Stopped ip_MRS_svc (ocf::heartbeat:IPaddr2) Stopped ip_MRS_usr (ocf::heartbeat:IPaddr2) Stopped
  • 50. Resource Failcount [menos-val3-root@mrs-a ~]# crm crm(live)# resource crm(live)resource# failcount d_MRS show mrs-a scope=status name=fail-count-d_MRS value=1 crm(live)resource# failcount d_MRS delete mrs-a crm(live)resource# failcount d_MRS show mrs-a scope=status name=fail-count-d_MRS value=0
  • 51. Resource Failcount [menos-val3-root@mrs-a ~]# crm crm(live)# resource crm(live)resource# failcount d_MRS show mrs-a scope=status name=fail-count-d_MRS value=1 crm(live)resource# failcount d_MRS delete mrs-a crm(live)resource# failcount d_MRS show mrs-a scope=status name=fail-count-d_MRS value=0
  • 52. Resource Failcount [menos-val3-root@mrs-a ~]# crm crm(live)# resource crm(live)resource# failcount d_MRS show mrs-a scope=status name=fail-count-d_MRS value=1 crm(live)resource# failcount d_MRS delete mrs-a crm(live)resource# failcount d_MRS show mrs-a scope=status name=fail-count-d_MRS value=0
  • 53. Pacemaker and Puppet ● Plenty of non usable modules around • Hav1 ● https://github.com/rodjek/puppet-pacemaker.git • Strict set of ops / parameters ● ● Make sure your modules don't enable resources ● I've been using templates till to populate ● Cibadm to configure ● Crm is complex , even crm doesn't parse correctly yet ● ● Plenty of work ahead !
  • 54. Getting Help ● http://clusterlabs.org ● #linux-ha on irc.freenode.org ● http://www.drbd.org/users-guide/
  • 55. Contact : Kris Buytaert Kris.Buytaert@inuits.be Further Reading @krisbuytaert http://www.krisbuytaert.be/blog/ http://www.inuits.be/ http://www.virtualizati on.com/ http://www.oreillygmt.com/ Inuits Esquimaux 't Hemeltje Kheops Business Gemeentepark 2 Center 2930 Brasschaat Avenque Georges 891.514.231 Lemaître 54 6041 Gosselies +32 473 441 636 889.780.406
