1. No Ki Magic
Or
Hyperdocument Authoring Link Management
Using Git and XQuery in Service of an Abstract
Hyperdocument Management Model Applied to
DITA Hyperdocuments
8/14/2015 Contrext, LLC 1
Eliot Kimber
Contrext, LLC
Balisage 2015

2. WHAT AM I TALKING ABOUT?
8/14/2015 Contrext, LLC 2

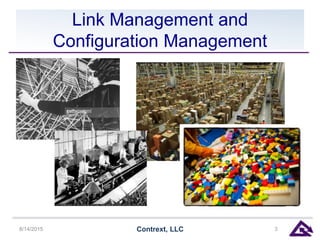

3. Link Management and
Configuration Management
8/14/2015 Contrext, LLC 3

4. DITA
8/14/2015 Contrext, LLC 4

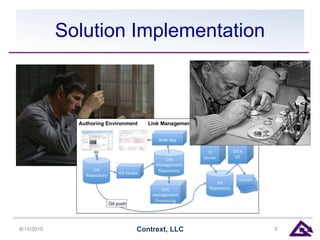

5. Solution Implementation
8/14/2015 Contrext, LLC 5

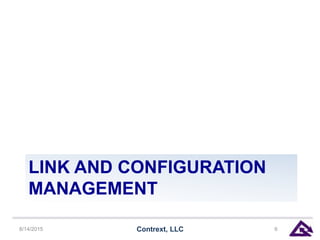

6. LINK AND CONFIGURATION
MANAGEMENT
8/14/2015 Contrext, LLC 6

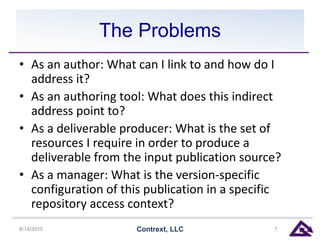

7. The Problems
• As an author: What can I link to and how do I
address it?
• As an authoring tool: What does this indirect
address point to?
• As a deliverable producer: What is the set of
resources I require in order to produce a
deliverable from the input publication source?
• As a manager: What is the version-specific
configuration of this publication in a specific
repository access context?
8/14/2015 Contrext, LLC 7

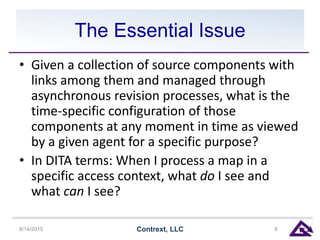

8. The Essential Issue
• Given a collection of source components with
links among them and managed through
asynchronous revision processes, what is the
time-specific configuration of those
components at any moment in time as viewed
by a given agent for a specific purpose?
• In DITA terms: When I process a map in a
specific access context, what do I see and
what can I see?
8/14/2015 Contrext, LLC 8

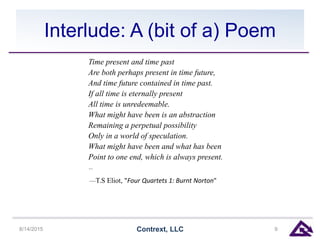

9. Interlude: A (bit of a) Poem
Time present and time past
Are both perhaps present in time future,
And time future contained in time past.
If all time is eternally present
All time is unredeemable.
What might have been is an abstraction
Remaining a perpetual possibility
Only in a world of speculation.
What might have been and what has been
Point to one end, which is always present.
…
—T.S Eliot, "Four Quartets 1: Burnt Norton"
8/14/2015 Contrext, LLC 9

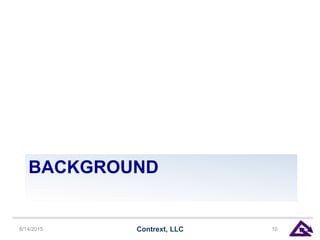

10. BACKGROUND
8/14/2015 Contrext, LLC 10

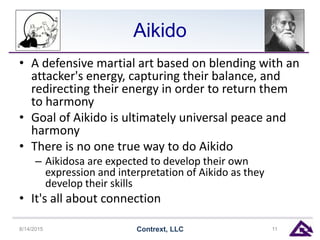

11. Aikido
• A defensive martial art based on blending with an
attacker's energy, capturing their balance, and
redirecting their energy in order to return them
to harmony
• Goal of Aikido is ultimately universal peace and
harmony
• There is no one true way to do Aikido
– Aikidosa are expected to develop their own
expression and interpretation of Aikido as they
develop their skills
• It's all about connection
8/14/2015 Contrext, LLC 11

12. DITA
• A standard XML application architecture for human-
consumed documents
• Optimized for interchange and interoperation of
content, processing, and DITA-specific knowledge
• Distinguishing architectural features:
– Specialization: enables controlled extension from base
DITA markup vocabulary
– Use-by reference: Content components can be used in
multiple contexts (DITA maps, content reference)
– Indirect addressing: keys and key references
– Designed to work entirely from a file system
• DITA is all about connection
8/14/2015 Contrext, LLC 12

13. Another Poem
If you have not
Linked yourself
To true emptiness,
You will never understand
The Art of Peace.
—Morihei Ueshiba, The Art of Peace,
translated by John Stevens.
8/14/2015 Contrext, LLC 13

14. Direct vs. Indirect Addressing
8/14/2015 Contrext, LLC 14
• Blend and redirect to appropriate target
• Harder to learn and execute but more
effective
• Many options at time of action
• Death does not result
Indirect addressing
• Quick, effective, fragile.
• Relatively easy to learn and execute
• Predetermined response to a given attack
• Death results
Direct addressing

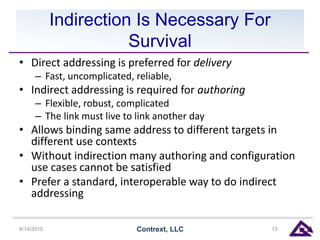

15. Indirection Is Necessary For
Survival
• Direct addressing is preferred for delivery
– Fast, uncomplicated, reliable,
• Indirect addressing is required for authoring
– Flexible, robust, complicated
– The link must live to link another day
• Allows binding same address to different targets in
different use contexts
• Without indirection many authoring and configuration
use cases cannot be satisfied
• Prefer a standard, interoperable way to do indirect
addressing
8/14/2015 Contrext, LLC 15

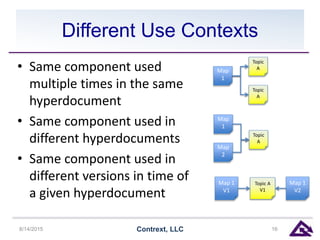

16. Different Use Contexts
• Same component used
multiple times in the same
hyperdocument
• Same component used in
different hyperdocuments
• Same component used in
different versions in time of
a given hyperdocument
8/14/2015 Contrext, LLC 16
Map
1
Topic
A
Topic
A
Map
1
Topic
A
Map
2
Map 1
V1
Topic A
V1
Map 1
V2

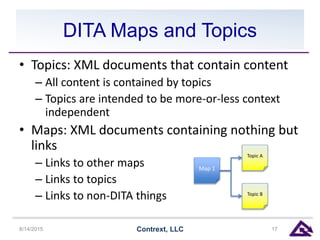

17. DITA Maps and Topics
• Topics: XML documents that contain content
– All content is contained by topics
– Topics are intended to be more-or-less context
independent
• Maps: XML documents containing nothing but
links
– Links to other maps
– Links to topics
– Links to non-DITA things
8/14/2015 Contrext, LLC 17
Map 1
Topic A
Topic B

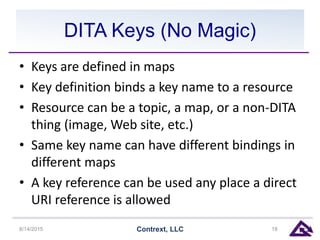

18. DITA Keys (No Magic)
• Keys are defined in maps
• Key definition binds a key name to a resource
• Resource can be a topic, a map, or a non-DITA
thing (image, Web site, etc.)
• Same key name can have different bindings in
different maps
• A key reference can be used any place a direct
URI reference is allowed
8/14/2015 Contrext, LLC 18

19. ABSTRACT VERSION AND
LINK MANAGEMENT MODEL
8/14/2015 Contrext, LLC 19

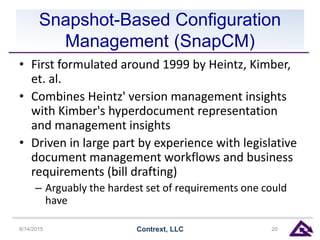

20. Snapshot-Based Configuration
Management (SnapCM)
• First formulated around 1999 by Heintz, Kimber,
et. al.
• Combines Heintz' version management insights
with Kimber's hyperdocument representation
and management insights
• Driven in large part by experience with legislative
document management workflows and business
requirements (bill drafting)
– Arguably the hardest set of requirements one could
have
8/14/2015 Contrext, LLC 20

21. Branches and Snapshots
• A Repository contains Resources
• Resources have Versions
• A Repository has one or more
Branches
• A Branch is a linear sequence of
Snapshots
• A Snapshot points to zero or more
Versions
– Constraint: no two Versions have
the same Resource
8/14/2015 Contrext, LLC 21

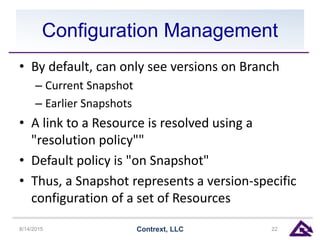

22. Configuration Management
• By default, can only see versions on Branch
– Current Snapshot
– Earlier Snapshots
• A link to a Resource is resolved using a
"resolution policy""
• Default policy is "on Snapshot"
• Thus, a Snapshot represents a version-specific
configuration of a set of Resources
8/14/2015 Contrext, LLC 22

23. SOLUTION: DITA FOR SMALL
TEAMS
8/14/2015 Contrext, LLC 23

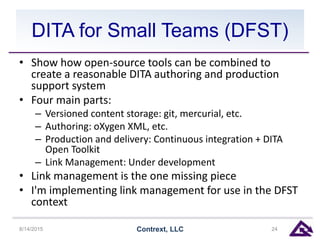

24. DITA for Small Teams (DFST)
• Show how open-source tools can be combined to
create a reasonable DITA authoring and production
support system
• Four main parts:
– Versioned content storage: git, mercurial, etc.
– Authoring: oXygen XML, etc.
– Production and delivery: Continuous integration + DITA
Open Toolkit
– Link Management: Under development
• Link management is the one missing piece
• I'm implementing link management for use in the DFST
context
8/14/2015 Contrext, LLC 24

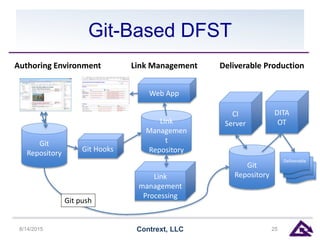

25. Git-Based DFST
8/14/2015 Contrext, LLC 25
Git
Repository Git Hooks
Link
management
Processing
Authoring Environment
Link
Managemen
t
Repository
Web App
Link Management Deliverable Production
CI
Server
Git
Repository
DITA
OT
Git push
Deliverabl
e
Deliverabl
e
Deliverable

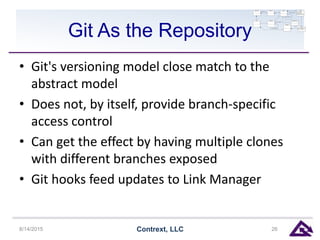

26. Git As the Repository
• Git's versioning model close match to the
abstract model
• Does not, by itself, provide branch-specific
access control
• Can get the effect by having multiple clones
with different branches exposed
• Git hooks feed updates to Link Manager
8/14/2015 Contrext, LLC 26

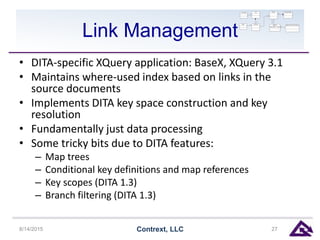

27. Link Management
• DITA-specific XQuery application: BaseX, XQuery 3.1
• Maintains where-used index based on links in the
source documents
• Implements DITA key space construction and key
resolution
• Fundamentally just data processing
• Some tricky bits due to DITA features:
– Map trees
– Conditional key definitions and map references
– Key scopes (DITA 1.3)
– Branch filtering (DITA 1.3)
8/14/2015 Contrext, LLC 27

28. Git For Versioning Model
• Git branch = SnapCM Branch
• Git commit = SnapCM Snapshot
• Link management repository mirrors git
repository/branch organization
• Current implementation only reflects current
commit
– Could reflect any commits, just costs storage
• Git atomic commit of multiple objects allows
consistent link management state
8/14/2015 Contrext, LLC 28

29. No Key Magic:
Link Management (LM) Database
• XQuery database (BaseX)
– Heavy dependence on XPath 3.1 (maps)
– Would be much less convenient without maps
• One top-level collection per git repo/branch
pair
• Parallel link metadata database with link
management "index"
• Functions to encapsulate the git nature of the
database organization
8/14/2015 Contrext, LLC 29

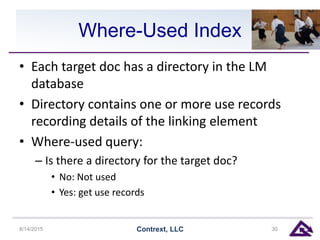

30. Where-Used Index
• Each target doc has a directory in the LM
database
• Directory contains one or more use records
recording details of the linking element
• Where-used query:
– Is there a directory for the target doc?
• No: Not used
• Yes: get use records
8/14/2015 Contrext, LLC 30

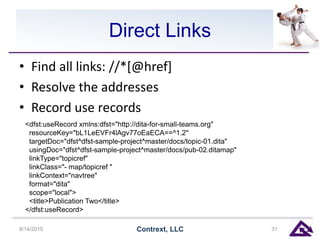

31. Direct Links
• Find all links: //*[@href]
• Resolve the addresses
• Record use records
8/14/2015 Contrext, LLC 31
<dfst:useRecord xmlns:dfst="http://dita-for-small-teams.org"
resourceKey="bL1LeEVFr4lAgv77oEaECA==^1.2"
targetDoc="dfst^dfst-sample-project^master/docs/topic-01.dita"
usingDoc="dfst^dfst-sample-project^master/docs/pub-02.ditamap"
linkType="topicref"
linkClass="- map/topicref "
linkContext="navtree"
format="dita"
scope="local">
<title>Publication Two</title>
</dfst:useRecord>

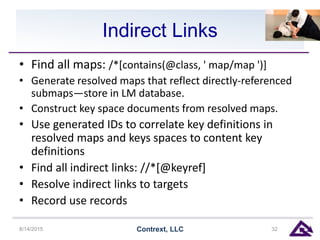

32. Indirect Links
• Find all maps: /*[contains(@class, ' map/map ')]
• Generate resolved maps that reflect directly-referenced
submaps—store in LM database.
• Construct key space documents from resolved maps.
• Use generated IDs to correlate key definitions in
resolved maps and keys spaces to content key
definitions
• Find all indirect links: //*[@keyref]
• Resolve indirect links to targets
• Record use records
8/14/2015 Contrext, LLC 32

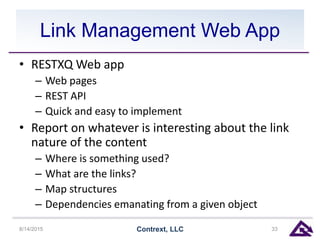

33. Link Management Web App
• RESTXQ Web app
– Web pages
– REST API
– Quick and easy to implement
• Report on whatever is interesting about the link
nature of the content
– Where is something used?
– What are the links?
– Map structures
– Dependencies emanating from a given object
8/14/2015 Contrext, LLC 33

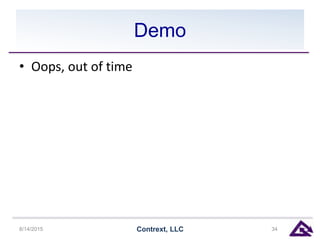

34. Demo
• Oops, out of time
8/14/2015 Contrext, LLC 34

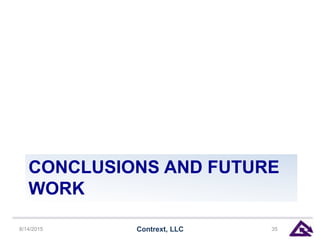

35. CONCLUSIONS AND FUTURE
WORK
8/14/2015 Contrext, LLC 35

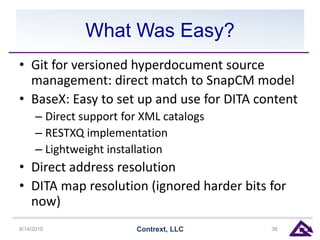

36. What Was Easy?
• Git for versioned hyperdocument source
management: direct match to SnapCM model
• BaseX: Easy to set up and use for DITA content
– Direct support for XML catalogs
– RESTXQ implementation
– Lightweight installation
• Direct address resolution
• DITA map resolution (ignored harder bits for
now)
8/14/2015 Contrext, LLC 36

37. What Was Hard
• Key space construction
– I struggled to work with XQuery 3.1 maps
– No code authoring support for complex maps
• I miss my Java IDE (I am weak and feeble from my
dependence on strongly-typed language programming)
– Scoped keys add data processing complexity
aggravated by my weak map fu
• XQuery update does not allow naïve
approaches to LM database population
8/14/2015 Contrext, LLC 37

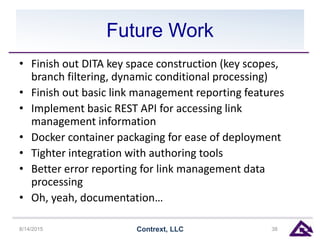

38. Future Work
• Finish out DITA key space construction (key scopes,
branch filtering, dynamic conditional processing)
• Finish out basic link management reporting features
• Implement basic REST API for accessing link
management information
• Docker container packaging for ease of deployment
• Tighter integration with authoring tools
• Better error reporting for link management data
processing
• Oh, yeah, documentation…
8/14/2015 Contrext, LLC 38

39. Questions?
8/14/2015 Contrext, LLC 39

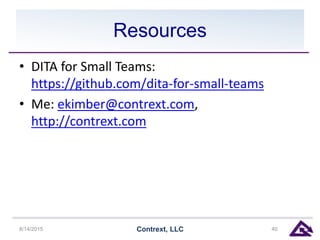

40. Resources
• DITA for Small Teams:
https://github.com/dita-for-small-teams
• Me: ekimber@contrext.com,
http://contrext.com
8/14/2015 Contrext, LLC 40
