1. Cloud Management
Andreas Chatzakis
Follow me on twitter: @achatzakis
http://gr.linkedin.com/in/achatzakis
newvem.com community

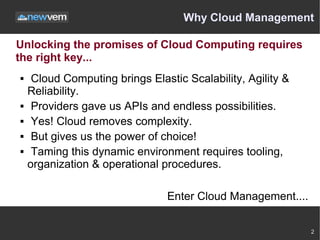

2. Why Cloud Management
Unlocking the promises of Cloud Computing requires
the right key...
 Cloud Computing brings Elastic Scalability, Agility &
Reliability.
 Providers gave us APIs and endless possibilities.
 Yes! Cloud removes complexity.
 But gives us the power of choice!
 Taming this dynamic environment requires tooling,
organization & operational procedures.
Enter Cloud Management....
2

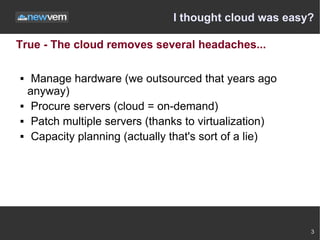

3. I thought cloud was easy?
True - The cloud removes several headaches...
 Manage hardware (we outsourced that years ago
anyway)
 Procure servers (cloud = on-demand)
 Patch multiple servers (thanks to virtualization)
 Capacity planning (actually that's sort of a lie)
3

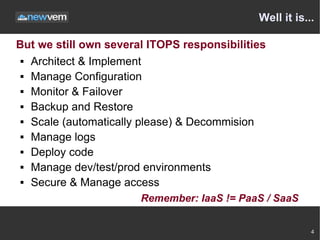

4. Well it is...
But we still own several ITOPS responsibilities
 Architect & Implement
 Manage Configuration
 Monitor & Failover
 Backup and Restore
 Scale (automatically please) & Decommision
 Manage logs
 Deploy code
 Manage dev/test/prod environments
 Secure & Manage access
Remember: IaaS != PaaS / SaaS
4

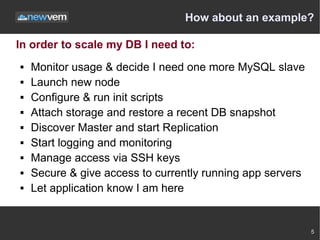

5. How about an example?
In order to scale my DB I need to:
 Monitor usage & decide I need one more MySQL slave
 Launch new node
 Configure & run init scripts
 Attach storage and restore a recent DB snapshot
 Discover Master and start Replication
 Start logging and monitoring
 Manage access via SSH keys
 Secure & give access to currently running app servers
 Let application know I am here
5

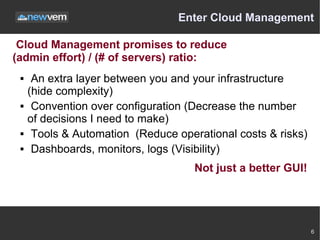

6. Enter Cloud Management
Cloud Management promises to reduce
(admin effort) / (# of servers) ratio:
 An extra layer between you and your infrastructure
(hide complexity)
 Convention over configuration (Decrease the number
of decisions I need to make)
 Tools & Automation (Reduce operational costs & risks)
 Dashboards, monitors, logs (Visibility)
Not just a better GUI!
6

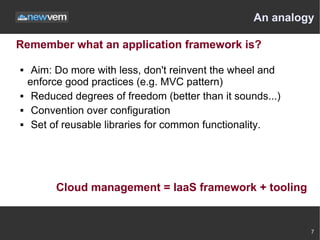

7. An analogy
Remember what an application framework is?
 Aim: Do more with less, don't reinvent the wheel and
enforce good practices (e.g. MVC pattern)
 Reduced degrees of freedom (better than it sounds...)
 Convention over configuration
 Set of reusable libraries for common functionality.
Cloud management = IaaS framework + tooling
7

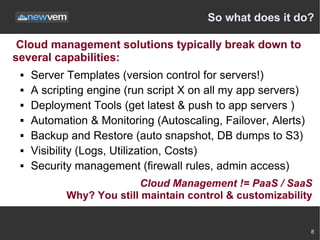

8. So what does it do?
Cloud management solutions typically break down to
several capabilities:
 Server Templates (version control for servers!)
 A scripting engine (run script X on all my app servers)
 Deployment Tools (get latest & push to app servers )
 Automation & Monitoring (Autoscaling, Failover, Alerts)
 Backup and Restore (auto snapshot, DB dumps to S3)
 Visibility (Logs, Utilization, Costs)
 Security management (firewall rules, admin access)
Cloud Management != PaaS / SaaS
Why? You still maintain control & customizability
8

9. Server Templates
Configuration management for dynamic infrastructure
 Ready-to-use templates – embedded best practices
 Import your own or customize
 “Version control” for your server images
 Easy roll out of updates
 Attach Scripts, Chef recipes
 Standardized Behaviors – consistend & reproducible
 Auto-provision – in context
 Auto-configure – variable inputs
 Auto-discovery – Who am I? - Who else is here?
9

10. Scripting Engine
Easing the tedious task of running scripts on multiple
ephemeral servers
 Version control your infrastructure scripts
 Allow for dynamic parameters
 Run on demand on one, selected or all servers
 Run on server init or on server termination
 Run on this server or on other servers
 Schedule to run on specific time or intervals
 All through an admin friendly UI
10

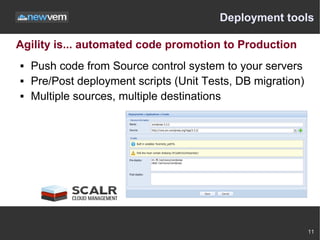

11. Deployment tools
Agility is... automated code promotion to Production
 Push code from Source control system to your servers
 Pre/Post deployment scripts (Unit Tests, DB migration)
 Multiple sources, multiple destinations
11

12. Automation & Monitoring
Monitor and automatically react to change at 3:00 AM
 Monitor system usage metrics
 Autoscale up or down
 Keep your setup tidy – (e.g. no orphan EBS volumes)
 Replace failed nodes
 DB failover
 Alert
 APIs for deep integrations & automations
12

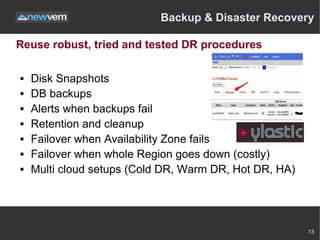

13. Backup & Disaster Recovery
Reuse robust, tried and tested DR procedures
 Disk Snapshots
 DB backups
 Alerts when backups fail
 Retention and cleanup
 Failover when Availability Zone fails
 Failover when whole Region goes down (costly)
 Multi cloud setups (Cold DR, Warm DR, Hot DR, HA)
13

14. Visibility
From top to bottom, track and report on what matters
 Cloud objects usage
 Metrics on load per server, role or farm
 Audit log
 Script execution log
 Analyze failures
14

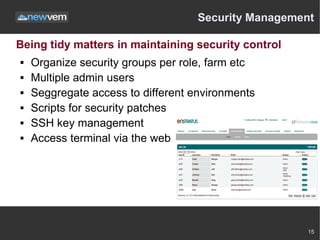

15. Security Management
Being tidy matters in maintaining security control
 Organize security groups per role, farm etc
 Multiple admin users
 Seggregate access to different environments
 Scripts for security patches
 SSH key management
 Access terminal via the web
15

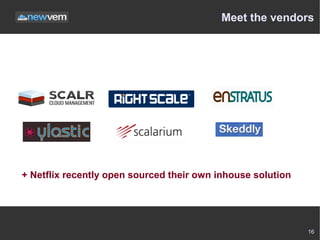

16. Meet the vendors
+ Netflix recently open sourced their own inhouse solution
16

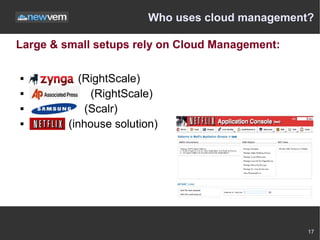

17. Who uses cloud management?
Large & small setups rely on Cloud Management:
 (RightScale)
 (RightScale)
 (Scalr)
 (inhouse solution)
17

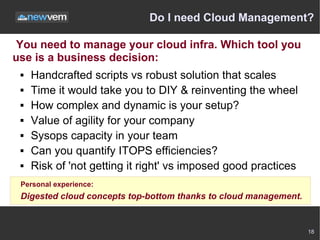

18. Do I need Cloud Management?
You need to manage your cloud infra. Which tool you
use is a business decision:
 Handcrafted scripts vs robust solution that scales
 Time it would take you to DIY & reinventing the wheel
 How complex and dynamic is your setup?
 Value of agility for your company
 Sysops capacity in your team
 Can you quantify ITOPS efficiencies?
 Risk of 'not getting it right' vs imposed good practices
Personal experience:
Digested cloud concepts top-bottom thanks to cloud management.
18

19. About newvem
Combine a Cloud Management solution with
Newvem's Analytics and make the most of the cloud:
 Powerful analytics of cloud usage data
 Reveal security & availability issues in your cloud infra
 Get actionable insights
 Identify opportunities for cost reductions
 Spot overloaded resources requiring vertical or
horizontal scaling
 Get visibility and confidence you are utilizing your cloud
management tool effectively
19
