Introduction to basic concepts of Cloud Computing including AWS, GCP and Azure

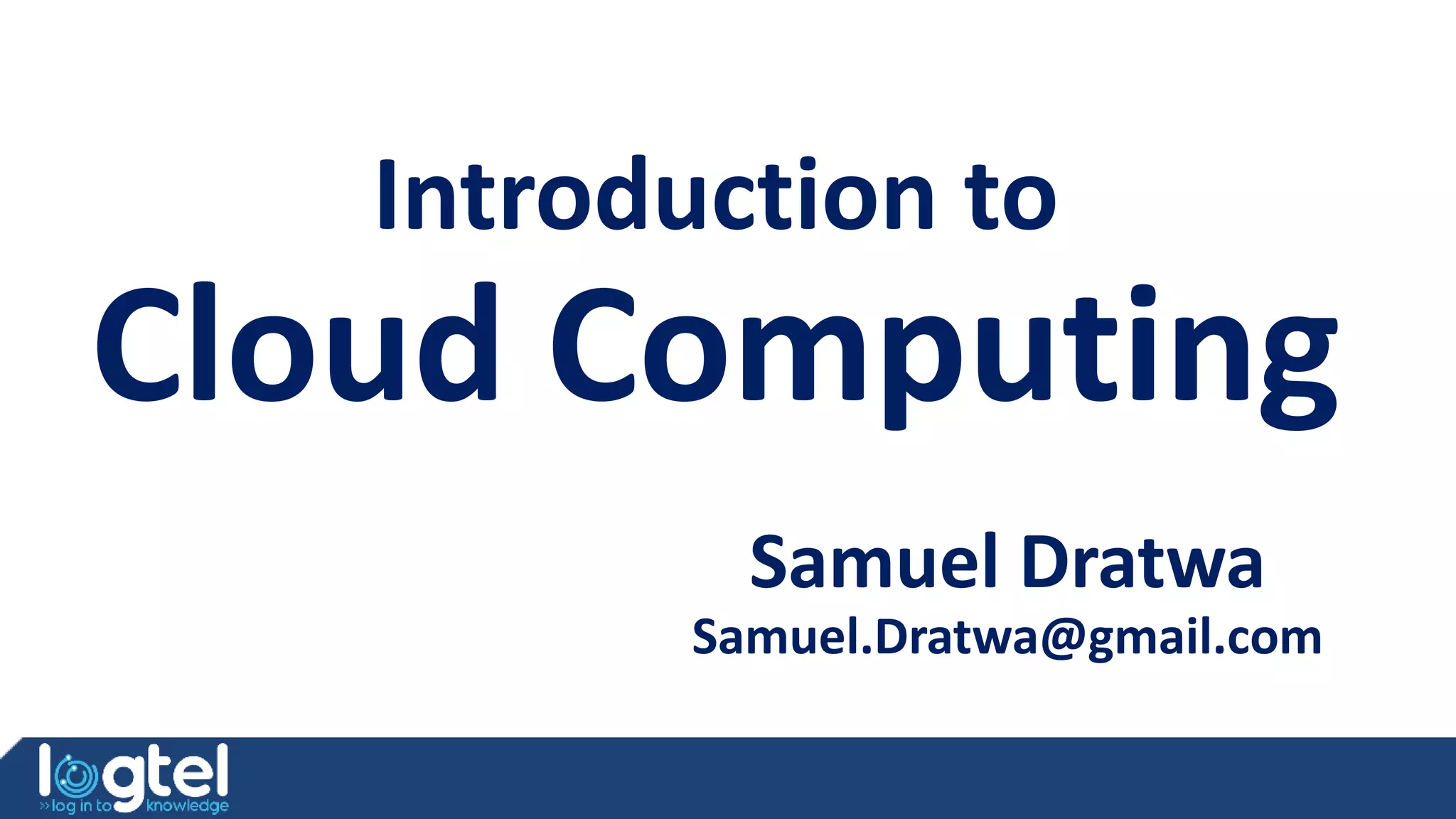

2. Introduction to
Cloud Computing
Samuel Dratwa
Samuel.Dratwa@gmail.com

3. Course agenda
• Introduction
• Demo and comparison
• Cloud architecture
• Hands on AWS
• Security & encryption
• Hands on GCP
• The future of the cloud

4. What is
Cloud Computing ?
4

5. Definition
5
 Wikipedia - Cloud computing is the on-demand availability
of computer system resources, especially data storage and computing power,
without direct active management by the user. The term is generally used to
describe data centers available to many users over the Internet.
 Academic (simple) - provide on-demand resources or services over a
network, often the Internet, with the scale and reliability of a data center.
 Mine – distributed mainframe, reachable from any device connected to the
internet

6. Cloud computing is kind of hosting
6

7. Three layers of services
7
IaaS
Infrastructure as a Service
PaaS
Platform as a Service
SaaS
Software as a Service
7

8. SaaS
PaaS
IaaS
IaaS, PaaS and SaaS Point of View
8
Platform as a Service
PRODUCT: storage, compute and other
services to simplify application
development, especially of web
applications.
USERS: Application Developers
Software as a Service
PRODUCT: Finished application
available on demand to end user
USERS: Software consumer
Infrastructure as a Service
PRODUCT: Compute power, storage and
networking infrastructure over the
internet, provided as a virtual machine
USERS: Developers
8

9. The “old way”
Server(s)
PC(s) / Laptop(s)
Software
Buy, Install,
Maintain, Upgrade
9

10. The “new way”
Server(s)
PC(s) / Laptop(s)
Software
Buy, Install,
Maintain, Upgrade
10

11. It’s not just above the line
11

12. Also (almost) all the rest
X
X
X
X
12

13. Outsourcing to the extreme
13

14. • No hardware or software to manage
• Service delivered through a browser
• Examples:
• CRM
• Financial Planning
• Human Resources
• Word processing
• Commercial Services:
• Salesforce.com
• email
SaaS - Software delivery model
14

15. SaaS examples
15

16. • Pay per use
• Instant Scalability
• Security
• Availability/Reliability
• Disaster recovery
• APIs
SaaS - Advantages
16
16

17. • Is Skype a SaaS ?
• Is YouTube a SaaS
SaaS Attention Test ;-)
17

18. • Estimating demand is not a science!
• Platform management is not fun!
• Examples:
• Storage
• Database
• Scalability
• Commercial Services:
• GCP
• Azure
• AWS
PaaS - Platform delivery model
18

19. PaaS examples
19

20. AWS pricing
20

21. 21

22. 22

23. Price comparison
23

24. • Pay per use
• Instant Scalability
• Security
• Availability/Reliability
• Disaster recovery
• APIs
PaaS - Advantages
24

25. PaaS Attention Test ;-)
25

26. • Access to infrastructure stack:
• CPU, Memory
• Baremetal
• Firewalls
• Routers
• Load balancing
• Commercial Services:
• Flexiscale
• AWS
• RackSpace
IaaS - infrastructure delivery model
26

27. • Pay per use
• Instant Scalability
• Security
• Availability/Reliability
• Disaster recovery
• APIs
IaaS - Advantages
27

28. IaaS vs. PaaS
28

29. Common Factors Advantages
• Pay per use
• Instant Scalability
• Security
• Reliability
• APIs
• Lower cost of ownership
• Reduce infrastructure
management
responsibility
• Allow for unexpected
resource loads
• Faster application rollout
IaaS
PaaS
SaaS
29

30. 30

31. Public
Cloud
Cloud Ecosystem
31
Enterprise
Private Cloud Private Cloud
External
Internal
Virtual Private Cloud
31

32. AWS Outpost
32

33. 33

34. Risks
 Security
 Downtime
 Access
 Dependency
 Interoperability
 Regulation
IaaS
PaaS
SaaS
34

35. The market
35

36. 36

37. 37

38. 38

39. 39

40. Cloud architecture
40

41. Cloud computing is kind of hosting
41

42. What is there in a Cloud?
Individuals Corporations Non-Commercial
Cloud provisioning
Storage
Provisioning
OS
Provisioning
Network
Provisioning
Service(apps)
Provisioning
SLA(monitor),
Security, Billing,
Payment
Services Storage Network OS
Resources
42

43. What is Cloud OS ?
Physical Node Physical Node Storage
Server
Storage
Server
Physical Node
Physical Node
Storage
Server
Storage
Server
Mail Virtual
Cluster
Compute Nodes
Backup
Virtual
Cluster
HC Virtual
Cluster
AppX Virtual
Cluster
Data Nodes
Service Nodes
System Service
daemons
Cloud OS agents
• System Management Software layer
– Physical Resource Provisioning
– Virtual Resource Management
• Improve manageability of massive Cloud
Data Center
• Enhance self-provisioning
• Optimize physical resource utilization
• High Availability for any single point of
failure
• Energy management
– Highly Available Distributed Storage
Management
– Service Load Balancing
– Security
– High Speed Networking
• What is it not?
– It’s not Operating System
– It’s not Virtualization Hypervisor
43

44. Load balancing
44

45. Google’s Chrome OS
45

46. Cloud Data Center
46

47. Google data center
47

48. Azure Virtualization Architecture
Azure Services (storage)
Load
Balancer
Public Internet
Worker
Role(s)
Front-end
Web Role
Switches
Highly-available
Fabric Controller
In-band
communication –
software control
Load-balancers
48

49. Azure Virtualization Architecture
Hypervisor
Guest Partition
(VM)
Host Partition
(VM)
Guest Partition
(VM)
Hardware
Virtualization
Stack
(VSP)
Drivers
Host OS
Server Core
Applications
Applications
RD OS
Virtualization
Stack
(VSC)
Guest OS
Server Enterprise
Virtualization
Stack
(VSC)
Guest OS
Server Enterprise
NIC Disk1
VMBUS VMBUS VMBUS
Disk2 CPU
Azure Services (storage)
Load
Balancer
Public Internet
Worker
Role(s)
Front-end
Web Role
49

50. Commitment to Interoperability
50

51. Amazon
1
51

52. 52

53. 53

54. OpenStack

55. • OpenStack APIs
• Nova: Open Stack Compute automates provisioning of virtual machines
• Cinder: Block storage system accessible by VMs
• Neutron: OpenStack service for establishing connectivity between VMs
• Swift: Large scale redundant object (i.e. VM) store
• Glance: Image service that catalogs and manages
(stores, retrieves, registers and delivers ) virtual
machine images
• Keystone: provides system-wide authentication
• Ironic: Bare metal management
• Horizon: Web-based dashboard access and management for users
Open Stack – A Cloud Operating System
55

56. • Stack: Collection of resources
• Virtual machines, networks, auto scaling rules
• Template: Definition of resources that make up the Stack
• Four sections
• Resources – Objects that will be created - like a server
• Properties – image, flavor
• Parameters – Property values
• Output – Information passed back to user or dashboard
Open Stack – A Cloud Operating System
Images
CentOS
XMS VNFc
CentOS
MRB VNFc
CentOS
Load Balancer VNFc
Flavors
4 CPU
8GB RAM
50GB Disk
8 CPU
16GB RAM
50GB Disk
12 CPU
16GB RAM
50GB Disk
Stacks
Auto scaling
policy
Parameters
Stack
Heat Templates contain info to create stacks
56

57. 57

58. 58

59. 59

60. OpenStack map to AWS
Horizon
Dashboard
Swift
object store
Glance
image store
Nova
compute node
Cinder
volume service
Keystone
identity service
Heat
Orchestration
Celiometer telemetry service
Trove
database
Neutron
networking
S3 EC2 EBS vPC RDS
AMI
IAM
Cloud
Formation
60

61. Provisioning flow
61
