New Product Forecasting using Deep Learning

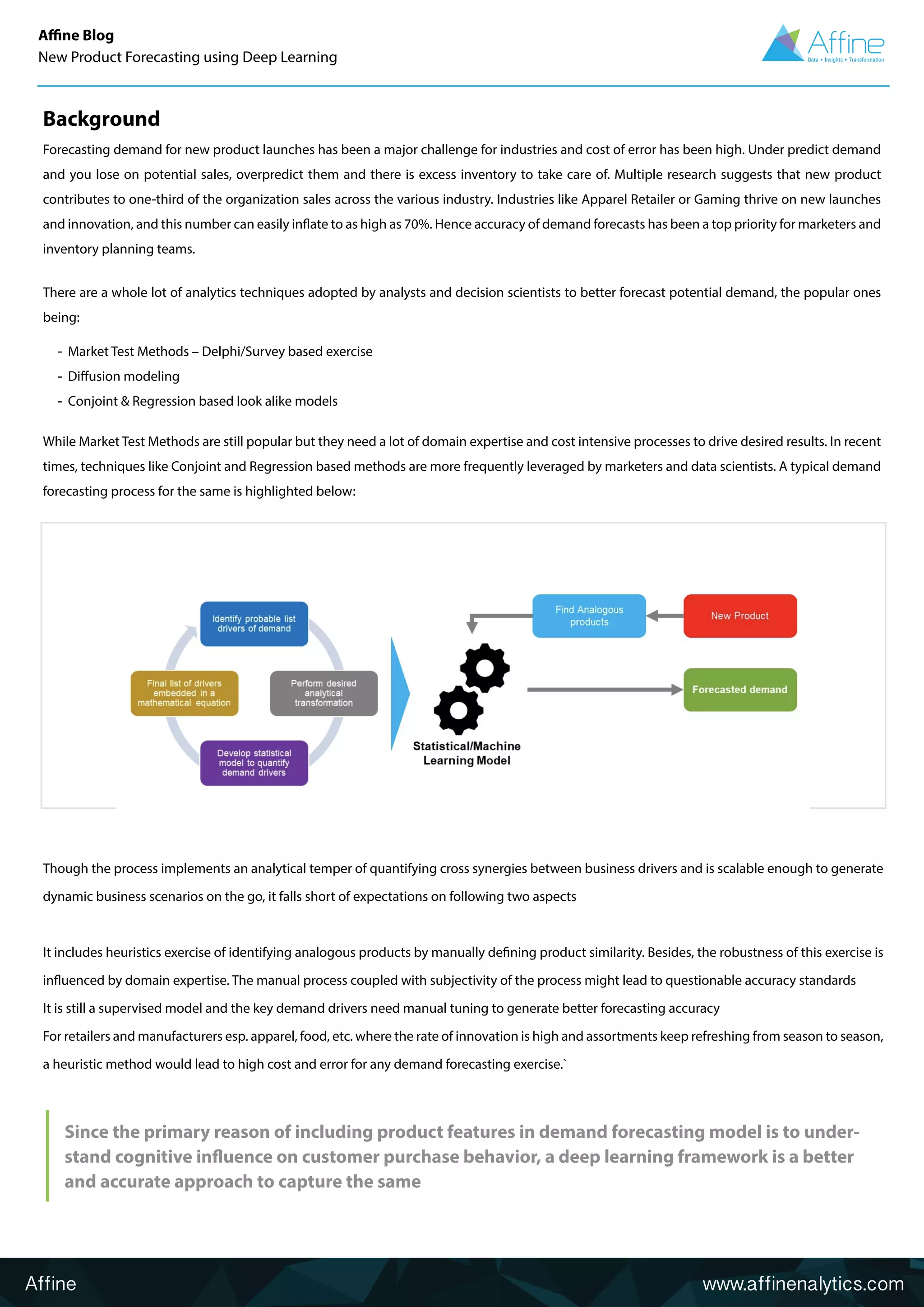

Background
Forecasting demand for new product launches has been a major challenge for industries and cost of error has been high. Under predict demand
and you lose on potential sales, overpredict them and there is excess inventory to take care of. Multiple research suggests that new product
contributes to one-third of the organization sales across the various industry. Industries like Apparel Retailer or Gaming thrive on new launches
and innovation, and this number can easily inflate to as high as 70%. Hence accuracy of demand forecasts has been a top priority for marketers and
inventory planning teams.
There are a whole lot of analytics techniques adopted by analysts and decision scientists to better forecast potential demand, the popular ones
being:
- Market Test Methods – Delphi/Survey based exercise
- Diffusion modeling
- Conjoint & Regression based look alike models
While Market Test Methods are still popular but they need a lot of domain expertise and cost intensive processes to drive desired results. In recent
times, techniques like Conjoint and Regression based methods are more frequently leveraged by marketers and data scientists. A typical demand
forecasting process for the same is highlighted below:
Though the process implements an analytical temper of quantifying cross synergies between business drivers and is scalable enough to generate
dynamic business scenarios on the go, it falls short of expectations on following two aspects
It includes heuristics exercise of identifying analogous products by manually defining product similarity. Besides, the robustness of this exercise is
influenced by domain expertise. The manual process coupled with subjectivity of the process might lead to questionable accuracy standards
It is still a supervised model and the key demand drivers need manual tuning to generate better forecasting accuracy
For retailers and manufacturers esp. apparel, food, etc. where the rate of innovation is high and assortments keep refreshing from season to season,
a heuristic method would lead to high cost and error for any demand forecasting exercise.`
Since the primary reason of including product features in demand forecasting model is to under-
stand cognitive influence on customer purchase behavior, a deep learning framework is a better
and accurate approach to capture the same

3. Case Background
An apparel retailer wanted to forecast demand for its newly launched “Footwear” styles across various lifecycle stages. The current forecasting
engine implemented various supervised techniques which were ensemble to generate desired demand forecasting. It had 2 major shortcomings:
- The analogous product selection mechanism was heuristic and lead to low accuracy level in downstream processes
- The heuristic exercise was a significant road block in evolving the current process to a scalable architecture, making the overall experience a
cost intensive one
- The engine was not able to replicate the product life cycle accurately
Proposed Solution
We proposed to tackle the problem through an intelligent, automated and scalable framework
- Leverage Convoluted Neural Networks(CNN) to facilitate the process of identifying the analogous product. CNN techniques have been proven
to generate high accuracies in image matching problems
- Leverage Recurrent Neural Networks (RNN) to better replicate product lifecycle stages. Since RNN memory layers are better predictors of next
likely event, it is an apt tool to evaluate upcoming time-based performances
- Since the objective was to devise a scalable method, a cloud-ready easy to use UI was proposed, where user can upload the image of an upcom
ing style and the demand forecasts would be generated instantly
Overall Approach
The entire framework was developed in Python using Deep Learning platforms like Tensor Flow with an interactive user interface powered by
Django. The Deep Learning systems were supported through NVIDIA GPUs hosted on Google Cloud.
The demand prediction framework consists of following components to ensure an end to end analytical implementation and consumption.
In practice, CNN and RNN are two distinct methodologies and this article highlights a case where various Deep Learning models were combined
to develop a self-learning demand forecasting framework.
Affine www.affinenalytics.com
Affine Blog
New Product Forecasting using Deep Learning

4. - Input Image: holds raw pixel values of the image with features being width, height & RGB values
- Convolution: Conv Net is to extract features from input data. Formation of matrix by sliding filters over an image and computing dot product
is called“Feature Map”
- Non-Linearity – RELU: This layer applies element-wise activation filter leveraged to stimulate non-linearity relationships in a standard ANN
- Pooling: Reduces the dimensionality of each feature map and retains important information. Helps in arriving at a scale invariant
representation of an image
- Dropouts: To prevent overfitting random connections are severed
- SoftMax Layer: Output layer that classifies the image to appropriate category/subcategory/heel height classes
An image classification algorithm was developed by leveraging Deep Learning techniques like Convolution Neural Networks.
The process included
- Data collation
• Developed an Image bank consisting of multi-style shoes across all categories/sub-categories e.g. sports, fashion, formals etc.
Included multiple alignments of the shoe images
- Data cleaning and standardization
• Removed duplicate images
• Standardized the image to a desired format and size
- Define high-level features
• Few key features were defined like brands, sub-category, shoe design – color, heel etc.
- Image matching outcomes
• Implemented a CNN model with 5+ hidden layers
The following image is an illustrative representation of the CNN architecture implemented
1. Product Similarity Engine
Affine www.affinenalytics.com
Affine Blog
New Product Forecasting using Deep Learning

5. 1. Forecasting Engine
A demand forecasting engine was developed on the available data by evaluating various factors like
• Promotions – Discounts, Markdown
• Pricing changes
• Seasonality – Holiday sales
• Average customer rating
• Product Attributes – This was sourced from the CNN exercise highlighted in the previous step
• Product Lifecycle – High sales in initial weeks followed by declining trend
Analogous Product: Attribute Similarity Snapshot (Sample Attributes Highlighted)
dentified Top N matching shoes and calculated their probability scores. Classified image orientation as top, side (right/left) alignment of the same
image:
Similarity Index- Calculated based on the normalized overall probability scores
The following image is an illustrative representation of the demand forecasting model based on RNN architecture
The RNN implementation was done using Keras Sequential model and the loss function was estimated using“mean squared error”method
Affine www.affinenalytics.com
Affine Blog
New Product Forecasting using Deep Learning

6. An illustrative snapshot is highlighted below:
The accuracy from the proposed Deep Learning framework was in the range of 85-90% which was an improvement on the existing methodology
of 60-65%.
Demand forecast outcome
Web UI for Analytical Consumption
Affine www.affinenalytics.com
Affine Blog
New Product Forecasting using Deep Learning

7. • Higher accuracy through better learning of the product lifecycle
• The overall process is self-learning and hence can be scaled quickly
• Automation of decision intensive processes like analogous product selection led to reduction in execution time
• Long-term cost benefits are higher
Benefits and Impact
Author
• The image matching process requires huge data to train
• The feature selection method can be an automated through unsupervised techniques like Deep Auto Encoders which will further improve
scalability
• Managing image data is a cost intensive process but it can be rationalized over time
• The process accuracies can be improved by creating a deeper architecture of the network and an additional one-time investment of GPU
configurations
Sourav Mazumdar - Senior Manager, Affine
Kuleesha Yadav – Data Scientist, Affine
Key Challenges and Opportunities
