ICT 0801 2/9/2011 S.G.Nambuwasam 1 Software Development Practices

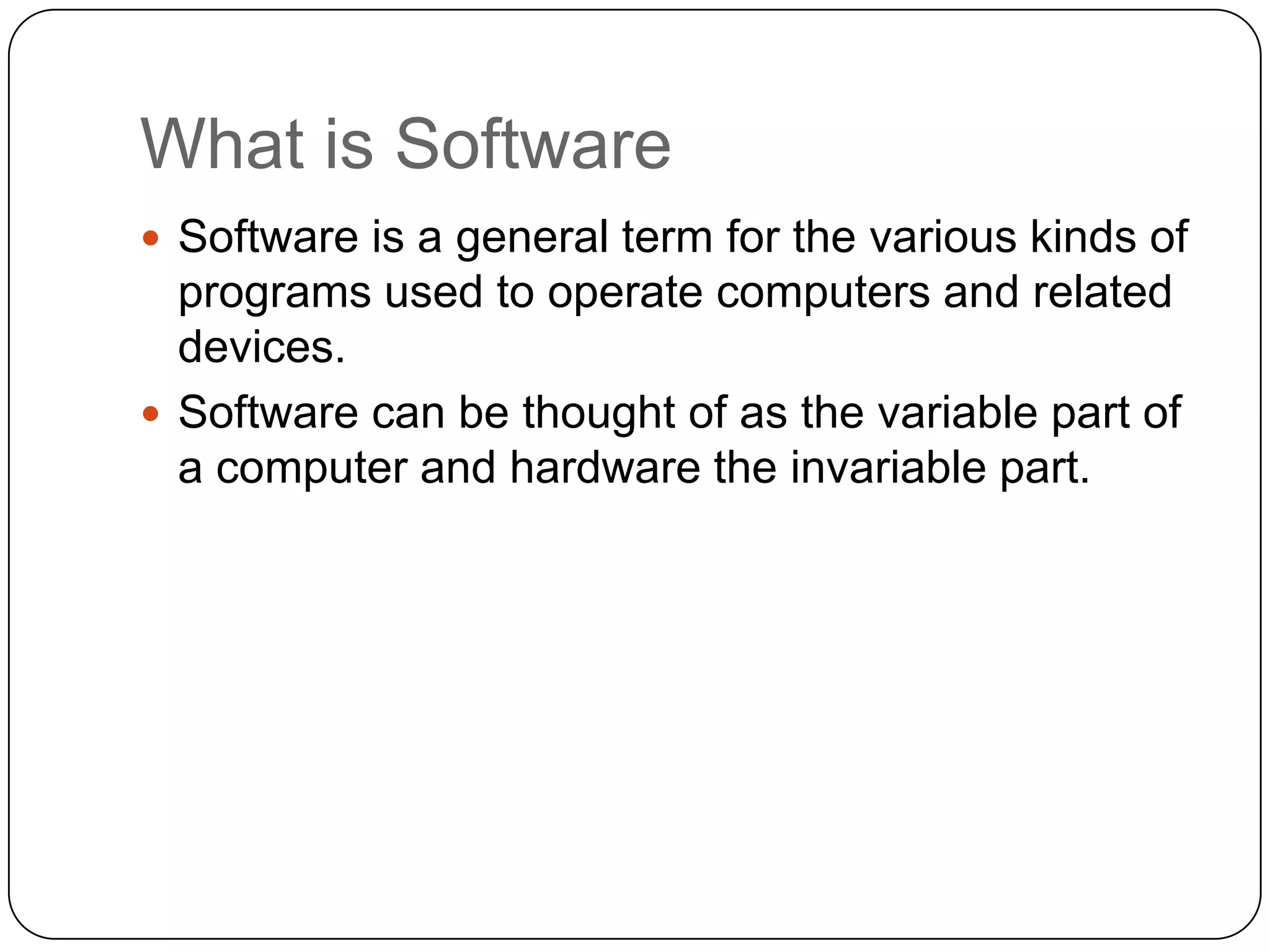

What is Software Software is a general term for the various kinds of programs used to operate computers and related devices.  Software can be thought of as the variable part of a computer and hardware the invariable part.

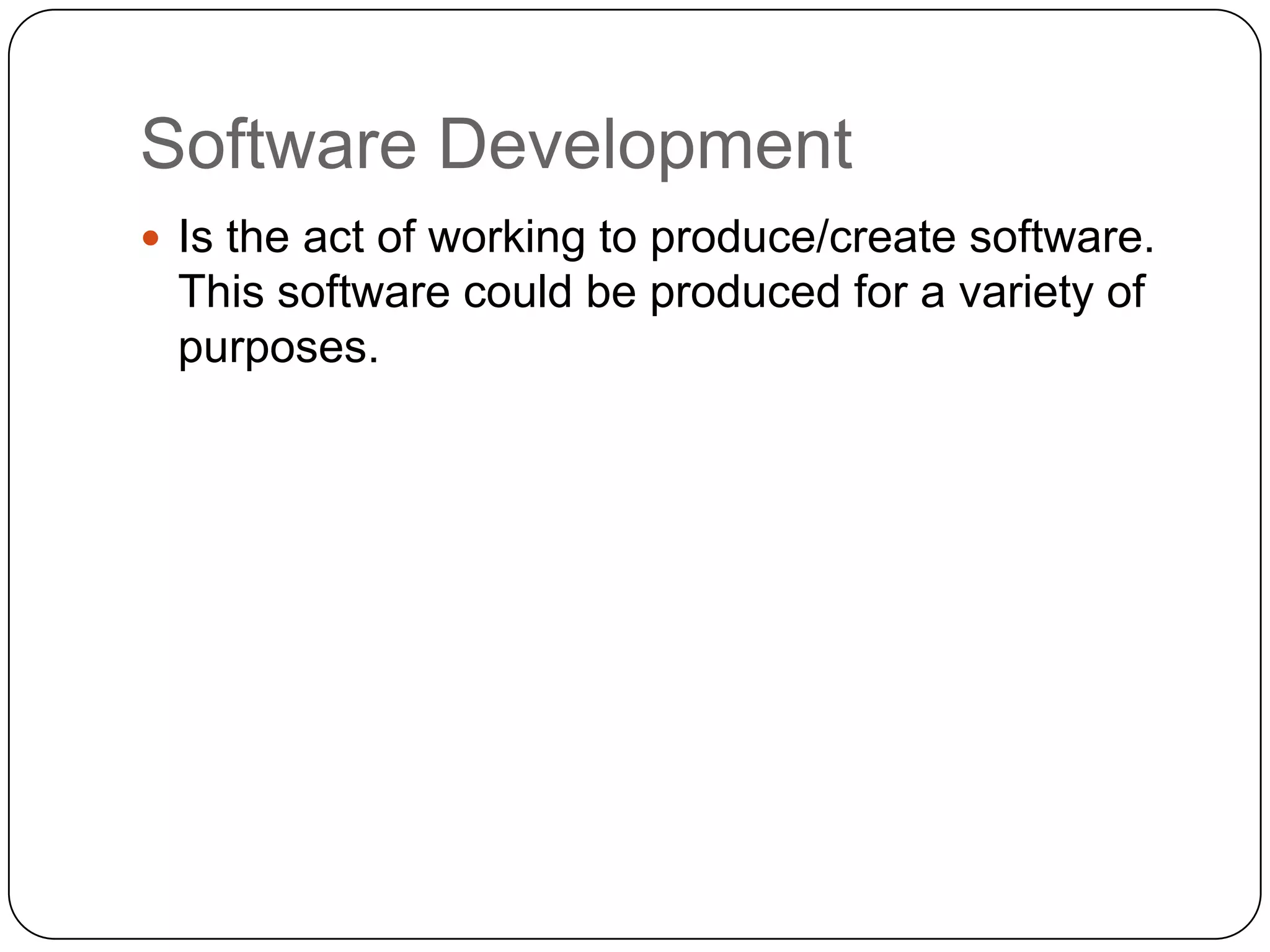

Software Development Is the act of working to produce/create software. This software could be produced for a variety of purposes.

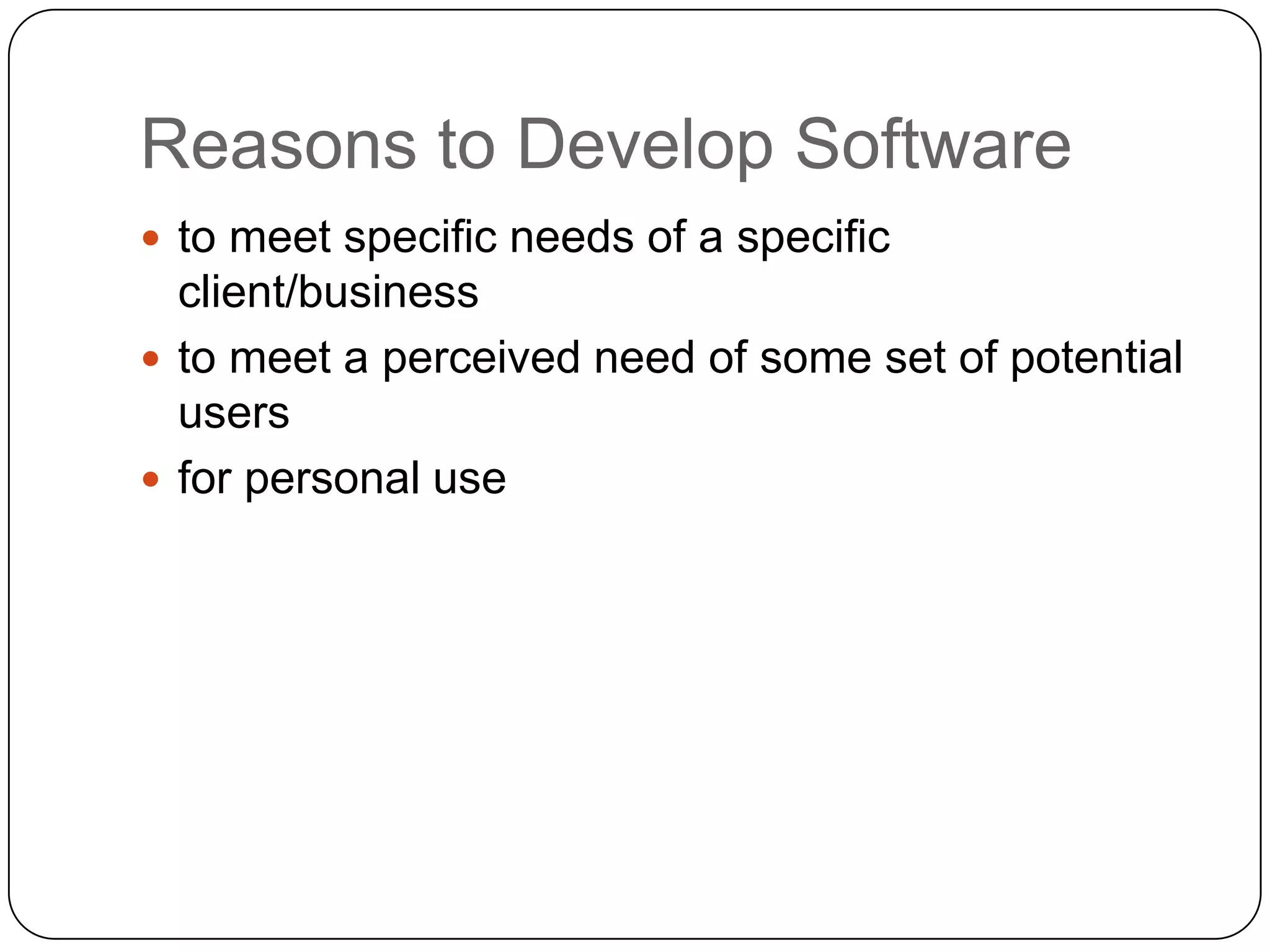

Reasons to Develop Software to meet specific needs of a specific client/business  to meet a perceived need of some set of potential users  for personal use

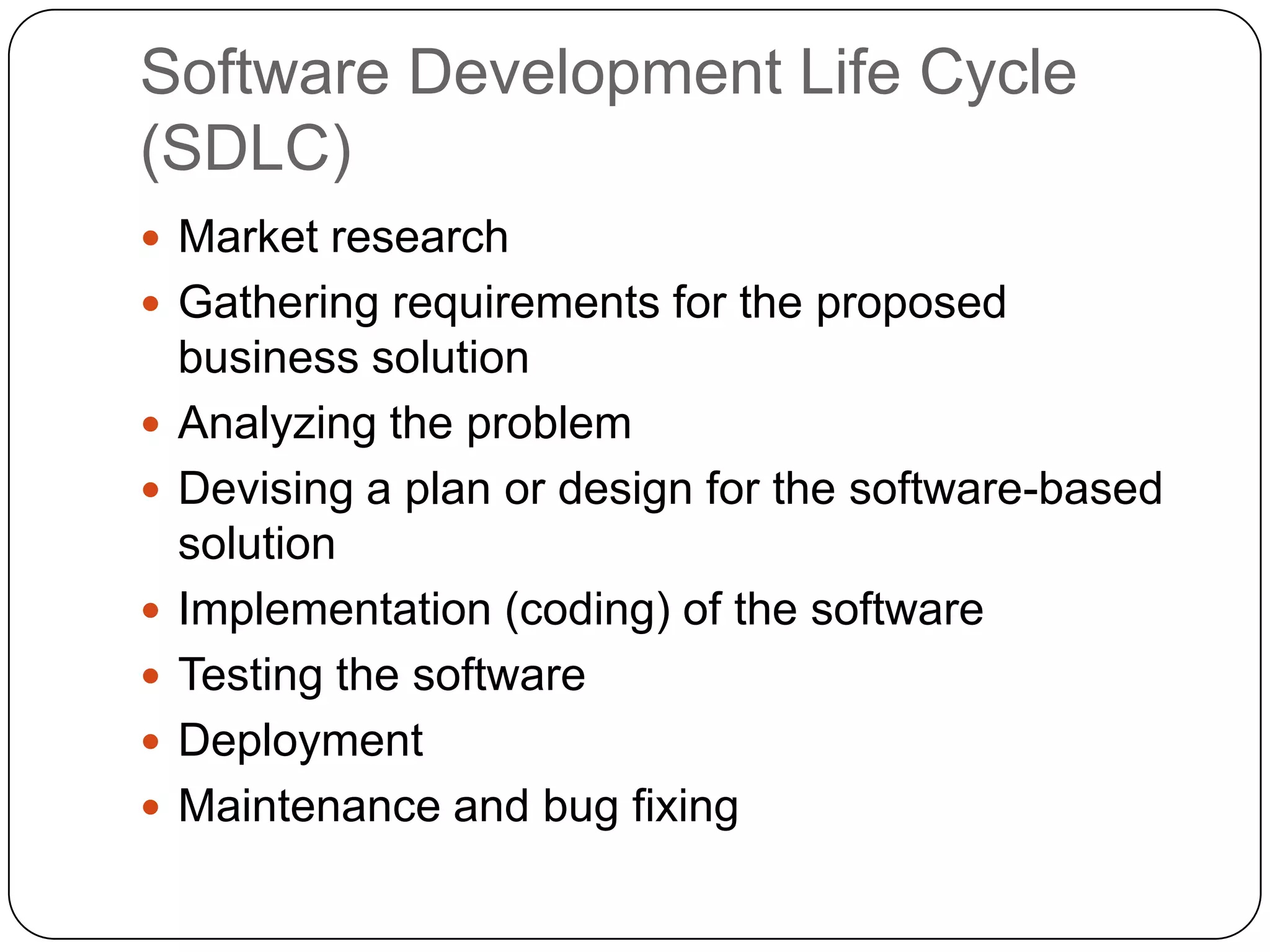

Software Development Life Cycle (SDLC) Market research Gathering requirements for the proposed business solution Analyzing the problem Devising a plan or design for the software-based solution Implementation (coding) of the software Testing the software Deployment Maintenance and bug fixing

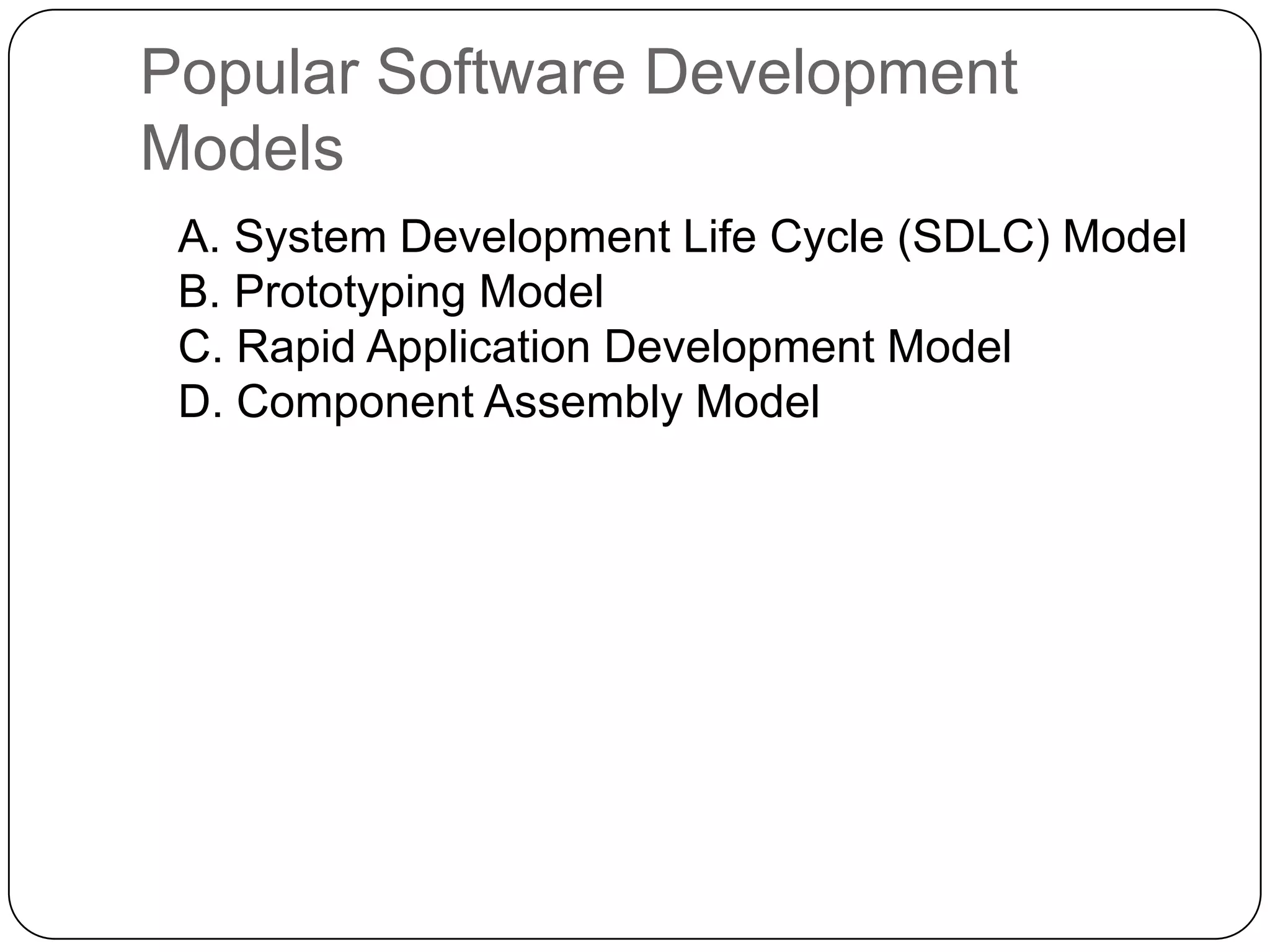

Popular Software Development Models 	A. System Development Life Cycle (SDLC) Model B. Prototyping Model C. Rapid Application Development Model D. Component Assembly Model

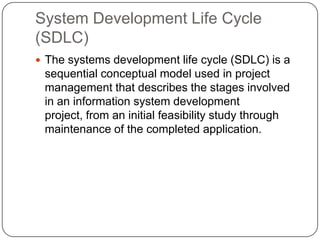

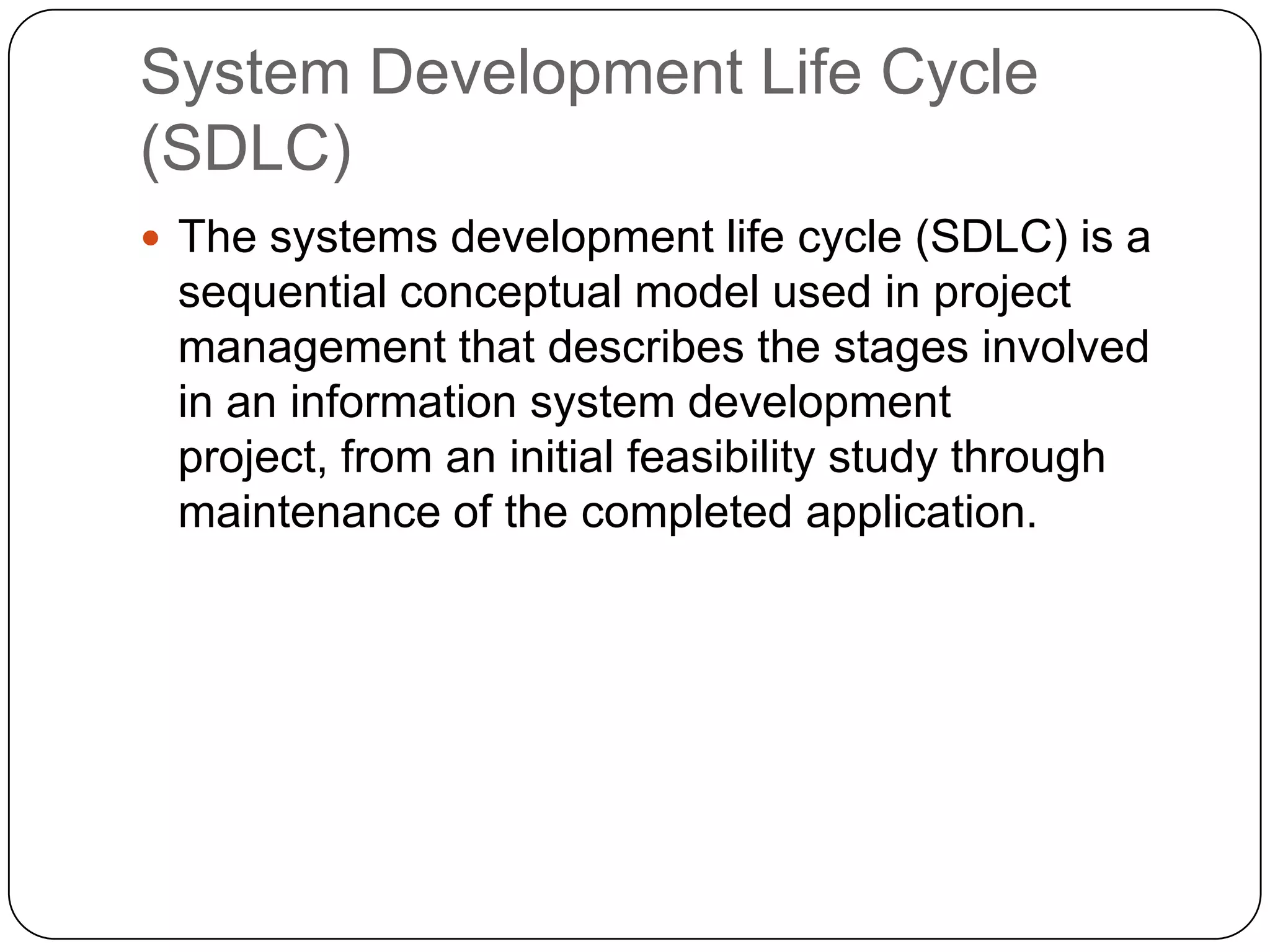

System Development Life Cycle (SDLC) The systems development life cycle (SDLC) is a sequential conceptual model used in project management that describes the stages involved in an information system development project, from an initial feasibility study through maintenance of the completed application.

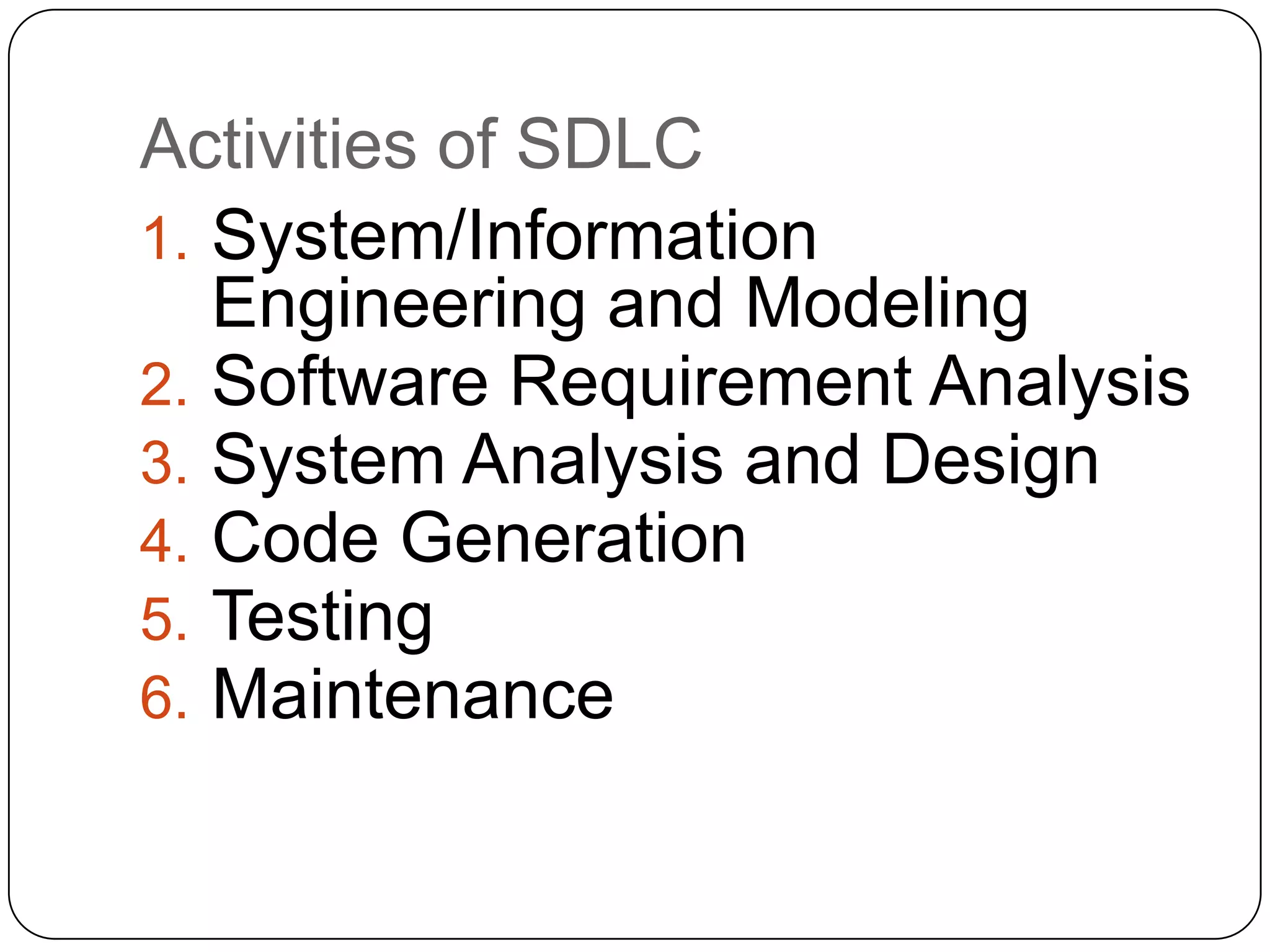

Activities of SDLC System/Information Engineering and Modeling Software Requirement Analysis System Analysis and Design Code Generation Testing Maintenance

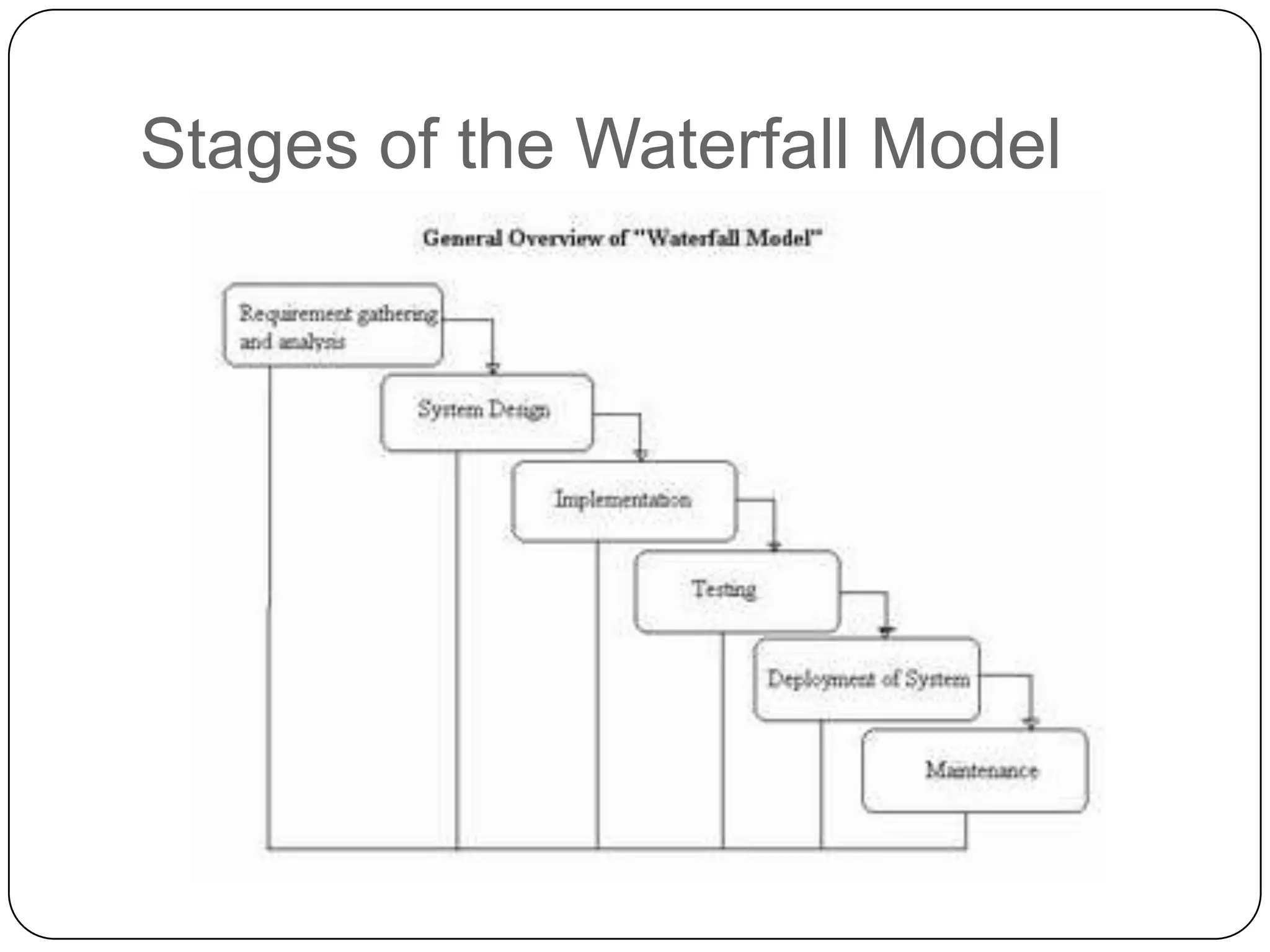

Stages of the Waterfall Model

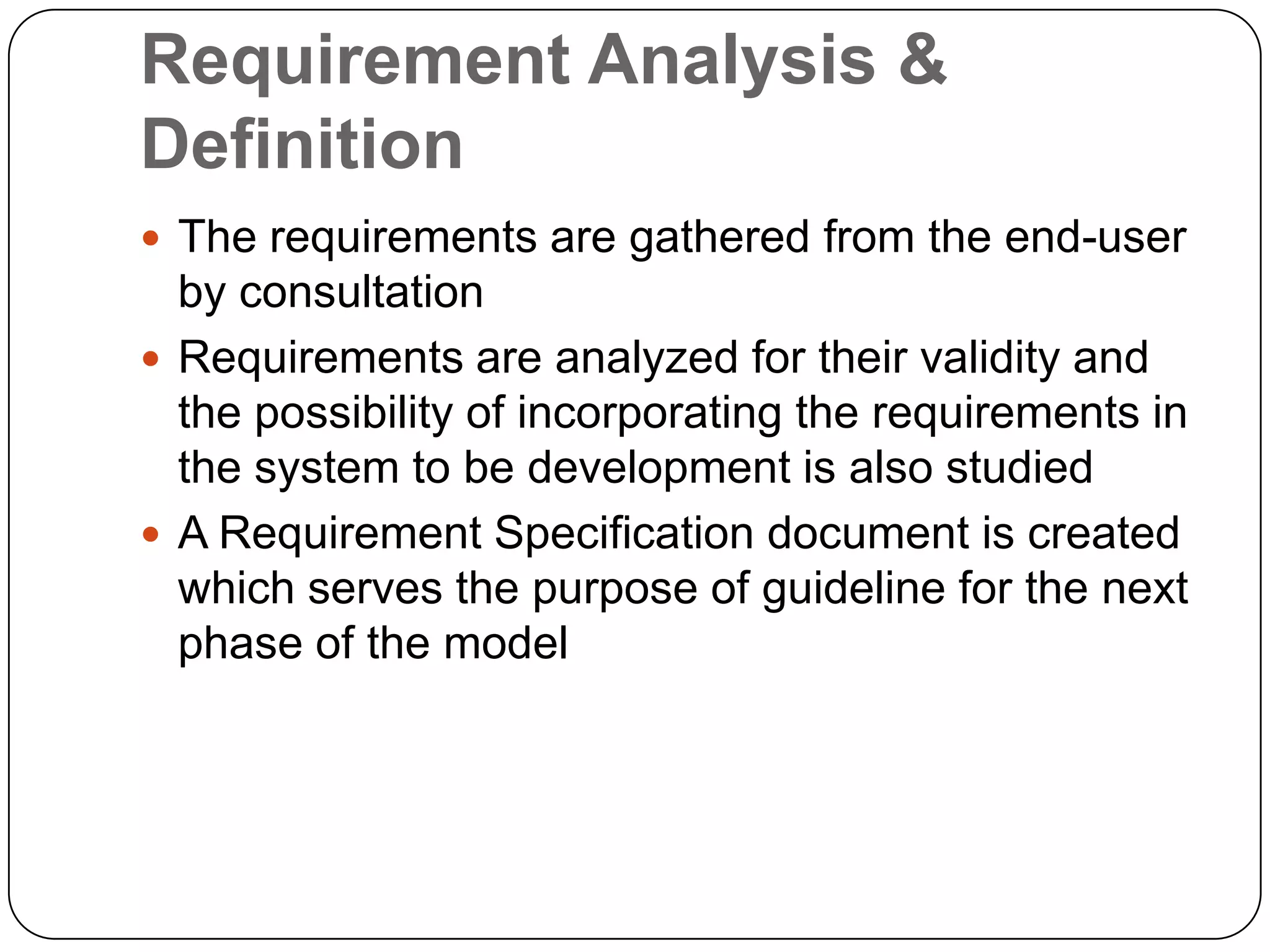

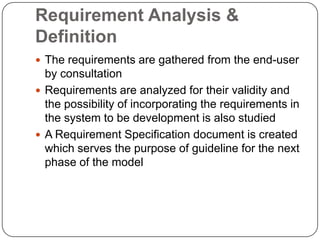

Requirement Analysis & Definition The requirements are gathered from the end-user by consultation Requirements are analyzed for their validity and the possibility of incorporating the requirements in the system to be development is also studied A Requirement Specification document is created which serves the purpose of guideline for the next phase of the model

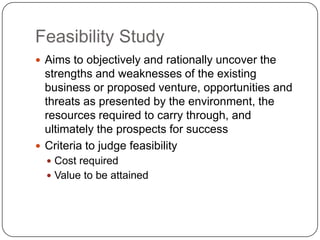

Feasibility Study Aims to objectively and rationally uncover the strengths and weaknesses of the existing business or proposed venture, opportunities and threats as presented by the environment, the resources required to carry through, and ultimately the prospects for success Criteria to judge feasibility  Cost required  Value to be attained

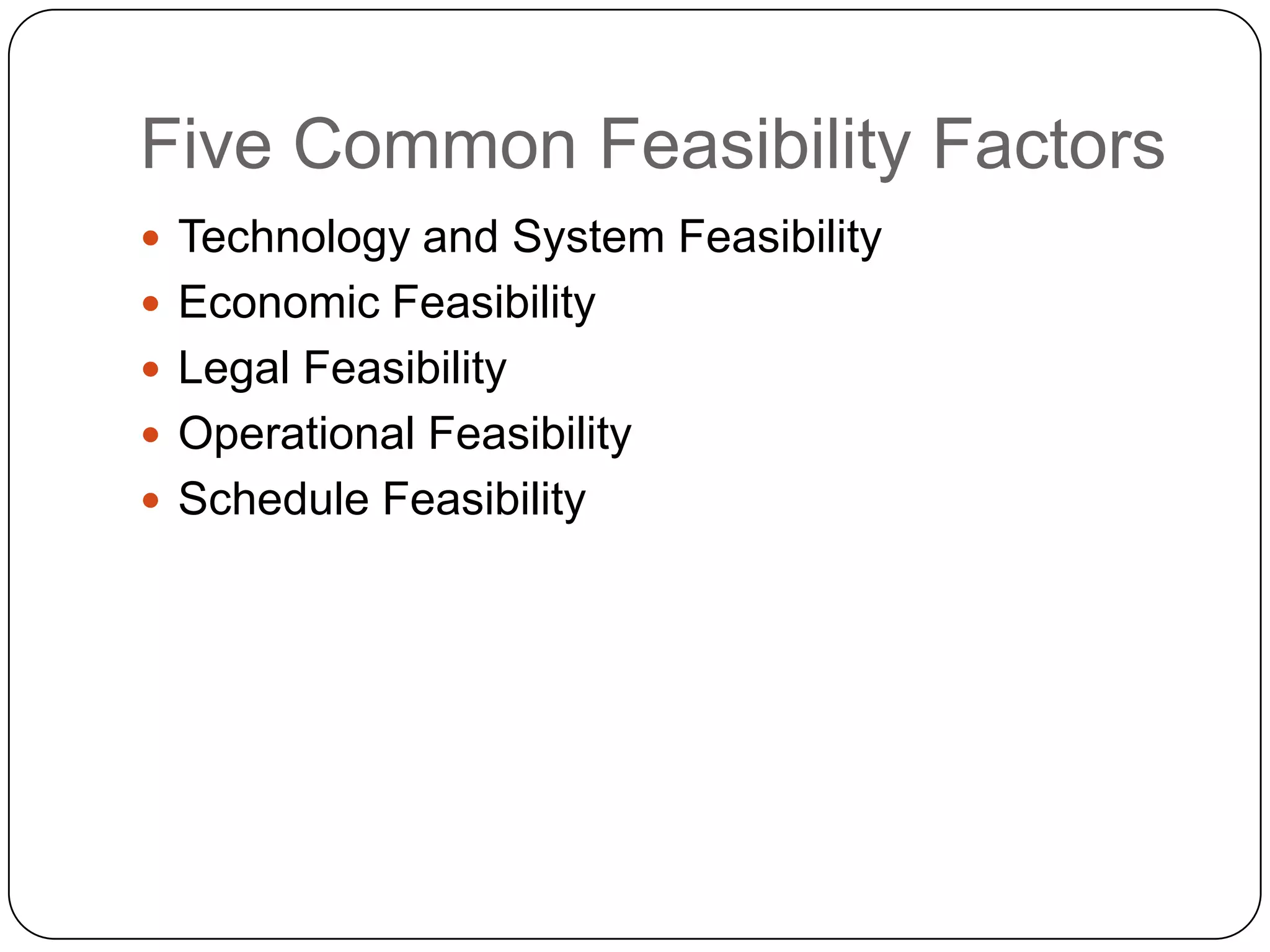

Five Common Feasibility Factors Technology and System Feasibility Economic Feasibility Legal Feasibility Operational Feasibility Schedule Feasibility

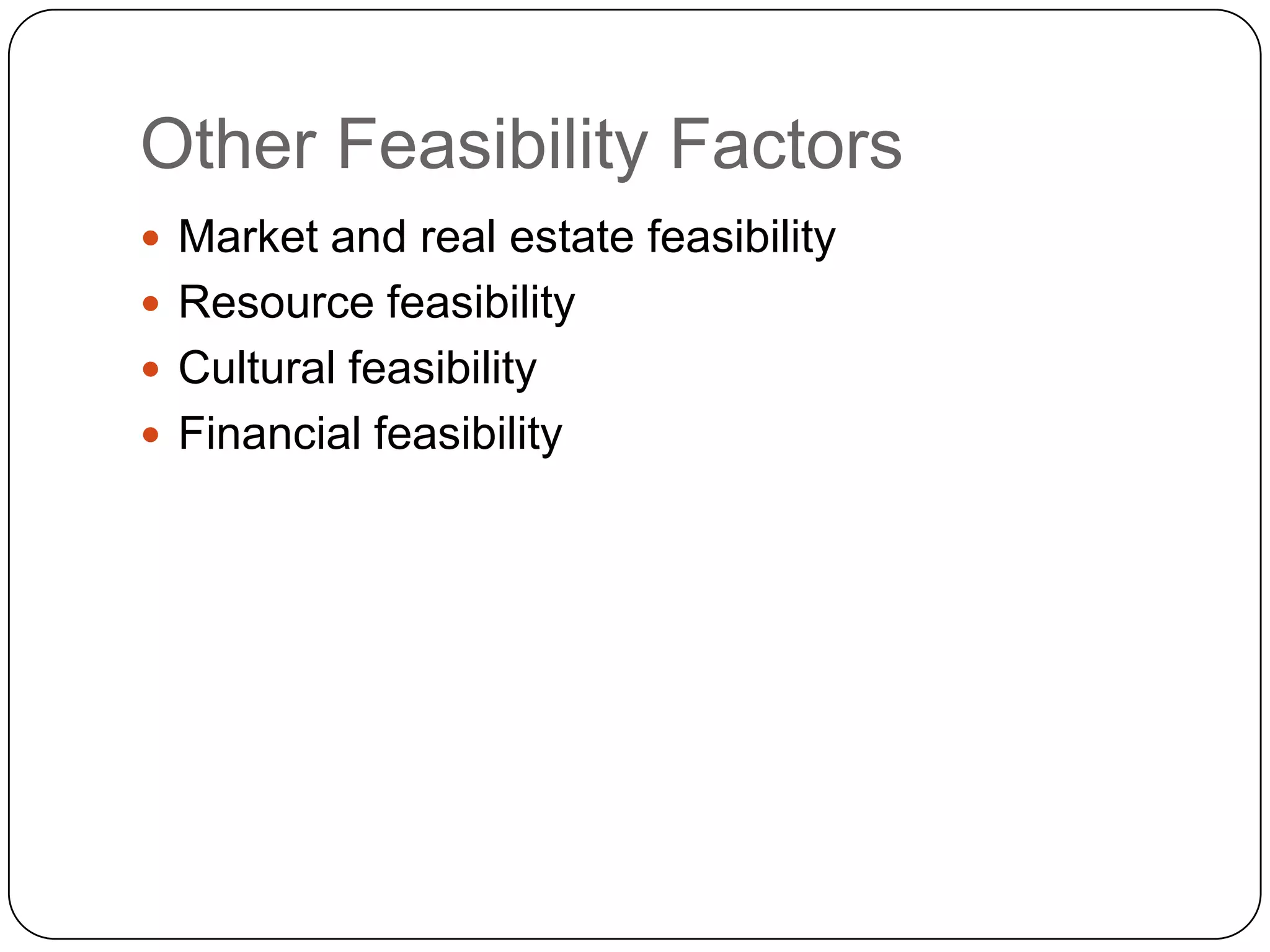

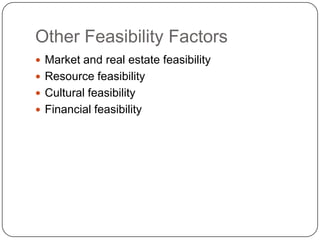

Other Feasibility Factors Market and real estate feasibility Resource feasibility Cultural feasibility Financial feasibility

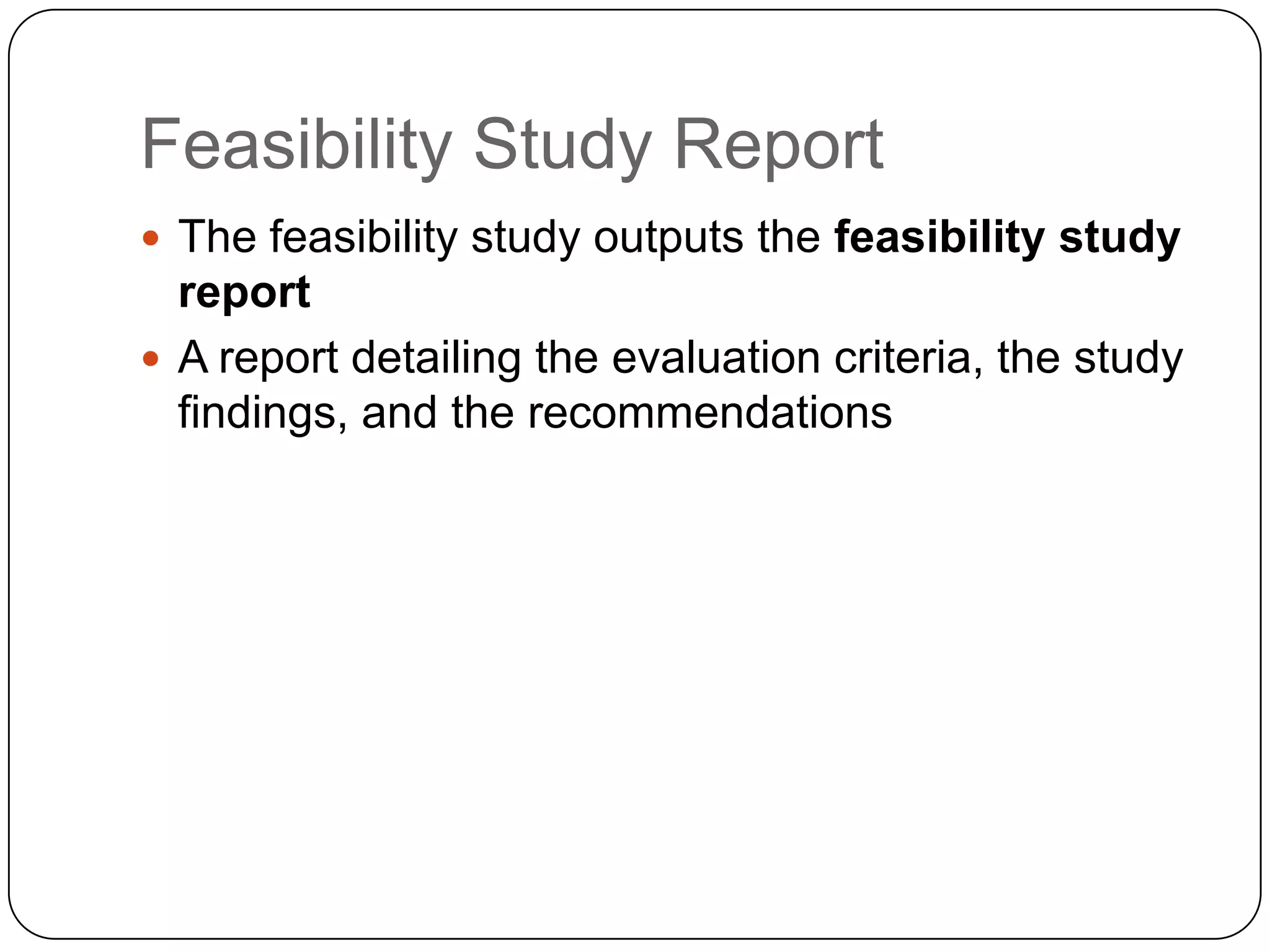

Feasibility Study Report The feasibility study outputs the feasibility study report A report detailing the evaluation criteria, the study findings, and the recommendations

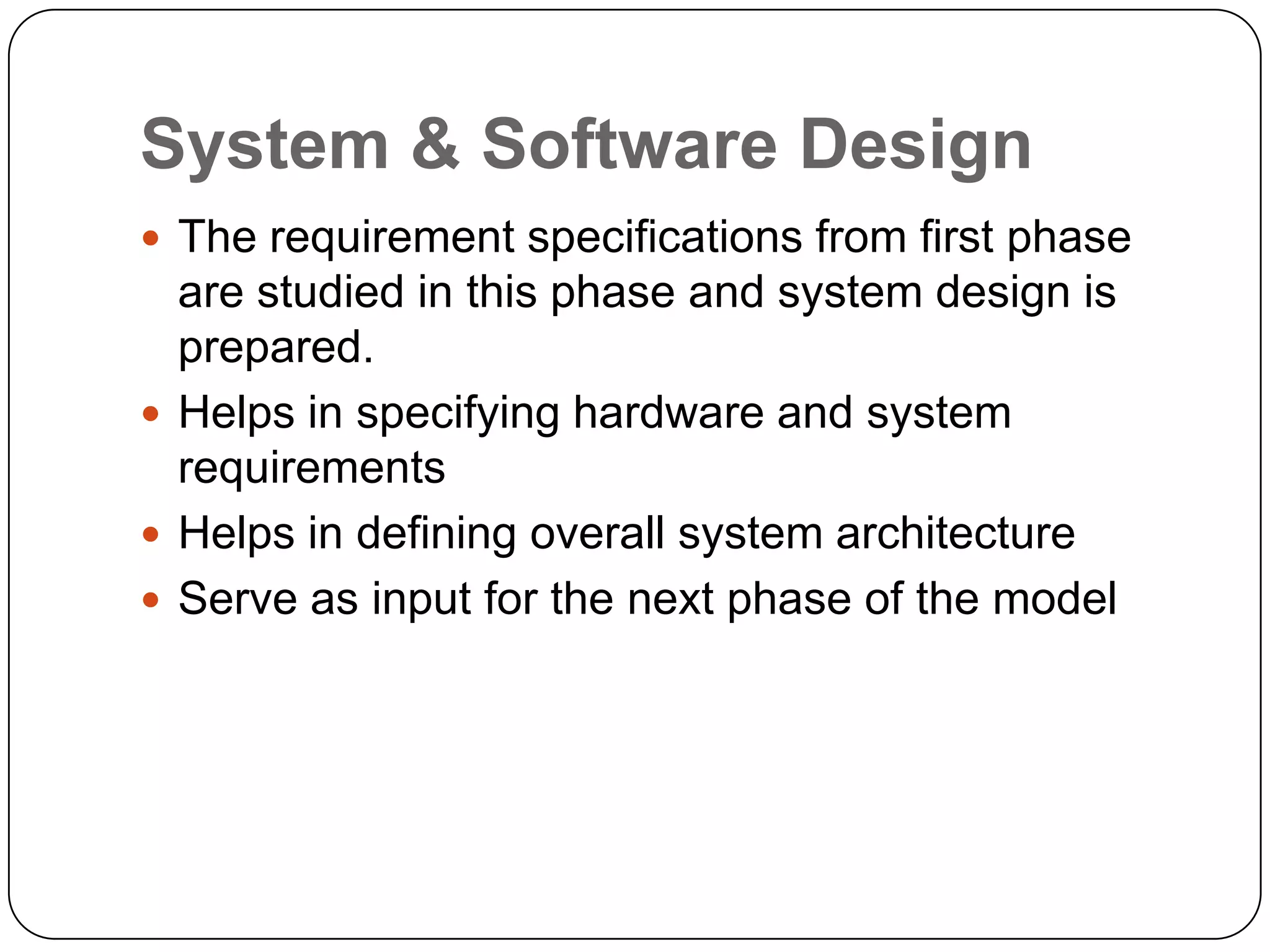

System & Software Design The requirement specifications from first phase are studied in this phase and system design is prepared. Helps in specifying hardware and system requirements Helps in defining overall system architecture Serve as input for the next phase of the model

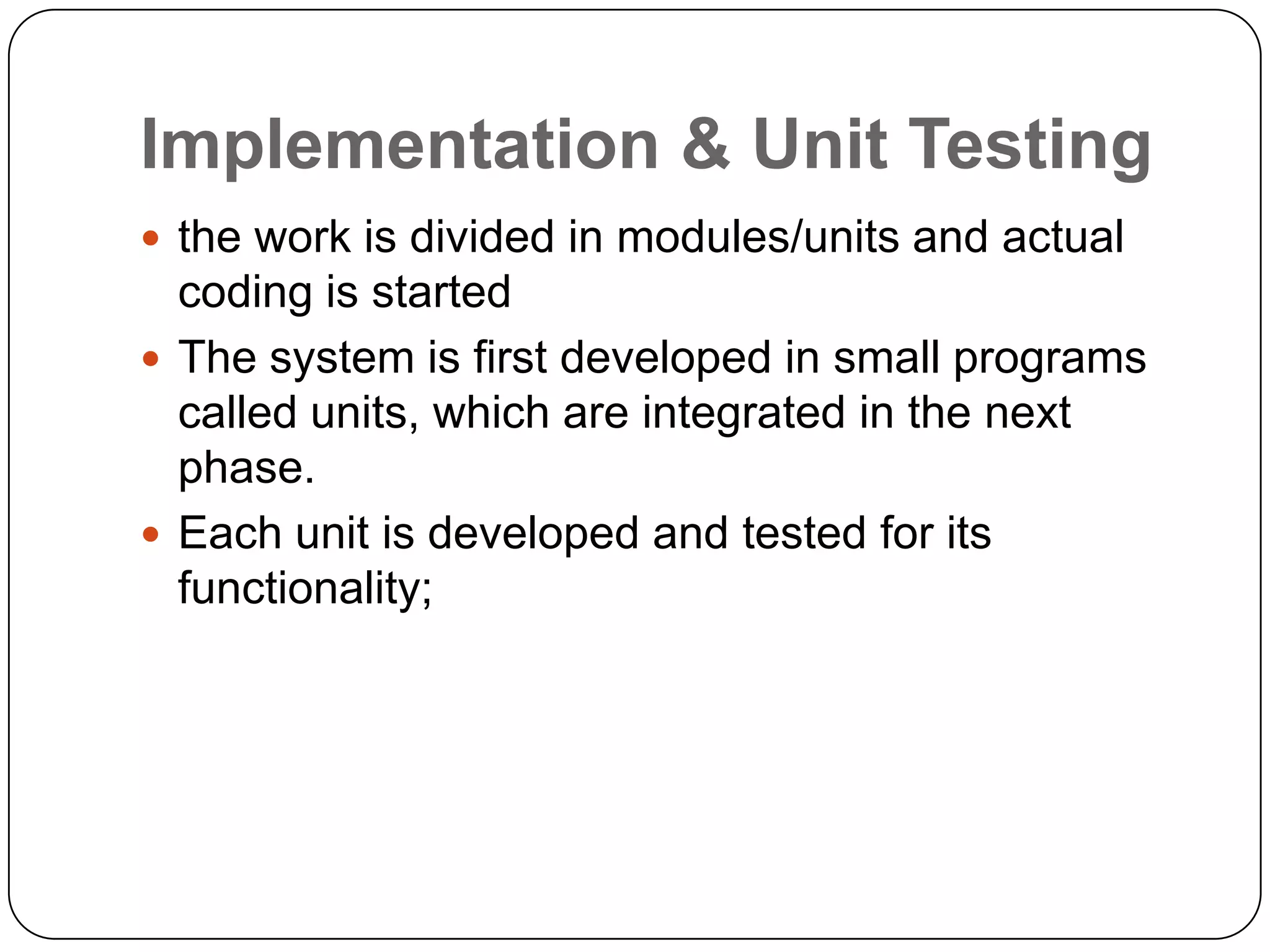

Implementation & Unit Testing the work is divided in modules/units and actual coding is started The system is first developed in small programs called units, which are integrated in the next phase. Each unit is developed and tested for its functionality;

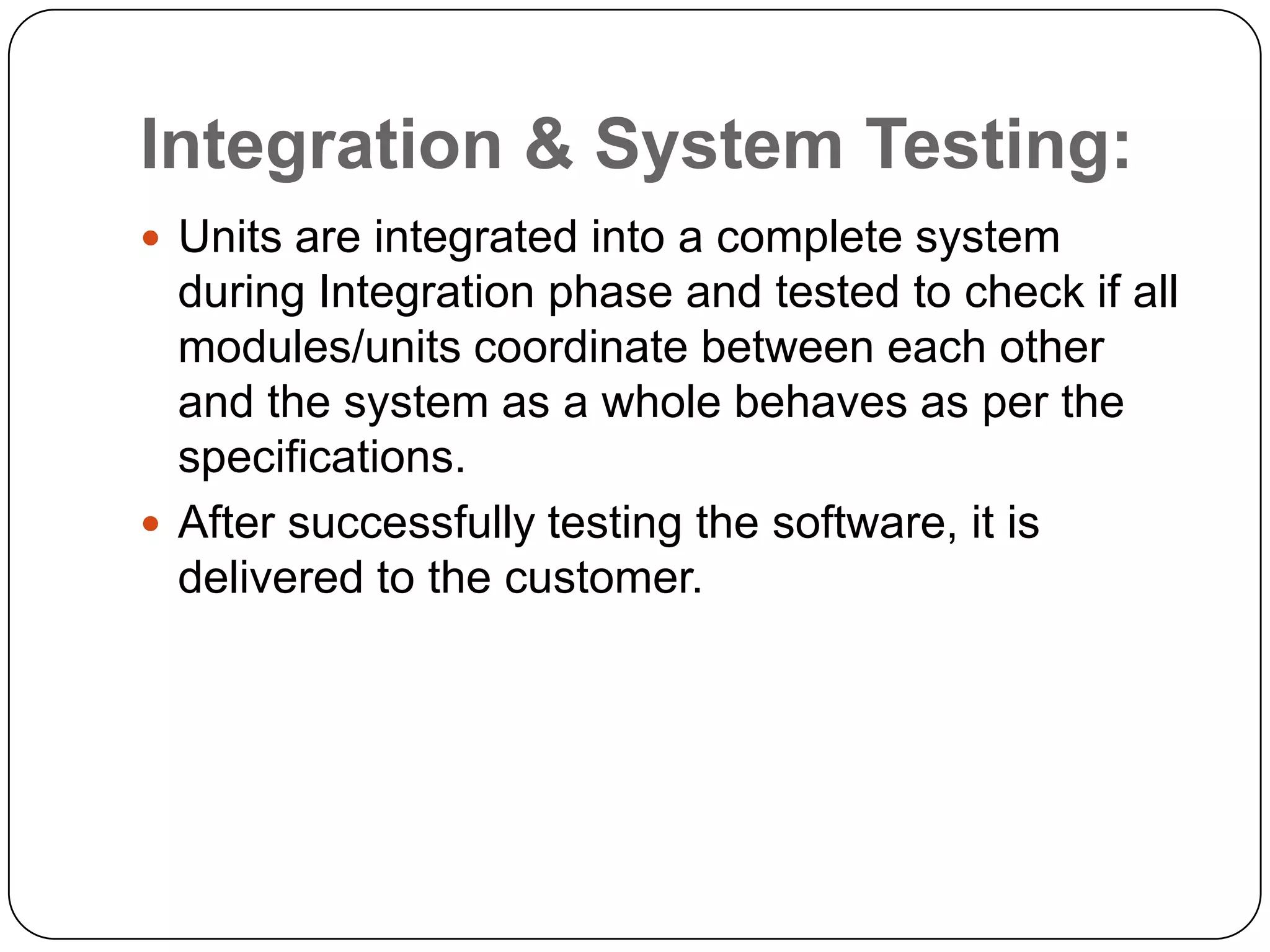

Integration & System Testing: Units are integrated into a complete system during Integration phase and tested to check if all modules/units coordinate between each other and the system as a whole behaves as per the specifications. After successfully testing the software, it is delivered to the customer.

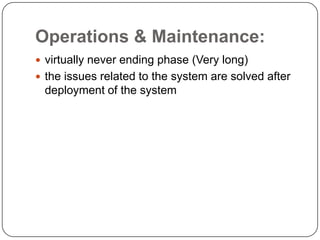

Operations & Maintenance: virtually never ending phase (Very long) the issues related to the system are solved after deployment of the system

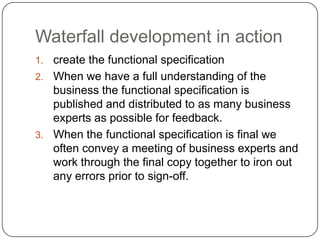

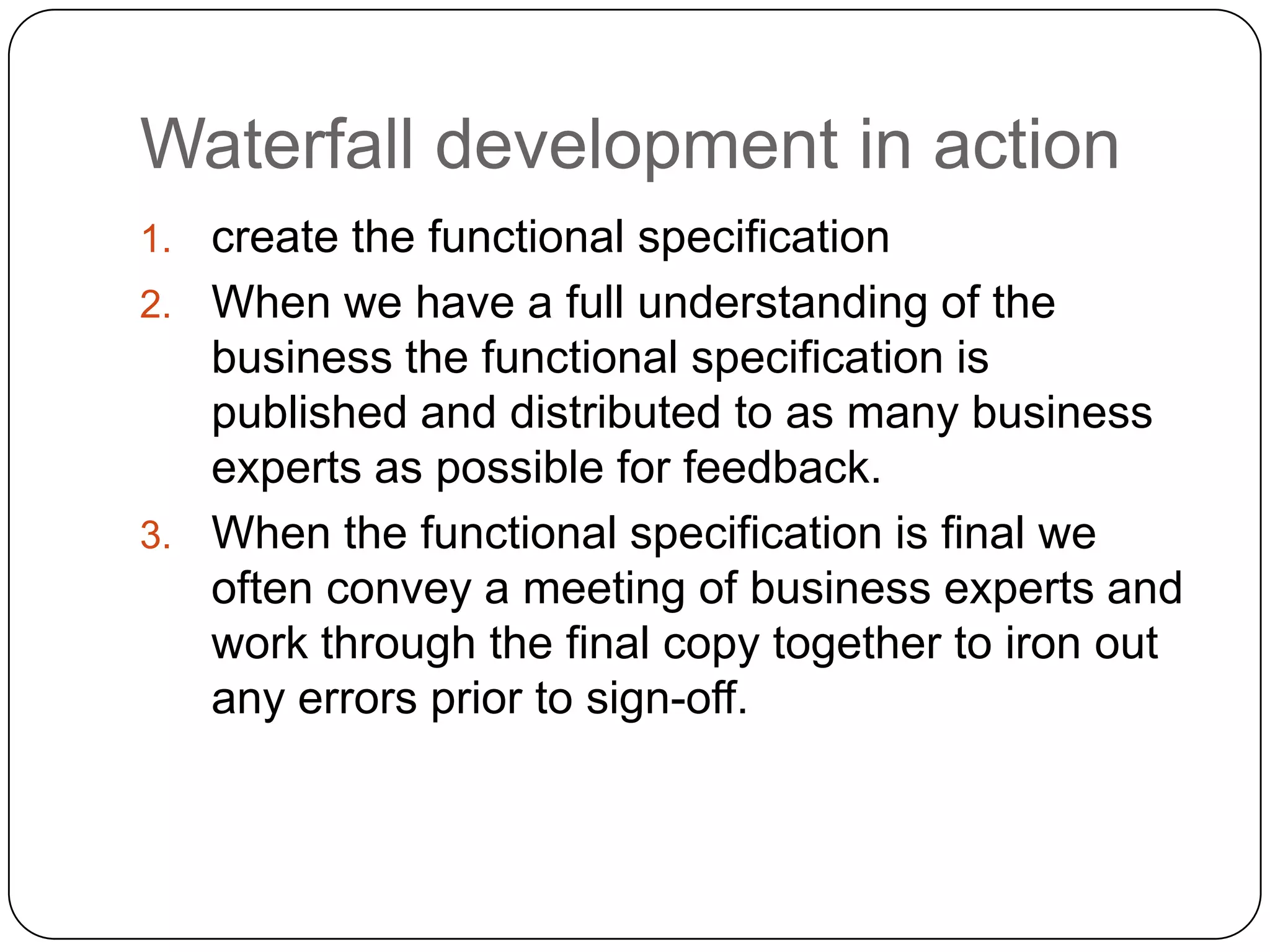

Waterfall development in action create the functional specification When we have a full understanding of the business the functional specification is published and distributed to as many business experts as possible for feedback.   When the functional specification is final we often convey a meeting of business experts and work through the final copy together to iron out any errors prior to sign-off.

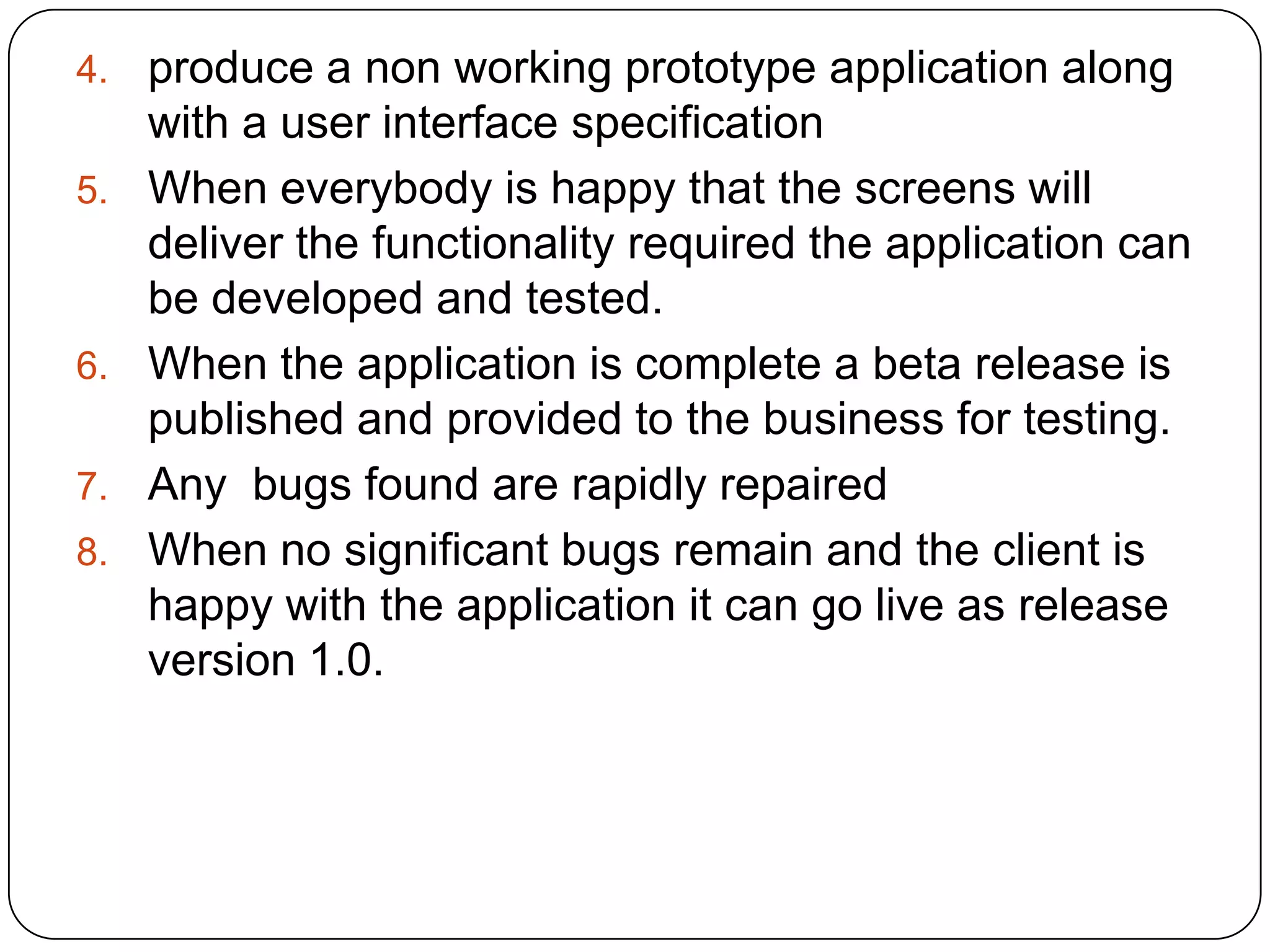

produce a non working prototype application along with a user interface specification When everybody is happy that the screens will deliver the functionality required the application can be developed and tested. When the application is complete a beta release is published and provided to the business for testing.  Any  bugs found are rapidly repaired When no significant bugs remain and the client is happy with the application it can go live as release version 1.0.

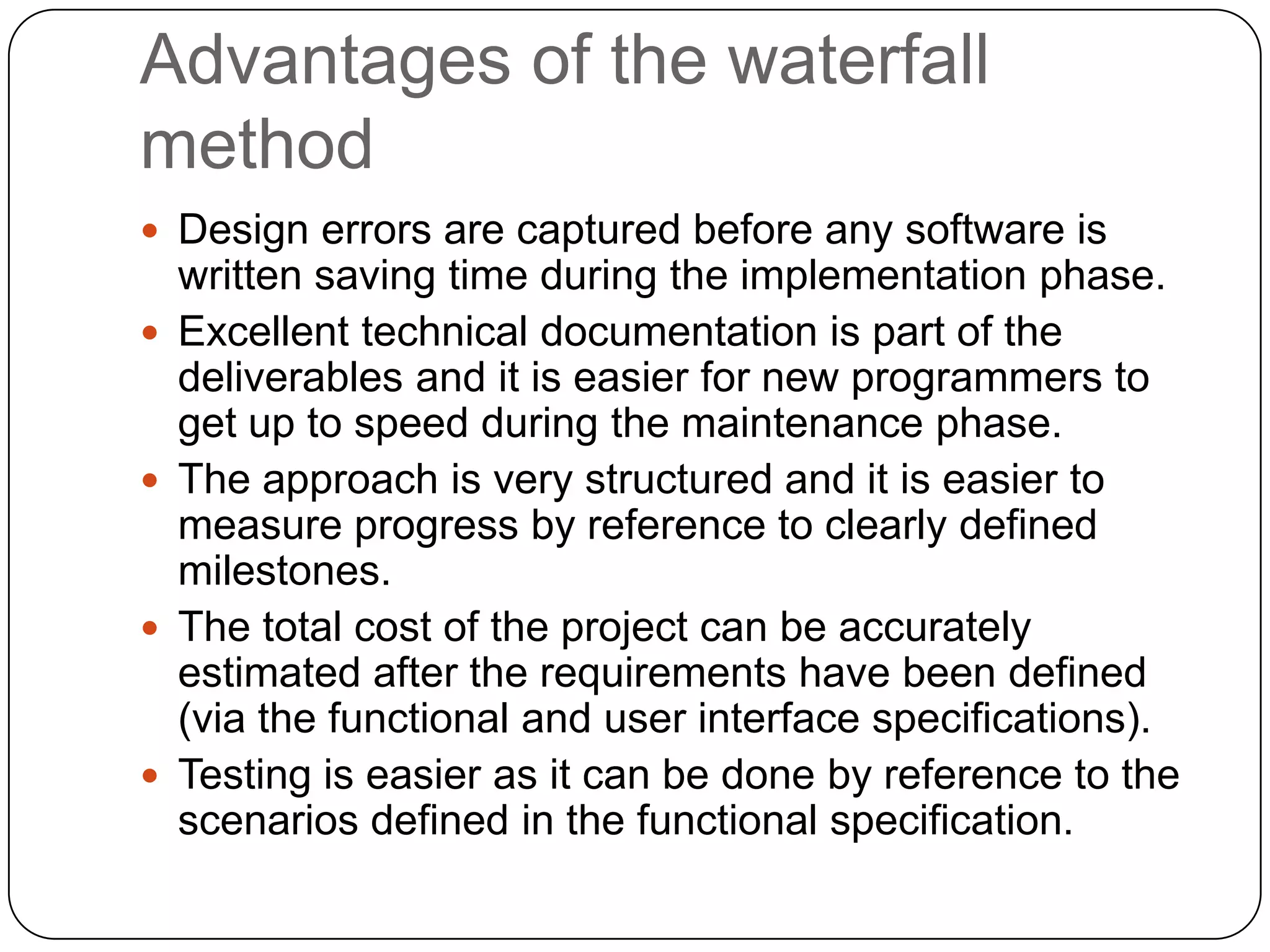

Advantages of the waterfall method Design errors are captured before any software is written saving time during the implementation phase.  Excellent technical documentation is part of the deliverables and it is easier for new programmers to get up to speed during the maintenance phase.  The approach is very structured and it is easier to measure progress by reference to clearly defined milestones.  The total cost of the project can be accurately estimated after the requirements have been defined (via the functional and user interface specifications).  Testing is easier as it can be done by reference to the scenarios defined in the functional specification.

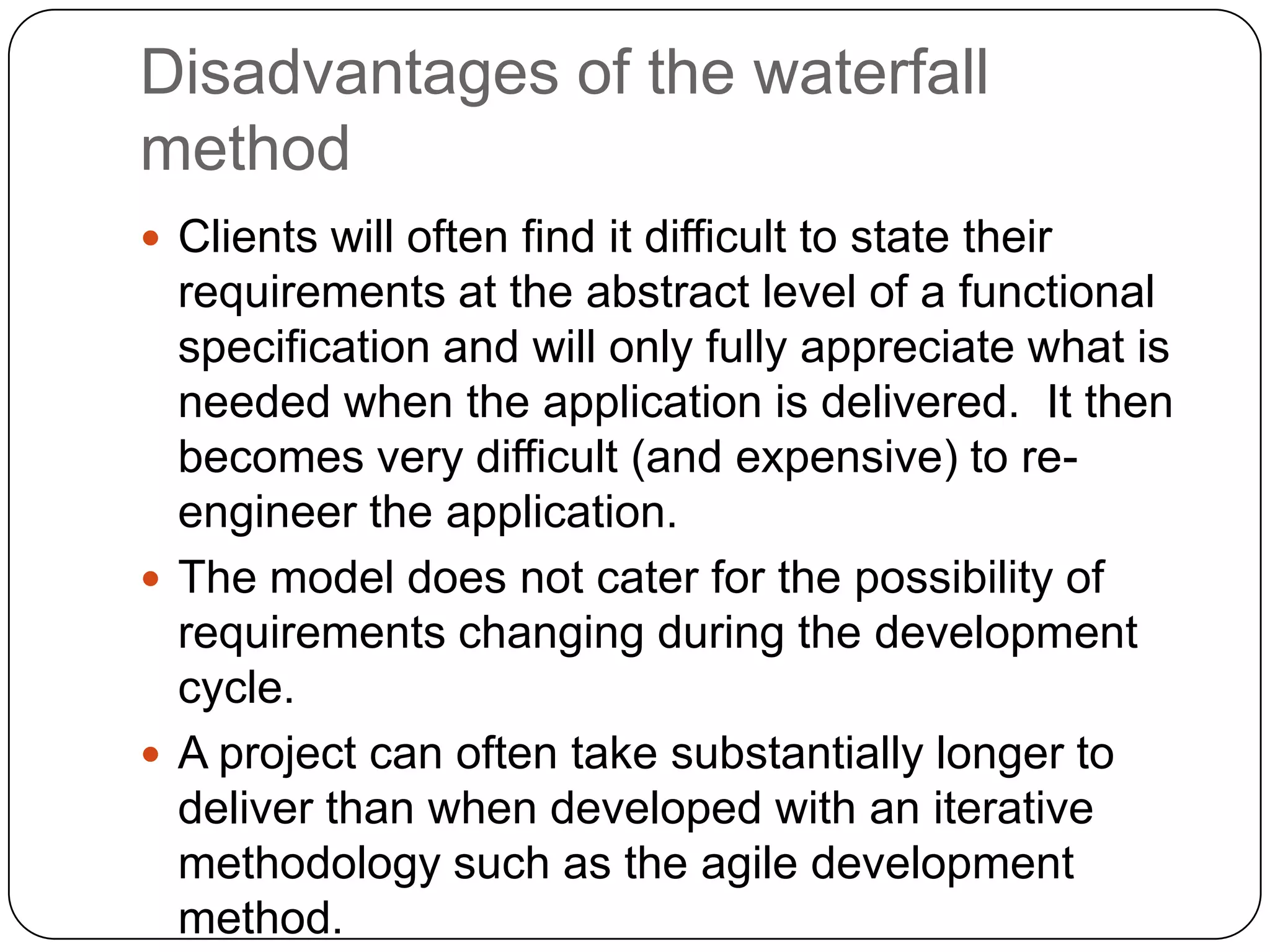

Disadvantages of the waterfall method Clients will often find it difficult to state their requirements at the abstract level of a functional specification and will only fully appreciate what is needed when the application is delivered.  It then becomes very difficult (and expensive) to re-engineer the application.  The model does not cater for the possibility of requirements changing during the development cycle.  A project can often take substantially longer to deliver than when developed with an iterative methodology such as the agile development method.

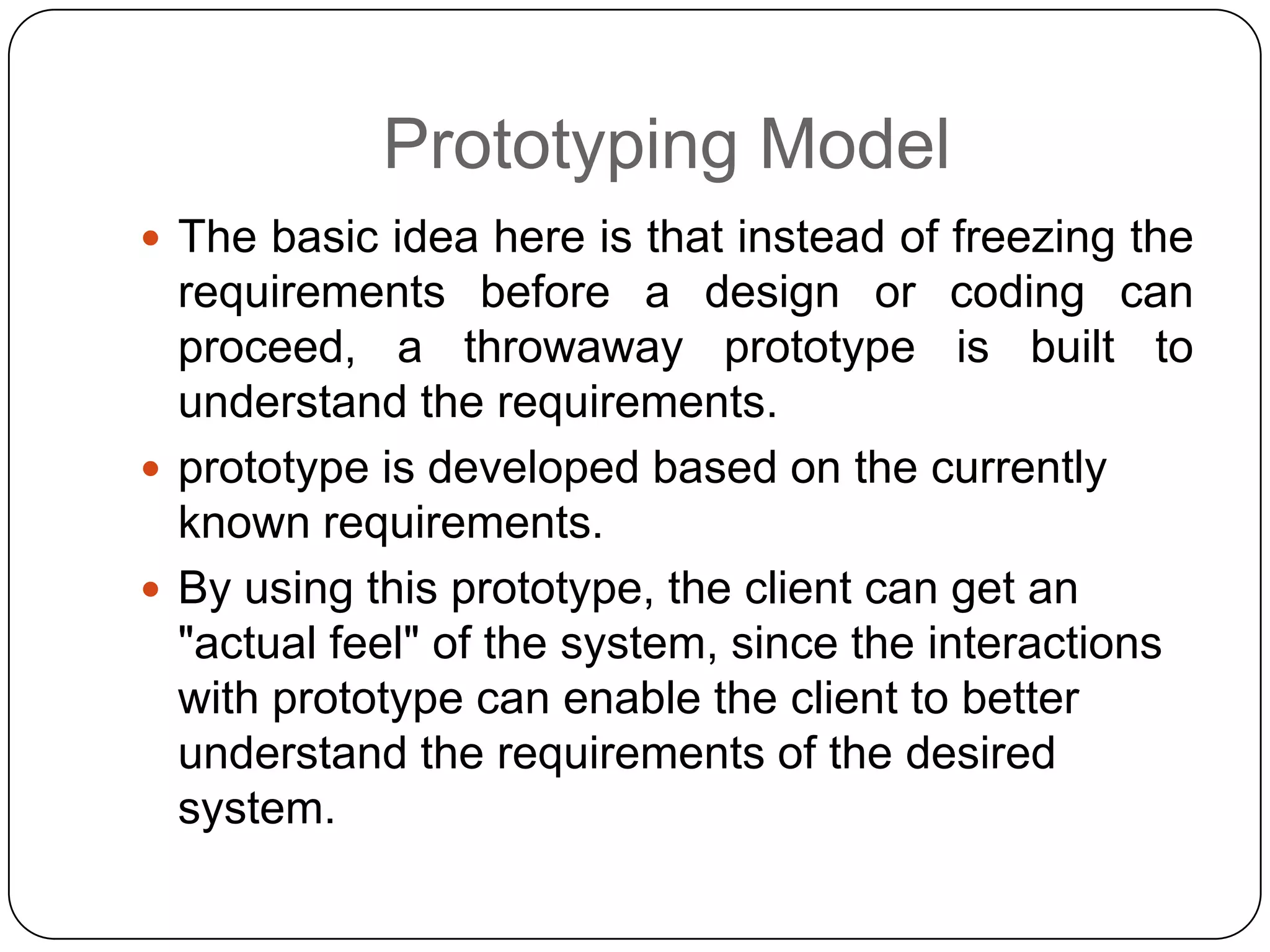

Prototyping Model The basic idea here is that instead of freezing the requirements before a design or coding can proceed, a throwaway prototype is built to understand the requirements. prototype is developed based on the currently known requirements.  By using this prototype, the client can get an "actual feel" of the system, since the interactions with prototype can enable the client to better understand the requirements of the desired system.

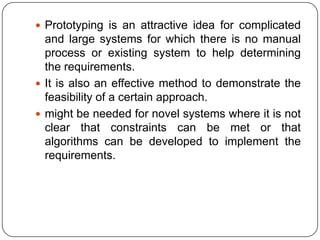

Prototyping is an attractive idea for complicated and large systems for which there is no manual process or existing system to help determining the requirements.  It is also an effective method to demonstrate the feasibility of a certain approach.  might be needed for novel systems where it is not clear that constraints can be met or that algorithms can be developed to implement the requirements.

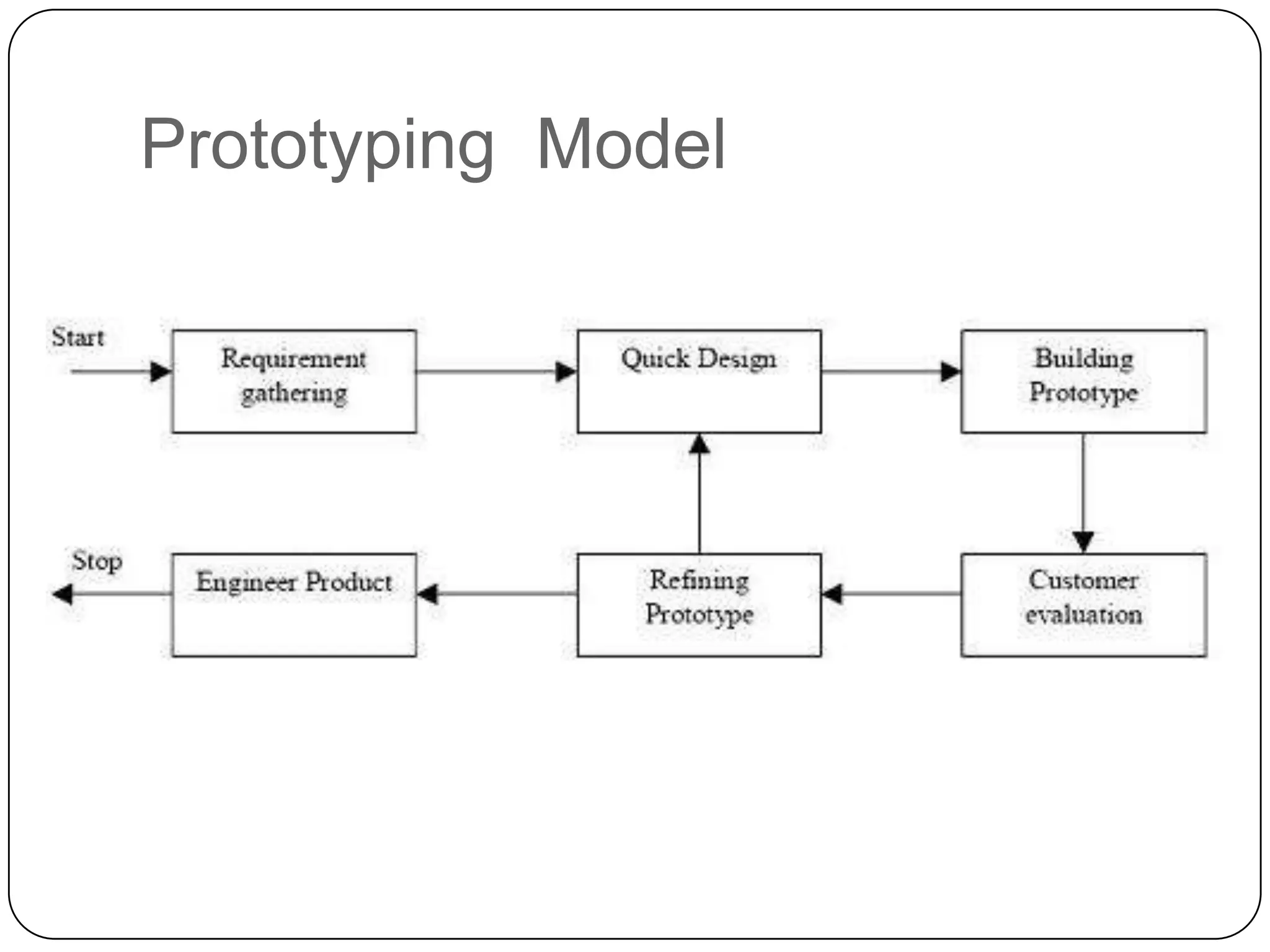

Prototyping  Model

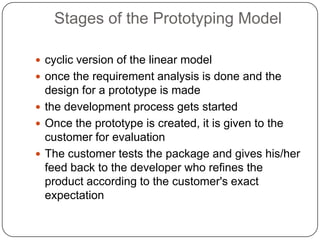

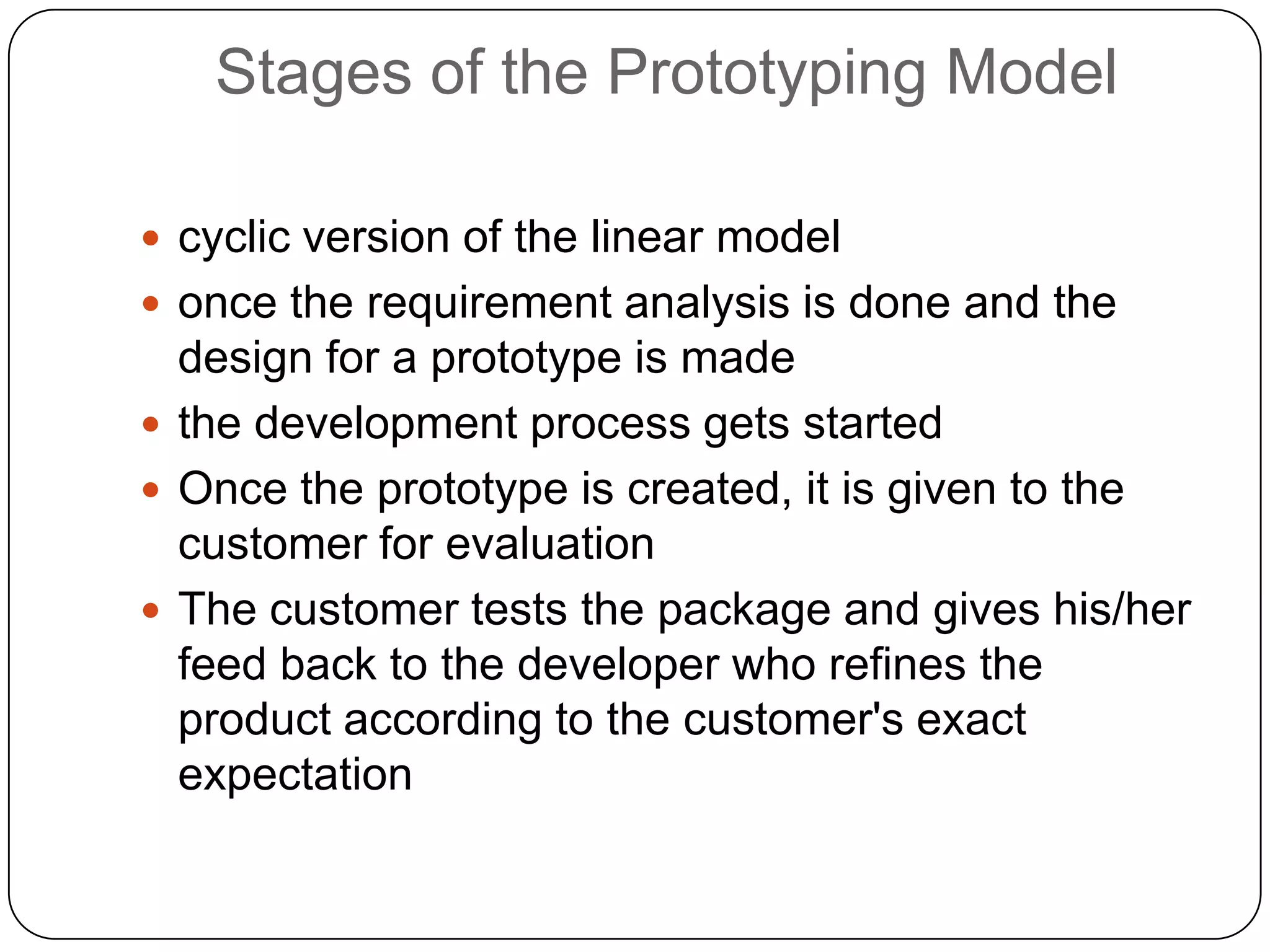

Stages of the Prototyping Model cyclic version of the linear model once the requirement analysis is done and the design for a prototype is made the development process gets started Once the prototype is created, it is given to the customer for evaluation The customer tests the package and gives his/her feed back to the developer who refines the product according to the customer's exact expectation

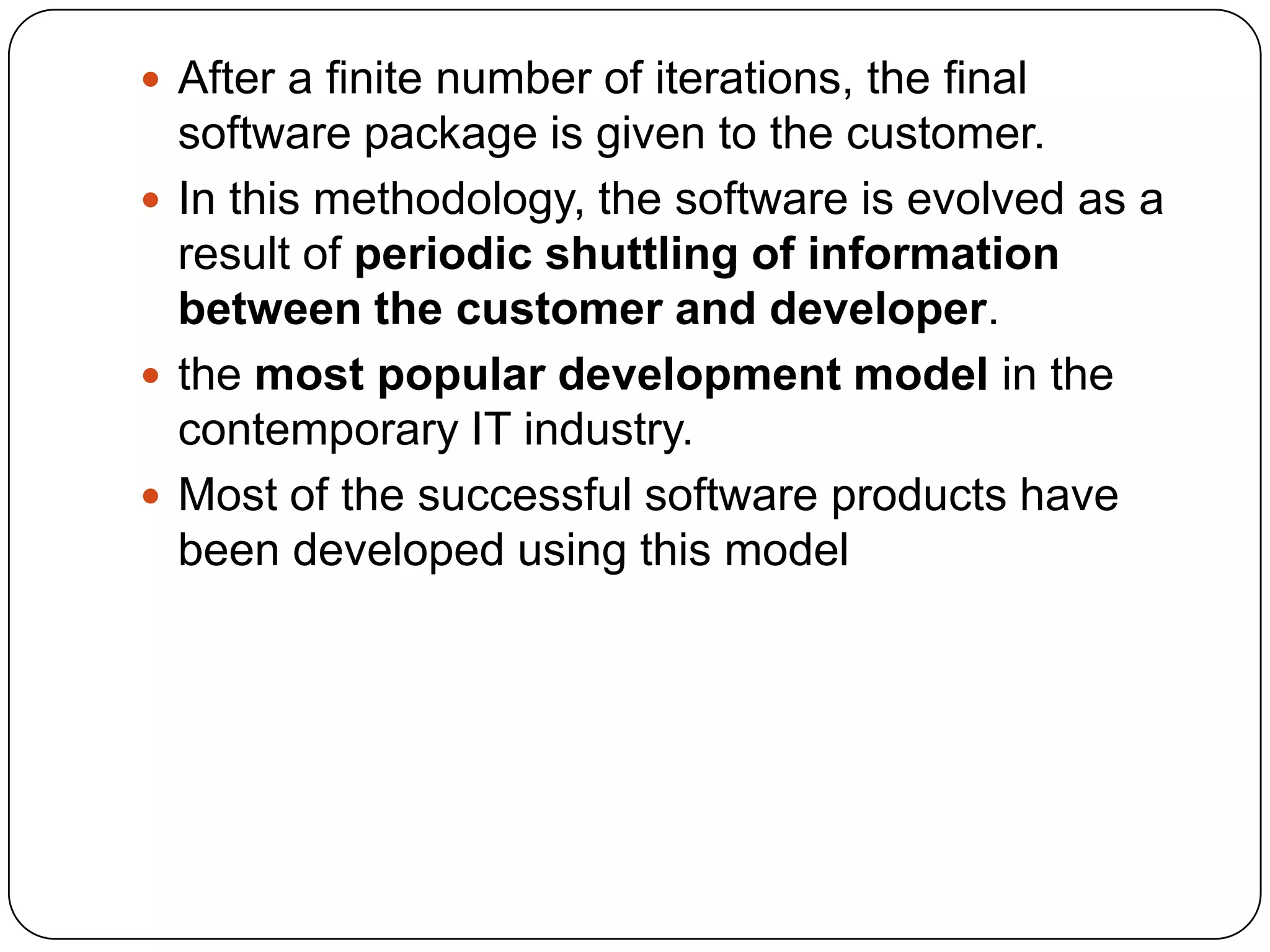

After a finite number of iterations, the final software package is given to the customer. In this methodology, the software is evolved as a result of periodic shuttling of information between the customer and developer.  the most popular development model in the contemporary IT industry. Most of the successful software products have been developed using this model

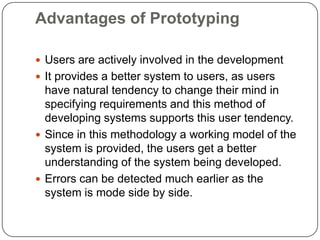

Advantages of Prototyping Users are actively involved in the development It provides a better system to users, as users have natural tendency to change their mind in specifying requirements and this method of developing systems supports this user tendency. Since in this methodology a working model of the system is provided, the users get a better understanding of the system being developed. Errors can be detected much earlier as the system is mode side by side.

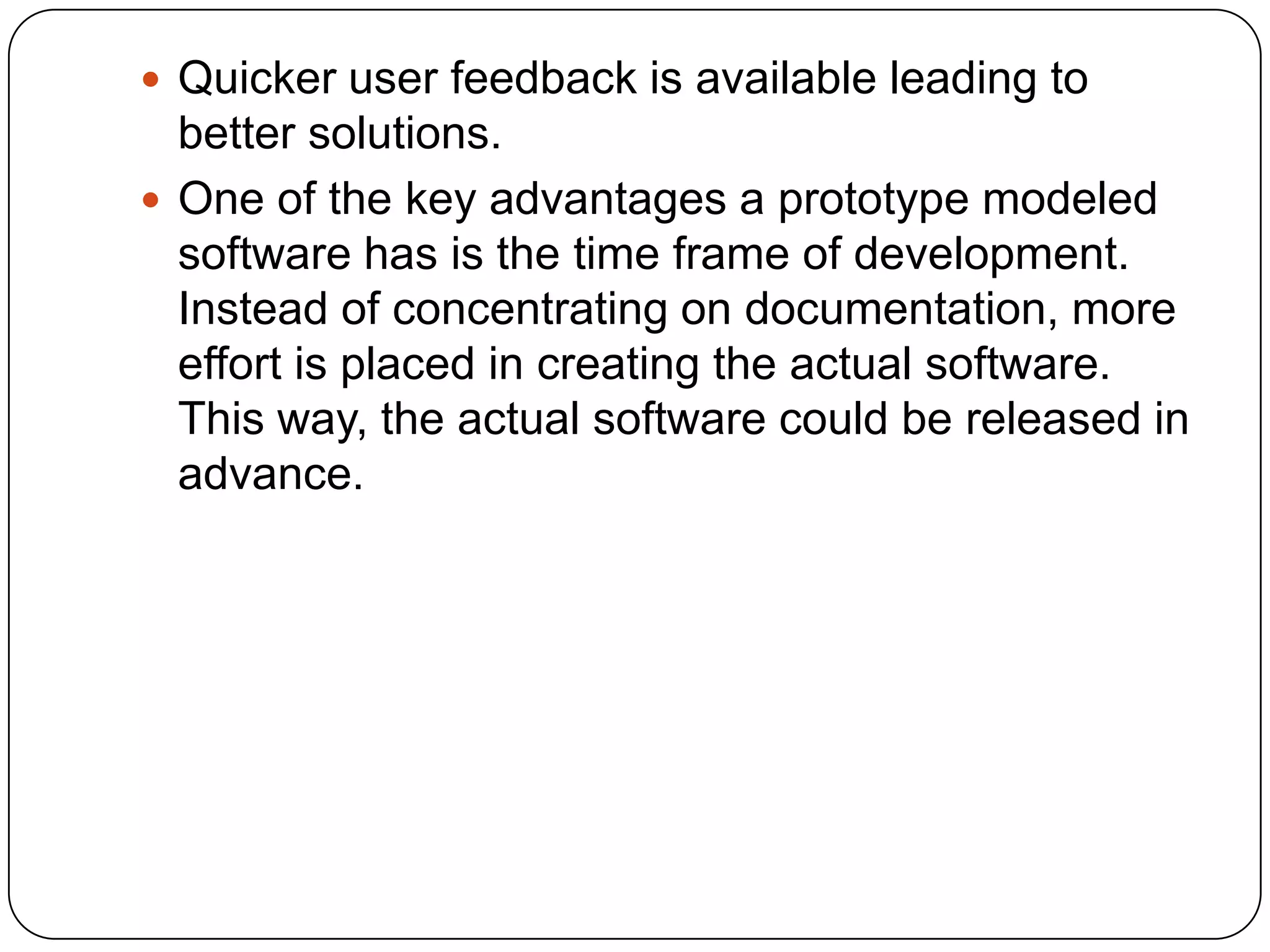

Quicker user feedback is available leading to better solutions. One of the key advantages a prototype modeled software has is the time frame of development. Instead of concentrating on documentation, more effort is placed in creating the actual software. This way, the actual software could be released in advance.

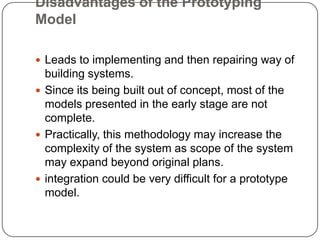

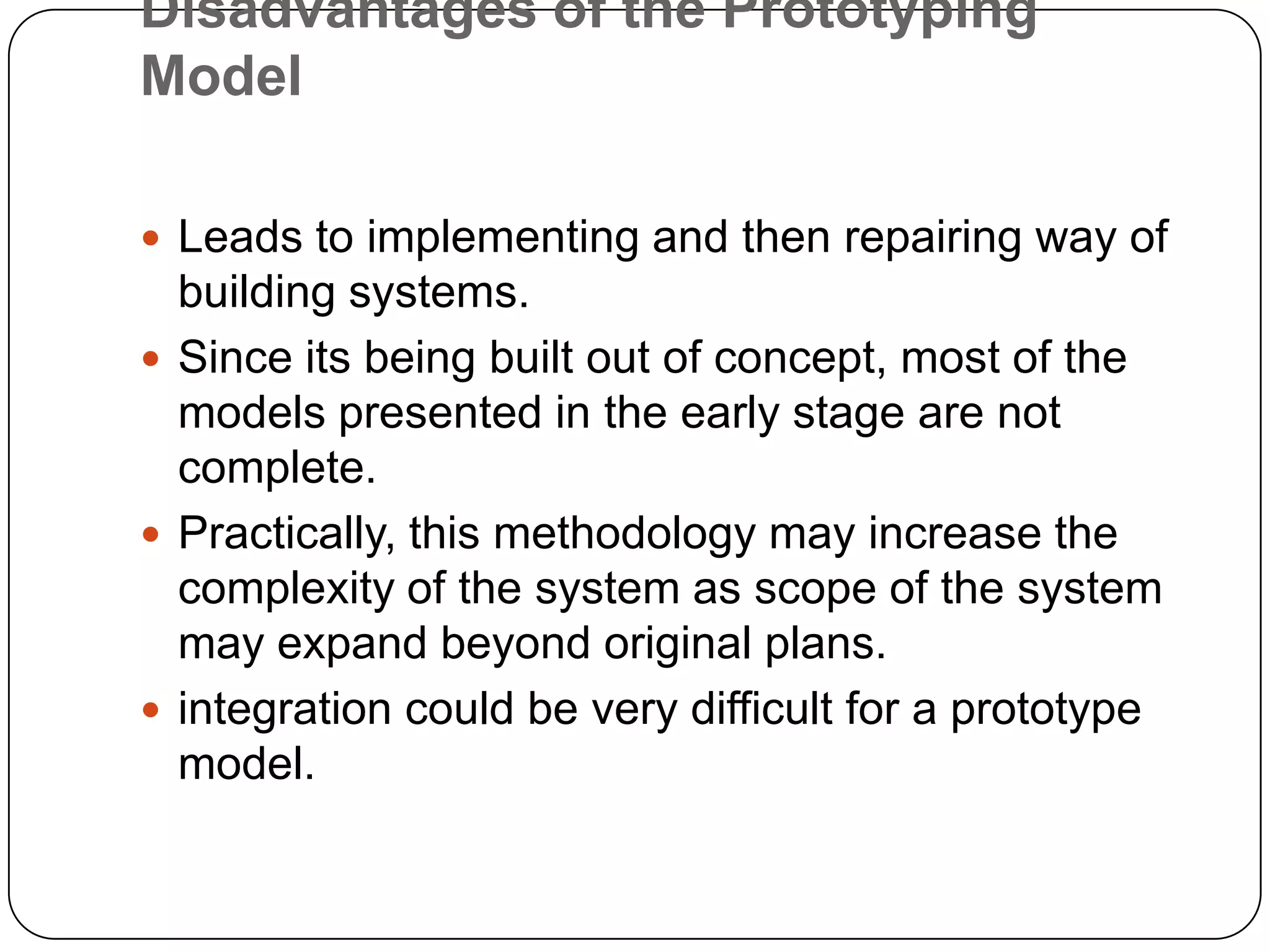

Disadvantages of the Prototyping Model Leads to implementing and then repairing way of building systems. Since its being built out of concept, most of the models presented in the early stage are not complete. Practically, this methodology may increase the complexity of the system as scope of the system may expand beyond original plans. integration could be very difficult for a prototype model.

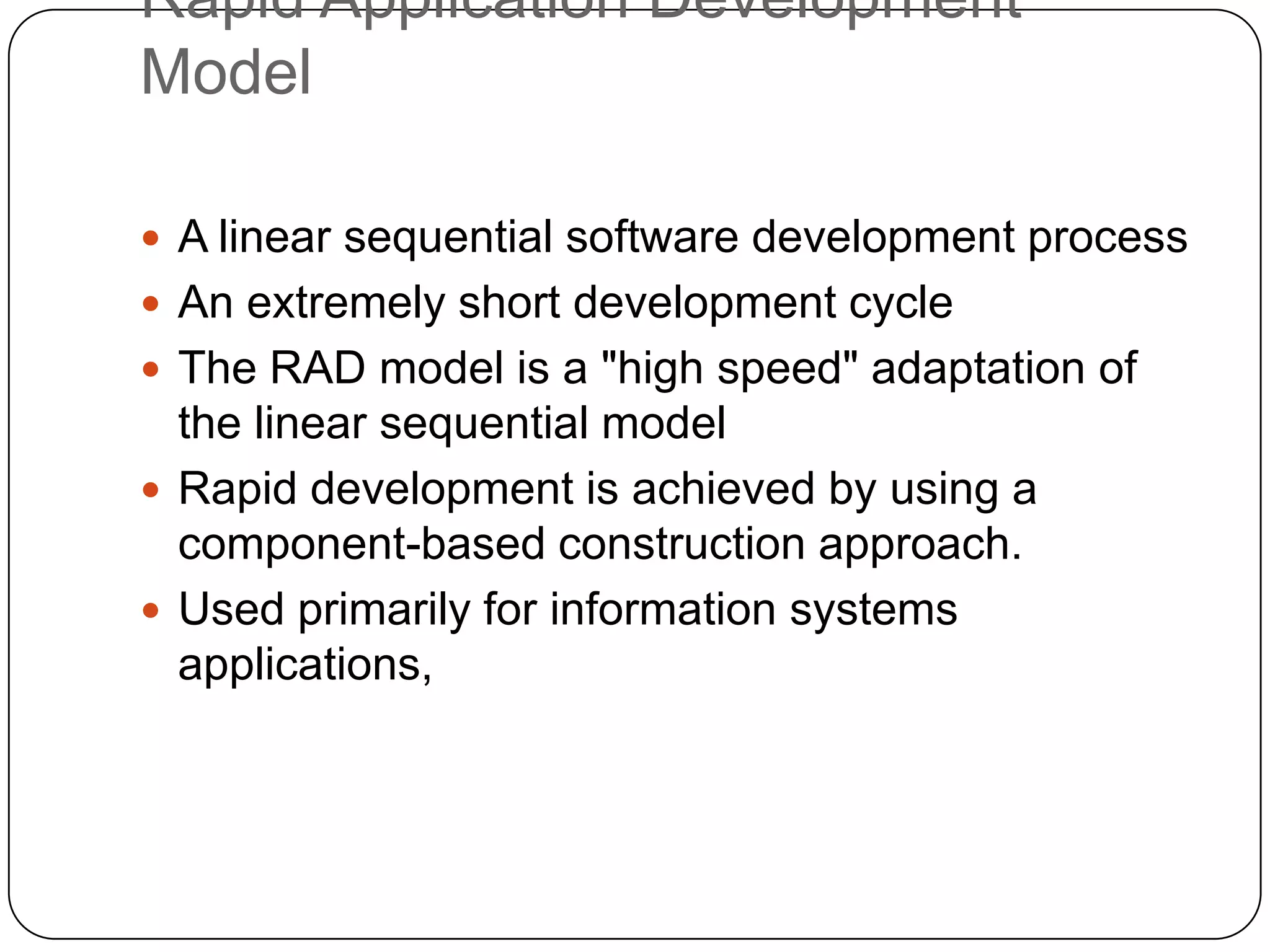

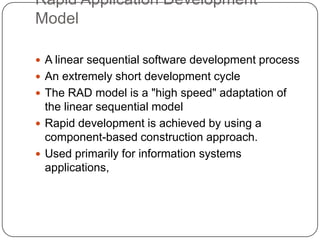

Rapid Application Development Model A linear sequential software development process An extremely short development cycle The RAD model is a "high speed" adaptation of the linear sequential model  Rapid development is achieved by using a component-based construction approach.  Used primarily for information systems applications,

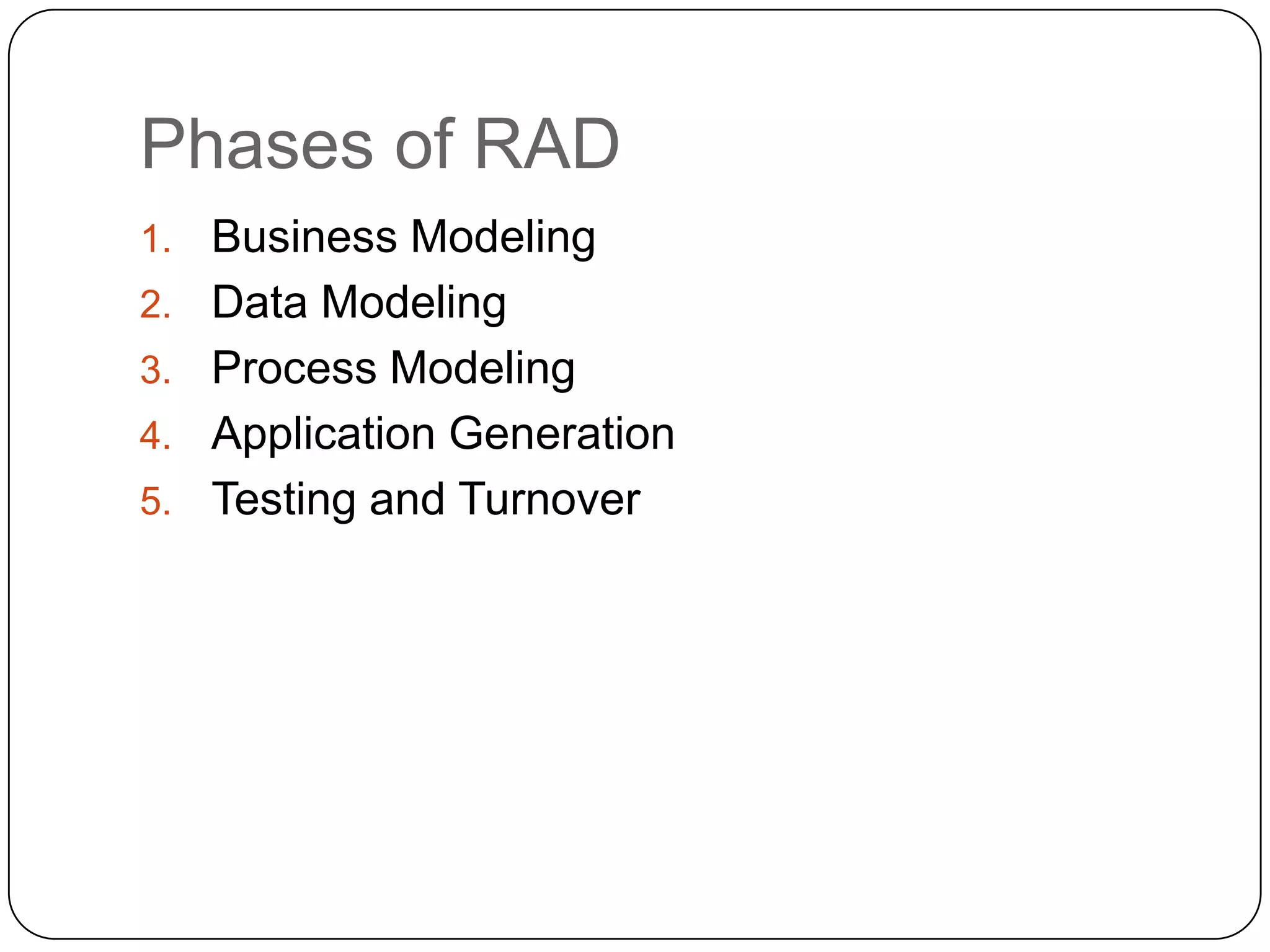

Phases of RAD Business Modeling Data Modeling Process Modeling Application Generation Testing and Turnover

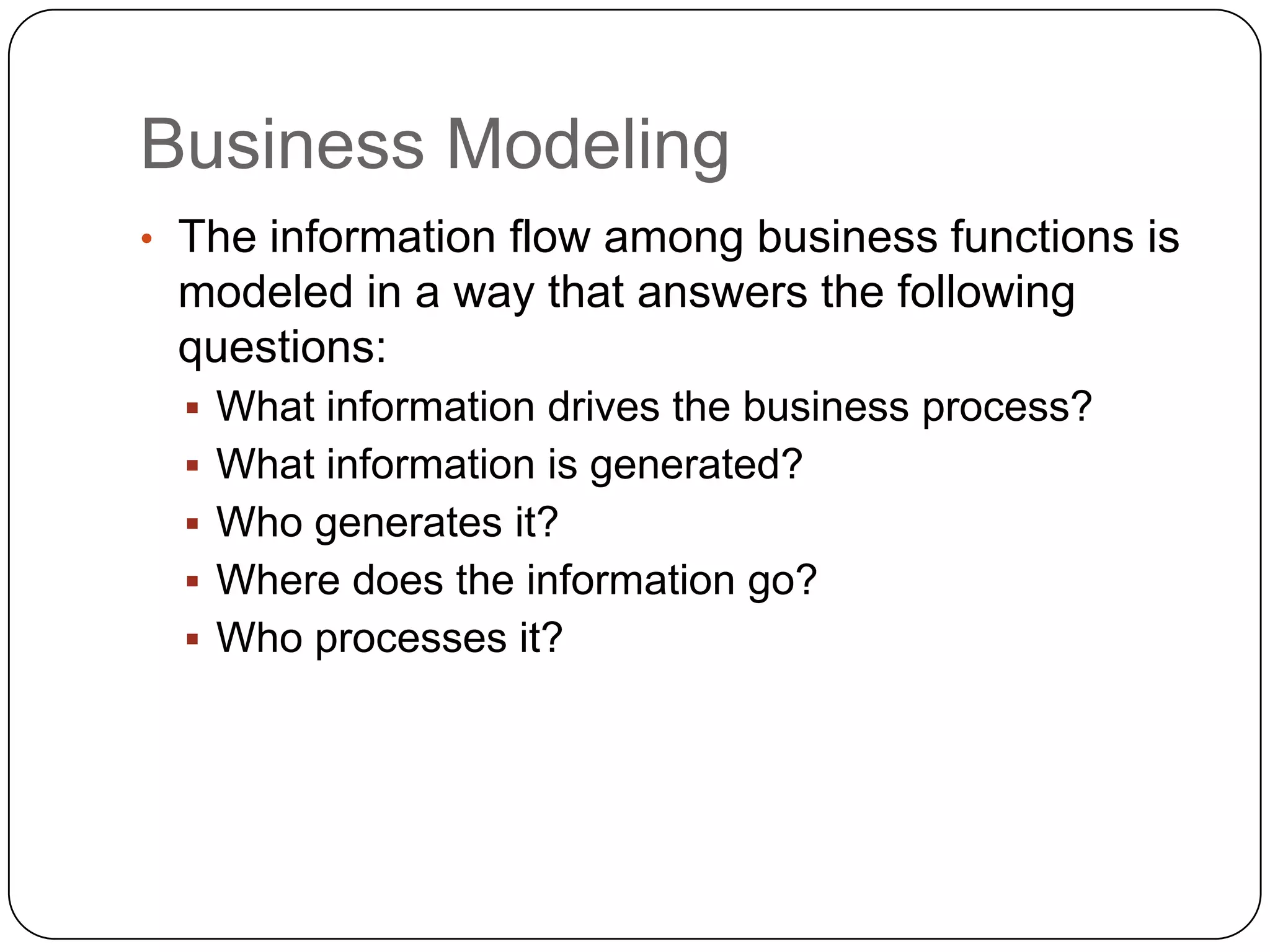

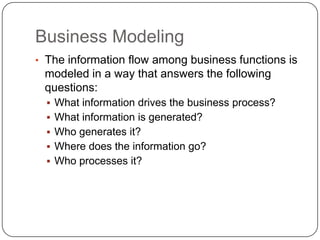

Business Modeling ,[object Object]
What information drives the business process?
What information is generated?
Who generates it?
Where does the information go?
Who processes it? ,[object Object]

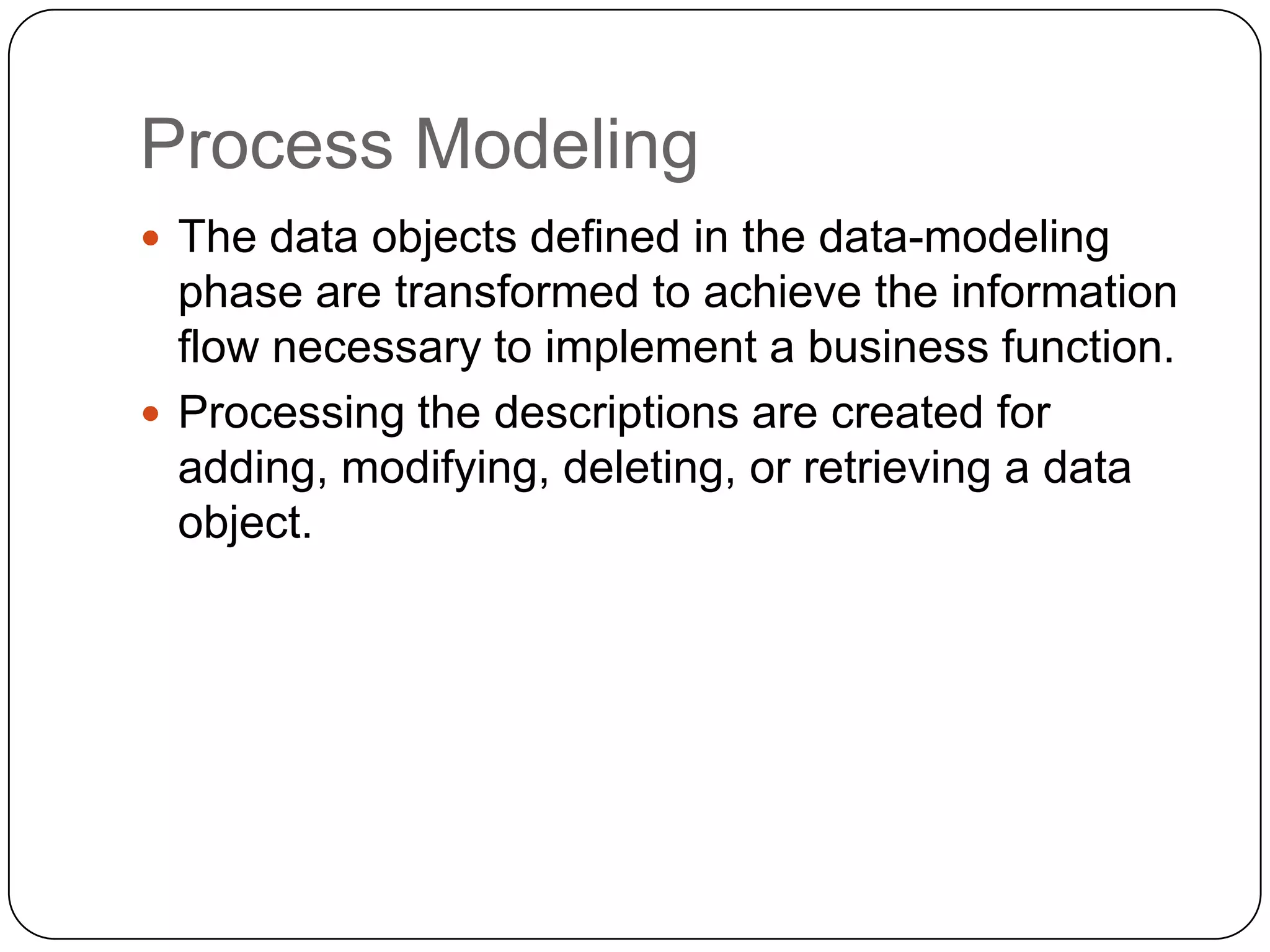

Process Modeling The data objects defined in the data-modeling phase are transformed to achieve the information flow necessary to implement a business function.  Processing the descriptions are created for adding, modifying, deleting, or retrieving a data object.

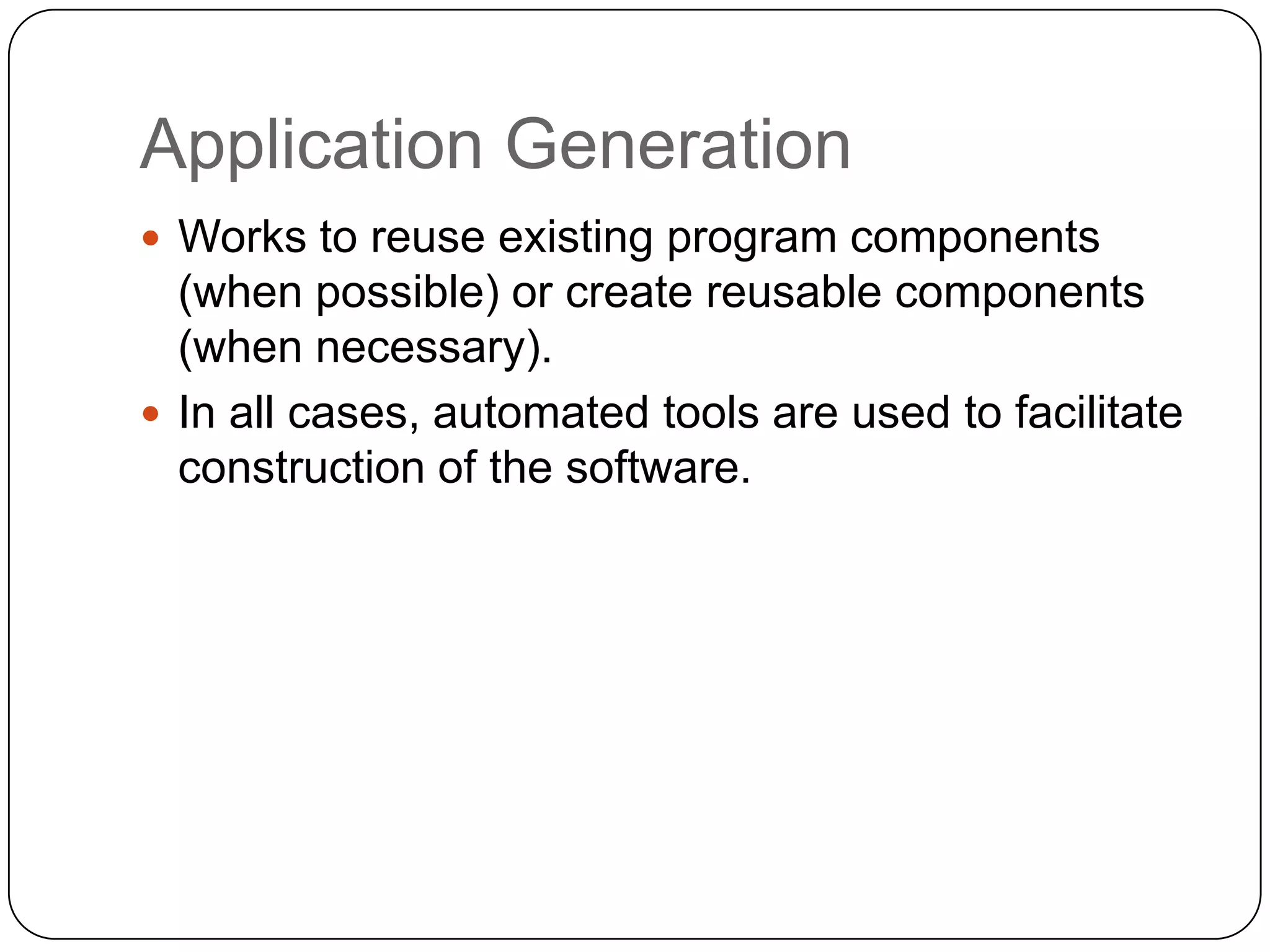

Application Generation Works to reuse existing program components (when possible) or create reusable components (when necessary). In all cases, automated tools are used to facilitate construction of the software.

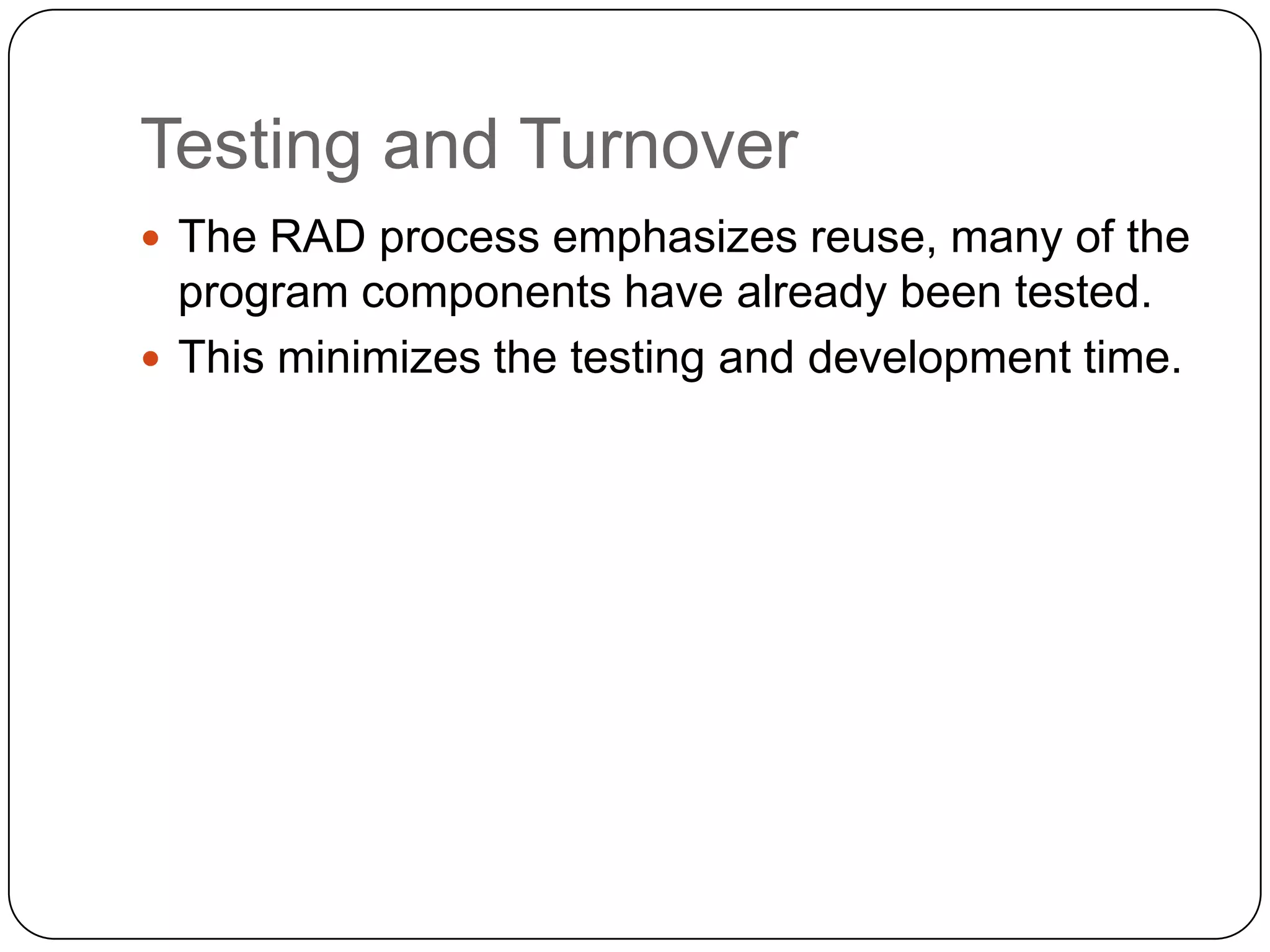

Testing and Turnover The RAD process emphasizes reuse, many of the program components have already been tested.  This minimizes the testing and development time.

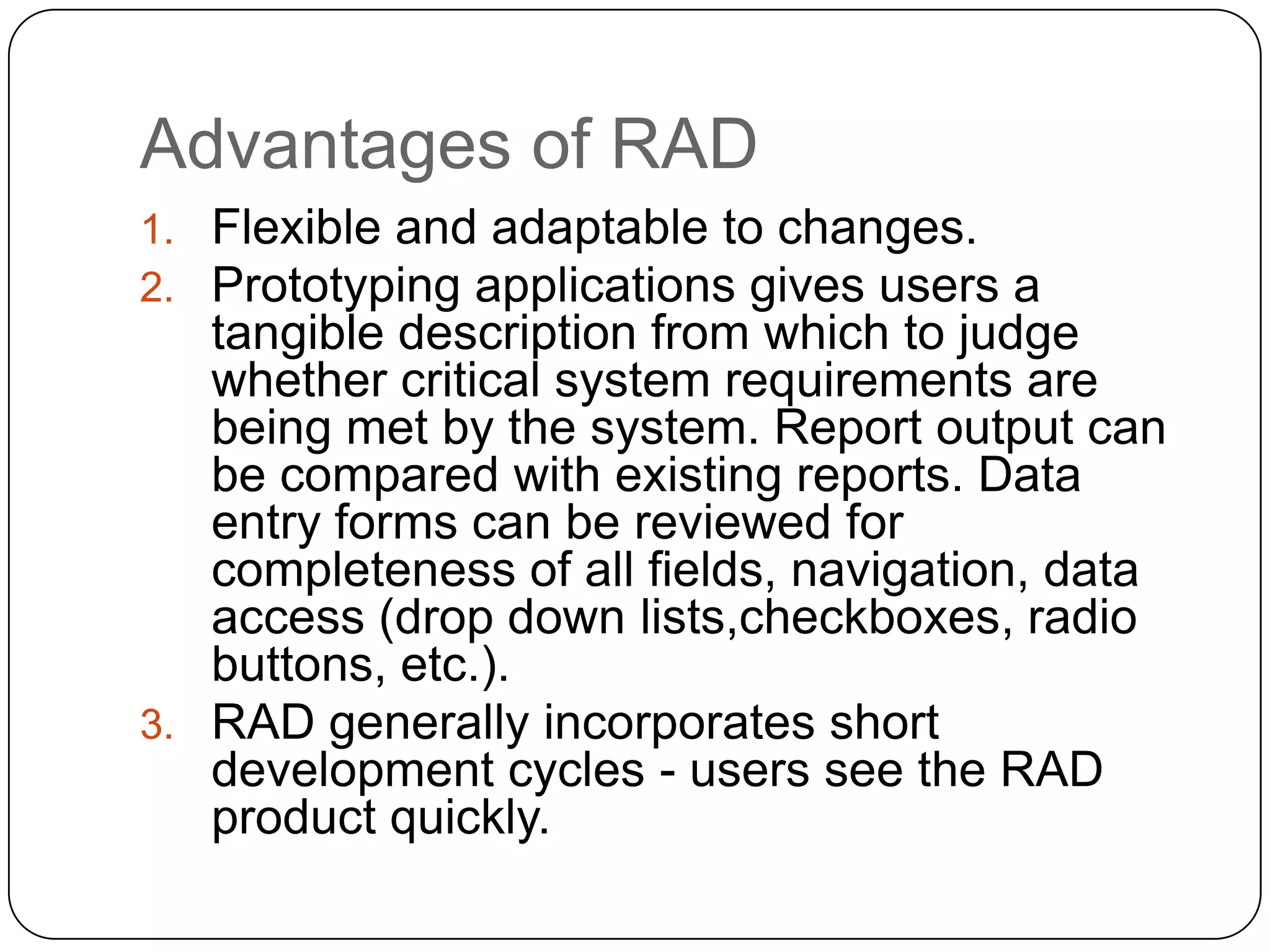

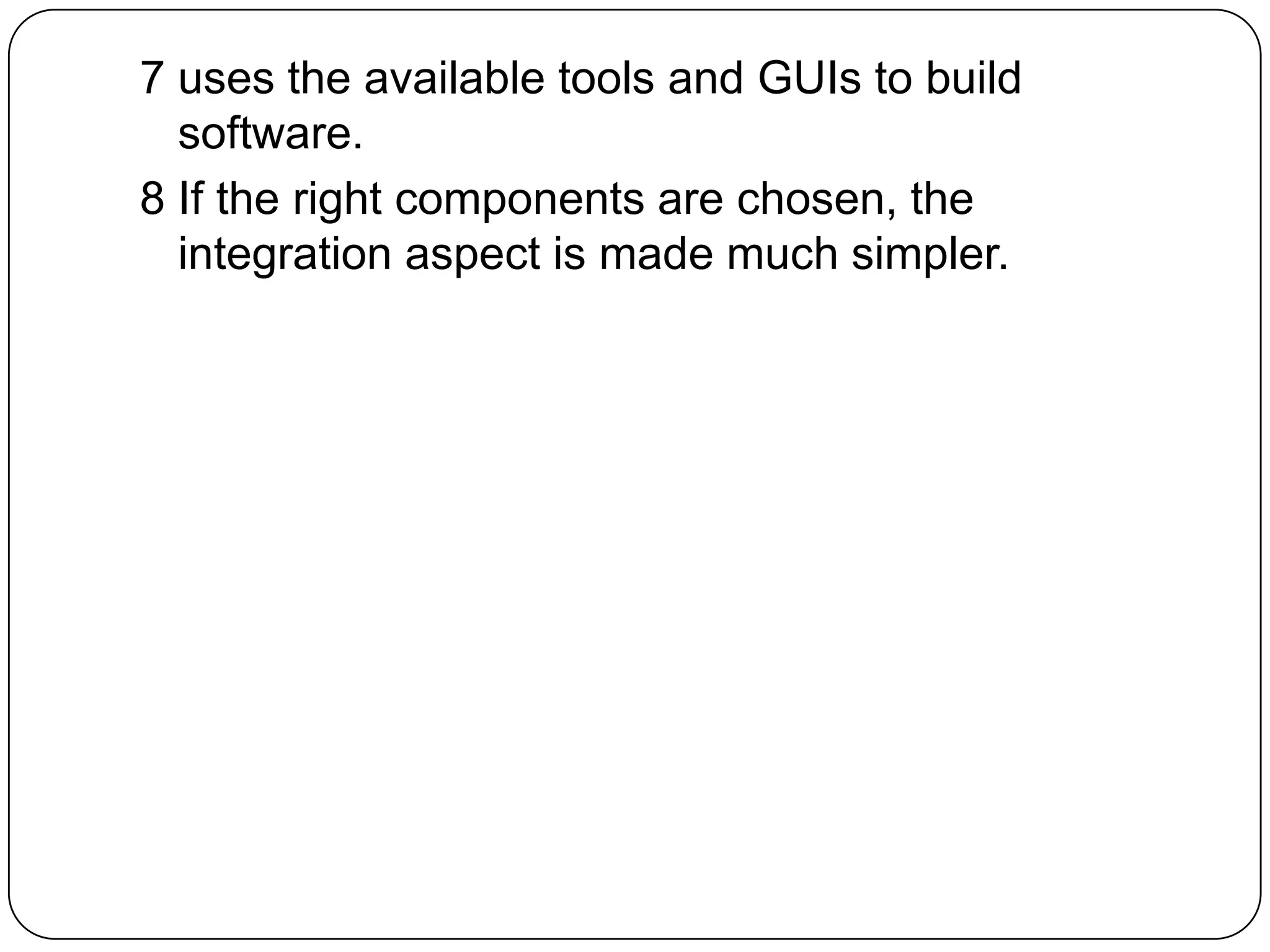

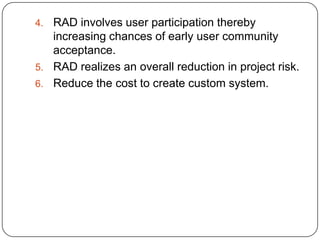

Advantages of RAD Flexible and adaptable to changes. Prototyping applications gives users a tangible description from which to judge whether critical system requirements are being met by the system. Report output can be compared with existing reports. Data entry forms can be reviewed for completeness of all fields, navigation, data access (drop down lists,checkboxes, radio buttons, etc.).  RAD generally incorporates short development cycles - users see the RAD product quickly.

More Related Content

What's hot

Software Devlopment Life Cycle
Software Devlopment Life CycleSoftware Devlopment Life Cycle
Software Devlopment Life Cycle
Vivek Gupta

Kelis king - software development life cycle (sdlc)
Kelis king  - software development life cycle (sdlc)Kelis king  - software development life cycle (sdlc)
Kelis king - software development life cycle (sdlc)
KelisKing

Sdlc models
Sdlc modelsSdlc models
Sdlc models
karthik venkatesh

Software development life cycle
Software development life cycleSoftware development life cycle
Software development life cycle
SUBRAHMANYAM SINGH presentation designing

SDLC Final (1)
SDLC Final (1)SDLC Final (1)
SDLC Final (1)
Krystal McLean

(Software development-life-cycle)
(Software  development-life-cycle)(Software  development-life-cycle)
(Software development-life-cycle)
Abdullah Al Rumy

Software Requirements Engineering Methodologies
Software Requirements Engineering MethodologiesSoftware Requirements Engineering Methodologies
Software Requirements Engineering Methodologies
Kiran Munir

Software Engineering Unit 1
Software Engineering Unit 1Software Engineering Unit 1
Software Engineering Unit 1
Abhimanyu Mishra

Sdlc 4
Sdlc 4Sdlc 4
System development life cycle
System development life cycleSystem development life cycle
System development life cycle
Yaswanth Babu Gummadivelli

Session3
Session3Session3
Session3
Jani Kusuma

SDLC
SDLCSDLC
Software developement life cycle ppt
Software developement life cycle pptSoftware developement life cycle ppt
Software developement life cycle ppt
OECLIB Odisha Electronics Control Library

Software Engineering concept
Software Engineering concept Software Engineering concept
Software Engineering concept
Atamjitsingh92

System Development Life Cycle
System Development Life CycleSystem Development Life Cycle
System Development Life Cycle
sourav verma

Sdlc
SdlcSdlc
Software development Life Cycle
Software development Life CycleSoftware development Life Cycle
Software development Life Cycle
Kumar

System Development Life Cycle
System Development Life CycleSystem Development Life Cycle
System Development Life Cycle
International Islamic University

Lect-4: Software Development Life Cycle Model - SPM
Lect-4: Software Development Life Cycle Model - SPMLect-4: Software Development Life Cycle Model - SPM
Lect-4: Software Development Life Cycle Model - SPM
Mubashir Ali

Software development methodologies
Software development methodologiesSoftware development methodologies
Software development methodologies
Ankita Lachhwani


What's hot (20)

Software Devlopment Life Cycle
Software Devlopment Life CycleSoftware Devlopment Life Cycle
Software Devlopment Life Cycle

Kelis king - software development life cycle (sdlc)
Kelis king  - software development life cycle (sdlc)Kelis king  - software development life cycle (sdlc)
Kelis king - software development life cycle (sdlc)

Sdlc models
Sdlc modelsSdlc models
Sdlc models

Software development life cycle
Software development life cycleSoftware development life cycle
Software development life cycle

SDLC Final (1)
SDLC Final (1)SDLC Final (1)
SDLC Final (1)

(Software development-life-cycle)
(Software  development-life-cycle)(Software  development-life-cycle)
(Software development-life-cycle)

Software Requirements Engineering Methodologies
Software Requirements Engineering MethodologiesSoftware Requirements Engineering Methodologies
Software Requirements Engineering Methodologies

Software Engineering Unit 1
Software Engineering Unit 1Software Engineering Unit 1
Software Engineering Unit 1

Sdlc 4
Sdlc 4Sdlc 4
Sdlc 4

System development life cycle
System development life cycleSystem development life cycle
System development life cycle

Session3
Session3Session3
Session3

SDLC
SDLCSDLC
SDLC

Software developement life cycle ppt
Software developement life cycle pptSoftware developement life cycle ppt
Software developement life cycle ppt

Software Engineering concept
Software Engineering concept Software Engineering concept
Software Engineering concept

System Development Life Cycle
System Development Life CycleSystem Development Life Cycle
System Development Life Cycle

Sdlc
SdlcSdlc
Sdlc

Software development Life Cycle
Software development Life CycleSoftware development Life Cycle
Software development Life Cycle

System Development Life Cycle
System Development Life CycleSystem Development Life Cycle
System Development Life Cycle

Lect-4: Software Development Life Cycle Model - SPM
Lect-4: Software Development Life Cycle Model - SPMLect-4: Software Development Life Cycle Model - SPM
Lect-4: Software Development Life Cycle Model - SPM

Software development methodologies
Software development methodologiesSoftware development methodologies
Software development methodologies


Viewers also liked

How to Prepare Innovative Feasibility Study in transitional economy
How to Prepare Innovative Feasibility Study in transitional economyHow to Prepare Innovative Feasibility Study in transitional economy
How to Prepare Innovative Feasibility Study in transitional economy
Consulting Group for Development, CGD

Feasibility study template
Feasibility study templateFeasibility study template
Feasibility study template
Feasibility Pro

Sample contents of a completed feasibility study
Sample contents of a completed feasibility studySample contents of a completed feasibility study
Sample contents of a completed feasibility study
nazcats

Software Product Life Cycle
Software Product Life CycleSoftware Product Life Cycle
Software Product Life Cycle
Mahesh Panchal

Feasibility report -basic concepts with example
Feasibility report -basic concepts with exampleFeasibility report -basic concepts with example
Feasibility report -basic concepts with example
Abhijeet Bhosale

Visual Design with Data
Visual Design with DataVisual Design with Data
Visual Design with Data
Seth Familian

3 Things Every Sales Team Needs to Be Thinking About in 2017
3 Things Every Sales Team Needs to Be Thinking About in 20173 Things Every Sales Team Needs to Be Thinking About in 2017
3 Things Every Sales Team Needs to Be Thinking About in 2017
Drift

How to Become a Thought Leader in Your Niche
How to Become a Thought Leader in Your NicheHow to Become a Thought Leader in Your Niche
How to Become a Thought Leader in Your Niche
Leslie Samuel


Viewers also liked (8)

How to Prepare Innovative Feasibility Study in transitional economy
How to Prepare Innovative Feasibility Study in transitional economyHow to Prepare Innovative Feasibility Study in transitional economy
How to Prepare Innovative Feasibility Study in transitional economy

Feasibility study template
Feasibility study templateFeasibility study template
Feasibility study template

Sample contents of a completed feasibility study
Sample contents of a completed feasibility studySample contents of a completed feasibility study
Sample contents of a completed feasibility study

Software Product Life Cycle
Software Product Life CycleSoftware Product Life Cycle
Software Product Life Cycle

Feasibility report -basic concepts with example
Feasibility report -basic concepts with exampleFeasibility report -basic concepts with example
Feasibility report -basic concepts with example

Visual Design with Data
Visual Design with DataVisual Design with Data
Visual Design with Data

3 Things Every Sales Team Needs to Be Thinking About in 2017
3 Things Every Sales Team Needs to Be Thinking About in 20173 Things Every Sales Team Needs to Be Thinking About in 2017
3 Things Every Sales Team Needs to Be Thinking About in 2017

How to Become a Thought Leader in Your Niche
How to Become a Thought Leader in Your NicheHow to Become a Thought Leader in Your Niche
How to Become a Thought Leader in Your Niche


Similar to Sdpl1

Software engineering the process
Software engineering the processSoftware engineering the process
Software engineering the process
Dr. Anthony Vincent. B

Elementary Probability theory Chapter 2.pptx
Elementary Probability theory Chapter 2.pptxElementary Probability theory Chapter 2.pptx
Elementary Probability theory Chapter 2.pptx
ethiouniverse

SE-Lecture-2.pptx
SE-Lecture-2.pptxSE-Lecture-2.pptx
SE-Lecture-2.pptx
vishal choudhary

The process
The processThe process
The process
prakashvs7

System analsis and design
System analsis and designSystem analsis and design
System analsis and design
Rizwan Kabir

SE-Lecture-4.pptx
SE-Lecture-4.pptxSE-Lecture-4.pptx
SE-Lecture-4.pptx
vishal choudhary

SE-03.pptx
SE-03.pptxSE-03.pptx
SE-03.pptx
HaiderAli252366

Software Process Models
Software Process ModelsSoftware Process Models
Software Process Models
Hassan A-j

Software process model
Software process modelSoftware process model
Software process model
Muhammad Yousuf Abdul Qadir

SDLC Model
SDLC  ModelSDLC  Model
16346915.ppt
16346915.ppt16346915.ppt
16346915.ppt
PunitGupta71

Software Process Model in software engineering
Software Process Model in software engineeringSoftware Process Model in software engineering
Software Process Model in software engineering
MuhammadTalha436

Chapter 3 Software Process Model.ppt
Chapter 3 Software Process Model.pptChapter 3 Software Process Model.ppt
Chapter 3 Software Process Model.ppt
RayonJ1

3. ch 2-process model
3. ch 2-process model3. ch 2-process model
3. ch 2-process model
Delowar hossain

Software models
Software modelsSoftware models
Software models
MOULA HUSSAIN KHATTHEWALE

Chapter-2 ppt for the MBA 4rh seme6y.pdf
Chapter-2 ppt for the MBA 4rh seme6y.pdfChapter-2 ppt for the MBA 4rh seme6y.pdf
Chapter-2 ppt for the MBA 4rh seme6y.pdf
VikasRai405977

Software development process models
Software development process modelsSoftware development process models
Software development process models
Muhammed Afsal Villan

Chapter 2.pptx
Chapter 2.pptxChapter 2.pptx
Chapter 2.pptx
AmnaAhsaan1

Software Development Life Cycle (SDLC)
Software Development Life Cycle (SDLC)Software Development Life Cycle (SDLC)
Software Development Life Cycle (SDLC)
Compare Infobase Limited

ISE_Lecture Week 2-SW Process Models.ppt
ISE_Lecture Week 2-SW Process Models.pptISE_Lecture Week 2-SW Process Models.ppt
ISE_Lecture Week 2-SW Process Models.ppt
HumzaWaris1


Similar to Sdpl1 (20)

Software engineering the process
Software engineering the processSoftware engineering the process
Software engineering the process

Elementary Probability theory Chapter 2.pptx
Elementary Probability theory Chapter 2.pptxElementary Probability theory Chapter 2.pptx
Elementary Probability theory Chapter 2.pptx

SE-Lecture-2.pptx
SE-Lecture-2.pptxSE-Lecture-2.pptx
SE-Lecture-2.pptx

The process
The processThe process
The process

System analsis and design
System analsis and designSystem analsis and design
System analsis and design

SE-Lecture-4.pptx
SE-Lecture-4.pptxSE-Lecture-4.pptx
SE-Lecture-4.pptx

SE-03.pptx
SE-03.pptxSE-03.pptx
SE-03.pptx

Software Process Models
Software Process ModelsSoftware Process Models
Software Process Models

Software process model
Software process modelSoftware process model
Software process model

SDLC Model
SDLC  ModelSDLC  Model
SDLC Model

16346915.ppt
16346915.ppt16346915.ppt
16346915.ppt

Software Process Model in software engineering
Software Process Model in software engineeringSoftware Process Model in software engineering
Software Process Model in software engineering

Chapter 3 Software Process Model.ppt
Chapter 3 Software Process Model.pptChapter 3 Software Process Model.ppt
Chapter 3 Software Process Model.ppt

3. ch 2-process model
3. ch 2-process model3. ch 2-process model
3. ch 2-process model

Software models
Software modelsSoftware models
Software models

Chapter-2 ppt for the MBA 4rh seme6y.pdf
Chapter-2 ppt for the MBA 4rh seme6y.pdfChapter-2 ppt for the MBA 4rh seme6y.pdf
Chapter-2 ppt for the MBA 4rh seme6y.pdf

Software development process models
Software development process modelsSoftware development process models
Software development process models

Chapter 2.pptx
Chapter 2.pptxChapter 2.pptx
Chapter 2.pptx

Software Development Life Cycle (SDLC)
Software Development Life Cycle (SDLC)Software Development Life Cycle (SDLC)
Software Development Life Cycle (SDLC)

ISE_Lecture Week 2-SW Process Models.ppt
ISE_Lecture Week 2-SW Process Models.pptISE_Lecture Week 2-SW Process Models.ppt
ISE_Lecture Week 2-SW Process Models.ppt


Recently uploaded

5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides
DanBrown980551

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
panagenda

Y-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PPY-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PP
c5vrf27qcz

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024
Jason Packer

Harnessing the Power of NLP and Knowledge Graphs for Opioid Research
Harnessing the Power of NLP and Knowledge Graphs for Opioid ResearchHarnessing the Power of NLP and Knowledge Graphs for Opioid Research
Harnessing the Power of NLP and Knowledge Graphs for Opioid Research
Neo4j

Essentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation ParametersEssentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation Parameters
Safe Software

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf
ssuserfac0301

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf
Tosin Akinosho

9 CEO's who hit $100m ARR Share Their Top Growth Tactics Nathan Latka, Founde...
9 CEO's who hit $100m ARR Share Their Top Growth Tactics Nathan Latka, Founde...9 CEO's who hit $100m ARR Share Their Top Growth Tactics Nathan Latka, Founde...
9 CEO's who hit $100m ARR Share Their Top Growth Tactics Nathan Latka, Founde...
saastr

JavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green MasterplanJavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green Masterplan
Miro Wengner

AppSec PNW: Android and iOS Application Security with MobSF
AppSec PNW: Android and iOS Application Security with MobSFAppSec PNW: Android and iOS Application Security with MobSF
AppSec PNW: Android and iOS Application Security with MobSF
Ajin Abraham

Skybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoptionSkybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoption
Tatiana Kojar

Northern Engraving | Nameplate Manufacturing Process - 2024
Northern Engraving | Nameplate Manufacturing Process - 2024Northern Engraving | Nameplate Manufacturing Process - 2024
Northern Engraving | Nameplate Manufacturing Process - 2024
Northern Engraving

The Microsoft 365 Migration Tutorial For Beginner.pptx
The Microsoft 365 Migration Tutorial For Beginner.pptxThe Microsoft 365 Migration Tutorial For Beginner.pptx
The Microsoft 365 Migration Tutorial For Beginner.pptx
operationspcvita

Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |
AstuteBusiness

Introduction of Cybersecurity with OSS at Code Europe 2024
Introduction of Cybersecurity with OSS  at Code Europe 2024Introduction of Cybersecurity with OSS  at Code Europe 2024
Introduction of Cybersecurity with OSS at Code Europe 2024
Hiroshi SHIBATA

Nordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptxNordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptx
MichaelKnudsen27

Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectorsConnector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
DianaGray10

GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge GraphGraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
Neo4j

“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
Edge AI and Vision Alliance


Recently uploaded (20)

5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU

Y-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PPY-Combinator seed pitch deck template PP
Y-Combinator seed pitch deck template PP

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024

Harnessing the Power of NLP and Knowledge Graphs for Opioid Research
Harnessing the Power of NLP and Knowledge Graphs for Opioid ResearchHarnessing the Power of NLP and Knowledge Graphs for Opioid Research
Harnessing the Power of NLP and Knowledge Graphs for Opioid Research

Essentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation ParametersEssentials of Automations: Exploring Attributes & Automation Parameters
Essentials of Automations: Exploring Attributes & Automation Parameters

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf

9 CEO's who hit $100m ARR Share Their Top Growth Tactics Nathan Latka, Founde...
9 CEO's who hit $100m ARR Share Their Top Growth Tactics Nathan Latka, Founde...9 CEO's who hit $100m ARR Share Their Top Growth Tactics Nathan Latka, Founde...
9 CEO's who hit $100m ARR Share Their Top Growth Tactics Nathan Latka, Founde...

JavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green MasterplanJavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green Masterplan

AppSec PNW: Android and iOS Application Security with MobSF
AppSec PNW: Android and iOS Application Security with MobSFAppSec PNW: Android and iOS Application Security with MobSF
AppSec PNW: Android and iOS Application Security with MobSF

Skybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoptionSkybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoption

Northern Engraving | Nameplate Manufacturing Process - 2024
Northern Engraving | Nameplate Manufacturing Process - 2024Northern Engraving | Nameplate Manufacturing Process - 2024
Northern Engraving | Nameplate Manufacturing Process - 2024

The Microsoft 365 Migration Tutorial For Beginner.pptx
The Microsoft 365 Migration Tutorial For Beginner.pptxThe Microsoft 365 Migration Tutorial For Beginner.pptx
The Microsoft 365 Migration Tutorial For Beginner.pptx

Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |

Introduction of Cybersecurity with OSS at Code Europe 2024
Introduction of Cybersecurity with OSS  at Code Europe 2024Introduction of Cybersecurity with OSS  at Code Europe 2024
Introduction of Cybersecurity with OSS at Code Europe 2024

Nordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptxNordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptx

Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectorsConnector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors
Connector Corner: Seamlessly power UiPath Apps, GenAI with prebuilt connectors

GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge GraphGraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph
GraphRAG for LifeSciences Hands-On with the Clinical Knowledge Graph

“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...
“Temporal Event Neural Networks: A More Efficient Alternative to the Transfor...


Sdpl1

  • 1. ICT 0801 2/9/2011 S.G.Nambuwasam 1 Software Development Practices
  • 2. What is Software Software is a general term for the various kinds of programs used to operate computers and related devices. Software can be thought of as the variable part of a computer and hardware the invariable part.
  • 3. Software Development Is the act of working to produce/create software. This software could be produced for a variety of purposes.
  • 4. Reasons to Develop Software to meet specific needs of a specific client/business to meet a perceived need of some set of potential users for personal use
  • 5. Software Development Life Cycle (SDLC) Market research Gathering requirements for the proposed business solution Analyzing the problem Devising a plan or design for the software-based solution Implementation (coding) of the software Testing the software Deployment Maintenance and bug fixing
  • 6. Popular Software Development Models A. System Development Life Cycle (SDLC) Model B. Prototyping Model C. Rapid Application Development Model D. Component Assembly Model
  • 7. System Development Life Cycle (SDLC) The systems development life cycle (SDLC) is a sequential conceptual model used in project management that describes the stages involved in an information system development project, from an initial feasibility study through maintenance of the completed application.
  • 8. Activities of SDLC System/Information Engineering and Modeling Software Requirement Analysis System Analysis and Design Code Generation Testing Maintenance
  • 9. Stages of the Waterfall Model
  • 10. Requirement Analysis & Definition The requirements are gathered from the end-user by consultation Requirements are analyzed for their validity and the possibility of incorporating the requirements in the system to be development is also studied A Requirement Specification document is created which serves the purpose of guideline for the next phase of the model
  • 11. Feasibility Study Aims to objectively and rationally uncover the strengths and weaknesses of the existing business or proposed venture, opportunities and threats as presented by the environment, the resources required to carry through, and ultimately the prospects for success Criteria to judge feasibility Cost required Value to be attained
  • 12. Five Common Feasibility Factors Technology and System Feasibility Economic Feasibility Legal Feasibility Operational Feasibility Schedule Feasibility
  • 13. Other Feasibility Factors Market and real estate feasibility Resource feasibility Cultural feasibility Financial feasibility
  • 14. Feasibility Study Report The feasibility study outputs the feasibility study report A report detailing the evaluation criteria, the study findings, and the recommendations
  • 15. System & Software Design The requirement specifications from first phase are studied in this phase and system design is prepared. Helps in specifying hardware and system requirements Helps in defining overall system architecture Serve as input for the next phase of the model
  • 16. Implementation & Unit Testing the work is divided in modules/units and actual coding is started The system is first developed in small programs called units, which are integrated in the next phase. Each unit is developed and tested for its functionality;
  • 17. Integration & System Testing: Units are integrated into a complete system during Integration phase and tested to check if all modules/units coordinate between each other and the system as a whole behaves as per the specifications. After successfully testing the software, it is delivered to the customer.
  • 18. Operations & Maintenance: virtually never ending phase (Very long) the issues related to the system are solved after deployment of the system
  • 19. Waterfall development in action create the functional specification When we have a full understanding of the business the functional specification is published and distributed to as many business experts as possible for feedback.  When the functional specification is final we often convey a meeting of business experts and work through the final copy together to iron out any errors prior to sign-off.
  • 20. produce a non working prototype application along with a user interface specification When everybody is happy that the screens will deliver the functionality required the application can be developed and tested. When the application is complete a beta release is published and provided to the business for testing.  Any  bugs found are rapidly repaired When no significant bugs remain and the client is happy with the application it can go live as release version 1.0.
  • 21. Advantages of the waterfall method Design errors are captured before any software is written saving time during the implementation phase. Excellent technical documentation is part of the deliverables and it is easier for new programmers to get up to speed during the maintenance phase. The approach is very structured and it is easier to measure progress by reference to clearly defined milestones. The total cost of the project can be accurately estimated after the requirements have been defined (via the functional and user interface specifications). Testing is easier as it can be done by reference to the scenarios defined in the functional specification.
  • 22. Disadvantages of the waterfall method Clients will often find it difficult to state their requirements at the abstract level of a functional specification and will only fully appreciate what is needed when the application is delivered.  It then becomes very difficult (and expensive) to re-engineer the application. The model does not cater for the possibility of requirements changing during the development cycle. A project can often take substantially longer to deliver than when developed with an iterative methodology such as the agile development method.
  • 23. Prototyping Model The basic idea here is that instead of freezing the requirements before a design or coding can proceed, a throwaway prototype is built to understand the requirements. prototype is developed based on the currently known requirements. By using this prototype, the client can get an "actual feel" of the system, since the interactions with prototype can enable the client to better understand the requirements of the desired system.
  • 24. Prototyping is an attractive idea for complicated and large systems for which there is no manual process or existing system to help determining the requirements. It is also an effective method to demonstrate the feasibility of a certain approach. might be needed for novel systems where it is not clear that constraints can be met or that algorithms can be developed to implement the requirements.
  • 26. Stages of the Prototyping Model cyclic version of the linear model once the requirement analysis is done and the design for a prototype is made the development process gets started Once the prototype is created, it is given to the customer for evaluation The customer tests the package and gives his/her feed back to the developer who refines the product according to the customer's exact expectation
  • 27. After a finite number of iterations, the final software package is given to the customer. In this methodology, the software is evolved as a result of periodic shuttling of information between the customer and developer. the most popular development model in the contemporary IT industry. Most of the successful software products have been developed using this model
  • 28. Advantages of Prototyping Users are actively involved in the development It provides a better system to users, as users have natural tendency to change their mind in specifying requirements and this method of developing systems supports this user tendency. Since in this methodology a working model of the system is provided, the users get a better understanding of the system being developed. Errors can be detected much earlier as the system is mode side by side.
  • 29. Quicker user feedback is available leading to better solutions. One of the key advantages a prototype modeled software has is the time frame of development. Instead of concentrating on documentation, more effort is placed in creating the actual software. This way, the actual software could be released in advance.
  • 30. Disadvantages of the Prototyping Model Leads to implementing and then repairing way of building systems. Since its being built out of concept, most of the models presented in the early stage are not complete. Practically, this methodology may increase the complexity of the system as scope of the system may expand beyond original plans. integration could be very difficult for a prototype model.
  • 31. Rapid Application Development Model A linear sequential software development process An extremely short development cycle The RAD model is a "high speed" adaptation of the linear sequential model Rapid development is achieved by using a component-based construction approach. Used primarily for information systems applications,
  • 32. Phases of RAD Business Modeling Data Modeling Process Modeling Application Generation Testing and Turnover
  • 33.
  • 34. What information drives the business process?
  • 35. What information is generated?
  • 37. Where does the information go?
  • 38.
  • 39. Process Modeling The data objects defined in the data-modeling phase are transformed to achieve the information flow necessary to implement a business function. Processing the descriptions are created for adding, modifying, deleting, or retrieving a data object.
  • 40. Application Generation Works to reuse existing program components (when possible) or create reusable components (when necessary). In all cases, automated tools are used to facilitate construction of the software.
  • 41. Testing and Turnover The RAD process emphasizes reuse, many of the program components have already been tested. This minimizes the testing and development time.
  • 42. Advantages of RAD Flexible and adaptable to changes. Prototyping applications gives users a tangible description from which to judge whether critical system requirements are being met by the system. Report output can be compared with existing reports. Data entry forms can be reviewed for completeness of all fields, navigation, data access (drop down lists,checkboxes, radio buttons, etc.). RAD generally incorporates short development cycles - users see the RAD product quickly.
  • 43. RAD involves user participation thereby increasing chances of early user community acceptance. RAD realizes an overall reduction in project risk. Reduce the cost to create custom system.

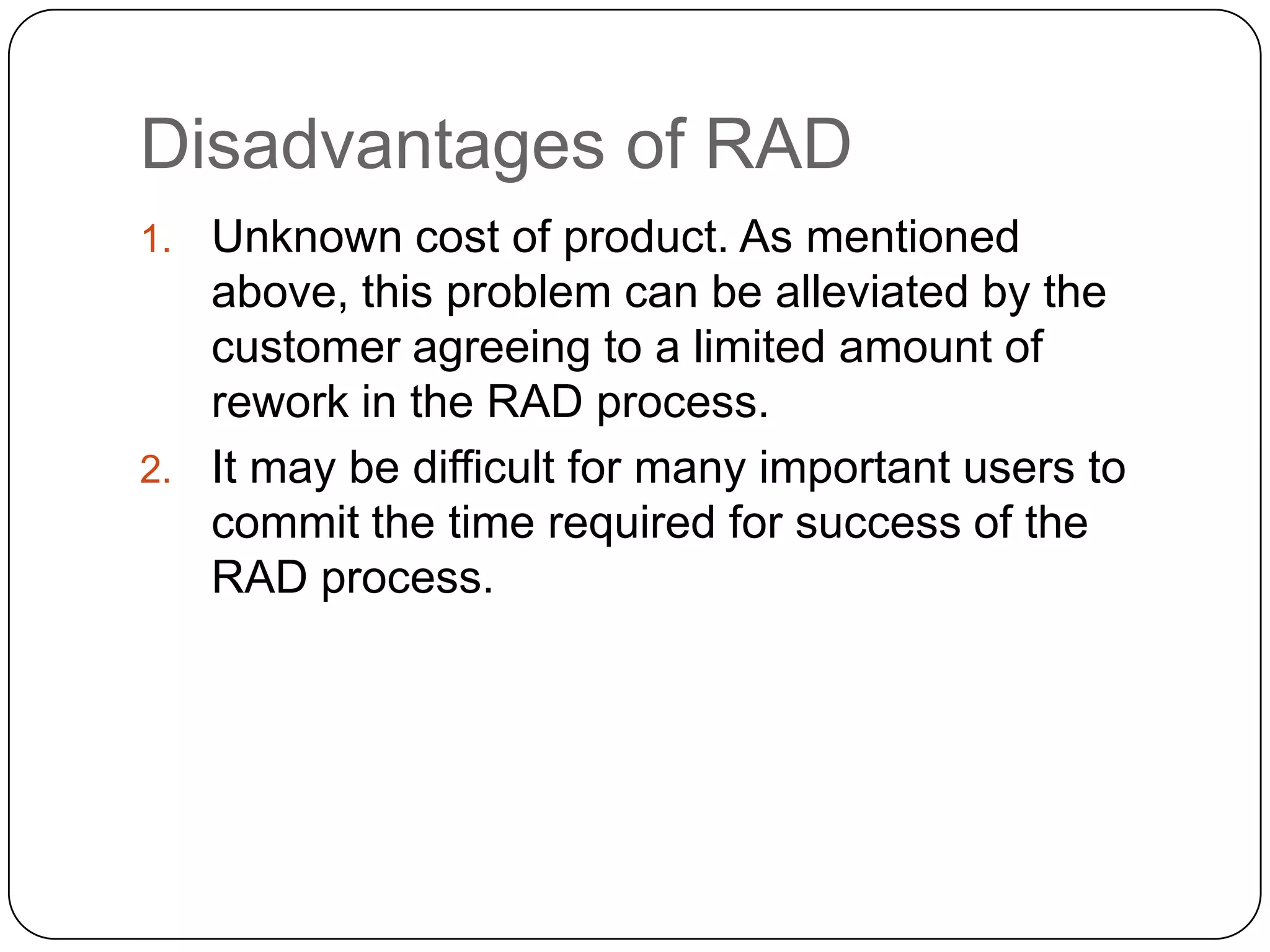

  • 44. Disadvantages of RAD Unknown cost of product. As mentioned above, this problem can be alleviated by the customer agreeing to a limited amount of rework in the RAD process. It may be difficult for many important users to commit the time required for success of the RAD process.

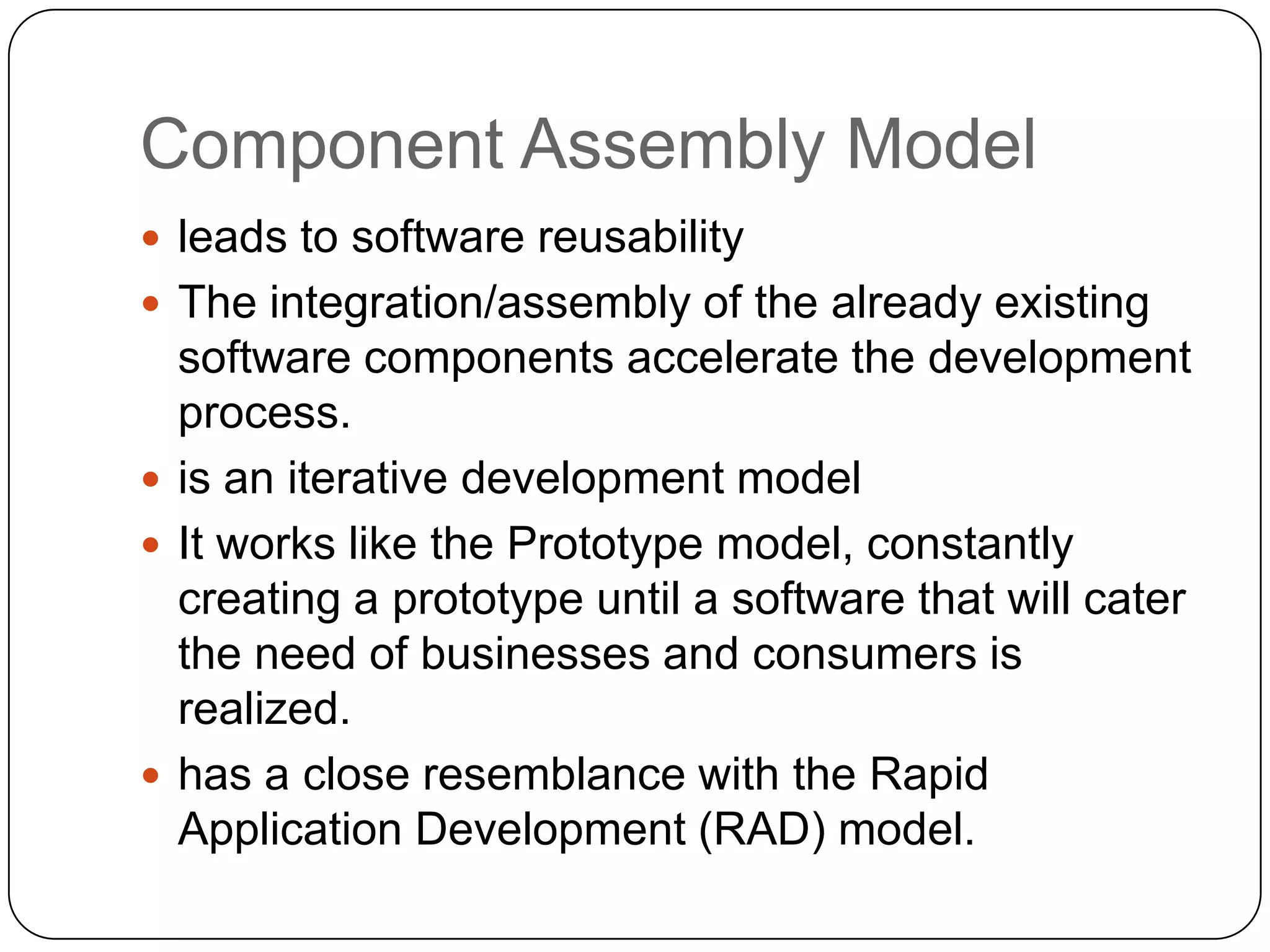

  • 45. Component Assembly Model leads to software reusability The integration/assembly of the already existing software components accelerate the development process. is an iterative development model It works like the Prototype model, constantly creating a prototype until a software that will cater the need of businesses and consumers is realized. has a close resemblance with the Rapid Application Development (RAD) model.
  • 46. 7 uses the available tools and GUIs to build software. 8 If the right components are chosen, the integration aspect is made much simpler.
