Near real time streaming with apache samza - Antispam use case
- 1. Near Real TimeStreaming With Apache Samza Antispam Use Case
- 2. Hello! Michael Sklyar Team leader,R&D @ Cyren
- 3.
- 4.
- 5.
- 6.
- 7. Spam is business Mostof the email traffic is spam Spamvertising Malware Fraud, 419 Cryptolocker Phishing
- 8. CYREN Antispam SDKs andSAAS Inbound and Outbound Global View 24/7 RPD Reputation
- 9.

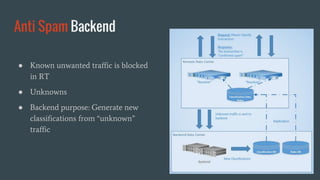

- 10. Anti Spam Backend ●Known unwanted traffic is blocked in RT ● Unknowns ● Backend purpose: Generate new classifications from “unknown” traffic

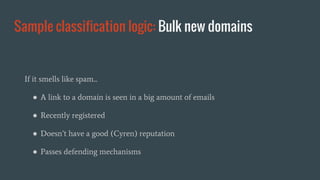

- 11. Sample classification logic:Bulk new domains If it smells like spam... ● A link to a domain is seen in a big amount of emails ● Recently registered ● Doesn’t have a good (Cyren) reputation ● Passes defending mechanisms

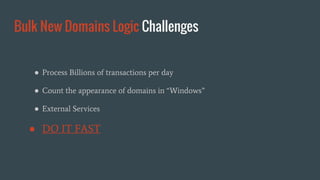

- 12. Bulk New DomainsLogic Challenges ● Process Billions of transactions per day ● Count the appearance of domains in “Windows” ● External Services ● DO IT FAST
- 13. Before we digin... Questions about the use case?

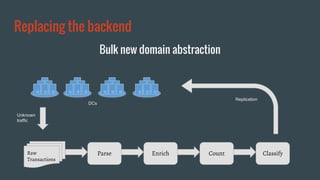

- 14. Replacing the backend Bulknew domain abstraction Parse Enrich Count ClassifyRaw Transactions Unknown traffic DCs Replication
- 15. Replacing the backendTechnological stack

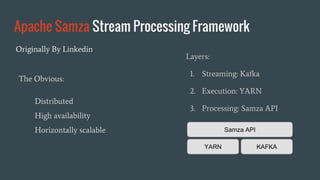

- 16. Apache Samza StreamProcessing Framework YARN KAFKA Samza API Layers: 1. Streaming: Kafka 2. Execution: YARN 3. Processing: Samza API Originally By Linkedin The Obvious: Distributed High availability Horizontally scalable

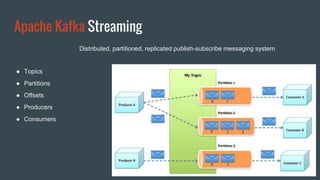

- 17. Apache Kafka Streaming ●Topics ● Partitions ● Offsets ● Producers ● Consumers Distributed, partitioned, replicated publish-subscribe messaging system

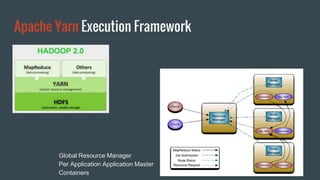

- 18. Apache Yarn ExecutionFramework Global Resource Manager Per Application Application Master Containers

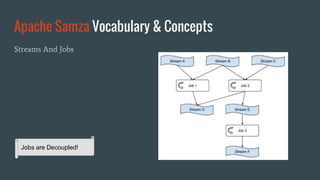

- 19. Apache Samza Vocabulary& Concepts Streams And Jobs Jobs are Decoupled!

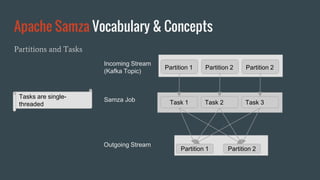

- 20. Apache Samza Vocabulary& Concepts Partitions and Tasks Partition 1 Partition 2 Partition 2 Task 1 Task 2 Task 3 Partition 1 Partition 2 Incoming Stream (Kafka Topic) Samza Job Outgoing Stream Tasks are single- threaded
- 21. Apache Samza Vocabulary& Concepts Fault Tolerance - Checkpointing - Committing - At least once processing

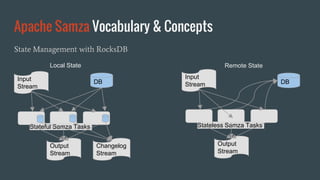

- 22. Apache Samza Vocabulary& Concepts State Management with RocksDB Local State Remote State Input Stream DB Stateless Samza Tasks Output Stream Input Stream Stateful Samza Tasks Output Stream DB Changelog Stream

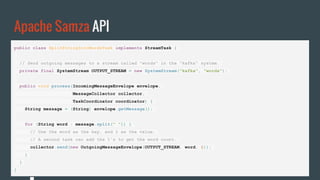

- 23. Apache Samza API publicclass SplitStringIntoWordsTask implements StreamTask { // Send outgoing messages to a stream called "words" in the "kafka" system. private final SystemStream OUTPUT_STREAM = new SystemStream("kafka", "words"); public void process(IncomingMessageEnvelope envelope, MessageCollector collector, TaskCoordinator coordinator) { String message = (String) envelope.getMessage(); for (String word : message.split(" ")) { // Use the word as the key, and 1 as the value. // A second task can add the 1's to get the word count. collector.send(new OutgoingMessageEnvelope(OUTPUT_STREAM, word, 1)); } } }

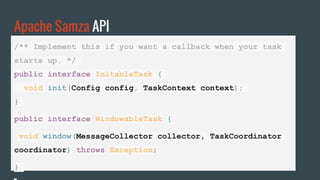

- 24. Apache Samza API /**Implement this if you want a callback when your task starts up. */ public interface InitableTask { void init(Config config, TaskContext context); } public interface WindowableTask { void window(MessageCollector collector, TaskCoordinator coordinator) throws Exception; }

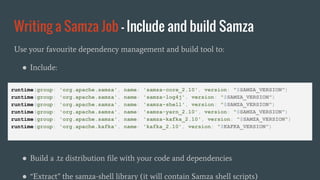

- 25. Writing a SamzaJob - Include and build Samza Use your favourite dependency management and build tool to: ● Include: ● Build a .tz distribution file with your code and dependencies ● “Extract” the samza-shell library (it will contain Samza shell scripts) runtime(group: 'org.apache.samza', name: 'samza-core_2.10', version: "$SAMZA_VERSION") runtime(group: 'org.apache.samza', name: 'samza-log4j', version: "$SAMZA_VERSION") runtime(group: 'org.apache.samza', name: 'samza-shell', version: "$SAMZA_VERSION") runtime(group: 'org.apache.samza', name: 'samza-yarn_2.10', version: "$SAMZA_VERSION") runtime(group: 'org.apache.samza', name: 'samza-kafka_2.10', version: "$SAMZA_VERSION") runtime(group: 'org.apache.kafka', name: 'kafka_2.10', version: "$KAFKA_VERSION")

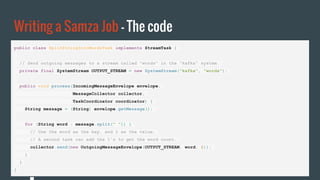

- 26. Writing a SamzaJob - The code public class SplitStringIntoWordsTask implements StreamTask { // Send outgoing messages to a stream called "words" in the "kafka" system. private final SystemStream OUTPUT_STREAM = new SystemStream("kafka", "words"); public void process(IncomingMessageEnvelope envelope, MessageCollector collector, TaskCoordinator coordinator) { String message = (String) envelope.getMessage(); for (String word : message.split(" ")) { // Use the word as the key, and 1 as the value. // A second task can add the 1's to get the word count. collector.send(new OutgoingMessageEnvelope(OUTPUT_STREAM, word, 1)); } } }
- 27. Writing a SamzaJob - Task Properties Nasty and painful configuration specifying: ● Job properties: Name, artifact location, number of tasks, RAM, CPU ● Kafka Configuration: Systems and streams: incoming, outgoing, bootstrapping, coordination. ● SerDe definitions https://samza.apache.org/learn/documentation/0.10/jobs/configuration-table.html

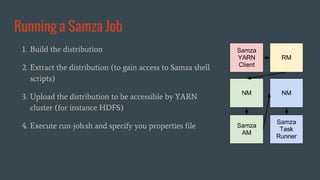

- 28. Running a SamzaJob 1. Build the distribution 2. Extract the distribution (to gain access to Samza shell scripts) 3. Upload the distribution to be accessible by YARN cluster (for instance HDFS) 4. Execute run-job.sh and specify you properties file
- 29. Bulk new domaindetection with Samza

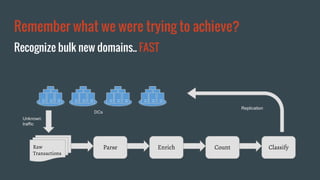

- 30. Remember what wewere trying to achieve? Recognize bulk new domains.. FAST Parse Enrich Count ClassifyRaw Transactions Unknown traffic DCs Replication

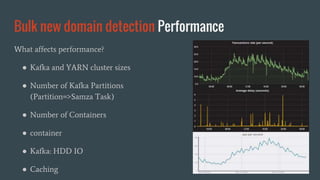

- 31. Bulk new domaindetection Performance What affects performance? ● Kafka and YARN cluster sizes ● Number of Kafka Partitions (Partition=>Samza Task) ● Number of Containers ● container ● Kafka: HDD IO ● Caching

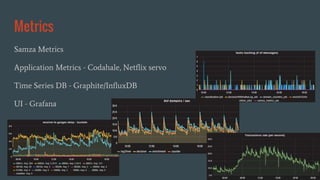

- 32. Metrics Samza Metrics Application Metrics- Codahale, Netflix servo Time Series DB - Graphite/InfluxDB UI - Grafana

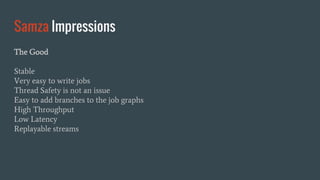

- 33. Samza Impressions The Good Stable Veryeasy to write jobs Thread Safety is not an issue Easy to add branches to the job graphs High Throughput Low Latency Replayable streams

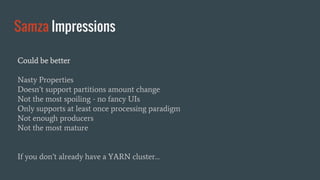

- 34. Samza Impressions Could bebetter Nasty Properties Doesn’t support partitions amount change Not the most spoiling - no fancy UIs Only supports at least once processing paradigm Not enough producers Not the most mature If you don’t already have a YARN cluster…

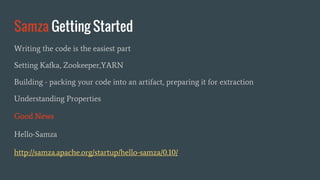

- 35. Samza Getting Started Writingthe code is the easiest part Setting Kafka, Zookeeper,YARN Building - packing your code into an artifact, preparing it for extraction Understanding Properties Good News Hello-Samza http://samza.apache.org/startup/hello-samza/0.10/
- 36.
