Neoz Energy

1. 1
NeOz Energy
……..the leaders in innovative Oilfield equipments
Cementing Products
(Float Equipment & Cementing Plugs)

2. 2

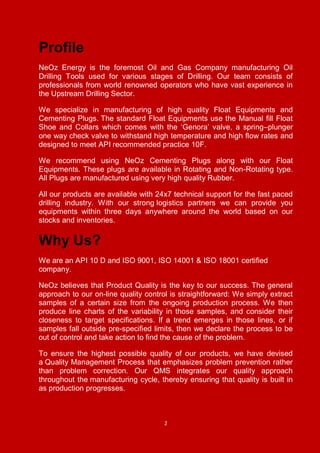

Profile
NeOz Energy is the foremost Oil and Gas Company manufacturing Oil
Drilling Tools used for various stages of Drilling. Our team consists of
professionals from world renowned operators who have vast experience in
the Upstream Drilling Sector.
We specialize in manufacturing of high quality Float Equipments and
Cementing Plugs. The standard Float Equipments use the Manual fill Float
Shoe and Collars which comes with the ‘Genora’ valve, a spring–plunger
one way check valve to withstand high temperature and high flow rates and
designed to meet API recommended practice 10F.
We recommend using NeOz Cementing Plugs along with our Float
Equipments. These plugs are available in Rotating and Non-Rotating type.
All Plugs are manufactured using very high quality Rubber.
All our products are available with 24x7 technical support for the fast paced
drilling industry. With our strong logistics partners we can provide you
equipments within three days anywhere around the world based on our
stocks and inventories.
Why Us?
We are an API 10 D and ISO 9001, ISO 14001 & ISO 18001 certified
company.
NeOz believes that Product Quality is the key to our success. The general
approach to our on-line quality control is straightforward: We simply extract
samples of a certain size from the ongoing production process. We then
produce line charts of the variability in those samples, and consider their
closeness to target specifications. If a trend emerges in those lines, or if
samples fall outside pre-specified limits, then we declare the process to be
out of control and take action to find the cause of the problem.
To ensure the highest possible quality of our products, we have devised
a Quality Management Process that emphasizes problem prevention rather
than problem correction. Our QMS integrates our quality approach
throughout the manufacturing cycle, thereby ensuring that quality is built in
as production progresses.

3. 3

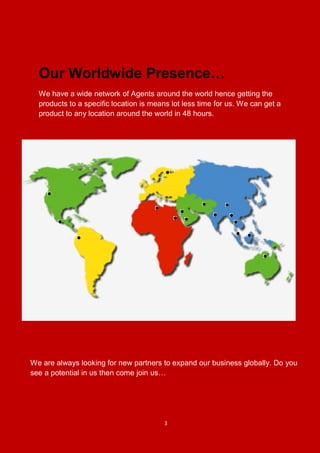

Our Worldwide Presence…
We have a wide network of Agents around the world hence getting the
products to a specific location is means lot less time for us. We can get a
product to any location around the world in 48 hours.
We are always looking for new partners to expand our business globally. Do you
see a potential in us then come join us…

4. 4
Float Shoe
Float Shoe improves the chances of obtaining a successful cementing job at the
casing shoe. NeOz Float Shoe is fitted with ‘Genora’ valve which is suitable for
most of the applications.
The valve insures proper sealing in vertical as well as horizontal wells. The
valves are PDC drillable and offered in various sizes based on the casing size.
The valves are made up of engineered composite material that provide
maximum strength with high wear resistance properties keeping the temperature
and flow rating intact.
The Float Shoe is available with single and double valve.
Single Valve
Double Valve

5. 5

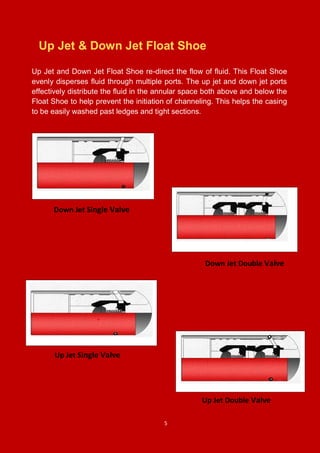

Up Jet & Down Jet Float Shoe
Up Jet and Down Jet Float Shoe re-direct the flow of fluid. This Float Shoe
evenly disperses fluid through multiple ports. The up jet and down jet ports
effectively distribute the fluid in the annular space both above and below the
Float Shoe to help prevent the initiation of channeling. This helps the casing
to be easily washed past ledges and tight sections.
Down Jet Single Valve
Down Jet Double Valve
Up Jet Single Valve
Up Jet Double Valve

6. 6

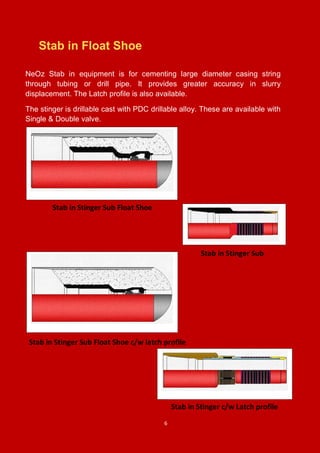

Stab in Float Shoe
NeOz Stab in equipment is for cementing large diameter casing string
through tubing or drill pipe. It provides greater accuracy in slurry
displacement. The Latch profile is also available.
The stinger is drillable cast with PDC drillable alloy. These are available with
Single & Double valve.
Stab in Stinger Sub Float Shoe
Stab in Stinger Sub Float Shoe c/w latch profile
Stab in Stinger Sub
Stab in Stinger c/w Latch profile

7. 7
Float Collar
Float Collar acts as a back-up valve to the one located in the Float Shoe. All
Float Collars are fitted with NeOz ‘Genora’ valve.
It acts as a landing point for casing wiper plugs. The Float Collar allows the
contaminated cement to be captured in the shoe track instead of being
pumped in the annulus.
The pressure holding capability of a float collar when a plug bumps against it
is referred to as bump pressure. The pressure from the annulus on the back
side of the valve is called the back pressure. The bumping confirms that the
displacement is complete. The ‘Genora’ valve and the cement around it are
capable of withstanding long periods of circulation.
Single Valve
Double Valve
Non Rotating Type

8. 8

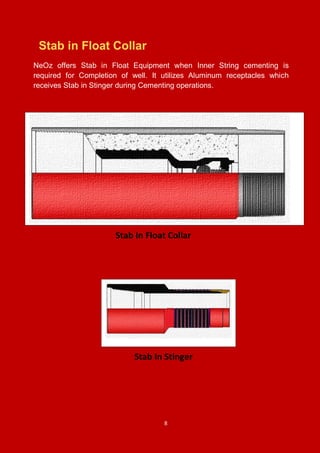

Stab in Float Collar
NeOz offers Stab in Float Equipment when Inner String cementing is
required for Completion of well. It utilizes Aluminum receptacles which
receives Stab in Stinger during Cementing operations.
Stab In Stinger
Stab In Float Collar

9. 9
Guide Shoe
The purpose of Guide Shoe is to guide the casing to cementing depth and
re-inforce the bottom of the casing. The standard Guide shoe has a Cement
nose which is easily drilled upon completion of cementing operation.
Guide Shoe
Guide Shoe Down Jet

10. 10
Reamer Shoe
NeOz Reamer Shoe is designed to run on all sizes of casing and liners. It
gives an option to open the wellbore or move down past a ledge. This is an
important aspect in the event wellbore restrictions and ledges are
encountered. It is available with Tungsten Carbide. The Aluminium eccentric
nose is PDC drillable.
This is compatible with all casing and liner hanger assemblies. It is available
with Single and Double Valve combinations.
Single Valve
Double Valve

11. 11

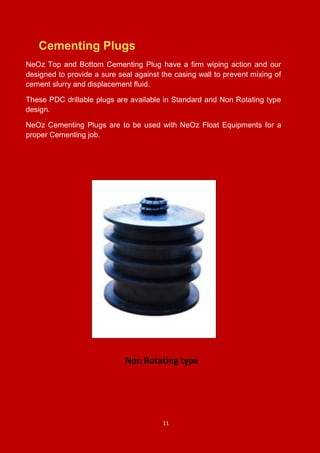

Cementing Plugs
NeOz Top and Bottom Cementing Plug have a firm wiping action and our
designed to provide a sure seal against the casing wall to prevent mixing of
cement slurry and displacement fluid.
These PDC drillable plugs are available in Standard and Non Rotating type
design.
NeOz Cementing Plugs are to be used with NeOz Float Equipments for a
proper Cementing job.
Non Rotating type

12. 12

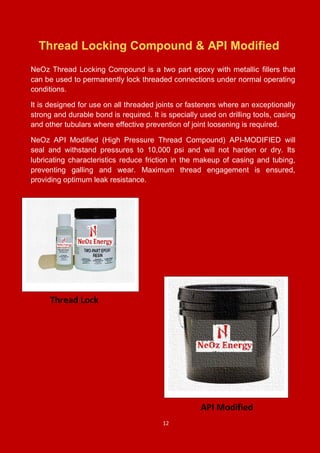

Thread Locking Compound & API Modified
NeOz Thread Locking Compound is a two part epoxy with metallic fillers that
can be used to permanently lock threaded connections under normal operating
conditions.
It is designed for use on all threaded joints or fasteners where an exceptionally
strong and durable bond is required. It is specially used on drilling tools, casing
and other tubulars where effective prevention of joint loosening is required.
NeOz API Modified (High Pressure Thread Compound) API-MODIFIED will
seal and withstand pressures to 10,000 psi and will not harden or dry. Its
lubricating characteristics reduce friction in the makeup of casing and tubing,
preventing galling and wear. Maximum thread engagement is ensured,
providing optimum leak resistance.
Thread Lock
API Modified

13. 13

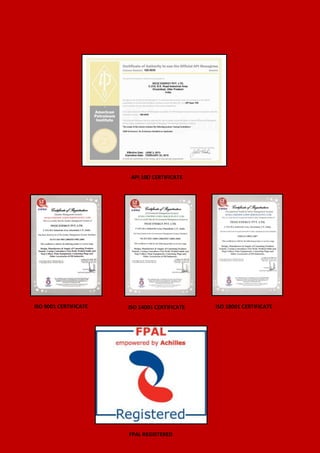

API 10D CERTIFICATE
ISO 9001 CERTIFICATE ISO 14001 CERTIFICATE ISO 18001 CERTIFICATE
FPAL REGISTERED

14. 14

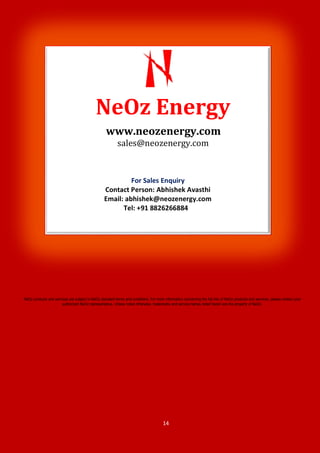

NeOz products and services are subject to NeOz standard terms and conditions. For more information concerning the full line of NeOz products and services, please contact your
authorized NeOz representative. Unless noted otherwise, trademarks and service names noted herein are the property of NeOz.
