- 2. Naviga&ng SAP’s Integra&on Op&ons Lessons Learnt Integra&ng SAP into a Complex Landscape Sascha Wenninger @sufw
- 3. About Me Technical Architect Focus:SAP Integration Opinionated Co-founder of Blue T SAP Mentor Wannabe Performance Engineer Enterprise IT !== Boring 3
- 4.
- 5.
- 6.

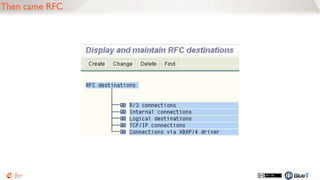

- 7.
- 8. So What DoYouChoose? 8
- 9.
- 10.
- 11.
- 12.
- 13.
- 14.
- 16. One Integration Approachto Rule them All
- 17. One Integration Approachto Rule them All
- 18. One ____________ toRule them All
- 19. One ____________ toRule them All
- 20. Use the RightTool for the Job! “Right Tool for the Job?”, by Bruce Murray
- 21.
- 22. 22 Back to FirstPrinciples
- 23. Push or Pull? Thatis the Question. 23
- 24. 24 Data Flow A B SourceDesVnaVon

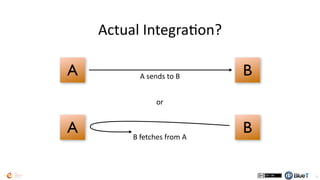

- 25. 25 A B Actual IntegraVon? A sends to B A BB fetches from A or

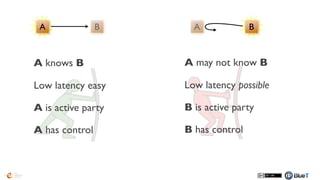

- 26. 26 A knows B Lowlatency easy A is active party A has control A may not know B Low latency possible B is active party B has control A B A B
- 27.
- 28. Synchronous: Source is responsibleto make itself understood 28h1p://www.flickr.com/photos/48975388@N07/7163918352/
- 29. Asynchronous: Target is responsible toensure it understands 29h1p://www.dumpaday.com/wp-‐content/uploads/2013/02/funny-‐pictures-‐dumpaday-‐28.jpg
- 30. They’re the onlybinary choices you have to make! 30
- 31.
- 32. Synchronous == BestEffort,“Kiddie Stuff” Asynchronous == Reliable, Guaranteed Delivery,“Enterprisey” 32

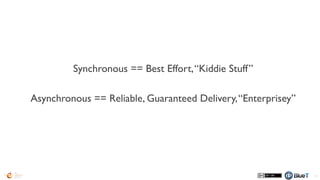

- 33. Synchronous == BestEffort,“Kiddie Stuff” Asynchronous == Reliable, Guaranteed Delivery,“Enterprisey” 33
- 34. Remember the OSIModel? 34 7 Application 6 Presentation 5 Session 4 Transport 3 Network 2 Data Link 1 Physical More or less leaky abstractions Inherently Synchronous
- 35. Everything in Computingis Ultimately Synchronous! 35“Turtle Tower”, by Andreas Al
- 36. 36 (It’s all abouterror handling!)
- 37.

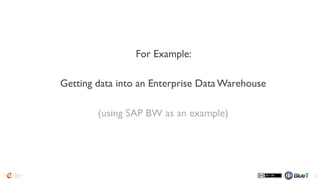

- 38. For Example: Getting datainto an Enterprise Data Warehouse (using SAP BW as an example) 38

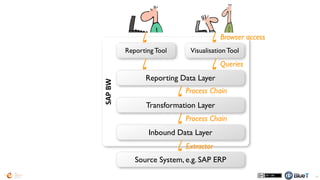

- 39. SAP BW 39 Inbound DataLayer Transformation Layer Reporting Data Layer Reporting Tool Visualisation Tool Source System, e.g. SAP ERP Extractor Process Chain Process Chain Queries Browser access
- 40. SAP BW 40 Source SystemA Transformation Layer Reporting Data Layer Reporting Tool Visualisation Tool Source System B Source System C Source System D Source System E Inbound Data Layer

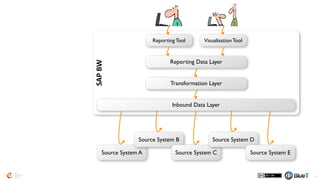

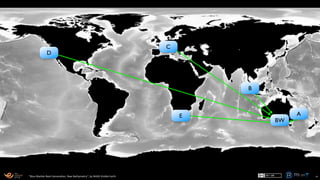

- 41. 41 A B C D BW E “Blue Marble Next GeneraVon, Raw Bathymetry”, by NASA Visible Earth
- 42.
- 43. 43 A B C D BW “Blue Marble Next GeneraVon, Raw Bathymetry”, by NASA Visible Earth E
- 44. 44 Best Bets forPush vs. Pull Decisions n Sources, 1 Target 1 Source, n Targets “dumb” Source No/few intermediaries Many intermediaries Low latency needed ✔ ✔ ✔ ✔ ✔ ✔

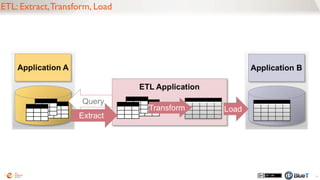

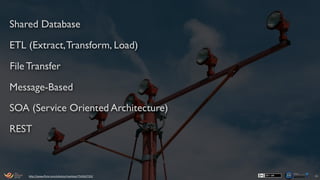

- 45. 45 Shared Database ETL (Extract,Transform,Load) File Transfer Message-Based SOA (Service Oriented Architecture) REST h1p://www.flickr.com/photos/marktee/7545627352
- 46.
- 47.
- 48.
- 49.
- 50.

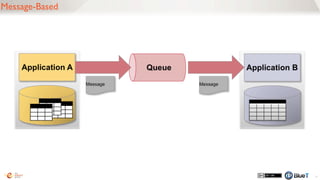

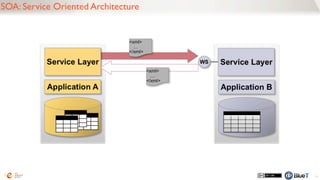

- 51. SOA: Service OrientedArchitecture 51

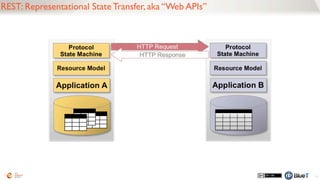

- 52. REST: Representational StateTransfer, aka “Web APIs” 52
- 53. When to UseWhich Approach? 53Image credit: Jenny Shirey
- 54. 54 Criteria: DataVolume 1 kB10 kB 100 kB 1 MB 10 MB 100 MB 1 GB ETL File Transfer Message-Based SOA REST

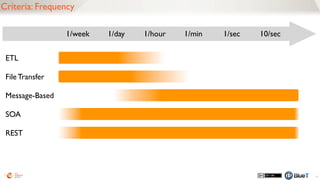

- 55. 55 Criteria: Frequency 1/week 1/day1/hour 1/min 1/sec 10/sec ETL File Transfer Message-Based SOA REST
- 56. 56 Criteria:Application Capabilities None RudimentaryIntermediate Sophisticated ETL File Transfer Message-Based SOA REST
- 57. Criteria: Synchronicity 57 Fire & Forget! Asynchronous@ Synchronous$ ETL ✔ ✔ File Transfer ✔ Message-Based ✔ SOA ✔ ✔ REST ✔ ✔ ! No technical acknowledgment received by Sender @ Technical (delivery) acknowledgment received by Sender $ Request/Response communicaVon

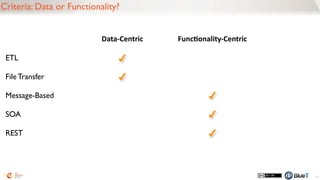

- 58. Criteria: Data orFunctionality? 58 Data-‐Centric Func&onality-‐Centric ETL ✔ File Transfer ✔ Message-Based ✔ SOA ✔ REST ✔
- 59.
- 60.
- 61.

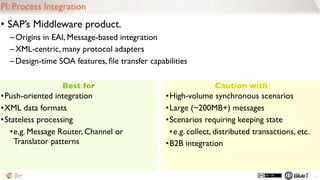

- 62. Best for Cautionwith • SAP’s Middleware product. –Origins in EAI, Message-based integration –XML-centric, many protocol adapters –Design-time SOA features, file transfer capabilities 62 PI: Process Integration •Push-oriented integration •XML data formats •Stateless processing •e.g. Message Router, Channel or Translator patterns •High-volume synchronous scenarios •Large (~200MB+) messages •Scenarios requiring keeping state •e.g. collect, distributed transactions, etc. •B2B integration

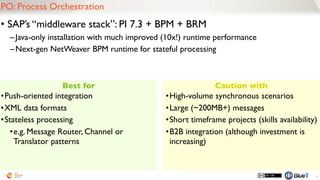

- 63. Best for Cautionwith • SAP’s “middleware stack”: PI 7.3 + BPM + BRM –Java-only installation with much improved (10x!) runtime performance –Next-gen NetWeaver BPM runtime for stateful processing 63 PO: Process Orchestration •Push-oriented integration •XML data formats •Stateless processing •e.g. Message Router, Channel or Translator patterns •High-volume synchronous scenarios •Large (~200MB+) messages •Short timeframe projects (skills availability) •B2B integration (although investment is increasing)

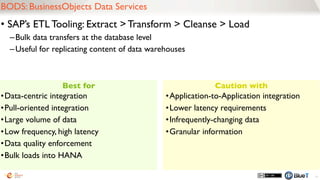

- 64. Best for Cautionwith • SAP’s ETL Tooling: Extract > Transform > Cleanse > Load –Bulk data transfers at the database level –Useful for replicating content of data warehouses 64 BODS: BusinessObjects Data Services •Data-centric integration •Pull-oriented integration •Large volume of data •Low frequency, high latency •Data quality enforcement •Bulk loads into HANA •Application-to-Application integration •Lower latency requirements •Infrequently-changing data •Granular information

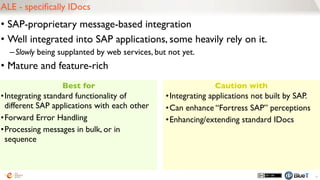

- 65. ALE - specificallyIDocs 65 • SAP-proprietary message-based integration • Well integrated into SAP applications, some heavily rely on it. –Slowly being supplanted by web services, but not yet. • Mature and feature-rich Best for Caution with •Integrating standard functionality of different SAP applications with each other •Forward Error Handling •Processing messages in bulk, or in sequence •Integrating applications not built by SAP. •Can enhance “Fortress SAP” perceptions •Enhancing/extending standard IDocs
- 66.

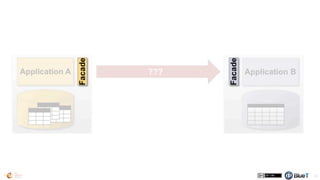

- 67. ABAP Batch Jobs •"The 80's called, they want their integration back" • Nevertheless still useful in some cases –But use XML.Tab-delimited files should have gone extinct in the 80s. 67 Best for Caution with •Fire & Forget asynchronous transfer •Long-running "message" creation •Often lowest-common denominator •Outbound from SAP ;-) •SAP on the inbound side; error handling is generally bespoke. •High-volume or high-frequency interactions

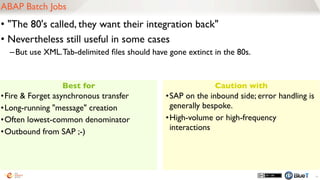

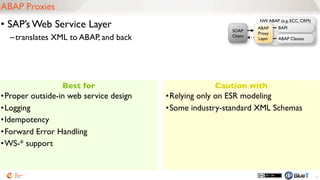

- 68. Best for Cautionwith • SAP’s Web Service Layer –translates XML to ABAP, and back 68 ABAP Proxies •Proper outside-in web service design •Logging •Idempotency •Forward Error Handling •WS-* support •Relying only on ESR modeling •Some industry-standard XML Schemas NW ABAP (e.g. ECC, CRM) BAPI ABAP Classes ABAP Proxy Layer SOAP Client

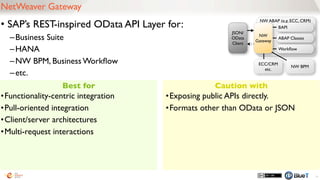

- 69. Best for Cautionwith • SAP’s REST-inspired OData API Layer for: –Business Suite –HANA –NW BPM, Business Workflow –etc. 69 NetWeaver Gateway •Functionality-centric integration •Pull-oriented integration •Client/server architectures •Multi-request interactions •Exposing public APIs directly. •Formats other than OData or JSON NW ABAP (e.g. ECC, CRM) BAPI ABAP Classes Workflow ECC/CRM etc. NW BPM NW Gateway JSON/ OData Client

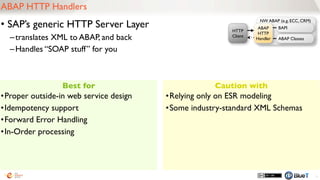

- 70. Best for Cautionwith • SAP’s generic HTTP Server Layer –direct access to HTTP requests –hand-craft responses to include any content. 70 ABAP HTTP Handlers •Complex, functionally-rich REST APIs •Intimate control over content: •from Plain-text to Binary •Interesting 'hacks' •Large numbers of 'cookie-cutter' interfaces •requires hand-crafting •Learning curve NW ABAP (e.g. ECC, CRM) BAPI ABAP Classes ABAP HTTP Handler HTTP Client
- 71.

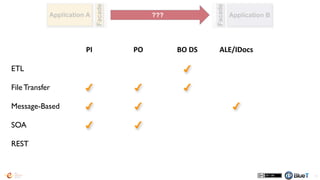

- 72. 72 PI PO BO DS ALE/IDocs ETL ✔ File Transfer ✔ ✔ ✔ Message-Based ✔ ✔ ✔ SOA ✔ ✔ REST

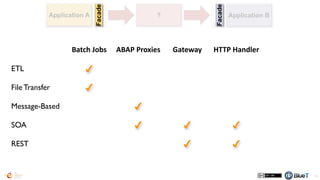

- 73. 73 Batch Jobs ABAP Proxies Gateway HTTP Handler ETL ✔ File Transfer ✔ Message-Based ✔ SOA ✔ ✔ ✔ REST ✔ ✔
- 74.
- 75. Use the righttool for the job. 75h1p://cheezburger.com/3535420672
- 76.

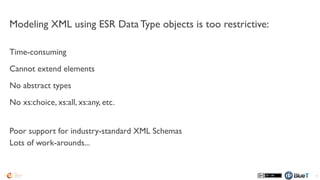

- 77. Modeling XML usingESR Data Type objects is too restrictive: Time-consuming Cannot extend elements No abstract types No xs:choice, xs:all, xs:any, etc. Poor support for industry-standard XML Schemas Lots of work-arounds... 77
- 78. 78 0%! 20%! 40%!60%! 80%! 100%! ABAP Proxy! ESR! Supported! Partially Supported! Not Supported!
- 79. Plan for reuseat the right level! 79

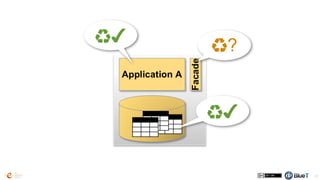

- 80.
- 81. Don’t aim forreuse. Let it emerge. 81h1p://www.flickr.com/photos/yukonblizzard/2926897104/
- 82. Reusable or 82 Future Legacy? Cumbersome? One SizeFits None? Regression Testing Nightmare?
- 83.
- 84. You Ain't GonnaNeed It + Refactor 84h1p://www.flickr.com/photos/mcgraths/3248483447/

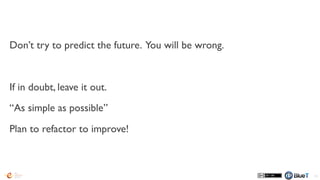

- 85. Don’t try topredict the future. You will be wrong. If in doubt, leave it out. “As simple as possible” Plan to refactor to improve! 85
- 86.
- 87.
- 88.

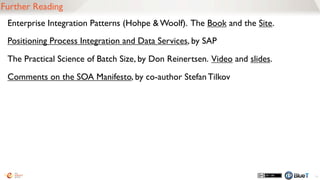

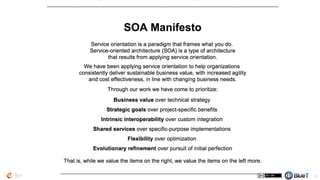

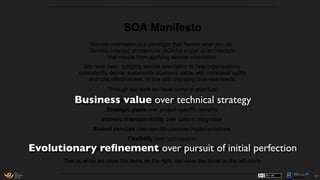

- 89. 89 Business value overtechnical strategy Evolutionary refinement over pursuit of initial perfection
- 90.
- 91. Key Points toTake Home You will need more than one tool. Get the interaction right. Aim for simplicity.This helps implementation and support. 91
- 93.
