Altitude SF 2017: Reddit - How we built and scaled r/place
- 1. r/place How We Built and Scaled Reddit’s 2017 April Fools’ Project Daniel Ellis u/daniel @I_am_Dan_Ellis
- 2. What Was It?
- 3. Individually you can create something. Together you can create something more.
- 9. 72 Hours 9
- 10. Challenges

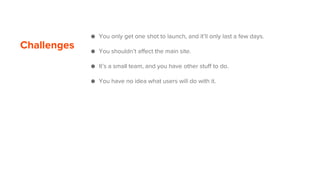

- 11. Challenges ● You only get one shot to launch, and it’ll only last a few days. ● You shouldn’t affect the main site. ● It’s a small team, and you have other stuff to do. ● You have no idea what users will do with it.
- 12. No Pressure!
- 16. How it Worked

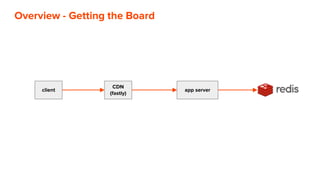

- 17. Overview - Getting the Board app server CDN (fastly) client

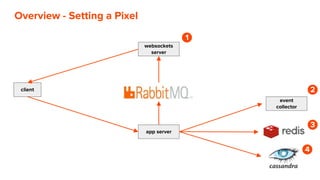

- 18. Overview - Setting a Pixel app server client websockets server event collector 1 2 3 4
- 19. Backend Choice Cassandra vs. Redis

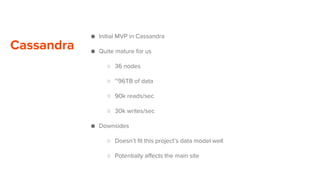

- 20. Cassandra ● Initial MVP in Cassandra ● Quite mature for us ○ 36 nodes ○ ~96TB of data ○ 90k reads/sec ○ 30k writes/sec ● Downsides ○ Doesn’t fit this project’s data model well ○ Potentially affects the main site

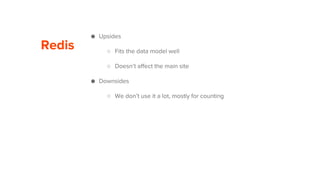

- 21. Redis ● Upsides ○ Fits the data model well ○ Doesn’t affect the main site ● Downsides ○ We don’t use it a lot, mostly for counting
- 22. redis

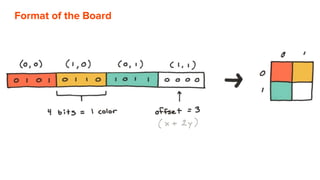

- 23. Format of the Board

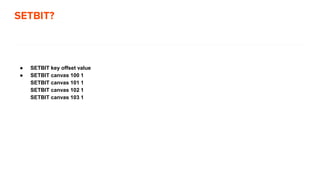

- 24. SETBIT? ● SETBIT key offset value ● SETBIT canvas 100 1 SETBIT canvas 101 1 SETBIT canvas 102 1 SETBIT canvas 103 1

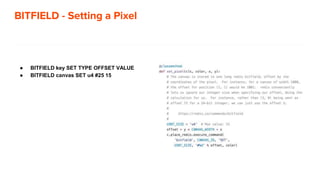

- 25. BITFIELD - Setting a Pixel ● BITFIELD key SET TYPE OFFSET VALUE ● BITFIELD canvas SET u4 #25 15

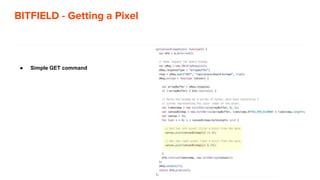

- 26. BITFIELD - Getting a Pixel ● Simple GET command

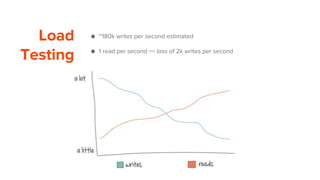

- 27. Load Testing ● ~180k writes per second estimated ● 1 read per second == loss of 2k writes per second

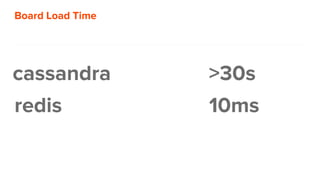

- 28. Board Load Time redis 10ms cassandra >30s
- 29. Caching

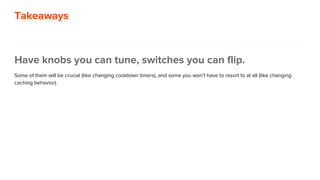

- 32. Takeaways Have knobs you can tune, switches you can flip. Some of them will be crucial (like changing cooldown timers), and some you won’t have to resort to at all (like changing caching behavior).
- 33. Takeaways Load test everything with real-world data. This showed the need for caching and for another backend store. Had we just tested simple reads and writes we might have missed the problems arising from disparity in sizes for gets vs sets.

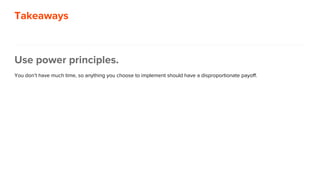

- 34. Takeaways Use power principles. You don’t have much time, so anything you choose to implement should have a disproportionate payoff.

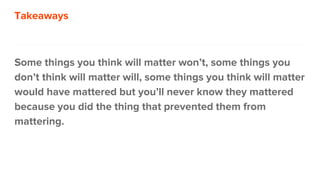

- 35. Takeaways Some things you think will matter won’t, some things you don’t think will matter will, some things you think will matter would have mattered but you’ll never know they mattered because you did the thing that prevented them from mattering.
- 36. Thanks!
- 37. Questions?
Editor's Notes
- Hey everybody, thanks for coming. I’m here today to talk about place, reddit’s april fools day project for 2017. Though I’m assuming at least a few people here know exactly what place was, I’ll give a quick overview just so no one is completely lost.
- At its core, place was a large scale social experiment. Users were given one pixel every 5 minutes they could place anywhere on this 1000x1000 grid board (a million pixels total) from a palette of 16 colors. The idea was that by yourself, you couldn’t really draw anything, but together, through collaboration, you could make some great stuff. And as you can see here, people really, really, really did make some really awesome stuff. It lasted about 3 days, at which point we felt like the canvas was pretty full, and then we decided to stop it. It was really really cool to see just how much effort people put into this. People had dedicated discord chats, I think for rainbow road they had almost a thousand people in discord, with different duties split out into different channels like maintenance, diplomacy, construction. They had dedicated negotiators, template designers. Truly an awesome thing to behold. As cool as that is and as long as I could go on about all the individual parts and wars and factions that broke out, I’m here specifically to talk
- Let’s start with some initial challenges. The first is that you only get one shot. There’s no opportunity to beta test on a scale any larger than internal employee tests. There’s no slowly rolling out to some users. There’s a launch and an announcement and a sudden flood of users. You have a hard deadline. There’s like… simply no way to delay the fact that april fools is on april 1st. The next challenge is that it’s only going to last a few days. If it’s a really crappy experience those few days, you don’t have a few weeks to make it better and have people forget about the rocky launch. That’s just… the whole project. Also, we’d like to prevent issues from affecting the main site. It’s a lot easier to argue that we should have some time to work on this stuff if we aren’t bringing down the site and affecting everyday users. You have other work to do. Yep. You have a small team. You simply can’t fix every bug or do everything you want to do, so you have to aggressively prioritize. Finally, and this is less of a technical problem, but this is the internet, and on the internet people sometimes do amazing things and sometimes do really crappy things. This might end up being a complete mess full of racism and a bunch of other garbage that will reflect negatively on you.
- So, ya know, no pressure.

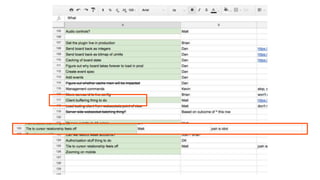

- And so to manage all this we used a very high tech task management system: a spreadsheet. We’d put tasks on here, highlight them when done, sometimes put tasks on there, sometimes not. And this also had such tasks as “Client buffering thing to do”. We were also able to put notes about the tasks, like this gem “josh is idiot” which I didn’t actually notice until I went to prepare this slide. It’s nice because there’s not necessary the pressure to be formal that’s on a full fledged task management system. So, it seems simple or silly but it actually worked just fine. We would self-prioritize and self-manage and it worked out pretty well. I in general would argue that those huge complex tasks management systems are mostly a distraction, and if you get the right type of people on a project they’ll self-organize and get the project done regardless.
- The first and simplest major path is actually reading the board. For this, the CDN played a key role. We cached the board “heavily” (with a TTL of 1 second), and let our CDN, fastly, do the work of serving the asset.
- This is for the most part pretty complete. There are some other minor things we haven’t included here like checking our postgres instance for the account age to make sure you could play the game, and of course, to make sure you actually have an account. But here is where the place-specific stuff was stored. The second major path is when drawing a pixel. For drawing a pixel, a request comes in and gets passed through the CDN and load balancer untouched, and the application server does a few checks to make sure you’re logged in, your account is of the right age, and that you haven’t placed a pixel in the required amount of time. If that all checks out, an update is sent out to a few places. The first is to rabbitMQ. A new item is added to a fanout exchange which every websockets server is set to consume from. This then sends out a websockets message to every connected consumer subscribed to the “place” namespace. Another update is sent to our event collector. This allows us to do analysis as well as publish a complete dump of events once the game is finished. Another update is sent to redis, where we are storing a bitmap of the board in one key. We’ll go over this in a lot more detail later, since this is redis conf and it probably is a bit more interesting to most folks here than the rest of the stuff. Finally we store the actual data about the user who drew the pixel in cassandra. This is to support the functionality allowing people to click a pixel to see who placed it and when.
- Key points: Series of uint4s, essentially a bitmap. Each number in the uint4 maps to a color index in a palette that is interpreted by the frontend. On the left you see the data as stored and transmitted, and on the right you see how it “wraps around” when placed on the grid. Do to a write, we can just address a particular place in the bitmap based on the coordinates (x + y * canvas_size) This is great because we can store pixel information for 1 million pixels in 500KB.
- Initially we were eyeing SETBIT, which lets you set individual bits. We started wondering about atomicity, which we figured we could handle with transactions, but also: maybe we didn’t really care. If a pixel was highly contested they might stomp over one another and a random mix of the colors would result, but maybe it wasn’t that big of a deal. Either way, this seemed attractive because it also meant we could store a color from a 16 color palette in a half-byte, making our total board of 1 million pixels only take up 500KB.
- Then we came across something that redis added recently that seemed to fit out use case even better: BITFIELD. This would let us define our integer size (in this case uint4), the offset we wanted to write to, and the value, and redis would even do the work of calculating the actual bit offset and writing the value! [show the basic usage here] This seemed to fit our use case perfectly, no transactions necessary. This meant very little code was involved for the setting. Essentially we just had to translate our X & Y coordinates into a single offset, calculated by multiplying the Y value with the canvas width and adding it to the X coordinate. By putting the hash tag in front of the offset, redis will automatically calculate the bit position. You can also string these together to set multiple bits at once. So we could have easily done some batching here if we had wanted to.
- For the GET, we don’t actually need to use BITFIELD at all. We actually just use a simple GET, and let the client handle the parsing out of the pixels. The code here ends up being a bit more complicated since there are no uint4arrays in javascript, so we need to do our own bit shifting, but it’s not too bad.
- At this point we started doing some load testing. Initial tests showed we’d be able to get about 75k/sec writes before we maxed out the network. We were hitting about 40% CPU. It turns out we were doing the load testing on a 1gbps instance. So if we scaled up to the next bottleneck we figured we should be able to hit somewhere around 180k writes/sec. At this point it was obvious we were overengineering, since that would be an order of magnitude higher traffic than we get for all of reddit, and we’d hit a lot more limits before we got near that threshold. One thing that I think was really important that came out of this was the unexpected tradeoff between gets and sets. Initially load testing was done with sets only, but it seemed like peppering in even 1 GET of the key per second caused us to take a huge hit in number of sets. The reason is kind of obvious as soon as you see it: a set is pretty small, setting a single pixel value, but a GET is getting them all! There’s obviously things like TCP overhead and the overhead of the redis command itself, but it seemed like each GET request translated to a loss of ~2K writes per second. I wish I had better graphs for this but it’s mostly all stored in my memory and off-handed slack comments. So anyway, it became clear that redis would more than handle our write throughput and give us plenty of room to really lower the pixel cooldown timer if we wanted to, but made us realize we might want to cache the reads.
- One of the things you first have to start thinking about when building one of these projects is what kind of backend infrastructure you’re going to use. reddit’s engineering team is still pretty small, so we don’t really have the tools at our disposal that we might otherwise have if we had entire teams dedicated to managing one datastore or something like that. So we tend to be biased towards things we already know and have exercised well. This lets us do napkin math and estimations and have a pretty good sense of where we might have issues. So our initial idea for the project was to store most of our data in Cassandra, since we already are putting about 17TB of data in there and are writing at something like 80k/sec total. [get real cass numbers] That being said, we recognized that while it might make sense for some things like storing individual pixel information, it didn’t *feel* right for storing the entire board. It felt wasteful, since it would mean querying a million columns just to reconstruct the board, and would mean a hotspot in the ring, but we went ahead and did it for the initial MVP since we figured with caching it might not matter too much. If we could still return the board in under a second and cache that response, we figured we’d be good. At this point we had been eyeing redis but some of the people on the team felt that if we could do it with existing tools it would be a safer option. Still… redis seemed really attractive. It made me realize numbers really win conversations. At this point, we still weren’t necessarily convinced we should use redis since we were more familiar with cassandra. So we loaded up the board with 1 million pixels and compared the load times: [diagram showing redis @ 50ms and cass > 30 seconds]. This isn’t a knock on cassandra at all, just that it wasn’t necessarily the best use case for this project. We started to think through the failure cases, and as a backup in case we had issues with redis and lost the data on it, we made a function to load the data back up from cassandra. Initially, some of us figured it wouldn’t be too bad to lose the board in case of a failure, since people would be able to get it filled back up again pretty quickly. In retrospect, I’m really really glad we didn’t do this. I think that would have fundamentally damaged the culture and factions built in the project. Redis ended up faring really well and we were really happy with the decision to go with it.

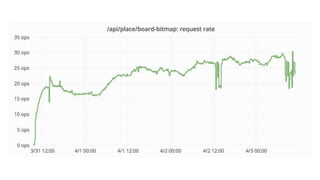

- So another thing that ended up being very useful here and felt like a worthwhile investment was putting some effort into caching. From the load testing we did on redis we knew it would be a pretty big deal if we let all reads just fall through to the main store. And plus, we had live updates, so in theory we could just wait the TTL’s length before requesting the board while receiving the live updates and then request it and we should have a pretty good live picture of what the board looked like. We decided to set a TTL of 1 second. The best part about this is that our CDN would automatically pick up on those headers and do the hard work of caching for us. This essentially brought the number of requests that could hit us in a given second to the number of POPs our CDN had, since the asset would be cached and shared among nodes at each POP. In the case of fastly, that should come out to around 30/sec, which is pretty small and reasonable. But still… could we go further? We also looked into shielding, which essentially puts an origin in front of ours that will cache the asset, and the other caches make requests from that. That would limit us to a mere 1 request per second! Unfortunately we didn’t do it. With the way our config was set up it was gonna be kind of convoluted, and with convoluted solutions come confusing issues, and it felt like we were overengineering at that point anyway. We added another layer of caching internally since all of our application servers have local caches. We did this just in case CDN caching failed spectacularly and we needed a quick way to fall back to something else without hitting redis directly. Thankfully we never ended up needing this! This nice part about all of this was that it wasn’t too hard to add these extra layers and would have made us feel way more comfortable in the case that something bad happened. [not sure how to explain this, something about game time decisions. it’s nice to have simple ways to fall back and lower load or fix problems that are ready to go.] Finally, as I mentioned earlier, we were worried that the CDN might start serving old assets. We decided to put a 32 bit timestamp at the beginning of the board that clients could then either report back to us and we could keep an eye on or that we could then use to make a decision about avoiding the caching layer, but we ended up not doing it.

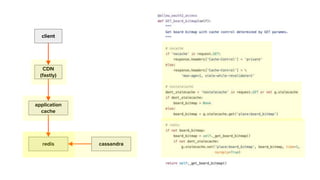

- May seem overengineered, but was super easy to implement given our current setup. You can see from the code here that adding the caching for our CDN was as simple as adding an additional header with the TTL. Using the local cache in reddit applications is as simple as checking for the value. And finally we get from redis if none of that worked. We were also writing to cassandra in case of major failure, so we could manually load the board back into redis if need be. Again, all of this took very little actual code but paid off greatly in terms of how it reduced load to the system.
- But place kind of ended up being a load test for rabbit and this workload, so there ya go. Also, kind of as a joke, I created a script that would blast out only websockets updates during our employee testing period and would just spell out my name in huge letters on the canvas. This turned out to be a mini load test for the frontend, because we realized that couple hundred pixels coming in would actually take a while to render and would come in in a huge burst! This led to one of our frontend people fixing the problem. So again, load test everything!
- [Mention shielding here vs just one per POP.]
- And finally the last takeaway. You’re gonna miss some stuff, in this case, rabbitMQ. Some unexpected stuff will arise. You also are gonna end up doing work that you don’t even end up using. I’m assuming there’s some people in software here, so you probably know this. A lot of the features and stuff we write only gets barely used, and then some other stuff gets used a lot more than we expected. We added a timestamp we didn’t use. We had layers of caching we could fall back on we didn’t use. We had a backup PR for batching websockets messages we didn’t use. We also did a lot right, but we don’t really know what would have happened if we hadn’t done those things. But because they didn’t fail catastrophically, you never hear about it. So maybe if we hadn’t cached it would have overloaded our database and caused writes to take forever and block and clients to back up and… we never saw it. Which is sometimes the unfortunate part about this job -- if you do everything right, people think it was just easy.
