HTTP/2 and SAP Fiori
The document discusses the advantages of HTTP/2, the next version of the HTTP protocol that improves upon various shortcomings of HTTP/1.1, such as by utilizing multiplexing, binary formatting, and header compression. It outlines browser and server compatibility requirements for using HTTP/2 and provides setup instructions, particularly for SAP systems. Additionally, the document shares performance testing results, demonstrating that HTTP/2 can significantly enhance load times compared to HTTP/1.1.
More Related Content
Similar to HTTP/2 and SAP Fiori
HTTP/2 and SAP Fiori
- 1. HTTP/2 and Fiori SaschaWenninger @sufw NET52433 @ TechEd 2017

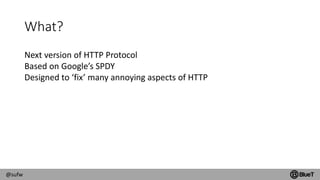

- 2. @sufw What? Next version ofHTTP Protocol Based on Google’s SPDY Designed to ‘fix’ many annoying aspects of HTTP

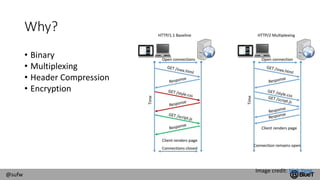

- 3. @sufw Why? • Binary • Multiplexing •Header Compression • Encryption Image credit: Nick Yang

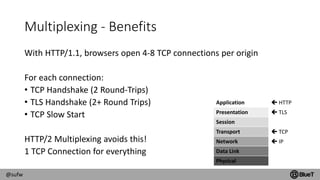

- 4. @sufw Multiplexing - Benefits WithHTTP/1.1, browsers open 4-8 TCP connections per origin For each connection: • TCP Handshake (2 Round-Trips) • TLS Handshake (2+ Round Trips) • TCP Slow Start HTTP/2 Multiplexing avoids this! 1 TCP Connection for everything Application HTTP Presentation TLS Session Transport TCP Network IP Data Link Physical

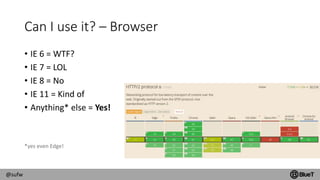

- 5. @sufw Can I useit? – Browser • IE 6 = WTF? • IE 7 = LOL • IE 8 = No • IE 11 = Kind of • Anything* else = Yes! *yes even Edge!

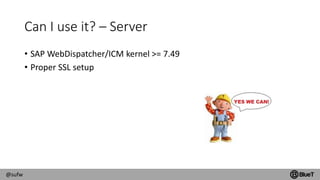

- 6. @sufw Can I useit? – Server • SAP WebDispatcher/ICM kernel >= 7.49 • Proper SSL setup

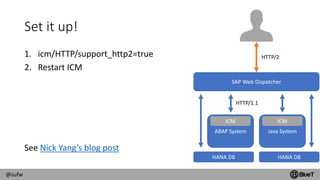

- 7. @sufw Set it up! 1.icm/HTTP/support_http2=true 2. Restart ICM See Nick Yang’s blog post SAP Web Dispatcher ABAP System Java System ICM HANA DB ICM HANA DB HTTP/2 HTTP/1.1

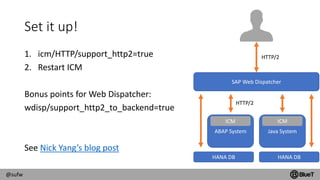

- 8. @sufw Set it up! 1.icm/HTTP/support_http2=true 2. Restart ICM Bonus points for Web Dispatcher: wdisp/support_http2_to_backend=true See Nick Yang’s blog post SAP Web Dispatcher ABAP System Java System ICM HANA DB ICM HANA DB HTTP/2 HTTP/2
- 9.
- 10.

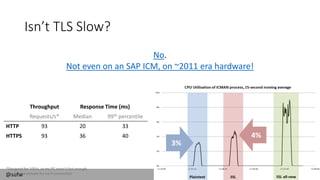

- 11. @sufw Isn’t TLS Slow? No. Noteven on an SAP ICM, on ~2011 era hardware! 3% Throughput Response Time (ms) Requests/s* Median 99th percentile HTTP 93 20 33 HTTPS 93 36 40 4% *Designed for 100/s, so my PC wasn’t fast enough. New TLS Handshake for each connection 7%

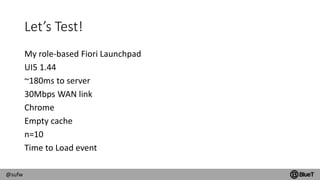

- 12. @sufw Let’s Test! My role-basedFiori Launchpad UI5 1.44 ~180ms to server 30Mbps WAN link Chrome Empty cache n=10 Time to Load event

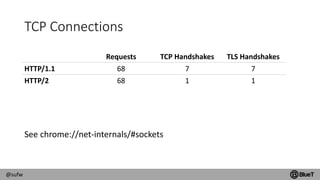

- 13. @sufw TCP Connections See chrome://net-internals/#sockets RequestsTCP Handshakes TLS Handshakes HTTP/1.1 68 7 7 HTTP/2 68 1 1
- 14. @sufw Profit! 0 1 2 3 4 5 0 2 46 8 10 12 14 16 18 20 22 24 Frequency Load Time Fiori Launchpad: Time to 'Load' event That’s the median, obviously -20% 18s 14s
- 15.

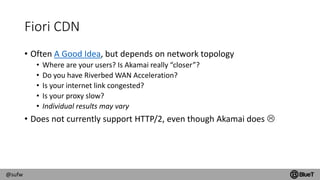

- 16. @sufw Fiori CDN • OftenA Good Idea, but depends on network topology • Where are your users? Is Akamai really “closer”? • Do you have Riverbed WAN Acceleration? • Is your internet link congested? • Is your proxy slow? • Individual results may vary • Does not currently support HTTP/2, even though Akamai does
- 17.
- 18.

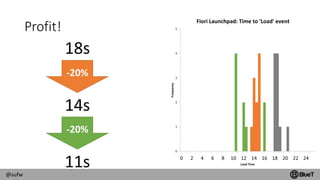

- 19. @sufw Profit! 0 1 2 3 4 5 0 2 46 8 10 12 14 16 18 20 22 24 Frequency Load Time Fiori Launchpad: Time to 'Load' event -20% 18s 14s -20% 11s
- 20.

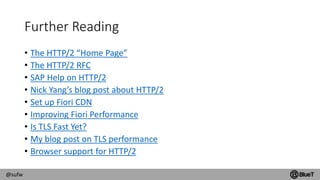

- 21. @sufw Further Reading • TheHTTP/2 “Home Page” • The HTTP/2 RFC • SAP Help on HTTP/2 • Nick Yang’s blog post about HTTP/2 • Set up Fiori CDN • Improving Fiori Performance • Is TLS Fast Yet? • My blog post on TLS performance • Browser support for HTTP/2
- 22. @sufw Thank you! Sascha Wenninger sascha@BlueT.com.sg @sufw +658799 1446 https://www.slideshare.net/sufw/http2-and-sap-fiori
