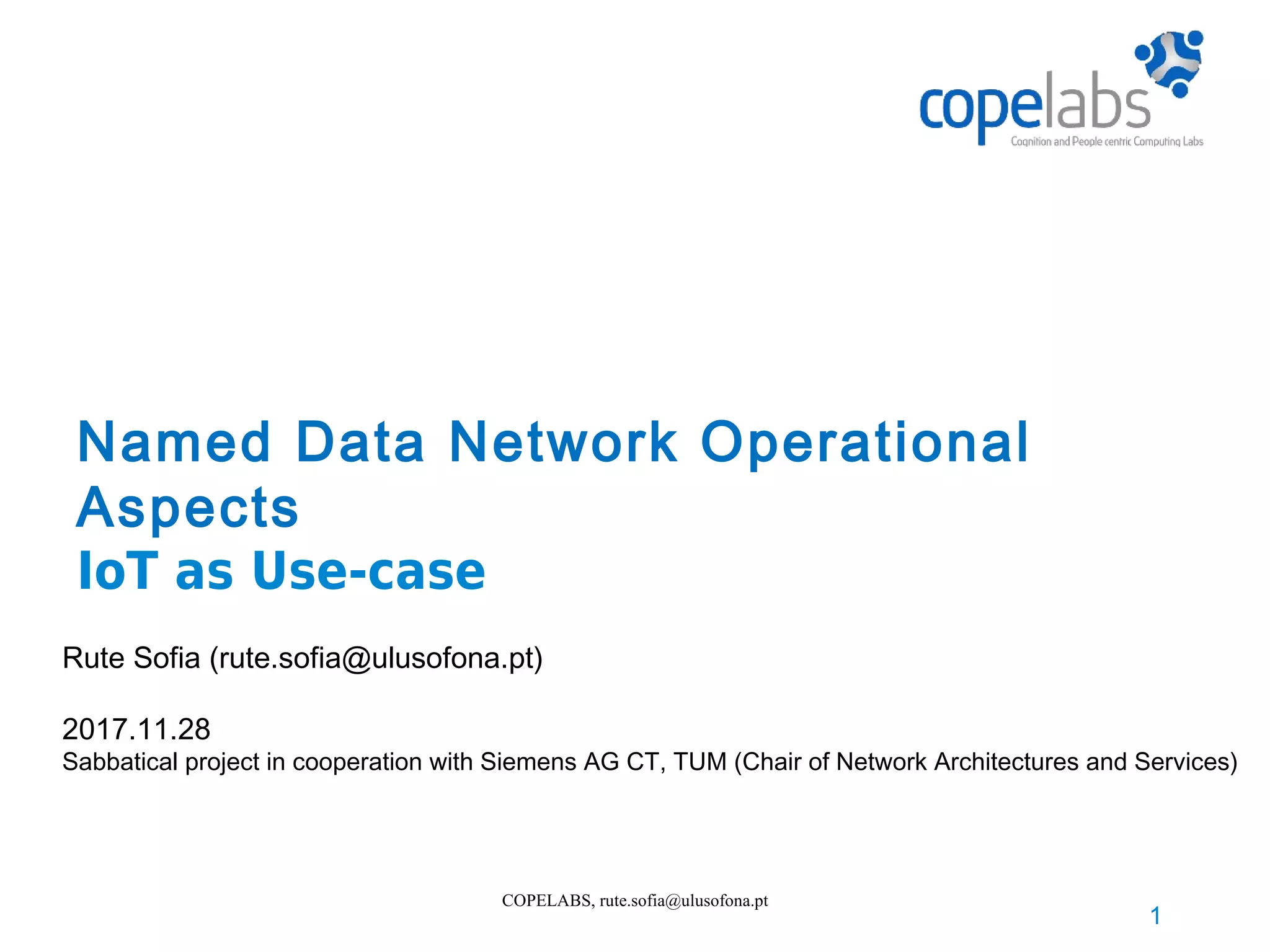

Named Data Networking Operational Aspects - IoT as a Use-case

1
COPELABS, rute.sofia@ulusofona.pt
Named Data Network Operational
Aspects
IoT as Use-case
Rute Sofia (rute.sofia@ulusofona.pt)
2017.11.28
Sabbatical project in cooperation with Siemens AG CT, TUM (Chair of Network Architectures and Services)

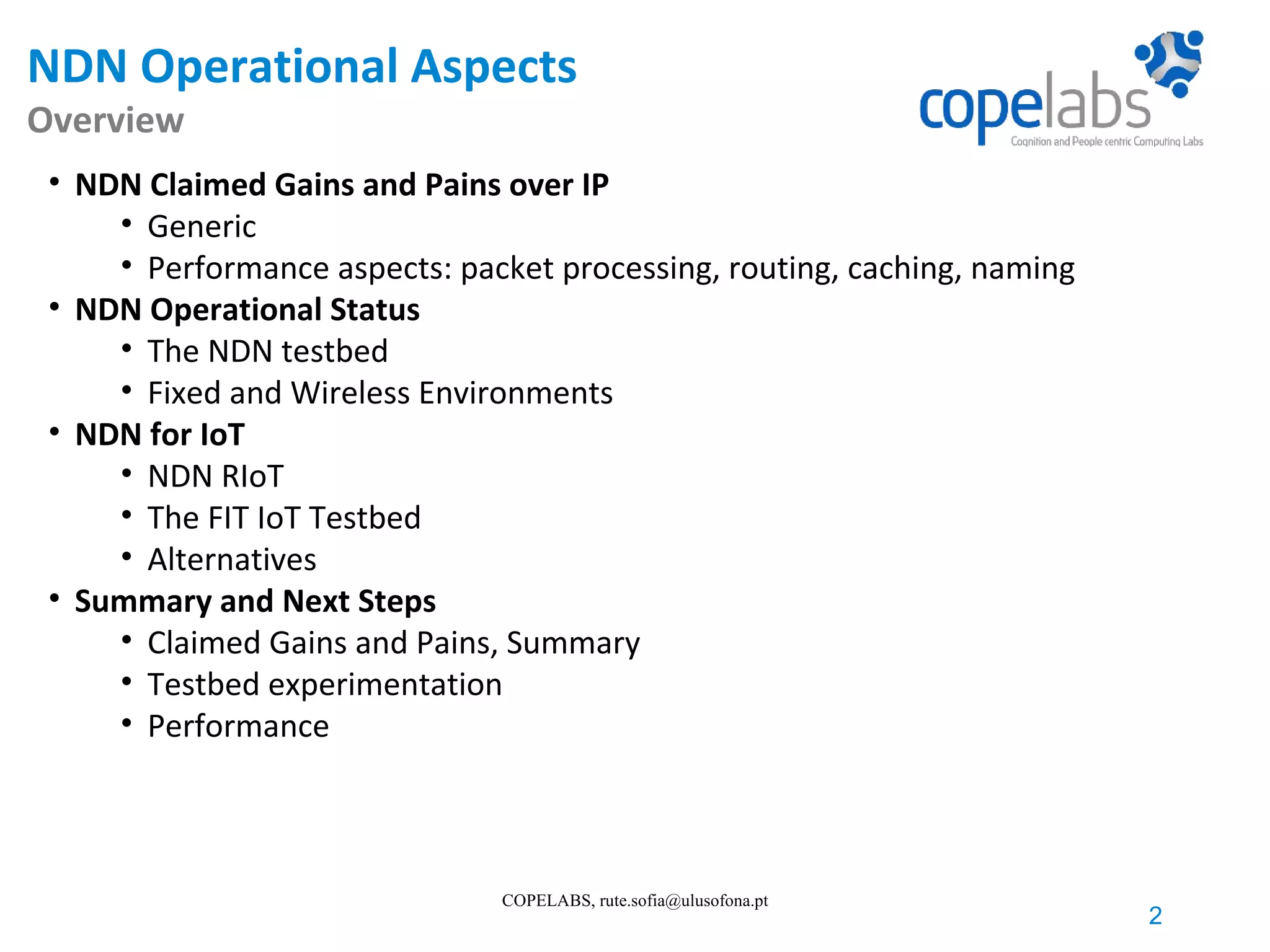

NDN Operational Aspects
Overview
2
• NDN Claimed Gains and Pains over IP
• Generic
• Performance aspects: packet processing, routing, caching, naming
• NDN Operational Status
• The NDN testbed
• Fixed and Wireless Environments
• NDN for IoT
• NDN RIoT
• The FIT IoT Testbed
• Alternatives
• Summary and Next Steps
• Claimed Gains and Pains, Summary
• Testbed experimentation
• Performance

NDN Claimed Gains and Pains
3

Claimed Gains, Issues, Open Questions
4
• Claimed Gains over TCP/IP
• Lower latency
• Reduced congestion
• Support for mobility
• Intrinsic security
• Can secure from the source
• Issues
• Routers need to have caches
• Routers need to be upgraded to understand store-and-forward (be
content-centric)
• Questions
Is there a real (KPI based) gain in relying on NDN?
What is the operational status? (technology readiness and innovation)
What about interoperability?

1. Comparison with IP*
5*Saxena, Divya, Vaskar Raychoudhury, Neeraj Suri, Christian Becker, and Jiannong Cao. "Named data
networking: a survey." Computer Science Review 19 (2016): 15-55.

6*Saxena, Divya, Vaskar Raychoudhury, Neeraj Suri, Christian Becker, and Jiannong Cao. "Named data

7
*Saxena, Divya, Vaskar Raychoudhury, Neeraj Suri, Christian Becker, and Jiannong Cao. "Named data

1. Packet processing Aspects
8
ACM SIGCOMM 2013: D. Oran et al., “NDN on a Router, Forwarding at 20Gbps and
Beyond (NDN data plane based on hash tables)
• Implementation of NDN data plane on an Intel Xeon-based like card, for Cisco ASR 9000 router (with a
software-based Integrated Service Module)
• Operational understanding of NDN limitations and advantages
• Focused on caching and forwarding
• Which elements impact packet processing?
• FIB size: O(10^8)
• PIT size: O(10^17)
• Note: no realistic way to build a FIB/PIT yet, and PIT requires per-packet updates
• Forwarding process
• Interest Forwarding Process comprises (per-packet basis)
• Content Store lookup
• PIT lookup and delete
• CS delete and insert (cache replacement)
• IP forwarding just does reading on a per-packet basis
• Packet format
• Originally, binary and incurred 35% of overhead due to decoding
• Currently, TLV (Type-Length-Value) /some discussion ongoing in the IETF, possibility to improve

9
ACM SIGCOMM 2013: D. Oran et al., NDN on a Router (NDN data plane based on hash
tables)
• Focused on Packet processing, input and output
• Performance evaluated in a software-based implementation
• Traffic used: internet HTTP traces as NDN load (13 million HTTP URLs from 16 IRCache
traces*)
• Routing table emulated as long-tail (model derived from URL Blacklist**)
• Interest forwarding workload --> 3.87 FIB lookups
• Single core and multi-core performance
*ftp://ircache.net/Traces/DITL-2007-01-09/ - currently not available; direct contact with D. Oran
** http://urlblacklist.com/

10
ACM SIGCOMM 2013: D. Oran et al., NDN on a Router (NDN data plane based on hash
tables)
Summarising:
• FIB and RIB size is an issue
• HT implementation shows promising results
• Throughput minimally impacted by different sizes of FIBs and RIBs
• Achieved performance of 8MPPS and the router can forward traffic at a rate of
20Gbps

11
Packet Format
•https://tools.ietf.org/html/draft-irtf-icnrg-ccnxmessages-05
• Type-Length-Value Format derived from CCNx (XML format) / 64 k possible types
• 16-bit Type
• 16-bit Length
• 0x1000 - 0x1FFF reserved for experimental use
• No explicit guidance for encryption
•https://named-data.net/doc/ndn-tlv/tlv.html
• TLV helps for reduced packet size
• If fragmentation is required, it can be used on a hop-by-hop basis

1. Routing and Forwarding
12
• NDN relies on separate routing/forwarding plane
• Routing takes care of setting the topology and policies and handling their long-term
changes, as well as for updating the forwarding table
• Forwarding performs interface ranking and probing – different Strategies
• Forwarding is “smart” (adaptable)
• PIT state prevents loops and assists in measurement
•NDN can rely on Distance-vector as well as Link-state approaches
• Currently, following a link-state approach for fixed networks (OSPF based: NSLR)
• FIB is used both on IP as on NDN
• IP: searches for the longest-match to the destination address to get the next-hop in
the FIB
• NDN: searches the NAME to find the next-HOP(S) in the FIB and fetches data (not
necessarily the closest copies)
Relevant KPIs for Future Work (routing analysis)
• CPU utilization
• PIT size (total number of PIT entries)
• Memory consumption (total memory consumed during named content routing)
• Network utilization (total data transferred over the network)
• Interest retransmission rate (total number of interest packets re-issued due to e.g., packet loss)
• Time-to-completion: time it takes until a request is completed.

1. NLSR** / IP approaches*
13
Full explanation on routing approaches: https://named-data.net/wp-content/uploads/2017/09/routing_in_ndn-icn-china-
2017.pdf
**NLSR: Named Data Link State Routing

1. Routing Under Discussion
14
• NLSR (link-state)
• Hyperbolic Routing
• Lowers the need for FIB (each node only requires neighbors coordinates) BUT
• Delay is still large, and not sensitive to short time changes
•Geo-hyperbolic Routing
• Still exhibits large delays (with node increase and time increase)
Currently, discussing regionalized geo-hyperbolic routing (similar to intra and inter
domain splitting)
Remarks for future work:
• There is not a clear understanding concerning link-state vs. distance vector relevancy in
NDN. Any IP scheme can be used, just requires adaptation.
• For wireless, the current LS approaches are not adequate
• OTHER Routing solutions:
• COPELABS is currently working on the comparison of LS vs DV.
• COPELABS is developing an extension of NSLR for opportunistic environments (based
on eigencentrality of the nodes, derived from contextualization).

NDN Operational Status
15

NDN Experimental Environments
16
• NDN Testbed , Technology
Readiness Level 6*
• Fixed network – easy to set
additional poles
• Supported routing: NLSR,
Hyperbolic routing
• SOME applications
•Wireless support (not integrated
in the testbed)
• NDN for Android,
• NDN-Opp**,
•IoT (not integrated)
• RIOT-NDN
• Emulator, mini-ndn***
• Full ndn network on 1 laptop
*https://named-data.net/ndn-testbed/
**https://www.caida.org/workshops/ndn/1703/slides/ndn1703_sdynerowicz.pdf
***https://named-data.net/wp-content/uploads/2016/10/5-miniNDN.pdf

NDN for Wireless Environments
17
• NDN for Android
• Supports NDN in wireless (infrastructure) environments, via tunneling
•NDN-Opp (NDN for opportunistic wireless environments)*
• Supports NDN in wireless, infrastructure and D2D environments, both
via tunneling and without IP
• Supports also multihop wireless communication (no end to end path
requirements)
*http://copelabs.ulusofona.pt/index.php/research/projects/241-umobile

NDN for IoT
18

NDN for IoT
Why?
19
•Bring IoT Semantics to the network
layers
• Name Things and operations on Things
• “Living room frontal view feed”, “CO
level in kitchen”
• “Living room frontal view feed”, “CO
level in kitchen”
• “max/min/avg pH of soil in specific
point of US soil grid”
• Focus on DATA associated with Things
• Secure data directly
• Latest updates, ACM ICN 2017 tutorial
• http://conferences.sigcomm.org/ac
m-icn/2017/files/tutorial-ndn-
ccnlite-riot/1-ICN-intro.pdf

NDN for IoT
Implementation: NDN RIOT*
20
*http://conferences.sigcomm.org/acm-icn/2017/files/tutorial-ndn-ccnlite-riot/5-NDN-RIOT.pdf
NDN RIOT is a project support by HAW Hamburg; INRIA, Florida International University; Zühlke GmbH

NDN for IoT
Performance Aspects
21
http://conferences.sigcomm.org/acm-icn/2017/files/tutorial-ndn-ccnlite-riot/5-NDN-RIOT.pdf

NDN for IoT
Performance Aspects
22

NDN for IoT
Performance Aspects
23
http://conferences.sigcomm.org/acm-icn/2017/files/tutorial-ndn-ccnlite-riot/2-Why-ICN-for-IoT.pdf

NDN for IOT
The FIT IOT Lab
• Located in France several poles,
2732 wireless sensor nodes
• Inria Grenoble (928), Inria
Lille (640), ICube
Strasbourg (400), Inria
Saclay (307), Inria Rennes
(256) and Institut Mines-
Télécom Paris (160).
• https://www.iot-lab.info/
• Part of OneLab
24

NDN for IOT
The FIT IOT Lab – Tools Available
• Web portal
• Management and reservation tools (dashboard, nodes status, availability,
statistics)
• ssh
• Access to open nodes and access to CLI
• REST API (authentication service)
• Access to services deployed by users
25

NDN for IOT
Summary
Claimed Gains and Pains, NDN vs. IP
• From an architectural design perspective there seems to be clear benefits
• Mobility and security, Support for intermittent connectivity
• Focus on object names, and not on devices (more flexibility)
• Performance: Only a Few Components have been analyzed
• Packet processing in 1 router, implementation decisions on PIT and FIB
• Routing: current solutions (link-state) still show delay; also not suitable for
opportunistic wireless environments
• Note: neither is IP, even though IPv6 shows better support
Operational Status
• Technology readiness level: 6
• International NDN testbed can assist in end-to-end experiments and in understanding
core performance
• Wireless environments require support by specific poles - the COPELABS NDN pole
implements an opportunistic environment
Interoperability
• NDN achieves interoperability easily – currently, most implementations and NDN testbed
rely on tunneling
• Naming schemes require further analysis
26

NDN
References
•Seyed Fayazbakhsh, Amin Tootoonchian, Yin Lin, Ali Ghodsi, KC Ng, Bruce Maggs, Vyas Sekar, Scott Shenker.
Less Pain, Most of the Gain: Incrementally Deployable ICN. in SIGCOMM 2013.
•Dirk Trossen and Alexandros Kostopoulos. Techno-Economic Aspects of Information-Centric Networking in
Journal of Information Policy.
•Bengt Ahlgren Information-centric networking and relaton to legal and regulatory issues by SAI
•Yuan, T. Song, and P. Crowley. Scalable NDN forwarding: Concepts, issues and principles. In Proceedings of
the 21st International Conference on Computer Communications and Networks , ICCN ’12, 2012.
•u, W., & Pao, D. (2016). Hardware accelerator to speed up packet processing in NDN router. Computer
Communications, 91, 109-119.
•Saxena, Divya, Vaskar Raychoudhury, Neeraj Suri, Christian Becker, and Jiannong Cao. "Named data
•IR Traces: ftp://ircache.net/Traces/DITL-2007-01-09/ - currently not available; direct contact with D. Oran
•http://urlblacklist.com/
•Afanasyev, A. (2017). Named Data Networking of Things: NDN-RIOT, NDN-PI. Retrieved from
http://conferences.sigcomm.org/acm-icn/2017/files/tutorial-ndn-ccnlite-riot/5-NDN-RIOT.pdf
•Ahmed, S. H., & Kim, D. (2016). Named data networking-based smart home. ICT Express, 2(3), 130–134.
https://doi.org/10.1016/j.icte.2016.08.007
•Aires, B. (2016). Design Principles for Named Data Networking.
•Amadeo, M., Campolo, C., Iera, A., & Molinaro, A. (2014). Named data networking for IoT: An architectural
perspective. EuCNC 2014 - European Conference on Networks and Communications, (October 2016).
https://doi.org/10.1109/EuCNC.2014.6882665

NDN
References
•Perino, D., & Varvello, M. (n.d.). A Reality Check for Content Centric Networking. Retrieved from
https://pdfs.semanticscholar.org/cc28/2523f7123f8e7e7a4eae3aeb95d1aa3eca9b.pdf
•Pesavento, D. (2016). Experimenting with NDN Apps using Mini-NDN. Retrieved from https://named-
data.net/icn2016-tutorial
•Saxena, D., & Roorkee, I. I. T. (2016). Named Data Networking: A Survey. Computer Science Review, Elsevier,
19, 15--55. https://doi.org/10.1016/j.cosrev.2016.01.001
•Shang, W., Afanasyev, A., & Zhang, L. (2016). The Design and Implementation of the NDN Protocol Stack for
RIOT-OS. In 2016 IEEE Globecom Workshops (GC Wkshps) (pp. 1–6). IEEE.
https://doi.org/10.1109/GLOCOMW.2016.7849061
•Shang, W., Bannis, A., Liang, T., Wang, Z., Yu, Y., Afanasyev, A., … Zhang, L. (n.d.). Named Data Networking of
Things (Invited Paper). Retrieved from https://named-data.net/wp-content/uploads/2015/01/ndn-IOTDI-
2016.pdf
•So, W., Narayanan, A., & Oran, D. (n.d.). Named Data Networking on a Router: Fast and DoS-resistant
Forwarding with Hash Tables. Retrieved from
https://pdfs.semanticscholar.org/dcd7/0db0da3a7d751dfde15e5df5086270799441.pdf
•Zhang, L. (n.d.). Challenges in the Internet of Things Realization. Retrieved from https://named-data.net/wp-
content/uploads/2016/07/challenges_iot_realization_pkujri.pdf

Named Data Networking Operational Aspects - IoT as a Use-case

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Named Data Networking Operational Aspects - IoT as a Use-case

Similar to Named Data Networking Operational Aspects - IoT as a Use-case (20)

More from Rute C. Sofia

More from Rute C. Sofia (20)

Recently uploaded

Recently uploaded (20)

Named Data Networking Operational Aspects - IoT as a Use-case
