3. mydlink Requirement Spec | auto-firmware update requirement Oct 19, 2009
1 Introduction
This document defines the requirement SPEC for mydlink device auto-firmware upgrade.
Confidential and Proprietary, D-Link Corporation Inc. Page 3 of 19
4. mydlink Requirement Spec | auto-firmware update requirement Oct 19, 2009
2 Requirements for mydlink auto-firmware update
Item Requirements
1 Device firmware - Only online device can be directed to auto-firmware update page.
update page - If the firmware is not the updated version, will direct to auto-firmware update page once this online device is accessed.
- Estimated a time-out period for successful or fail update.
- Three below progression messages are displayed when updating:
1. Downloading firmware….
2. Installing firmware….
3. Rebooting your device….
2 Device Info page - Add the current firmware version of this device on the “Basic Information” of its “Info” page.
- Fix “Support” part:
Only have two entry points for “Download” and “FAQ” which are linked to its respective page.
3 Download page Add one download page for mydlink which lists all downloadable stuffs of mydlink devices, including:
Update F/W
Online wizard (w/o D-ViewCam, Acrobat Reader, Manual, QIG, or other software and documents)
Different region updated QIGs
Different region updated Manuals
4 FAQ for firmware Add one FAQ for firmware upgrade manually for each device’s FAQs
upgrade manually
Confidential and Proprietary, D-Link Corporation Inc. Page 4 of 19
5. mydlink Requirement Spec | auto-firmware update requirement Oct 19, 2009
3 User/Page flow for auto-firmware update
Confidential and Proprietary, D-Link Corporation Inc. Page 5 of 19
6. mydlink Requirement Spec | auto-firmware update requirement Oct 19, 2009

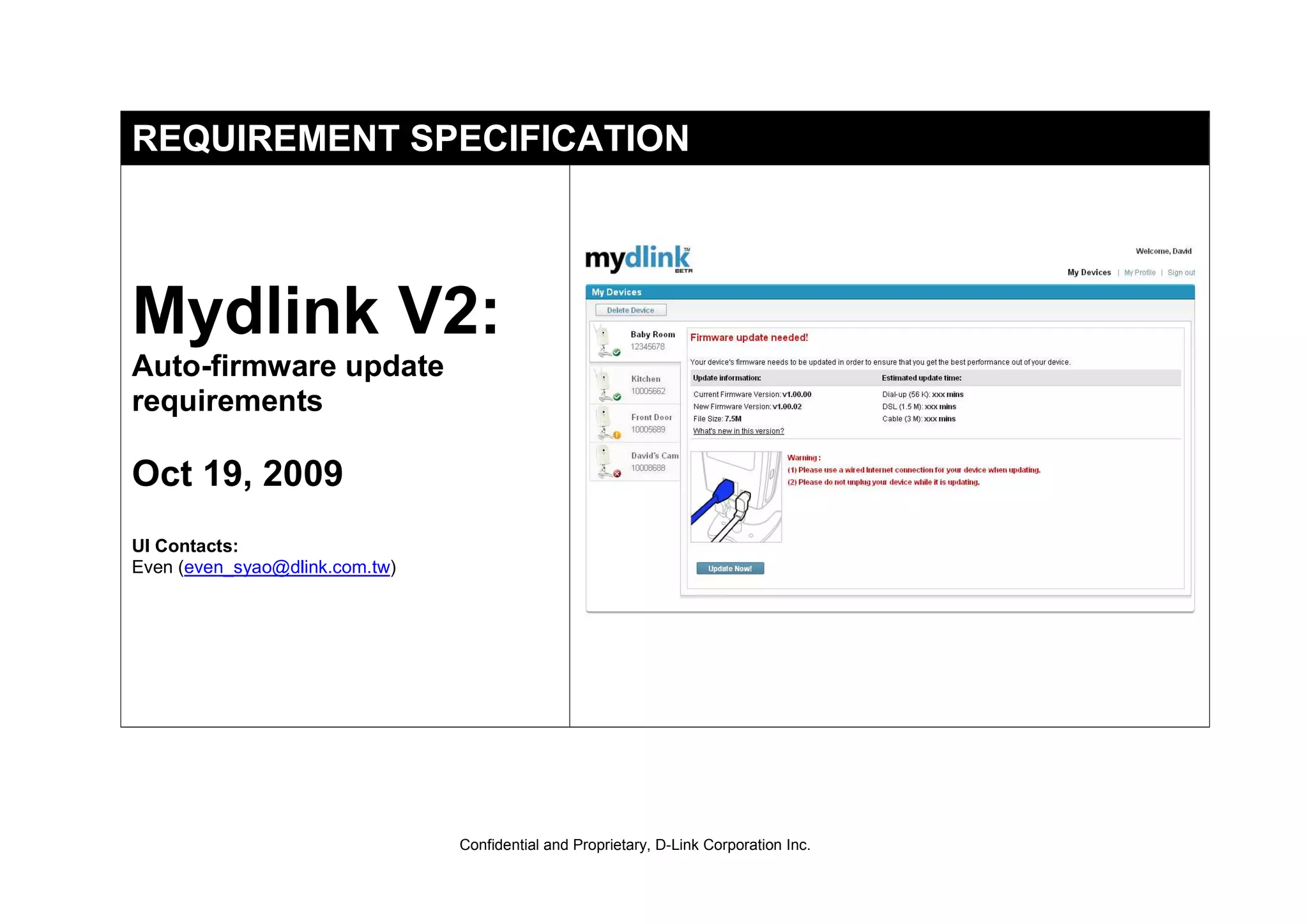

4 Firmware update page (accountdevice-cam-upgrade.html)
Confidential and Proprietary, D-Link Corporation Inc. Page 6 of 19
7. mydlink Requirement Spec | auto-firmware update requirement Oct 19, 2009
ID Item Description
A Text title - Firmware update needed!
B Texts - Your device's firmware needs to be updated in order to ensure that you get the best performance out of your device.
C Texts Update information:
- Current Firmware Version: xxxxx
- New Firmware Version: xxxxx
- File Size: 7.5M
D Hyperlinked texts - Text: What's new in this version?
- Click it to dropdown the release notes of this update version.
E Texts Estimated update time:
- Dial-up (56 K): xxxxx
- DSL/Cable (256K): xxxxx
- DSL/Cable (768K): xxxxx
- T1 (1.5M): xxxxx
F Images - Images to show the power adapter and Ethernet cable connected to this device
- File name and path: /images/ucp/upgrade_11x0.png
- File name rule: upgrade_[model no].png
G Texts Warning :
(1) Please use a wired Internet connection for your device when updating.
(2) Please do not unplug your device while it is updating.
H Button - Label Name: Update Now!
- Click it to start auto-firmware update and popup a lightbox to show its progression
Confidential and Proprietary, D-Link Corporation Inc. Page 7 of 19
8. mydlink Requirement Spec | auto-firmware update requirement Oct 19, 2009
5 Progression page (accountfw_update_progress.html)
ID Item Description
A Gif Animation image - Progression circle
Confidential and Proprietary, D-Link Corporation Inc. Page 8 of 19
9. mydlink Requirement Spec | auto-firmware update requirement Oct 19, 2009
B Text progression Display the following messages orderly:
messages message Time
Downloading firmware… ?
Installing firmware… ?
Rebooting your device… ?
Only show “Installing firmware…”
Total timeout: based on 4 mins for 256K download bandwidth
Update success within timeout will direct to success page- 6 (accountfw_update_success.html)
Update hasn’t finished after timeout will direct to fail page- 7 (accountfw_update_fail.html)
C Texts Updating your firmware may take some time depending on your Internet connection and bandwidth
D Texts Do not unplug your camera or computer during the firmware update process.
Confidential and Proprietary, D-Link Corporation Inc. Page 9 of 19
10. mydlink Requirement Spec | auto-firmware update requirement Oct 19, 2009
6 Success page (accountfw_update_success.html)
ID Item Description
A Text title The firmware update was successful!
B Text Current firmware version: xxxx (display the updated firmware version)
C Text Click Go to Live Video to go to your camera's Live Video page.
D Button - Label Name: Go to Live Video
- Click it to load this camera’s Live video page
Confidential and Proprietary, D-Link Corporation Inc. Page 10 of 19
11. mydlink Requirement Spec | auto-firmware update requirement Oct 19, 2009
7 Fail page (accountfw_update_fail.html)
ID Item Description
A Text title The firmware update was unsuccessful.
Confidential and Proprietary, D-Link Corporation Inc. Page 11 of 19
12. mydlink Requirement Spec | auto-firmware update requirement Oct 19, 2009
B Text Please click Retry to try updating the firmware again.
If you are having problems auto-updating the firmware, click here to manually update your firmware through your device's web
interface.
- text hyperlink: click here to manually update your firmware
- click them to popup a manual firmware update FAQ page (mockup: faq11301100ans17.html)
C Button - Label Name: Retry
- Click it to start auto-firmware update again along with 5 progression page (accountfw_update_progress.html)
Confidential and Proprietary, D-Link Corporation Inc. Page 12 of 19
13. mydlink Requirement Spec | auto-firmware update requirement Oct 19, 2009
8 Device Info page (accountdevice-cam-i.html)
Fix the following on the UI:
ID Item Description
A Firmware Version - Add current device’s firmware version
- Text:
Firmware: [show current device’s firmware]
Confidential and Proprietary, D-Link Corporation Inc. Page 13 of 19
14. mydlink Requirement Spec | auto-firmware update requirement Oct 19, 2009
B Support part Two entry points:
- Download
- FAQ
“Download” will be a popup link to mydlink download page (mockup: supportdownload.html)
“FAQ” will be a popup link to this device’s FAQ page (mockup: eg. faq11301100default.html)
Confidential and Proprietary, D-Link Corporation Inc. Page 14 of 19
15. 9 Download page (supportdownload.html)
ID Item Description
Confidential and Proprietary, D-Link Corporation Inc.
16. mydlink Requirement Spec | auto-firmware update requirement Oct 19, 2009
A Title Bar - Text
- Downloads for your mydlink devices
B Text mydlink Cameras
C Product and Mode Names - Text
D Product image - File name and path: /images/products/DCS1100.gif
- File name rule: Model name without dash
- File format: gif
E Downloadable item list - List all downloadable documents (QIG, Manual), updated firmware, updated online Setup Wizard.
- Clicking texts can directly download
F Hyperlink texts - How do I update my firmware?
- Click it to popup a manual firmware update FAQ page (mockup: faq11301100ans17.html)
Confidential and Proprietary, D-Link Corporation Inc. Page 16 of 19
17. mydlink Requirement Spec | auto-firmware update requirement Oct 19, 2009
10 Manual Firmware Update page (faq11301100ans17.html)
Please refer to mockup for details.
Confidential and Proprietary, D-Link Corporation Inc. Page 17 of 19
18. mydlink Requirement Spec | auto-firmware update requirement Oct 19, 2009
11 Revision History
Version Date Author Change Bug(s)
1.0 2009/10/21 Even First version
1.1 2009/10/30 Even - add record state for update device
- start updating:
1. after 3 min to check F/W version: if ok direct to success page/ if not ,,,
2. after 5 min to check F/W version: if ok direct to success page/ if not direct
to fail page.
- Change progression page to popup lightbox display.
Confidential and Proprietary, D-Link Corporation Inc. Page 18 of 19
19. mydlink Requirement Spec | auto-firmware update requirement Oct 19, 2009
Confidential and Proprietary, D-Link Corporation Inc. Page 19 of 19
