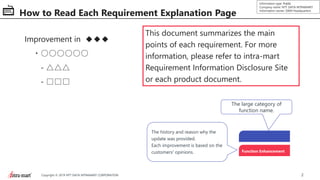

How to Read Each Requirement Explanation Page
Improvement in ◆◆◆
・○○○○○○
- △△△
- □□□
This document summarizes the main
points of each requirement. For more
information, please refer to intra-mart
Requirement Information Disclosure Site
or each product document.
The large category of
function name.
The history and reason why the
update was provided.
Each improvement is based on the
customers' opinions. Function Enhancement

How to Read Each Requirement Explanation Page
intra-mart Requirement Information Disclosure Site (https://issue.intra-
mart.jp/)
This document includes some information whose details are included in
Requirement Information Disclosure Site. (Example: # 28540). Please make
effective use of its category and search functions.
Categories
Ticket
NumberYou can search by
ticket number.
28540
https://issue.intra-mart.jp/projects/iap
https://issue.intra-mart.jp/projects/iac
https://issue.intra-mart.jp/projects/bpm
Category
By Product

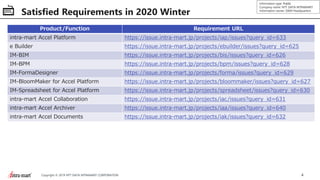

Satisfied Requirements in 2020 Winter
Product/Function Requirement URL
intra-mart Accel Platform https://issue.intra-mart.jp/projects/iap/issues?query_id=633
e Builder https://issue.intra-mart.jp/projects/ebuilder/issues?query_id=625
IM-BIM https://issue.intra-mart.jp/projects/bis/issues?query_id=626
IM-BPM https://issue.intra-mart.jp/projects/bpm/issues?query_id=628
IM-FormaDesigner https://issue.intra-mart.jp/projects/forma/issues?query_id=629
IM-BloomMaker for Accel Platform https://issue.intra-mart.jp/projects/bloommaker/issues?query_id=627
IM-Spreadsheet for Accel Platform https://issue.intra-mart.jp/projects/spreadsheet/issues?query_id=630
intra-mart Accel Collaboration https://issue.intra-mart.jp/projects/iac/issues?query_id=631
intra-mart Accel Archiver https://issue.intra-mart.jp/projects/iaa/issues?query_id=640
intra-mart Accel Documents https://issue.intra-mart.jp/projects/iak/issues?query_id=632

Agenda
1
IM-BPM
System Requirements
7
3 OEM
IM-RPA5
4
UI-related6
IM-Workflow/IM-BIS/
IM-FormaDesigner
2 Platform IM-BloomMaker
8

System Requirements1

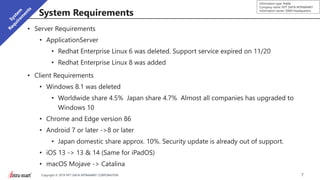

System Requirements
• Server Requirements
• ApplicationServer
• Redhat Enterprise Linux 6 was deleted. Support service expired on 11/20
• Redhat Enterprise Linux 8 was added
• Client Requirements
• Windows 8.1 was deleted
• Worldwide share 4.5% Japan share 4.7% Almost all companies has upgraded to
Windows 10
• Chrome and Edge version 86
• Android 7 or later ->8 or later
• Japan domestic share approx. 10%. Security update is already out of support.
• iOS 13 -> 13 & 14 (Same for iPadOS)
• macOS Mojave -> Catalina

Verification Environment
OS Web AP DB JDK
Amazon Linux2 Apache Resin 4.0.65 Amazon RDS
for PostgreSQL 11
Amazon Corretto 11
Windows Server 2019 Apache Resin 4.0.65 SQL Server 2017 Oracle JDK 11
RHEL 8.2 Apache Payara Server
Community 5.2020.2
Amazon RDS
Postgresql 11
OpenJDK 11
RHEL 8.2 - Resin 4.0.65 PostgreSQL 11
Oracle 19c
SQL Server 2017
Open JDK 11
RHEL 8.2 - Payara Server
Community 5.2020.2
PostgreSQL 11
Oracle 18c
SQL Server 2017
Open JDK 11
RHEL 8.2 - Weblogic 12c Oraclce 19c
PostgreSQL 11
Oracle JDK 8
RHEL 8.2 - WebSphere 9.0.5 Oracle 18c
Postgresql 11
IBM Java SDK 8

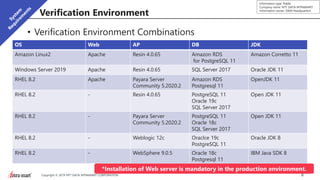

• Verification Environment Combinations
*Installation of Web server is mandatory in the production environment.

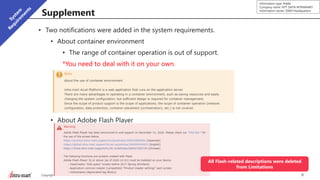

Supplement
• Two notifications were added in the system requirements.
• About container environment
• The range of container operation is out of support.
*You need to deal with it on your own.
• About Adobe Flash Player
• Limitation description was deleted.
All Flash-related descriptions were deleted
from Limitations

2 Platform

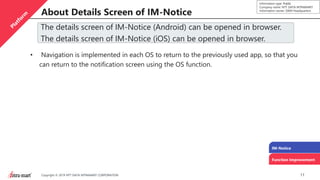

About Details Screen of IM-Notice
IM-Notice
Function Improvement
The details screen of IM-Notice (Android) can be opened in browser.
The details screen of IM-Notice (iOS) can be opened in browser.
• Navigation is implemented in each OS to return to the previously used app, so that you
can return to the notification screen using the OS function.

Others
Platform
• We provide IM-SecureSignOn for Accel Platform 2020 Winter.
• Microsoft Edge is supported
• Transaction is finished with alert in the case that it has not been finished when
asynchronous thread is finished.
• HTML mail can be sent with IM-MessageHub.
• commons-daemon for Java 11 can be operated in the latest Microsoft Visual C++
runtime.
• Bouncy Castle was upgraded to 1.66.
• dom4j was upgraded to 2.1.3.
Each Update, Improvement Requirement, Bug Fix

Improvement of IM-Common Master/
Common Search
IM-Common Master
We provide IM-Common Master Search (Autocomplete type) function.
You need to install the source if you want to use IM-Common Master search (autocomplete
style) function. For details, please refer to the document below.
• IM-Common Master Search Screen Specifications
https://www.intra-mart.jp/document/library/iap/public/im_master/im_master_search_specification/index.html

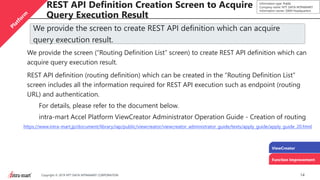

REST API Definition Creation Screen to Acquire
Query Execution Result
ViewCreator
We provide the screen to create REST API definition which can acquire
query execution result.
We provide the screen (“Routing Definition List” screen) to create REST API definition which can
acquire query execution result.
REST API definition (routing definition) which can be created in the “Routing Definition List”
screen includes all the information required for REST API execution such as endpoint (routing
URL) and authentication.
For details, please refer to the document below.
intra-mart Accel Platform ViewCreator Administrator Operation Guide - Creation of routing
https://www.intra-mart.jp/document/library/iap/public/viewcreator/viewcreator_administrator_guide/texts/apply_guide/apply_guide_20.html

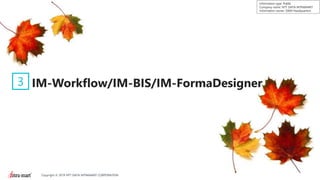

IM-Workflow/IM-BIS/IM-FormaDesigner3

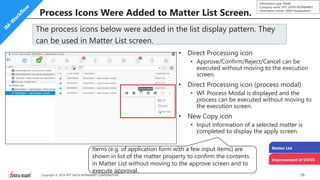

Process Icons Were Added to Matter List Screen.
The process icons below were added in the list display pattern. They
can be used in Matter List screen.
• Direct Processing icon
• Approve/Confirm/Reject/Cancel can be
executed without moving to the execution
screen.
• Direct Processing icon (process modal)
• WF Process Modal is displayed and the
process can be executed without moving to
the execution screen.
• New Copy icon
• Input information of a selected matter is
completed to display the apply screen.
Items (e.g. of application form with a few input items) are
shown in list of the matter property to confirm the contents
in Matter List without moving to the approve screen and to
execute approval.
Matter List
Improvement of UI/UX

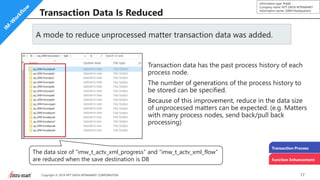

A mode to reduce unprocessed matter transaction data was added.
Function Enhancement
Transaction data has the past process history of each
process node.
The number of generations of the process history to
be stored can be specified.
Because of this improvement, reduce in the data size
of unprocessed matters can be expected. (e.g. Matters
with many process nodes, send back/pull back
processing)
Transaction Data Is Reduced
Transaction Process
The data size of “imw_t_actv_xml_progress” and “imw_t_actv_xml_flow”
are reduced when the save destination is DB

The “Continuous Processing” area is displayed when “Continuous
Processing” is executed in the application type of “IM-Workflow”.
“Continuous Processing” Area Is Displayed When
“Continuous Processing” Is Executed
Continuous Processing
The following items can be confirmed and
executed when Continuous Processing is
executed.
･ The number of continuously-processed matters
･ Currently-processed matter number
･The number of unprocessed matters
･Move to the matter before and after without
approval

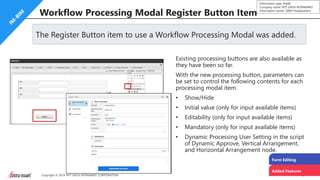

The Register Button item to use a Workflow Processing Modal was added.
Added Features
Existing processing buttons are also available as
they have been so far.
With the new processing button, parameters can
be set to control the following contents for each
processing modal item.
• Show/Hide
• Initial value (only for input available items)
• Editability (only for input available items)
• Mandatory (only for input available items)
• Dynamic Processing User Setting in the script
of Dynamic Approve, Vertical Arrangement,
and Horizontal Arrangement node.
Workflow Processing Modal Register Button Item
Form Editing

The task of “Operate WF Attached File” was added in IM-LogicDesigner.
Function Adding
The following operations can be carried out
directly to a WF attached file.
• Acquisition
• Registration
• Deletion
JAVAEE development model and script
development model APIs were also released.
Task Adding in IM-LogicDesigner
IM-LogicDesigner

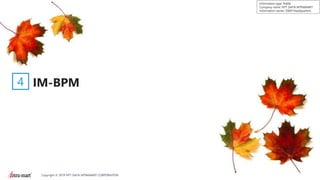

IM-BPM4

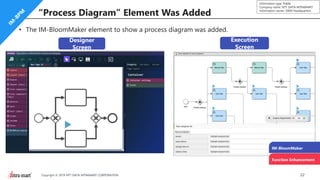

“Process Diagram” Element Was Added
• The IM-BloomMaker element to show a process diagram was added.
Designer
Screen
Execution
Screen
IM-BloomMaker

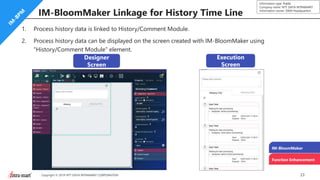

IM-BloomMaker Linkage for History Time Line
1. Process history data is linked to History/Comment Module.
2. Process history data can be displayed on the screen created with IM-BloomMaker using
“History/Comment Module” element.
Designer
Screen
Execution
Screen
IM-BloomMaker

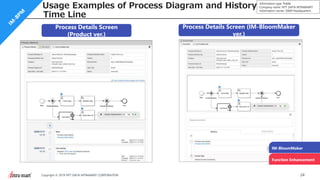

Usage Examples of Process Diagram and History
Time Line
Process Details Screen
(Product ver.)
Process Details Screen (IM-BloomMaker
ver.)
IM-BloomMaker

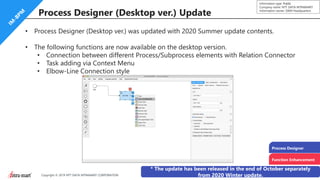

Process Designer (Desktop ver.) Update
Process Designer
• Process Designer (Desktop ver.) was updated with 2020 Summer update contents.
• The following functions are now available on the desktop version.
• Connection between different Process/Subprocess elements with Relation Connector
• Task adding via Context Menu
• Elbow-Line Connection style
* The update has been released in the end of October separately
from 2020 Winter update.

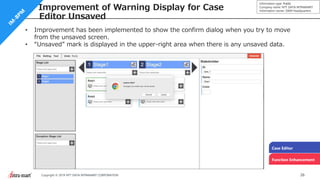

Improvement of Warning Display for Case
Editor Unsaved
• Improvement has been implemented to show the confirm dialog when you try to move
from the unsaved screen.
• “Unsaved” mark is displayed in the upper-right area when there is any unsaved data.
Case Editor

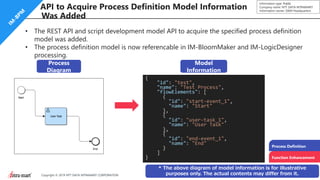

API to Acquire Process Definition Model Information
Was Added
Process Definition
• The REST API and script development model API to acquire the specified process definition
model was added.
• The process definition model is now referencable in IM-BloomMaker and IM-LogicDesigner
processing.
Process
Diagram
Model
Information
* The above diagram of model information is for illustrative
purposes only. The actual contents may differ from it.
{
"id": "test",
"name": "Test Process",
"flowElements": [
{
"id": "start-event_1",
"name": "Start"
},
{
"id": "user-task_1",
"name": "User Task"
},
{
"id": "end-event_1",
"name": "End"
}
]
}

IM-RPA5

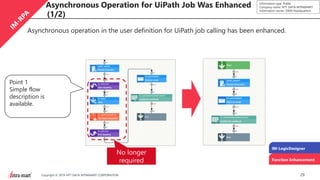

Asynchronous Operation for UiPath Job Was Enhanced
(1/2)
Asynchronous operation in the user definition for UiPath job calling has been enhanced.
No longer
required
Point 1
Simple flow
description is
available.
IM-LogicDesigner

Asynchronous Operation for UiPath Job Was Enhanced
(2/2)
• Asynchronous operation in the user definition for UiPath job calling has been enhanced.
• Synchronization is carried out at the timing when reference to the result property in the user definition
output value is occurred.
Thanks to this enhancement, you can execute synchronization at your own will and timing while
asynchronous calling is carried out.
You need to wait for processing
only when referring to
the async processing result.
Synchronous Execute
Asynchronous
Execute
Point 2
You can carry out
synchronization at your own
timing.
IM-LogicDesigner

Linkage Setting Is Available on the Screen (1/2)
• Some configuration files are now editable on the IM screen, so that deployment
is no longer required in maintenance such as adding a robot.
RPA Product Environment Setting Maintenance (e.g. Robot Adding)
Winactor Deploy (IM configuration file) Deploy -> IM configuration screen
BizRobo! Deploy (IM configuration file) Add on MC side
UiPath Deploy (IM configuration file) Add on UO side
* The configuration screen
was created with IM-
BloomMaker.
Linkage Settings
UI/UX Improvement

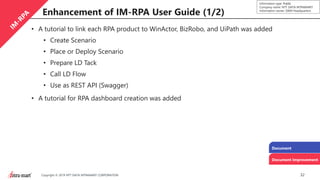

Enhancement of IM-RPA User Guide (1/2)
• A tutorial to link each RPA product to WinActor, BizRobo, and UiPath was added
• Create Scenario
• Place or Deploy Scenario
• Prepare LD Tack
• Call LD Flow
• Use as REST API (Swagger)
• A tutorial for RPA dashboard creation was added
Document
Document Improvement

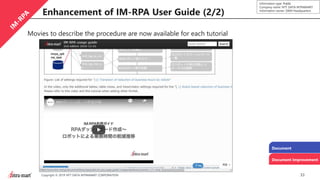

Enhancement of IM-RPA User Guide (2/2)
Movies to describe the procedure are now available for each tutorial
Document
Document Improvement

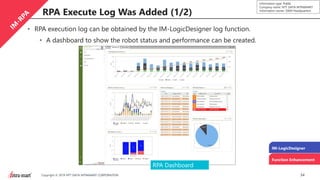

RPA Execute Log Was Added (1/2)
• RPA execution log can be obtained by the IM-LogicDesigner log function.
• A dashboard to show the robot status and performance can be created.
IM-LogicDesigner
RPA Dashboard

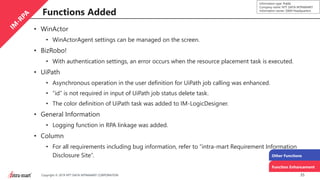

Functions Added
• WinActor
• WinActorAgent settings can be managed on the screen.
• BizRobo!
• With authentication settings, an error occurs when the resource placement task is executed.
• UiPath
• Asynchronous operation in the user definition for UiPath job calling was enhanced.
• “id” is not required in input of UiPath job status delete task.
• The color definition of UiPath task was added to IM-LogicDesigner.
• General Information
• Logging function in RPA linkage was added.
• Column
• For all requirements including bug information, refer to “intra-mart Requirement Information
Disclosure Site”.
Other Functions

UI-related6

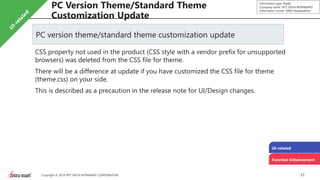

PC Version Theme/Standard Theme
Customization Update
UI-related
CSS property not used in the product (CSS style with a vendor prefix for unsupported
browsers) was deleted from the CSS file for theme.
There will be a difference at update if you have customized the CSS file for theme
(theme.css) on your side.
This is described as a precaution in the release note for UI/Design changes.
PC version theme/standard theme customization update

IM-BloomMaker7

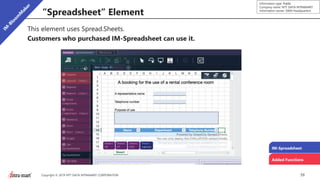

”Spreadsheet” Element
This element uses Spread.Sheets.
Customers who purchased IM-Spreadsheet can use it.
IM-Spreadsheet
Added Functions

Value of cell and table are two-way binded with variable value.
A value filled in the spreadsheet can be persistent in DB.
(The spreadsheet itself also can be persistent.)
IM-Spreadsheet
Added Functions

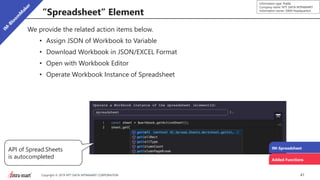

We provide the related action items below.
• Assign JSON of Workbook to Variable
• Download Workbook in JSON/EXCEL Format
• Open with Workbook Editor
• Operate Workbook Instance of Spreadsheet
API of Spread.Sheets
is autocompleted
IM-Spreadsheet
Added Functions

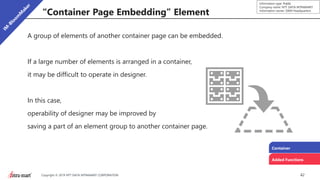

“Container Page Embedding” Element
A group of elements of another container page can be embedded.
If a large number of elements is arranged in a container,
it may be difficult to operate in designer.
In this case,
operability of designer may be improved by
saving a part of an element group to another container page.
Container
Added Functions

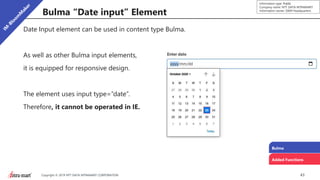

Bulma “Date input” Element
Date Input element can be used in content type Bulma.
As well as other Bulma input elements,
it is equipped for responsive design.
The element uses input type=“date”.
Therefore, it cannot be operated in IE.
Bulma
Added Functions

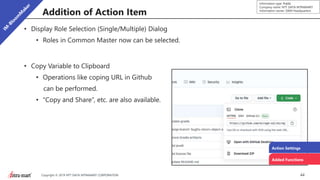

Addition of Action Item
• Display Role Selection (Single/Multiple) Dialog
• Roles in Common Master now can be selected.
• Copy Variable to Clipboard
• Operations like coping URL in Github
can be performed.
• “Copy and Share”, etc. are also available.
Action Settings
Added Functions

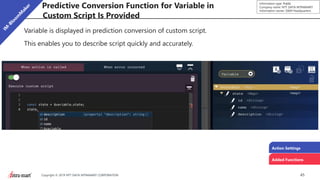

Predictive Conversion Function for Variable in
Custom Script Is Provided
Variable is displayed in prediction conversion of custom script.
This enables you to describe script quickly and accurately.
Action Settings
Added Functions

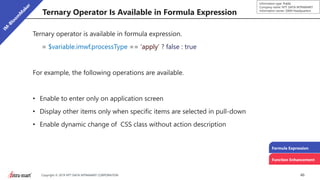

Ternary Operator Is Available in Formula Expression
Ternary operator is available in formula expression.
= $variable.imwf.processType == ‘apply’ ? false : true
For example, the following operations are available.
• Enable to enter only on application screen
• Display other items only when specific items are selected in pull-down
• Enable dynamic change of CSS class without action description
Formula Expression

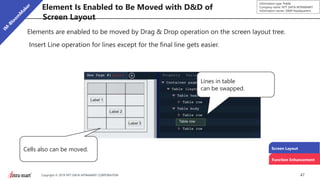

Element Is Enabled to Be Moved with D&D of
Screen Layout
Elements are enabled to be moved by Drag & Drop operation on the screen layout tree.
Insert Line operation for lines except for the final line gets easier.
Cells also can be moved.
Lines in table
can be swapped.
Screen Layout

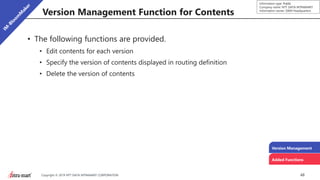

Version Management Function for Contents
• The following functions are provided.
• Edit contents for each version
• Specify the version of contents displayed in routing definition
• Delete the version of contents
Version Management
Added Functions

OEM8

Update List
OEM
Provided in 2020Winter

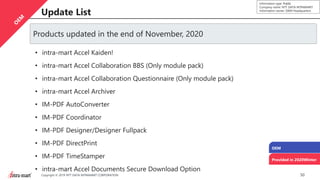

Products updated in the end of November, 2020
• intra-mart Accel Kaiden!
• intra-mart Accel Collaboration BBS (Only module pack)
• intra-mart Accel Collaboration Questionnaire (Only module pack)
• intra-mart Accel Archiver
• IM-PDF AutoConverter
• IM-PDF Coordinator
• IM-PDF Designer/Designer Fullpack
• IM-PDF DirectPrint
• IM-PDF TimeStamper
• intra-mart Accel Documents Secure Download Option

Update List
OEM

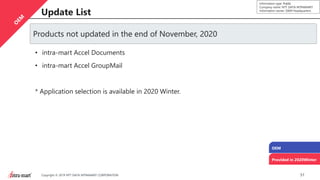

Products not updated in the end of November, 2020
• intra-mart Accel Documents
• intra-mart Accel GroupMail
* Application selection is available in 2020 Winter.
Provided in 2020Winter

• This document is limited to topics of the update.
For more information on the update, please visit our Requirement Information
Disclosure Site.
https://issue.intra-mart.jp/
• For system requirements and limitations, please make sure to check the release
notes for each product.
https://www.intra-mart.jp/document/library/
If you have any questions, please contact us at the following address.
NTT DATA INTRAMART CORP.
Sales & Marketing Headquarters
Phone: 81-3-5549-2821
E-mail: info@intra-mart.jp

Accel series 2020_winter-en

More Related Content

Similar to Accel series 2020_winter-en

More from NTTDATA INTRAMART

Recently uploaded

Accel series 2020_winter-en

Editor's Notes
