1.  MV Voltage Detector VECTOR

2.  MV Voltage Detector VECTOR
 Lateral additional
indications

3.  MV Voltage Detector VECTOR
Lateral windows for
indication duplication
And protection of built-in multi-sensor
Designed to cross spy hole more easily
Replaceable
pole adapters
Harder shell for better shock resistance
Go / No go
indications
Integral self test

4.  MV Voltage Detector VECTOC
 Outdoor Indoor Bridging test conditions from 3kV to 36kV
IEC 61243-1 2009
 New Housing dimension:
- Diameter Ø 58mm
- Length 430mm
 Voltage range covered : 3 to 36KV with a maximum ratio of
3.6 between the min. and the max. voltage. E.g. : 10/36KV.
 Frequency : 50Hz and 60HZ
 Indication of the presence of the nominal voltage by red
LEDS and an audible signal
■ Spécifications of the MV Voltage Detector

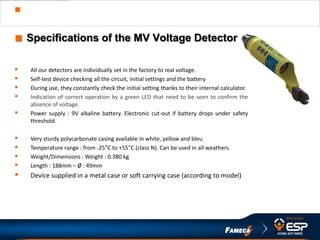

5.  MV Voltage Detector VECTOC
■ Specifications of the MV Voltage Detector
 All our detectors are individually set in the factory to real voltage.
 Self-test device checking all the circuit, initial settings and the battery
 During use, they constantly check the initial setting thanks to their internal calculator.
 Indication of correct operation by a green LED that need to be seen to confirm the
absence of voltage.
 Power supply : 9V alkaline battery. Electronic cut-out if battery drops under safety
threshold.
 Very sturdy polycarbonate casing available in white, yellow and bleu
 Temperature range : from -25°C to +55°C (class N). Can be used in all weathers.
 Weight/Dimensions : Weight : 0.380 kg
 Length : 188mm – Ø : 49mm
 Device supplied in a metal case or soft carrying case (according to model)

6.  MV Voltage Detector VECTOR
 Permanent standby
 Automatic wake up
 Self test with test button
 Self test running all along the test duration
 Self test checking sensitivity parameters and all
functions
■ Functions of the MV Voltage Detector

7.  MV Voltage Detector VECTOR
 Easy Battery replacement
 Direct access
 Battery secured in place by the housing
 PCB guiding slots
 Full electronic shielding
■ Standard and Environment

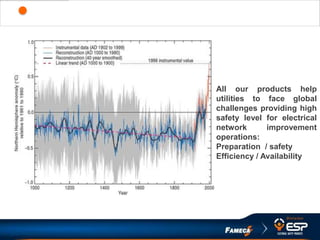

8. All our products help
utilities to face global
challenges providing high
safety level for electrical
network improvement
operations:
Preparation / safety
Efficiency / Availability
THE NETWORK WILL CHANGE !

9. THE NETWORK WILL CHANGE !

10. THE NETWORK WILL CHANGE !

11. Work in total confidence
with your powernetwork

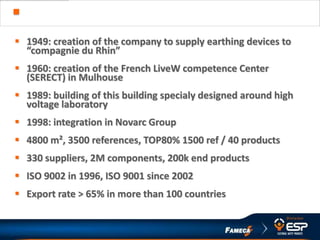

12. HISTORY & FIGURES
 1949: creation of the company to supply earthing devices to
“compagnie du Rhin”
 1960: creation of the French LiveW competence Center
(SERECT) in Mulhouse
 1989: building of this building specialy designed around high
voltage laboratory
 1998: integration in Novarc Group
 4800 m², 3500 references, TOP80% 1500 ref / 40 products
 330 suppliers, 2M components, 200k end products
 ISO 9002 in 1996, ISO 9001 since 2002
 Export rate > 65% in more than 100 countries
