The document discusses the significance of installing Automatic Voltage Controllers (AVC) to manage voltage fluctuations in industrial settings, emphasizing the adverse effects of low and high voltage on operational efficiency. It outlines the advantages of AVCs, including energy savings, reduced equipment breakdown, and improved production quality. Voltstar is highlighted as a leader in manufacturing various electrical equipment, including transformers and servo voltage stabilizers, with specific models designed for different applications and operational needs.

1. SAVE ENERGY
by installing
Find us on :

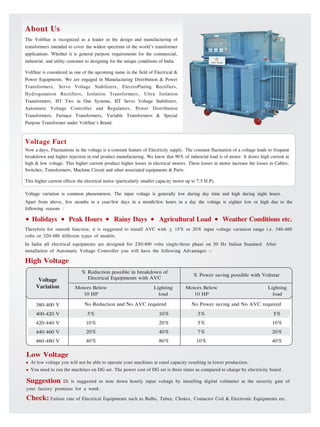

2. About Us
Voltage variation is common phenomenon. The input voltage is generally low during day time and high during night hours.
Apart from above, few months in a year/few days in a month/few hours in a day the voltage is eighter low or high due to the
following reasons :
Therefore for smooth function, it is suggested to install AVC with ± 15% or 20% input voltage variation range i.e. 340-460
volts or 320-480 different types of models.
In India all electrical equipments are designed for 230/400 volts single/three phase on 50 Hz Indian Standard. After
installation of Automatic Voltage Controller you will have the following Advantages :-
Holidays Peak Hours Rainy Days Agricultural Load Weather Conditions etc.
High Voltage
Low Voltage
Suggestion :
At low voltage you will not be able to operate your machines at rated capacity resulting in lower production.
You need to run the machines on DG set. The power cost of DG set is three times as compared to charge by electricity board.
It is suggested to note down hourly input voltage by installing digital voltmeter at the security gate of
your factory premises for a week.
Check: Failure rate of Electrical Equipments such as Bulbs, Tubes, Chokes, Contactor Coil & Electronic Equipments etc.
Voltage Fact
% Power saving possible with Voltstar
Motors Below
10 HP
Lighting
load
No Power saving and No AVC required
5%
10%
20%
40%
3%
5%
7%
10%
% Reduction possible in breakdown of
Electrical Equipments with AVC
Motors Below
10 HP
Lighting
load
No Reduction and No AVC required
5%
10%
20%
40%
10%
20%
40%
80%
Voltage
Variation
380-400 V
400-420 V
420-440 V
440-460 V
460-480 V
The VoltStar is recognized as a leader in the design and manufacturing of
transformers intended to cover the widest spectrum of the world's transformer
applications. Whether it is general purpose requirements for the commercial,
industrial, and utility customer to designing for the unique conditions of India.
VoltStar is considered as one of the upcoming name in the field of Electrical &
Power Equipments. We are engaged in Manufacturing Distribution & Power
Transformers, Servo Voltage Stabilizers, ElectroPlating Rectifiers,
Hydrogenation Rectifiers, Isolation Transformers, Ultra Isolation
Transformers, HT Two in One Systems, HT Servo Voltage Stabilizers,
Automatic Voltage Controller and Regulators, Power Distribution
Transformers, Furnace Transformers, Variable Transformers & Special
Purpose Transformer under VoltStar’s Brand.
Now a days, Fluctuations in the voltage is a constant feature of Electricity supply. The constant fluctuation of a voltage leads to frequent
breakdown and higher rejection in end product manufacturing. We know that 90% of industrial load is of motor. It draws high current at
high & low voltage. This higher current produce higher losses in electrical motors. These losses in motor increase the losses in Cables,
Switches, Transformers, Machine Circuit and other associated equipments & Parts.
This higher current effects the electrical motor (particularly smaller capacity motor up to 7.5 H.P).

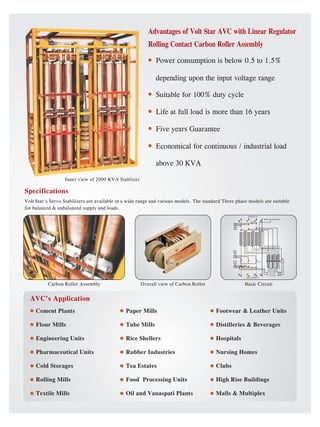

3. Specifications
Volt Star's Servo Stabilizers are available in a wide range and various models. The standard Three phase models are suitable
for balanced & unbalanced supply and loads.
Overall view of Carbon RollerCarbon Roller Assembly Basic Circuit
I N P U T
R Y B N
VSS
V
MCB
SERIES TRANSFORMER
A
ASS
VSS
V
MCB
C.T.
O U T P U T
R Y B N
REGULATOR
RAISE
LOWER
CONTROL
PANEL
AVC’s Application
Cement Plants
Flour Mills
Engineering Units
Pharmaceutical Units
Cold Storages
Rolling Mills
Textile Mills
Paper Mills
Tube Mills
Rice Shellers
Rubber Industries
Tea Estates
Food Processing Units
Oil and Vanaspati Plants
Footwear & Leather Units
Distilleries & Beverages
Hospitals
Nursing Homes
Clubs
High Rise Buildings
Malls & Multiplex
Advantages of Volt Star AVC with Linear Regulator
Rolling Contact Carbon Roller Assembly
Power consumption is below 0.5 to 1.5%
depending upon the input voltage range
Suitable for 100% duty cycle
Life at full load is more than 16 years
Five years Guarantee
Economical for continuous / industrial load
above 30 KVA
Inner view of 2000 KVA Stablizer

4. Why VOLT STAR ?
Cost Per Month
It is such a fine equipment, which monitors the voltage variation round the clock and correct the same if required
instantaneously & cost just 1.5% per month of capital & interest and will save 4 -8 times as explained here under:
For Example:
The cost of AVC
(Including Installation material, Expenses & Taxes etc.)
Life of AVC Approx. 10 years
Cost Per Month for 10 years (Rs. 5,00,000 ÷ 120 months)
Interest P.M. on Reducing Basis @ 12% on Rs. 5,00,000/-
Rs. 5,00,000/-
Rs. 4,167/-
Rs. 2,500/-
Total Rs. 6,667/-
Dimmer regulator sliding contact carbon brush assembly
Power consumption is below
2 to 7% depending upon the
input voltage range
Suitable for less than 50% duty cycle
Life at full load is less than 3 years
One year guarantee
Suitable for commercial / residential
load below 50 KVA
Linear regulator rolling contact carbon roller assembly
Power consumption is below
0.5 to 1.5% depending upon
the input voltage range
Suitable for 100% duty cycle
Life at full load is more than 16 years
Five years guarantee
Economical for continuous / industrial
load above 100 KVA
Pay Back
It is a equipment, which pays back its cost within 1 - 2 years. Even if you appoint a supervisor to monitor the voltage variation
round the clock. It will cost more than Rs. 10,000/- per month and will be able to record the voltage variation, but shall not be
able to do any rectification.
With the expenses of Rs. 6667/- per month, you will be able to achieve savings of more than Rs. 25,000 / 50,000/- per
month depending upon the input voltage variation and working hours of the plant due to the following advantages;
Energy saving up to 5%
Uniform quality of end product
Improvement in power factor and reduction in MDI
Better efficiency in plant due to lesser Breakdown
Reduction in breakdown of electrical equipments up to 75%
Depreciation @80% as per Income Tax Act
The above advantages have been confirmed by the customers by placing repeat orders for their expansion of plants.
And also sales and service engineers at various district level
Also Manufacturer of Special Purpose Transformers & Rectifiers
Dealer Stamp
Head Office :
Office No. 13, Jain Market, Chandigarh Road,
Ludhiana-141010 Punjab (INDIA)
Works :
Opp. Nirmal Palace, Daba Road,
Ludhiana-141003 Punjab (INDIA)
Tech. Head : 99880-64203
Email: info@voltstarservo.com
Website : http://www.voltstarservo.com
