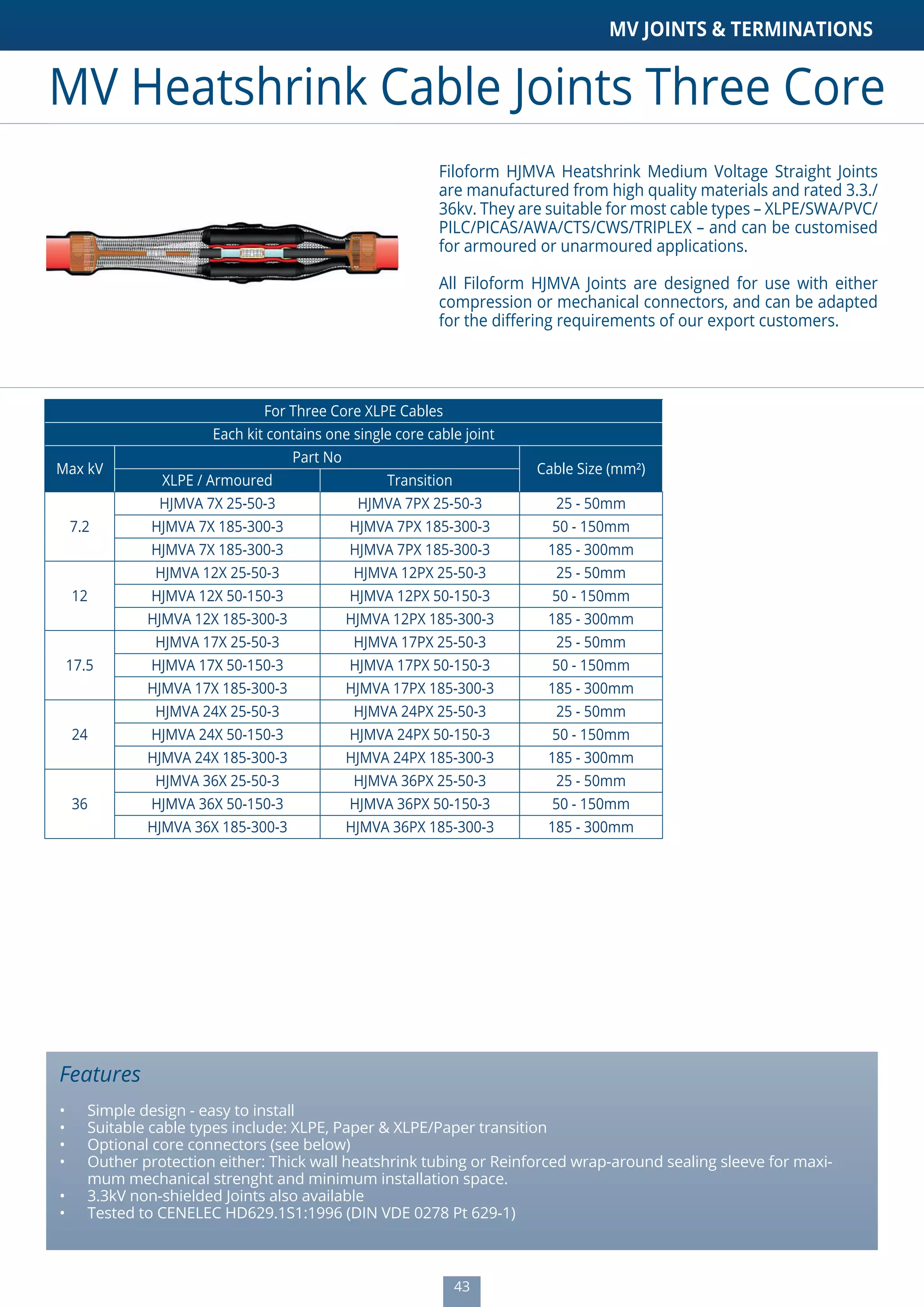

Filoform HJMVA Heatshrink Medium Voltage Straight Joints
are manufactured from high quality materials and rated 3.3./
36kv. They are suitable for most cable types – XLPE/SWA/PVC/
PILC/PICAS/AWA/CTS/CWS/TRIPLEX – and can be customised
for armoured or unarmoured applications.
All Filoform HJMVA Joints are designed for use with either
compression or mechanical connectors, and can be adapted
for the differing requirements of our export customers.
Features
• Simple design - easy to install
• Suitable cable types include: XLPE, Paper & XLPE/Paper transition
• Optional core connectors (see below)
• Outher protection either: Thick wall heatshrink tubing or Reinforced wrap-around sealing sleeve for maxi-
mum mechanical strenght and minimum installation space.
• 3.3kV non-shielded Joints also available
• Tested to CENELEC HD629.1S1:1996 (DIN VDE 0278 Pt 629-1)
For Three Core XLPE Cables
Each kit contains one single core cable joint
Max kV
Part No
Cable Size (mm²)
XLPE / Armoured Transition
7.2
HJMVA 7X 25-50-3 HJMVA 7PX 25-50-3 25 - 50mm
HJMVA 7X 185-300-3 HJMVA 7PX 185-300-3 50 - 150mm
HJMVA 7X 185-300-3 HJMVA 7PX 185-300-3 185 - 300mm
12
HJMVA 12X 25-50-3 HJMVA 12PX 25-50-3 25 - 50mm
HJMVA 12X 50-150-3 HJMVA 12PX 50-150-3 50 - 150mm
HJMVA 12X 185-300-3 HJMVA 12PX 185-300-3 185 - 300mm
17.5
HJMVA 17X 25-50-3 HJMVA 17PX 25-50-3 25 - 50mm
HJMVA 17X 50-150-3 HJMVA 17PX 50-150-3 50 - 150mm
HJMVA 17X 185-300-3 HJMVA 17PX 185-300-3 185 - 300mm
24
HJMVA 24X 25-50-3 HJMVA 24PX 25-50-3 25 - 50mm
HJMVA 24X 50-150-3 HJMVA 24PX 50-150-3 50 - 150mm
HJMVA 24X 185-300-3 HJMVA 24PX 185-300-3 185 - 300mm
36
HJMVA 36X 25-50-3 HJMVA 36PX 25-50-3 25 - 50mm
HJMVA 36X 50-150-3 HJMVA 36PX 50-150-3 50 - 150mm
HJMVA 36X 185-300-3 HJMVA 36PX 185-300-3 185 - 300mm
