Network Coding in Satellites
Muriel Medard

2. Private and Confidential
Presentation by Muriel Medard @
27 November, Anaheim, California
2018 IEEE Global Conference
on Signal and Information Processing
2

3. Private and Confidential

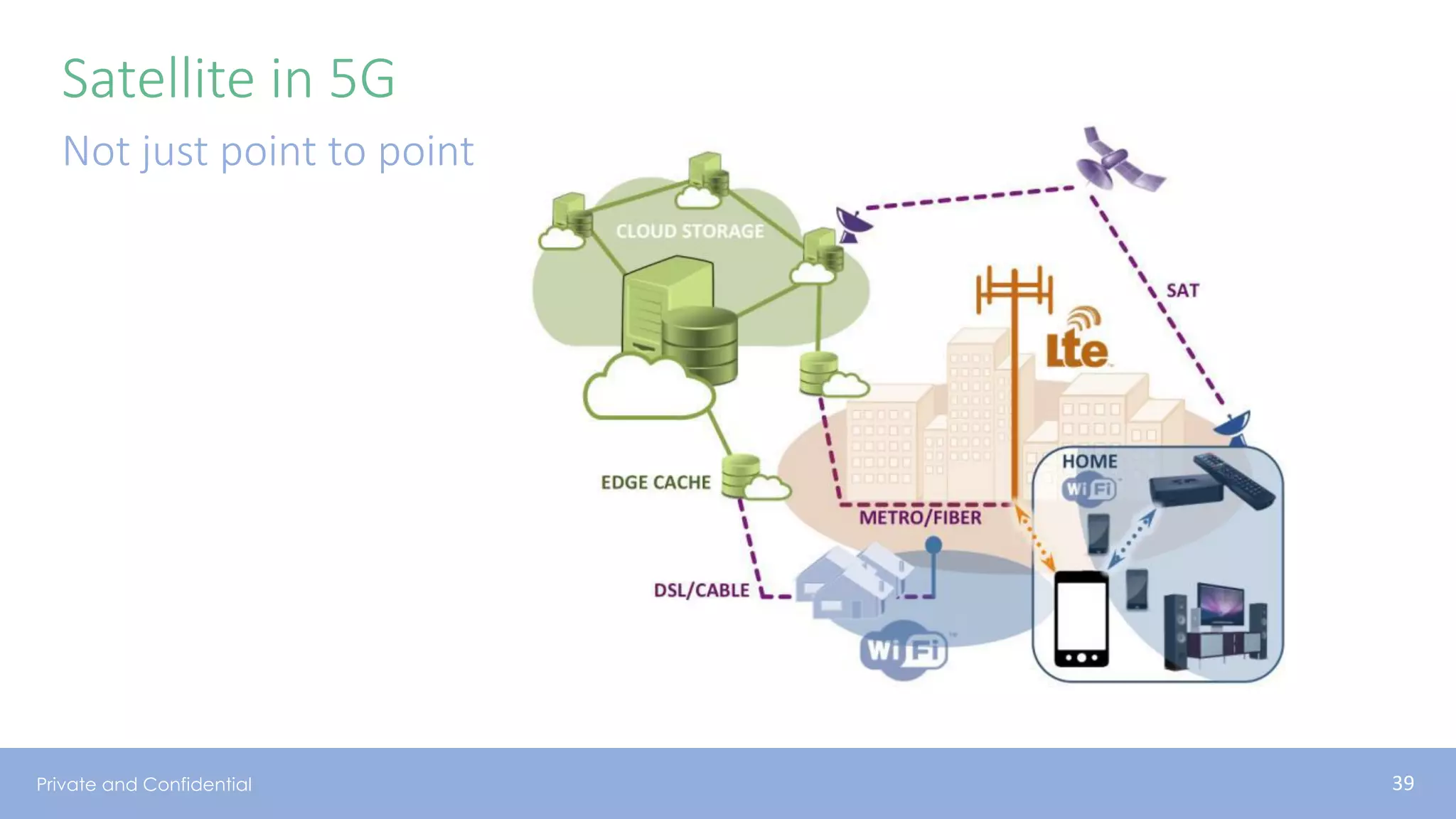

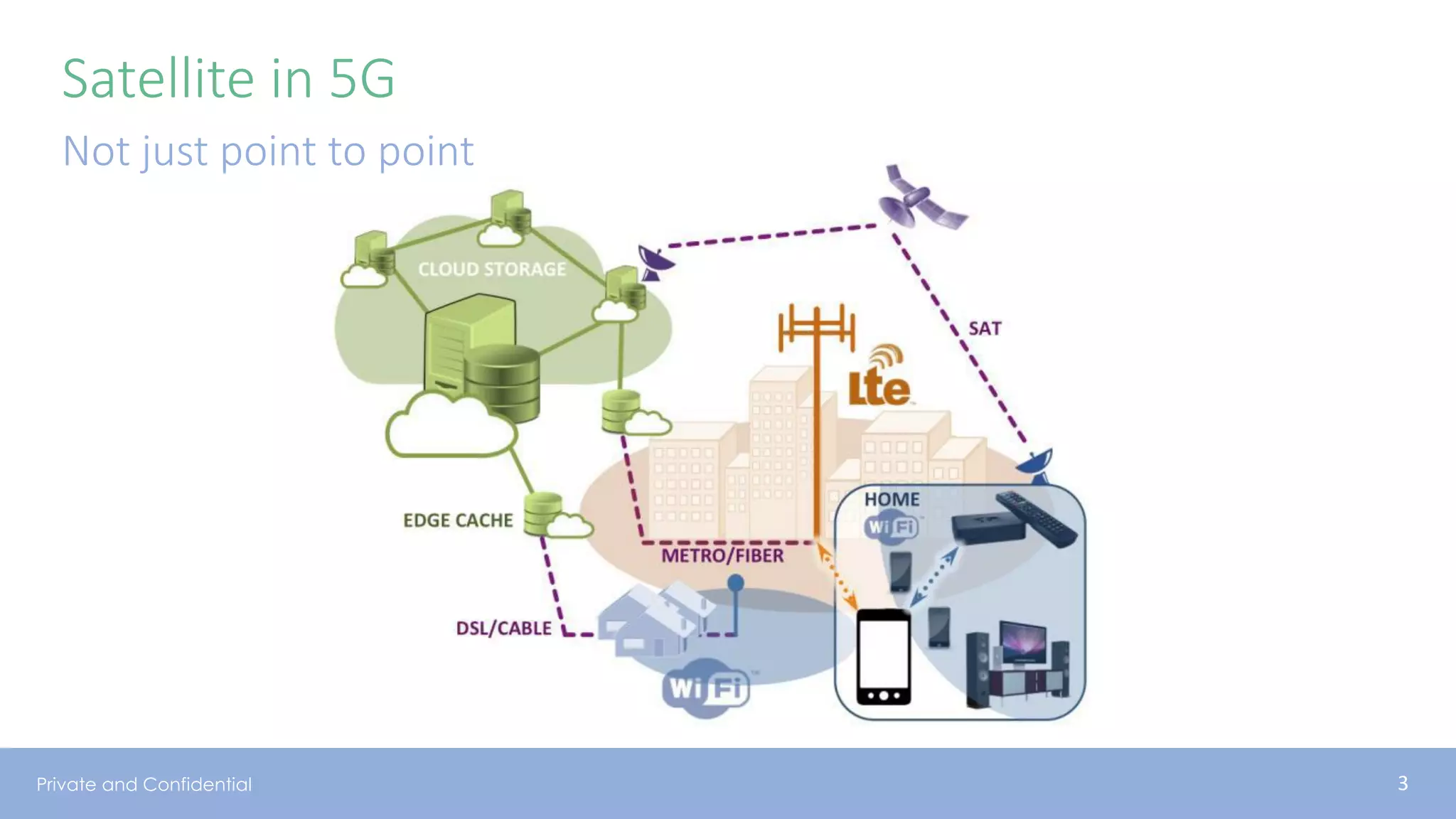

Satellite in 5G
Not just point to point
3

4. Private and Confidential

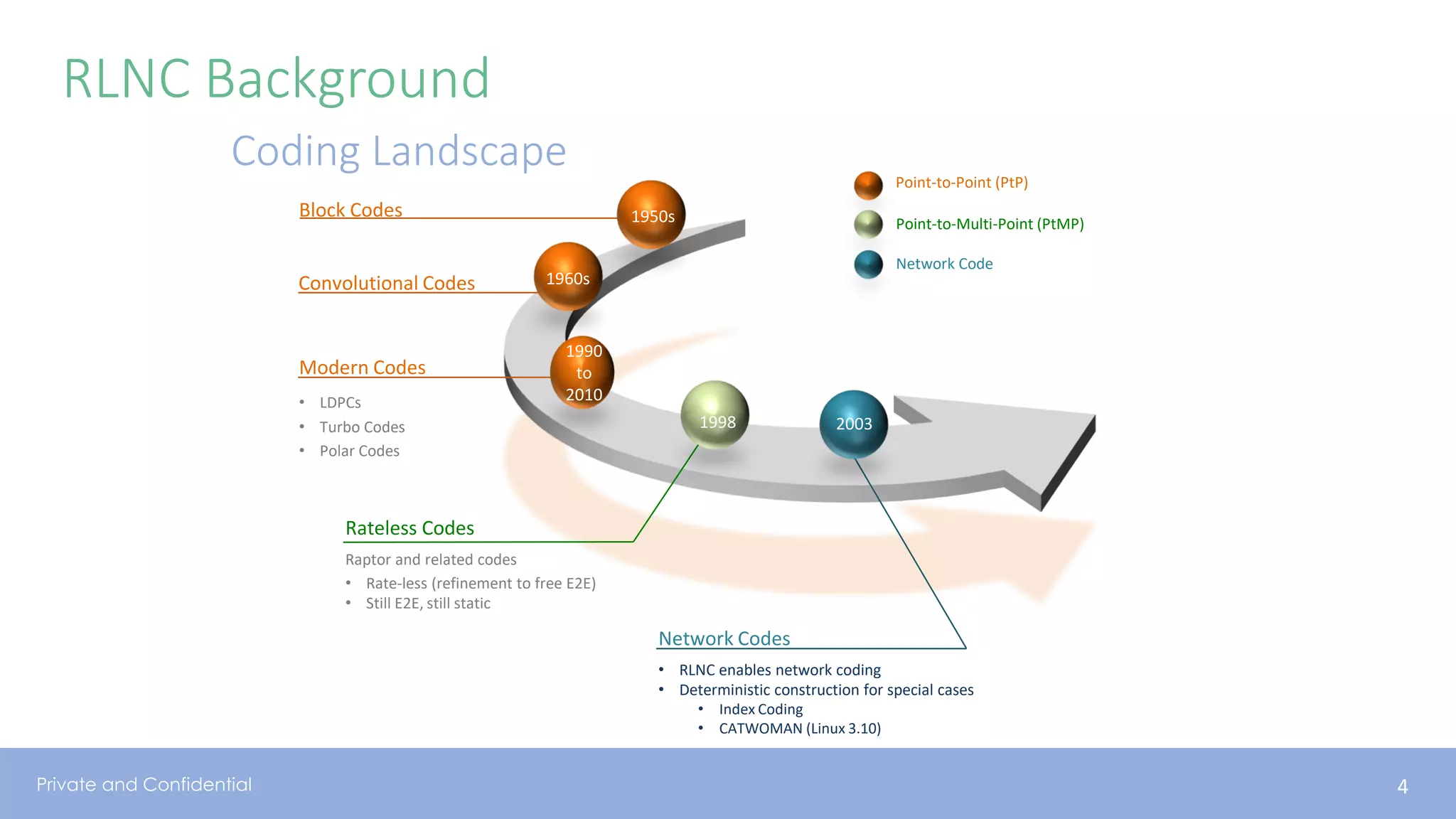

RLNC Background
Coding Landscape
4
Block Codes
Convolutional Codes
Rateless Codes
Raptor and related codes
• Rate-less (refinement to free E2E)
• Still E2E, still static
Network Codes
• RLNC enables network coding
• Deterministic construction for special cases
• Index Coding
• CATWOMAN (Linux 3.10)
Point-to-Point (PtP)
Point-to-Multi-Point (PtMP)
Network Code
1960s
1950s
1998 2003
Modern Codes
• LDPCs
• Turbo Codes
• Polar Codes
1990
to
2010

5. Private and Confidential

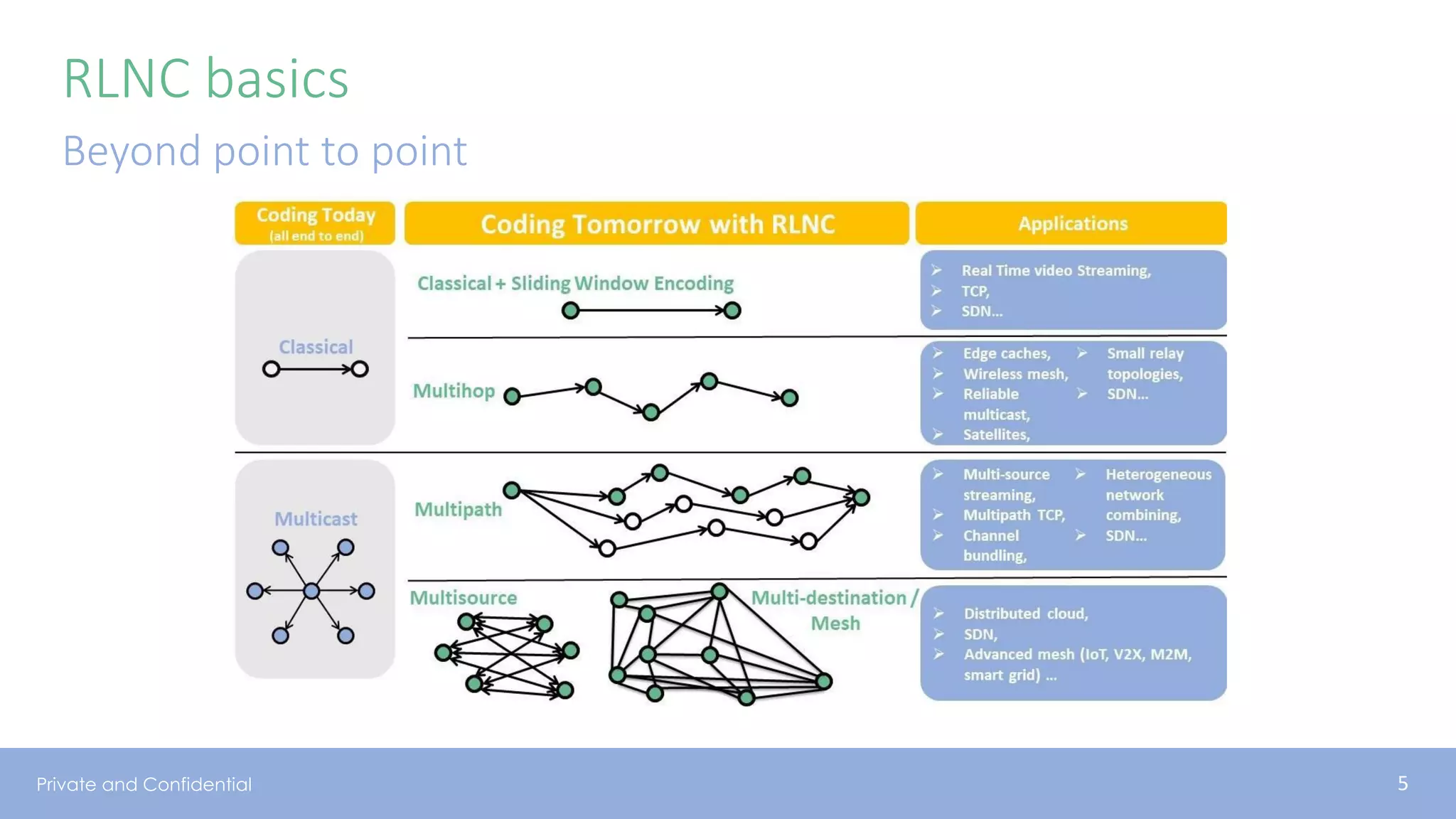

RLNC basics
Beyond point to point
5

6. Private and Confidential

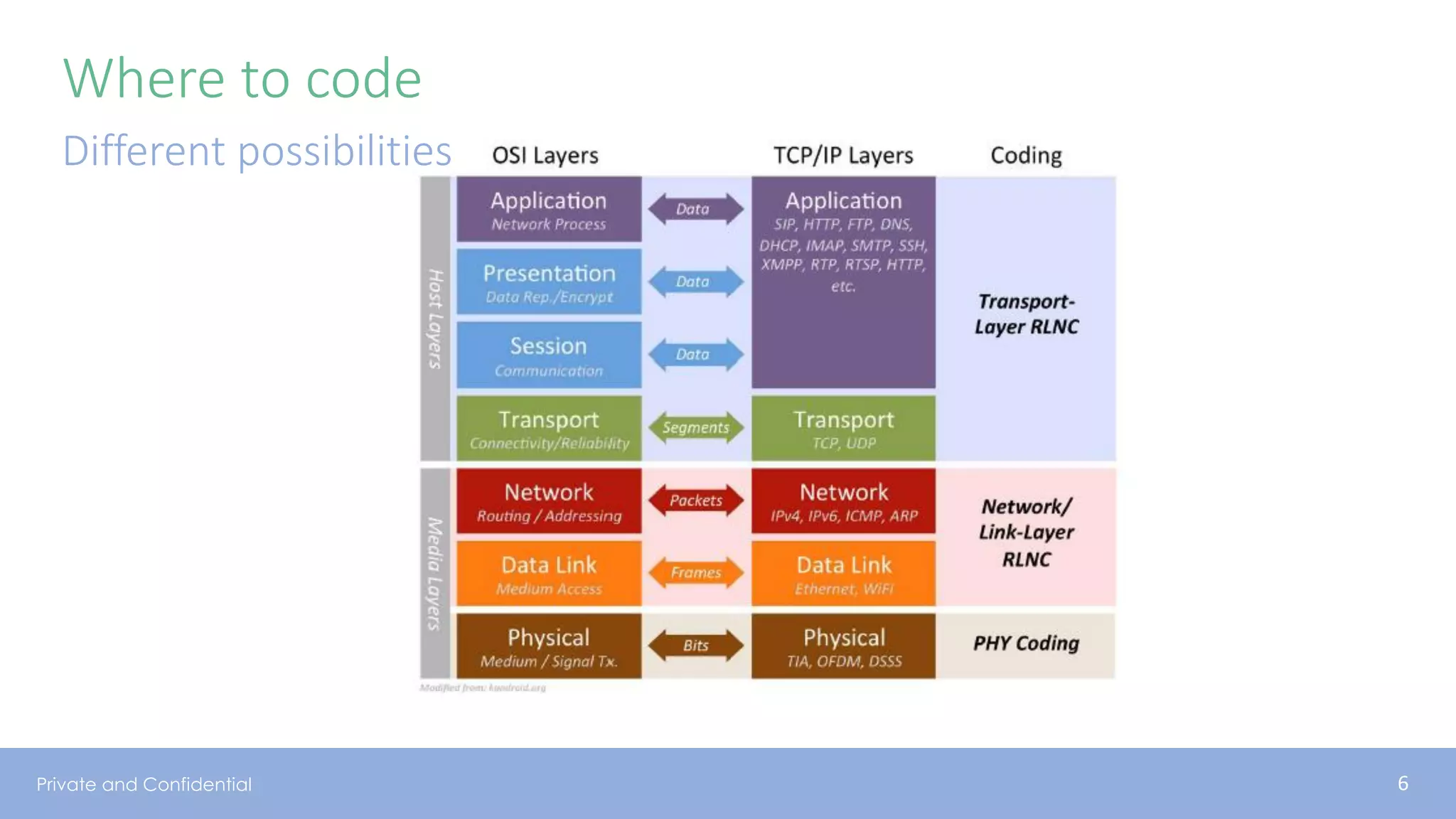

Where to code
Different possibilities
6

7. Private and Confidential

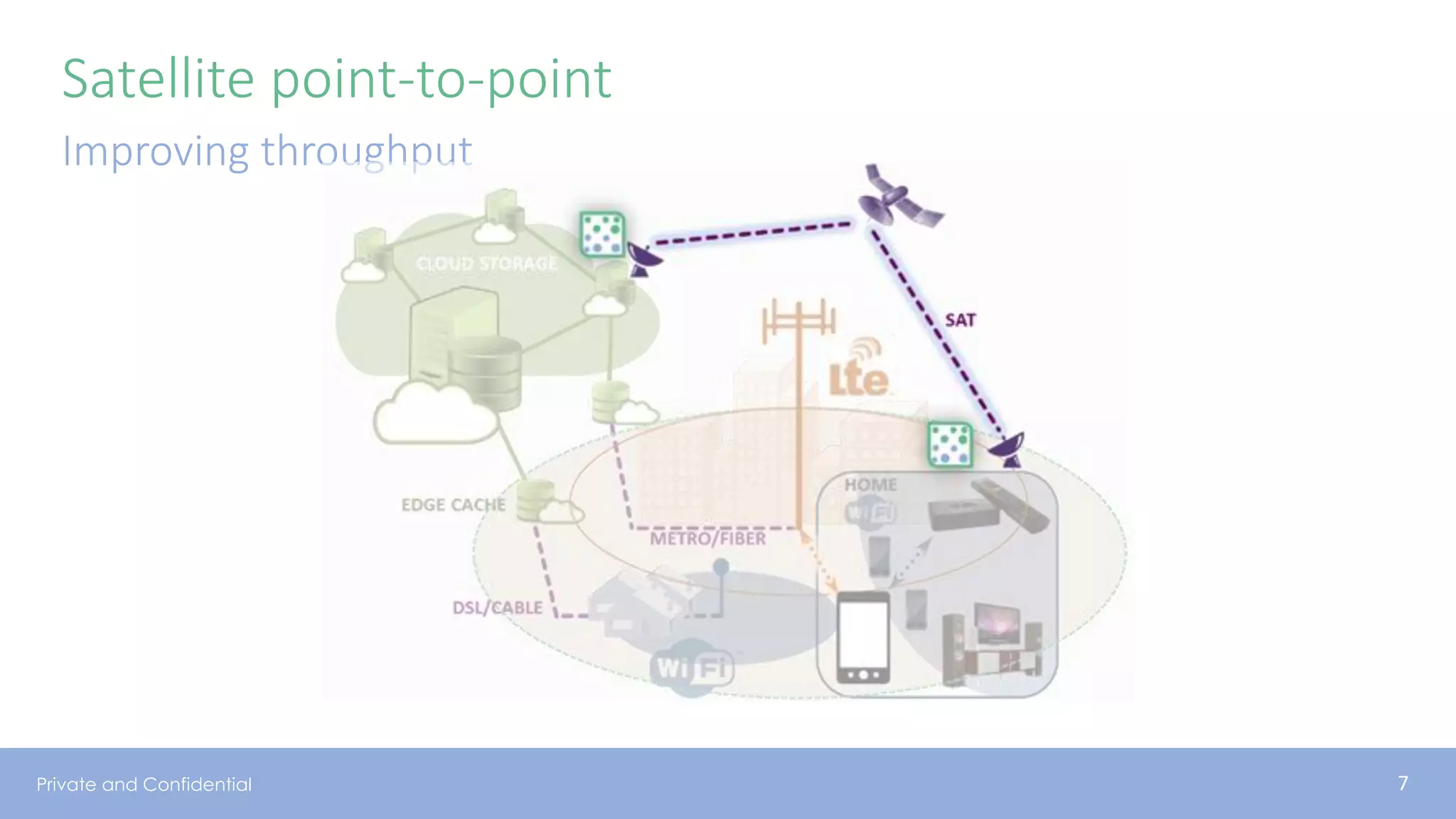

Satellite point-to-point
Improving throughput
7

8. Private and Confidential

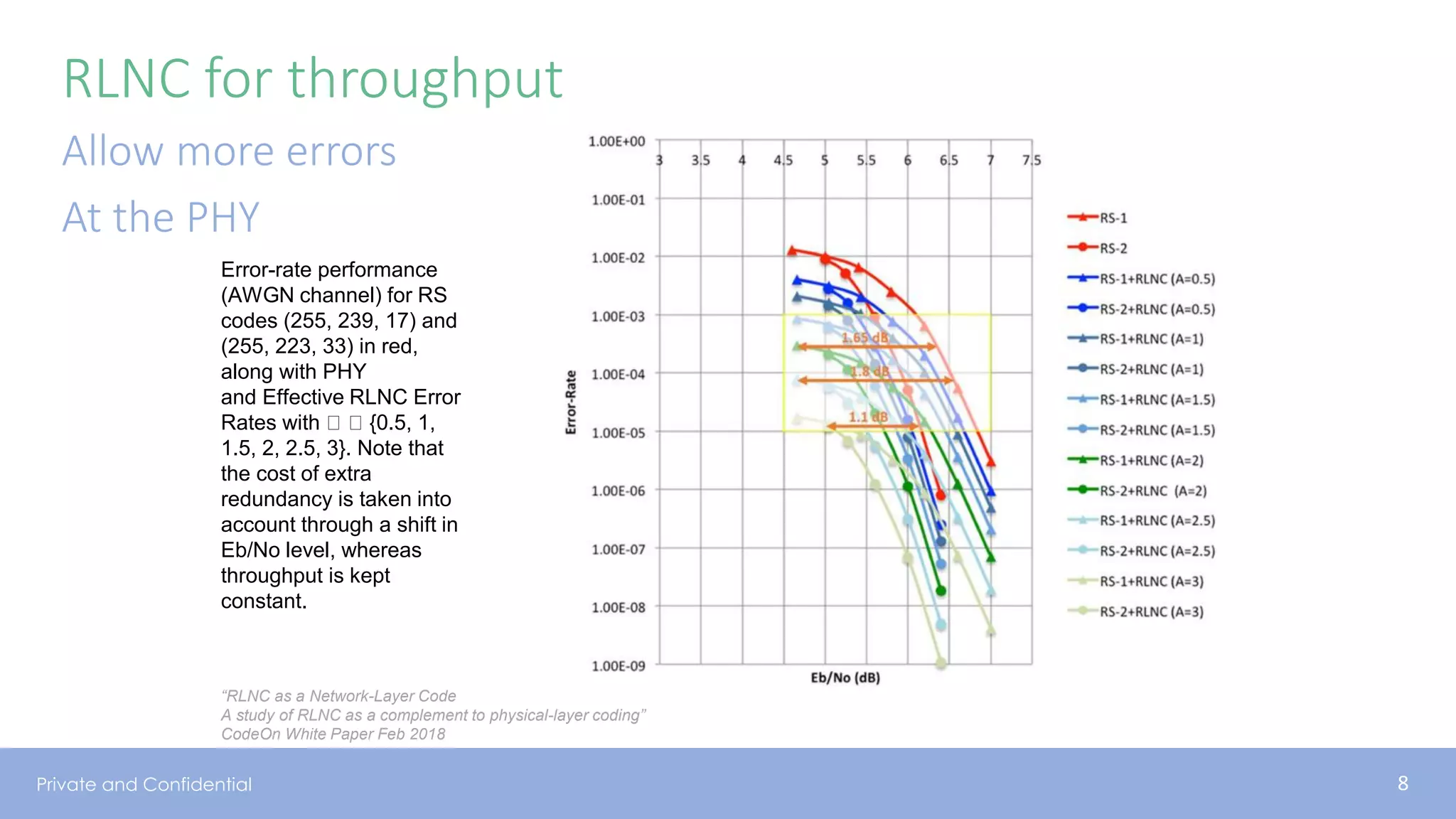

RLNC for throughput
Allow more errors
At the PHY
Error-rate performance
(AWGN channel) for RS
codes (255, 239, 17) and
(255, 223, 33) in red,
along with PHY
and Effective RLNC Error
Rates with {0.5, 1,
1.5, 2, 2.5, 3}. Note that
the cost of extra
redundancy is taken into
account through a shift in
Eb/No level, whereas
throughput is kept
constant.
“RLNC as a Network-Layer Code
A study of RLNC as a complement to physical-layer coding”
CodeOn White Paper Feb 2018
8

9. Private and Confidential

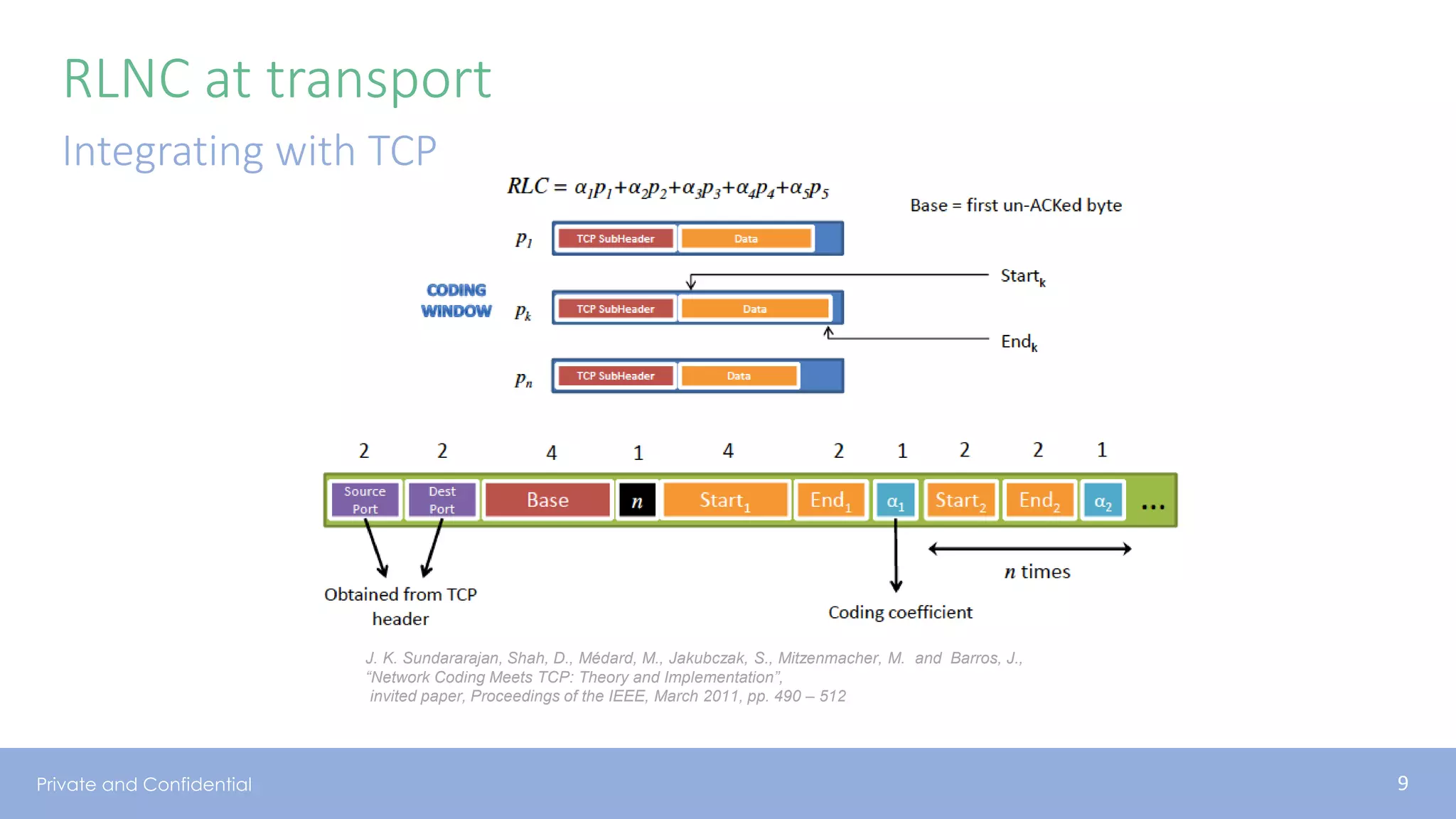

RLNC at transport
Integrating with TCP
J. K. Sundararajan, Shah, D., Médard, M., Jakubczak, S., Mitzenmacher, M. and Barros, J.,
“Network Coding Meets TCP: Theory and Implementation”,
invited paper, Proceedings of the IEEE, March 2011, pp. 490 – 512
9

10. Private and Confidential

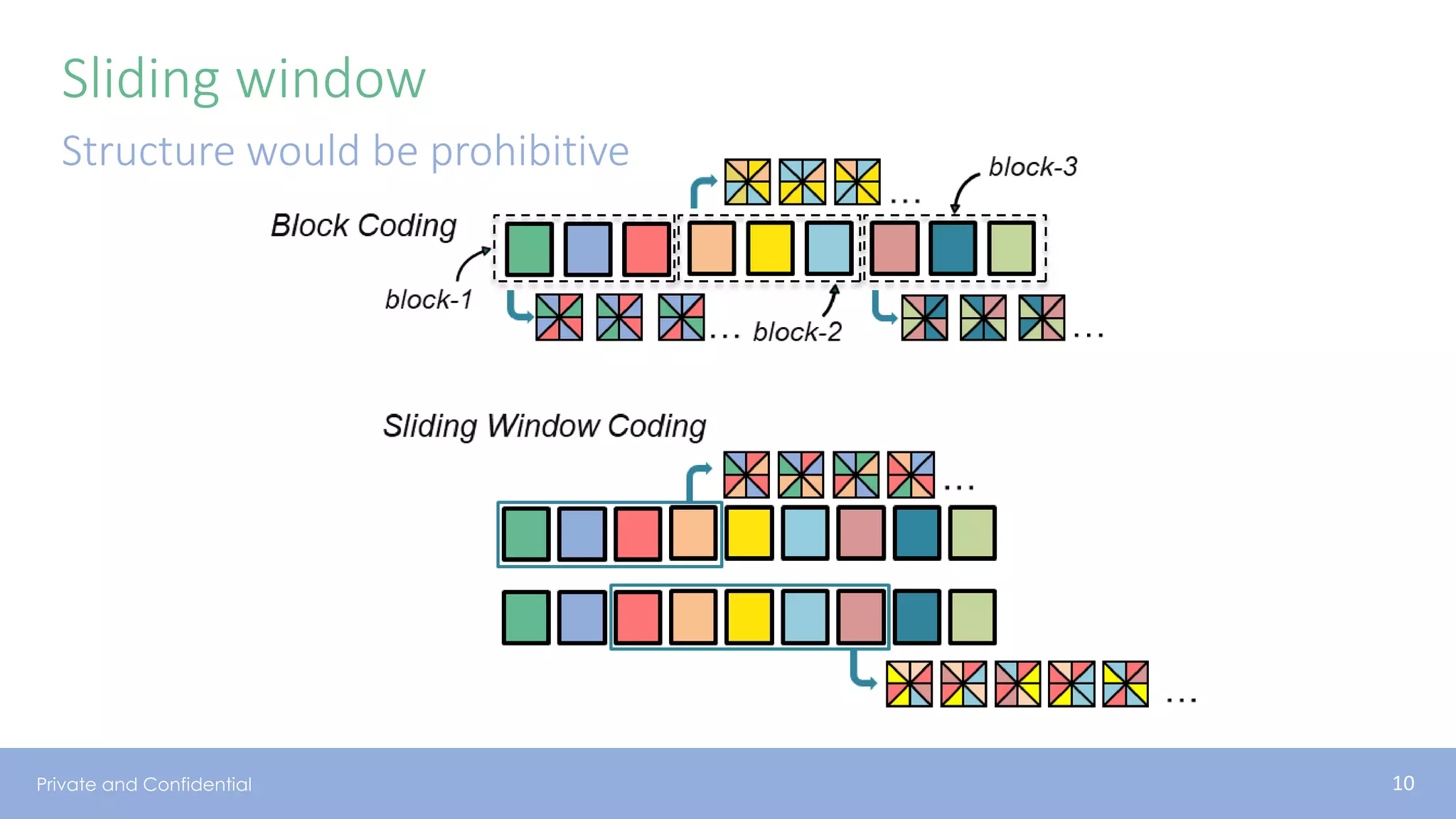

Sliding window
Structure would be prohibitive
10

11. Private and Confidential

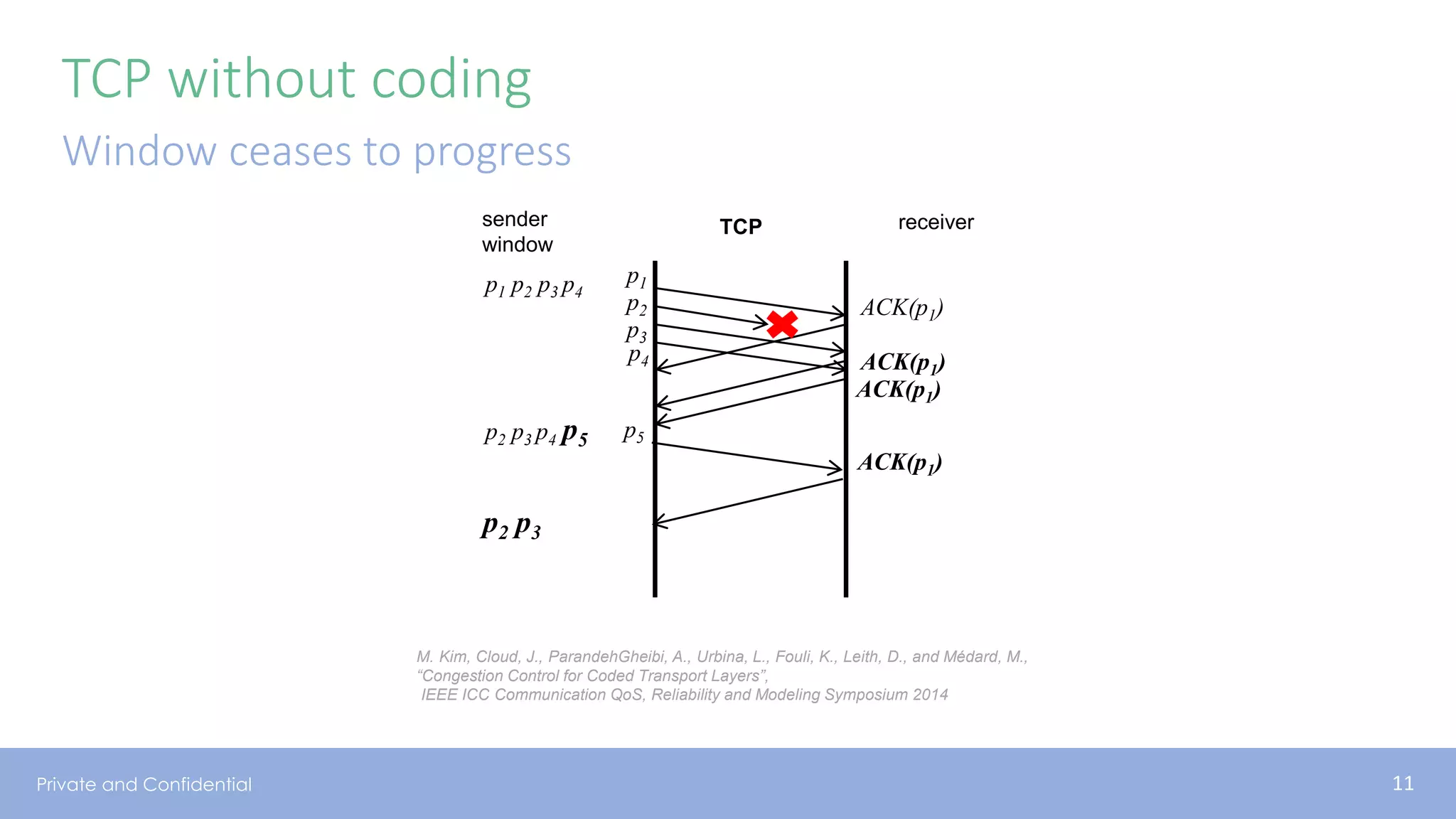

TCP without coding
Window ceases to progress
TCPsender
window
p1 p2 p3 p4
p1
p2
p3
ACK(p1)
ACK(p1)
p2 p3 p4 p5 p5
ACK(p1)
p2 p3
p4
ACK(p1)
receiver
M. Kim, Cloud, J., ParandehGheibi, A., Urbina, L., Fouli, K., Leith, D., and Médard, M.,
“Congestion Control for Coded Transport Layers”,
IEEE ICC Communication QoS, Reliability and Modeling Symposium 2014
11

12. Private and Confidential

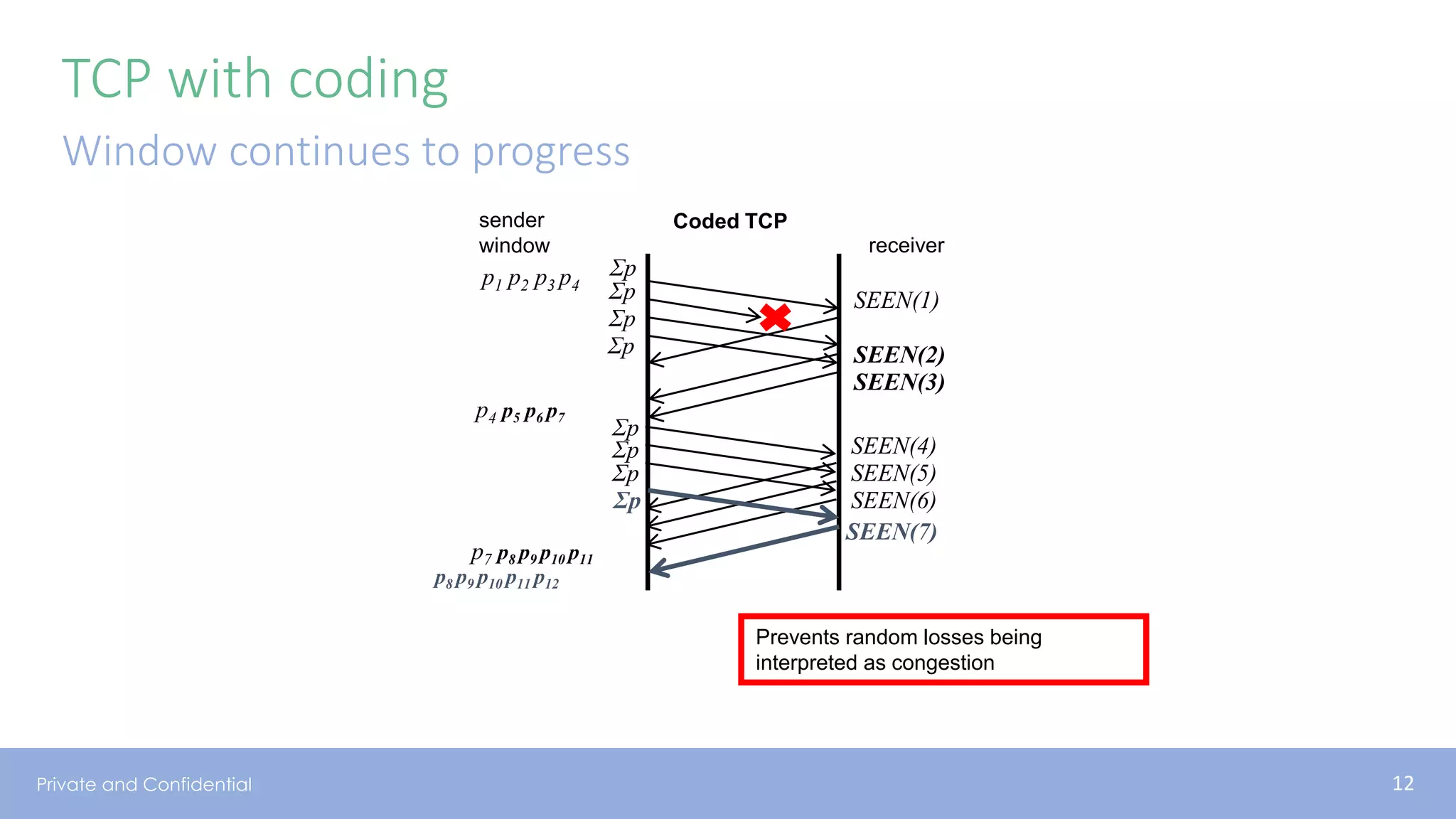

TCP with coding
Window continues to progress
Prevents random losses being
interpreted as congestion
Coded TCPsender
window
p1 p2 p3 p4
Σp
SEEN(1)
SEEN(2)
p4 p5 p6 p7
SEEN(4)
SEEN(5)
SEEN(6)
Σp
Σp
Σp
Σp
Σp
Σp
SEEN(3)
p7 p8 p9 p10 p11
SEEN(7)
Σp
p8 p9 p10 p11 p12
receiver
12

13. Private and Confidential

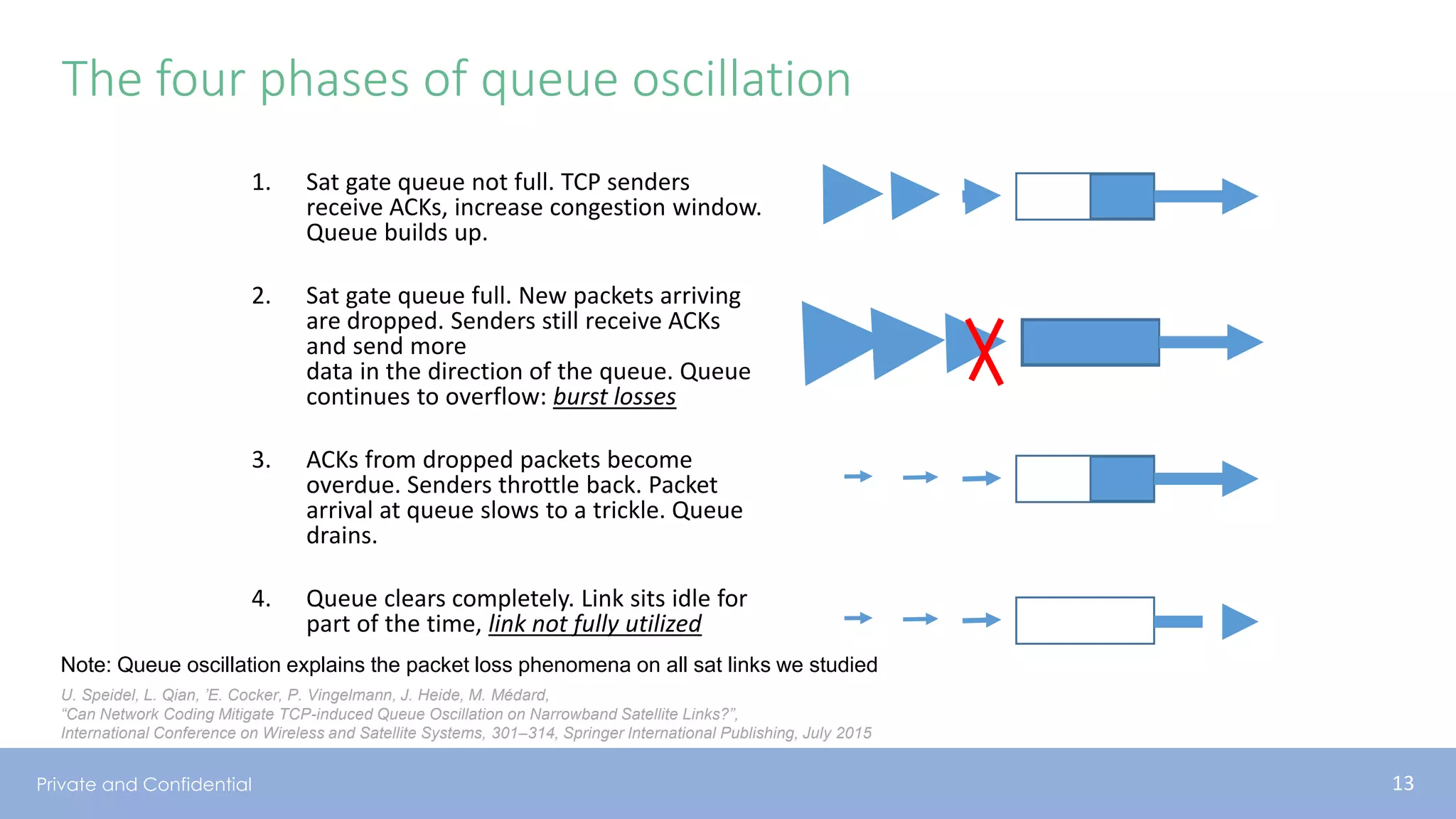

The four phases of queue oscillation
1. Sat gate queue not full. TCP senders
receive ACKs, increase congestion window.
Queue builds up.
2. Sat gate queue full. New packets arriving
are dropped. Senders still receive ACKs
and send more
data in the direction of the queue. Queue
continues to overflow: burst losses
3. ACKs from dropped packets become
overdue. Senders throttle back. Packet
arrival at queue slows to a trickle. Queue
drains.
4. Queue clears completely. Link sits idle for
part of the time, link not fully utilized
Note: Queue oscillation explains the packet loss phenomena on all sat links we studied
U. Speidel, L. Qian, ’E. Cocker, P. Vingelmann, J. Heide, M. Médard,
“Can Network Coding Mitigate TCP-induced Queue Oscillation on Narrowband Satellite Links?”,
International Conference on Wireless and Satellite Systems, 301–314, Springer International Publishing, July 2015
13

14. Private and Confidential

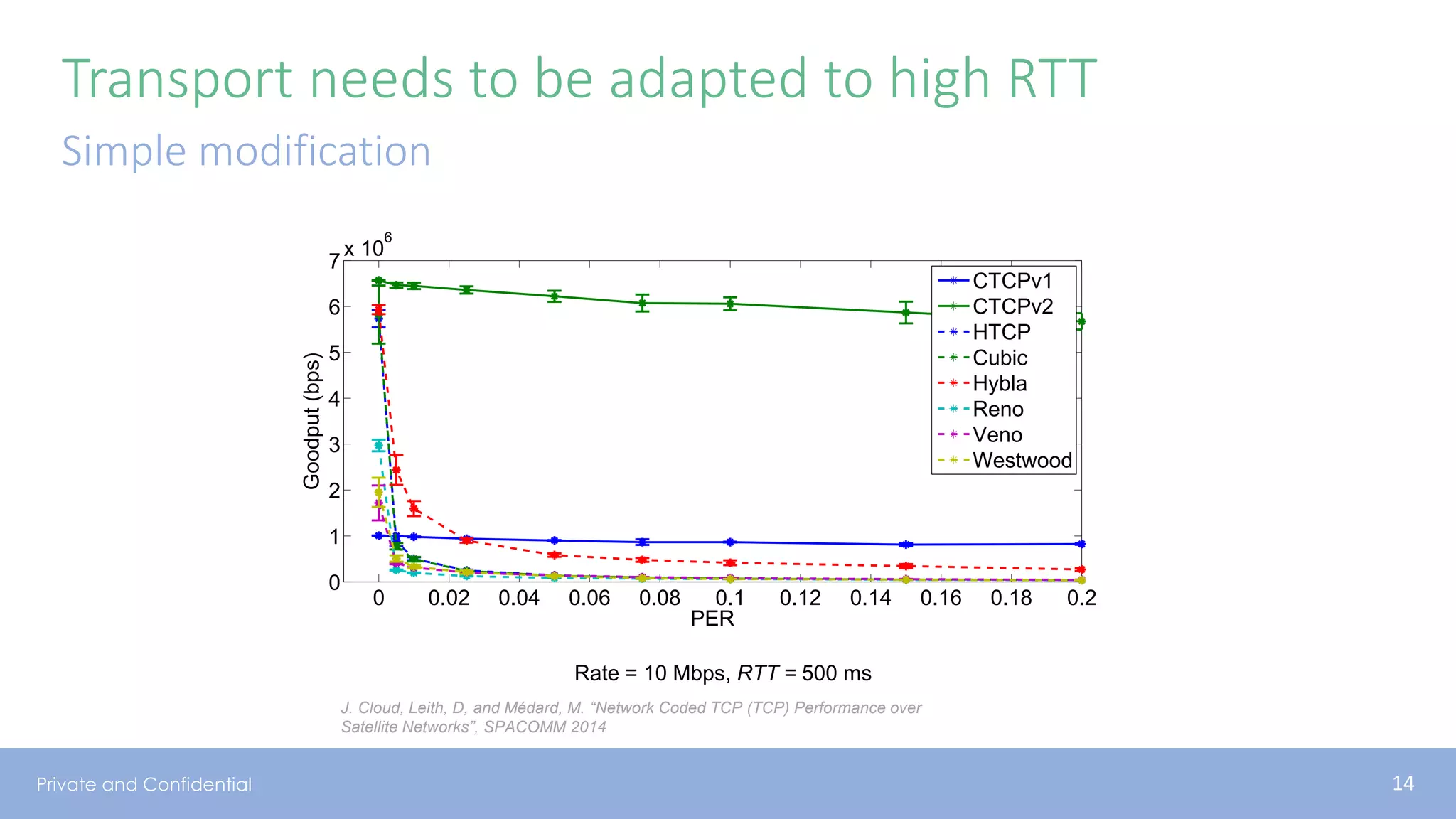

Transport needs to be adapted to high RTT
Simple modification
0 0.02 0.04 0.06 0.08 0.1 0.12 0.14 0.16 0.18 0.2
0
1
2
3
4
5
6
7
x 10
6
PER
Goodput(bps)
CTCPv1
CTCPv2
HTCP
Cubic
Hybla
Reno
Veno
Westwood
Rate = 10 Mbps, RTT = 500 ms
J. Cloud, Leith, D, and Médard, M. “Network Coded TCP (TCP) Performance over
Satellite Networks”, SPACOMM 2014
14

15. Private and Confidential

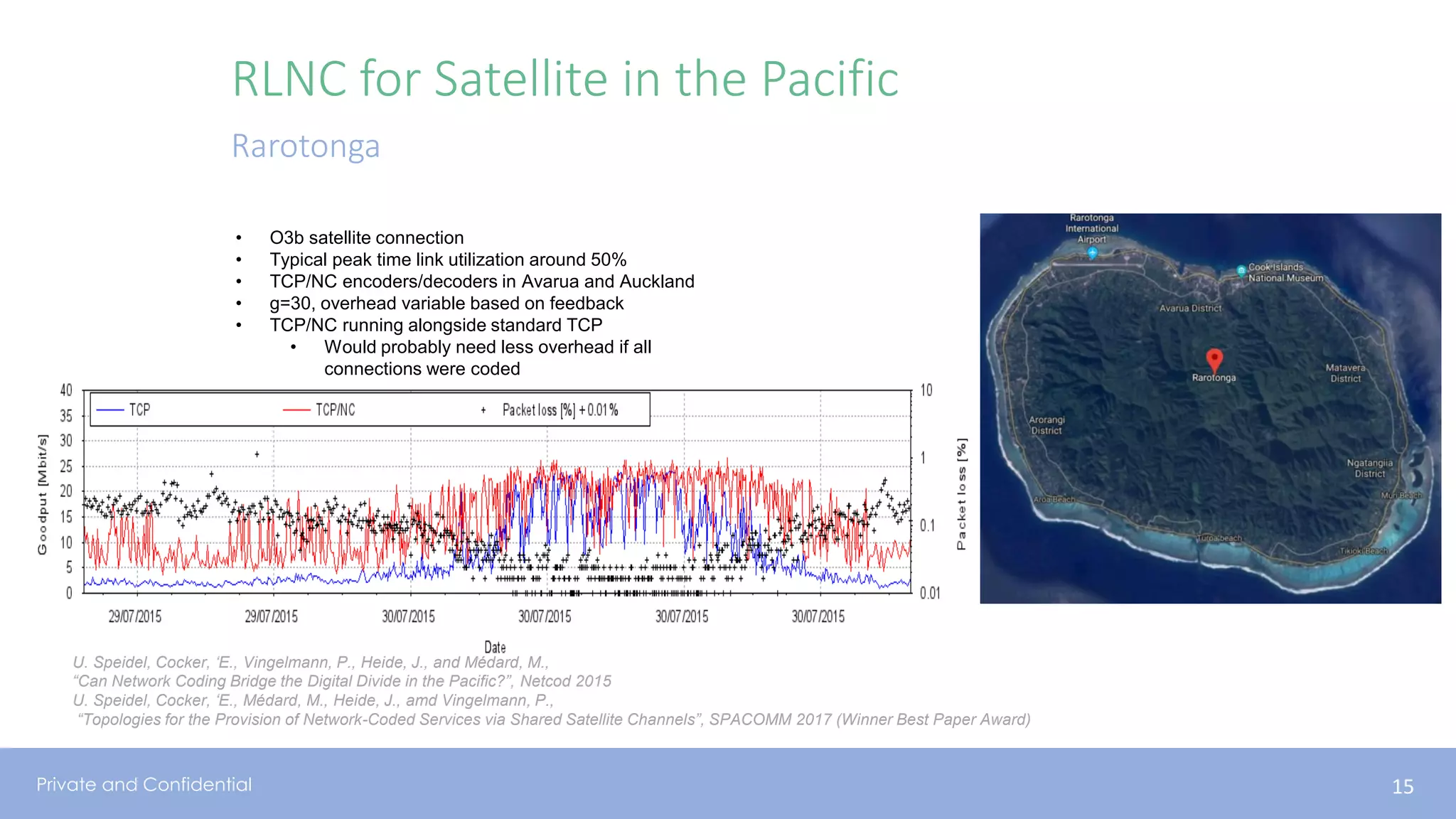

RLNC for Satellite in the Pacific
15
• O3b satellite connection
• Typical peak time link utilization around 50%
• TCP/NC encoders/decoders in Avarua and Auckland
• g=30, overhead variable based on feedback
• TCP/NC running alongside standard TCP
• Would probably need less overhead if all
connections were coded
Rarotonga
U. Speidel, Cocker, ‘E., Vingelmann, P., Heide, J., and Médard, M.,
“Can Network Coding Bridge the Digital Divide in the Pacific?”, Netcod 2015
U. Speidel, Cocker, ‘E., Médard, M., Heide, J., amd Vingelmann, P.,
“Topologies for the Provision of Network-Coded Services via Shared Satellite Channels”, SPACOMM 2017 (Winner Best Paper Award)

16. Private and Confidential

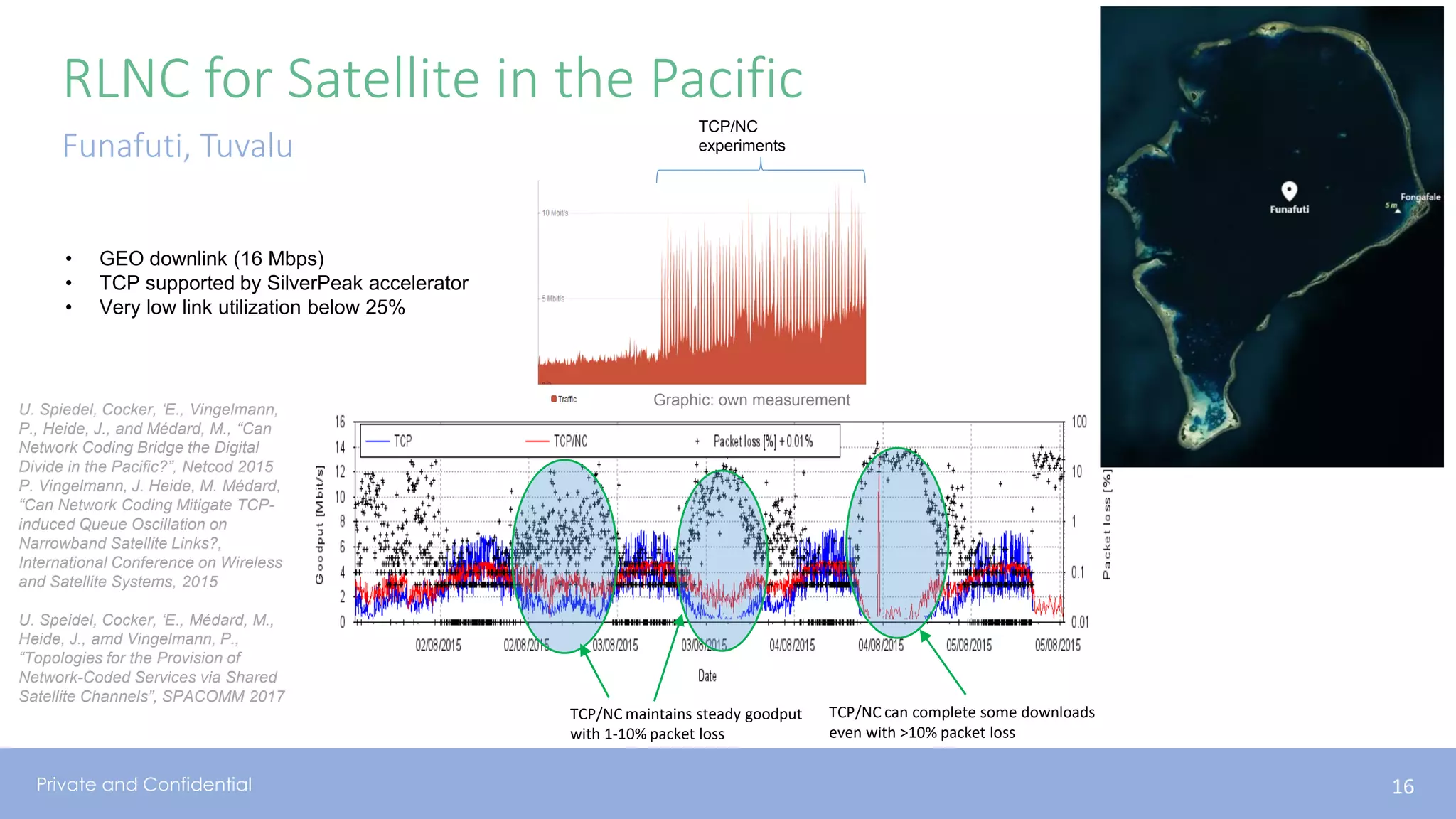

RLNC for Satellite in the Pacific
Funafuti, Tuvalu
16
• GEO downlink (16 Mbps)
• TCP supported by SilverPeak accelerator
• Very low link utilization below 25%
TCP/NC maintains steady goodput
with 1-10% packet loss
TCP/NC can complete some downloads
even with >10% packet loss
U. Spiedel, Cocker, ‘E., Vingelmann,
P., Heide, J., and Médard, M., “Can
Network Coding Bridge the Digital
Divide in the Pacific?”, Netcod 2015
P. Vingelmann, J. Heide, M. Médard,
“Can Network Coding Mitigate TCP-
induced Queue Oscillation on
Narrowband Satellite Links?,
International Conference on Wireless
and Satellite Systems, 2015
U. Speidel, Cocker, ‘E., Médard, M.,
Heide, J., amd Vingelmann, P.,
“Topologies for the Provision of
Network-Coded Services via Shared
Satellite Channels”, SPACOMM 2017
TCP/NC
experiments
Graphic: own measurement

17. Private and Confidential

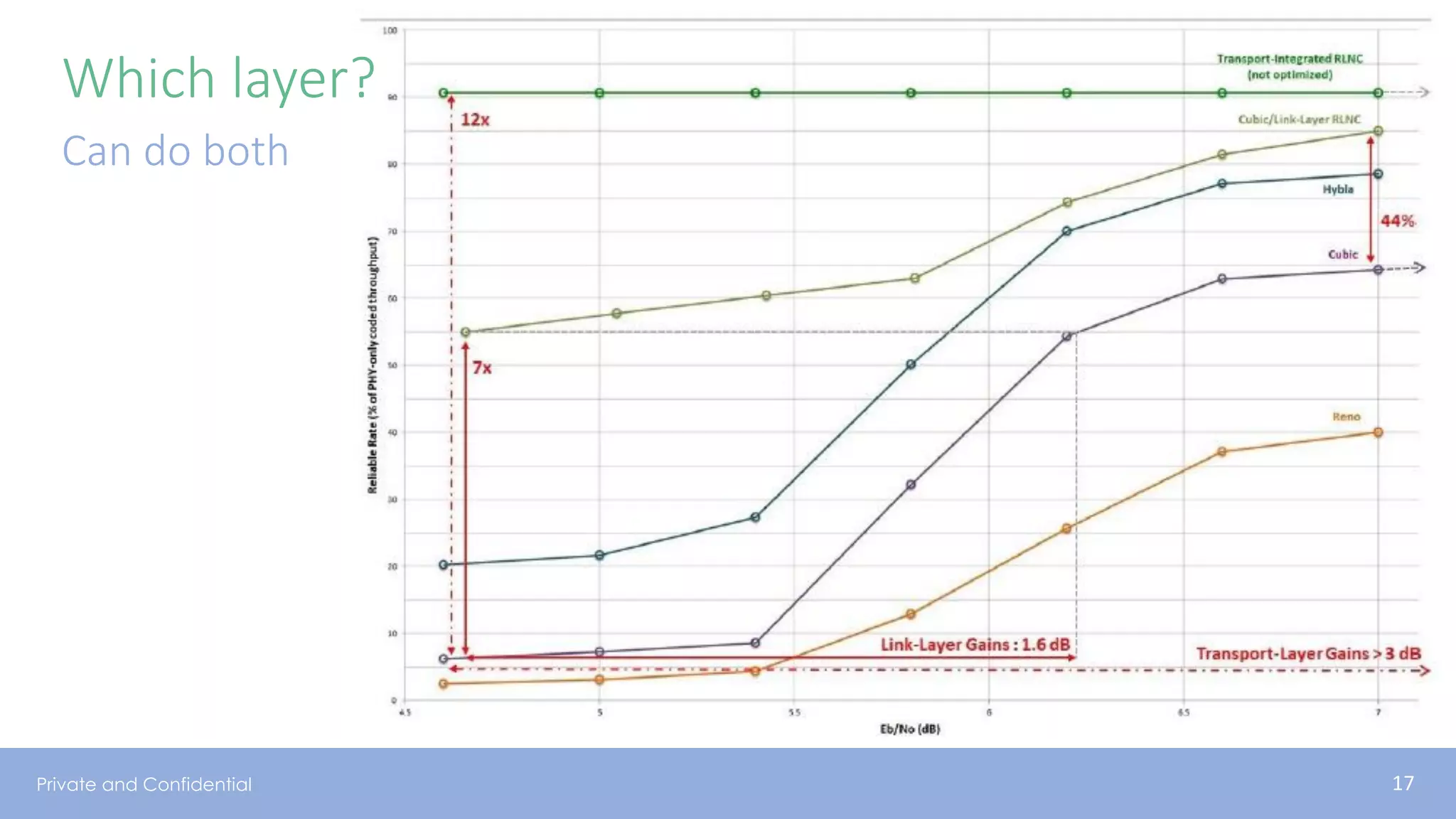

Which layer?
Can do both
17

18. Private and Confidential

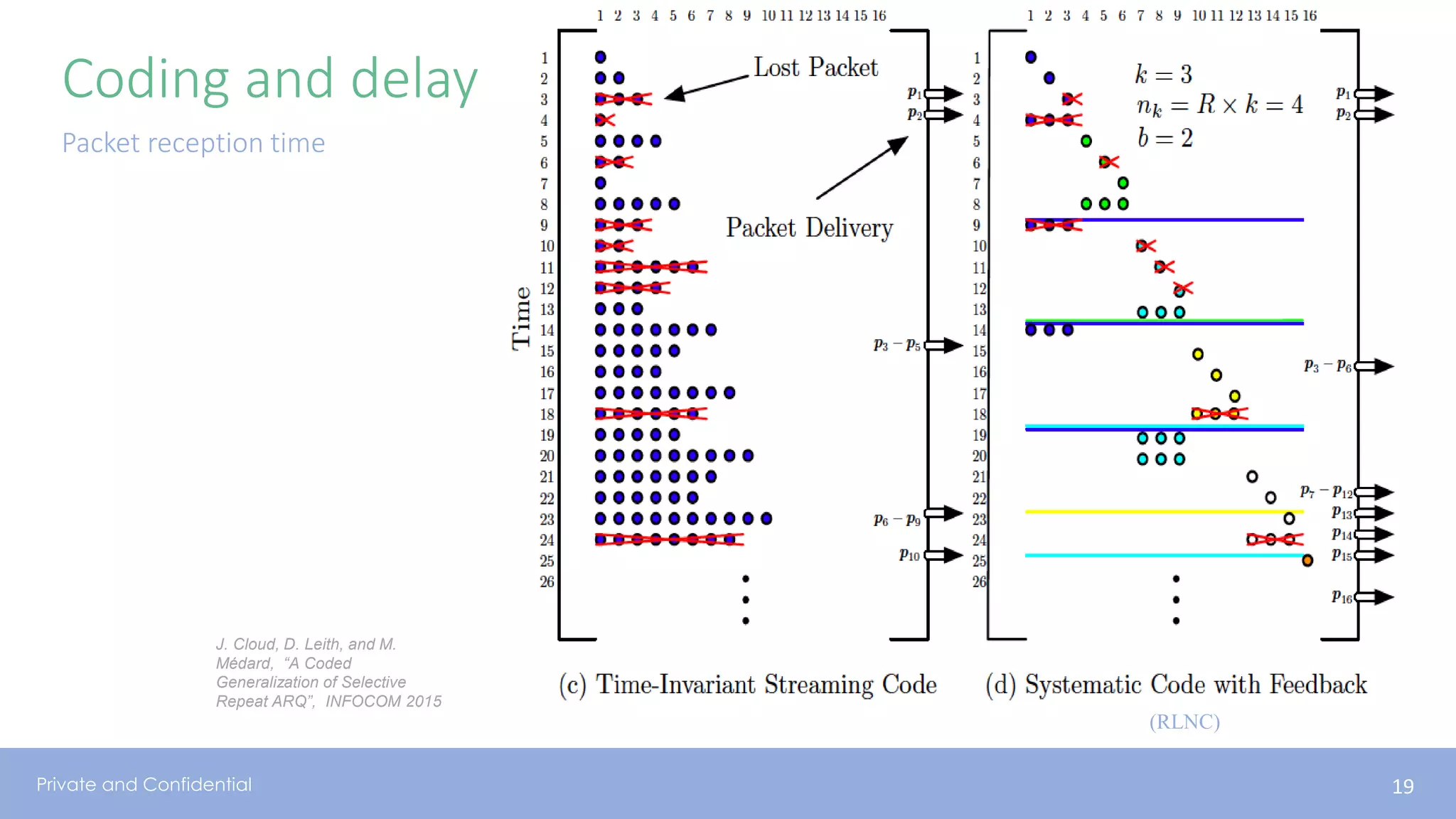

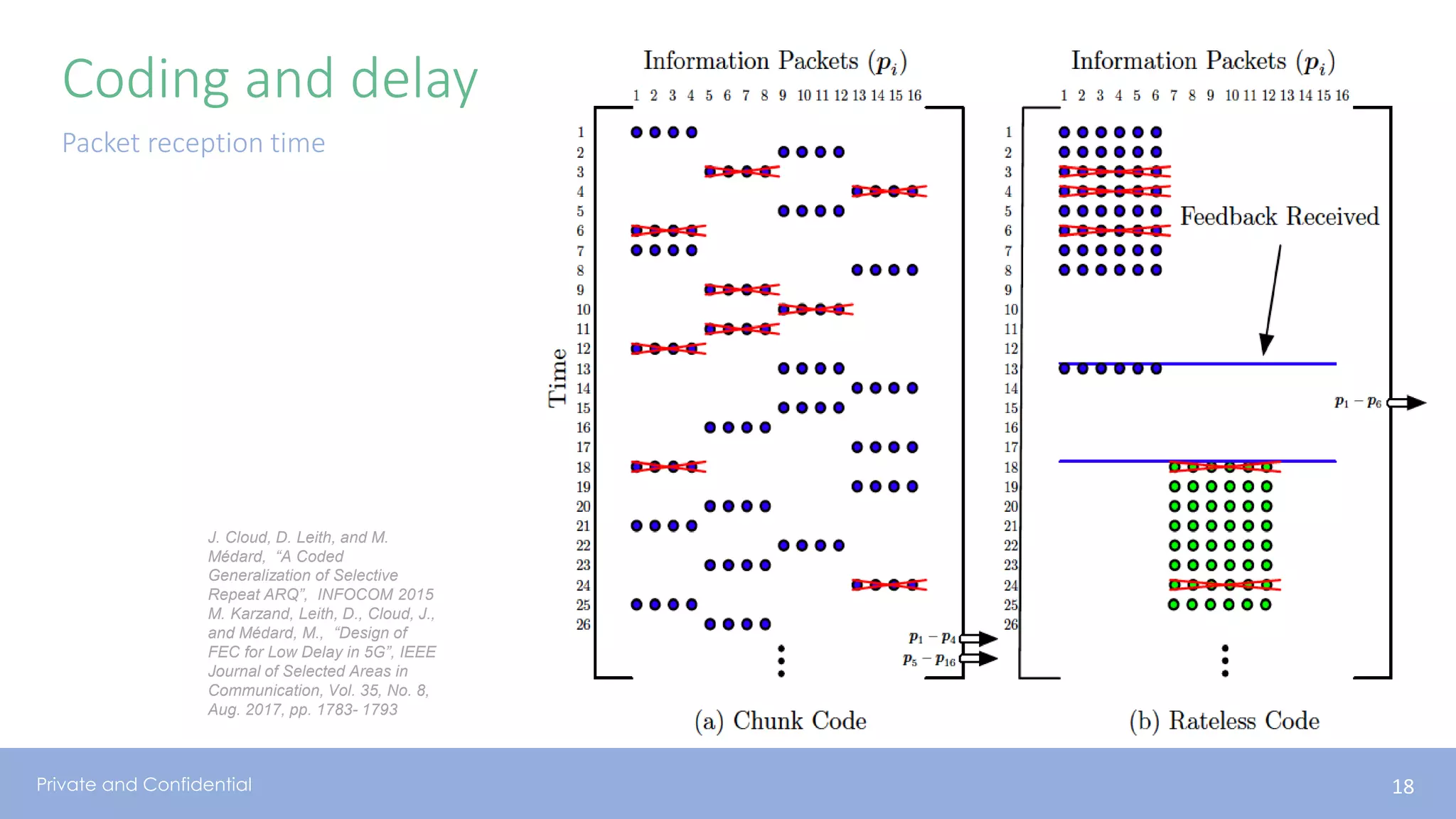

Coding and delay
Packet reception time
18
J. Cloud, D. Leith, and M.
Médard, “A Coded
Generalization of Selective
Repeat ARQ”, INFOCOM 2015
M. Karzand, Leith, D., Cloud, J.,
and Médard, M., “Design of
FEC for Low Delay in 5G”, IEEE
Journal of Selected Areas in
Communication, Vol. 35, No. 8,
Aug. 2017, pp. 1783- 1793

19. Private and Confidential
Coding and delay
Packet reception time
19
J. Cloud, D. Leith, and M.
Médard, “A Coded
Generalization of Selective
Repeat ARQ”, INFOCOM 2015
(RLNC)

20. Private and Confidential

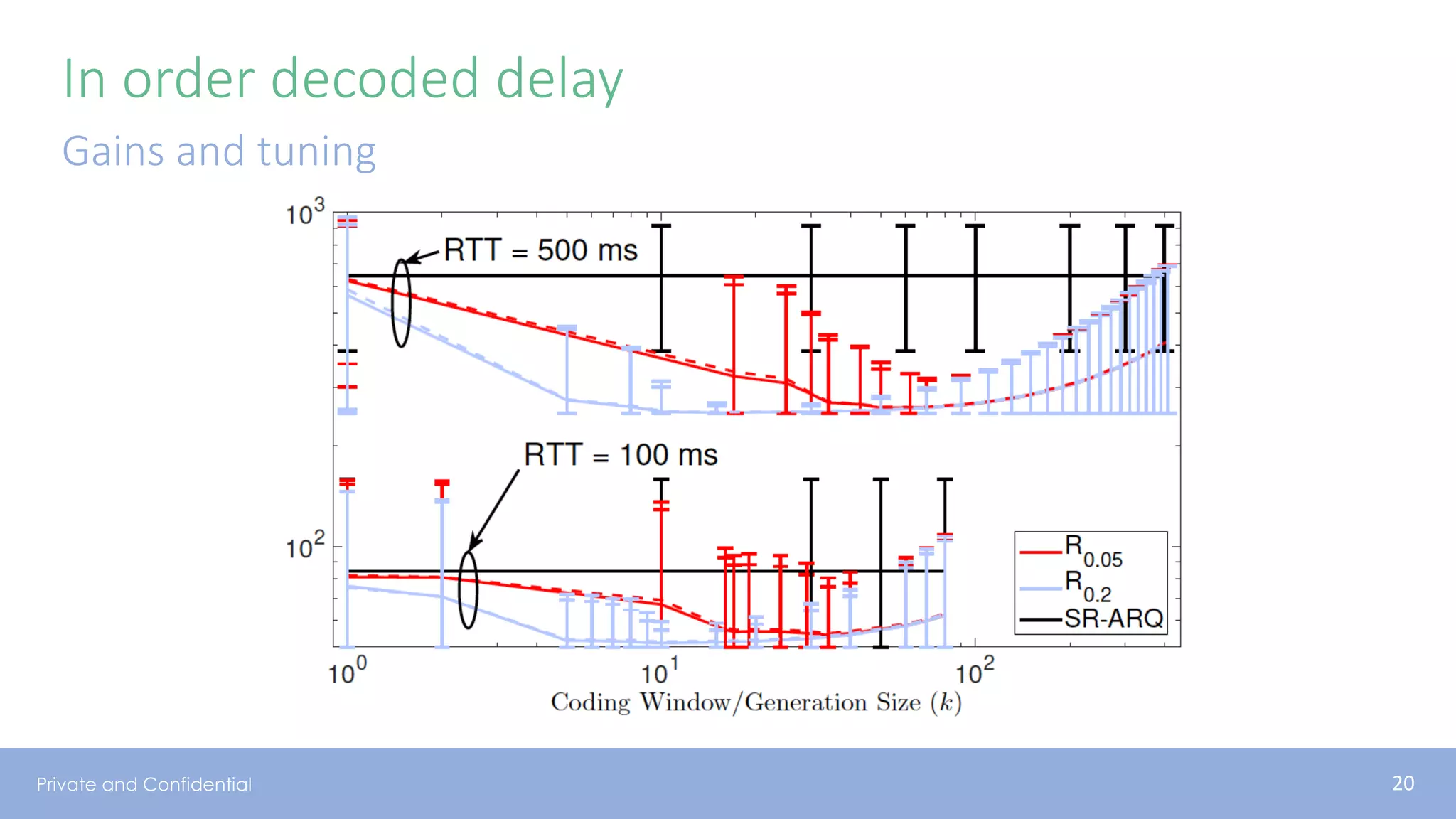

In order decoded delay
Gains and tuning
20

21. Private and Confidential

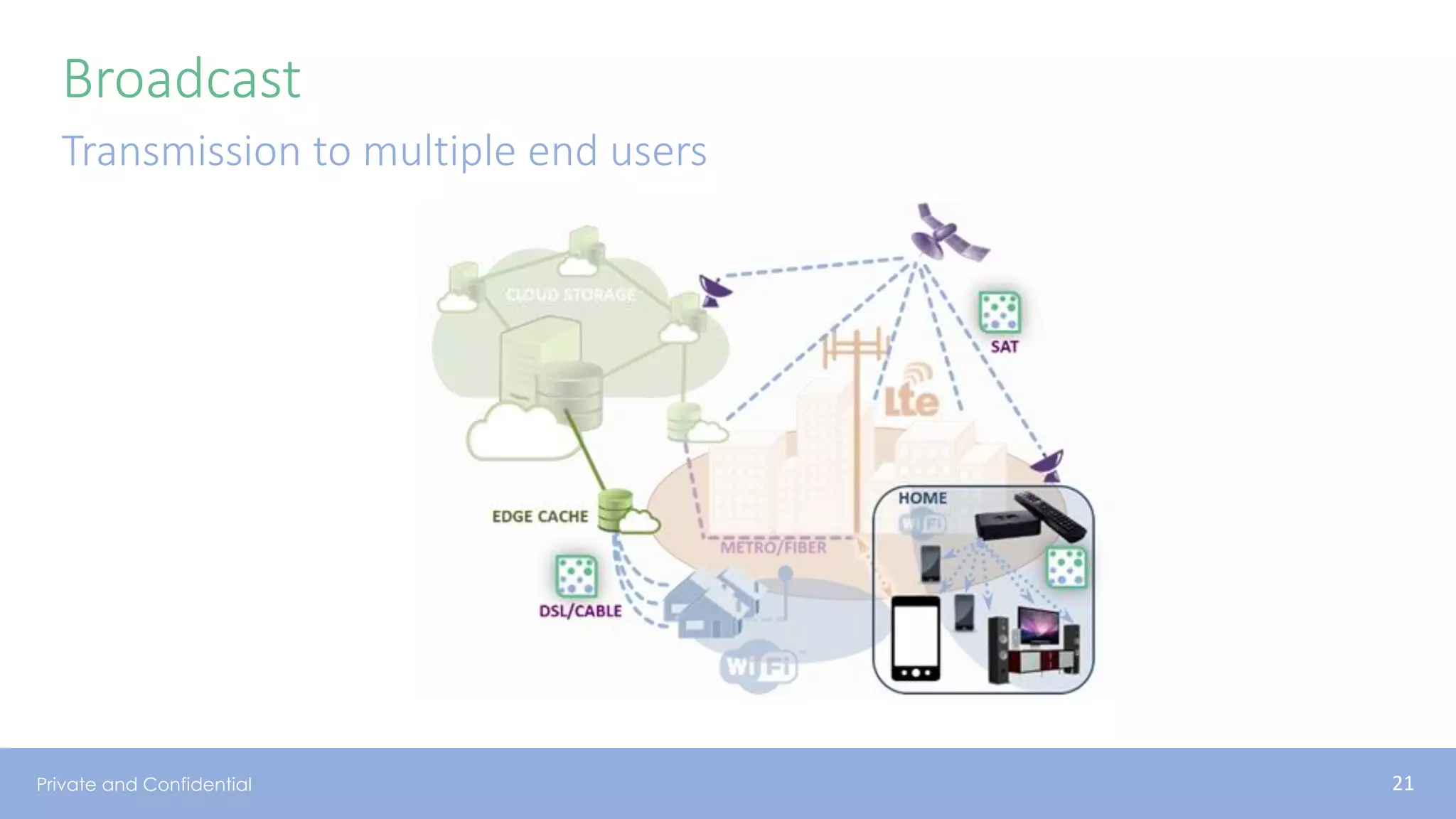

Broadcast
Transmission to multiple end users
21

22. Private and Confidential

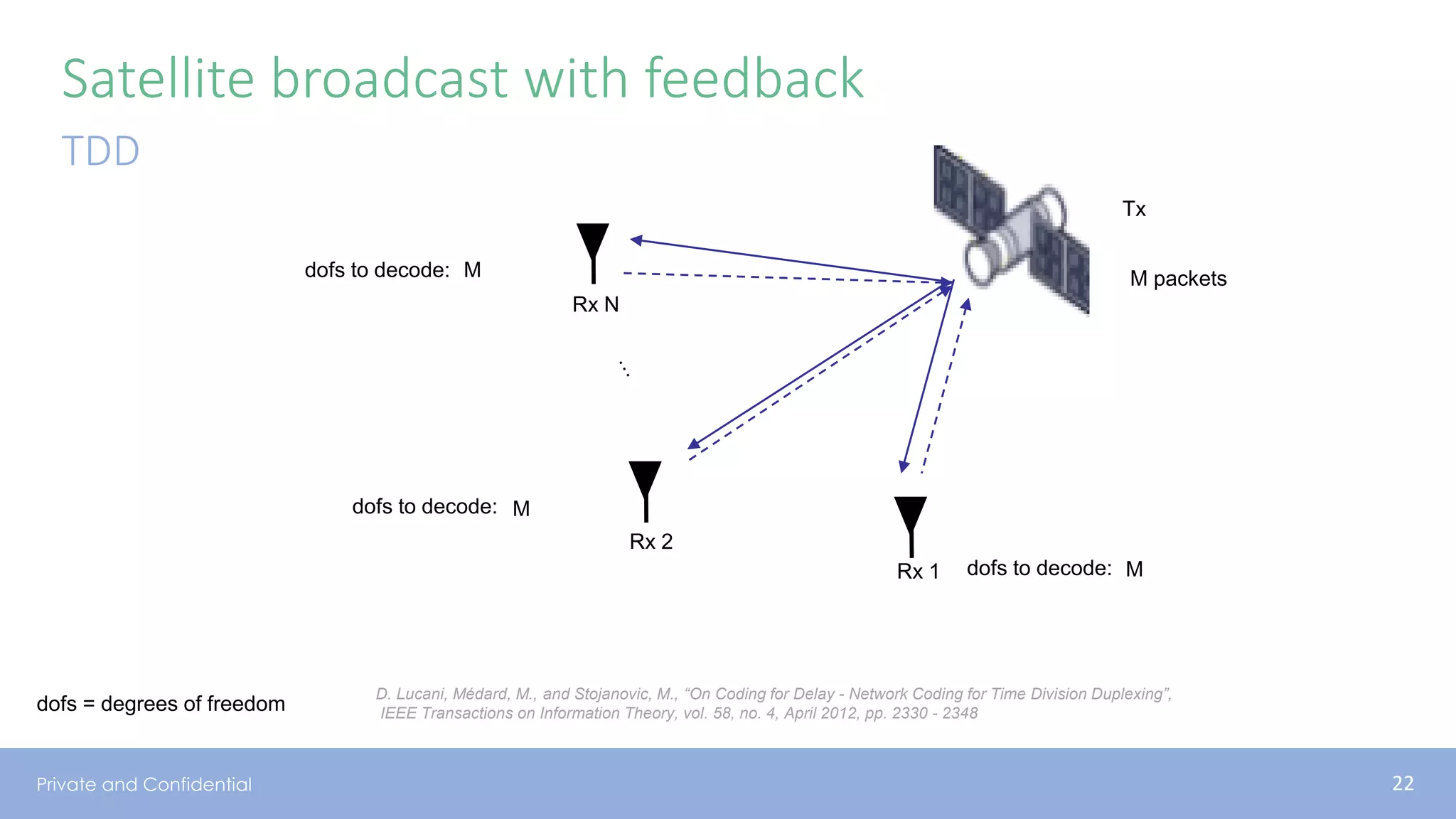

Satellite broadcast with feedback
TDD
dofs to decode:
dofs to decode:
dofs to decode:Rx 1
Rx 2
Rx N
Tx
M packets
M
M
M
dofs = degrees of freedom
D. Lucani, Médard, M., and Stojanovic, M., “On Coding for Delay - Network Coding for Time Division Duplexing”,
IEEE Transactions on Information Theory, vol. 58, no. 4, April 2012, pp. 2330 - 2348
22

23. Private and Confidential

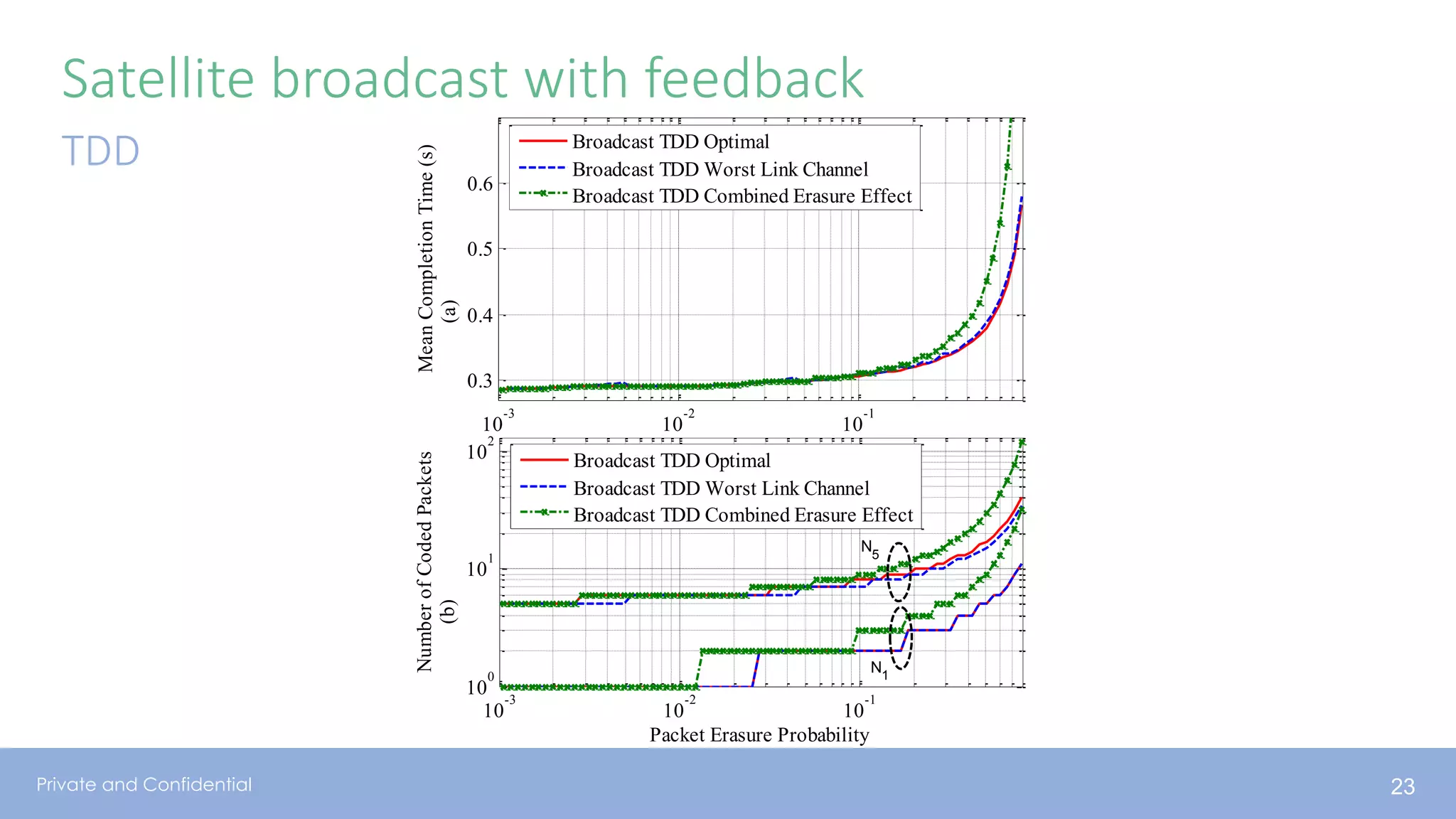

Satellite broadcast with feedback
TDD
23
10
-3
10
-2
10
-1
0.3
0.4
0.5
0.6
MeanCompletionTime(s)
(a)
10
-3
10
-2
10
-1
10
0
10
1
10
2
Packet Erasure Probability
NumberofCodedPackets
(b)
Broadcast TDD Optimal
Broadcast TDD Worst Link Channel
Broadcast TDD Combined Erasure Effect
Broadcast TDD Optimal
Broadcast TDD Worst Link Channel
Broadcast TDD Combined Erasure Effect
N1
N5

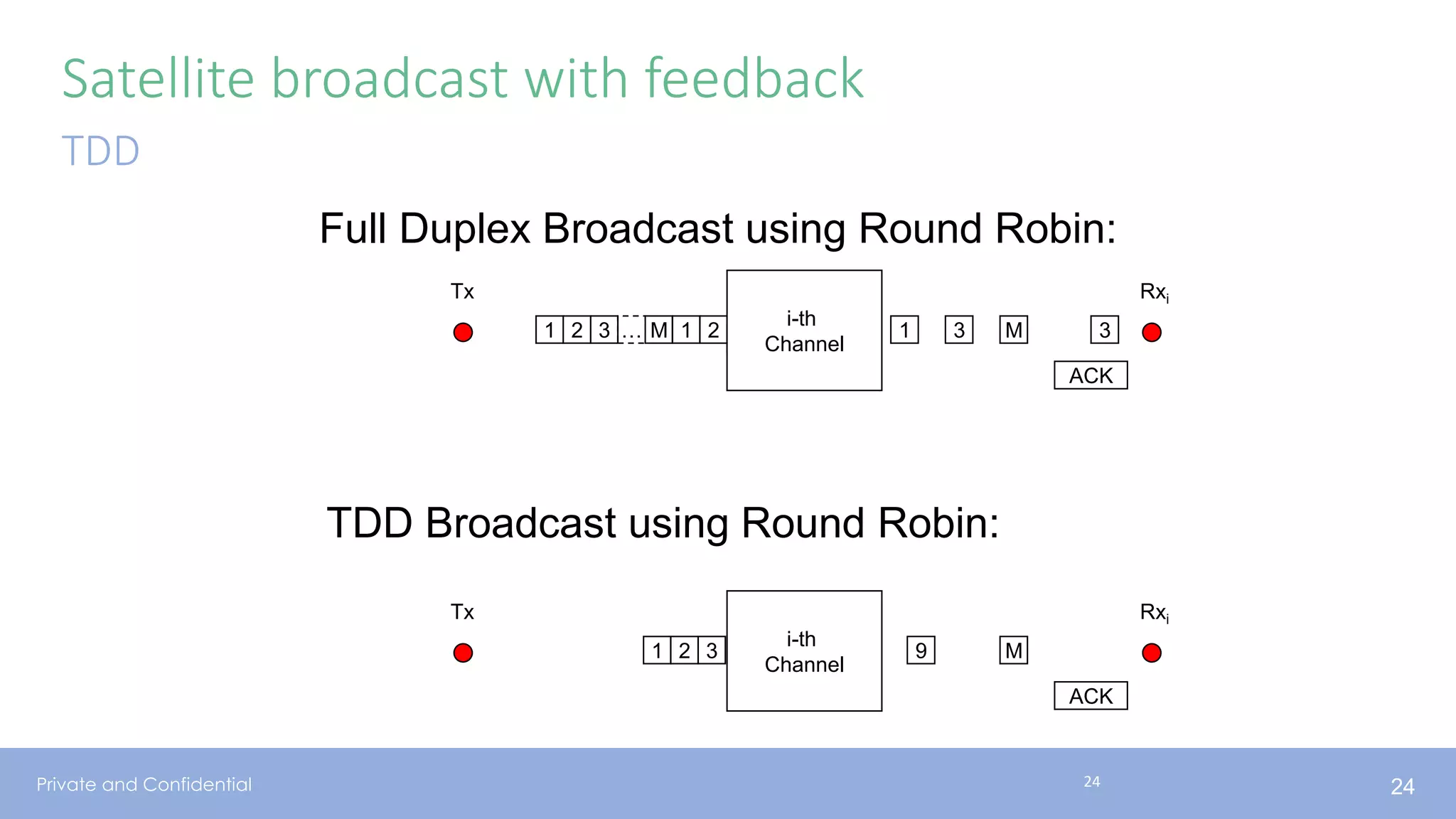

24. Private and Confidential
Satellite broadcast with feedback
TDD
2424
Full Duplex Broadcast using Round Robin:
Tx Rxi
1 …2 3 1M
ACK
2 3
i-th
Channel
1 3 M 3
TDD Broadcast using Round Robin:
Tx Rxi
1 2 3
ACK
i-th
Channel
9 M

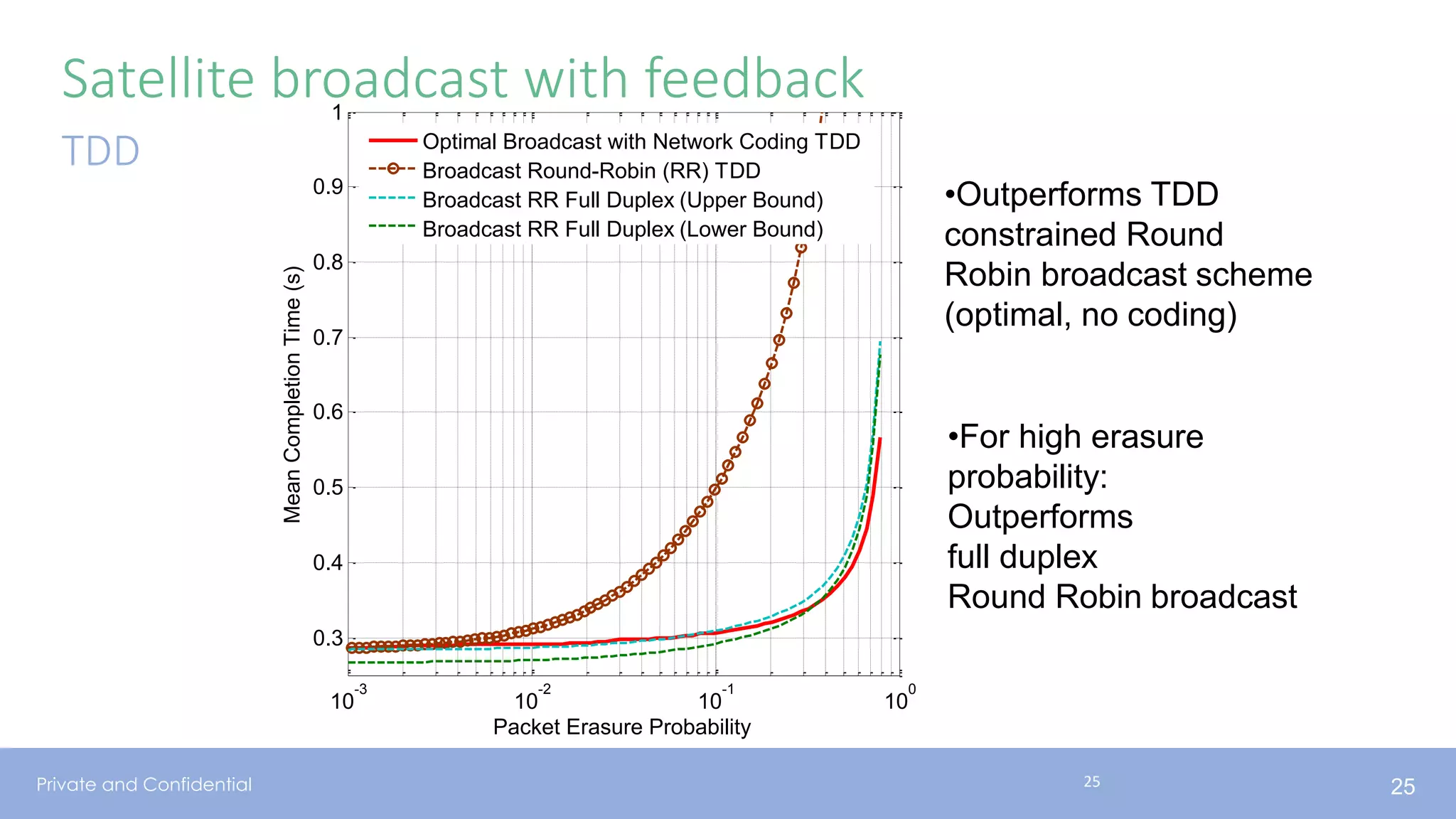

25. Private and Confidential
Satellite broadcast with feedback
TDD
2525
10
-3
10
-2
10
-1
10
0
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
Packet Erasure Probability
MeanCompletionTime(s)
Optimal Broadcast with Network Coding TDD
Broadcast Round-Robin (RR) TDD
Broadcast RR Full Duplex (Upper Bound)
Broadcast RR Full Duplex (Lower Bound)
•Outperforms TDD
constrained Round
Robin broadcast scheme
(optimal, no coding)
•For high erasure
probability:
Outperforms
full duplex
Round Robin broadcast

26. Private and Confidential

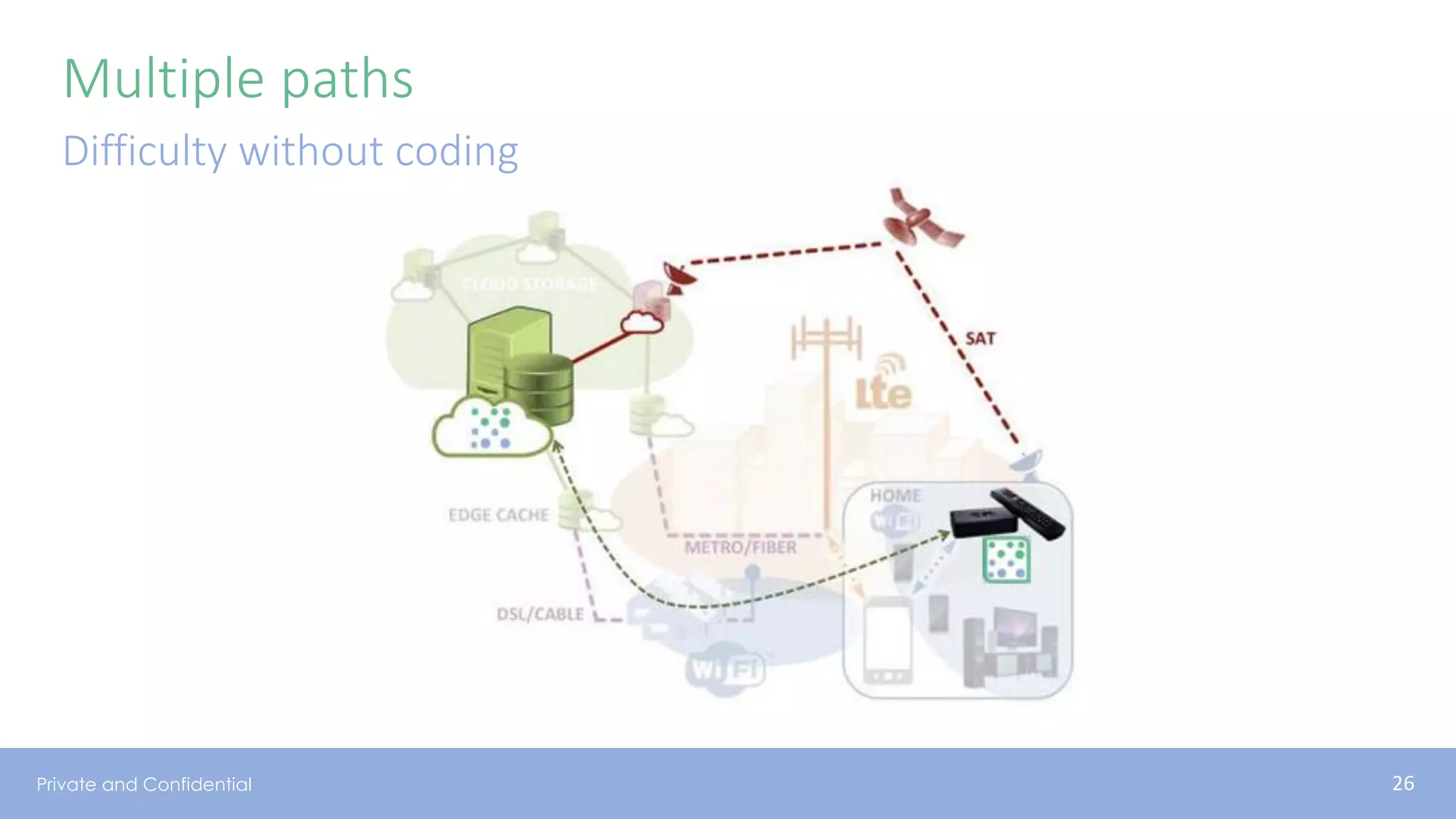

Multiple paths
Difficulty without coding
26

27. Private and Confidential

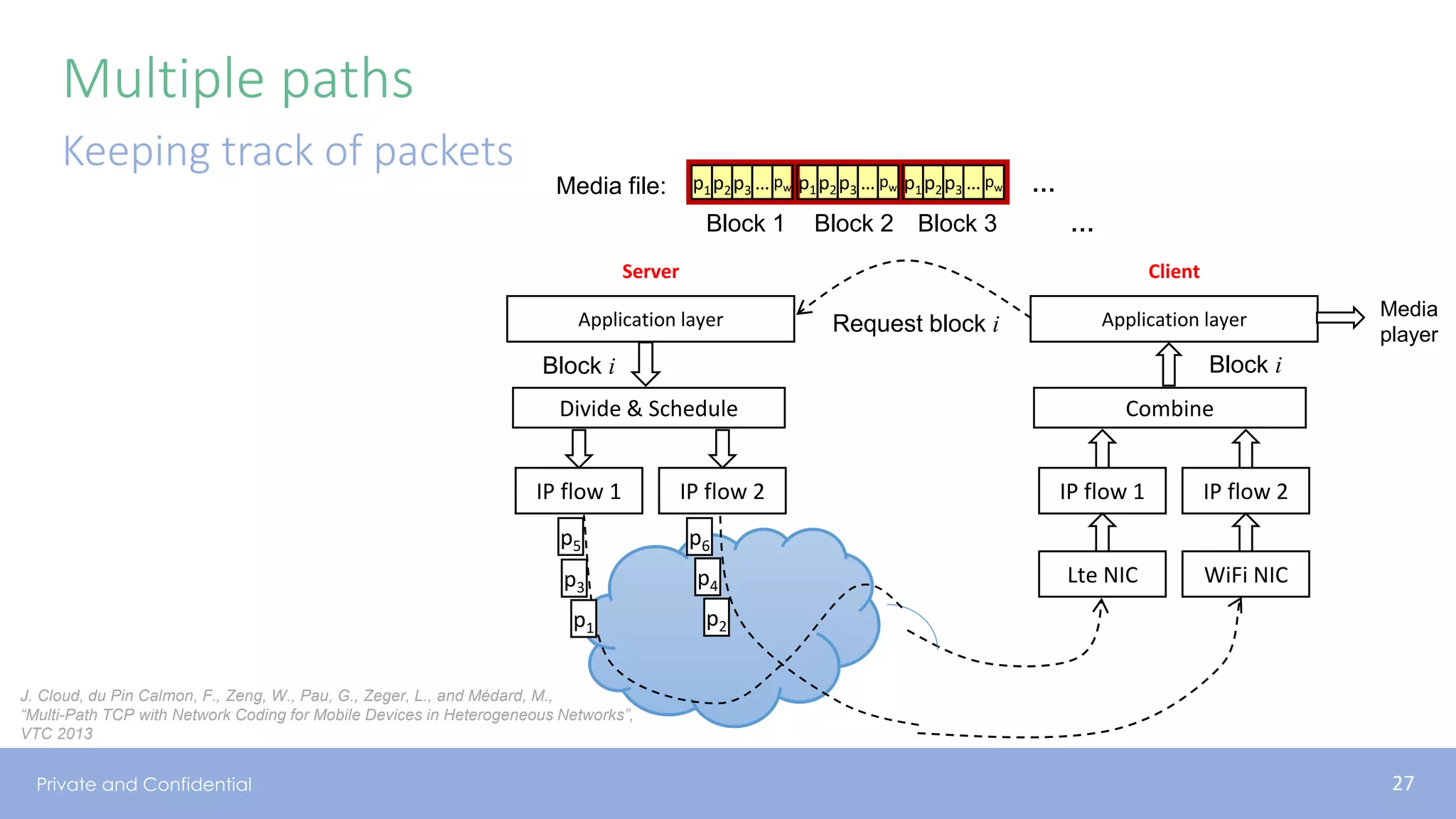

Multiple paths
Keeping track of packets
IP flow 1 IP flow 2
Application layer
IP flow 1 IP flow 2
Application layer
Server Client
Lte NIC WiFi NIC
Block i Block i
Divide & Schedule Combine
Media
player
p1p2p3 … pw p1p2p3 … pw p1p2p3 … pw
Block 1 Block 2 Block 3 …
…
Request block i
Media file:
p1
p3
p5
p2
p4
p6
J. Cloud, du Pin Calmon, F., Zeng, W., Pau, G., Zeger, L., and Médard, M.,
“Multi-Path TCP with Network Coding for Mobile Devices in Heterogeneous Networks”,
VTC 2013
27

28. Private and Confidential

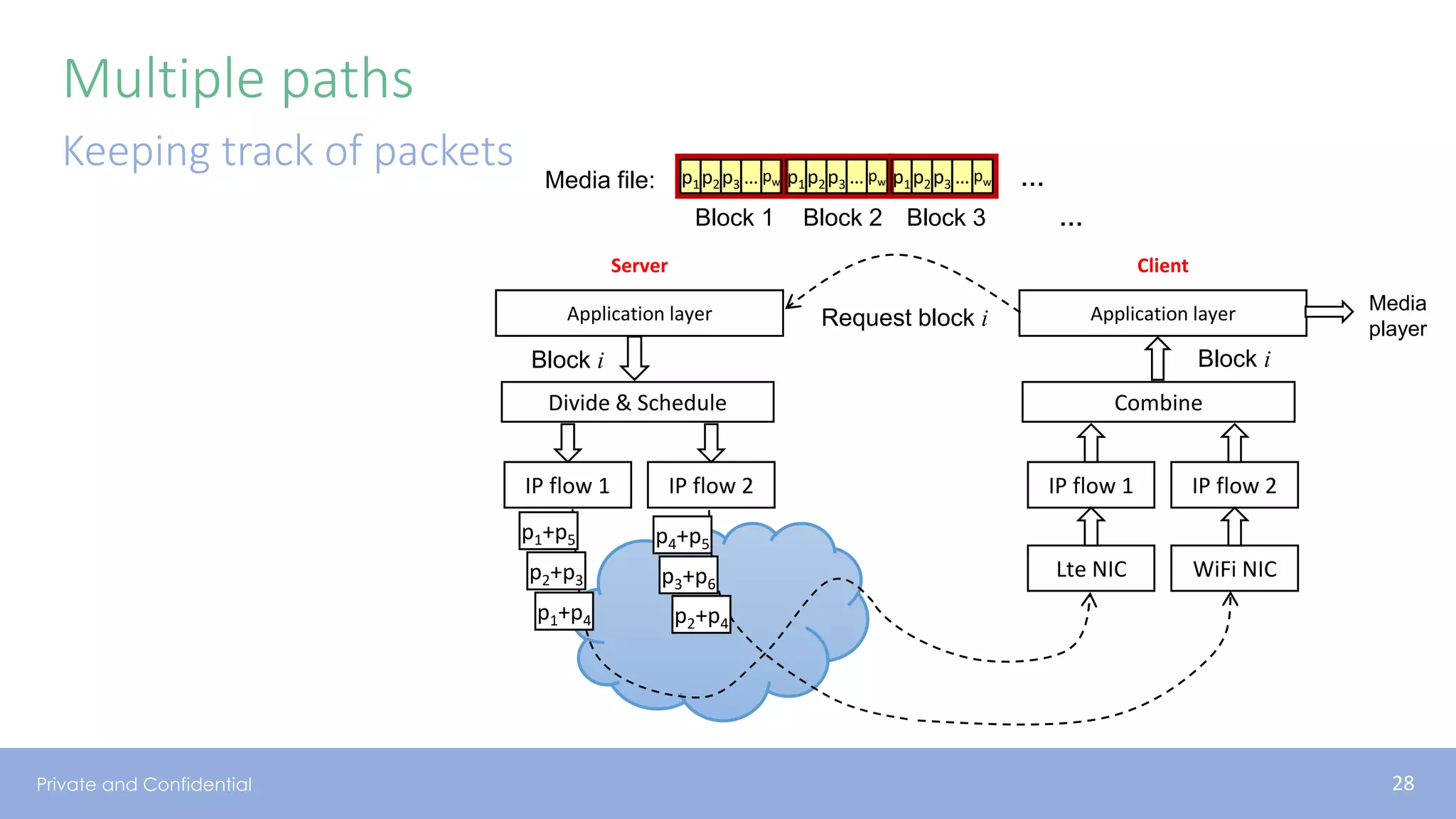

Multiple paths
Keeping track of packets
IP flow 1 IP flow 2
Application layer
IP flow 1 IP flow 2
Application layer
Server Client
Lte NIC WiFi NIC
Block i Block i
Divide & Schedule Combine
Media
player
p1p2p3 … pw p1p2p3 … pw p1p2p3 … pw
Block 1 Block 2 Block 3 …
…
Request block i
Media file:
p1+p4
p2+p3
p1+p5
p2+p4
p3+p6
p4+p5
28

29. Private and Confidential

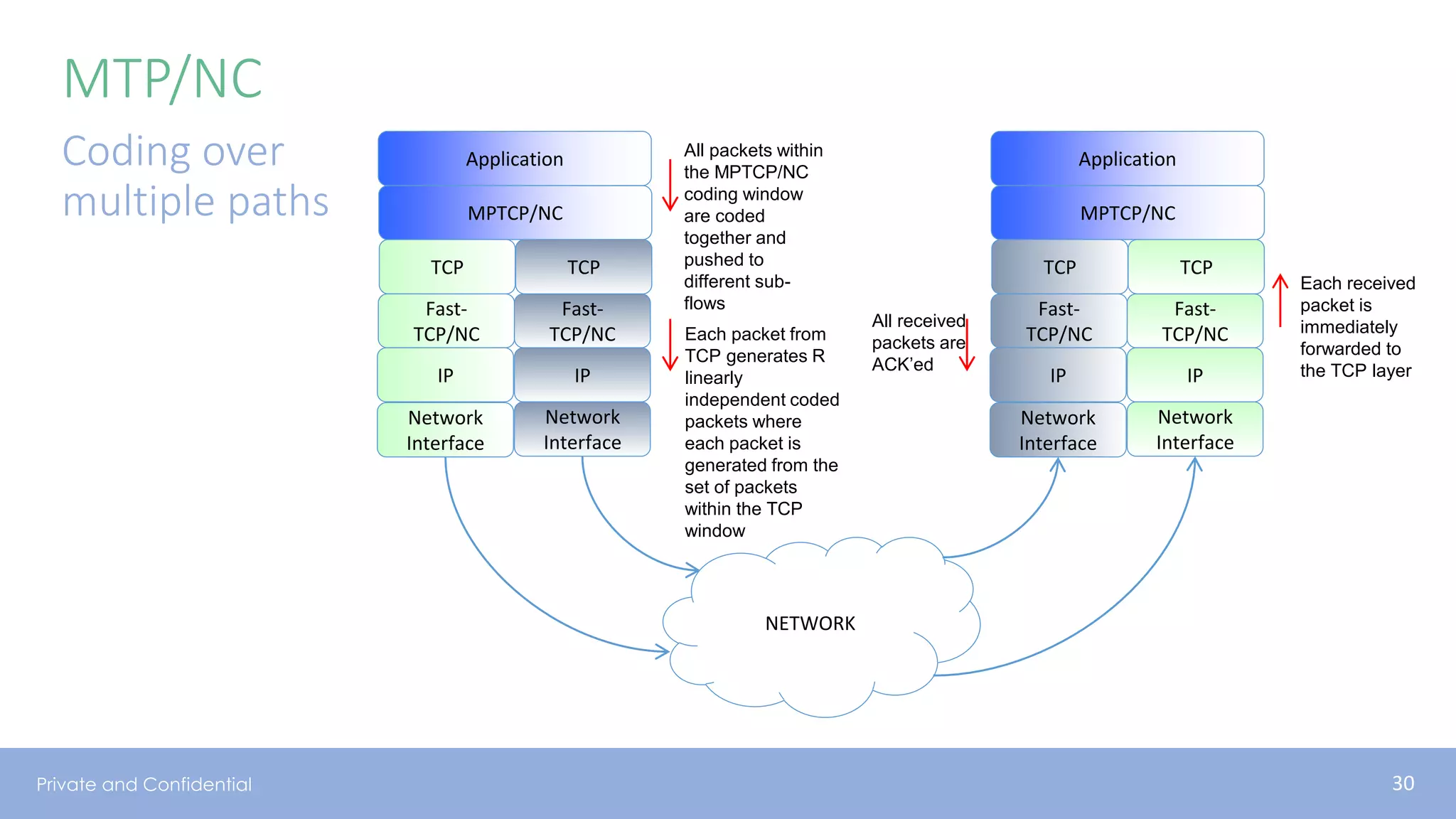

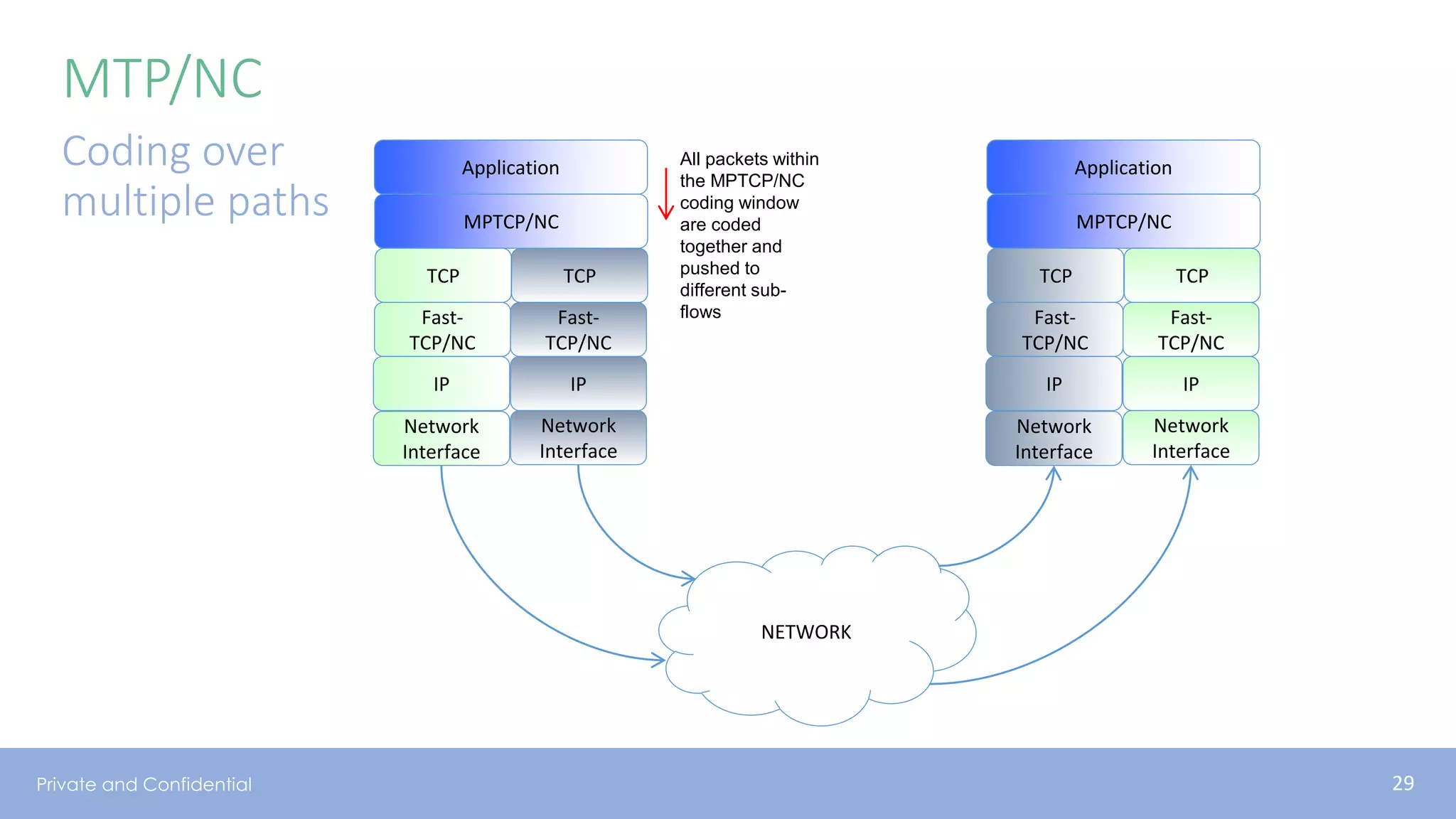

MTP/NC
Coding over
multiple paths
All packets within
the MPTCP/NC
coding window
are coded
together and
pushed to
different sub-
flows
Application
MPTCP/NC
TCP TCP
Fast-
TCP/NC
Fast-
TCP/NC
IP IP
NETWORK
Network
Interface
Network
Interface
Application
MPTCP/NC
TCP TCP
Fast-
TCP/NC
Fast-
TCP/NC
IP IP
Network
Interface
Network
Interface
Network Coding and Reliable Communications Group
29

30. Private and Confidential
MTP/NC
Coding over
multiple paths
All received
packets are
ACK’ed
All packets within
the MPTCP/NC
coding window
are coded
together and
pushed to
different sub-
flows
Each packet from
TCP generates R
linearly
independent coded
packets where
each packet is
generated from the
set of packets
within the TCP
window
Application
MPTCP/NC
TCP TCP
Fast-
TCP/NC
Fast-
TCP/NC
IP IP
NETWORK
Network
Interface
Network
Interface
Application
MPTCP/NC
TCP TCP
Fast-
TCP/NC
Fast-
TCP/NC
IP IP
Network
Interface
Network
Interface
Each received
packet is
immediately
forwarded to
the TCP layer
Network Coding and Reliable Communications Group
30

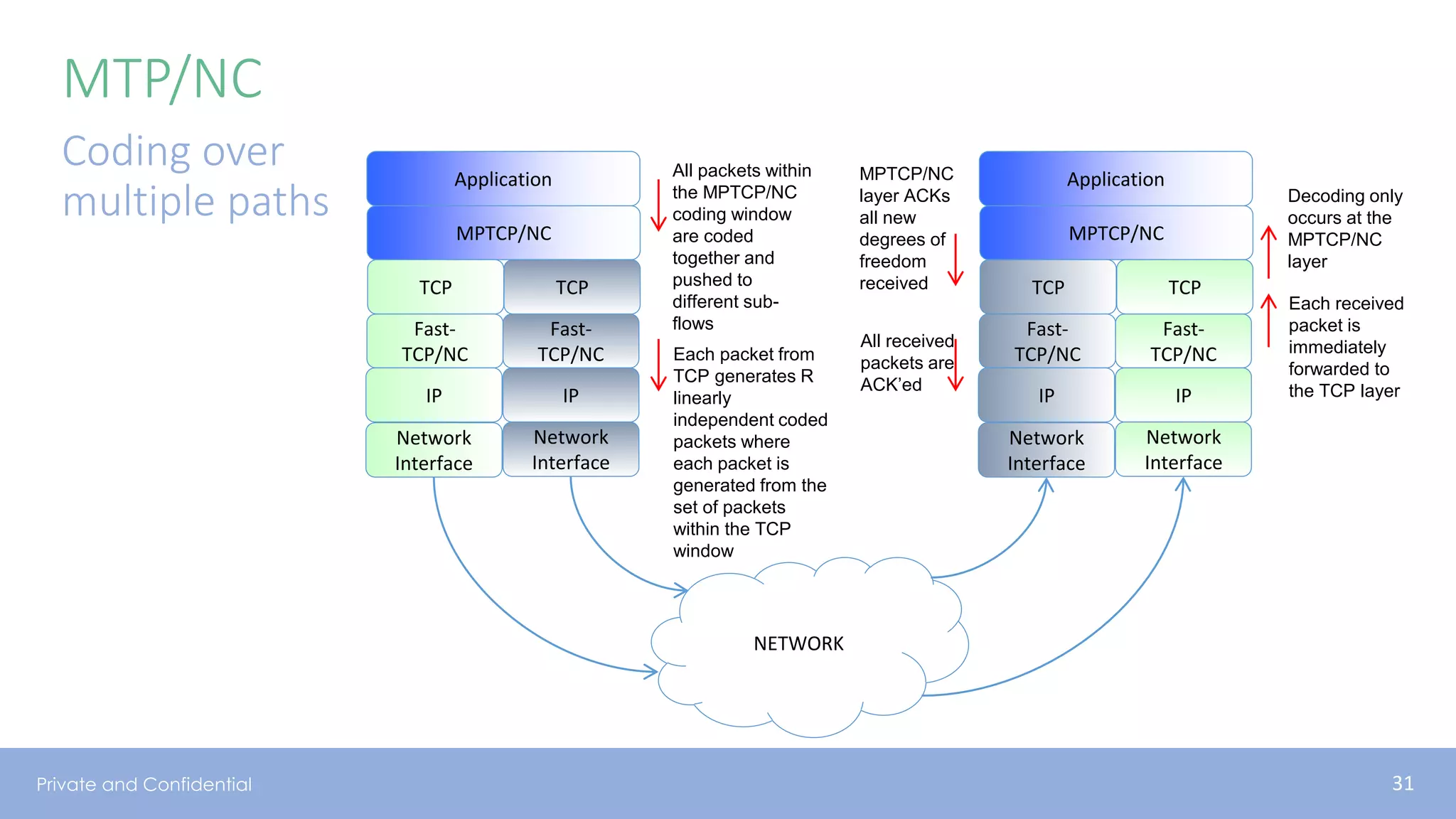

31. Private and Confidential
MTP/NC
Coding over
multiple paths
All received
packets are
ACK’ed
All packets within
the MPTCP/NC
coding window
are coded
together and
pushed to
different sub-
flows
Each packet from
TCP generates R
linearly
independent coded
packets where
each packet is
generated from the
set of packets
within the TCP
window
Application
MPTCP/NC
TCP TCP
Fast-
TCP/NC
Fast-
TCP/NC
IP IP
NETWORK
Network
Interface
Network
Interface
Application
MPTCP/NC
TCP TCP
Fast-
TCP/NC
Fast-
TCP/NC
IP IP
Network
Interface
Network
Interface
MPTCP/NC
layer ACKs
all new
degrees of
freedom
received
Decoding only
occurs at the
MPTCP/NC
layer
Each received
packet is
immediately
forwarded to
the TCP layer
Network Coding and Reliable Communications Group
31

32. Private and Confidential

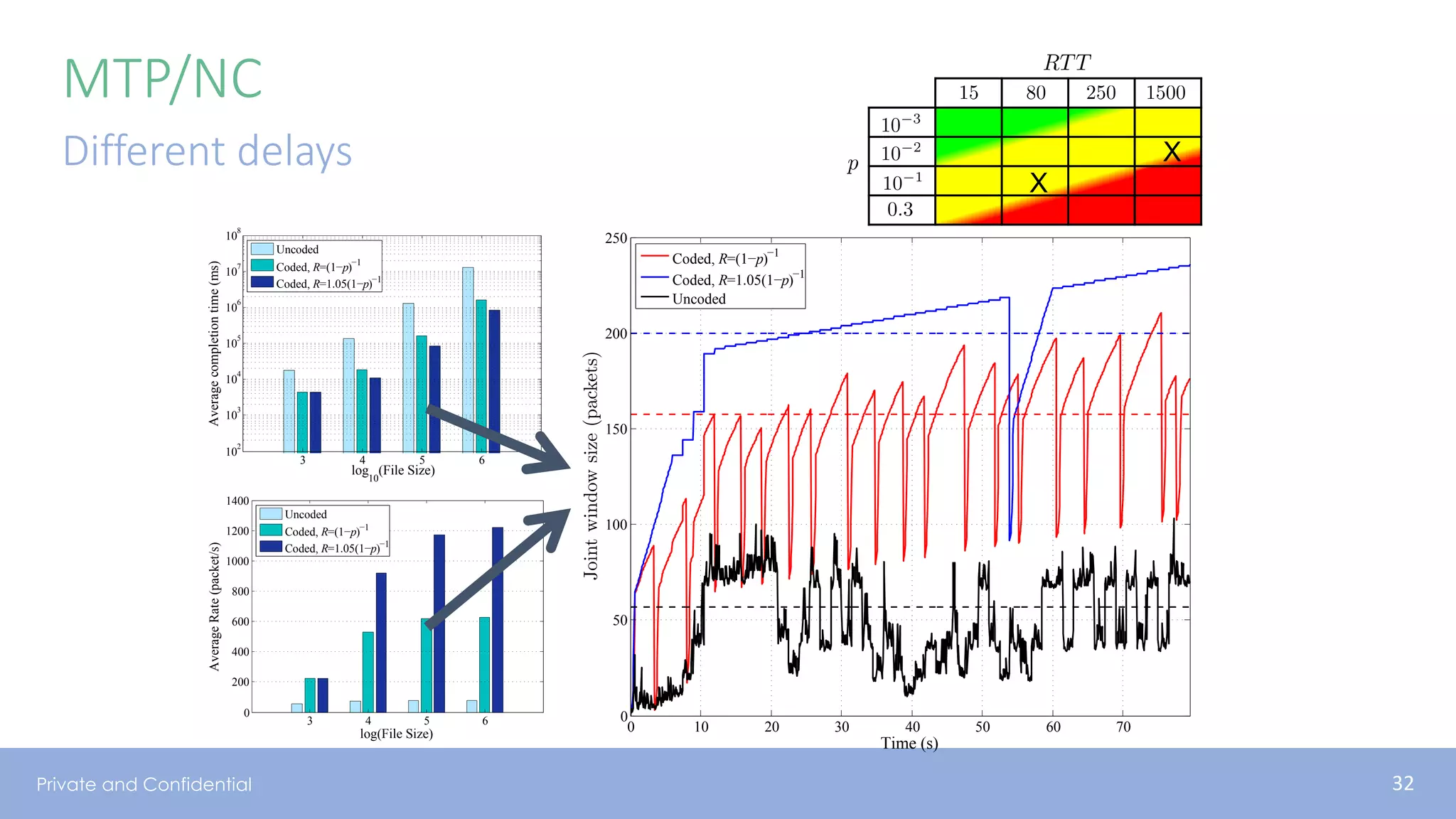

MTP/NC
Different delays
log
10
(File Size)
Averagecompletiontime(ms)
Link 1: RTT =1500ms p = 10−3
Link 2: RTT =80ms p = 10−2
3 4 5 6
10
2
10
3
10
4
10
5
10
6
10
7
10
8
Uncoded
Coded, R=(1−p)−1
Coded, R=1.05(1−p)−1
log(File Size)
AverageRate(packet/s)
Link 1: RTT =1500ms p = 10−3
Link 2: RTT =80ms p = 10−2
3 4 5 6
0
200
400
600
800
1000
1200
1400
Uncoded
Coded, R=(1−p)−1
Coded, R=1.05(1−p)−1
Time (s)
Jointwindowwize(packets)
Link 1: RTT=1500ms, p = 10−2
Link 2: RTT=80ms, p = 10−1
0 10 20 30 40 50 60 70
0
50
100
150
200
250
Coded, R=(1−p)−1
Coded, R=1.05(1−p)−1
Uncoded
X
X
Network Coding and Reliable Communications Group
32

33. Private and Confidential

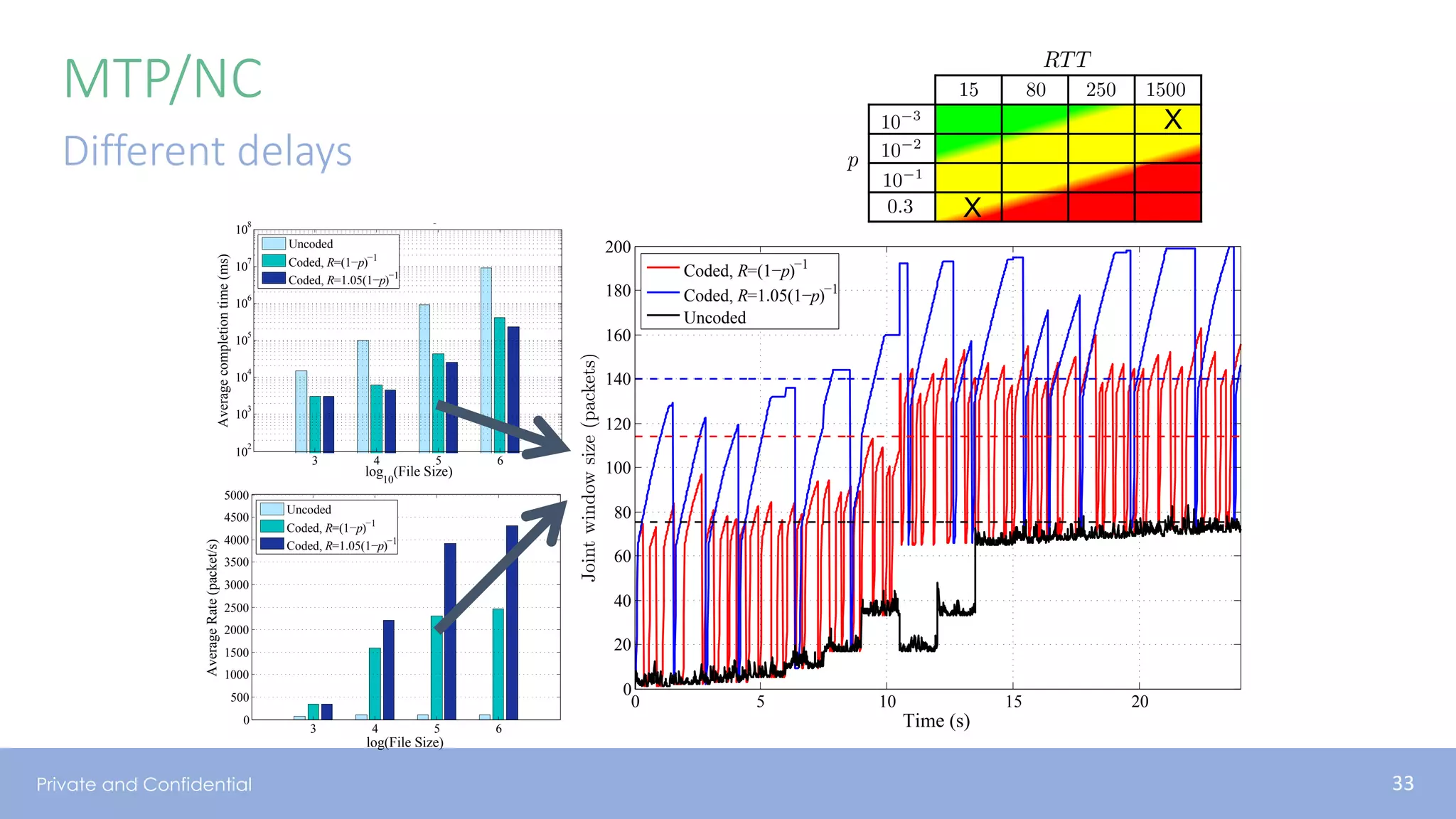

MTP/NC
Different delays
log(File Size)
AverageRate(packet/s)
Link 1: RTT =1500ms p = 10−3
Link 2: RTT =15ms p = 10−2
3 4 5 6
0
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
Uncoded
Coded, R=(1−p)−1
Coded, R=1.05(1−p)−1
log10
(File Size)
Averagecompletiontime(ms)
Link 1: RTT =1500ms p = 10−3
Link 2: RTT =15ms p = 10−2
3 4 5 6
10
2
10
3
10
4
10
5
10
6
10
7
10
8
Uncoded
Coded, R=(1−p)−1
Coded, R=1.05(1−p)−1
Time (s)
Jointwindowwize(packets)
Link 1: RTT=1500ms, p = 10−3
Link 2: RTT=15ms, p = 0.3
0 5 10 15 20
0
20
40
60
80
100
120
140
160
180
200
Coded, R=(1−p)−1
Coded, R=1.05(1−p)−1
Uncoded
X
X
Network Coding and Reliable Communications Group
33

34. Private and Confidential

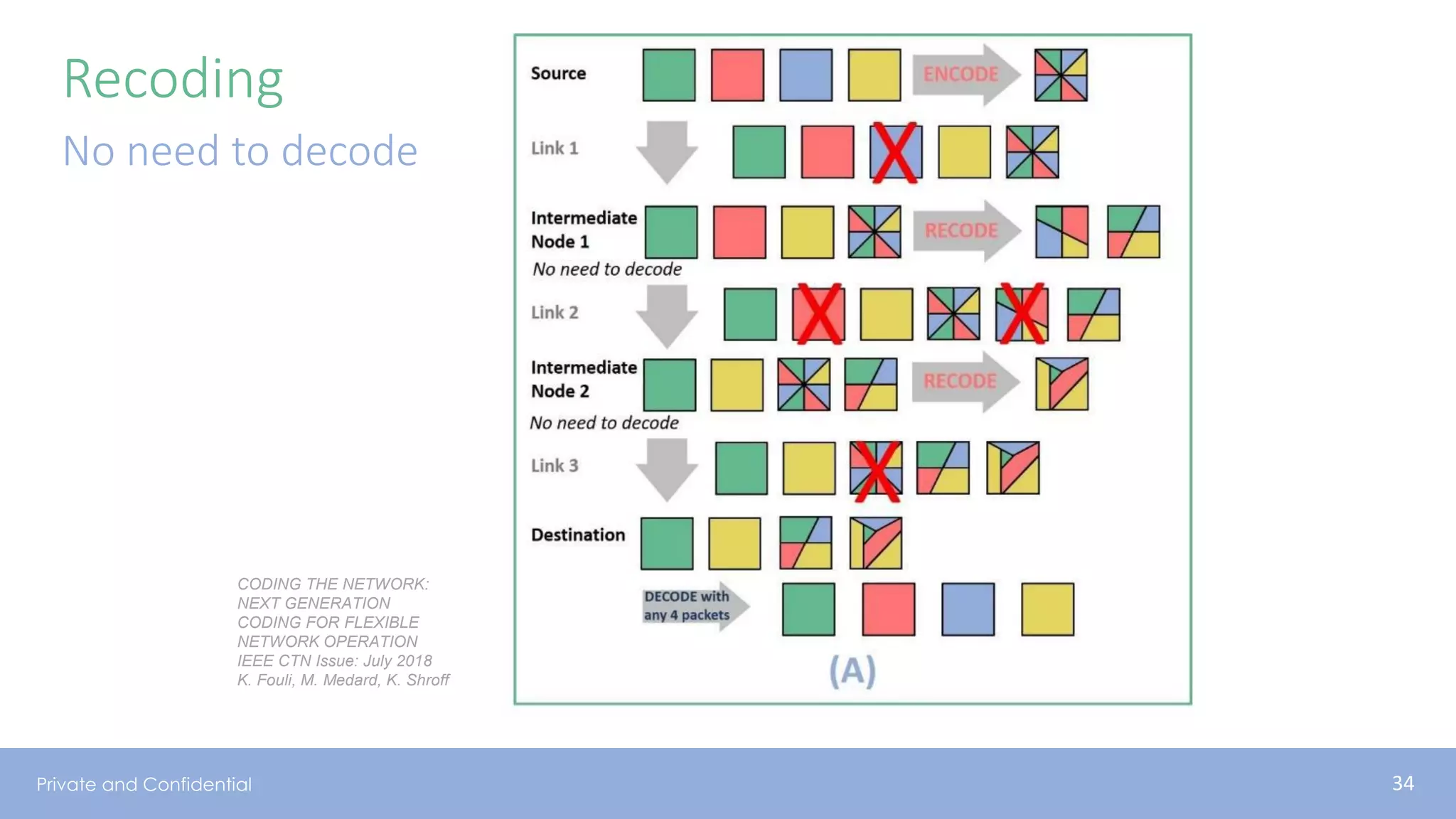

Recoding
No need to decode
CODING THE NETWORK:
NEXT GENERATION
CODING FOR FLEXIBLE
NETWORK OPERATION
IEEE CTN Issue: July 2018
K. Fouli, M. Medard, K. Shroff
34

35. Private and Confidential

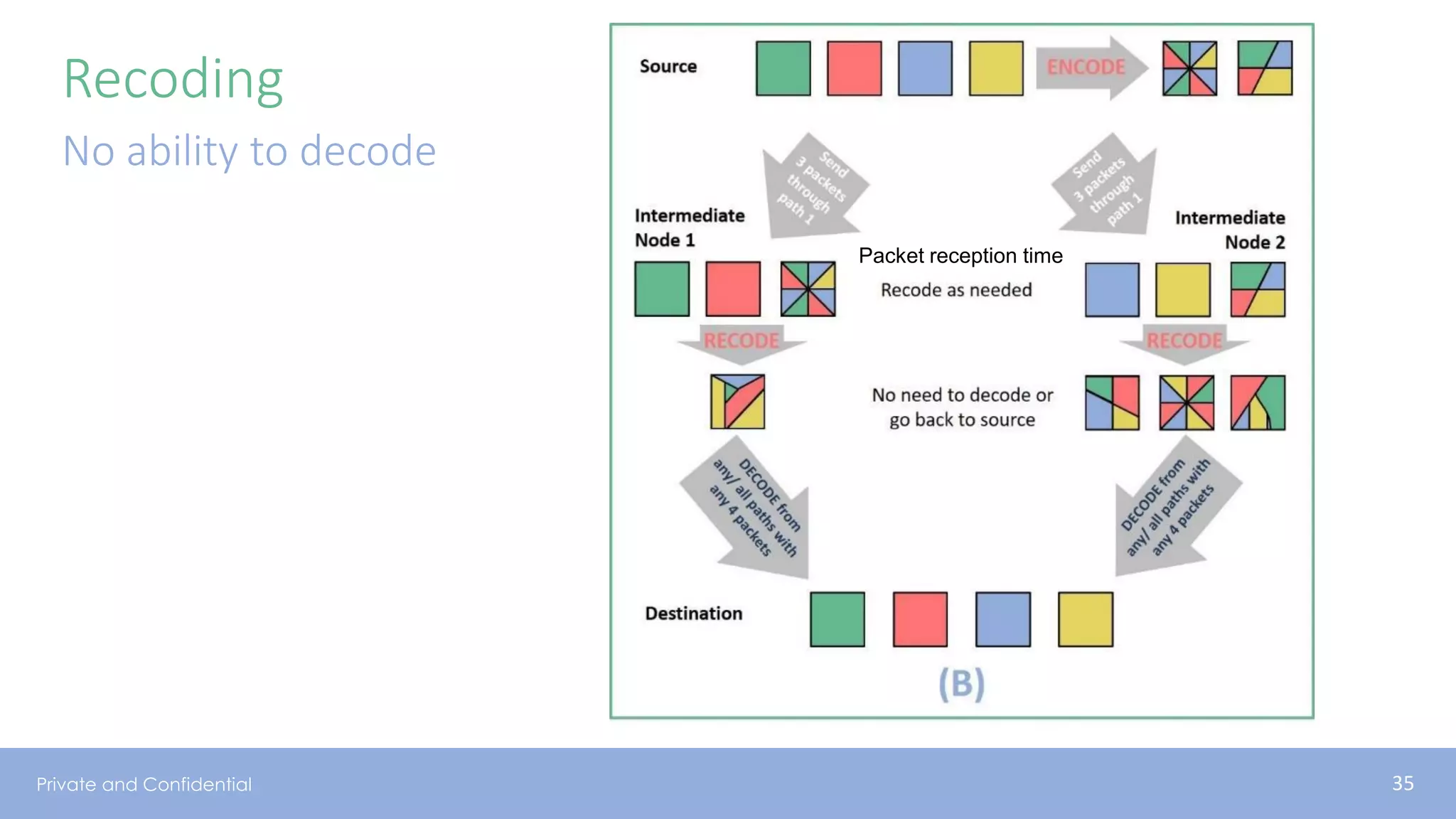

Recoding
No ability to decode
Packet reception time
35

36. Private and Confidential

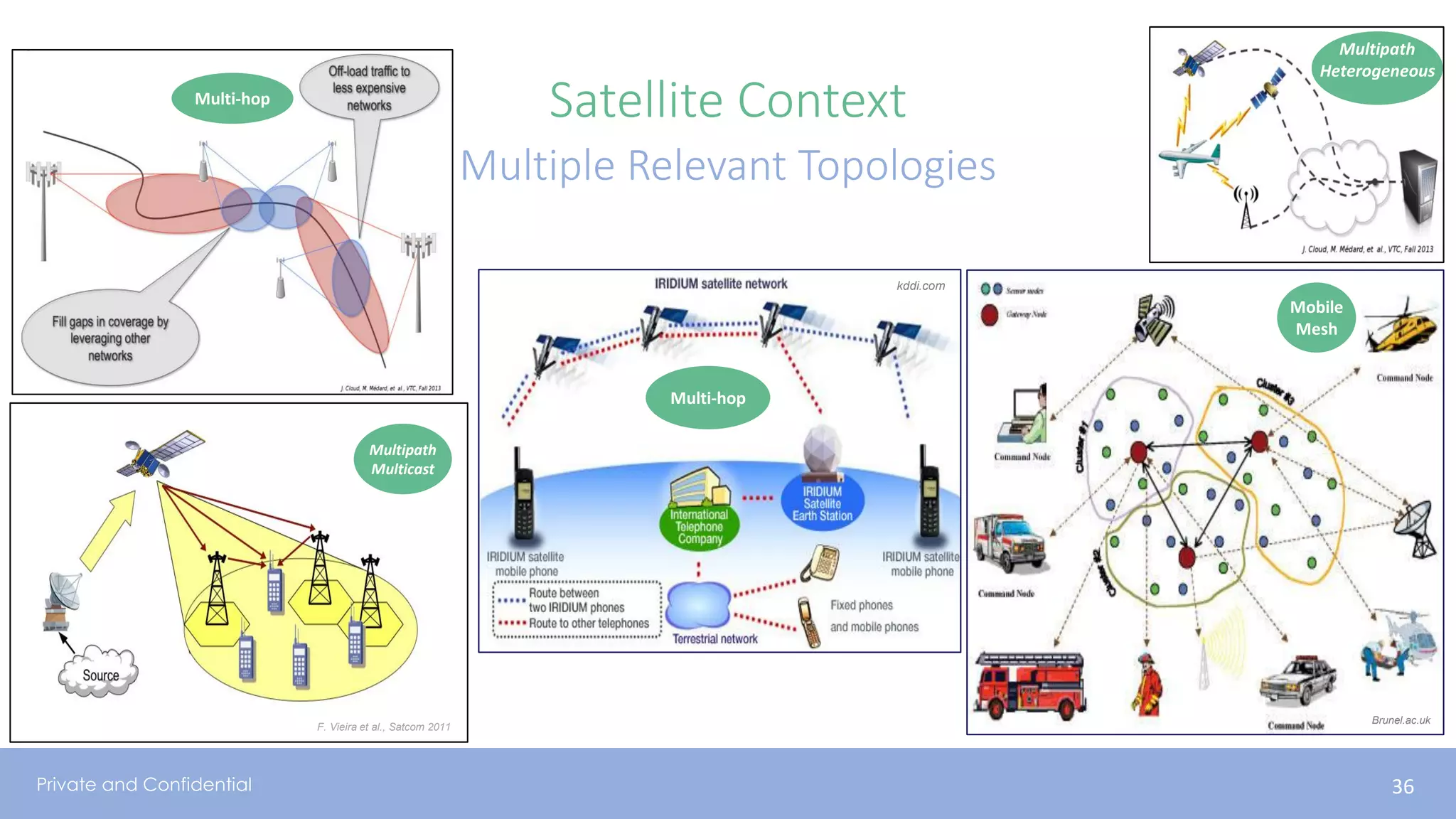

Satellite Context
Multiple Relevant Topologies
36
Brunel.ac.uk
Mobile
Mesh
F. Vieira et al., Satcom 2011
Multipath
Multicast
Multipath
Heterogeneous
Multi-hop
Multi-hop
kddi.com

37. Private and Confidential

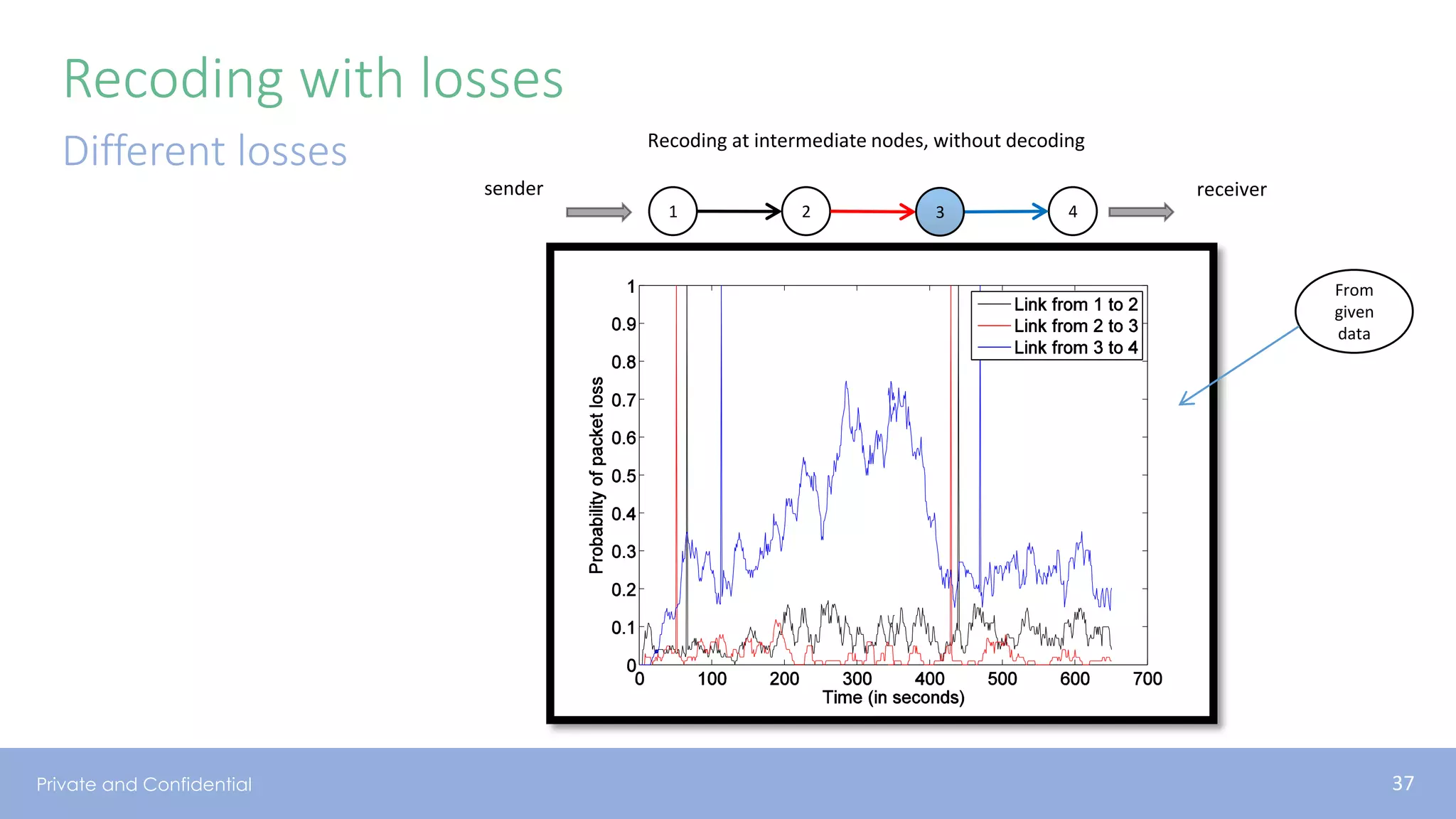

Recoding with losses
Different losses
1 2 4
sender
From
given
data
receiver
Recoding at intermediate nodes, without decoding
37
3

38. Private and Confidential

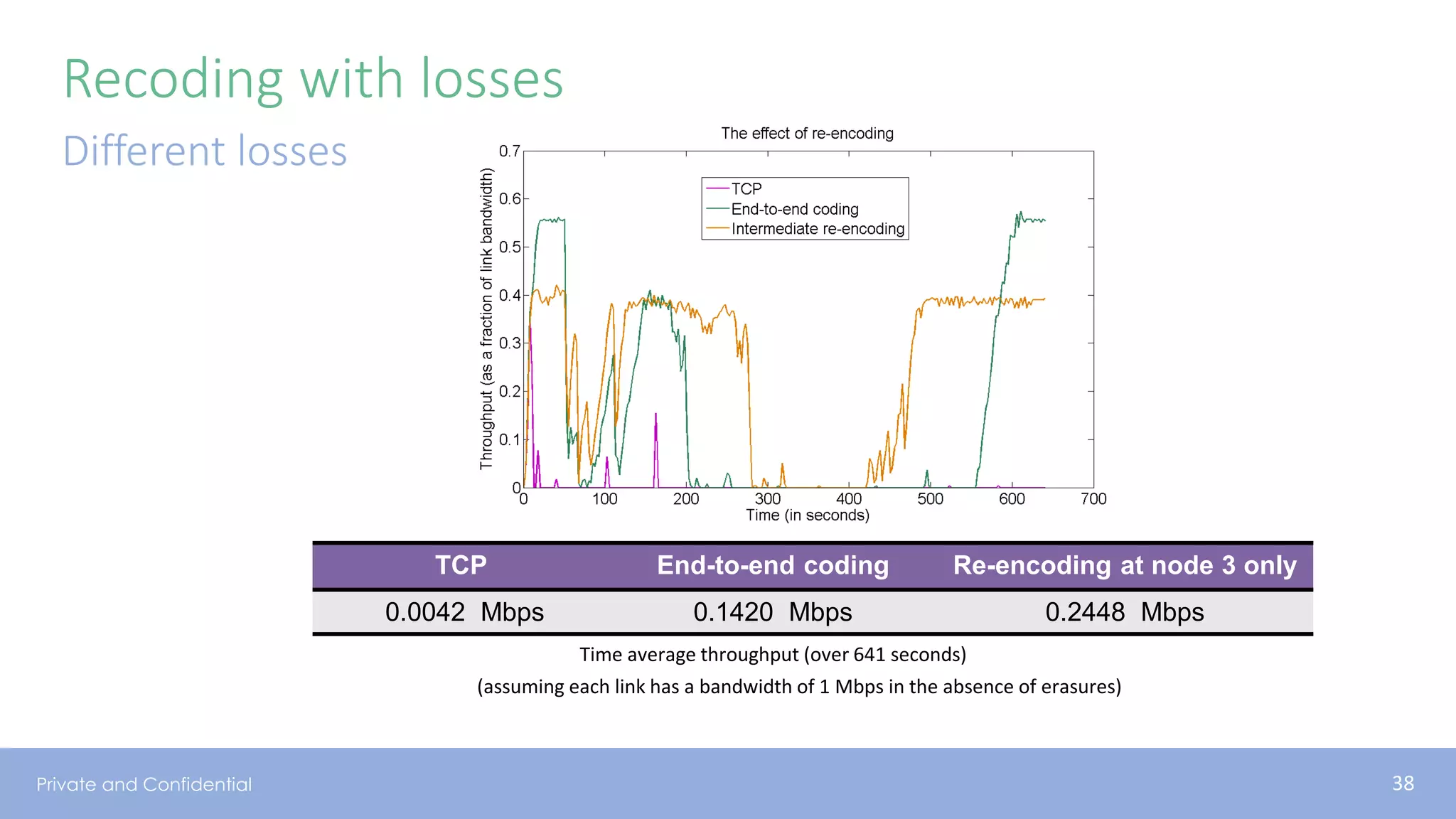

Recoding with losses
Different losses
TCP End-to-end coding Re-encoding at node 3 only
0.0042 Mbps 0.1420 Mbps 0.2448 Mbps
(assuming each link has a bandwidth of 1 Mbps in the absence of erasures)
Time average throughput (over 641 seconds)
38

39. Private and Confidential
Satellite in 5G
Not just point to point
39

40. Private and Confidential

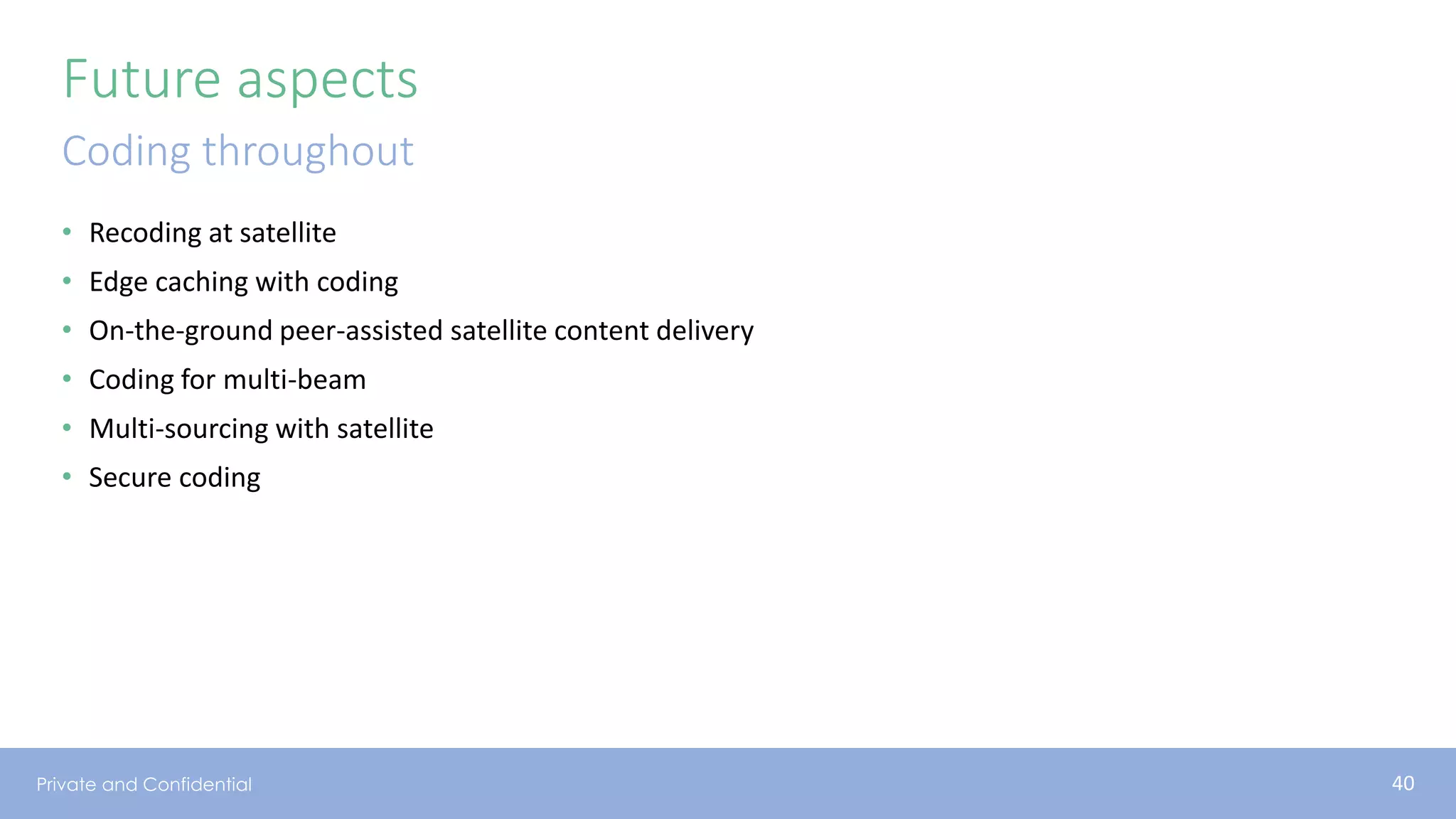

Future aspects
• Recoding at satellite
• Edge caching with coding
• On-the-ground peer-assisted satellite content delivery
• Coding for multi-beam
• Multi-sourcing with satellite
• Secure coding
Coding throughout
40

41. Private and Confidential 41
This document was created by Code On Network Coding LLC (“Code On”), a limited liability company based in Cambridge, MA, with
registered offices at One Broadway, Floor 14, Cambridge, Massachusetts, 02142. All rights thereto are owned and reserved by Code On.
This strictly private and confidential document was prepared exclusively for information purposes only and for discussion. This
document is incomplete without reference to–and should be viewed solely in conjunction with–the oral presentation provided by Code
On.
While all reasonable care has been taken to ensure that the facts stated herein and in the accompanying oral presentation are accurate
and that the opinions contained herein and in such presentation are fair and reasonable, the information provided is selective in nature
and is intended to serve as an introduction and overview of, the content described herein. Any opinions expressed in this document
and/or the accompanying presentation is subject to change without notice and neither Code On nor any other person is under any
obligation to update or keep current such information. No representation, undertaking, promise or warranty, express or implied, is or
will be made, or given as to, and no responsibility or liability is or will be accepted by Code On, its respective directors, officers, agents or
employees in relation to the adequacy, accuracy, completeness or reasonableness of this document or any other information (whether
written or oral), notice or document supplied or otherwise made available to any third or their respective advisers in connection with
this document.
This document and the information provided in the accompanying presentation is confidential and of a proprietary nature. This
document may not be reproduced or redistributed outside the recipient's organisation or publicised in whole or in part for any purpose,
including to the press or any media organization, without the express prior written consent of Code On.
No right or entitlement to an implementation of the presentation or the concepts presented herein arises from this document and/or
the presentation.
Disclaimer
