The choice exception strategy allows Mule to customize error handling for messages based on message content and exception type. It catches exceptions from its parent flow, evaluates the exception and message, then routes the message to the appropriate child exception strategy based on matching expressions. If no child matches, it uses the default strategy. It is useful for applying different error handling rules depending on exception type.

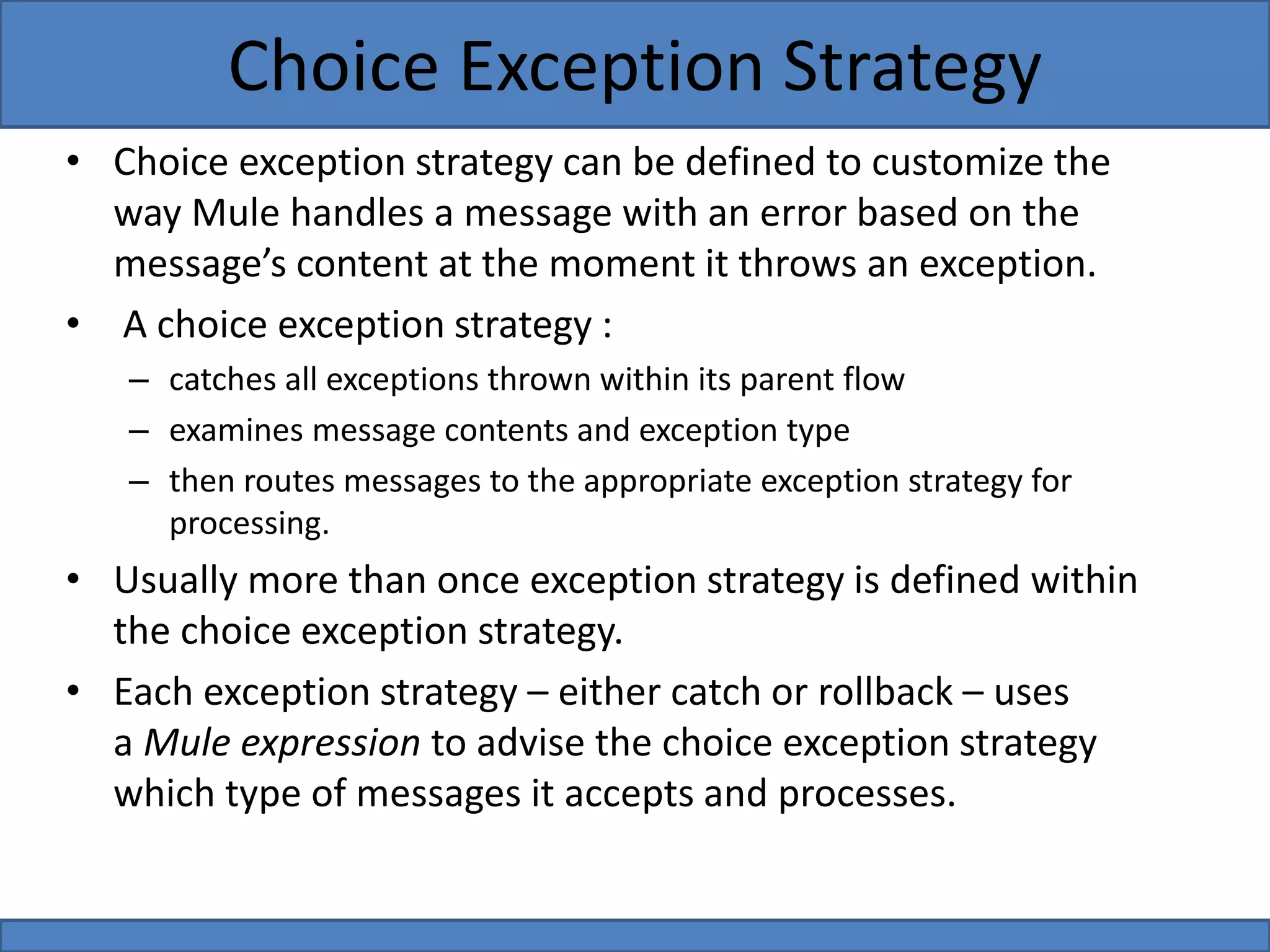

2. • Choice exception strategy can be defined to customize the
way Mule handles a message with an error based on the
message’s content at the moment it throws an exception.
• A choice exception strategy :
– catches all exceptions thrown within its parent flow
– examines message contents and exception type
– then routes messages to the appropriate exception strategy for
processing.
• Usually more than once exception strategy is defined within
the choice exception strategy.
• Each exception strategy – either catch or rollback – uses
a Mule expression to advise the choice exception strategy
which type of messages it accepts and processes.
Choice Exception Strategy
3. • How it works :
– when the choice exception strategy catches an exception:
• It evaluates the type of exception and the message contents at the
time the error occurred.
• Then it checks the expression attribute of each of its exception
strategies one by one, serially, to see which one of them should
handle the error.
• It then routes the message to the firstexception strategy that
evaluates to true (has an expression that matches the expression
of the message).
• If none of its exception strategies can handle the error, the choice
exception strategy routes the message to Mule’s default exception
strategy.
Choice Exception Strategy
4. • How it works :
– when the choice exception strategy catches an exception:
• It evaluates the type of exception and the message contents at the
time the error occurred.
• Then it checks the expression attribute of each of its exception
strategies one by one, serially, to see which one of them should
handle the error.
• It then routes the message to the firstexception strategy that
evaluates to true (has an expression that matches the expression
of the message).
• If none of its exception strategies can handle the error, the choice
exception strategy routes the message to Mule’s default exception
strategy.
Choice Exception Strategy
5. • You can put any number of catch or rollback
exception strategies into a choice exception strategy.
• You cannot put a choice exception strategy inside
another choice exception strategy.
• You can use any Mule expression evaluator as the
expression attribute of an exception strategy.
Choice Exception Strategy
6. • When to Use :
– Use a choice exception strategy to enable Mule to make
decisions about how to handle each error that occurs in a
flow.
– For example, in a flow that processes orders, a choice
exception strategy can be used to apply the following error
handling rules:
• Messages that throw an AlreadyProcessedException should be
discarded.
• Messages that throw a ValidationException should be sent to an
invalid order queue.
• All other messages which throw exceptions should be rolled back
to retry processing.
Choice Exception Strategy
7. – A choice exception strategy can evaluate the exception
type of each message that throws an exception in this flow
and route them to one of three exception strategies:
• a catch exception strategy to process and discard all
AlreadyProcessedExceptions.
• a second catch exception strategy to process all
ValidationExceptions and send them to an invalid.orders queue
• a rollback exception strategy to roll back the order transaction in
order to retry processing in the parent flow
Choice Exception Strategy
8. – The following lists some useful expressions which check for
specific exceptions:
• #[exception.causedBy(ExceptionType)]
– Checks that the exception is an instance of ExceptionType
– Example : #[exception.causedBy(java.lang.IllegalArgumentException)]
• #[exception.causedExactlyBy(ExceptionType)]
– Checks that the exception exactly matches the ExceptionType
– Example : #[exception.causedExactlyBy(java.net.SocketTimeoutException)]
• #[exception.causeMatches(String)]
– Checks that the exception type matches a particular regular expression
(Regex) String
– Example : #[exception.causeMatches('*BusinessException')]
Choice Exception Strategy
9. – Configuration:
• From the Error Handling palette group, drag and drop the choice
exception strategy icon into the footer bar of a flow.
• Click the title bar of the exception strategy to open its Properties Editor,
then enter a name for your choice exception strategy in the Display
Name field.
• From the Error Handling palette group, drag and drop one or more catch
or rollback exception strategy icons into the choice exception strategy box.
– Note :
• choice exception strategy checks the expression attribute of each of its
exception strategies one by one, serially, to see which one of them should
handle the error.
• It then routes the message to the first exception strategy that evaluates to
true.
• Therefore, organize your exception strategies keeping in mind that the
top-most will be evaluated first, then the one below it, and so on.
• You cannot rearrange the exception strategies once they have been
placed inside the choice exception strategy, but can use xml for
rearranging the strategies.
Choice Exception Strategy
