Mtc learnings from isv & enterprise (dated - Dec -2014)
- 1. Govind Kanshi MTC Learningsfrom ISV and Enteprise engagements
- 2. About me - @govindk -http://govindkanshi.wordpress.com - Databases and applications is the focus. - MTC India

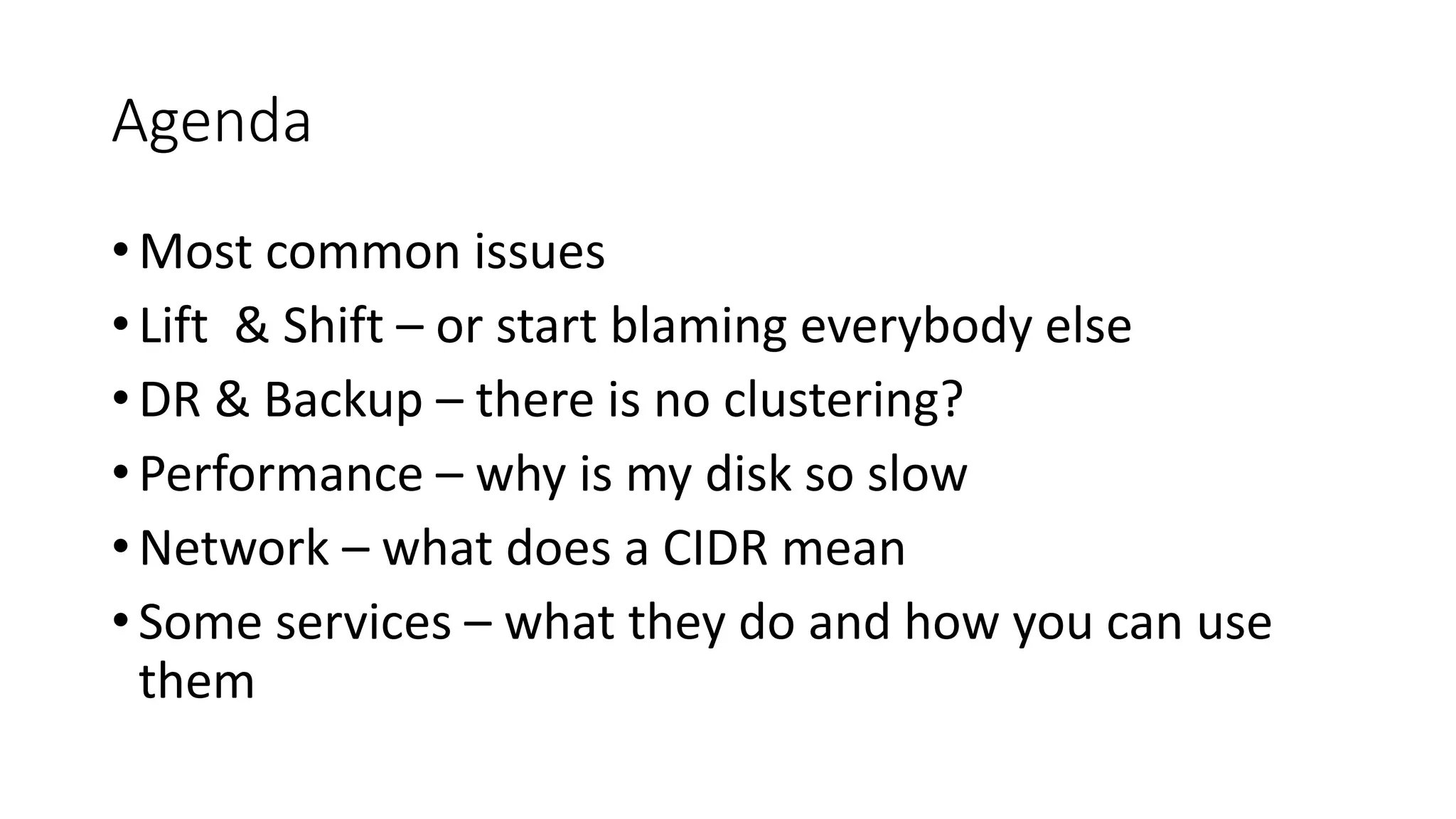

- 3. Agenda • Most commonissues • Lift & Shift – or start blaming everybody else • DR & Backup – there is no clustering? • Performance – why is my disk so slow • Network – what does a CIDR mean • Some services – what they do and how you can use them

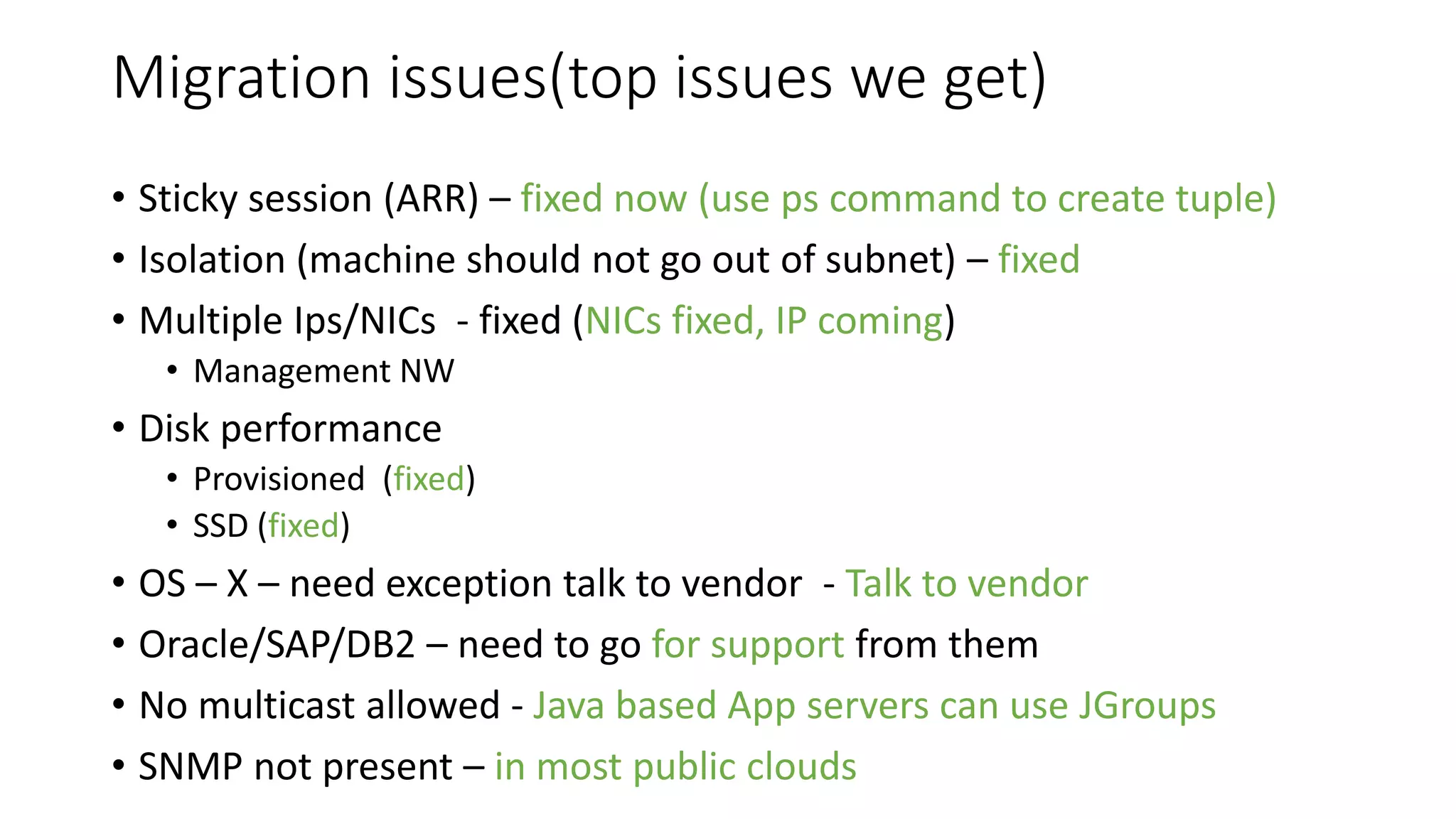

- 4. Migration issues(top issueswe get) • Sticky session (ARR) – fixed now (use ps command to create tuple) • Isolation (machine should not go out of subnet) – fixed • Multiple Ips/NICs - fixed (NICs fixed, IP coming) • Management NW • Disk performance • Provisioned (fixed) • SSD (fixed) • OS – X – need exception talk to vendor - Talk to vendor • Oracle/SAP/DB2 – need to go for support from them • No multicast allowed - Java based App servers can use JGroups • SNMP not present – in most public clouds

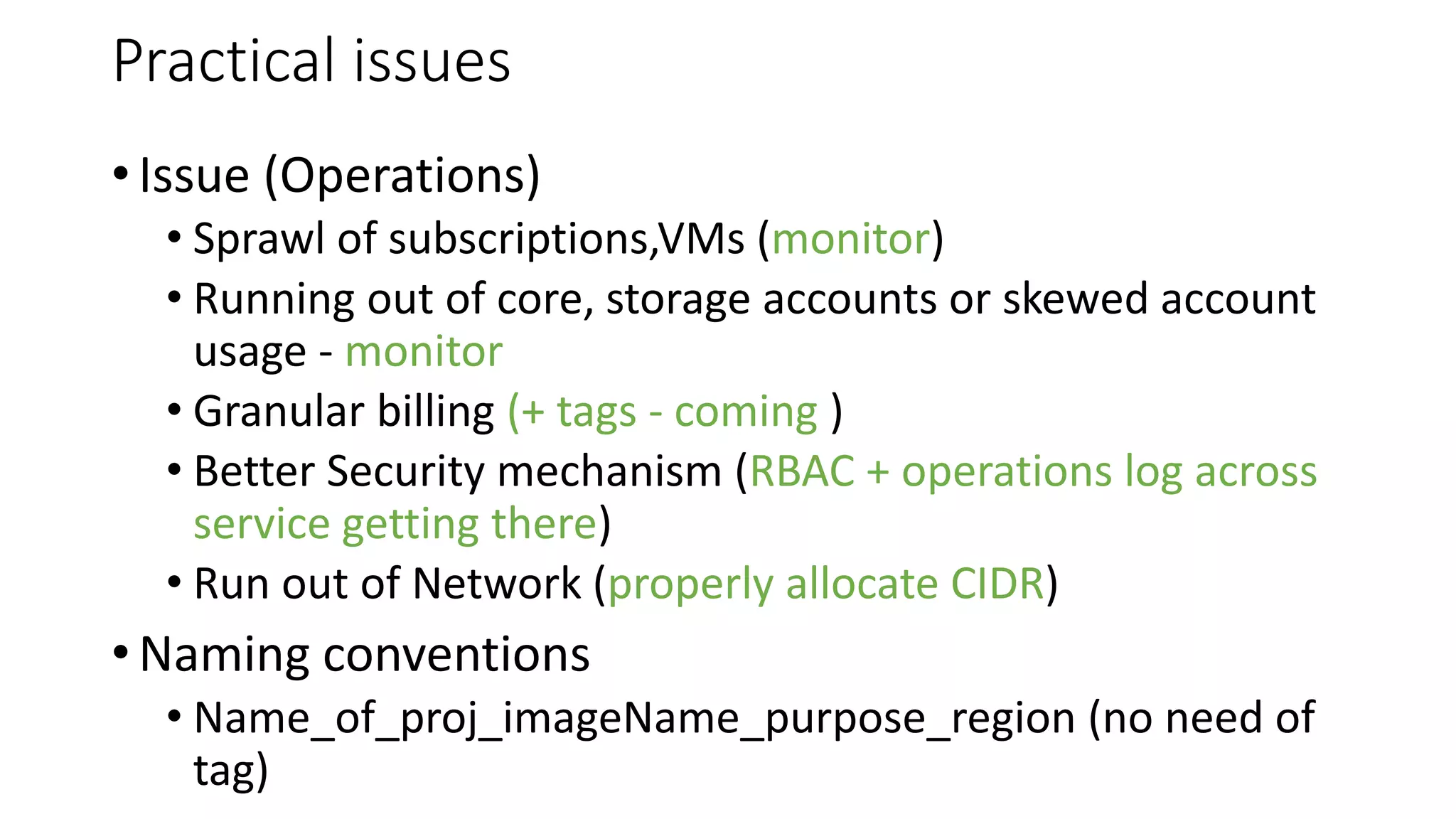

- 5. Practical issues • Issue(Operations) • Sprawl of subscriptions,VMs (monitor) • Running out of core, storage accounts or skewed account usage - monitor • Granular billing (+ tags - coming ) • Better Security mechanism (RBAC + operations log across service getting there) • Run out of Network (properly allocate CIDR) • Naming conventions • Name_of_proj_imageName_purpose_region (no need of tag)
- 6. Goals differ forISVs and Enterprises

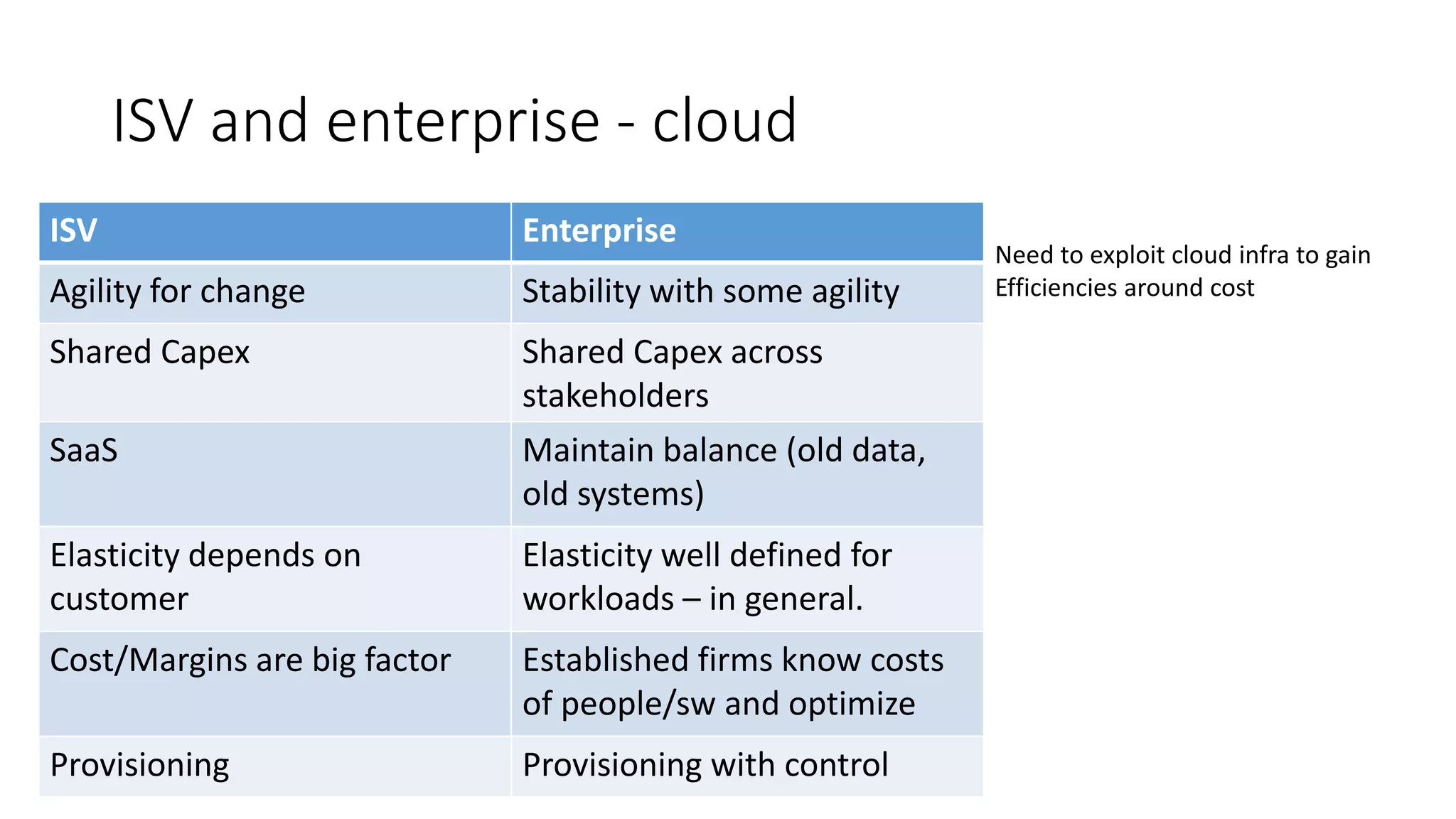

- 7. ISV and enterprise- cloud ISV Enterprise Agility for change Stability with some agility Shared Capex Shared Capex across stakeholders SaaS Maintain balance (old data, old systems) Elasticity depends on customer Elasticity well defined for workloads – in general. Cost/Margins are big factor Established firms know costs of people/sw and optimize Provisioning Provisioning with control Need to exploit cloud infra to gain Efficiencies around cost
- 8. Life is fullof surprises

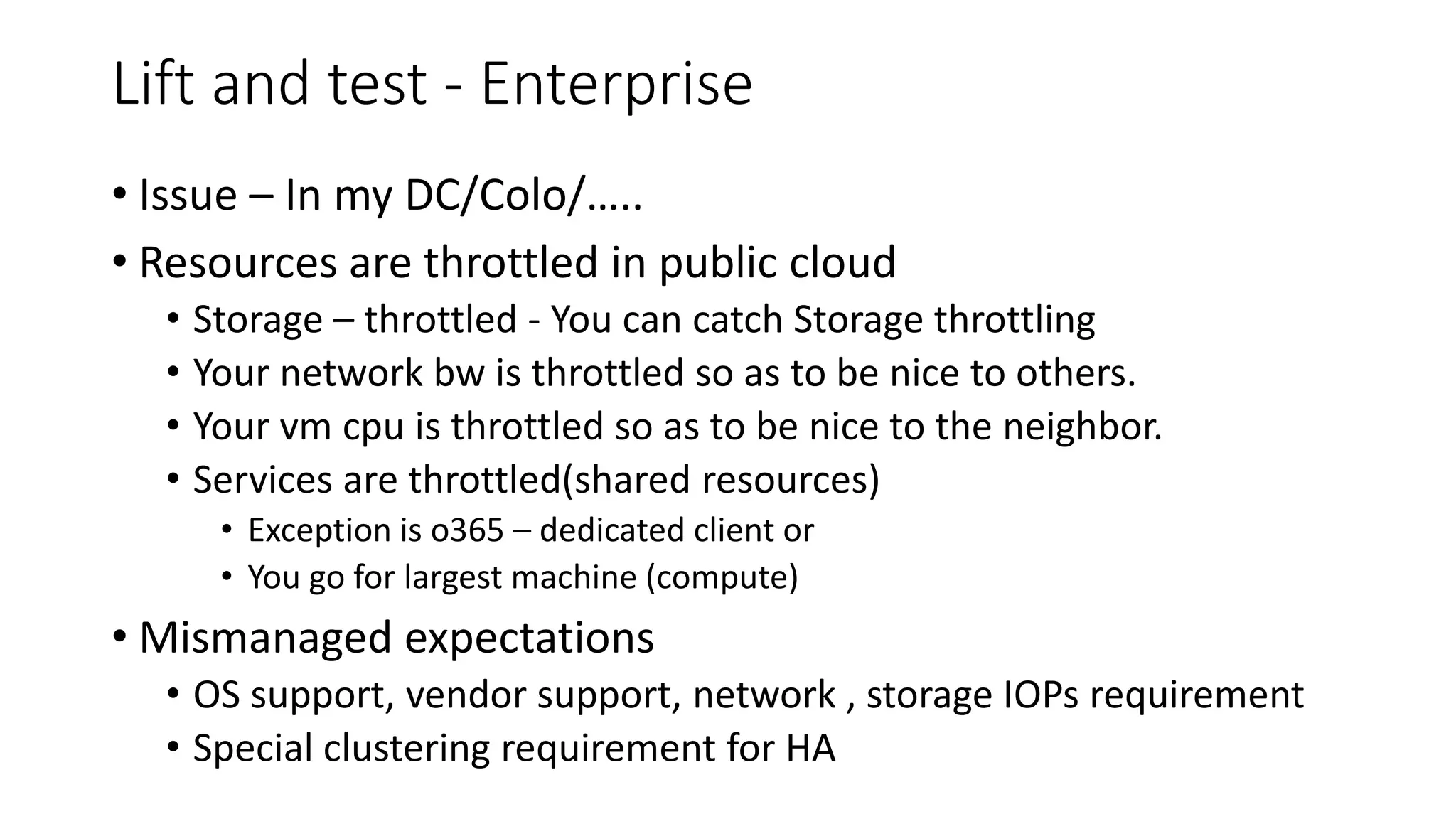

- 9. Lift and test- Enterprise • Issue – In my DC/Colo/….. • Resources are throttled in public cloud • Storage – throttled - You can catch Storage throttling • Your network bw is throttled so as to be nice to others. • Your vm cpu is throttled so as to be nice to the neighbor. • Services are throttled(shared resources) • Exception is o365 – dedicated client or • You go for largest machine (compute) • Mismanaged expectations • OS support, vendor support, network , storage IOPs requirement • Special clustering requirement for HA
- 10. “Forklift” – withcare • Challenge is applications are very deeply integrated with each other

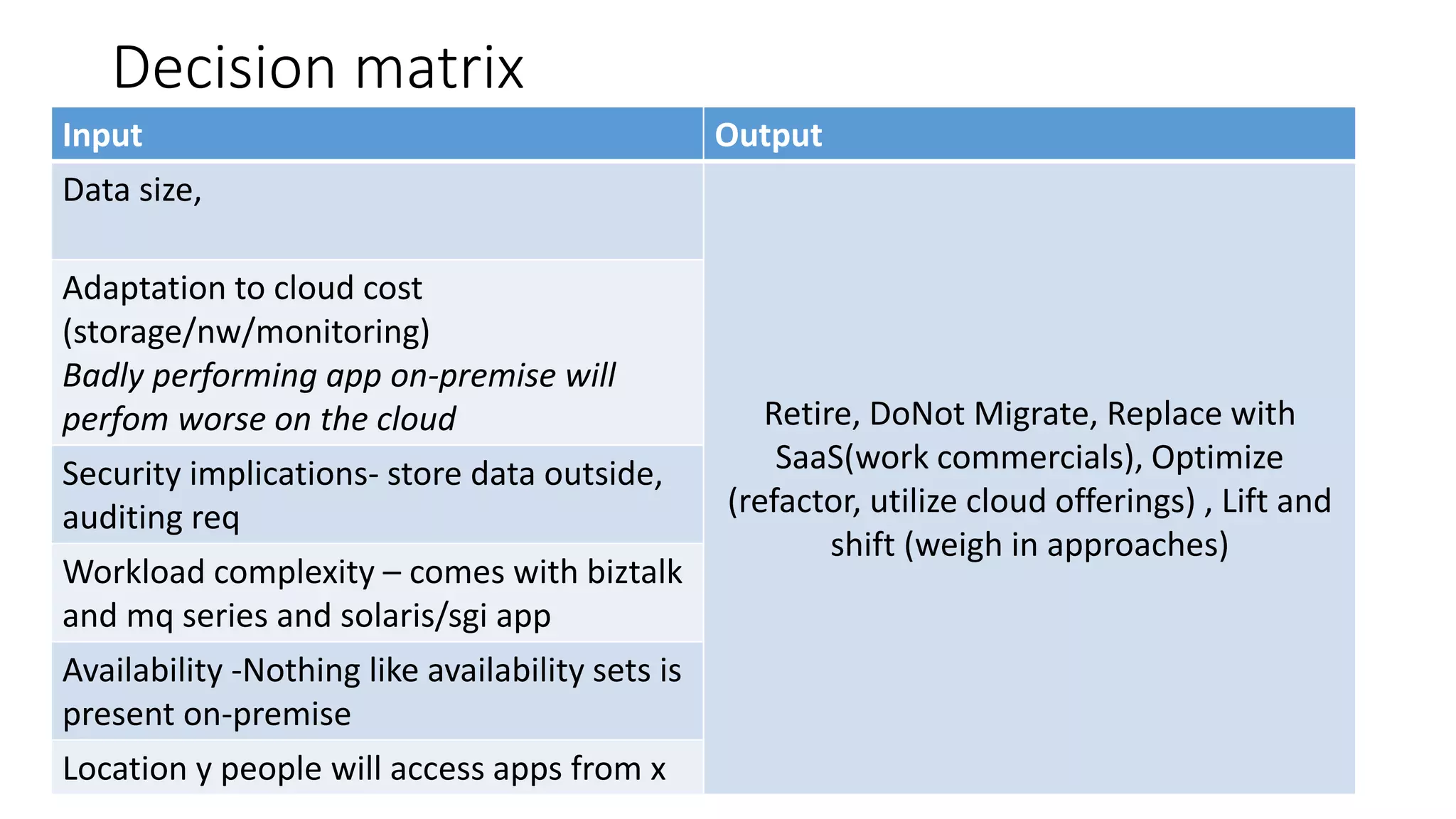

- 11. Decision matrix Input Output Datasize, Retire, DoNot Migrate, Replace with SaaS(work commercials), Optimize (refactor, utilize cloud offerings) , Lift and shift (weigh in approaches) Adaptation to cloud cost (storage/nw/monitoring) Badly performing app on-premise will perfom worse on the cloud Security implications- store data outside, auditing req Workload complexity – comes with biztalk and mq series and solaris/sgi app Availability -Nothing like availability sets is present on-premise Location y people will access apps from x
- 12.

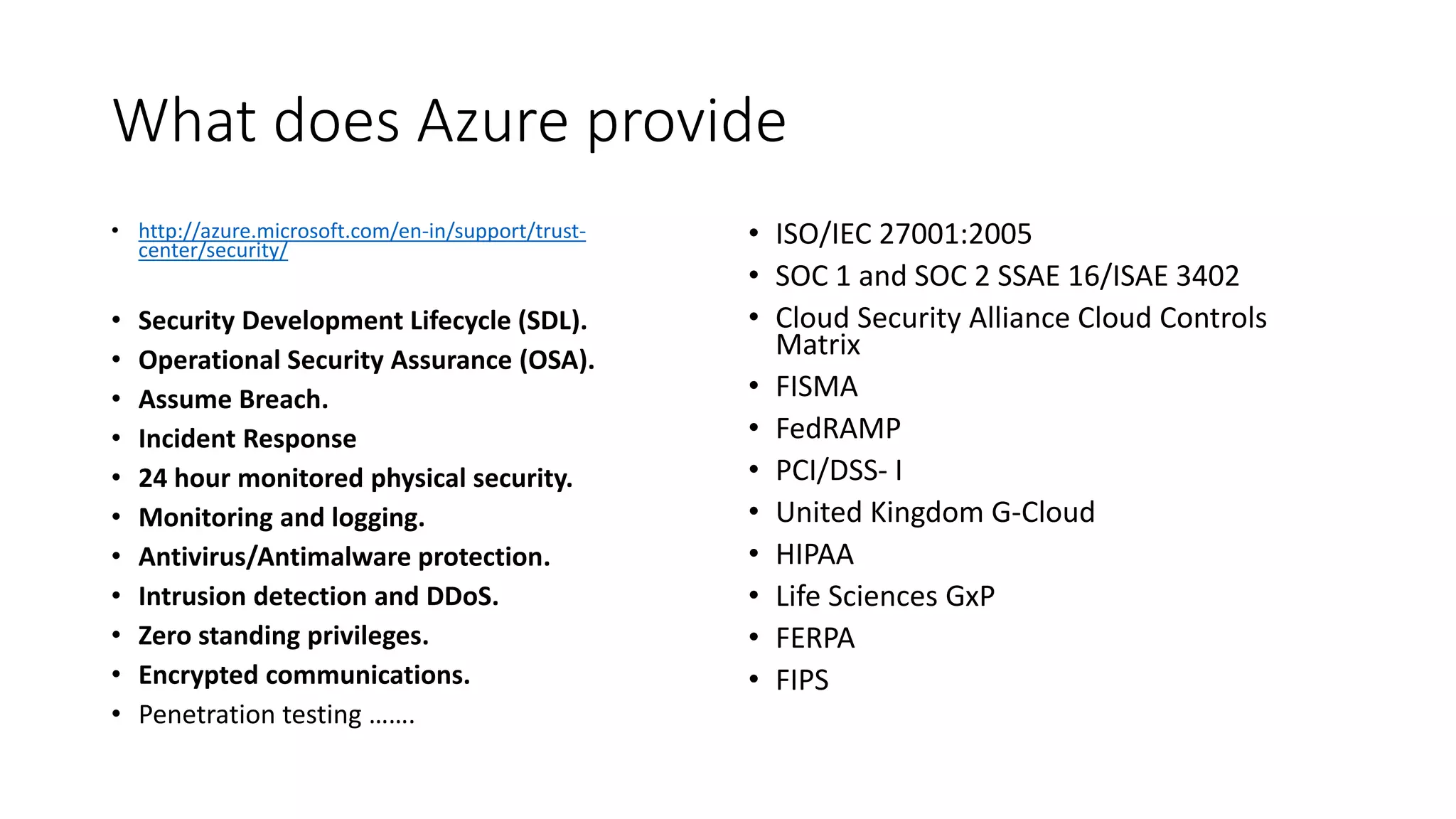

- 13. What does Azureprovide • http://azure.microsoft.com/en-in/support/trust- center/security/ • Security Development Lifecycle (SDL). • Operational Security Assurance (OSA). • Assume Breach. • Incident Response • 24 hour monitored physical security. • Monitoring and logging. • Antivirus/Antimalware protection. • Intrusion detection and DDoS. • Zero standing privileges. • Encrypted communications. • Penetration testing ……. • ISO/IEC 27001:2005 • SOC 1 and SOC 2 SSAE 16/ISAE 3402 • Cloud Security Alliance Cloud Controls Matrix • FISMA • FedRAMP • PCI/DSS- I • United Kingdom G-Cloud • HIPAA • Life Sciences GxP • FERPA • FIPS

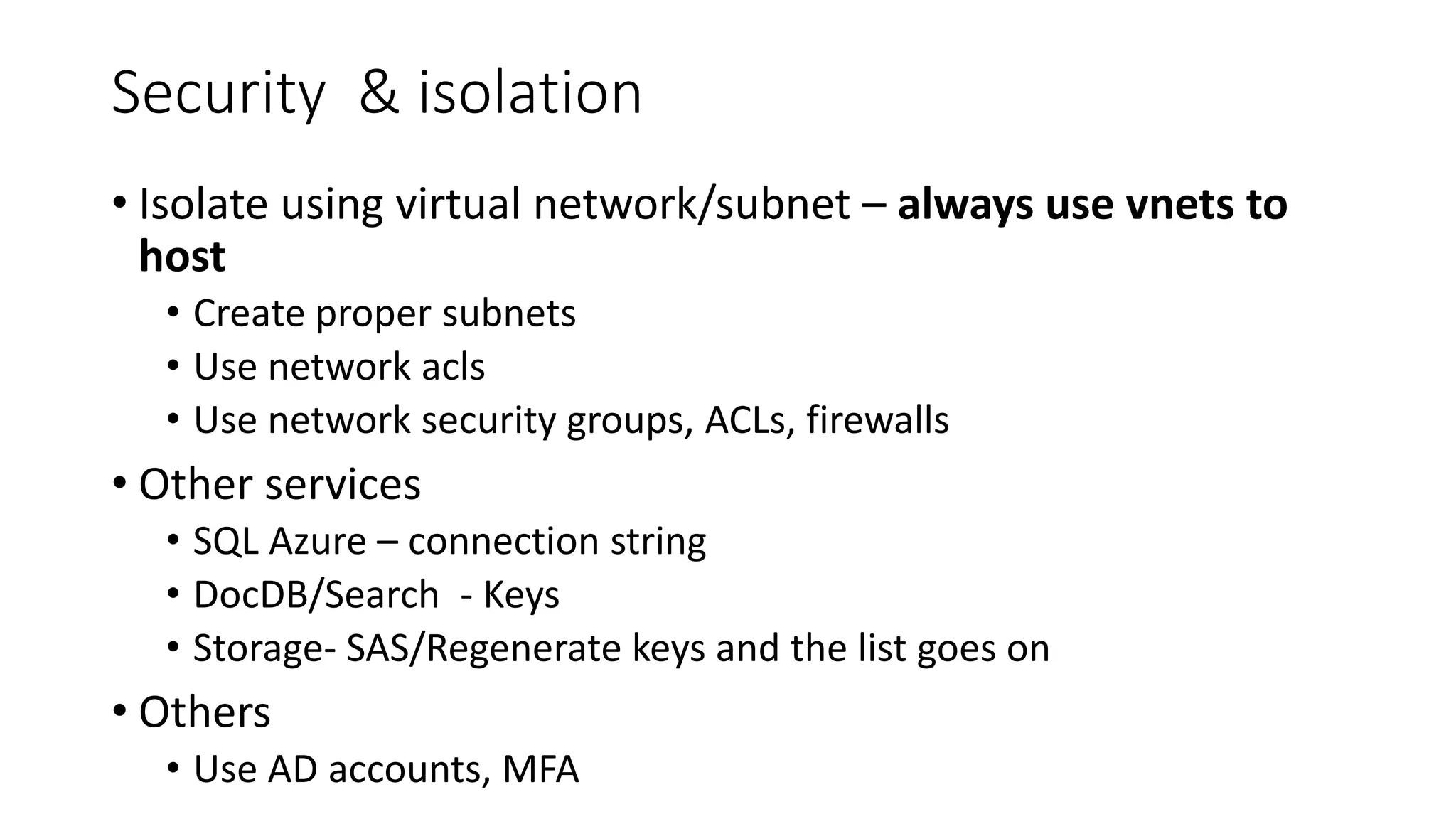

- 14. Security & isolation •Isolate using virtual network/subnet – always use vnets to host • Create proper subnets • Use network acls • Use network security groups, ACLs, firewalls • Other services • SQL Azure – connection string • DocDB/Search - Keys • Storage- SAS/Regenerate keys and the list goes on • Others • Use AD accounts, MFA

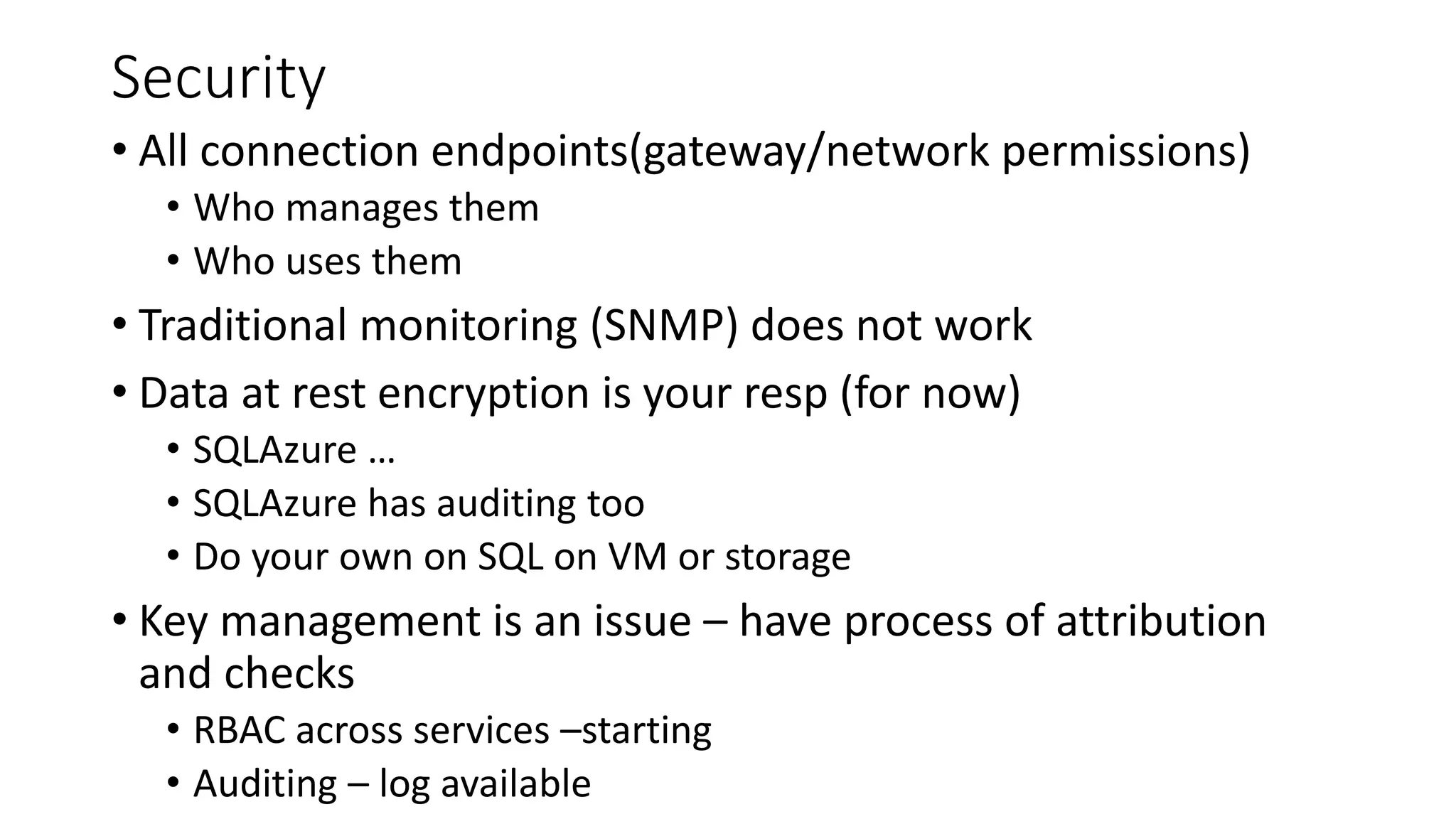

- 15. Security • All connectionendpoints(gateway/network permissions) • Who manages them • Who uses them • Traditional monitoring (SNMP) does not work • Data at rest encryption is your resp (for now) • SQLAzure … • SQLAzure has auditing too • Do your own on SQL on VM or storage • Key management is an issue – have process of attribution and checks • RBAC across services –starting • Auditing – log available

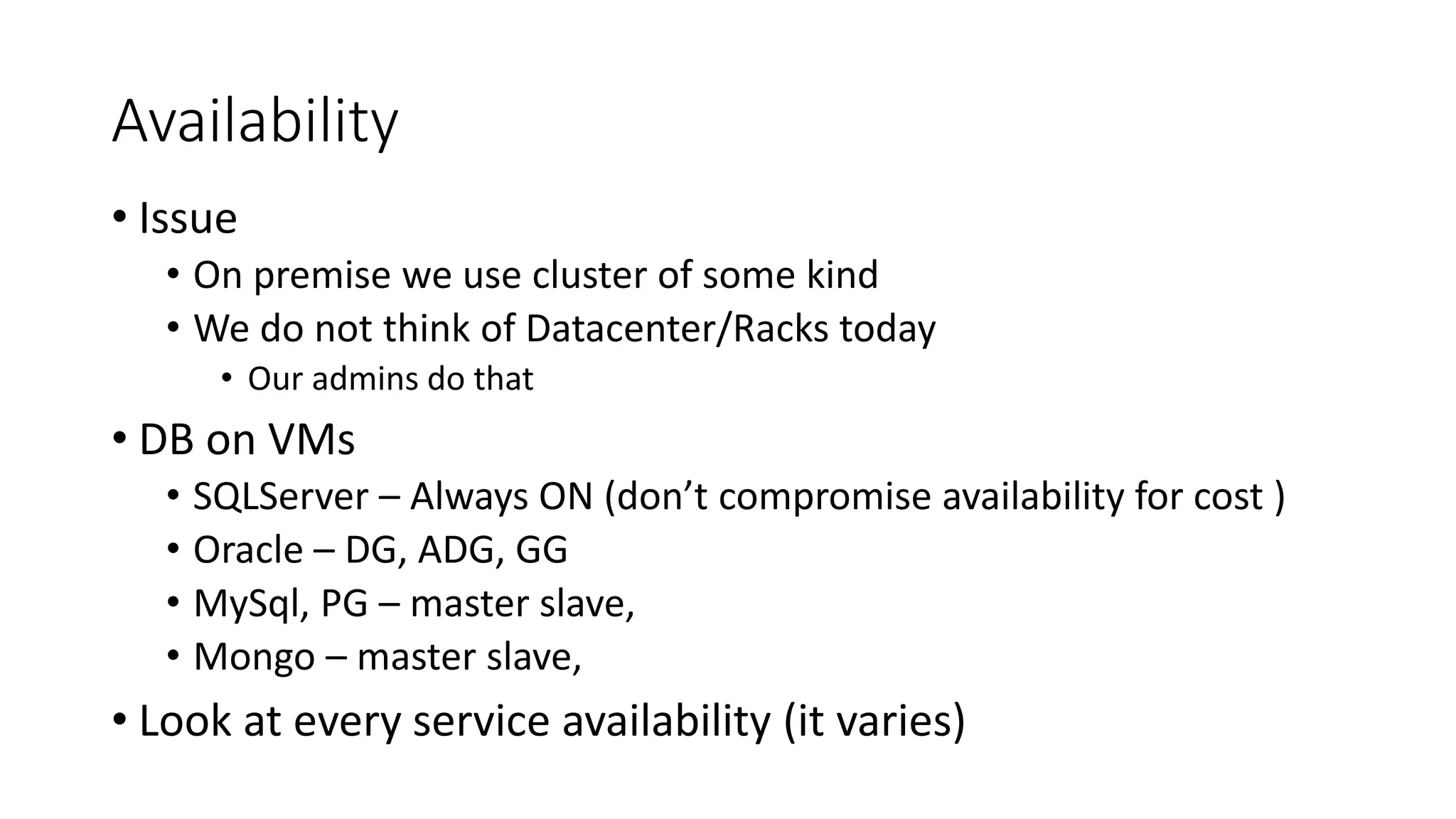

- 17. Availability • Issue • Onpremise we use cluster of some kind • We do not think of Datacenter/Racks today • Our admins do that • DB on VMs • SQLServer – Always ON (don’t compromise availability for cost ) • Oracle – DG, ADG, GG • MySql, PG – master slave, • Mongo – master slave, • Look at every service availability (it varies)

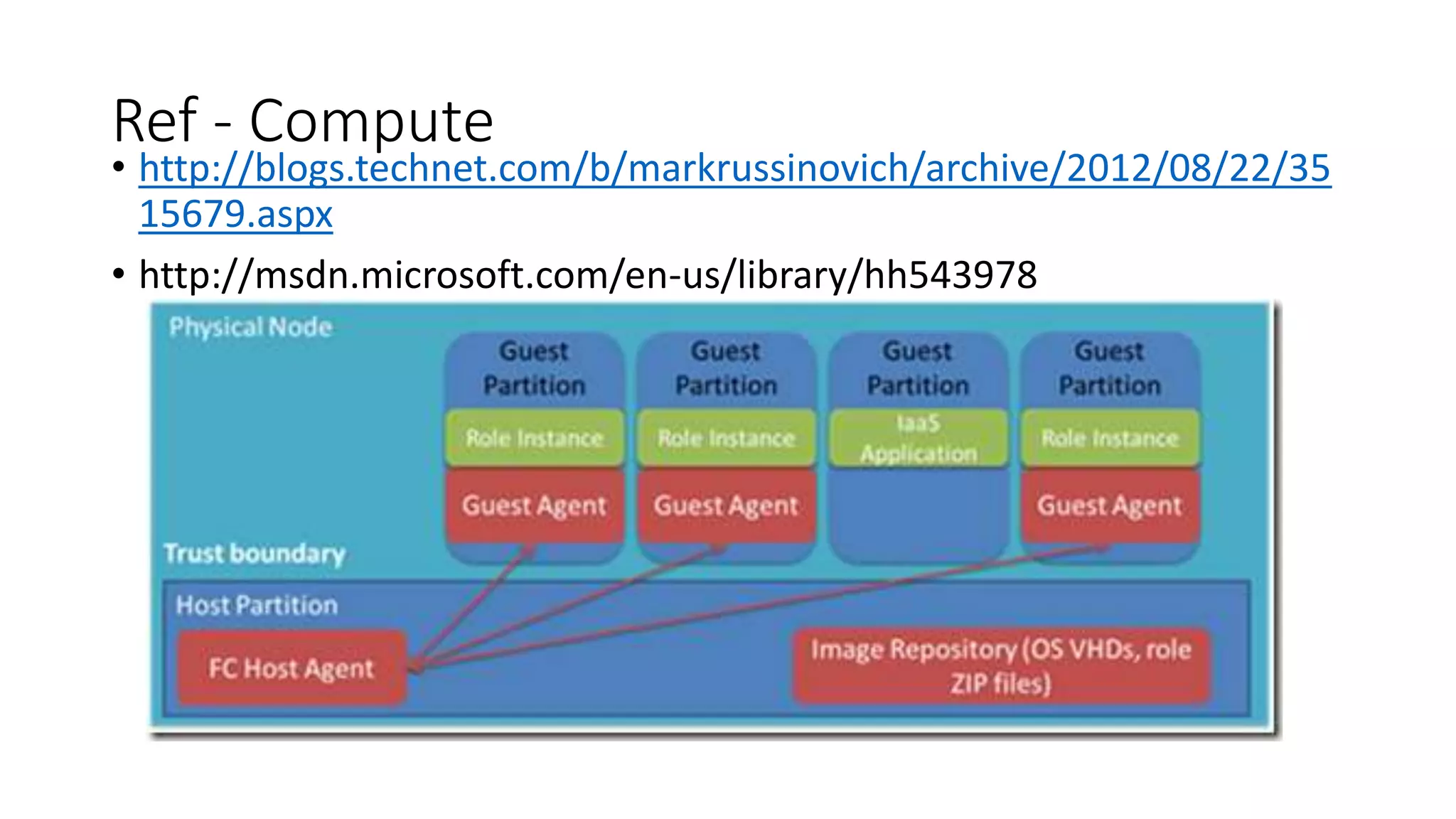

- 18. Ref - Compute •http://blogs.technet.com/b/markrussinovich/archive/2012/08/22/35 15679.aspx • http://msdn.microsoft.com/en-us/library/hh543978

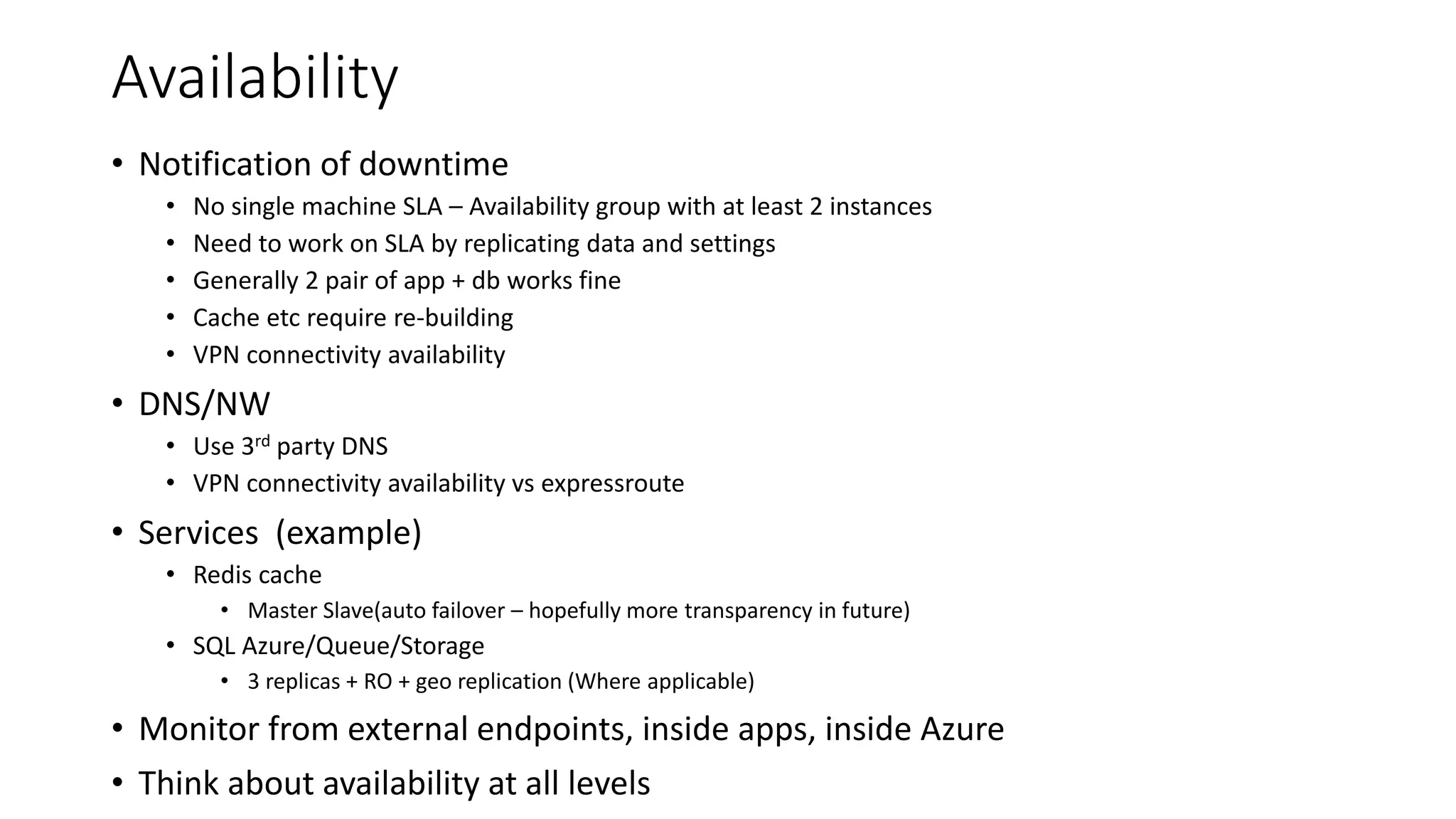

- 19. Availability • Notification ofdowntime • No single machine SLA – Availability group with at least 2 instances • Need to work on SLA by replicating data and settings • Generally 2 pair of app + db works fine • Cache etc require re-building • VPN connectivity availability • DNS/NW • Use 3rd party DNS • VPN connectivity availability vs expressroute • Services (example) • Redis cache • Master Slave(auto failover – hopefully more transparency in future) • SQL Azure/Queue/Storage • 3 replicas + RO + geo replication (Where applicable) • Monitor from external endpoints, inside apps, inside Azure • Think about availability at all levels

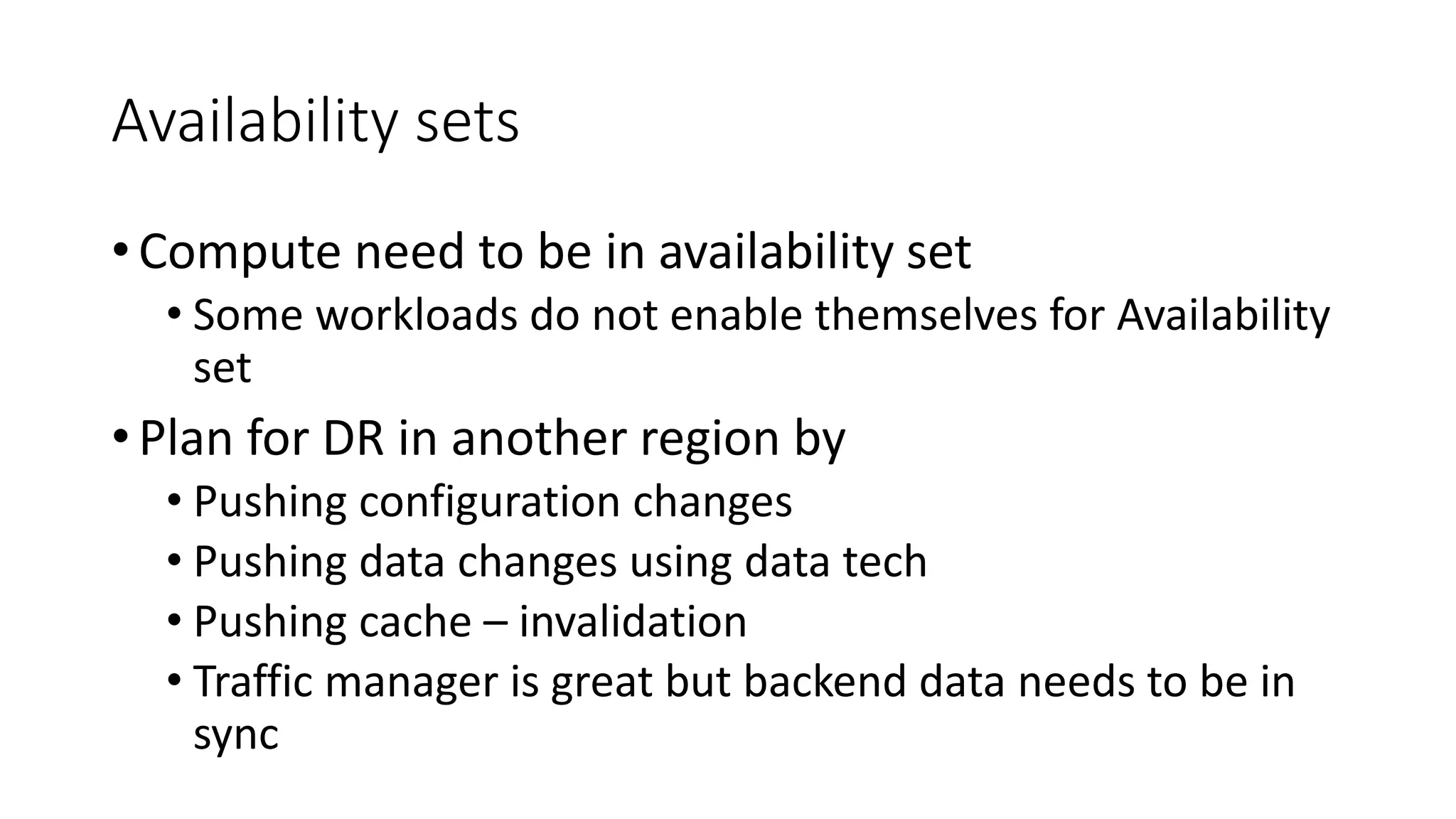

- 20. Availability sets • Computeneed to be in availability set • Some workloads do not enable themselves for Availability set • Plan for DR in another region by • Pushing configuration changes • Pushing data changes using data tech • Pushing cache – invalidation • Traffic manager is great but backend data needs to be in sync

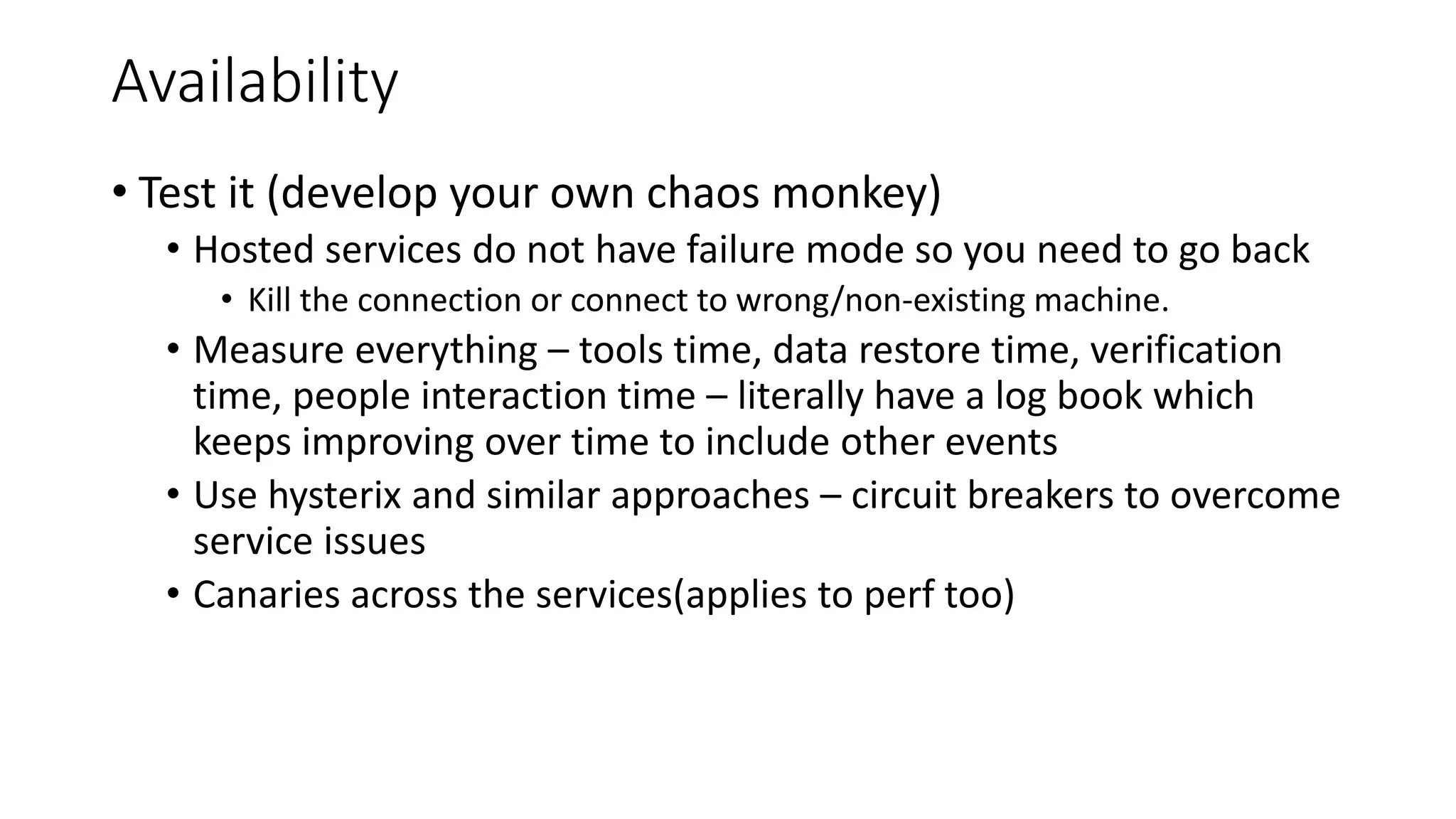

- 21. Availability • Test it(develop your own chaos monkey) • Hosted services do not have failure mode so you need to go back • Kill the connection or connect to wrong/non-existing machine. • Measure everything – tools time, data restore time, verification time, people interaction time – literally have a log book which keeps improving over time to include other events • Use hysterix and similar approaches – circuit breakers to overcome service issues • Canaries across the services(applies to perf too)
- 22.

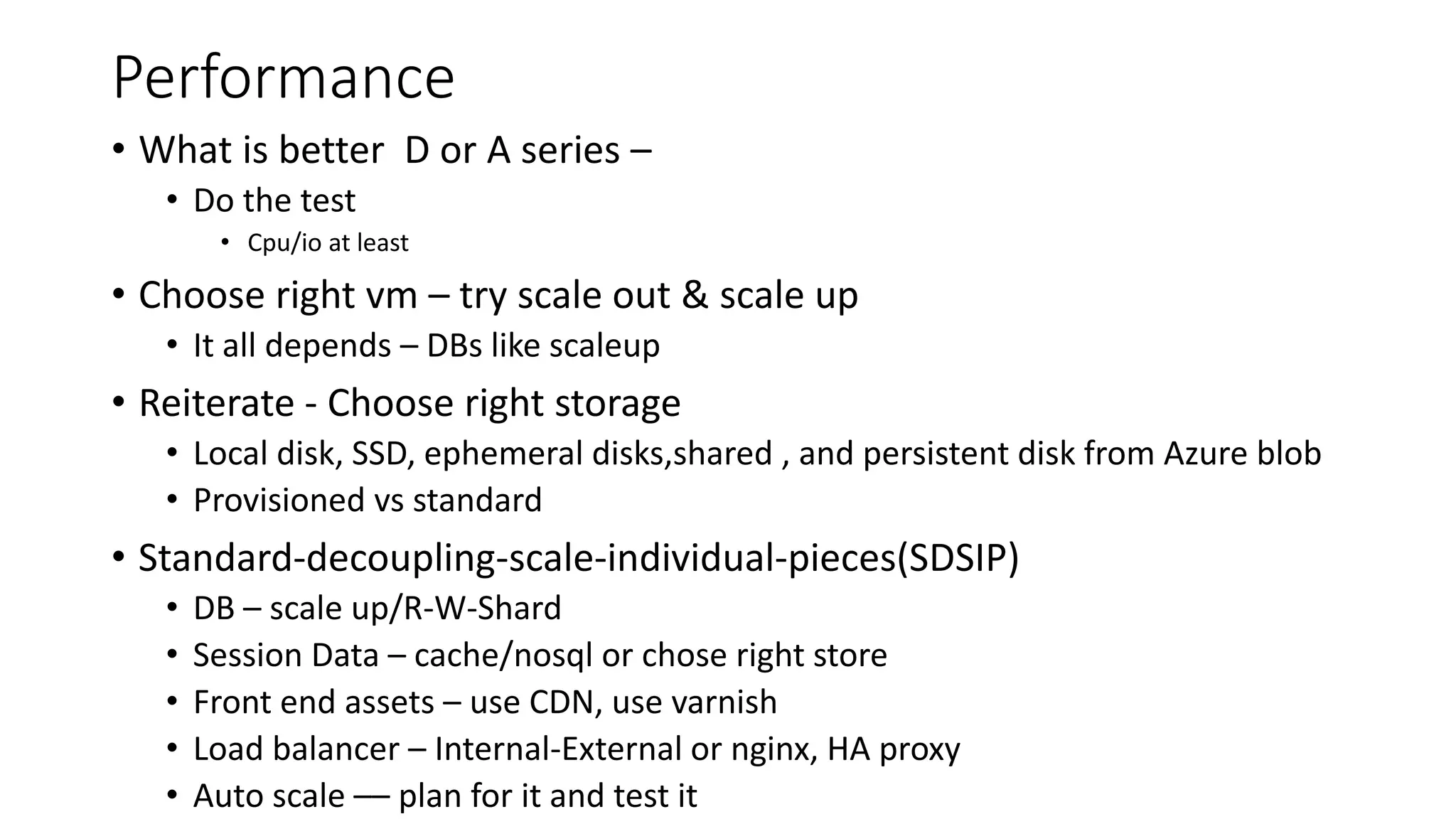

- 23. Performance • What isbetter D or A series – • Do the test • Cpu/io at least • Choose right vm – try scale out & scale up • It all depends – DBs like scaleup • Reiterate - Choose right storage • Local disk, SSD, ephemeral disks,shared , and persistent disk from Azure blob • Provisioned vs standard • Standard-decoupling-scale-individual-pieces(SDSIP) • DB – scale up/R-W-Shard • Session Data – cache/nosql or chose right store • Front end assets – use CDN, use varnish • Load balancer – Internal-External or nginx, HA proxy • Auto scale –– plan for it and test it

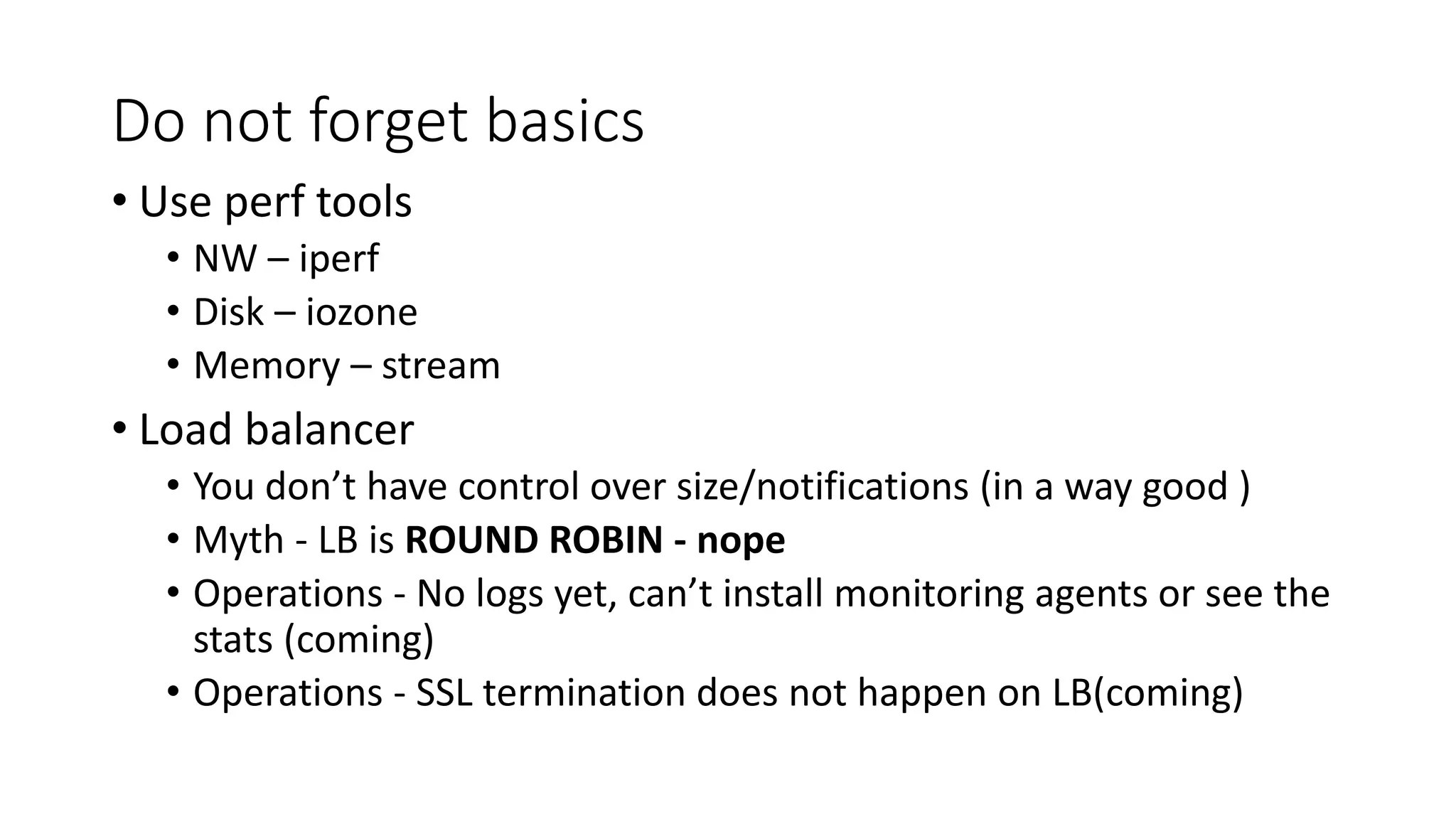

- 24. Do not forgetbasics • Use perf tools • NW – iperf • Disk – iozone • Memory – stream • Load balancer • You don’t have control over size/notifications (in a way good ) • Myth - LB is ROUND ROBIN - nope • Operations - No logs yet, can’t install monitoring agents or see the stats (coming) • Operations - SSL termination does not happen on LB(coming)

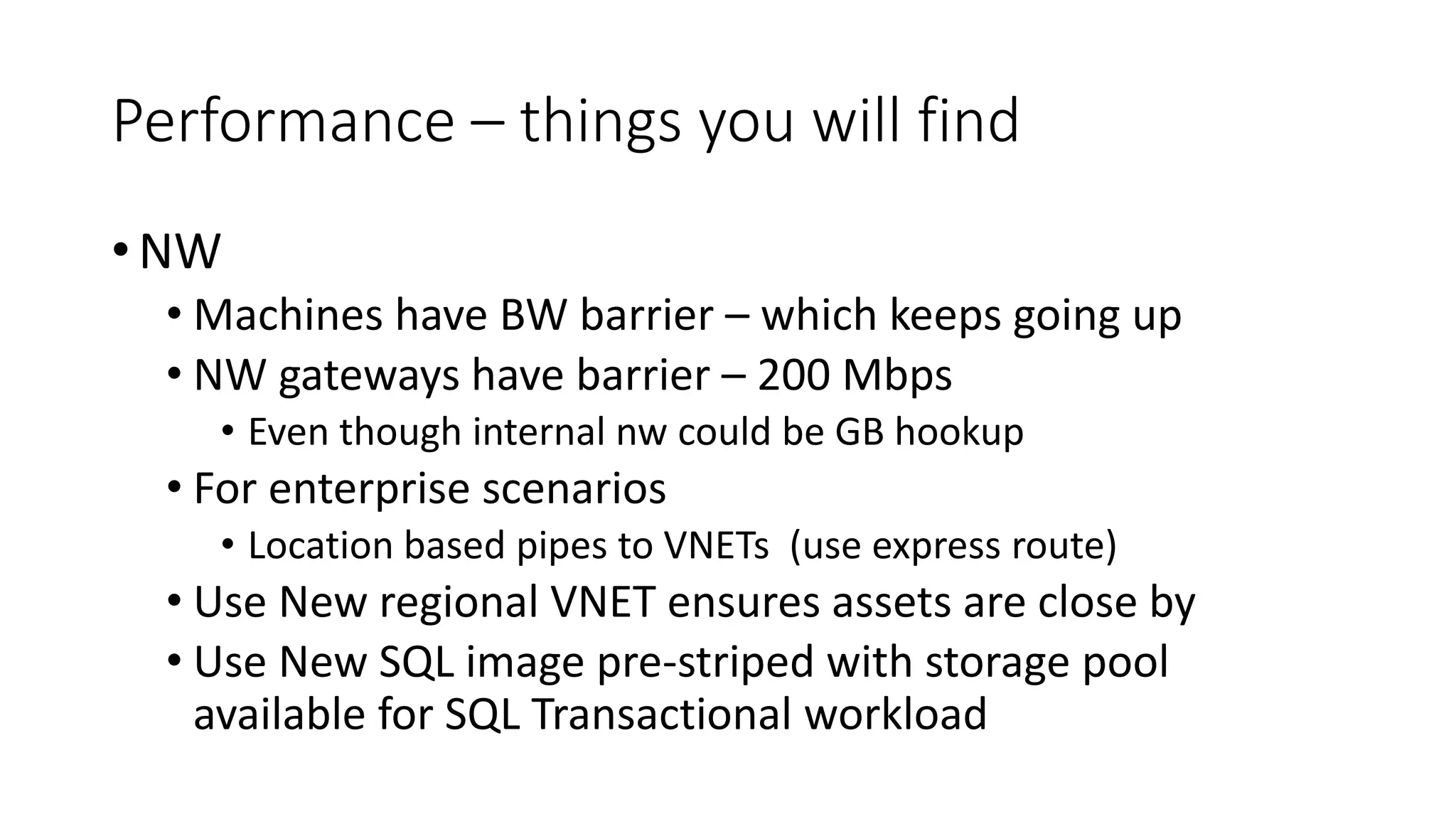

- 25. Performance – thingsyou will find • NW • Machines have BW barrier – which keeps going up • NW gateways have barrier – 200 Mbps • Even though internal nw could be GB hookup • For enterprise scenarios • Location based pipes to VNETs (use express route) • Use New regional VNET ensures assets are close by • Use New SQL image pre-striped with storage pool available for SQL Transactional workload

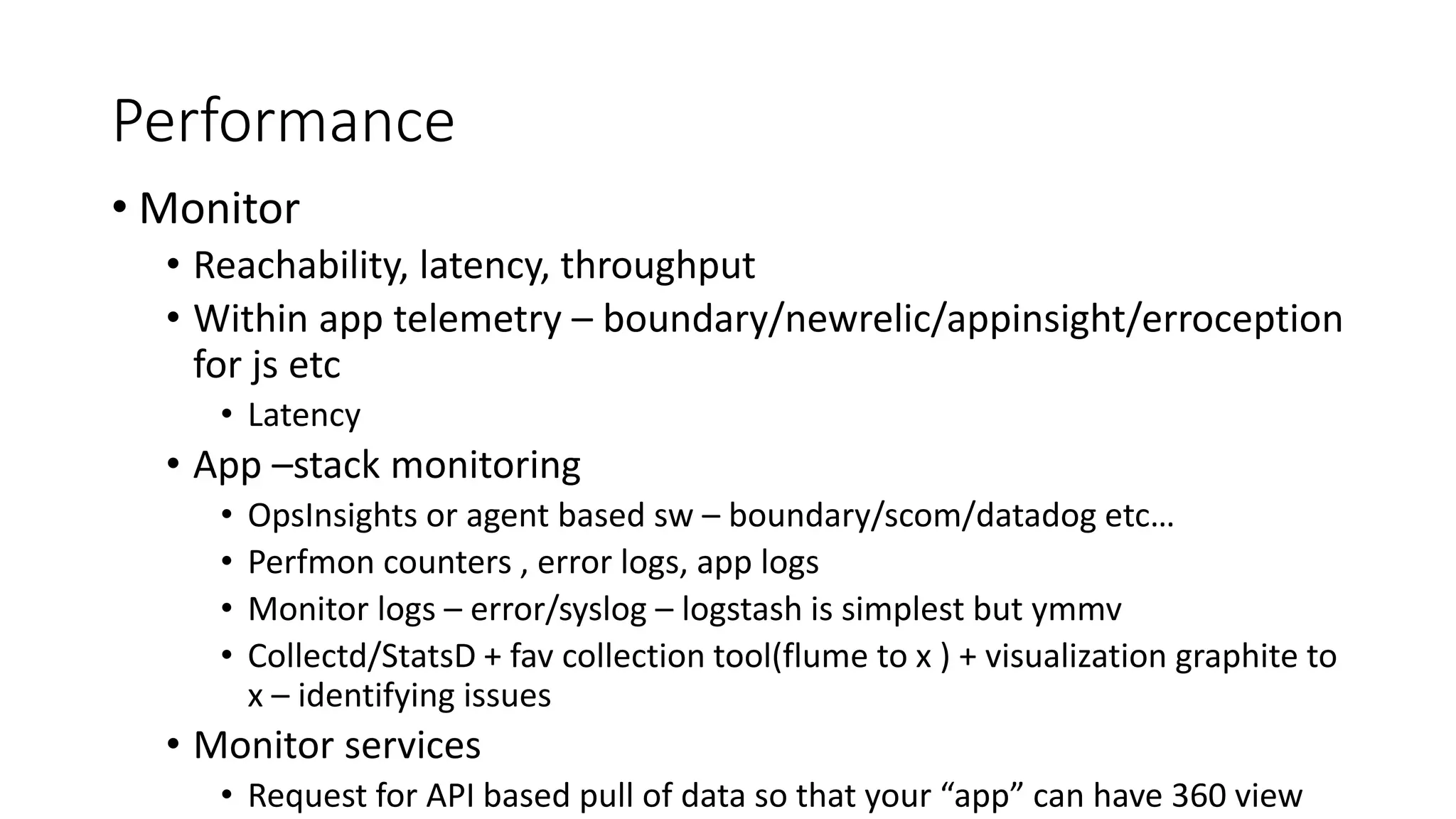

- 26. Performance • Monitor • Reachability,latency, throughput • Within app telemetry – boundary/newrelic/appinsight/erroception for js etc • Latency • App –stack monitoring • OpsInsights or agent based sw – boundary/scom/datadog etc… • Perfmon counters , error logs, app logs • Monitor logs – error/syslog – logstash is simplest but ymmv • Collectd/StatsD + fav collection tool(flume to x ) + visualization graphite to x – identifying issues • Monitor services • Request for API based pull of data so that your “app” can have 360 view

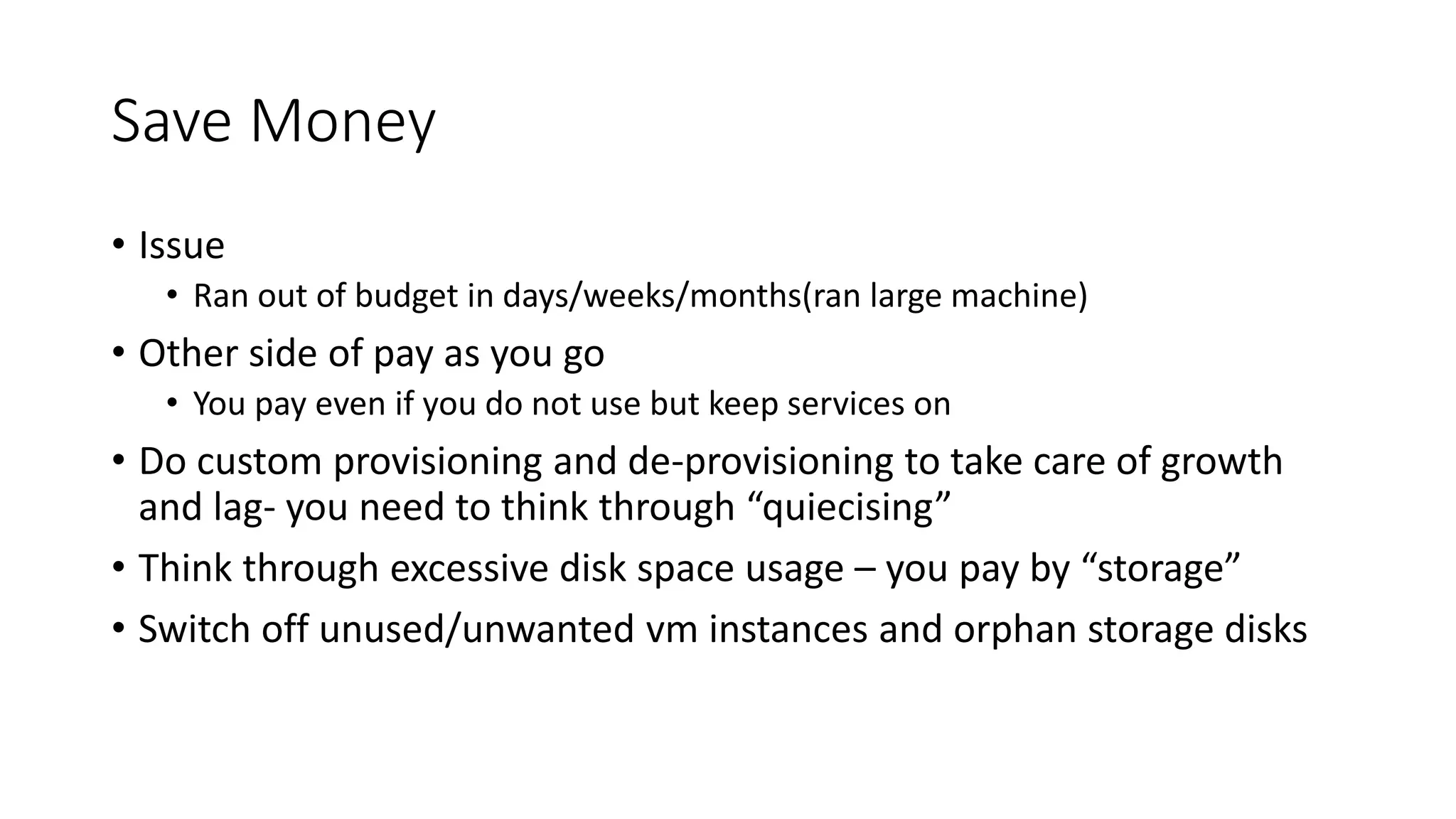

- 27. Save Money • Issue •Ran out of budget in days/weeks/months(ran large machine) • Other side of pay as you go • You pay even if you do not use but keep services on • Do custom provisioning and de-provisioning to take care of growth and lag- you need to think through “quiecising” • Think through excessive disk space usage – you pay by “storage” • Switch off unused/unwanted vm instances and orphan storage disks

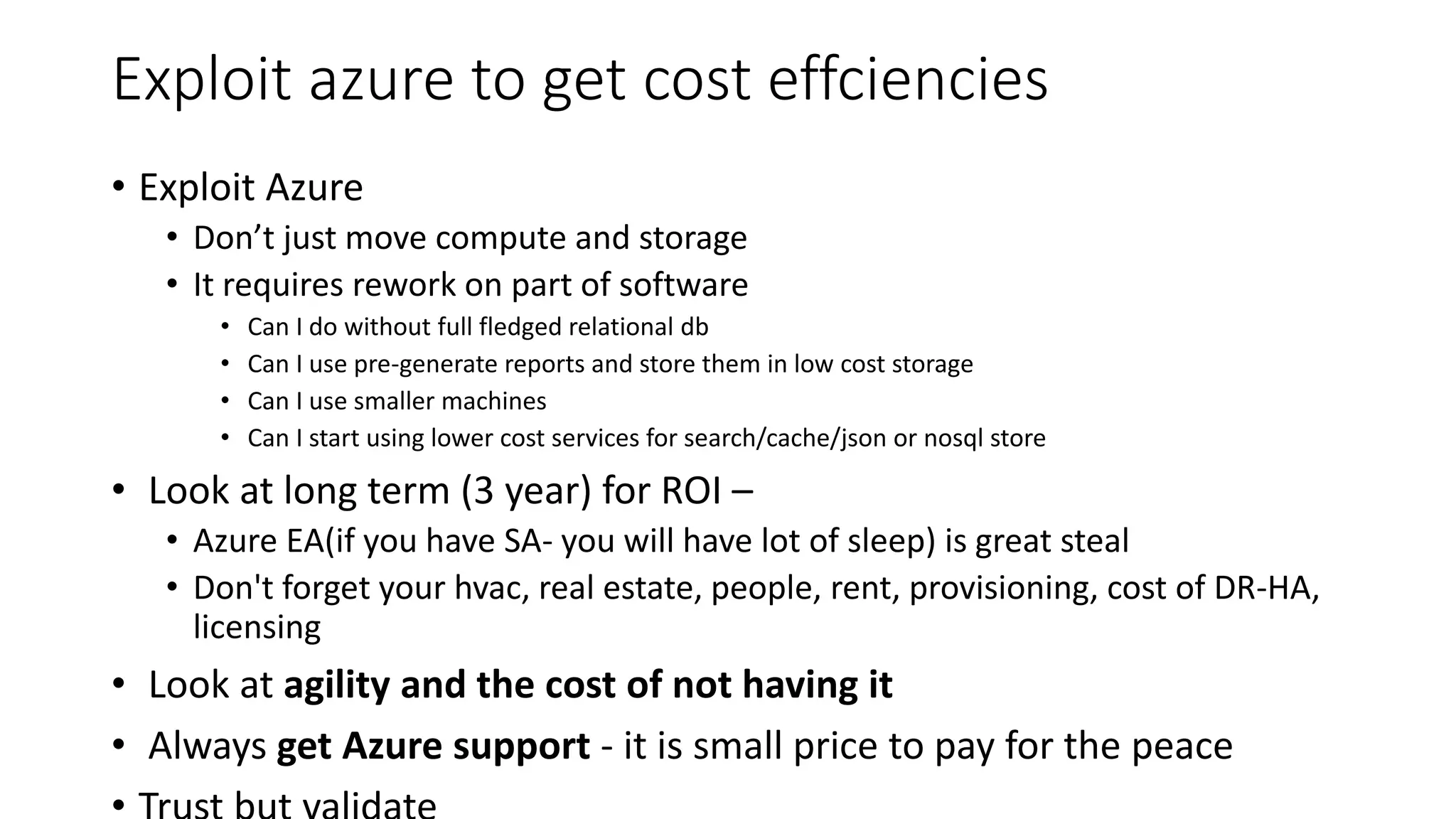

- 28. Exploit azure toget cost effciencies • Exploit Azure • Don’t just move compute and storage • It requires rework on part of software • Can I do without full fledged relational db • Can I use pre-generate reports and store them in low cost storage • Can I use smaller machines • Can I start using lower cost services for search/cache/json or nosql store • Look at long term (3 year) for ROI – • Azure EA(if you have SA- you will have lot of sleep) is great steal • Don't forget your hvac, real estate, people, rent, provisioning, cost of DR-HA, licensing • Look at agility and the cost of not having it • Always get Azure support - it is small price to pay for the peace
- 29. Your Feedback isImportant OPTION 3: Feedback stations outside the hall Fill out evaluation of this session and help shape future events. OPTION 1 OPTION 2

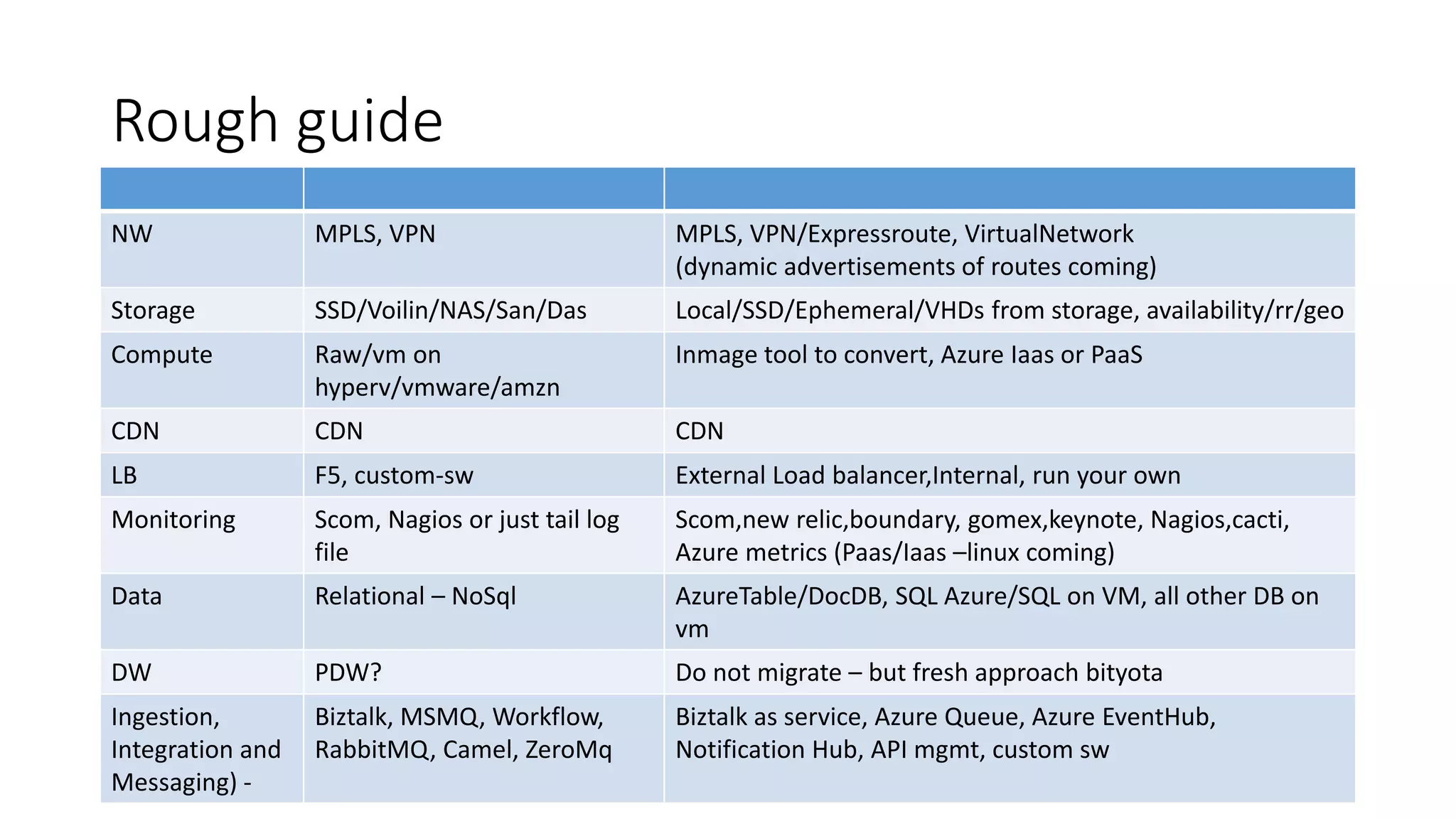

- 30. Rough guide NW MPLS,VPN MPLS, VPN/Expressroute, VirtualNetwork (dynamic advertisements of routes coming) Storage SSD/Voilin/NAS/San/Das Local/SSD/Ephemeral/VHDs from storage, availability/rr/geo Compute Raw/vm on hyperv/vmware/amzn Inmage tool to convert, Azure Iaas or PaaS CDN CDN CDN LB F5, custom-sw External Load balancer,Internal, run your own Monitoring Scom, Nagios or just tail log file Scom,new relic,boundary, gomex,keynote, Nagios,cacti, Azure metrics (Paas/Iaas –linux coming) Data Relational – NoSql AzureTable/DocDB, SQL Azure/SQL on VM, all other DB on vm DW PDW? Do not migrate – but fresh approach bityota Ingestion, Integration and Messaging) - Biztalk, MSMQ, Workflow, RabbitMQ, Camel, ZeroMq Biztalk as service, Azure Queue, Azure EventHub, Notification Hub, API mgmt, custom sw

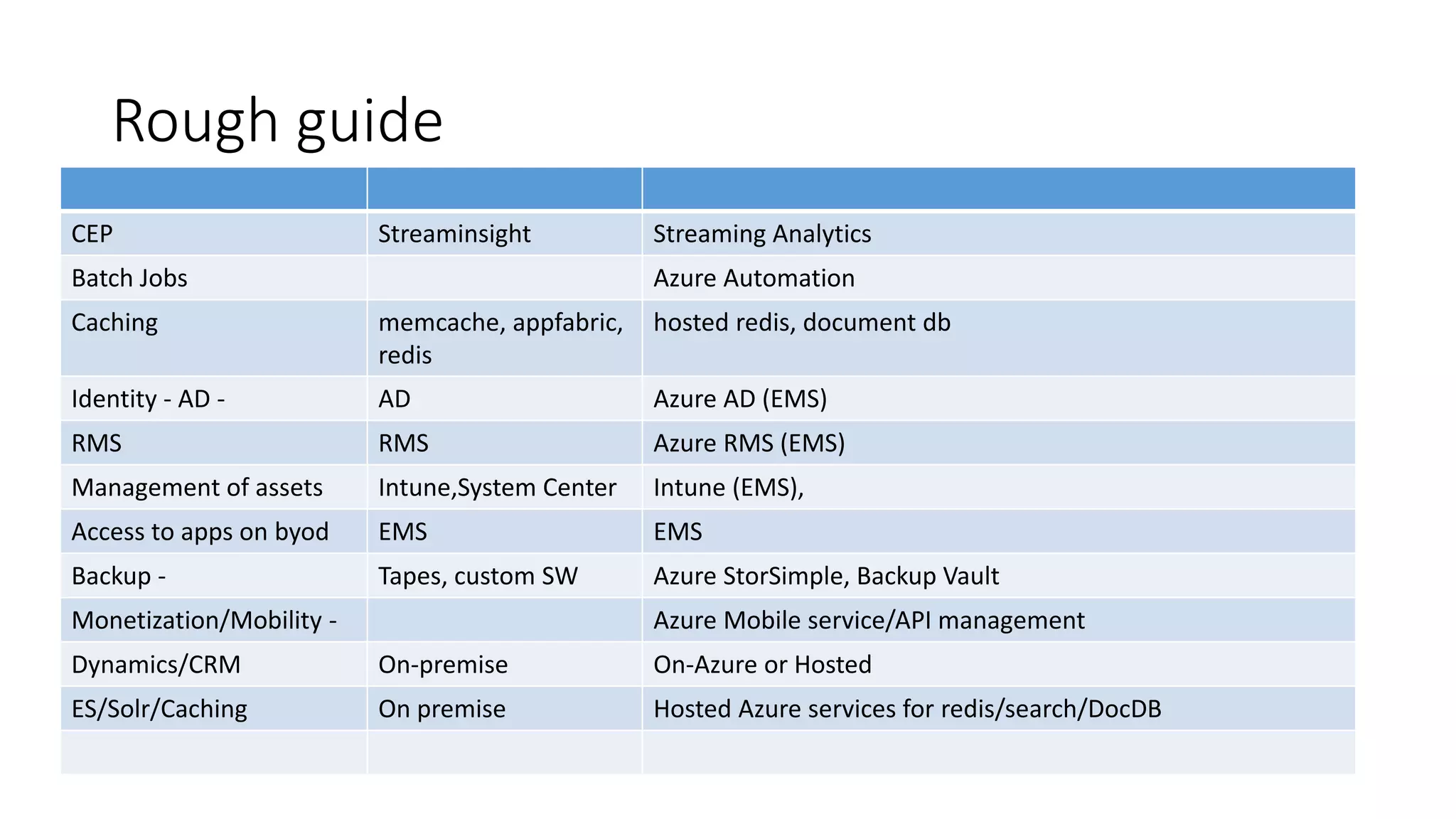

- 31. Rough guide CEP StreaminsightStreaming Analytics Batch Jobs Azure Automation Caching memcache, appfabric, redis hosted redis, document db Identity - AD - AD Azure AD (EMS) RMS RMS Azure RMS (EMS) Management of assets Intune,System Center Intune (EMS), Access to apps on byod EMS EMS Backup - Tapes, custom SW Azure StorSimple, Backup Vault Monetization/Mobility - Azure Mobile service/API management Dynamics/CRM On-premise On-Azure or Hosted ES/Solr/Caching On premise Hosted Azure services for redis/search/DocDB

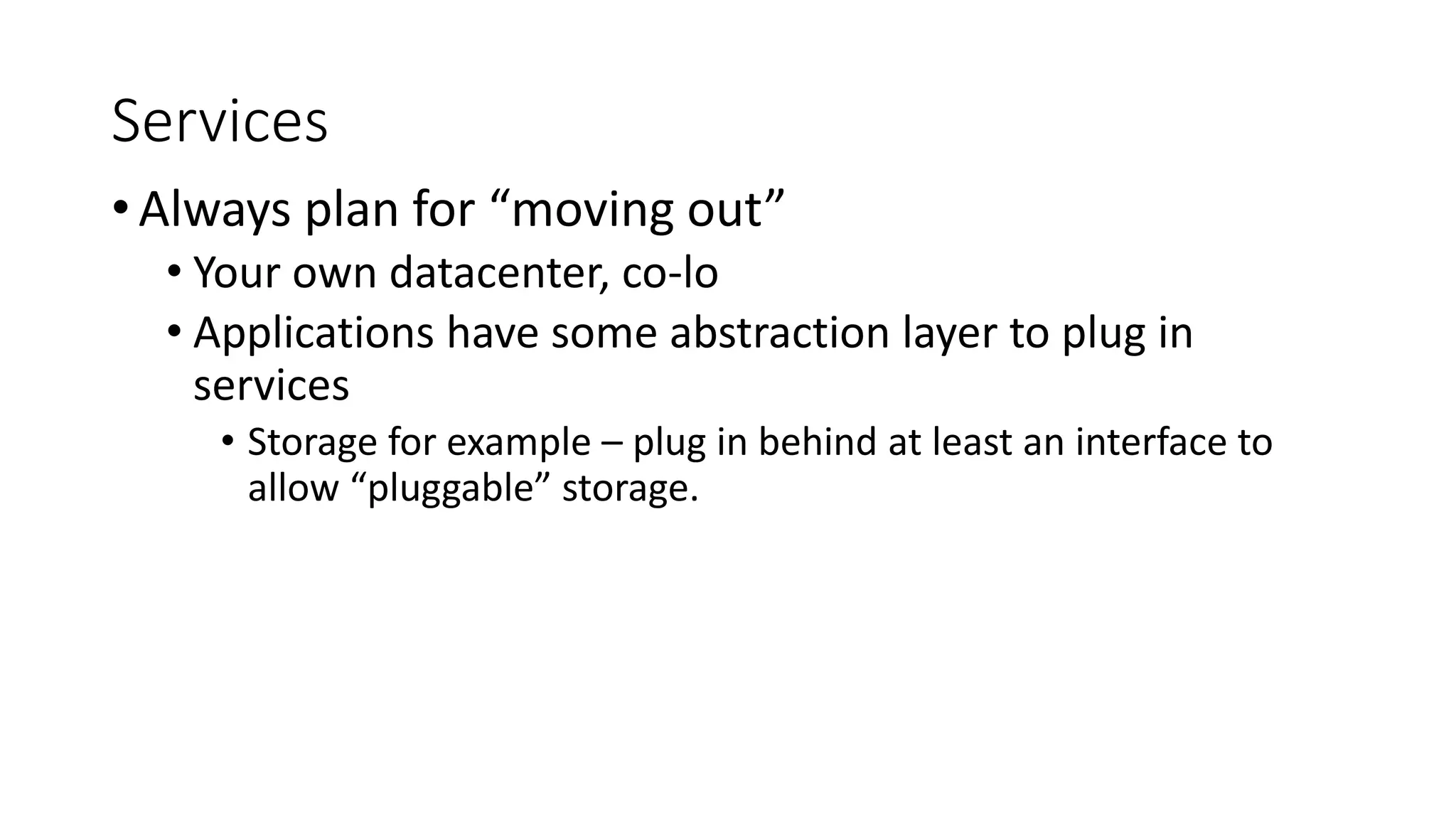

- 32. Services • Always planfor “moving out” • Your own datacenter, co-lo • Applications have some abstraction layer to plug in services • Storage for example – plug in behind at least an interface to allow “pluggable” storage.
Editor's Notes
- #10 SQL Azure throttling Storage throttling Azure search, docDb throttling…
- #19 HA – update – reboot less Guest agent – only in PaaS Order guarantee – Nope PaaS – role - the order and number of instances of a role that get rebooted concurrently during host updates can vary. That’s because the placement of instances on servers can prevent the FC from rebooting the servers on which all instances of a UD are hosted at the same time, or even in UD-order How much time – depends but - Another difference between host updates and Cloud Service updates is that when the update is to the host, however, the FC must ensure that one instance doesn’t indefinitely stall the forward progress of server updates across the datacenter. The FC therefore allots instances at most five minutes to shut down before proceeding with a reboot of the server into a new host OS and at most fifteen minutes for a role instance to report that it’s healthy from when it restarts. It takes a few minutes to reboot the host, then restart VMs, GAs and finally the role instance code, so an instance is typically offline anywhere between fifteen and thirty minutes depending on how long it and any other instances sharing the server take to shut down, as well as how long it takes to restart.
- #20 Azure Storage(queue, blob, table, block) 3rice replicated Blocks – geo replicated Aspera for file transfer Backup of VM, data, Availability of db, app, services.
- #22 http://msdn.microsoft.com/en-us/library/windowsazure/ee924680.aspx Kevin’s blog excerpt as it is HostOS - The Host OS update can take several days for the fabric to coordinate the upgrades across all of the different hosted services and upgrade domains within a datacenter. It is not uncommon for different instances of your deployment to be updated several hours apart from each other. Guest OS. Once the Host OS has finished upgrading across the datacenter then the Guest OS will be upgraded for services which are configured to use automatic Guest OS versions and this upgrade will proceed using standard upgrade domain rules for your service. Your VM will be rebooted and the Windows Partition (the D drive) will be reimaged with the upgraded OS. The Guest OS update process is much faster than the Host OS update since the fabric only has to coordinate the update within your hosted service and your upgrade domains. The duration of the Guest OS update process for your service will largely depend on how many instances you have, how many upgrade domains you have, and how long your service takes to shut down (Stopping/OnStop events) and start up (startup tasks and OnStart event). Guest Agent. The Azure guest agent is updated on a roughly monthly basis. When the guest agent is updated the host process running your role (typically WaWorkerHost or WaWebHost) will be gracefully shutdown, then the guest agent will update itself, then the host process will start again. See http://blogs.msdn.com/b/kwill/archive/2011/05/05/windows-azure-role-architecture.aspx for more information about the guest agent process and how it interacts with your service. Approximately every month, expect your instances to reboot once for the Host OS update. If you have automatic guest OS updates, expect your instances to reboot again. These reboots are typically several hours apart, but this time frame can change depending on the makeup of different services within a datacenter. Your role needs to adhere to the rules around host OS updates, in particular instances should reach the Ready state within 15 minutes of starting the Startup tasks. For more information about this limitation see http://msdn.microsoft.com/en-us/library/hh543978. Your role instances should be able to handle a Reboot, a Reimage, and a Recycle. The Host OS upgrade will cause a Reboot of your instance, and the Guest OS upgrade will cause the equivalent of a Reimage of your instance. See the common issues below for more information.
- #23 Another attempt to source images…not working
- #24 Disk Windows – use storage pool or stripe disk with raid 0 Linux – use mdadm at min Go for largest disk at beginning – do not think of “will add disk capacity etc” 0 unless you have diskspace monitoring tool SSD great for Cassandra/elasticsearch/solr Local disk – os VHDs – take instance snapshot for non-db workload or where state is clear otherwise not very useful
- #27 Better throughput sw – Orleans – ak..ka – the actors for .net world
- #29 Support - http://azure.microsoft.com/en-in/support/plans/
- #30 Please ensure the below communicated We value your feedback Use any of the 3 options to provide feedback Option 1 -> QR Code Option 2 -> Feedback right through the app for the session Option 3 -> Via feedback stations You’ll also be entered into a daily prize drawing!
