Simplify IT Event: Demistifying the Cloud

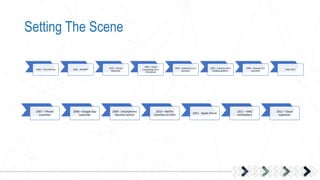

- 3. Setting The Scene 2007– iPhone Launches 2008 – Google App Launches 2009 - Smartphones become normal 2010 – NetFlix Launches on AWS 2011 - Apple iCloud 2011 – AWS marketplace 2012 – Cloud explosion 1950 – Time Sharing 1960 - ARPANET 1970 – Virtual Machines 1990 – Cloud Computing Term Introduced 1999 – Salesforce.com launches 2002 – Amazon starts building platform 2006 – Amazon EC2 Launches 2007-2017

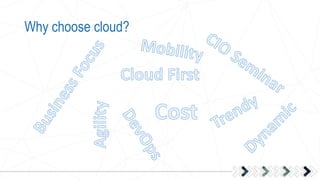

- 4.

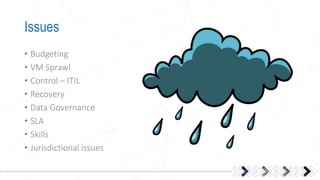

- 5. Issues • Budgeting • VMSprawl • Control – ITIL • Recovery • Data Governance • SLA • Skills • Jurisdictional issues
- 6. Journey to theCloud The first steps are always the hardest….

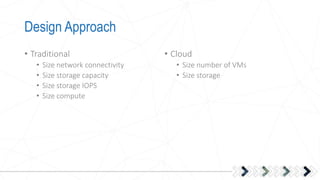

- 7. Design Approach • Traditional •Size network connectivity • Size storage capacity • Size storage IOPS • Size compute • Cloud • Size number of VMs • Size storage

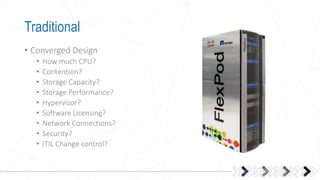

- 8. Traditional • Converged Design •How much CPU? • Contention? • Storage Capacity? • Storage Performance? • Hypervisor? • Software Licensing? • Network Connections? • Security? • ITIL Change control?

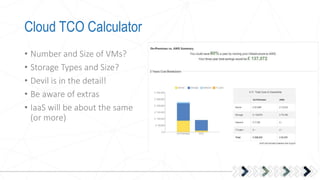

- 9. Cloud TCO Calculator •Number and Size of VMs? • Storage Types and Size? • Devil is in the detail! • Be aware of extras • IaaS will be about the same (or more)
- 10. A phrase tothink about...

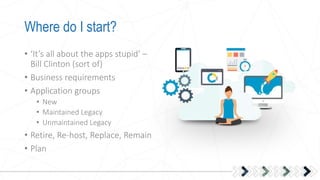

- 11. Where do Istart? • ‘It’s all about the apps stupid’ – Bill Clinton (sort of) • Business requirements • Application groups • New • Maintained Legacy • Unmaintained Legacy • Retire, Re-host, Replace, Remain • Plan
- 12.

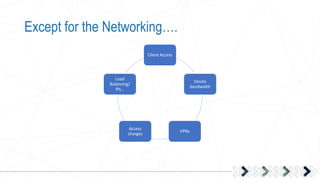

- 13. Except for theNetworking…. Client Access Onsite bandwidth VPNs Access charges Load Balancing/ IPs…
- 14. Implementation • Start small •Web facing apps • Low impact • New Provisions • Test, Test, Test • Criteria for Success • Criteria for Failure

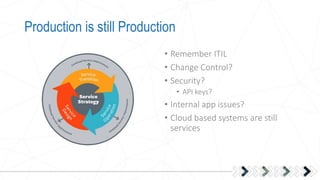

- 15. Production is stillProduction • Remember ITIL • Change Control? • Security? • API keys? • Internal app issues? • Cloud based systems are still services
- 16. Phases of migration •Lift and Shift to IaaS • Just move VMs as is? • Remember • Retire, Re-host, Replace, Remain • Options for quick redeployment
- 17. Next phase –Leap from IaaS to PaaS
- 18. Clouds help • Example– Azure • What do you need for a website? • VM? • Azure hosted page • Azure Functions • Azure storage

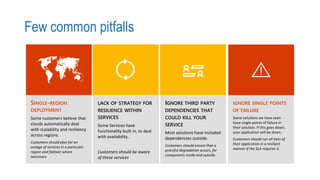

- 19. Few common pitfalls SINGLE-REGION DEPLOYMENT Somecustomers believe that clouds automatically deal with scalability and resiliency across regions. Customers should plan for an outage of services in a particular region and failover where necessary LACK OF STRATEGY FOR RESILIENCE WITHIN SERVICES Some Services have functionality built in, to deal with availability. Customers should be aware of these services IGNORE THIRD PARTY DEPENDENCIES THAT COULD KILL YOUR SERVICE Most solutions have included dependencies outside. Customers should ensure that a graceful degradation occurs, for components inside and outside. IGNORE SINGLE POINTS OF FAILURE Some solutions we have seen have single points of failure in their solution. If this goes down, your application will be down. Customers should run all tiers of their application in a resilient manner if the SLA requires it.

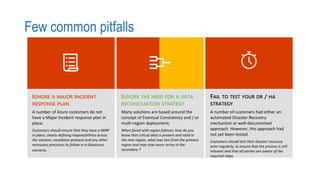

- 20. Few common pitfalls IGNOREA MAJOR INCIDENT RESPONSE PLAN A number of Azure customers do not have a Major Incident response plan in place. Customers should ensure that they have a MIRP in place, clearly defining responsibilities across the solution, escalation protocol and any other necessary processes to follow in a disastrous scenario. Many solutions are based around the concept of Eventual Consistency and / or multi-region deployment. When faced with region failover, how do you know that critical data is present and valid in the new region, what was lost from the primary region and may now never arrive in the secondary ? FAIL TO TEST YOUR DR / HA STRATEGY A number of customers had either an automated Disaster Recovery mechanism or well-documented approach. However, this approach had not yet been tested. Customers should test their disaster recovery semi-regularly, to ensure that the process is still relevant and that all parties are aware of the required steps.
- 21.
- 22.
- 23. An comparison toreal world • Cost - £200 per month to lease • Add VAT @ 20% • Hidden costs • (4 times more to hand the car back) • A charge for each turn of the wheel • Brake usage charges

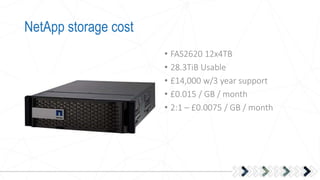

- 24. NetApp storage cost •FAS2620 12x4TB • 28.3TiB Usable • £14,000 w/3 year support • £0.015 / GB / month • 2:1 – £0.0075 / GB / month

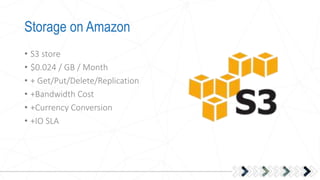

- 25. Storage on Amazon •S3 store • $0.024 / GB / Month • + Get/Put/Delete/Replication • +Bandwidth Cost • +Currency Conversion • +IO SLA

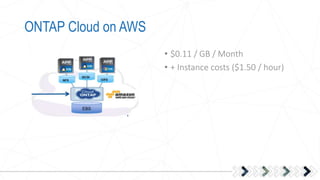

- 26. ONTAP Cloud onAWS • $0.11 / GB / Month • + Instance costs ($1.50 / hour)

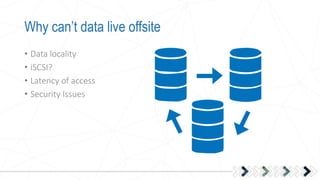

- 27. Why can’t datalive offsite • Data locality • iSCSI? • Latency of access • Security Issues

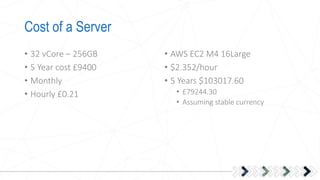

- 28. Cost of aServer • 32 vCore – 256GB • 5 Year cost £9400 • Monthly • Hourly £0.21 • AWS EC2 M4 16Large • $2.352/hour • 5 Years $103017.60 • £79244.30 • Assuming stable currency

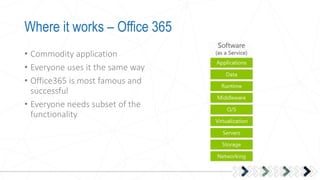

- 29. Where it works– Office 365 • Commodity application • Everyone uses it the same way • Office365 is most famous and successful • Everyone needs subset of the functionality
- 30. Where it works– Office 365 • Commodity application • Everyone uses it the same way • Office365 is most famous and successful • Everyone needs subset of the functionality

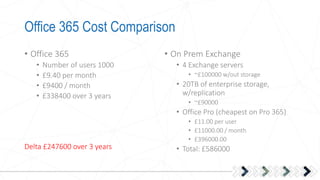

- 31. Office 365 CostComparison • Office 365 • Number of users 1000 • £9.40 per month • £9400 / month • £338400 over 3 years • On Prem Exchange • 4 Exchange servers • ~£100000 w/out storage • 20TB of enterprise storage, w/replication • ~£90000 • Office Pro (cheapest on Pro 365) • £11.00 per user • £11000.00 / month • £396000.00 • Total: £586000Delta £247600 over 3 years

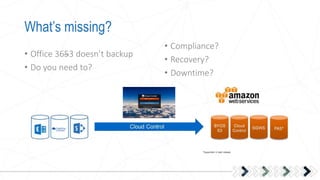

- 32. What’s missing? • Office3653 doesn’t backup • Do you need to? • Compliance? • Recovery? • Downtime?

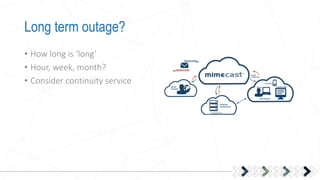

- 33. Long term outage? •How long is ‘long’ • Hour, week, month? • Consider continuity service
- 34.

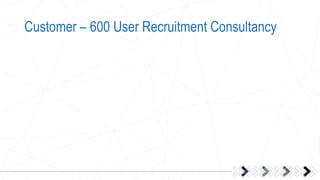

- 35. Customer – 600User Recruitment Consultancy

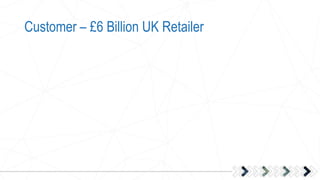

- 36. Customer – £6Billion UK Retailer
- 37. Big Fish, littlepond…

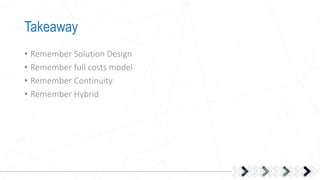

- 38. Takeaway • Remember SolutionDesign • Remember full costs model • Remember Continuity • Remember Hybrid
- 39.
