The document details the epidemiology and laboratory diagnosis of monkeypox virus in Africa, focusing on data from the Democratic Republic of Congo from 2014 to 2016, which identified 223 cases of monkeypox. It highlights a significant increase in monkeypox incidence and develops a multiplex qPCR diagnostic assay for effective field diagnosis. The conclusions emphasize the rising incidence of monkeypox, the need for improved interventions and research, and the occurrence of coinfections with varicella-zoster virus.

1. Epidemiology and
laboratory diagnosis of
Monkeypox virus in Africa
Nikola Sklenovská
Master of Biomedical Sciences
KU Leuven
Supervisor: prof. dr. Marc VAN RANST
Co-supervisor: dr. Piet MAES
Instructor: Valentijn VERGOTE

2. 2

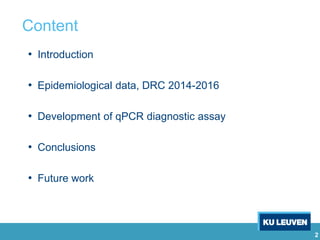

Content
• Introduction
• Epidemiological data, DRC 2014-2016
• Development of qPCR diagnostic assay
• Conclusions
• Future work

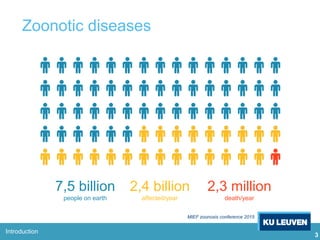

3. 3
Zoonotic diseases
MIEF zoonosis conference 2015
7,5 billion
people on earth
2,4 billion
affected/year
2,3 million
death/year
Introduction

4. 4
Monkeypox
Family Poxviridae
Subfamily Chordopoxvirinae
Genus Orthopoxvirus
Species Camelpox virus
Cowpox virus
Ecromelia virus
Monkeypox virus
Raccoonpox virus
Skunkpox virus
Taterapox virus
Vaccinia virus
Variola virus
Volepox virus
Introduction

5. 5

6. 6

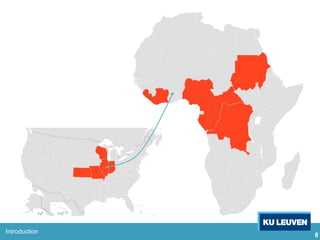

7. 7

8. 8
Introduction

9. 9
1. Assess epidemiological characteristics of the
most recent monkeypox data.
2. Develop a diagnostic assay for differentiation of
MPXV and VZV suitable for field conditions.
Aims

10. 10

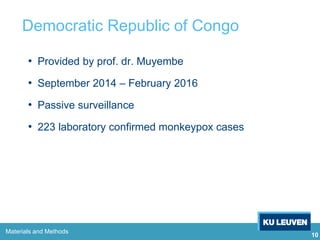

Democratic Republic of Congo
• Provided by prof. dr. Muyembe
• September 2014 – February 2016
• Passive surveillance
• 223 laboratory confirmed monkeypox cases
Materials and Methods

11. 11

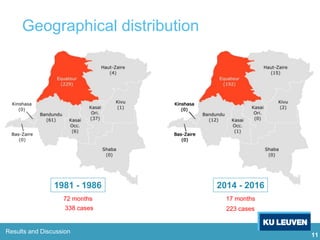

Results and Discussion
1981 - 1986 2014 - 2016
17 months72 months
223 cases338 cases
Geographical distribution

12. 12

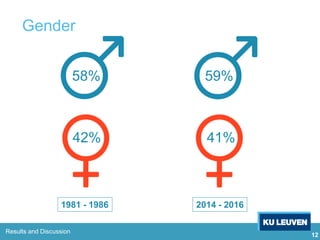

Gender
42%
58%
41%
59%
1981 - 1986 2014 - 2016
ResultsResults and Discussion

13. 13

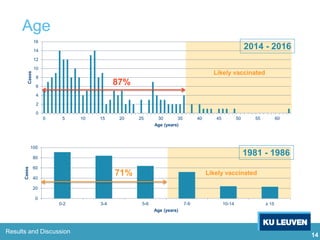

14. 14
Age
ResultsResults and Discussion
0
2
4
6
8
10
12
14
16
0 5 10 15 20 25 30 35 40 45 50 55 60
Cases
Age (years)
0
20
40
60
80
100
0-2 3-4 5-6 7-9 10-14 ≥ 15
Cases
Age (years)
87%
71%
1981 - 1986
2014 - 2016
Likely vaccinated
Likely vaccinated

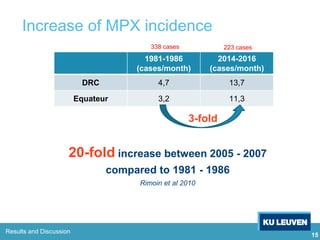

15. 15
Increase of MPX incidence
20-fold increase between 2005 - 2007
compared to 1981 - 1986
Rimoin et al 2010
1981-1986
(cases/month)
2014-2016
(cases/month)
DRC 4,7 13,7
Equateur 3,2 11,3
ResultsResults and Discussion
3-fold
223 cases338 cases

16. 16

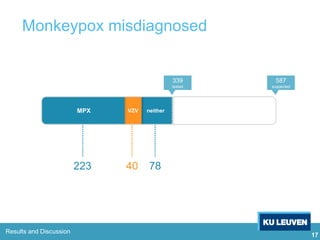

17. 17
neither
587
suspected
VZVMPX
223 40 78
339
tested
Results and Discussion
Monkeypox misdiagnosed

18. 18

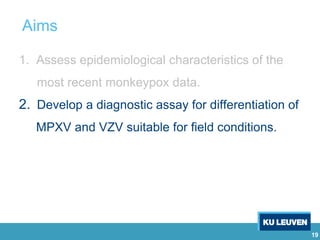

19. 19
1. Assess epidemiological characteristics of the
most recent monkeypox data.
2. Develop a diagnostic assay for differentiation of
MPXV and VZV suitable for field conditions.
Aims

20. 20

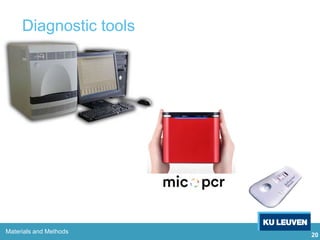

Materials and Methods
Diagnostic tools

21. 21
Assay development
• Multiplex assay for VZV and MPXV detection
• Validated with  10 VZV-positive samples
 5 MPXV-positive samples

22. 22

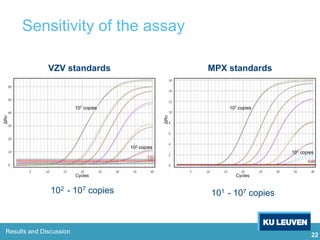

Results and Discussion
107 copies 107 copies
102 copies
101 copies
102 - 107 copies 101 - 107 copies
VZV standards MPX standards
Sensitivity of the assay

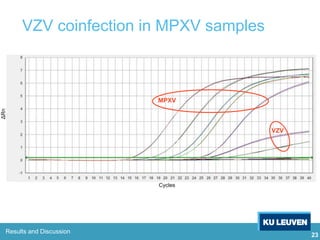

23. 23
Results and Discussion
VZV
MPXV
VZV coinfection in MPXV samples

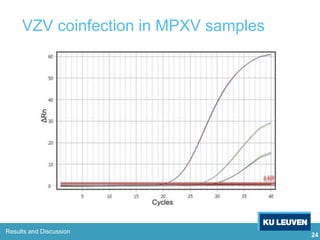

24. 24
Results and Discussion
VZV coinfection in MPXV samples

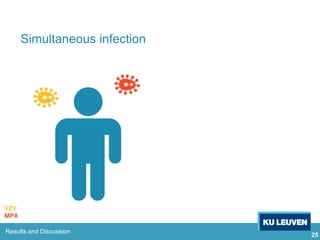

25. 25
VZV
MPX
Results and Discussion
Simultaneous infection

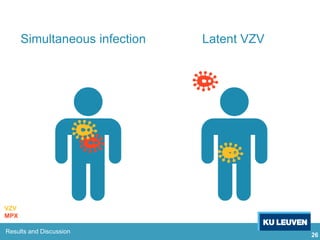

26. 26
VZV
MPX
Simultaneous infection
Results and Discussion
Latent VZV

27. 27

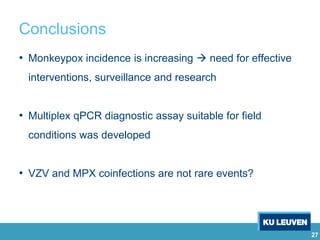

Conclusions
• Monkeypox incidence is increasing  need for effective
interventions, surveillance and research
• Multiplex qPCR diagnostic assay suitable for field
conditions was developed
• VZV and MPX coinfections are not rare events?

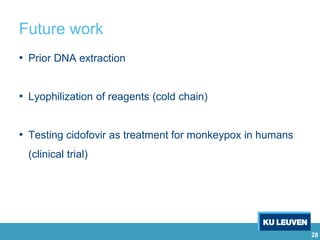

28. 28
Future work
• Prior DNA extraction
• Lyophilization of reagents (cold chain)
• Testing cidofovir as treatment for monkeypox in humans
(clinical trial)

29. “This virus, we are sure,
cannot infect humans”
Zhengli Shi

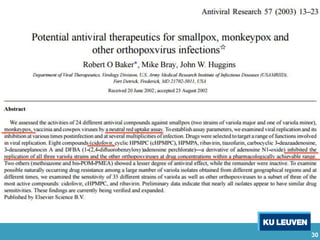

30. 30

31. 31

32. 32
