1. MongoDB: An IntroductionChris WestinSoftware Engineer, 10gen© Copyright 2010 10gen Inc.

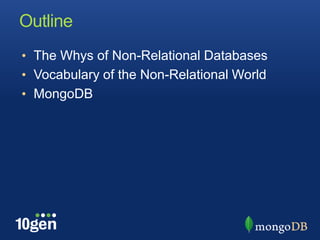

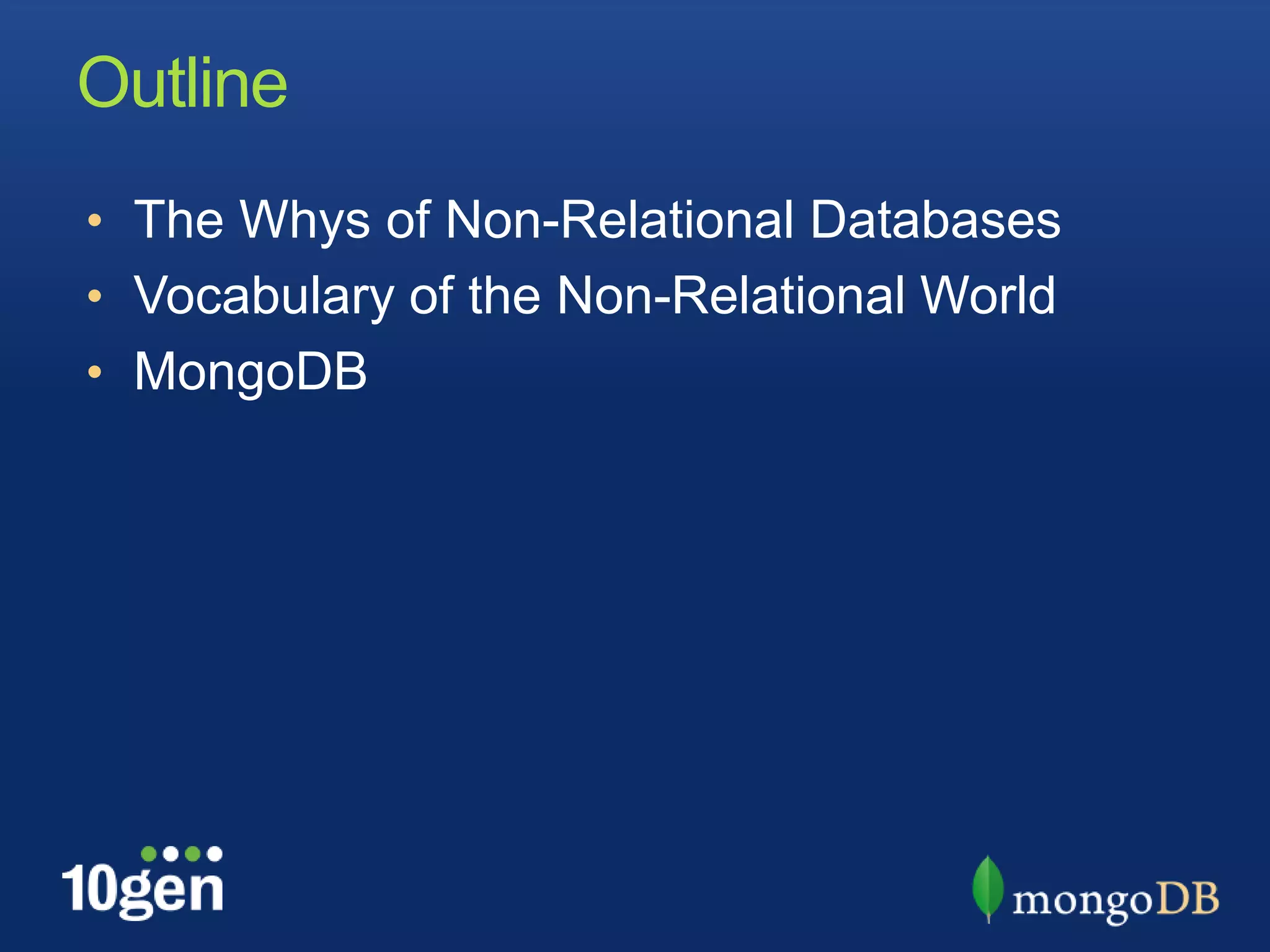

2. OutlineThe Whys of Non-Relational DatabasesVocabulary of the Non-Relational WorldMongoDB

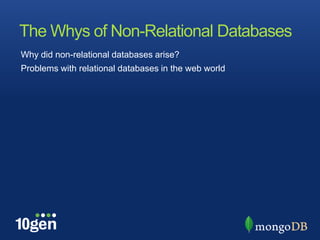

3. Why did non-relational databases arise?Problems with relational databases in the web worldThe Whys of Non-Relational Databases

4. Problem - Schema EvolutionApplications are evolving all the timeApplications need new fieldsApplications need new indexesData is growing – sometimes very fastUsers need to be able to alter their schemas without making their data unavailableThe web world expects 24x7 serviceRDBMSs can have a hard time doing this

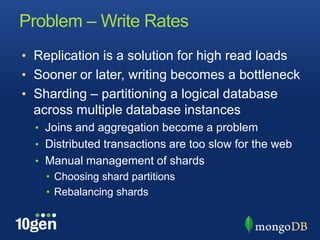

5. Problem – Write RatesReplication is a solution for high read loadsSooner or later, writing becomes a bottleneckSharding – partitioning a logical database across multiple database instancesJoins and aggregation become a problemDistributed transactions are too slow for the webManual management of shardsChoosing shard partitionsRebalancing shards

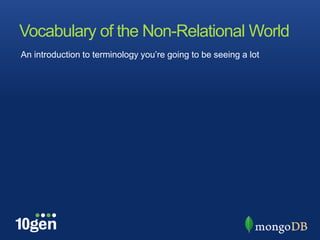

6. An introduction to terminology you’re going to be seeing a lotVocabulary of the Non-Relational World

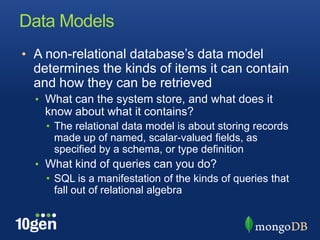

7. Data ModelsA non-relational database’s data model determines the kinds of items it can contain and how they can be retrievedWhat can the system store, and what does it know about what it contains?The relational data model is about storing records made up of named, scalar-valued fields, as specified by a schema, or type definitionWhat kind of queries can you do?SQL is a manifestation of the kinds of queries that fall out of relational algebra

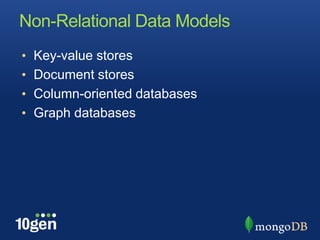

8. Non-Relational Data ModelsKey-value storesDocument storesColumn-oriented databasesGraph databases

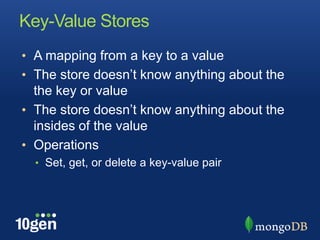

9. Key-Value StoresA mapping from a key to a valueThe store doesn’t know anything about the the key or valueThe store doesn’t know anything about the insides of the valueOperationsSet, get, or delete a key-value pair

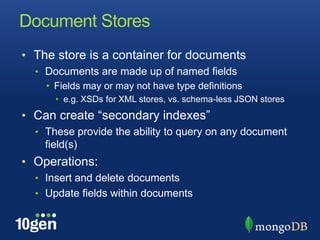

10. Document StoresThe store is a container for documentsDocuments are made up of named fieldsFields may or may not have type definitionse.g. XSDs for XML stores, vs. schema-less JSON storesCan create “secondary indexes”These provide the ability to query on any document field(s)Operations:Insert and delete documentsUpdate fields within documents

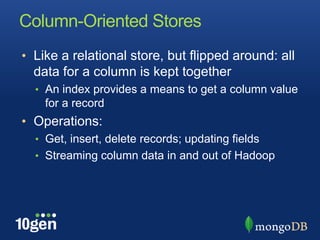

11. Column-Oriented StoresLike a relational store, but flipped around: all data for a column is kept togetherAn index provides a means to get a column value for a recordOperations:Get, insert, delete records; updating fieldsStreaming column data in and out of Hadoop

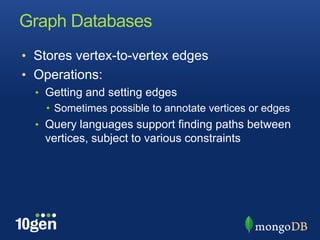

12. Graph DatabasesStores vertex-to-vertex edgesOperations:Getting and setting edgesSometimes possible to annotate vertices or edgesQuery languages support finding paths between vertices, subject to various constraints

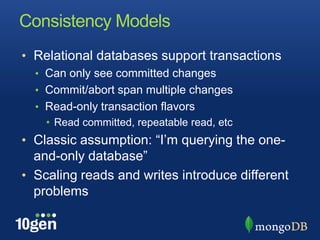

13. Consistency ModelsRelational databases support transactionsCan only see committed changesCommit/abort span multiple changesRead-only transaction flavorsRead committed, repeatable read, etcClassic assumption: “I’m querying the one-and-only database”Scaling reads and writes introduce different problems

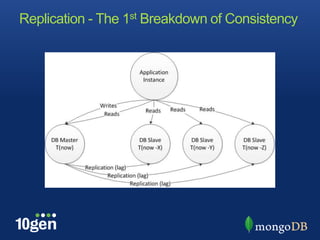

14. Replication - The 1st Breakdown of Consistency

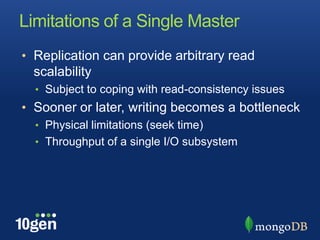

15. Limitations of a Single MasterReplication can provide arbitrary read scalabilitySubject to coping with read-consistency issuesSooner or later, writing becomes a bottleneckPhysical limitations (seek time)Throughput of a single I/O subsystem

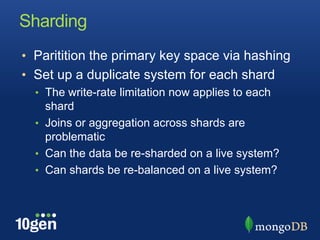

16. ShardingParitition the primary key space via hashingSet up a duplicate system for each shardThe write-rate limitation now applies to each shardJoins or aggregation across shards are problematicCan the data be re-sharded on a live system?Can shards be re-balanced on a live system?

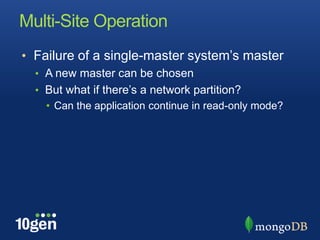

17. Multi-Site OperationFailure of a single-master system’s masterA new master can be chosenBut what if there’s a network partition?Can the application continue in read-only mode?

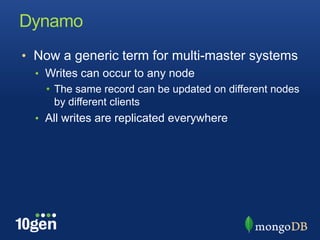

18. DynamoNow a generic term for multi-master systemsWrites can occur to any nodeThe same record can be updated on different nodes by different clientsAll writes are replicated everywhere

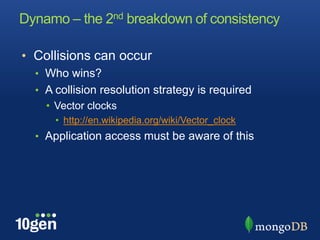

19. Dynamo – the 2nd breakdown of consistencyCollisions can occurWho wins?A collision resolution strategy is requiredVector clockshttp://en.wikipedia.org/wiki/Vector_clockApplication access must be aware of this

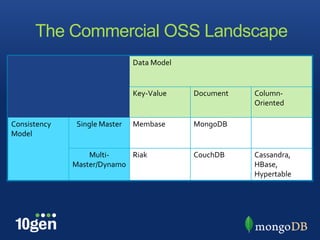

20. The Commercial OSS Landscape

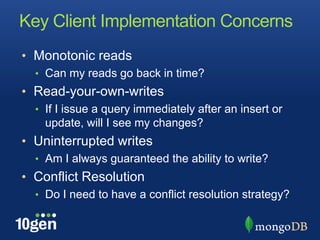

21. Key Client Implementation ConcernsMonotonic readsCan my reads go back in time?Read-your-own-writesIf I issue a query immediately after an insert or update, will I see my changes?Uninterrupted writesAm I always guaranteed the ability to write?Conflict ResolutionDo I need to have a conflict resolution strategy?

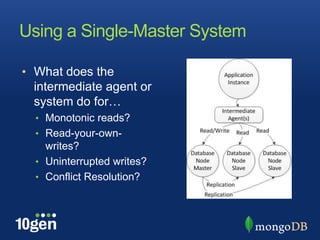

22. Using a Single-Master SystemWhat does the intermediate agent or system do for…Monotonic reads?Read-your-own-writes?Uninterrupted writes?Conflict Resolution?

23. Using a Multi-Master SystemWhat does the intermediate agent or system do for…Monotonic reads?Read-your-own-writes?Uninterrupted writes?Conflict Resolution?

24. Where MongoDB fits in the non-relational worldMongoDB’s architecture and featuresSome real-world usersMongoDB

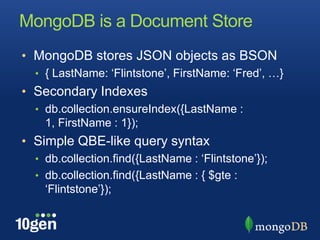

25. MongoDB is a Document StoreMongoDB stores JSON objects as BSON{ LastName: ‘Flintstone’, FirstName: ‘Fred’, …}Secondary Indexesdb.collection.ensureIndex({LastName : 1, FirstName : 1});Simple QBE-like query syntaxdb.collection.find({LastName : ‘Flintstone’});db.collection.find({LastName : { $gte : ‘Flintstone’});

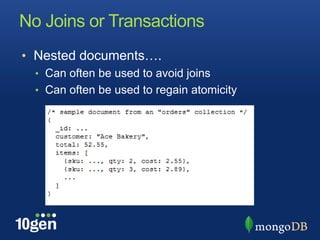

26. No Joins or TransactionsNested documents….Can often be used to avoid joinsCan often be used to regain atomicity

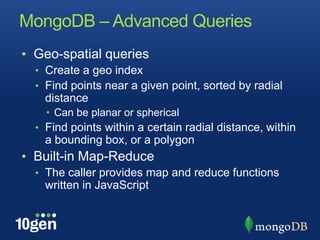

27. MongoDB – Advanced QueriesGeo-spatial queriesCreate a geo indexFind points near a given point, sorted by radial distanceCan be planar or sphericalFind points within a certain radial distance, within a bounding box, or a polygonBuilt-in Map-ReduceThe caller provides map and reduce functions written in JavaScript

28. MongoDB is a Single-Master SystemA database is served by members of a “replica set”The system elects a primary (master)Failure of the master is detected, and a new master is electedApplication writes get an error if there is no quorum to elect a new masterReads continue to be fulfilled

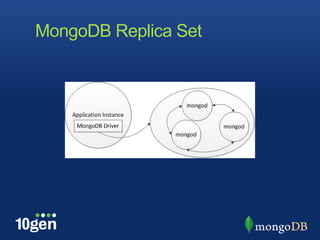

29. MongoDB Replica Set

30. MongoDB Supports ShardingA collection can be shardedEach shard is served by its own replica setNew shards (each a replica set) can be added at any timeShard key ranges are automatically balanced

31. MongoDB – Sharded Deployment

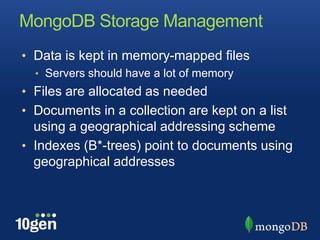

32. MongoDB Storage ManagementData is kept in memory-mapped filesServers should have a lot of memoryFiles are allocated as neededDocuments in a collection are kept on a list using a geographical addressing schemeIndexes (B*-trees) point to documents using geographical addresses

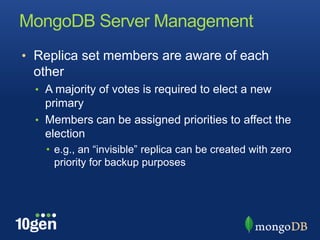

33. MongoDB Server ManagementReplica set members are aware of each otherA majority of votes is required to elect a new primaryMembers can be assigned priorities to affect the electione.g., an “invisible” replica can be created with zero priority for backup purposes

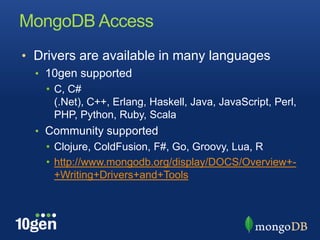

34. MongoDB AccessDrivers are available in many languages10gen supportedC, C# (.Net), C++, Erlang, Haskell, Java, JavaScript, Perl, PHP, Python, Ruby, ScalaCommunity supportedClojure, ColdFusion, F#, Go, Groovy, Lua, Rhttp://www.mongodb.org/display/DOCS/Overview+-+Writing+Drivers+and+Tools

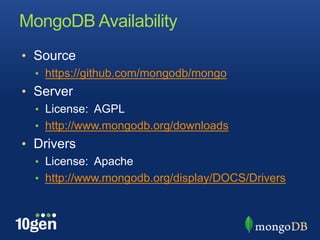

35. MongoDB AvailabilitySourcehttps://github.com/mongodb/mongoServerLicense: AGPLhttp://www.mongodb.org/downloadsDriversLicense: Apachehttp://www.mongodb.org/display/DOCS/Drivers

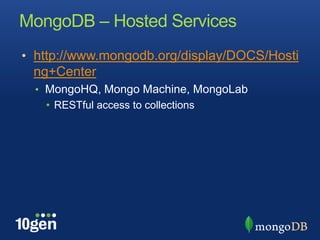

36. MongoDB – Hosted Serviceshttp://www.mongodb.org/display/DOCS/Hosting+CenterMongoHQ, Mongo Machine, MongoLabRESTful access to collections

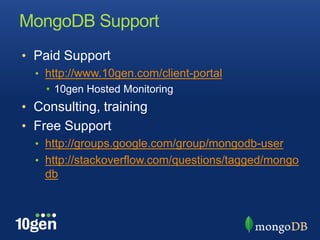

37. MongoDB SupportPaid Supporthttp://www.10gen.com/client-portal10gen Hosted MonitoringConsulting, trainingFree Supporthttp://groups.google.com/group/mongodb-userhttp://stackoverflow.com/questions/tagged/mongodb

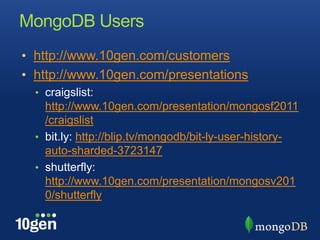

38. MongoDB Usershttp://www.10gen.com/customershttp://www.10gen.com/presentationscraigslist: http://www.10gen.com/presentation/mongosf2011/craigslistbit.ly: http://blip.tv/mongodb/bit-ly-user-history-auto-sharded-3723147shutterfly: http://www.10gen.com/presentation/mongosv2010/shutterfly

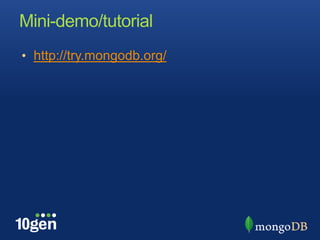

40. Mini-demo/tutorialhttp://try.mongodb.org/
