MongoDB on AWS in 5 min

david@davidmturner.com
David Turner
I look after the internet
125

david@davidmturner.comdavid@davidmturner.com124

david@davidmturner.com123 david@davidmturner.com

david@davidmturner.com117
M102: MongoDB for DBAs

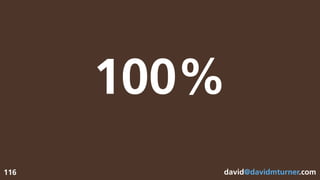

100%
116

M101P: MongoDB for Programmers

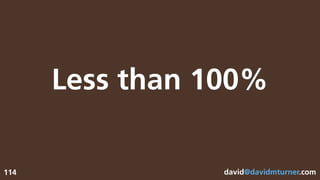

Less than 100%
114

What is MongoDB?
112

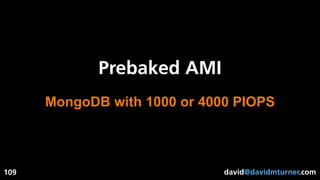

Prebaked AMI
109
MongoDB with 1000 or 4000 PIOPS

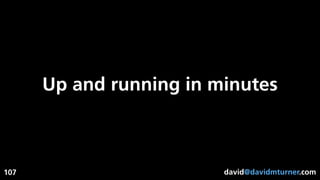

Up and running in minutes
107

Not ready for
production
106

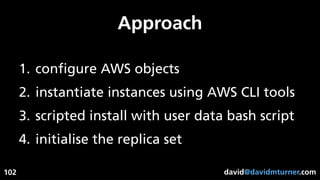

Approach
1. conﬁgure AWS objects
2. instantiate instances using AWS CLI tools
3. scripted install with user data bash script
4. initialise the replica set
102

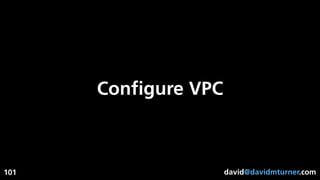

Conﬁgure VPC
101

Subnets
100

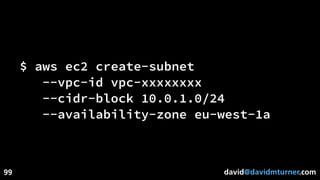

$ aws ec2 create-subnet
--vpc-id vpc-xxxxxxxx
--cidr-block 10.0.1.0/24
--availability-zone eu-west-1a
99

$ aws ec2 create-subnet
--cidr-block 10.0.2.0/24
--availability-zone eu-west-1b

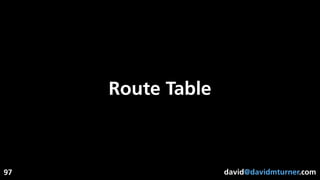

Route Table
97

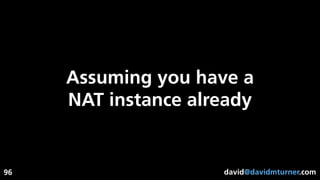

Assuming you have a
NAT instance already
96

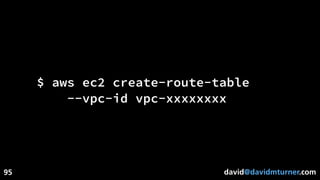

$ aws ec2 create-route-table
95

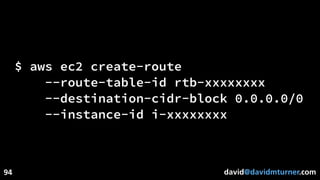

$ aws ec2 create-route
--route-table-id rtb-xxxxxxxx
--destination-cidr-block 0.0.0.0/0
--instance-id i-xxxxxxxx
94

$ aws ec2 associate-route-table
--subnet-id subnet-xxxxxxx1
93

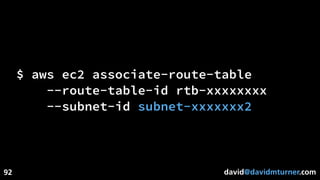

$ aws ec2 associate-route-table
--subnet-id subnet-xxxxxxx2

Security Group
91

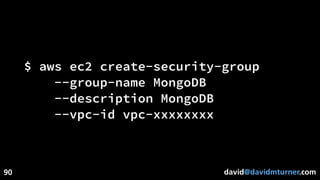

$ aws ec2 create-security-group
--group-name MongoDB
--description MongoDB
90

Ingress
89

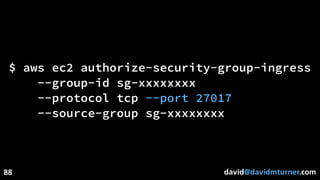

$ aws ec2 authorize-security-group-ingress
--group-id sg-xxxxxxxx
--protocol tcp --port 27017
--source-group sg-xxxxxxxx
88

--source-group sg-yyyyyyyy
87

--source-group sg-zzzzzzzz
86

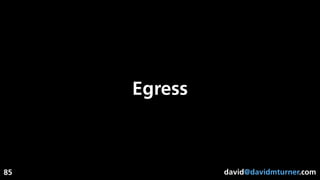

Egress
85

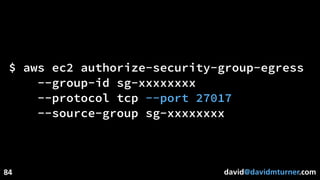

$ aws ec2 authorize-security-group-egress
--source-group sg-xxxxxxxx
84

--cidr 0.0.0.0/0
83

--cidr 0.0.0.0/0

--protocol udp --port 123
--cidr 0.0.0.0/0

Network ACLs
80

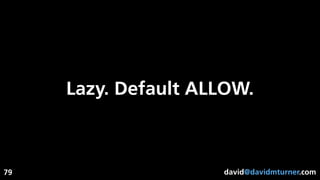

Lazy. Default ALLOW.
79

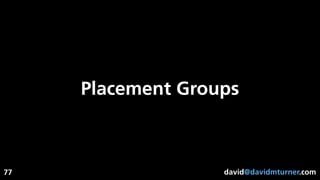

Placement Groups
77

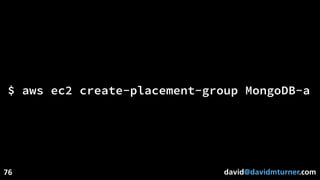

$ aws ec2 create-placement-group MongoDB-a
76

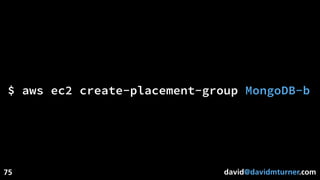

$ aws ec2 create-placement-group MongoDB-b

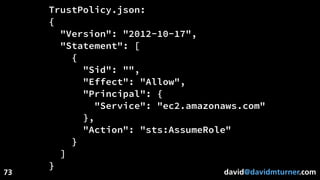

TrustPolicy.json:
{
"Version": "2012-10-17",
"Statement": [
{
"Sid": "",
"Effect": "Allow",
"Principal": {
"Service": "ec2.amazonaws.com"
},
"Action": "sts:AssumeRole"
}
]
}
73

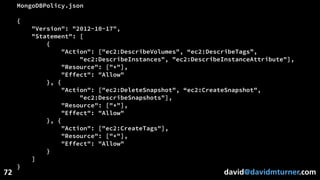

MongoDBPolicy.json
{
"Version": "2012-10-17",
"Statement": [
{
"Action": ["ec2:DescribeVolumes", “ec2:DescribeTags”,
"ec2:DescribeInstances", "ec2:DescribeInstanceAttribute"],
"Resource": ["*"],
"Effect": "Allow"
}, {
"Action": ["ec2:DeleteSnapshot", “ec2:CreateSnapshot",
"ec2:DescribeSnapshots"],
"Resource": ["*"],
"Effect": "Allow"
}, {
"Action": ["ec2:CreateTags"],
"Resource": ["*"],
"Effect": "Allow"
}
]
}
72

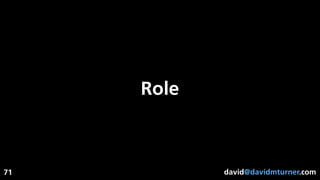

Role
71

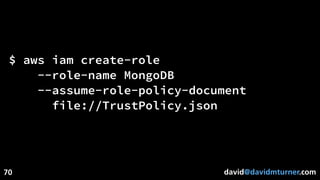

$ aws iam create-role
--role-name MongoDB
--assume-role-policy-document
file://TrustPolicy.json
70

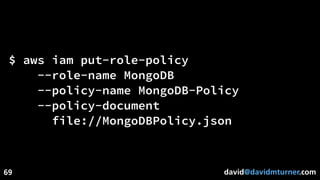

$ aws iam put-role-policy
--role-name MongoDB
--policy-name MongoDB-Policy
--policy-document
file://MongoDBPolicy.json
69

Instance Proﬁle
68

$ aws iam create-instance-profile
--instance-profile-name MongoDB
67

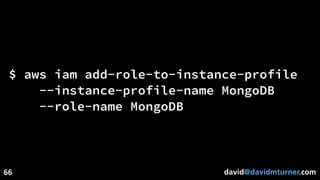

$ aws iam add-role-to-instance-profile
--instance-profile-name MongoDB
--role-name MongoDB
66

ﬁre up instances with
a bash userdata script
65

$ data=$(cat ./user-data.sh)
64

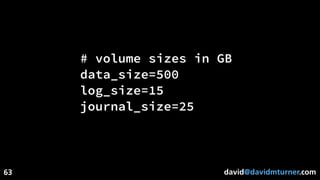

# volume sizes in GB
data_size=500
log_size=15
journal_size=25
63

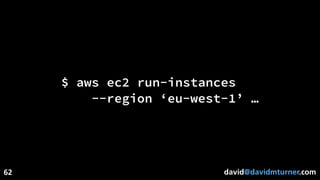

$ aws ec2 run-instances
--region ‘eu-west-1’ …
62

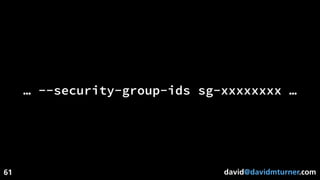

… --security-group-ids sg-xxxxxxxx …
61

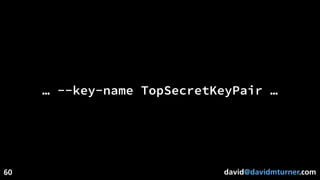

… --key-name TopSecretKeyPair …
60

… --iam-instance-profile
‘{“Arn”:"arn:aws:iam::
012345678901:instance-profile/
MongoDB_Instance_Profile"}' …
59

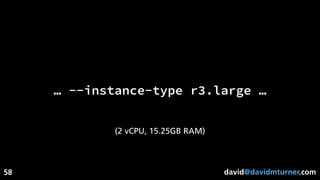

… --instance-type r3.large …
(2 vCPU, 15.25GB RAM)
58

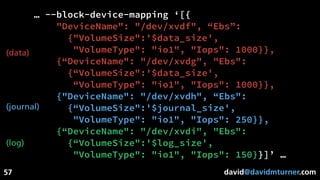

… --block-device-mapping ‘[{
"DeviceName": "/dev/xvdf", “Ebs”:
{"VolumeSize":'$data_size',
"VolumeType": "io1", "Iops": 1000}},
{“DeviceName": "/dev/xvdg", "Ebs":
{“VolumeSize":'$data_size',
“VolumeType”: "io1", "Iops": 1000}},
{"DeviceName": "/dev/xvdh", “Ebs":
{“VolumeSize":'$journal_size',
"VolumeType": "io1", "Iops": 250}},
{“DeviceName": "/dev/xvdi", "Ebs":
{“VolumeSize":'$log_size',
"VolumeType": "io1", "Iops": 150}}]’ …
57
(data)
(journal)
(log)

… --placement AvailabilityZone=eu-west-1a,GroupName=MongoDB …
56

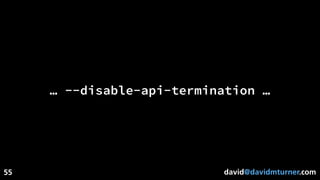

… --disable-api-termination …
55

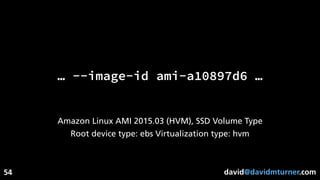

… --image-id ami-a10897d6 …
Amazon Linux AMI 2015.03 (HVM), SSD Volume Type
Root device type: ebs Virtualization type: hvm
54

… --subnet-id subnet-xxxxxxxx …
53

… —user-data “$data” …
52

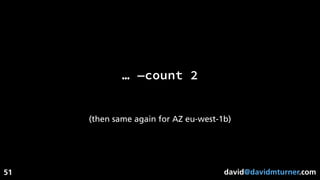

… —count 2
51
(then same again for AZ eu-west-1b)

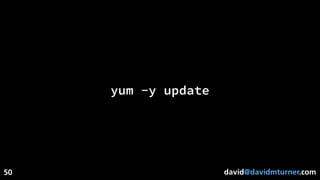

yum -y update
50

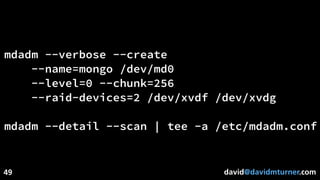

mdadm --verbose --create
--name=mongo /dev/md0
--level=0 --chunk=256
--raid-devices=2 /dev/xvdf /dev/xvdg
mdadm --detail --scan | tee -a /etc/mdadm.conf
49

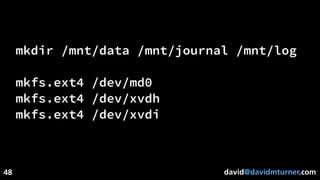

mkdir /mnt/data /mnt/journal /mnt/log
mkfs.ext4 /dev/md0
mkfs.ext4 /dev/xvdh
mkfs.ext4 /dev/xvdi
48

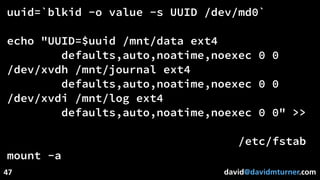

uuid=`blkid -o value -s UUID /dev/md0`
echo "UUID=$uuid /mnt/data ext4
defaults,auto,noatime,noexec 0 0
/dev/xvdh /mnt/journal ext4
defaults,auto,noatime,noexec 0 0
/dev/xvdi /mnt/log ext4
defaults,auto,noatime,noexec 0 0" >>
/etc/fstab
mount -a
47

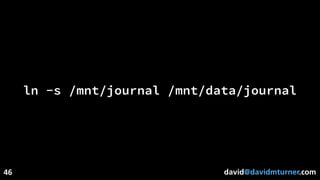

ln -s /mnt/journal /mnt/data/journal
46

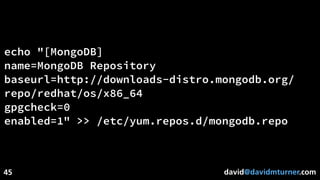

echo "[MongoDB]
name=MongoDB Repository
baseurl=http://downloads-distro.mongodb.org/
repo/redhat/os/x86_64
gpgcheck=0
enabled=1" >> /etc/yum.repos.d/mongodb.repo
45

yum install -y
mongodb-org-2.6.1
mongodb-org-server-2.6.1
--exclude mongodb-org,
mongodb-org-server
service mongod stop
44

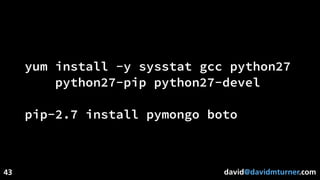

yum install -y sysstat gcc python27
python27-pip python27-devel
pip-2.7 install pymongo boto
43

chown mongod:mongod /mnt/data
chown mongod:mongod /mnt/journal
chown mongod:mongod /mnt/log
42

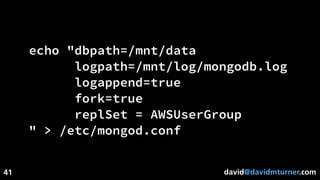

echo "dbpath=/mnt/data
logpath=/mnt/log/mongodb.log
logappend=true
fork=true
replSet = AWSUserGroup
" > /etc/mongod.conf
41

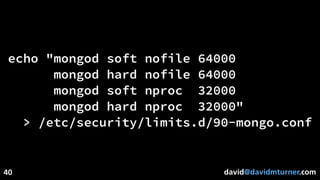

echo "mongod soft nofile 64000
mongod hard nofile 64000
mongod soft nproc 32000
mongod hard nproc 32000"
> /etc/security/limits.d/90-mongo.conf
40

echo 'ACTION=="add", KERNEL=="md*", ATTR{bdi/
read_ahead_kb}="16"' >> /etc/udev/rules.d/85-ebs.rules
echo 'ACTION=="add", KERNEL=="xvdf", ATTR{bdi/
echo 'ACTION=="add", KERNEL=="xvdg", ATTR{bdi/
echo 'ACTION=="add", KERNEL=="xvdh", ATTR{bdi/
echo 'ACTION=="add", KERNEL=="xvdi", ATTR{bdi/
39

echo "/mnt/log/mongodb.log {
daily
rotate 30
compress
dateext
missingok
notifempty
sharedscripts
prerotate
grep query /mnt/log/mongodb.log | logger -t mongodb -p warn
endscript
postrotate
/bin/kill -SIGUSR1 $(/bin/cat /mnt/data/mongod.lock)
rm -f /mnt/log/mongodb.log.[0-9][0-9][0-9][0-9]-*
endscript
}
" > /etc/logrotate.d/mongod
38

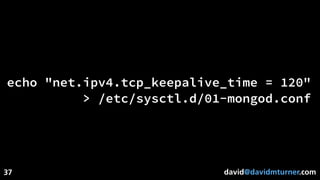

echo "net.ipv4.tcp_keepalive_time = 120"
> /etc/sysctl.d/01-mongod.conf
37

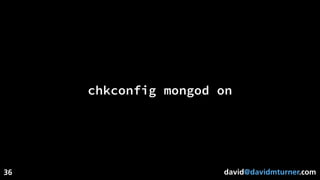

chkconfig mongod on
36

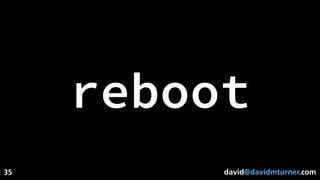

reboot
35

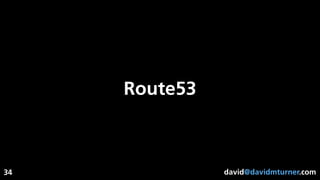

Route53
34

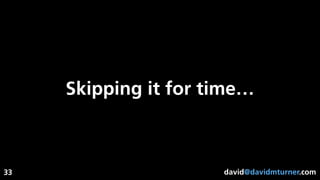

Skipping it for time…
33

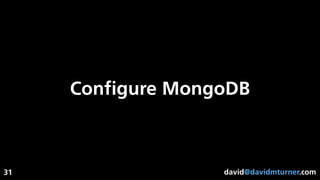

Conﬁgure MongoDB
31

rs.initiate()
30

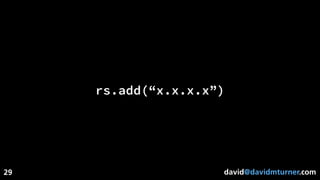

rs.add(“x.x.x.x”)
29

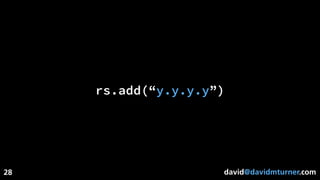

rs.add(“y.y.y.y”)
28

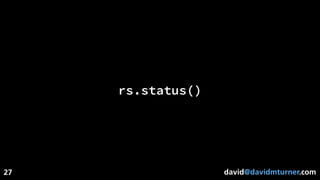

rs.status()
27

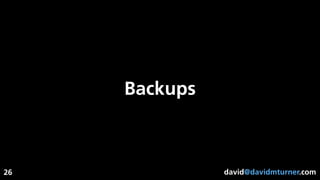

Backups
26

Hidden Member
24

EBS Snapshots
23

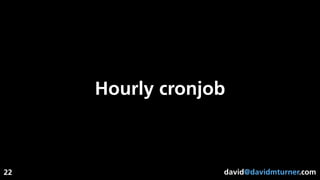

Hourly cronjob
22

Python Script
• Lock the database
• Lock the ﬁlesystem
• EBS Snapshot
• Unlock ﬁlesystem
• Unlock database
• Trim snapshots
21

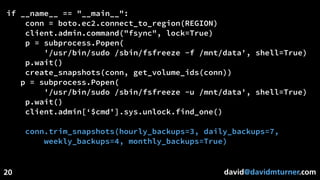

if __name__ == "__main__":
conn = boto.ec2.connect_to_region(REGION)
client.admin.command("fsync", lock=True)
p = subprocess.Popen(
'/usr/bin/sudo /sbin/fsfreeze -f /mnt/data', shell=True)
p.wait()
create_snapshots(conn, get_volume_ids(conn))
p = subprocess.Popen(
'/usr/bin/sudo /sbin/fsfreeze -u /mnt/data', shell=True)
p.wait()
client.admin[‘$cmd'].sys.unlock.find_one()
conn.trim_snapshots(hourly_backups=3, daily_backups=7,
weekly_backups=4, monthly_backups=True)
20

Development
instances
19

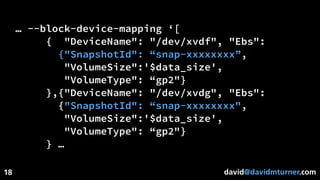

… --block-device-mapping ‘[
{ "DeviceName": "/dev/xvdf", "Ebs":
{"SnapshotId": “snap-xxxxxxxx”,
"VolumeSize":'$data_size',
"VolumeType": “gp2"}
},{"DeviceName": "/dev/xvdg", "Ebs":
{"SnapshotId": “snap-xxxxxxxx",
"VolumeSize":'$data_size',
"VolumeType": “gp2"}
} …
18

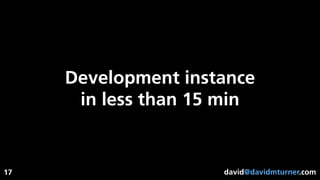

Development instance
in less than 15 min
17

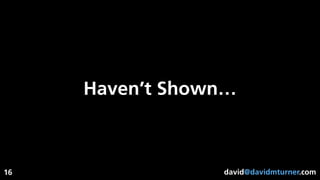

Haven’t Shown…
16

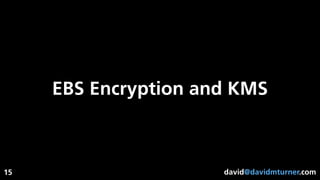

EBS Encryption and KMS
15

Multi-region
14

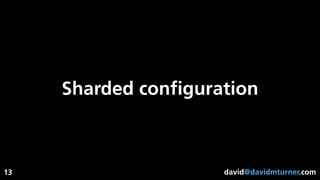

Sharded conﬁguration
13

Log management
12

Monitoring
11

Would like to meet...

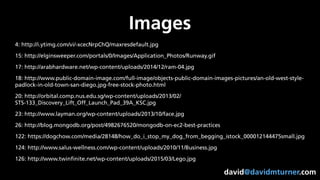

Images
