A presentation for the Reactive Programming Enthusiasts Denver meet-up. http://www.meetup.com/Reactive-Programming-Enthusiasts-Denver/ How Reactive Mongo helps utilize your hardware better and achieve a non-blocking application from the bottom up.

1. Concurrency at the
Database Layer
Scala / Reactive Mongo Example
For Reactive Programming Enthusiasts Denver
Mark Wilson

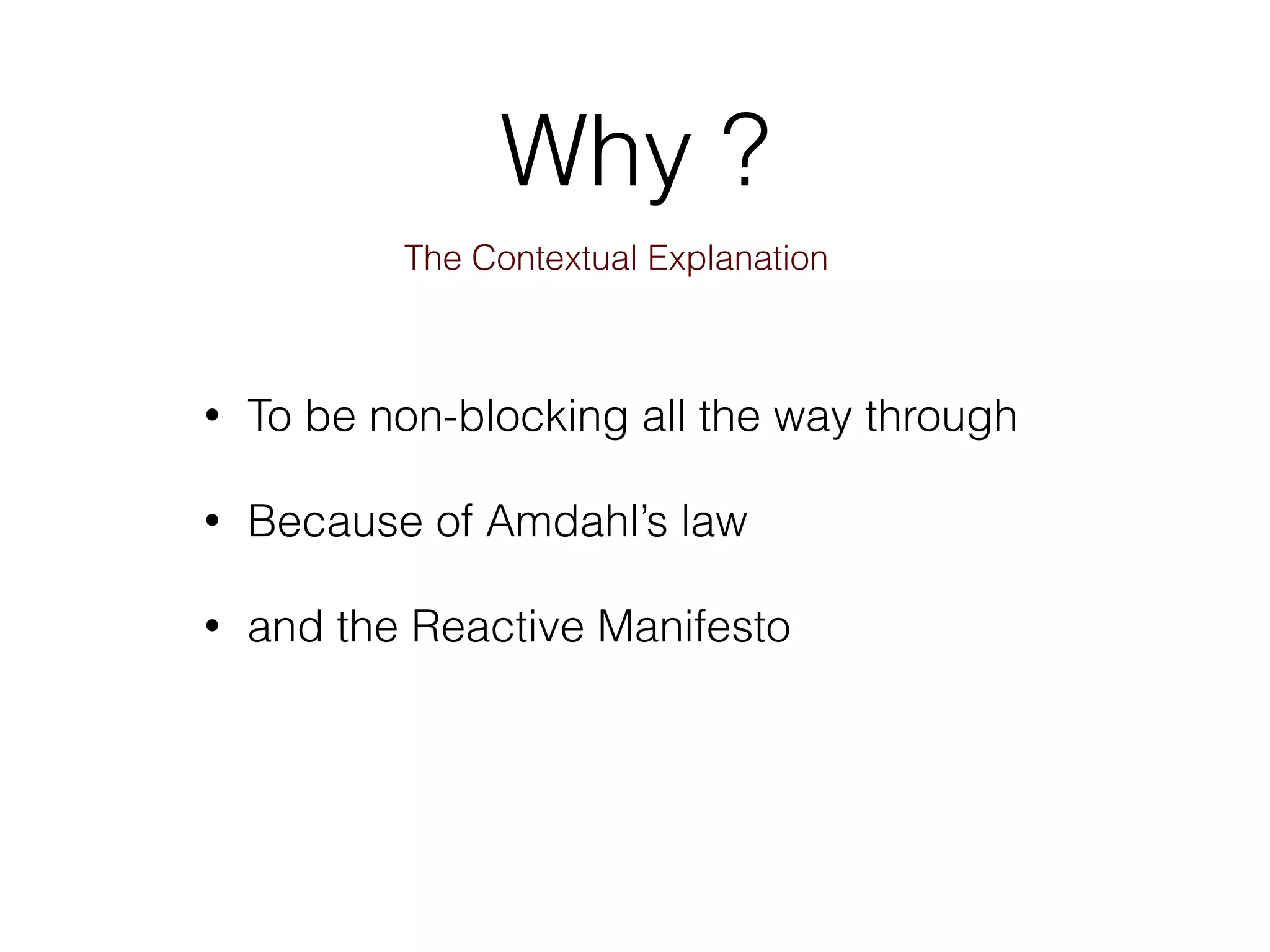

2. Why ?
The Contextual Explanation
• To be non-blocking all the way through
• Because of Amdahl’s law
• and the Reactive Manifesto

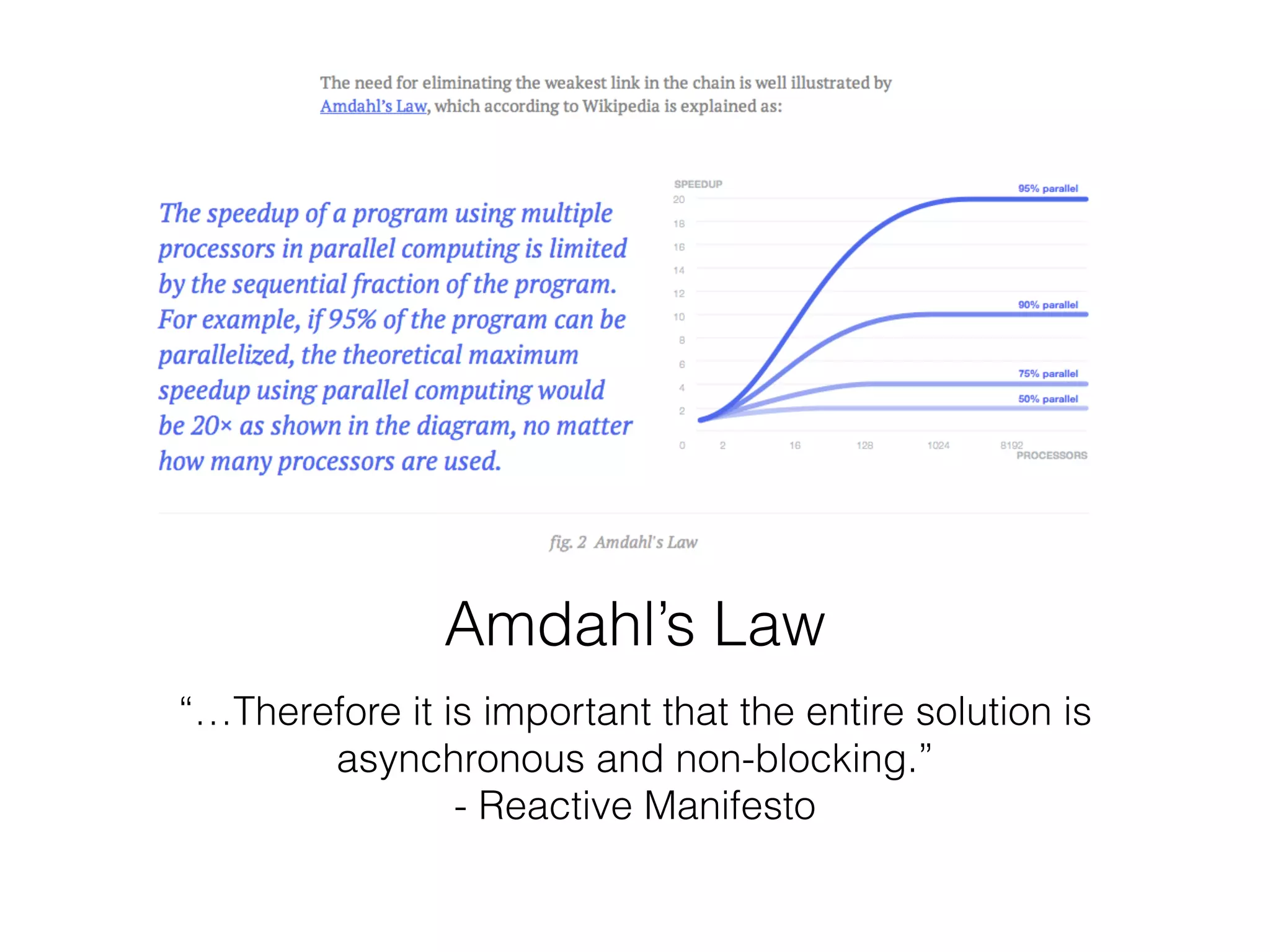

3. Amdahl’s Law
“…Therefore it is important that the entire solution is
asynchronous and non-blocking.”
- Reactive Manifesto

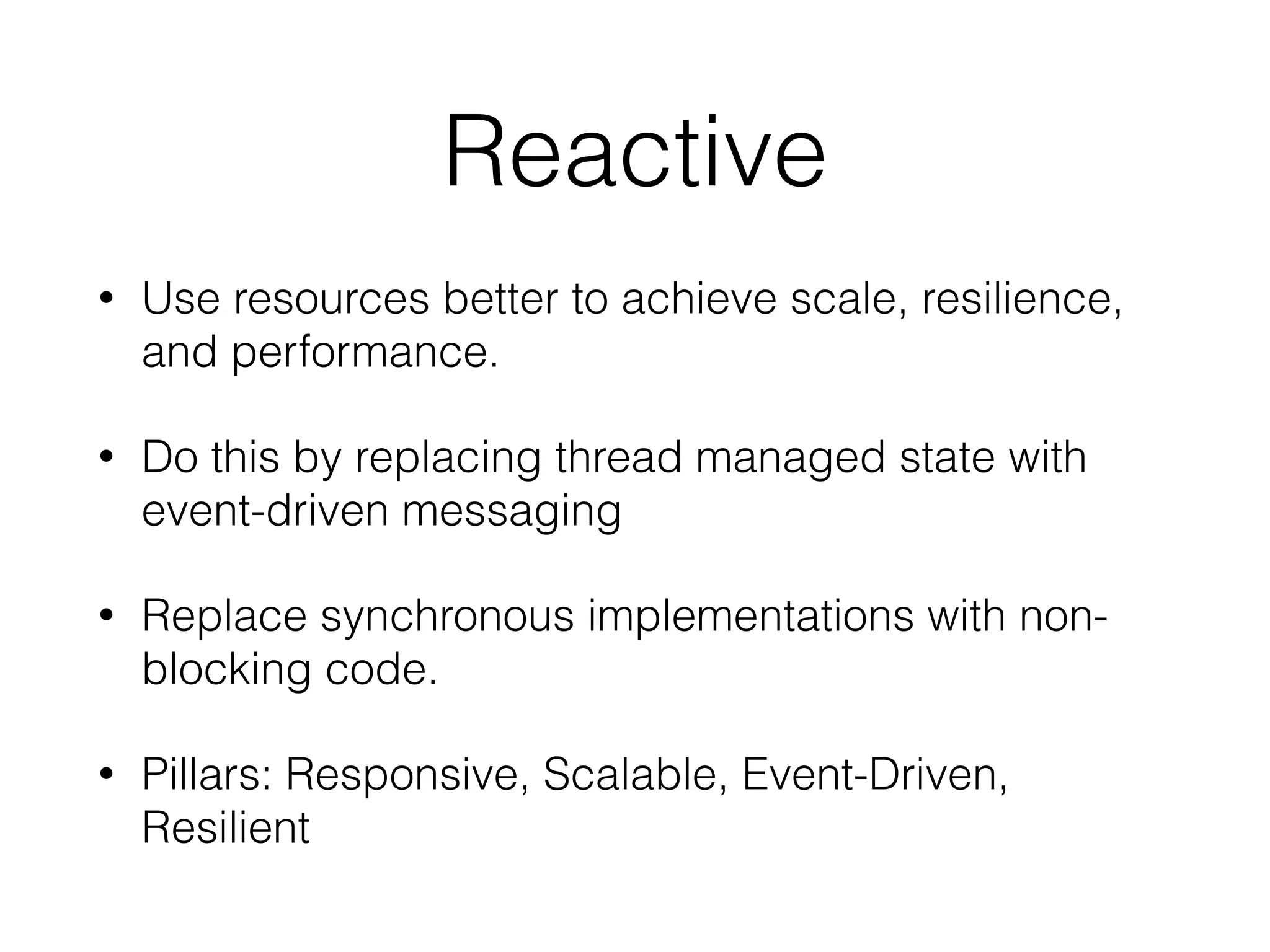

4. Reactive
• Use resources better to achieve scale, resilience,
and performance.
• Do this by replacing thread managed state with
event-driven messaging
• Replace synchronous implementations with non-blocking
code.
• Pillars: Responsive, Scalable, Event-Driven,
Resilient

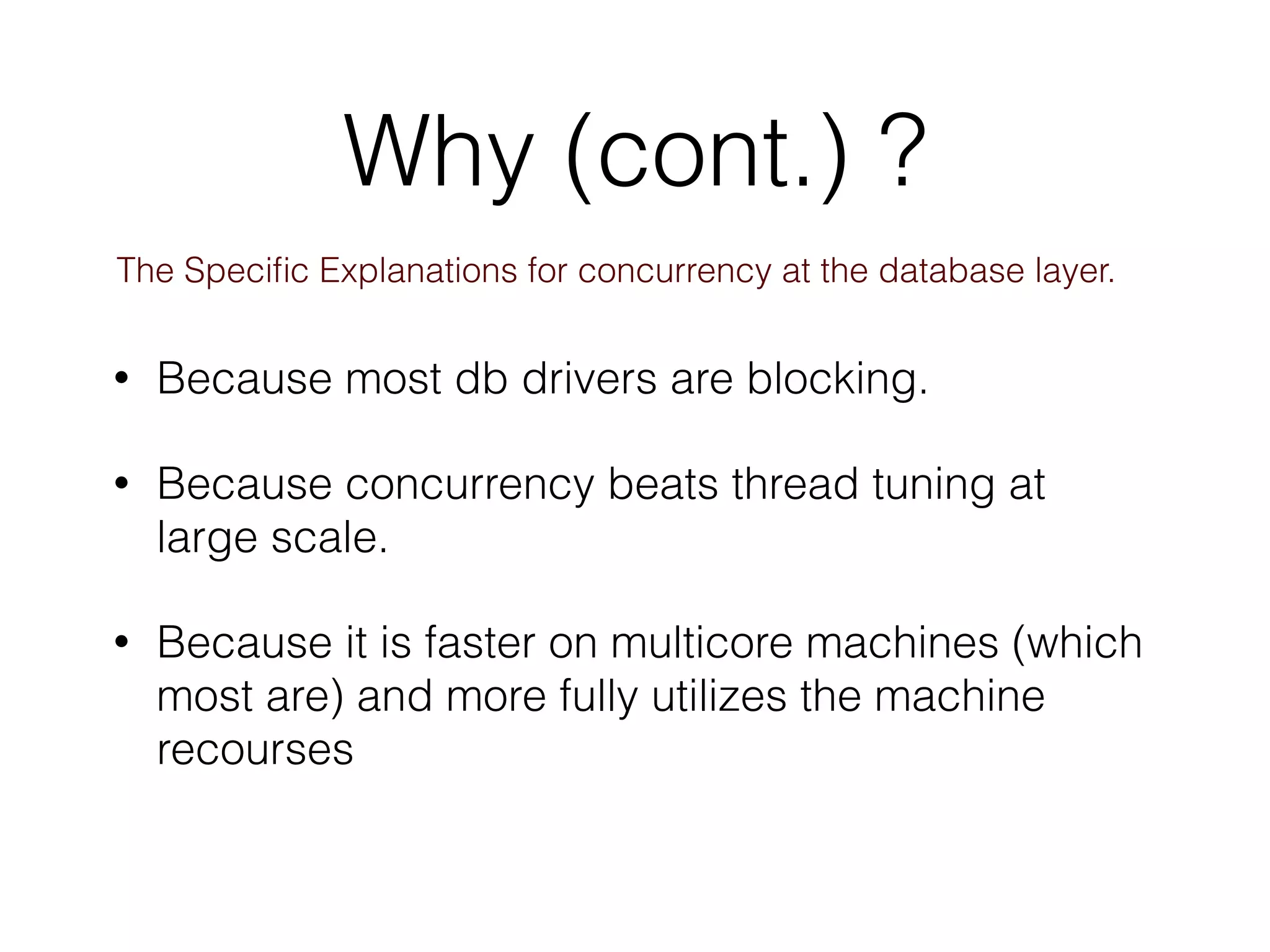

6. Why (cont.) ?
The Specific Explanations for concurrency at the database layer.
• Because most db drivers are blocking.
• Because concurrency beats thread tuning at
large scale.
• Because it is faster on multicore machines (which
most are) and more fully utilizes the machine
recourses

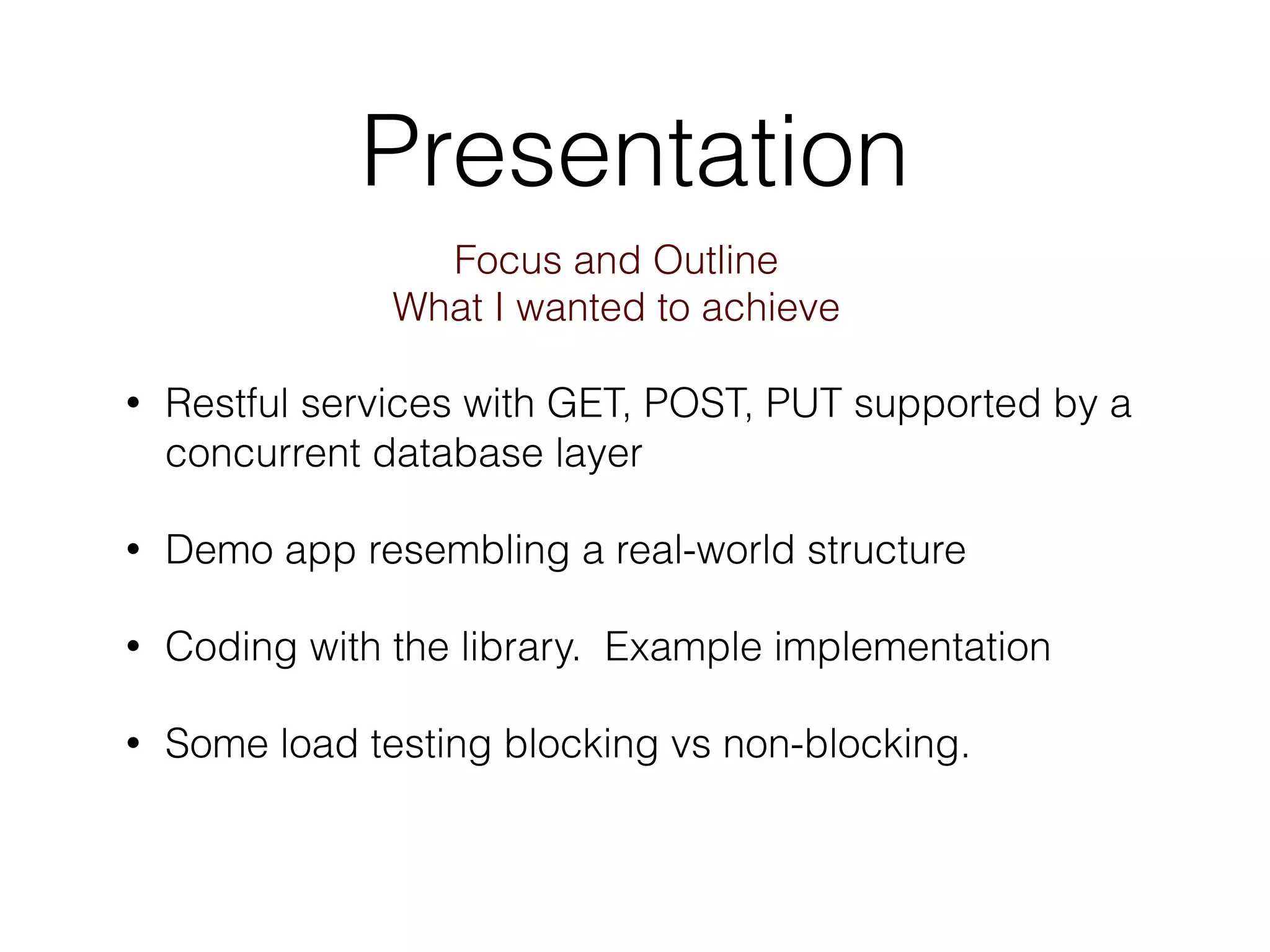

7. Presentation
Focus and Outline
What I wanted to achieve
• Restful services with GET, POST, PUT supported by a
concurrent database layer
• Demo app resembling a real-world structure
• Coding with the library. Example implementation
• Some load testing blocking vs non-blocking.

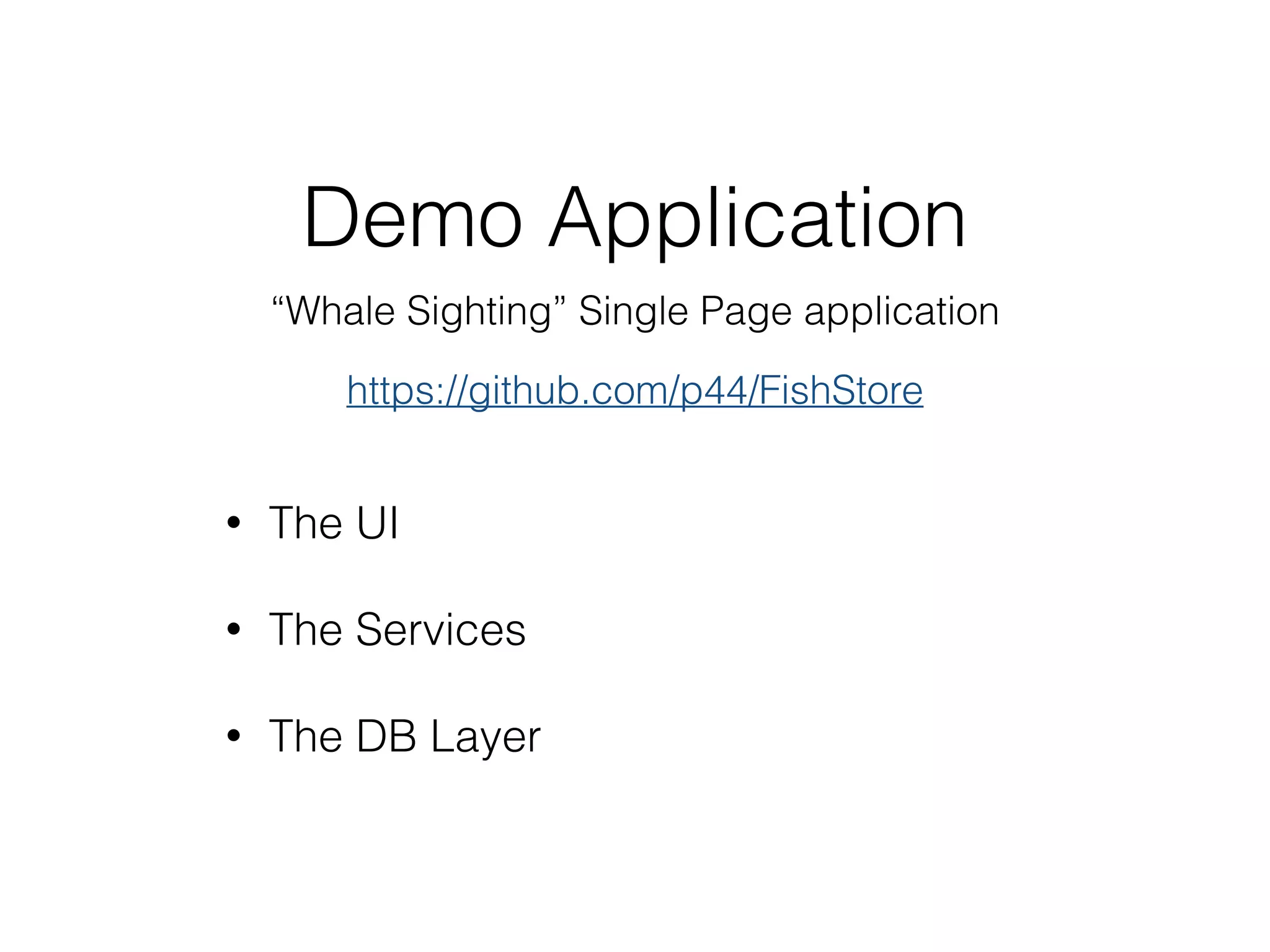

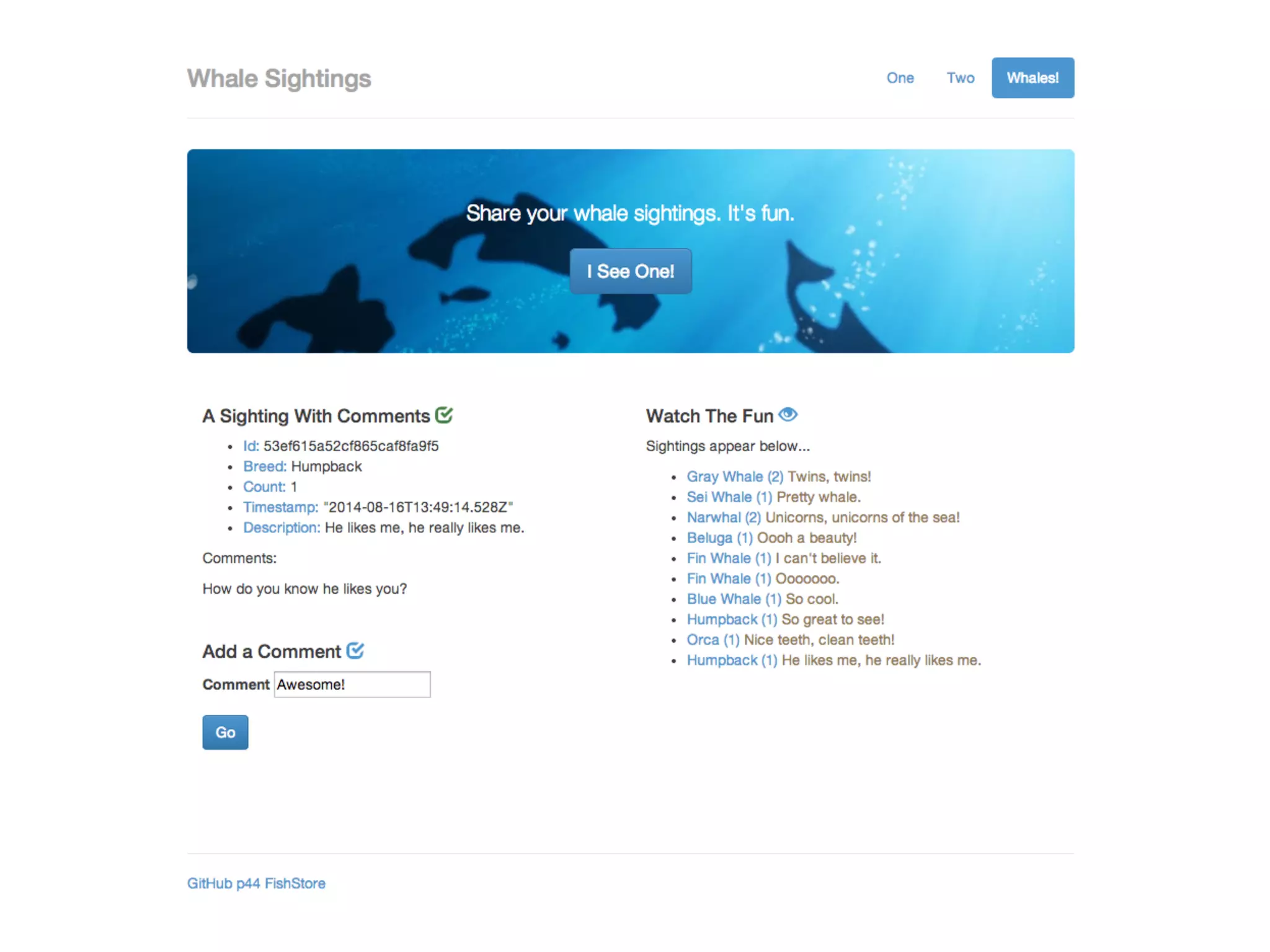

8. Demo Application
“Whale Sighting” Single Page application
https://github.com/p44/FishStore
• The UI
!
• The Services
!
• The DB Layer

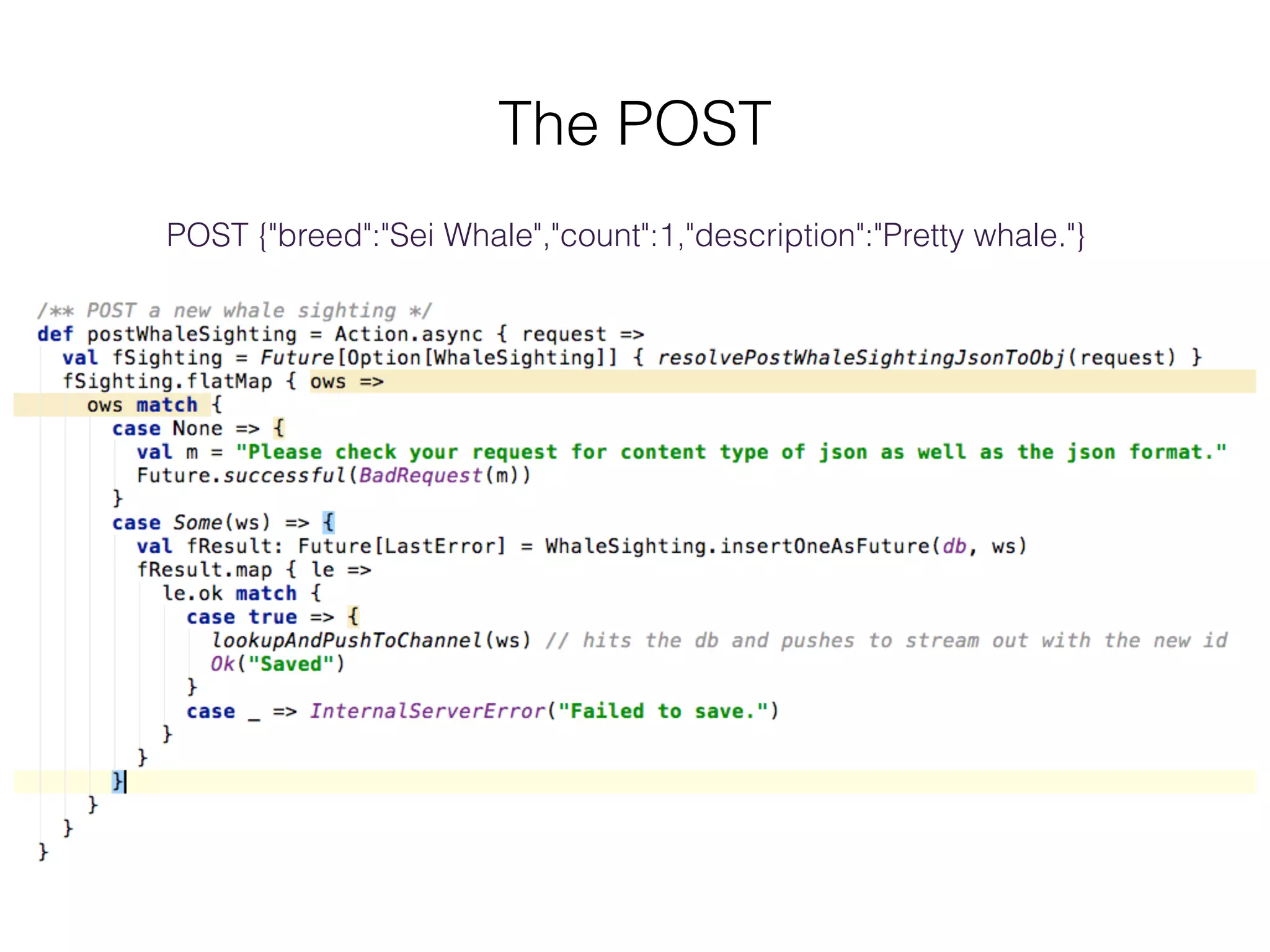

10. The POST
POST {"breed":"Sei Whale","count":1,"description":"Pretty whale."}

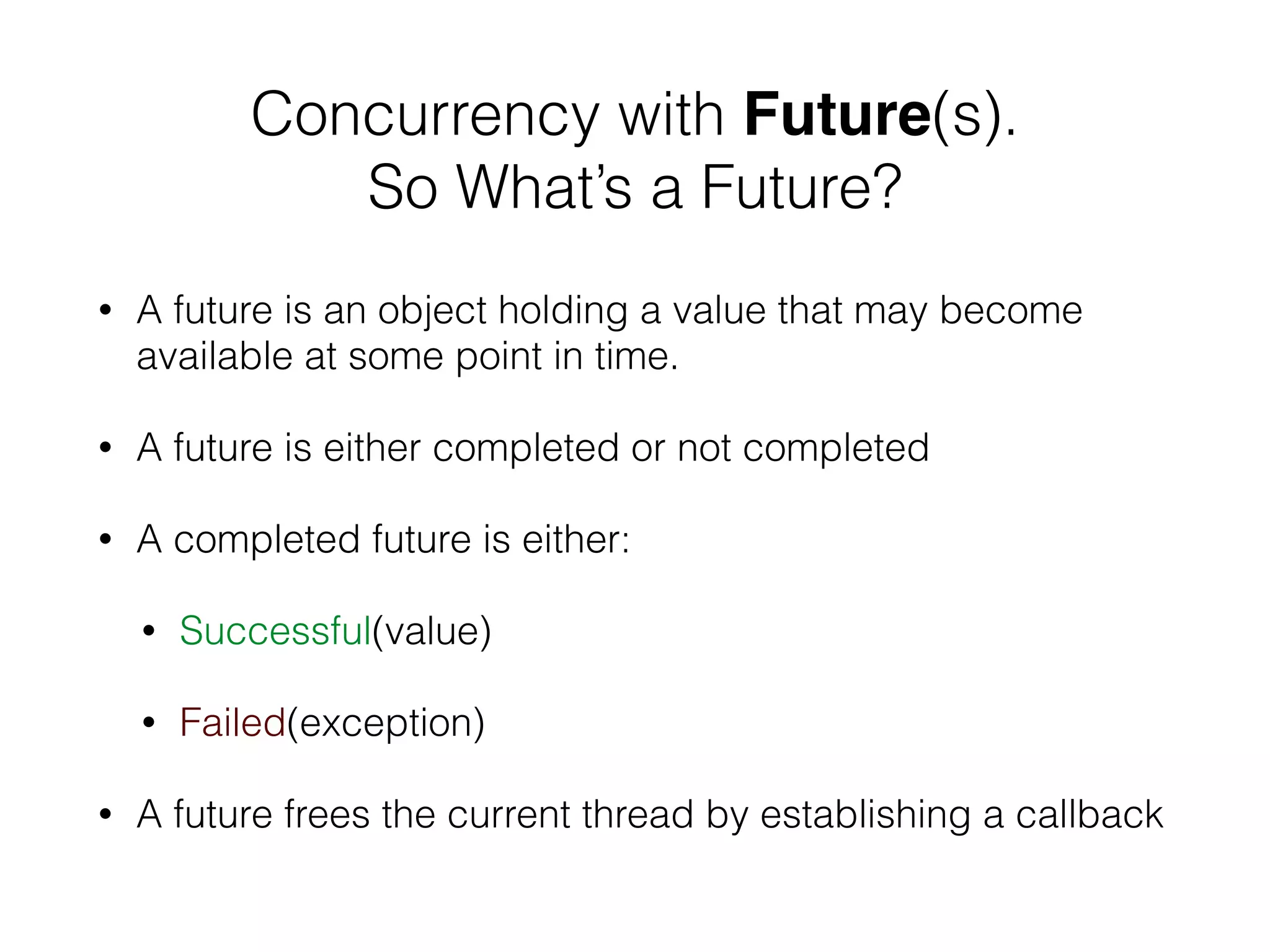

11. Concurrency with Future(s).
So What’s a Future?
• A future is an object holding a value that may become
available at some point in time.
• A future is either completed or not completed
• A completed future is either:
• Successful(value)
• Failed(exception)
• A future frees the current thread by establishing a callback

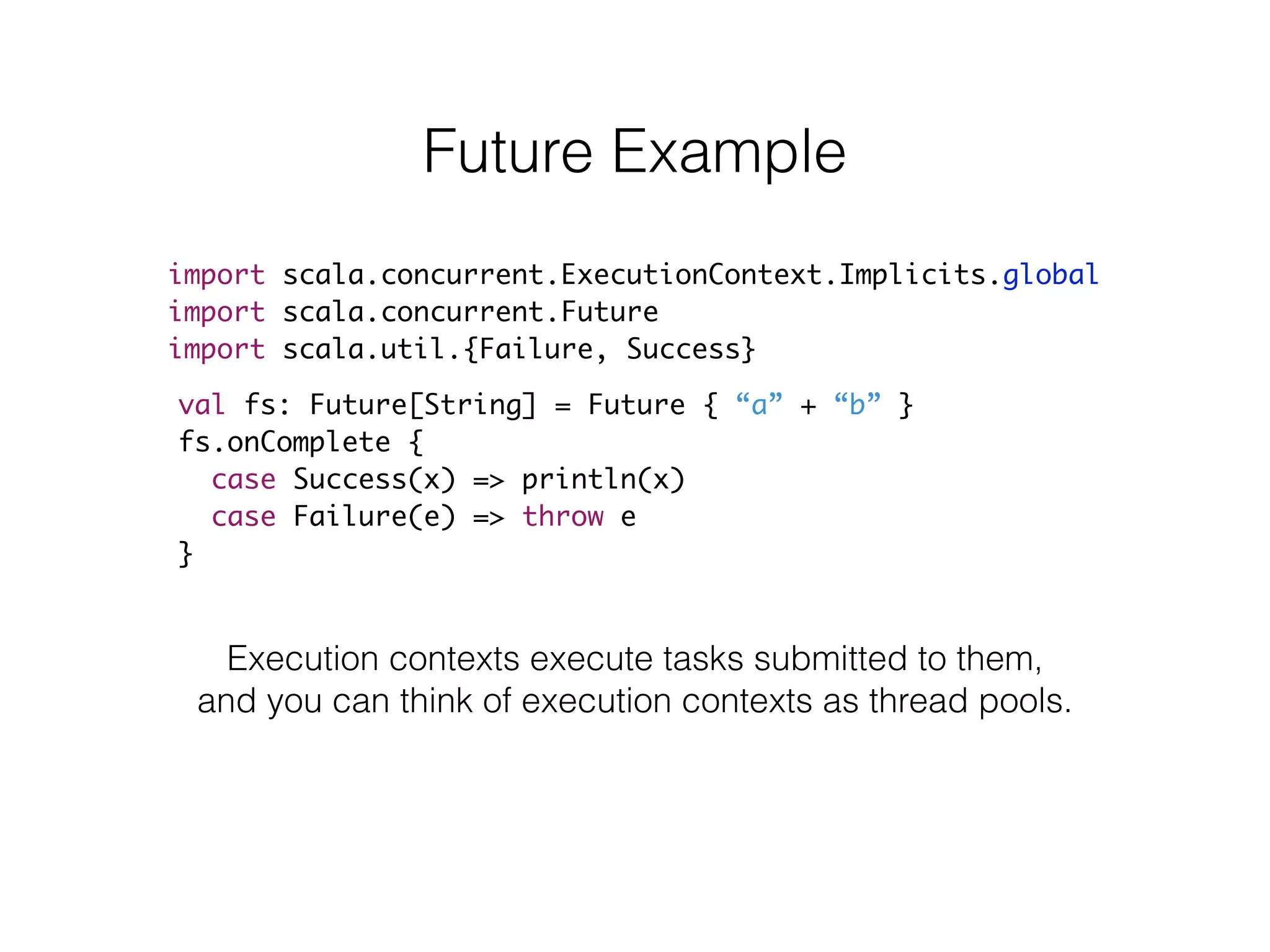

12. Future Example
import scala.concurrent.ExecutionContext.Implicits.global
import scala.concurrent.Future
import scala.util.{Failure, Success}
!
val fs: Future[String] = Future { “a” + “b” }
fs.onComplete {
case Success(x) => println(x)
case Failure(e) => throw e
}
Execution contexts execute tasks submitted to them,
and you can think of execution contexts as thread pools.

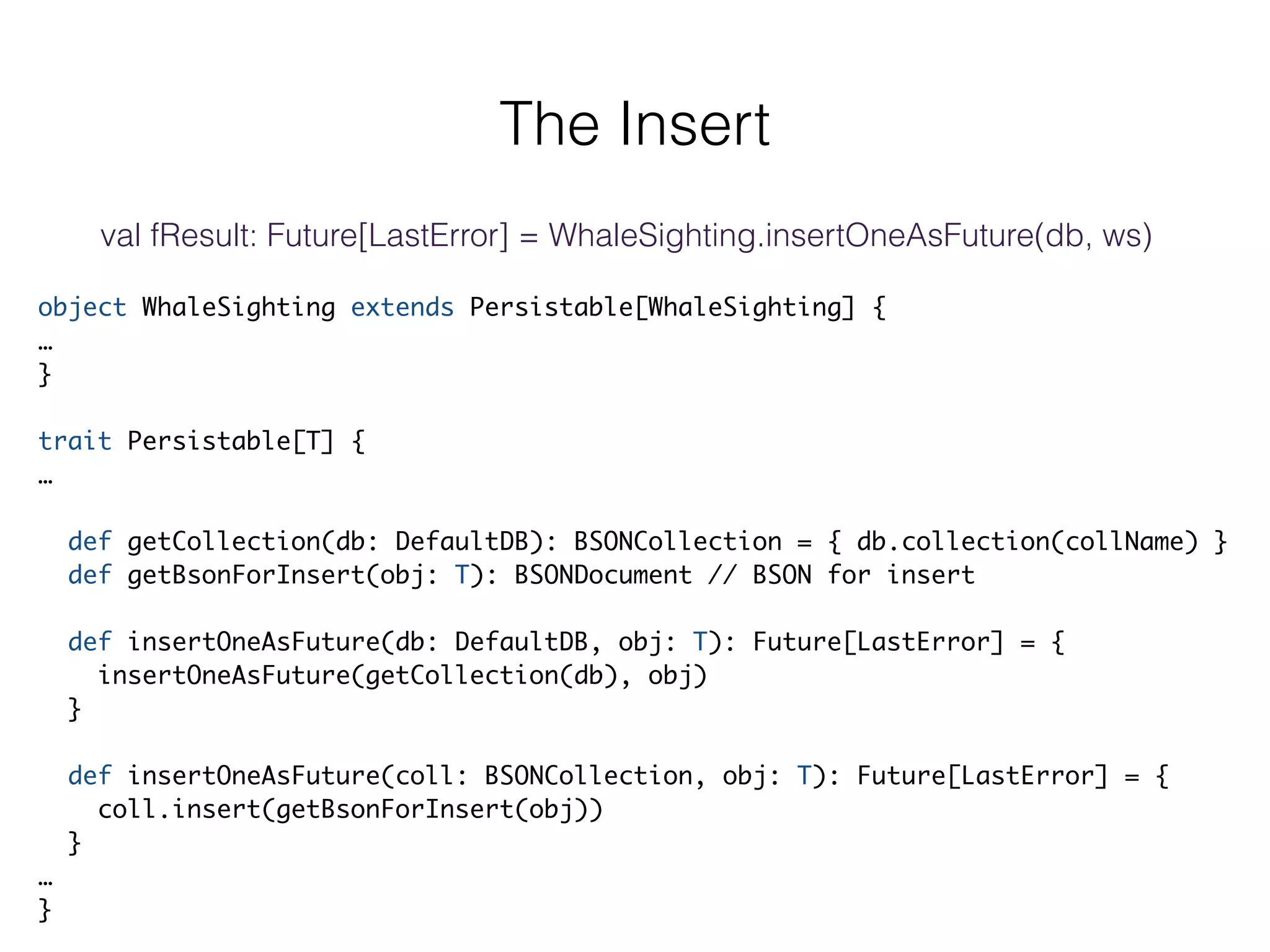

13. The Insert
val fResult: Future[LastError] = WhaleSighting.insertOneAsFuture(db, ws)
object WhaleSighting extends Persistable[WhaleSighting] {
…
}
!
trait Persistable[T] {
…
!
def getCollection(db: DefaultDB): BSONCollection = { db.collection(collName) }
def getBsonForInsert(obj: T): BSONDocument // BSON for insert
!
def insertOneAsFuture(db: DefaultDB, obj: T): Future[LastError] = {
insertOneAsFuture(getCollection(db), obj)
}
!
def insertOneAsFuture(coll: BSONCollection, obj: T): Future[LastError] = {
coll.insert(getBsonForInsert(obj))
}
…
}

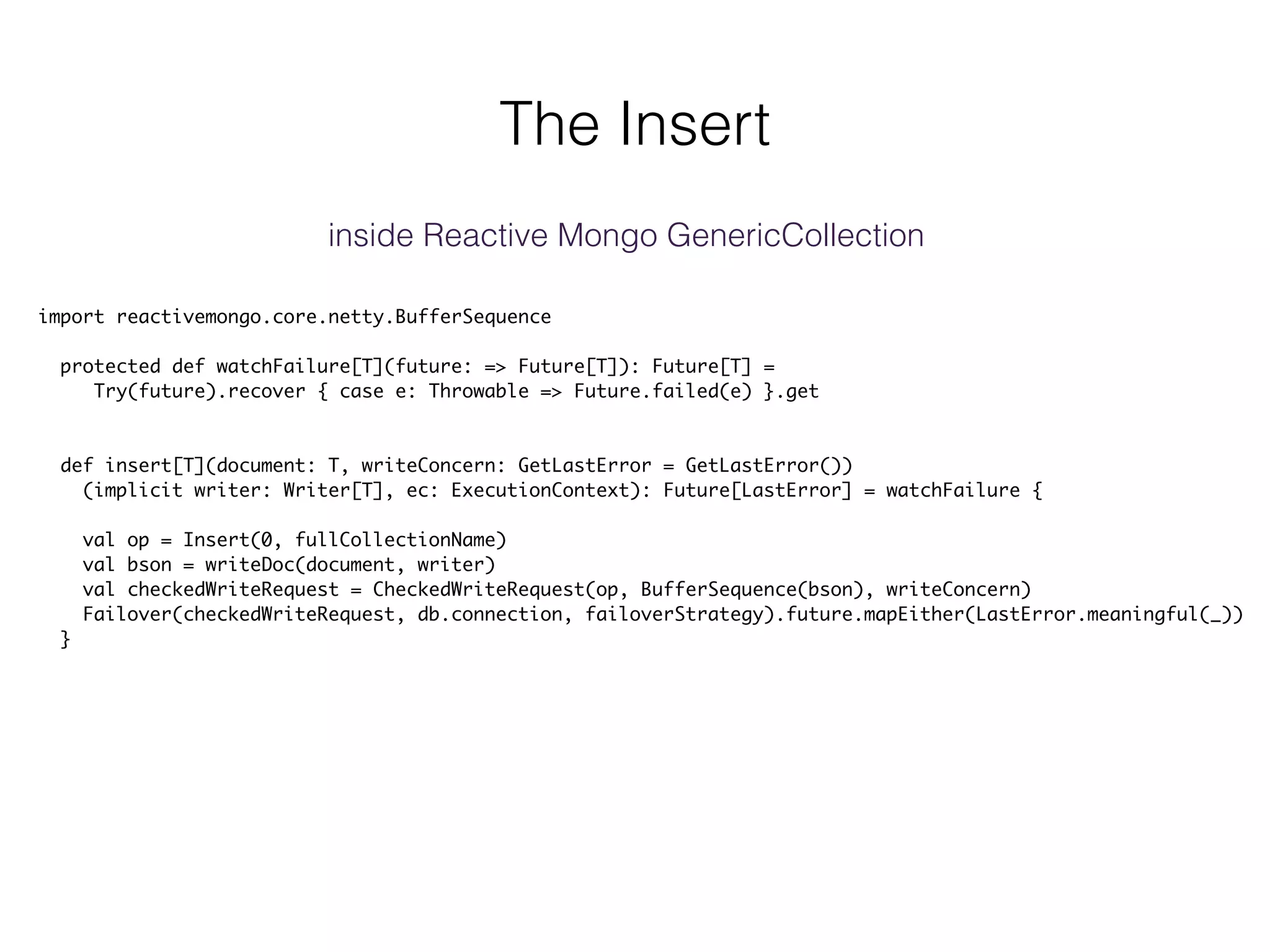

14. The Insert
inside Reactive Mongo GenericCollection
import reactivemongo.core.netty.BufferSequence
protected def watchFailure[T](future: => Future[T]): Future[T] =
Try(future).recover { case e: Throwable => Future.failed(e) }.get
!
def insert[T](document: T, writeConcern: GetLastError = GetLastError())
(implicit writer: Writer[T], ec: ExecutionContext): Future[LastError] = watchFailure {
!
val op = Insert(0, fullCollectionName)
val bson = writeDoc(document, writer)
val checkedWriteRequest = CheckedWriteRequest(op, BufferSequence(bson), writeConcern)
Failover(checkedWriteRequest, db.connection, failoverStrategy).future.mapEither(LastError.meaningful(_))
}

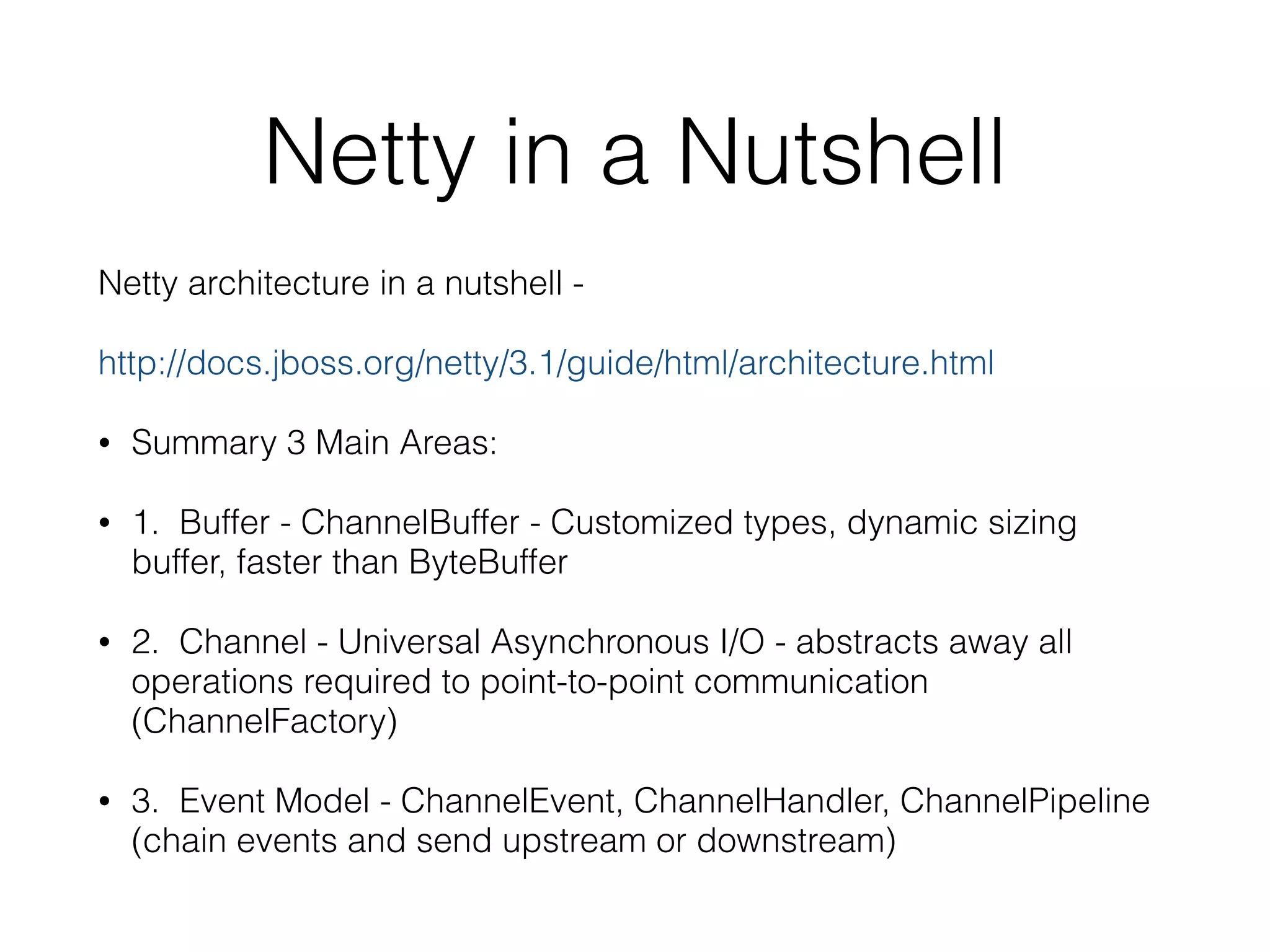

15. Netty in a Nutshell
Netty architecture in a nutshell -
http://docs.jboss.org/netty/3.1/guide/html/architecture.html
• Summary 3 Main Areas:
• 1. Buffer - ChannelBuffer - Customized types, dynamic sizing
buffer, faster than ByteBuffer
• 2. Channel - Universal Asynchronous I/O - abstracts away all
operations required to point-to-point communication
(ChannelFactory)
• 3. Event Model - ChannelEvent, ChannelHandler, ChannelPipeline
(chain events and send upstream or downstream)

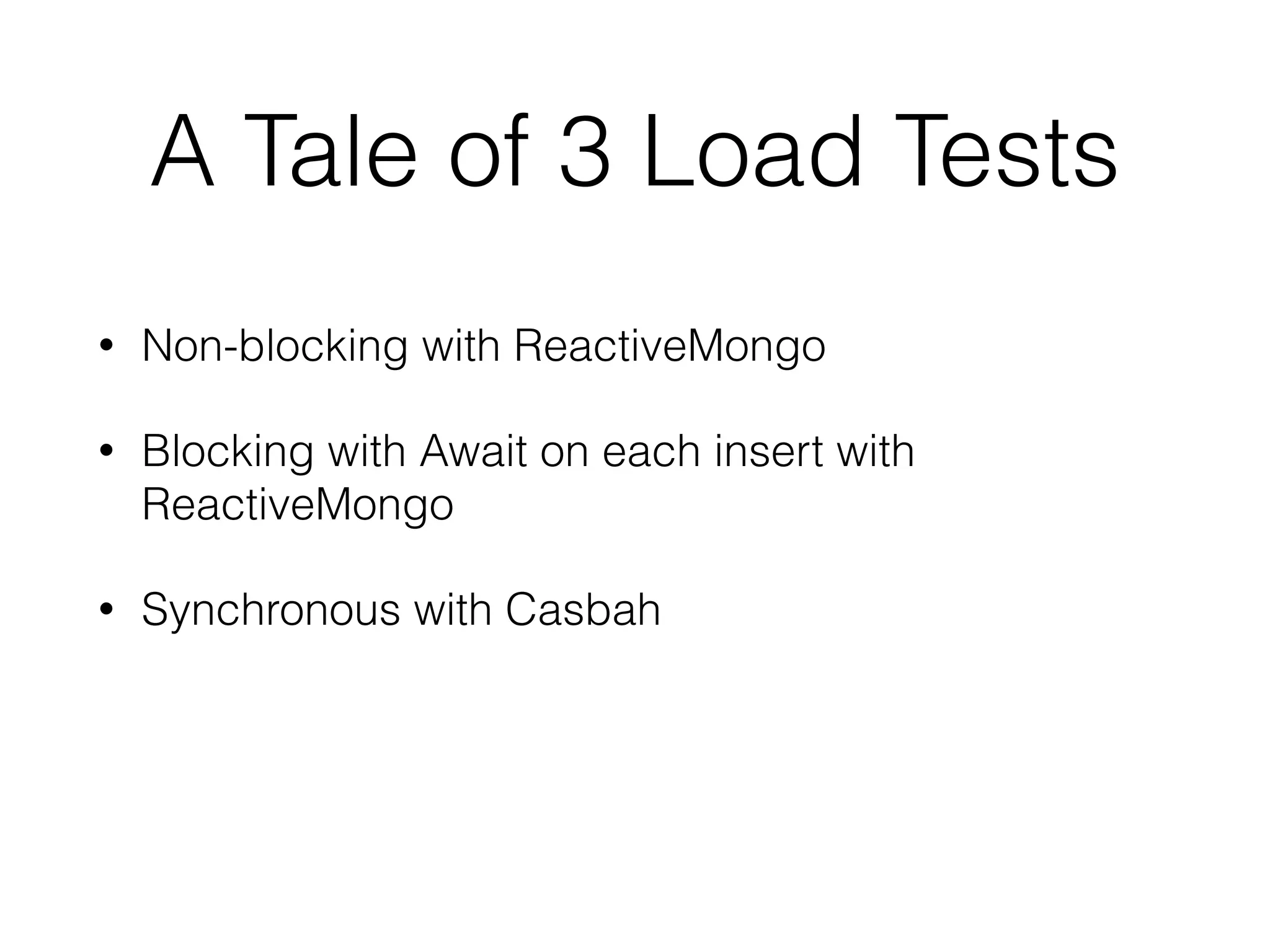

16. A Tale of 3 Load Tests
• Non-blocking with ReactiveMongo
• Blocking with Await on each insert with
ReactiveMongo
• Synchronous with Casbah

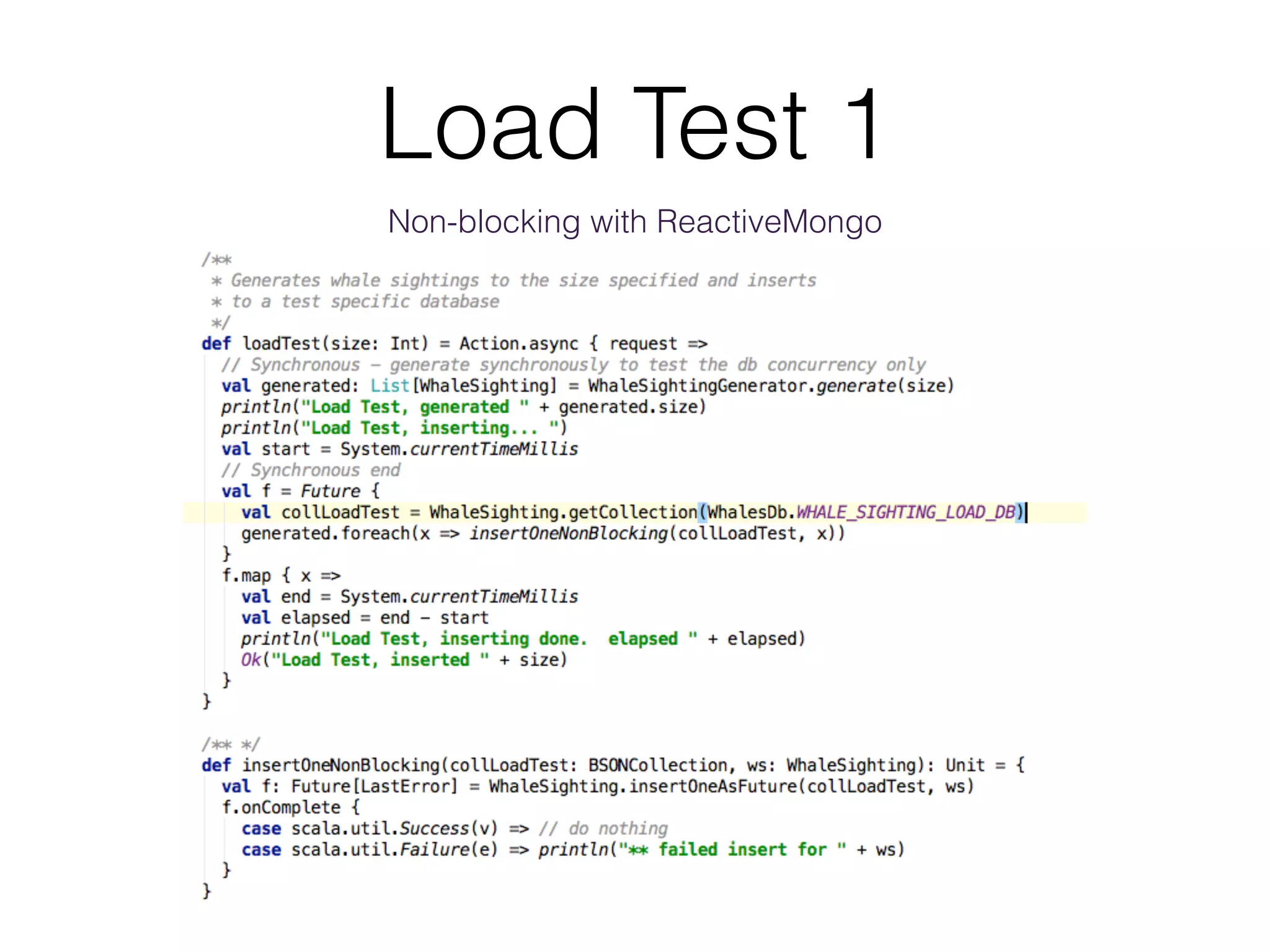

17. Load Test 1
Non-blocking with ReactiveMongo

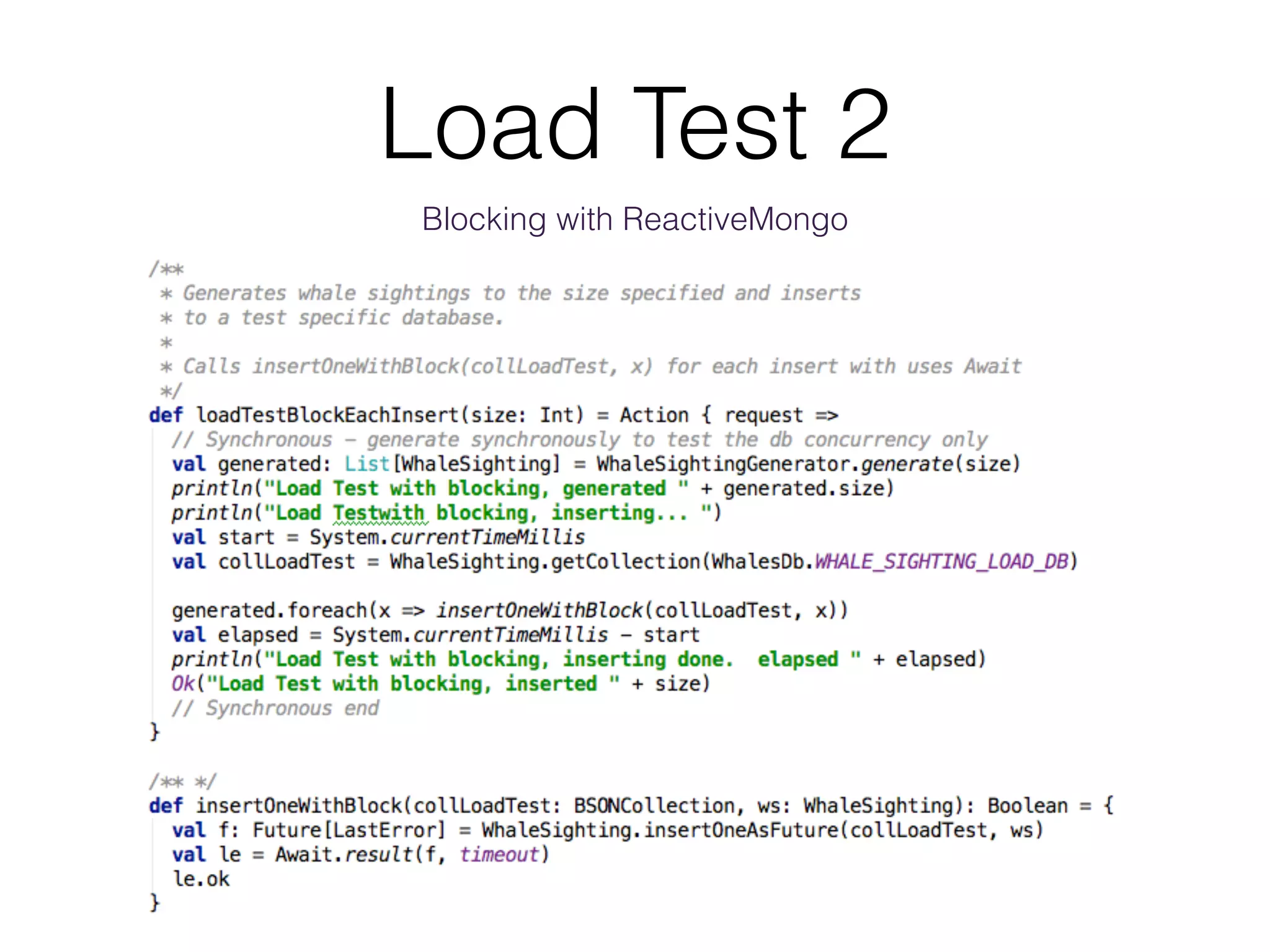

18. Load Test 2
Blocking with ReactiveMongo

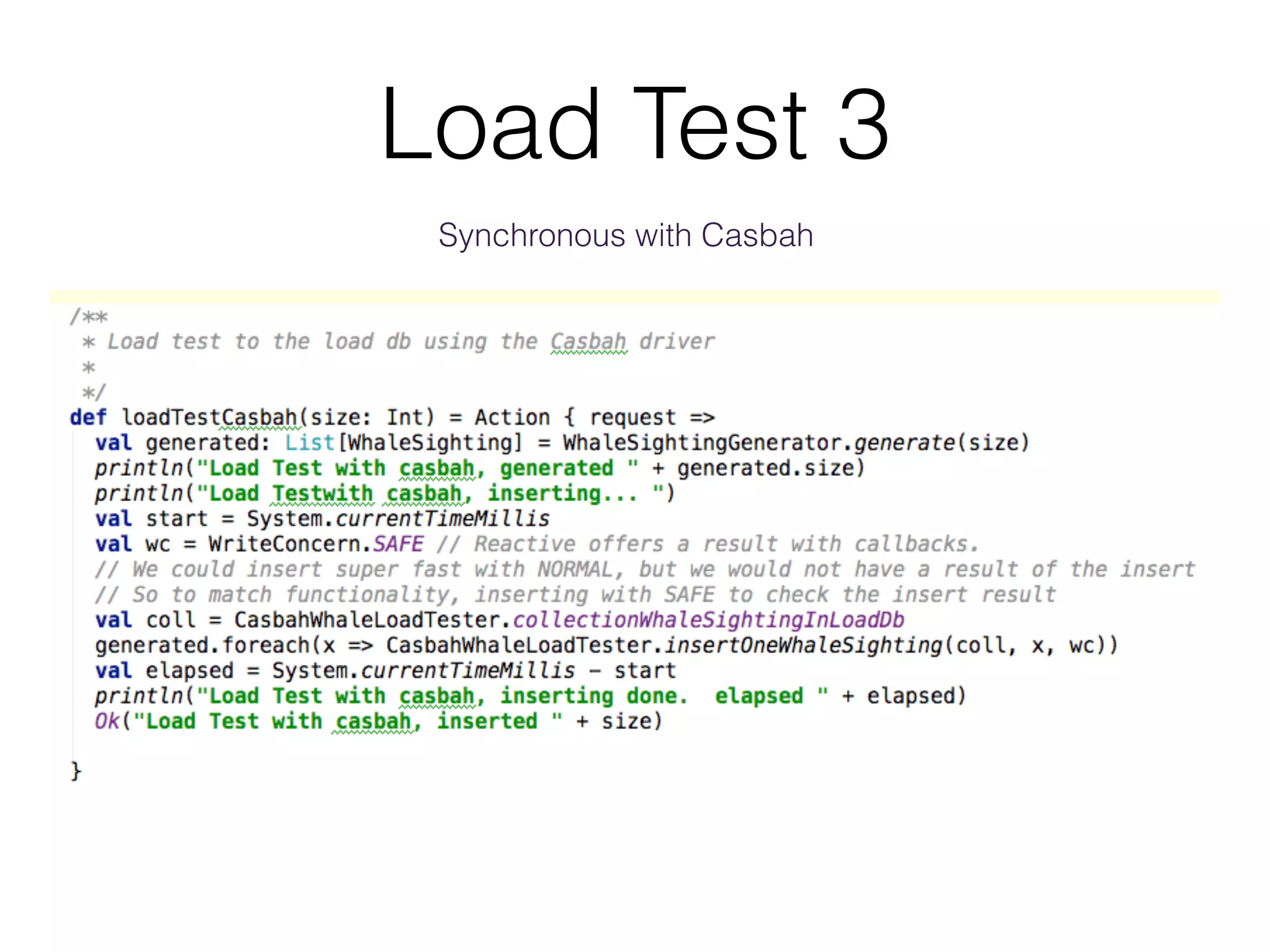

19. Load Test 3
Synchronous with Casbah

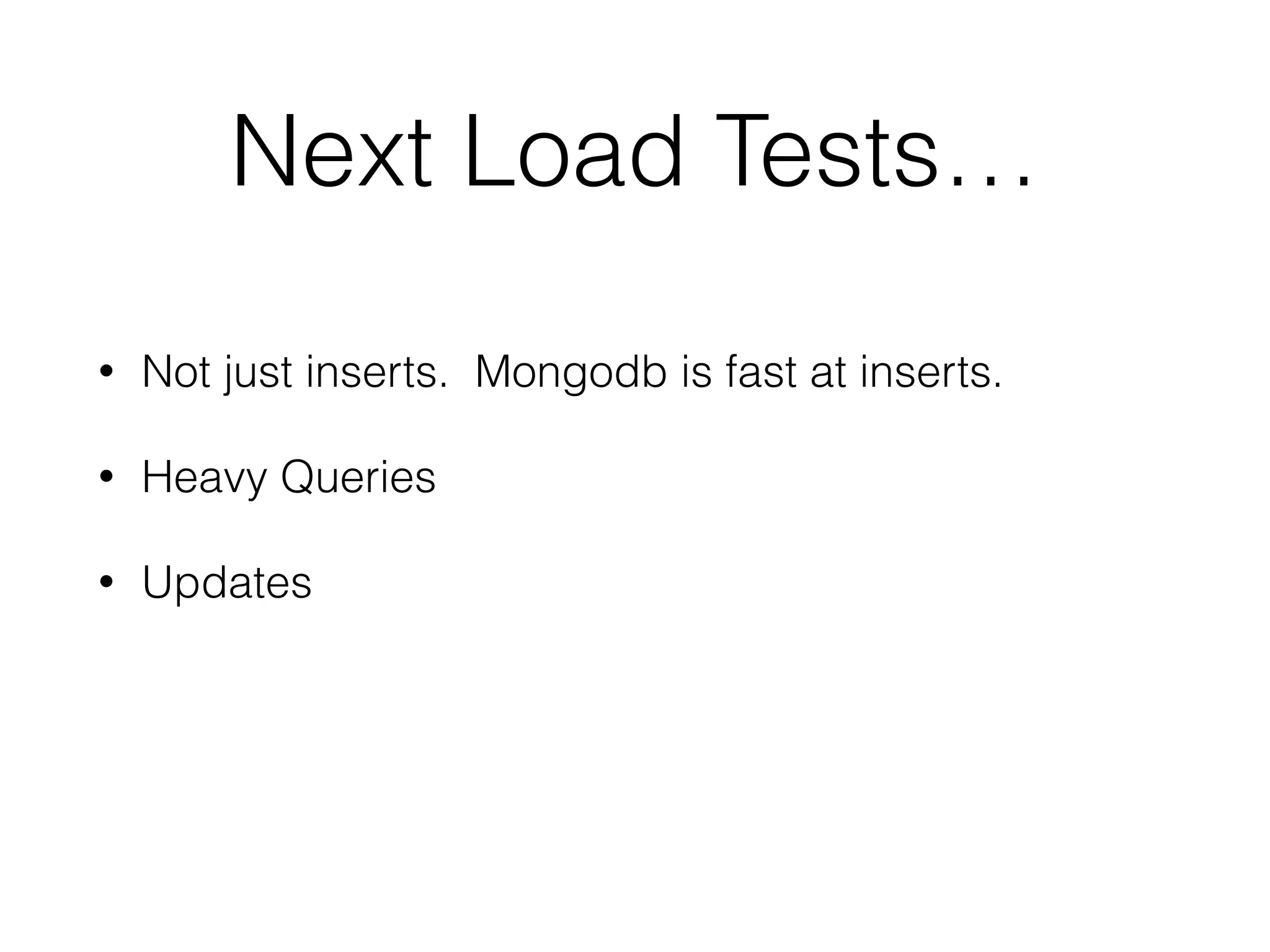

20. Next Load Tests…
• Not just inserts. Mongodb is fast at inserts.
• Heavy Queries
• Updates

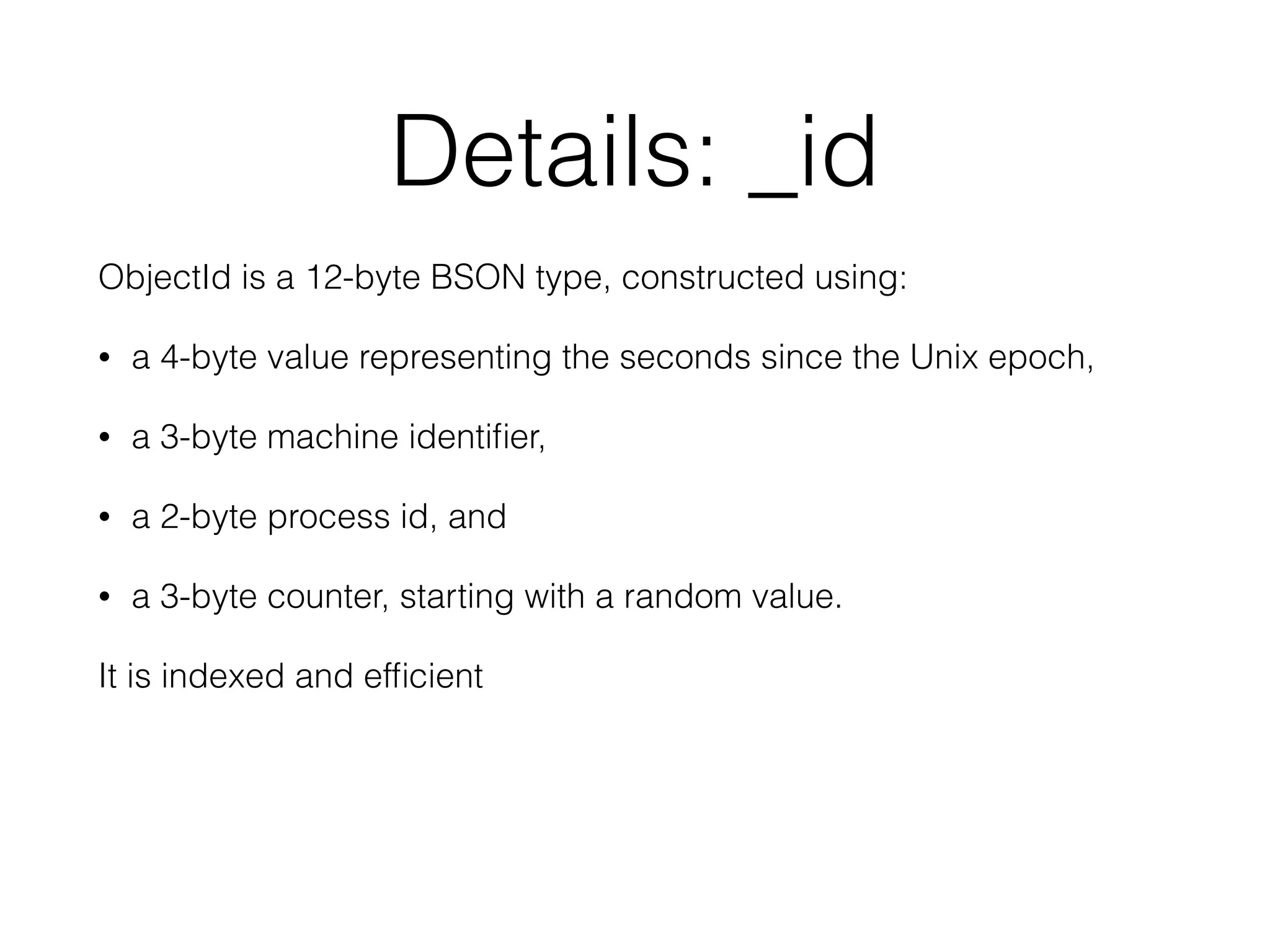

21. Details: _id
ObjectId is a 12-byte BSON type, constructed using:
• a 4-byte value representing the seconds since the Unix epoch,
• a 3-byte machine identifier,
• a 2-byte process id, and
• a 3-byte counter, starting with a random value.
It is indexed and efficient

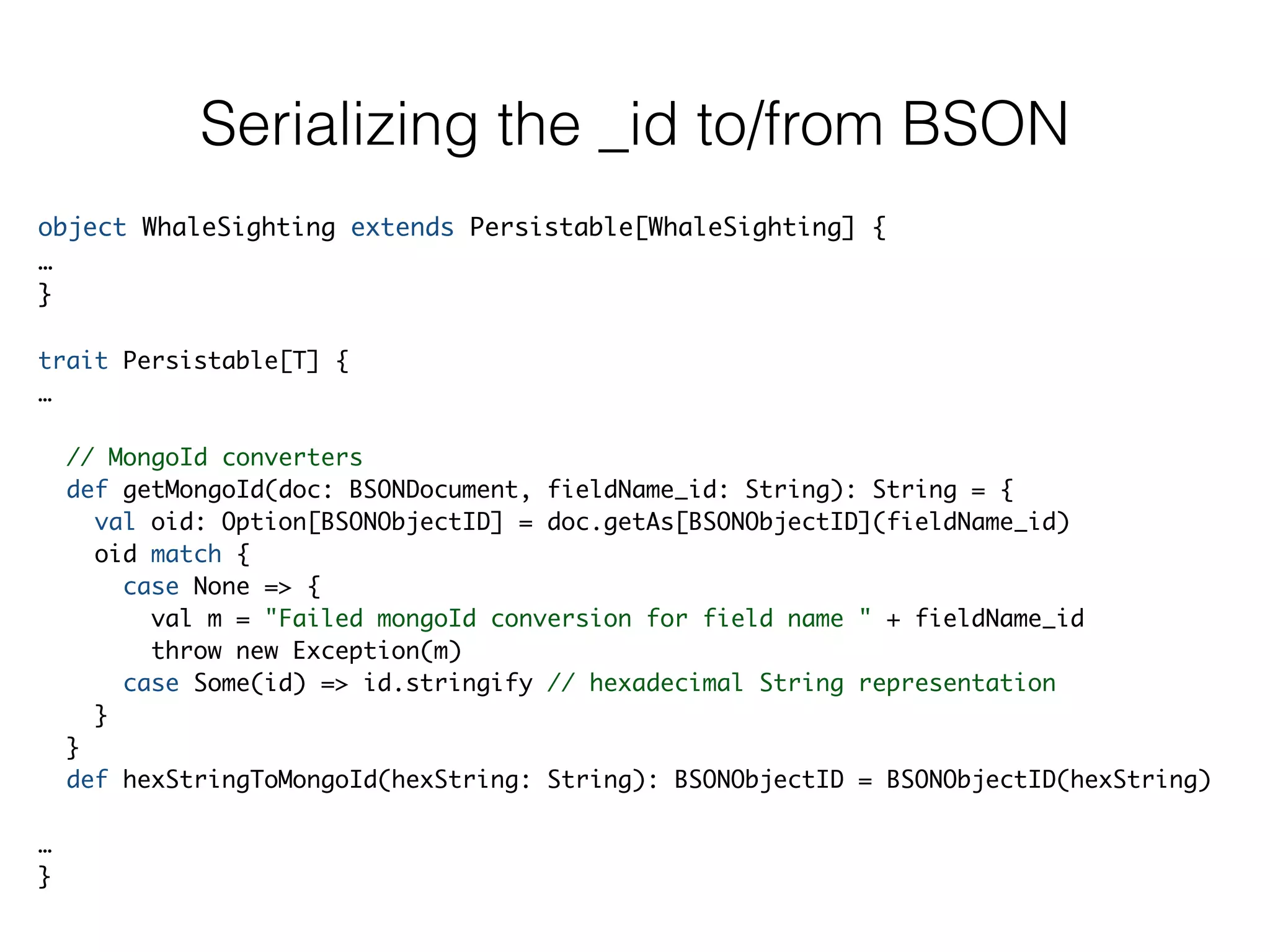

22. Serializing the _id to/from BSON
object WhaleSighting extends Persistable[WhaleSighting] {
…
}
!
trait Persistable[T] {
…
!
// MongoId converters
def getMongoId(doc: BSONDocument, fieldName_id: String): String = {
val oid: Option[BSONObjectID] = doc.getAs[BSONObjectID](fieldName_id)
oid match {
case None => {
val m = "Failed mongoId conversion for field name " + fieldName_id
throw new Exception(m)
case Some(id) => id.stringify // hexadecimal String representation
}
}
def hexStringToMongoId(hexString: String): BSONObjectID = BSONObjectID(hexString)
!
…
}

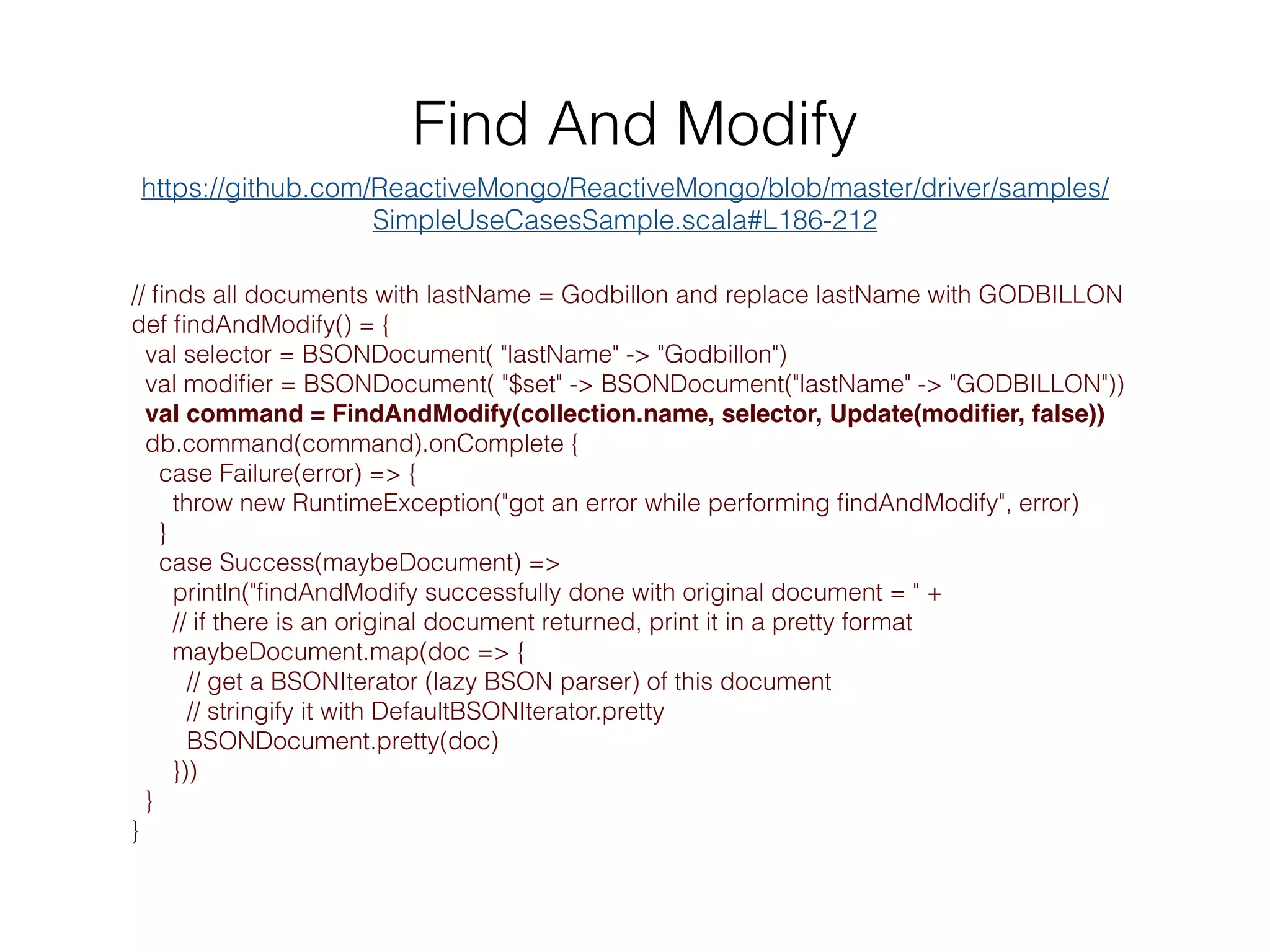

23. Find And Modify
https://github.com/ReactiveMongo/ReactiveMongo/blob/master/driver/samples/
SimpleUseCasesSample.scala#L186-212
// finds all documents with lastName = Godbillon and replace lastName with GODBILLON
def findAndModify() = {
val selector = BSONDocument( "lastName" -> "Godbillon")
val modifier = BSONDocument( "$set" -> BSONDocument("lastName" -> "GODBILLON"))
val command = FindAndModify(collection.name, selector, Update(modifier, false))!
db.command(command).onComplete {
case Failure(error) => {
throw new RuntimeException("got an error while performing findAndModify", error)
}
case Success(maybeDocument) =>
println("findAndModify successfully done with original document = " +
// if there is an original document returned, print it in a pretty format
maybeDocument.map(doc => {
// get a BSONIterator (lazy BSON parser) of this document
// stringify it with DefaultBSONIterator.pretty
BSONDocument.pretty(doc)
}))
}
}

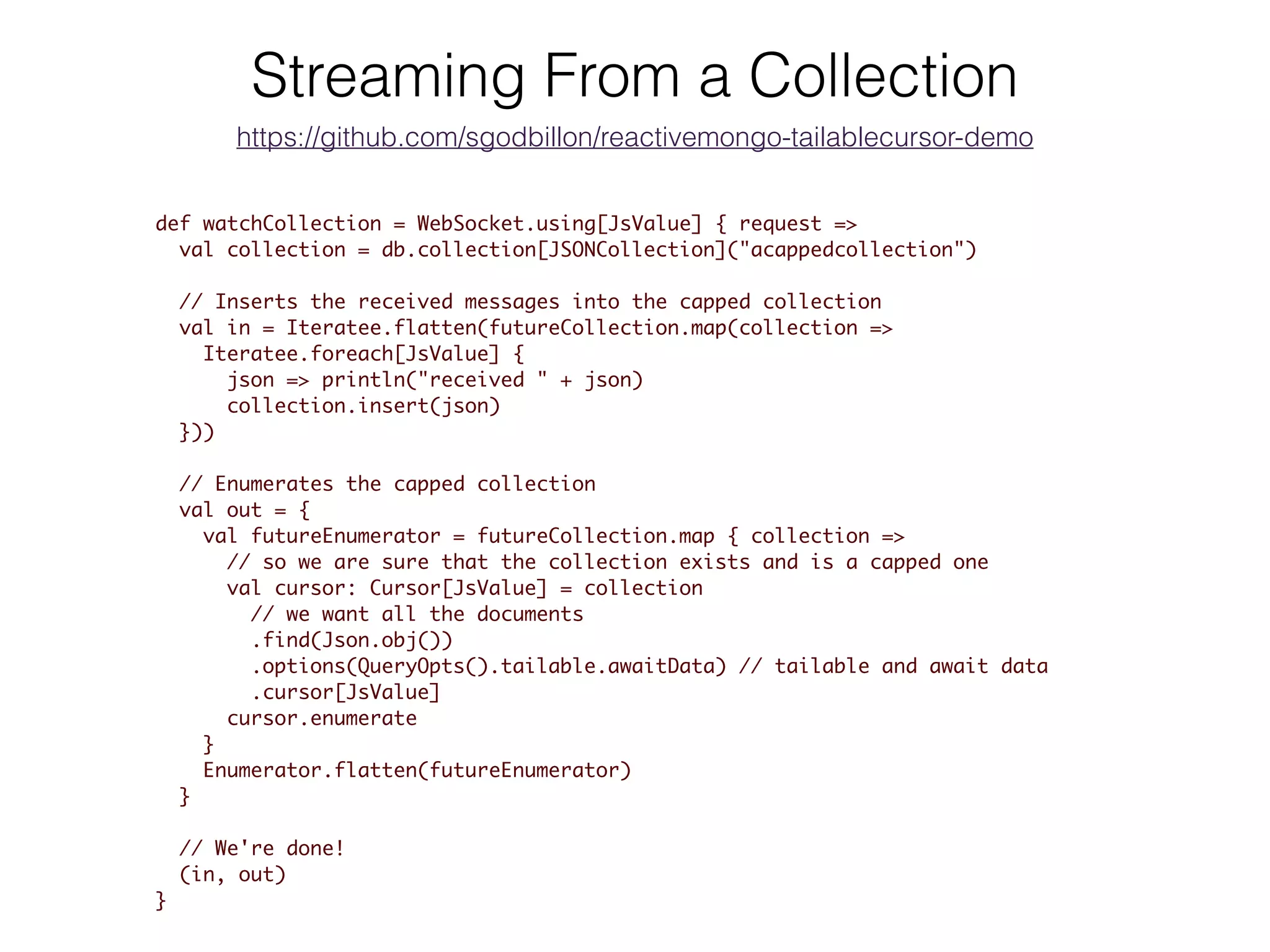

24. Streaming From a Collection
https://github.com/sgodbillon/reactivemongo-tailablecursor-demo
def watchCollection = WebSocket.using[JsValue] { request =>
val collection = db.collection[JSONCollection]("acappedcollection")
// Inserts the received messages into the capped collection
val in = Iteratee.flatten(futureCollection.map(collection =>
Iteratee.foreach[JsValue] {
json => println("received " + json)
collection.insert(json)
}))
!
// Enumerates the capped collection
val out = {
val futureEnumerator = futureCollection.map { collection =>
// so we are sure that the collection exists and is a capped one
val cursor: Cursor[JsValue] = collection
// we want all the documents
.find(Json.obj())
.options(QueryOpts().tailable.awaitData) // tailable and await data
.cursor[JsValue]
cursor.enumerate
}
Enumerator.flatten(futureEnumerator)
}
!
// We're done!
(in, out)
}

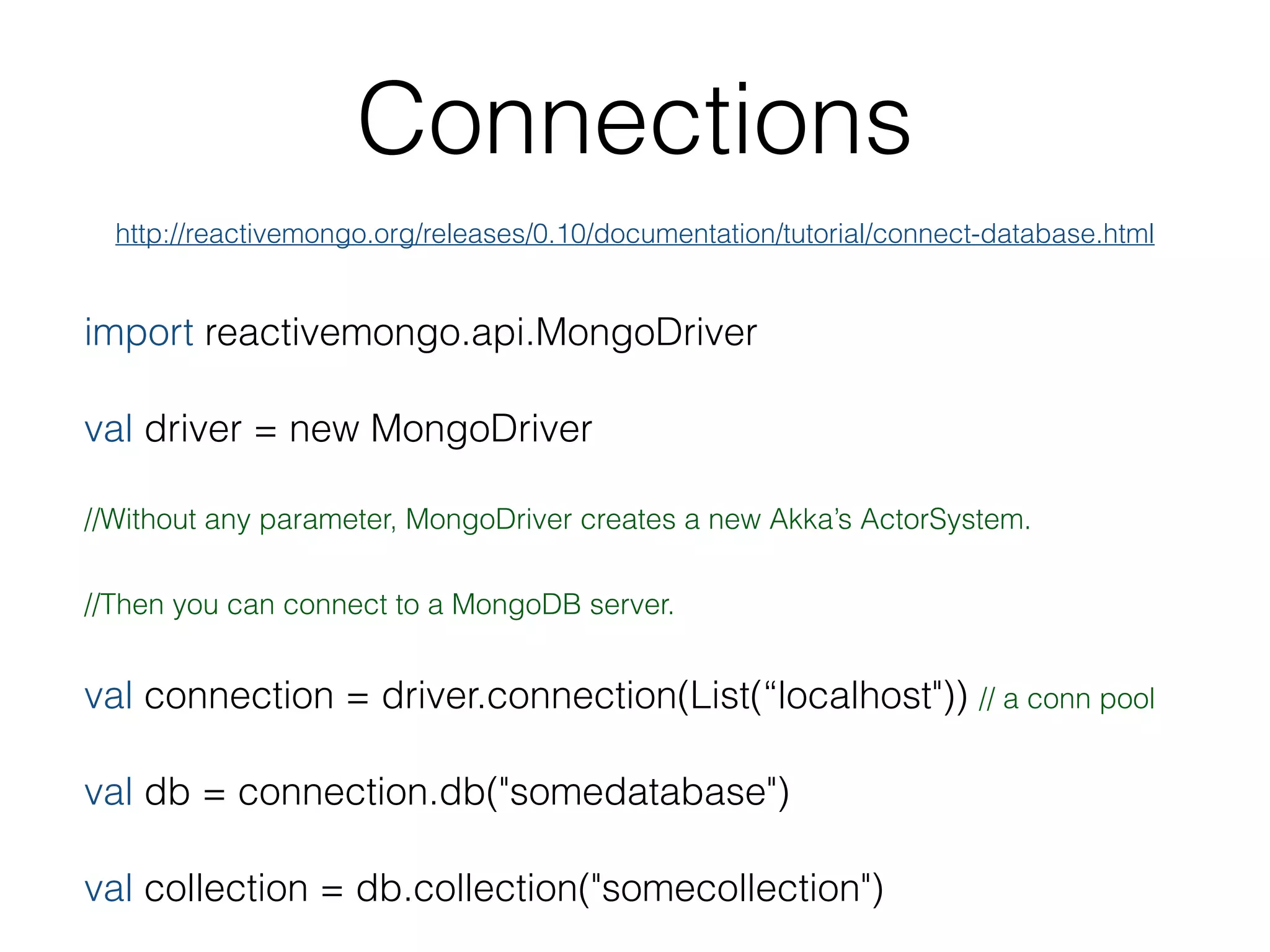

25. Connections
http://reactivemongo.org/releases/0.10/documentation/tutorial/connect-database.html
import reactivemongo.api.MongoDriver
val driver = new MongoDriver
//Without any parameter, MongoDriver creates a new Akka’s ActorSystem.
//Then you can connect to a MongoDB server.
val connection = driver.connection(List(“localhost")) // a conn pool
val db = connection.db("somedatabase")
val collection = db.collection("somecollection")

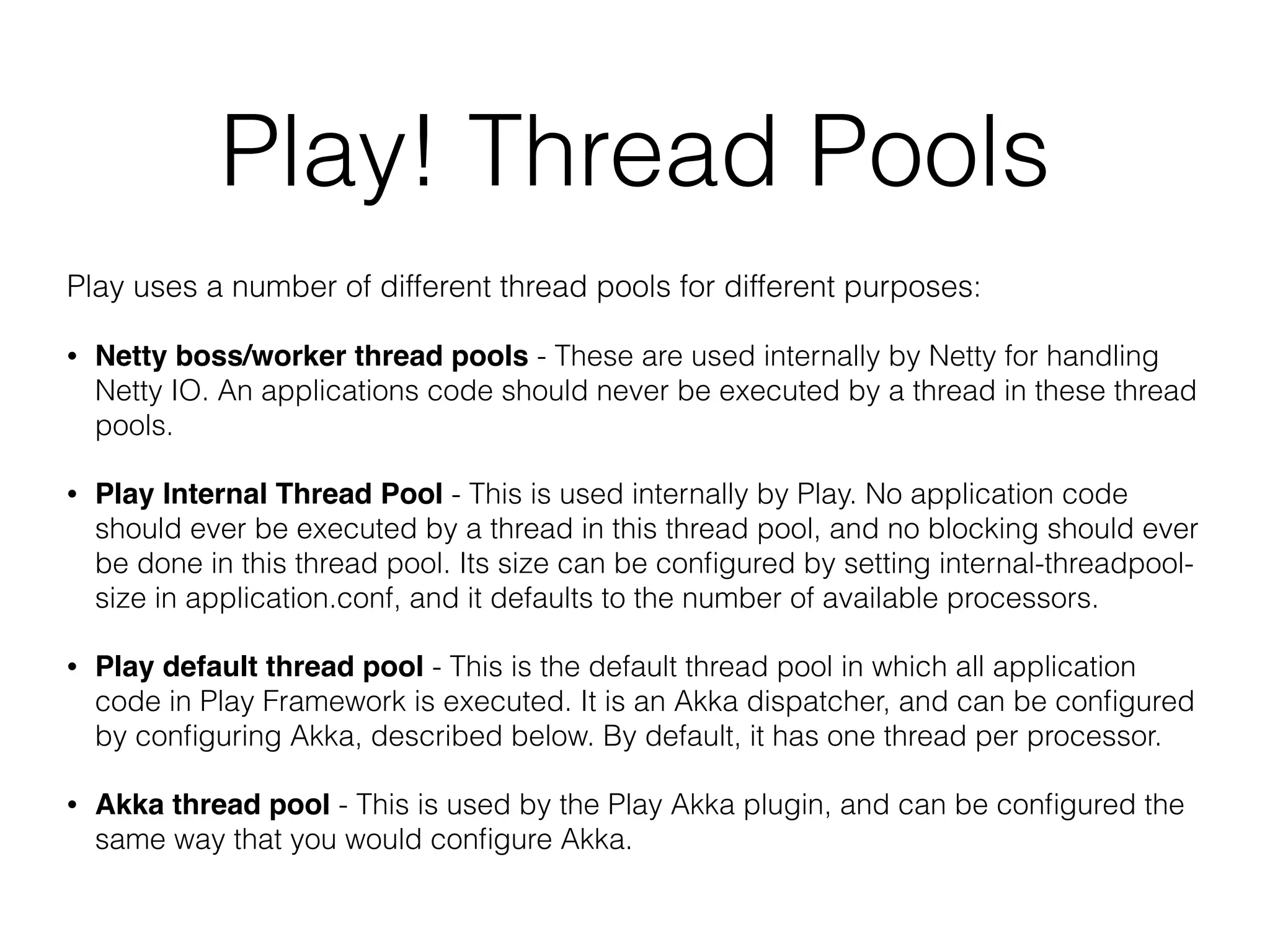

26. Play! Thread Pools
Play uses a number of different thread pools for different purposes:
• Netty boss/worker thread pools - These are used internally by Netty for handling
Netty IO. An applications code should never be executed by a thread in these thread
pools.
• Play Internal Thread Pool - This is used internally by Play. No application code
should ever be executed by a thread in this thread pool, and no blocking should ever
be done in this thread pool. Its size can be configured by setting internal-threadpool-size
in application.conf, and it defaults to the number of available processors.
• Play default thread pool - This is the default thread pool in which all application
code in Play Framework is executed. It is an Akka dispatcher, and can be configured
by configuring Akka, described below. By default, it has one thread per processor.
• Akka thread pool - This is used by the Play Akka plugin, and can be configured the
same way that you would configure Akka.

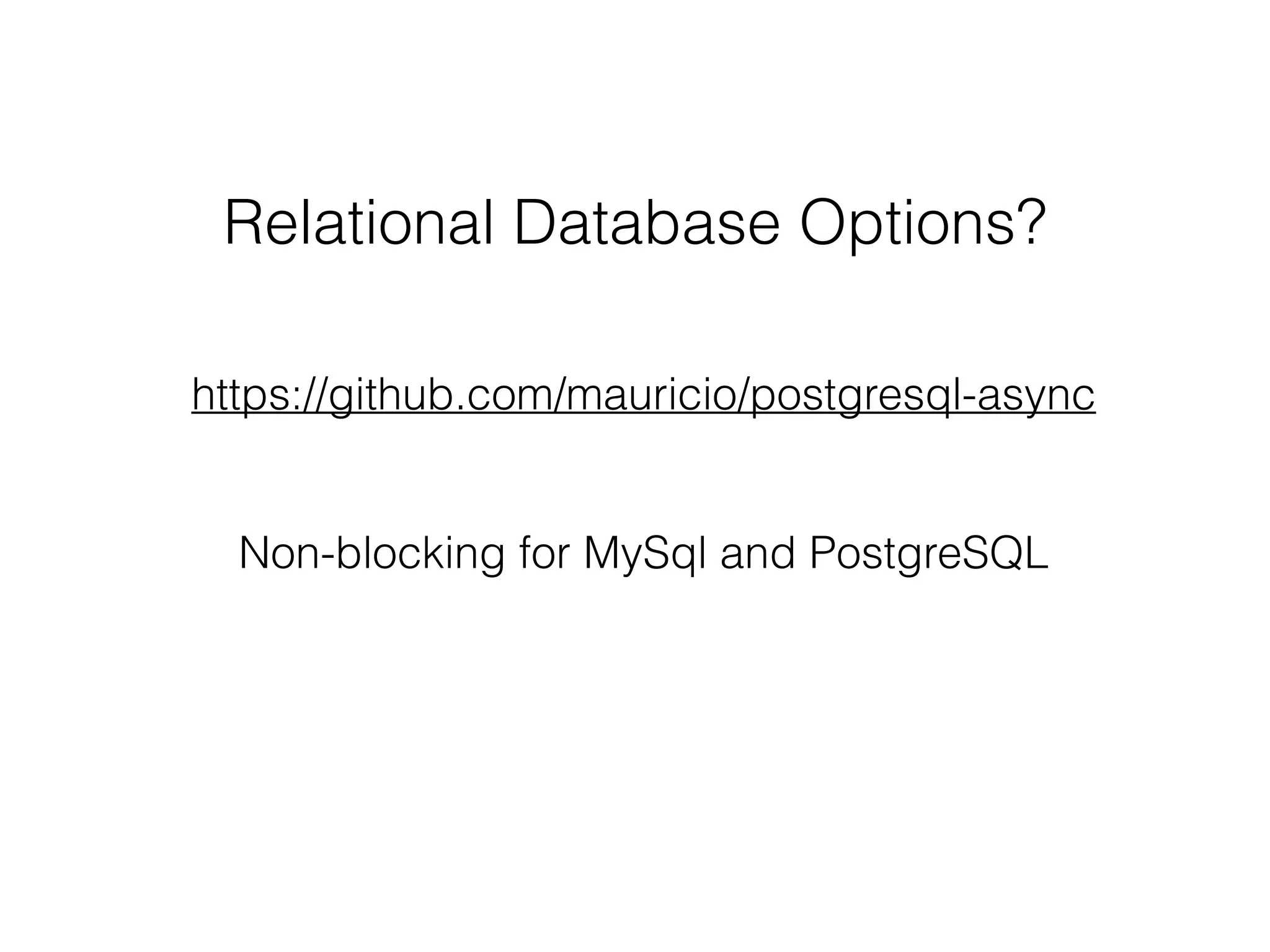

27. Relational Database Options?
https://github.com/mauricio/postgresql-async
Non-blocking for MySql and PostgreSQL

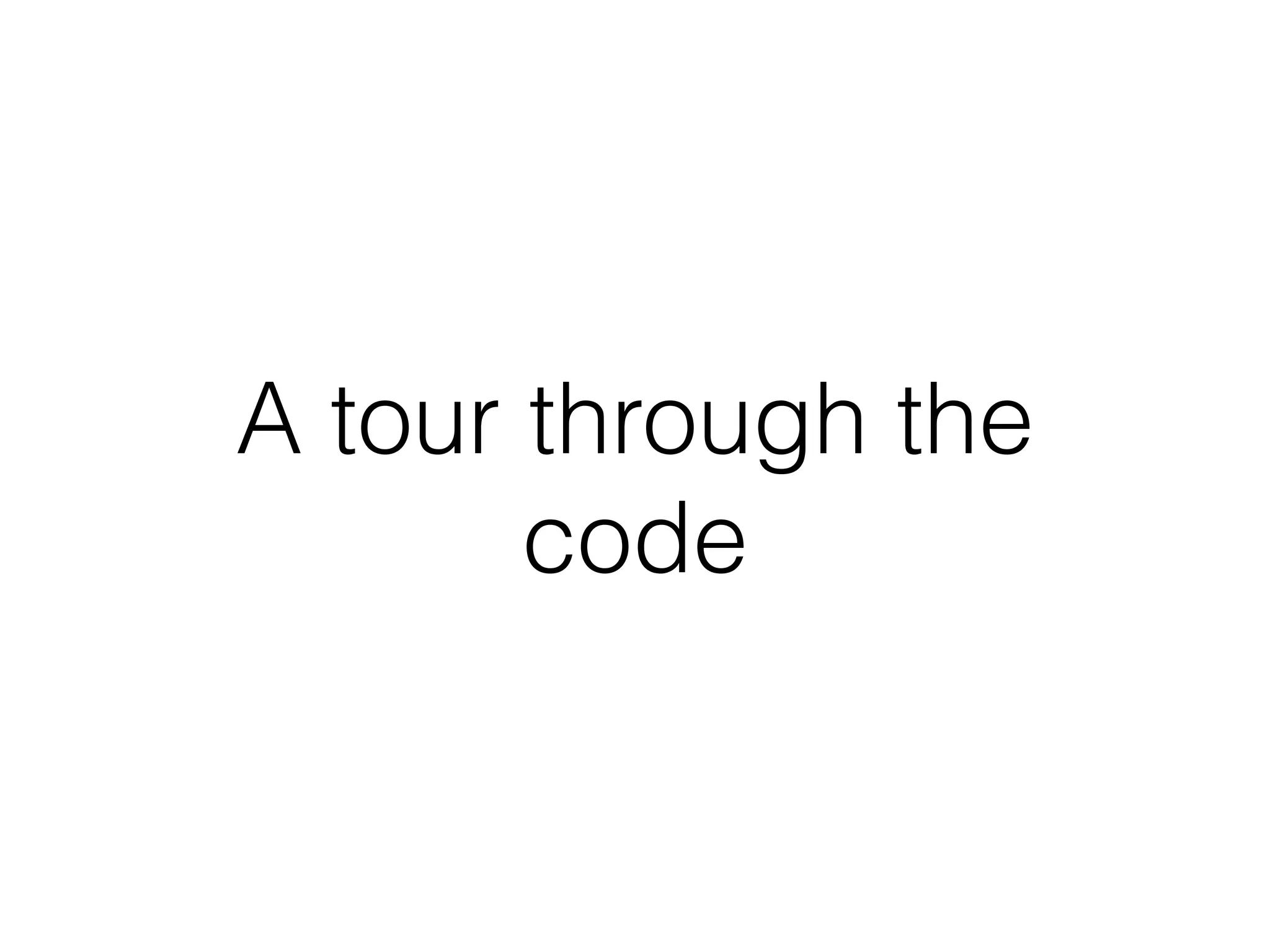

28. A tour through the
code

29. Data is not information, information is not knowledge,
knowledge is not understanding, understanding is not
wisdom.
!
- Clifford Stoll
!
