![Program Slicing
Model Slicing
GSF for Programs
A General Slicing Framework
GSF for Models
Case Study
Conclusion

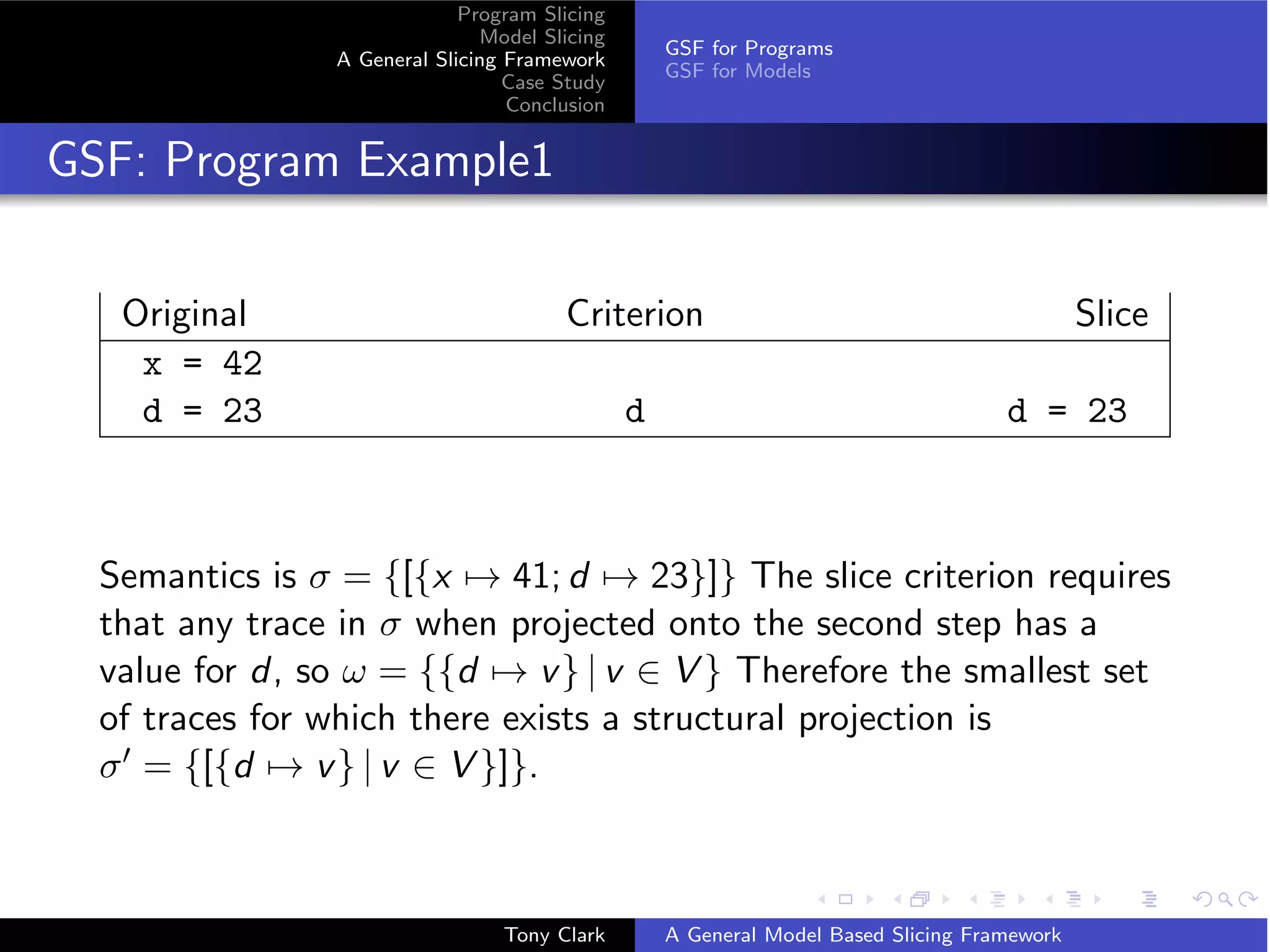

GSF: Program Example1
Original Criterion Slice
x = 42
d = 23 d d = 23
Semantics is σ = {[{x → 41; d → 23}]} The slice criterion requires
that any trace in σ when projected onto the second step has a
value for d, so ω = {{d → v } | v ∈ V } Therefore the smallest set
of traces for which there exists a structural projection is
σ = {[{d → v } | v ∈ V }]}.
Tony Clark A General Model Based Slicing Framework](https://image.slidesharecdn.com/presentationfinal-111001031655-phpapp02/75/Model-Slicing-16-2048.jpg)
![Program Slicing
Model Slicing
GSF for Programs
A General Slicing Framework
GSF for Models
Case Study
Conclusion

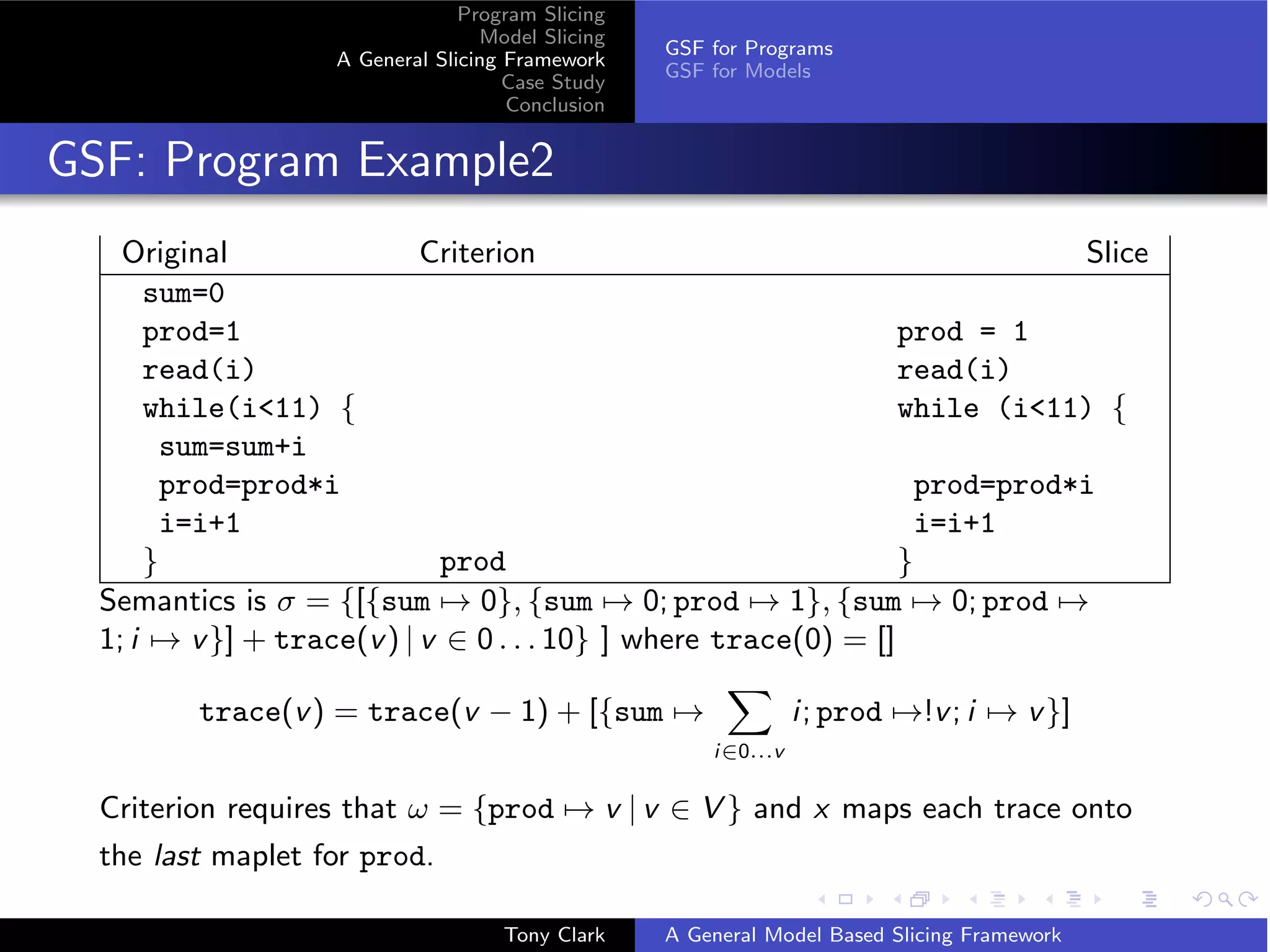

GSF: Program Example2
Original Criterion Slice
sum=0
prod=1 prod = 1
read(i) read(i)
while(i11) { while (i11) {
sum=sum+i
prod=prod*i prod=prod*i
i=i+1 i=i+1
} prod }
Semantics is σ = {[{sum → 0}, {sum → 0; prod → 1}, {sum → 0; prod →
1; i → v }] + trace(v ) | v ∈ 0 . . . 10} ] where trace(0) = []
trace(v ) = trace(v − 1) + [{sum → i; prod →!v ; i → v }]
i∈0...v
Criterion requires that ω = {prod → v | v ∈ V } and x maps each trace onto
the last maplet for prod.
Tony Clark A General Model Based Slicing Framework](https://image.slidesharecdn.com/presentationfinal-111001031655-phpapp02/75/Model-Slicing-17-2048.jpg)
![Program Slicing
Model Slicing
A General Slicing Framework
Case Study
Conclusion

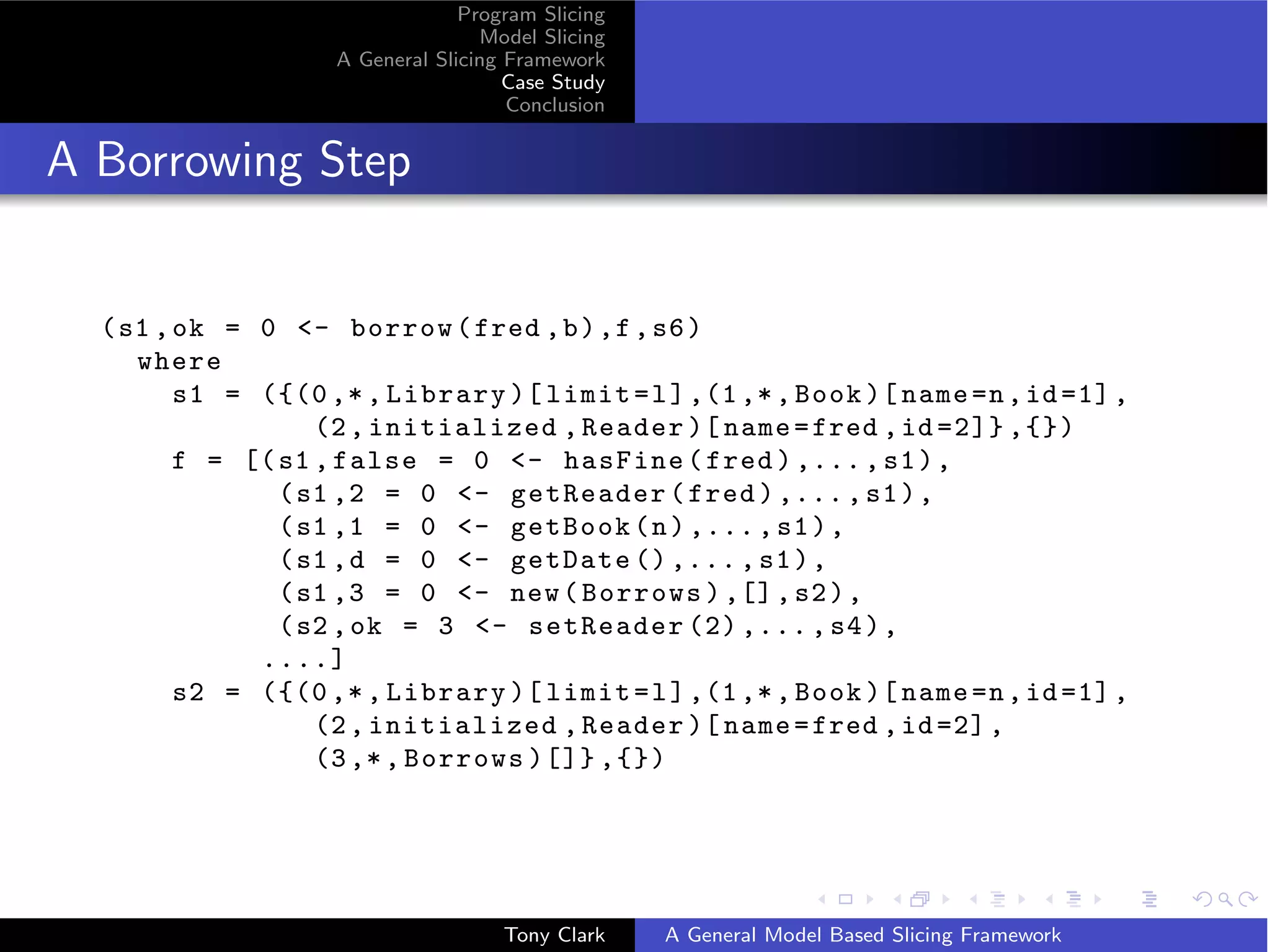

A Borrowing Step
( s1 , ok = 0 - borrow ( fred , b ) ,f , s6 )
where
s1 = ({(0 ,* , Library )[ limit = l ] ,(1 ,* , Book )[ name =n , id =1] ,
(2 , initialized , Reader )[ name = fred , id =2]} ,{})
f = [( s1 , false = 0 - hasFine ( fred ) ,... , s1 ) ,
( s1 ,2 = 0 - getReader ( fred ) ,... , s1 ) ,
( s1 ,1 = 0 - getBook ( n ) ,... , s1 ) ,
( s1 , d = 0 - getDate () ,... , s1 ) ,
( s1 ,3 = 0 - new ( Borrows ) ,[] , s2 ) ,
( s2 , ok = 3 - setReader (2) ,... , s4 ) ,
....]
s2 = ({(0 ,* , Library )[ limit = l ] ,(1 ,* , Book )[ name =n , id =1] ,
(2 , initialized , Reader )[ name = fred , id =2] ,
(3 ,* , Borrows )[]} ,{})
Tony Clark A General Model Based Slicing Framework](https://image.slidesharecdn.com/presentationfinal-111001031655-phpapp02/75/Model-Slicing-26-2048.jpg)
![Program Slicing
Model Slicing
A General Slicing Framework
Case Study
Conclusion

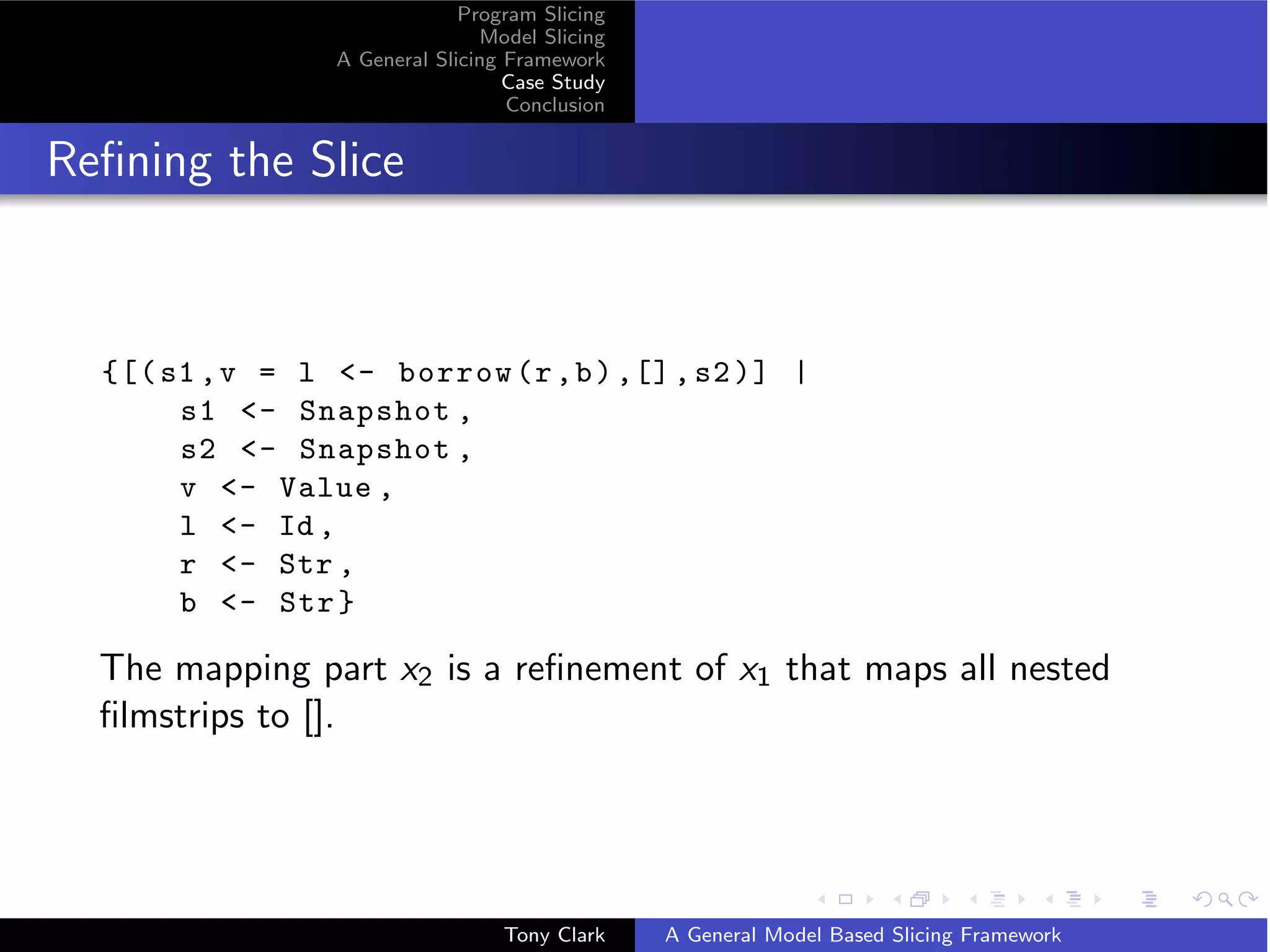

Refining the Slice
{[( s1 , v = l - borrow (r , b ) ,[] , s2 )] |
s1 - Snapshot ,
s2 - Snapshot ,
v - Value ,
l - Id ,
r - Str ,
b - Str }
The mapping part x2 is a refinement of x1 that maps all nested
filmstrips to [].
Tony Clark A General Model Based Slicing Framework](https://image.slidesharecdn.com/presentationfinal-111001031655-phpapp02/75/Model-Slicing-29-2048.jpg)
More Related Content
Model Slicing
- 1. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion A General Model Based Slicing Framework Tony Clark School of Engineering and Information Sciences, Middlesex University September 30, 2011 Tony Clark A General Model Based Slicing Framework
- 2. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion Contents 1 Program Slicing 2 Model Slicing 3 A General Slicing Framework GSF for Programs GSF for Models 4 Case Study 5 Conclusion Tony Clark A General Model Based Slicing Framework

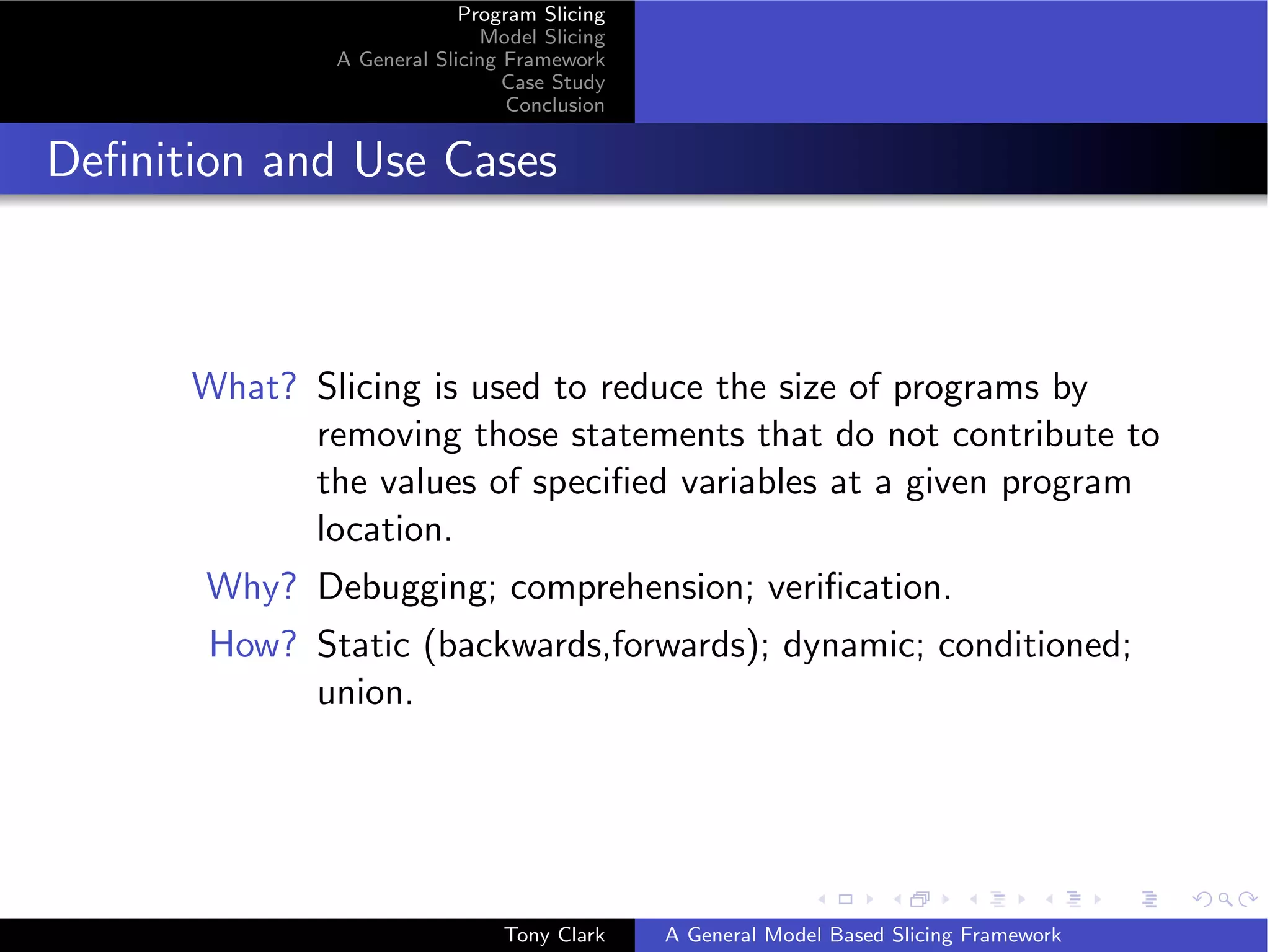

- 3. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion Definition and Use Cases What? Slicing is used to reduce the size of programs by removing those statements that do not contribute to the values of specified variables at a given program location. Why? Debugging; comprehension; verification. How? Static (backwards,forwards); dynamic; conditioned; union. Tony Clark A General Model Based Slicing Framework

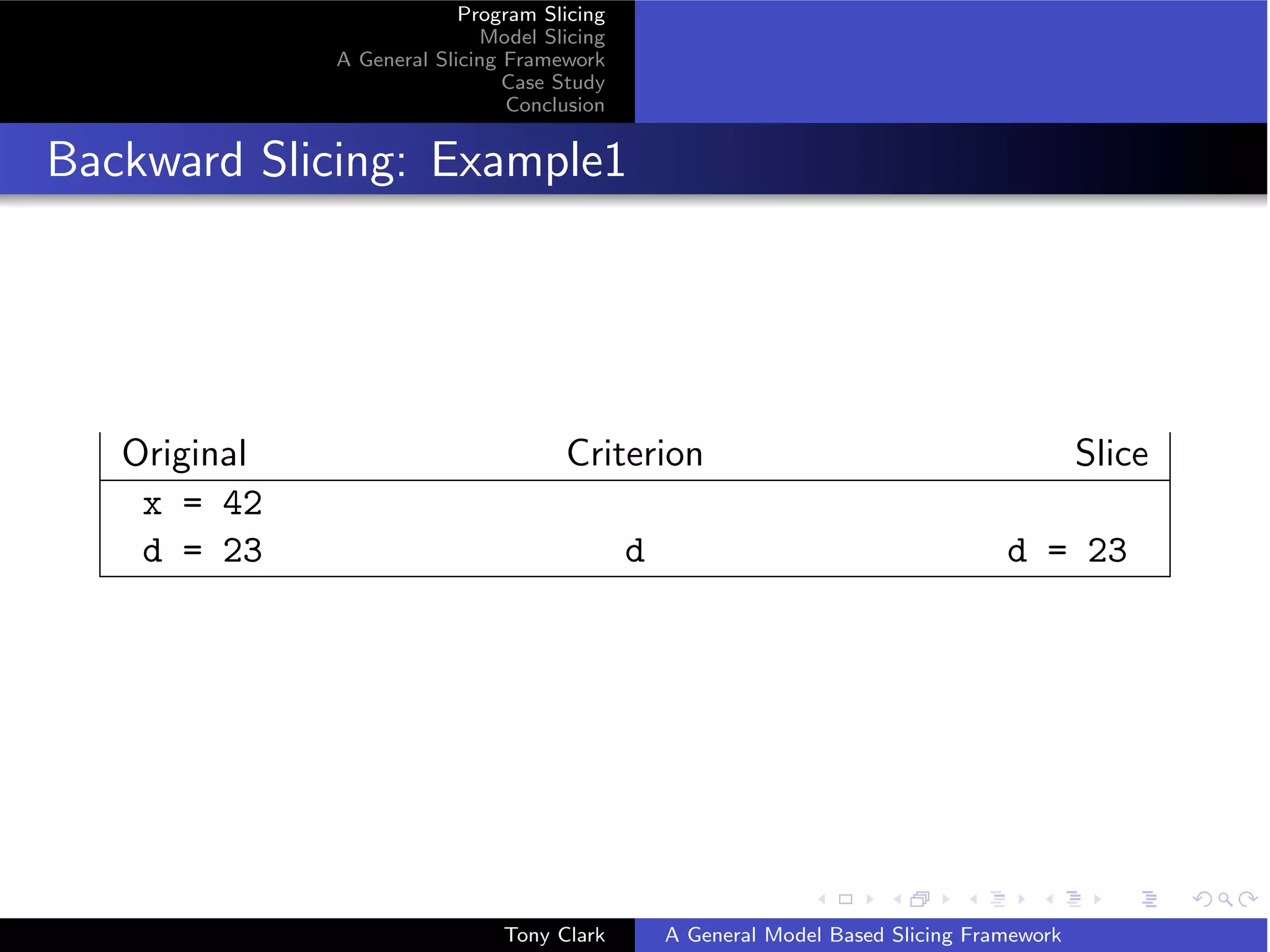

- 4. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion Backward Slicing: Example1 Original Criterion Slice x = 42 d = 23 d d = 23 Tony Clark A General Model Based Slicing Framework

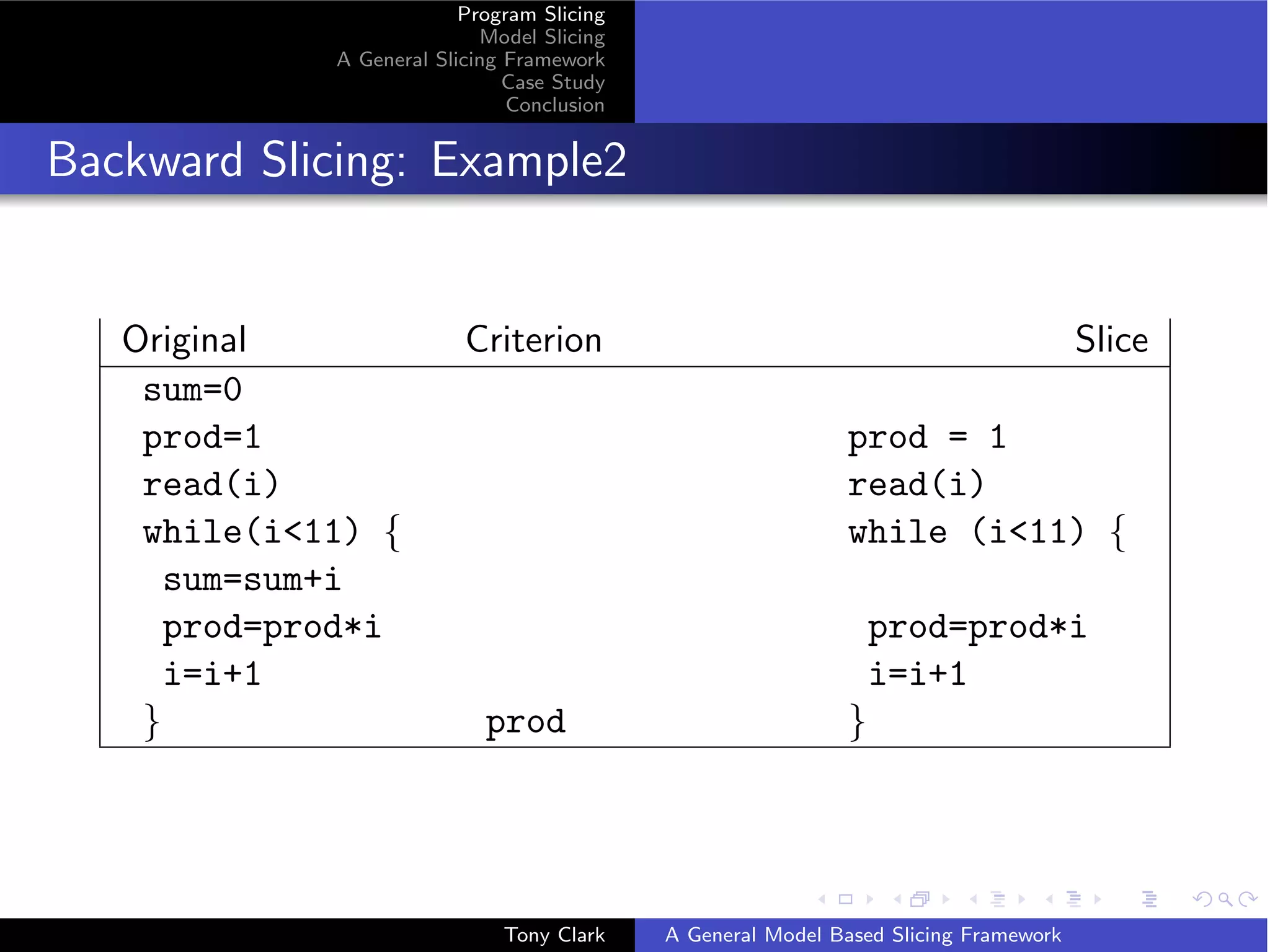

- 5. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion Backward Slicing: Example2 Original Criterion Slice sum=0 prod=1 prod = 1 read(i) read(i) while(i<11) { while (i<11) { sum=sum+i prod=prod*i prod=prod*i i=i+1 i=i+1 } prod } Tony Clark A General Model Based Slicing Framework

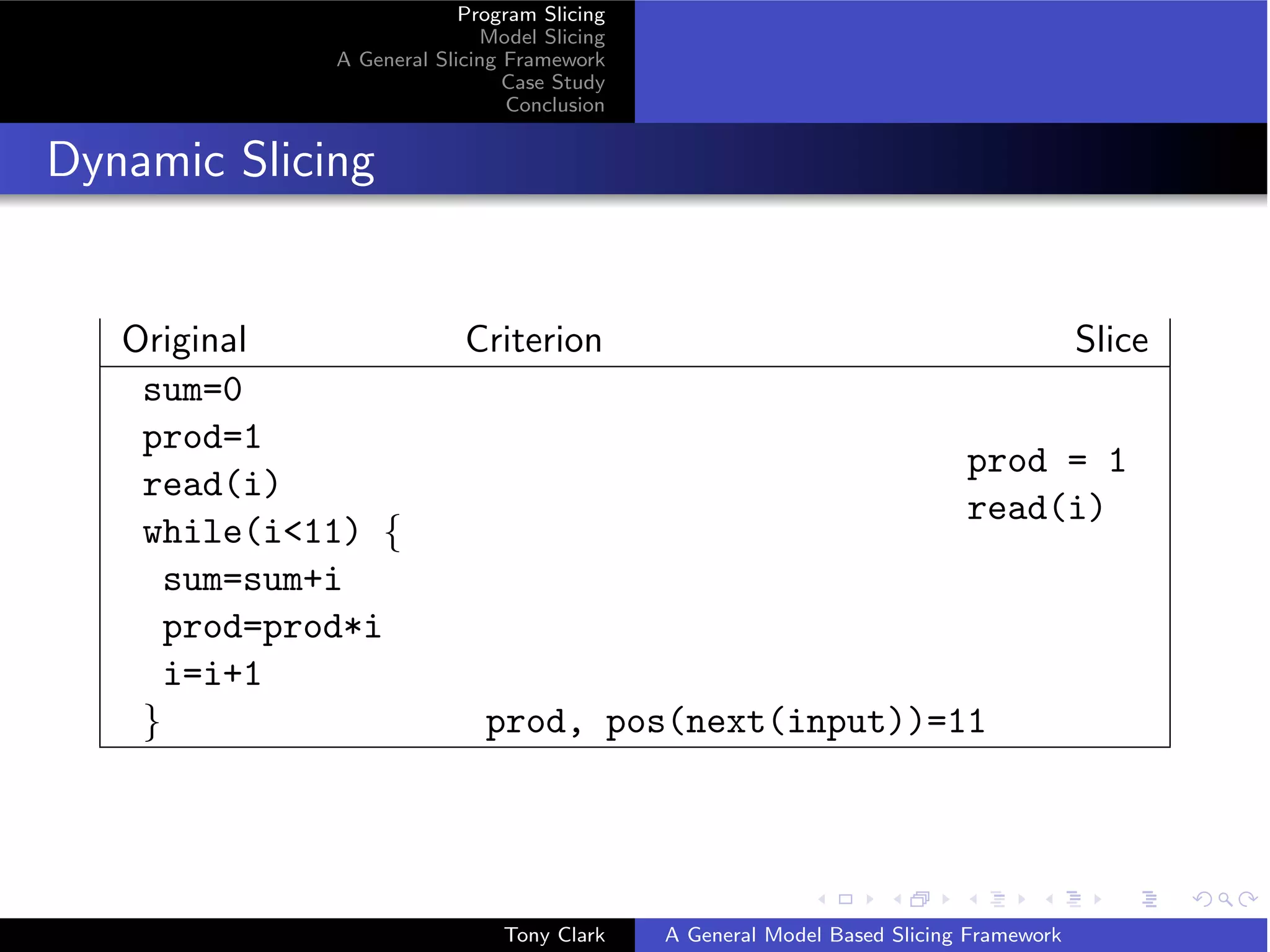

- 6. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion Dynamic Slicing Original Criterion Slice sum=0 prod=1 prod = 1 read(i) read(i) while(i<11) { sum=sum+i prod=prod*i i=i+1 } prod, pos(next(input))=11 Tony Clark A General Model Based Slicing Framework

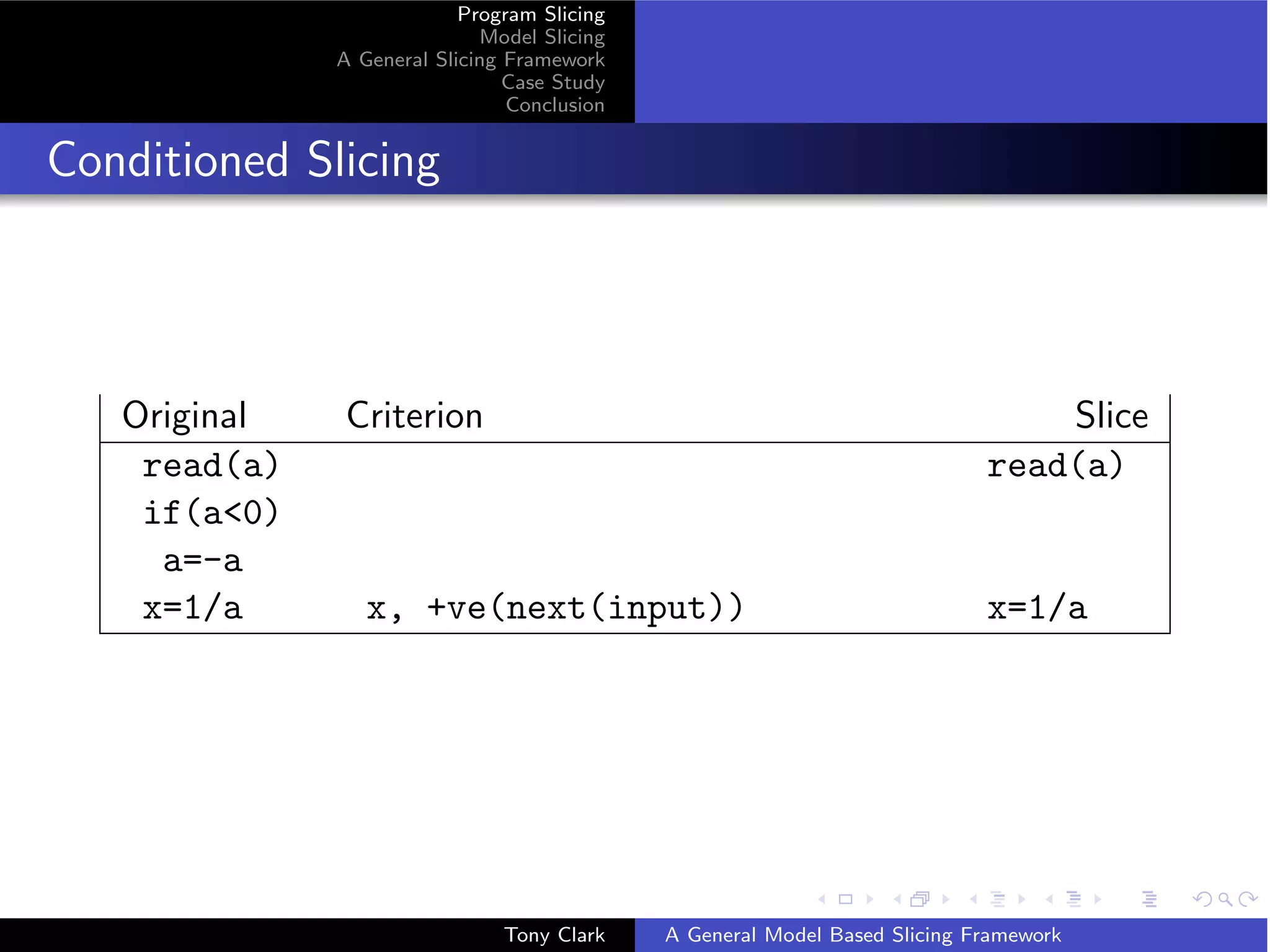

- 7. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion Conditioned Slicing Original Criterion Slice read(a) read(a) if(a<0) a=-a x=1/a x, +ve(next(input)) x=1/a Tony Clark A General Model Based Slicing Framework

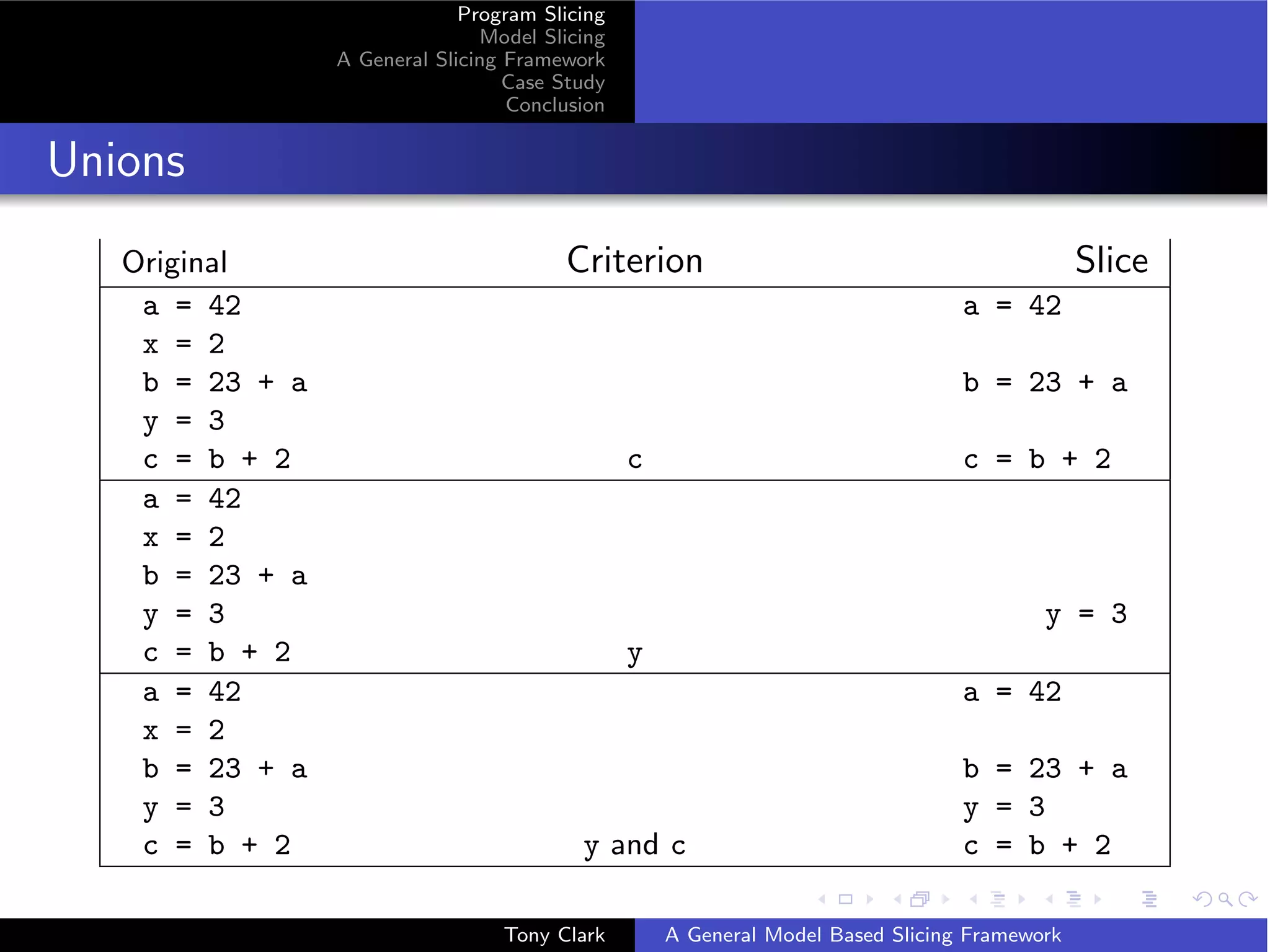

- 8. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion Unions Original Criterion Slice a = 42 a = 42 x = 2 b = 23 + a b = 23 + a y = 3 c = b + 2 c c = b + 2 a = 42 x = 2 b = 23 + a y = 3 y = 3 c = b + 2 y a = 42 a = 42 x = 2 b = 23 + a b = 23 + a y = 3 y = 3 c = b + 2 y and c c = b + 2 Tony Clark A General Model Based Slicing Framework

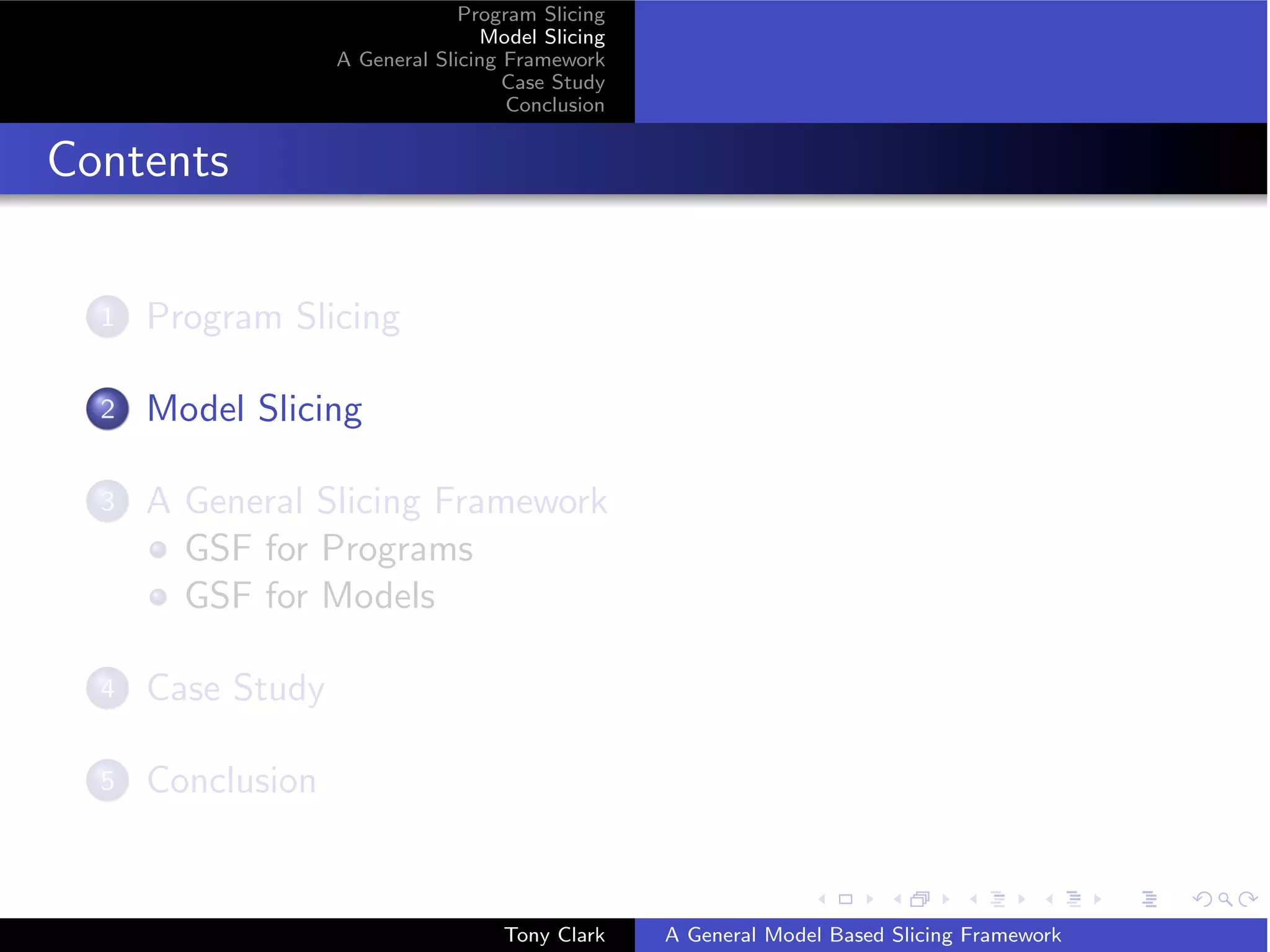

- 9. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion Contents 1 Program Slicing 2 Model Slicing 3 A General Slicing Framework GSF for Programs GSF for Models 4 Case Study 5 Conclusion Tony Clark A General Model Based Slicing Framework

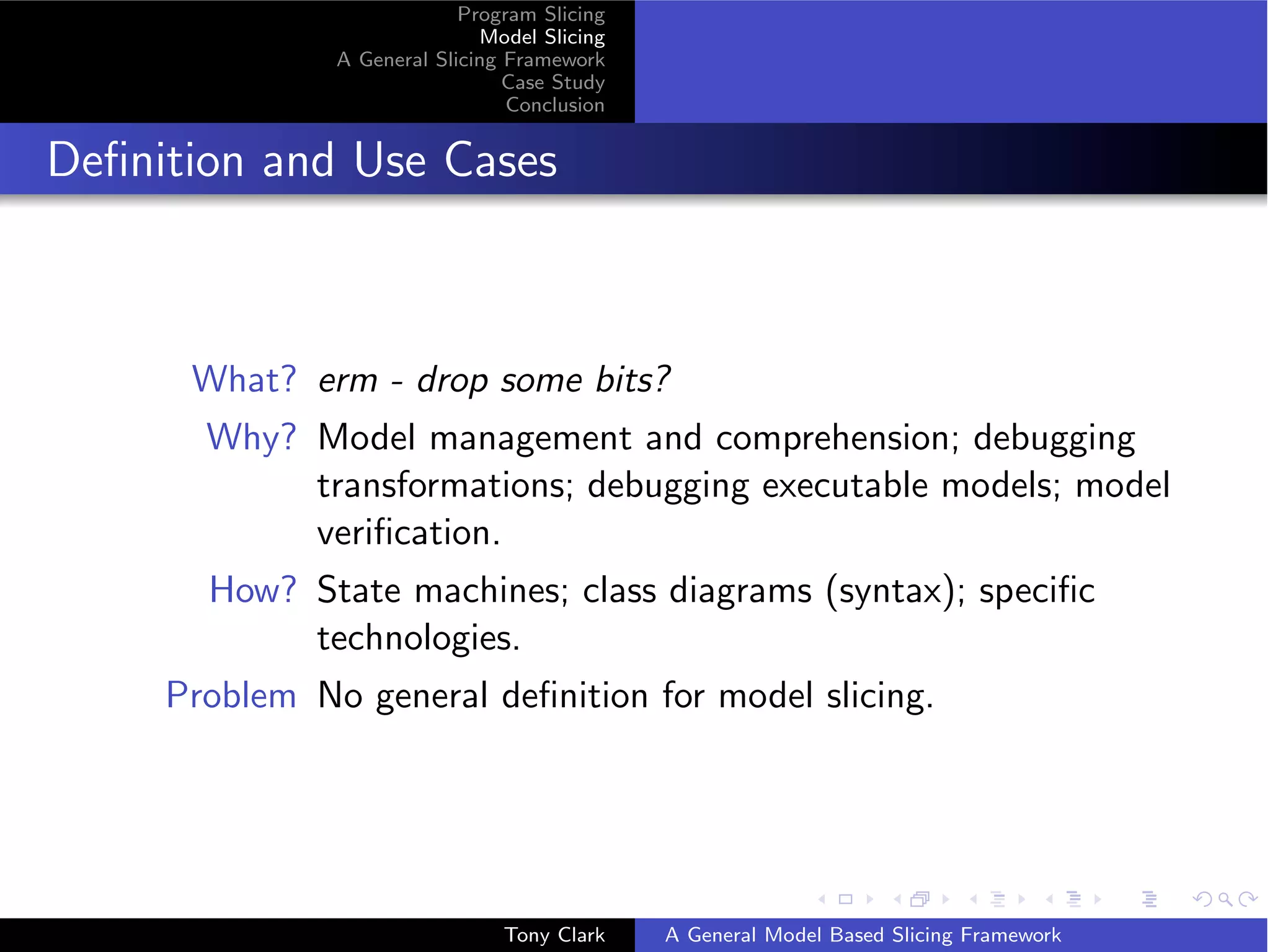

- 10. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion Definition and Use Cases What? erm - drop some bits? Why? Model management and comprehension; debugging transformations; debugging executable models; model verification. How? State machines; class diagrams (syntax); specific technologies. Problem No general definition for model slicing. Tony Clark A General Model Based Slicing Framework

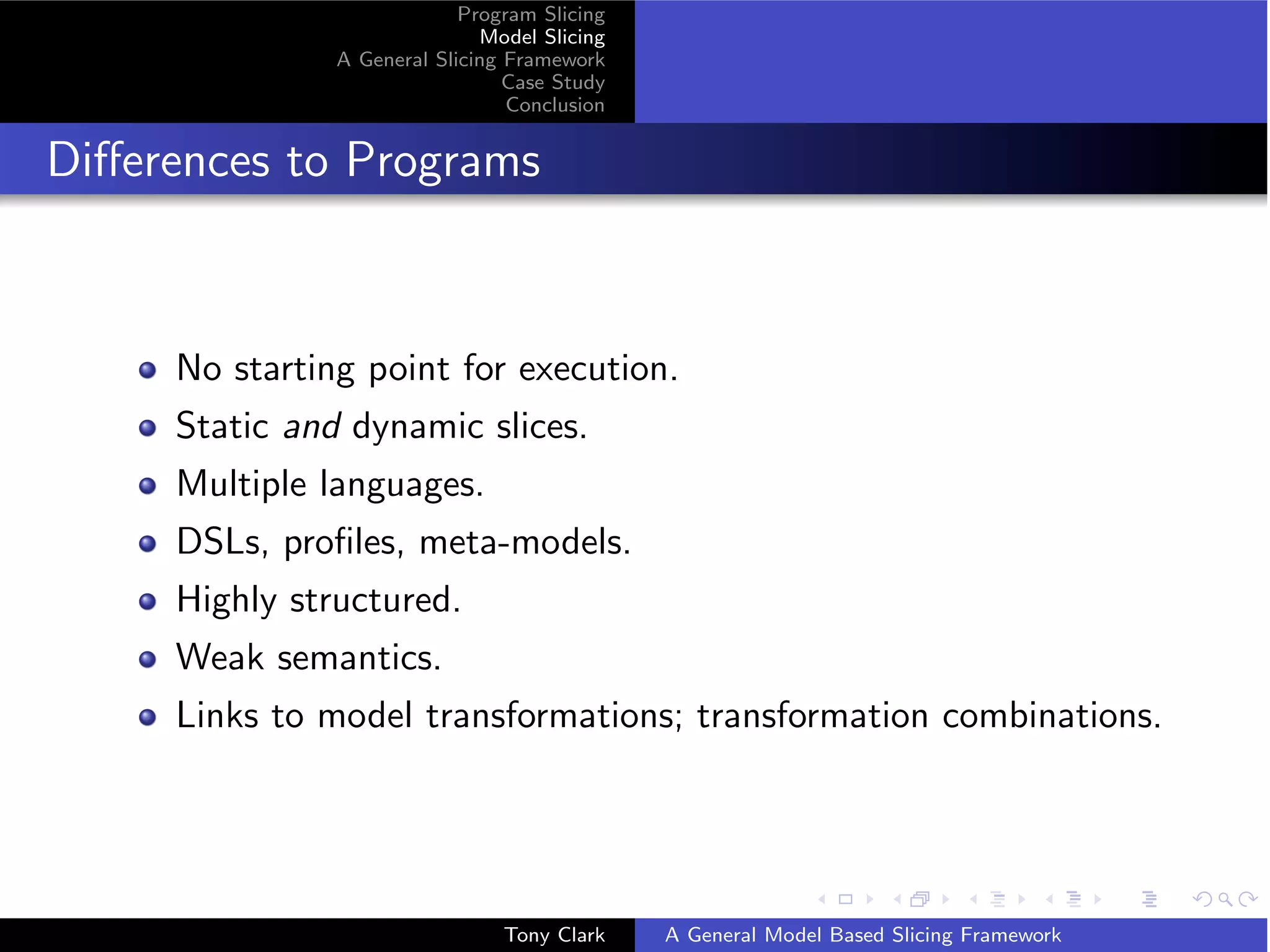

- 11. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion Differences to Programs No starting point for execution. Static and dynamic slices. Multiple languages. DSLs, profiles, meta-models. Highly structured. Weak semantics. Links to model transformations; transformation combinations. Tony Clark A General Model Based Slicing Framework

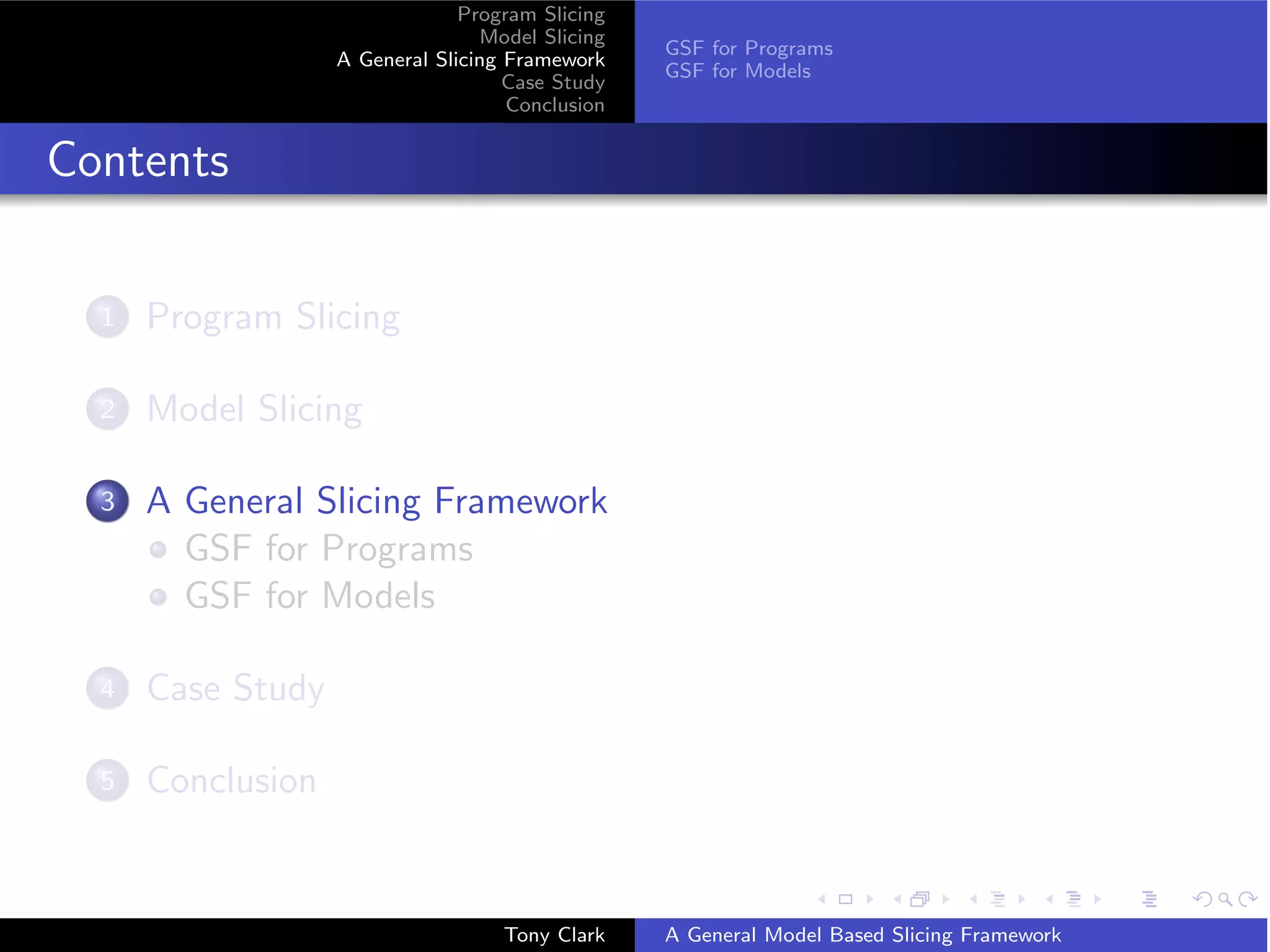

- 12. Program Slicing Model Slicing GSF for Programs A General Slicing Framework GSF for Models Case Study Conclusion Contents 1 Program Slicing 2 Model Slicing 3 A General Slicing Framework GSF for Programs GSF for Models 4 Case Study 5 Conclusion Tony Clark A General Model Based Slicing Framework

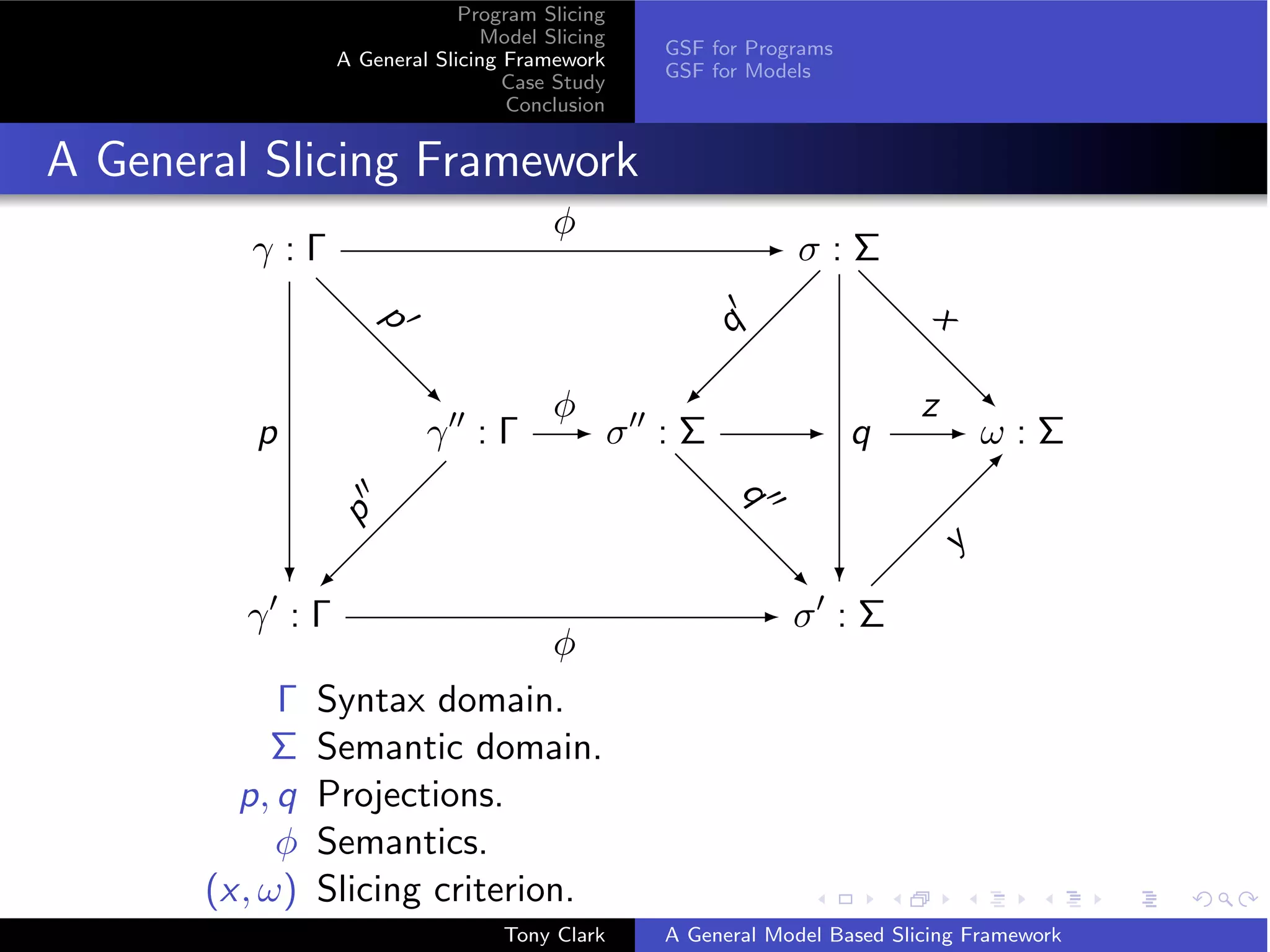

- 13. Program Slicing Model Slicing GSF for Programs A General Slicing Framework GSF for Models Case Study Conclusion A General Slicing Framework φ - σ:Σ γ:Γ p x q - - φ z- p γ :Γ - σ :Σ - q ω:Σ - q p y ? ? - γ :Γ - σ :Σ φ Γ Syntax domain. Σ Semantic domain. p, q Projections. φ Semantics. (x, ω) Slicing criterion. Tony Clark A General Model Based Slicing Framework

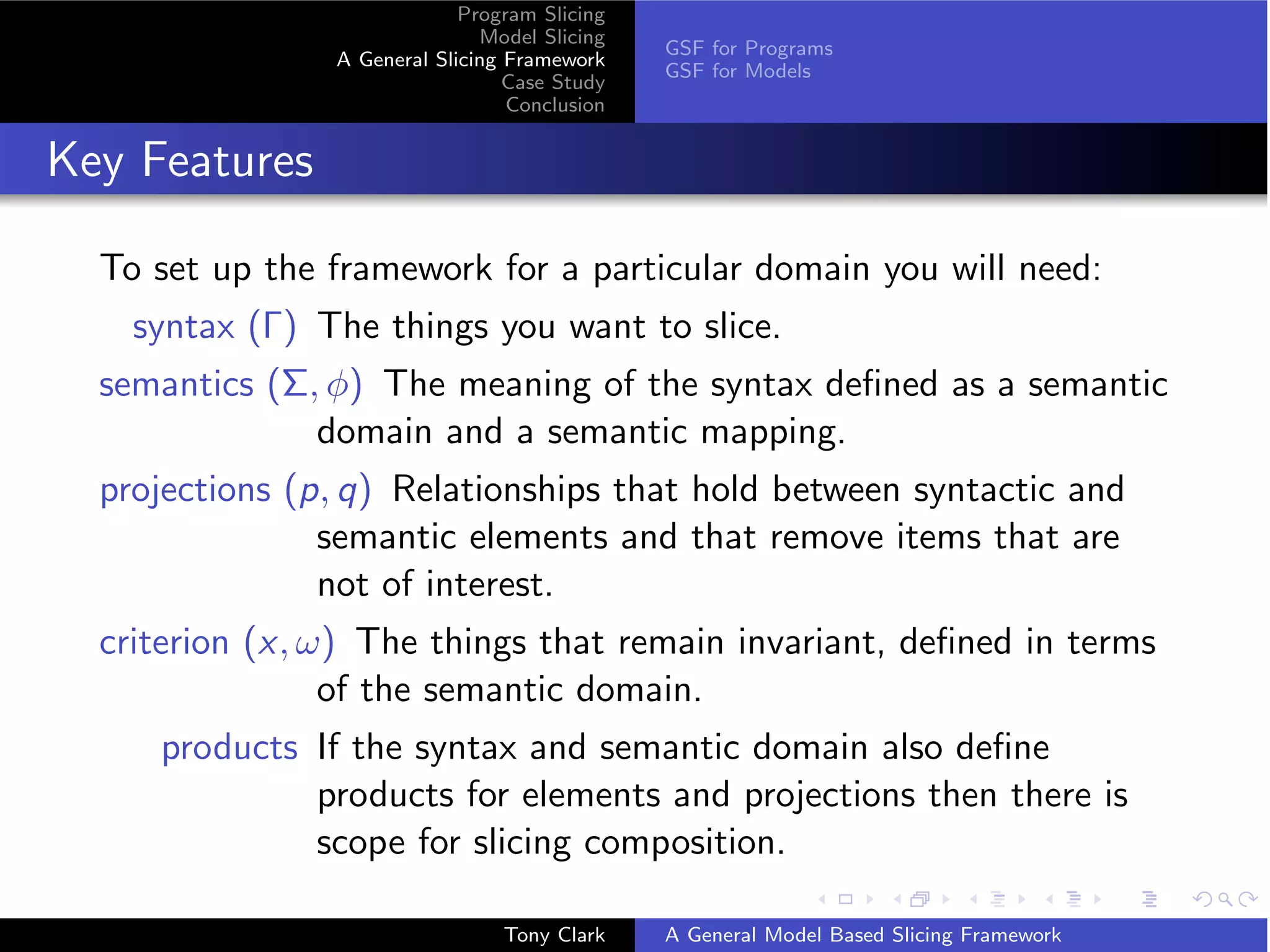

- 14. Program Slicing Model Slicing GSF for Programs A General Slicing Framework GSF for Models Case Study Conclusion Key Features To set up the framework for a particular domain you will need: syntax (Γ) The things you want to slice. semantics (Σ, φ) The meaning of the syntax defined as a semantic domain and a semantic mapping. projections (p, q) Relationships that hold between syntactic and semantic elements and that remove items that are not of interest. criterion (x, ω) The things that remain invariant, defined in terms of the semantic domain. products If the syntax and semantic domain also define products for elements and projections then there is scope for slicing composition. Tony Clark A General Model Based Slicing Framework

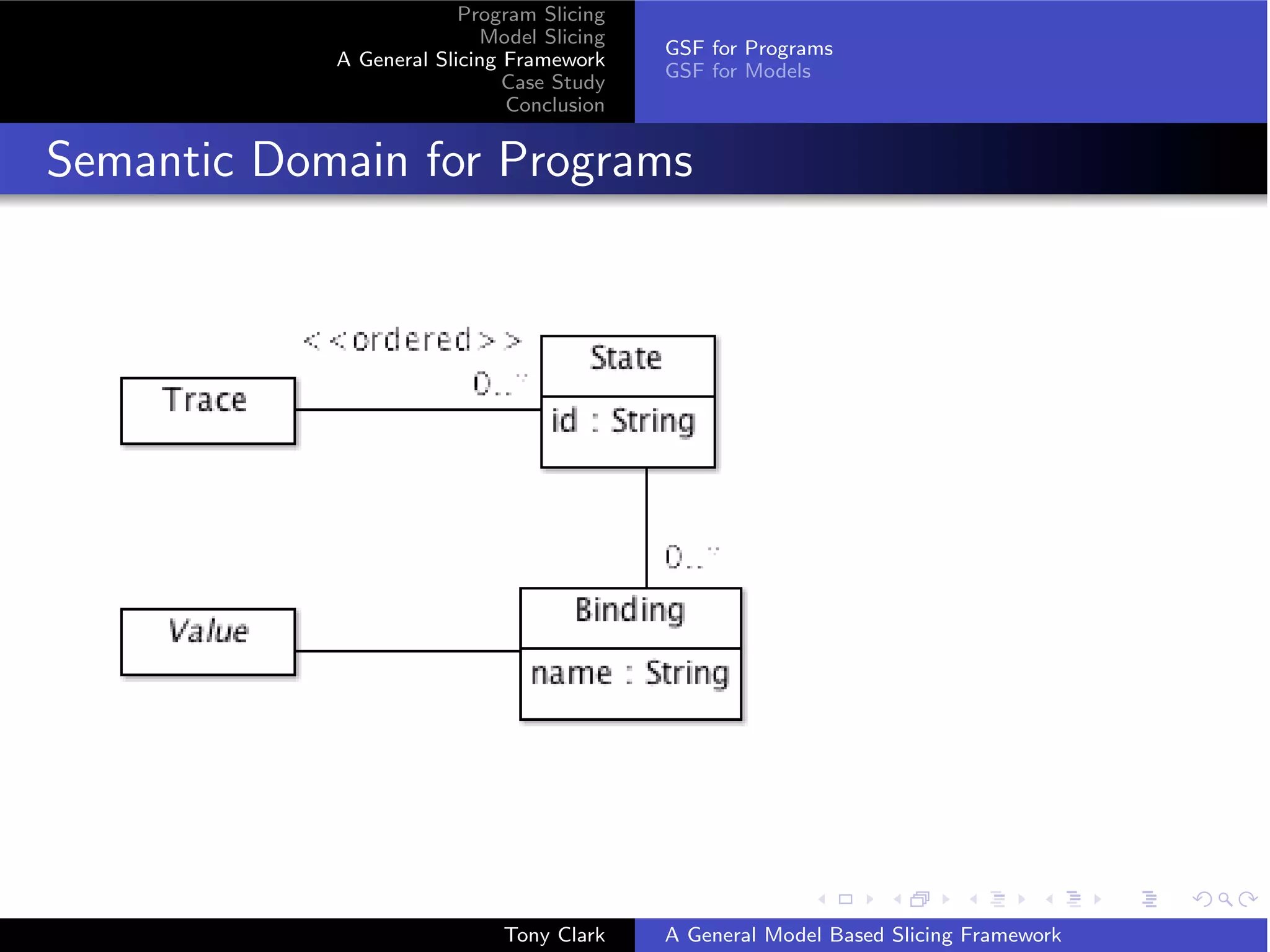

- 15. Program Slicing Model Slicing GSF for Programs A General Slicing Framework GSF for Models Case Study Conclusion Semantic Domain for Programs Tony Clark A General Model Based Slicing Framework
- 16. Program Slicing Model Slicing GSF for Programs A General Slicing Framework GSF for Models Case Study Conclusion GSF: Program Example1 Original Criterion Slice x = 42 d = 23 d d = 23 Semantics is σ = {[{x → 41; d → 23}]} The slice criterion requires that any trace in σ when projected onto the second step has a value for d, so ω = {{d → v } | v ∈ V } Therefore the smallest set of traces for which there exists a structural projection is σ = {[{d → v } | v ∈ V }]}. Tony Clark A General Model Based Slicing Framework
- 17. Program Slicing Model Slicing GSF for Programs A General Slicing Framework GSF for Models Case Study Conclusion GSF: Program Example2 Original Criterion Slice sum=0 prod=1 prod = 1 read(i) read(i) while(i11) { while (i11) { sum=sum+i prod=prod*i prod=prod*i i=i+1 i=i+1 } prod } Semantics is σ = {[{sum → 0}, {sum → 0; prod → 1}, {sum → 0; prod → 1; i → v }] + trace(v ) | v ∈ 0 . . . 10} ] where trace(0) = [] trace(v ) = trace(v − 1) + [{sum → i; prod →!v ; i → v }] i∈0...v Criterion requires that ω = {prod → v | v ∈ V } and x maps each trace onto the last maplet for prod. Tony Clark A General Model Based Slicing Framework
- 18. Program Slicing Model Slicing GSF for Programs A General Slicing Framework GSF for Models Case Study Conclusion Modelling Language: Syntax Tony Clark A General Model Based Slicing Framework
- 19. Program Slicing Model Slicing GSF for Programs A General Slicing Framework GSF for Models Case Study Conclusion Modelling Language: Semantic Domain Tony Clark A General Model Based Slicing Framework
- 20. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion Contents 1 Program Slicing 2 Model Slicing 3 A General Slicing Framework GSF for Programs GSF for Models 4 Case Study 5 Conclusion Tony Clark A General Model Based Slicing Framework

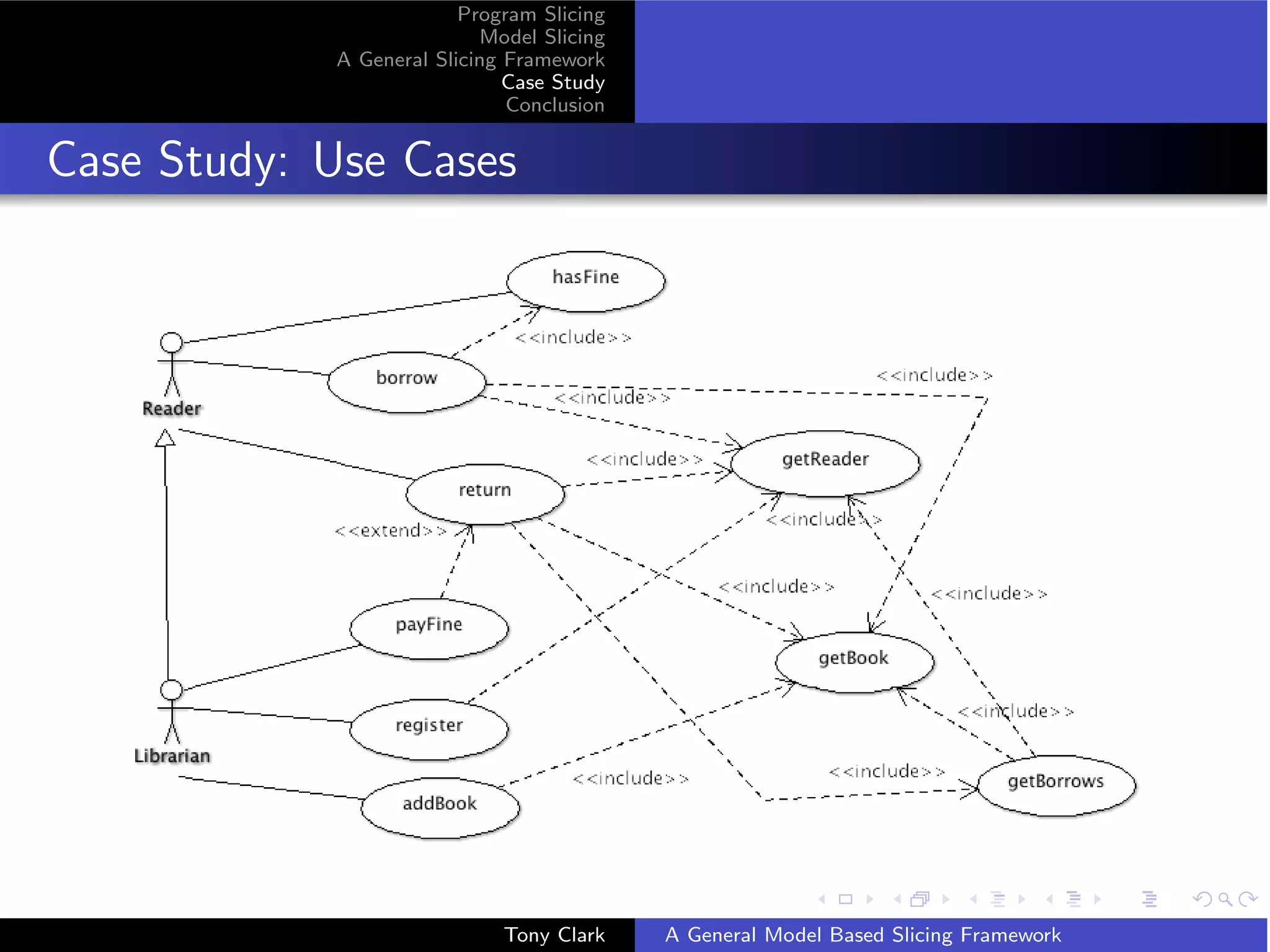

- 21. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion Case Study: Use Cases Tony Clark A General Model Based Slicing Framework

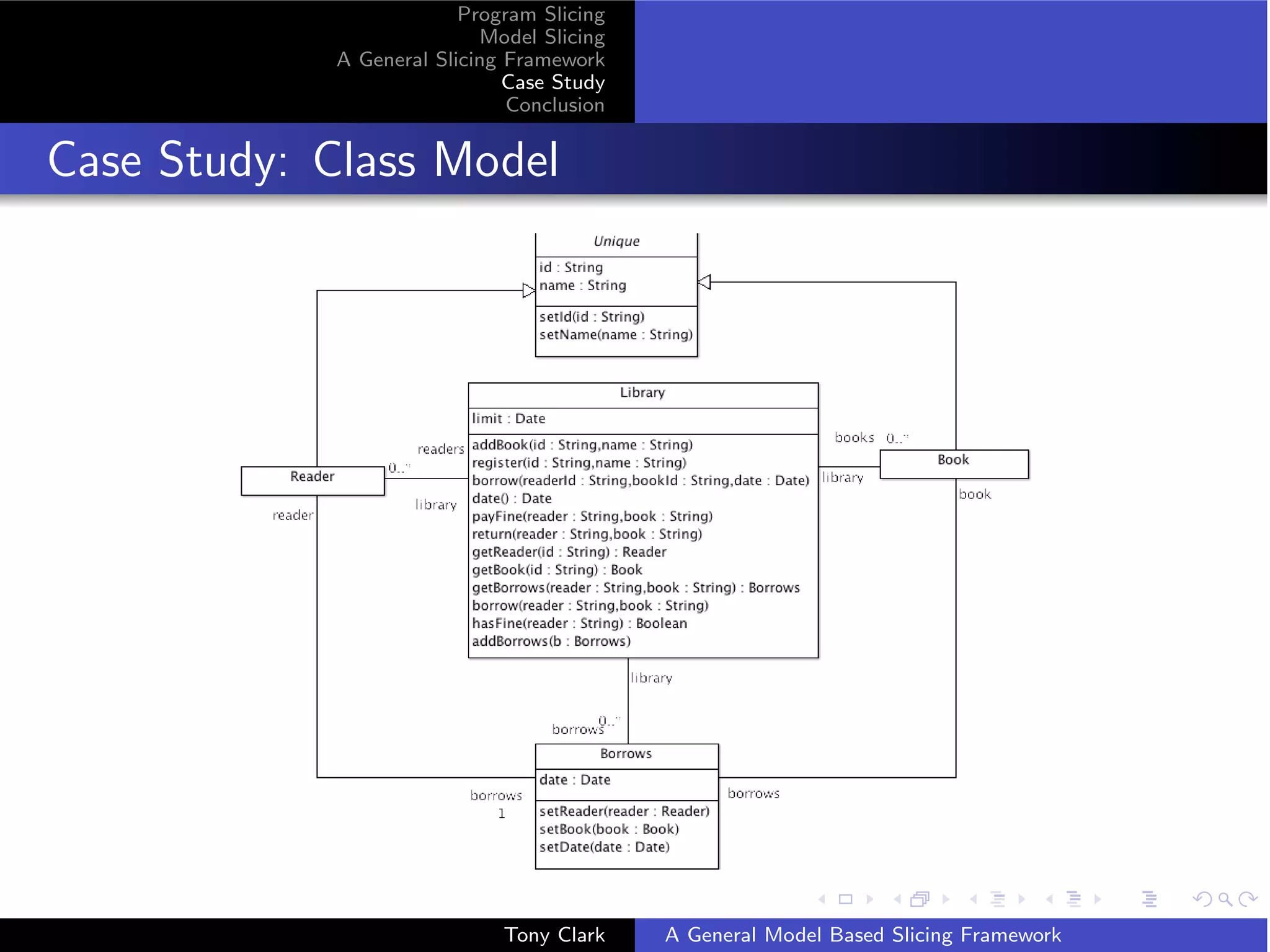

- 22. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion Case Study: Class Model Tony Clark A General Model Based Slicing Framework

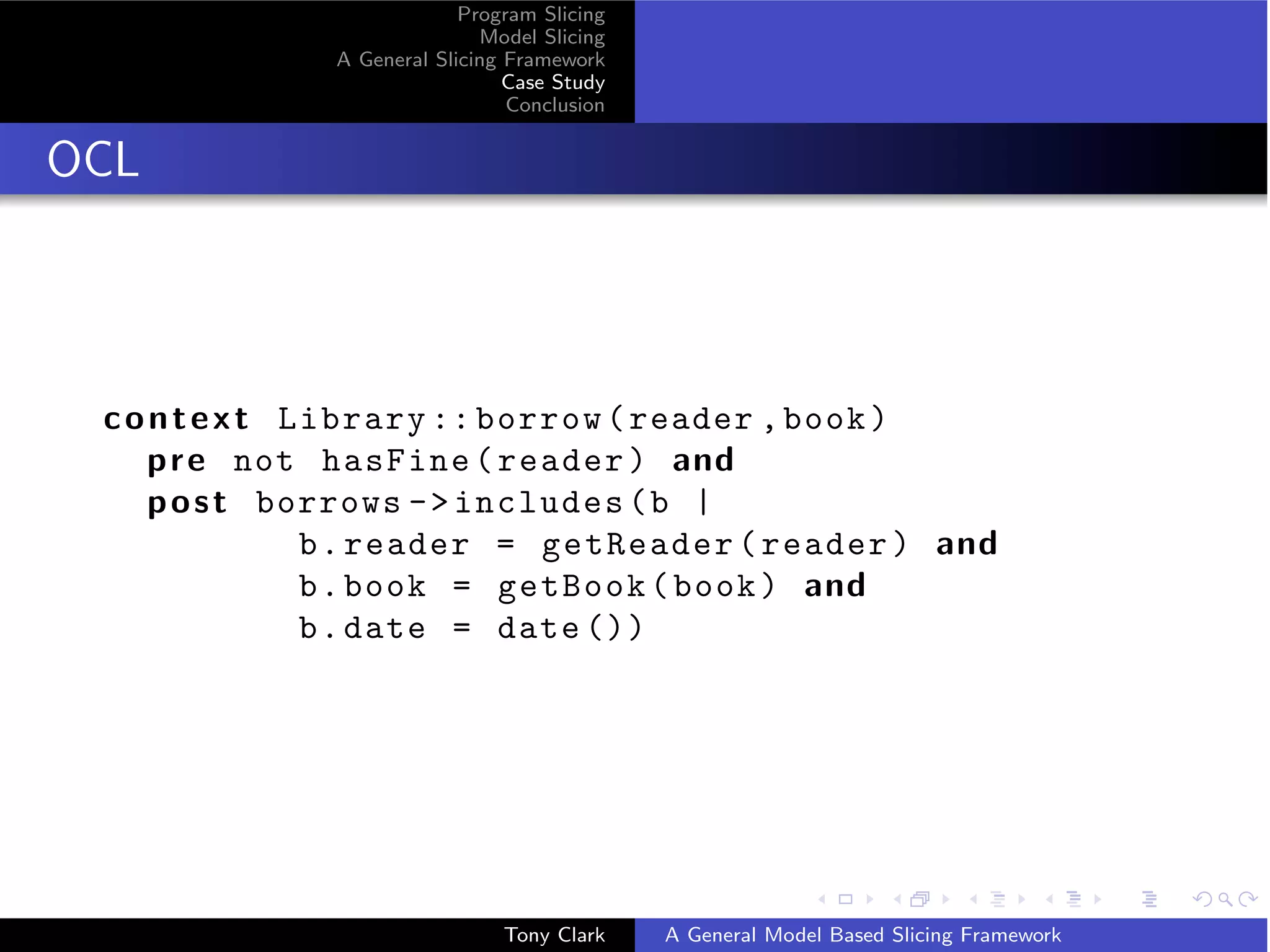

- 23. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion OCL c o n t e x t Library :: borrow ( reader , book ) p r e not hasFine ( reader ) and p o s t borrows - includes ( b | b . reader = getReader ( reader ) and b . book = getBook ( book ) and b . date = date ()) Tony Clark A General Model Based Slicing Framework

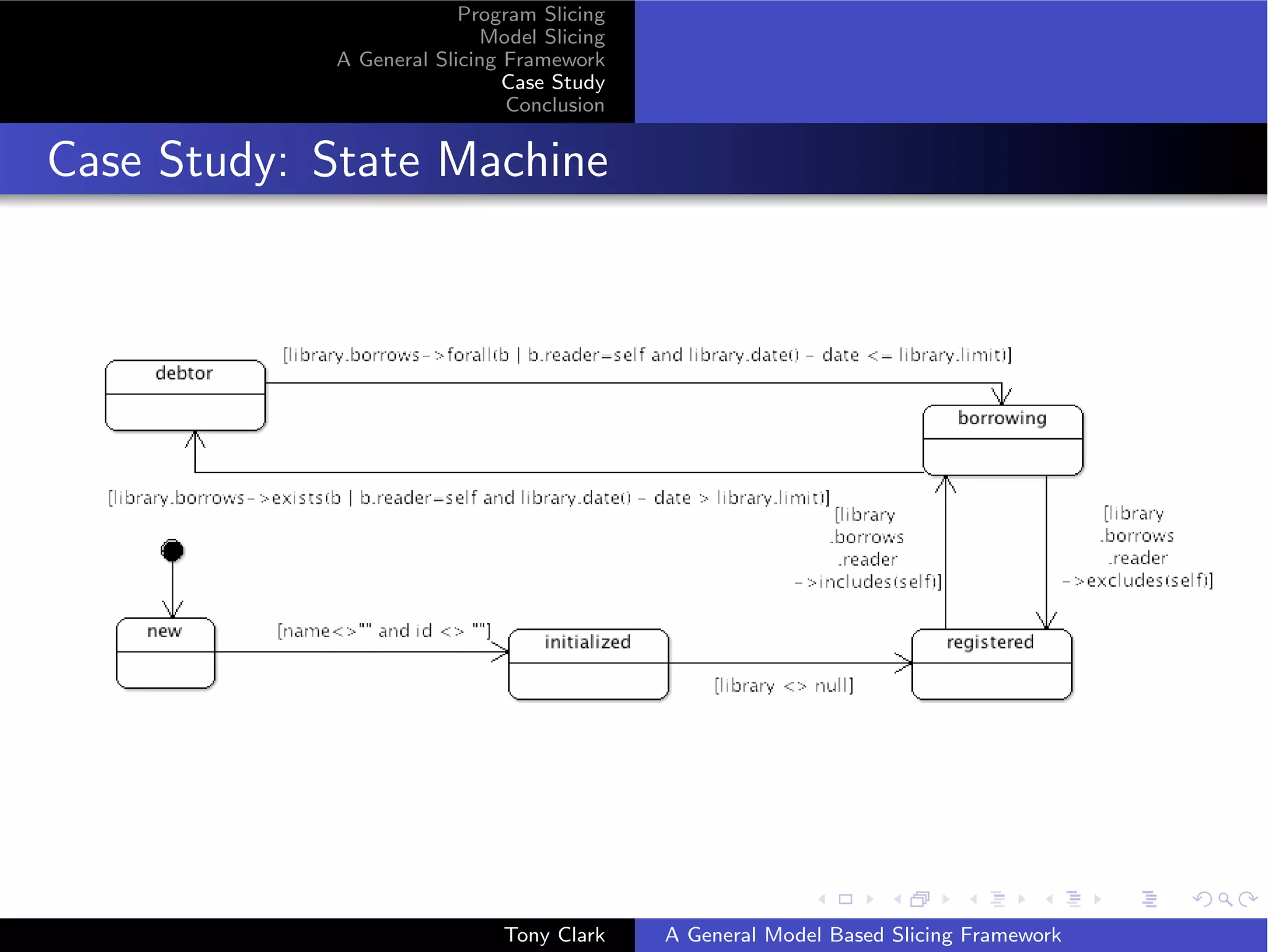

- 24. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion Case Study: State Machine Tony Clark A General Model Based Slicing Framework

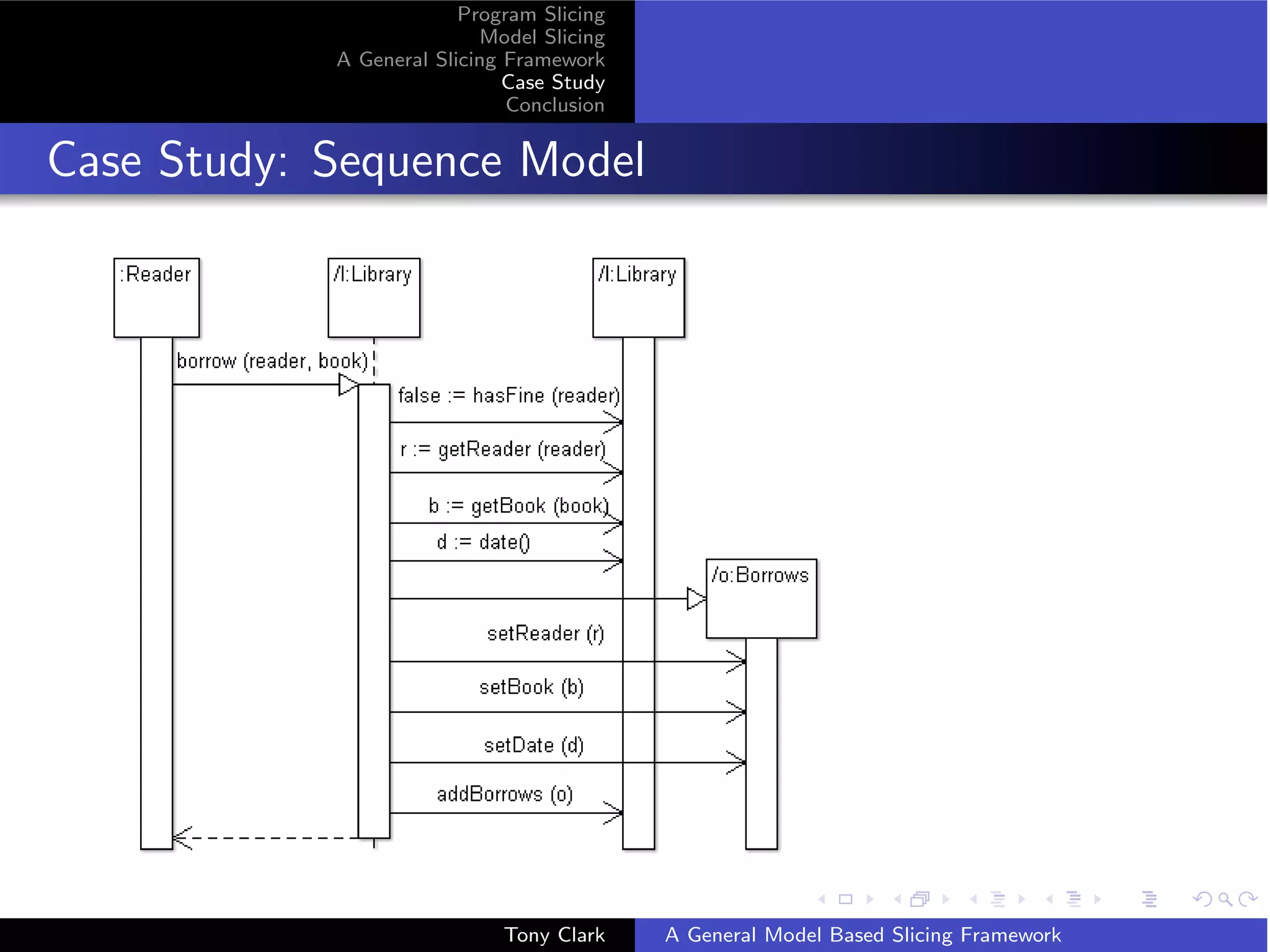

- 25. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion Case Study: Sequence Model Tony Clark A General Model Based Slicing Framework
- 26. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion A Borrowing Step ( s1 , ok = 0 - borrow ( fred , b ) ,f , s6 ) where s1 = ({(0 ,* , Library )[ limit = l ] ,(1 ,* , Book )[ name =n , id =1] , (2 , initialized , Reader )[ name = fred , id =2]} ,{}) f = [( s1 , false = 0 - hasFine ( fred ) ,... , s1 ) , ( s1 ,2 = 0 - getReader ( fred ) ,... , s1 ) , ( s1 ,1 = 0 - getBook ( n ) ,... , s1 ) , ( s1 , d = 0 - getDate () ,... , s1 ) , ( s1 ,3 = 0 - new ( Borrows ) ,[] , s2 ) , ( s2 , ok = 3 - setReader (2) ,... , s4 ) , ....] s2 = ({(0 ,* , Library )[ limit = l ] ,(1 ,* , Book )[ name =n , id =1] , (2 , initialized , Reader )[ name = fred , id =2] , (3 ,* , Borrows )[]} ,{}) Tony Clark A General Model Based Slicing Framework

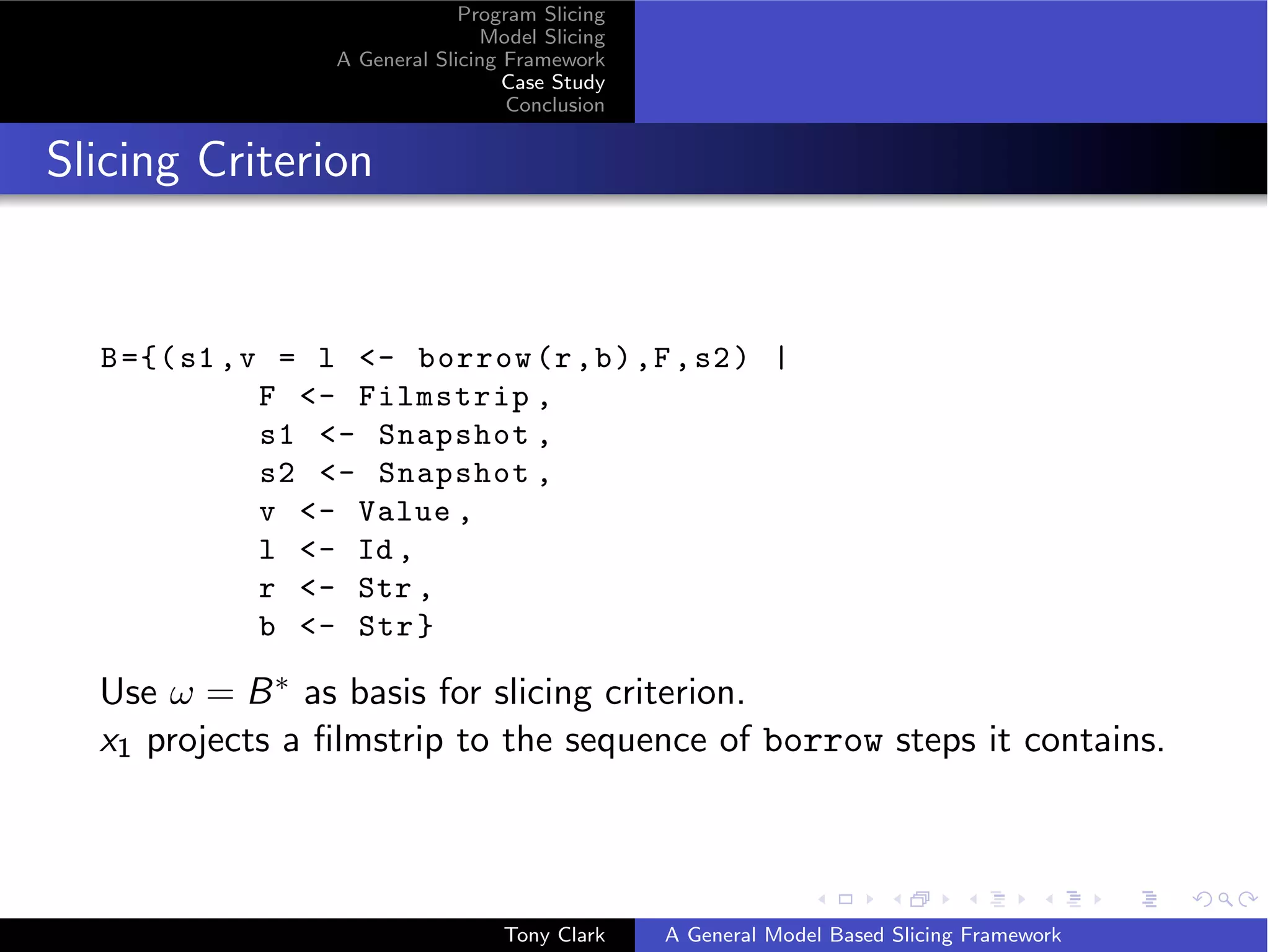

- 27. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion Slicing Criterion B ={( s1 , v = l - borrow (r , b ) ,F , s2 ) | F - Filmstrip , s1 - Snapshot , s2 - Snapshot , v - Value , l - Id , r - Str , b - Str } Use ω = B ∗ as basis for slicing criterion. x1 projects a filmstrip to the sequence of borrow steps it contains. Tony Clark A General Model Based Slicing Framework
- 28. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion Sliced Model Tony Clark A General Model Based Slicing Framework
- 29. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion Refining the Slice {[( s1 , v = l - borrow (r , b ) ,[] , s2 )] | s1 - Snapshot , s2 - Snapshot , v - Value , l - Id , r - Str , b - Str } The mapping part x2 is a refinement of x1 that maps all nested filmstrips to []. Tony Clark A General Model Based Slicing Framework
- 30. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion Refined Slice Tony Clark A General Model Based Slicing Framework
- 31. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion Contents 1 Program Slicing 2 Model Slicing 3 A General Slicing Framework GSF for Programs GSF for Models 4 Case Study 5 Conclusion Tony Clark A General Model Based Slicing Framework

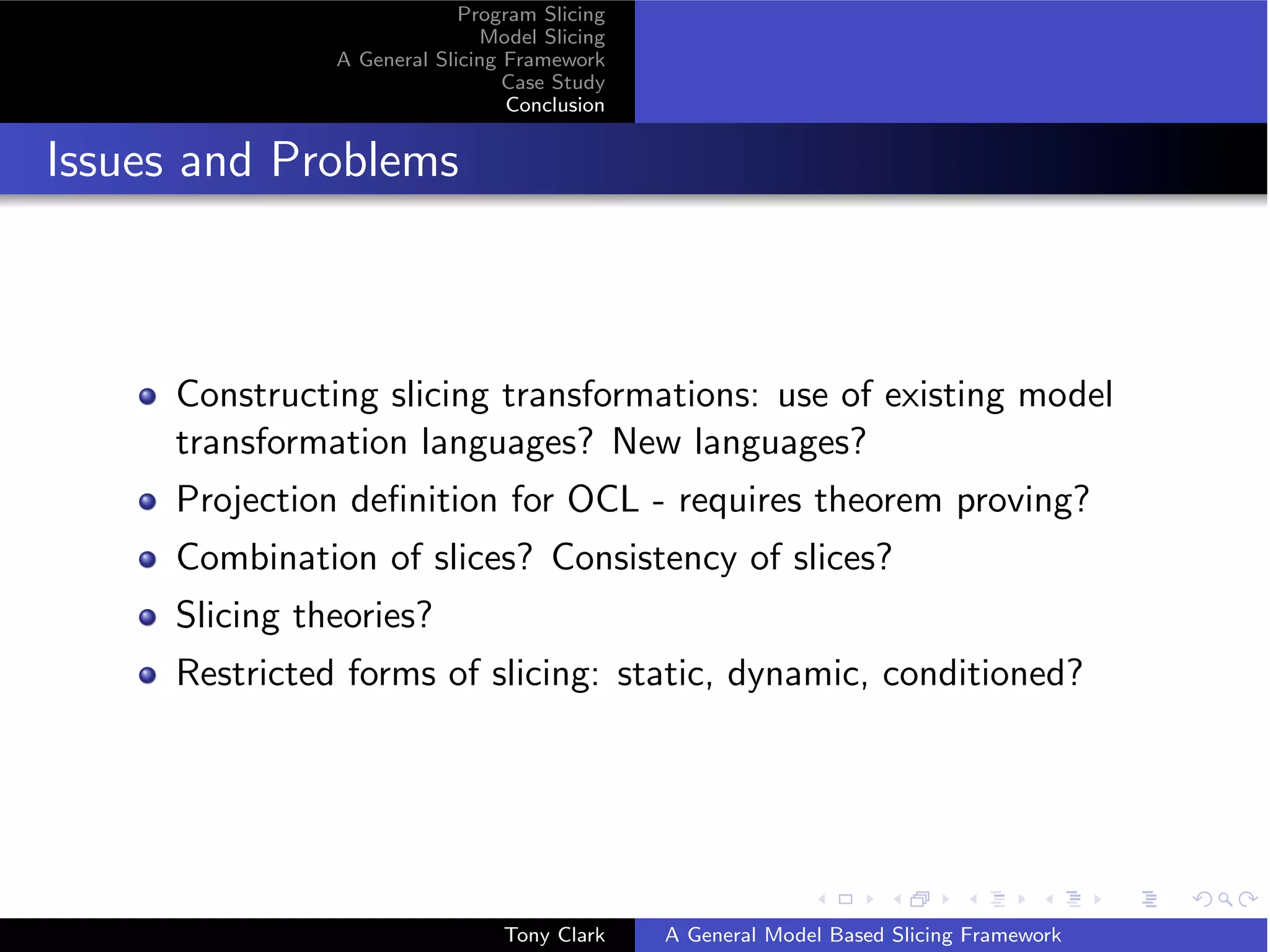

- 32. Program Slicing Model Slicing A General Slicing Framework Case Study Conclusion Issues and Problems Constructing slicing transformations: use of existing model transformation languages? New languages? Projection definition for OCL - requires theorem proving? Combination of slices? Consistency of slices? Slicing theories? Restricted forms of slicing: static, dynamic, conditioned? Tony Clark A General Model Based Slicing Framework
