The document discusses the concept of language factories, which aim to support the definition and construction of programming languages in a component-based way. This would allow for greater reuse of common language components, more agile language engineering, and language refactoring and analysis. Some key goals of language factories include supporting reuse of language syntax, semantics, and tools, as well as enabling flexible composition of language components to build new languages. Examples of reusable expression and measurement language components are provided.

1. Motivation
Language Factories
Language Components
Case Study
The Research Agenda
Language Factories
Tony Clark1 Laurence Tratt2
1 School of Computing
Thames Valley University
London, UK
2 Bournemouth University, UK
Onward! 2009
Tony Clark, Laurence Tratt Language Factories

2. Motivation
Language Factories
Language Components
Case Study
The Research Agenda

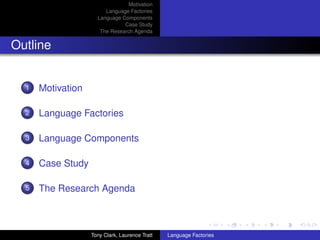

Outline
1 Motivation
2 Language Factories
3 Language Components
4 Case Study
5 The Research Agenda
Tony Clark, Laurence Tratt Language Factories

3. Motivation
Language Factories
Language Components
Case Study
The Research Agenda

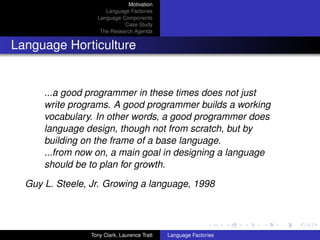

Language Horticulture
...a good programmer in these times does not just
write programs. A good programmer builds a working
vocabulary. In other words, a good programmer does
language design, though not from scratch, but by
building on the frame of a base language.
...from now on, a main goal in designing a language
should be to plan for growth.
Guy L. Steele, Jr. Growing a language, 1998
Tony Clark, Laurence Tratt Language Factories

4. Motivation
Language Factories
Language Components
Case Study
The Research Agenda
Growing a Language
Large structured languages grow...
From little acorns...
Tony Clark, Laurence Tratt Language Factories

5. Motivation
Language Factories
Language Components
Case Study
The Research Agenda
Growing a Language
Large structured languages grow...
From little acorns...
Tony Clark, Laurence Tratt Language Factories

6. Motivation
Language Factories
Language Components
Case Study
The Research Agenda
But It Takes Too Long and is Difficult to Control
Tony Clark, Laurence Tratt Language Factories

7. Motivation
Language Factories
Language Components
Case Study
The Research Agenda

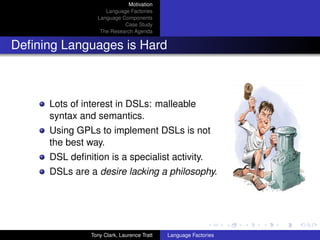

Defining Languages is Hard
Lots of interest in DSLs: malleable
syntax and semantics.
Using GPLs to implement DSLs is not
the best way.
DSL definition is a specialist activity.
DSLs are a desire lacking a philosophy.
Tony Clark, Laurence Tratt Language Factories

8. Motivation
Language Factories
Language Components
Case Study
The Research Agenda

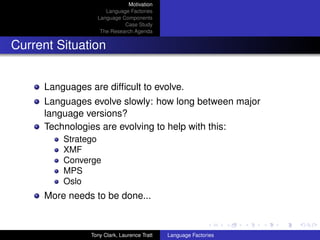

Current Situation
Languages are difficult to evolve.
Languages evolve slowly: how long between major
language versions?
Technologies are evolving to help with this:
Stratego
XMF
Converge
MPS
Oslo
More needs to be done...
Tony Clark, Laurence Tratt Language Factories

9. Motivation
Language Factories
Language Components
Case Study
The Research Agenda

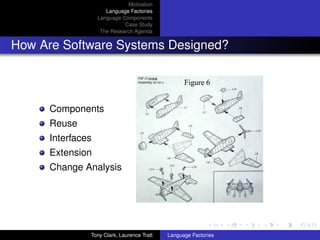

How Are Software Systems Designed?
Components
Reuse
Interfaces
Extension
Change Analysis
Tony Clark, Laurence Tratt Language Factories

10. Motivation
Language Factories
Language Components
Case Study
The Research Agenda

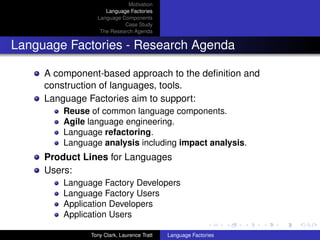

Language Factories - Research Agenda
A component-based approach to the definition and
construction of languages, tools.
Language Factories aim to support:
Reuse of common language components.
Agile language engineering.
Language refactoring.
Language analysis including impact analysis.
Product Lines for Languages
Users:
Language Factory Developers
Language Factory Users
Application Developers
Application Users
Tony Clark, Laurence Tratt Language Factories

11. Motivation
Language Factories
Language Components
Case Study
The Research Agenda
Realising Language Factories
Different formalisms, tools, degrees of automation.
Varying levels of precision:
Virtual LFs: designed and partly implemented.
Idealised LFs: language workbenches (Martin Fowler).
Many shared of grey in between (e.g. componentized
abstract syntax).
Can be realised with current languages (with
compromises).
Tony Clark, Laurence Tratt Language Factories

12. Motivation
Language Factories
Language Components
Case Study
The Research Agenda

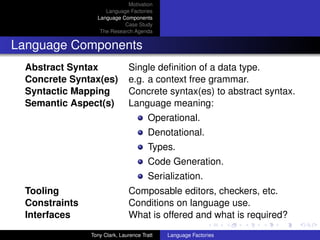

Language Components
Abstract Syntax Single definition of a data type.
Concrete Syntax(es) e.g. a context free grammar.
Syntactic Mapping Concrete syntax(es) to abstract syntax.
Semantic Aspect(s) Language meaning:
Operational.
Denotational.
Types.
Code Generation.
Serialization.
Tooling Composable editors, checkers, etc.
Constraints Conditions on language use.
Interfaces What is offered and what is required?
Tony Clark, Laurence Tratt Language Factories

13. Motivation
Language Factories
Language Components
Case Study
The Research Agenda
An Example Language
component Landing_gear(height:int, speed:float) {
stm {
state Moving_Up
state Moving_Down
state Deployed
state Stowed
transition up from Deployed to Moving_Up
height_change[height>500ft and speed>100kn/s]
transition down from Stowed to Moving_Down
deploy
}
}
Tony Clark, Laurence Tratt Language Factories

14. Motivation
Language Factories
Language Components
Case Study
The Research Agenda

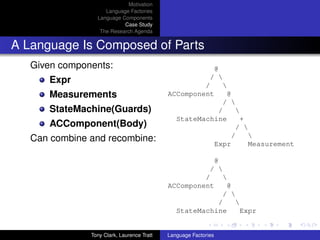

A Language Is Composed of Parts
Given components: @
/
Expr /
Measurements ACComponent @
/
StateMachine(Guards) /
StateMachine +
ACComponent(Body) /
/
Can combine and recombine: Expr Measurement
@
/
/
ACComponent @
/
/
StateMachine Expr
Tony Clark, Laurence Tratt Language Factories

15. Motivation
Language Factories
Language Components
Case Study
The Research Agenda
A Reusable Expression Language
lang Expr:
ast: Var(Str) | Add(Expr, Expr) | Num(Int)
grammar:
expr -> name:Id <Var(name)>
| lhs:Expr ’+’ rhs:Expr <Add(lhs, rhs)>
| num:Int <Num(num)>
semantics java:
Var(x) -> [j| ${x} |]
Add(x, y) -> [j| ${java(x)}.plus(${java(y)}) |]
Num(x) -> [j| new ExprInt(${x}) |]
constraints:
exists_class(ExprInt)
exists_class(Expr)
exists_static_method(Expr,plus)
end
Tony Clark, Laurence Tratt Language Factories

16. Motivation
Language Factories
Language Components
Case Study
The Research Agenda

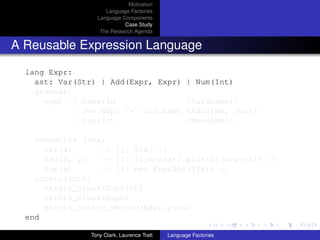

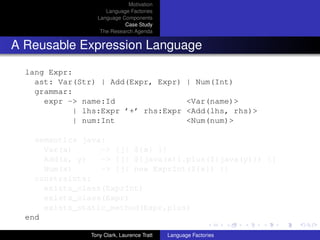

A Reusable Expression Language
lang Expr:
ast: Var(Str) | Add(Expr, Expr) | Num(Int)
grammar:
expr -> name:Id <Var(name)>
| lhs:Expr ’+’ rhs:Expr <Add(lhs, rhs)>
| num:Int <Num(num)>
semantics java:
Var(x) -> [j| ${x} |]
Add(x, y) -> [j| ${java(x)}.plus(${java(y)}) |]
Num(x) -> [j| new ExprInt(${x}) |]
constraints:
exists_class(ExprInt)
exists_class(Expr)
exists_static_method(Expr,plus)
end
Tony Clark, Laurence Tratt Language Factories

17. Motivation
Language Factories
Language Components
Case Study
The Research Agenda
A Reusable Expression Language
lang Expr:
ast: Var(Str) | Add(Expr, Expr) | Num(Int)
grammar:
expr -> name:Id <Var(name)>
| lhs:Expr ’+’ rhs:Expr <Add(lhs, rhs)>
| num:Int <Num(num)>
semantics eval(env):
Var(x) -> lookup(env, x)
Add(x, y) -> eval(x, env) + eval(y, env)
Num(x) -> x
semantics java:
Var(x) -> [j| ${x} |]
Add(x, y) -> [j| ${java(x)}.plus(${java(y)}) |]
Num(x) -> [j| new ExprInt(${x}) |]
constraints:
exists_class(ExprInt)
exists_class(Expr)
exists_static_method(Expr,plus) Factories
Tony Clark, Laurence Tratt Language

18. Motivation
Language Factories
Language Components
Case Study
The Research Agenda

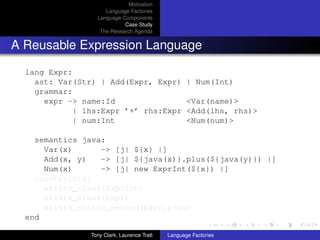

A Reusable Expression Language
lang Expr:
ast: Var(Str) | Add(Expr, Expr) | Num(Int)
grammar:
expr -> name:Id <Var(name)>
| lhs:Expr ’+’ rhs:Expr <Add(lhs, rhs)>
| num:Int <Num(num)>
semantics java:
Var(x) -> [j| ${x} |]
Add(x, y) -> [j| ${java(x)}.plus(${java(y)}) |]
Num(x) -> [j| new ExprInt(${x}) |]
constraints:
exists_class(ExprInt)
exists_class(Expr)
exists_static_method(Expr,plus)
end
Tony Clark, Laurence Tratt Language Factories

19. Motivation
Language Factories
Language Components
Case Study
The Research Agenda

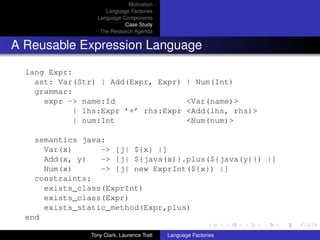

A Reusable Expression Language
lang Expr:
ast: Var(Str) | Add(Expr, Expr) | Num(Int)
grammar:
expr -> name:Id <Var(name)>
| lhs:Expr ’+’ rhs:Expr <Add(lhs, rhs)>
| num:Int <Num(num)>
semantics java:
Var(x) -> [j| ${x} |]
Add(x, y) -> [j| ${java(x)}.plus(${java(y)}) |]
Num(x) -> [j| new ExprInt(${x}) |]
constraints:
exists_class(ExprInt)
exists_class(Expr)
exists_static_method(Expr,plus)
end
Tony Clark, Laurence Tratt Language Factories

20. Motivation
Language Factories
Language Components
Case Study
The Research Agenda

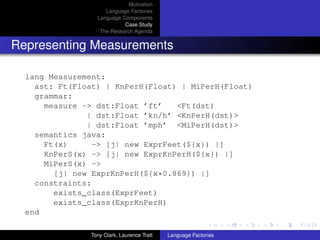

Representing Measurements
lang Measurement:
ast: Ft(Float) | KnPerH(Float) | MiPerH(Float)
grammar:
measure -> dst:Float ’ft’ <Ft(dst)
| dst:Float ’kn/h’ <KnPerH(dst)>
| dst:Float ’mph’ <MiPerH(dst)>
semantics java:
Ft(x) -> [j| new ExprFeet(${x}) |]
KnPerS(x) -> [j| new ExprKnPerH(${x}) |]
MiPerS(x) ->
[j| new ExprKnPerH(${x*0.869}) |]
constraints:
exists_class(ExprFeet)
exists_class(ExprKnPerH)
end
Tony Clark, Laurence Tratt Language Factories

21. Motivation
Language Factories
Language Components
Case Study
The Research Agenda

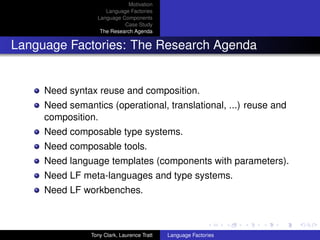

Language Factories: The Research Agenda
Need syntax reuse and composition.
Need semantics (operational, translational, ...) reuse and
composition.
Need composable type systems.
Need composable tools.
Need language templates (components with parameters).
Need LF meta-languages and type systems.
Need LF workbenches.
Tony Clark, Laurence Tratt Language Factories
