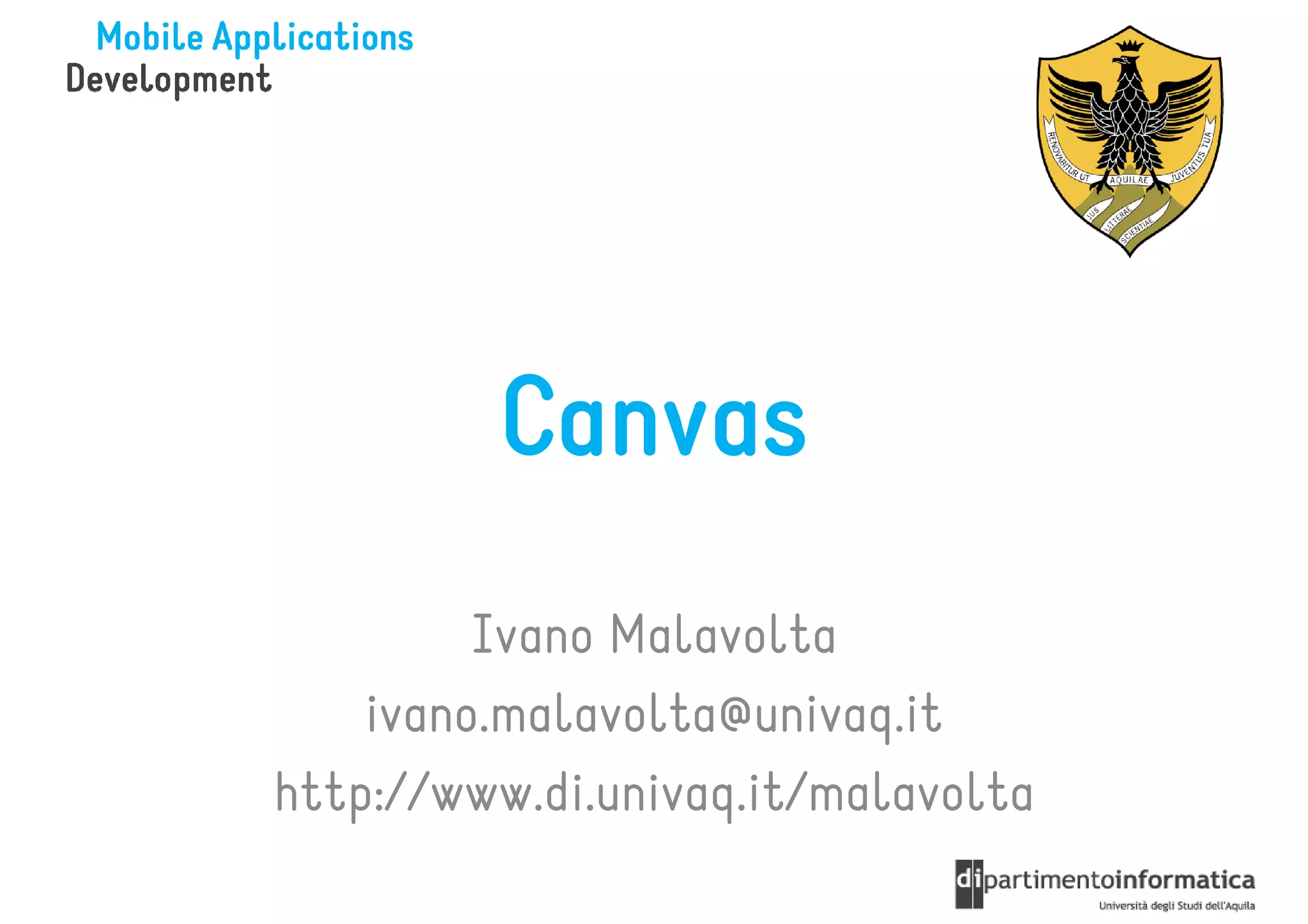

HTML5 Canvas

Canvas
Ivano Malavolta
ivano.malavolta@univaq.it
http://www.di.univaq.it/malavolta

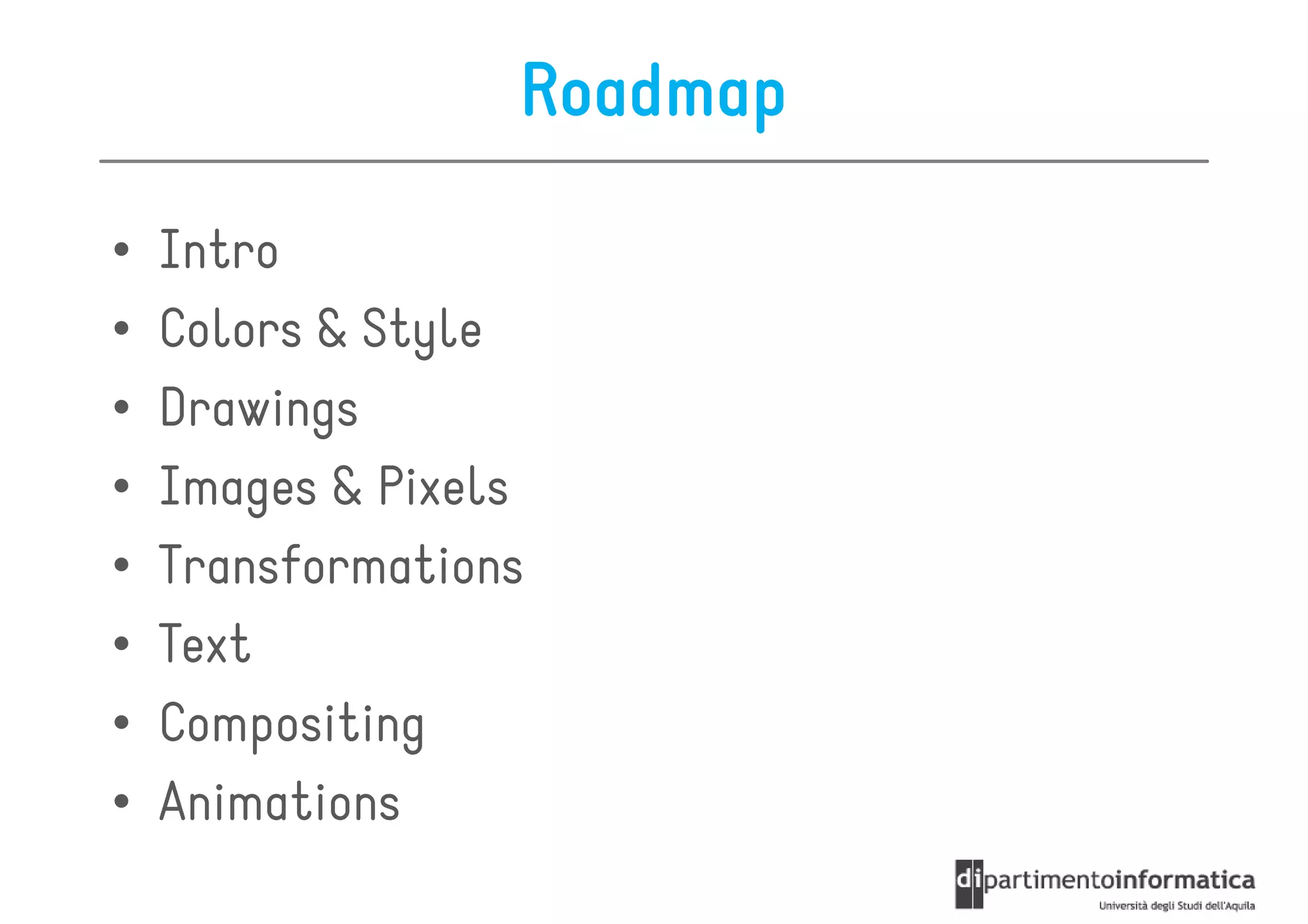

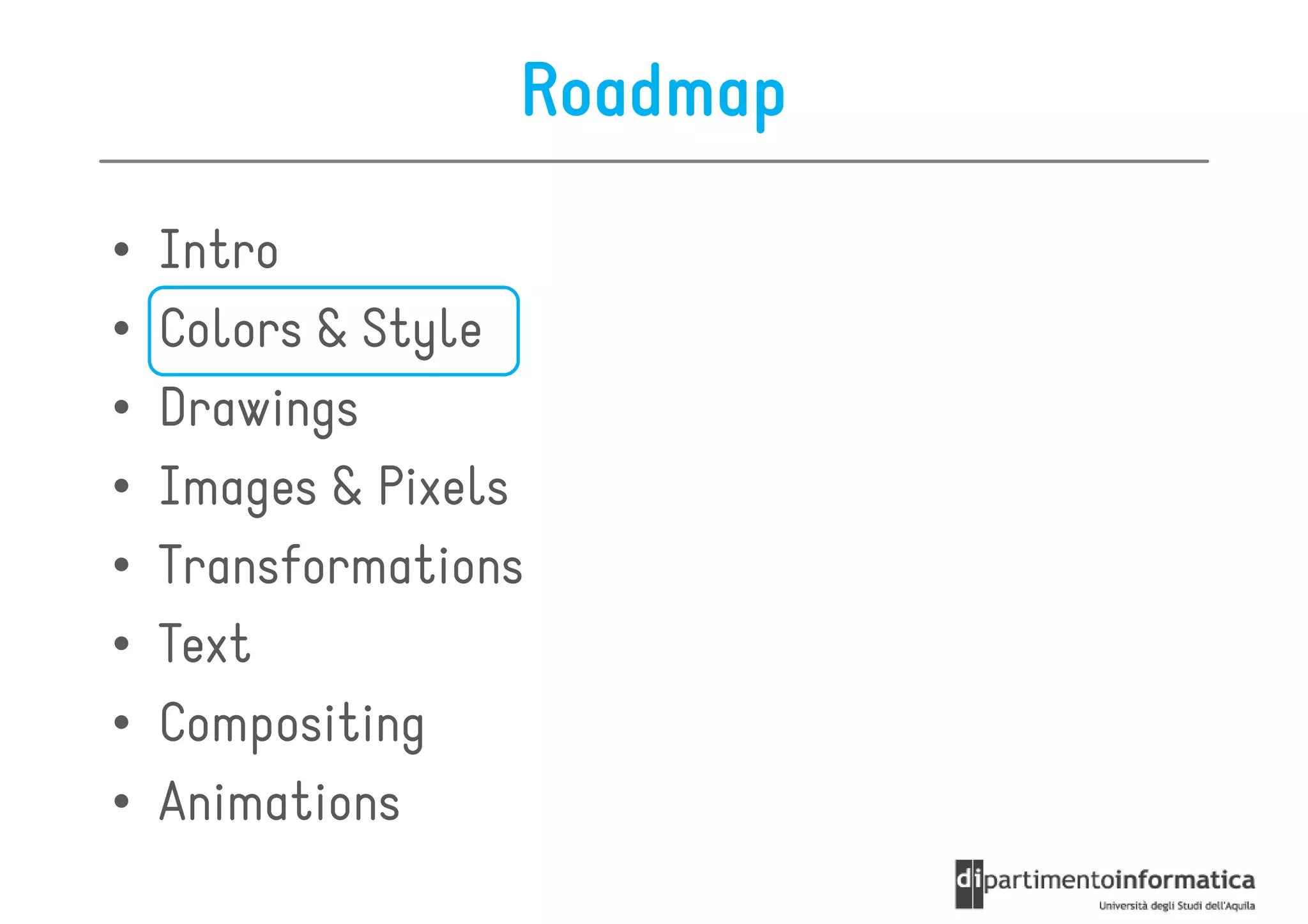

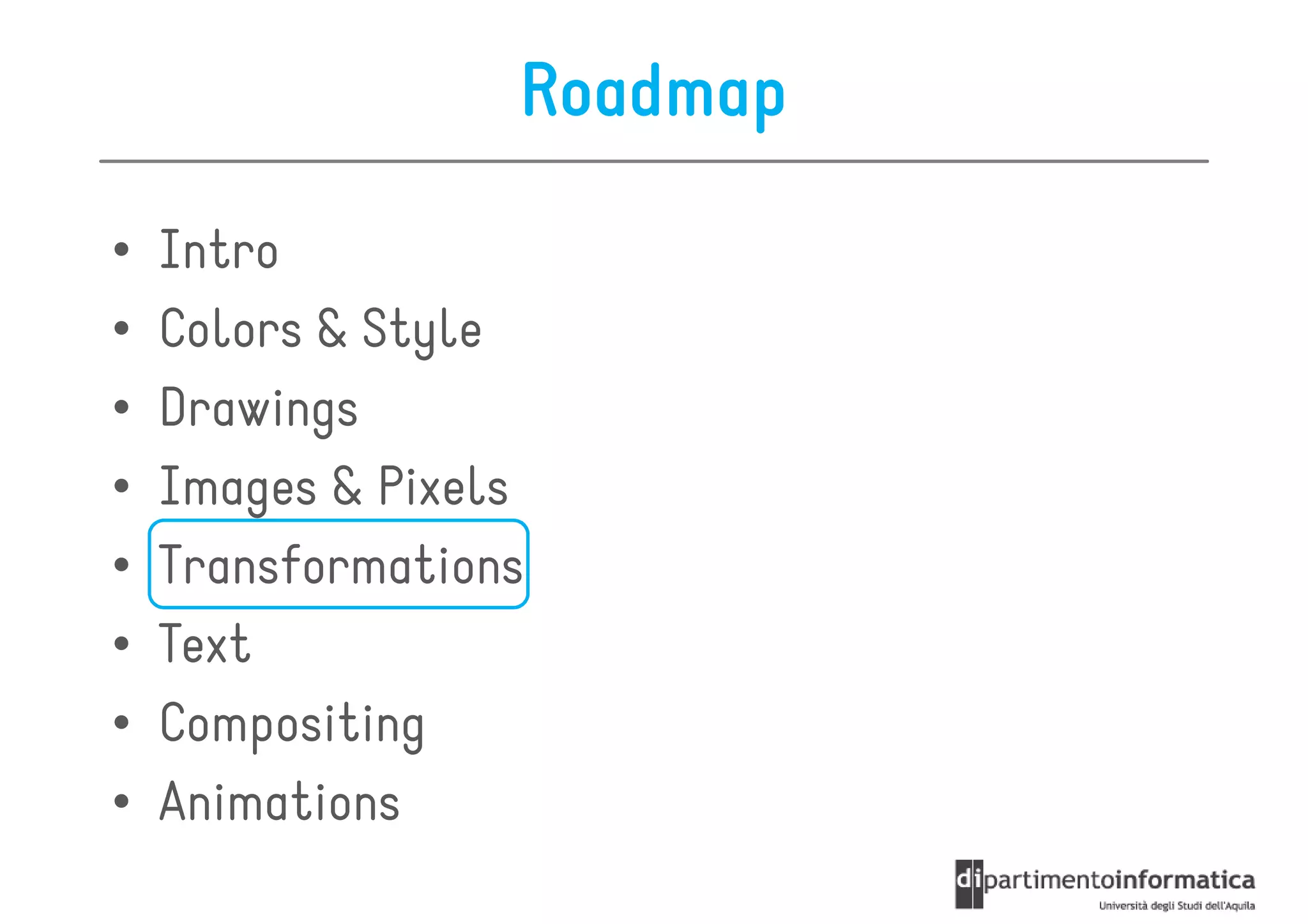

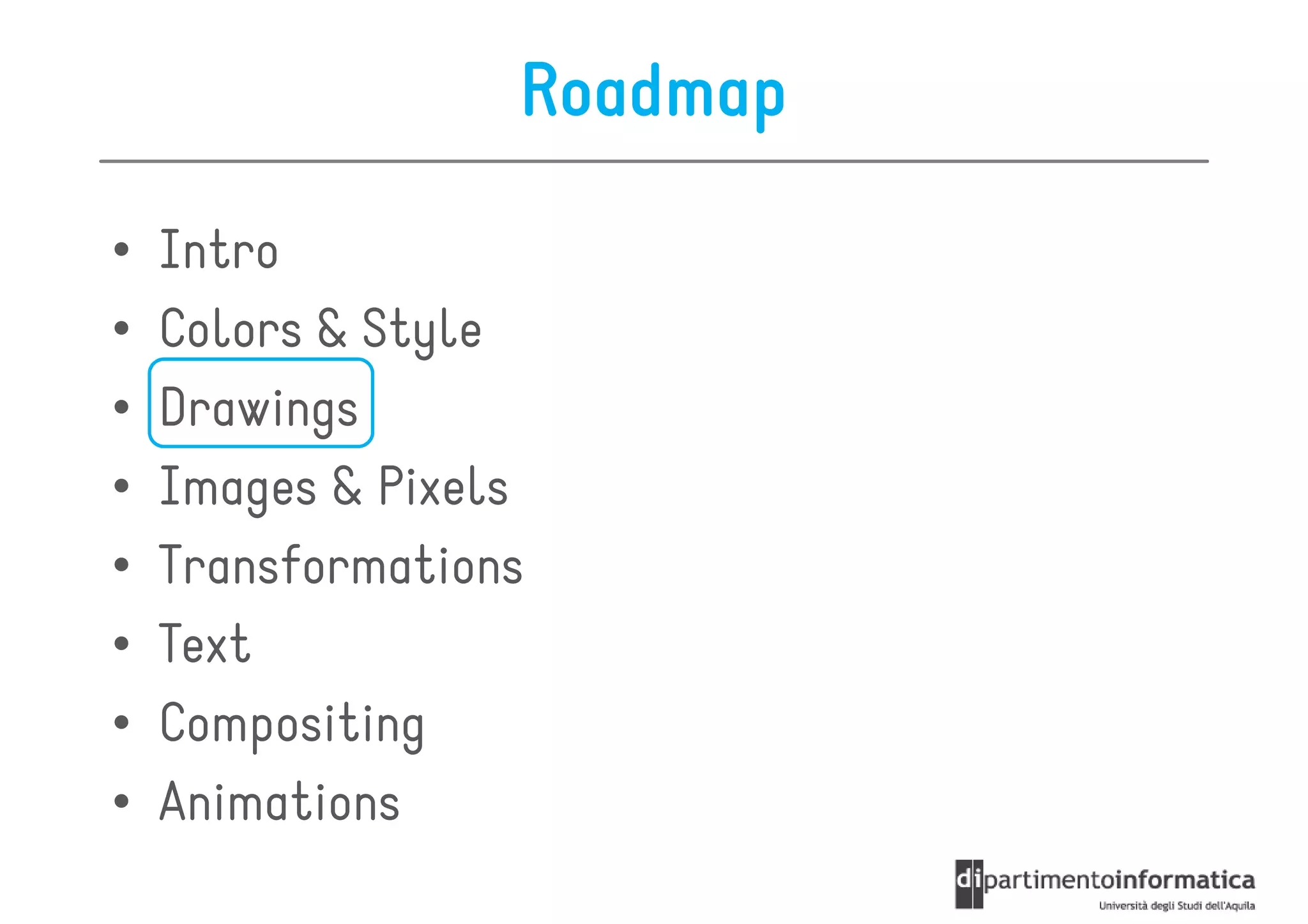

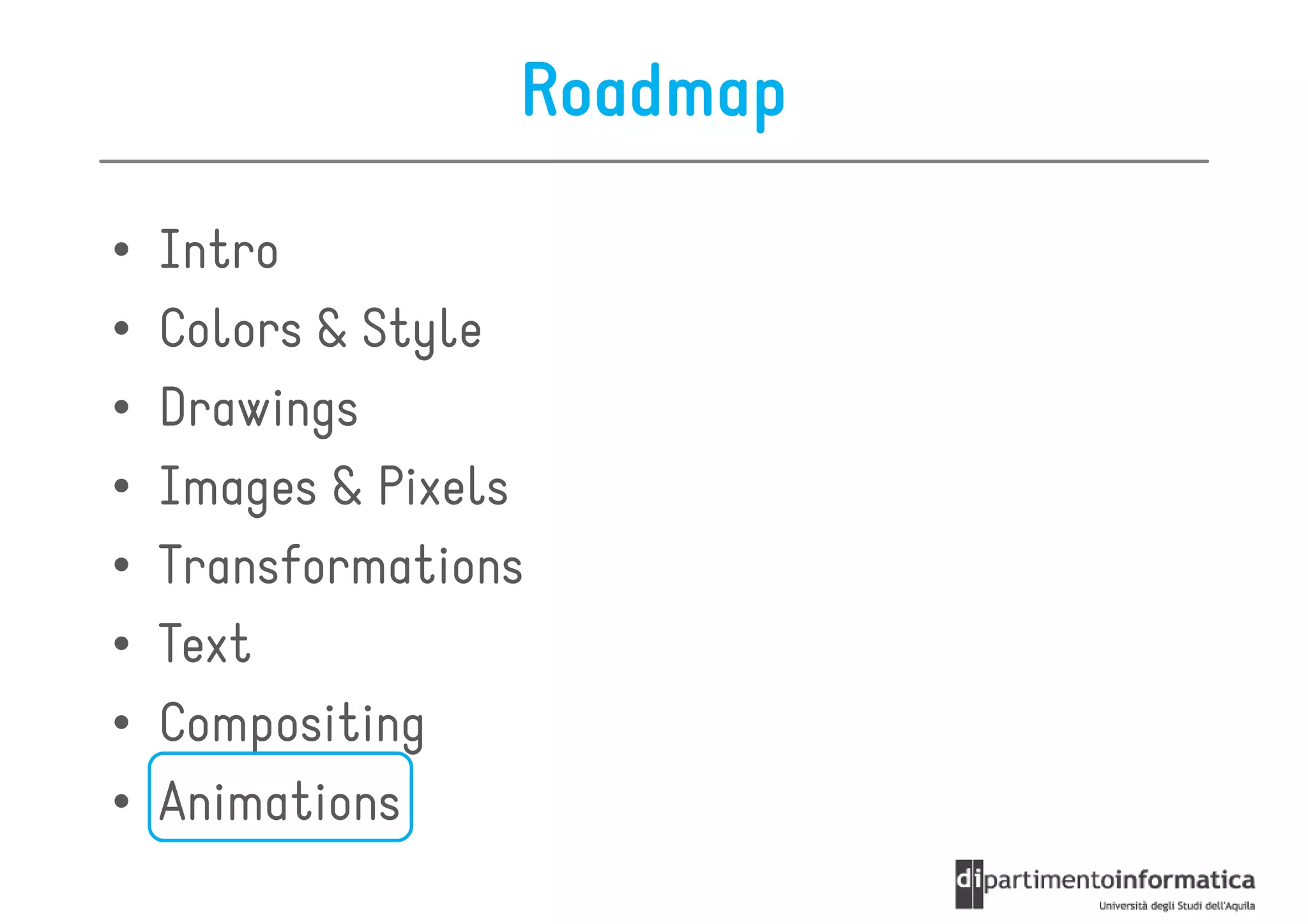

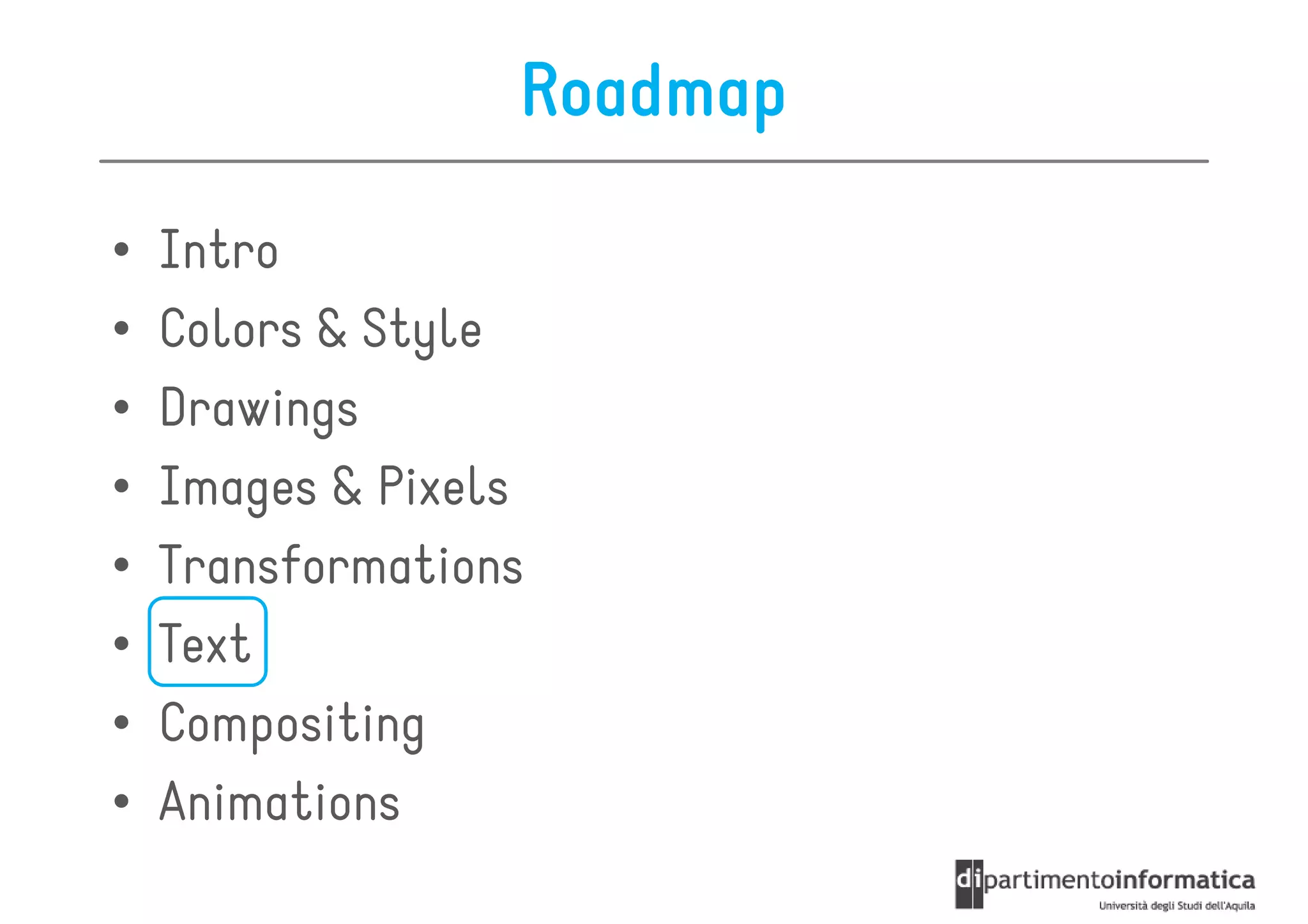

Roadmap

• Intro
• Colors & Style
• Drawings
• Images & Pixels
• Transformations
• Text
• Compositing
• Animations

Canvas

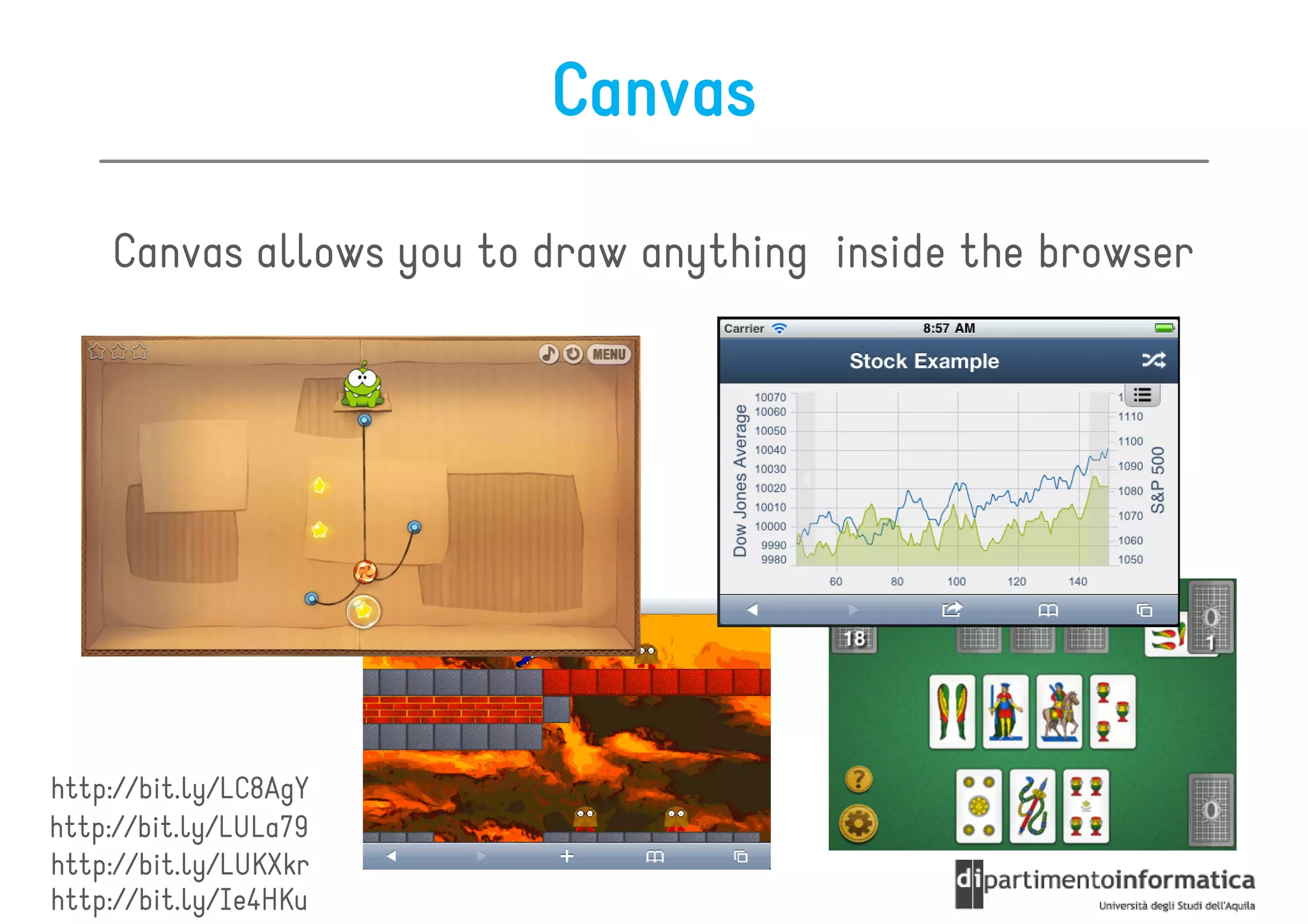

Canvas allows you to draw anything inside the browser

http://bit.ly/LC8AgY
http://bit.ly/LULa79
http://bit.ly/LUKXkr
http://bit.ly/Ie4HKu

Canvas
It uses nothing more than JavaScript and HTML
no external plugins, no libraries, etc.

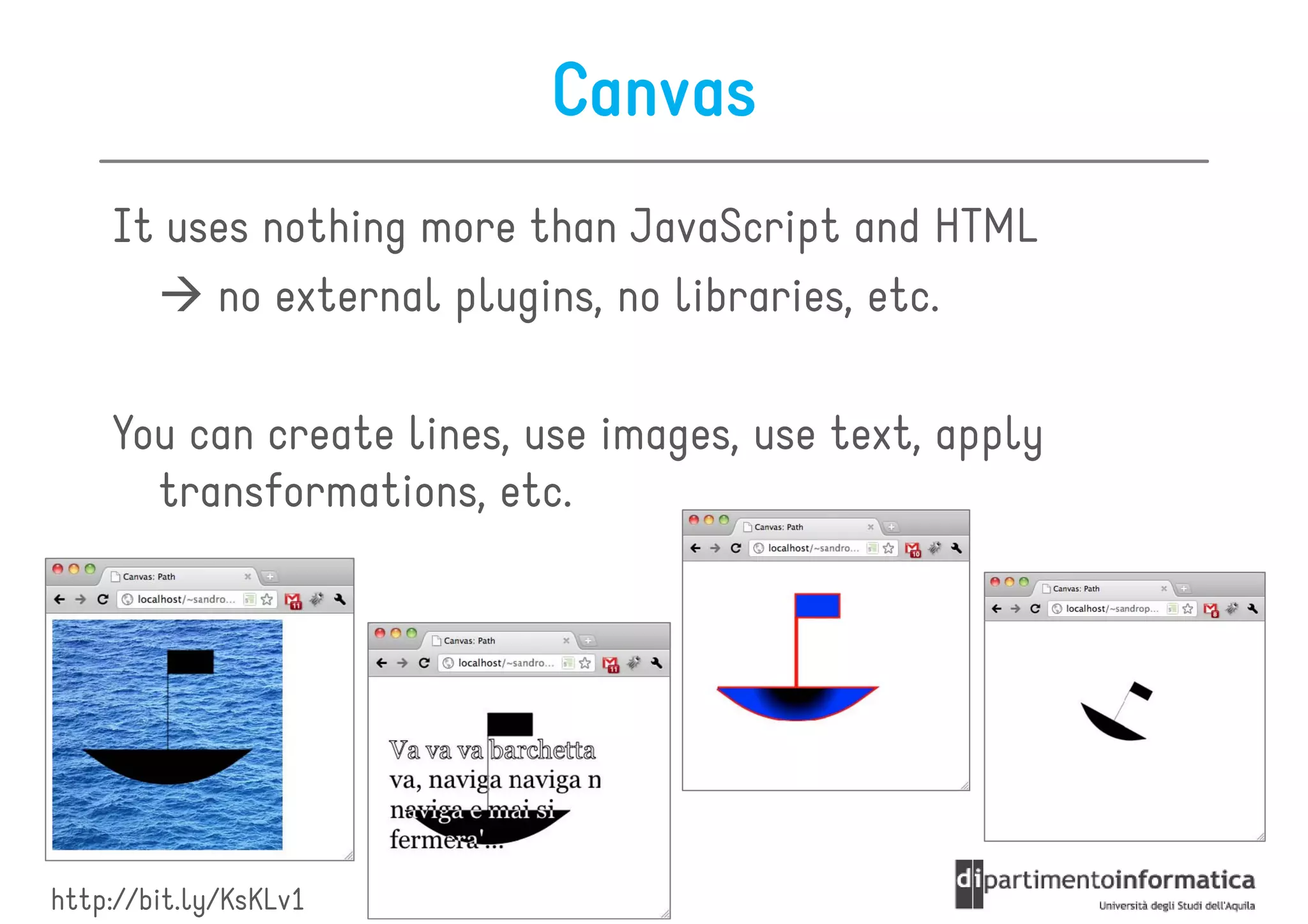

You can create lines, use images, use text, apply
transformations, etc.

http://bit.ly/KsKLv1

Canvas

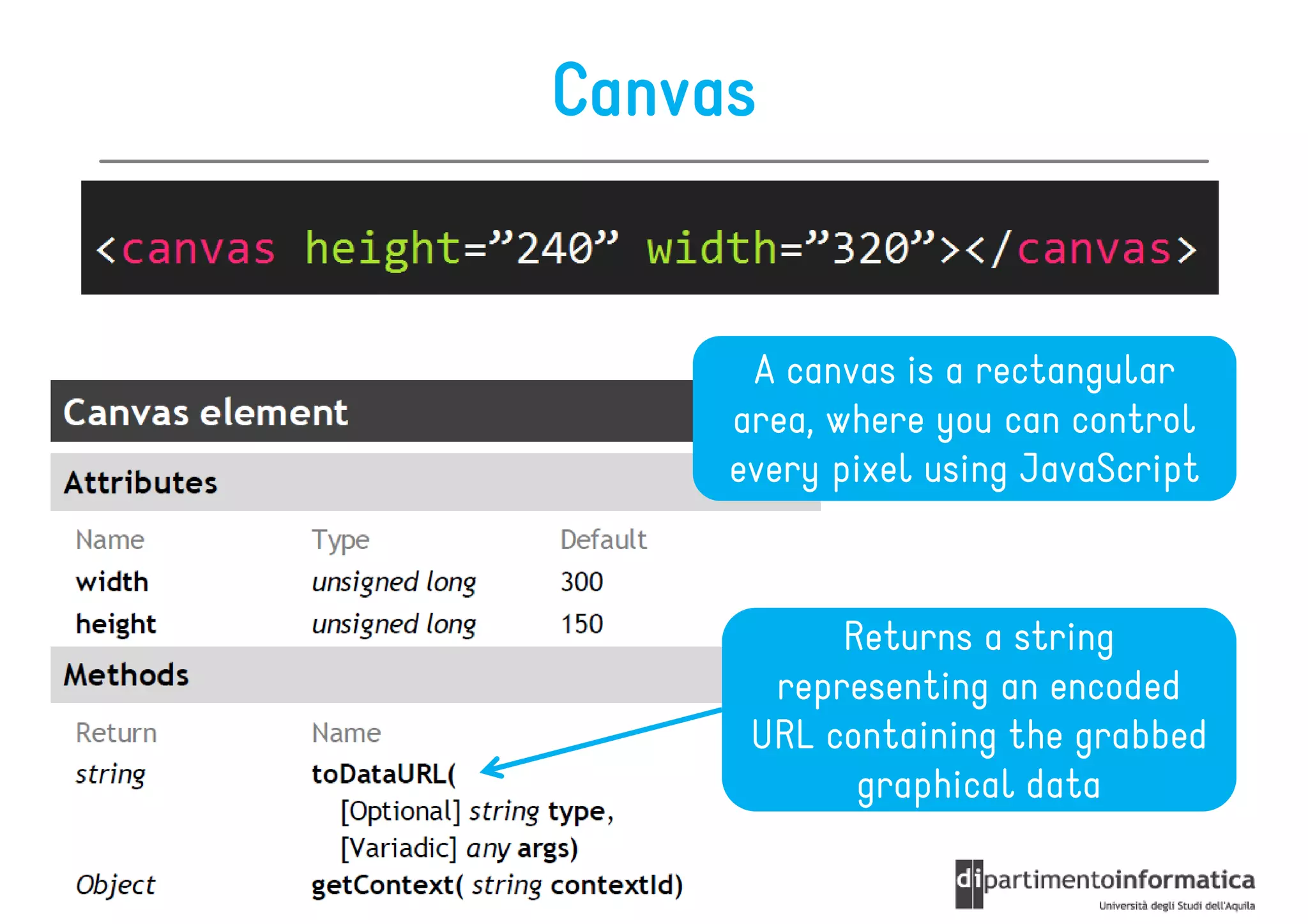

A canvas is a rectangular
area, where you can control
every pixel using JavaScript

Returns a string
representing an encoded
URL containing the grabbed
graphical data

Coordinate System

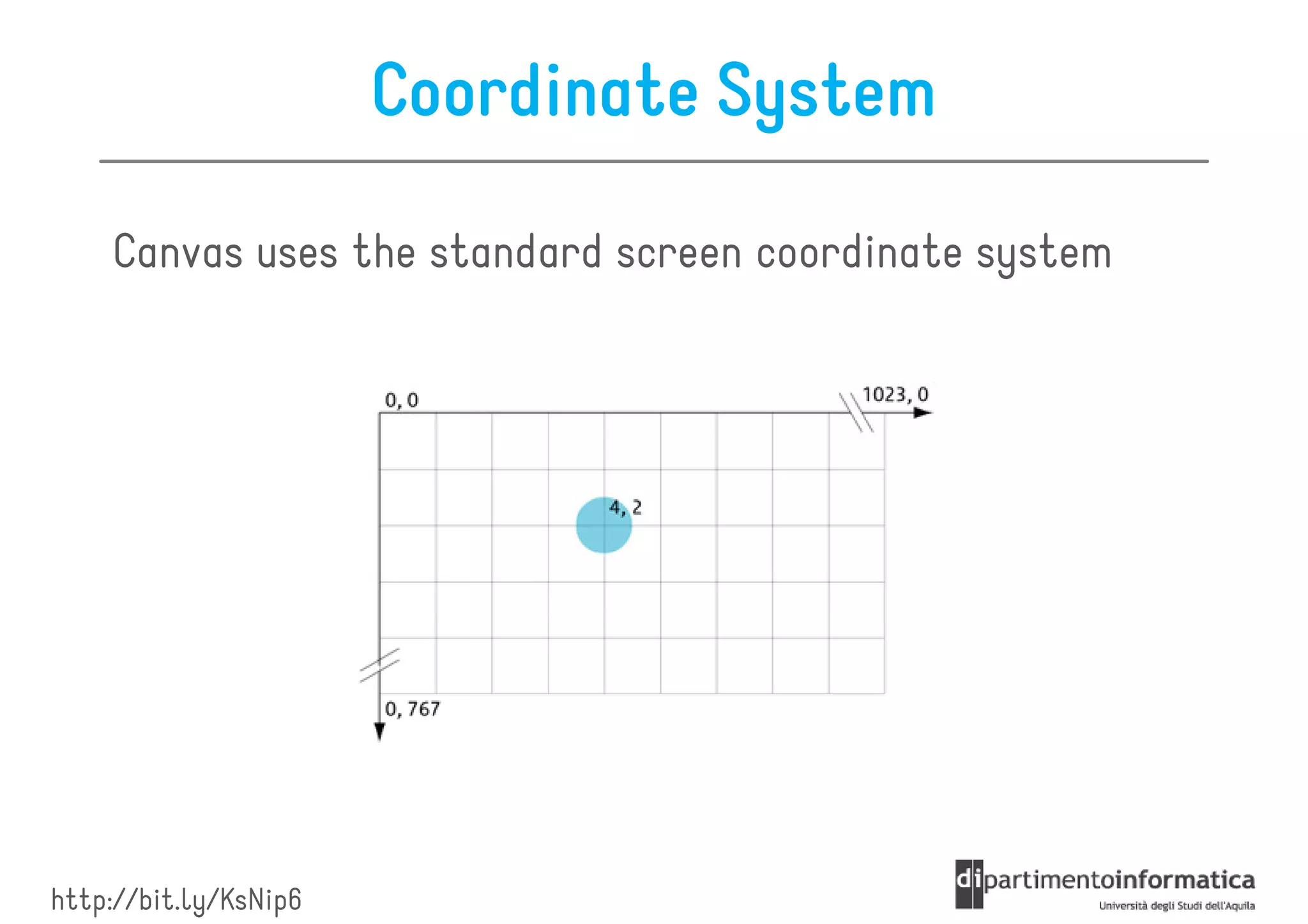

Canvas uses the standard screen coordinate system

http://bit.ly/KsNip6

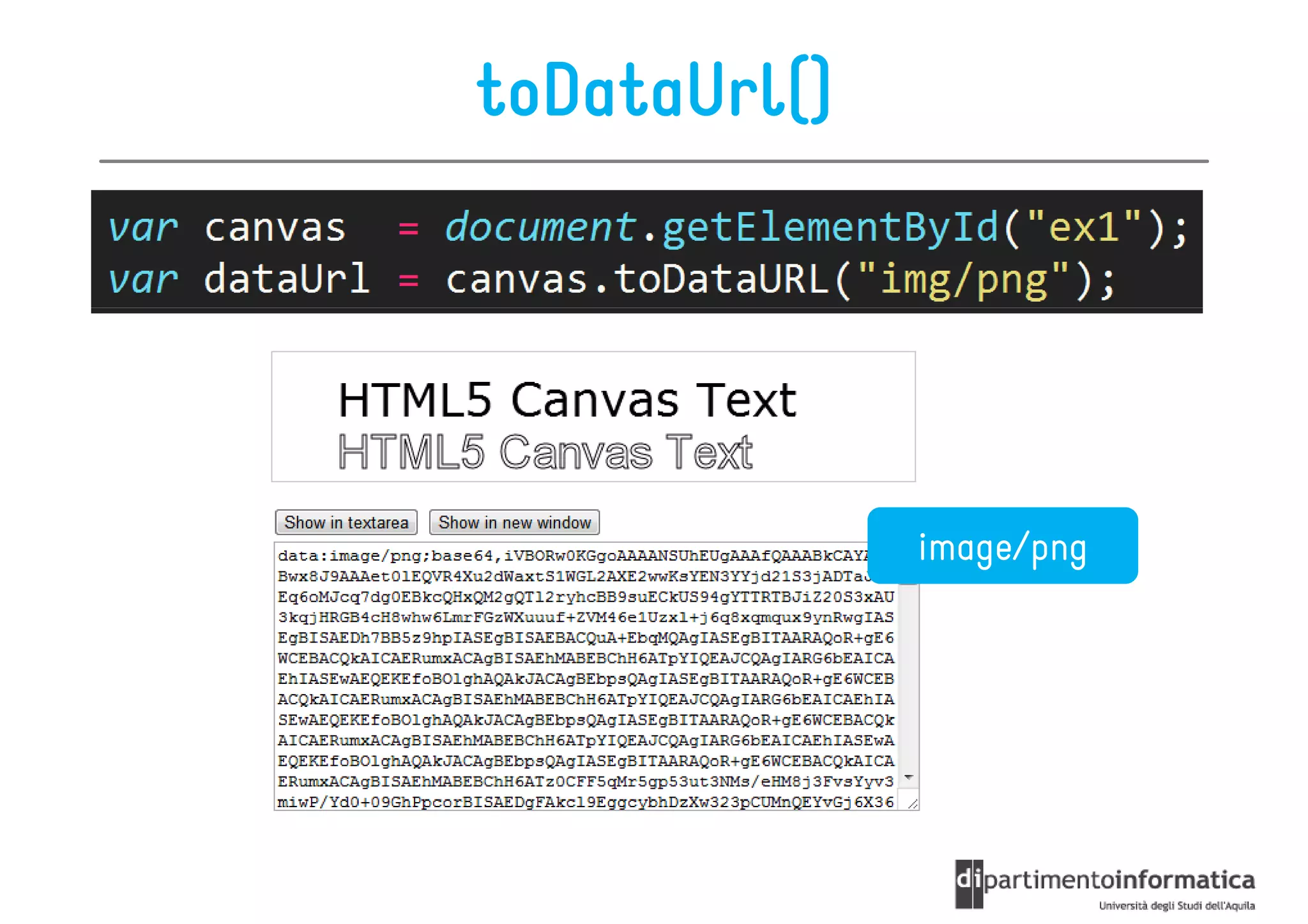

toDataUrl()

image/png

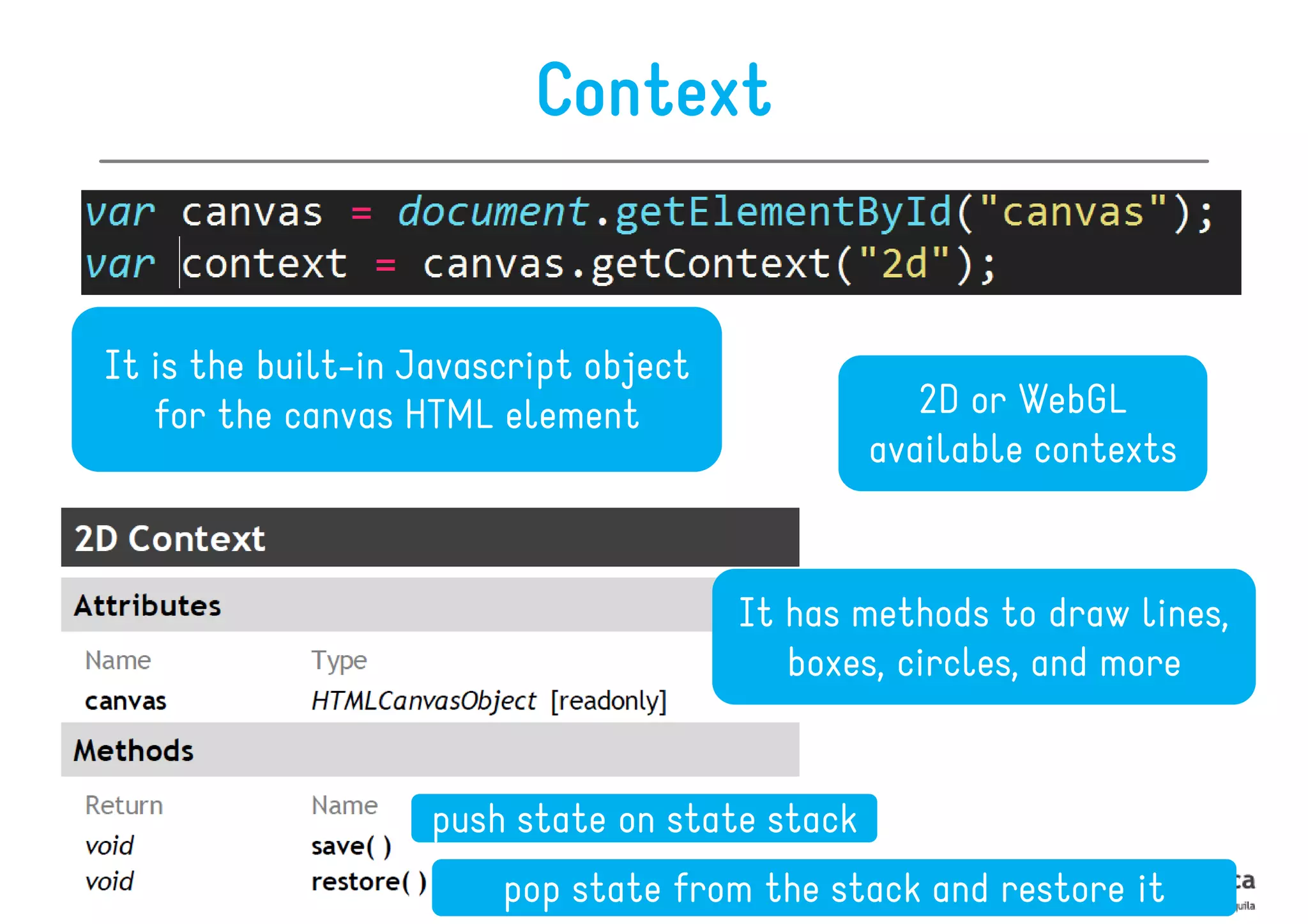

Context

It is the built-in Javascript object
for the canvas HTML element 2D or WebGL
available contexts

It has methods to draw lines,
boxes, circles, and more

push state on state stack
pop state from the stack and restore it

Colors & Style

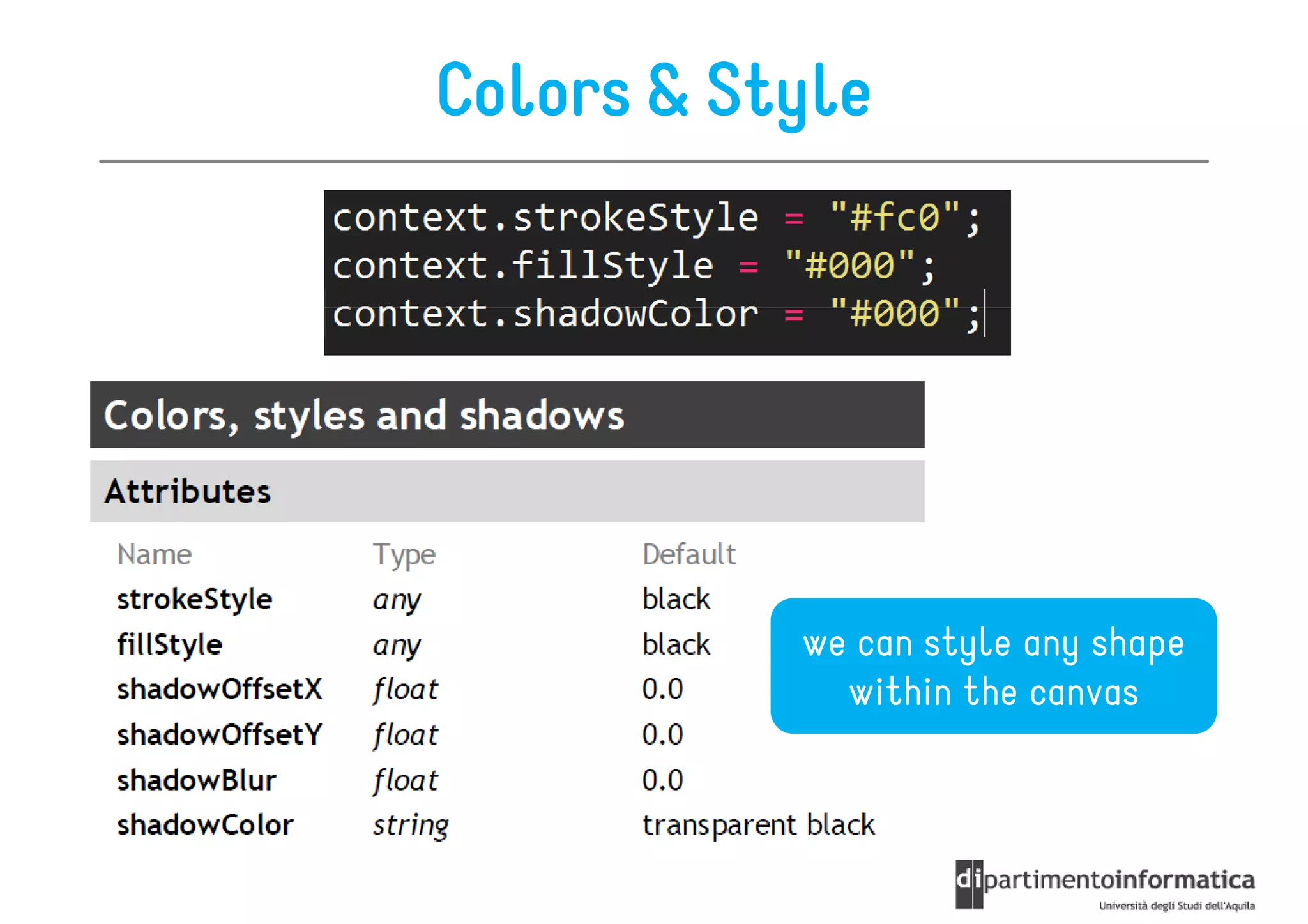

we can style any shape
within the canvas

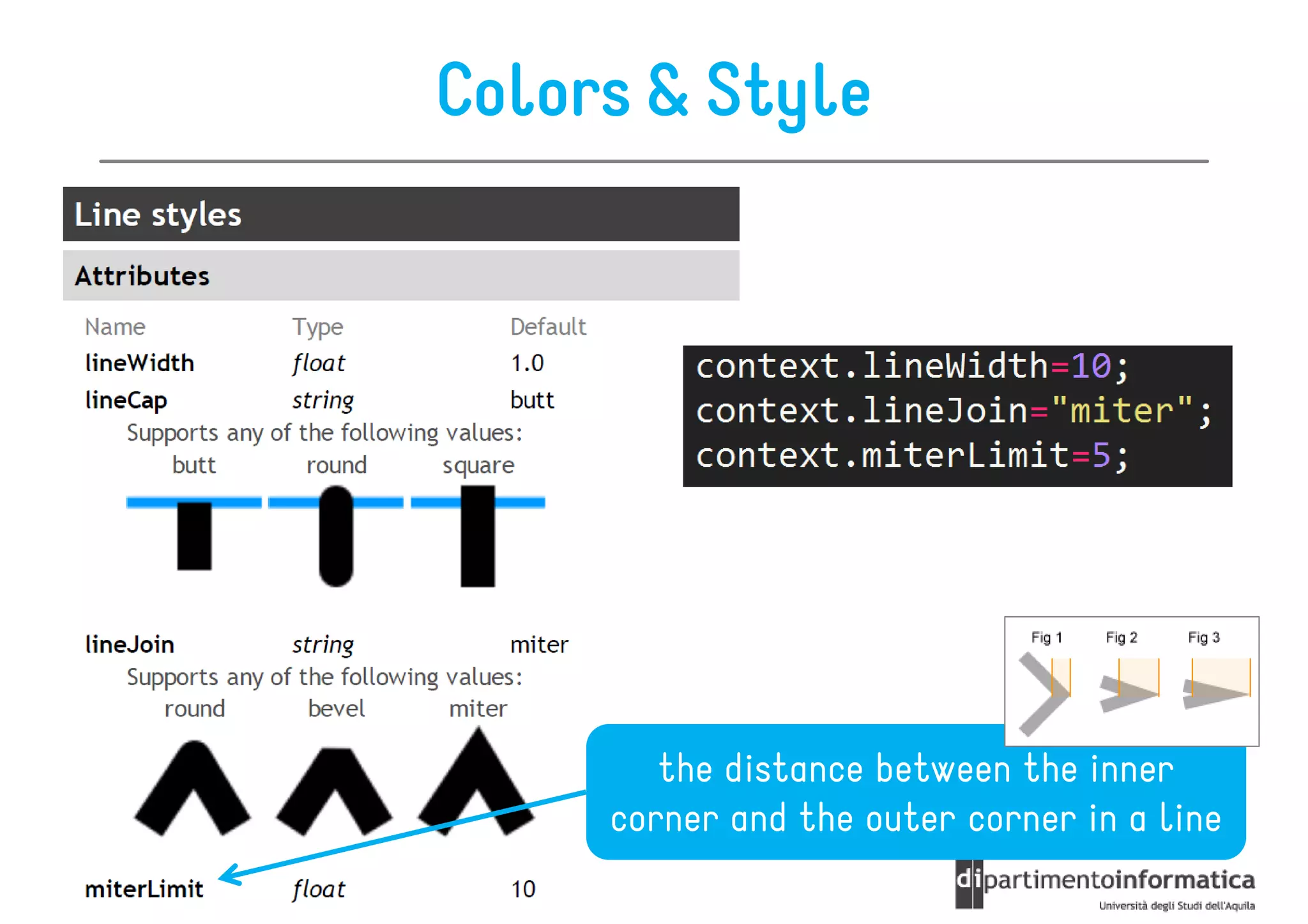

Colors & Style

the distance between the inner
corner and the outer corner in a line

Colors & Style

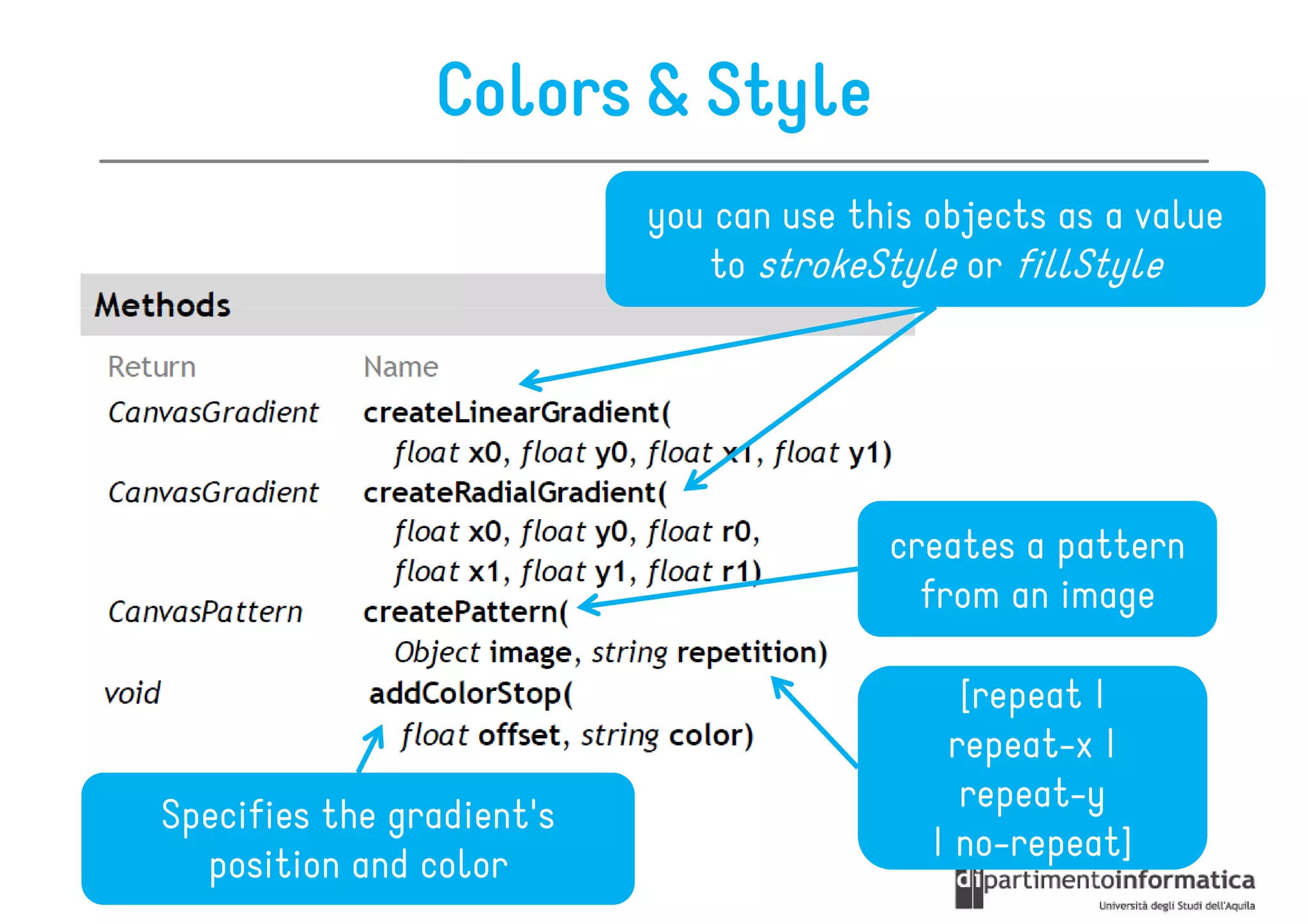

you can use this objects as a value
to strokeStyle or fillStyle

creates a pattern
from an image

[repeat |
repeat-x |
repeat-y
Specifies the gradient's
| no-repeat]
position and color

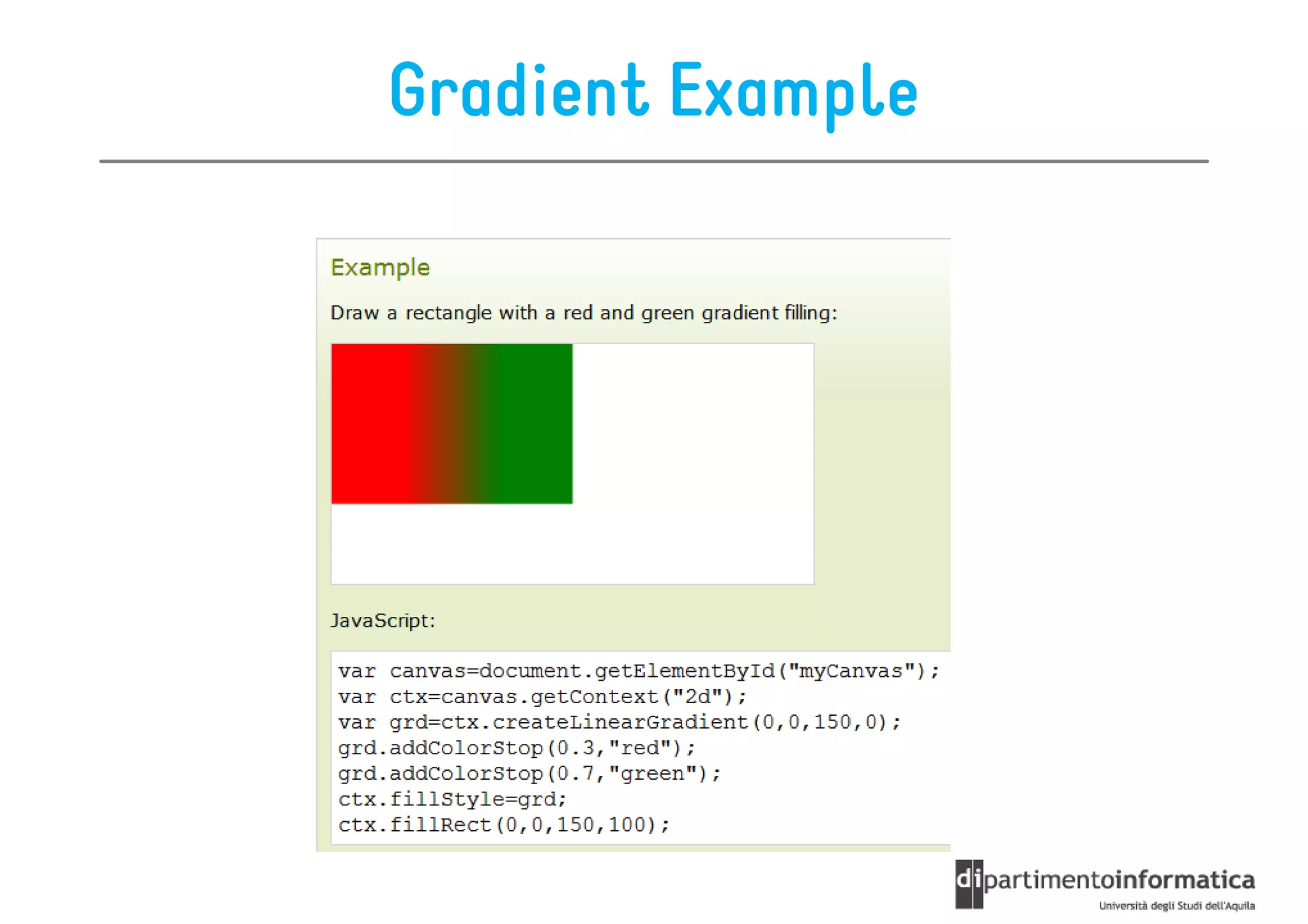

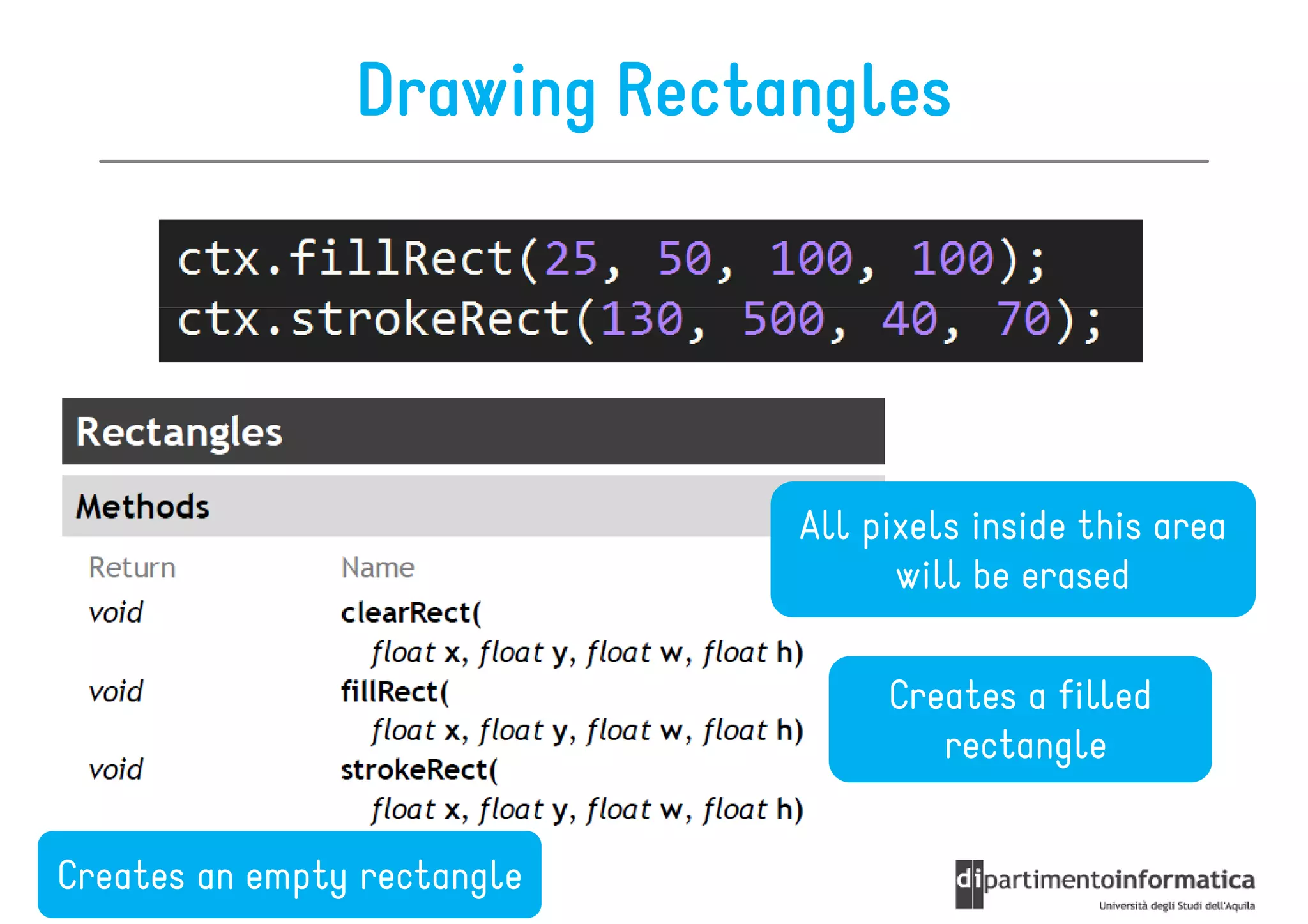

Drawing Rectangles

All pixels inside this area
will be erased

Creates a filled
rectangle

Creates an empty rectangle

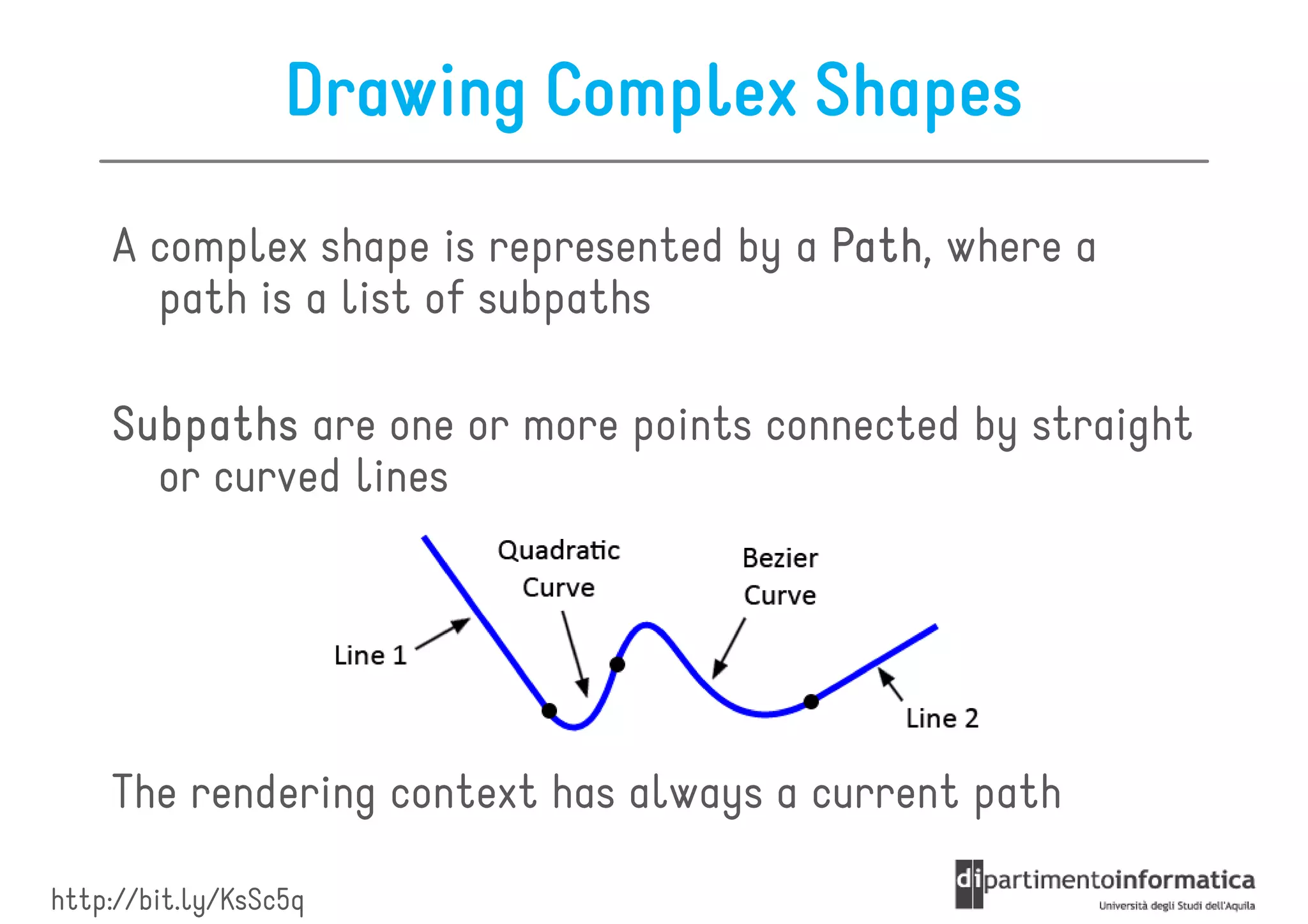

Drawing Complex Shapes
A complex shape is represented by a Path where a
Path,
path is a list of subpaths

Subpaths are one or more points connected by straight
or curved lines

The rendering context has always a current path

http://bit.ly/KsSc5q

Paths

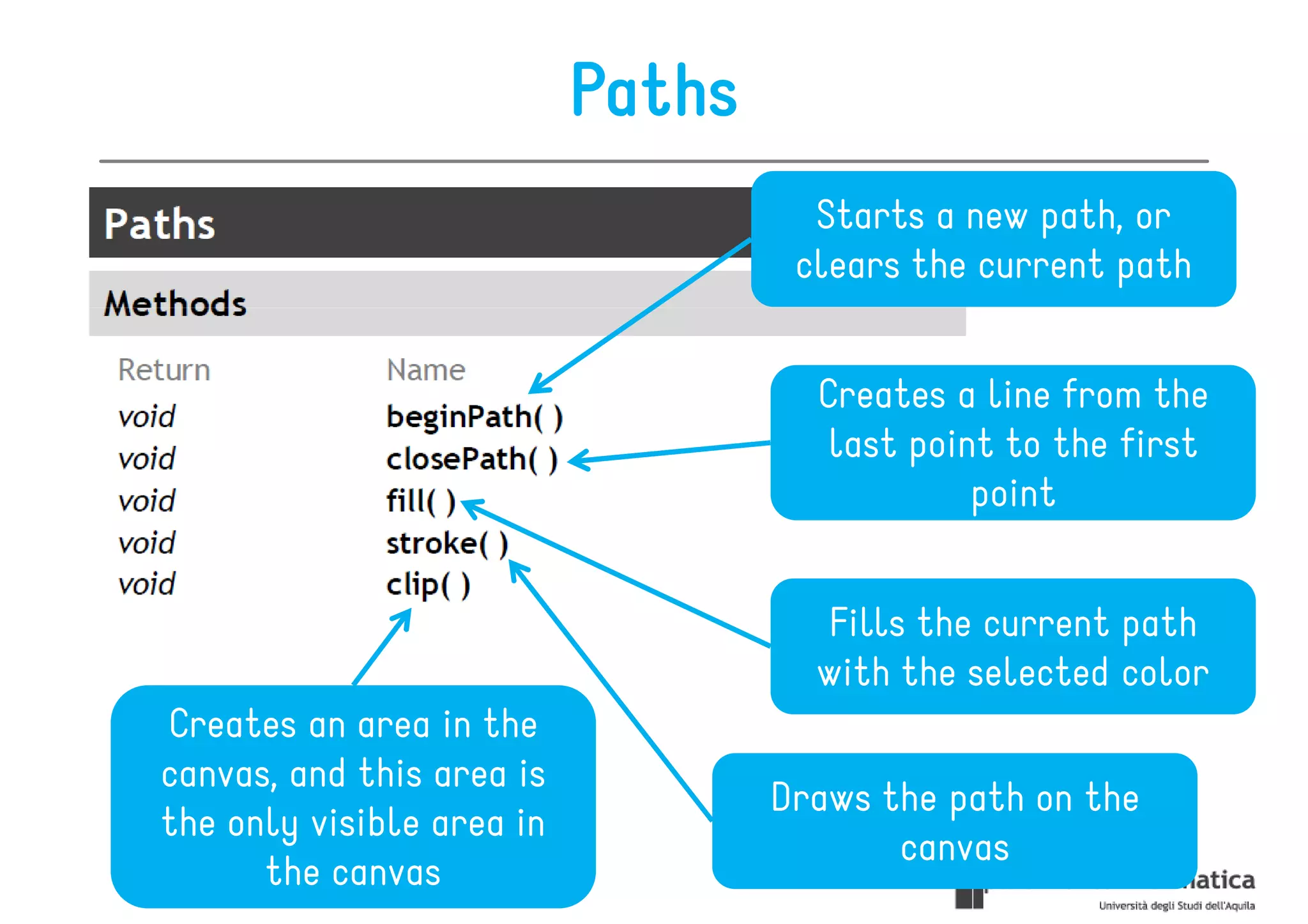

Starts a new path, or
clears the current path

Creates a line from the
last point to the first
point

Fills the current path
with the selected color
Creates an area in the
canvas, and this area is
Draws the path on the
the only visible area in
canvas
the canvas

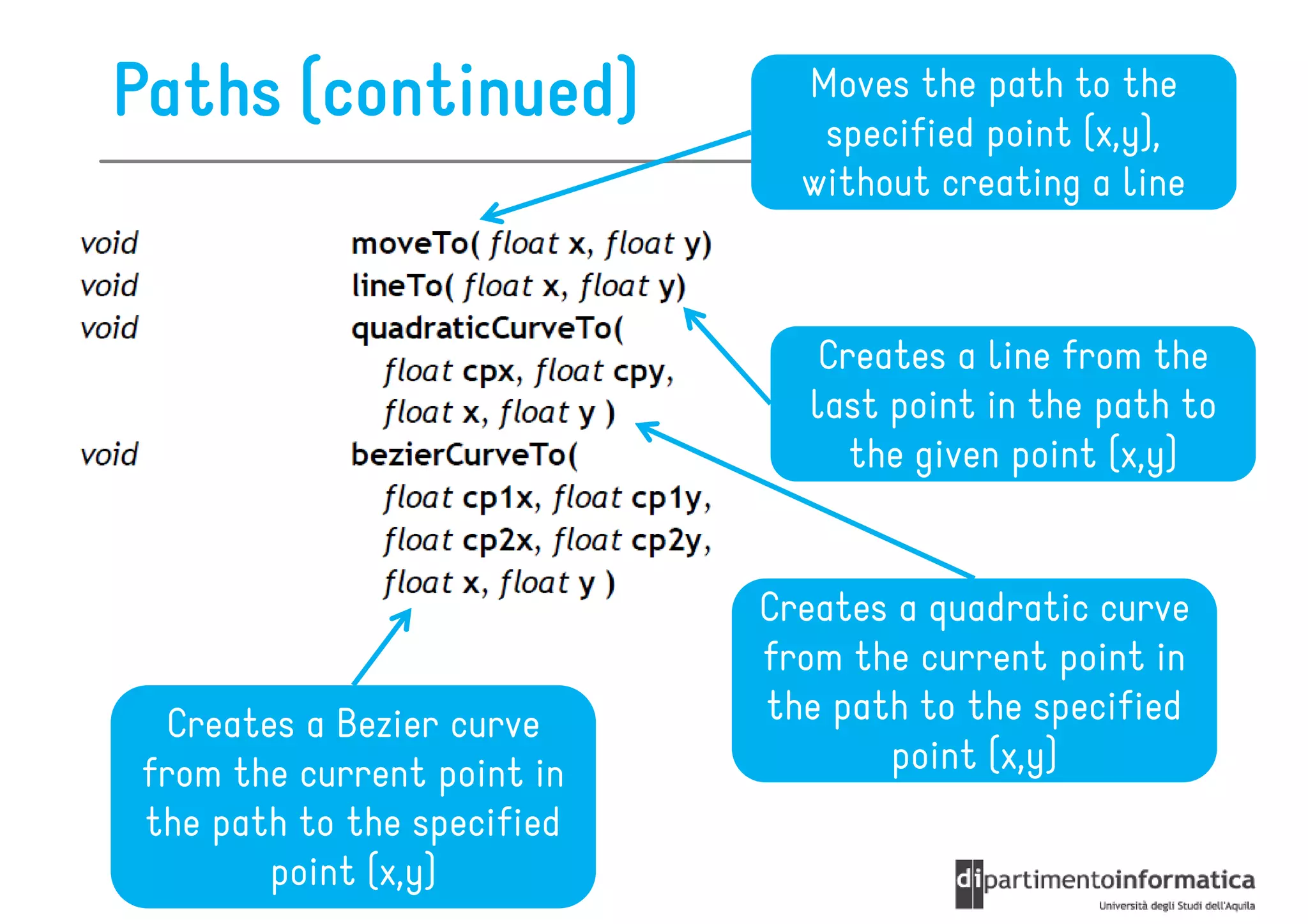

Paths (continued) Moves the path to the
specified point (x,y),
without creating a line

Creates a line from the
last point in the path to
the given point (x,y)

Creates a quadratic curve
from the current point in
Creates a Bezier curve the path to the specified
from the current point in point (x,y)
the path to the specified
point (x,y)

Paths (continued)

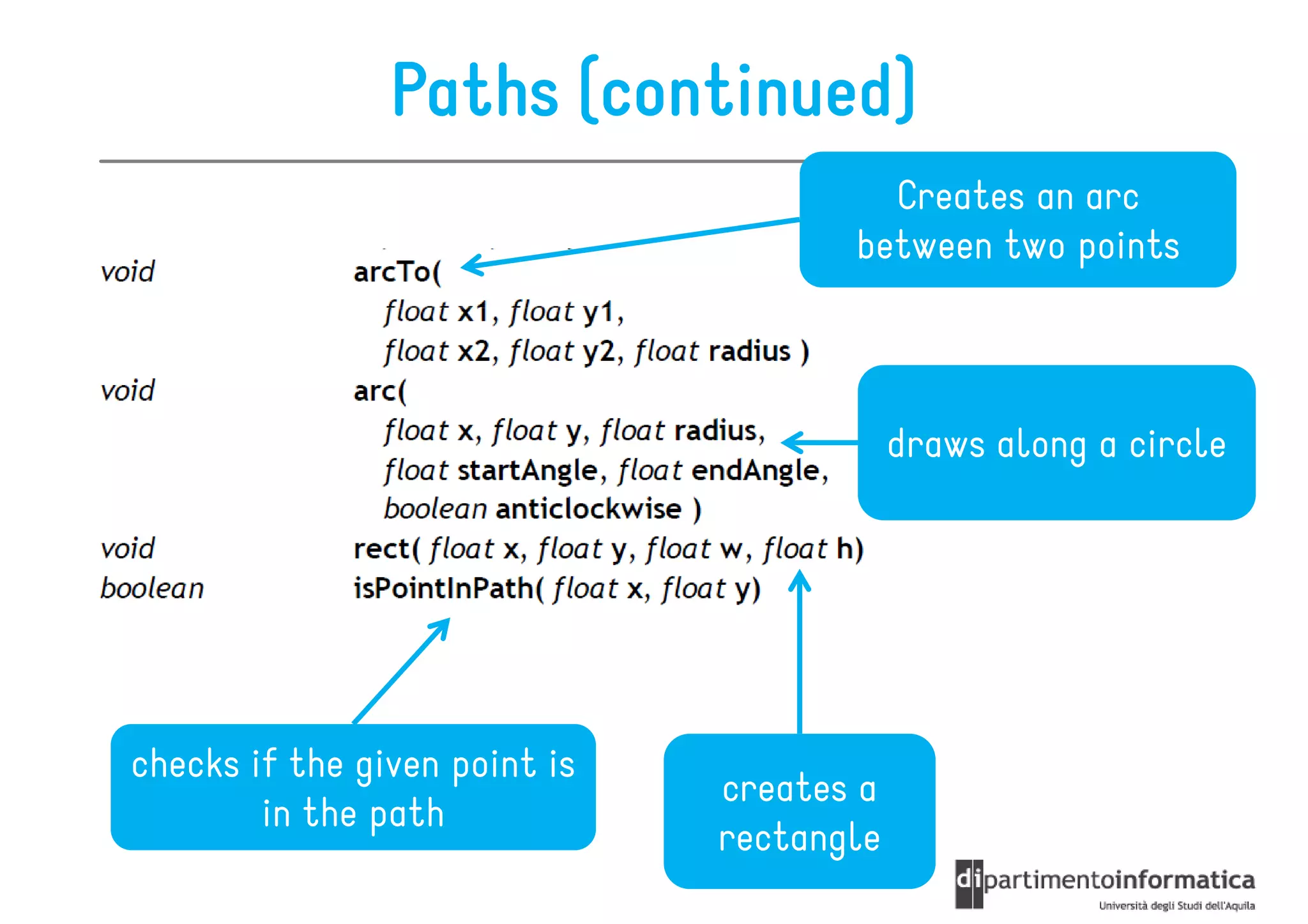

Creates an arc
between two points

draws along a circle

checks if the given point is
creates a
in the path
rectangle

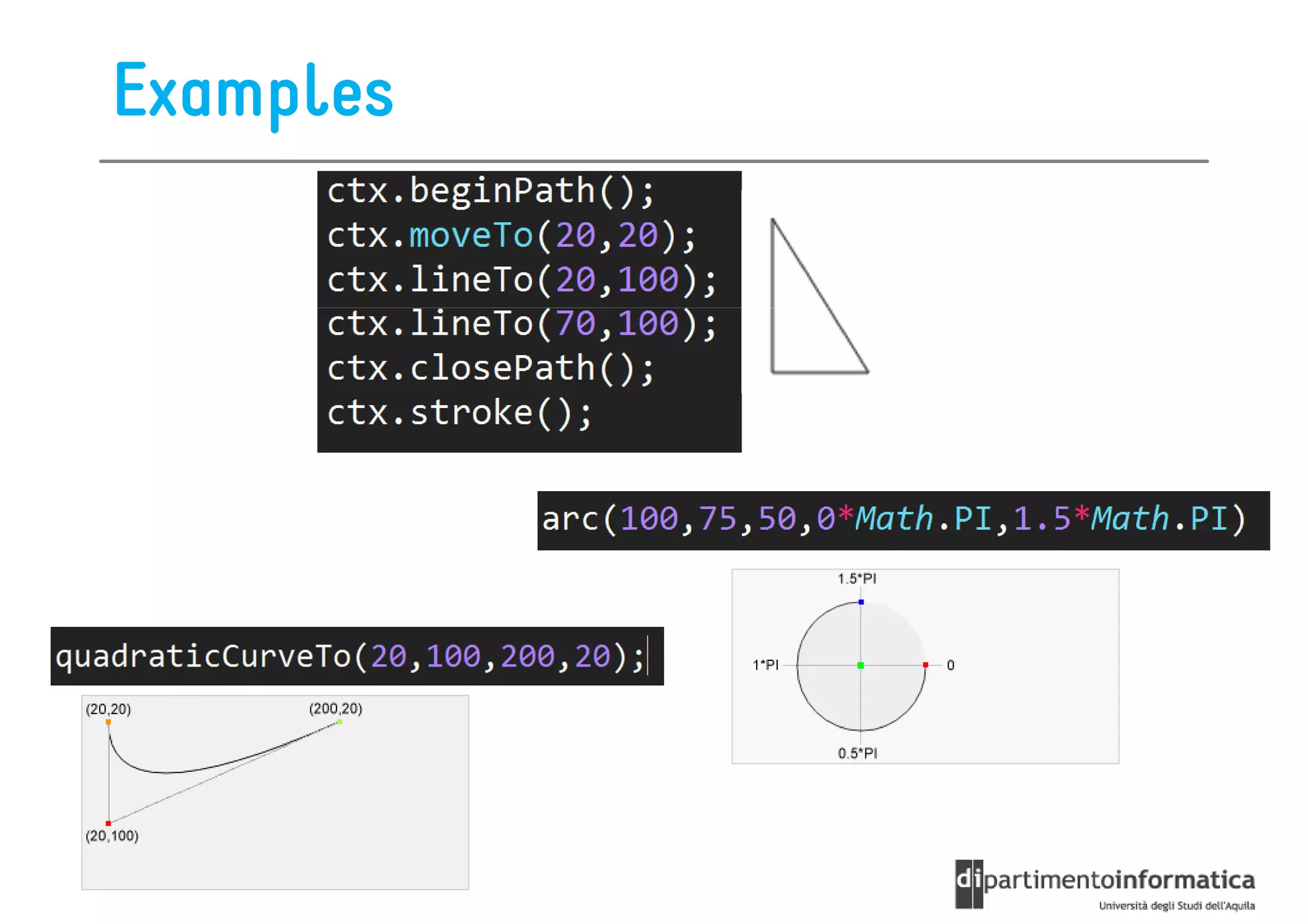

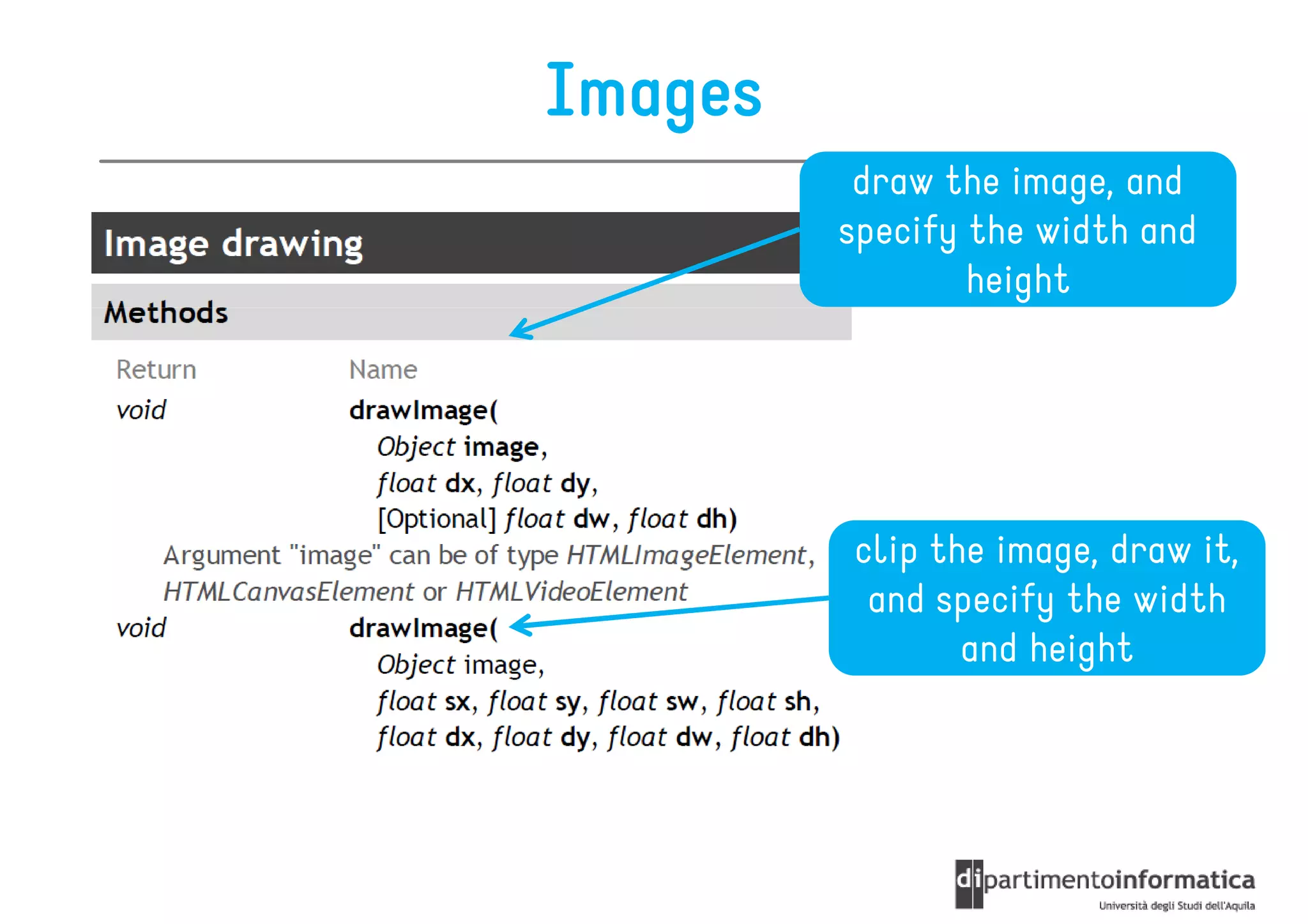

Images
draw the image, and
specify the width and
height

clip the image, draw it,
and specify the width
and height

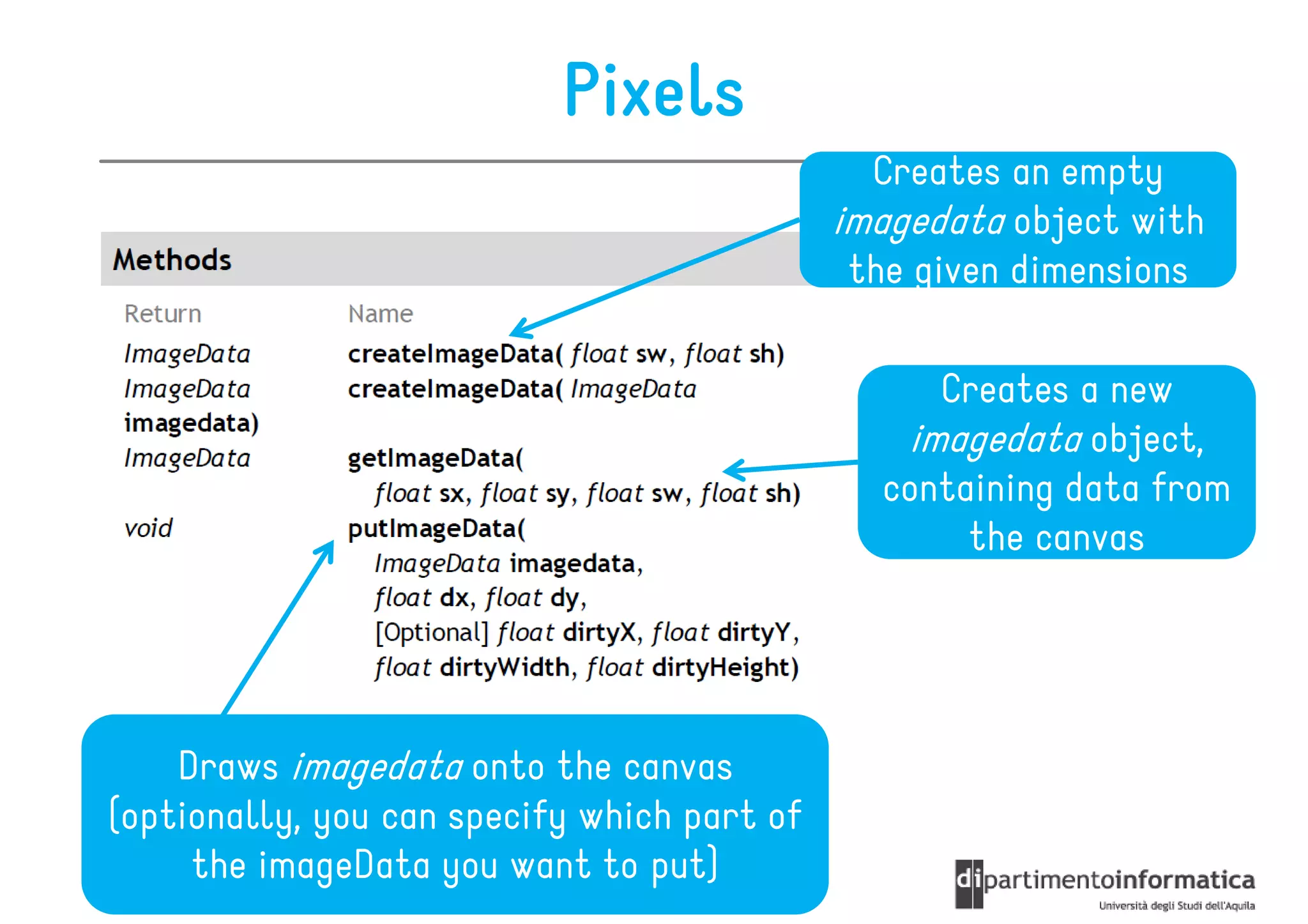

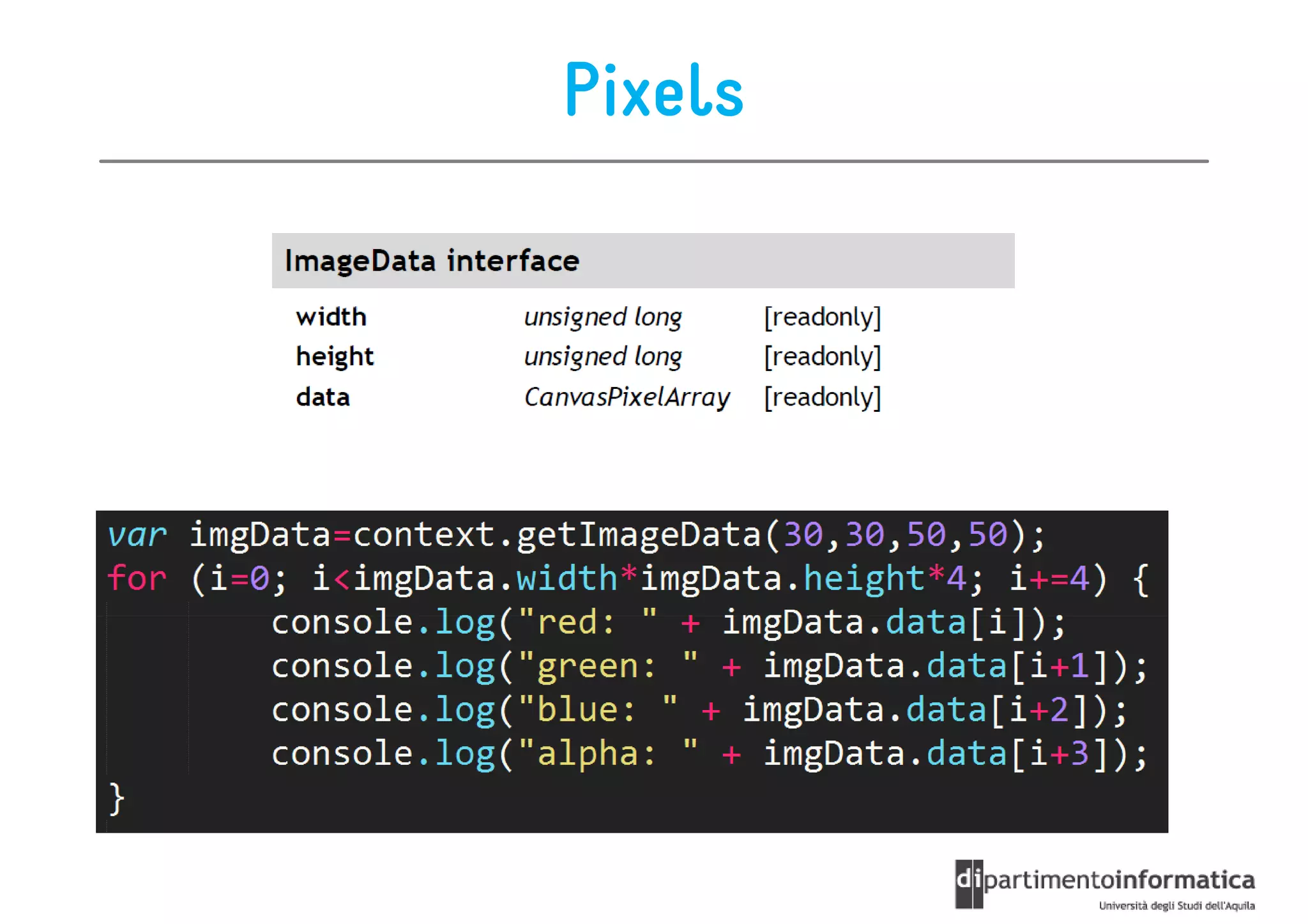

Pixels
Creates an empty
imagedata object with
the given dimensions

Creates a new
imagedata object,
containing data from
the canvas

Draws imagedata onto the canvas
(optionally, you can specify which part of
the imageData you want to put)

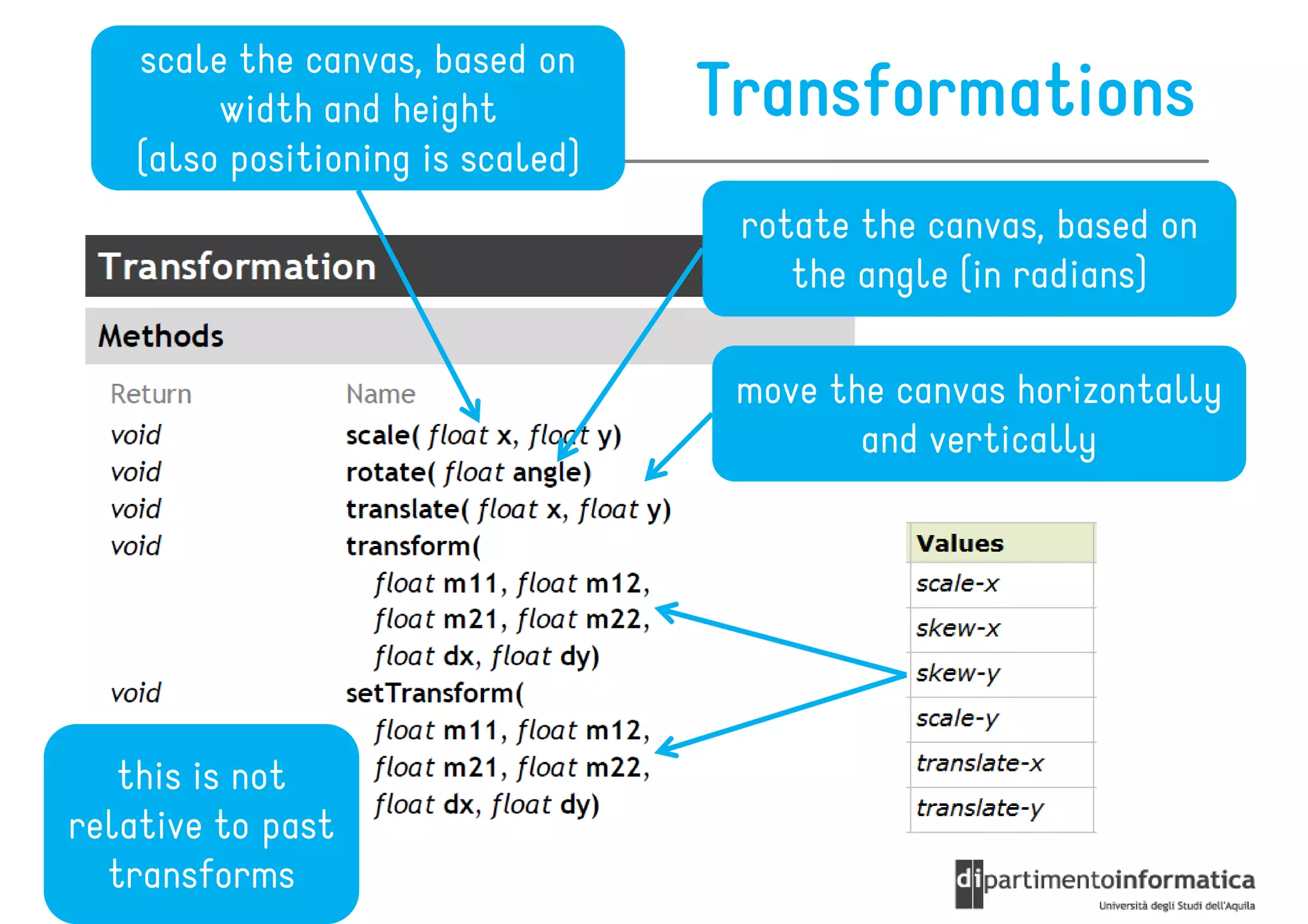

scale the canvas, based on
width and height Transformations
(also positioning is scaled)
rotate the canvas, based on
the angle (in radians)

move the canvas horizontally
and vertically

this is not
relative to past
transforms

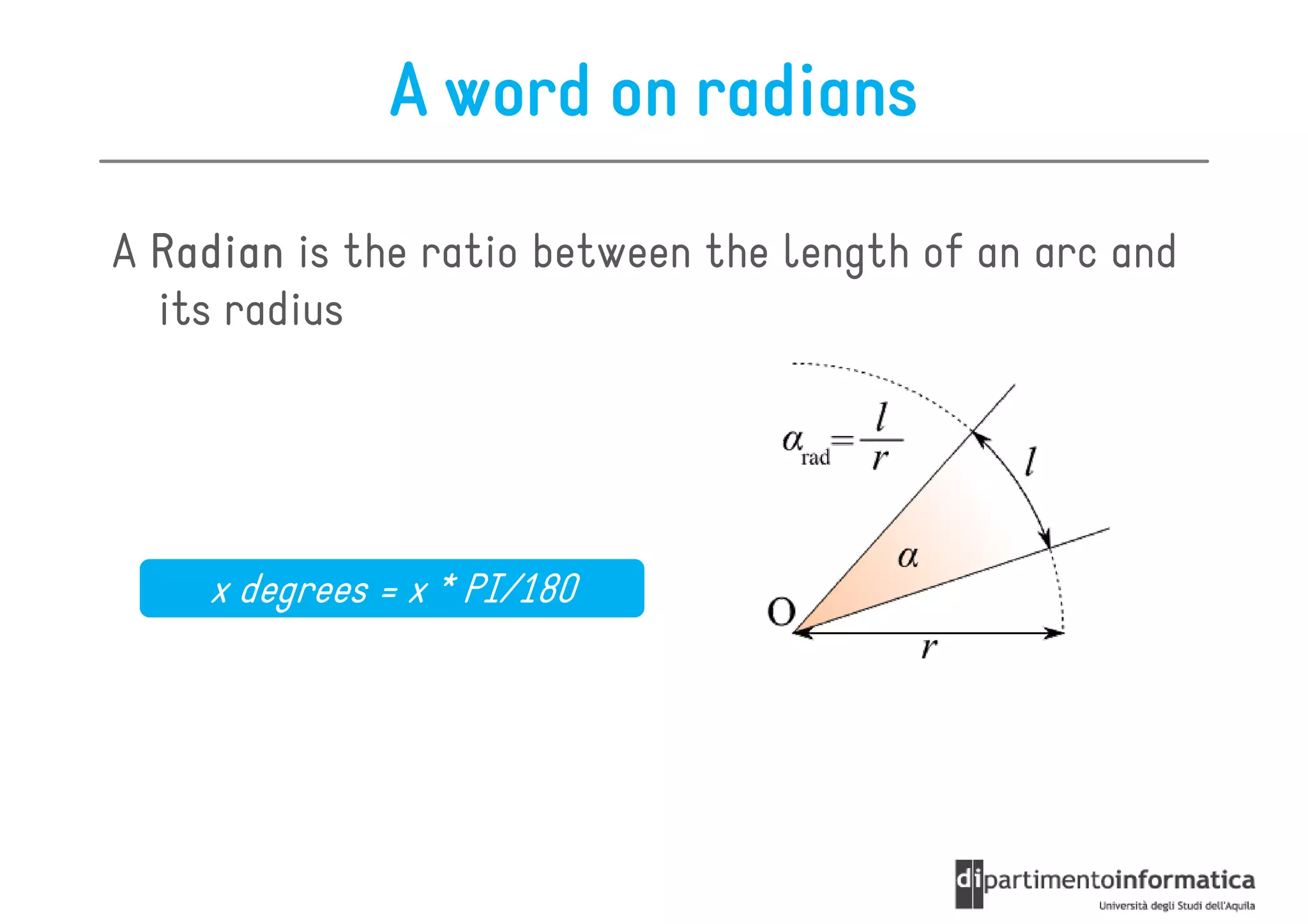

A word on radians

A Radian is the ratio between the length of an arc and
its radius

x degrees = x * PI/180

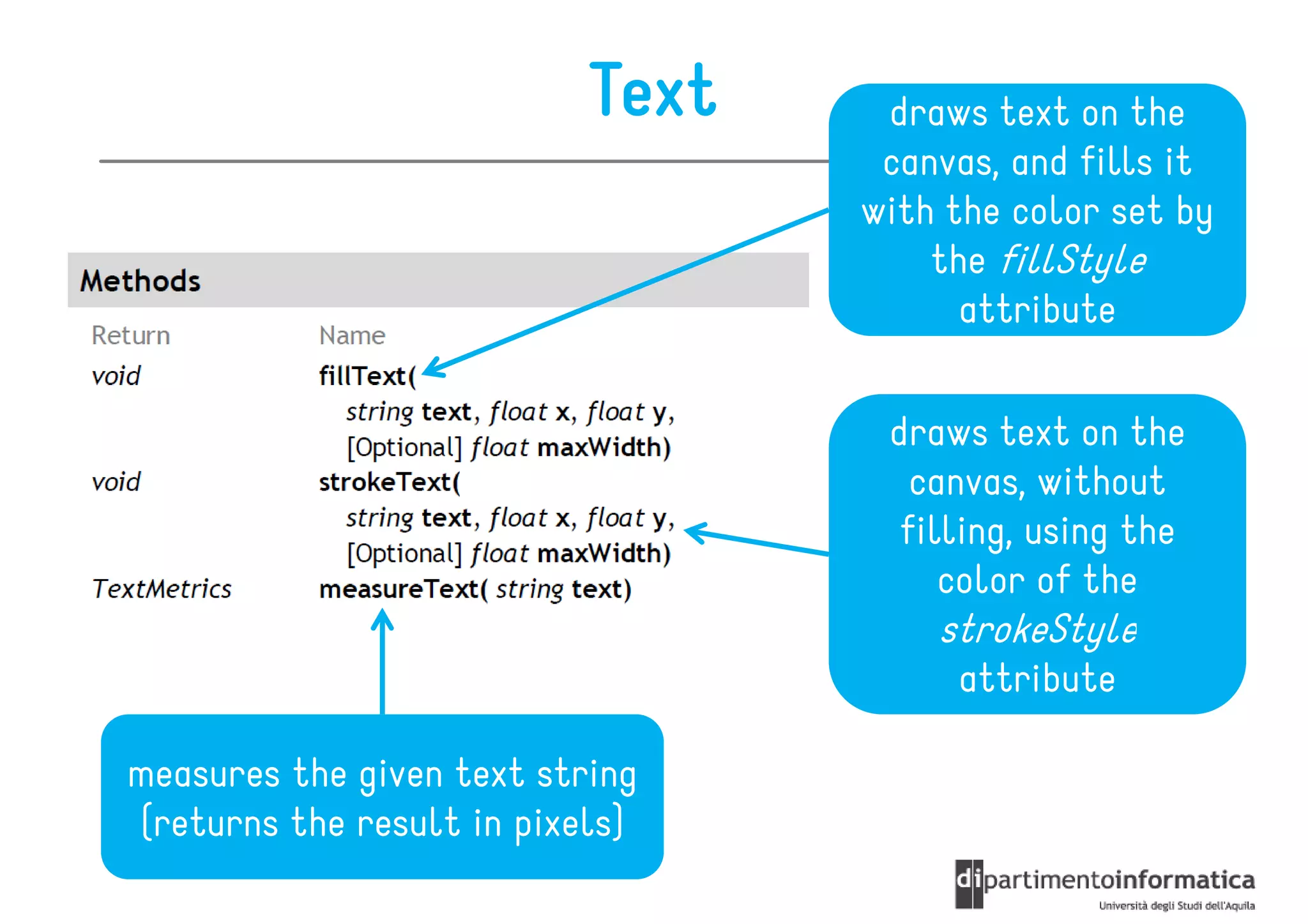

Text draws text on the
canvas, and fills it
with the color set by
the fillStyle
attribute

draws text on the
canvas, without
filling, using the
color of the
strokeStyle
attribute

measures the given text string
(returns the result in pixels)

Text

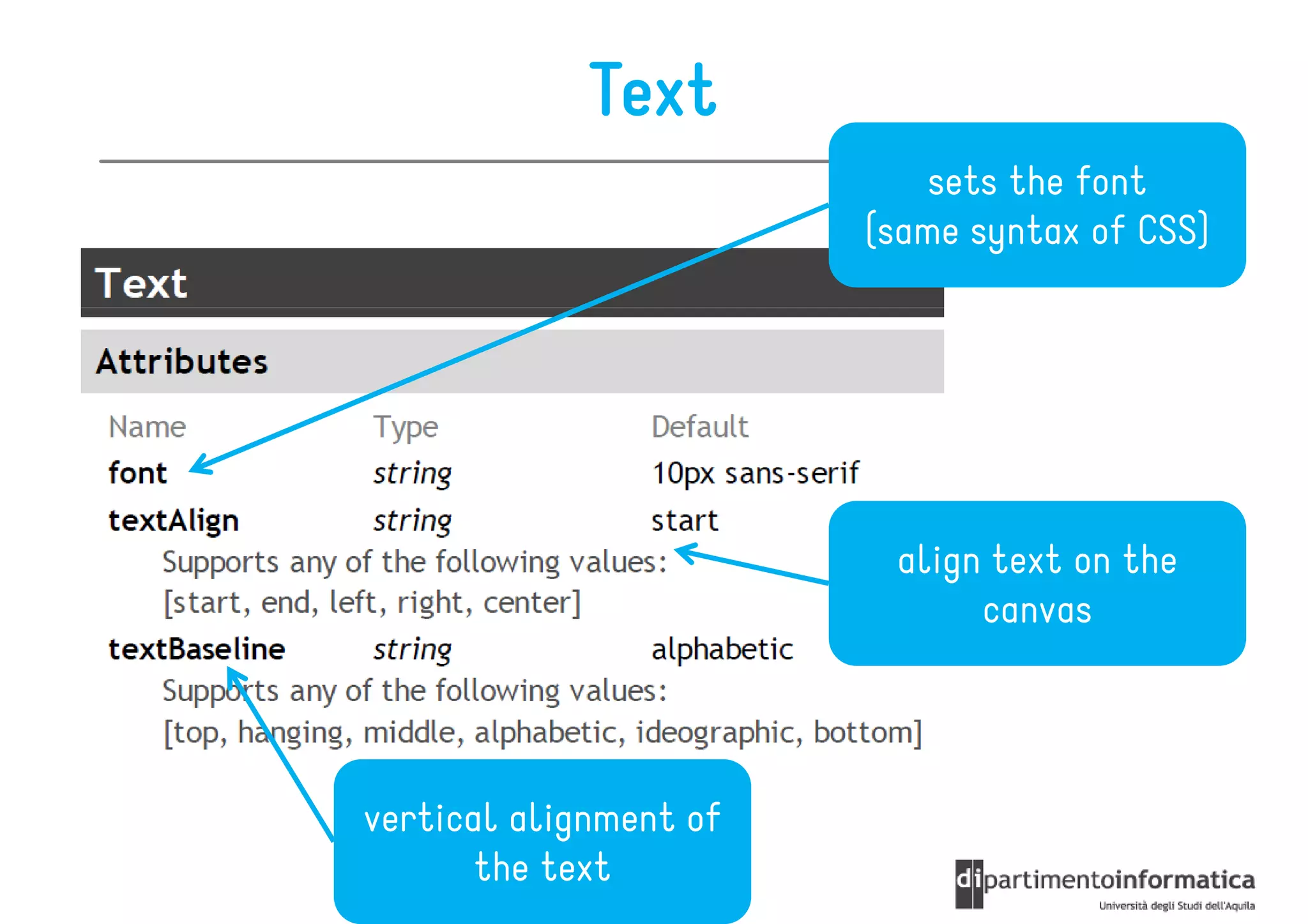

sets the font
(same syntax of CSS)

align text on the
canvas

vertical alignment of
the text

Compositing

transparency
of the drawings

how drawings are
positioned onto the
canvas

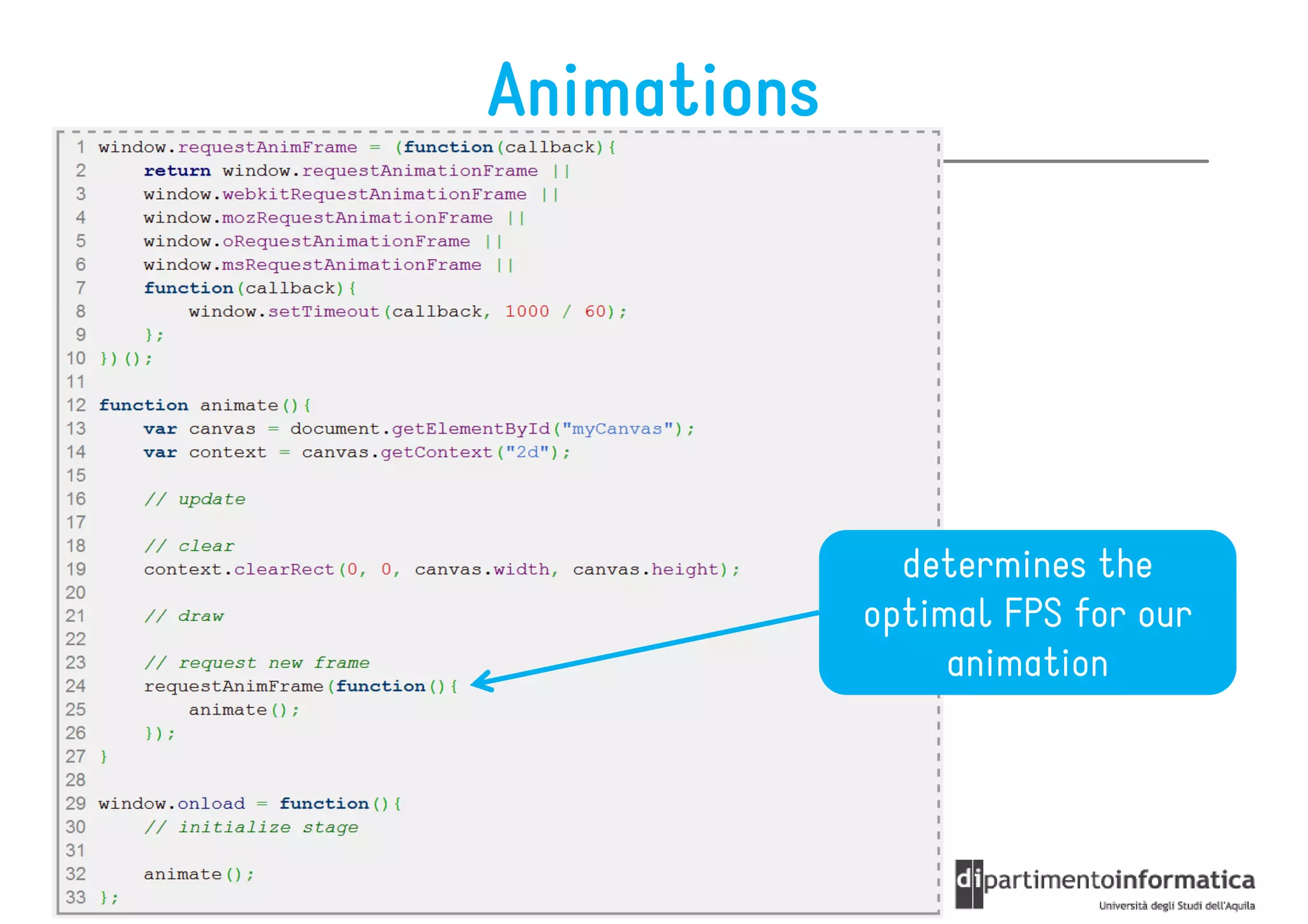

Animations

determines the
optimal FPS for our
animation

References

http://www.w3schools.com/html5/html5_ref_canvas.asp
http://www.nihilogic.dk/labs/canvas_sheet/HTML5_Canvas_Cheat_Sheet.pdf
