Machine learning is a subset of artificial intelligence that allows systems to learn from data without being explicitly programmed. The document discusses machine learning concepts like supervised vs unsupervised learning and neural networks. It then provides a step-by-step example of using a convolutional neural network model to classify handwritten digits on Android devices using TensorFlow. Key steps include exploring data, choosing an architecture, training the model, exporting it, and using it for inference in an Android app.

1. Machine Learning
YAIA!
Yet Another Intro (for Android)

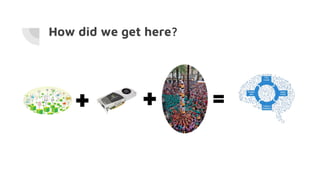

3. How did we get here?

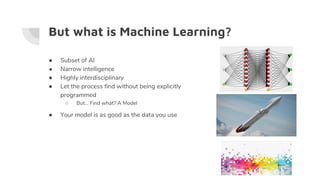

4. But what is Machine Learning?
● Subset of AI
● Narrow intelligence
● Highly interdisciplinary
● Let the process find without being explicitly
programmed
○ But… Find what? A Model
● Your model is as good as the data you use

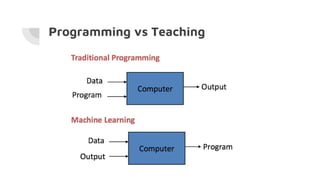

5. Programming vs Teaching

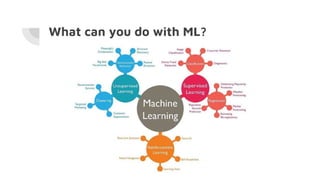

6. What can you do with ML?

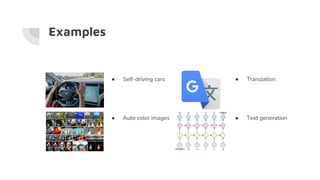

7. Examples
● Self-driving cars
● Auto color images
● Translation
● Text generation

8. Examples
● Games
● Health
problems
detection
● Recommendation
● IoT

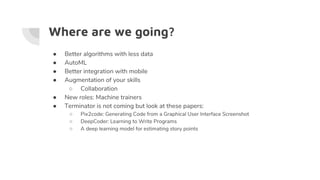

9. Where are we going?
● Better algorithms with less data
● AutoML
● Better integration with mobile
● Augmentation of your skills
○ Collaboration
● New roles: Machine trainers
● Terminator is not coming but look at these papers:
○ Pix2code: Generating Code from a Graphical User Interface Screenshot
○ DeepCoder: Learning to Write Programs
○ A deep learning model for estimating story points

10. Machine Learning YAIA!
2nd part

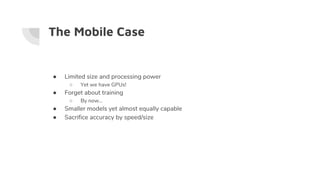

11. The Mobile Case
● Limited size and processing power
○ Yet we have GPUs!
● Forget about training
○ By now…
● Smaller models yet almost equally capable
● Sacrifice accuracy by speed/size

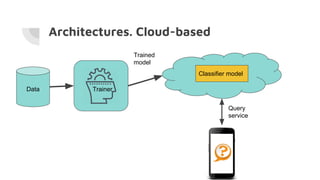

12. Architectures. Cloud-based
Classifier model
Data
Trained
model
Query
service
Trainer

13. Architectures. Model baked-in
Data
Trained
model
Trainer
Classifier model
Query

14. Architectures. All in the phone?
Data
Trainer
Classifier model

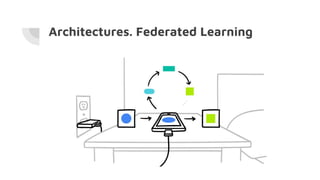

15. Architectures. Federated Learning

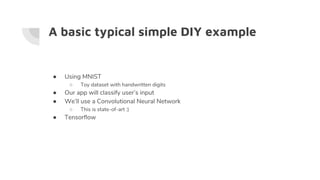

16. A basic typical simple DIY example
● Using MNIST
○ Toy dataset with handwritten digits
● Our app will classify user’s input
● We’ll use a Convolutional Neural Network
○ This is state-of-art :)
● Tensorflow

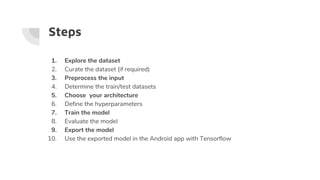

17. Steps
1. Explore the dataset
2. Curate the dataset (if required)
3. Preprocess the input
4. Determine the train/test datasets
5. Choose your architecture
6. Define the hyperparameters
7. Train the model
8. Evaluate the model
9. Export the model
10. Use the exported model in the Android app with Tensorflow

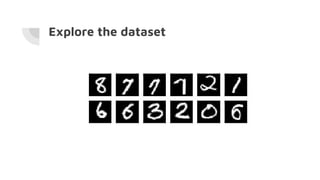

18. Explore the dataset

19. Preprocess the input
● The image can be flattened from matrix to a vector
○ Tensorflow is already doing this for you in the sample dataset!
● But important to remember as we will have to replicate the preprocessing in the client

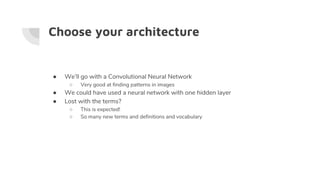

20. Choose your architecture
● We’ll go with a Convolutional Neural Network
○ Very good at finding patterns in images
● We could have used a neural network with one hidden layer
● Lost with the terms?
○ This is expected!
○ So many new terms and definitions and vocabulary

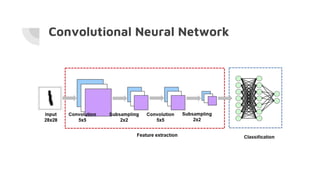

21. Convolutional Neural Network

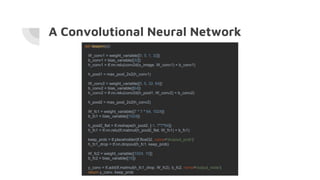

22. A Convolutional Neural Network
def deepnn(x):
W_conv1 = weight_variable([5, 5, 1, 32])
b_conv1 = bias_variable([32])
h_conv1 = tf.nn.relu(conv2d(x_image, W_conv1) + b_conv1)
h_pool1 = max_pool_2x2(h_conv1)
W_conv2 = weight_variable([5, 5, 32, 64])
b_conv2 = bias_variable([64])
h_conv2 = tf.nn.relu(conv2d(h_pool1, W_conv2) + b_conv2)
h_pool2 = max_pool_2x2(h_conv2)
W_fc1 = weight_variable([7 * 7 * 64, 1024])
b_fc1 = bias_variable([1024])
h_pool2_flat = tf.reshape(h_pool2, [-1, 7*7*64])
h_fc1 = tf.nn.relu(tf.matmul(h_pool2_flat, W_fc1) + b_fc1)
keep_prob = tf.placeholder(tf.float32, name='dropout_prob')
h_fc1_drop = tf.nn.dropout(h_fc1, keep_prob)
W_fc2 = weight_variable([1024, 10])
b_fc2 = bias_variable([10])
y_conv = tf.add(tf.matmul(h_fc1_drop, W_fc2), b_fc2, name='output_node')
return y_conv, keep_prob

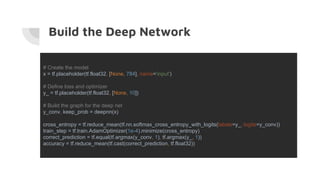

23. Build the Deep Network
# Create the model
x = tf.placeholder(tf.float32, [None, 784], name='input')
# Define loss and optimizer
y_ = tf.placeholder(tf.float32, [None, 10])
# Build the graph for the deep net
y_conv, keep_prob = deepnn(x)
cross_entropy = tf.reduce_mean(tf.nn.softmax_cross_entropy_with_logits(labels=y_, logits=y_conv))
train_step = tf.train.AdamOptimizer(1e-4).minimize(cross_entropy)
correct_prediction = tf.equal(tf.argmax(y_conv, 1), tf.argmax(y_, 1))
accuracy = tf.reduce_mean(tf.cast(correct_prediction, tf.float32))

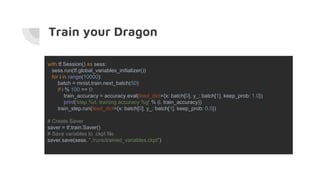

24. Train your Dragon
with tf.Session() as sess:
sess.run(tf.global_variables_initializer())
for i in range(10000):
batch = mnist.train.next_batch(50)
if i % 100 == 0:
train_accuracy = accuracy.eval(feed_dict={x: batch[0], y_: batch[1], keep_prob: 1.0})
print('step %d, training accuracy %g' % (i, train_accuracy))
train_step.run(feed_dict={x: batch[0], y_: batch[1], keep_prob: 0.5})
# Create Saver
saver = tf.train.Saver()
# Save variables to .ckpt file
saver.save(sess, "./runs/trained_variables.ckpt")

25. Test if it flights
print('test accuracy %g' % accuracy.eval(feed_dict={x: mnist.test.images, y_: mnist.test.labels, keep_prob: 1.0}))

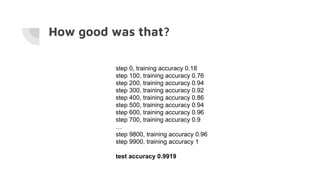

26. How good was that?
step 0, training accuracy 0.18
step 100, training accuracy 0.76
step 200, training accuracy 0.94
step 300, training accuracy 0.92
step 400, training accuracy 0.86
step 500, training accuracy 0.94
step 600, training accuracy 0.96
step 700, training accuracy 0.9
…
step 9800, training accuracy 0.96
step 9900, training accuracy 1
test accuracy 0.9919

27. Export the model
Trainer
Protobuf format

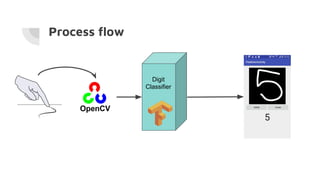

28. Process flow
Digit
Classifier

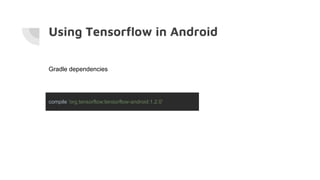

29. Using Tensorflow in Android
compile 'org.tensorflow:tensorflow-android:1.2.0'
Gradle dependencies

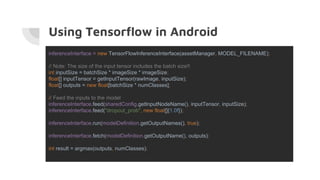

30. Using Tensorflow in Android
inferenceInterface = new TensorFlowInferenceInterface(assetManager, MODEL_FILENAME);
// Note: The size of the input tensor includes the batch size!!
int inputSize = batchSize * imageSize * imageSize;
float[] inputTensor = getInputTensor(rawImage, inputSize);
float[] outputs = new float[batchSize * numClasses];
// Feed the inputs to the model
inferenceInterface.feed(sharedConfig.getInputNodeName(), inputTensor, inputSize);
inferenceInterface.feed("dropout_prob", new float[]{1.0f});
inferenceInterface.run(modelDefinition.getOutputNames(), true);
inferenceInterface.fetch(modelDefinition.getOutputName(), outputs);
int result = argmax(outputs, numClasses);

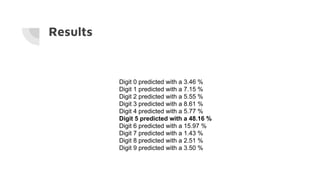

31. Results
Digit 0 predicted with a 3.46 %
Digit 1 predicted with a 7.15 %
Digit 2 predicted with a 5.55 %
Digit 3 predicted with a 8.61 %
Digit 4 predicted with a 5.77 %
Digit 5 predicted with a 48.16 %
Digit 6 predicted with a 15.97 %
Digit 7 predicted with a 1.43 %
Digit 8 predicted with a 2.51 %
Digit 9 predicted with a 3.50 %

32. Q&A

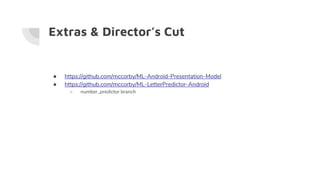

33. Extras & Director’s Cut
● https://github.com/mccorby/ML-Android-Presentation-Model
● https://github.com/mccorby/ML-LetterPredictor-Android
○ number_predictor branch

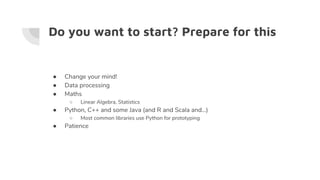

34. Do you want to start? Prepare for this
● Change your mind!
● Data processing
● Maths
○ Linear Algebra, Statistics
● Python, C++ and some Java (and R and Scala and…)
○ Most common libraries use Python for prototyping
● Patience

35. Types of Algorithms

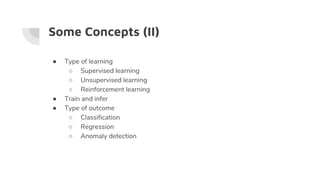

36. Some Concepts (II)
● Type of learning
○ Supervised learning
○ Unsupervised learning
○ Reinforcement learning
● Train and infer
● Type of outcome
○ Classification
○ Regression
○ Anomaly detection

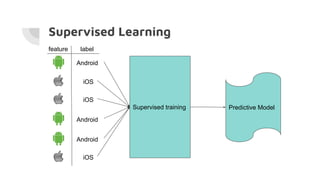

37. Supervised Learning
Android
iOS
iOS
iOS
Android
Android
Supervised training Predictive Model
feature label

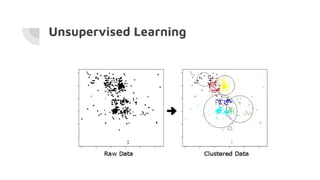

38. Unsupervised Learning

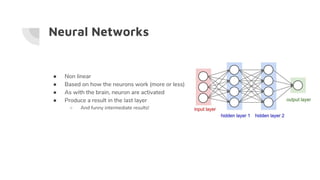

39. Neural Networks
● Non linear
● Based on how the neurons work (more or less)
● As with the brain, neuron are activated
● Produce a result in the last layer
○ And funny intermediate results!

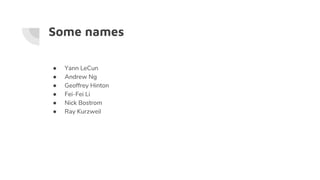

40. Some names
● Yann LeCun
● Andrew Ng
● Geoffrey Hinton
● Fei-Fei Li
● Nick Bostrom
● Ray Kurzweil

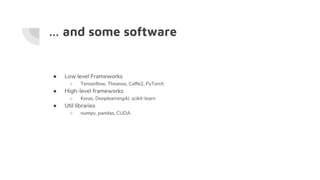

41. … and some software
● Low level Frameworks
○ Tensorflow, Theanos, Caffe2, PyTorch
● High-level frameworks
○ Keras, Deeplearning4J, scikit-learn
● Util libraries
○ numpy, pandas, CUDA
