The session demonstrates the core concepts of the Django framework.

1. Presented By: Sanjay Rathore
(Software Consultant)
Introduction to Django
Framework

2. Lack of etiquette and manners is a huge turn off.
KnolX Etiquettes
Punctuality
Respect Knolx session timings, you
are requested not to join sessions
after a 5 minutes threshold post
the session start time.
Feedback
Make sure to submit a constructive
feedback for all sessions as it is
very helpful for the presenter.
Silent Mode
Keep your mobile devices in silent
mode, feel free to move out of
session in case you need to attend
an urgent call.
Avoid Disturbance
Avoid unwanted chit chat during
the session.

3. 02

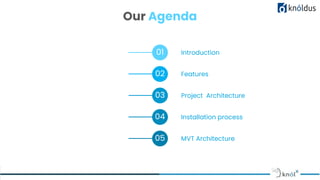

Our Agenda
01 Introduction
02 Features
03 Project Architecture
04 Installation process
05 MVT Architecture

4. Introduction
● Django is a high-level Python framework. It is free and open-source, written in Python itself, and
follows the model-view-template architectural pattern.
● We can use it to develop quality web applications faster and easier. Since developing for the web
needs a set of similar components, you can use a framework.
● This way, you don’t have to reinvent the wheel. These tasks include authentication, forms, uploading
files, management panels, and so.
LEARN NOW

5. c
Features
1. Rapid Development
2. Secure
3. Scalable
4. Fully loaded
5. Versatile
6. Open Source
7. Vast and Supported Community
LEARN NOW

6. OUR MISSION
● The Model is the part of the web-app which acts as a mediator between
the website interface and the database. In technical terms, it is the object
which implements the logic for the application’s data domain.
● View is actually the User Interface of the web-application and contains
the parts like HTML, CSS and other frontend technologies. Generally, this
UI creates from the Models component, i.e., the content comes from the
Models component.
● The controller as the name suggests is the main control component. It
means,the controller handles the user interaction and selects a view
according to the model.
● The main task of the controller is to select a view component according
to the user interaction and also applying the model component.
Project Architecture

7. Installation Process
Steps to Install Django and Set Up a Virtual Environment
1. Install Python3
$ sudo apt-get install python3
2. Install pip
$ sudo apt-get install -y python3 pip
3. create virtual environment
$ pip3 install virtualenv
4. Installing Django
$ pip install -e django

8. c
MVT Architecture
Model
logical
DS
Template
presentation
layer
View
data
formatting
design, update,delete
data
input by
user
data to
display
Models :- Just like the Model in MVC, here as well it
has the same functionality of providing the interface
for the data stored in the database.
Views :-In Django, Views act as a link between the
Model data and the Templates. It sees the user request,
retrieves appropriate data from the database, then
renders back the template along with retrieved data.
Templates:- Just like View in MVC, Django uses
templates in its framework. Templates are responsible for
the entire User Interface completely. It handles all the
static parts of the webpage along with the HTML, which
the users visiting the webpage will perceive.

9. Control Flow
1. The user sends a URL request for a resource to
Django.
2. Django framework then searches for the URL
resource.
3. If the URL path links up to a View, then that
particular View is called.
4. The View will then interact with the Model and
retrieve the appropriate data from the database.
5. The View then renders back an appropriate
template along with the retrieved data to the user.

10. App Life Cycle
Create an Application
We assume you are in your project folder. In our main “myproject” folder, the same folder then manage.py −
$ python manage.py startapp myapp
myapp/
__init__.py
admin.py
models.py
tests.py
views.py
$ django-admin startapp projectApp
or

11. Admin Interface
Django provides a ready-to-use user interface for administrative activities.
● We need some modules are imported in the INSTALLED_APPS and MIDDLEWARE_CLASSES tuples of the
myproject/settings.py file.
Create SuperUser for the Admin access
python manage.py createsuperuser
from django.conf.urls import patterns, include, url
from django.contrib import admin
admin.autodiscover()
urlpatterns = patterns('', url(r'^admin/',
include(admin.site.urls)),)
Now run the server -
$ python manage.py runserver

12. www.website.com
URL Routing
Since Django is a web application framework, it gets user requests by URL locater and responds back. To handle URL,
django.urls module is used by the framework.
Let's open the file urls.py of the project and see the what it looks like:
//urls.py
Django already has mentioned a URL here for the admin. The path function takes the first argument as a route of string
or regex type.
from django.contrib import admin
from django.urls import path
urlpatterns = [
path('admin/', admin.site.urls), ]

13. www.website.com
Django Temple Language(DTL)
Django’s template engine offers a mini-language to define the
user-facing layer of the application.
A variable looks like this: - {{variable}}.
hello.html
<html>
<body>
Hello World!!! <p>Today is
{{today}}</p>
</body>
</html>
views.py
<html>
<body>
Hello World!!!<p>Today is
{{today}}</p>
</body>
</html>
def hello(request):
today =
datetime.datetime.now().date()
return render(request,
"hello.html", {"today" : today})

14. www.website.com
Demo

15. www.website.com
Pros :
● Python is vastly more writable than other language;
● Excellent for big projects;
● Magical ORM;
● Easy database management;
● Security.
cons:
● Not the best for small projects;
● Heavy and you probably won’t utilize the whole framework;
● Monolithic one;
● All components get deployed together.

16. c
References
LEARN NOW
https://docs.djangoproject.com/en/3.2/
https://developer.mozilla.org/en-US/docs/Learn/Ser
ver-side/Django

17. Thank You!
