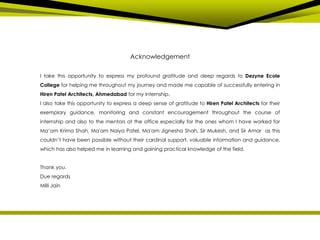

I take this opportunity to express my profound gratitude and deep regards to Dezyne Ecole
College for helping me throughout my journey and made me capable of successfully entering in
Hiren Patel Architects, Ahmedabad for my internship.
I also take this opportunity to express a deep sense of gratitude to Hiren Patel Architects for their
exemplary guidance, monitoring and constant encouragement throughout the course of
internship and also to the mentors at the office especially for the ones whom I have worked for
Ma’am Krima Shah, Ma'am Naiya Patel, Ma'am Jignesha Shah, Sir Mukesh, and Sir Amar as this
couldn’t have been possible without their cardinal support, valuable information and guidance,
which has also helped me in learning and gaining practical knowledge of the field.
Thank you.
Due regards
Milli Jain

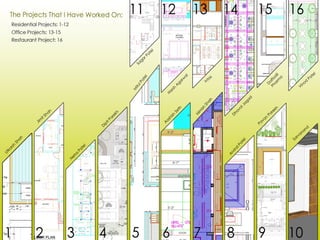

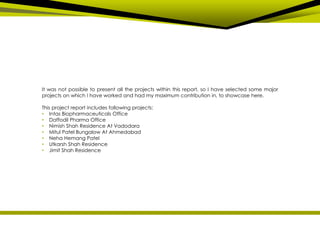

8. It was not possible to present all the projects within this report, so I have selected some major
projects on which I have worked and had my maximum contribution in, to showcase here.
This project report includes following projects:
• Intas Biopharmaceuticals Office
• Daffodil Pharma Office
• Nimish Shah Residence At Vadodara
• Mitul Patel Bungalow At Ahmedabad
• Neha Hemang Patel
• Utkarsh Shah Residence
• Jimit Shah Residence

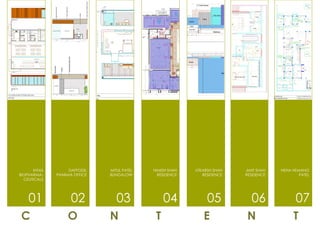

9. 01 02 03 04 05 06 07
INTAS
BIOPHARMA-
CEUTICALS
DAFFODIL
PHARMA OFFICE
NIMISH SHAH
RESIDENCE
MITUL PATEL
BUNGALOW
NEHA HEMANG
PATEL
UTKARSH SHAH
RESIDENCE
JIMIT SHAH
RESIDENCE
C O N T E N T

10. 01

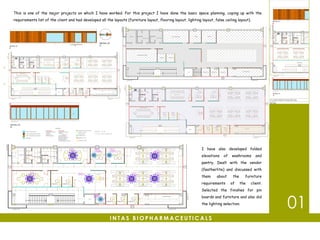

I have also developed folded
elevations of washrooms and
pantry. Dealt with the vendor
(featherlite) and discussed with
them about the furniture
requirements of the client.
Selected the finishes for pin
boards and furniture and also did
the lighting selection.
I N T A S B I O P H A R M A C E U T I C A L S
This is one of the major projects on which I have worked. For this project I have done the basic space planning, coping up with the
requirements list of the client and had developed all the layouts (furniture layout, flooring layout, lighting layout, false ceiling layout).

11. Working Drawings Of Second Floor

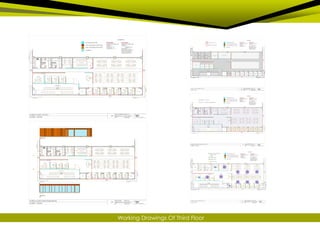

12. Working Drawings Of Third Floor

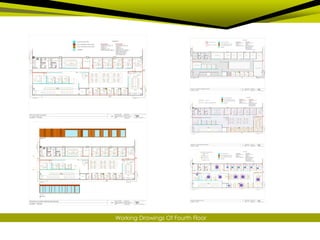

13. Working Drawings Of Fourth Floor

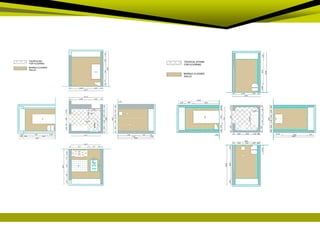

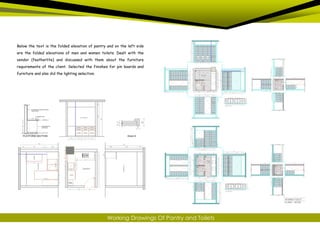

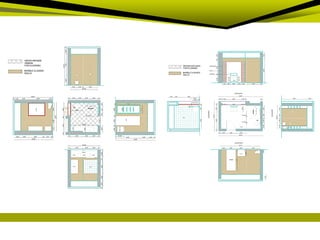

14. Below the text is the folded elevation of pantry and on the left side
are the folded elevations of men and women toilets. Dealt with the
vendor (featherlite) and discussed with them about the furniture
requirements of the client. Selected the finishes for pin boards and
furniture and also did the lighting selection.
Working Drawings Of Pantry and Toilets

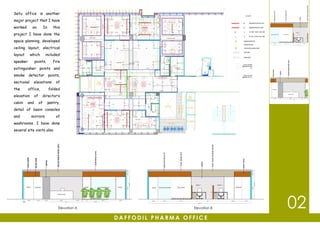

15. D A F F O D I L P H A R M A O F F I C E
02
AB
Elevation A Elevation B
Setu office is another
major project that I have
worked on. In this
project I have done the
space planning, developed
ceiling layout, electrical
layout which included
speaker points, fire
extinguisher points and
smoke detector points,
sectional elevations of
the office, folded
elevation of director’s
cabin and of pantry,
detail of basin consoles
and mirrors of
washrooms. I have done
several site visits also.

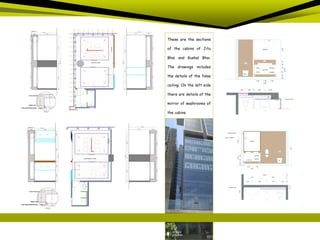

16. These are the sections
of the cabins of Jitu
Bhai and Kushal Bhai.
The drawings includes
the details of the false
ceiling. On the left side
there are details of the
mirror of washrooms of
the cabins.

17. Elevation A Elevation B
A B
C
Elevation C

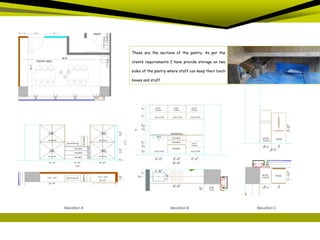

These are the sections of the pantry. As per the
clients requirements I have provide storage on two
sides of the pantry where staff can keep their lunch
boxes and stuff.

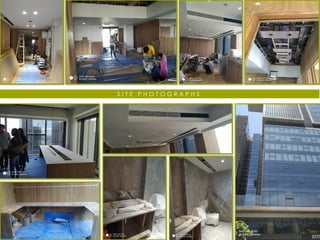

18. S I T E P H O T O G R A P H S

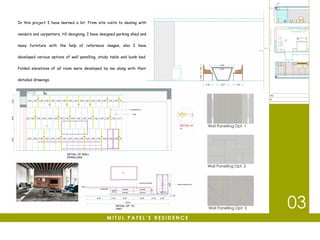

19. In this project I have learned a lot. From site visits to dealing with
vendors and carpenters, till designing. I have designed parking shed and
many furniture with the help of reference images, also I have
developed various options of wall panelling, study table and bunk bed.
Folded elevations of all room were developed by me along with their
detailed drawings.
03
M I T U L P A T E L ’ S R E S I D E N C E
Wall Panelling Opt. 1
Wall Panelling Opt. 3
Wall Panelling Opt. 2

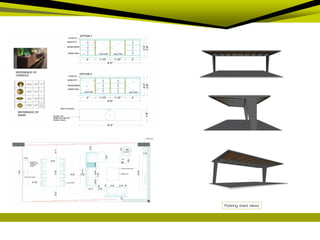

20. Parking shed views

21. Study Option 1
Nivaan’s Room Detail

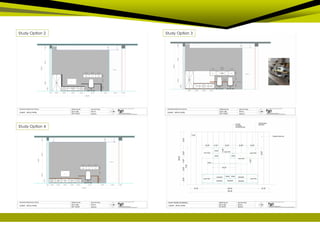

22. Study Option 4
Study Option 3Study Option 2

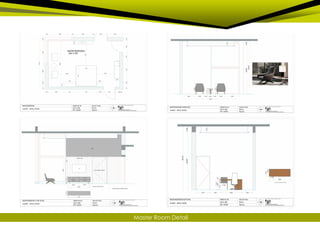

23. Master Room Detail

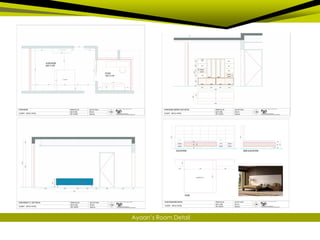

24. Ayaan’s Room Detail

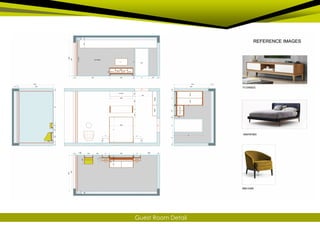

25. Guest Room Detail

26. Option For T.V. Unit

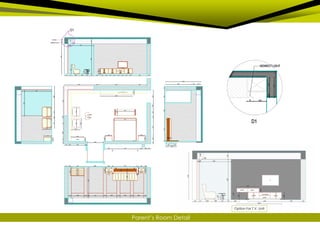

Parent’s Room Detail

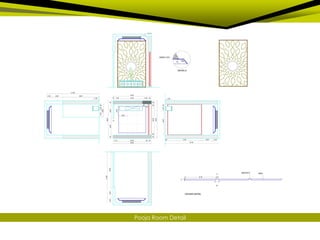

27. Pooja Room Detail

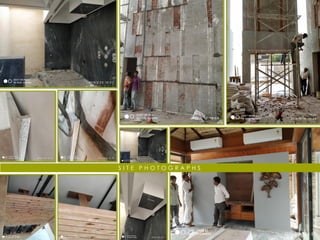

28. S I T E P H O T O G R A P H S

29. 04
N I M I S H S H A H R E S I D E N C E

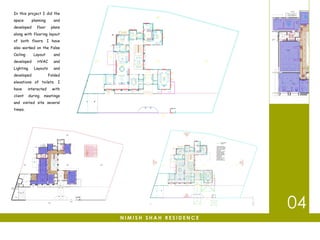

In this project I did the
space planning and
developed floor plans
along with flooring layout
of both floors. I have
also worked on the False
Ceiling Layout and
developed HVAC and
Lighting Layouts and
developed Folded
elevations of toilets. I
have interacted with
client during meetings
and visited site several
times.

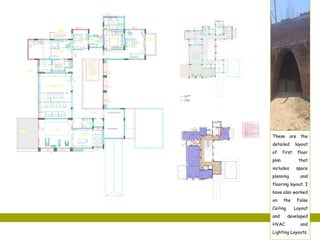

30. These are the
detailed layout
of first floor
plan that
includes space
planning and
flooring layout. I
have also worked
on the False
Ceiling Layout
and developed
HVAC and
Lighting Layouts.

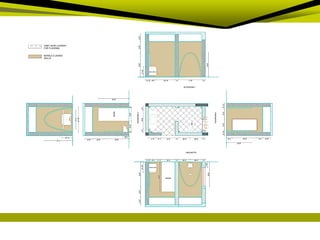

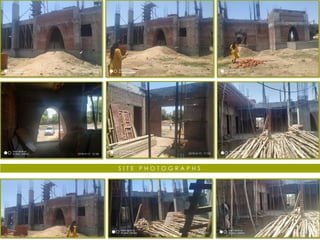

34. S I T E P H O T O G R A P H S

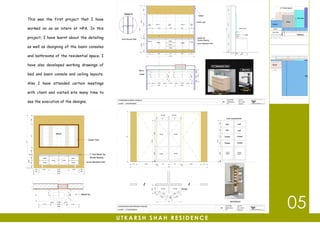

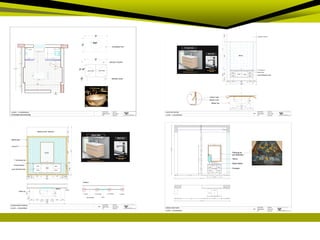

35. This was the first project that I have
worked on as an intern at HPA. In this
project, I have learnt about the detailing
as well as designing of the basin consoles
and bathrooms of the residential space. I
have also developed working drawings of
bed and basin console and ceiling layouts.
Also I have attended certain meetings
with client and visited site many time to
see the execution of the designs.
U T K A R S H S H A H R E S I D E N C E
05

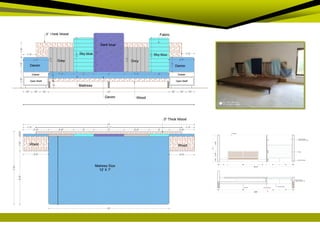

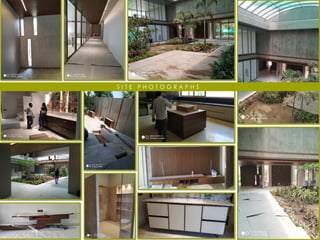

39. S I T E P H O T O G R A P H S

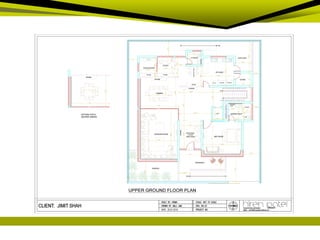

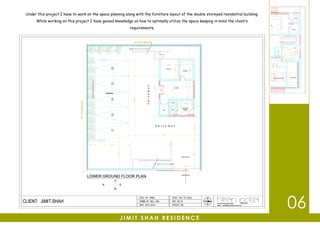

40. Under this project I have to work on the space planning along with the furniture layout of the double storeyed residential building.
While working on this project I have gained knowledge on how to optimally utilize the space keeping in mind the client’s
requirements.
J I M I T S H A H R E S I D E N C E
06

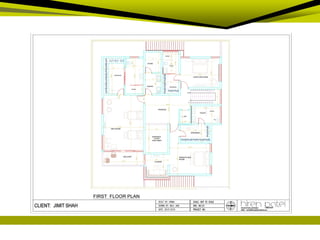

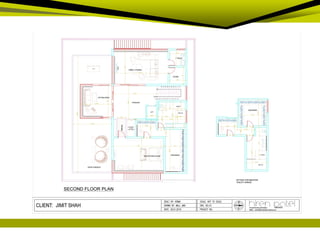

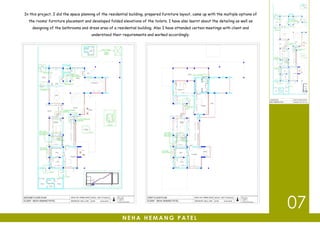

44. In this project, I did the space planning of the residential building, prepared furniture layout, came up with the multiple options of
the rooms’ furniture placement and developed folded elevations of the toilets. I have also learnt about the detailing as well as
designing of the bathrooms and dress area of a residential building. Also I have attended certain meetings with client and
understood their requirements and worked accordingly.
N E H A H E M A N G P A T E L
07

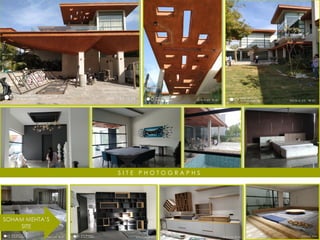

46. SOHAM MEHTA’S
SITE
S I T E P H O T O G R A P H S

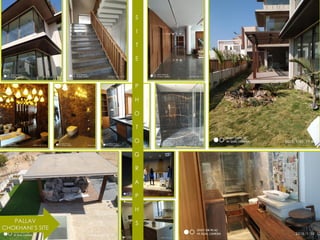

47. PALLAV
CHOKHANI’S SITE
S
I
T
E
P
H
O
T
O
G
R
A
P
H
S
