1. By
T.U.V.Muralidhar
B.Gopi Sai Chandu

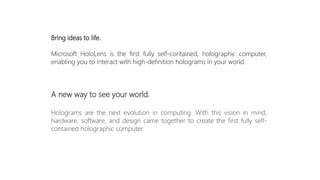

2. Bring ideas to life.
Microsoft HoloLens is the first fully self-contained, holographic computer,
enabling you to interact with high-definition holograms in your world.
A new way to see your world.
Holograms are the next evolution in computing. With this vision in mind,
hardware, software, and design came together to create the first fully self-
contained holographic computer.

3. Enabled by Windows 10.
Windows 10 is the first platform to
support holographic computing with
APIs that enable gaze, gesture, voice,
and environmental understanding on
a self-contained device.

4. What is
A hologram is an object like any
other object in the real world, with
only one difference: instead of
being made of physical matter, a
hologram is made entirely of light.
Holographic objects can be viewed
from different angles and distances,
just like physical objects.
hologram do not offer any physical
resistance when touched or pushed
because they don’t have any mass.

5. What is Virtual Reality(VR) ?
Virtual reality is the term used to describe a three-dimensional, computer generated
environment which can be explored and interacted by a person. So, in summary,
virtual reality is presenting our senses with a computer generated virtual environment
that we can explore.

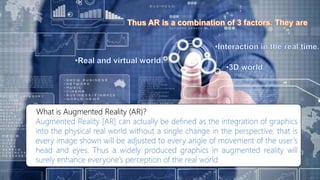

6. What is Augmented Reality (AR)?
Augmented Reality [AR] can actually be defined as the integration of graphics
into the physical real world without a single change in the perspective, that is
every image shown will be adjusted to every angle of movement of the user’s
head and eyes. Thus a widely produced graphics in augmented reality will
surely enhance everyone’s perception of the real world

7. Do they really differ ??
Virtual Reality
• It tricks your eyes into thinking
that you are somewhere else.
• In this User can surf in whole
new world.
• In virtual world,users are best
advised to stay seated to avoid
collisons with physical which
they cannot see in the real
world.
Augmented Reality
• It is an extra dimension over VR
since it can show the real world
around wearer with graphic
overlayed.
• AR can also totally immerse
user just like VR by simply
showing pixels everywhere with
no tranparency to the real
world.

10. Working of
Microsoft Holo Lens.

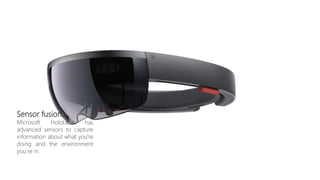

12. Sensor fusion.
Microsoft HoloLens has
advanced sensors to capture
information about what you're
doing and the environment
you’re in.

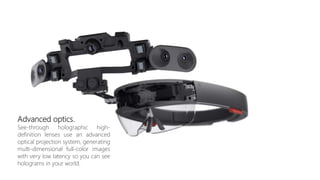

13. Advanced optics.
See-through holographic high-
definition lenses use an advanced
optical projection system, generating
multi-dimensional full-color images
with very low latency so you can see
holograms in your world.

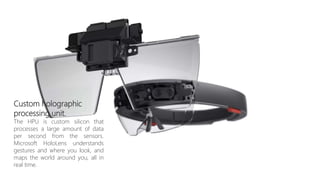

14. Custom holographic
processing unit.
The HPU is custom silicon that
processes a large amount of data
per second from the sensors.
Microsoft HoloLens understands
gestures and where you look, and
maps the world around you, all in
real time.

16. Let us see in detail.

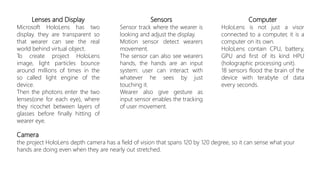

17. Lenses and Display
Microsoft HoloLens has two
display. they are transparent so
that wearer can see the real
world behind virtual object.
To create project HoloLens
image, light particles bounce
around millions of times in the
so called light engine of the
device.
Then the photons enter the two
lenses(one for each eye), where
they ricochet between layers of
glasses before finally hitting of
wearer eye.
Sensors
Sensor track where the wearer is
looking and adjust the display.
Motion sensor detect wearers
movement.
The sensor can also see wearers
hands, the hands are an input
system: user can interact with
whatever he sees by just
touching it.
Wearer also give gesture as
input sensor enables the tracking
of user movement.
Computer
HoloLens is not just a visor
connected to a computer, it is a
computer on its own.
HoloLens contain CPU, battery,
GPU and first of its kind HPU
(holographic processing unit).
18 sensors flood the brain of the
device with terabyte of data
every seconds.
Camera
the project HoloLens depth camera has a field of vision that spans 120 by 120 degree, so it can sense what your
hands are doing even when they are nearly out stretched.

18. Sound System

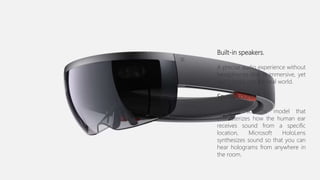

19. Built-in speakers.
A precise audio experience without
headphones that is immersive, yet
won’t block out the real world.
Spatial sound.
Using a scientific model that
characterizes how the human ear
receives sound from a specific
location, Microsoft HoloLens
synthesizes sound so that you can
hear holograms from anywhere in
the room.

21. Designed for comfort.
The headband is designed like a performance car with great weight
distribution for a comfortable fit. Weight is distributed around the crown of
your head, saving your ears or nose from undue pressure.

22. Hmm..
What can we do with this….?

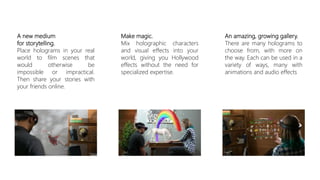

23. A new medium
for storytelling.
Place holograms in your real
world to film scenes that
would otherwise be
impossible or impractical.
Then share your stories with
your friends online.
Make magic.
Mix holographic characters
and visual effects into your
world, giving you Hollywood
effects without the need for
specialized expertise.
An amazing, growing gallery.
There are many holograms to
choose from, with more on
the way. Each can be used in a
variety of ways, many with
animations and audio effects

24. Create new Possibilities
Design and develop
instruction and sharing ideas

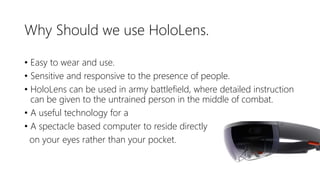

25. Why Should we use HoloLens.
• Easy to wear and use.
• Sensitive and responsive to the presence of people.
• HoloLens can be used in army battlefield, where detailed instruction
can be given to the untrained person in the middle of combat.
• A useful technology for a
• A spectacle based computer to reside directly
on your eyes rather than your pocket.

26. Let us look forward for new era in
digital computing..
Microsoft HoloLens
