Microsoft Graph and Azure Functions - SharePoint User Group Frankfurt
This document introduces Microsoft Graph and Azure Functions. It discusses how Microsoft Graph provides access to user, group and organizational data across Office 365 and other Microsoft services. It then explains how Azure Functions can use Microsoft Graph bindings to access this data in a serverless way for building applications and workflows. Examples of using Microsoft Graph bindings in Azure Functions for scenarios like accessing Excel files and sending Outlook messages are provided.
More Related Content
![[Vochten/Harbar] SharePoint Server On Premises & Hybrid PowerClass](https://cdn.slidesharecdn.com/ss_thumbnails/ecs18thomasvochtenworkshopitprohybrid-180605144020-thumbnail.jpg?width=640&height=640&fit=bounds)
![[Draskovic] The next chapter: What's new in SharePoint Server 2019?](https://cdn.slidesharecdn.com/ss_thumbnails/emu0xnrcqfqlcb5tqaku-signature-d4523b3bf020616e67040d2a940ba8bf9aeab187b20da49956548f98de22ea12-poli-180606121948-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Microsoft Graph and Azure Functions - SharePoint User Group Frankfurt
Microsoft Graph and Azure Functions - SharePoint User Group Frankfurt
- 1. Microsoft Graph andAzure Functions Dragan Panjkov
- 2.
- 3. Agenda • Introducing MicrosoftGraph • Azure Functions • Using Microsoft Graph bindings in Azure Functions • Featured scenarios
- 4.
- 5. Microsoft Graph Office 365Platform STANDALONE WEB AND DEVICE APPS Extensions Embedded canvases
- 6. Users Groups OutlookOneNote more…SharePoint IntuneTeams Azure ADPlanner Excel https://graph.microsoft.com Your appOne endpoint One token All users Microsoft Graph API Access user, group and organizational data

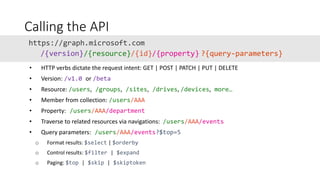

- 7. Calling the API •HTTP verbs dictate the request intent: GET | POST | PATCH | PUT | DELETE • Version: /v1.0 or /beta • Resource: /users, /groups, /sites, /drives, /devices, more… • Member from collection: /users/AAA • Property: /users/AAA/department • Traverse to related resources via navigations: /users/AAA/events • Query parameters: /users/AAA/events?$top=5 o Format results: $select | $orderby o Control results: $filter | $expand o Paging: $top | $skip | $skiptoken /{version} ?{query-parameters}/{resource}/{id}/{property}
- 8.
- 9. SDKs, samples andtooling

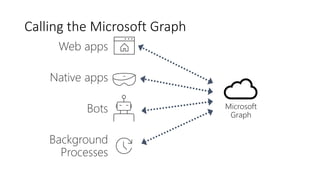

- 10. Calling the MicrosoftGraph Microsoft Graph
- 11. Auth access_token Register your appat https://apps.dev.microsoft.com MSAL YOUR APP Microsoft Graph id_token access_token refresh_token Microsoft Identity
- 12. App types andpermissions Users can consent for their data or admin can consent for all users Only admin can consent App permissions User permissions App permissions Permission type: applicationPermission type: delegated https://developer.microsoft.com/en-us/graph/docs/concepts/permissions_reference Get access on behalf of users Get access as a service Effective permissionEffective permission

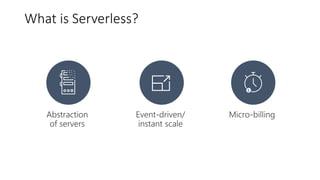

- 13.
- 14.
- 15. Microsoft Graph +Azure Functions Benefits of serverless Access data in Microsoft Graph Best in class security Built on Azure App Service

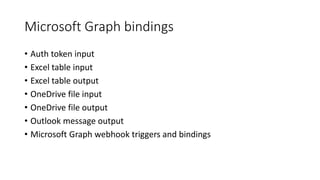

- 16. Microsoft Graph bindings •Auth token input • Excel table input • Excel table output • OneDrive file input • OneDrive file output • Outlook message output • Microsoft Graph webhook triggers and bindings
- 17.
- 18. Prerequisites • Enable Functions2.0 preview • Install the extension • Microsoft.Azure.WebJobs.Extensions.AuthTokens • Microsoft.Azure.WebJobs.Extensions.MicrosoftGraph • Configure Authentication / Authorization

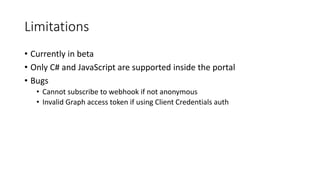

- 19. Limitations • Currently inbeta • Only C# and JavaScript are supported inside the portal • Bugs • Cannot subscribe to webhook if not anonymous • Invalid Graph access token if using Client Credentials auth
- 20.
- 21. Resources • Graph Explorer www.aka.ms/ge •Microsoft Graph bindings on Azure Functions documentation site https://docs.microsoft.com/en-us/azure/azure-functions/functions- bindings-microsoft-graph • Announcement on beta release on Azure Functions blog https://blogs.msdn.microsoft.com/appserviceteam/2017/09/25/my-intern- project-microsoft-graph-bindings-for-azure-functions/ • Videos https://youtu.be/Y3cC0Hpemmk https://youtu.be/UvwQ6IwmcS4 https://youtu.be/noDVDV5sAUk
