Microservices on AWS Spot instances
The document discusses AWS Spot Instances, microservices, and container management, emphasizing the significant cost savings and operational efficiency they can provide. It outlines AWS pricing options and the reliability of Spot Instances, describes the scalability benefits of microservices, and introduces Nirmata's solutions for managing applications in cloud environments. Key takeaways include the importance of microservices in achieving elasticity and resilience, as well as the advantages of containerization for application deployment and management.
More Related Content
![[AWS Media Symposium 2019] Broadcast Television in AWS - Evan Statton, AWS M&...](https://cdn.slidesharecdn.com/ss_thumbnails/02awsbroadcastupdateseoulevanstatton-191029011303-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Microservices on AWS Spot instances
Microservices on AWS Spot instances
- 1. Microservices on AWSSpot Instances AWS Bay Area Meetup – Jan 13, 2016 Jim Bugwadia; jim@nirmata.com
- 2. High-performing IT organizations deploy30X more frequently with 200X shorter lead times; they have 60X fewer failures and recover 168X faster. 2015 State of DevOps Report, Puppet Labs

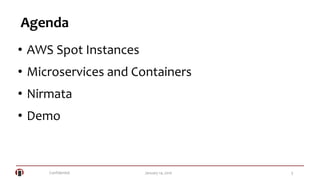

- 3. Confidential 3January 14,2016 Agenda • AWS Spot Instances • Microservices and Containers • Nirmata • Demo

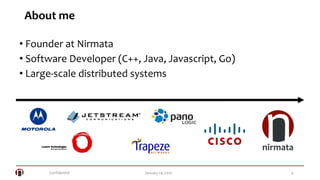

- 4. Confidential 4January 14,2016 About me • Founder at Nirmata • Software Developer (C++, Java, Javascript, Go) • Large-scale distributed systems
- 5.

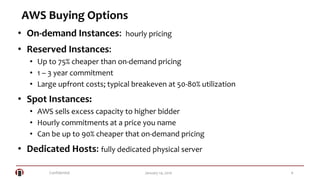

- 6. Confidential 6January 14,2016 AWS Buying Options • On-demand Instances: hourly pricing • Reserved Instances: • Up to 75% cheaper than on-demand pricing • 1 – 3 year commitment • Large upfront costs; typical breakeven at 50-80% utilization • Spot Instances: • AWS sells excess capacity to higher bidder • Hourly commitments at a price you name • Can be up to 90% cheaper that on-demand pricing • Dedicated Hosts: fully dedicated physical server
- 7. Confidential 7January 14,2016 How Spot pricing works • AWS determines market price based on supply and demand • Instance is allocated to highest bidder • Bidder pays market price • Allocated instance is terminated (with a 2 minute warning) when market price increases above your bid price • Diversification of instance families, instance types, availability zones increases continuity

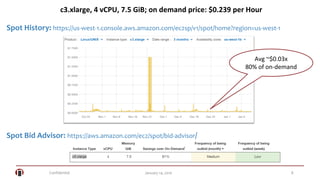

- 8. Confidential 8January 14,2016 c3.xlarge, 4 vCPU, 7.5 GiB; on demand price: $0.239 per Hour Avg ~$0.03x 80% of on-demand Spot Bid Advisor: https://aws.amazon.com/ec2/spot/bid-advisor/ Spot History: https://us-west-1.console.aws.amazon.com/ec2sp/v1/spot/home?region=us-west-1

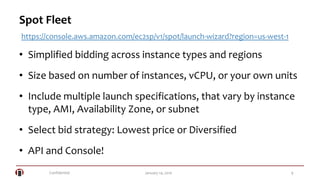

- 9. Confidential 9January 14,2016 Spot Fleet • Simplified bidding across instance types and regions • Size based on number of instances, vCPU, or your own units • Include multiple launch specifications, that vary by instance type, AMI, Availability Zone, or subnet • Select bid strategy: Lowest price or Diversified • API and Console! https://console.aws.amazon.com/ec2sp/v1/spot/launch-wizard?region=us-west-1

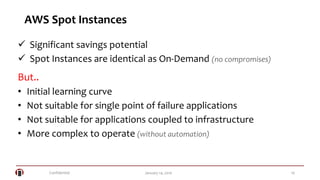

- 10. Confidential 10January 14,2016 AWS Spot Instances Significant savings potential Spot Instances are identical as On-Demand (no compromises) But.. • Initial learning curve • Not suitable for single point of failure applications • Not suitable for applications coupled to infrastructure • More complex to operate (without automation)
- 11.
- 12.

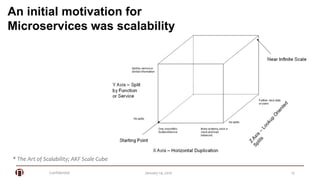

- 13. Confidential 13January 14,2016 An initial motivation for Microservices was scalability * The Art of Scalability; AKF Scale Cube

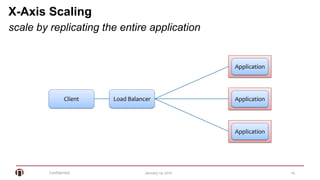

- 14. Confidential 14January 14,2016 X-Axis Scaling scale by replicating the entire application Client Load Balancer Application Application Application

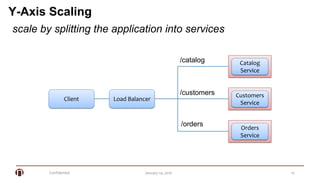

- 15. Confidential 15January 14,2016 Y-Axis Scaling scale by splitting the application into services Client Load Balancer Customers Service Catalog Service Orders Service /catalog /customers /orders

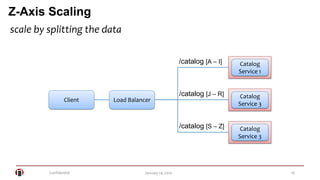

- 16. Confidential 16January 14,2016 Z-Axis Scaling Client Load Balancer Catalog Service 3 Catalog Service 1 Catalog Service 3 /catalog [A – I] /catalog [J – R] /catalog [S – Z] scale by splitting the data
- 17. Confidential 17January 14,2016 Microservices provide Y-X axis scaling scale by splitting the application and replicating services Client Load Balancer Customers Service Catalog Service Orders Service /catalog /customers /orders

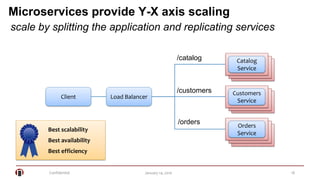

- 18. Confidential 18January 14,2016 Microservices provide Y-X axis scaling scale by splitting the application and replicating services Client Load Balancer Customers Service Catalog Service Orders Service /catalog /customers /orders Best scalability Best availability Best efficiency

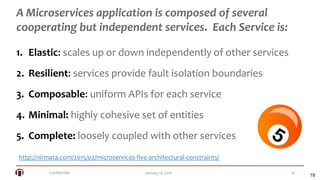

- 19. Confidential 19January 14,2016 1. Elastic: scales up or down independently of other services 2. Resilient: services provide fault isolation boundaries 3. Composable: uniform APIs for each service 4. Minimal: highly cohesive set of entities 5. Complete: loosely coupled with other services 19 A Microservices application is composed of several cooperating but independent services. Each Service is: http://nirmata.com/2015/02/microservices-five-architectural-constraints/

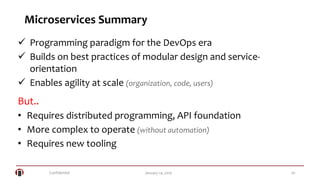

- 20. Confidential 20January 14,2016 Microservices Summary Programming paradigm for the DevOps era Builds on best practices of modular design and service- orientation Enables agility at scale (organization, code, users) But.. • Requires distributed programming, API foundation • More complex to operate (without automation) • Requires new tooling
- 21.

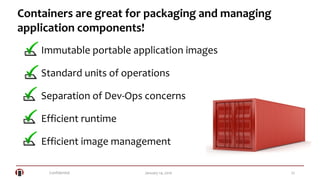

- 22. Confidential 22January 14,2016 Containers are great for packaging and managing application components! Immutable portable application images Standard units of operations Separation of Dev-Ops concerns Efficient runtime Efficient image management

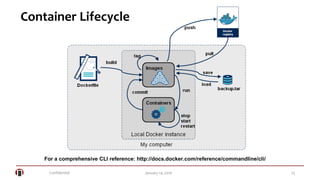

- 23. Confidential 23January 14,2016 Container Lifecycle For a comprehensive CLI reference: http://docs.docker.com/reference/commandline/cli/

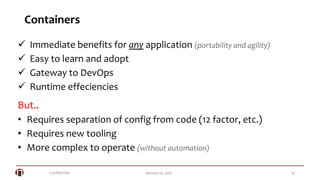

- 24. Confidential 24January 14,2016 Containers Immediate benefits for any application (portability and agility) Easy to learn and adopt Gateway to DevOps Runtime effeciencies But.. • Requires separation of config from code (12 factor, etc.) • Requires new tooling • More complex to operate (without automation)
- 25.

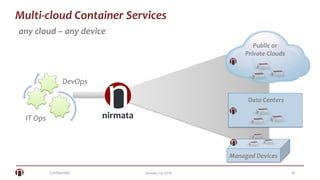

- 26. Confidential 26January 14,2016 DevOps Public or Private Clouds Multi-cloud Container Services nirmata any cloud – any device Managed Devices Data Centers IT Ops

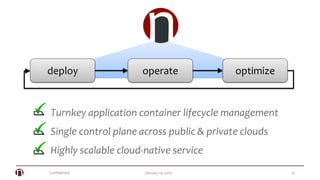

- 27. Confidential 27January 14,2016 deploy operate optimize Turnkey application container lifecycle management Single control plane across public & private clouds Highly scalable cloud-native service

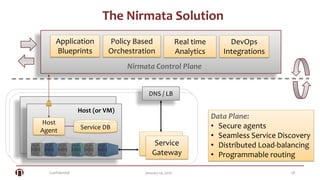

- 28. Confidential 28January 14,2016 Policy Based Orchestration Real time Analytics Application Blueprints DevOps Integrations Nirmata Control Plane Host Agent The Nirmata Solution Service DB Service Gateway Data Plane: • Secure agents • Seamless Service Discovery • Distributed Load-balancing • Programmable routing Host (or VM) DNS / LB
- 29. Infrastructure Container Policy-based Orchestration Microservices Infrastructure(optional) Application Lifecycle Management Resource Management & Scheduling Host Where Nirmata fits You choose

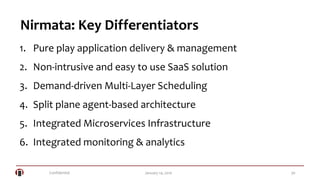

- 30. Confidential 30January 14,2016 Nirmata: Key Differentiators 1. Pure play application delivery & management 2. Non-intrusive and easy to use SaaS solution 3. Demand-driven Multi-Layer Scheduling 4. Split plane agent-based architecture 5. Integrated Microservices Infrastructure 6. Integrated monitoring & analytics
- 31.

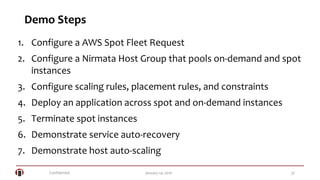

- 32. Confidential 32January 14,2016 Demo Steps 1. Configure a AWS Spot Fleet Request 2. Configure a Nirmata Host Group that pools on-demand and spot instances 3. Configure scaling rules, placement rules, and constraints 4. Deploy an application across spot and on-demand instances 5. Terminate spot instances 6. Demonstrate service auto-recovery 7. Demonstrate host auto-scaling

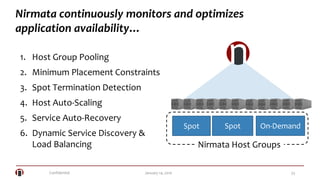

- 33. Confidential 33January 14,2016 Nirmata continuously monitors and optimizes application availability… Nirmata Host Groups Spot On-DemandSpot 1. Host Group Pooling 2. Minimum Placement Constraints 3. Spot Termination Detection 4. Host Auto-Scaling 5. Service Auto-Recovery 6. Dynamic Service Discovery & Load Balancing
- 34.

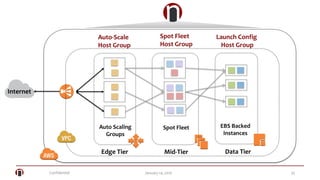

- 35. Confidential 35January 14,2016 Internet Auto Scaling Groups Edge Tier Mid-Tier Data Tier Spot Fleet EBS Backed Instances Auto-Scale Host Group Spot Fleet Host Group Launch Config Host Group

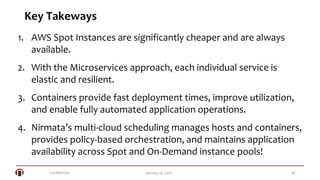

- 36. Confidential 36January 14,2016 Key Takeways 1. AWS Spot Instances are significantly cheaper and are always available. 2. With the Microservices approach, each individual service is elastic and resilient. 3. Containers provide fast deployment times, improve utilization, and enable fully automated application operations. 4. Nirmata’s multi-cloud scheduling manages hosts and containers, provides policy-based orchestration, and maintains application availability across Spot and On-Demand instance pools!
- 37. Thank you! https://try.nirmata.io test driveNirmata for free at:
