Microservices and Serverless Computing - OpenWhisk
This document discusses microservices and serverless architectures. It provides definitions of microservices as smaller, independent services with single responsibilities. It compares monolithic architectures to microservice architectures. It then introduces serverless computing as consuming compute resources on a per-request basis and discusses how it can provide cost savings through scaling instantly and charging at a fine-grained level. It outlines OpenWhisk as a serverless platform and describes how it allows triggering actions through events and chaining actions to build applications.
More Related Content
Similar to Microservices and Serverless Computing - OpenWhisk
Microservices and Serverless Computing - OpenWhisk
- 1. { "name": "Vidyasagar Machupalli", "website":"http: //vidyasagarmsc.com", "tweets": "@VidyasagarMSC” }

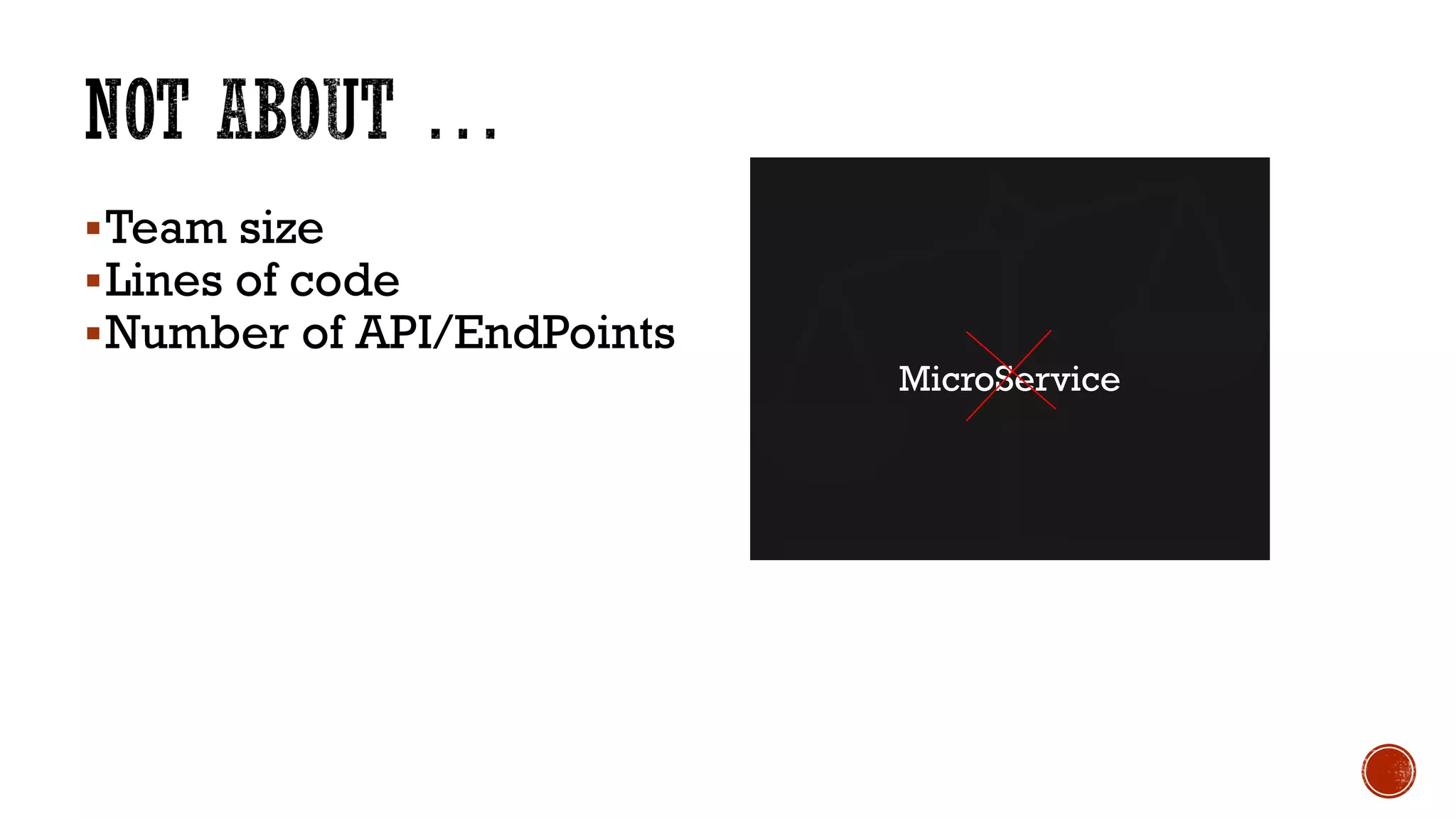

- 3. §Team size §Lines ofcode §Number of API/EndPoints MicroService
- 4. § Many smaller(fine grained), clearly scoped services § Single Responsibility Principle § Domain Driven Development § Bounded Context § Independently Managed § Clear ownership for each service § Typically need/adopt the “DevOps” model Attribution: Adrian Cockroft, Martin Fowler …
- 5.

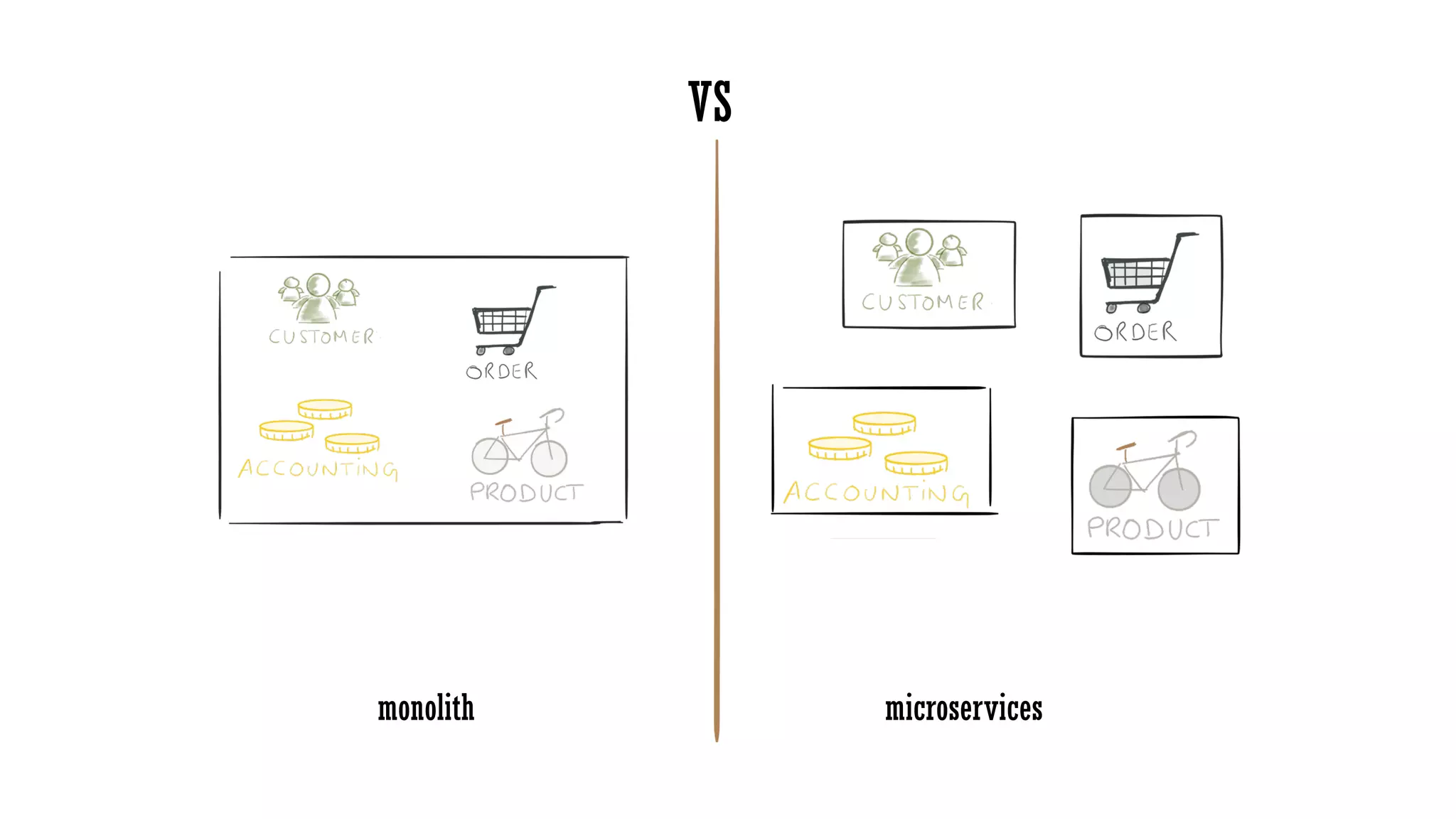

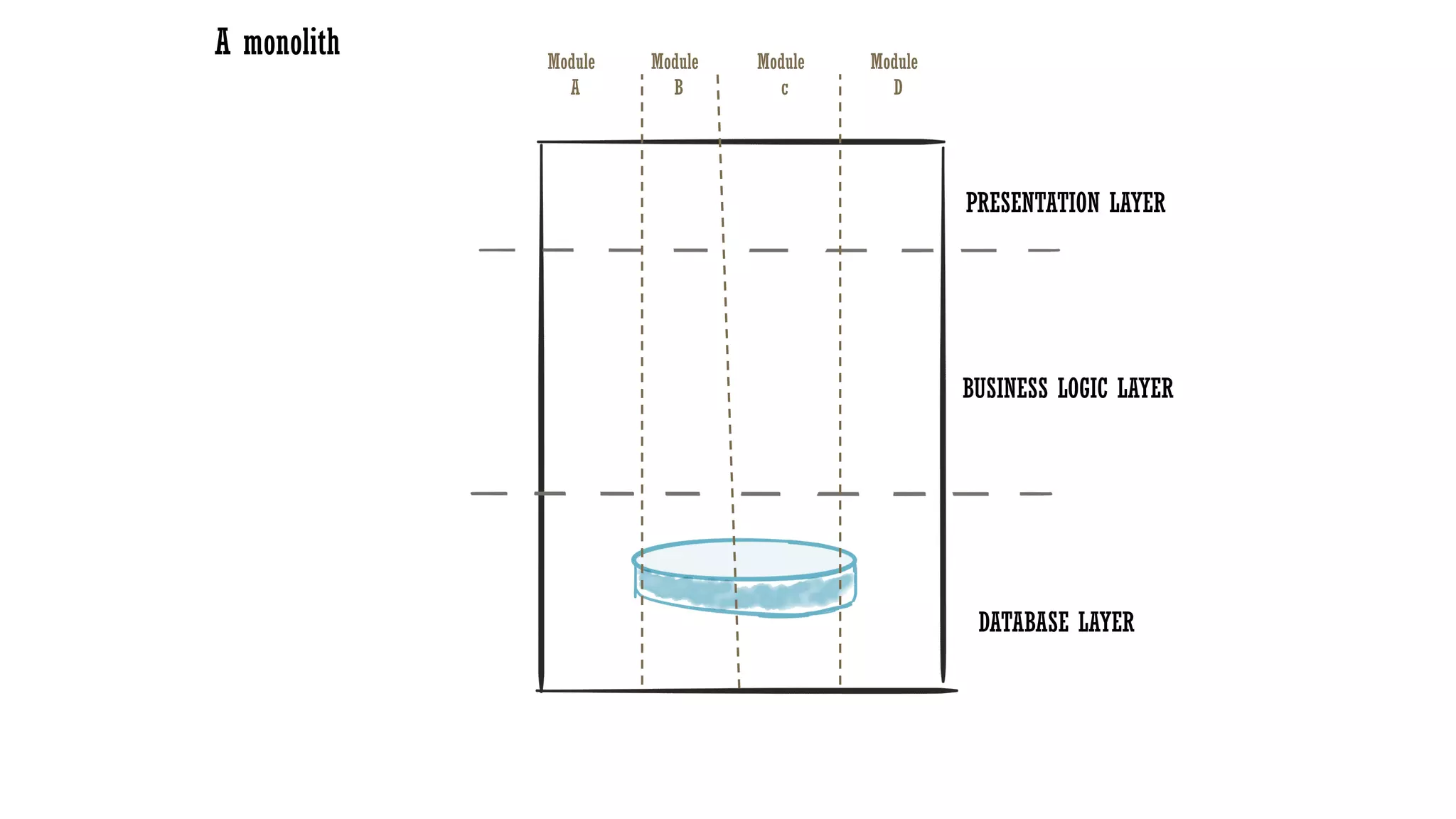

- 6. PRESENTATION LAYER BUSINESS LOGICLAYER DATABASE LAYER A monolith Module A Module B Module c Module D
- 7.

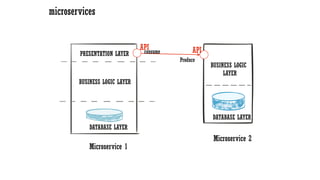

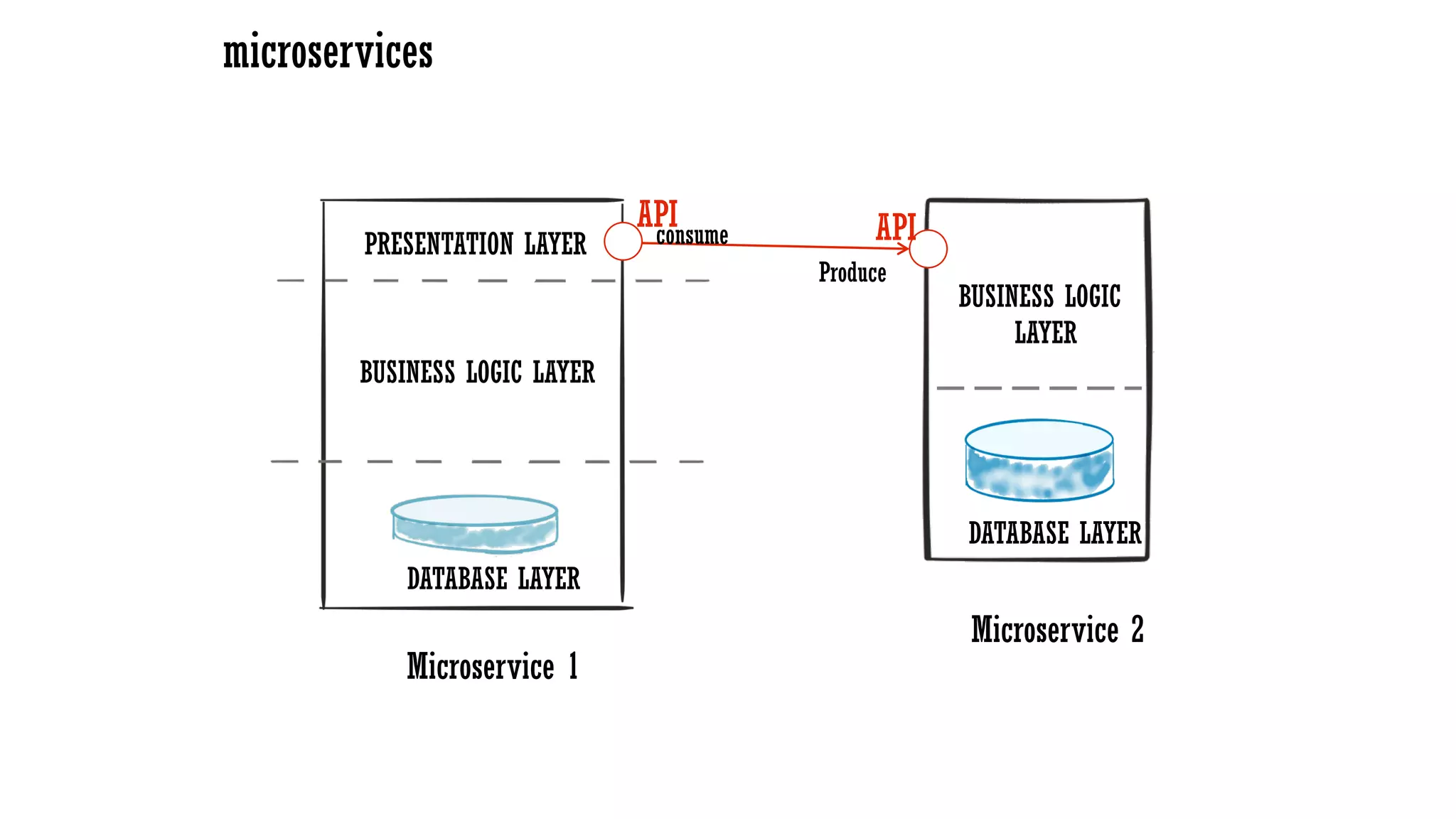

- 8. PRESENTATION LAYER BUSINESS LOGICLAYER DATABASE LAYER microservices API API BUSINESS LOGIC LAYER DATABASE LAYER consume Produce Microservice 1 Microservice 2

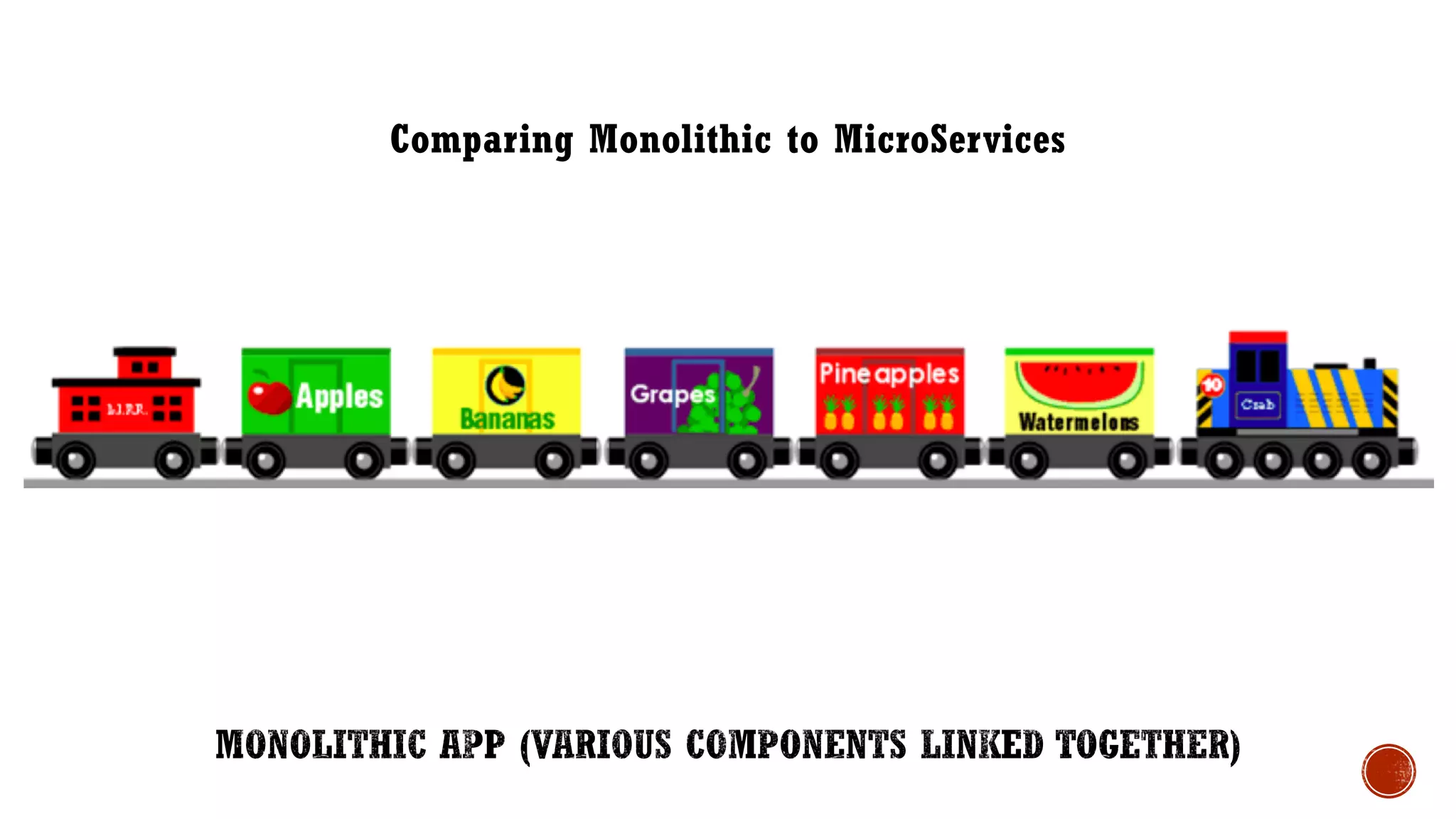

- 9. Comparing Monolithic toMicroServices

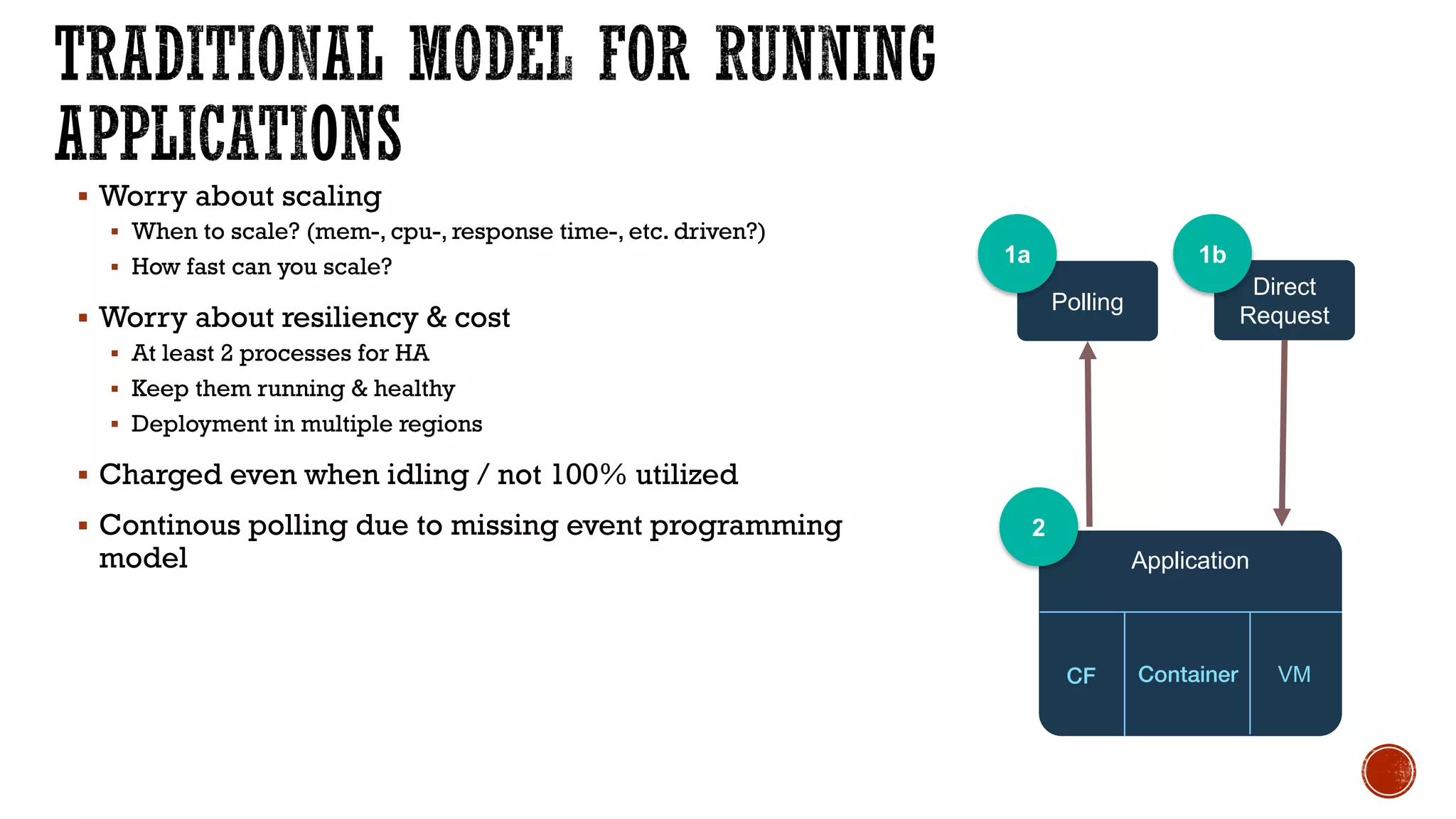

- 11. Swift Application Container VMCF 2 Direct Request 1b Polling 1a § Worryabout scaling § When to scale? (mem-, cpu-, response time-, etc. driven?) § How fast can you scale? § Worry about resiliency & cost § At least 2 processes for HA § Keep them running & healthy § Deployment in multiple regions § Charged even when idling / not 100% utilized § Continous polling due to missing event programming model

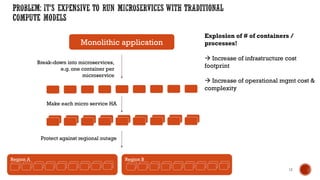

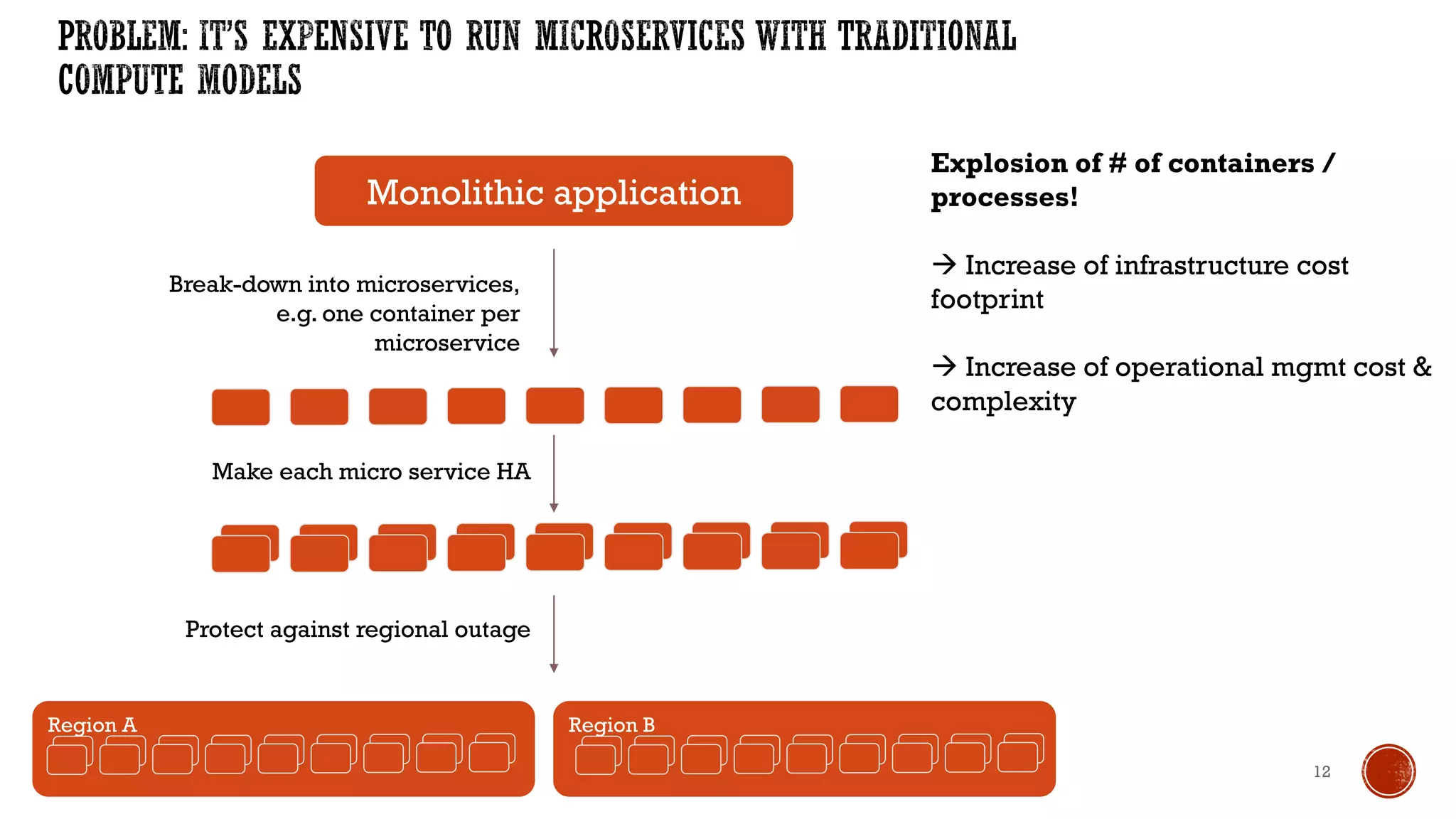

- 12. Region BRegion A 12 Monolithicapplication Break-down into microservices, e.g. one container per microservice Make each micro service HA Protect against regional outage Explosion of # of containers / processes! à Increase of infrastructure cost footprint à Increase of operational mgmt cost & complexity

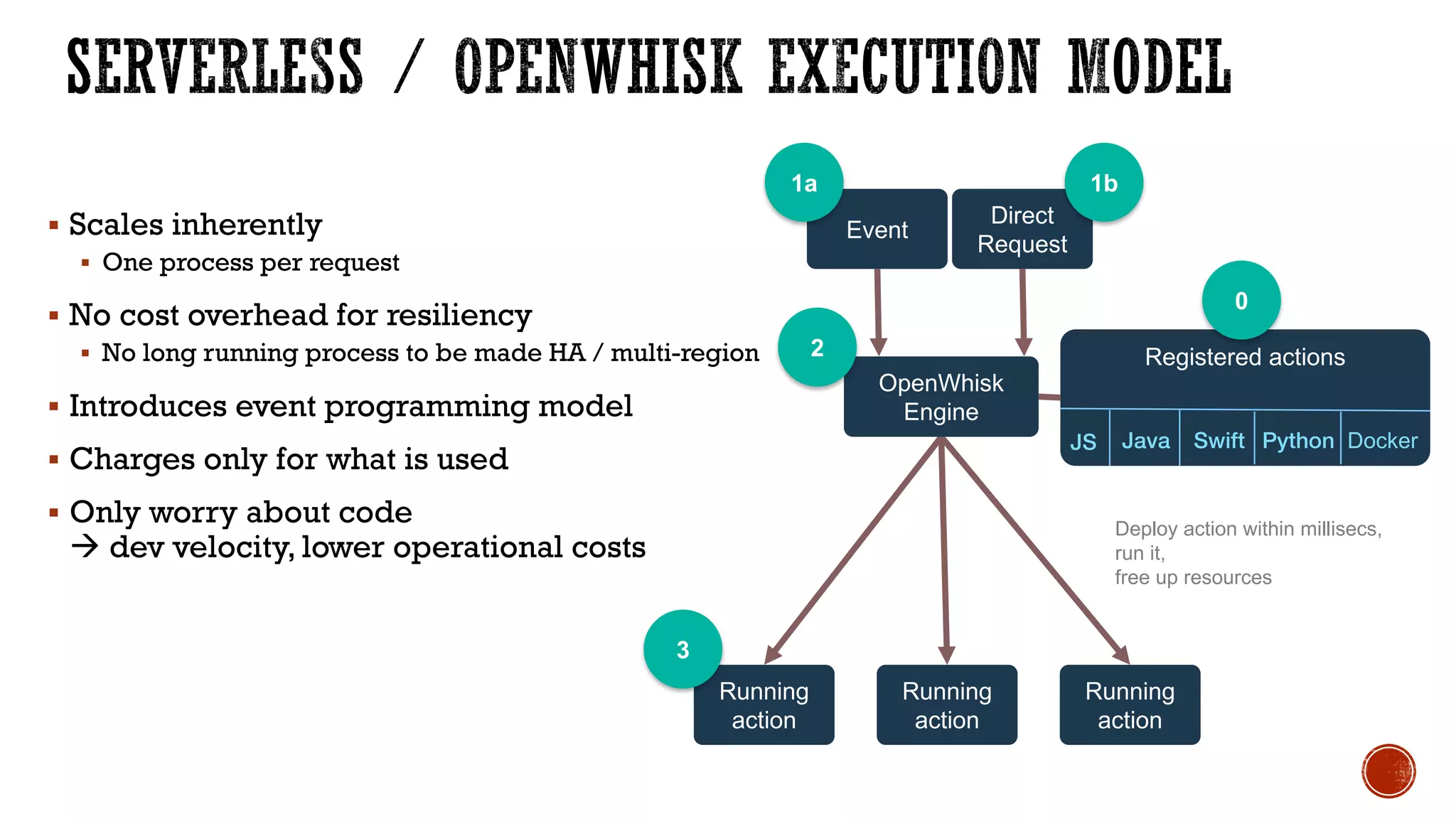

- 13. § Scales inherently §One process per request § No cost overhead for resiliency § No long running process to be made HA / multi-region § Introduces event programming model § Charges only for what is used § Only worry about code à dev velocity, lower operational costs Registered actions Swift DockerJS Event 1a Running action Running action Running action 3 Deploy action within millisecs, run it, free up resources OpenWhisk Engine 2 PythonJava 0 Direct Request 1b

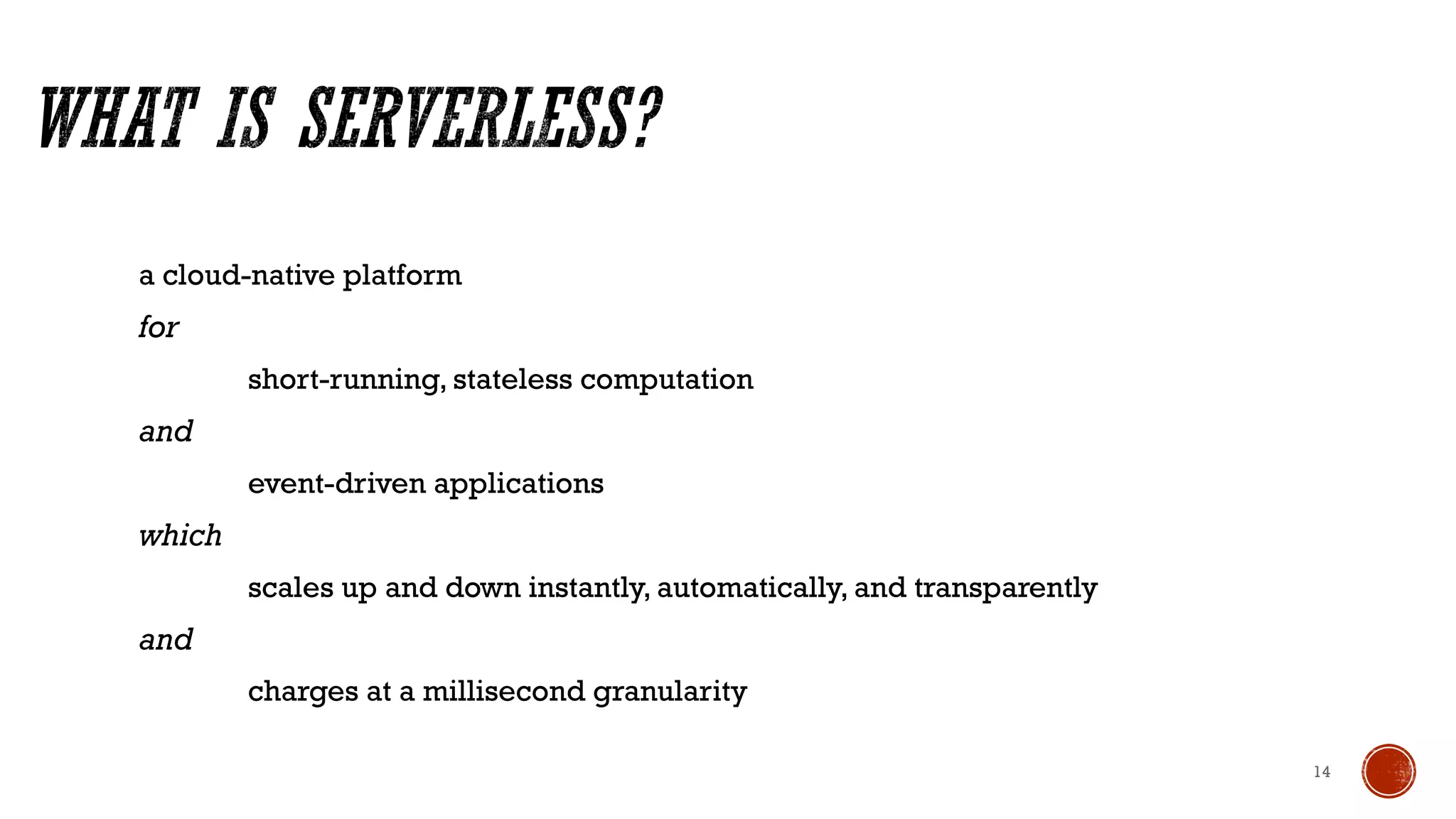

- 14. a cloud-native platform for short-running,stateless computation and event-driven applications which scales up and down instantly, automatically, and transparently and charges at a millisecond granularity 14

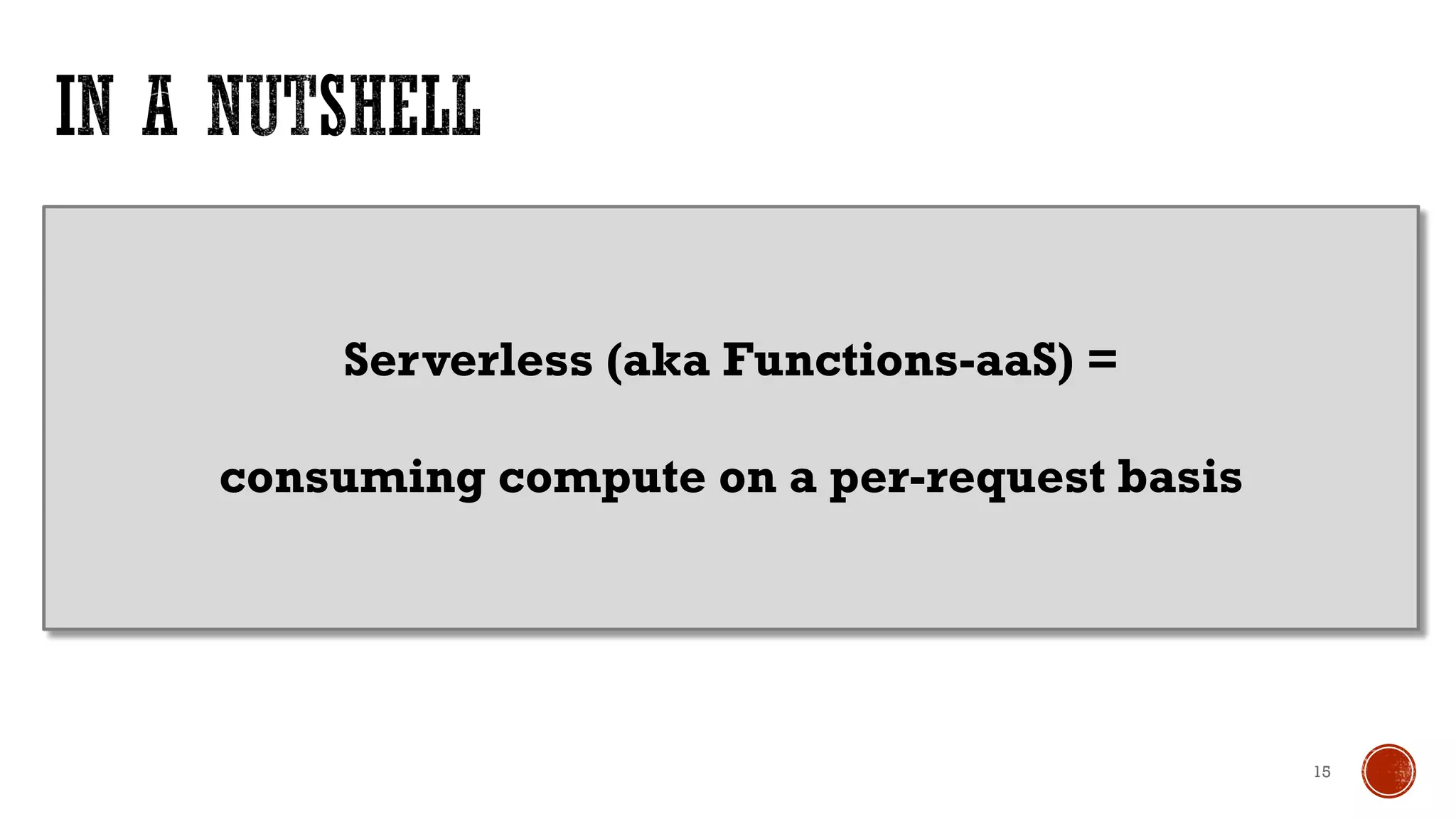

- 15. 15 Serverless (aka Functions-aaS)= consuming compute on a per-request basis

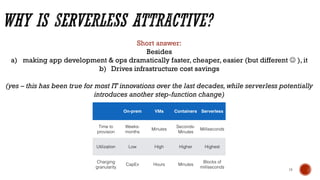

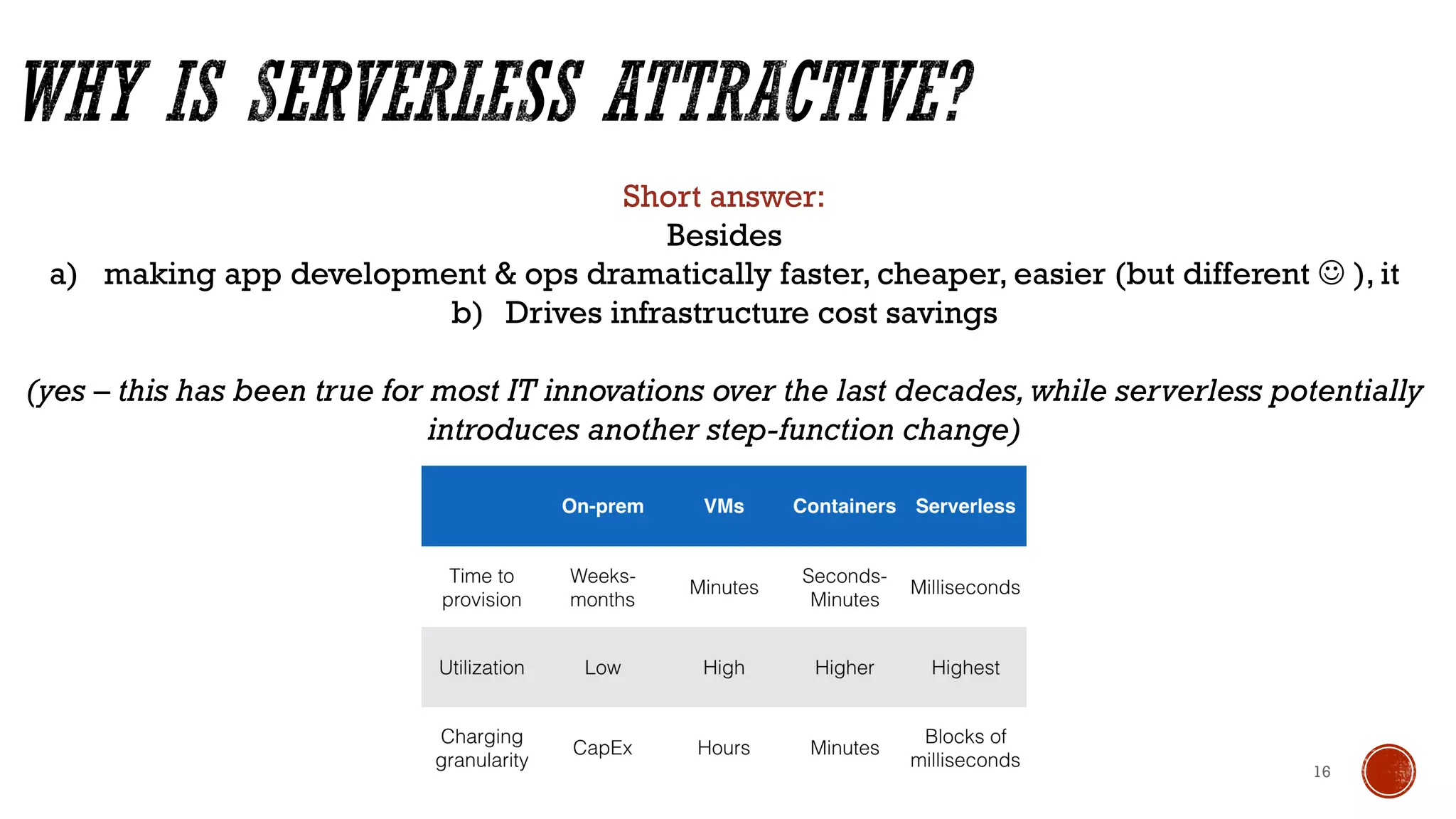

- 16. 16 Short answer: Besides a) makingapp development & ops dramatically faster, cheaper, easier (but different J ), it b) Drives infrastructure cost savings (yes – this has been true for most IT innovations over the last decades, while serverless potentially introduces another step-function change)
- 17.

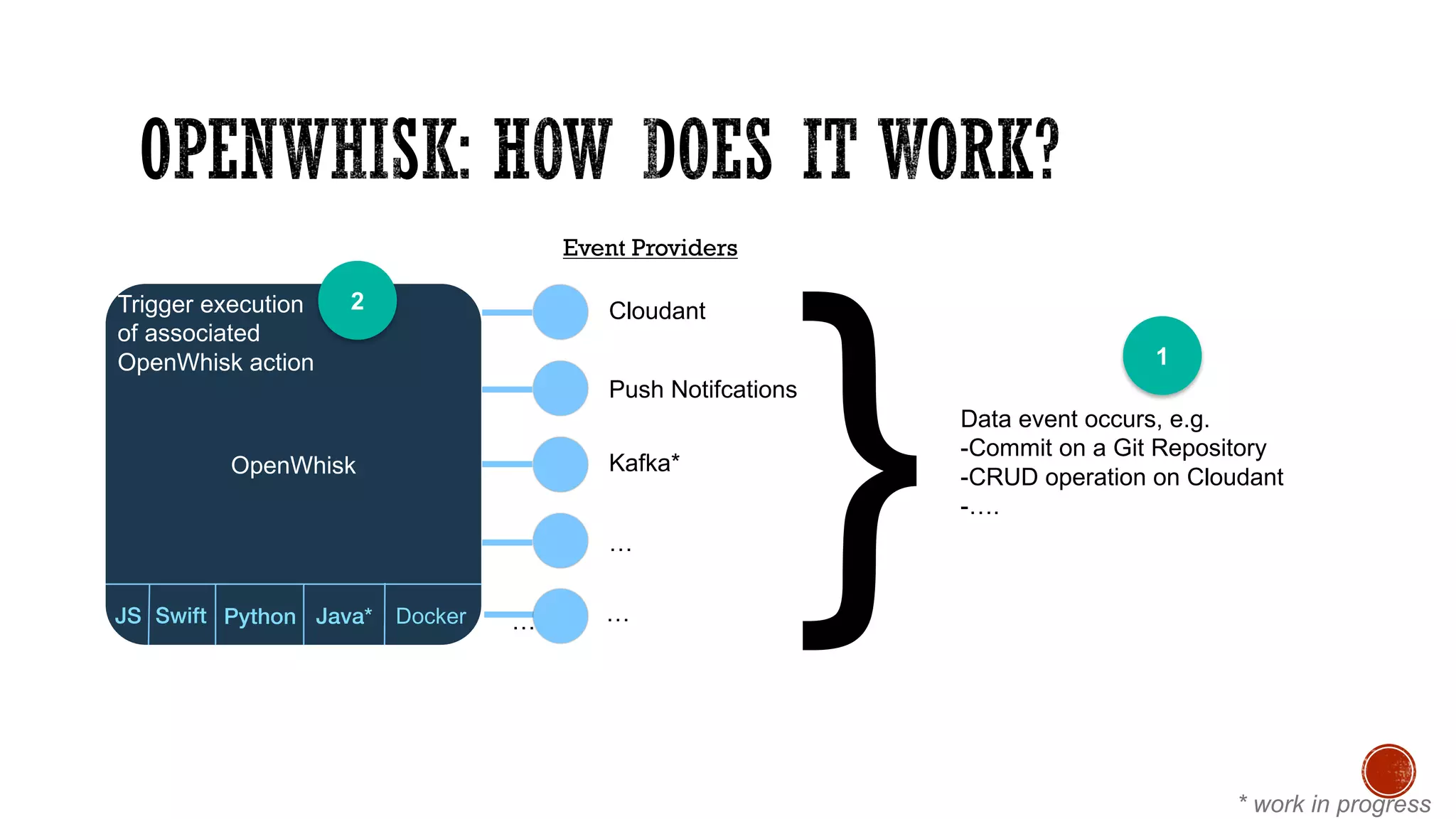

- 18. * work inprogress } 1 Event Providers Cloudant Push Notifcations Kafka* … … Data event occurs, e.g. -Commit on a Git Repository -CRUD operation on Cloudant -…. … OpenWhisk Trigger execution of associated OpenWhisk action 2 Swift DockerJS Python Java*

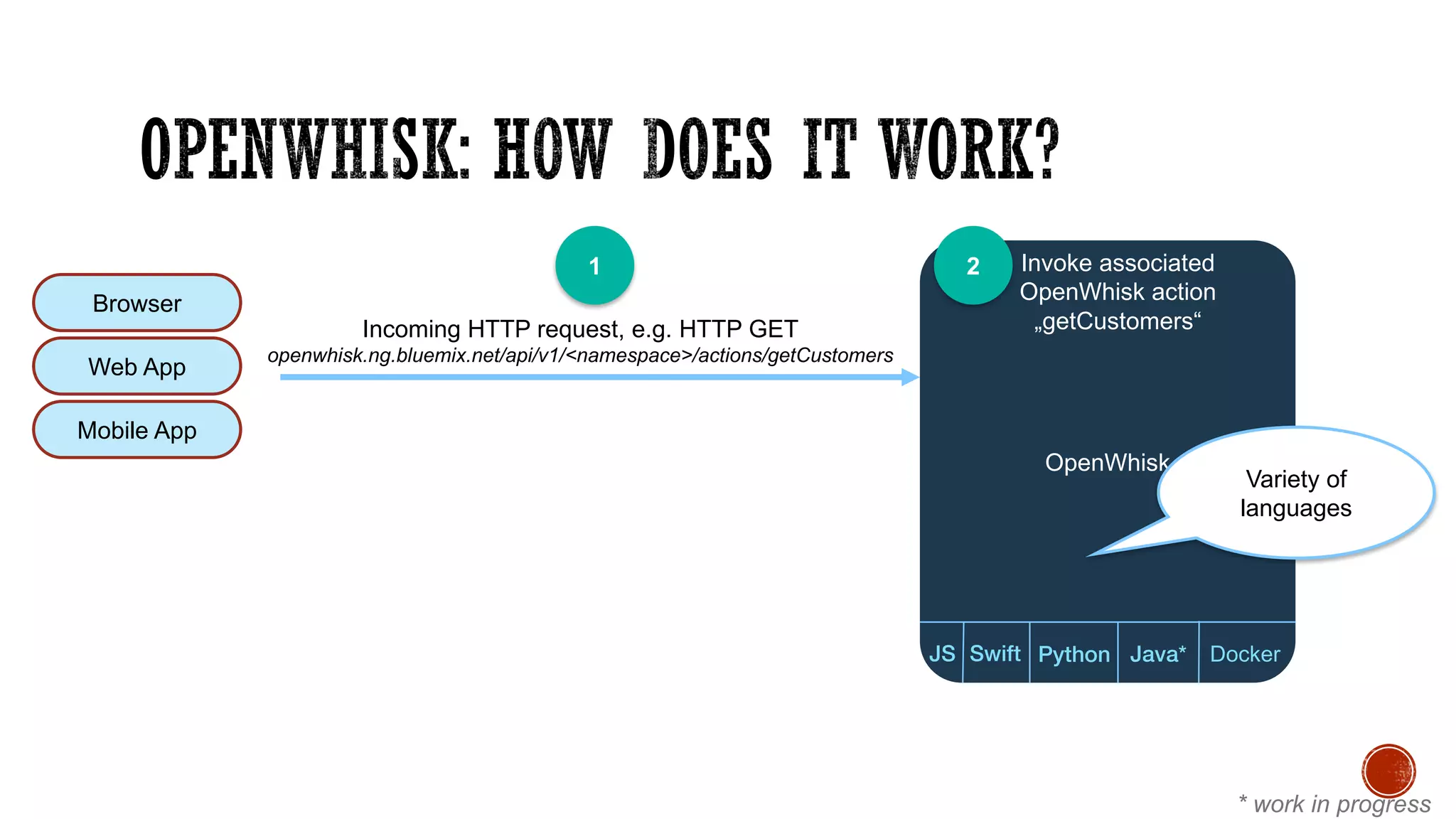

- 19. Incoming HTTP request,e.g. HTTP GET openwhisk.ng.bluemix.net/api/v1/<namespace>/actions/getCustomers 1 Browser Mobile App Web App OpenWhisk 2 Invoke associated OpenWhisk action „getCustomers“ Swift DockerJS Python Java* Variety of languages * work in progress

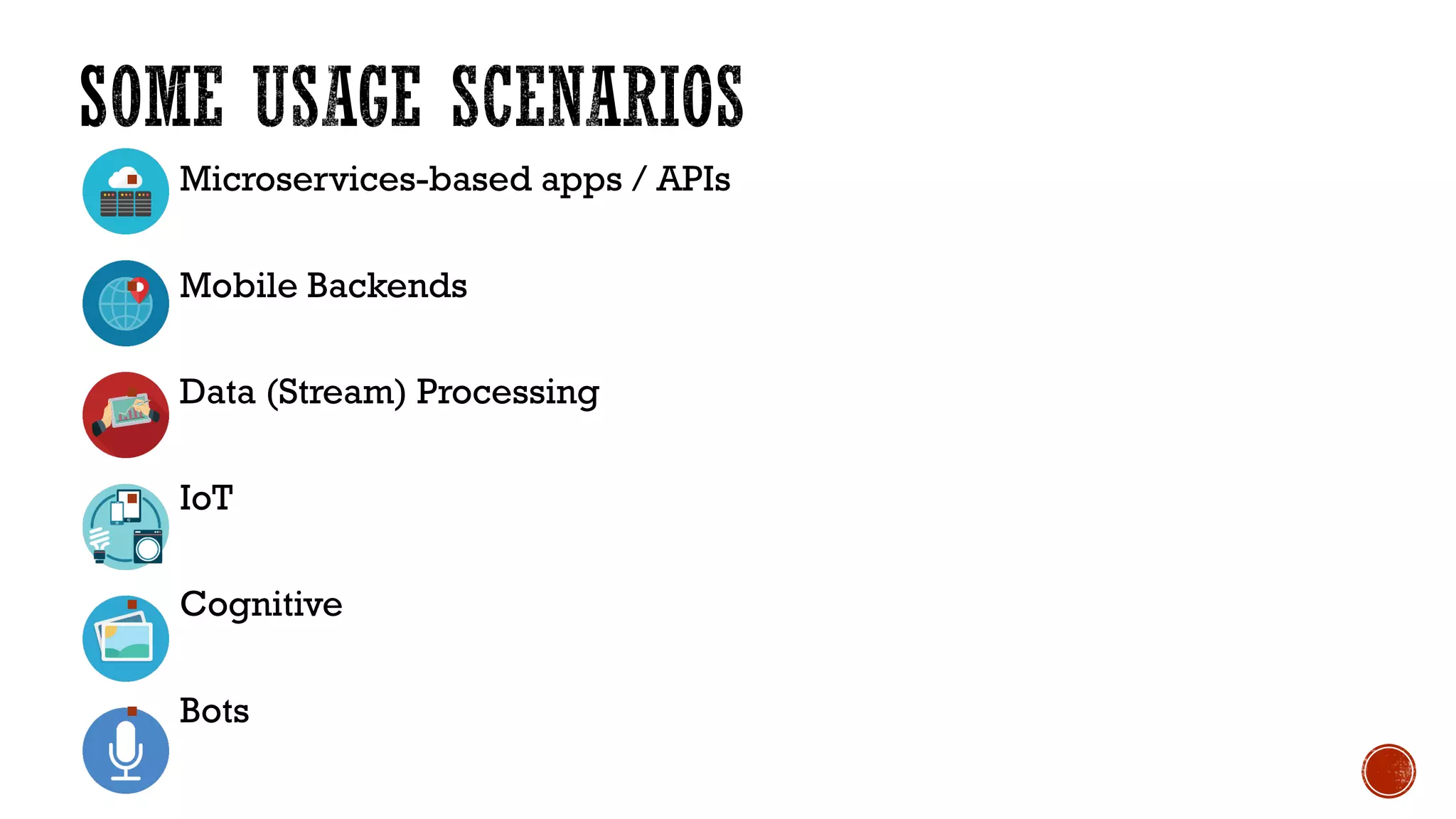

- 20. § Microservices-based apps/ APIs § Mobile Backends § Data (Stream) Processing § IoT § Cognitive § Bots

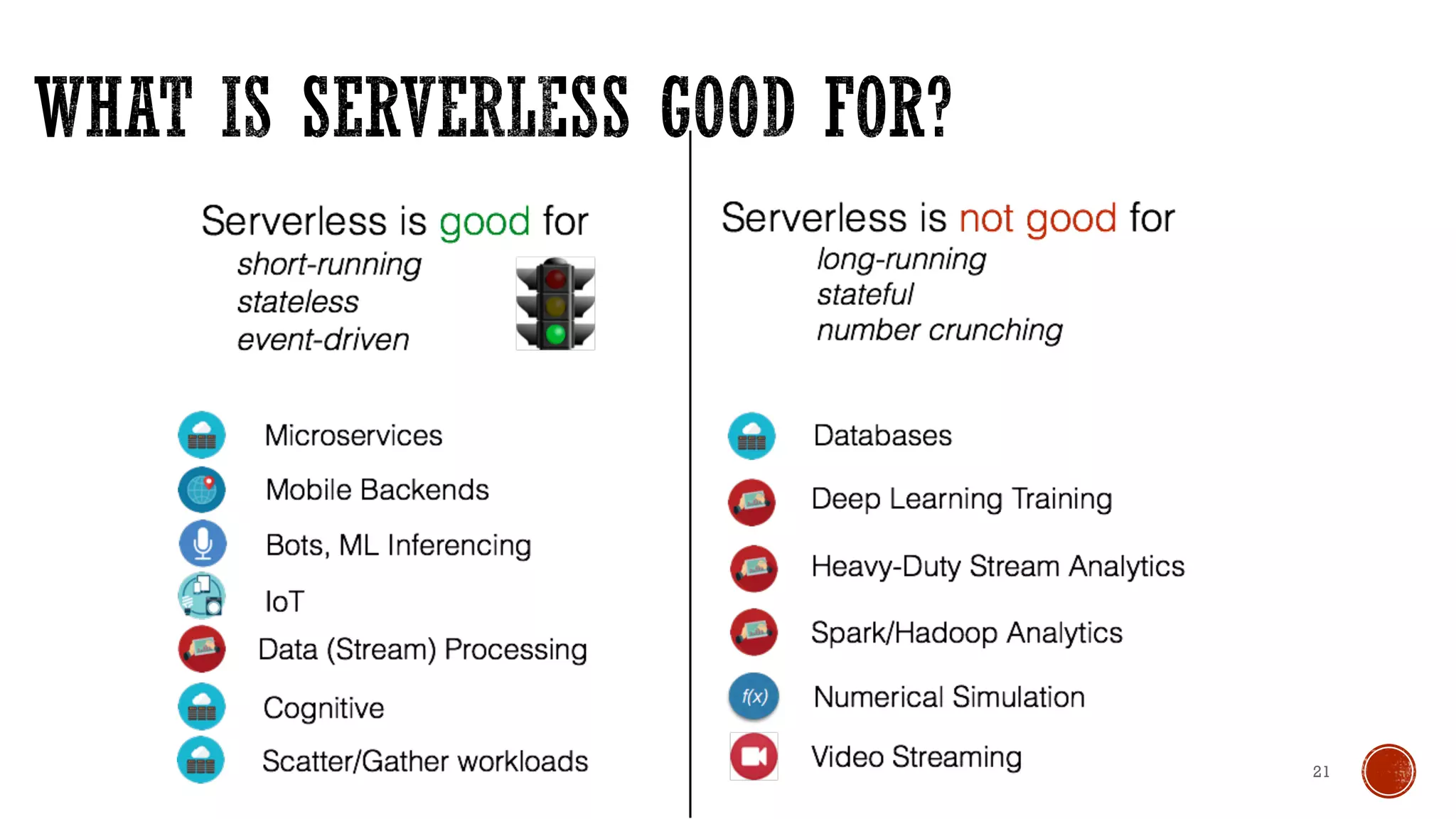

- 21.
- 22.

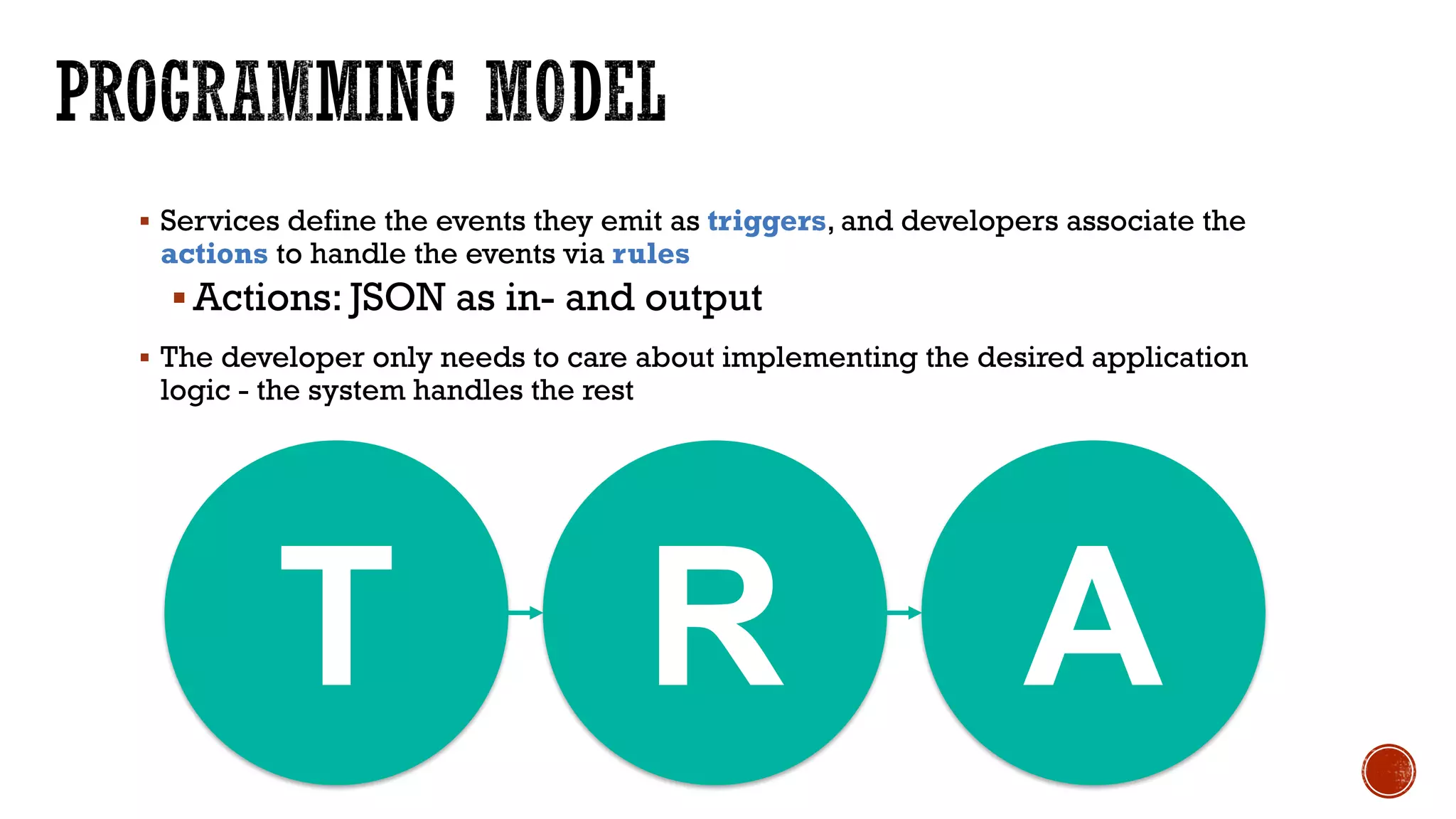

- 23. § Services definethe events they emit as triggers, and developers associate the actions to handle the events via rules § Actions: JSON as in- and output § The developer only needs to care about implementing the desired application logic - the system handles the rest T R A

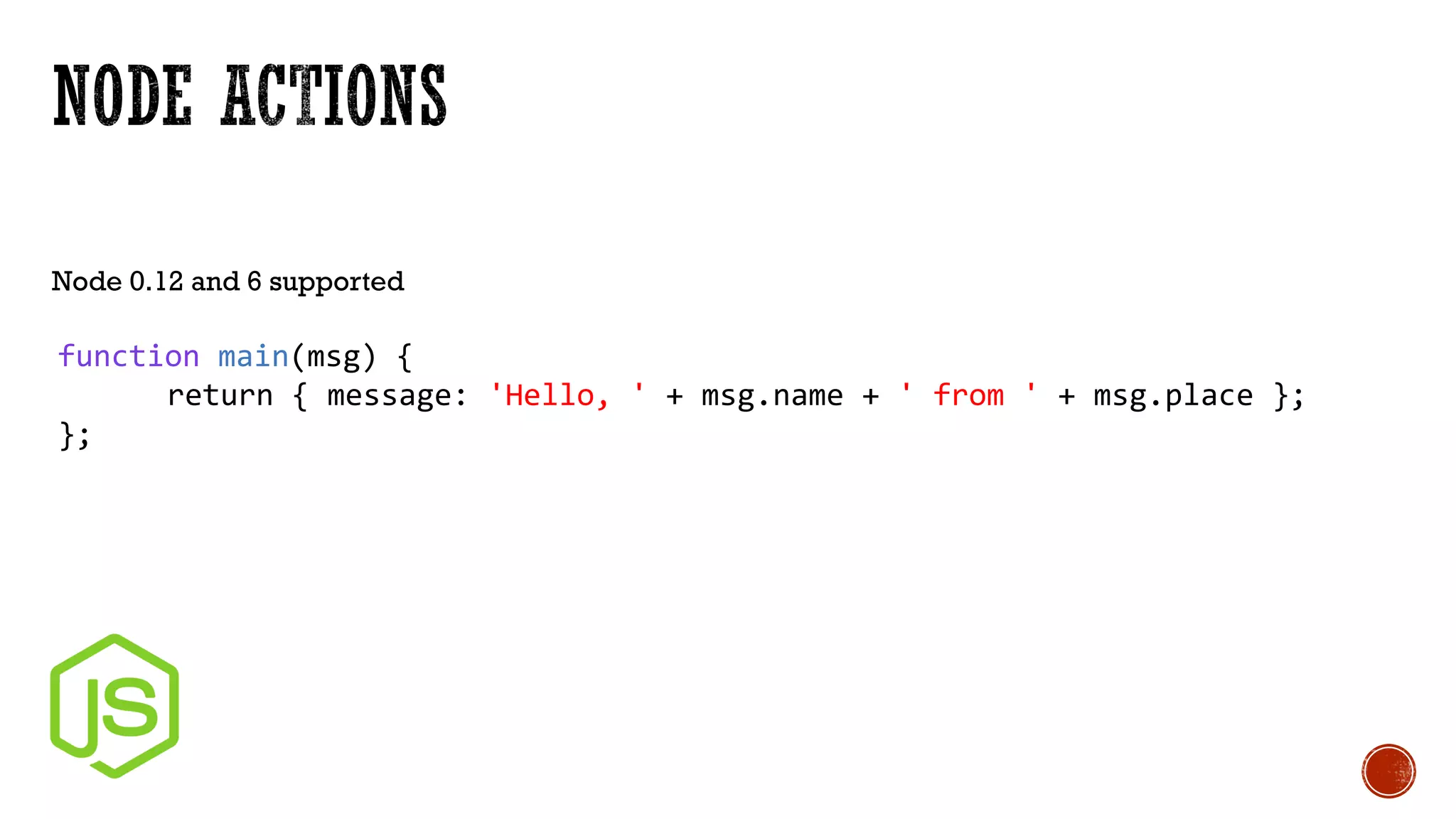

- 24. Node 0.12 and6 supported function main(msg) { return { message: 'Hello, ' + msg.name + ' from ' + msg.place }; };

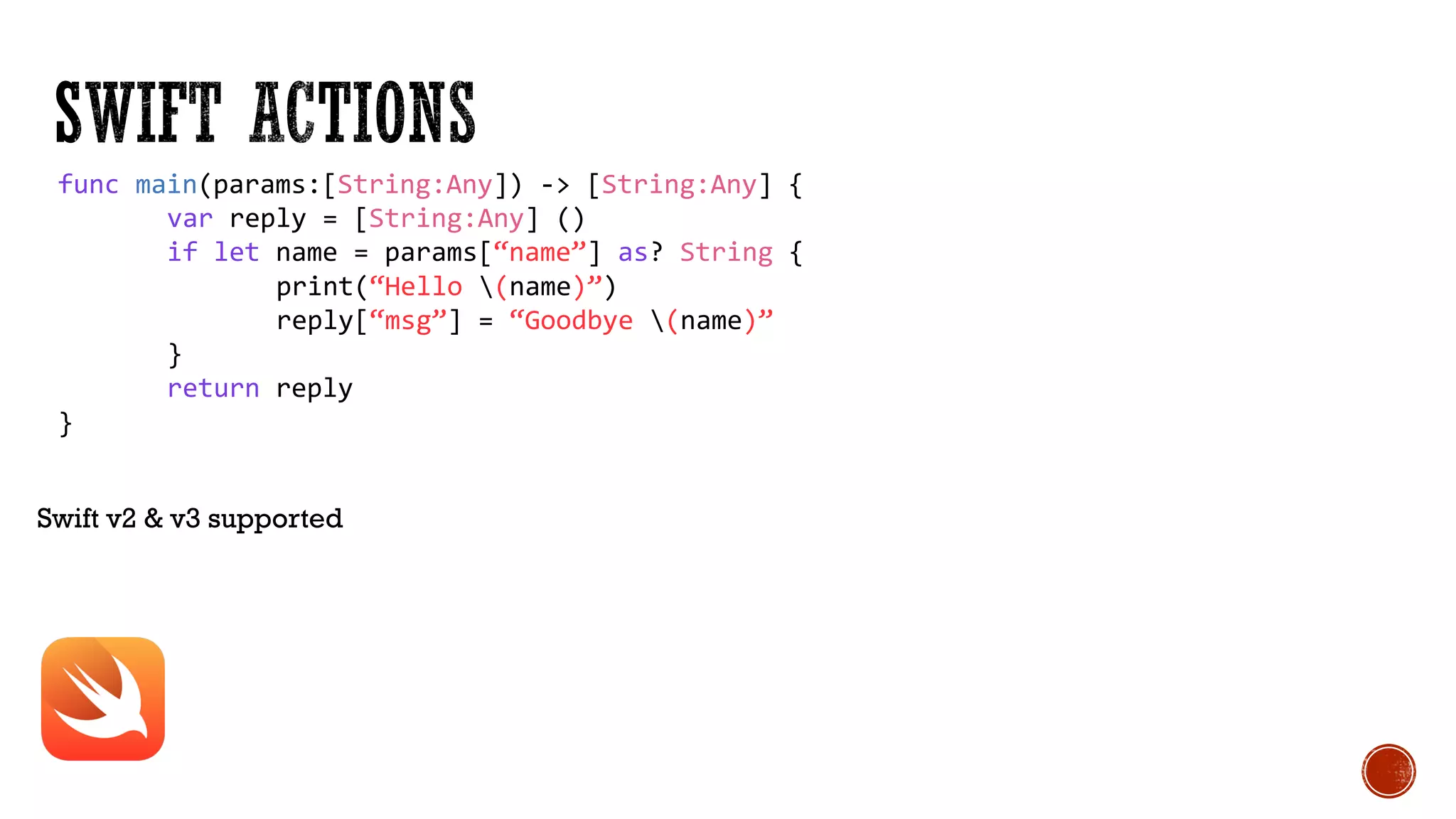

- 25. Swift v2 &v3 supported func main(params:[String:Any]) -> [String:Any] { var reply = [String:Any] () if let name = params[“name”] as? String { print(“Hello (name)”) reply[“msg”] = “Goodbye (name)” } return reply }

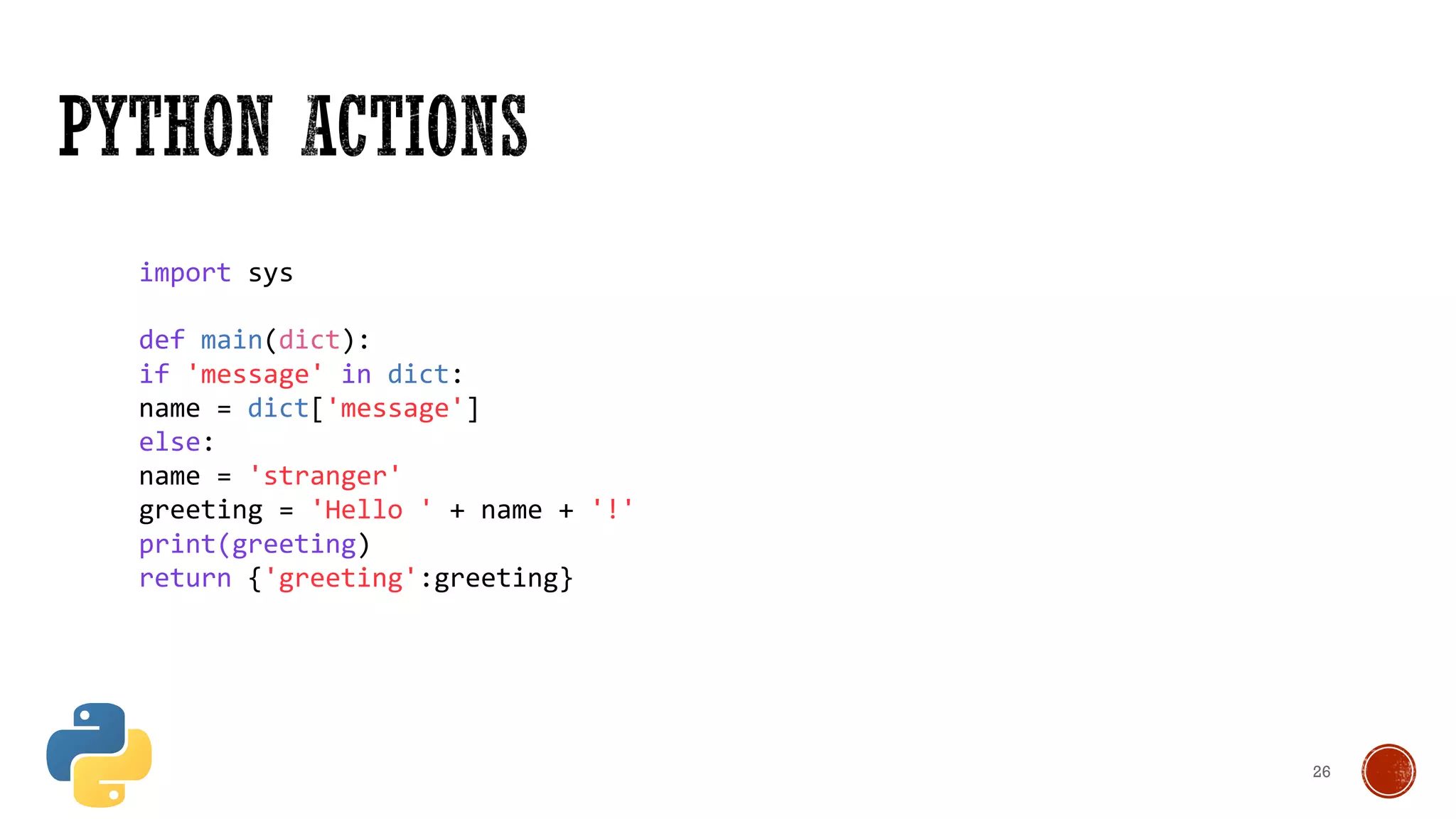

- 26. 26 import sys def main(dict): if'message' in dict: name = dict['message'] else: name = 'stranger' greeting = 'Hello ' + name + '!' print(greeting) return {'greeting':greeting}

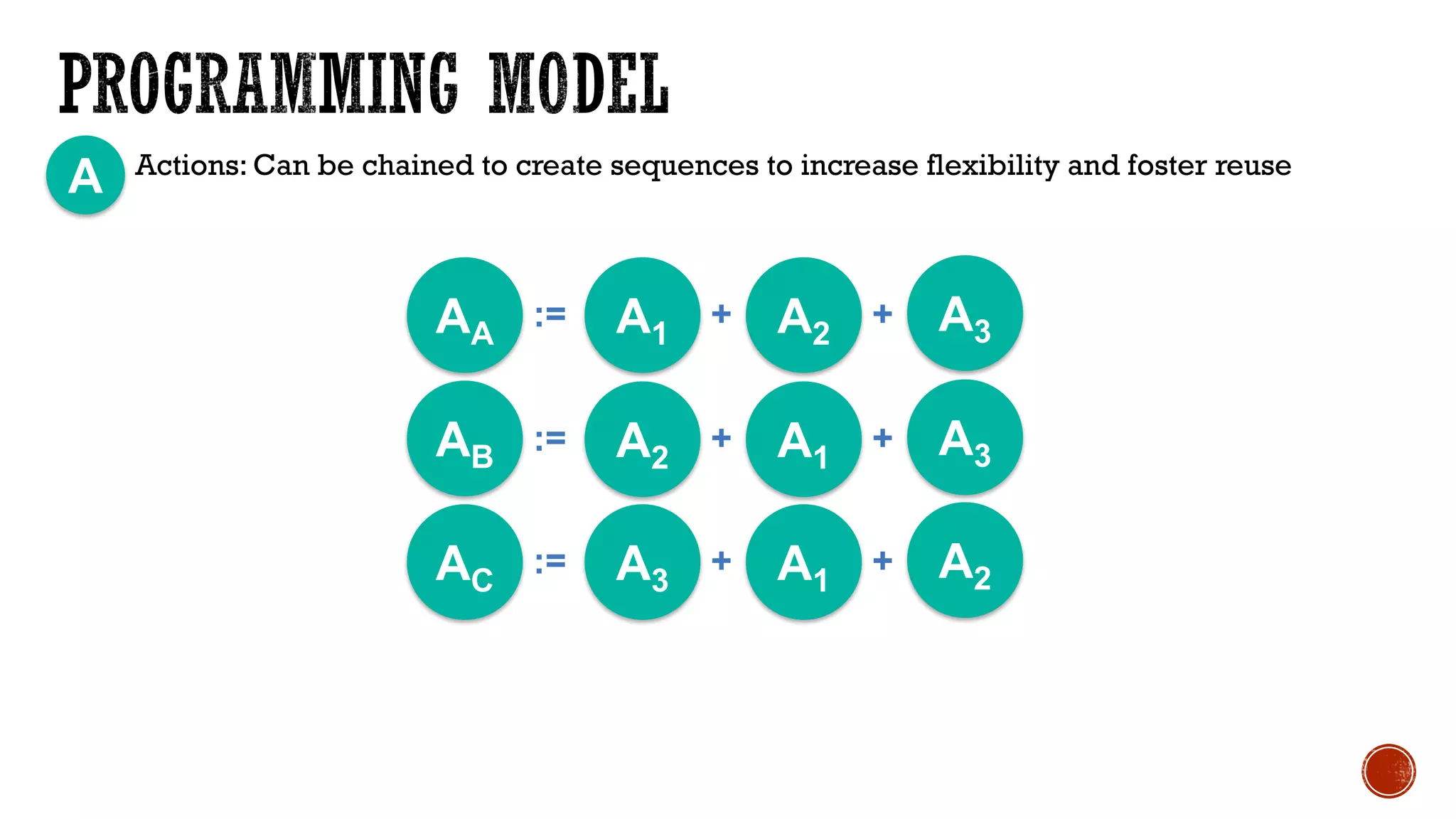

- 28. Actions: Can bechained to create sequences to increase flexibility and foster reuse A AA := A1 + A2 + A3 AB := A2 + A1 + A3 AC := A3 + A1 + A2

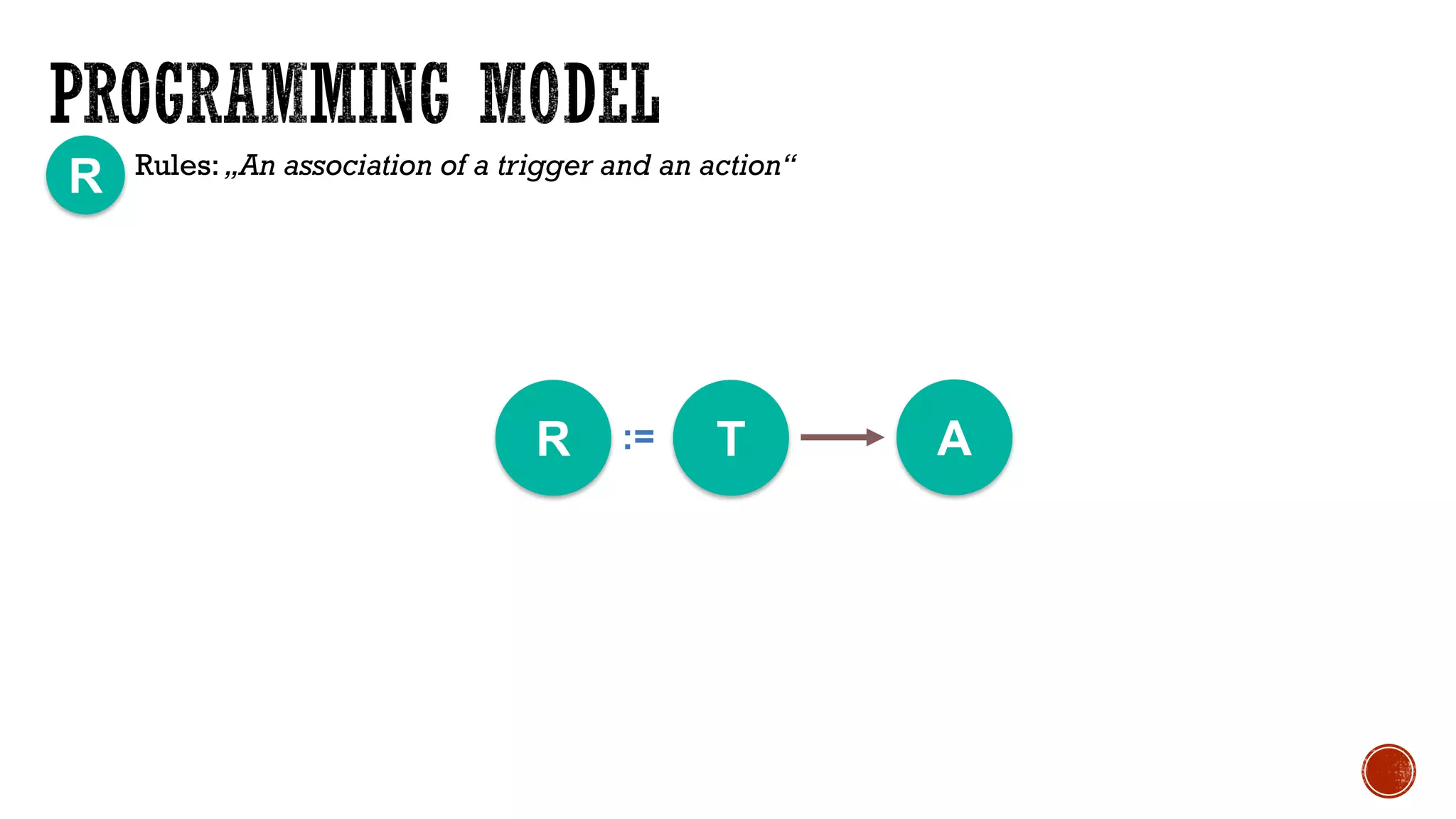

- 29. Rules: „An associationof a trigger and an action“ R R := T A
- 30.

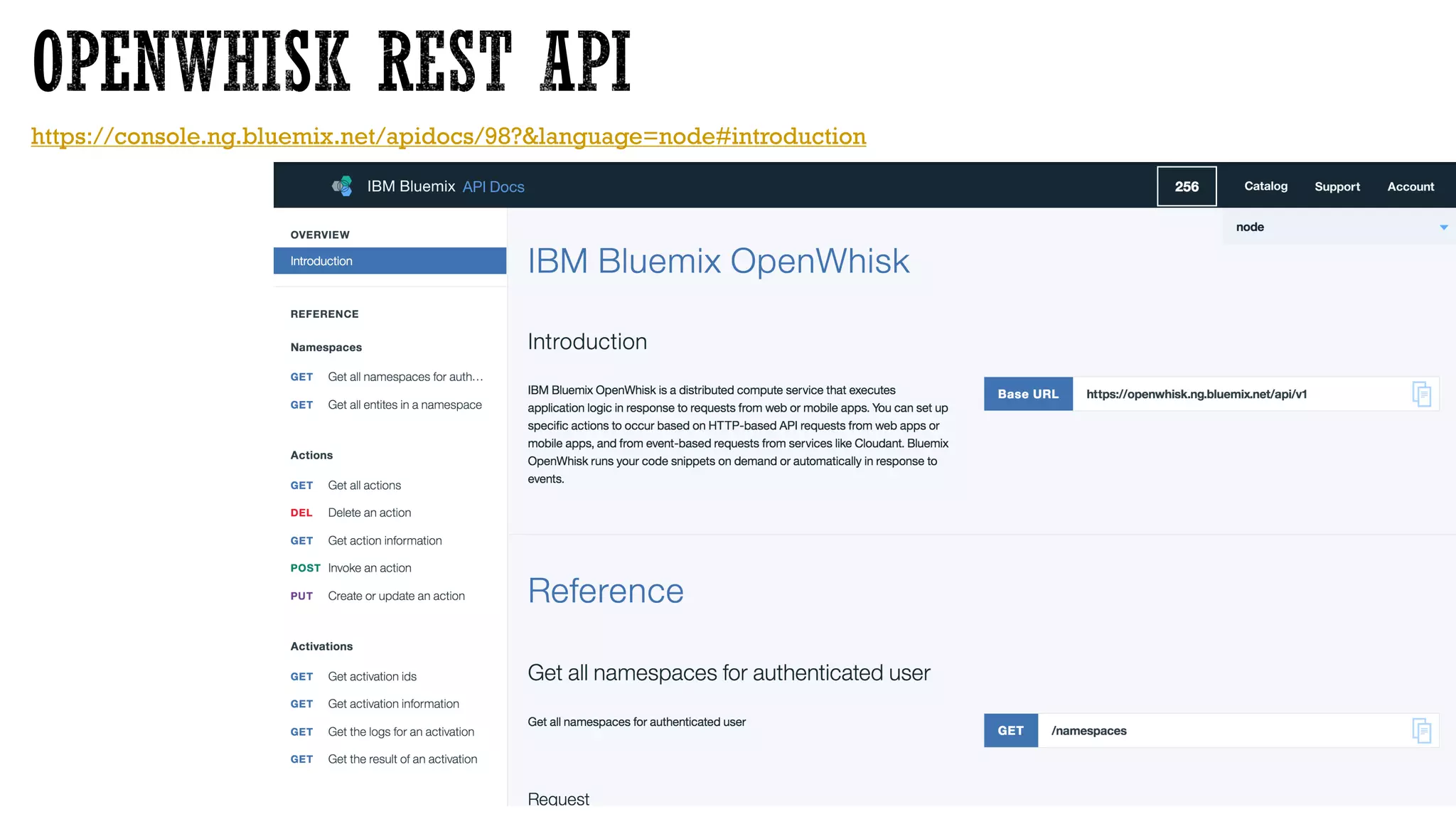

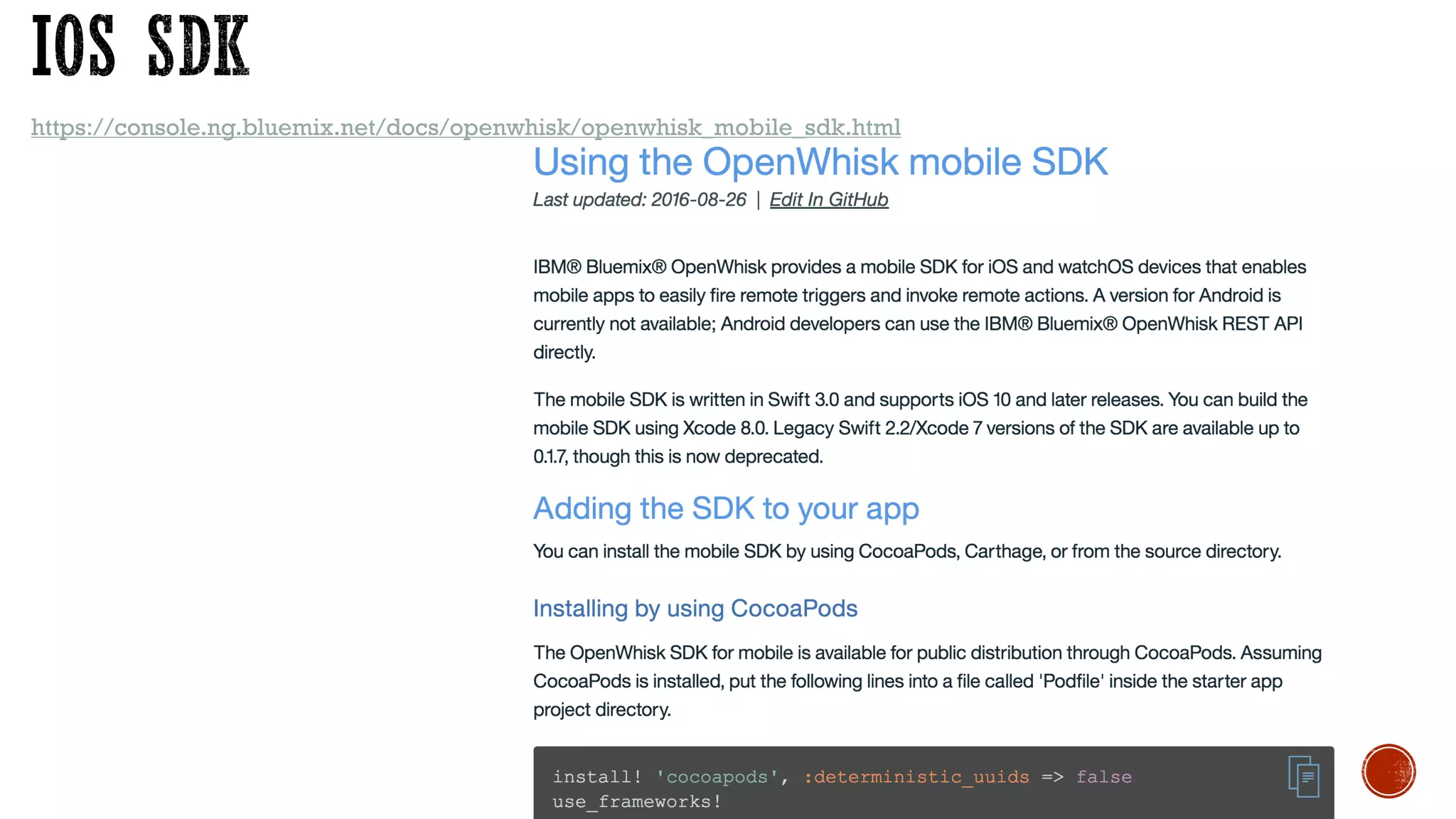

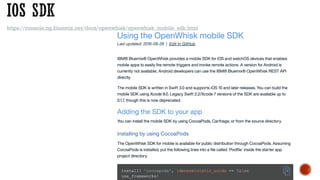

- 31. § Bluemix UI §CLI § iOS SDK § REST API 31
- 32.
- 33.
