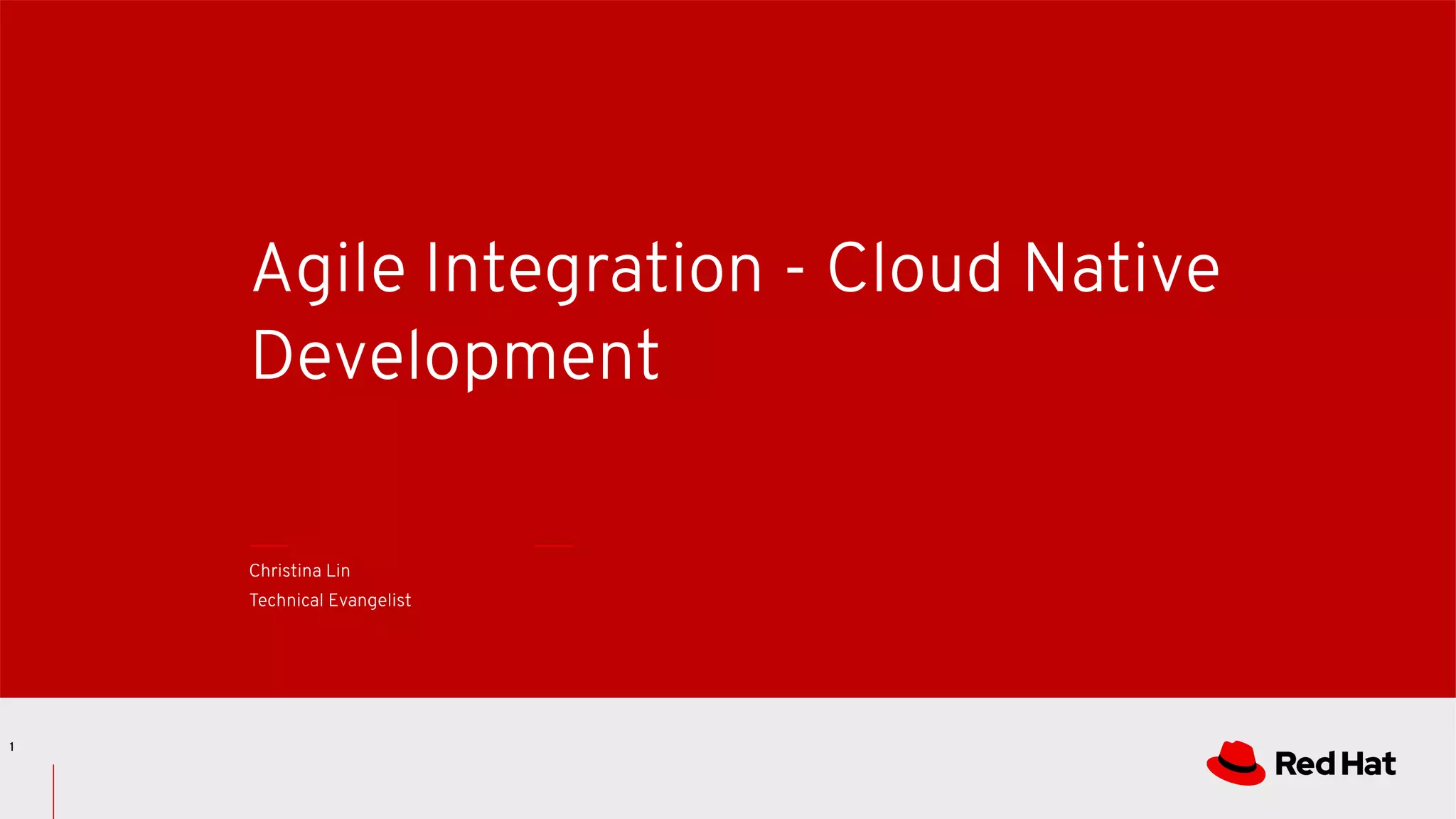

1. Agile Integration - Cloud Native
Development
Christina Lin
Technical Evangelist
1

2. Christina Lin
CORPORATE SLIDE TEMPLATES
2
Technical
Marketing
Manager
Twitter: @Christina_wm
Email: clin@redhat.com
● Workshops
● Demos
● Blogs
Technical
Evangelist

3. 3
Cloud Native
Empower organizations to build and run scalable
application on modern dynamic environment such as
public, private and hybrid clouds.
--CNCF Charter https://github.com/cncf/foundation/blob/master/charter.md
Speed
Access
Scale

4. 4

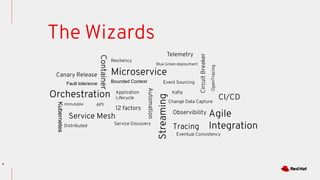

The Wizards
ContainerOrchestration
Fault tolerance
Microservice
Bounded Context
Kubernetes
Streaming
Change Data Capture
Immutable
Automation
Service Mesh
Resiliency
CircuitBreaker
Event Sourcing
Observibility
Canary Release
Blue Green deployment
Telemetry
TracingService Discovery
Application
Lifecycle
API
Kafla
Agile
Integration
12 factors
OpenTracing
Distributed
Eventual Consistency
CI/CD

5. 5

6. 6

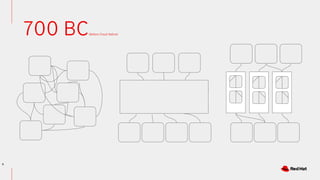

700 BC(Before Cloud-Native)

7. 7

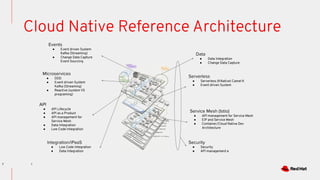

Cloud Native Reference Architecture
7
Data
● Data Integration
● Change Data Capture
Events
● Event driven System
Kafka (Streaming)
● Change Data Capture
Event Sourcing
Service Mesh (Istio)
● API management for Service Mesh
● EIP and Service Mesh
● Container/Cloud Native Dev
Architecture
API
● API Lifecycle
● API as a Product
● API management for
Service Mesh
● Data Integration
● Low Code Integration
Microservices
● DDD
● Event driven System
Kafka (Streaming)
● Reactive (system VS
programing)
Serverless
● Serverless (KNative) Camel K
● Event driven System
Integration/iPaaS
● Low Code Integration
● Data Integration
Security
● Security
● API management e

8. 8

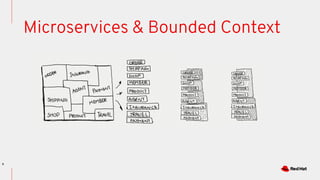

Microservices & Bounded Context

9. 9
Microservices & Bounded Context

10. 10

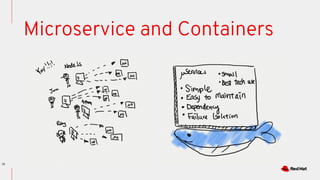

Microservice and Containers

11. 11

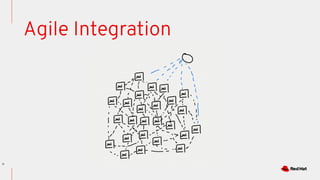

Agile Integration

12. 12
Agile Integration

13. 13

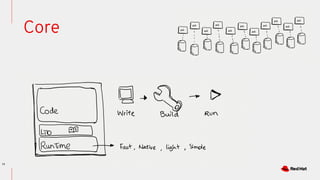

Core

14. 14

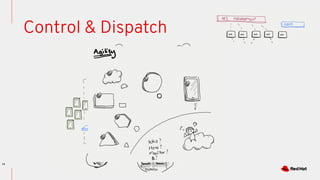

Control & Dispatch

15. 15
CODE First
Backend
Services
Integrate and
implement
service
Provide
Contract for
consumers
Back and forth
testing and
negotiating
Back and
forth update
changes
CODE FIRST

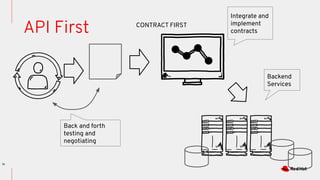

16. 16
API First
Backend
Services
Integrate and
implement
contracts
Back and forth
testing and
negotiating
CONTRACT FIRST

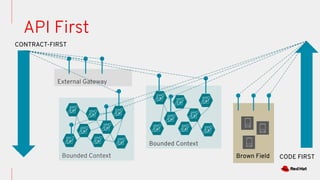

17. API First
Bounded Context
Bounded Context
External Gateway
CONTRACT-FIRST
CODE FIRSTBrown Field

18. API First

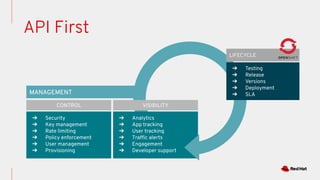

CONTROL
➔ Security
➔ Key management
➔ Rate limiting
➔ Policy enforcement
➔ User management
➔ Provisioning
VISIBILITY
➔ Analytics
➔ App tracking
➔ User tracking
➔ Traffic alerts
➔ Engagement
➔ Developer support
MANAGEMENT
➔ Testing
➔ Release
➔ Versions
➔ Deployment
➔ SLA
LIFECYCLE

19. 19
Composite

20. 20
EVENTS

21. 21

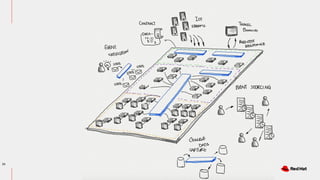

22. 22

23. 23

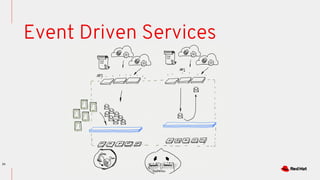

Event Driven Services

24. 24
What About Data Consistency?

25. Booking
Payment
Hotel
Flight
LRA
camel:
service:
lra:
enabled: true
coordinator-url: http://lra-coordinator.rhte.svc:46000
local-participant-url: http://${project.artifactId}:8080/api
.saga()
.propagation(SagaPropagation.MANDATORY)
.compensation("direct:cancelBooking")
.to("sql:INSERT INTO FLIGHT (custid, traveldatestart, traveldateend ) VALUES (:#id, :#traveldatestart,
:#traveldateend)?dataSource=dataSource")
.toD("http4://rhte-creditcard.rhte.svc:8080/credircard/pay/${header.id}/${header.payamt}?bridgeEndpoint=true")
.saga()
.setHeader(Exchange.HTTP_METHOD, constant("POST"))
.toD("http4://rhte-flight.rhte.svc:8080/api/book?bridgeEndpoint=true")
.toD("http4://rhte-hotel.rhte.svc:8080/api/book?bridgeEndpoint=true")
compensation
compensation

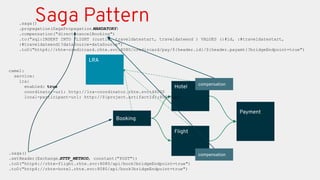

Saga Pattern

26. 26

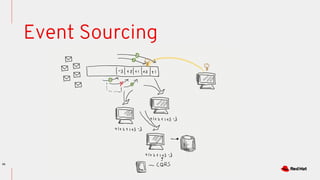

Event Sourcing

27. 27

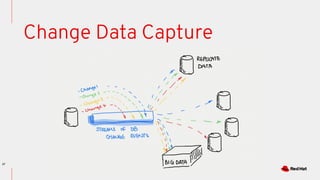

Change Data Capture

28. 28

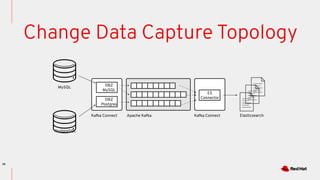

Change Data Capture Topology
DBZ
MySQL
DBZ
Postgres
ES
Connector
MySQL
PostgreSQL
ElasticsearchKafka Connect Kafka ConnectApache Kafka

29. 29
Agile Integration

30. 30

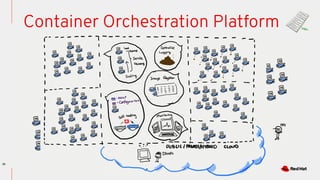

Container Orchestration Platform

31. 31

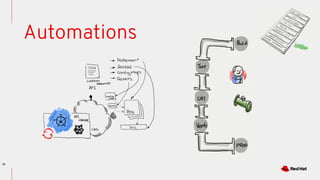

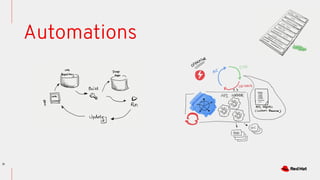

Automations

32. 32
Automations

33. 33

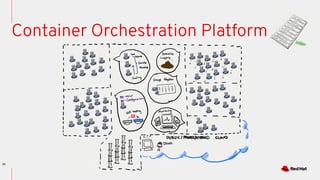

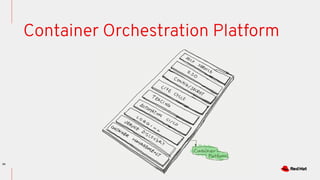

Container Orchestration Platform

34. 34
Container Orchestration Platform

35. 35

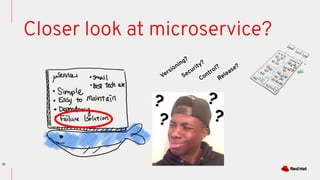

Closer look at microservice?
Versioning?
Security?
Control?
Release?

36. 36

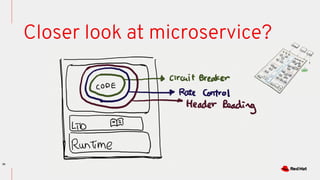

Closer look at microservice?

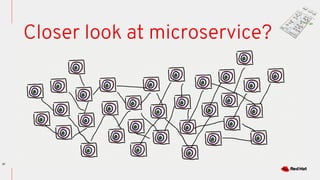

37. 37
Closer look at microservice?

38. 38

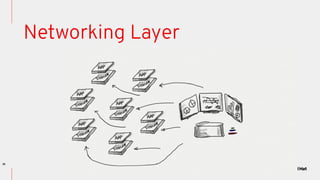

Networking Layer

39. 39
Networking Layer

40. 40

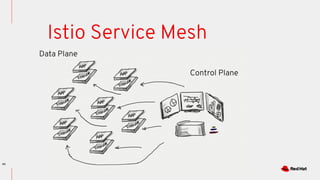

Istio Service Mesh
Data Plane
Control Plane

41. 41
Service Mesh

42. 42

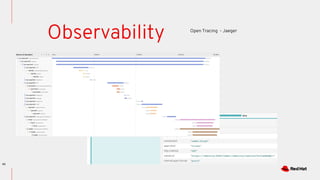

Observability Open Tracing - Jaeger

43. 43

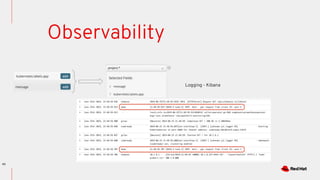

Observability
Logging - Kibana

44. 44

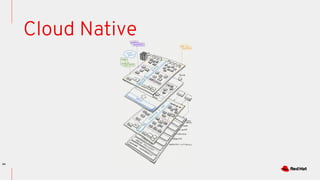

Cloud Native
