The document provides a detailed overview of various electrical protection and control devices, including their specifications and operational capabilities. Each product listed offers multiple functionalities such as voltage protection, timing features, and load management for both single-phase and three-phase systems. Key products include digital displays, programmable timers, current relays, and motor protection solutions, suitable for diverse industrial and commercial applications.

1. www.novatek-electro.com

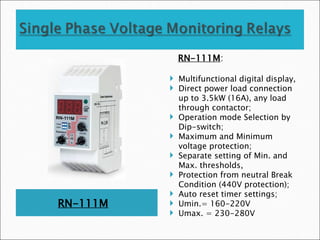

2. RN-111M
RN-111M:
 Multifunctional digital display,
 Direct power load connection
up to 3.5kW (16A), any load
through contactor;
 Operation mode Selection by
Dip-switch;
 Maximum and Minimum
voltage protection;
 Separate setting of Min. and
Max. thresholds,
 Protection from neutral Break
Condition (440V protection);
 Auto reset timer settings;
 Umin.= 160-220V
 Umax. = 230-280V

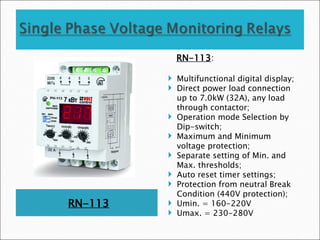

3. RN-113
RN-113:
 Multifunctional digital display;
 Direct power load connection
up to 7.0kW (32A), any load
through contactor;
 Operation mode Selection by
Dip-switch;
 Maximum and Minimum
voltage protection;
 Separate setting of Min. and
Max. thresholds;
 Auto reset timer settings;
 Protection from neutral Break
Condition (440V protection);
 Umin. = 160-220V
 Umax. = 230-280V

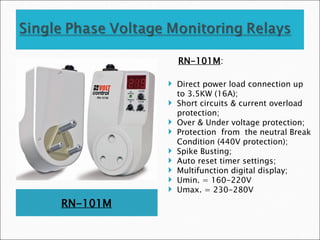

4. RN-101M
RN-101M:
 Direct power load connection up
to 3.5KW (16A);
 Short circuits & current overload
protection;
 Over & Under voltage protection;
 Protection from the neutral Break
Condition (440V protection);
 Spike Busting;
 Auto reset timer settings;
 Multifunction digital display;
 Umin. = 160-220V
 Umax. = 230-280V

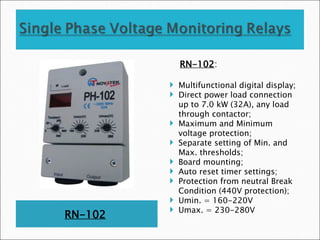

5. RN-102
RN-102:
 Multifunctional digital display;
 Direct power load connection
up to 7.0 kW (32A), any load
through contactor;
 Maximum and Minimum
voltage protection;
 Separate setting of Min. and
Max. thresholds;
 Board mounting;
 Auto reset timer settings;
 Protection from neutral Break
Condition (440V protection);
 Umin. = 160-220V
 Umax. = 230-280V

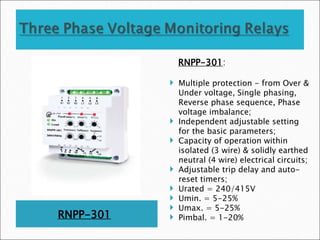

6. RNPP-301
RNPP-301:
 Multiple protection - from Over &
Under voltage, Single phasing,
Reverse phase sequence, Phase
voltage imbalance;
 Independent adjustable setting
for the basic parameters;
 Capacity of operation within
isolated (3 wire) & solidly earthed
neutral (4 wire) electrical circuits;
 Adjustable trip delay and auto-
reset timers;
 Urated = 240/415V
 Umin. = 5-25%
 Umax. = 5-25%
 Pimbal. = 1-20%

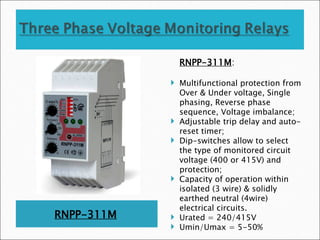

7. RNPP-311M
RNPP-311M:
 Multifunctional protection from
Over & Under voltage, Single
phasing, Reverse phase
sequence, Voltage imbalance;
 Adjustable trip delay and auto-
reset timer;
 Dip-switches allow to select
the type of monitored circuit
voltage (400 or 415V) and
protection;
 Capacity of operation within
isolated (3 wire) & solidly
earthed neutral (4wire)
electrical circuits.
 Urated = 240/415V
 Umin/Umax = 5-50%

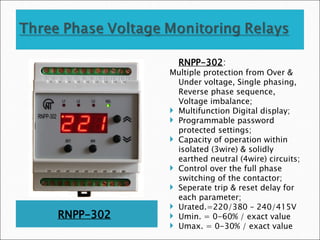

8. RNPP-302
RNPP-302:
Multiple protection from Over &
Under voltage, Single phasing,
Reverse phase sequence,
Voltage imbalance;
 Multifunction Digital display;
 Programmable password
protected settings;
 Capacity of operation within
isolated (3wire) & solidly
earthed neutral (4wire) circuits;
 Control over the full phase
switching of the contactor;
 Seperate trip & reset delay for
each parameter;
 Urated.=220/380 – 240/415V
 Umin. = 0-60% / exact value
 Umax. = 0-30% / exact value

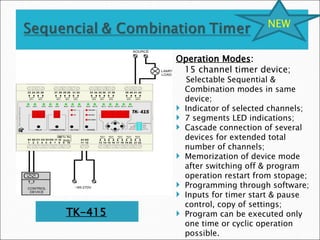

9. TK-415
Operation Modes:
15 channel timer device;
Selectable Sequential &
Combination modes in same
device;
 Indicator of selected channels;
 7 segments LED indications;
 Cascade connection of several
devices for extended total
number of channels;
 Memorization of device mode
after switching off & program
operation restart from stopage;
 Programming through software;
 Inputs for timer start & pause
control, copy of settings;
 Program can be executed only
one time or cyclic operation
possible.
NEW

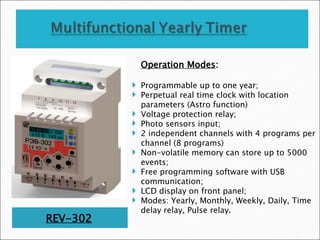

10. REV-302
Operation Modes:
 Programmable up to one year;
 Perpetual real time clock with location
parameters (Astro function)
 Voltage protection relay;
 Photo sensors input;
 2 independent channels with 4 programs per
channel (8 programs)
 Non-volatile memory can store up to 5000
events;
 Free programming software with USB
communication;
 LCD display on front panel;
 Modes: Yearly, Monthly, Weekly, Daily, Time
delay relay, Pulse relay.

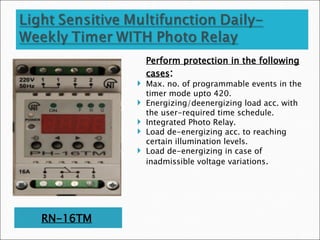

11. RN-16TM
Perform protection in the following
cases:
 Max. no. of programmable events in the
timer mode upto 420.
 Energizing/deenergizing load acc. with
the user-required time schedule.
 Integrated Photo Relay.
 Load de-energizing acc. to reaching
certain illumination levels.
 Load de-energizing in case of
inadmissible voltage variations.

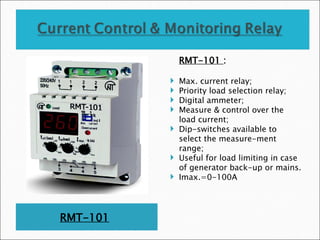

12. RMT-101
RMT-101 :
 Max. current relay;
 Priority load selection relay;
 Digital ammeter;
 Measure & control over the
load current;
 Dip-switches available to
select the measure-ment
range;
 Useful for load limiting in case
of generator back-up or mains.
 Imax.=0-100A

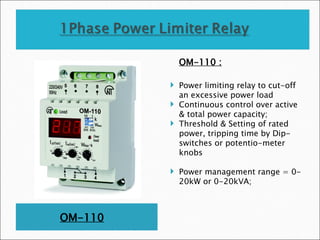

13. OM-110
OM-110 :
 Power limiting relay to cut-off
an excessive power load
 Continuous control over active
& total power capacity;
 Threshold & Setting of rated
power, tripping time by Dip-
switches or potentio-meter
knobs
 Power management range = 0-
20kW or 0-20kVA;

14. PEF-301
PEF-301 :
 Control over voltage on each of
available lines;
 Select any of the lines with
required proper voltage
parameters;
 Compact automatic fallback
panel;
 Operation load up to 3.5 kw
directly
 Wrong voltage fault indication
 Protection from inter-phase
switching
 Operation with generators
 Built-in autoreclosing timer

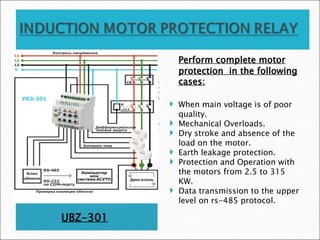

15. UBZ-301
Perform complete motor
protection in the following
cases:
 When main voltage is of poor
quality.
 Mechanical Overloads.
 Dry stroke and absence of the
load on the motor.
 Earth leakage protection.
 Protection and Operation with
the motors from 2.5 to 315
KW.
 Data transmission to the upper
level on rs-485 protocol.

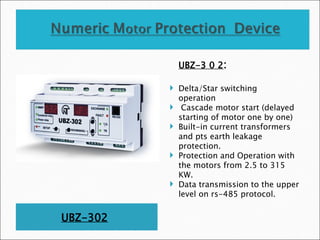

16. UBZ-302
UBZ-3 0 2:
 Delta/Star switching
operation
 Cascade motor start (delayed
starting of motor one by one)
 Built-in current transformers
and pts earth leakage
protection.
 Protection and Operation with
the motors from 2.5 to 315
KW.
 Data transmission to the upper
level on rs-485 protocol.

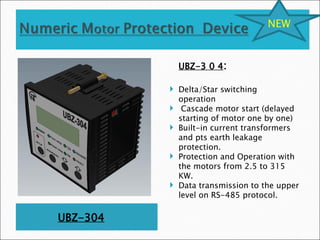

17. UBZ-304
UBZ-3 0 4:
 Delta/Star switching
operation
 Cascade motor start (delayed
starting of motor one by one)
 Built-in current transformers
and pts earth leakage
protection.
 Protection and Operation with
the motors from 2.5 to 315
KW.
 Data transmission to the upper
level on RS-485 protocol.
NEW

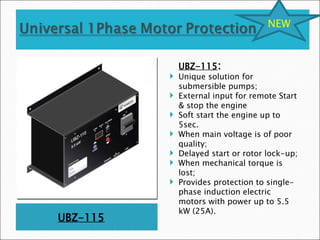

18. UBZ-115
UBZ-115:
 Unique solution for
submersible pumps;
 External input for remote Start
& stop the engine
 Soft start the engine up to
5sec.
 When main voltage is of poor
quality;
 Delayed start or rotor lock-up;
 When mechanical torque is
lost;
 Provides protection to single-
phase induction electric
motors with power up to 5.5
kW (25А).
NEW

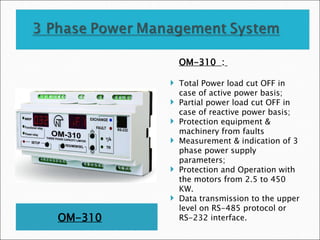

19. OM-310
OM-310 :
 Total Power load cut OFF in
case of active power basis;
 Partial power load cut OFF in
case of reactive power basis;
 Protection equipment &
machinery from faults
 Measurement & indication of 3
phase power supply
parameters;
 Protection and Operation with
the motors from 2.5 to 450
KW.
 Data transmission to the upper
level on RS-485 protocol or
RS-232 interface.

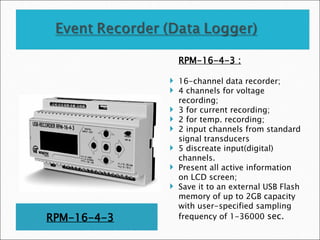

20. RPM-16-4-3
RPM-16-4-3 :
 16-channel data recorder;
 4 channels for voltage
recording;
 3 for current recording;
 2 for temp. recording;
 2 input channels from standard
signal transducers
 5 discreate input(digital)
channels.
 Present all active information
on LCD screen;
 Save it to an external USB Flash
memory of up to 2GB capacity
with user-specified sampling
frequency of 1-36000 sec.

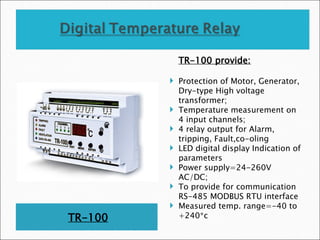

21. TR-100
TR-100 provide:
 Protection of Motor, Generator,
Dry-type High voltage
transformer;
 Temperature measurement on
4 input channels;
 4 relay output for Alarm,
tripping, Fault,co-oling
 LED digital display Indication of
parameters
 Power supply=24-260V
AC/DC;
 To provide for communication
RS-485 MODBUS RTU interface
 Measured temp. range=-40 to
+240*c

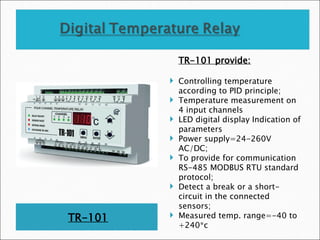

22. TR-101
TR-101 provide:
 Controlling temperature
according to PID principle;
 Temperature measurement on
4 input channels
 LED digital display Indication of
parameters
 Power supply=24-260V
AC/DC;
 To provide for communication
RS-485 MODBUS RTU standard
protocol;
 Detect a break or a short-
circuit in the connected
sensors;
 Measured temp. range=-40 to
+240*c

23. MCK-301-83
MCK-301:
 Control both 1-phase or 3-
phase equipment.
 Built in all possible voltage
protections
 Control appliances inside
satellite communication base
station & telecommunication
base
Two version are provided:
1) MCK-301-85:-control unit for
middle & low temperature
refrigerating machines with
automatic defrost.
2) MCK-301-61:-control unit for
chiller & HVAC application.

24. LEGAT series
LEGAT Series:
 Unique Transformerless
scheme of voltage stabilization
;
 Output voltage smooth & step-
less regulation;
 1% output voltage accuracy;
 Built-in protection from all
faults ;
 Galvanized insulated from
circuit;
 100% output power throughout
all the operation voltage range;
 Compact & light due to
absence of power transformer
inside.
