This study aimed to test whether a mental rotation skills (MRS) training intervention could improve MRS speed and effectiveness, and determine if expected gender differences occurred. Students were randomly assigned to intervention or control groups. The intervention group completed an online MRS training tool while the control group did not. Results showed a small improvement in MRS for the intervention group, but it was not statistically significant. There was also an inconclusive potential gender effect. The training tool was enjoyable but challenging. Further research is needed with modifications to better measure any effects.

1. Training mental rotation skills
to improve spatial ability
Christian Bokhove
14 March 2018, Southampton, UK

2. Who am I ?
• Christian Bokhove
• From 1998-2012 teacher maths and computer
science, secondary school Netherlands
• PhD from Utrecht University
• Associate Professor at
University of Southampton
– Maths education
– Technology use
– Large-scale assessment (PISA, TIMSS)
– Computer Science stuff (analysing
17,000+ Ofsted reports)
– School Mathematics Project 2.0

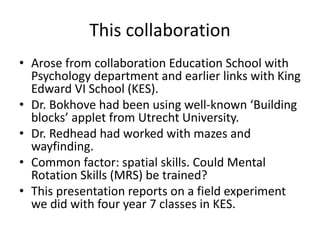

3. This collaboration
• Arose from collaboration Education School with
Psychology department and earlier links with King
Edward VI School (KES).
• Dr. Bokhove had been using well-known ‘Building
blocks’ applet from Utrecht University.
• Dr. Redhead had worked with mazes and
wayfinding.
• Common factor: spatial skills. Could Mental
Rotation Skills (MRS) be trained?
• This presentation reports on a field experiment
we did with four year 7 classes in KES.

4. Aims
1. Field testing online digital versions of MRS measurement
instrument.
2. Trying out a quite well-known application: apart from it
being challenging and interesting, can we measure its
effectiveness?
3. In longer term, to eventually see if MRS training
(i) improves MRS, but
(ii) also transfers to other spatial and maths domains, e.g.
wayfinding in mazes.
4. In this study a focus on
(i) utilising a MRS training intervention to see if it’s
effective regarding MRS speed and effectiveness, and
(ii) determine if the expected gender effect takes place.

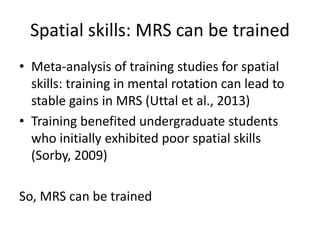

5. Spatial skills: MRS can be trained
• Meta-analysis of training studies for spatial
skills: training in mental rotation can lead to
stable gains in MRS (Uttal et al., 2013)
• Training benefited undergraduate students
who initially exhibited poor spatial skills
(Sorby, 2009)
So, MRS can be trained

6. Spatial skills: MRS predicts maths
• Good spatial skills strongly predicts achievement and
attainment in science, technology, engineering, and
mathematics fields (Uttal et al., 2013)
• Thompson, Nuerk, Moeller and Kadosh (2013)
strengthened the observed link between spatial and
numerical abilities.
And training:
• Spatial tasks are related to arithmetical and mathematical
performance (Dumontheil & Klingberg, 2011).
• Cheng and Mix (2014) found evidence that mental rotation
training improved maths performance in 6- to 8-year olds.

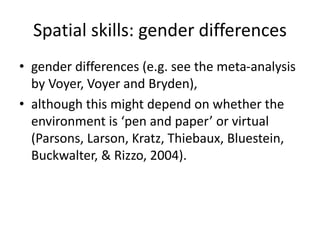

7. Spatial skills: gender differences
• gender differences (e.g. see the meta-analysis
by Voyer, Voyer and Bryden),
• although this might depend on whether the
environment is ‘pen and paper’ or virtual
(Parsons, Larson, Kratz, Thiebaux, Bluestein,
Buckwalter, & Rizzo, 2004).

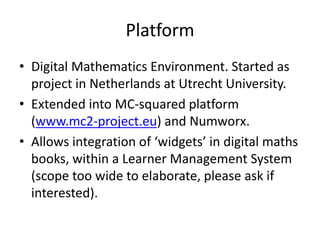

8. Platform
• Digital Mathematics Environment. Started as
project in Netherlands at Utrecht University.
• Extended into MC-squared platform
(www.mc2-project.eu) and Numworx.
• Allows integration of ‘widgets’ in digital maths
books, within a Learner Management System
(scope too wide to elaborate, please ask if
interested).

10. Methodology
• Two groups, with about 85 students randomly
allocated to the conditions; they only differ in the
order in which the activities are offered.
• One group was 36 and the other group 49
(something to improve on next time round!)
• Part of four classes with around 20 students each.
Classes in year seven at this school had individual
tablet computers available. The study was pre-
registered at aspredicted.org.
Intervention P1 I P2 P3
Control P1 P2 I P3

11. Try out at http://is.gd/kes2017
(Ask for a login)

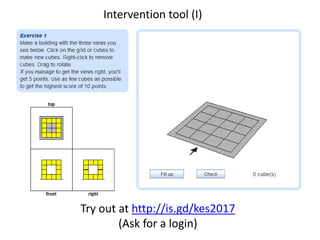

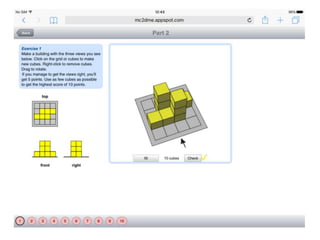

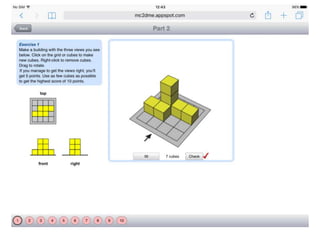

Intervention tool (I)

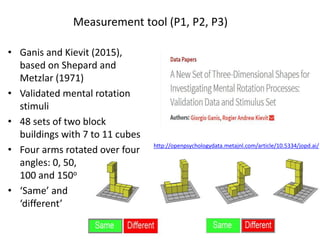

15. • Ganis and Kievit (2015),
based on Shepard and
Metzlar (1971)
• Validated mental rotation
stimuli
• 48 sets of two block
buildings with 7 to 11 cubes
• Four arms rotated over four
angles: 0, 50,
100 and 150o
• ‘Same’ and
‘different’
http://openpsychologydata.metajnl.com/article/10.5334/jopd.ai/
Measurement tool (P1, P2, P3)

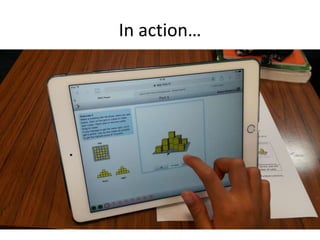

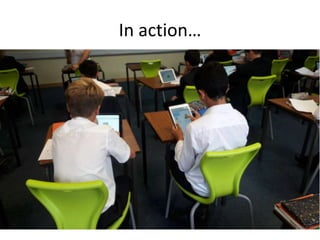

16. In action…

17. In action…

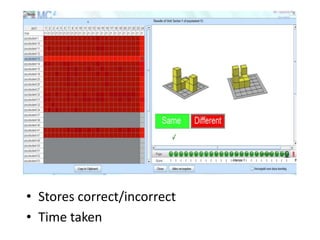

18. • Stores correct/incorrect
• Time taken

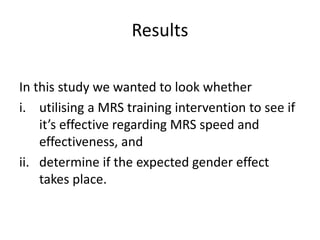

19. Results
In this study we wanted to look whether
i. utilising a MRS training intervention to see if
it’s effective regarding MRS speed and
effectiveness, and
ii. determine if the expected gender effect
takes place.

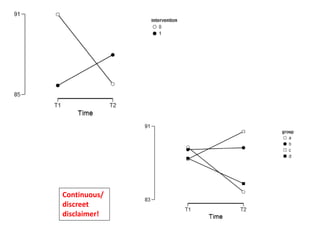

20. Continuous/
discreet
disclaimer!

21. Results
In this study we wanted to look whether
i. utilising a MRS training intervention to see if
it’s effective regarding MRS speed and
effectiveness, and
a little bit, but not significant
ii. determine if the expected gender effect
takes place.

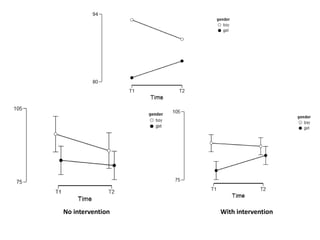

22. No intervention With intervention

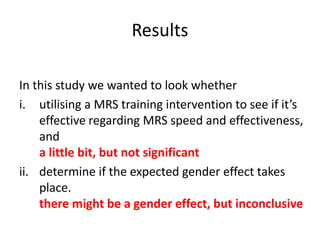

23. Results
In this study we wanted to look whether
i. utilising a MRS training intervention to see if it’s
effective regarding MRS speed and effectiveness,
and
a little bit, but not significant
ii. determine if the expected gender effect takes
place.
there might be a gender effect, but inconclusive

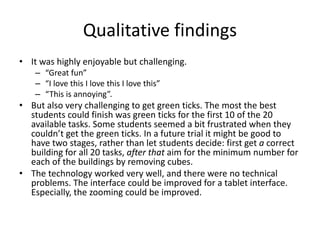

24. Qualitative findings
• It was highly enjoyable but challenging.
– “Great fun”
– “I love this I love this I love this”
– “This is annoying”.
• But also very challenging to get green ticks. The most the best
students could finish was green ticks for the first 10 of the 20
available tasks. Some students seemed a bit frustrated when they
couldn’t get the green ticks. In a future trial it might be good to
have two stages, rather than let students decide: first get a correct
building for all 20 tasks, after that aim for the minimum number for
each of the buildings by removing cubes.
• The technology worked very well, and there were no technical
problems. The interface could be improved for a tablet interface.
Especially, the zooming could be improved.

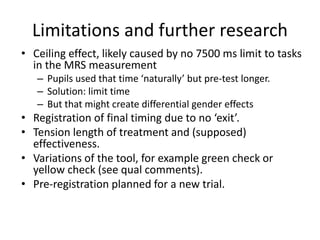

25. Limitations and further research
• Ceiling effect, likely caused by no 7500 ms limit to tasks
in the MRS measurement
– Pupils used that time ‘naturally’ but pre-test longer.
– Solution: limit time
– But that might create differential gender effects
• Registration of final timing due to no ‘exit’.
• Tension length of treatment and (supposed)
effectiveness.
• Variations of the tool, for example green check or
yellow check (see qual comments).
• Pre-registration planned for a new trial.

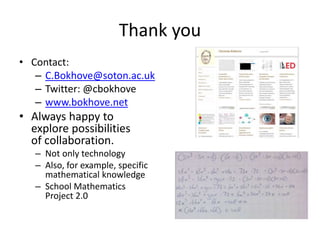

26. Thank you
• Contact:
– C.Bokhove@soton.ac.uk
– Twitter: @cbokhove
– www.bokhove.net
• Always happy to
explore possibilities
of collaboration.
– Not only technology
– Also, for example, specific
mathematical knowledge
– School Mathematics
Project 2.0

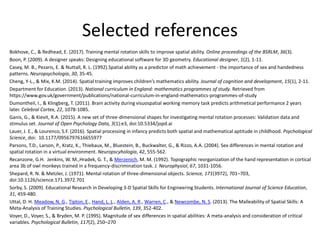

27. Selected references
