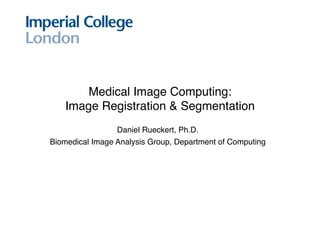

Medical Image Computing:
Image Registration & Segmentation
Daniel Rueckert, Ph.D.
Biomedical Image Analysis Group, Department of Computing

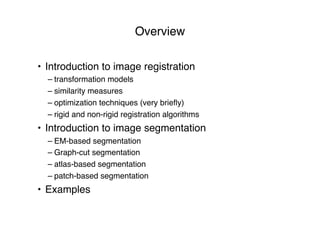

Overview
• Introduction to image registration
– transformation models
– similarity measures
– optimization techniques (very brieﬂy)
– rigid and non-rigid registration algorithms
• Introduction to image segmentation
– EM-based segmentation
– Graph-cut segmentation
– atlas-based segmentation
– patch-based segmentation
• Examples

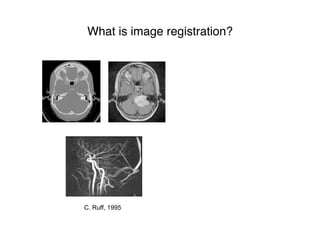

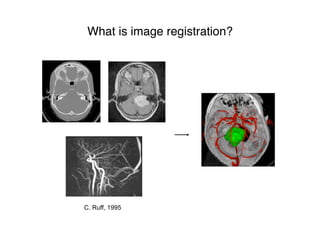

What is image registration?
C. Ruff, 1995

Image to image registration

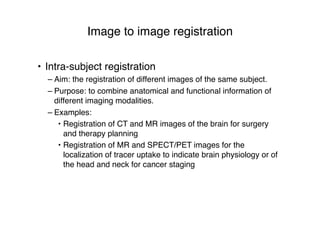

• Intra-subject registration
– Aim: the registration of different images of the same subject.
– Purpose: to combine anatomical and functional information of
different imaging modalities.
– Examples:
• Registration of CT and MR images of the brain for surgery
and therapy planning
• Registration of MR and SPECT/PET images for the
localization of tracer uptake to indicate brain physiology or of
the head and neck for cancer staging

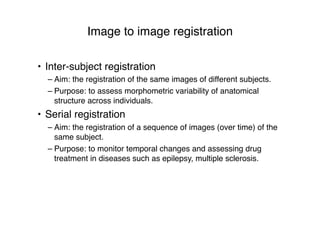

Image to image registration
• Inter-subject registration
– Aim: the registration of the same images of different subjects.
– Purpose: to assess morphometric variability of anatomical
structure across individuals.
• Serial registration
– Aim: the registration of a sequence of images (over time) of the
same subject.
– Purpose: to monitor temporal changes and assessing drug
treatment in diseases such as epilepsy, multiple sclerosis.

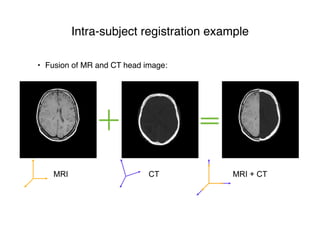

• Fusion of MR and CT head image:
Intra-subject registration example
MRI CT MRI + CT

Intra-subject registration example

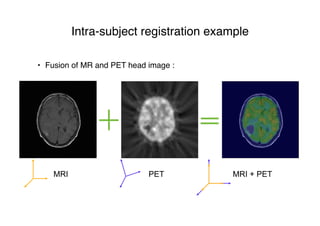

• Fusion of MR and PET head image :
MRI PET MRI + PET

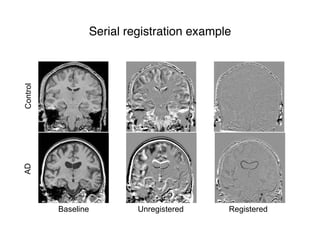

Serial registration exampleControlAD
Baseline Unregistered Registered

What is image registration?

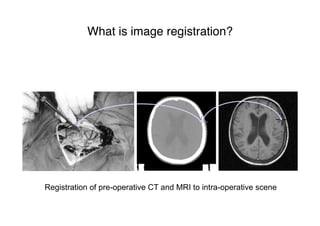

Registration of pre-operative CT and MRI to intra-operative scene

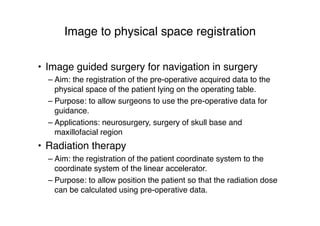

Image to physical space registration
• Image guided surgery for navigation in surgery
– Aim: the registration of the pre-operative acquired data to the
physical space of the patient lying on the operating table.
– Purpose: to allow surgeons to use the pre-operative data for
guidance.
– Applications: neurosurgery, surgery of skull base and
maxillofacial region
• Radiation therapy
– Aim: the registration of the patient coordinate system to the
coordinate system of the linear accelerator.
– Purpose: to allow position the patient so that the radiation dose
can be calculated using pre-operative data.

Image to physical space registration
• Relating imaging device coordinates to the physical
space of the patient
• Registration of:
– extrinsic marker pins or stereotactic frames ﬁxed to the patient
at scanning and operation time
– intrinsic markers (anatomical landmarks, image features)
– intra-operative images (video, ultrasound, X-ray or X-ray
ﬂuoroscopy) to pre-operative image

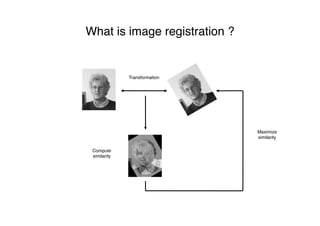

What is image registration ?

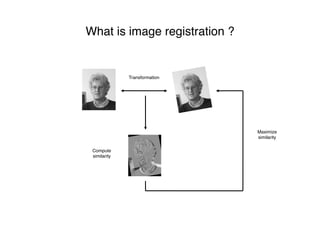

Maximize
similarity
Compute
similarity
Transformation

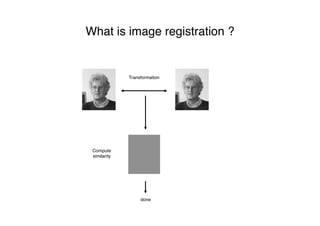

What is image registration ?
Compute
similarity
Transformation
done

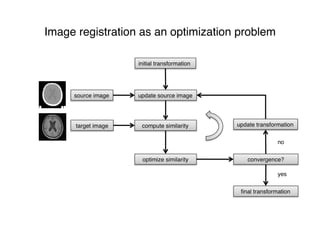

Image registration as an optimization problem

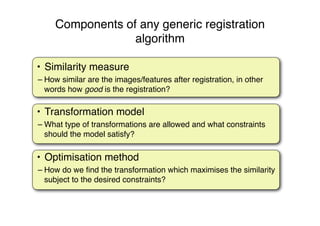

Components of any generic registration
algorithm
• Similarity measure
– How similar are the images/features after registration, in other
words how good is the registration?
• Optimisation method
– How do we ﬁnd the transformation which maximises the similarity
subject to the desired constraints?
• Transformation model
– What type of transformations are allowed and what constraints
should the model satisfy?

Overview of the rest of this talk
Non-rigid
registration
• Transformation models
– splines
– elastic and ﬂuid models
– regularization
Rigid
registration
• Transformation models
– rigid
– afﬁne
• Similarity measures
– mono-modal registration
– multi-modal registration

Transformation models

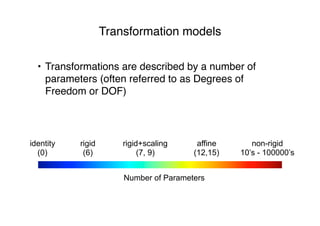

• Transformations are described by a number of
parameters (often referred to as Degrees of
Freedom or DOF)
Number of Parameters
identity
(0)
rigid
(6)
rigid+scaling
(7, 9)
affine
(12,15)
non-rigid
10’s - 100000’s

Rigid transformations
• Compensates for global patient repositioning
• Preserves distances, planes and angles.
• Appropriate for:
– brain, bone, optically tracked surgical instruments
– often used to initialise non-rigid registration

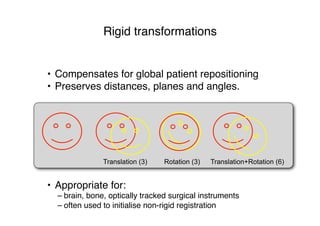

Translation (3) Translation+Rotation (6)Rotation (3)

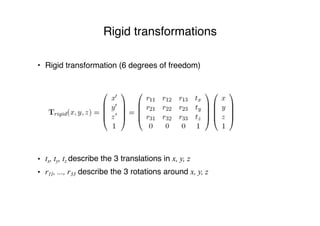

Rigid transformations
• Rigid transformation (6 degrees of freedom)
• tx, ty, tz describe the 3 translations in x, y, z
• r11, ..., r33 describe the 3 rotations around x, y, z

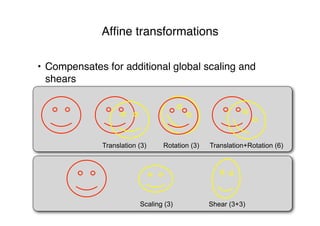

• Compensates for additional global scaling and
shears
Afﬁne transformations
Shear (3+3)Scaling (3)
Translation (3) Translation+Rotation (6)Rotation (3)

Afﬁne transformations

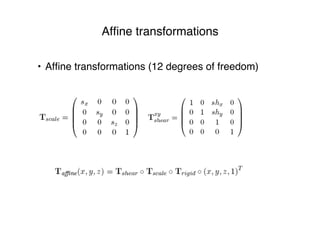

• Afﬁne transformations (12 degrees of freedom)

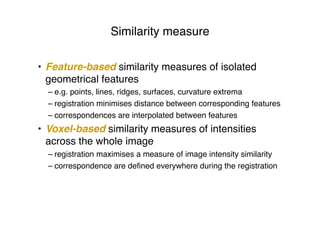

Similarity measure
• Feature-based similarity measures of isolated
geometrical features
– e.g. points, lines, ridges, surfaces, curvature extrema
– registration minimises distance between corresponding features
– correspondences are interpolated between features
• Voxel-based similarity measures of intensities
across the whole image
– registration maximises a measure of image intensity similarity
– correspondence are deﬁned everywhere during the registration

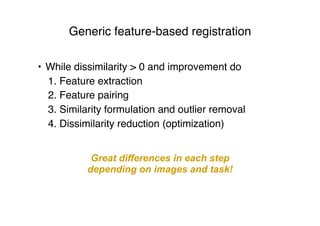

Generic feature-based registration
• While dissimilarity > 0 and improvement do
1. Feature extraction
2. Feature pairing
3. Similarity formulation and outlier removal
4. Dissimilarity reduction (optimization)
Great differences in each step
depending on images and task!

Generic feature-based registration:
Using points
• Orthogonal Procrustes problem:
– Named after a robber in Greek mythology, who would offer travellers the
opportunity to stay the night in a perfectly fitting bed.
– Unfortunately, it was the guest who was altered to fit the bed, rather than
the bed to fit the guest!
– Short visitors were stretched to fit, and tall visitors had parts of their body
cut off so that they would fit, with invariably fatal results.
The hero Theseus stopped
this unpleasant practice
by subjecting Procrustes
to his own method.

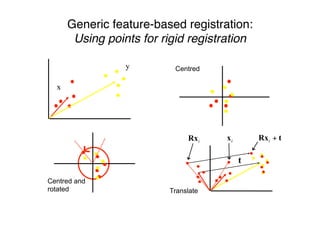

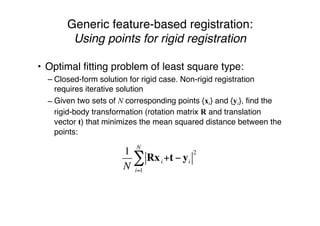

Using points for rigid registration
• Optimal ﬁtting problem of least square type:
– Closed-form solution for rigid case. Non-rigid registration
requires iterative solution
– Given two sets of N corresponding points {xi} and {yi}, ﬁnd the
rigid-body transformation (rotation matrix R and translation
vector t) that minimizes the mean squared distance between the
points:
1
N
Rxi +t ! yi
2
i=1
N
"

Centred
Centred and
rotated
t
iRx ix tRx +i
Translate
x
y

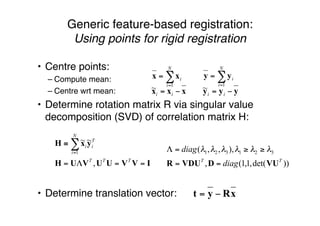

• Centre points:
– Compute mean:
– Centre wrt mean:
• Determine rotation matrix R via singular value
decomposition (SVD) of correlation matrix H:
• Determine translation vector:
∑=
=
N
i
i
1
xx ∑=
=
N
i
i
1
yy
xxx −= ii
~ yyy −= ii
~
xRyt −=
))det(,1,1(,
),,,( 321321
TT
diag
diag
VUDVDUR ==
≥≥=Λ λλλλλλ
IVVUUVUH
yxH
==Λ=
≡ ∑=
TTT
T
i
N
i
i
,
~~
1

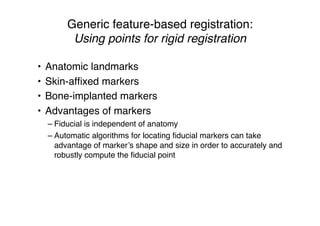

• Anatomic landmarks
• Skin-affixed markers
• Bone-implanted markers
• Advantages of markers
– Fiducial is independent of anatomy
– Automatic algorithms for locating fiducial markers can take
advantage of marker’s shape and size in order to accurately and
robustly compute the fiducial point

“Bummer of a birthmark, Hal!”

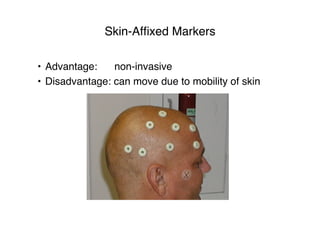

Skin-Afﬁxed Markers
• Advantage: non-invasive
• Disadvantage: can move due to mobility of skin

Bone-Implanted Markers
• Advantage: cannot move
• Disadvantage: invasive

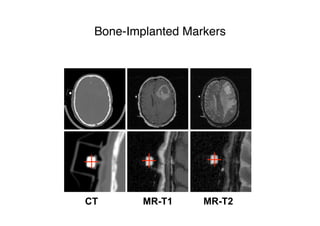

Bone-Implanted Markers
CT MR-T1 MR-T2

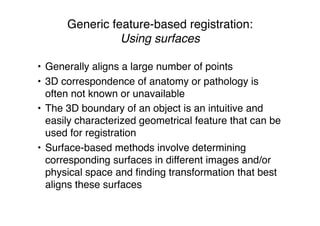

Using surfaces
• Generally aligns a large number of points
• 3D correspondence of anatomy or pathology is
often not known or unavailable
• The 3D boundary of an object is an intuitive and
easily characterized geometrical feature that can be
used for registration
• Surface-based methods involve determining
corresponding surfaces in different images and/or
physical space and ﬁnding transformation that best
aligns these surfaces

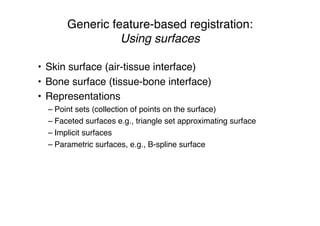

Using surfaces
• Skin surface (air-tissue interface)
• Bone surface (tissue-bone interface)
• Representations
– Point sets (collection of points on the surface)
– Faceted surfaces e.g., triangle set approximating surface
– Implicit surfaces
– Parametric surfaces, e.g., B-spline surface

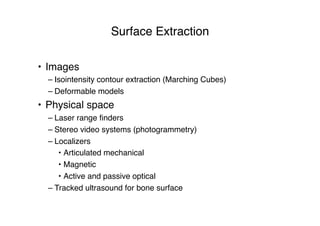

Surface Extraction
• Images
– Isointensity contour extraction (Marching Cubes)
– Deformable models
• Physical space
– Laser range ﬁnders
– Stereo video systems (photogrammetry)
– Localizers
• Articulated mechanical
• Magnetic
• Active and passive optical
– Tracked ultrasound for bone surface

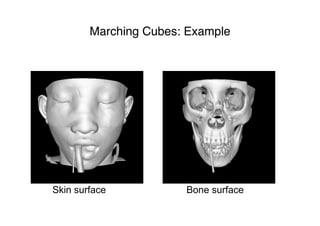

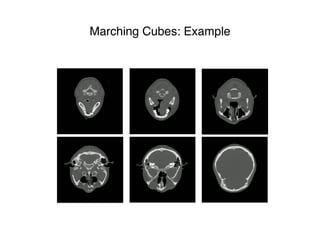

Marching Cubes: Example
Skin surface Bone surface

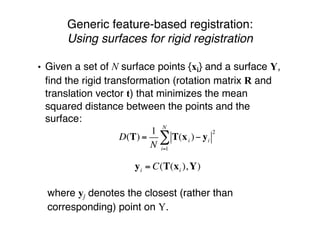

Using surfaces for rigid registration
• Given a set of N surface points {xi} and a surface Y,
ﬁnd the rigid transformation (rotation matrix R and
translation vector t) that minimizes the mean
squared distance between the points and the
surface:
! where yj denotes the closest (rather than
corresponding) point on Y.
yi = C(T(xi ),Y)
D(T) =
1
N
T(xi )! yi
2
i=1
N
"

Using surfaces
• Iterative Closest Point (ICP) [Besl & McKay, PAMI
1992]
• To register data shape X to model shape Y,
decompose X into point set {xi} , then
–Compute closest points {yi} on Y
–Register points {xi} to points {yi}
–Apply resulting transformation to points {xi}
–Repeat until convergence

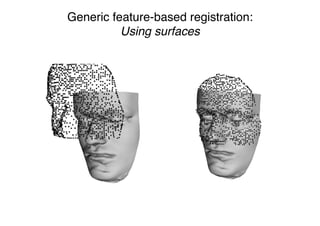

Using surfaces

Registration based on voxel-based similarity
measures
• Registration based on geometrical features
– requires the extraction of points, lines or surfaces
– registration error is affected by localization errors during the
feature extraction stage

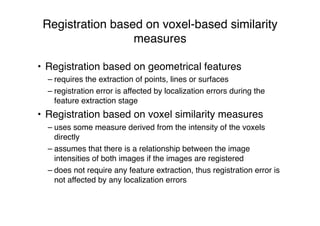

• Registration based on voxel similarity measures
– uses some measure derived from the intensity of the voxels
directly
– assumes that there is a relationship between the image
intensities of both images if the images are registered
– does not require any feature extraction, thus registration error is
not affected by any localization errors

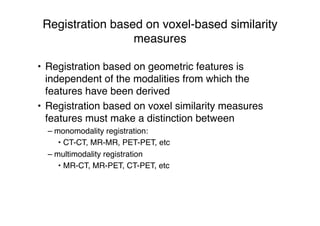

Registration based on voxel-based similarity
measures
• Registration based on geometric features is
independent of the modalities from which the
features have been derived
• Registration based on voxel similarity measures
features must make a distinction between
– monomodality registration:
• CT-CT, MR-MR, PET-PET, etc
– multimodality registration
• MR-CT, MR-PET, CT-PET, etc

Mono-modal image registration

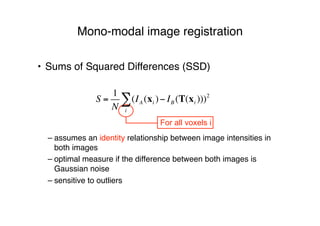

• Sums of Squared Differences (SSD)
!
– assumes an identity relationship between image intensities in
both images
– optimal measure if the difference between both images is
Gaussian noise
– sensitive to outliers
For all voxels i
S =
1
N
(IA (xi )
i
! " IB (T(xi )))2

• Robust statistics can be used to reduce the
inﬂuence of outliers on the registration

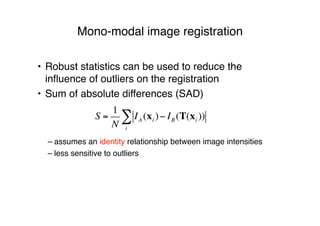

• Sum of absolute differences (SAD)
– assumes an identity relationship between image intensities
– less sensitive to outliers
S =
1
N
IA (xi )! IB (T(xi ))
i
"

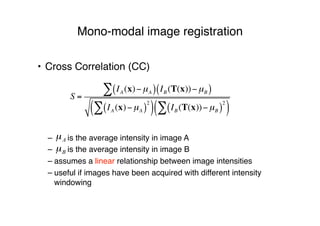

• Cross Correlation (CC)
– is the average intensity in image A
– is the average intensity in image B
– assumes a linear relationship between image intensities
– useful if images have been acquired with different intensity
windowing
Aµ
Bµ
S =
IA (x)!µA( ) IB (T(x))!µB( )"
IA (x)!µA( )
2
"( ) IB (T(x))!µB( )
2
"( )

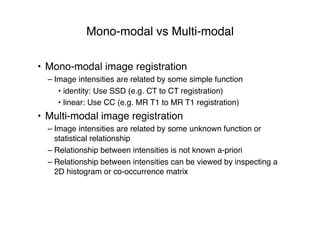

Mono-modal vs Multi-modal
• Mono-modal image registration
– Image intensities are related by some simple function
• identity: Use SSD (e.g. CT to CT registration)
• linear: Use CC (e.g. MR T1 to MR T1 registration)
• Multi-modal image registration
– Image intensities are related by some unknown function or
statistical relationship
– Relationship between intensities is not known a-priori
– Relationship between intensities can be viewed by inspecting a
2D histogram or co-occurrence matrix

Multi-modal images: Measuring similarity
CT MRbone
airsoft tissue

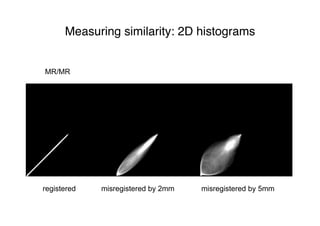

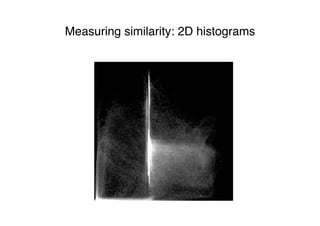

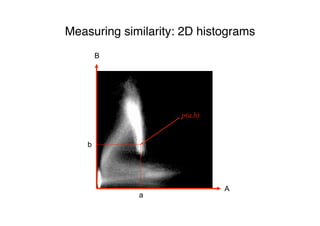

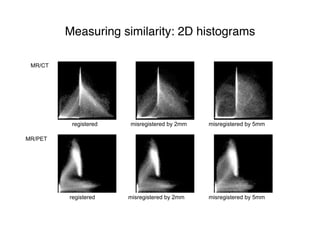

Measuring similarity: 2D histograms
registered misregistered by 2mm misregistered by 5mm
MR/MR

MR/CT
MR/PET
registered misregistered by 2mm misregistered by 5mm
misregistered by 2mm misregistered by 5mmregistered

B
A
p(a,b)
b
a

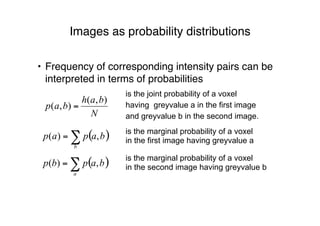

Images as probability distributions
• Frequency of corresponding intensity pairs can be
interpreted in terms of probabilities
N
bah
bap
),(
),( =
is the joint probability of a voxel
having greyvalue a in the first image
and greyvalue b in the second image.
is the marginal probability of a voxel
in the first image having greyvalue a
( )∑=
b
bapap ,)(
is the marginal probability of a voxel
in the second image having greyvalue b( )∑=
a
bapbp ,)(

Voxel similarity based on information theory

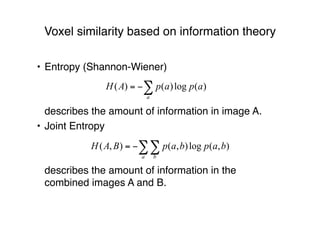

• Entropy (Shannon-Wiener)
describes the amount of information in image A.
• Joint Entropy
describes the amount of information in the
combined images A and B.

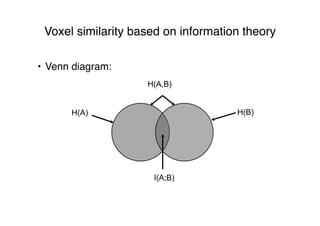

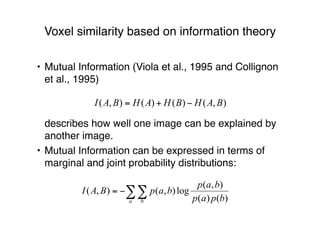

• Venn diagram:
H(A) H(B)
H(A,B)
I(A;B)

• Mutual Information (Viola et al., 1995 and Collignon
et al., 1995)
describes how well one image can be explained by
another image.
• Mutual Information can be expressed in terms of
marginal and joint probability distributions:

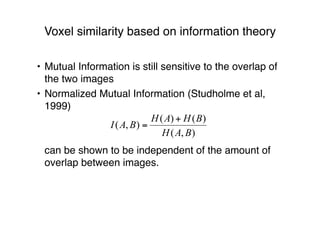

• Mutual Information is still sensitive to the overlap of
the two images
• Normalized Mutual Information (Studholme et al,
1999)
can be shown to be independent of the amount of
overlap between images.

Multi-modalMono-modal
• Sums of squared differences
• Cross-correlation
• Mutual information (or variants)

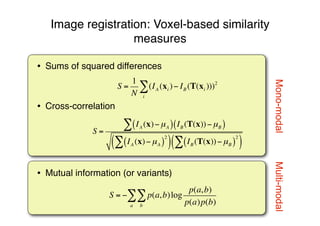

Image registration: Voxel-based similarity
measures
S =
1
N
(IA (xi )
i
! " IB (T(xi )))2
S =
IA (x)!µA( ) IB (T(x))!µB( )"
IA (x)!µA( )
2
"( ) IB (T(x))!µB( )
2
"( )
S = ! p(a,b)log
p(a,b)
p(a)p(b)b
"
a
"

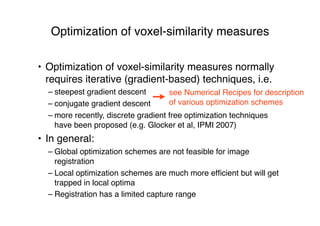

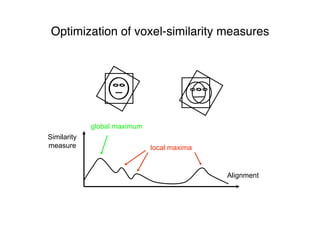

Optimization of voxel-similarity measures
• Optimization of voxel-similarity measures normally
requires iterative (gradient-based) techniques, i.e.
– steepest gradient descent
– conjugate gradient descent
– more recently, discrete gradient free optimization techniques
have been proposed (e.g. Glocker et al, IPMI 2007)
• In general:
– Global optimization schemes are not feasible for image
registration
– Local optimization schemes are much more efﬁcient but will get
trapped in local optima
– Registration has a limited capture range
see Numerical Recipes for description
of various optimization schemes

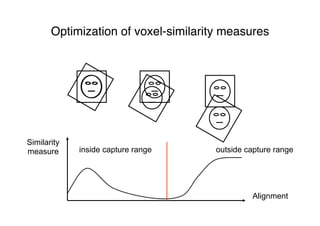

Similarity
measure
Alignment
inside capture range outside capture range

Similarity
measure
Alignment
local maxima
global maximum

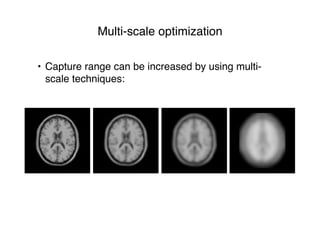

Multi-scale optimization
• Capture range can be increased by using multi-
scale techniques:

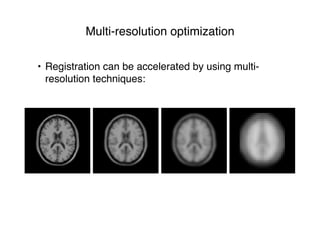

Multi-resolution optimization
• Registration can be accelerated by using multi-
resolution techniques:

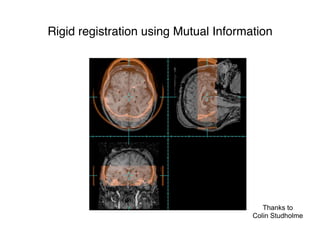

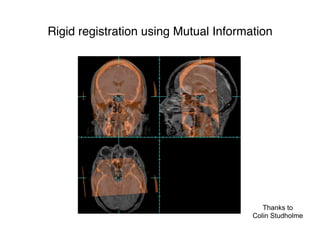

Rigid registration using Mutual Information
Thanks to
Colin Studholme

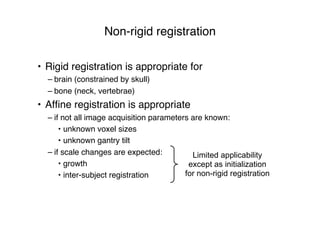

Non-rigid registration
• Rigid registration is appropriate for
– brain (constrained by skull)
– bone (neck, vertebrae)
• Afﬁne registration is appropriate
– if not all image acquisition parameters are known:
• unknown voxel sizes
• unknown gantry tilt
– if scale changes are expected:
• growth
• inter-subject registration
Limited applicability
except as initialization
for non-rigid registration

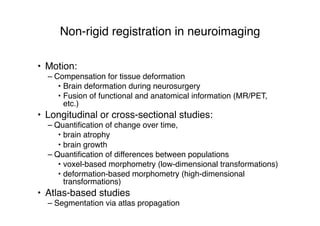

Non-rigid registration in neuroimaging
• Motion:
– Compensation for tissue deformation
• Brain deformation during neurosurgery
• Fusion of functional and anatomical information (MR/PET,
etc.)
• Longitudinal or cross-sectional studies:
– Quantiﬁcation of change over time,
• brain atrophy
• brain growth
– Quantiﬁcation of differences between populations
• voxel-based morphometry (low-dimensional transformations)
• deformation-based morphometry (high-dimensional
transformations)
• Atlas-based studies
– Segmentation via atlas propagation

• Transformation T(x) ➞ x’ which deﬁnes the spatial
relationship between the two images:

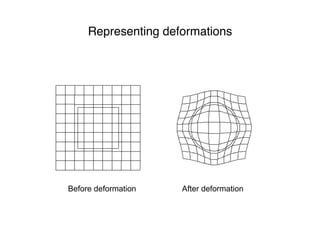

Representing deformations
x’ = T(x) = x + u(x)
T xx
u

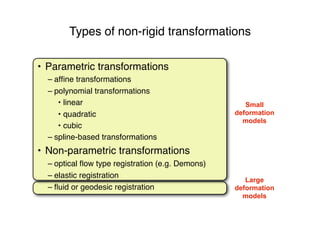

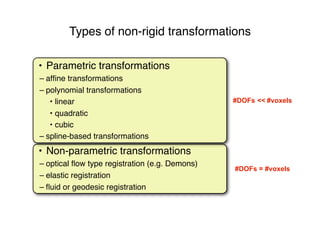

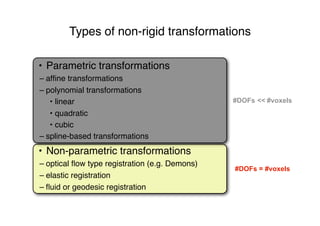

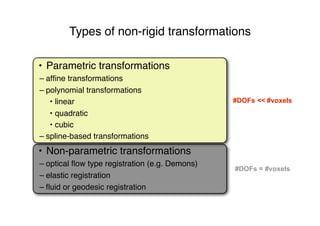

Types of non-rigid transformations
#DOFs = #voxels
• Non-parametric transformations
– optical flow type registration (e.g. Demons)
– elastic registration
– fluid or geodesic registration
#DOFs << #voxels
• Parametric transformations
– affine transformations
– polynomial transformations
• linear
• quadratic
• cubic
– spline-based transformations

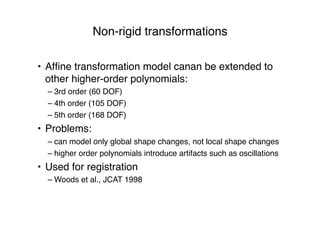

Non-rigid transformations
• Afﬁne transformation model canan be extended to
other higher-order polynomials:
– 3rd order (60 DOF)
– 4th order (105 DOF)
– 5th order (168 DOF)
• Problems:
– can model only global shape changes, not local shape changes
– higher order polynomials introduce artifacts such as oscillations
• Used for registration
– Woods et al., JCAT 1998

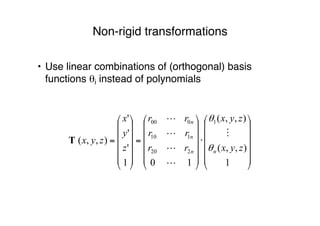

• Use linear combinations of (orthogonal) basis
functions θi instead of polynomials














⋅














=














=
1
),,(
),,(
101
'
'
'
),,(
1
220
110
000
zyx
zyx
rr
rr
rr
z
y
x
zyx
nn
n
n
θ
θ





T

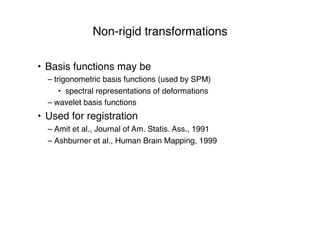

• Basis functions may be
– trigonometric basis functions (used by SPM)
• spectral representations of deformations
– wavelet basis functions
• Used for registration
– Amit et al., Journal of Am. Statis. Ass., 1991
– Ashburner et al., Human Brain Mapping, 1999

Before deformation After deformation

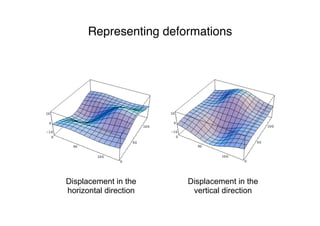

Displacement in the
horizontal direction
Displacement in the
vertical direction

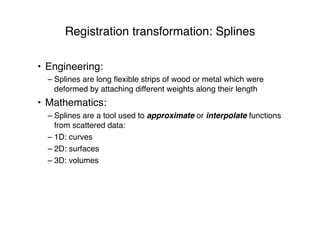

Registration transformation: Splines
• Engineering:
– Splines are long ﬂexible strips of wood or metal which were
deformed by attaching different weights along their length
• Mathematics:
– Splines are a tool used to approximate or interpolate functions
from scattered data:
– 1D: curves
– 2D: surfaces
– 3D: volumes

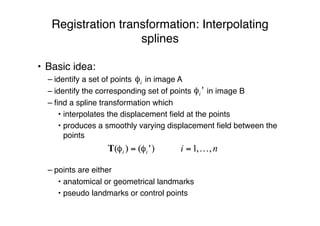

Registration transformation: Interpolating
splines
• Basic idea:
– identify a set of points in image A
– identify the corresponding set of points in image B
– find a spline transformation which
• interpolates the displacement field at the points
• produces a smoothly varying displacement field between the
points
– points are either
• anatomical or geometrical landmarks
• pseudo landmarks or control points

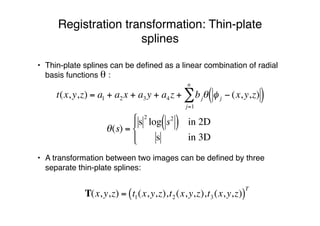

Registration transformation: Thin-plate
splines
• Thin-plate splines can be deﬁned as a linear combination of radial
basis functions θ :
• A transformation between two images can be deﬁned by three
separate thin-plate splines:
!
t(x,y,z) = a1 + a2x + a3y + a4z + bj" # j $ (x,y,z)( )j=1
n
%
T(x,y,z) = t1(x,y,z),t2(x,y,z),t3(x,y,z)( )
T
!
"(s) =
s
2
log s2
( ) in 2D
s in 3D
#
$
%
&%

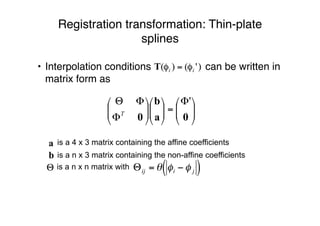

splines
• Interpolation conditions can be written in
matrix form as
is a 4 x 3 matrix containing the affine coefficients
is a n x 3 matrix containing the non-affine coefficients
is a n x n matrix with





Φ
=











Φ
ΦΘ
0a
b
0
'
T
!
"ij = # $i % $ j( )

splines

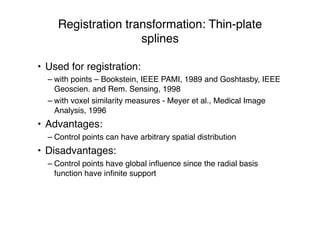

• Used for registration:
– with points – Bookstein, IEEE PAMI, 1989 and Goshtasby, IEEE
Geoscien. and Rem. Sensing, 1998
– with voxel similarity measures - Meyer et al., Medical Image
Analysis, 1996
• Advantages:
– Control points can have arbitrary spatial distribution
• Disadvantages:
– Control points have global inﬂuence since the radial basis
function have inﬁnite support

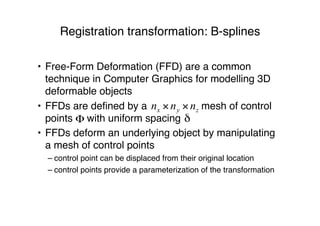

Registration transformation: B-splines
• Free-Form Deformation (FFD) are a common
technique in Computer Graphics for modelling 3D
deformable objects
• FFDs are deﬁned by a mesh of control
points with uniform spacing
• FFDs deform an underlying object by manipulating
a mesh of control points
– control point can be displaced from their original location
– control points provide a parameterization of the transformation

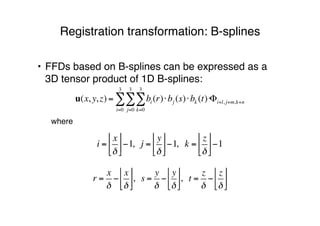

• FFDs based on B-splines can be expressed as a
3D tensor product of 1D B-splines:
where
r =
x
!
!
x
!
"
#"
$
%$, s =
y
!
!
y
!
"
#"
$
%$, t =
z
!
!
z
!
"
#"
$
%$
i =
x
!
!
"!
#
$#%1, j =
y
!
!
"!
#
$#%1, k =
z
!
!
"!
#
$#%1
u(x, y, z) = bi (r)!bj (s)!bk (t)!
k=0
3
"
j=0
3
"
i=0
3
" #i+l, j+m,k+n

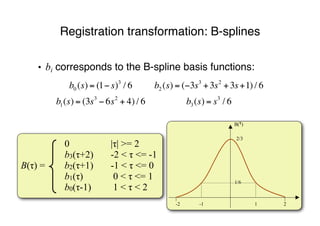

• bi corresponds to the B-spline basis functions:
0 |τ| >= 2
b3(τ+2) -2 < τ <= -1
B(τ) = b2(τ+1) -1 < τ <= 0
b1(τ) 0 < τ <= 1
b0(τ-1) 1 < τ < 2
1-2 -1 2
1/6
2/3
B(!)
!
b0 (s) = (1! s)3
/ 6 b2 (s) = (!3s3
+3s2
+3s+1) / 6
b1(s) = (3s3
! 6s2
+ 4) / 6 b3(s) = s3
/ 6

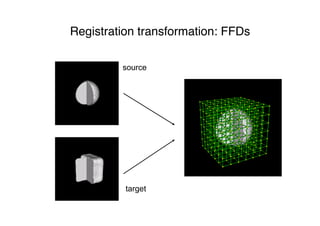

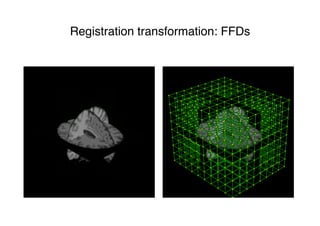

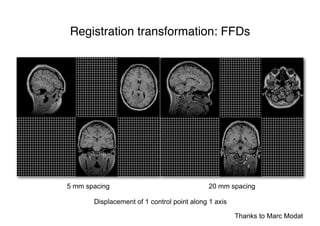

Registration transformation: FFDs
source
target

5 mm spacing 20 mm spacing
Displacement of 1 control point along 1 axis
Thanks to Marc Modat

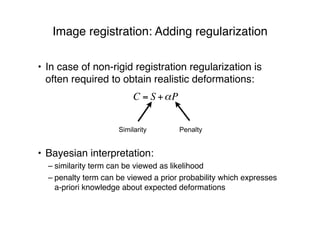

Image registration: Adding regularization
• In case of non-rigid registration regularization is
often required to obtain realistic deformations:
• Bayesian interpretation:
– similarity term can be viewed as likelihood
– penalty term can be viewed a prior probability which expresses
a-priori knowledge about expected deformations
C = S +!P
Similarity Penalty

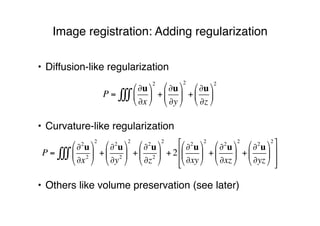

Image registration: Adding regularization
• Diffusion-like regularization
• Curvature-like regularization

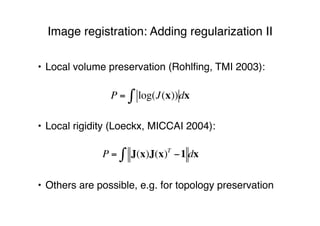

• Others like volume preservation (see later)
P =
!u
!x
"
#
$
%
&
'
2
+
!u
!y
"
#
$
%
&
'
2
+
!u
!z
"
#
$
%
&
'
2
(((
P =
!2
u
!x2
"
#
$
%
&
'
2
+
!2
u
!y2
"
#
$
%
&
'
2
+
!2
u
!z2
"
#
$
%
&
'
2
+ 2
!2
u
!xy
"
#
$
%
&
'
2
+
!2
u
!xz
"
#
$
%
&
'
2
+
!2
u
!yz
"
#
$
%
&
'
2(
)
*
*
+
,
-
-
...

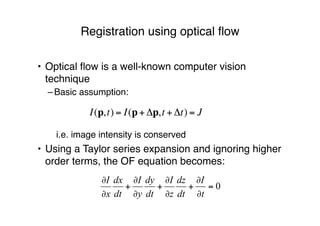

Registration using optical ﬂow
• Optical ﬂow is a well-known computer vision
technique
–Basic assumption:
!
i.e. image intensity is conserved
• Using a Taylor series expansion and ignoring higher
order terms, the OF equation becomes:
I(p,t) = I(p+ !p,t + !t) = J

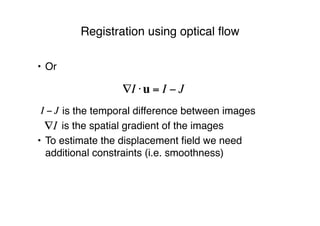

Registration using optical ﬂow
• Or
is the temporal difference between images
! is the spatial gradient of the images
• To estimate the displacement ﬁeld we need
additional constraints (i.e. smoothness)
!I "u = I # J
I ! J

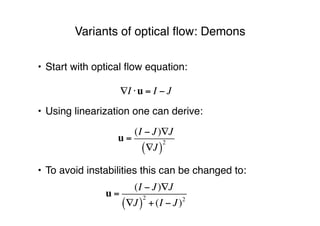

• Start with optical ﬂow equation:
• Using linearization one can derive:
• To avoid instabilities this can be changed to:
Variants of optical ﬂow: Demons
!I "u = I # J
u =
(I ! J)"J
"J( )
2
u =
(I ! J)"J
"J( )
2
+(I ! J)2

Variants of optical ﬂow: Demons

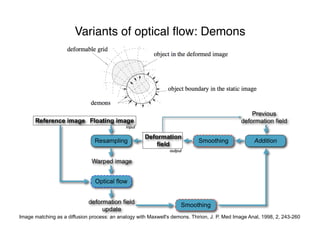

Image matching as a diffusion process: an analogy with Maxwell's demons. Thirion, J. P. Med Image Anal, 1998, 2, 243-260

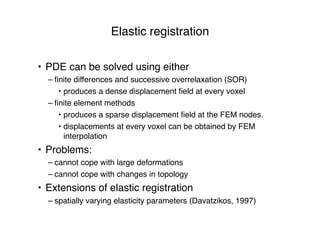

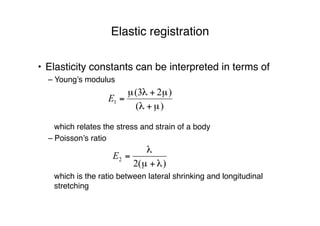

Elastic registration

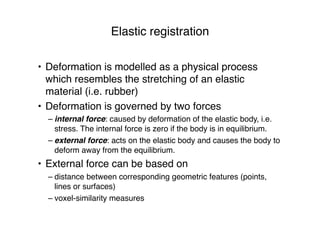

• Deformation is modelled as a physical process
which resembles the stretching of an elastic
material (i.e. rubber)
• Deformation is governed by two forces
– internal force: caused by deformation of the elastic body, i.e.
stress. The internal force is zero if the body is in equilibrium.
– external force: acts on the elastic body and causes the body to
deform away from the equilibrium.
• External force can be based on
– distance between corresponding geometric features (points,
lines or surfaces)
– voxel-similarity measures

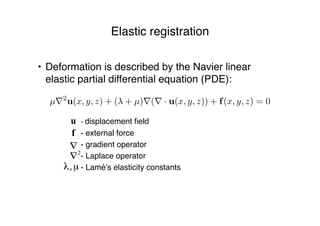

• Deformation is described by the Navier linear
elastic partial differential equation (PDE):
- displacement ﬁeld
- external force
- gradient operator
- Laplace operator
- Lamé’s elasticity constants
µ⇥2
u(x, y, z) + ( + µ)⇥(⇥ · u(x, y, z)) + f(x, y, z) = 0

• Elasticity constants can be interpreted in terms of
– Young’s modulus
– Poisson’s ratio
which relates the stress and strain of a body
which is the ratio between lateral shrinking and longitudinal
stretching

• PDE can be solved using either
– finite differences and successive overrelaxation (SOR)
• produces a dense displacement field at every voxel
– finite element methods
• produces a sparse displacement field at the FEM nodes.
• displacements at every voxel can be obtained by FEM
interpolation
• Problems:
– cannot cope with large deformations
– cannot cope with changes in topology
• Extensions of elastic registration
– spatially varying elasticity parameters (Davatzikos, 1997)

Large
deformation
models
Small
deformation
models
Types of non-rigid transformations
• Parametric transformations
– affine transformations
– polynomial transformations
• linear
• quadratic
• cubic
– spline-based transformations
• Non-parametric transformations
– optical flow type registration (e.g. Demons)
– elastic registration
– fluid or geodesic registration

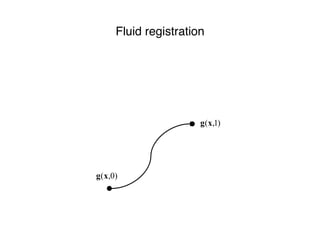

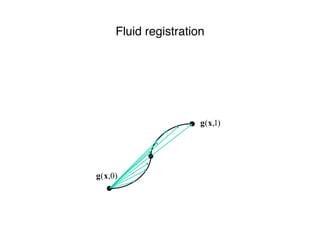

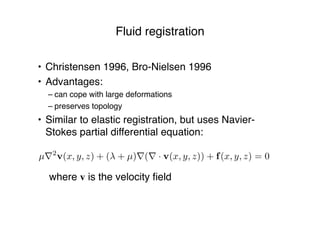

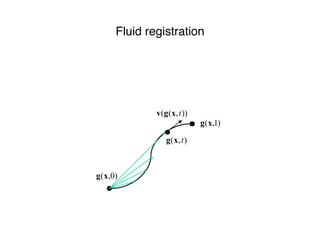

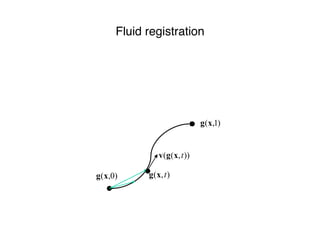

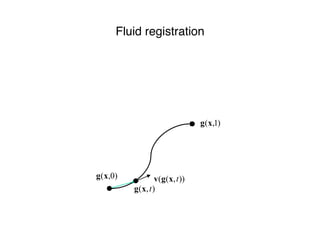

Fluid registration
• Christensen 1996, Bro-Nielsen 1996
• Advantages:
– can cope with large deformations
– preserves topology
• Similar to elastic registration, but uses Navier-
Stokes partial differential equation:
! where v is the velocity ﬁeld
µ⇥2
v(x, y, z) + ( + µ)⇥(⇥ · v(x, y, z)) + f(x, y, z) = 0

x = g(x, 1) = x +
1
t=0
v(g(x, t))dt
Fluid registration

Geodesic registration

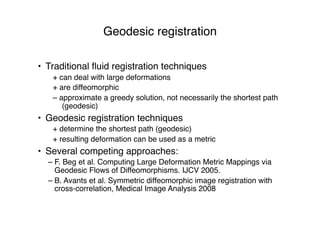

• Traditional ﬂuid registration techniques
+ can deal with large deformations
+ are diffeomorphic
– approximate a greedy solution, not necessarily the shortest path
(geodesic)
• Geodesic registration techniques
+ determine the shortest path (geodesic)
+ resulting deformation can be used as a metric
• Several competing approaches:
– F. Beg et al. Computing Large Deformation Metric Mappings via
Geodesic Flows of Diffeomorphisms. IJCV 2005.
– B. Avants et al. Symmetric diffeomorphic image registration with
cross-correlation, Medical Image Analysis 2008

Thanks to S. Joshi

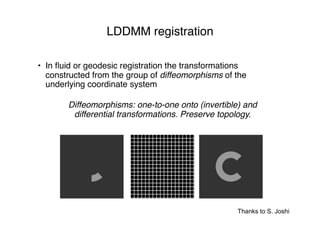

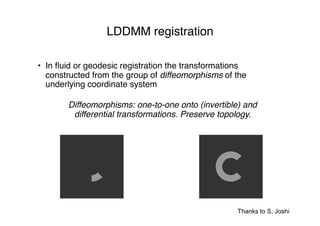

LDDMM registration
• In ﬂuid or geodesic registration the transformations
constructed from the group of diffeomorphisms of the
underlying coordinate system
Diffeomorphisms: one-to-one onto (invertible) and
differential transformations. Preserve topology.

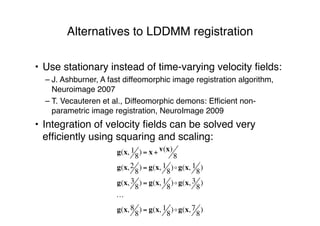

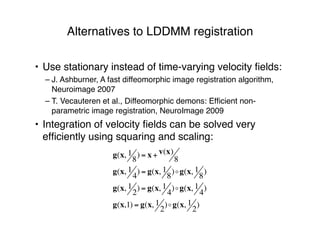

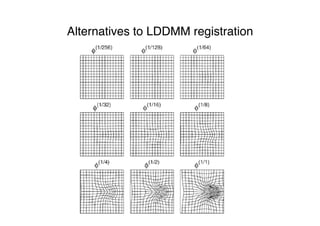

Alternatives to LDDMM registration
• Use stationary instead of time-varying velocity fields:
– J. Ashburner, A fast diffeomorphic image registration algorithm,
Neuroimage 2007
– T. Vecauteren et al., Diffeomorphic demons: Efficient non-
parametric image registration, NeuroImage 2009
• Integration of velocity fields can be solved very
efficiently using squaring and scaling:
g(x, 1
8
) = x + v(x)
8
g(x,2
8
) = g(x, 1
8
)!g(x, 1
8
)
g(x, 3
8
) = g(x, 1
8
)!g(x, 3
8
)
!
g(x, 8
8
) = g(x, 1
8
)!g(x, 7
8
)

• Use stationary instead of time-varying velocity fields:
– J. Ashburner, A fast diffeomorphic image registration algorithm,
Neuroimage 2007
– T. Vecauteren et al., Diffeomorphic demons: Efficient non-
parametric image registration, NeuroImage 2009
• Integration of velocity fields can be solved very
efficiently using squaring and scaling:
g(x, 1
8
) = x + v(x)
8
g(x, 1
4
) = g(x, 1
8
)!g(x, 1
8
)
g(x, 1
2
) = g(x, 1
4
)!g(x, 1
4
)
g(x,1) = g(x, 1
2
)!g(x, 1
2
)

• Determinant of the Jacobian operator
Properties of non-rigid transformations
Jac(u) = det
!ux
!x
!ux
!y
!ux
!z
!uy
!x
!uy
!y
!uy
!z
!uz
!x
!uz
!y
!uz
!z
"
#
$
$
$
$
$
$
$
$
%
&
'
'
'
'
'
'
'
'
Jac(u) Properties
Jac(u) = 1 volume preservation
Jac(u) < 1 local contraction
Jac(u) > 1 local expansion
Jac(u) = ∞ tearing
Jac(u) < 0 folding

Image registration: Adding regularization II
• Local volume preservation (Rohlﬁng, TMI 2003):
• Local rigidity (Loeckx, MICCAI 2004):
• Others are possible, e.g. for topology preservation
P = log(J(x))! dx
P = J(x)J(x)T
!1" dx

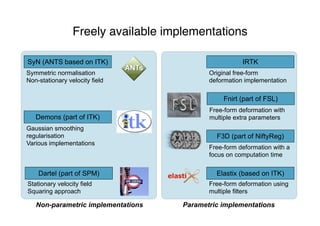

Freely available implementations
SyN (ANTS based on ITK)
Demons (part of ITK)
Dartel (part of SPM)
IRTK
Fnirt (part of FSL)
F3D (part of NiftyReg)
Elastix (based on ITK)
Non-parametric implementations Parametric implementations
Symmetric normalisation
Non-stationary velocity field
Gaussian smoothing
regularisation
Various implementations
Stationary velocity field
Squaring approach
Original free-form
deformation implementation
Free-form deformation with
multiple extra parameters
Free-form deformation with a
focus on computation time
Free-form deformation using
multiple filters
Freely available implementations

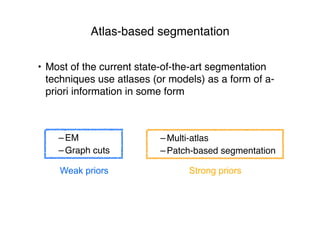

Atlas-based segmentation
• Most of the current state-of-the-art segmentation
techniques use atlases (or models) as a form of a-
priori information in some form
–EM
–Graph cuts
Weak priors
–Multi-atlas
–Patch-based segmentation
Strong priors

What is an atlas?
• An map or chart of the anatomy
• Atlases usually have
– geometric information about points, curves or surfaces, or
– label information about voxels (anatomical regions or function)
• Atlases are usually constructed from
– single subjects
– populations of subjects, e.g. by averaging to produce
probabilistic or statistical atlases
• Atlases vs templates:
– atlas has labels or other information in form of annotations
– templates have appearance or intensity information

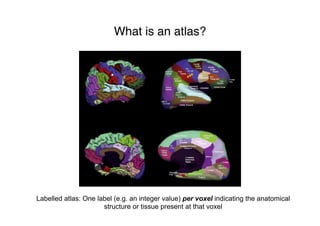

What is an atlas?
Labelled atlas: One label (e.g. an integer value) per voxel indicating the anatomical
structure or tissue present at that voxel

What is an atlas?
Anatomical
template

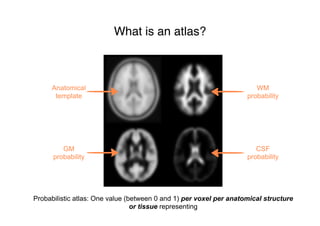

Probabilistic atlas: One value (between 0 and 1) per voxel per anatomical structure
or tissue representing
CSF
probability
GM
probability
WM
probability

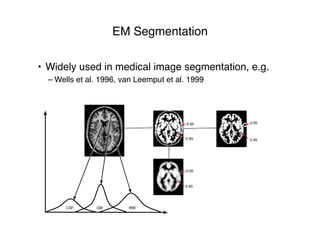

• Widely used in medical image segmentation, e.g.
– Wells et al. 1996, van Leemput et al. 1999
0.95
0.05
0.95
0.95
0.95 0.05
WMGMCSF

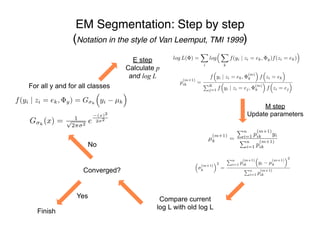

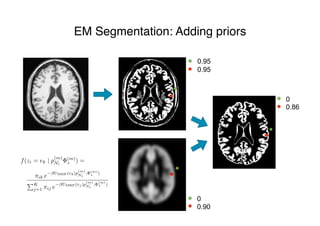

EM Segmentation

EM Segmentation: Step by step
(Notation in the style of Van Leemput, TMI 1999)
For all y and for all classes
E step
Calculate p
and log L
p
(m+1)
ik =
f
⇣
yi | zi = ek,
(m)
y
⌘
f
⇣
zi = ek
⌘
PK
j=1 f
⇣
yi | zi = ej,
(m)
y
⌘
f
⇣
zi = ej
⌘
M step
Update parameters
µ
(m+1)
k =
Pn
i=1 p
(m+1)
ik yi
Pn
i=1 p
(m+1)
ik
⇣
(m+1)
k
⌘2
=
Pn
i=1 p
(m+1)
ik
⇣
yi µ
(m+1)
k
⌘2
Pn
i=1 p
(m+1)
ik
log L( ) =
X
i
log
⇣ X
k
f(yi | zi = ek, y)f(zi = ek)
⌘
Compare current
log L with old log L
Converged?
No
Yes
Finish
G k
(x) = 1p
2⇡ 2
e
(x)2
2 2
f(yi | zi = ek, y) = G k
⇣
yi µk
⌘

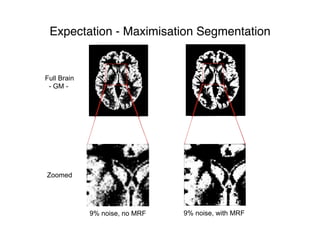

Full Brain
- GM -
Zoomed
9% noise, no MRF
Expectation - Maximisation Segmentation
9% noise, with MRF

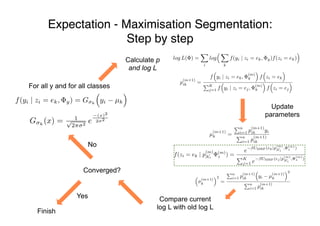

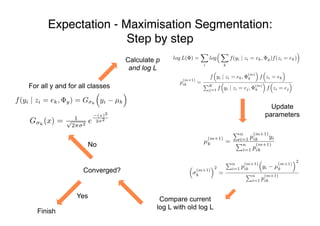

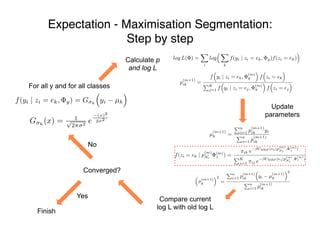

Expectation - Maximisation Segmentation:
Step by step
Calculate p
and log L
p
(m+1)
ik =
f
⇣
yi | zi = ek,
(m)
y
⌘
f
⇣
zi = ek
⌘
PK
j=1 f
⇣
yi | zi = ej,
(m)
y
⌘
f
⇣
zi = ej
⌘
Update
parameters
log L( ) =
X
i
log
⇣ X
k
⌘
Compare current
Converged?
No
Yes
Finish
G k
(x) = 1p
2⇡ 2
e
(x)2
2 2
⇣
yi µk
⌘
µ
(m+1)
k =
Pn
i=1 p
(m+1)
ik yi
Pn
i=1 p
(m+1)
ik
⇣
(m+1)
k
⌘2
=
Pn
i=1 p
(m+1)
ik
⇣
yi µ
(m+1)
k
⌘2
Pn
i=1 p
(m+1)
ik

f(zi = ek | p
(m)
Ni
(m)
z ) =
e
UMRF(ek|p
(m)
Ni
, (m)
z )
PK
j=1 e
UMRF(ej |p
(m)
Ni
,
(m)
z )
Step by step
Calculate p
and log L
p
(m+1)
ik =
f
⇣
yi | zi = ek,
(m)
y
⌘
f
⇣
zi = ek
⌘
PK
j=1 f
⇣
yi | zi = ej,
(m)
y
⌘
f
⇣
zi = ej
⌘
Update
parameters
µ
(m+1)
k =
Pn
i=1 p
(m+1)
ik yi
Pn
i=1 p
(m+1)
ik
⇣
(m+1)
k
⌘2
=
Pn
i=1 p
(m+1)
ik
⇣
yi µ
(m+1)
k
⌘2
Pn
i=1 p
(m+1)
ik
log L( ) =
X
i
log
⇣ X
k
⌘
Compare current
Converged?
No
Yes
Finish
G k
(x) = 1p
2⇡ 2
e
(x)2
2 2
⇣
yi µk
⌘

Step by step
Calculate p
and log L
p
(m+1)
ik =
f
⇣
yi | zi = ek,
(m)
y
⌘
f
⇣
zi = ek
⌘
PK
j=1 f
⇣
yi | zi = ej,
(m)
y
⌘
f
⇣
zi = ej
⌘
Update
parameters
µ
(m+1)
k =
Pn
i=1 p
(m+1)
ik yi
Pn
i=1 p
(m+1)
ik
⇣
(m+1)
k
⌘2
=
Pn
i=1 p
(m+1)
ik
⇣
yi µ
(m+1)
k
⌘2
Pn
i=1 p
(m+1)
ik
log L( ) =
X
i
log
⇣ X
k
⌘
Compare current
Converged?
No
Yes
Finish
G k
(x) = 1p
2⇡ 2
e
(x)2
2 2
⇣
yi µk
⌘
f(zi = ek | p
(m)
Ni
(m)
z ) =
⇡ik e
UMRF(ek|p
(m)
Ni
, (m)
z )
PK
j=1 ⇡ij e
UMRF(ej |p
(m)
Ni
,
(m)
z )

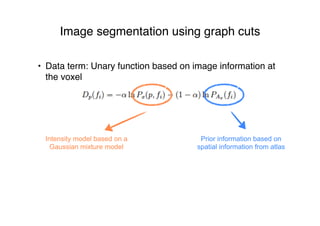

Image segmentation using graph cuts

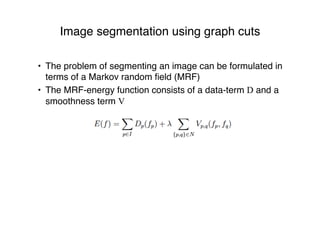

• The problem of segmenting an image can be formulated in
terms of a Markov random ﬁeld (MRF)
• The MRF-energy function consists of a data-term D and a
smoothness term V

• Data term: Unary function based on image information at
the voxel
Prior information based on
spatial information from atlas
Intensity model based on a
Gaussian mixture model

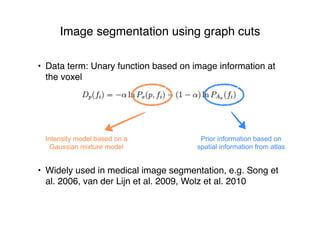

• Data term: Unary function based on image information at
the voxel
• Widely used in medical image segmentation, e.g. Song et
al. 2006, van der Lijn et al. 2009, Wolz et al. 2010
Prior information based on
spatial information from atlas
Intensity model based on a
Gaussian mixture model

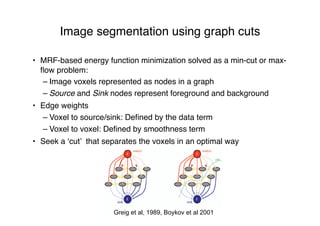

• MRF-based energy function minimization solved as a min-cut or max-
flow problem:
– Image voxels represented as nodes in a graph
– Source and Sink nodes represent foreground and background
• Edge weights
– Voxel to source/sink: Defined by the data term
– Voxel to voxel: Defined by smoothness term
• Seek a ‘cut’ that separates the voxels in an optimal way
Greig et al, 1989, Boykov et al 2001

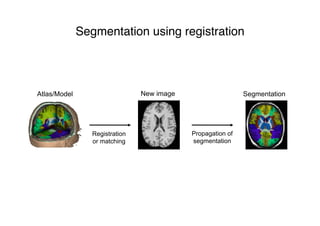

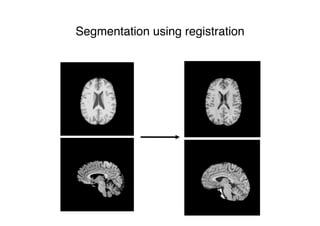

Segmentation using registration
Atlas/Model Segmentation
Registration
or matching
New image
Propagation of
segmentation

Manual segmentation
Automatic segmentation

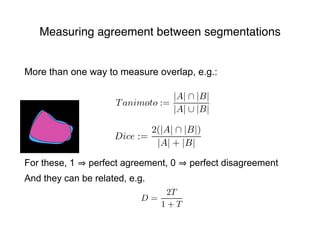

Measuring agreement between segmentations
Tanimoto :=
|A| ∩ |B|
|A| ∪ |B|
Dice :=
2(|A| ∩ |B|)
|A| + |B|
D =
2T
1 + T

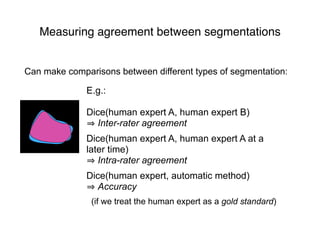

More than one way to measure overlap, e.g.:
For these, 1 perfect agreement, 0 perfect disagreement
And they can be related, e.g.

Measuring agreement between segmentations
Can make comparisons between different types of segmentation:
E.g.:
Dice(human expert A, human expert B)
Inter-rater agreement
Dice(human expert A, human expert A at a
later time)
Intra-rater agreement
Dice(human expert, automatic method)
Accuracy
(if we treat the human expert as a gold standard)

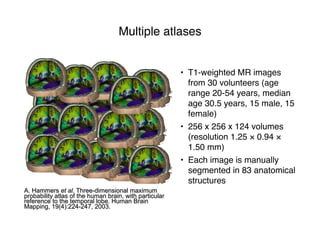

Multiple atlases
• T1-weighted MR images
from 30 volunteers (age
range 20-54 years, median
age 30.5 years, 15 male, 15
female)
• 256 x 256 x 124 volumes
(resolution 1.25 × 0.94 ×
1.50 mm)
• Each image is manually
segmented in 83 anatomical
structures
A. Hammers et al. Three-dimensional maximum
probability atlas of the human brain, with particular
reference to the temporal lobe. Human Brain
Mapping, 19(4):224-247, 2003.

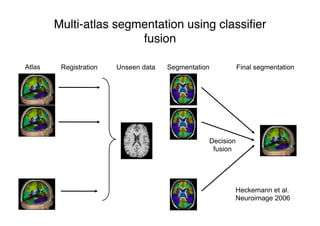

Multi-atlas segmentation using classiﬁer
fusion
Atlas SegmentationRegistration Unseen data
Decision
fusion
Final segmentation
Heckemann et al.
Neuroimage 2006

How do you fuse?
• Global fusion strategies:
– Majority voting
– Weighted voting
• Local fusion strategies:
– Locally weighted fusion
– Simultaneous Truth And Performance Level Estimation
(STAPLE)
• Shape Based Averaging

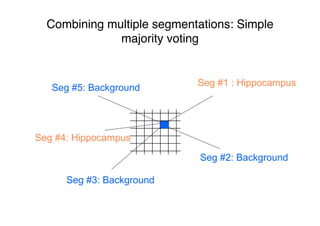

Seg #3: Background
Seg #1 : Hippocampus
Seg #2: Background
Seg #4: Hippocampus
Seg #5: Background
Combining multiple segmentations: Simple
majority voting

Heckemann et al.
Neuroimage 2006
fusion

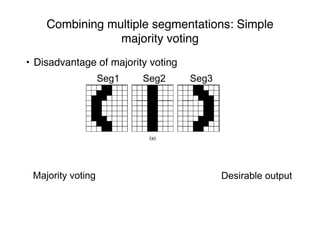

Combining multiple segmentations: VOTE
• Disadvantage of majority voting
Seg1 Seg2 Seg3
Majority voting Desirable output
Combining multiple segmentations: Simple
majority voting

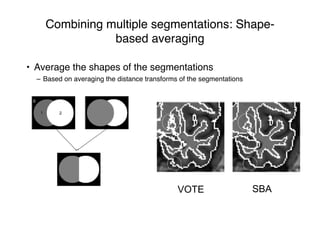

Combining multiple segmentations: SBA
• Average the shapes of the segmentations
– Based on averaging the distance transforms of the segmentations
VOTE SBA
Combining multiple segmentations: Shape-
based averaging

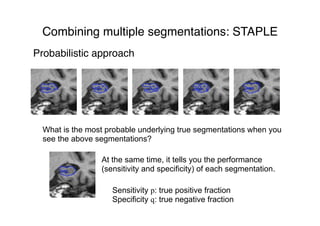

Probabilistic approach
What is the most probable underlying true segmentations when you
see the above segmentations?
At the same time, it tells you the performance
(sensitivity and specificity) of each segmentation.
Sensitivity p: true positive fraction
Specificity q: true negative fraction

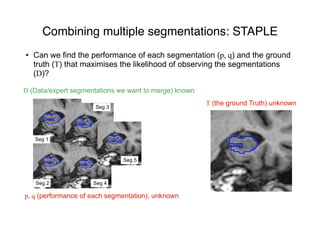

Combining multiple segmentations: STAPLE

• Can we find the performance of each segmentation (p, q) and the ground
truth (T) that maximises the likelihood of observing the segmentations
(D)?
D (Data/expert segmentations we want to merge) known
T (the ground Truth) unknown
Seg 1
Seg 2
Seg 3
Seg 4
Seg 5
p, q (performance of each segmentation), unknown

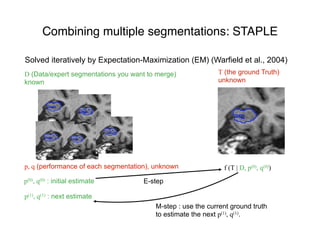

Solved iteratively by Expectation-Maximization (EM) (Warfield et al., 2004)
D (Data/expert segmentations you want to merge)
known
p, q (performance of each segmentation), unknown
T (the ground Truth)
unknown
p(0), q(0) : initial estimate
f (T | D, p(0), q(0))
E-step
p(1), q(1) : next estimate
M-step : use the current ground truth
to estimate the next p(1), q(1).

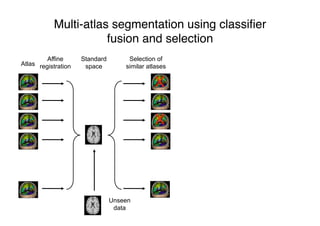

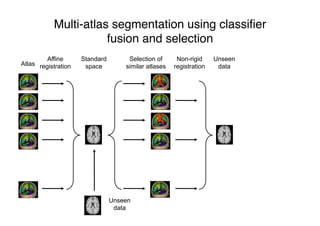

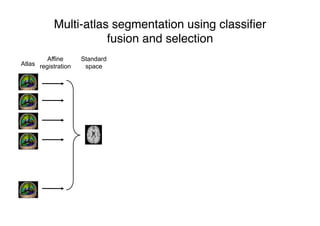

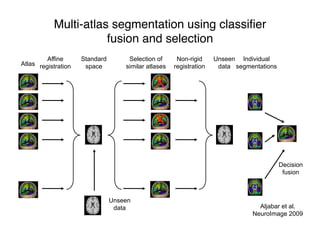

fusion and selection
Atlas
Affine
registration
Standard
space

Atlas
Affine
registration
Standard
space

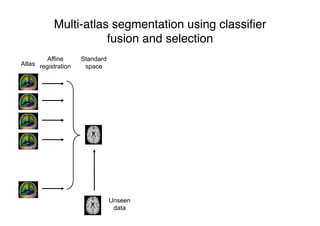

Unseen
data

Atlas
Affine
registration
Standard
space
Selection of
similar atlases
X
X
Unseen
data

Atlas
Affine
registration
Standard
space
Selection of
similar atlases
Non-rigid
registration
X
X
Unseen
data
Unseen
data

Atlas
Affine
registration
Standard
space
Selection of
similar atlases
Non-rigid
registration
X
X
Unseen
data
Individual
segmentations
Decision
fusion
Unseen
data Aljabar et al.
NeuroImage 2009

Aljabar et al.
NeuroImage 2009
naive classifier fusion
classifier selection & fusion

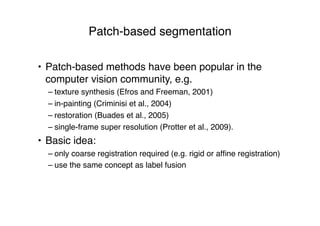

Patch-based segmentation
• Patch-based methods have been popular in the
computer vision community, e.g.
– texture synthesis (Efros and Freeman, 2001)
– in-painting (Criminisi et al., 2004)
– restoration (Buades et al., 2005)
– single-frame super resolution (Protter et al., 2009).
• Basic idea:
– only coarse registration required (e.g. rigid or afﬁne registration)
– use the same concept as label fusion

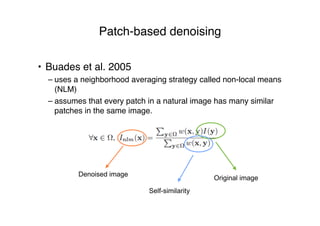

Patch-based denoising
• Buades et al. 2005
– uses a neighborhood averaging strategy called non-local means
(NLM)
– assumes that every patch in a natural image has many similar
patches in the same image.
Denoised image
Original image
Self-similarity

Patch-based denoising
• Buades et al. 2005
– uses a neighborhood averaging strategy called non-local means
(NLM)
– assumes that every patch in a natural image has many similar
patches in the same image.

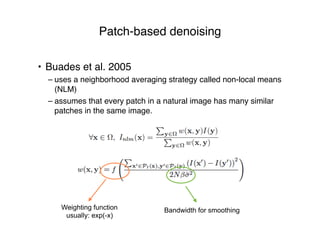

Weighting function
usually: exp(-x)
Bandwidth for smoothing

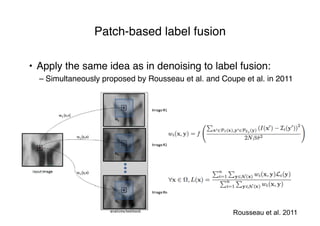

Patch-based label fusion
• Apply the same idea as in denoising to label fusion:

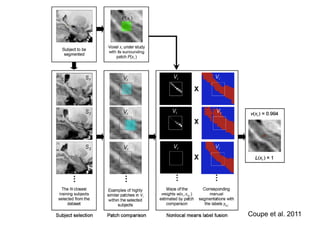

– Simultaneously proposed by Rousseau et al. and Coupe et al. in 2011
Rousseau et al. 2011

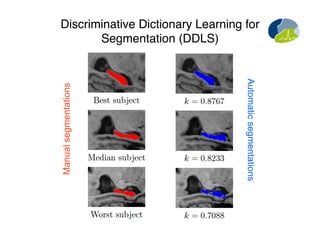

Discriminative Dictionary Learning for
Segmentation (DDLS)
Manualsegmentations
Automaticsegmentations

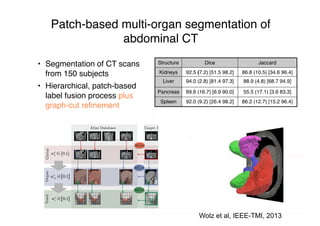

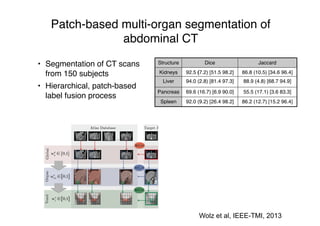

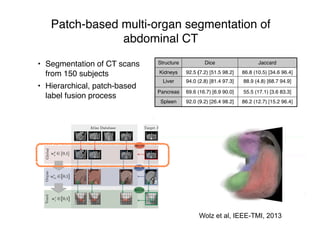

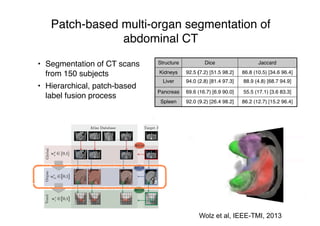

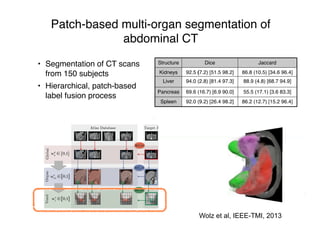

Patch-based multi-organ segmentation of
abdominal CT
• Segmentation of CT scans
from 150 subjects
• Hierarchical, patch-based
label fusion process
Structure Dice Jaccard
Kidneys 92.5 (7.2) [51.5 98.2] 86.8 (10.5) [34.6 96.4]
Liver 94.0 (2.8) [81.4 97.3] 88.9 (4.8) [68.7 94.9]
Pancreas 69.6 (16.7) [6.9 90.0] 55.5 (17.1) [3.6 83.3]
Spleen 92.0 (9.2) [26.4 98.2] 86.2 (12.7) [15.2 96.4]
Wolz et al, MICCAI, 2013Wolz et al, IEEE-TMI, 2013

abdominal CT
from 150 subjects
label fusion process
Kidneys 92.5 (7.2) [51.5 98.2] 86.8 (10.5) [34.6 96.4]
Liver 94.0 (2.8) [81.4 97.3] 88.9 (4.8) [68.7 94.9]
Pancreas 69.6 (16.7) [6.9 90.0] 55.5 (17.1) [3.6 83.3]
Spleen 92.0 (9.2) [26.4 98.2] 86.2 (12.7) [15.2 96.4]
Wolz et al, IEEE-TMI, 2013

abdominal CT
from 150 subjects
label fusion process plus
graph-cut reﬁnement
Kidneys 92.5 (7.2) [51.5 98.2] 86.8 (10.5) [34.6 96.4]
Liver 94.0 (2.8) [81.4 97.3] 88.9 (4.8) [68.7 94.9]
Pancreas 69.6 (16.7) [6.9 90.0] 55.5 (17.1) [3.6 83.3]
Spleen 92.0 (9.2) [26.4 98.2] 86.2 (12.7) [15.2 96.4]
Wolz et al, IEEE-TMI, 2013

Medical image computing - BMVA summer school 2014

More Related Content

What's hot

Similar to Medical image computing - BMVA summer school 2014

More from potaters

Recently uploaded

Medical image computing - BMVA summer school 2014
