The document presents a method for real-time detection and tracking of multiple objects in H.264/AVC bitstreams using partial decoding, which improves reliability and performance over previous approaches. It outlines stages of the proposed algorithm including extraction and refinement phases, employing techniques like probabilistic spatiotemporal filtering and background subtraction. Experimental results demonstrate the system's efficiency, processing 49.5 frames per second in indoor settings and 37.12 frames per second outdoors.

1. Real-time Detection and Tracking of Multiple Objects with Partial Decoding in H.264/AVC Bitstream Domain Wonsang You University of Augsburg, Germany Electronic Imaging, 19 January 2009

2. MOTIVATION Real-time Object Detection and Tracking in H.264|AVC Bitstream

3. Pixel Domain Approach Categories of Object Detection and Tracking Approaches. Pixel domain approach Compressed domain approach Pixel domain approach. Using raw pixel data High accuracy High computational complexity Require additional computation for compressed videos Compressed domain approach Exploit encoded information (DCT, motion vectors, etc) Poor performance Applicable for simple scenarios Weak for occlusion

4. Compressed Domain Approach Basic idea Exploit encoded information (DCT, motion vectors, etc) Advantages Remarkably fast processing time Adaptive to compressed videos Disadvantages Unreliability of encoded information Sparse assignment of block-based data Poor performance Applicable for simple scenarios Weak for occlusion

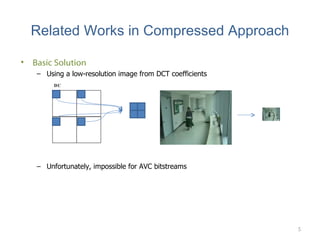

5. Related Works in Compressed Approach Basic Solution Using a low-resolution image from DCT coefficients Unfortunately, impossible for AVC bitstreams DC

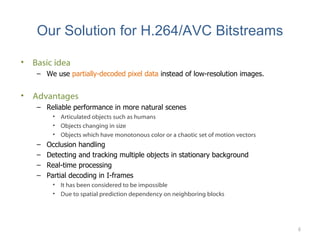

6. Our Solution for H.264/AVC Bitstreams Basic idea We use partially-decoded pixel data instead of low-resolution images. Advantages Reliable performance in more natural scenes Articulated objects such as humans Objects changing in size Objects which have monotonous color or a chaotic set of motion vectors Occlusion handling Detecting and tracking multiple objects in stationary background Real-time processing Partial decoding in I-frames It has been considered to be impossible Due to spatial prediction dependency on neighboring blocks

7. Overview of the Proposed Algorithm Extraction Phase Probabilistic Spatiotemporal Macroblock Filtering Roughly extracting the block-level region of objects Constructing the approximate object trajectories in each P-frame Refinement Phase Accurately refining the obect trajectories Background subtraction and partial decoding in I-frames Motion interpolation in P-frames

8. EXTRACTION PHASE Real-time Object Detection and Tracking in H.264|AVC Bitstream

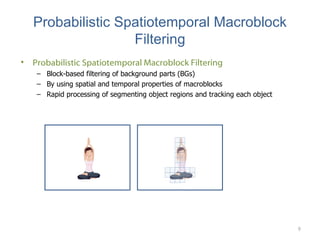

9. Probabilistic Spatiotemporal Macroblock Filtering Probabilistic Spatiotemporal Macroblock Filtering Block-based filtering of background parts (BGs) By using spatial and temporal properties of macroblocks Rapid processing of segmenting object regions and tracking each object

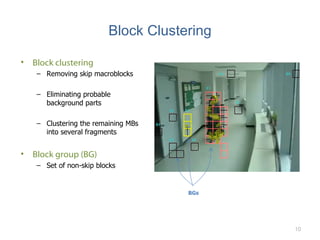

10. Block Clustering Block clustering Removing skip macroblocks Eliminating probable background parts Clustering the remaining MBs into several fragments Block group (BG) Set of non-skip blocks BGs

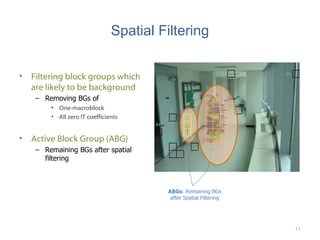

11. Spatial Filtering Filtering block groups which are likely to be background Removing BGs of One-macroblock All zero IT coefficients Active Block Group (ABG) Remaining BGs after spatial filtering ABGs : Remaining BGs after Spatial Filtering

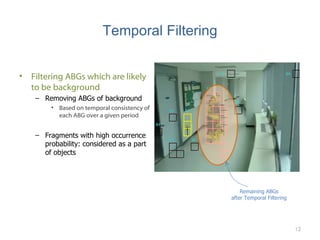

12. Temporal Filtering Filtering ABGs which are likely to be background Removing ABGs of background Based on temporal consistency of each ABG over a given period Fragments with high occurrence probability: considered as a part of objects Remaining ABGs after Temporal Filtering

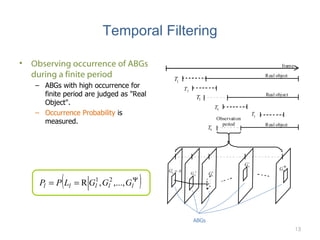

13. Temporal Filtering Observing occurrence of ABGs during a finite period ABGs with high occurrence for finite period are judged as "Real Object". Occurrence Probability is measured. ABGs

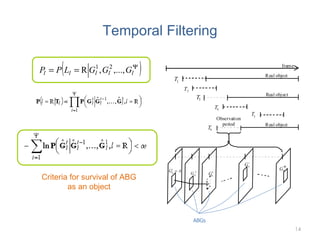

14. Temporal Filtering ABGs Criteria for survival of ABG as an object

15. REFINEMENT PHASE Real-time Object Detection and Tracking in H.264|AVC Bitstream

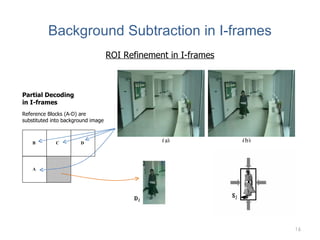

16. Background Subtraction in I-frames Reference Blocks (A-D) are substituted into background image Partial Decoding in I-frames ROI Refinement in I-frames A B C D

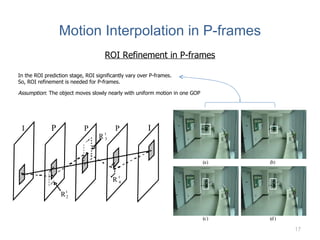

17. Motion Interpolation in P-frames Assumption : The object moves slowly nearly with uniform motion in one GOP ROI Refinement in P-frames In the ROI prediction stage, ROI significantly vary over P-frames. So, ROI refinement is needed for P-frames.

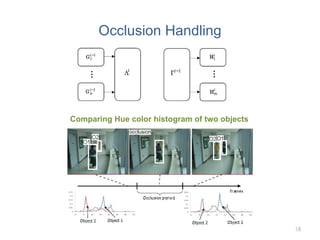

18. Occlusion Handling Comparing Hue color histogram of two objects

19. Experimental Results (1/3) Indoor Sequence: 49.5 frames/sec Ourdoor Sequence: 37.12 frames/sec

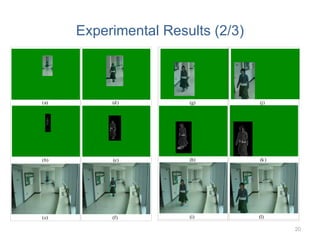

20. Experimental Results (2/3)

21. Experimental Results (3/3)

22. Thank You! Wonsang You [email_address] University of Augsburg Germany
